Kenmore 796.7927 User Manual [en, es]
Use & Care Guide Manual de Uso y Cuidado
English/Español
Models/Modelos: 796.6927#,796.7927#
Kenmore Elite
# = color number, numero de color
P/N MFL62512818
Sears Brands Management
Corporation, Hoffman Estates,
IL 60179 USA
www.sears.com
www.sears.ca
Sanitization Performance of
Residential Clothes dryer
Protocol P154
Protocolo P154
Ejecución de Saneamiento en la
zona residencial Secadoras
TABLE OF CONTENTS PROTECTION AGREEMENTS
IMPORTANT SAFETY INSTRUCTIONS
c;aFFTY ri
IMPORTANT SAFETY INSTRUCTIONS '.3—6
FEATURES AND BENEFITS

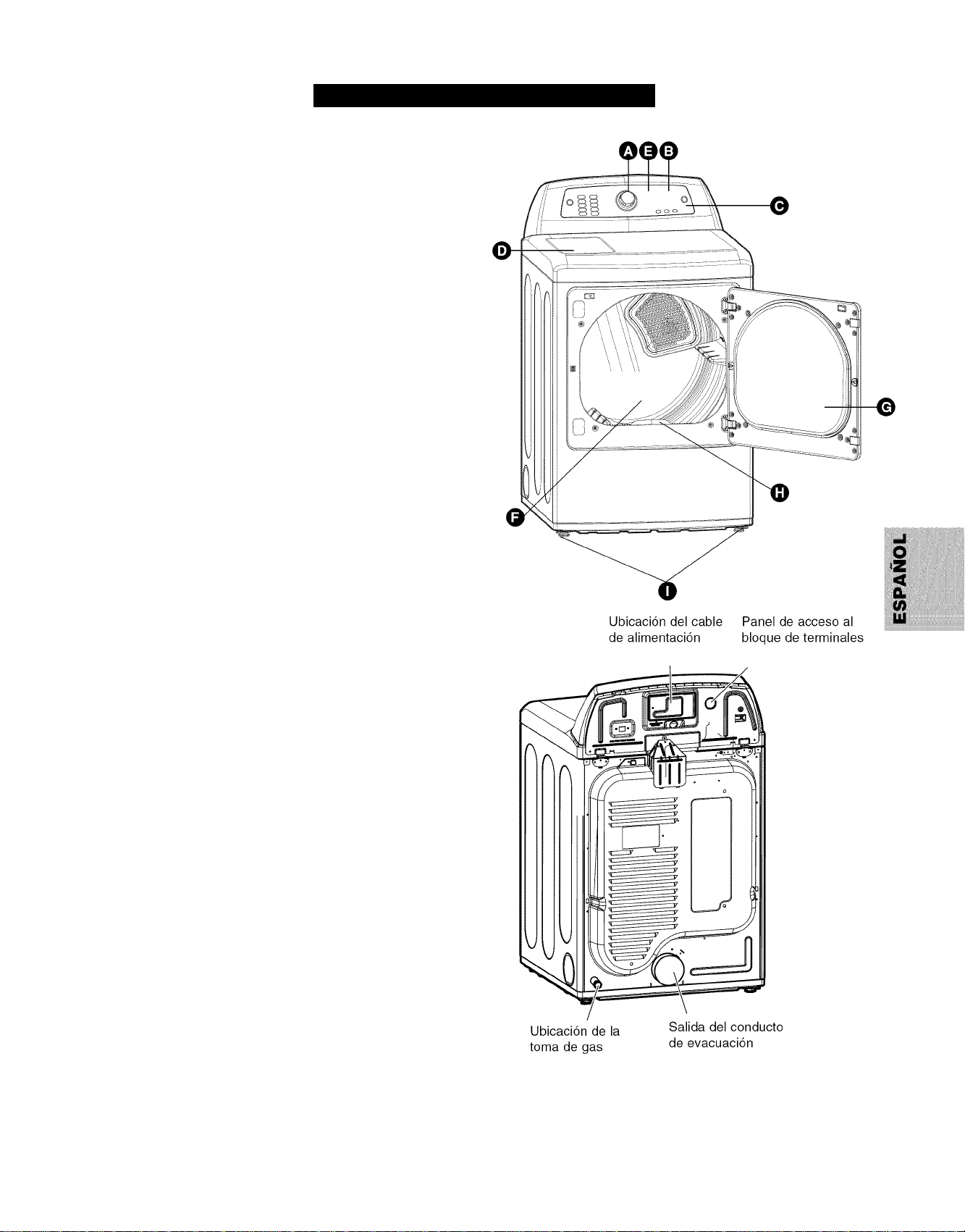

Key Parts and Components......................................... 7
INSTALLATION INSTRUCTIONS

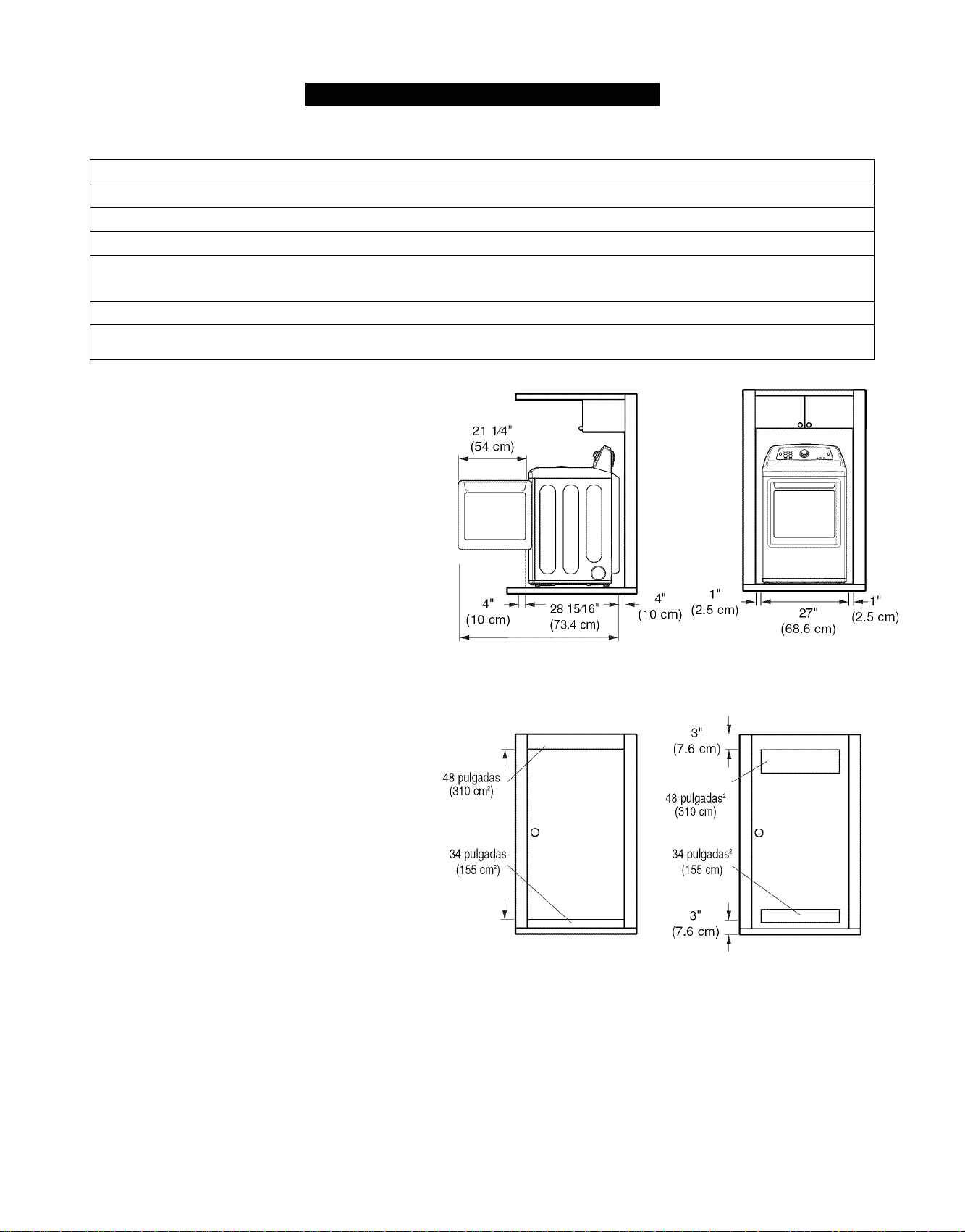

Key Dimensions and Specifications
Location Requirements
Choose the Proper Location
Clearances
Optional Accessories..................................................9
Gas Requirements

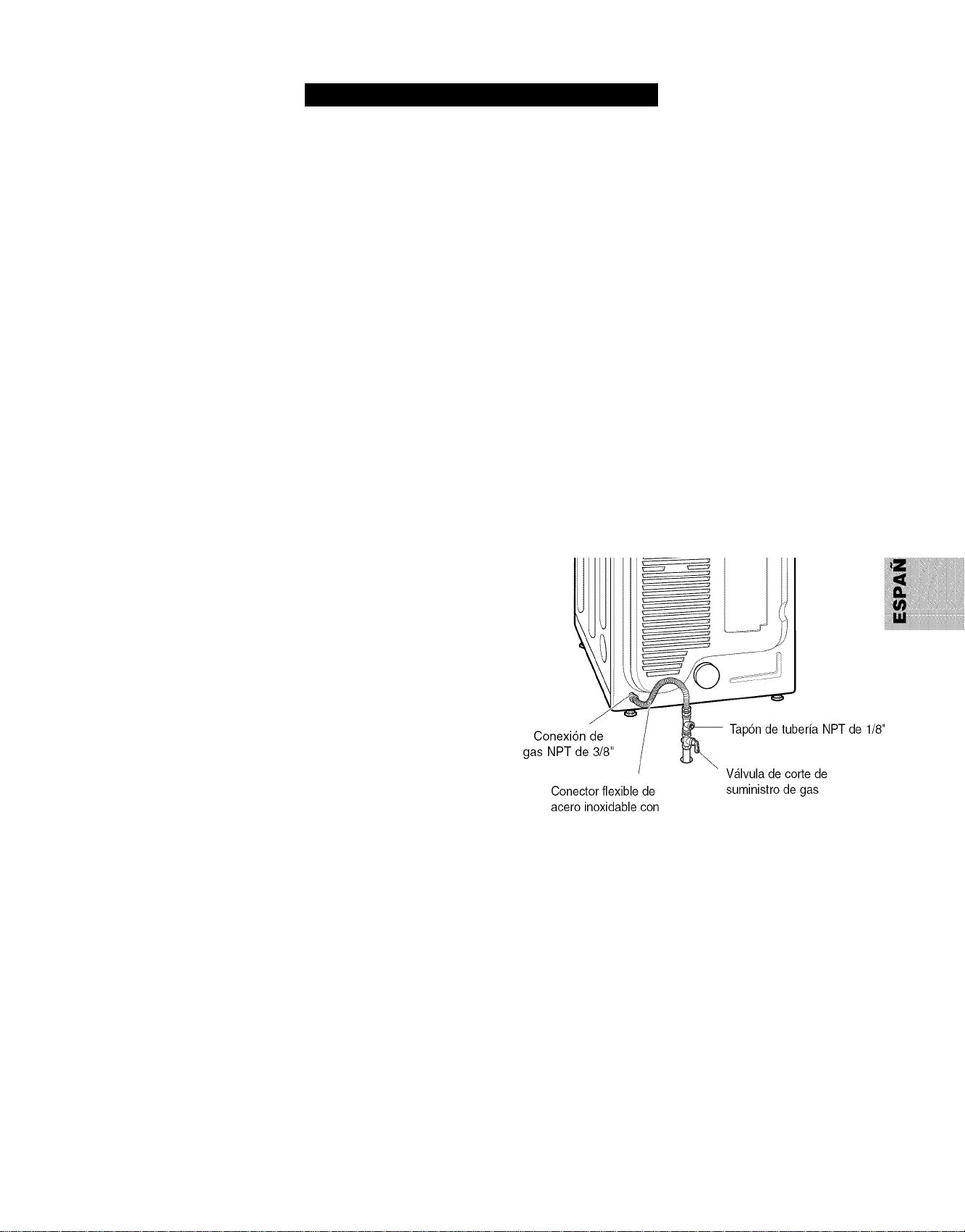

Connecting Gas Dryers........................................10,11
Electrical Requirements

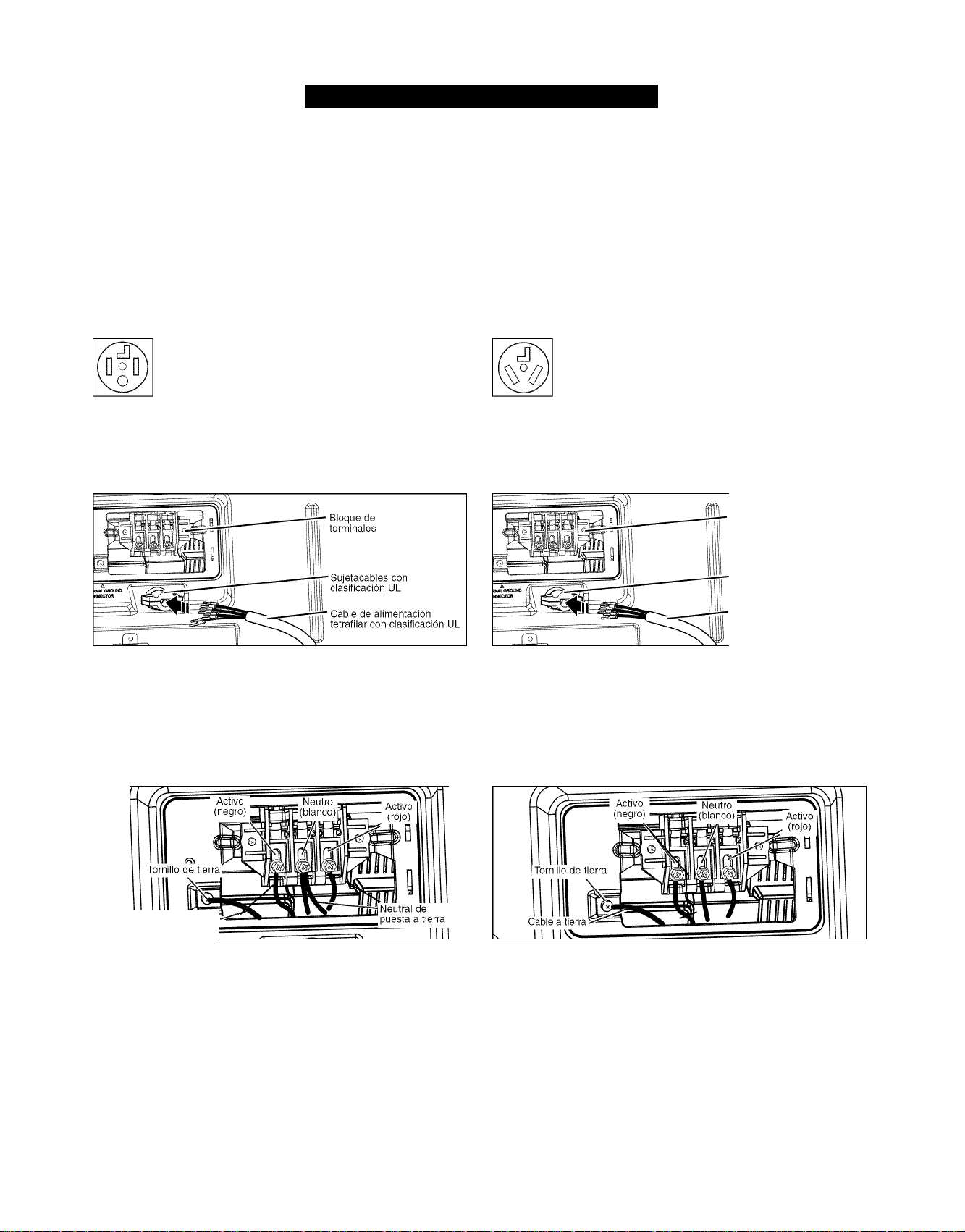

Connecting Electric Dryers....................................12,13
Venting the Dryer................................................14,15

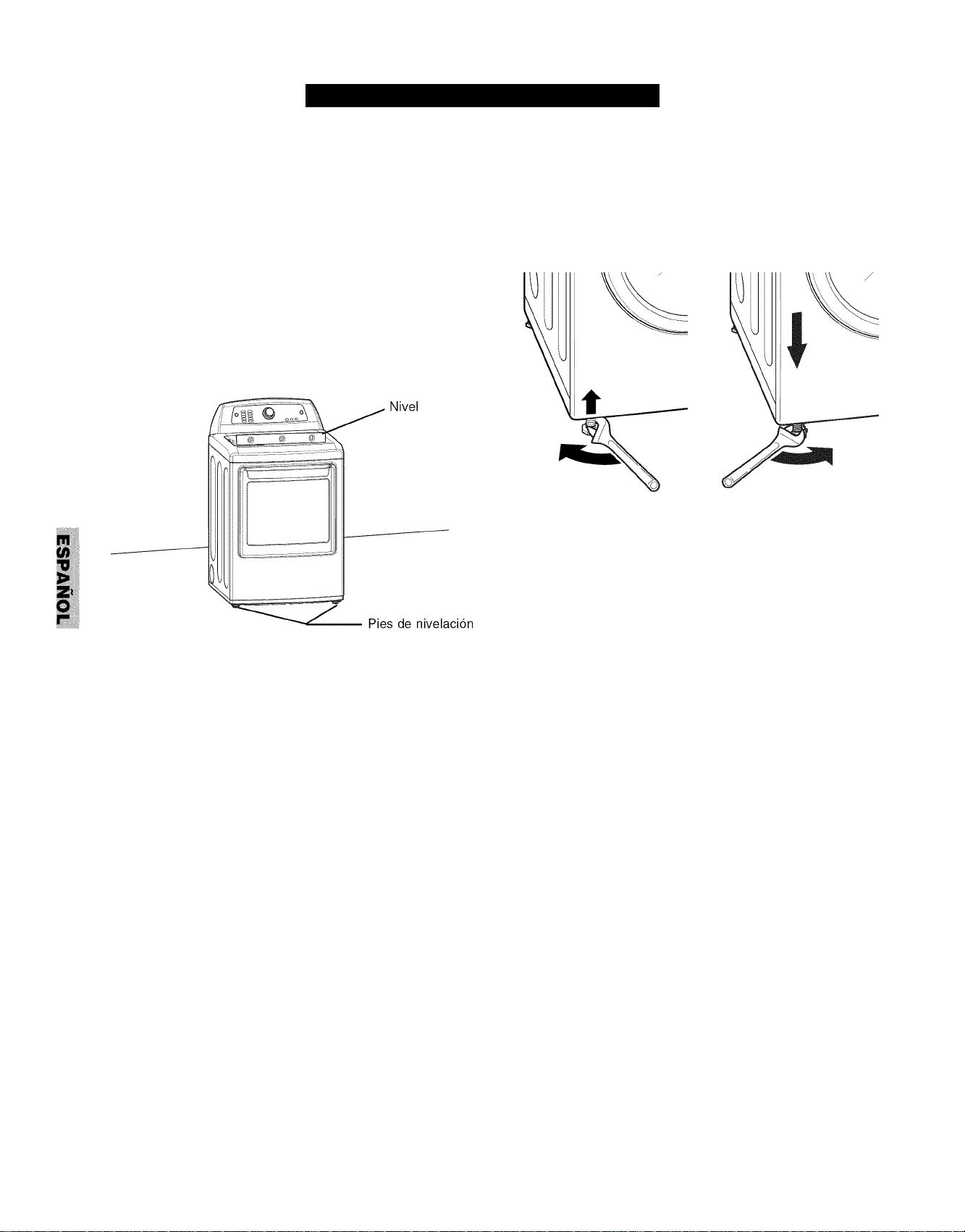

Leveling the Dryer

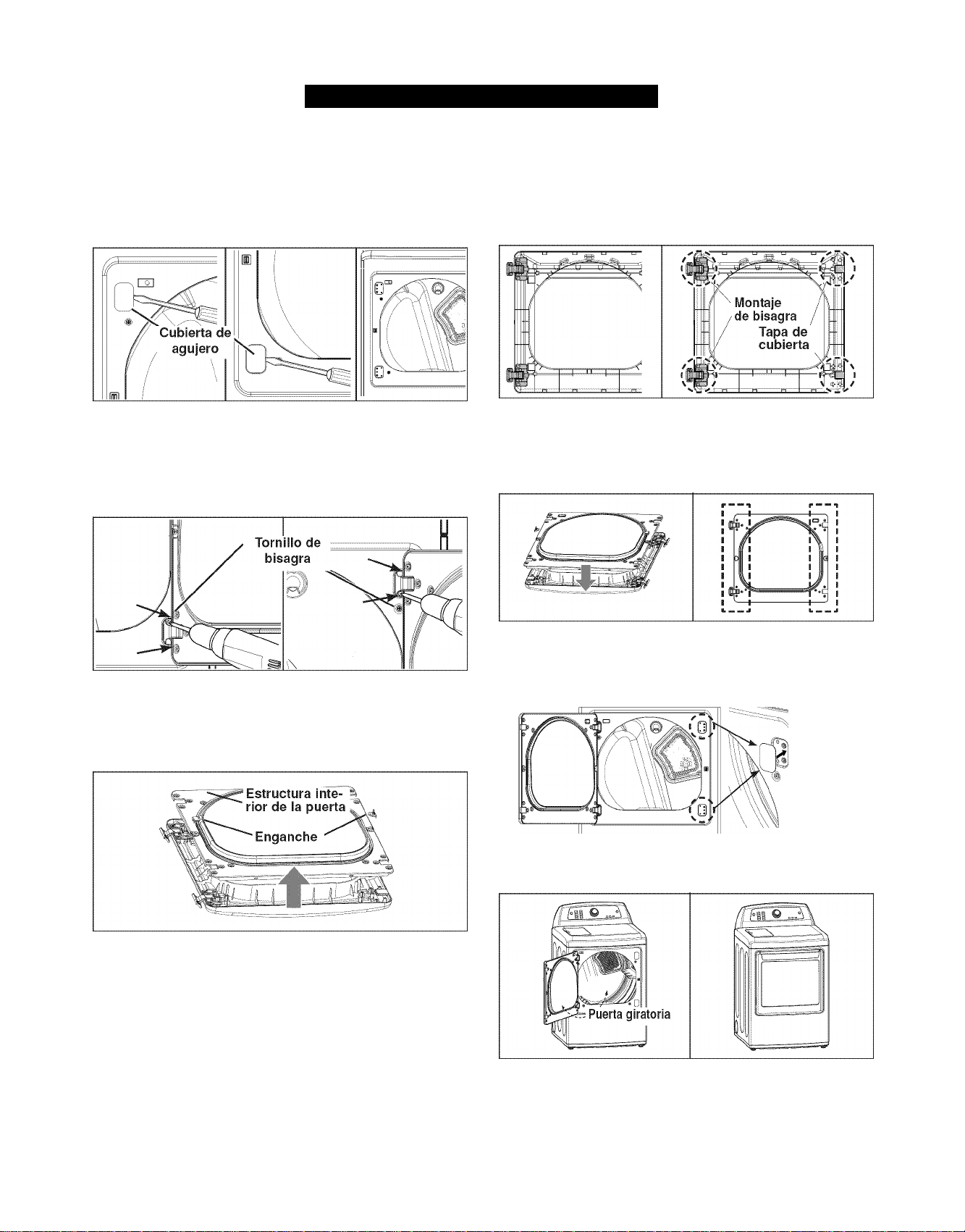

Reversing the Door..................................................17
Final Installation Check.............................................18
...............................................................
..............................................
...................................................
............................................
...................................................
..............................
........................................
10
12
16
HOW TO USE

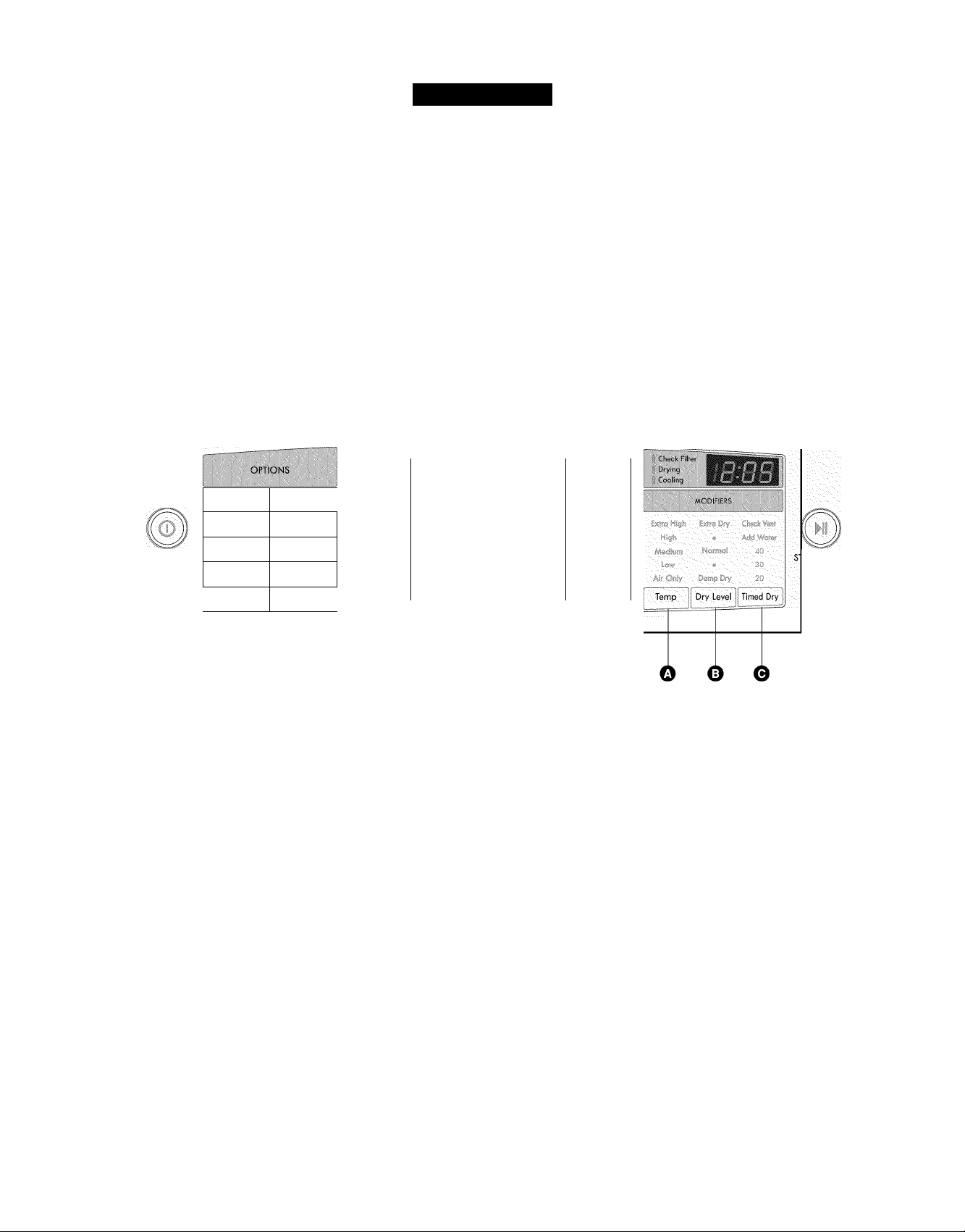

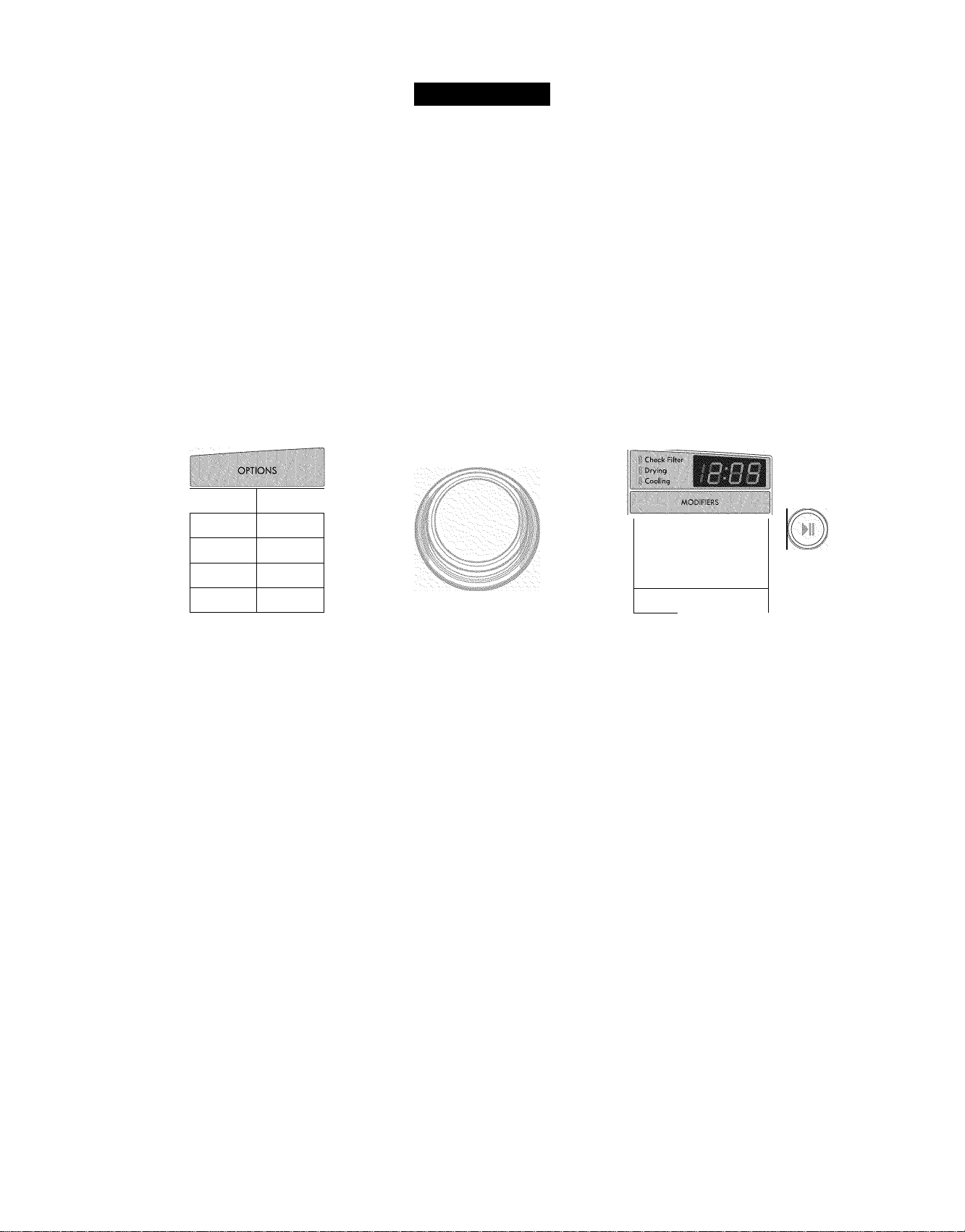

Control Panel Features
ffl Operating the Dryer
2 Cycle Guide
A Sorting Loads.......................................................... 22
iL Loading the Dryer
_ Time and Status Display................................................. 23
ifi Cycle Modifier Buttons
X Cycle Options and Special Features
Steam Features .......................................................25
Wrinkle Guard......................................................... 25
Control Lock........................................................... 25
My Cycle................................................................ 25
Drum Light.............................................................25
Sanitize Cycle..........................................................25
Rack Dry Cycle........................................................25
Steam Functions......................................................26
About Steam...........................................................26
Using the STEAM REFRESH Cycle
Using the STATIC SHIELD Option................................26

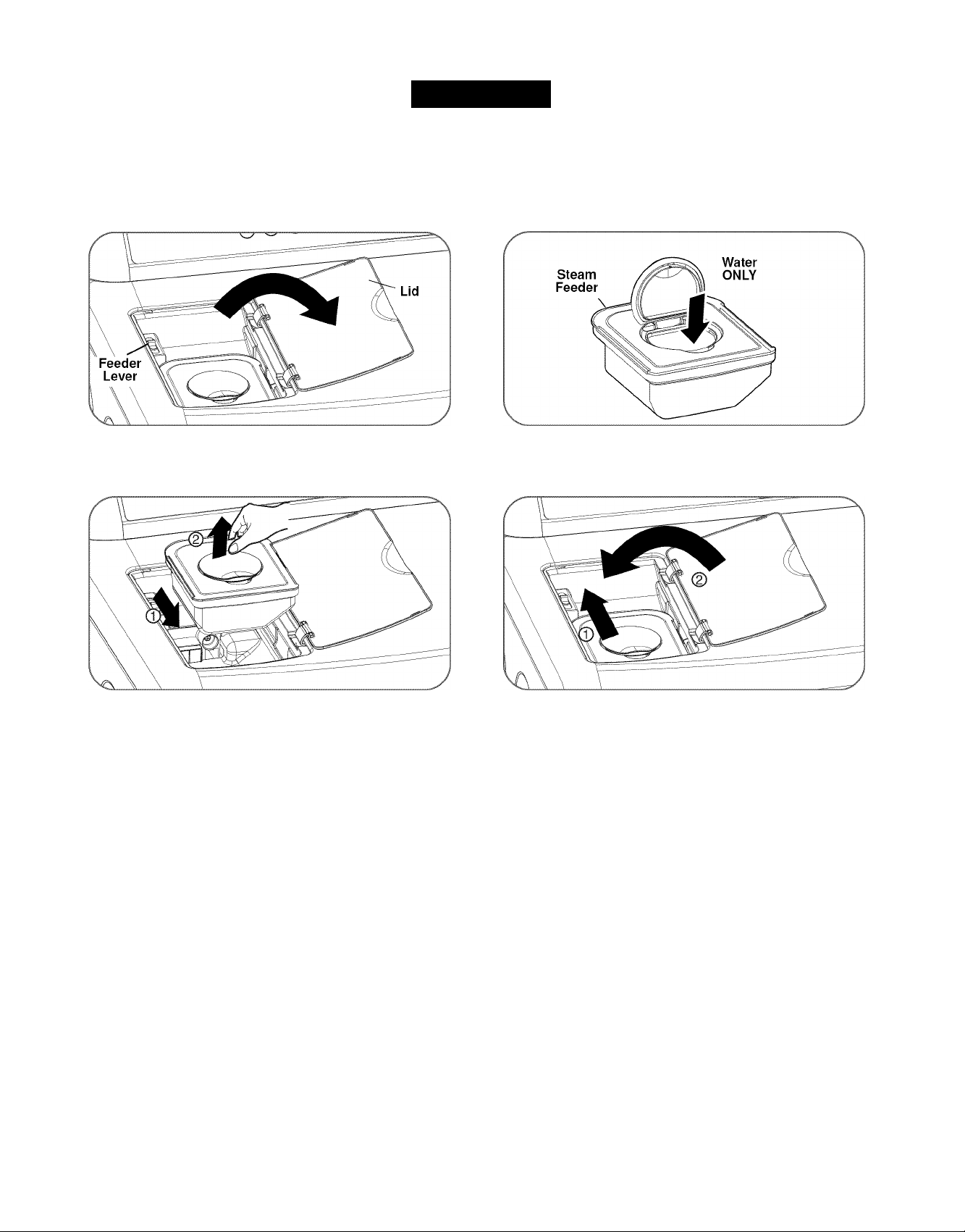

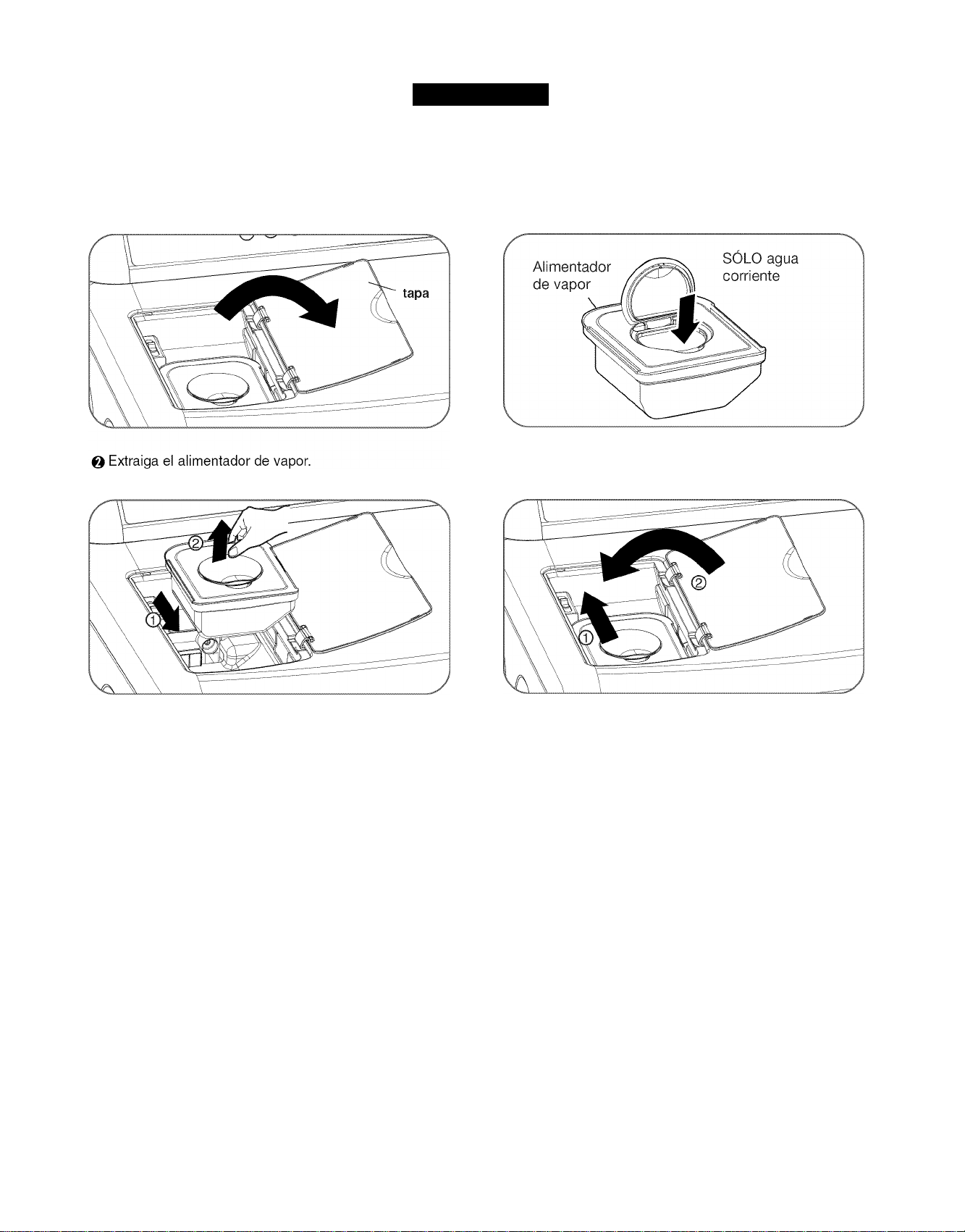

To Fill the Steam Feeder............................................27
Important Notes about Steam Cycles
.................................................................
.............................................
.....................................................
....................................................
..............................................
.............................
................................
..........................
19
20
21
22
24
25
26
27
USER MAINTENANCE INSTRUCTIONS
Regular Cleaning..................................................... 28
Cleaning the Exterior
Cleaning the Interior
Cleaning Around and Under the Dryer
Maintaining the Ductwork.........................................28

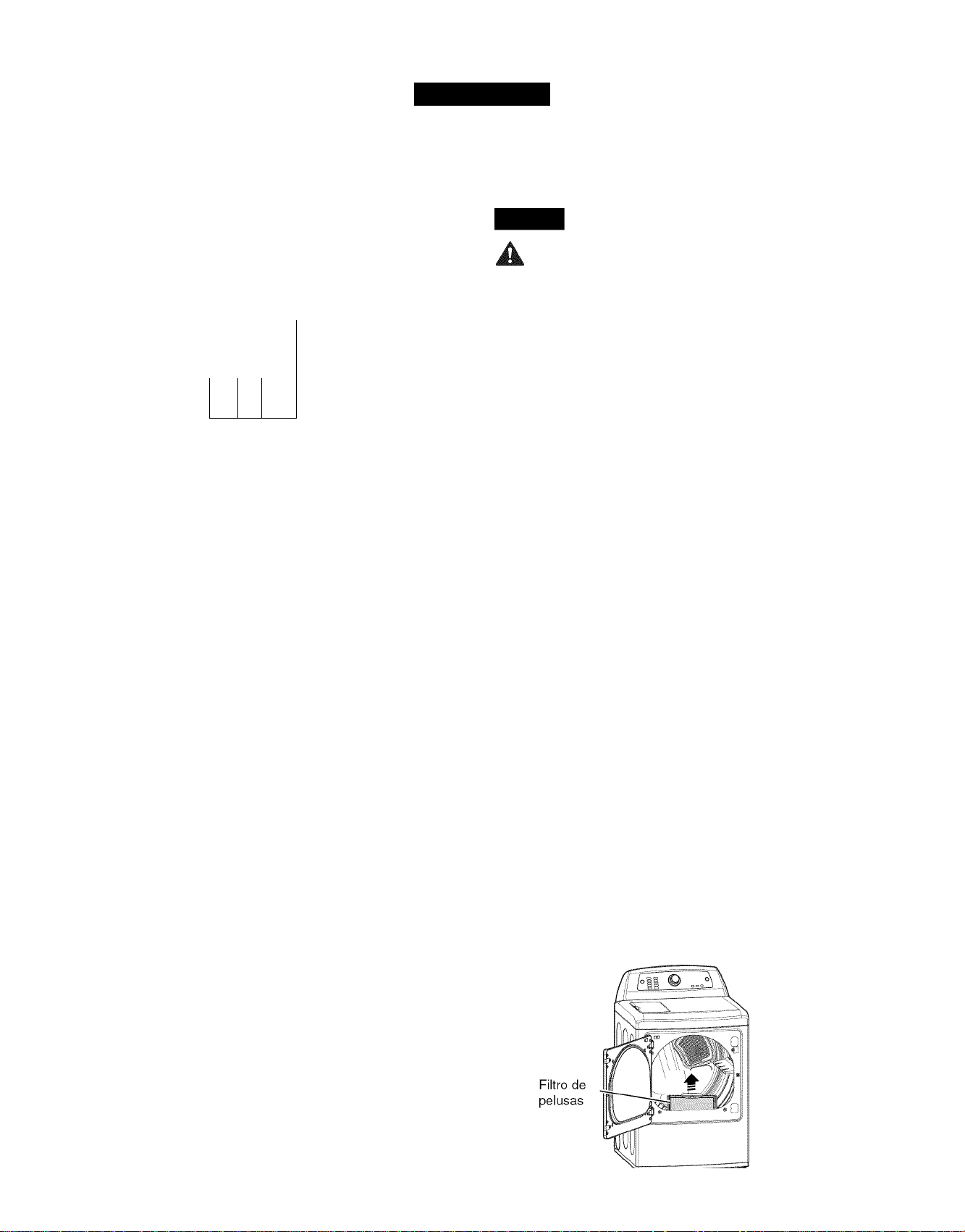

Cleaning the Lint Filter..............................................28
...............................................
................................................
........................
28
28
28
TROUBLESHOOTING GUIDE
Before Calling for Service
.....................................
29—32
OPTIONAL ACCESSORIES
Optional Accessories................................................33
Side Venting Kit Installation
.......................................
34
WARRANTY........................................................... 35
PRODUCT RECORD
In the space below, record the date of purchase, model,
and serial number of your product. You will find the
model and serial number printed on an identification
plate located inside the dryer door. Have these items
of information available whenever you contact Sears
concerning your product.
Model No.
Date of Purchase
Serial No.
Save these instructions and your sales receipt for
future reference.
________
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore* product is designed and manufactured for
years of dependable operation. But like all products, it
may require preventive maintenance or repair from time
8
8
8
8
to time. That’s when having a Master Protection Agreement
can save you money and aggravation.
The Master Protection Agreement also helps extend the
life of your new product. Here’s what the Agreement*
includes:
• Parts and labor needed to help keep products oper
ating properly under normal use, not just defects.
Our coverage goes well beyond the product war
ranty. No deductible, no functional failure excluded
from coverage—real protection.
• Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your prod
uct.
Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
No-lemon guarantee—replacement of your covered
product if four or more product failures occur within
twelve months.
Product replacement if your covered product can’t
be fixed.
Annual Preventive Maintenance Check at your
request—no extra charge.
Fast help by phone—we call it Rapid Resolution.
Phone support from a Sears representative on all
products. Think of us as a talking owner’s manual.
Power surge protection against electrical damage
due to power fluctuations.
$250 food loss protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
Rental reimbursement if repair of your covered
product takes longer than promised.
10% discount off the regular price of any non-cov
ered repair service and related installed parts.
Once you purchase the Agreement, a simple phone call
is all that it takes for you to schedule service. You can
call anytime day or night or schedule a service appoint
ment online.
The Master Protection Agreement is a risk free pur
chase. If you cancel for any reason during the product
warranty period, we will provide a full refund. Or a pro
rated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement
today!
Some limitations and exclusions apply.
For prices and additional Information In the U.S.A.
call 1-800-827-6655.
‘Coverage In Canada varies on some Items.
For full details call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada, call
1-800-4-MY-HOME».
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
A WARNING For your safety, the information in this manuai must be foiiowed to
minimize the risk of fire or expiosion, eiectric shock, or to prevent property damage, personai injury,
or ioss of life.
Your Safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
A
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.
These words mean:
A DANGER: You can be killed or seriously injured if you don’t immediately follow instructions.
A WARNING: You can be killed or seriously injured if you don’t follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
V______________________________________________________________________________________________________________________ y

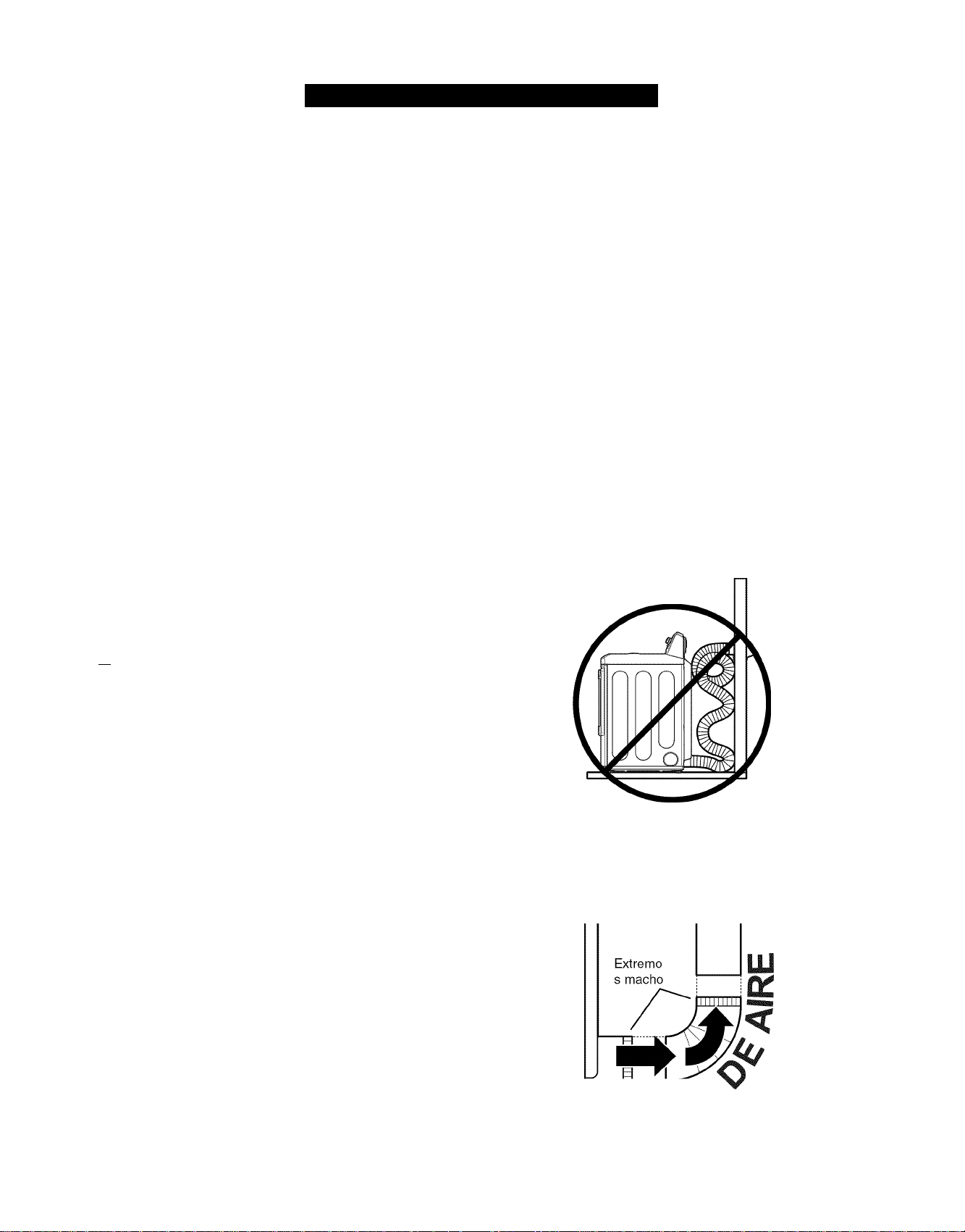

Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct
is installed, it must be of a specific type identified by the appliance manufacturer as suitable for
use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and
trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance
or any other appliances.
Installation and service must be performed by a qualified installer, service agency, or the gas
supplier.
Install the clothes dryer according to the manufacturer’s instructions and local codes.
Save these instructions.
WHAT TO DO IF YOU SMELL GAS:
1. Do not try to light a match or cigarette, or turn on any gas or electrical appliance.
2. Do not touch any electrical switches. Do not use any phone in your building.
(/)
O
z
u
3. Clear the room, building, or area of all occupants.
4. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions
carefully.
5. If you cannot reach your gas supplier, call the fire department.
IMPORTANT SAFETY INSTRUCTIONS
BASIC SAFETY PRECAUTIONS
A WARNING : To reduce the risk of fire, electric
follow basic precautions, Including the following:
• Read all instructions before using the dryer.
• Before use, the dryer must be properly installed as
described in this manual.
• Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a
load to catch fire.
• Do not dry articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, or other flammable or explosive
substances as they give off vapors that could ignite or
m
explode.
Z
• Do not reach into the dryer if the drum or any other
O
part is moving.
• Do not repair or replace any part of the dryer or
w
attempt any servicing unless specifically
recommended in this Use and Care Guide or in
published user-repair instructions that you understand
and have the skills to carry out.
• Do not tamper with controls.
• Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
shock, or Injury to persons when using this appliance,
• Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
• Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of the
fabric softener or product.
• Do not use heat to dry articles containing foam rubber
or similarly textured rubber-like materials.
• Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint,
dust, and dirt.
• The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
• Do not install or store the dryer where it will be
exposed to the weather.
• Always check the inside of the dryer for foreign
objects.
• Clean lint filter before or after each load.
CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT
This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects,
or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde,
and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by
properly venting the dryer to the outdoors.

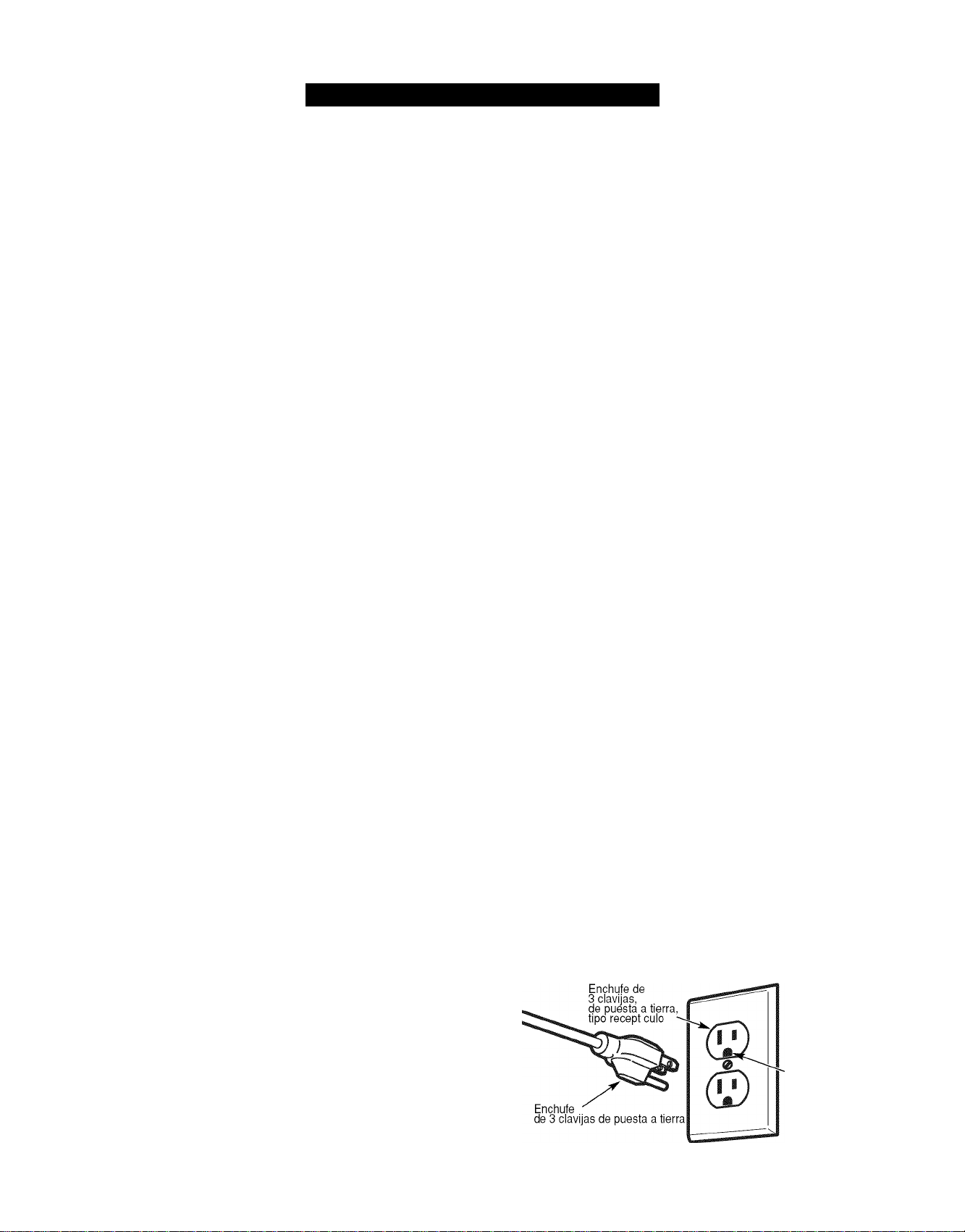

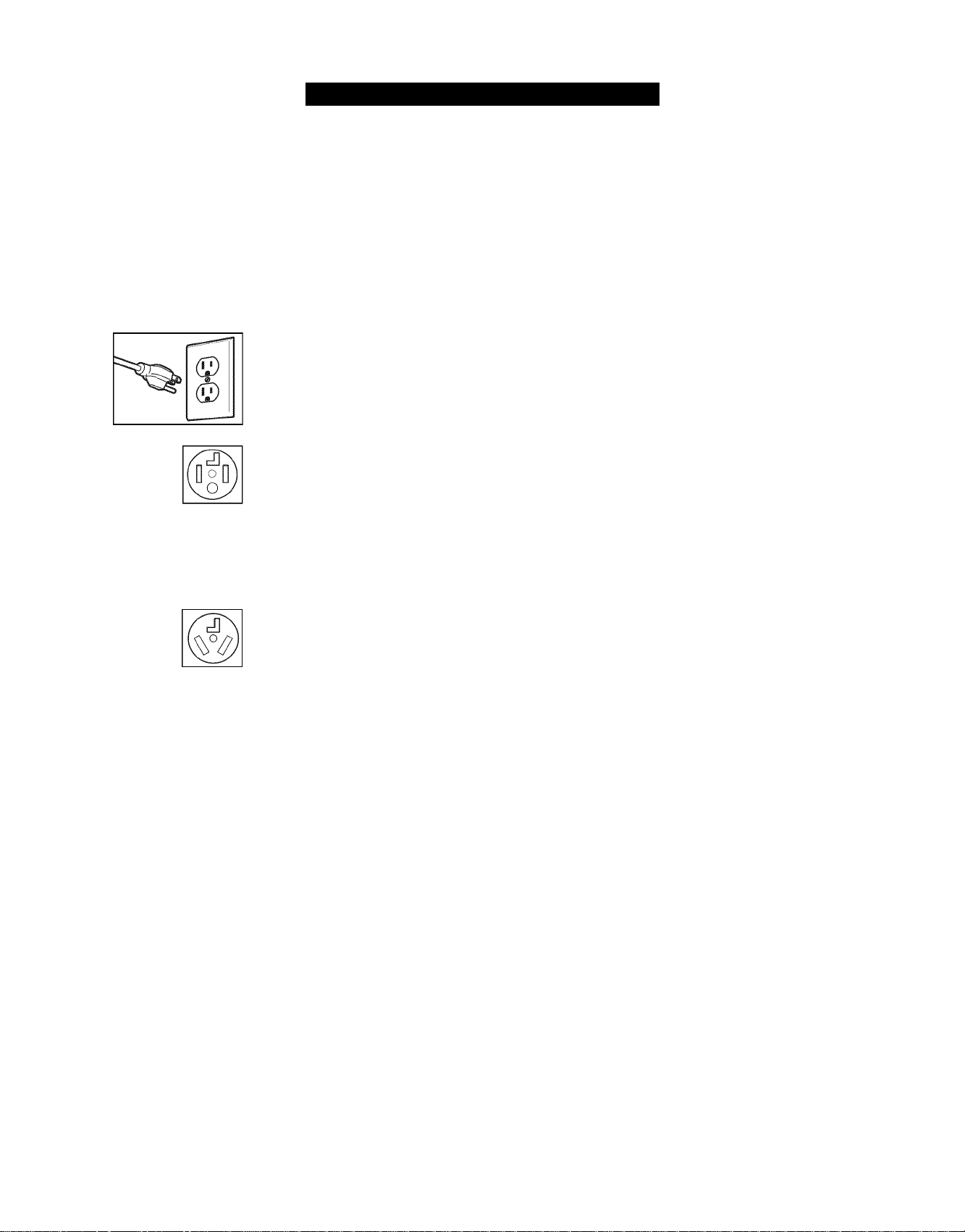

GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current. This appliance must be equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
A WARNING: Improper connection of the equipment-grounding conductor can result In a risk of electric
shock. Check with a qualified electrician or service person if you are in doubt as to whether the appliance is properly
grounded. Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician. This appliance must be connected to a grounded metal, permanent wiring system or an equipment
grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead
on the appliance. Electrical shock can result if the dryer is not properly grounded.
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS FOR INSTALLATION
A WARNING: To reduce the risk of fire, electric shock, or Injury to persons when using this appliance,
follow basic precautions. Including the following:
• Properly ground dryer to conform with all governing
codes and ordinances. Follow details In the Installation
instructions. Electrical shock can result if the dryer is not
properly grounded.
• Before use, the dryer must be properly Installed as
described In this manual. Electrical shock can result if the
dryer is not properly grounded.
• Install and store the dryer where It will not be exposed
to temperatures below freezing or exposed to the
weather.
• All repairs and servicing must be performed by an
authorized servicer unless specifically recommended In
this Owner’s Guide. Use only authorized factory parts.
Failure to follow this warning can cause serious injury, fire,
electrical shock, or death.
• To reduce the risk of electric shock, do not install the
dryer in humid spaces. Failure to follow this warning can
cause serious injury, fire, electrical shock, or death.
Connect to a properly rated, protected, and sized power
circuit to avoid electrical overload. Improper power circuit
can melt, creating electrical shock and/or fire hazard.
' Remove all packing items and dispose of all shipping
materials properly. Failure to do so can result in death,
explosion, fire, or burns.
' Place dryer at least 18 inches above the floor for a
garage installation. Failure to do so can result in death,
explosion, fire, or burns.
' Keep all packaging from children. Packaging material can
be dangerous for children. There is a risk of suffocation. ^
' Do not install nearby heat item. Such as stove, cooking U
oven. Failure to do so can cause deform, smoke and fire. 2
' Do not place candle and cigarettes on top of the
product. Failure to do so can cause deform, smoke and
fire.
' Remove all protective vinyl film from the product.
Failure to do so can cause deform, smoke and fire.
U
A WARNING: To reduce the risk of personal Injury, adhere to all Industry recommended safety
procedures Including the use of long sleeved gloves and safety glasses. Failure to follow all of the safety
warnings In this manual could result In property damage, personal Injury or death.
Exhaust/Ducting:
Gas dryers MUST be exhausted to the outside.
Failure to follow these instructions can result in fire or
death.
The dryer exhaust system must be exhausted to
the outside of the dwelling. If the dryer Is not
exhausted outdoors, some fine lint and large
amounts of moisture will be expelled Into the
laundry area. An accumulation of lint in any area of
the home can create a health and fire hazard.
Use only rigid metal or flexible metal 4 Inches
diameter ductwork Inside the dryer cabinet or for
exhausting to the outside. Use of plastic or other
combustible ductwork can cause a fire. Punctured
ductwork can cause a fire if it collapses or becomes
otherwise restricted in use or during installation.
Ductwork Is not provided with the dryer, and you
should obtain the necessary ductwork locally. The
end cap should have hinged dampers to prevent
backdraft when the dryer Is not In use. Failure to
follow these instructions can result in fire or death.
The exhaust duct must be 4 Inches (10.2 cm) In
diameter with no obstructions. The exhaust duct
should be kept as short as possible. Make sure to
clean any old ducts before Installing your new
dryer. Failure to follow these instructions can result in
fire or death.
Rigid or semi rigid metal ducting Is recommended
for use between the dryer and the wall. In special
Installations when It Is Impossible to make a
connection with the above recommendations, a
ULIIsted flexible metal transition duct may be
used between the dryer and wall connection only.
The use of this ducting will affect drying time.
Failure to follow these instructions can result in fire or
death.
DO NOT use sheet metal screws or other
fasteners which extend Into the duct that could
catch lint and reduce the efficiency of the exhaust
system. Secure all joints with duct tape. For complete
details, follow the Installation Instructions. Failure to
follow these instructions can result in fire or death.
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS FOR STEAM FUNCTIONS
A WARNING: To reduce the risk of fire, electric shock, or Injury to persons when using this appliance,
follow basic precautions. Including the following:
Do not open the dryer door during steam cycles.
Failure to follow these instructions can result in a burn
hazard.
Do not dry articles that have been previously
cleaned In, washed In, soaked In, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could Ignite or explode. Failure to
follow these instructions can result in fire or death.
m
Do not fill the steam feeder with gasoline,
dry-cleaning solvents, or other flammable or
explosive substances. Failure to follow these
instructions can result in fire or death.
Do not touch the steam nozzle In the drum during
or after the steam cycle. Failure to follow these
instructions can result in a burn hazard.
Do not fill the steam feeder with hot water (over
86°F/30°C). Failure to follow these instructions can
result in a burn hazard.
z
o
r
(7)
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
A WARNING: To reduce the risk of fire, electric shock, or Injury to persons when using this appliance,
follow basic precautions. Including the following:
Do not, under any circumstances, cut or remove
the ground prong from the power cord. To prevent
personal injury or damage to the dryer, the electrical
power cord must be plugged into a properly grounded
outlet.
For personal safety, this dryer must be properly
grounded. Failure to do so can result in electrical
shock or injury.
Refer to the Installation Instructions In this
manual for specific electrical requirements for
your model. Failure to follow these instructions can
create an electrical shock hazard and/or a fire hazard.
This dryer must be plugged Into a properly
grounded outlet. Electrical shock can result If the
dryer Is not properly grounded. Have the wall
outlet and circuit checked by a qualified
electrician to make sure the outlet Is properly
grounded. Failure to follow these instructions can
create an electrical shock hazard and/or a fire hazard.
The dryer should always be plugged Into It’s own
Individual electrical outlet which has a voltage
rating that matches the rating plate. This provides
the best performance and also prevents overloading
house wiring circuits which could cause a fire hazard
from overheated wires.
Never unplug your dryer by pulling on the power
cord. Always grip plug firmly and pull straight out
from the outlet. The power cord can be damaged,
resulting in a risk of fire and electrical shock.
Repair or replace Immediately all power cords that
have become frayed or otherwise damaged. Do
not use a cord that shows cracks or abrasion
damage along Its length or at either end. The
power cord can melt, creating electrical shock and/or
fire hazard.
When Installing or moving the dryer, be careful
not to pinch, crush, or damage the power cord.
This will prevent injury and prevent damage to the
dryer from fire and electrical shock.
SAVE THESE INSTRUCTIONS
FEATURES AND BENEFITS
KEY PARTS AND COMPONENTS
There are several important components that are
referenced in this manual.

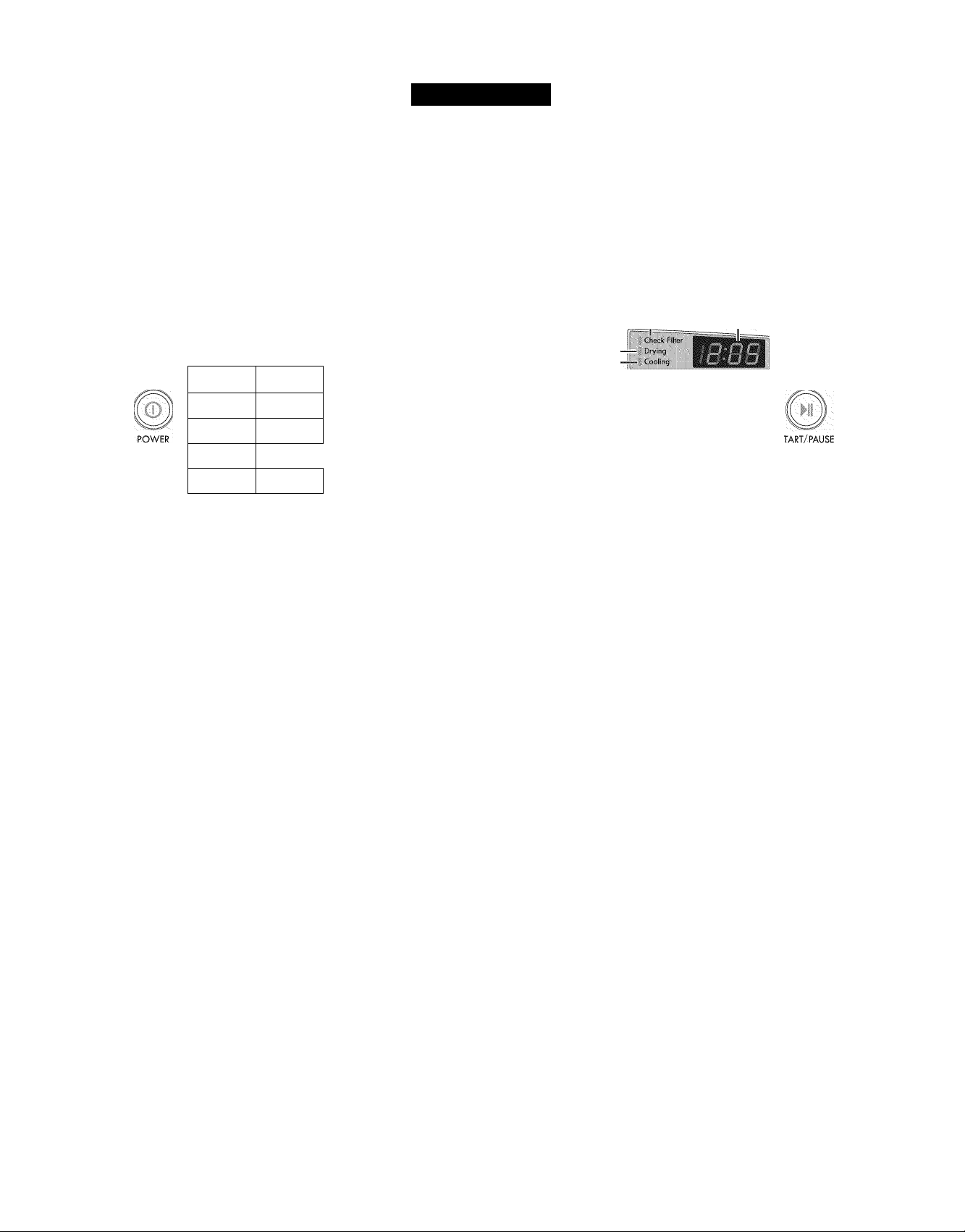

Q EASY-TO-USE CONTROL PANEL
Rotate the Cycle Selector Knob to select the
desired dry cycle. Add cycle options or adjust
settings with the touch of a button.
O TIME AND STATUS DISPLAY
The easy-to-read LED display shows cycle status
and estimated time remaining.
Q CYCLE MODIFIERS
Adjust the cycle defaults such as temperature and
dry level with the touch of a button.
NOTE: Not all settings are available for all cycles.
See page 24.
O STEAM FEEDER
This lid provides access to the reservoir for the
water used by the dryer to create steam for the
STEAM REFRESH cycle and other steam features.
(A
3
o
z
u
@ CHECK VENT
(Duct Blockage Sensing System)
The Check Vent (Duct blockage sensing system)
detects and alerts you to blockages in the exhaust
system that reduce airflow from the dryer.
Maintaining clean exhaust system ducts
improves operating efficiency and helps
minimize service calls, saving you money.
Q ULTRA-CAPACITY STAINLESS
STEEL DRUM WITH DRUM LIGHT
The ultra-large stainless steel drum offers superior
durability. The drum is equipped with a light that
illuminates when the dryer door is open and turns
off when the door is closed.
0
EASY-ACCESS REVERSIBLE DCCR
Wide-opening, see-through glass door provides
easy access for loading and unloading. Door swing
can be reversed to adjust for installation location.

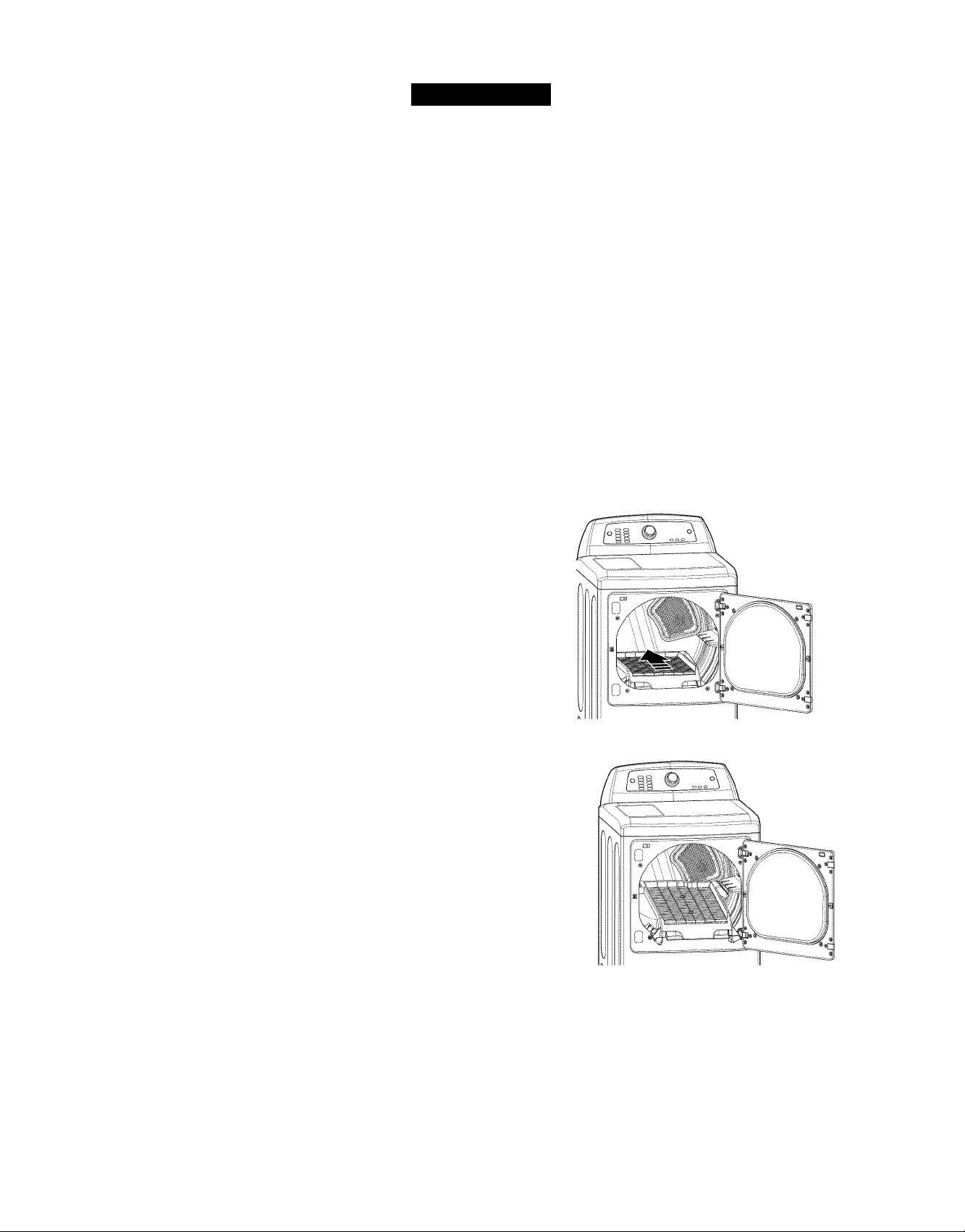

0 FRCNT-MCUNT LINT FILTER
Front-mount lint filter allows for easy access and
cleaning between loads.
(Electric Models) (Gas Models)
O LEVELING FEET
Four leveling feet (two in front, and two in back)
adjust to improve dryer stability on uneven floors.
Rear of Dryer
INSTALLATION INSTRUCTIONS
KEY DIMENSIONS AND SPECIFICATIONS
Description Dryer (Gas and Electric)
Electrical Requirements Please refer to the rating label.
Gas Requirements* Natural: 6-8 inches WC
Gas Requirements* Propane: 10-13 inches WC
Dimensions 27" (W) X 28 15d6" (D) X 45" (H), 50 1/4" (D With door open)
68.6cm (W) X 73.4 cm (D) X 114.1cm (H), 127.5 cm (D With door open)
Net Weight Electric : 147 lb. (66.7kg) / Gas : 150.5 lb. (68.3kg)
Drying Capacity lEC 7.3 cu. ft.
*Gas Models only.
LOCATION REOUIREMENTS
m
IMPORTANT:
Z
Read all installation instructions completely before
O
installing and operating your dryer!
r
It is important that you review this entire manual before
(7)
installing and using your dryer. It contains detailed
instructions concerning electrical connections, gas con
nections and exhaust requirements.
21 1/4"
(54 cm)
CHOOSE THE PROPER LOCATION
• Store and install the dryer where it will not be exposed
to temperatures below freezing or exposed to outdoor
weather conditions.
• Choose a location with a solid, level floor.
• If the dryer is being installed in a garage, place the
dryer at least 18 inches (45.7cm) above the floor.
• Properly ground the dryer to conform with all governing
codes and ordinances.
• To reduce the risk of electric shock, do not install
the dryer in damp or wet locations.
IMPORTANT: If you are installing your dryer in a
manufactured or mobile home, please refer to the
section Special Electrical Requirements for Mobile or
Manufactured Homes on page 12.
CLEARANCES
• Most installations require a minimum 5-1/2 in.
(14 cm) clearance behind the dryer for
the exhaust ducting.
• Allow minimum clearances of at least 1 in.
(2.5 cm) on the sides and back to minimize
vibration and noise.
• Allowing additional clearance for installation
and servicing is recommended.
• Be sure to allow for wall, door, or floor moldings
that may increase the required clearances.
• Allow at least 21 inches (53.3 cm) in front of the
dryer to open the door.
n
4"_^|
(10 cm)
28 15/16"
(73.4 cm)
50 1/4"
(127.5 cm)
4" 1'
(10 cm) (2.5 cm)
Closet Door Clearance Requirements
27"
(68.6 cm)
Additional Instructions for closet Installations:
• The closet door must allow for sufficient airflow. Refer to
the diagram to the left for minimum vent opening or door
clearance requirements. A louvered door is also
acceptable.
1"
(2.5 cm)
INSTALLATION INSTRUCTIONS

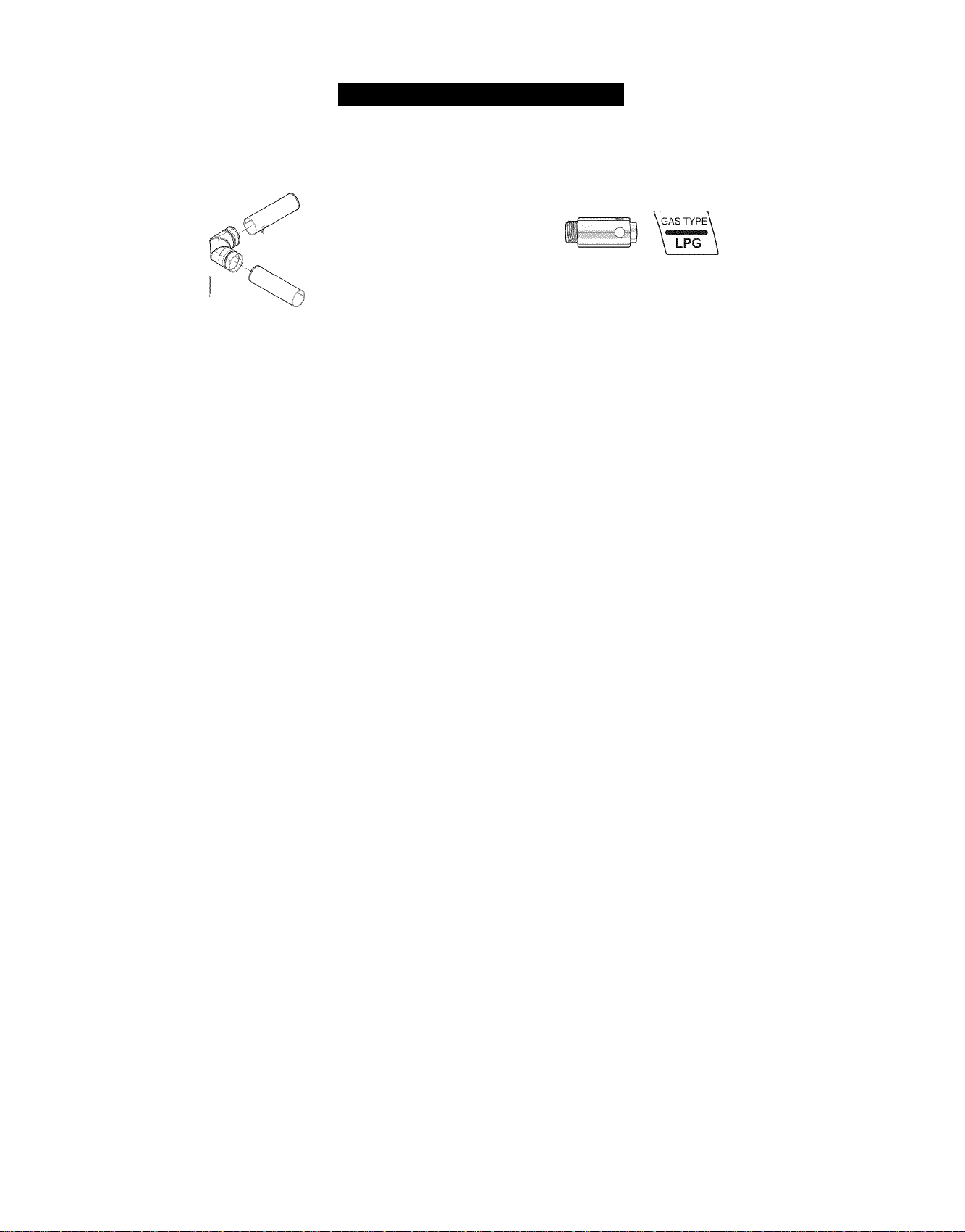

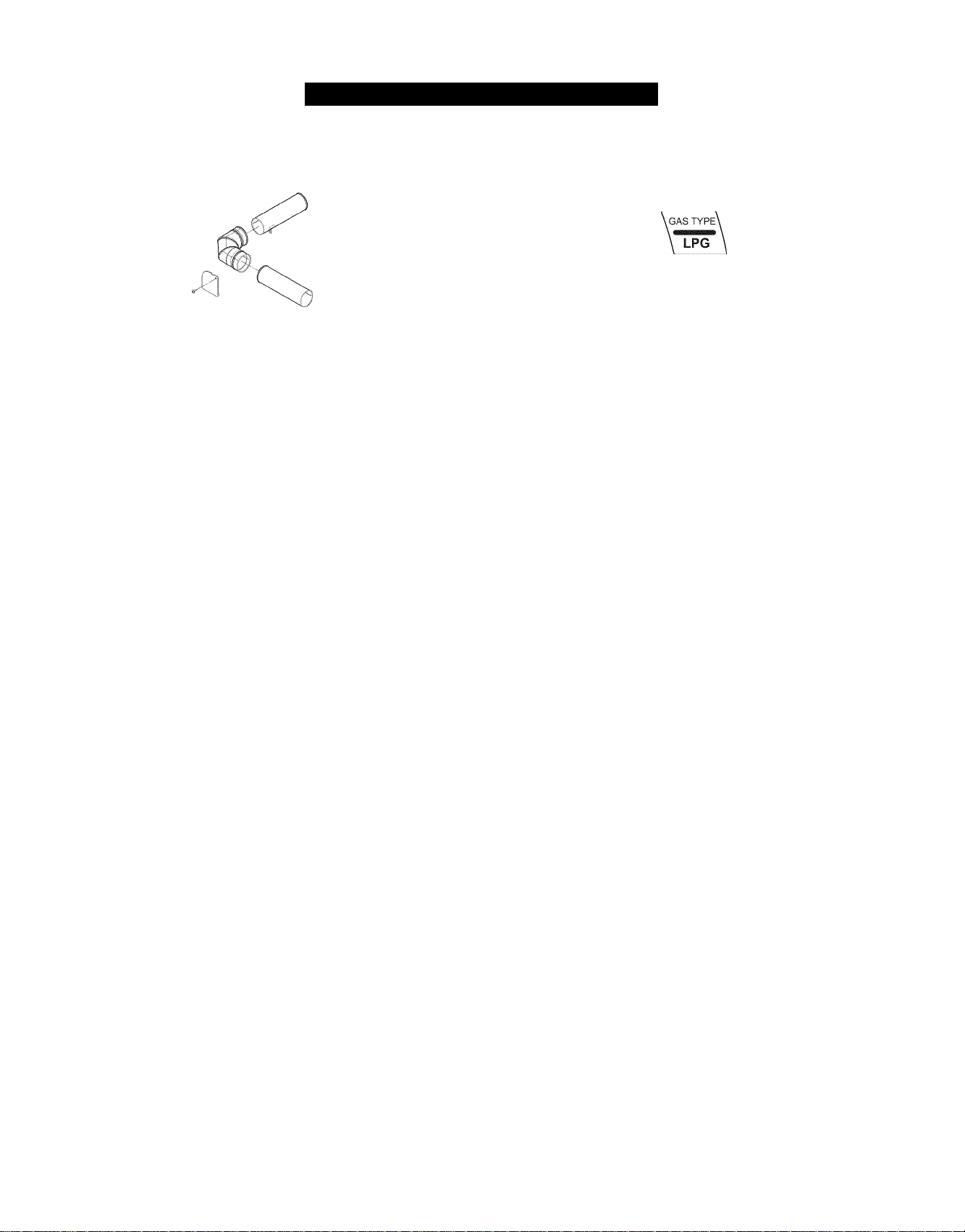

OPTIONAL ACCESSORIES

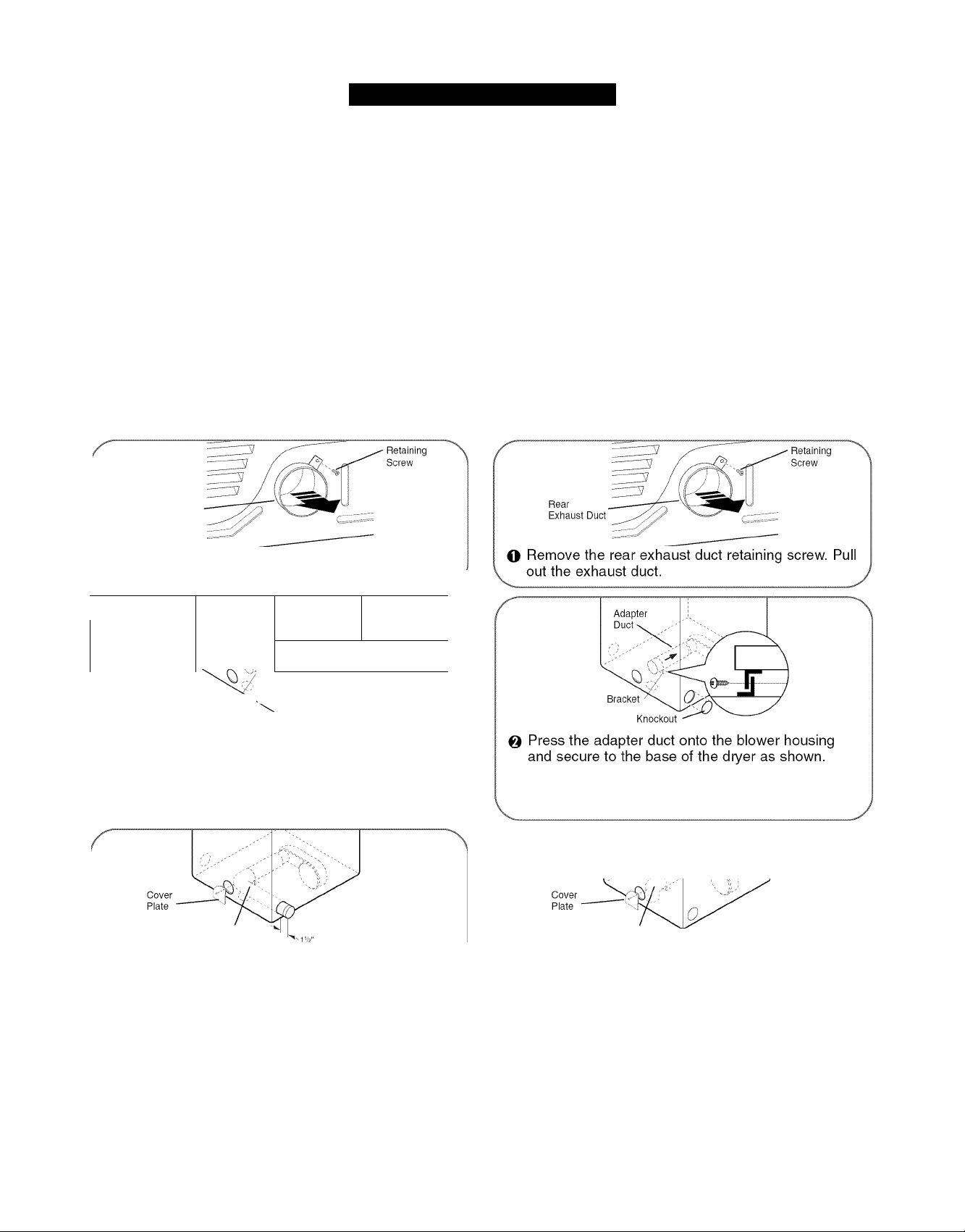

Use the side vent kit for
venting directly on either
side or on the bottom.
Kit # D26-49670
NOTE: Gas dryers can
not be vented to the right

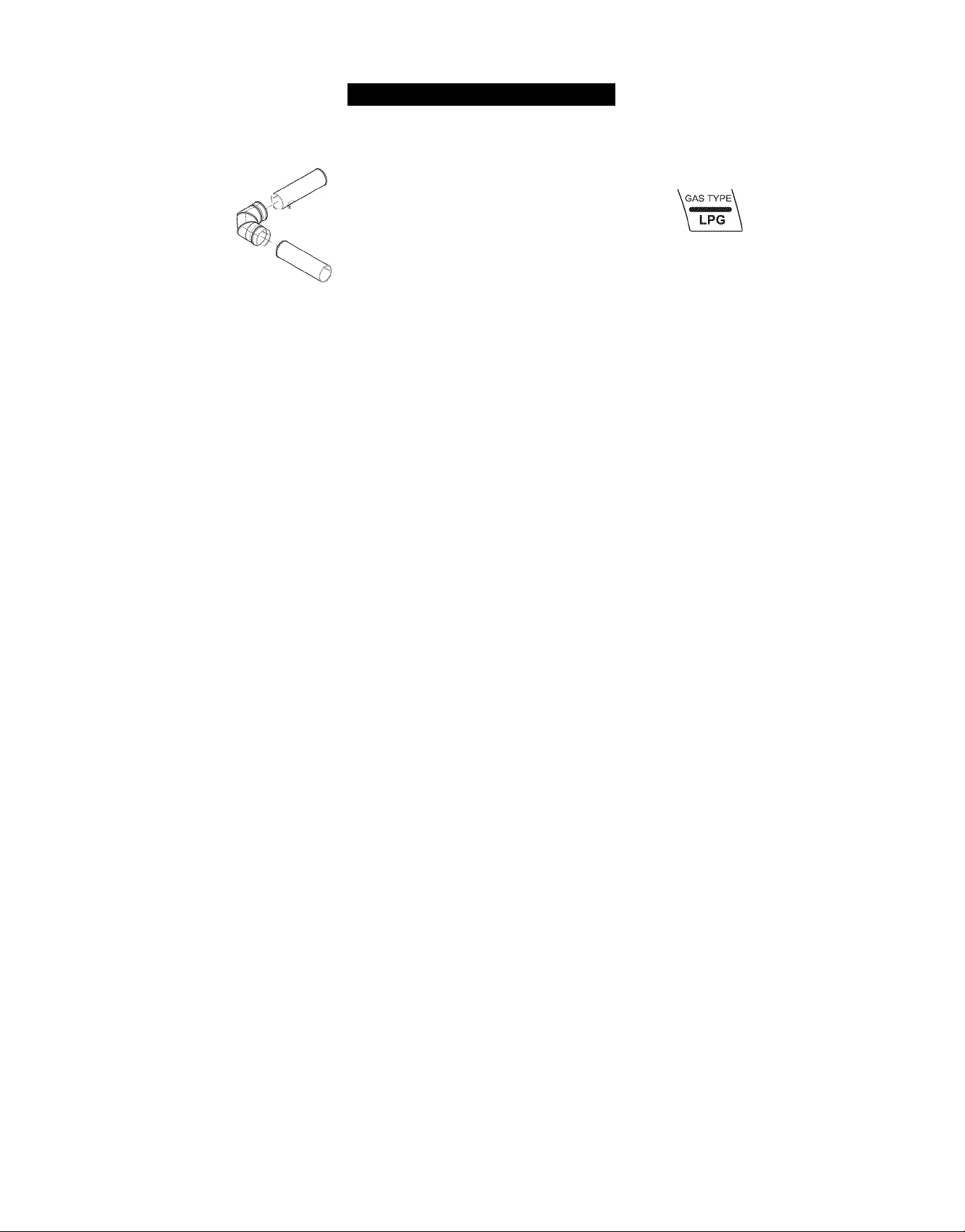

Use the LP CONVERSION
KIT for changing the dryer gas
connections from Natural Gas
(NG) to Liquefied Propane
Gas (LP)
Part # 383EEL3002D
NOTE: Installation of the LP
conversion kit must be
performed by a qualified
service professional.
(A
3
o
u
INSTALLATION INSTRUCTIONS
GAS REQUIREMENTS (GAS MODELS ONLY)
CONNECTING GAS DRYERS
A WARNING: To reduce the risk of fire,
electric shock, or injury to persons when using
this appliance, follow basic precautions, including
the following:
• Gas supply requirements:
As shipped from the factory, this dryer is configured
for use with (NG) natural gas. It can be converted for
use with LP (Liquefied Propane) gas. Gas pressure
must not exceed 8 inches water column for (NG), or
13 inches water column for (LP).
•A qualified service or gas company technician must
connect the dryer to the gas service. Failure to do so
can result in fire, explosion, or death.
m
z
o
r
(7)
• Isolate the dryer from the gas supply system by clos
ing its individual manual shutoff valve during any
pressure testing of the gas supply. Failure to do so can
result in fire, explosion, or death.
• Supply line requirements: Your laundry room must
have a rigid gas supply line to your dryer. In the
United States, an individual manual shutoff valve
MUST be installed within at least 6 ft. (1.8 m) of the
dryer, in accordance with the National Fuel Gas Code
ANSI Z223.1 or Canadian gas installation code CSA
B149.1. A1/8 inches NPT pipe plug must be installed.
Failure to do so can result in fire, explosion, or death.
• If using a rigid pipe, the rigid pipe should be 1/2 inch
es IPS. If acceptable under local codes and ordinances
and when acceptable to your gas supplier, 3/8 inches
approved tubing may be used where lengths are less
than 20 ft. (6.1 m). Larger tubing should be used for
lengths in excess of 20 ft. (6.1 m). Failure to do so can
result in fire, explosion, or death.
Connect the dryer to the type of gas shown on the
nameplate. Failure to do so can result in fire, explosion, or
death.
To prevent contamination of the gas valve, purge the
gas supply of air and sediment before connecting the
gas supply to the dryer. Before tightening the connec
tion between the gas supply and the dryer, purge
remaining air until the odor of gas is detected. Failure
to do so can result In fire, explosion, or death.
DO NOT use an open flame to inspect for gas leaks.
Use a noncorrosive leak detection fluid. Failure to do so
can result in fire, explosion, or death.
Use only a new AGA- or CSA-certified gas supply line
with flexible stainless steel connectors. Failure to do so
can result in fire, explosion, or death.
Securely tighten all gas connections. Failure to do so
can result in fire, explosion, or death.
Use Teflon® tape or a pipe-joint compound that is
insoluble in Liquefied Petroleum (LP) gas on all pipe
threads. Failure to do so can result in fire, explosion, or
death.
DO NOT attempt any disassembly of the dryer; any
disassembly requires the attention and tools of an
authorized and qualified service person or company.
Failure to do so can result in fire, explosion, or death.
Electrical Requirements for Gas Models Only
• Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord. Failure to
follow this warning can result in fire, explosion, or
death.
• For personal safety, this dryer must be properly
grounded. Failure to follow this warning can result in
fire, explosion, or death.
• The power cord of this dryer Is equipped with a
3-prong (grounding) plug which mates with a stan
dard 3-prong (grounding) wall outlet to minimize the
possibility of electric shock hazard from this appli
ance. Failure to follow this warning can result in fire,
explosion, or death.
This dryer must be plugged Into a 120-VAC, 60-Hz.
grounded outlet protected by a 15-ampere fuse or
circuit breaker. Failure to follow this warning can result
in fire, explosion, or death.
Where a standard 2-prong wall outlet Is encoun
tered, It Is your personal responsibility and obliga
tion to have It replaced with a properly grounded
3-prong wall outlet. Failure to follow this warning can
result in fire, explosion, or death.
Ensure proper
ground exists
before use.
10
INSTALLATION INSTRUCTIONS
CONNECTING GAS DRYERS (cont.)
A WARNING: To reduce the risk of fire,
electric shock, or injury to persons when using
this appliance, follow basic precautions, including
the following:
• Installation and service must be performed by a
qualified Installer, service agency, or the gas
supplier. Failure to do so can result in fire, explosion,
or death.
• Use only a new stainless steel flexible connector
and a new AGA-certIfled connector. Failure to do
so can result in fire, explosion, or death.
• A gas shutoff valve must be Installed within 6 ft.
(1.8 m) of the dryer. Failure to do so can result in fire,
explosion, or death.
• The dryer Is configured for Natural Gas when
shipped from the factory. Make sure that the dryer
Is equipped with the correct burner nozzle for the
type of gas being used (Natural Gas or Liquefied
Petroleum). Failure to do so can result in fire,
explosion, or death.
If necessary, the correct nozzle (for the LP nozzle
kit, order part number 383EEL3002D) should be
Installed by a qualified technician and the change
should be noted on the dryer. Failure to do so can
result in fire, explosion, or death.
All connections must be In accordance with local
codes and regulations. Failure to do so can result
in fire, explosion, or death.
Gas dryers MUST exhaust to the outdoors. Failure
to do so can result in fire, explosion, or death.
(A
3
о
z
Ш
Connecting the Gas Supply
NOTE: This dryer is configured from the factory set for
Natural Gas (NG). If dryer is to be used with LP gas,
it must be converted by a qualified service technician.
O Make sure that the gas supply to the laundry room is
turned OFF and the dryer is unplugged. Confirm that
the type of gas available in your laundry room is
appropriate for the dryer.
Remove the shipping cap from the gas fitting at the
back of the dryer. Be careful not to damage the threads
of the gas connector when removing the shipping cap.
0
Connect the dryer to your laundry room’s gas supply
using a new flexible stainless steel connector with a
3/8 inches NPT fitting.
NOTE: DO NOT use old connectors.
O Securely tighten all connections between the dryer
and your laundry room’s gas supply.
NOTE: Use pipe dope or teflon tape that is approved for
use on gas lines on all pipe thread connections. NEVER
use dope or tape on compression or flare connections, such
as the gas flex.
©Turn on your laundry room’s gas supply.
0
Check all pipe connections (both internal and external)
for gas leaks with a noncorrosive leak-detection fluid.
O Proceed to Venting the Dryer on pages 14-15.
Flexible Connector
High-Altitude instaiiations
The BTU rating of this dryer is AGA-certified for
elevations below 10,000 feet.
If your gas dryer is being installed at an elevation
above 10,000 feet, it must be derated by a qualified
technician or gas supplier.
11
INSTALLATION INSTRUCTIONS
ELECTRICAL REQUIREMENTS
CONNECTING ELECTRIC DRYERS
WARNING . To help prevent fire, electric
shock, serious injury, or death, the wiring and
grounding must conform to the latest edition of the
National Electrical Code, ANSI/NFPA 70 and all
applicable local regulations. Please contact a quali
fied electrician to check your home’s wiring and
fuses to ensure that your home has adequate elec
trical power to operate the dryer.
Special Electrical Requirements for Mobile or Manufactured Homes
5 A WARNING:
O electric shock, or injury to persons when using
^ this appliance, follow basic precautions, including
W the following:
X
• Any installation in a manufactured or mobile home must
comply with the Manufactured Home Construction and
Safety Standards Title 24 CFR, Part 32-80 or Standard
CAN/CSA0Z240 MH and local codes and ordinances.
• A 4-wlre connection Is required for all mobile and
manufactured home Installations, as well as all new
construction after January 1,1996. Failure to do so
can result in fire, explosion, or death.
To reduce the risk of fire,
Electrical Requirements for Electric Models Only
WARNING . To reduce the risk of fire,
electric shock, or injury to persons when using
this appliance, follow basic precautions, including
the following:
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment ground
ing conductor must be run with the circuit conduc
tors and connected to the equipment grounding ter
minal or lead on the dryer. Failure to do so can result
in fire, explosion, or death.
The dryer has Its own terminal block that must be
connected to a separate 240 VAC, 60-Hertz, single
phase circuit, fused at 30 amperes (the circuit must
be fused on both sides of the line). ELECTRICAL
SERVICE FOR THE DRYER SHOULD BE OF THE
MAXIMUM RATE VOLTAGE LISTED ON THE NAME
PLATE. DO NOT CONNECT DRYER TO 110-, 115-,
OR 120-VOLT CIRCUIT. Heating elements are avail
able for field Installation In dryers which are to be
connected to an electrical service of a different
voltage than that listed on the rating plate. Failure to
follow these instructions can result in fire, explosion, or
death.
If branch circuit to dryer Is 15 ft. (4.5 m) or less In
length, use UL (Underwriters Laboratories) listed
No.-IO AWG wire (copper wire only), or as required
by local codes. If over 15 ft. (4.50 m), use UL-llsted
N0.-8 AWG wire (copper wire only), or as required
by local codes. Allow sufficient slack In wiring so
dryer can be moved from Its normal location when
necessary. Failure to do so can result in fire, explosion,
or death.
The power cord (pigtail) connection between wall
receptacle and dryer terminal block IS NOT sup
plied with the dryer. Type of pigtail and gauge of
wire must conform to local codes and with Instruc
tions on the following pages. Failure to follow these
instructions can result in fire, explosion, or death
A 4-wlre connection Is required for all new con
struction after January 1,1996. A 4-wlre connection
must be used where local codes do not permit
grounding through the neutral wire. Failure to do so
can result in fire, explosion, or death.
12
INSTALLATION INSTRUCTIONS
CONNECTING ELECTRIC DRYERS (cont.)
CONNECTING ELECTRIC DRYERS
A WARNING:
• Connect the power cord to the terminal block.
Each colored wire should be connected to same
color screw. Wire color Indicated on manual Is con
nected to the same color screw In block. Failure to
follow these Instructions may result In a short or
overload.
Grounding through the neutral conductor Is pro
hibited for: (1) new branch-circuit Installations, (2)
mobile homes, (3) recreational vehicles, and (4)
areas where local codes prohibit grounding
through the neutral conductor.
Four-Wire Power Cord
' A 4-wlre connection Is required for all mobile
and manufactured home Installations, as
well as all new construction after January 1,
1996.
■ A UL-listed strain relief is required.
■ Use a 30-amp, 240-volt, 4-wlre, UL-llsted power
cord with #10 AWG-mlnImum copper conductor
and closed loop or forked terminals with upturned
ends.
O Remove the terminal block access cover on the upper
back of the dryer.
0 Install a UL-listed strain relief into the power cord
through-hole.
©Thread a 30-amp, 240-volt, 4-wlre, UL-llsted power
cord with #10 AWG-mlnImum copper conductor
through the strain relief.
Three-Wire Power Cord
A 3-wlre connection Is NOT permitted on
new construction after January 1,1996.
' A UL-listed strain relief is required.
■ Use a 30-amp, 240-volt, 3-wlre, UL-llsted power cord
with #10 AWG-mlnImum copper conductor and closed
loop or forked terminals with upturned ends.
o Remove the terminal block access cover on the upper
back of the dryer.
@ Install a UL-listed strain relief into the power cord
through-hole.
©Thread a 30-amp, 240-volt, 3-wlre, UL-llsted power
cord with #10 AWG-mlnImum copper conductor
through the strain relief.
(A
3
o
z
u
O Transfer the dryer’s white ground wire from behind the
green ground screw to the center screw of the termi
nal block.
0 Attach the two hot leads of the power cord to the outer
terminal block screws.
0
Attach the white neutral wire to the center screw of
the terminal block.
O Attach the power cord ground wire to the green
ground screw.
O TIGHTEN ALL SCREWS SECURELY.
0 Reinstall the terminal block access cover.
O Attach the two hot leads of the power cord to the outer
terminal block screws.
0
Attach the neutral (center) wire to the center terminal
block screw.
0
Connect the external ground (if required by local
codes) to the green ground screw.
© TIGHTEN ALL SCREWS SECURELY.
O Reinstall the terminal block access cover.
13
VENTING THE DRYER
INSTALLATION INSTRUCTIONS
IMPORTANT!
CHECK YOUR EXHAUST SYSTEM FOR PROBLEMS
The most common cause of dryer problems Is poor exhaust venting. Before you install your new dryer, check the
items listed below to make sure you get the best possible performance. This can save you time and money by reducing
cycle times and increasing energy efficiency.
O DIRTY OR DAMAGED EXHAUST DUCTS. Lint builds up in exhaust ducts over time. This decreases the airflow and
makes the dryer work harder. Visually inspect your ducts from both ends and have them cleaned if they have not
been cleaned recently.
0 WRONG VENT MATERIAL. Check your vent to make sure it is rigid or semi-rigid metal ducting. If your venting is
plastic or flexible foil, have it replace before using the dryer.
0 RESTRICTED OR DAMAGED VENT HOOD. Check your vent hood outside. It must be clean and free of lint buildup.
Check the damper and make sure it opens fully and easily.
O EXESSIVELY LONG VENT. Measure the length of your exhaust system and count the elbows. Use the chart below
m
z
o
r
(7)
14 to see if your duct is too long. If it is too long, have the duct routed to another location that is within the venting
guidelines.
0 DO NOT USE PLASTIC OR FOIL VENTING. The transition duct from your dryer to the wall must be rigid or
semi-rigid metal ducting. If your old transition duct is plastic or foil, REPLACE IT with semi-rigid metal ducting.
Using the Duct Requirements Chart (beiow)
O Select the type of vent hood.
0
Select the row that matches the number of elbows in the dryer duct run.
0
Look to the right of elbow number for the maximum duct length for your installation. Duct lengths longer than shown
will result in reduced drying performance, longer dry times and increased energy consumption.
DO NOT exceed maximum length for the hood type and number of elbows used.

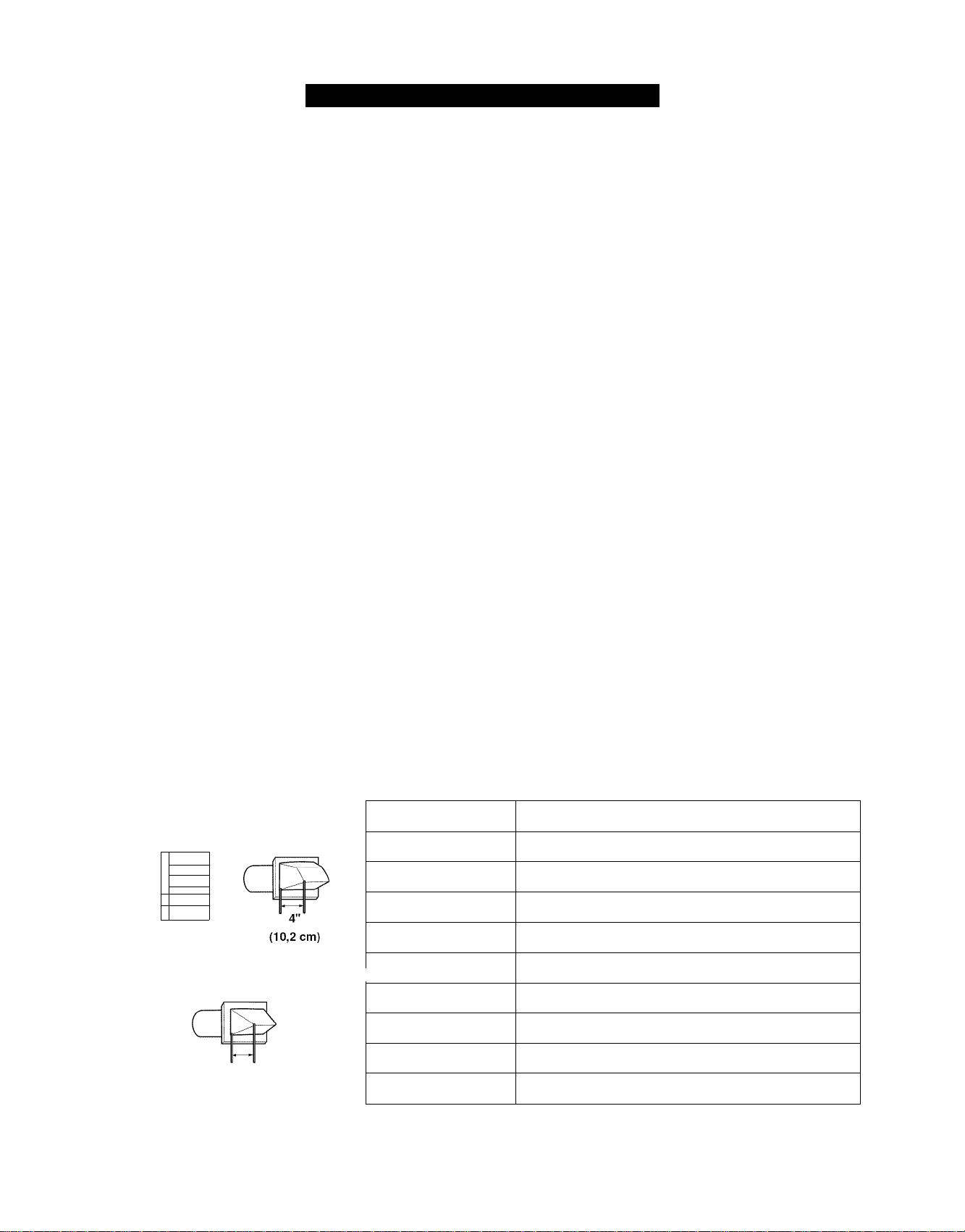

Selecting and Verifying Duct Length Chart
Number of 90
Vent Hood Type
Recommended
Elbows
0
1
2
4"
(10.2 cm)
Only for Short-Run Installations
4"
(10.2 cm)
3
4
0
1
2
21/2"
(6.35 cm)
NOTE: Deduct 6 ft. (1.8 m) for each additional elbow. It is not recommended to use more than four 90° elbows.
3
4
Maximum length of 4" (10.2 cm)
diameter rigid metai duct
65 feet (19.8 m)
55 feet (16.8 m)
47 feet (13.7 m)
36 feet (11.0 m)
28 feet (8.5 m)
55 feet (16.8 m)
47 feet (13.7 m)
41 feet (12.5 m)
30 feet (9.1 m)
22 feet (6.7 m)
14
INSTALLATION INSTRUCTIONS
VENTING THE DRYER (cont.)
Routing and Connecting Ductwork
Follow the guidelines below to maximize drying
performance and reduce lint buildup and condensation
in the ductwork.
NOTE: Ductwork and fittings are NOT included and must
be purchased separately.
• Use 4 inches (102mm) diameter rigid or semi rigid metal
ductwork.
• The exhaust duct run should be as short as possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct must
point away from the dryer.
• Use duct tape on all duct joints.
• Insulate ductwork that runs through unheated areas
in order to reduce condensation and lint buildup
on duct surfaces.
• The Total length of flexible metal duct shall not exceed
8 ft.(2.4m)
• In Canada, only those foil-type flexible ducts, if any,
specifically identified for use with the appliance by the
manufacturer shall be used. In the United States, only
those foil-type flexible ducts, if any, specifically identified
for use with the appliance by the manufacturer and that
comply with the Outline for Clothes Dryer Transition Duct,
Subject 2158A, shall be used.
Correct Venting
y
(A
3
o
z
u
Incorrect Venting
A WARNING: Failure to follow these
guidelines will result in poor performance, product
failure, and/or result in fire or death.
IMPORTANT: Failure to exhaust the dryer per the
guidelines included within these instructions may result
in unsatisfactory dryer performance. All venting and
ductwork beyond the exterior of the dryer is the
responsibility of the consumer. Product failure as
a result of improper venting is not covered by the
manufacturer’s warranty.
Connecting the Dryer Vent
O Verify all ducts and elbows are clean and free from any
blockages.
Measure duct length. DO NOT exceed the maximum
length listed in the chart on page 14.
0
Connect dryer exhaust to existing ductwork.
• Use duct tape or clamps only.
• DO NOT use screws to secure ductwork.
• Use rigid or semi rigid metal duct.
• DO NOT use plastic or thin metal foil tubing for
ductwork.
• The male end of each elbow must always point in the
direction of the airflow.
NOTE: Be careful when moving the dryer into it's final
location. Do NOT crush the duct. Make sure the
connections do not come loose. 5
Al^
INSTALLATION INSTRUCTIONS
LEVELING THE DRYER
A WARNING
• Wear gloves during installation.
• Failure to follow these instructions can result
in injury.
• The appliances are heavy. Two or more people are
required when installing the dryer.
There is a risk of serious back injury or other injuries.
To ensure that the dryer provides optimal drying
performance, it must be level. To minimize vibration,
noise, and unwanted movement, the floor must be
a level, solid surface.
NOTE: Adjust the leveling feet only as far as necessary
to level the dryer. Extending the leveling feet more than
m
necessary can cause the dryer to vibrate.
z
o
O Position the dryer in the final location. Place a level
across the top of the dryer.
• All four leveling feet must rest solidly on the floor.
Gently push on the top corners of the dryer to make
sure that the dryer does not rock from corner to corner.
Use a wrench to turn the leveling feet. Turn the leveling
foot clockwise to raise the dryer; turn the foot counter
clockwise to lower the dryer. Using a level, adjust the
foot until the dryer is level from side to side and front to
back. Make sure all 4 foot are in firm contact with the
floor.
NOTE: Be careful when moving the dryer into it's final
location. Do NOT crush the duct. Make sure the
connections do not come loose.
16
INSTALLATION INSTRUCTIONS
■reversing the door
A WARNING:
THE DRYER DOOR IS VERY LARGE AND HEAVY. Failure to follow the instructions below can result in damage to the
dryer, property damage or personal injury.
O Open the door and remove the two plastic hole caps
on the catch side by gently prying up with a flat blade
screwdriver. Save these for step 6.
CAUTION: Be sure to support the weight of the door
before removing the hinge screws.
e While supporting the door, remove the 4 screws, two
from each hinge. Set the door aside face down on a
protected surface to prevent damage to the door or
the work surface.
O Remove the 4 screws securing the hinges to the door
frame. Remove the two plastic cover caps on the side
opposite the hinges. Reinstall the hinges and cover
caps on the opposite sides from which they were
removed.
a if jp a a
'll
■ i
|! ! 1
a ap* a a
b a a # b a a
@ With the hinges and cover caps in the new locations,
remount the inner door frame onto the outer door
frame with the screws removed in step 3 above.
■>
B #
3
a
z
Ul
1
1
I
i
m With the door on a protected surface, remove the 16
screws on each side of the door and lift off the inner
door frame using a flat blade screwdriver. Remove the
latch hook and blank and move them to the opposite
side.
Reinstall the door with the screws from step 2, and
snap the hole caps into the open hinge mounting holes.
' Test the swing of the door to make sure the hinges
and latch are properly aligned and that the door clos
es and latches.
17
INSTALLATION INSTRUCTIONS
FINAL INSTALLATION CHECK
Once you have completed the installation of the dryer
and it is in its final location, confirm proper operation with
the following steps and tests.
O Is gas turned ON? (Gas Models only)
0 Is dryer plugged in? Dryer should always be plugged
into the proper outlet.
Gas dryer should use a
120-VAC, 60-Hz. grounded
3-prong outlet.
m
z
o
r
(7)
Electric dryer should use
a 4-wire connection which is
required for all mobile and
manufactured home
installations, as well as
all new construction after
January 1, 1996.
- OR -
Testing Dryer Heating
GAS MODELS
©Cl ose the dryer door.
0 Press the Power button to turn the dryer on.
0
Turn Cycle Selector Knob to Normal drying cycle.
O Press the Cycle Selector Knob to start the dryer.
When the dryer starts, the igniter should ignite the
main burner.
0
After 2 minutes, open the door and check for heat. If
no heat is felt, verify the gas valve is on and check
other gas appliances for proper operation.
NOTE: If all air is not purged from the gas line, the gas
igniter may turn off before the main burner ignites. If this
happens, the igniter will reattempt gas ignition until all
the air is purged from the gas line.
ELECTRIC MODELS
©Cl ose the dryer door.
0
Press the Power button to turn the dryer on.
0
Turn Cycle Selector Knob to Normal drying cycle.
A 3-wire connection.
NOTE: A 3-wire connection
is NOT permitted on new
construction after
January 1, 1996.
O Is dryer vent ductwork connected?
O Is dryer level?
0
Perform the following tests before using the dryer.
O Press the Cycle Selector Knob to start the dryer. The
exhaust air should be warm after the dryer has been
operating for 3 minutes.
0
After 2 minutes open the door and check for heat. If
no heat is felt, verify that BOTH breakers or fuses are
not tripped. Check for proper power cord wiring and
power supply.
Checking Venting
Vent ductwork should be checked for lint buildup
and cleaned at least once per year. If any noticeable
reduction in drying performance occurs, check ductwork
for obstructions and blockages.
Checking Leveiness
Once the dryer is in its final location, recheck the dryer
to be sure it is level. Make sure it is level front to back
and side to side, and that all 4 leveling feet rest firmly
on the floor.
18
HOW TO USE
WARNING: To reduce the risk of fire, electric shock, or Injury to persons, read this entire
manual. Including the Important Safety Instructions, before operating this dryer.
CONTROL PANEL FEATURES
0 0 o
Buiky/Bedding
Heavy Duty
o
Normal
Casual
Towels
Sanitize
i
PO’
VER
Damp Dry Signal i Chime ;
OPTIONS
'
...................
More Time |
Less Time
Easy Iron j Static Shield ^
Drum Light
I My Cycle ,
I Wrinkle Guard
I i
} Control I
O POWER (On/Off) BUTTON
Press to turn the dryer ON. Press again to turn
the dryer OFF.
NOTE: Pressing the Power button during a cycle
will cancel that cycle and any load settings will be lost.
0
CYCLE SELECTOR KNOB AND CYCLES
The CYCLE SELECTOR KNOB is used to select the
desired dry cycle by rotating the knob in either direc
tion until the desired cycle LED is illuminated. Once
the desired cycle has been selected, the standard
presets for that cycle will be shown in the display.
These settings can be adjusted using the Cycle
Modifier or Option buttons anytime before starting the
cycle. (See the Cycle Guide on page 21 for allowable
settings. To protect your fabrics, not all settings are
allowed in all cycles.)
0 START/PAUSE BUTTON
Press the START/PAUSE button to begin the cycle.
The display will change, and the dryer will display the
estimated time (AUTO DRY) or set time (TIMED
DRY) remaining and start tumbling. To pause the
cycle at any time, open the dryer door or press the
START/PAUSE button. To resume the cycle where it
was stopped, press START/PAUSE again.
NOTE: If the dryer has been stopped for more than
4 minutes, the dryer will turn off automatically and all
settings will be lost.
J Workout Wear
! Small Load
,.j Délicates
I Express Dry
I Touch Up
I
Air Dry
I! Rack Dry
0
CYCLE MODIFIER BUTTONS
Use these buttons to modify the settings for the
selected cycle. The lights above the buttons show the
current selection. See page 24 for a complete
description
NOTE: Some settings are not allowed on some
cycles.
0
TIME AND STATUS DISPLAY
The display shows the estimated time remaining and
the cycle status. The display also monitors the vent
status. See page 23 for a complete description.
0
STEAM FUNCTIONS
Steam technology allows you to inject fabrics with a
swirling jet of hot steam to refresh clothes and
reduce static. Simply select the STEAM REFRESH
cycle or select either the STATIC SHIELD or EASY
IRON option.
NOTE: The Static Shield and EASY IRON options
are not available on all cycles. See pages 26-27 for
steam function details.
MY CYCLE
If you have a special combination of settings that you
use frequently, you can save these settings as a
MY CYCLE.
PAUSE
(A
3
o
z
u
0
OPTION BUTTONS
The option buttons allow you to select additional
cycle options. The controls can be locked or
unlocked by pressing and holding the Control Lock
button for 5 seconds.
MORE TIME and LESS TIME options are not
available with Auto diy cycles.
For detailed information about the individual options,
please see the following pages.
19
m
z
o
r
(7)
OPERATING THE DRYER
POWER
Normal |
Bulky/Bedding |
Casual I
Heavy Duty |
Towels I
Sanitize [
r\
I Workout Wear
I Small Load
I Delicates
I Express Dry
I Touch Up
I Air Dry
1
Rack Dry

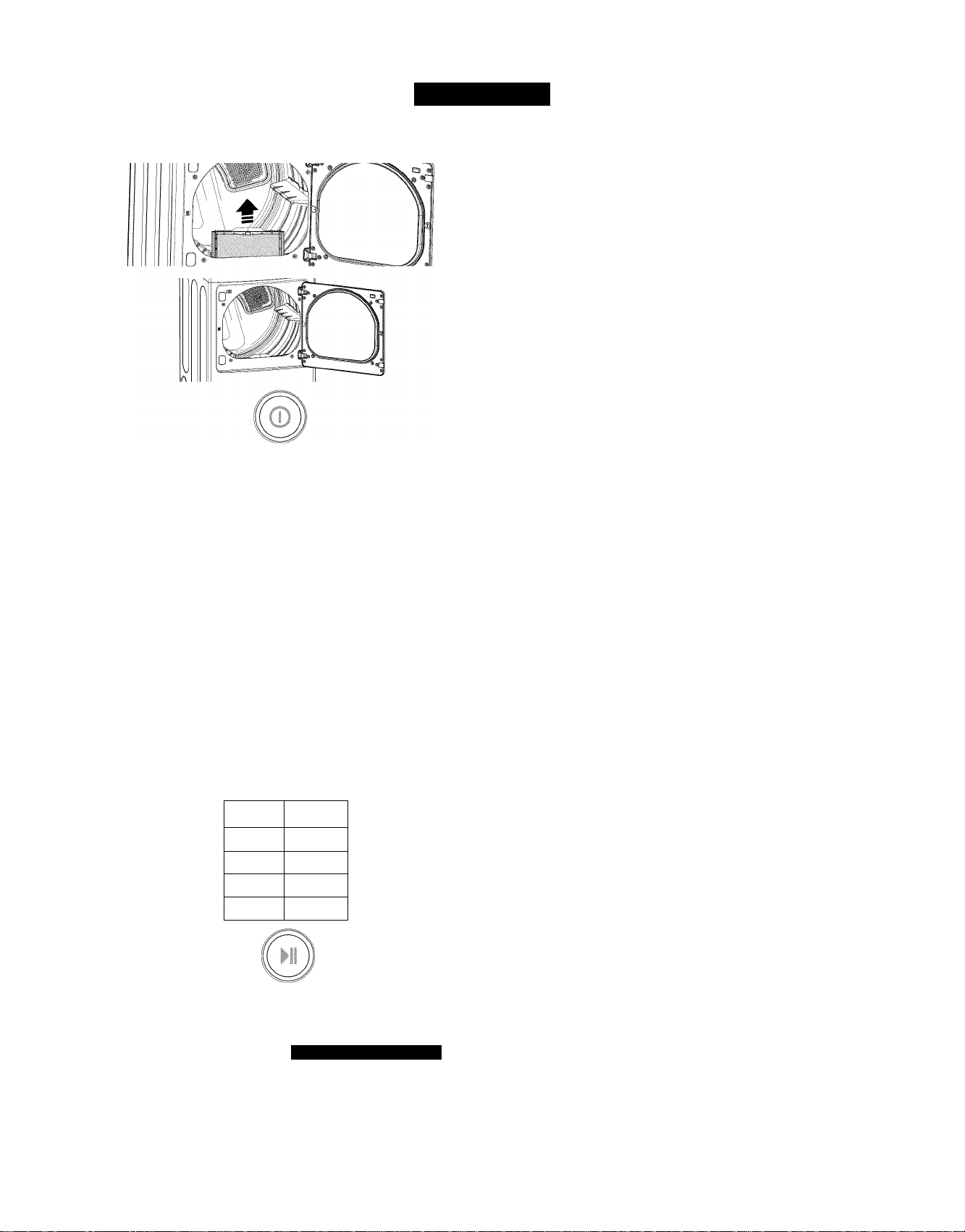

HOW TO USE
Q CLEAN THE LINT FILTER
If the lint filter has not already been cleaned, lift out the
filter and remove the lint from the last load. This will
help ensure the fastest and most efficient drying perfor
mance.
Q LOAD THE DRYER
Load the dryer with the wet laundry from the washer. If
the load is extra large, you may need to divide it into
smaller loads for proper performance and fabric care.
O TURN ON THE DRYER
Press the POWER button to turn on the dryer. The
cycle LEDs will illuminate and a chime will sound, if
turned on. Referto page 19.
O SELECT A CYCLE
Turn the Cycle Selector Knob either direction until the
LED for the desired cycle is on. The preset tempera
ture, dry level, and option settings for that cycle will be
shown. Refer to page 21.
Temp ii Dry Level It Timed Dry
i More Time | 1 My Cycle Ii
1 Less Time | i Wrinkle G
1 Easy Iron j 1 Static Shield j
1 Damp Dry Signal |1 Chim' ■■
Drum Light | i Control Lock 1
Check Filter
Drying
Cooling
i'iiOtIfjfRS;"
START/PAUSE
SELECT CYCLE MODIFIERS
Default settings for the selected cycle can now be
changed if desired. This can be done using the cycle
modifier buttons as shown on page 24 (temperature,
dry level, timed dry and chime).
NOTE: Not all options or modifiers are available on all
cycles. A different chime will sound and the LED will not
come on if the selection is not allowed.
SELECT CYCLE OPTIONS
Cycle options can be added using the option buttons
as shown on page 25 ~ 26 (wrinkle guard, static shield
and control lock).
NOTE: Not all options or modifiers are available on all
cycles. A different chime will sound and the LED will
not come on if the selection is not allowed.
BEGIN CYCLE
Press the START/PAUSE button to begin the cycle.
The cycle can be paused at any time either by open
ing the door or by pressing the START/PAUSE button.
If the cycle is not restarted within 4 minutes, the dryer
will shut off and the cycle settings will be lost.
END OF CYCLE
©
When the cycle is finished, the chime will sound if it is
set. Remove your clothing from the diyer immediately
to reduce wrinkling. If Wrinkle Guard is selected, the
dryer will tumble briefly every few minutes to help pre
vent wrinkles from setting in the clothes.
20
HOW TO USE
CYCLE GUIDE
The cycle guide below shows the options and recommended fabric types for each cycle.
I® = available option = default setting
* Note : This is the default time and actual time will vary depending on the size of the load and moisture content.
Modifiers Options
High Off 20
Adjustable
Adjustable
•
•
Steam Refresh
Comforter,shirts,Trousers
1 - 5 garments (DO NOT
use for delicate fabrics)
j
\
m
(NS^i Sanitize
Towels
Heavy
Duty
cn
Q
g
Casual
Bulky/Bedding
Normal
Workout Wear
Small Load
Délicates
Express Dry
>-
œ:
Q
n
Touch Up
Air Dry
Rack Dry
V
Comforter, Bedding,
Children's clothing, etc.
Denims, towels, heavy
cottons.
Jeans, heavyweight
items.
Permanent press.
synthetic items.
Comforters, pillows,shirt.
Work clothes, etc.
Workout wear
Only Normal &
Cotton/Towels fabric type
(Max 31b)
Lingerie, sheets, blouses.
For small loads with
short.
For removing light
wrinkles.
For items that require
heat-free drying such as
plastics or rubber.
Wool .sweaters Silk
Lingerie.
Extra High
High Normal
Extra High
Low
Medium
Medium Normal
Off
Extra High
Low
Extra High
Adjustable
High
Adjustable
Air Only
Off Off
Air Only, Low
Extra Dry 70
Adjustable
Normal
Adjustable
Normal
Adjustable
Normal
Adjustable
Adjustable
Off
Normal
Adjustable
Normal
Adjustable
Off
Max 99
Off
Max 99
Off
Max 99
Max 99
55
54
36
55
41
27
30
32
25
20
30
50
m
m
•
(A
3
o
z
u
m
m m m
•
•
•
J
Auto Dry Cycles
Auto Dry cycles utilize a sensor that detects moisture levels in the clothes
and adjusts the drying time as needed to ensure superior results. The
dryer automatically sets the dry level and temperature at the
recommended setting for each cycle. The estimated time remaining will be
shown in the display.
NOTE: To protect your garments, not every dry level, temperature, or
option is available with every cycle. A different chime will sound
and the LED will not come on if the selection is not allowed.
iNSF) CERTIFIED BY NSF
V.
NSF International (formerly the National Sanitation Foundation), certifies that SANITIZE cycle reduces 99.9% of bacteria on laundry, and none of
the bacteria will carry over onto the next laundry load.
Timed Dry Cycles
Use Timed Dry cycles to select a specific amount of drying time and a
drying temperature. When a Timed Dry cycle is selected,
the ESTIMATED TIME REMAINING display shows the actual time
remaining in your cycle.
You can change the actual time for the cycle by pressing MORE TIME or
LESS TIME. Press and hold the MORE TIME or LESS TIME buttons to
rapidly change the time.
21
HOW TO USE
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read this entire manual, includ
ing the Important Safety Instructions, before operating this dryer.
SORTING LOADS
Fabric Care Labels
Most articles of clothing feature fabric care labels that
include instructions for proper care.
Tumble
dry
Dry Normal Permanent Press/
O
wrinkle resistant
O ;Q: :x:
m
z
Gentle/
delicate
Do not tumble dry
o
r
(7)
X
Grouping Similar Items
For best results, sort clothes into loads that can be dried
with the same drying cycle.
Different fabrics have different care requirements, and
some fabrics will dry more quickly than others. For best
fabric care results, always dry fabrics with similar care
requirements together.
Heat
setting
©
High
©
Medium Low
Do not dry
(used with
do not wash)
o
LOADING THE DRYER
WARNING: To reduce the risk of fire,
electric shock, or injury to persons when using this
appliance, follow basic precautions, including the
following:
• Check all pockets to make sure that they are
empty. Items such as clips, pens, coins, and
keys can damage both your dryer and your
clothes. Flammable objects such as lighters or
matches could Ignite, causing a fire. Failure to
do so can result in fire, explosion, or death.
• Never dry clothes that have been exposed to
oil, gasoline, or other flammable substances.
Washing clothes will not completely remove oil
residues. Failure to obey this warning can result
in fire, explosion, or death.
Loading Tips
• Combine large and small items in a load.
• Damp clothes will expand as they dry. Do not overload
the dryer; clothes require room to tumble dry properly.
• Close zippers, hooks, and drawstrings to prevent these
items from snagging or tangling on other clothes.

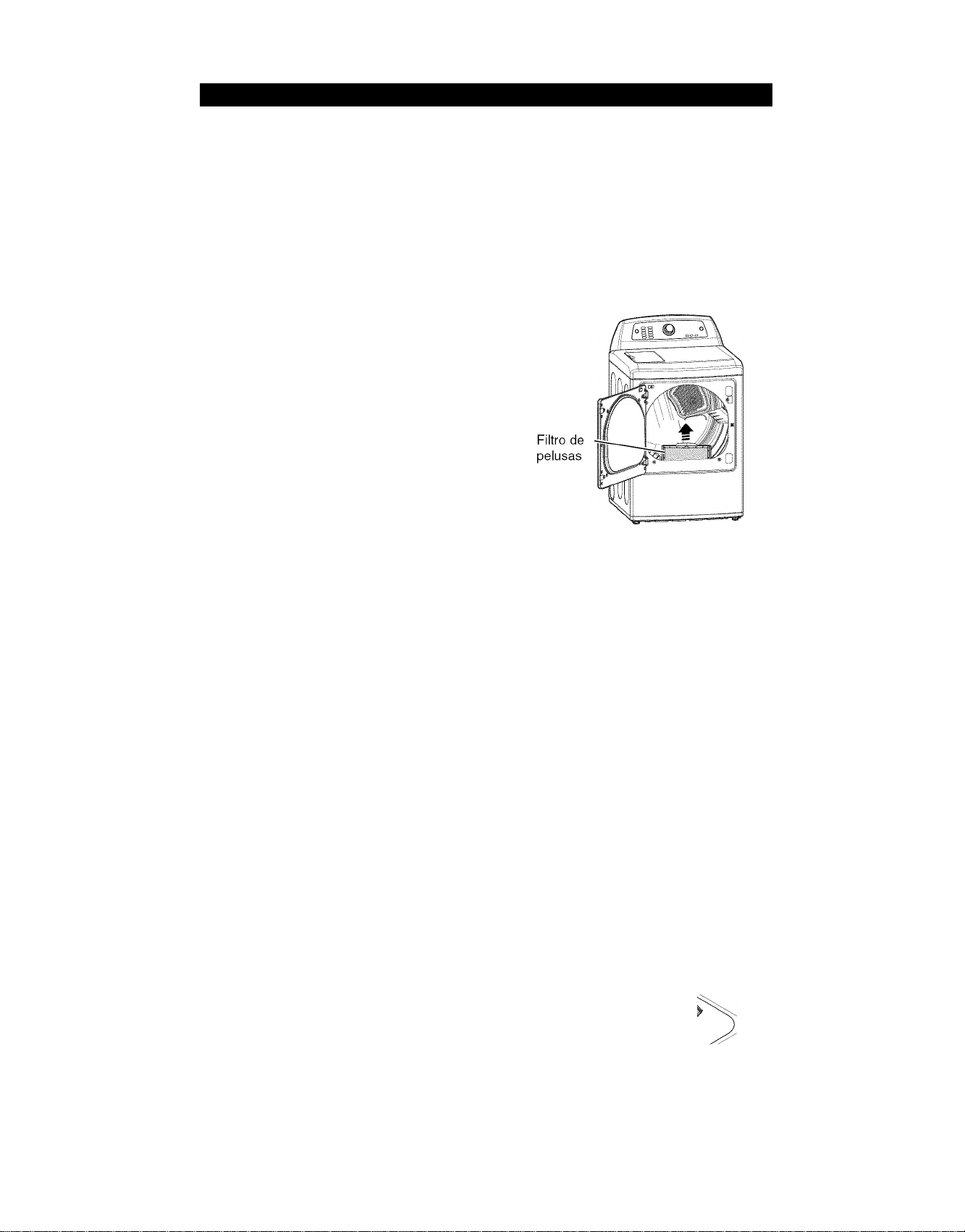

CHECK THE LINT FILTER BEFORE EVERY LOAD
Always make sure the lint filter is clean before starting a
new load; a clogged lint filter will increase drying times.

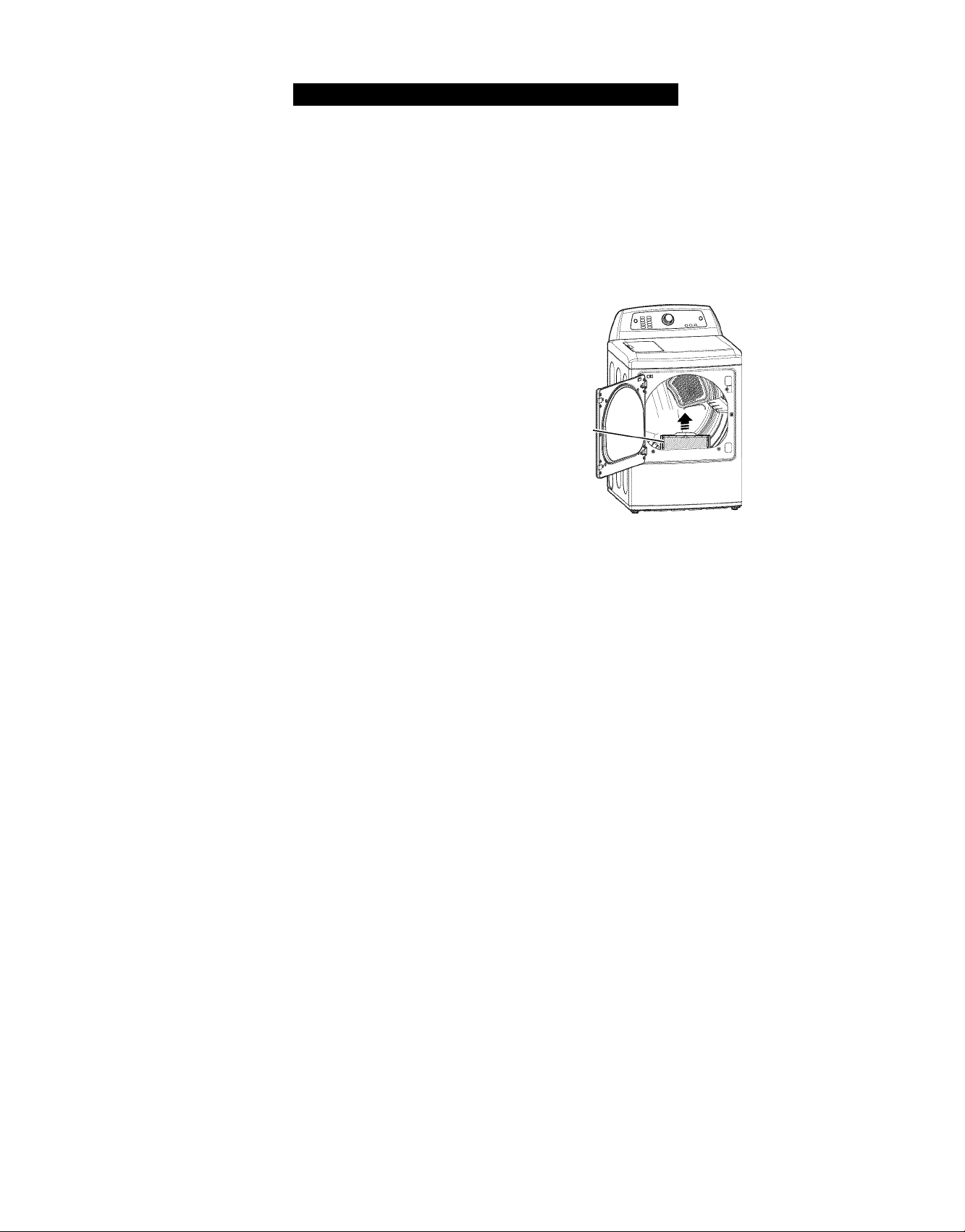

To clean, pull the lint filter straight up and roll any lint off
the filter with your fingers. Do not rinse or wash the filter
to remove lint. Push the lint filter firmly back into place.
See “Regular Cleaning” on page 28 for more
information.
Always ensure the lint filter is properly installed before
running the dryer. Running the dryer with a loose or
missing lint filter may damage the dryer and articles in
the dryer.
22
Loading...
