Kenmore 795.7103 User Manual

Use & Care Guide Manual de Uso y Cuidado Guide d’utilisation et d’Entretien

English / Español / Français

Models/Modelos/Modèles: 795.7103*

Kenmore Elite

P/N MFL62184414 Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com www.sears.com

Sears Canada Inc. Toronto, Ontario, Canada MSB 2C3

www.sears.ca

Warranty.........................................................................................3

Protection Agreements

........................................

important Safety instructions......................5-7

Electrical & Grounding Requirements

Parts and Features Refrigerator Installation

Unpacking Your Refrigerator...............................................9

Installation Removing/Replacing Your Refrigerator and

Freezer Handles and Doors.........................................11-15

Leveling and Door Alignment...........................................16

................................................................................

Using Your Refrigerator.............................................17-27

Setting the Controls

In-Door Ice Bin........................................................................19

Automatic Icemaker..................................................20-21

Food Storage Guide..............................................................22

► Refrigerator Section

Water Dispenser

Refrigerator Shelves..............................................................24

Humidity Controlled Crisper

Temperature Controlled Pantry Drawer........................25

.................................................................

...............................................

.......................................................

.....................................................................

.............................................

...........

9-16

17-18

► Freezer Section

Extra Ice Bin .............................................................................26

Durábase....................................................................................27

Durábase Divider....................................................................27

Pullout Drawer.........................................................................27

Water Filter ........................................................................28-31

Care And Cleaning

General Cleaning Tips

Outside.......................................................................................32

Inside Walls...............................................................................32

Door Liner And Gaskets

Plastic Parts...............................................................................32

Condenser Coils......................................................................32

Light Bulb Replacement......................................................33

Power Interruptions When You Go On Vacation

When You Move.....................................................................33

Connecting the Water Line Troubleshooting Guide

........................................................

.........................................................

......................................................

..............................................................

................................................

......................................

..............................................

32-33

34-36 37-43

33 33

Service....................................................................Back Cover

Door Bin ....................................................................................26

Dairy Bin ....................................................................................26

WARRANTY

REFRIGERATOR WARRANTY

Kenmore Elite Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if any non-consumable part of this appliance, other than the sealed refrigerant system, foils due to a defect in material and workmanship within one year from the dote of purchase, coll 1-800-4-MY-HOME® to arrange for free repair.

If this appliance is ever used for other than private family purposes, this coverage applies for only 90 days from the dote of purchase.

If the sealed refrigerant system is defective within five years from the purchase dote, coll 1-800-4-MY-HOME® to arrange for free repair, if this appliance is ever used for other than private family purposes, this coverage applies for only one year from the dote of purchase.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that con wear out from normal use, including but not limited to filters, belts, light

bulbs, and bogs.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all the

instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its

intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils

other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so

these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada MSB 2C3

PROTECTION AGREEMENTS

Moster Protection Agreements

Congratulations on making a smart purchase. Your new Ken more Elite® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes:

• Parts and labor needed to help keep products

operating properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage— real protection.

• Expert service by a force of more than 10,000

authorized Sears service technicians, which means

someone you can trust will be working on your product.

• Unlimited service calls and nationwide service, as

often as you want us, whenever you want us.

• “No-lemon” guarantee - replacement of your covered

product if four or more product failures occur within twelve months.

• Power surge protection against electrical damage due

to power fluctuations.

• $250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any covered refrigerator or freezer.

• Rental reimbursement if repair of your covered

product takes longer than promised.

• 10% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes to schedule service. You can call at any time day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund or a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the

U.S.A. call 1-800-827-6655.

• Product replacement if your covered product can’t be

fixed.

• Annual Preventive Maintenance Check at your request

- no extra charge.

• Fast help by phone - we call it Rapid Resolution

- phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.”

• Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call

1-800-4-MY-HOME®.

PRODUCT RECORD

In the space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these items of information available whenever you contact Sears concerning your product.

Model No._

Date of Purchase

Serial No.

Save these instructions and attach your sales receipt for future reference.

IMPORTANT SAFETY INSTRUCTIONS

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.

A DANGER

All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING or CAUTION. These words mean:

You will be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

A WARNING

Indicates an imminently hazardous situation which, if not avoided,

A CAUTION

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

may result in minor or moderate injury, or product damage.

Awarning

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.

• DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

• Immediately repair or replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

• Do not modify or extend the power cord length. It could cause electric shock or fire.

• When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.

SAVE THESE INSTRUCTIONS

• Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small.

Be careful closing doors when children are in the area.

• Unplug your refrigerator before cleaning or making any repairs.

NOTE: It is strongly recommended that any service be

performed by a qualified technician.

AWARNiNG

Before replacing a burned-out or broken light bulb, unplug the refrigerator or turn off power at the circuit breaker or fuse box in order to avoid contact with a live wire filament. (A burned-out light bulb may break when being replaced exposing the wire filament.)

NOTE: Some models have LED interior lighting and

service should be performed by a qualified technician.

WARNING: Setting either or both controls to the OFF

position does not remove power to the light circuit. When you are finished, reconnect the refrigerator to

the electrical source and reset the controls (Thermostat, Refrigerator Control, and or Freezer Control, depending on the model) to the desired setting.

This refrigerator must be properly installed in accordance with the Attention Installer Instructions that were taped to the front of the refrigerator.

After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may adhere to the extremely cold surfaces.

DO NOT touch the automatic ice making mechanism

while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed

completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 says:

...You may safely refreeze frozen foods that have

thawed if they still contain ice crystals or if they are still cold—below 4°C.

...Thawed ground meats, poultry or fish that have any

off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded.

If the odor or color of any food is poor or questionable,

dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating quality of foods, particularly fruits, vegetables and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible to save as much of their quality as you can.

SAVE THESE INSTRUCTIONS

A DANGER: RISK OF CHILD ENTRAPMENT

Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. If you are getting rid of your old refrigerator, please follow the instructions at right to help prevent accidents (child entrapment and suffocation).

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR OR FREEZER:

• Take off the doors.

• Leave the shelves in place so that

children may not easily climb inside.

CFC DISPOSAL

Your old refrigerator may have a cooling system that used

CFCs (chlorofluorocarbons). CFCs are believed to harm stratospheric ozone.

ELECTRICAL & GROUNDING REQUIREMENTS

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Awarning

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

If you are throwing away your old refrigerator, make sure the CFC refrigerant is removed for proper disposal by a qualified technician. If you intentionally release this CFC refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, the use of an extension cord is not recommended. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a ULlisted (USA), 3-wire grounding type appliance extension cord having a grounding type plug and outlet, and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance needed for the back of the refrigerator.

3-prong grounding type wall receptacle

3-prong grounding

plug

---------

Ensure proper ground exists before use.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

Use a receptacle that cannot be turned off with a switch or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded three-prong wall outlet.

PARTS AND FEATURES

Use this page to become more familiar with the ports and features of your refrigerator. Page references are included for your convenience.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items

listed below. The locations of the features shown below may not match your model.

Ice Bin

Q Refrigerator Light (p. 33) © Extra Ice Bin (p. 26)

O Water Filter (Inside) (p. 28) O Pullout Drawer (p. 27) 3 Adjustable Door Bins (p. 26) O Durábase (p. 27) © Fixed Door Bins © Refrigerator Shelves (p. 24) O Dairy Bin (p. 26) © Ice Compartment (p. 19)

(Icemaker and Ice Bin) @ Humidity Controlled Crisper (p. 25) 3 Temperature Controlled

Pantry Drawer (p. 25)

O Water Tank Cover O Articulating Mullion (p. 18)

Ice Compartment

Door

REFRIGERATOR INSTALLATION

Awarning

Excessive Weight Hazards

Use two or more people to move and install the

refrigerator. Failure to do so can result in back or

other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warningtype labels, the model and serial number label, or the Tech Sheet that is located under the front of the refrigerator, behind the base grille.

To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator.

Awarning

Excessive Weight Hazard:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.

Awarning

Explosion Hazard:

Keep flammable materials and vapors, such as

gasoline, away from the refrigerator. Failure to do so can result in fire, explosion, or death.

Refrigerator shelves are installed in the shipping position. Please reinstall shelves according to your individual storage needs.

BASE GRILLE INSTALLATION

INSTALLATION (continued)

To remove the base grille:

1) Open the Freezer Drawer. (Drawer not shown for

clarity.)

2) Once the drawer is open, and there is sufficient

clearance, remove the screws on the top of the cover.

To replace the base grille:

Place the cover into position and then insert and

tighten the screws.

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off all

dust that accumulated during shipping.

1. To avoid noise and vibration, the unit must be

leveled and installed on a solidly constructed floor. If required, adjust the leveling legs to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling legs can be turned easily by tipping the cabinet slightly. Turn the leveling legs clockwise to raise the unit or counterclockwise to lower it. (See LEVELING AND DOOR ALIGNMENT.)

NOTE: Installing on carpeting, soft tile surfaces,

a platform or weakly supported structure is not recommended.

2. Install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C). If the temperature around the appliance is too low or high, cooling ability may be adversely affected.

3. Select a place where a water supply can be easily

connected for the automatic icemaker.

NOTE: The water pressure must be between 20 and

120 psi on models without a water filter and between

40 and 120 psi on models with a water filter.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Allow your refrigerator to run for at least two to three

hours before putting food in it. Check the flow of

cold air in the freezer compartment to ensure proper

cooling. Your refrigerator is now ready for use.

INSTALLATION

WARNING

Shock Hazard:

To reduce the risk of electric shock, do not install the refrigerator in a wet or damp area.

4. Too small of a distance from adjacent items may

result in lowered freezing capability and increased electricity consumption charges. Allow at least 24 inches (61 cm) in front of the refrigerator to open the doors.

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow

opening. If it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from

illustrations on this page.

Removing Refrigerator Handle

Loosen the set screws with a 32 in. (2.5 mm)

Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need

to be tightened or removed, use a % in. (6.4

mm) Allen wrench.

HOW TO REPLACE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from

illustrations on this page.

Replacing Refrigerator Door Handle

Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a 2 /32 in (2.5 cm) Allen wrench.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a

V4 in. (6.4 mm) Allen wrench.

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow

opening. If it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from illustrations on

this page.

Removing Freezer Drawer Handle

Loosen the set screws located on the lower side of the

handle with a Vs in. (3.1 mm) Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be

tightened or removed, use a % in. (6.4 mm) Allen wrench.

HOW TO REPLACE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from illustrations on

this page.

Replacing Freezer Drawer Handle

Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a Vs in. (3.1 mm) Allen wrench.

NOTE: If the handle mounting fasteners need to be

tightened or removed, use a % in. (6.4 mm) Allen wrench.

REMOVING AND REPLACING REFRIGERATOR DOORS

Awarning

Excessive Weight Hazards

Use two or more people to remove and install the

refrigerator doors. Failure to do so can result in back or

other injury.

WARNING

A CAUTION: Before you begin, remove food and bins

from the doors.

Electrical Shock Hazard

Disconnect the electrical supply to the refrigerator before installing. Failure to do so could result in

serious injury or death.

Do not put hands, feet or other objects into the air

vents, base grille, or bottom of the refrigerator. You

may be injured or receive an electrical shock.

NOTE: Be careful when you work with the hinge and base

grille. You may be injured.

To remove the left refrigerator door:

On the back of the refrigerator, pull the water tube out of the collet fitting on the connector by pressing the fitting release ring (see picture below).

1. Open the door. Remove the top hinge cover screw (1). Lift up the cover (2).

2. Remove the cover.

3. Pull out the tube (3).

4. Disconnect all wire harnesses (4).

5. Remove the grounding screw (5).

6. Rotate hinge lever (6) counterclockwise. Lift the top hinge (7) free of the hinge lever latch (8).

A CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

7. Lift the door from the middle hinge pin and remove the

door.

8. Place the door, inside facing up, on a non-scratching

surface.

To remove the right refrigerator door:

1. Open the door. Remove the top hinge cover screw (1). Lift up the cover (2).

2. Remove the cover.

3. Rotate the hinge lever (3) clockwise. Lift the top hinge

(4) free of the hinge lever latch (5).

A CAUTION: When lifting the hinge free of the latch, be

careful that the door does not fall forward.

4. Lift the door from the middle hinge pin and remove

the door.

5. Place the door, inside facing up, on a non-scratching

surface.

Reinstalling the Refrigerator Door

► Right Door

► Left Door

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (7) over hinge lever latch (8) and into

place. Rotate lever (6) clockwise to secure hinge.

3. Install the grounding screw (5) and connect the two

wire harnesses (4).

4. Push the water tube (3) located at the top of the left

door into the hole beside the left hinge on the top of the cabinet until it exits through the back.

5. Insert the water supply tube (3) into the connector until you see only one scale mark. Fully insert the tube over

Vs in. (15 mm).

6. Hook tabs on left side of hinge cover (1) under the edge of the top hinge (7) and position the cover in

place. Insert and tighten the cover screw (1).

1. Lower the door onto middle hinge pin (9).

2. Fit top hinge (4) over hinge lever latch (5) and into place. Rotate lever (3) counterclockwise to secure hinge.

3. Hook the tabs on right side of hinge cover (2) under the edge of the top hinge (4) and position the cover in

place. Insert and tighten the cover screw (1).

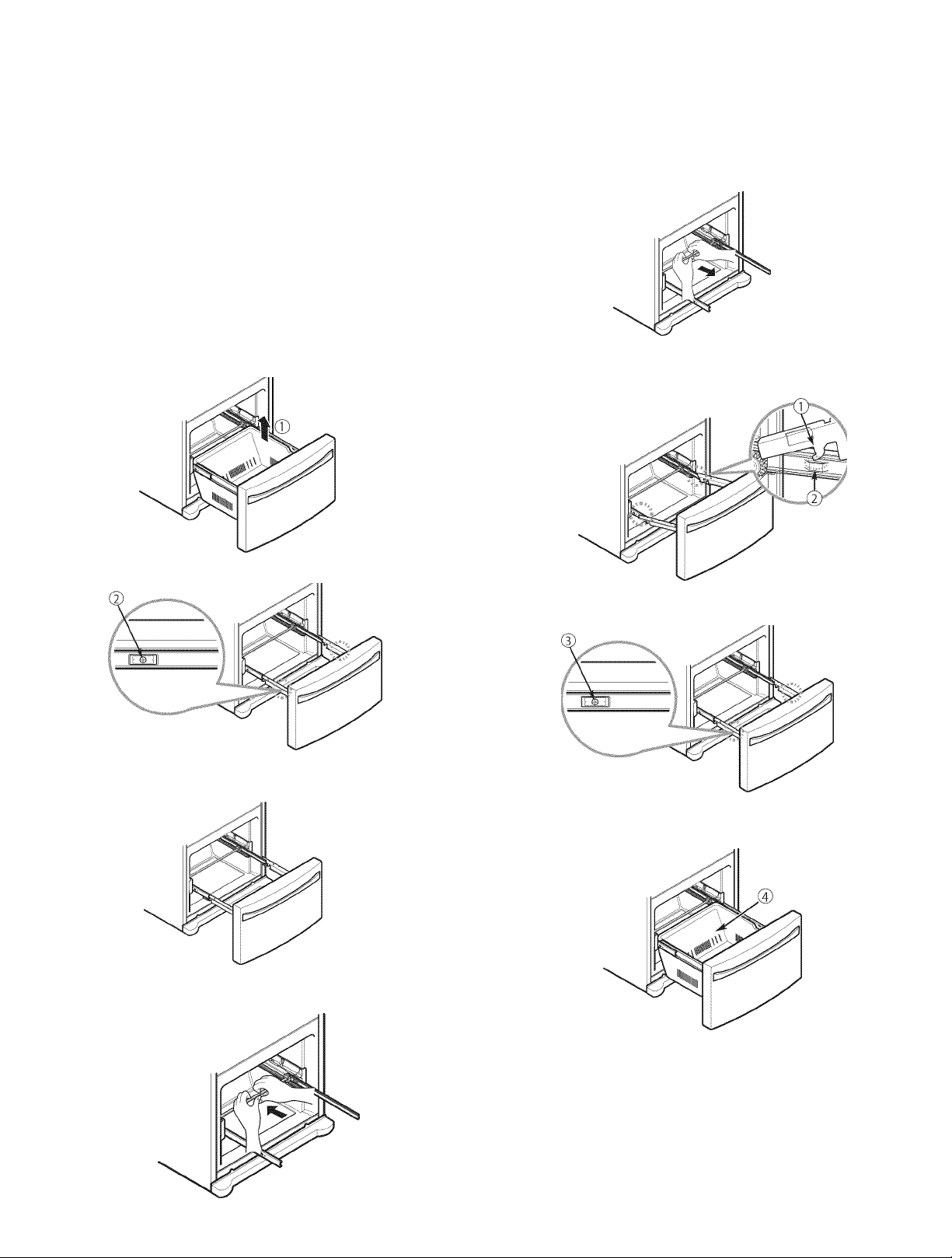

Acaution

+ 30 hidden pages

Kenmore 795.7103 User Manual

TABLE OF CONTENTS

WARRANTY

PROTECTION AGREEMENTS

PRODUCT RECORD

IMPORTANT SAFETY INSTRUCTIONS

CFC DISPOSAL

ELECTRICAL & GROUNDING REQUIREMENTS

PARTS AND FEATURES

REFRIGERATOR INSTALLATION
