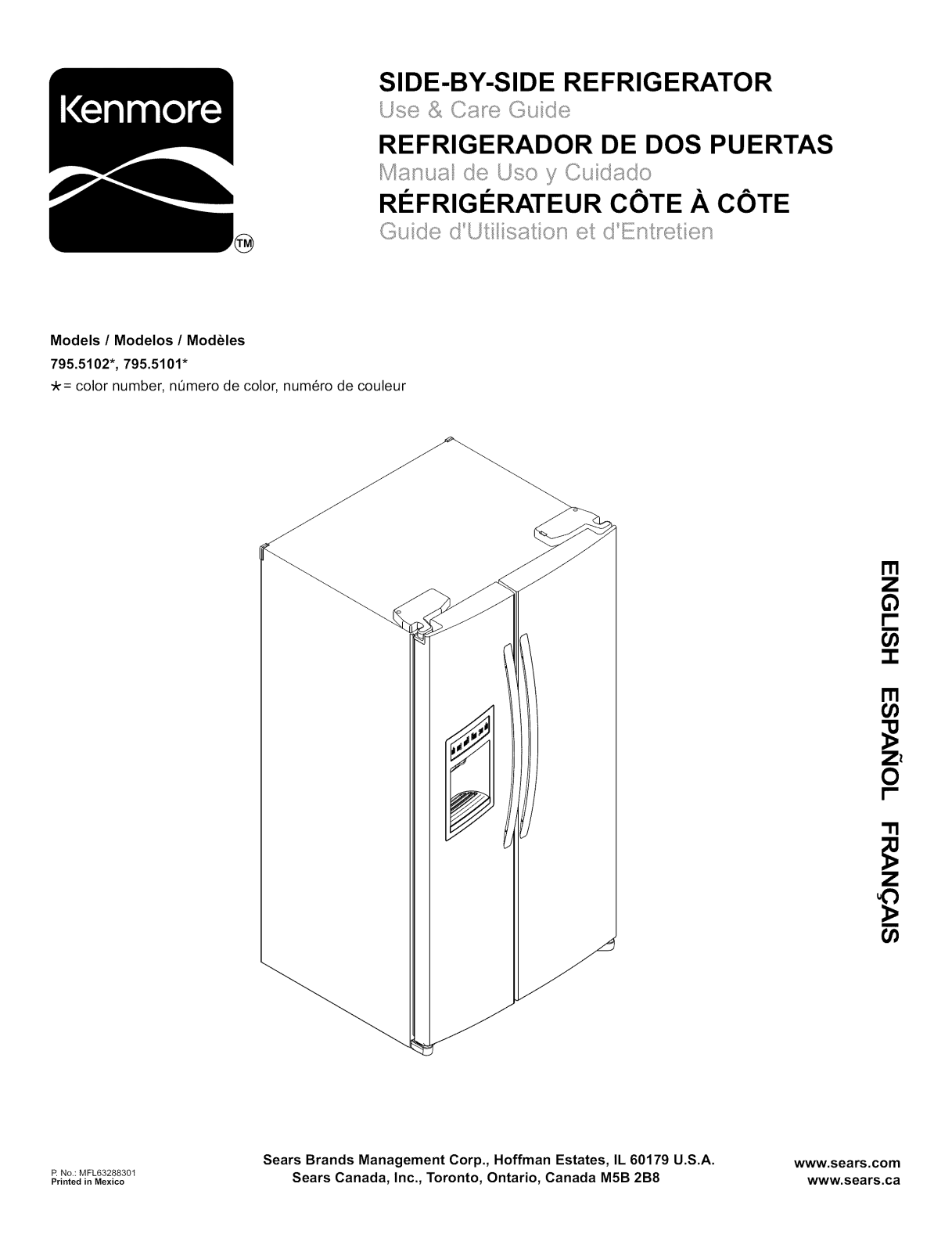

Kenmore 79551012010, 79551013010, 79551013011, 79551014010, 79551016010 Owner’s Manual

...

SIDE-BY-SIDE REFRIGERATOR

REFRIGERADOR DE DOS PUERTAS

RI_FRIGI_RATEURCOTE .A,COTE

Models / Modelos / ModUles

795.5102", 795.5101"

-k= color number, nOmero de color, num6ro de couleur

R No.: MFL63288301

PrintedinMexico Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

Sears Brands Management Corp., Hoffman Estates, IL 60179 U.S.A. www.sears.com

Z !

I-

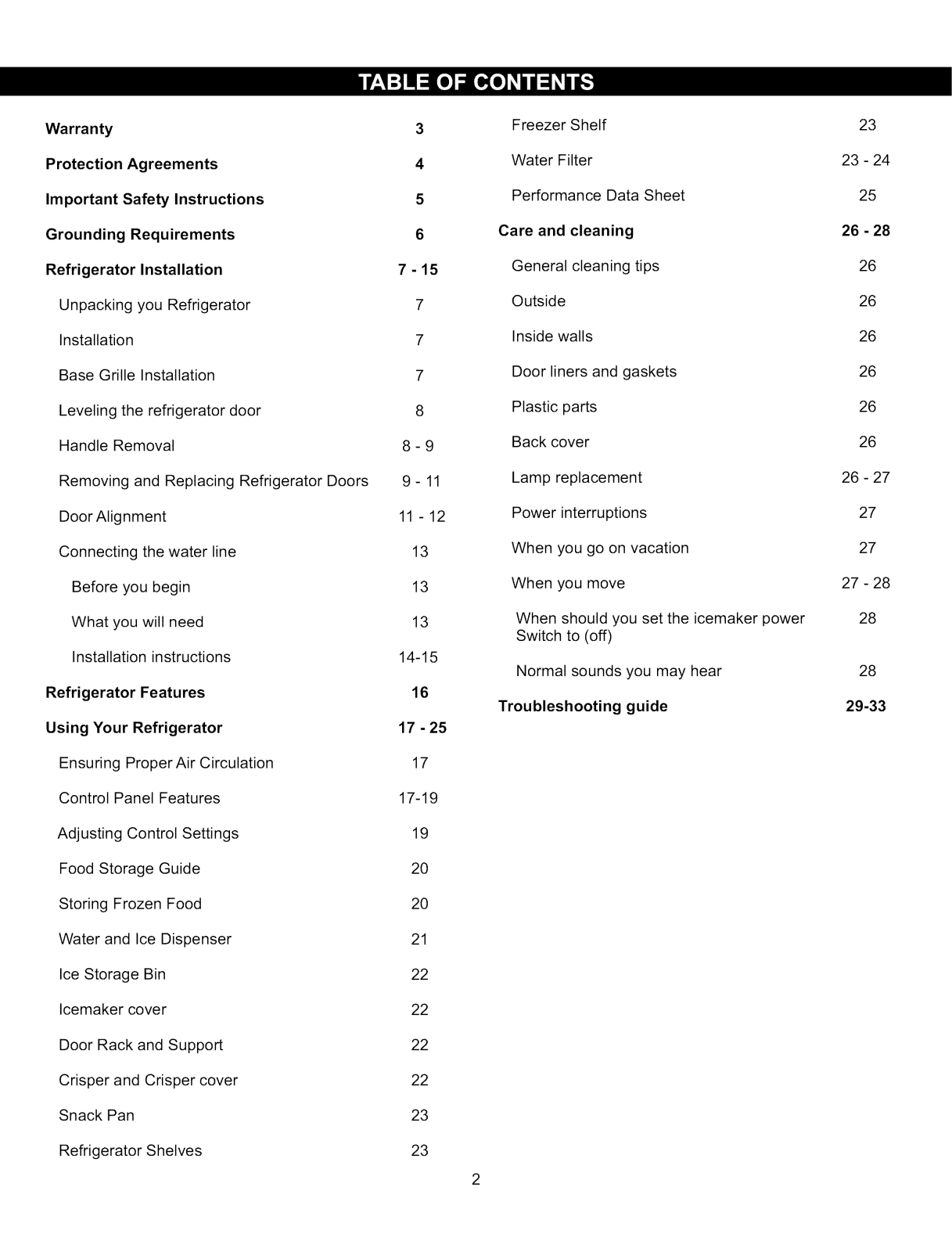

Warranty

Freezer Shelf

Protection Agreements

Important Safety Instructions

Grounding Requirements

Refrigerator Installation

Unpacking you Refrigerator

Installation

Base Grille Installation

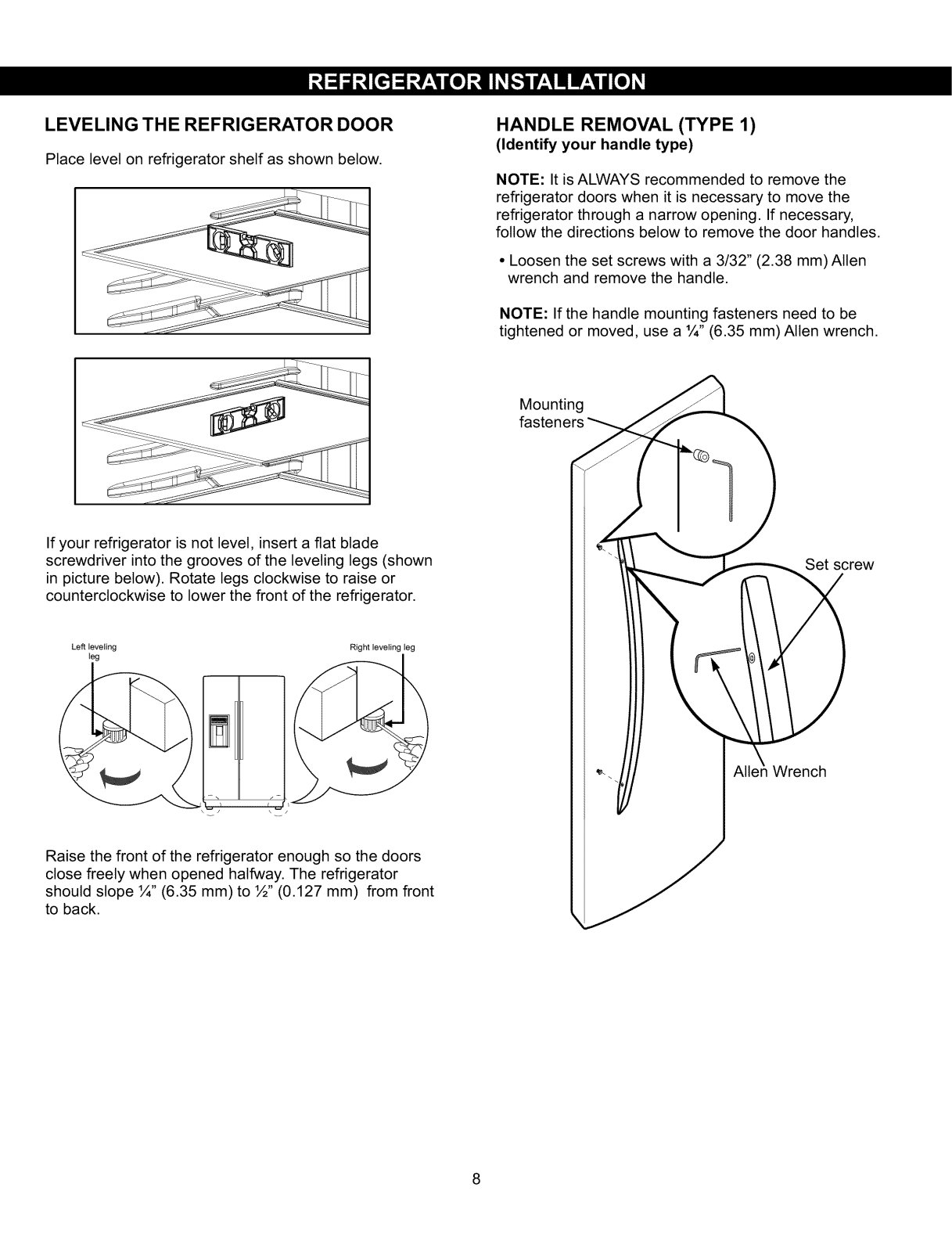

Leveling the refrigerator door Handle Removal

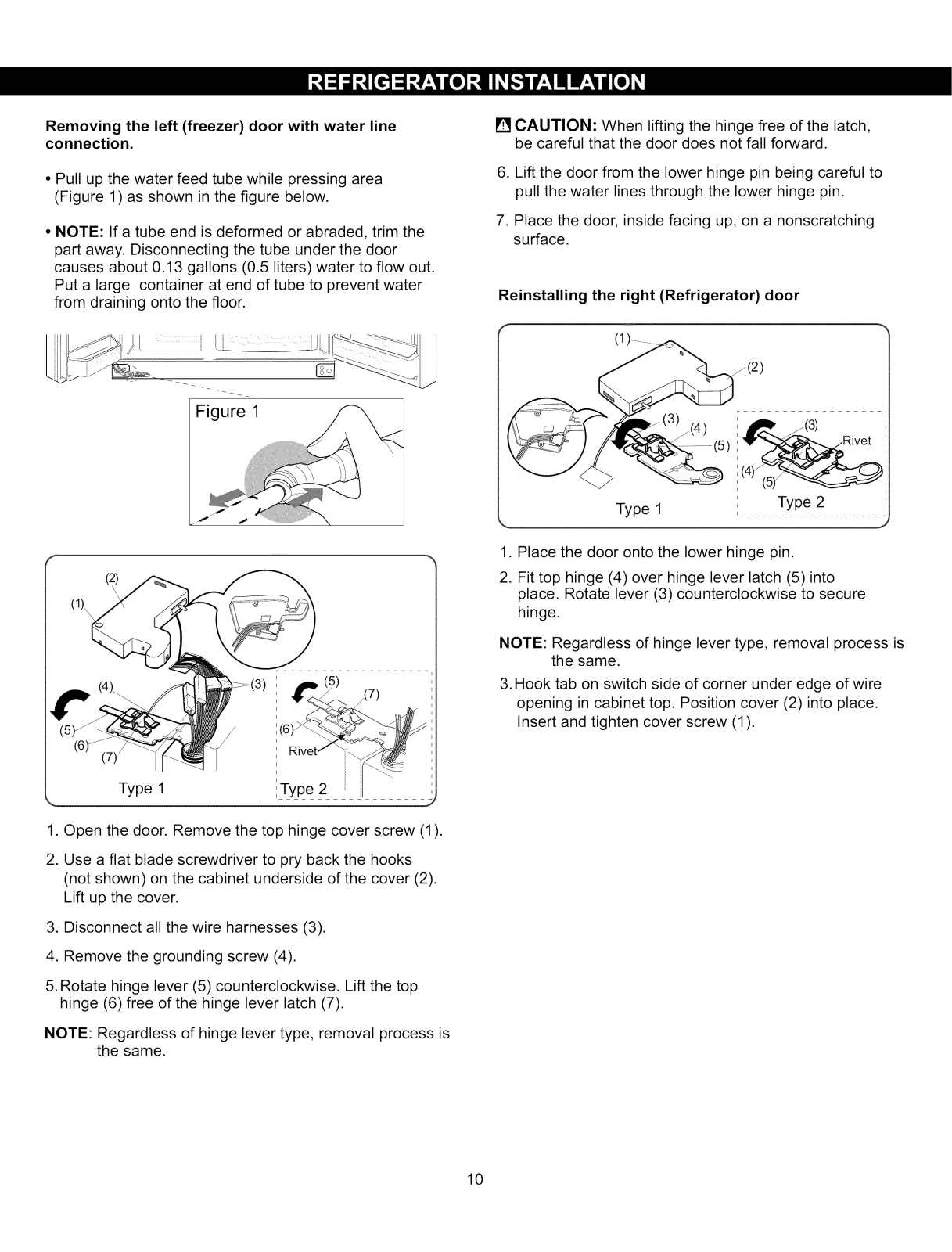

Removing and Replacing Refrigerator Doors

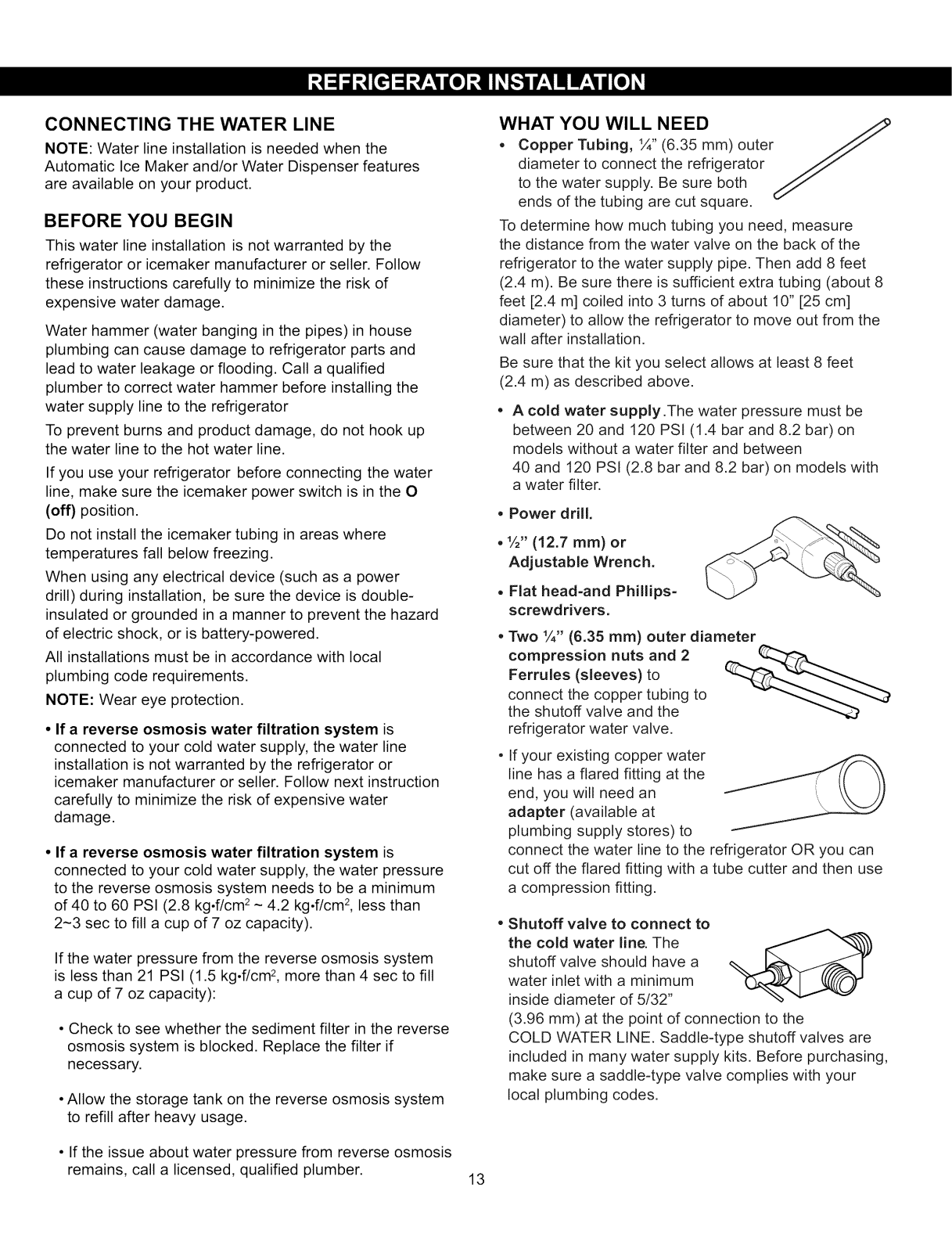

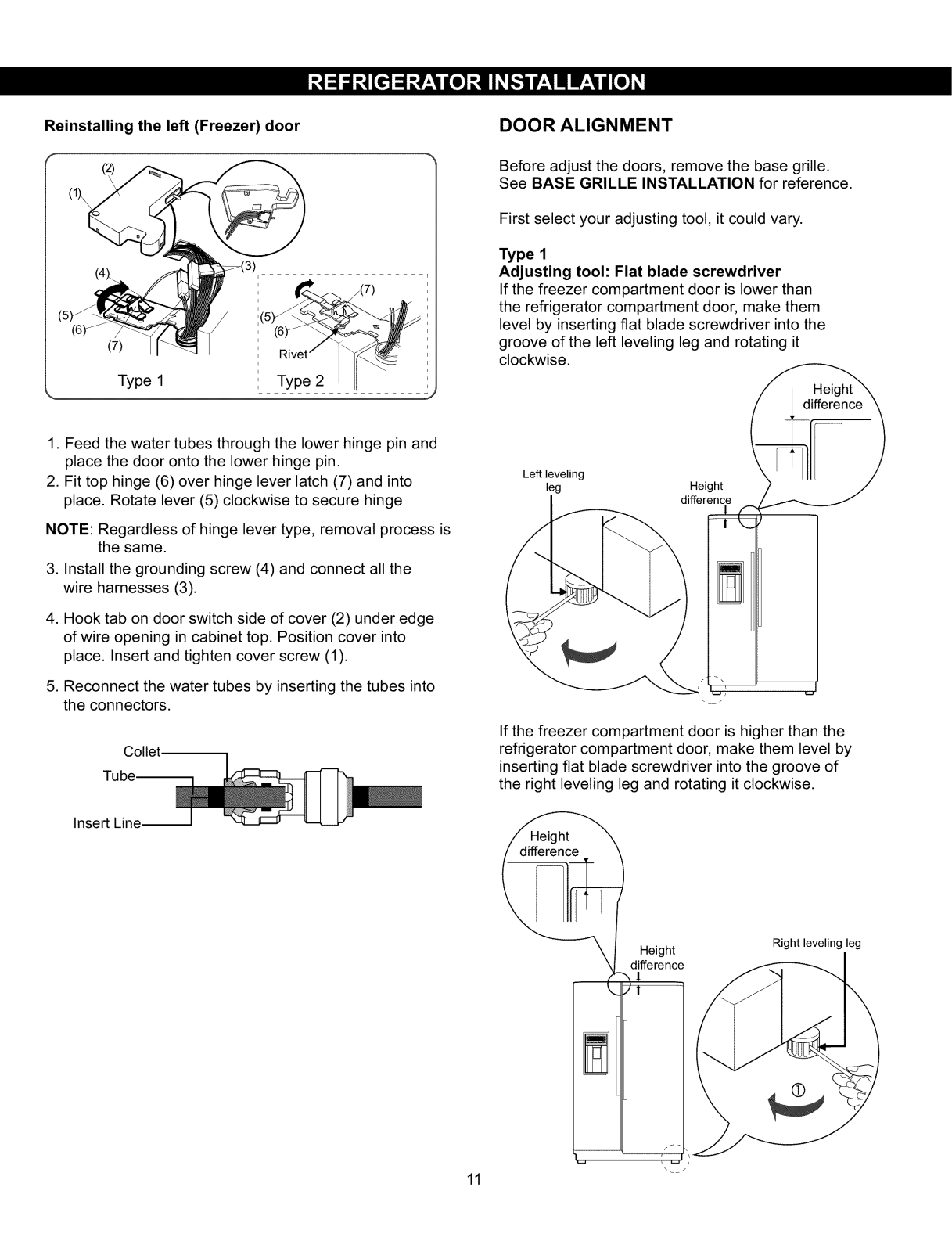

Door Alignment Connecting the water line

Before you begin

What you will need

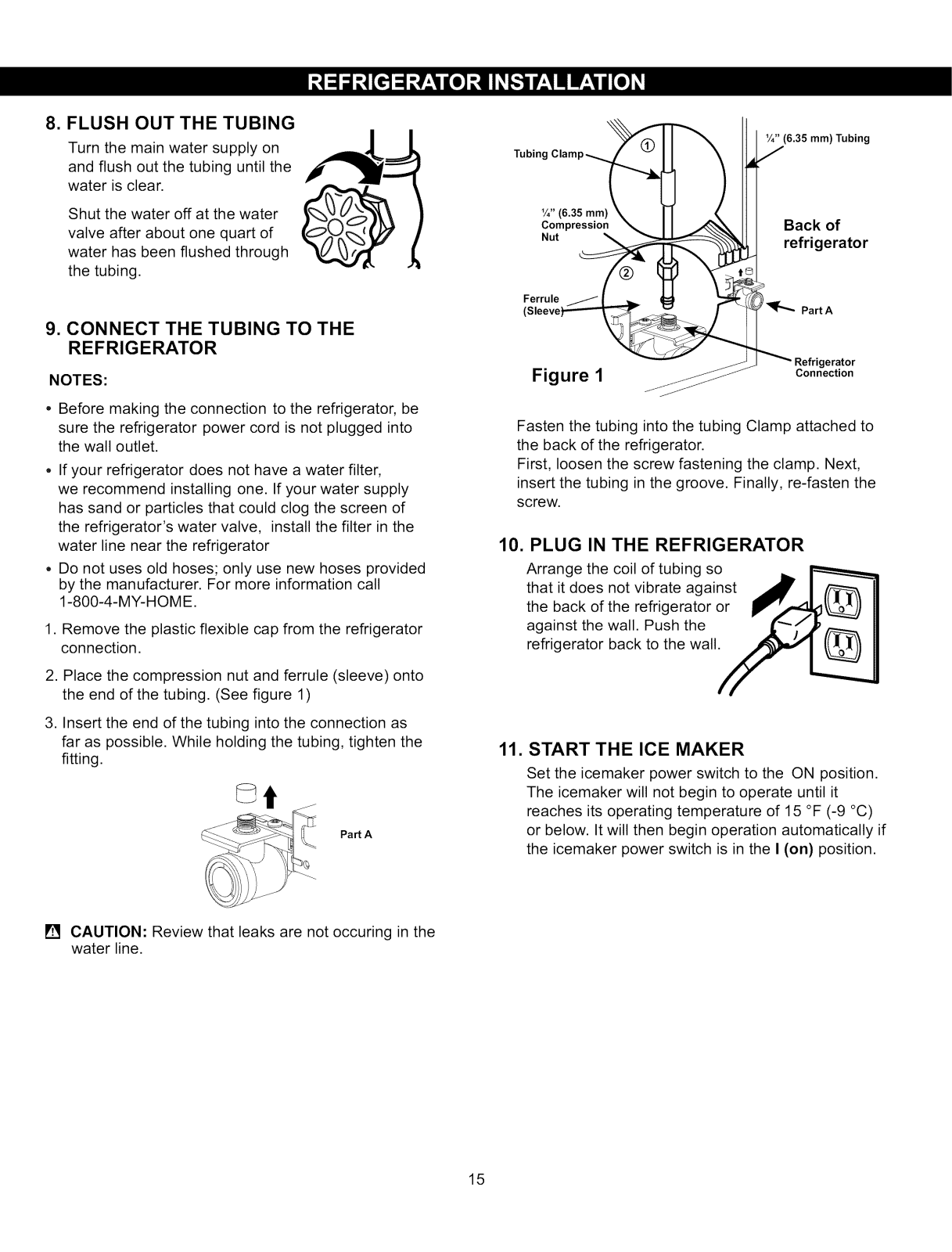

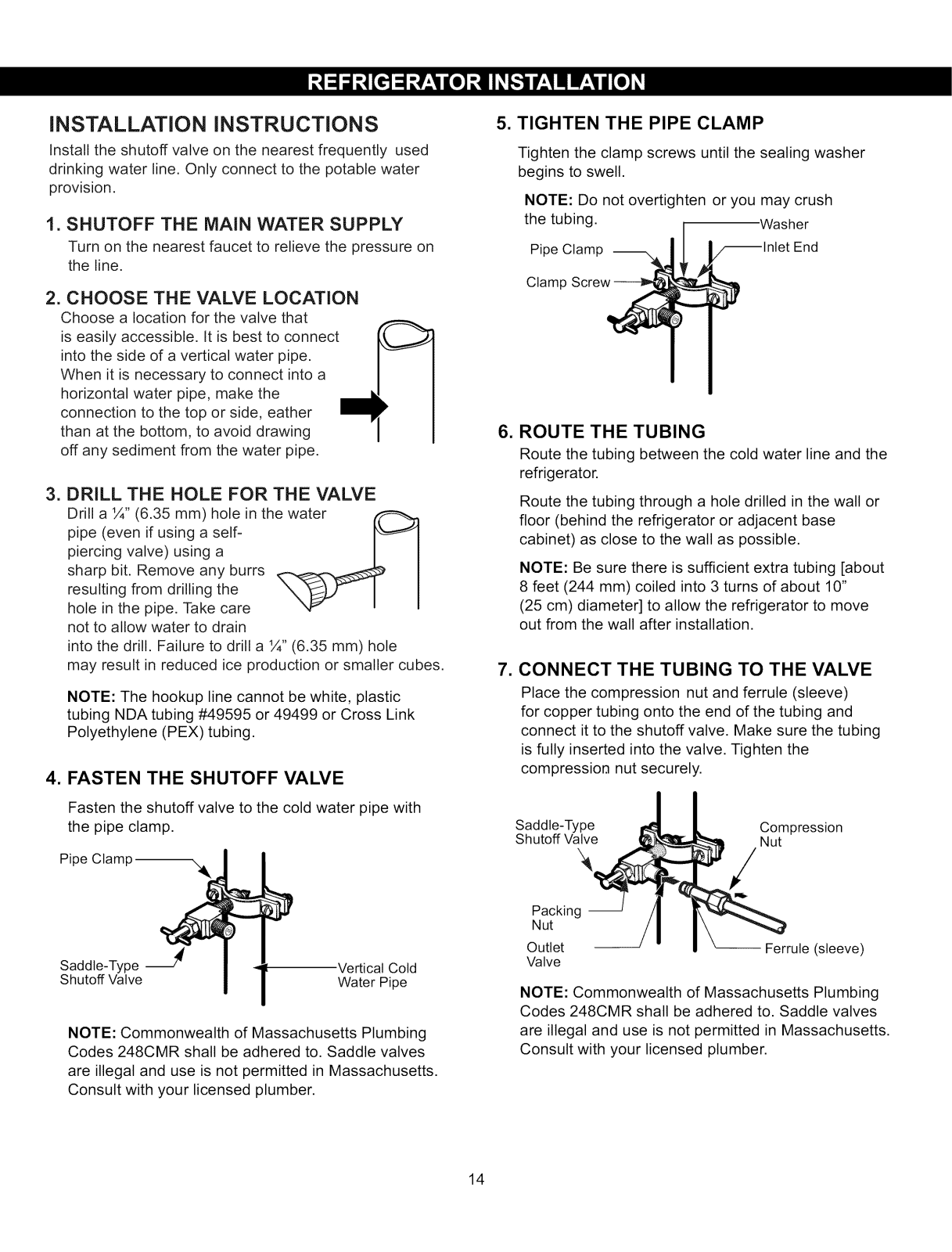

Installation instructions

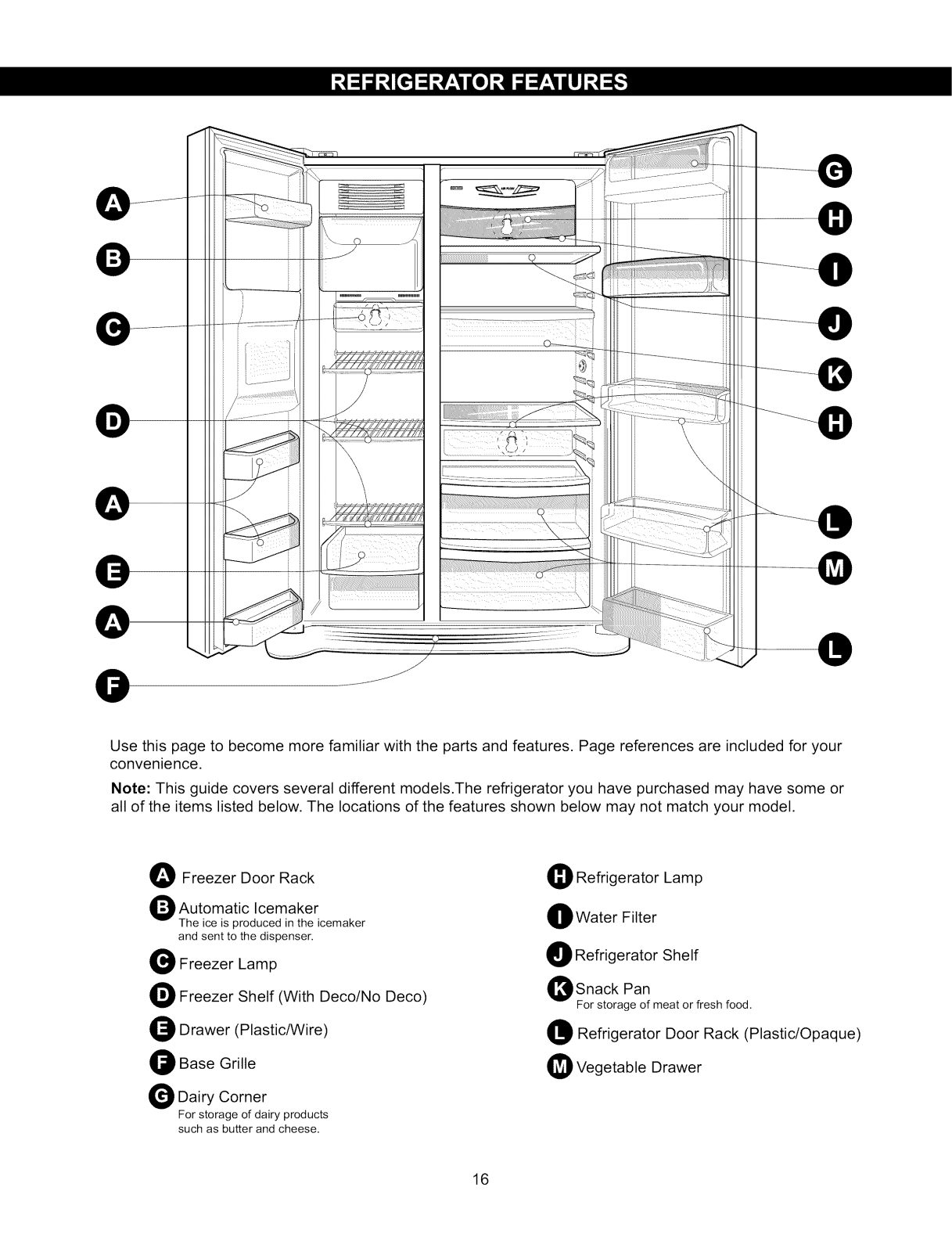

Refrigerator Features Using Your Refrigerator

5 6

7-15

7 7

7 8

8-9

9-11

11 - 12

13 13

14-15

17 - 25

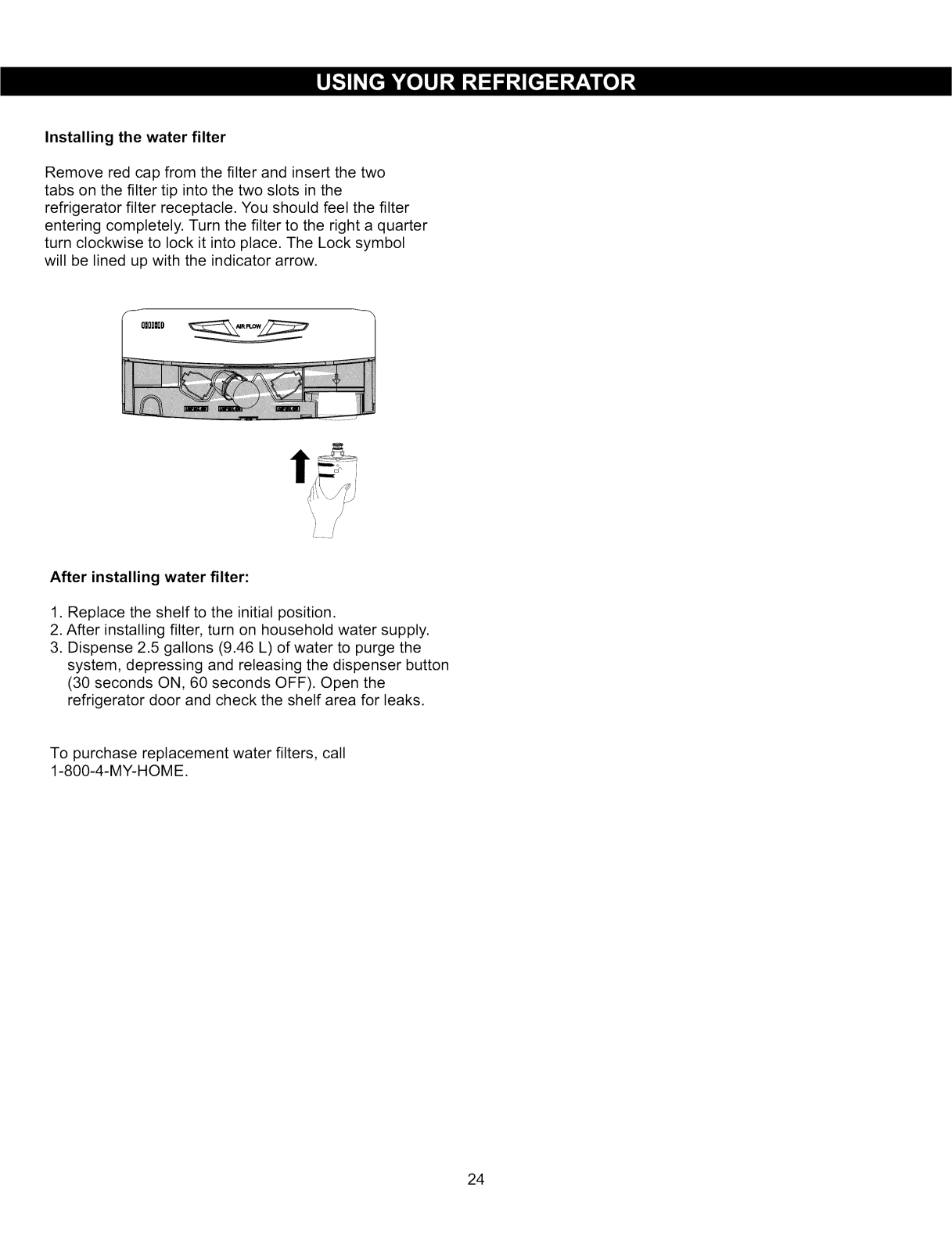

Water Filter

Performance Data Sheet

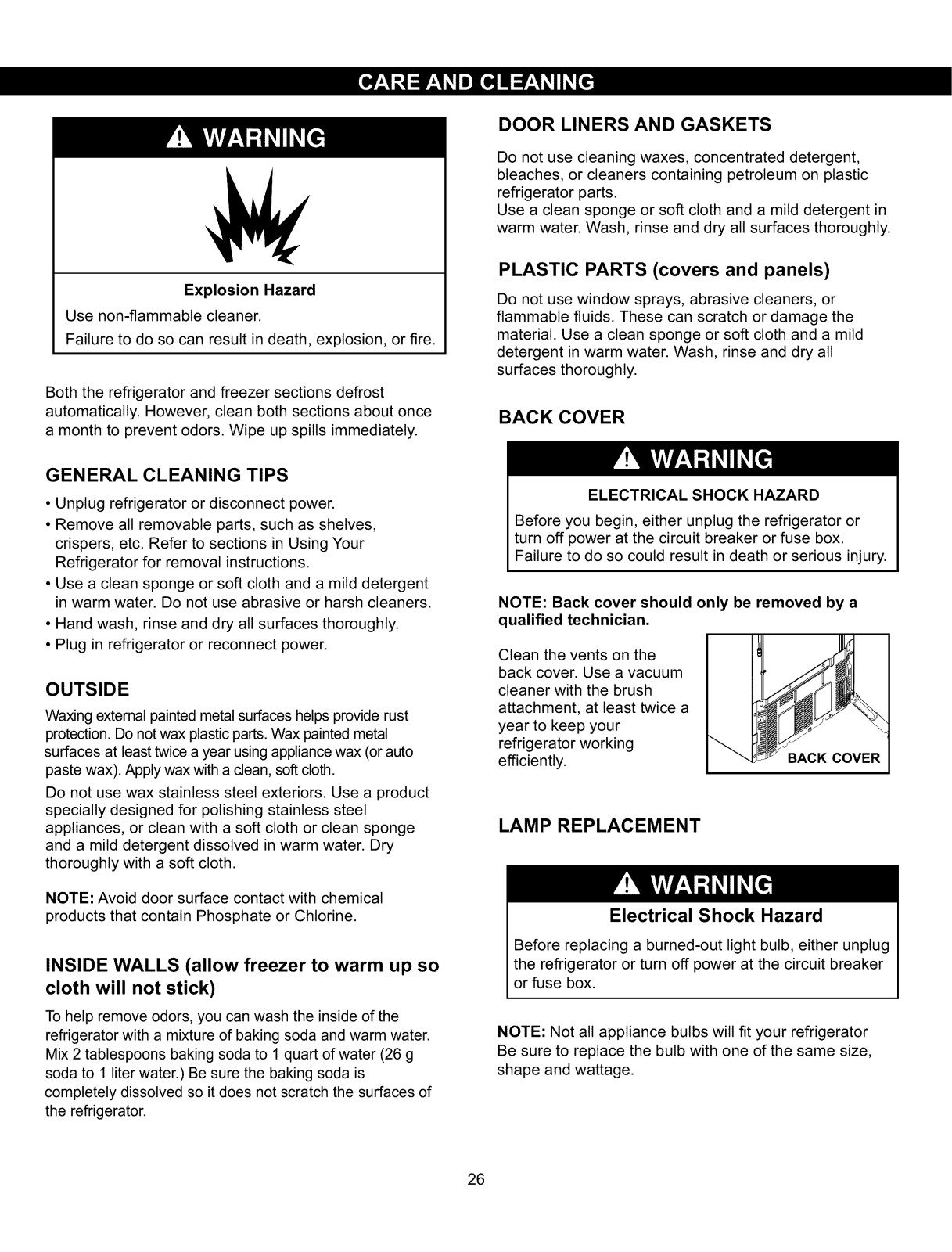

Care and cleaning

General cleaning tips Outside

Inside walls

Door liners and gaskets Plastic parts

Back cover

Lamp replacement Power interruptions

When you go on vacation

When you move

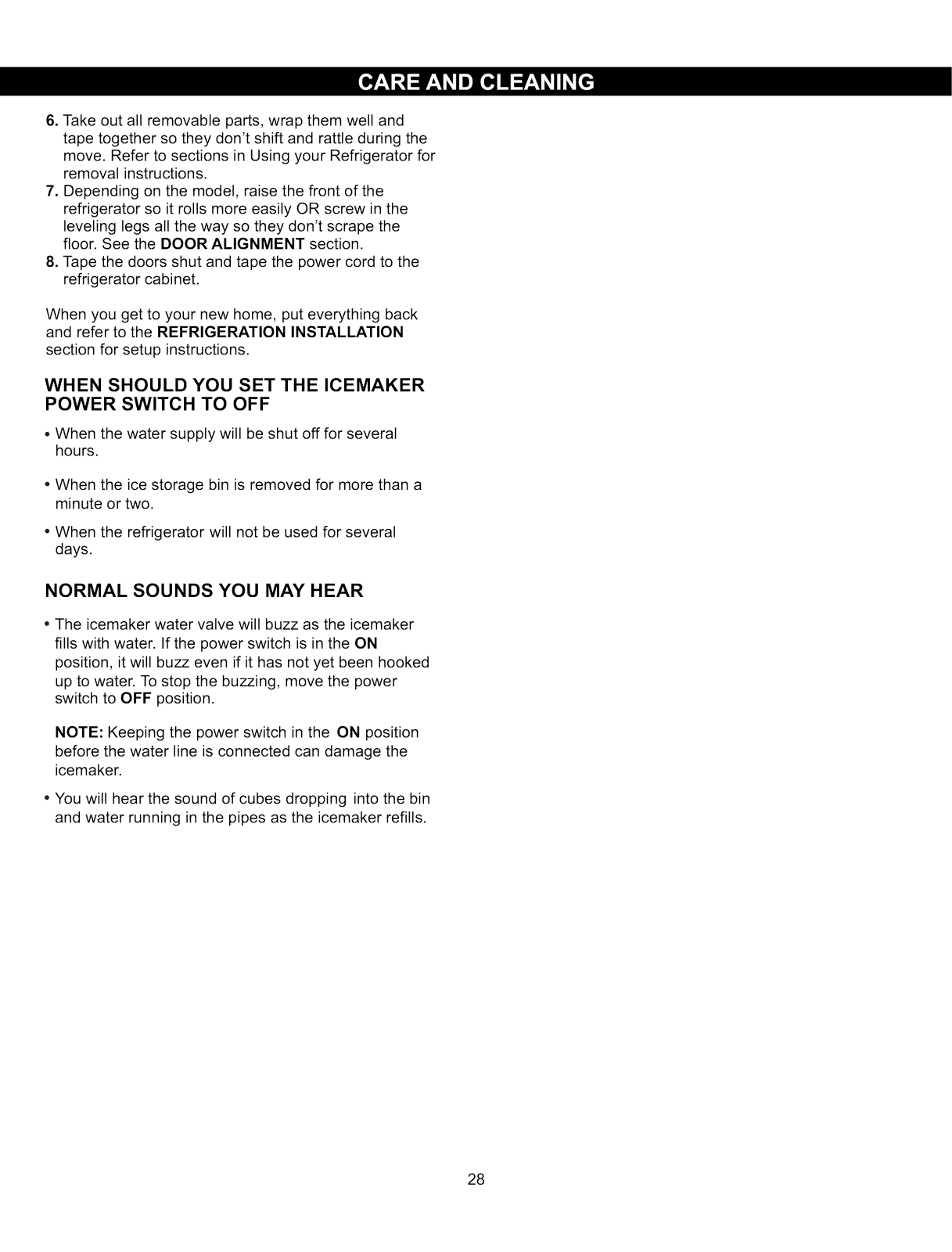

When should you set the icemaker power Switch to (off)

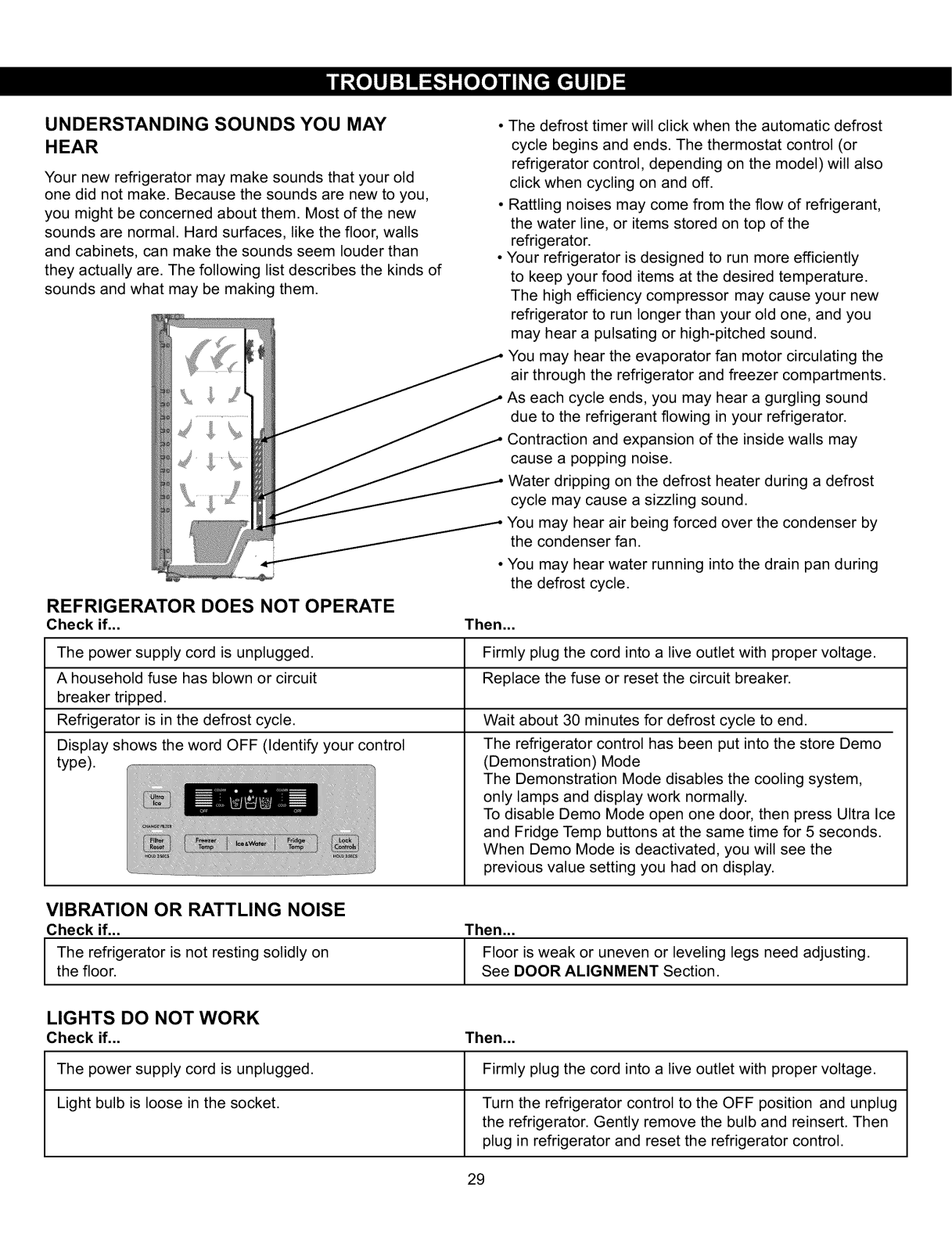

Normal sounds you may hear

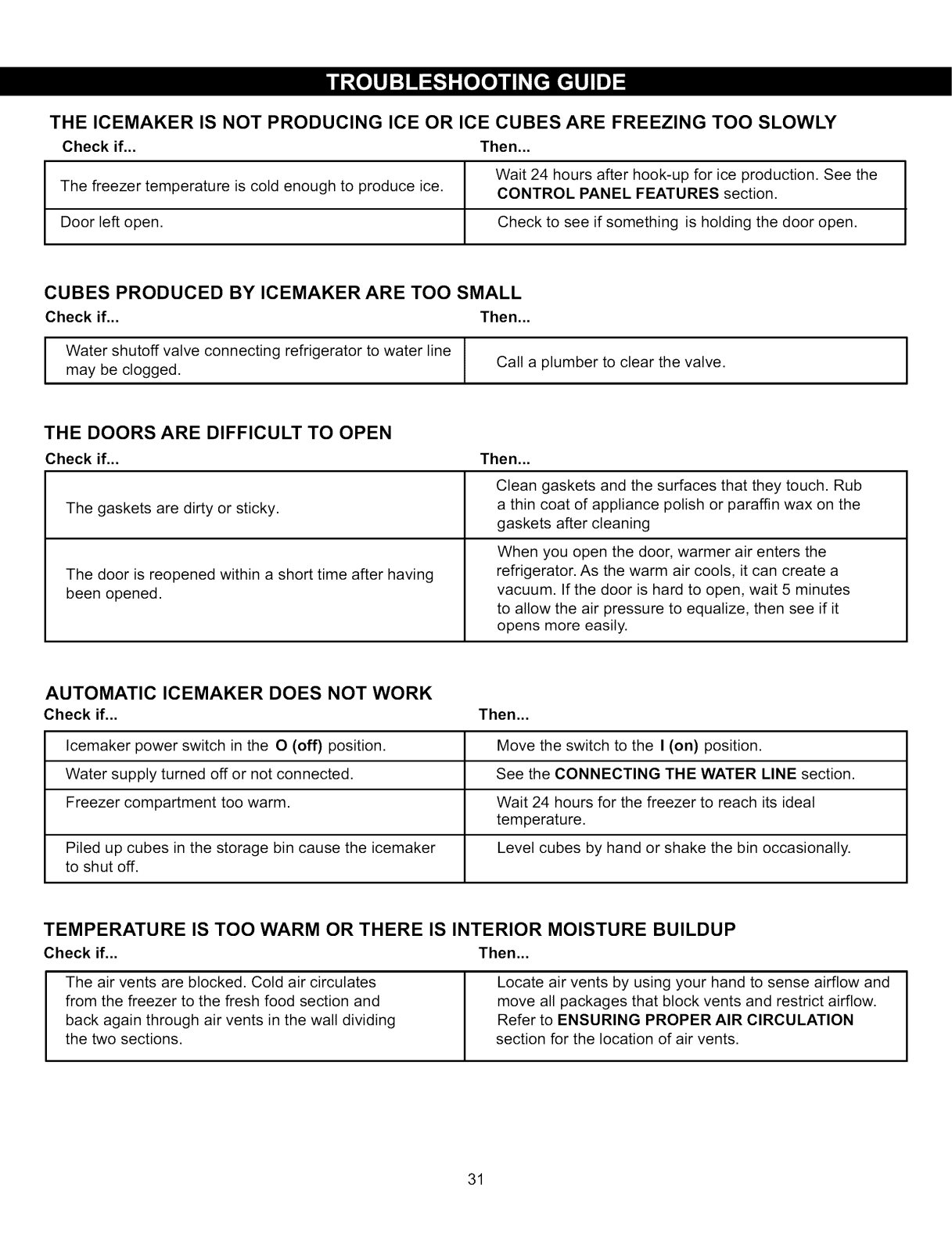

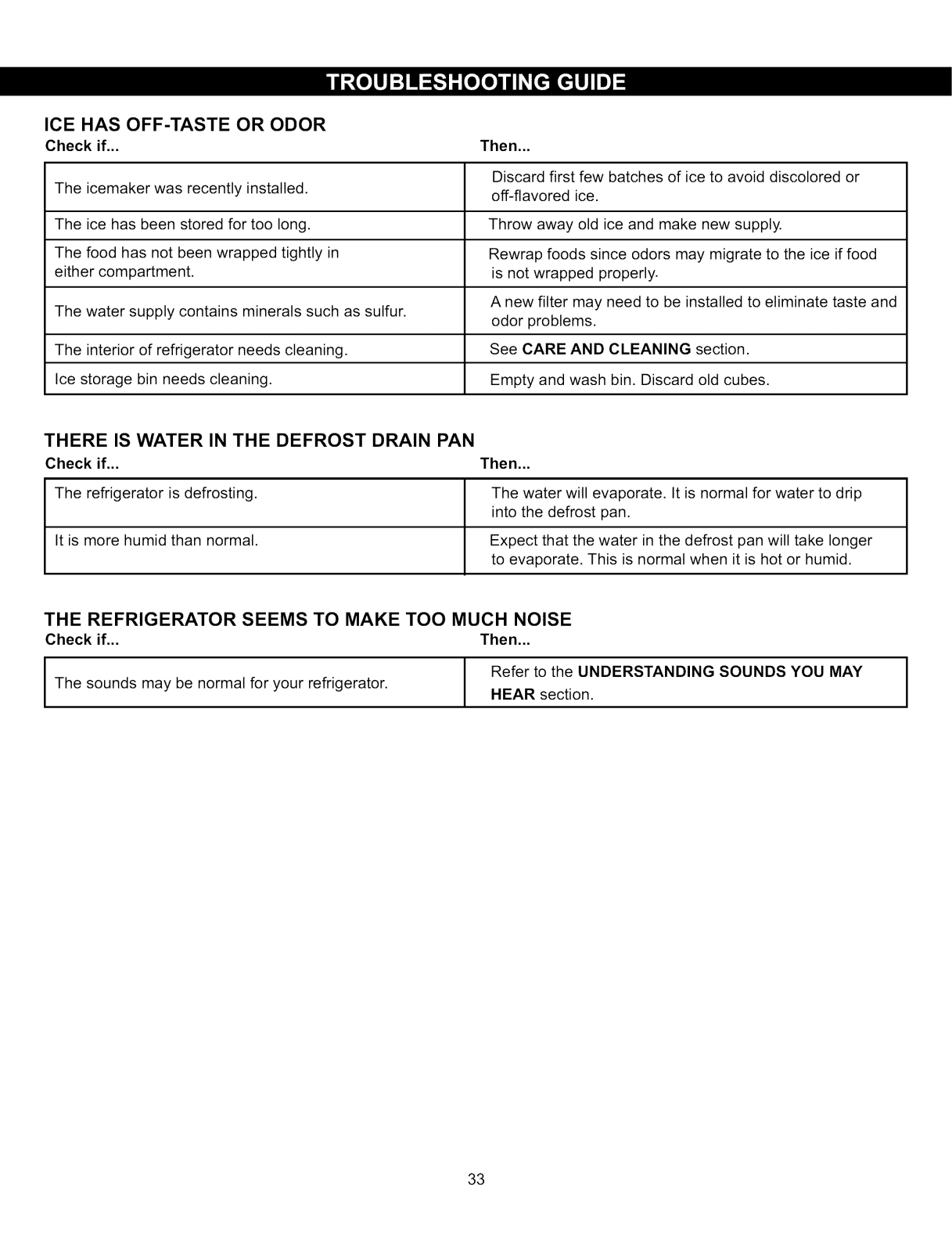

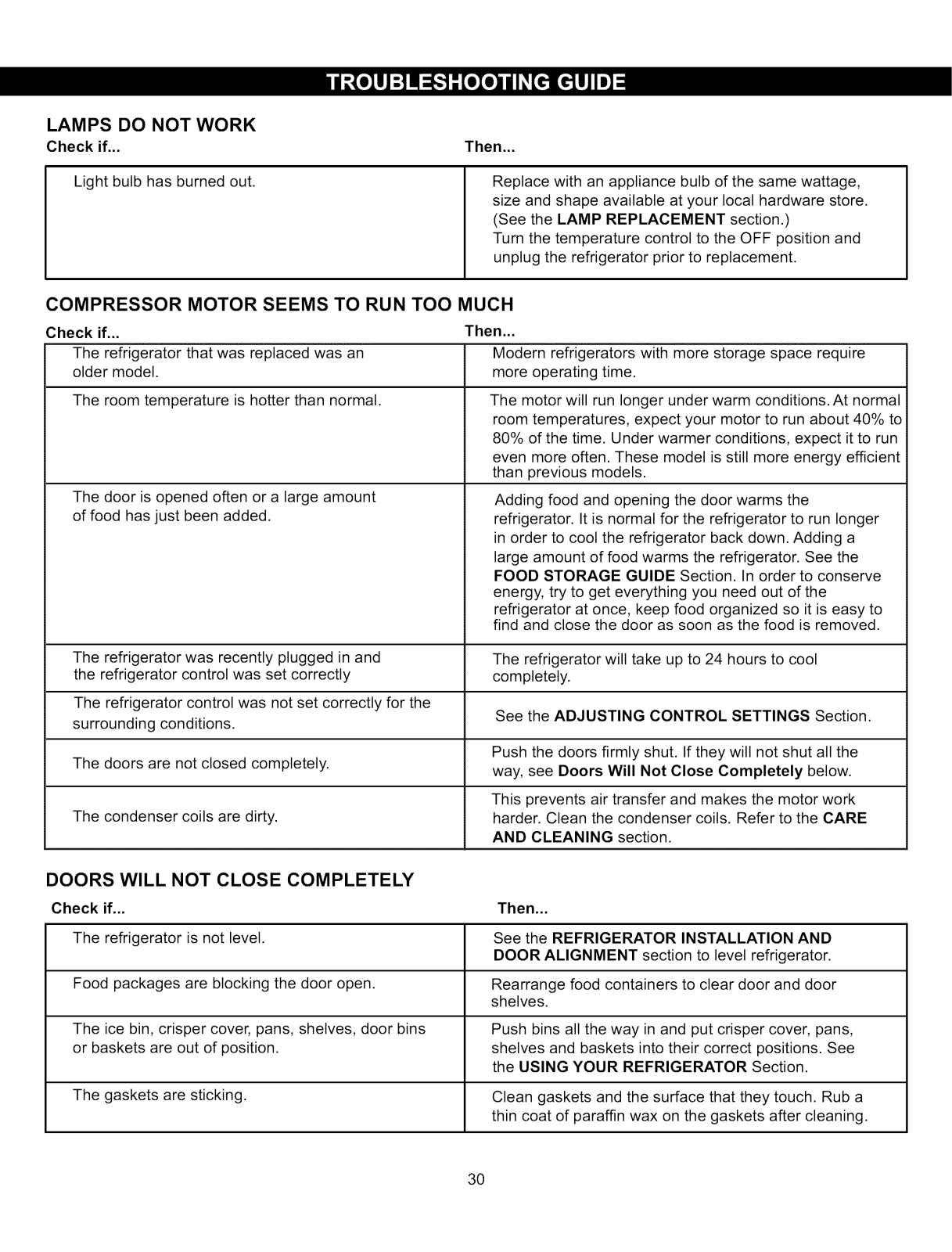

Troubleshooting guide

23 - 24

26 - 28

26 26

26 26 26

26 - 27

27 - 28

29-33

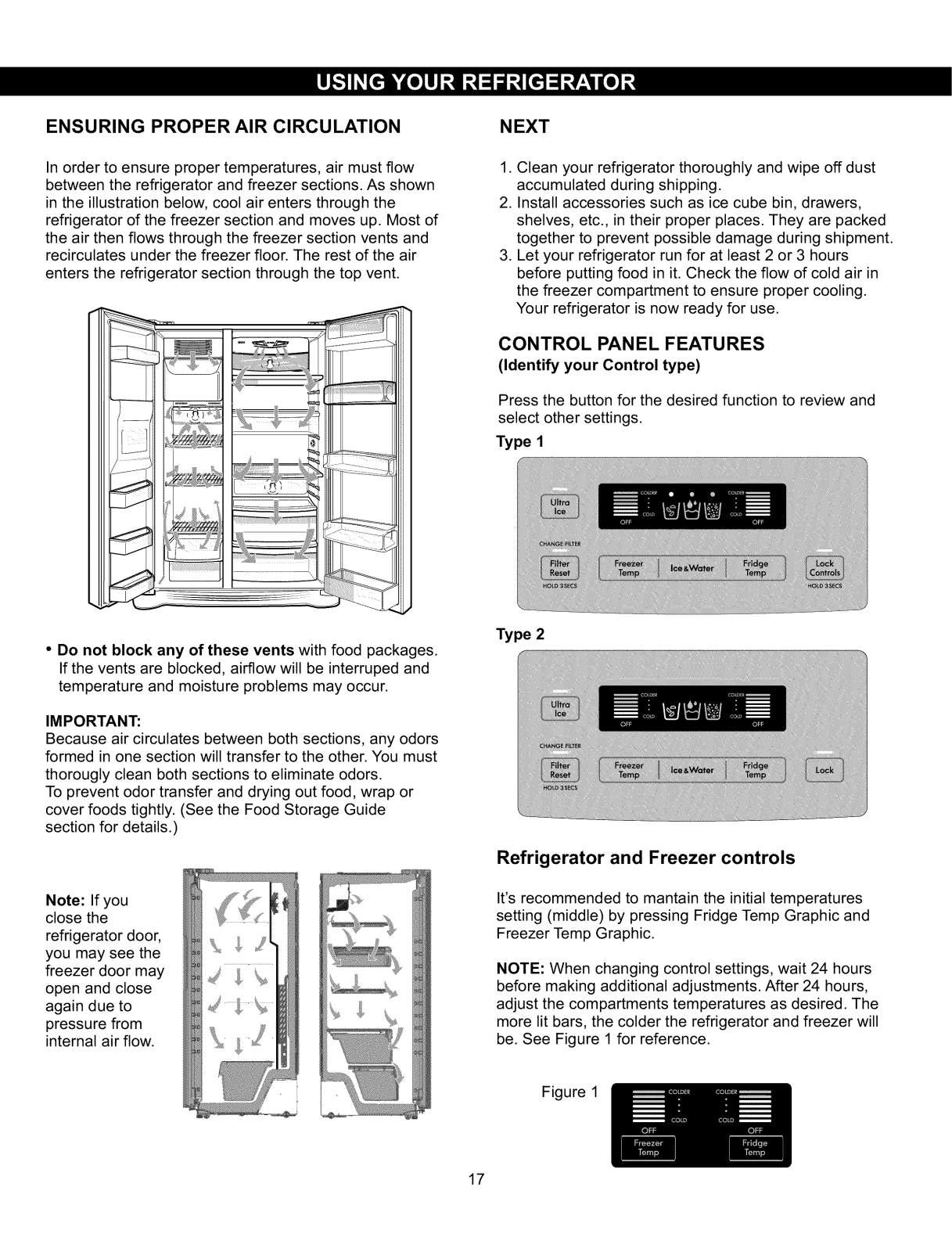

Ensuring Proper Air Circulation Control Panel Features

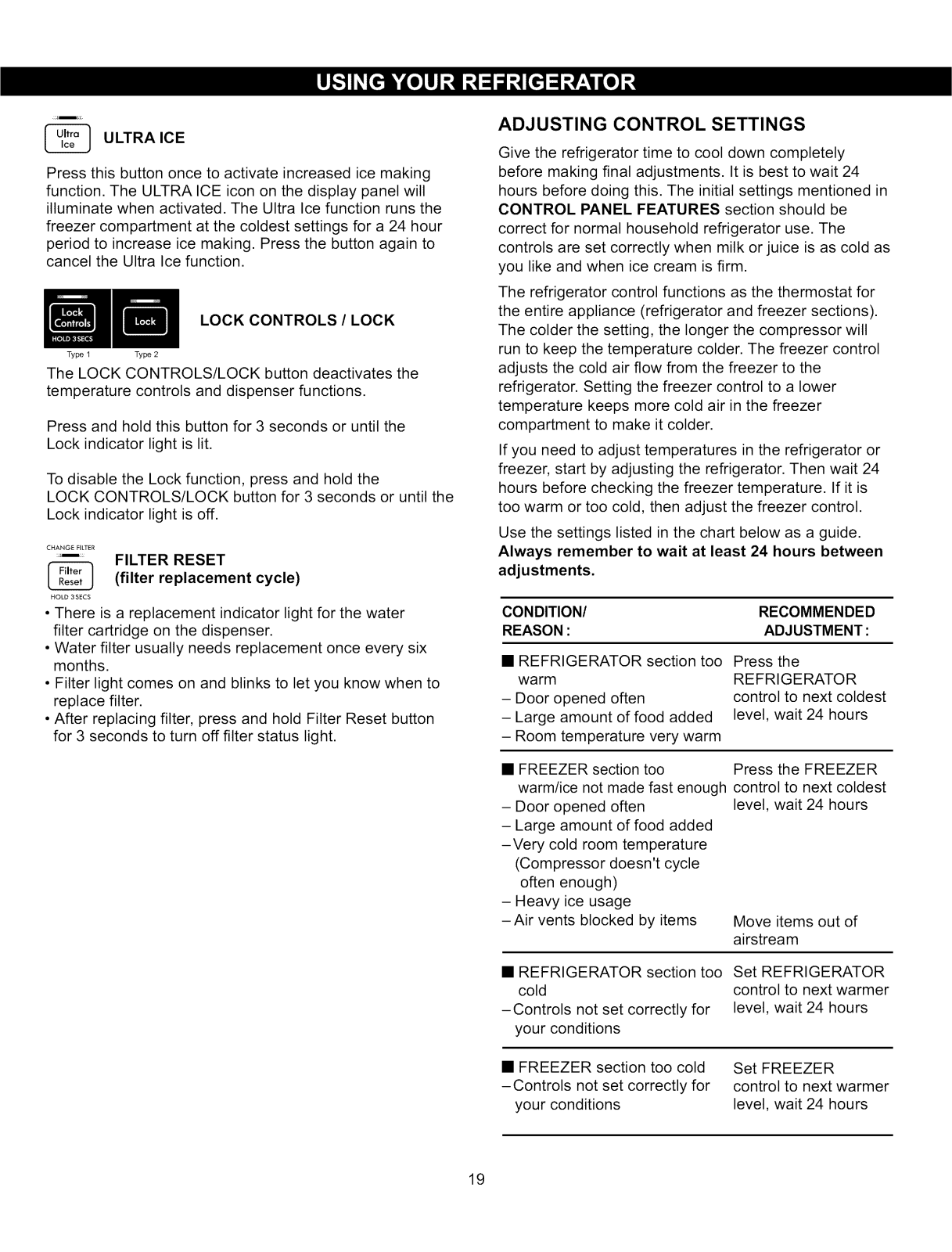

Adjusting Control Settings

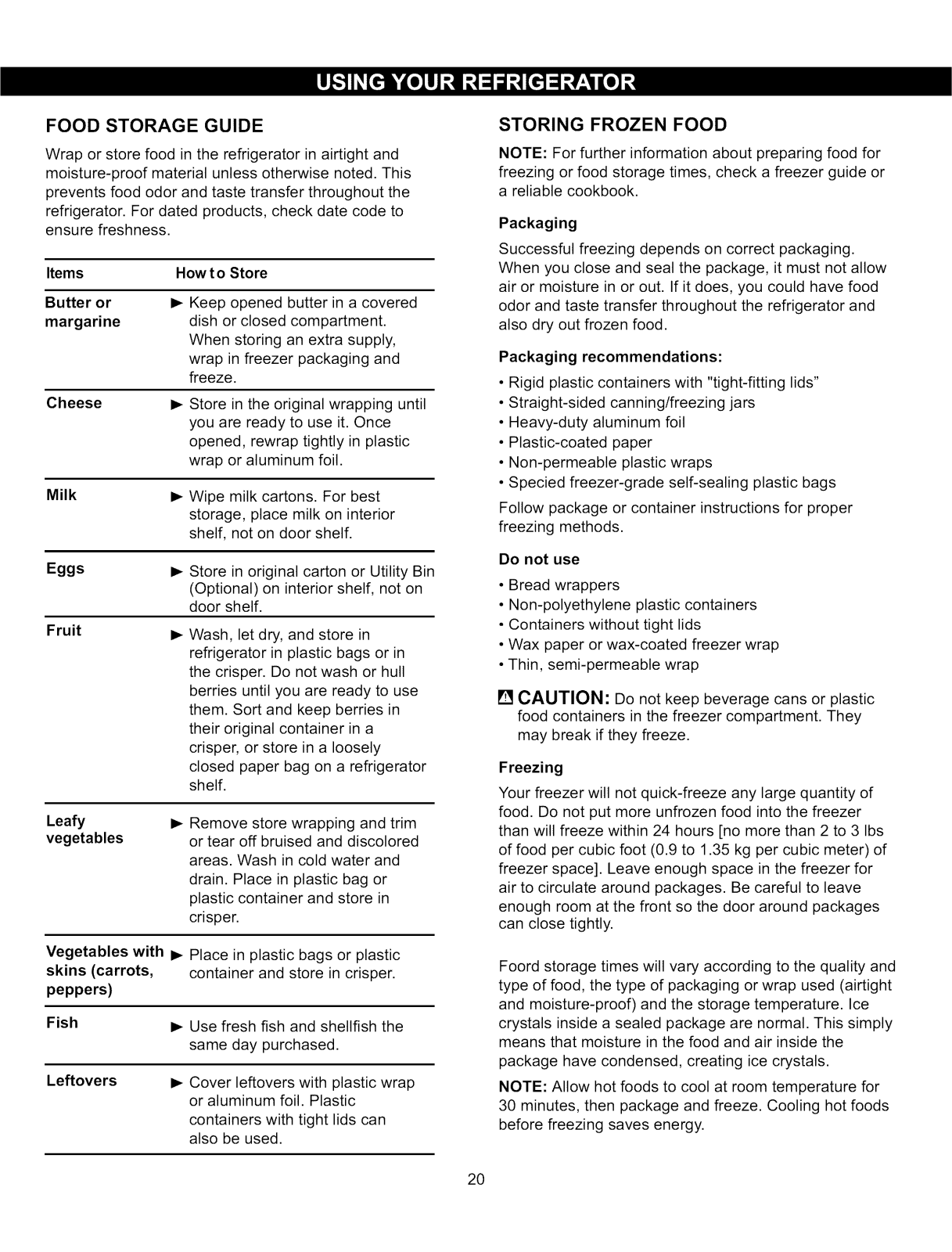

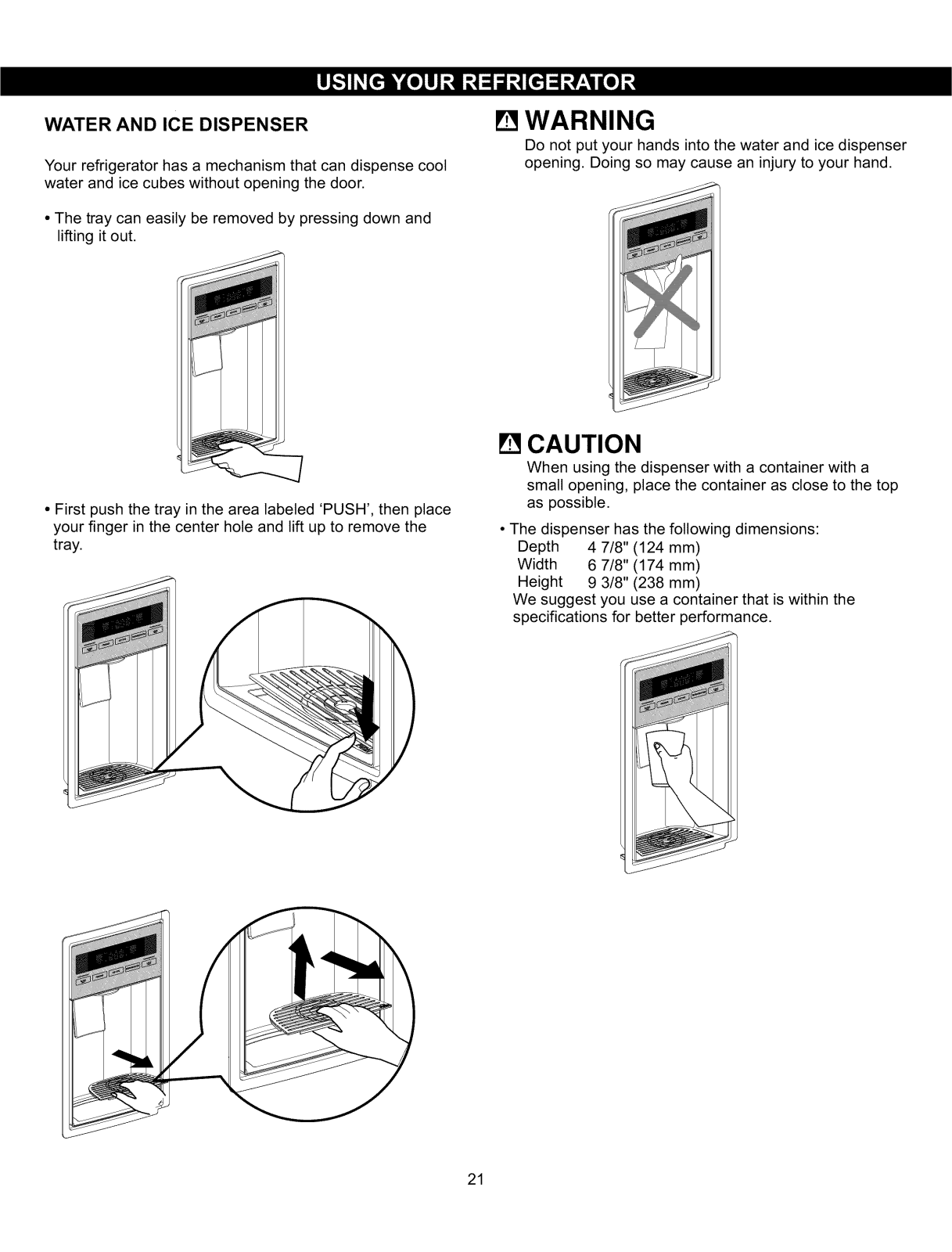

Food Storage Guide Storing Frozen Food Water and Ice Dispenser

Ice Storage Bin

Icemaker cover

Door Rack and Support

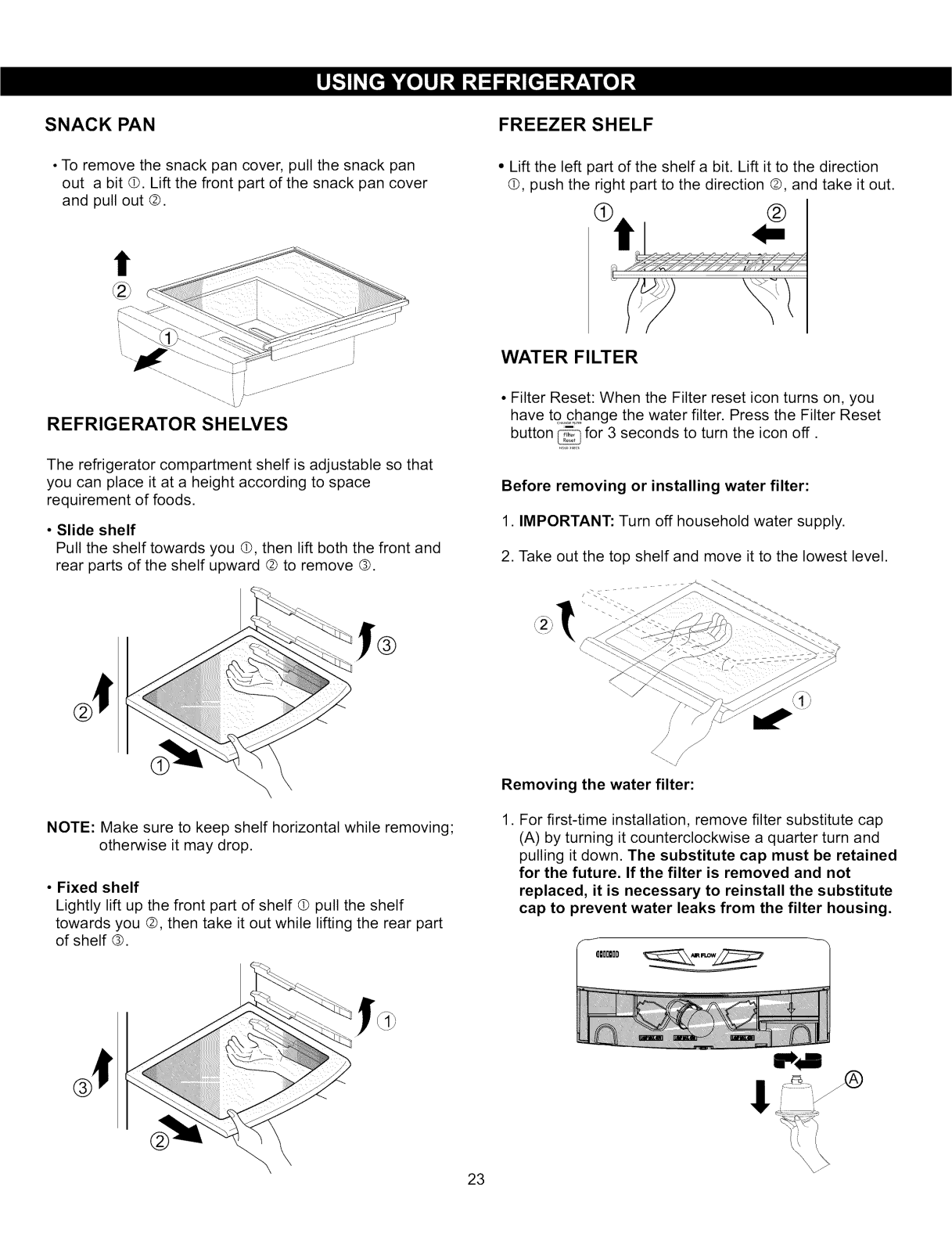

Crisper and Crisper cover Snack Pan

Refrigerator Shelves

17-19

19 2O 2O

21 22

22 22 22

23 23

SIDE-BY-SIDE REFRIGERATOR

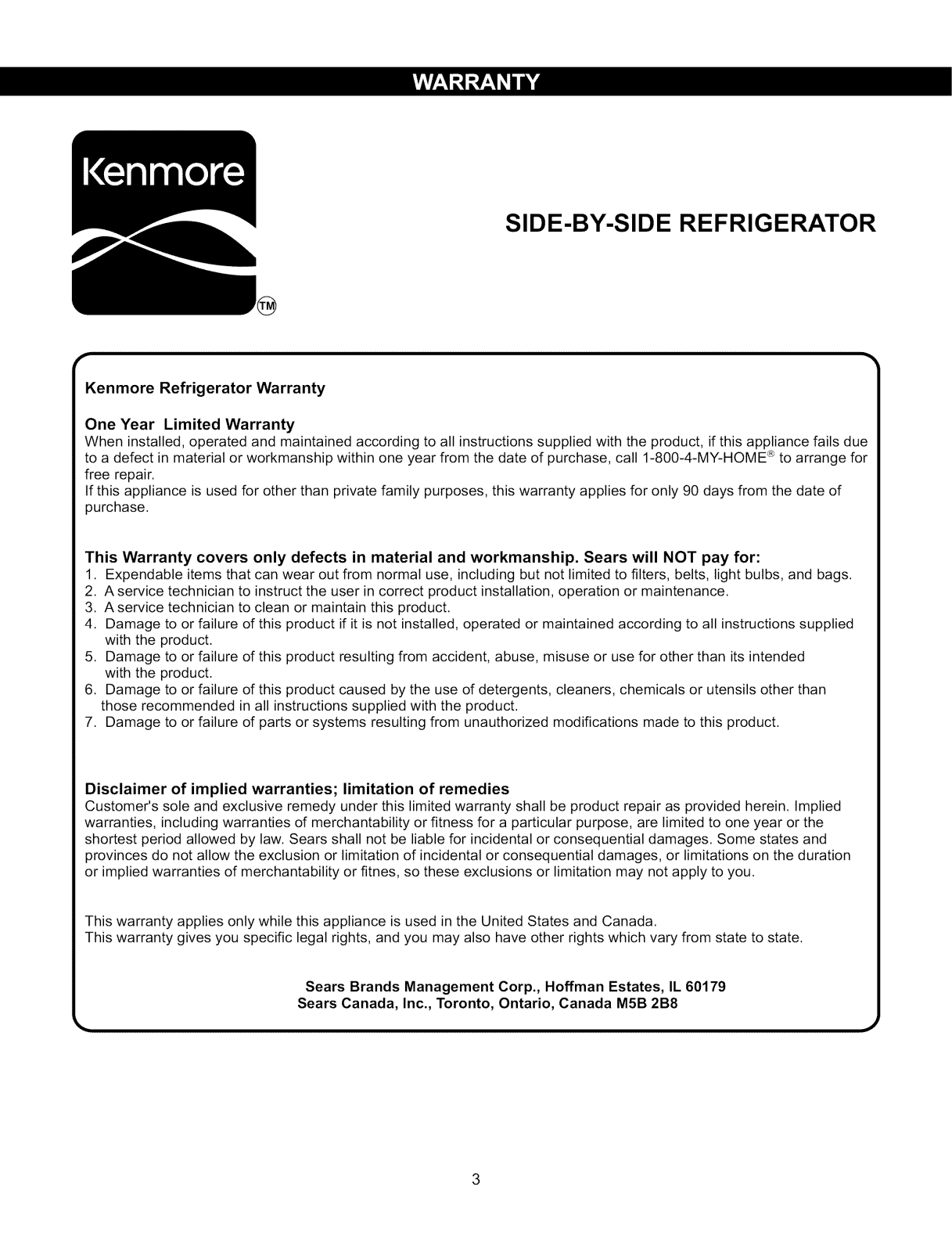

Kenmore Refrigerator Warranty

One Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME (_"to arrange for

free repair.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

This Warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended with the product.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than

those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied

warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the

shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration or implied warranties of merchantability or fitnes, so these exclusions or limitation may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corp., Hoffman Estates, IL 60179

Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8

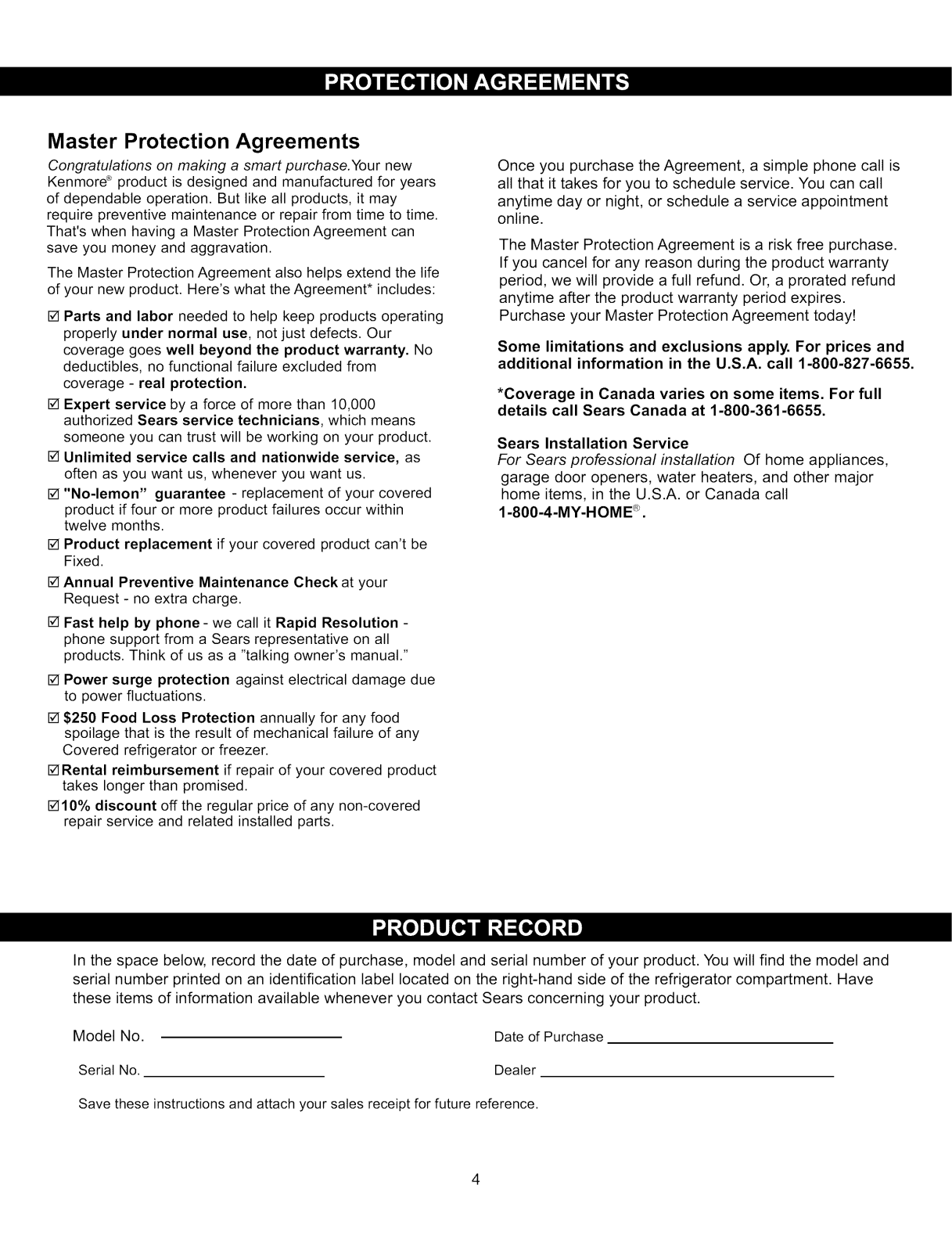

Master Protection Agreements

Congratulations on making a smart purchase.Your new Kenmore _ product is designed and manufactured for years

of dependable operation. But like all products, it may

require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can

save you money and aggravation. The Master Protection Agreement also helps extend the life

of your new product. Here's what the Agreement* includes: [] Parts and labor needed to help keep products operating

properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No

deductibles, no functional failure excluded from coverage - real protection.

[] Expert service by a force of more than 10,000

authorized Sears service technicians, which means someone you can trust will be working on your product.

[] Unlimited service calls and nationwide service, as

often as you want us, whenever you want us.

[] "No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within twelve months.

[] Product replacement if your covered product can't be

Fixed.

[] Annual Preventive Maintenance Check at your

Request - no extra charge.

[] Fast help by phone- we call it Rapid Resolution -

phone support from a Sears representative on all products. Think of us as a "talking owner's manual."

[] Power surge protection against electrical damage due

to power fluctuations.

[] $250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

Covered refrigerator or freezer.

[]Rental reimbursement if repair of your covered product

takes longer than promised.

[]10% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call

anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund

anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and

additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full

details call Sears Canada at 1-800-361-6655.

Sears Installation Service

For Sears professional installation Of home appliances,

garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call

1-800-4-MY-HOME Ce.

In the space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No. Dealer

Savethese instructions and attach your sales receiptfor future reference.

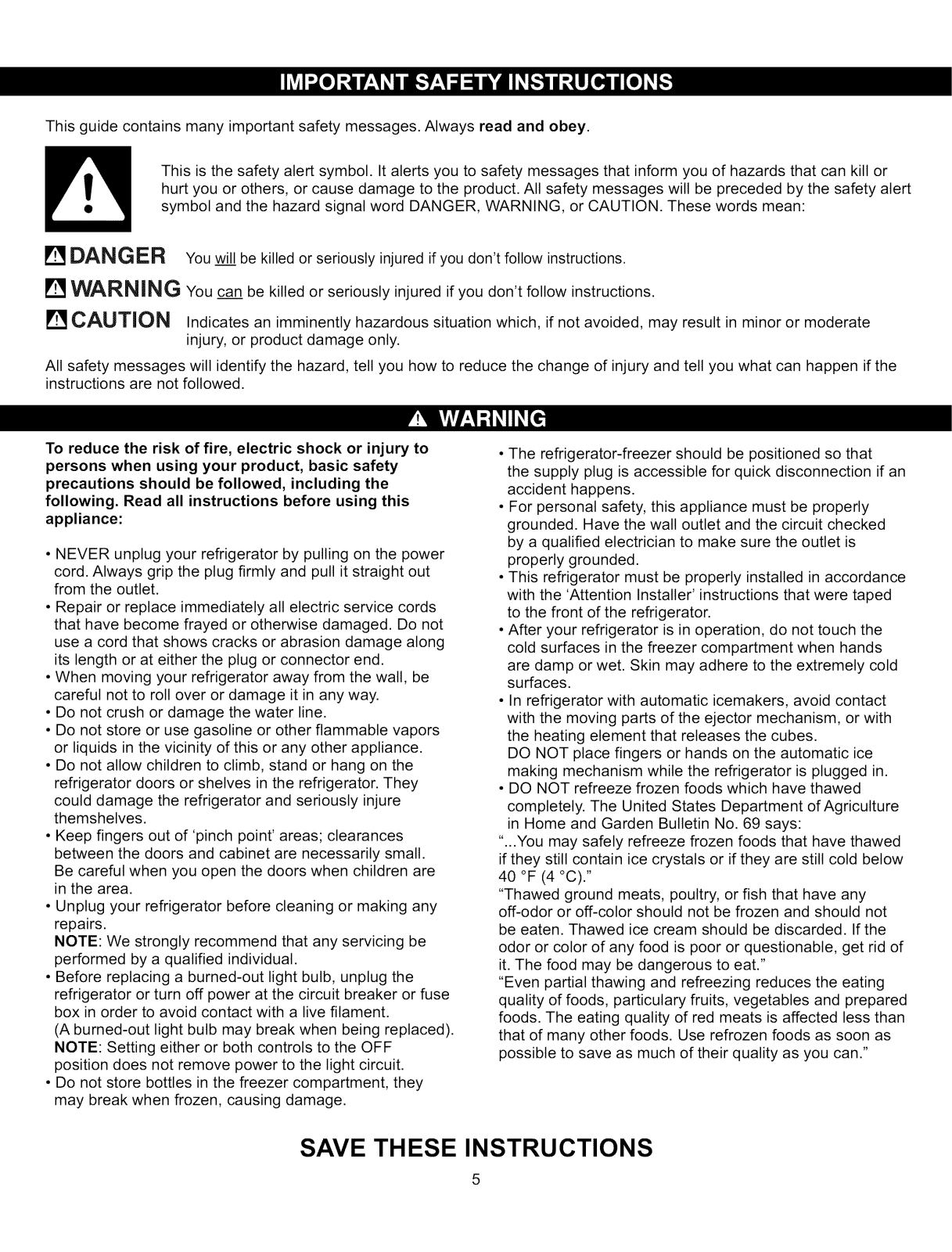

Thisguidecontainsmanyimportantsafetymessages.Alwaysreadandobey.

Thisisthesafetyalertsymbol.Italertsyoutosafetymessagesthatinformyouofhazardsthatcankillor hurtyouorothers,orcausedamagetotheproduct.Allsafetymessageswillbeprecededbythesafetyalert

symbolandthehazardsignalwordDANGER,WARNING,orCAUTION.Thesewordsmean:

[] DANGER Youwillbekilledorseriouslyinjuredifyoudon'tfollowinstructions.

WARNING Youcan be killed or seriously injured if you don't follow instructions.

CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate

injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the change of injury and tell you what can happen if the

instructions are not followed.

kvAv/ d

To reduce the risk of fire, electric shock or injury to persons when using your product, basic safety

precautions should be followed, including the following. Read all instructions before using this appliance:

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out

from the outlet.

• Repair or replace immediately all electric service cords that have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

• When moving your refrigerator away from the wall, be careful not to roll over or damage it in any way.

• Do not crush or damage the water line.

• Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

• Do not allow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator. They

could damage the refrigerator and seriously injure themshelves.

• Keep fingers out of 'pinch point' areas; clearances

between the doors and cabinet are necessarily small. Be careful when you open the doors when children are

in the area.

• Unplug your refrigerator before cleaning or making any

repairs. NOTE: We strongly recommend that any servicing be performed by a qualified individual.

• Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker or fuse box in order to avoid contact with a live filament.

(A burned-out light bulb may break when being replaced). NOTE: Setting either or both controls to the OFF position does not remove power to the light circuit.

• Do not store bottles in the freezer compartment, they

may break when frozen, causing damage.

• The refrigerator-freezer should be positioned so that the supply plug is accessible for quick disconnection if an accident happens.

• For personal safety, this appliance must be properly grounded. Have the wall outlet and the circuit checked

by a qualified electrician to make sure the outlet is properly grounded.

• This refrigerator must be properly installed in accordance

with the 'Attention Installer' instructions that were taped

to the front of the refrigerator.

• After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment when hands

are damp or wet. Skin may adhere to the extremely cold surfaces.

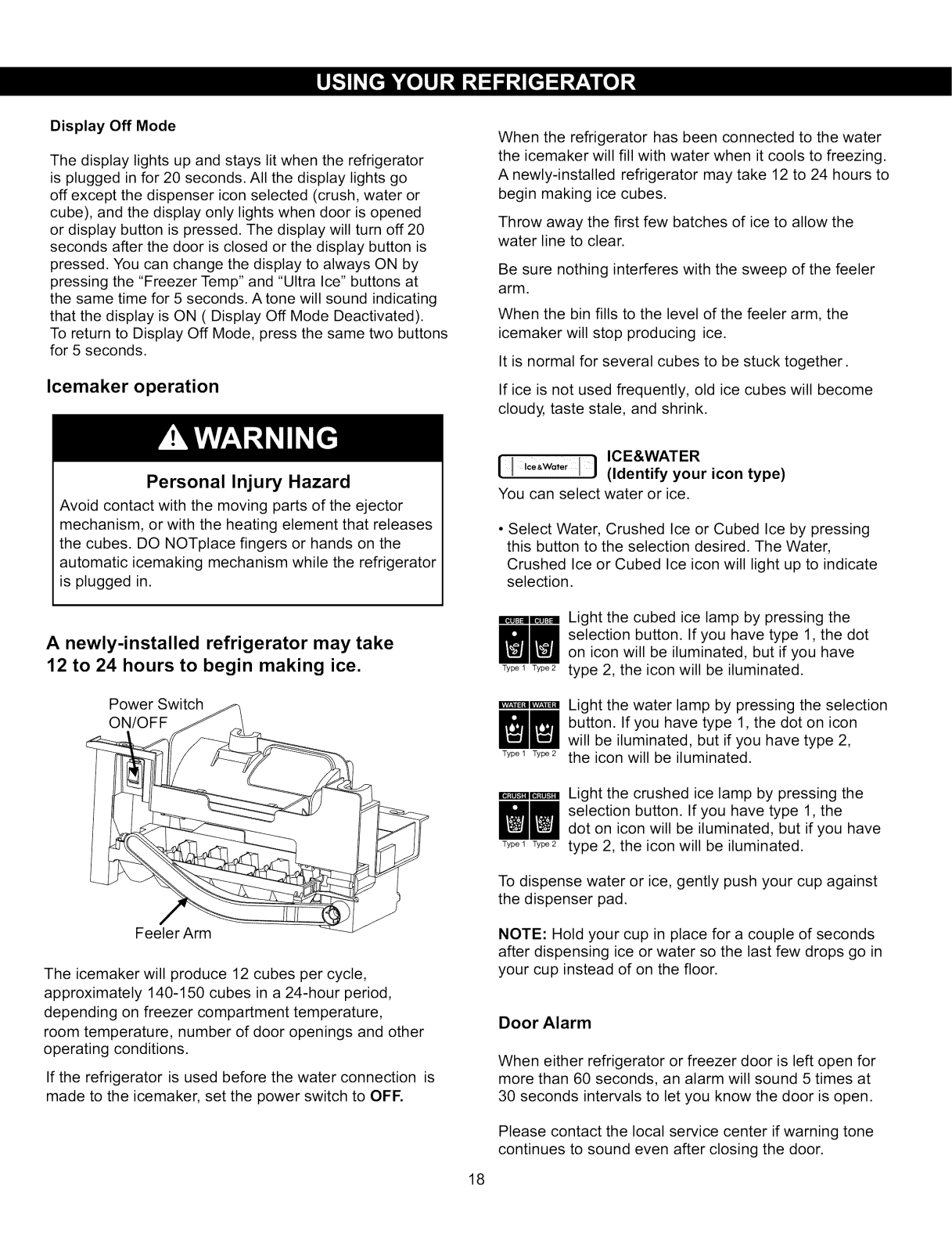

• In refrigerator with automatic icemakers, avoid contact

with the moving parts of the ejector mechanism, or with

the heating element that releases the cubes. DO NOT place fingers or hands on the automatic ice

making mechanism while the refrigerator is plugged in.

• DO NOT refreeze frozen foods which have thawed completely. The United States Department of Agriculture

in Home and Garden Bulletin No. 69 says:

"...You may safely refreeze frozen foods that have thawed

if they still contain ice crystals or if they are still cold below 40 °F (4 °C)." "Thawed ground meats, poultry, or fish that have any

off-odor or off-color should not be frozen and should not

be eaten. Thawed ice cream should be discarded. Ifthe odor or color of any food is poor or questionable, get rid of

it. The food may be dangerous to eat." "Even partial thawing and refreezing reduces the eating quality of foods, particulary fruits, vegetables and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as

possible to save as much of their quality as you can."

SAVE THESE INSTRUCTIONS

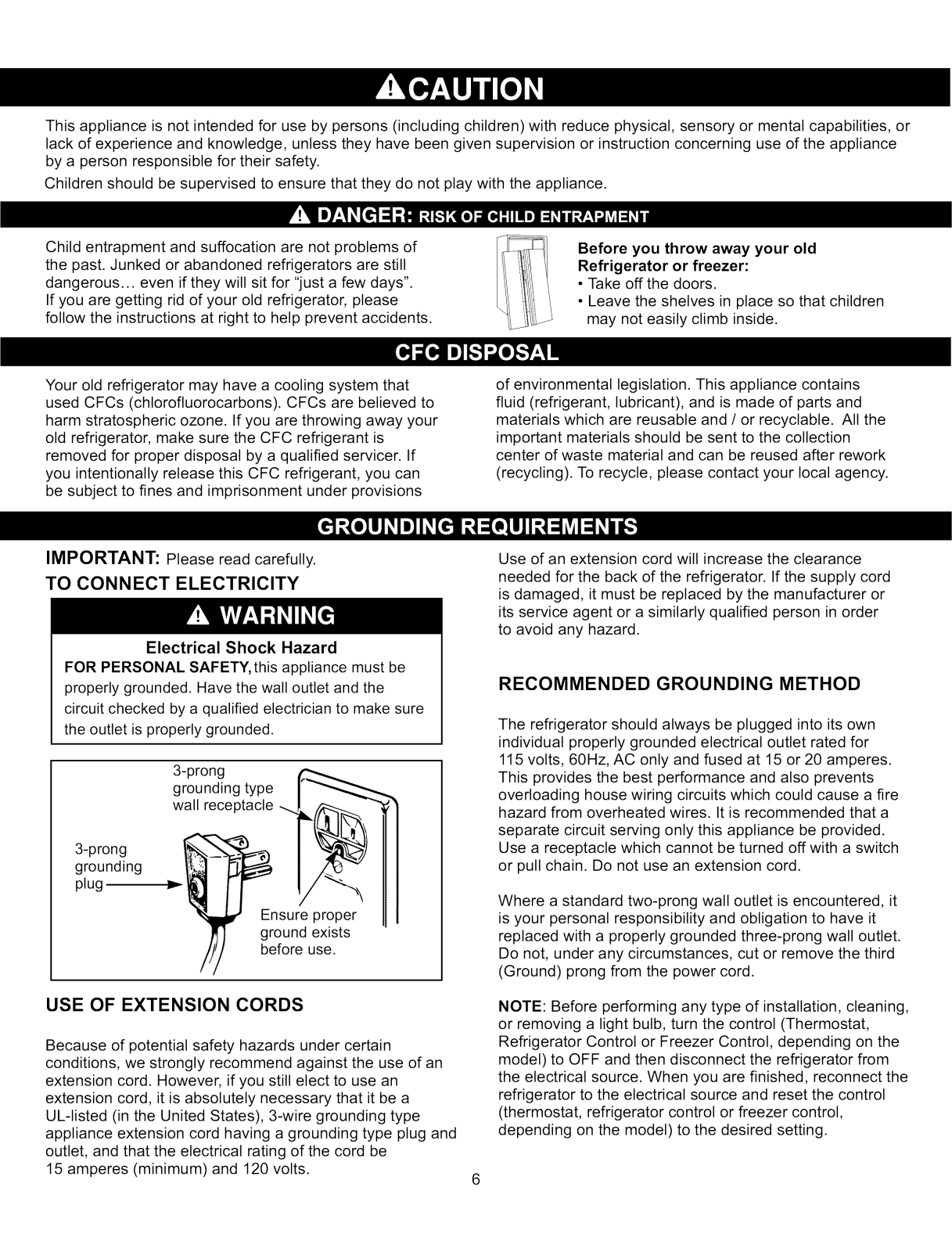

This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still

dangerous.., even if they will sit for "just a few days". If you are getting rid of your old refrigerator, please

follow the instructions at right to help prevent accidents.

Your old refrigerator may have a cooling system that used CFCs (chlorofiuorocarbons). CFCs are believed to

harm stratospheric ozone. If you are throwing away your old refrigerator, make sure the CFC refrigerant is removed for proper disposal by a qualified servicer. If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

3-pronggrounding type

wall receptacle _

3-prong

grounding

plug

sure proper

,_] ground exists

/J before use.

Before you throw away your old Refrigerator or freezer:

• Take off the doors.

• Leave the shelves in place so that children may not easily climb inside.

of environmental legislation. This appliance contains

fluid (refrigerant, lubricant), and is made of parts and

materials which are reusable and / or recyclable. All the important materials should be sent to the collection

center of waste material and can be reused after rework (recycling). To recycle, please contact your local agency.

Use of an extension cord will increase the clearance needed for the back of the refrigerator. If the supply cord

is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid any hazard.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for

115 volts, 60Hz, AC only and fused at 15 or 20 amperes. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire

hazard from overheated wires. Itis recommended that a separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded three-prong wall outlet. Do not, under any circumstances, cut or remove the third

(Ground) prong from the power cord.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you still elect to use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States), 3-wire grounding type appliance extension cord having a grounding type plug and

outlet, and that the electrical rating of the cord be

15 amperes (minimum) and 120 volts.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator Control or Freezer Control, depending on the

model) to OFF and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the control (thermostat, refrigerator control or freezer control, depending on the model) to the desired setting.

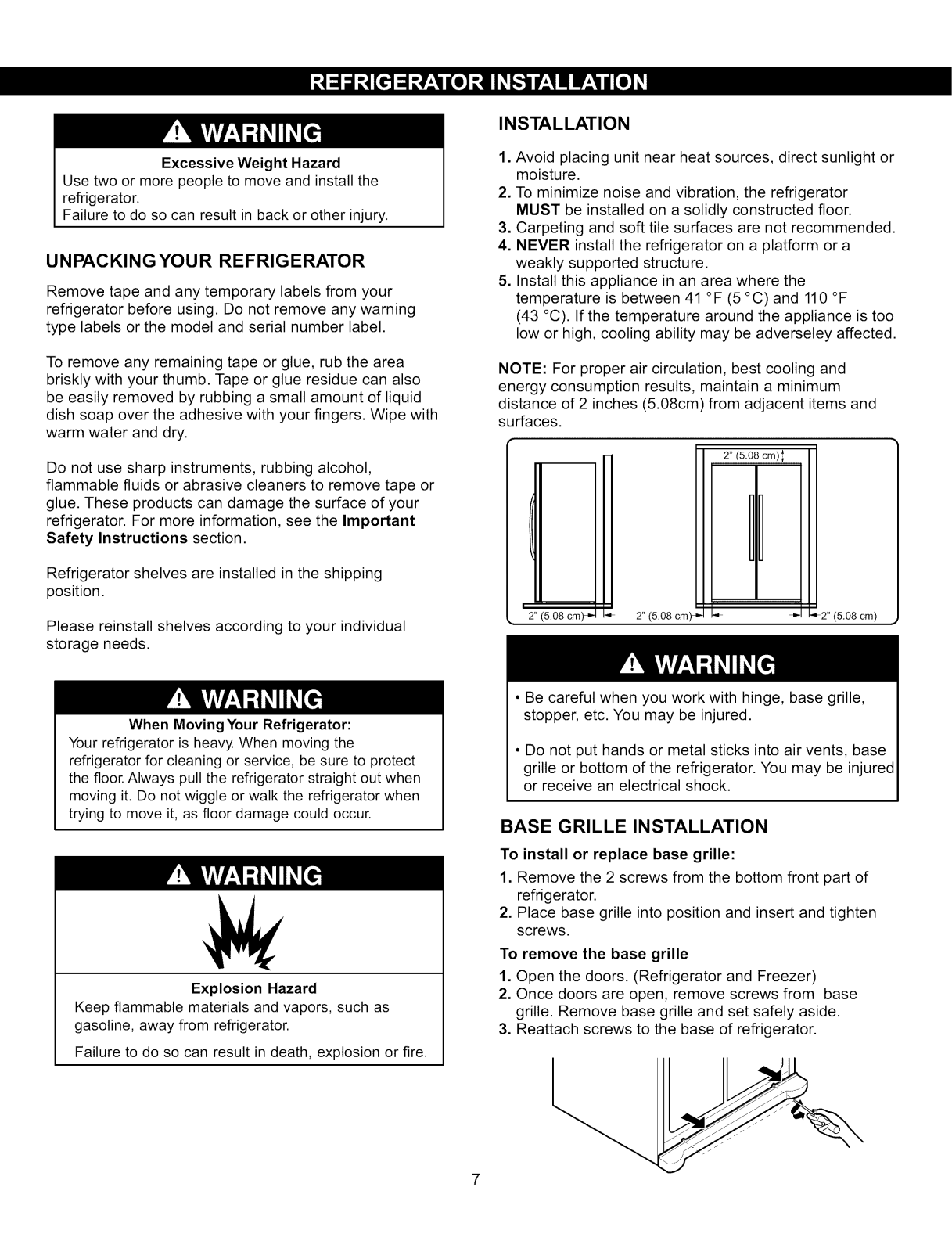

INSTALLATION

Excessive Weight Hazard

Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning

type labels or the model and serial number label.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also

be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners to remove tape or

glue. These products can damage the surface of your

refrigerator. For more information, see the Important Safety Instructions section.

Refrigerator shelves are installed in the shipping

position.

Please reinstall shelves according to your individual storage needs.

1. Avoid placing unit near heat sources, direct sunlight or moisture.

2. To minimize noise and vibration, the refrigerator MUST be installed on a solidly constructed floor.

3. Carpeting and soft tile surfaces are not recommended.

4. NEVER install the refrigerator on a platform or a

weakly supported structure.

5. Install this appliance in an area where the

temperature is between 41 °F (5 °C) and 110 °F

(43 °C). If the temperature around the appliance is too low or high, cooling ability may be adverseley affected.

NOTE: For proper air circulation, best cooling and energy consumption results, maintain a minimum distance of 2 inches (5.08cm) from adjacent items and

surfaces.

{

' 2" (5.08 cm) 4" "_

2" (5.08 cm) 4" "_ _" "2" (5.08 cm)

When Moving Your Refrigerator:

Your refrigerator is heavy When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

• Be careful when you work with hinge, base grille, stopper, etc. You may be injured.

• Do not put hands or metal sticks into air vents, base grille or bottom of the refrigerator. You may be injured

or receive an electrical shock.

BASE GRILLE INSTALLATION

To install or replace base grille:

1. Remove the 2 screws from the bottom front part of

refrigerator.

2. Place base grille into position and insert and tighten screws.

To remove the base grille

1. Open the doors. (Refrigerator and Freezer)

2. Once doors are open, remove screws from base grille. Remove base grille and set safely aside.

3. Reattach screws to the base of refrigerator.

LEVELING THE REFRIGERATOR DOOR

Place level on refrigerator shelf as shown below.

If your refrigerator is not level, insert a fiat blade

screwdriver into the grooves of the leveling legs (shown in picture below). Rotate legs clockwise to raise or

counterclockwise to lower the front of the refrigerator.

HANDLE REMOVAL (TYPE 1)

(Identify your handle type) NOTE: It is ALWAYS recommended to remove the

refrigerator doors when it is necessary to move the refrigerator through a narrow opening. If necessary,

follow the directions below to remove the door handles.

• Loosen the set screws with a 3/32" (2.38 mm) Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be tightened or moved, use a 'A" (6.35 mm) Allen wrench.

Mounting

fasteners

Set screw

Left leveling Right leveling Ieg

leg

Raise the front of the refrigerator enough so the doors close freely when opened halfway. The refrigerator should slope ¼" (6.35 mm) to ½" (0.127 mm) from front

to back.

Wrench

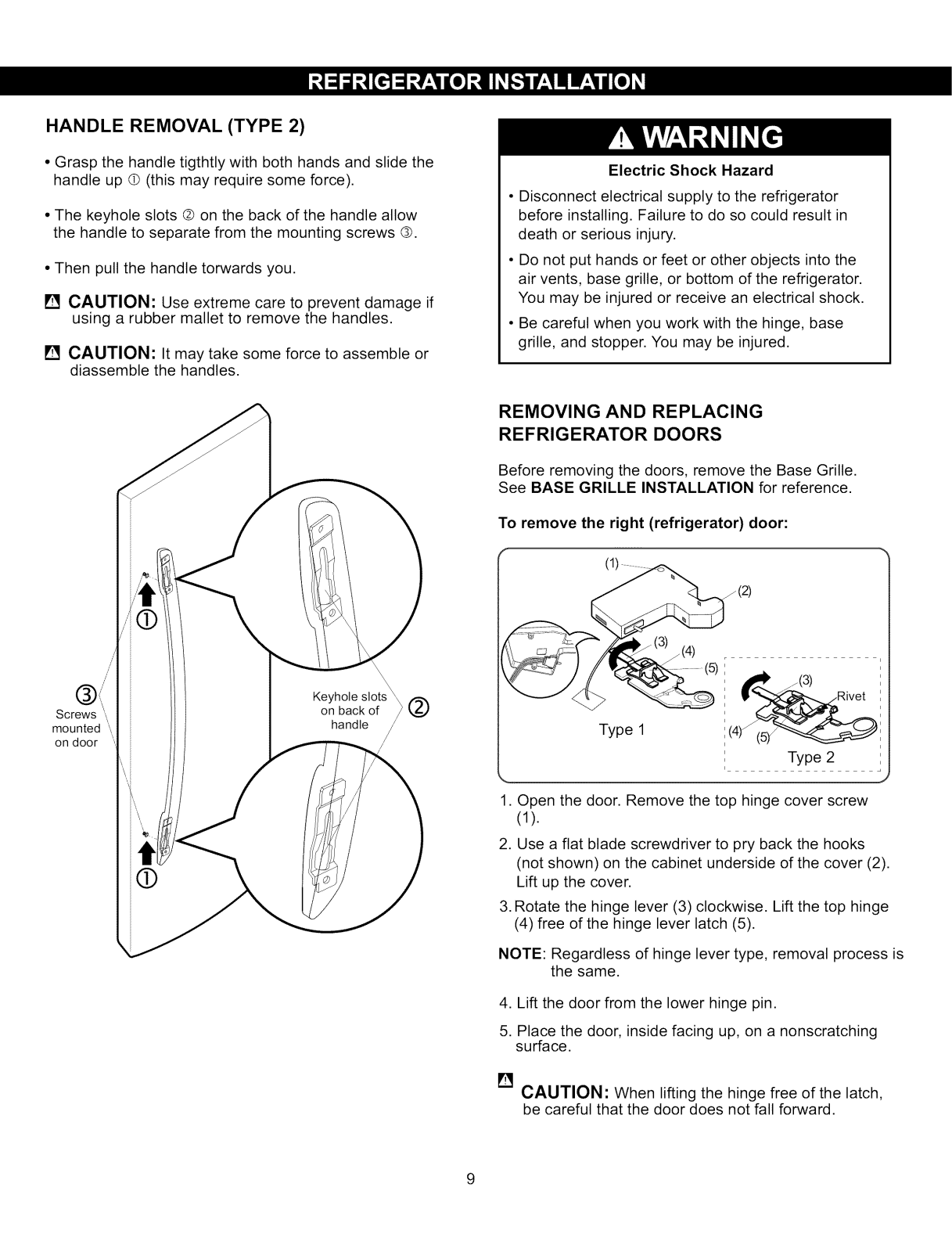

HANDLE REMOVAL (TYPE 2)

• Grasp the handle tigthtlywith both hands and slide the

handle up (:b (this may require some force).

• Then pull the handle torwards you.

[] CAUTION: Use extreme care to prevent damage if

using a rubber mallet to remove the handles.

[] CAUTION: It may take some force to assemble or

diassemble the handles.

Electric Shock Hazard

• Disconnect electrical supply to the refrigerator before installing. Failure to do so could result in death or serious injury.

• Do not put hands or feet or other objects into the air vents, base grille, or bottom of the refrigerator. You may be injured or receive an electrical shock.

• Be careful when you work with the hinge, base grille, and stopper. You may be injured.

REMOVING AND REPLACING REFRIGERATOR DOORS

Before removing the doors, remove the Base Grille. See BASE GRILLE INSTALLATION for reference.

To remove the right (refrigerator) door:

/(2)

mounted

on door

on back of

Keyho,es,ots®

handle /

/(4)

z(3)

Type 1

i •

Type 2

1. Open the door. Remove the top hinge cover screw (1).

2. Use a flat blade screwdriver to pry back the hooks (not shown) on the cabinet underside of the cover (2). Lift up the cover.

3.Rotate the hinge lever (3) clockwise. Lift the top hinge (4) free of the hinge lever latch (5).

NOTE: Regardless of hinge lever type, removal process is

the same.

4. Lift the door from the lower hinge pin.

5. Place the door, inside facing up, on a nonscratching

surface.

[]

CAUTION" When lifting the hinge free of the latch,

be careful that the door does not fall forward.

Removing the left (freezer) door with water line connection.

[] CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

• Pull up the water feed tube while pressing area (Figure 1) as shown in the figure below.

• NOTE: If a tube end is deformed or abraded, trim the part away. Disconnecting the tube under the door

causes about 0.13 gallons (0.5 liters) water to flow out.

Put a large container at end of tube to prevent water

from draining onto the floor.

(2)

(1)\

6. Lift the door from the lower hinge pin being careful to pull the water lines through the lower hinge pin.

7. Place the door, inside facing up, on a nonscratching

surface.

Reinstalling the right (Refrigerator) door

/(2)

z(3)

Type 1

1. Place the door onto the lower hinge pin.

2. Fit top hinge (4) over hinge lever latch (5) into place. Rotate lever (3) counterclockwise to secure

hinge.

1. Open the door. Remove the top hinge cover screw (1).

2. Use a fiat blade screwdriver to pry back the hooks (not shown) on the cabinet underside of the cover (2). Lift up the cover.

3. Disconnect all the wire harnesses (3).

4. Remove the grounding screw (4).

5.Rotate hinge lever (5) counterclockwise. Lift the top

hinge (6) free of the hinge lever latch (7).

NOTE: Regardless of hinge lever type, removal process is

the same.

NOTE: Regardless of hinge lever type, removal process is

the same.

3.Hook tab on switch side of corner under edge of wire opening in cabinet top. Position cover (2) into place. Insert and tighten cover screw (1).

Reinstalling the left (Freezer) door

1. Feed the water tubes through the lower hinge pin and place the door onto the lower hinge pin.

2. Fit top hinge (6) over hinge lever latch (7) and into place. Rotate lever (5) clockwise to secure hinge

NOTE: Regardless of hinge lever type, removal process is

the same.

3. Install the grounding screw (4) and connect all the

wire harnesses (3).

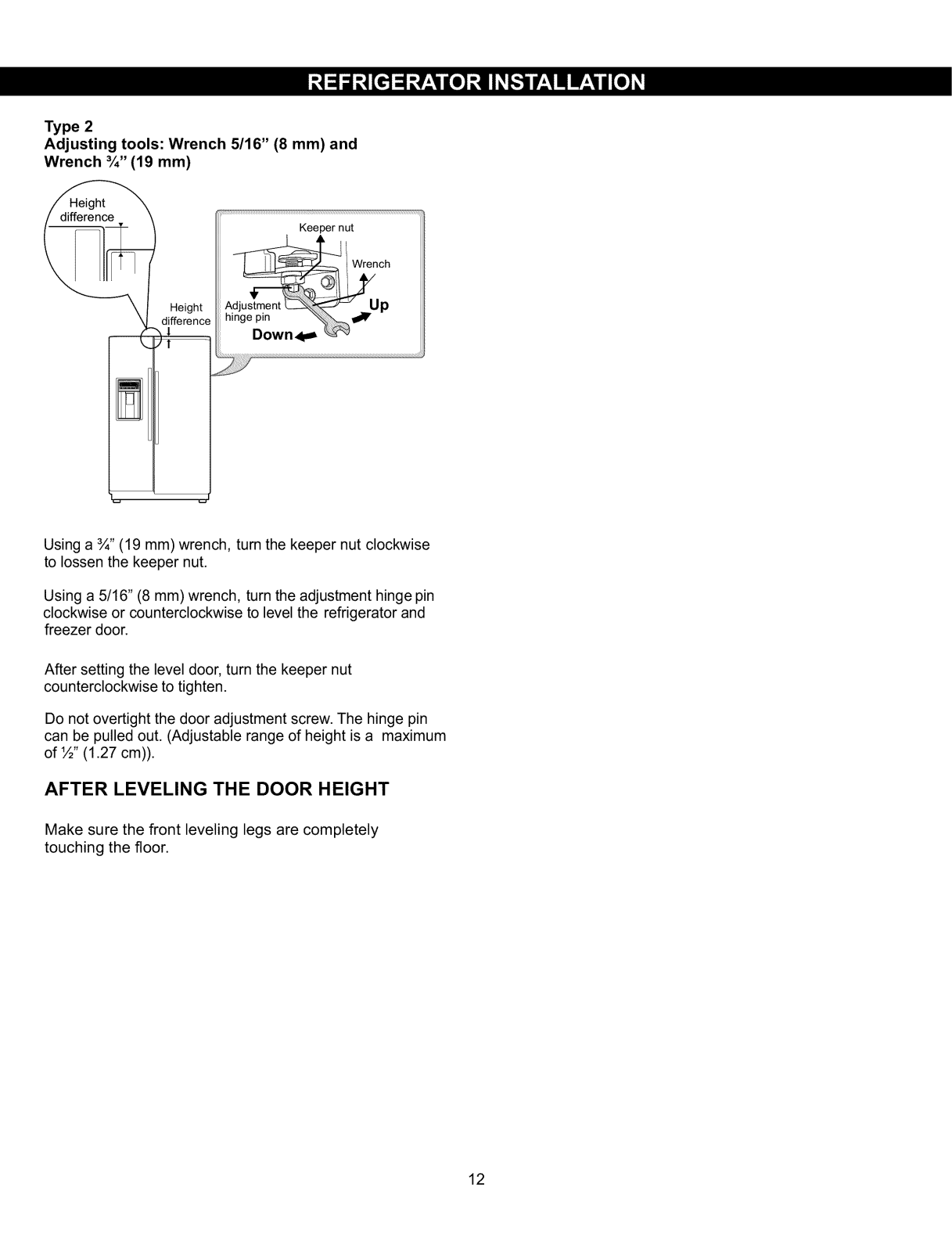

DOOR ALIGNMENT

Before adjust the doors, remove the base grille• See BASE GRILLE INSTALLATION for reference•

First select your adjusting tool, it could vary•

Type 1

Adjusting tool: Flat blade screwdriver

If the freezer compartment door is lower than

the refrigerator compartment door, make them

level by inserting fiat blade screwdriver into the

groove of the left leveling leg and rotating it

clockwise.

Left leveling

leg

Height

difference

4. Hook tab on door switch side of cover (2) under edge

of wire opening in cabinet top. Position cover into

place. Insert and tighten cover screw (1).

5. Reconnect the water tubes by inserting the tubes into

the connectors.

Collet

Insert Line,--

If the freezer compartment door is higher than the refrigerator compartment door, make them level by inserting flat blade screwdriver into the groove of

the right leveling leg and rotating it clockwise.

Height

difference

Right leveling leg

__ /

+ 23 hidden pages
