Kenmore 790.9805 User Manual

Use & Care Guide

Manual de Uso y Cuidado

English / Español

Models/Modelos: 790.9805*

Ken more

Estufa de eléctrica

* = Color number, número de color

P/N 318205206A (1003)
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com

Table of Contents

Appliance Warranty

Product Record....................................................................2

Serial Plate Location............................................................2

IMPORTANT SAFETY INSTRUCTIONS ..........................3-5

Range Features....................................................................6

Before Setting Surface Controls
Setting Surface Controls

Surface Cooking ........................................................... 10

.............................................................

........................................

.................................................

8-9

Before Setting the Oven Controls

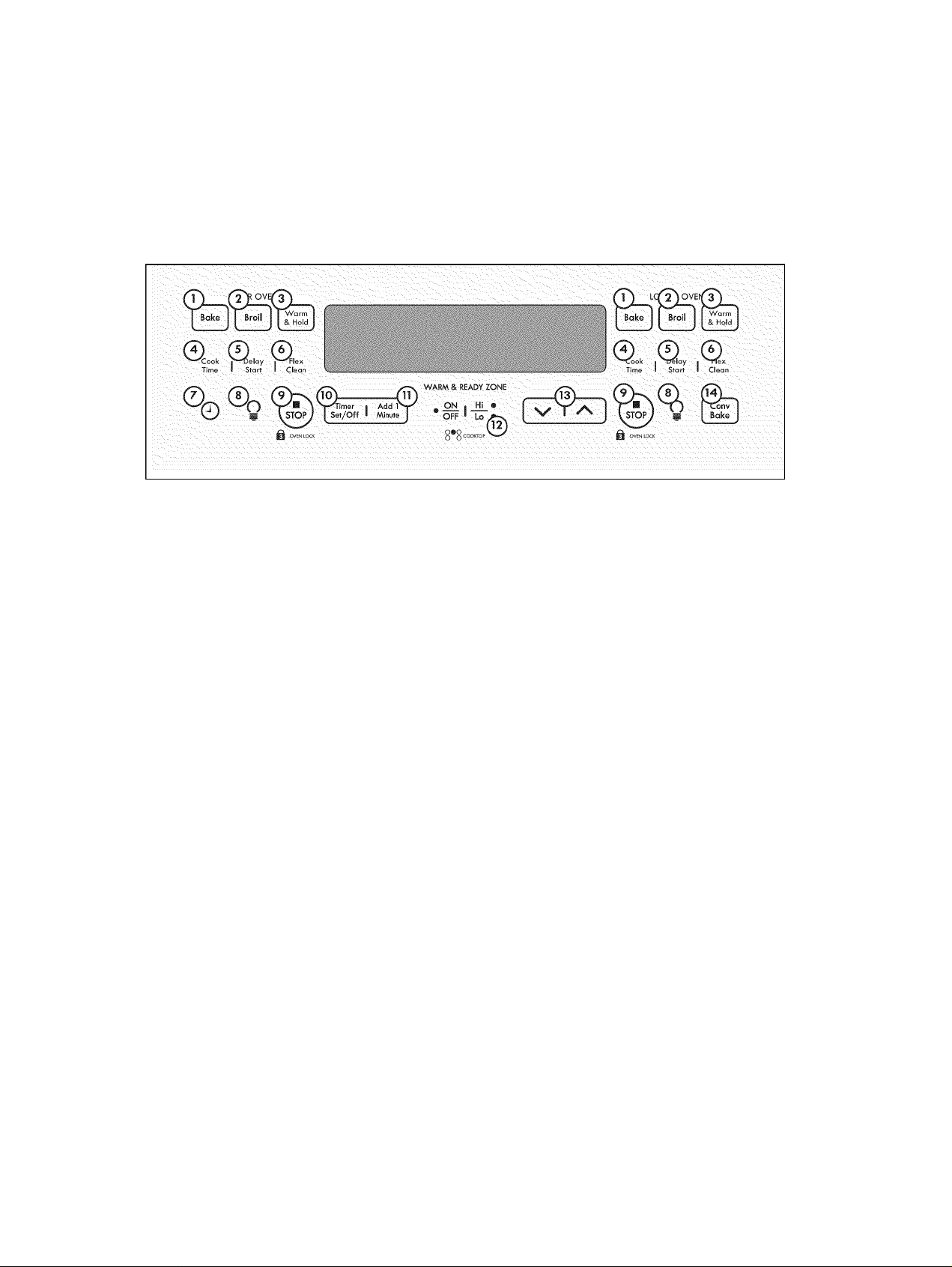

Control Pad Features.........................................................12

2

Setting Oven Controls..................................................13-19

Adjusting the Oven Temperature

Self-Cleaning.................................................................21-22

General Care & Cleaning

Before You Call.............................................................27-28

7

Protection Agreements

Sears Service......................................................................30

.............................................

...................................................

..............................

.....................................

10-11

23-26

20

29

Kenmore Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails
due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME®
to arrange for free repair.

This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.

2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.

3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

4. A service technician to instruct the user in correct product installation, operation or maintenance.

5. A service technician to clean or maintain this product.

6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions

supplied with the product.

7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended

purpose.

8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than

those recommended in all instructions supplied with the product.

9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein.
Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one
year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or
limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations
may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8

Product Record

In this space below, record the date of purchase, model
and serial number of your product. You will find the model

and serial number printed on the serial plate.
Model No.
Serial No. 790.

Date of purchase
Save these instructions and your sales receipt for future
reference.

____________________________________

________________________________

______________________________

Serial Plate

Location

You will find the
model and serial
number printed on
the serial plate.
The serial plate is
located as shown.

Please carefully read and save these instructions

This Use & Care Manual contains general operating instructions for your appliance
and feature information for several models. Your product may not have all the
described features. The graphics shown are representative. The graphics on your
appliance may not look exactly like those shown. Common sense and caution must
be practiced when installing, operating and maintaining any appliance.

2

Printed in United States

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

This manual contains important safety symbols and instructions. Please pay attention to these
symbols and follow all instructions given.

ik WARNING

This symbol will help alert you to situations that may cause serious bodily harm,

death or property damage.

r This symbol will help alert you to situations that may cause bodily injury or

property damage.

• Remove all tape and packaging before using
the appliance. Destroy the carton and plastic
bags after unpacking the appliance. Never
allow children to play with packaging material.

• Proper Installation. Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with National

Electrical Code ANSI/NFPA No.70 (USA) or CSA
C22.1, PART 1 (Canada)-latest edition and local
code requirements. Install only per installation
instructions provided in the literature package
for this appliance.

• In case of an emergency, know how to
disconnect the electrical power to the appliance
at the circuit breaker or fuse box.

• User Servicing. Do not repair or replace
any part of the appliance unless specifically
recommended in the manuals. All other
servicing should be done only by o qualified
technician to reduce the risk of personal injury
and damage to the appliance. Sears Parts &

Repair is the recommended repair service for

this appliance.

I*

A WARNING

All appliances can tip.

• Injury to persons could result.

• Install anti-tip bracket packed with

unit.

• See Installation Instructions.
To reduce the risk of tipping, the

appliance must be secured by
properly installed anti-tip bracket
provided with the appliance. To
check if the bracket is installed
properly; grasp the top rear
of the appliance and carefully

attempt to tilt it forward. Refer
to the Installation Instructions
for proper anti-tip bracket

installation.

• Never modify or alter the construction of an
appliance by removing panels, wire covers or
any other part of the product.

• Remove the oven door from any unused
appliance if it is to be stored or discarded.

Stepping, leaning, sitting or pulling
down on the door of this appliance can result in
serious injuries and may also cause damage to
the appliance. Do not allow children to climb or

play around the appliance.

• Storage on Appliance. Flammable materials

should not be stored near surface units. This
includes paper, plastic and cloth items, such
as cookbooks, plasticware and towels, as well
as flammable liquids. Do not store explosives,
such as aerosol cans, on or near the appliance.
Flammable materials may explode and result in
fire or property damage.

ik WARNING

 CAUTION

children in the cabinets above an appliance.
Children climbing on the appliance to reach items
could be seriously injured.

• Do not leave children alone. Children should

not be left alone or unattended in the area
where an appliance is in use. They should never
be allowed to sit or stand on any part of the
appliance.

• DO NOT TOUCH SURFACE UNITS OR AREAS

NEAR THESE SURFACES. Surface units may be
hot even though they are dark in color. Areas
near surface units may become hot enough to
cause burns. During and after use, do not touch,
or let clothing or other flammable materials
touch these areas until they have had sufficient
time to cool. Among these areas are the
cooktop and areas facing the cooktop.

Do not use the ovens for storage.

Do not store items of interest to

IMPORTANT SAFETY INSTRUCTIONS

• Wear Proper Apparel. Loose-fitting or hanging
garments should never be worn while using
the appliance. Do not let clothing or other
flammable materials contact hot surfaces.

A WARNING

warming or heating the room.

• Do Not Use Water or Flour on Grease Fires.
Smother the fire with a pan lid, or use baking
soda, a dry chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat
or grease may catch fire if allowed to become too
hot.

• Use Only Dry Potholders. Moist or damp
potholders on hot surfaces may result in burns
from steam. Do not let the potholders touch hot
heating surface units. Do not use a towel or
other bulky cloth instead of a potholder.

• Do Not Heat Unopened Food Containers.

Buildup of pressure may cause the container to

burst and result in injury.

IMPORTANT—Do not attempt to operate the
appliance during a power failure. If power fails,
always turn off the appliance. If the appliance
is not turned off and the power resumes, it will
begin to operate again. Once the power resumes,
reset the clock and oven function.

Never use your appliance for

• Never leave surface burners unattended at
high heat settings—Boilovers cause smoking
and greasy accumulations that may ignite, or a
pan that has boiled dry may melt.

• Glazed cooking utensils—Only certain types
of glass, glass/ceramic, ceramic, earthenware,
or other glazed utensils are suitable for
rangetop service without breaking due to the
sudden change in temperature. Check the
manufacturer’s recommendations for cooktop
use.

• When flaming foods under a ventilating hood,
turn the fan on.

IMPORTANT INSTRUCTIONS FOR USING

YOUR OVEN

• Use Care When Opening an Oven Door—Stand

to the side of the appliance when opening the
door of a hot oven. Let hot air or steam escape
before you remove or replace food in the oven.

• Keep Oven Vent Ducts Unobstructed. The upper

oven is vented at the back of the cooktop and
the lower oven at the center trim. Touching the
surfaces in this area when the oven is operating
may cause severe burns. Also, do not place
plastic or heat-sensitive items near the oven
vent. These items could melt or ignite.

IMPORTANT INSTRUCTIONS FOR USING

YOUR COOKTOP

• Know which knob controls each surface
heating unit. Place a pan of food on the unit
before turning it on, and then turn the unit off
before removing the pan.

• Use proper pan size. This appliance is equipped
with one or more surface units of different
sizes. Select utensils having flat bottoms large
enough to cover the surface unit. The use of
undersized utensils will expose a portion of the
surface heating unit to direct contact and may
result in ignition of clothing. Proper relationship
of utensil to the surface unit will also improve

efficiency.

• Utensil handles should be turned inward and
not extend over adjacent surface units. To
reduce the risk of burns, ignition of flammable
materials, and spillage due to unintentional
contact with the utensil.

• Placement of Oven Racks. Always place oven racks
in desired location while oven is cool. Remove all
utensils from the rack before removing rack. If
rack must be moved while oven is hot, use extreme
caution. Use pot holders and grasp the rack with
both hands to reposition. Do not let pot holders
contact the hot oven element or interior of the
oven.

• Do not use the broiler pan without its insert. The
broiler pan and grid allow dripping fat to drain and
be kept away from the high heat of the broiler.

• Do not cover the broiler grid or oven bottom with
aluminum foil. Exposed fat and grease could
ignite.

• Do not touch a hot oven light bulb with a damp
cloth. Doing so could cause the bulb to break.
Disconnect the appliance or shut off the power to
the appliance before removing and replacing the
bulb.

IMPORTANT SAFETY INSTRUCTIONS

• Protective liners—Do not use aluminum foil
to line the oven bottom. Only use aluminum
foil as recommended in this manual. Improper
installation of these liners may result in risk of
electric shock, or fire.

SELF-CLEANING OVEN MODELS

• Clean in the self-cleaning cycle only the parts
of the appliance listed in this Use & Care Guide.

Before using the self-cleaning cycle of the

appliance, remove the broiler pan and any utensils
stored in the appliance.

• Do not clean the oven door gasket. The door gasket
is essential for a good seal. Care should be taken
not to rub, damage or move the gasket.

• Do not use oven cleaners. No commercial oven
cleaner or oven liner protective coating of any
kind should be used in or around any part of the
appliance

The health of some birds is

extremely sensitive to the fumes given off during
the self-clean cycle of any oven. Move birds to
another well ventilated room.

IMPORTANT INSTRUCTIONS FOR

CLEANING YOUR OVEN

• Clean the appliance regularly to keep all parts
free of grease that could catch fire. Exhaust fan
ventilation hoods and grease filters should be
kept clean. Do not allow grease to accumulate.
Greasy deposits in the fan could catch fire.
Refer to the hood manufacturer’s instructions for
cleaning.

• Clean Ventilating Hoods Frequently—Grease
should not be allowed to accumulate on the
hood or filter. Follow manufacturer’s instructions
for cleaning.

FOR CERAMIC GLASS COOKTOPS

• Do not clean or operate a broken cooktop—If
cooktop should break, cleaning solutions and
spillovers may penetrate the broken cooktop
and create a risk of electric shock. Contact a
qualified technician immediately.

• Clean cooktop glass with caution—If a wet
sponge or cloth is used to wipe spills on a hot
cooking area, be careful to avoid a steam burn.
Some cleaners can produce harmful fumes if
applied to a hot surface.

• Avoid scratching the cooktop glass with sharp
objects.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause cancer, birth defects or other productive harm,
and requires businesses to warn customers of potential exposure to such substances.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Range Features

Your electric range includes:

1. Electronic Oven Control with Timer

2. Left Front Element Control Knob & Indicator Light

3. Left Rear Element Control Knob & Indicator Light

4. Warm & Ready Zone Control Pads & Indicator Light

5. Right Rear Element Control Knob & Indicator Light

6. Right Front Dual Element Control Knob & Indicator Light
7 Oven Lockout Controls

8. Element ON Indicator Light

9. One Piece Handle

10. Self-Clean Upper Oven

11. Lower Oven Self-Clean Door Latch

12. Lower Oven Broil Element

13. Oven Interior Light

14. Self-Cleaning Convection Interior Oven

15. Convection Fan Cover

16. Adjustable Oven Rack

17. One Piece Handle

18. Full width Oven Door with Large Window

19. Leveling Legs and Anti-Tip Bracket (included)

20.6” Single Radiant Element

21. Warm & Ready Zone Element

22. 9” single Radiant Element

23. 9”-12” Double Radiant Element

24. Ceramic Glass Smoothtop

NOTE: The features of your range may vary according to

model type & color.

Before Setting Surface Controls

About the Ceramic Glass Cooktop

The ceramic cooktop has radiant surface elements located below the
surface of the glass. The design of the ceramic cooktop outlines the area
of the surface element underneath. Make sure the diameter of the pan
matches the diameter of the element outline on the cooktop (See Figure

1)­Heat is transferred up through the surface of the cooktop to the

cookware. Only flat-bottom cookware should be used. The type and size
of cookware, the number of surface elements in use and their settings,
are all factors that will affect the amount of heat that will spread to
areas beyond the surface elements.

ik CAUTION

The areas surrounding the elements may become hot enough to cause burns.

About the Radiant Surface Elements

The element temperature rises gradually and evenly. As the temperature rises, the element will glow red. To maintain the
selected setting, the element will cycle on and off. The heating element retains enough heat to provide a uniform and
consistent heat during the off cycle. For efficient cooking, turn off the element several minutes before cooking is complete.
This will allow residual heat to complete the cooking process.

Locations of the Radiant Surface Elements and Controls

Your range is equipped with radiant surface burners with different
wattage ratings. The ability to heat food quicker and in larger
volumes increases as the element wattage increases.
The radiant surface elements are located on the cooktop as
follows:

- Two 6 inch radiant elements located at both right & left
rear positions.

- One dual 9 or 12 inch radiant element located at the
right front position.

- One 9 inch radiant elements located at the left
front position.

- a Warmer Zone located at the center rear position.

Figure 1

Note: Please read detailed instructions for ceramic glass

cooktop cleaning in the General Care & Cleaning section and
Before You Call checklist section of this Use and Care Guide.
Note: Radiant elements have a limiter that allows the element
to cycle on and off, even at the HI setting. This helps to prevent
damage to the ceramic glass cooktop. Cycling at the HI setting
is normal and can also occur if the cookware is too small for
the radiant element or if the cookware bottom is not flat (Refer
to page 10 for correct cookware instructions).

Note: (White glass cooktops only) Due to the high intensity of heat generated by the surface elements, the glass surface
will turn to a pale green when the element is first turned off. This phenomenon is normal and the glass will come back to
its original white color after it has completely cooled down.

 CAUTION

still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.

 CAUTION

range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too
close to the surface elements.

I Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may

Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the

Figure 2

Setting Surface Controls

Surface Cooking Settings

Use the chart (Figure 1) to determine the correct setting for the kind of food you are
preparing. The Simmer settings are used to simmer and keep larger quantities of foods
warm such as stews and soups. The lower Simmer settings are ideal for delicate foods
and melting chocolate or butter.
Note: The size and type of cookware used will influence the setting needed for best
cooking results.

Recommended Settings for Single and Dual Surface Elements
Setting* Type of Cooking
HIGH (Hi) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (5-8) Continue a rapid boil, fry, deep fat fry

MEDIUM (5)

MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew
LOW (Lo - 2)

*The suggested settings are based on cooking in medium thickness aluminum pans
with lids. Settings may vary when using other types of pans.

Maintain a slow boil, thicken sauces and gravies, steam
vegetables

Keep warm, melt, simmer Figure 1

 CAUTION

elements may appear to have
cooled after they have been
turned off. A hot surface
indicator light will come on and
will continue to glow until the
glass cooktop has cooled down
to a moderate level. The glass
surface may still be hot and
burns may occur if the glass
surface is touched before the
indicator light has turned off.

ik CAUTION

plastic items such as salt and
pepper shakers, spoon holders
or plastic wrappings on top
of the range when it is in use.
These items could melt or
ignite. Potholders, towels or
wooden spoons could catch
fire if placed too close to the
surface elements.

I Radiant surface

I Do not place

Operating Single Radiant Surface Elements

The cooktop has single radiant surface elements at 2 locations; the right rear and
the left rear (Figure 2) element positions.

To Operate the Single Surface Elements:

1. Place correctly sized cookware on the radiant surface element.

2. Push in and turn the surface control knob in either direction to the desired
setting (Figure 3). Turn the knob to adjust the setting if desired. Start most
cooking operations on a higher setting and then turn to a lower setting to finish
cooking. Each surface element provides a constant amount of heat at each
setting. A glowing red surface heating area extending beyond the bottom edge
of the cookware indicates the cookware is too small for the surface heating
area.

3. When cooking has completed, turn the surface control knob to OFF before
removing the cookware. Note: The Hot Surface Indicator light will come on
when the control knob is turned on and will continue to glow until the glass
cooktop has cooled down to a moderate level. The light may remain on even
though the controls are turned OFF.

Note: See above, Figure 1 for recommended control settings.

Figure 2

Setting Surface

Operating the Dual Surface Radiant Element

The cooktop is equipped with a dual radiant surface elements
located at the right front (See Figure 2 & 4) position. “Single and
Dual” on the control knob are used to indicate which coil of the
dual radiant element will heat. “Single” indicates that only the
inner coil will heat (Figures 1 & 2). “Dual” indicates that both
inner and outer coils will heat (Figures 3 & 4). You may switch
from either coil setting at any time during cooking.

To Operate the Dual Surface Element:

1. Place correctly sized cookware on the dual surface

Figure 1 Figure 2

Figure 3 Figure 4

4. When cooking has completed, turn the surface control knob to OFF before removing the cookware. Note: The Surface

Indicator light will come on when the control knob is turned on and will continue to glow until the glass cooktop has

cooled down to a moderate level. The light may remain on even though the controls are turned OFF.

Note: See “Recommended Settings for Single and Dual Surface Elements” for recommended control settings.

element.

2. Push in and turn the control knob counterclockwise (See
Figure 1) for smaller cookware or clockwise (See Figure 3)
for larger cookware.

3. Turn the knob to adjust the setting if needed. Start most
cooking operations on a higher setting and then turn to a
lower setting to finish cooking. Each surface element provides
a constant amount of heat at each setting. A glowing red
surface heating area extending beyond the bottom edge
of the cookware indicates the cookware is too small for the
surface heating area.

Operating the Warm & Ready™ Zone

The Warm & Ready™ zone radiant element is located at the center rear position
(Figure 6). The purpose of the Warmer Zone is to keep hot cooked foods at serving
temperature. Use the Warmer Zone to keep cooked foods hot such as: vegetables,
gravies, casseroles, soups, stews, breads, pastries and oven-safe dinner plates. Always
start with hot food. It is not recommended to heat cold food on the Warmer Zone.

^CAUTION

to cause burns. Always use potholders or oven mitts when removing food from the warmer
zone as cookware and plates will be hot.

All food placed on the warmer zone should be covered with a lid to maintain quality. For
best results, when warming pastries or breads, the cover should have an opening to allow
moisture to escape. Do not use plastic wrap or aluminum foil to cover food. Plastic or
aluminum may melt onto the surface.
Use only plates, utensils and cookware recommended by the item manufacturer for
oven and cooktop use on the Warmer Zone.

The Warmer Zone will not glow red when it is hot, but becomes hot enough

WARM & READY ZONE

O

To Set the Warmer Zone Control:

1. Place correctly sized cookware on the Warm & Ready™ zone surface element.

2. Touch the ON/OFF pad (Figure 5) at the Warm & Ready zone control position. The ON/

OFF indicator light will flash. Note: If no Hi/Lo pad is not touched within 5 seconds,
the request to power the Warm & Ready zone ON will clear.

3. At the Warm & Ready Zone control position, touch the Hi/Lo pad once to set the zone at Lo level or touch Hi/Lo pad

twice to set the zone at Hi level.

4. When it is time to serve food, touch the ON/OFF pad once to turn off the Warm & Ready Zone. The ON/OFF indicator

light will turn OFF.

ON

OFF

Oi

o

HI o

Lo o

COOKTOP

Figure 5

Figure 6

iàCAUTION

may still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.

iàCAUTION

wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons
could catch fire if placed too close to the surface elements or burners.

Radiant surface elements may appear to have cooled after they have been turned off. The glass surface

Do not place aluminum foil or plastic items such as salt and pepper shakers, spoon holders or plastic

9

Surface Cooking

Selecting Surface Cooking Cookware

Cookware should have flat bottoms that make good
contact with the entire surface heating element. Check
for flatness by rotating a ruler across the bottom of
the cookware (See Figure 1). Be sure to follow the
recommendations for using cookware as shown in
Figure 2. .

Correct Incorrect

• Curved and warped pan
bottoms.

• Flat bottom and straight
sides.

Note: The size and
type of cookware
used will influence
the setting needed
for best cooking
results.

• Tight fitting lids.

• Weight of handle does not
tilt pan. Pan is well
balanced.

• Pan sizes match the
amount of food to be
prepared and the size of

• Pan overhangs element by
more than one-half inch.

the surface element.

• Made of a material that
conducts heat well.

Pan is smaller than
element.

• Easy to clean.

Figure 1

• Always match pot diameter
to element surface
diameter.

Heavy handle tilts pan.

Figure 2

Cookware Material types

The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom.
The most popular materials available are:

ALUMINUM - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists
staining & pitting). If aluminum pans slide across the ceramic glass cooktop, they may leave metal marks which will
resemble scratches. Remove these marks immediately.

COPPER - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum above).
STAINLESS STEEL - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.
CAST IRON - A poor heat conductor however will retain heat very well. Cooks evenly once cooking temperature is

reached. Not recommended for use on ceramic cooktops.
PORCELAIN-ENAMEL on METAL - Heating characteristics will vary depending on base material. Porcelain-enamel coating

must be smooth to avoid scratching ceramic cooktops.
GLASS - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.

Before Setting the Oven Controls

Air Circulation in the Oven

If using 1 rack, place in center of oven. If using multiple racks, stagger

cookware as shown.

For best air circulation and baking results allow 2-4” (5-10 cm) around the
cookware for proper air circulation and be sure pans and cookware do not
touch each other, the oven door, sides or back of the oven cavity. The hot air
must circulate around the pans and cookware in the oven for even heat to
reach around the food.

10

Before Setting the Oven Controls

ik CAUTION

internal components at a cool temperature. The blower may keep running even if the oven has been turned off, until
the components have cooled down.

The lower oven is equipped with a blower which runs in baking and self-cleaning mode to keep all

Upper Oven Vent

Oven Vent Location

See illustration on left side for venting location of each oven. When the oven is
on, warm air is released through the vent. This venting is necessary for proper
air circulation in the oven and good baking results.

Removing & Replacing Lower Oven Racks

To remove an oven rack from the lower oven, pull
the rack forward until it stops. Lift up front of rack
and slide out.

To replace an oven rack in the lower oven, fit the
rack onto the guides on the oven walls. Tilt the
front of the rack upward and slide the rack back
into place.

Installing Oven Rack Supports in Upper Oven

To install oven rack support, insert it into the two brackets on the oven
wall interior and push down as shown in the illustration to th<
right.

To remove the oven rack

t I

support for a self-clean
cycle, pull up the support
to disengage it from the
brackets.

Arranging Oven Racks & Supports

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR
TO OPERATING THE OVEN).

Food Rack Positions

Lower Upp

Broiling meats, chicken or fish 4 2
Baking

To bake on: 1 rack 2 2

2 racks 2&4 N/A

Convection
To bake on:

Frozen pies, angel food cake, yeast,
bread, casseroles, small cuts of meat
or poultry

Turkey, roast or ham 1 N/A
Note: Always use oven mitts when removing food.

Note: It is recommended not to introduce food into the oven until
the preheat cycle time is complete. During the preheat cycle, both
the bake and the broil elements are cycling which may cause
unsatisfactory cooking performance or premature scorching of food
if placed in oven prior to completion of the preheat cycle.

1 rack 2 2
2 racks 2&4 N/A

1 or 2 1 or 2

Control Pad Features

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar
with the various features and functions of the oven as described below. Detailed instructions for each feature and function
follow later in this Use & Care Guide.

NOTICE: The illustrations and instructions contained in this document only refer to the lower oven operations. These
instructions can also be applied to the upper oven by selecting the upper oven key pad instead of the lower oven pad
(except for the Convection Features). Upper or Lower icon will appear in the display to confirm the chosen oven.

Oven Control Keypads

1. Bake - Used to start normal bake function.

2. Broil - Used to select the broil function.

3. Warm & Hold - Used to set the Warm & Hold function.

4. Cook Time- Used to enter the length of the cook time

desired.

5. Delay Start - Used to set the desired start time for

baking. May be used with COOK TIME to program a
delayed timed bake or clean cycle.

6. Flex Clean - Used to set a 2 to 4 hours Self-Clean cycle.

7. Clock Set - Used to set the time of day.

8. Oven Light - Used to turn oven light ON and OFF.

9. STOP - Used to cancel any oven function previously

entered except Clock and Timer. Also used to lockout
oven functions and door.

10. Timer Set/Off - Used to set or cancel Timer. The minute
timer does not start or stop cooking.

11. Add 1 Minute - Used to add additional minutes to
Timer.

12. Warm & Ready Zone - Used to set the Warm & Ready
Zone feature.

13. Up and Down Arrow - Used along with the function
pads to select oven temperature, cook time, start time
(when programming an automatic start time), time of
day, clean time and minute timer.

14. Conv Bake— Used to select the Convection feature
(available with the lower oven only)

Temperature Visual Display

Your oven is equipped with a temperature visual display. When a cooking mode is set, the actual temperature will be
shown in the display and will rise as the unit preheat. When the unit has reached its target temperature, a chime will
sound to remind you to place the food in the oven. This feature will be active with the modes: BAKE and CONVECTION
(lower oven only).

For a silent control panel:

The DELAY START pad controls the Silent Control Panel feature. The Silent Control Panel feature allows the oven control to
be operated without sounds or beeps whenever necessary. If desired the control can be programmed for silent operation
and later returned to operating with all the normal sounds and beeps.

To change control from normal sound operation to silent control operation

1. Press and hold DELAY START pad for 6 seconds. A beep will sound, —” will appear, “DELAY” will flash In the display.
After 6 seconds, a beep will sound and “SP” (speaker) or will appear In the display.

2. Press ys. or 'V' pad to switch between normal sound operation and silent operation mode. If “SP” appears, the control
will operate with normal sounds and beeps. If appears, the control Is In the silent operation mode.

3. Walt 5 seconds to accept the change or press STOP pad to reject the change.

Note: The control will always beep at the end of a minute timer and will beep when a set temperature has been reached,

even If the control Is set to silent operation.

12

Setting Oven Controls

Note: The time of day must first be set in order to operate the oven.

To Set the Clock

The (©) pad is used to set the clock. The clock may be set for 12 or 24 hour time of day operation. The clock has been preset
at the factory for the 12 hour operation. When the appliance is first plugged in, or when the power supply to the appliance
has been interrupted, the timer in the display will flash.
Press STOP pad to get the timer and ovens ready to use.
To set the clock

1. Press (©) pad. “CLO” and the current time of day will appear in the display.

2. Press or pad to set the correct time of day. Wait 5 seconds to accept the change or press STOP pad to reject
the change. The new time of day will appear in the display.

Changing Between 12 or 24 Hour Time of Day Display:

Press and hold pad for 6 seconds. “CLO” and the current time of day will appear in the display. A beep will sound
and “12h” or “24h” will appear in the display.

2.

Press vN. or 'V' pad to switch between the 12 and 24 hour time of day display. The display will show either “12h” or “24h”.
Wait 5 seconds to accept the change or press STOP pad to reject the change.

3.

4.

Reset the correct time as described in To set the Clock above. Please note that if the 24 hour time of day mode was
chosen, the clock will now display time from 0:00 through 23:59 hours.

To Set the Minute Timer

The TIMER SET/OFF pad controls the Timer feature. The Timer serves as an extra timer in the kitchen that will beep when
the set time has run out. It does not start or stop cooking. The Timer feature can be used during any of the other oven control
functions, except during a self clean operation.
To set the Timer

1. Press TIMER SET/OFF pad. “

2. Press or pad to set the desired time in the display. Wait 5 seconds and the time will begin to count down with
the set time and “TIMER” will stay in the display.

3. When the set time has run out, “End” and “TIMER” will show in the display. The clock will sound with 3 beeps every 7
seconds until TIMER SET/OFF pad is pressed.

To cancel the Minute Timer before the set time has run out: Press TIMER SET/OFF pad. The display will return to the time
of day.

-------------

” will appear and “TIMER” will flash in the display.

To Set Add 1 Minute Feature

The ADD 1 MINUTE pad is used to set the Add 1 Minute feature. When the Add 1
Minute pad is pressed, 1 minute is added to the Kitchen Timer feature if this feature is already active. If the Kitchen Timer
feature is not active and the ADD 1 MINUTE pad is pressed, the Kitchen Timer feature will become active and will begin
counting down from 1 minute.

Temperature Conversion (Fahrenheit f Celsius)

The BROIL pad controls the Fahrenheit or Celsius temperature display modes. The oven control can be programmed to display
temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit. Note: both ovens
will be changed at the same time.
To change display from Fahrenheit to Celsius or Celsius to Fahrenheit

1. Press BROIL pad and hold for 6 seconds. A beep will sound, “—” will appear and “BROIL” will flash in the display.
After 6 seconds a beep will be heard and “F” or “C” will appear in the display. If “F” appears, the display is set to show
temperatures in Fahrenheit. If “C” appears, the display is set to show temperatures in Celsius.

2. Press .A. or "V" pad to switch between Fahrenheit or Celsius display modes. The display will show either “F” or “C”.

3. Wait 5 seconds to accept the change or press STOP pad to reject the change.

To Operate the Oven Light(s)

The interior oven light(s) will automatically turn ON when the oven door is opened. Press (^9^ to turn the interior light(s)
ON and OFF whenever the door is closed. 13

Setting Oven Controls

Note: The time of day must first be set in order to operate the oven.

NOTICE : The illustrations and instructions contained in this document only refer to the lower oven operations. All these
instructions (except convection) can also be applied to the upper oven by pressing the upper oven pads on the left hand
side of the control panel. Upper or Lower icon will appear in the display to confirm the chosen oven.

To Set or Change the Temperature for Baking

The BAKE pad controls normal baking. The oven can be programmed to bake at any temperature from 170°F to 550°F.

To Set the Controls for Normal Baking:

1. Arrange interior oven racks.

2. Press BAKE pad, “

3. Press or pad to set the desired temperature. The desired temperature will appear and “BAKE” continue

flashing in the display.

4. Wait 5 seconds. “BAKE” will stop flashing, the oven icon and the actual oven temperature will appear in the display. A

beep will sound once the oven temperature reaches the desired baking temperature.

5. Place food in oven

Pressing STOP pad will cancel the Bake feature at any time.

To Change the Oven Temperature after Baking has Started:

1. After the oven has already been set to bake and the oven temperature needs to be changed, press BAKE pad. The

current setting will appear and “BAKE” start flashing in the display.

2. Press or pad to increase or decrease the set temperature.

3. Wait 5 seconds. “BAKE” will stop flashing and remain in the display. A beep will sound once the oven temperature

reaches the desired baking temperature.
Note: If the oven was recently heated from prior cooking and has remained heated, the bake element symbol may not
show in the display immediately and a chime will sound to show the temperature has already been reached.

-----------

” will appear, “BAKE” will flash in the display.

To Set Control for Continuous Bake or 12 Hour Energy Saving

The TIMER SET/OFF pad controls the Continuous Bake or 12 Hour Energy Saving Features. The oven control has a factory
preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours
and 59 minutes. The oven can be programmed to override this feature for Continuous Baking.

To set control for continuous baking:

1. Press and hold TIMER SET/OFF pad for 6 seconds. A beep will sound, “

display. After 6 seconds, “12h” or -h” will appear in the display and the control will beep once.

2. Press .A. or 'V' pad to switch between the 12 Hour Energy Saving and continuous bake features. Note: “12h” in the

display indicates the control is set for the 12 Hour Energy Saving mode and “- -h” indicates the control is set for the

Continuous Bake feature.

3. Wait 5 seconds to accept the change (display will return to time of day) or press STOP pad to reject the change.

-------------------------

” will appear and TIMER will flash in the

To Set Control for Oven Lockout

The STOP pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven doors and
prevents the Oven from being turned on. It does not disable the clock. Kitchen Timer or the interior oven lights. The ovens
can be locked individually.

To activate the Oven Lockout feature

Make sure the oven doors are closed. Press and hold STOP pad for 3 seconds. After 3 seconds a beep will sound, “DOOR”,
“LOCKED” will flash ,“Loc” and Q will appear in the display. Once the oven door is locked the “DOOR” and “LOCKED”

indicator will stop flashing and remain in the display.

To reactivate normal oven operation

Press and hold STOP pad for 3 seconds. A beep will sound. The oven icon, “LOC” and Q will disappear from the display.
“DOOR” and “LOCKED” will flash in the display until the oven door has completely unlocked. The appliance is again fully
operational. Note: Because you can set the oven lockout individually, one oven can be used when the other one is locked out.

14

Setting Oven Controls

To Set the Timed Bake Feature

The COOK TIME pad control the Timed Bake feature. Timed Bake allows the oven to be set to cook for a specific length of
time and shut off automatically. The oven will shut off and will beep when the countdown is finished. This feature can be
used with Bake and Convection (lower oven only) modes.

To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):

1. Be sure that the clock shows the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

3. Press BAKE pad, “BAKE” will flash and “

4. Press or pad to set the desired temperature. “BAKE” will continue to flash and desired temperature will appear

in the display.

5. Wait 5 seconds, “BAKE” stop flashing and remain in the display.

6. Press COOK TIME pad. “TIMED” start flashing and “
7 Press the or pad until the desired baking time appears in the display.

Note: Baking time can be set for any amount of time between 1 minute to 11 hours and 59 minutes.

8. Wait 5 seconds, the display returns to the time of day.
Note: After the Timed Bake feature has been activated, press COOK TIME pad to display the bake time remaining in the
Timed Bake mode. Once Timed Bake has started baking, a beep will sound when the oven temperature reaches the set
temperature.
Press STOP pad when baking has finished or at any time to cancel the Timed Bake feature.

When the set bake time runs out:

1. “End” will appear in the display and the oven will shut off automatically.

2. The control will beep 3 times. The control will continue to beep 3 times every 30 seconds until STOP pad is pressed.

-----------------

” will appear in the display.

---------------------

” will appear in the display.

To Set the Delayed Bake Feature

The DELAY START pad control the Delayed Bake feature. The automatic timer of the Delayed Bake will turn the oven ON
at the time you select in advance. Note: If your clock is set for normal 12 hour display mode the Delayed Bake or Delayed
Convection cycle can never be set to start more than 12 hours in advance. If a 12-24 hours delay is needed, set the control
for 24 hours time of day display mode.

To Program Oven for a Delayed Start Time:

1. Be sure that the clock is set with the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

3. Press BAKE pad. “BAKE” will flash and “

4. Press or pad until the desired temperature appears. “BAKE” will continue to flash and the desired temperature

will appear in the display.

5. Wait 5 seconds, “BAKE” will stop flashing and remain in the display and the current temperature is shown.

6. Press DELAY START pad. “DELAY” start flashing and “
7 Press the or pad until the desired start time appears in the display.

8. Wait 5 seconds, the current time of day will appear in the display.

Note: If it is desired to have the oven shut off automatically after a set time; enter a COOK TIME at this step.

9. When the desired start time is reached, the oven icon will appear in the display and the oven will start to bake at the

previously selected temperature.

Press STOP pad when baking has completed or at any time to cancel the Delayed Bake feature.

----------------

” will appear in the display.

-----------------

” will appear in the display.

A CAUTION

eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven
for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.

Use caution with the Timed Bake and Delayed Start features. Foods that can easily spoil such as milk,

15

Setting Oven Controls

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to
preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

Baking Problems and Solutions Chart

Baking
Problems
Cookies and biscuits

burn on the bottom.

Cakes too dark on

top or bottom.

( )

Cakes not done in
the center.

( )

Causes Corrections

• Cookies and biscuits put into the
oven before the preheating time
is completed.

• Oven rack overcrowded.

• Dark pan absorbs heat too fast.

• Cakes put into the oven before
preheating time is completed.

• Rack position too high or low.

• Oven too hot.

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Allow oven to preheat to the selected temperature
before placing food in oven.

• Choose pan sizes that will permit 5.1cm to 10.2cm (2”
to 4”) of air space on all sides when placed in the
oven.

• Use a medium-weight aluminum baking sheet.

• Allow oven to preheat to the selected temperature
before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F/12°C lower than
recommended.

• Set oven temperature 25°F/12°C lower than
recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is

5.1cm to 10.2cm (2” to 4”) of space on all sides of pan.

Cakes not level.

( )

Foods not done when
cooking time is up.

• Range not level.

• Pan too close to oven wall or
rack overcrowded.

• Pan warped.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too
frequently.

• Place a marked glass measuring cup filled with water
on the center of the oven rack. If the water level is
uneven, refer to the installation instructions for leveling
the range.

• Be sure to allow 5.1cm to 10.2cm (2” to 4”) of
clearance on all sides of each pan in the oven.

• Do not use pans that are dented or warped.

• Set oven temperature 25°F/12°C higher than suggested
and bake for the recommended time.

• Be sure to remove all pans from the oven except the
ones to be used for baking.

• Open oven door only after shortest recommended
baking time.

16

Broiling is a method of cooking tender cuts of meat by direct heat under the
broil element of the oven. Be sure you center your broiler pan (available by
mail order) directly under the broil element for best results.
Arrange oven rack while oven is still cool. Position the rack as needed.

Not supplied

_____________

A WARNING

the oven. If the fire continues, throw baking soda on the fire or use a fire
extinguisher. DO NOT put water or flour on the fire. Flour may be explosive
and water can cause a grease fire to spread and cause personal injury.

I Should an oven fire occur, close the oven door and turn off

To set the oven to broil:

1. Arrange the interior oven rack.
Press BROIL pad. “—” will appear and “BROIL” will flash in the display.

2.

Press or until the desired broiling temperature appears in the

3.
display.
Wait 5 seconds, “BROIL” will stop flashing and the oven icon will appear

4.
in the display. The oven will begin to broil. The desired temperature will
stay in the display.
Preheat the broil element for 5 minutes.
Place your broiler pan insert on your broiler pan. Then place the food on

6.

the broiler pan insert. DO NOT use your broiler pan without the insert. DO
NOT cover your broiler insert with foil. The exposed grease could ignite.
Place your broiler pan on the rack. Be sure to center your broiler pan
directly under the broiler element. Make sure the oven door is in the broil
stop position.
Broil on one side until food is browned; turn and cook on the second side.

8.

Season and serve. Note: Always pull the rack out to the stop position
before turning or removing food.
To cancel broiling press STOP pad.

9.

Note: The broil temperature setting may be changed at any time.

Note: The broiler pan and insert
are available by mail order.

Note: Broiler pan and its insert allow
dripping grease to drain and be
kept away from the high heat of the
broiler. DO NOT use the pan without
its insert. DO NOT cover the insert
with foil. The exposed grease could

Preheating

Preheating the oven is suggested when searing rare steaks. (Remove your broiler pan before preheating. Foods will stick
if placed on hot metal.) To preheat, set the control(s) to BROIL as instructed in the Owner’s Guide. Wait for the element
to become red-hot, usually about 5 minutes. Preheating is not necessary when broiling meats well-done.

Determine Broiling Times

Broiling times vary, so watch the food closely. Time not only depends on the distance from element, but on the thickness
and aging of meat, fat content and doneness preferred. The first side usually requires a few minutes longer than second.
Frozen meats also require additional time.

Broiler Clean-Up Tips (not supplied with appliance):

To make cleaning easier, line the bottom of the broiler pan with aluminum foil. DO NOT cover the broiler grid with foil.
To prevent grease from baking on, remove the broiler pan from the oven as soon as cooking is completed. Use hot pads
because the broiler pan is extremely hot. Pour off grease. Soak the pan in HOT, soapy water.
Clean the broiler pan as soon as possible after each use. If necessary, use soap-filled steel wool pads. Heavy scouring may
scratch the grid.

17

Setting the Warm & Hold™ Feature

The Warm & Hold pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of 170°F (76°C).
The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3
hours the Warm & Hold feature will shut the oven OFF automatically. The Warm & Hold feature may be used without any
other cooking operations or can be used after cooking has finished using TIMED BAKE or DELAY TIMED BAKE. Do not use

the Warm & Hold feature to heat cold food.

To set Warm & Hold:

1. Arrange interior oven racks and place food in oven.

2. Press WARM & HOLD pad. “WARM” will flash and “
Note: If no pad is touched within 25 seconds the request to turn ON Keep Warm feature will be cancelled.

-------------------

” will appear in the display.

3. Press the or pad, “WARM” will stop flashing, “HLd” and the oven icon will appear in the display.

4. To turn the Keep Warm OFF at any time press STOP pad.

Note: The Keep Warm feature will automatically turn OFF after 3 hours.

To set Warm & Hold to turn ON automatically:

1.

Arrange interior oven racks and place food in oven. Set the oven properly for Timed Bake or Delayed Timed Bake.

2.

Press WARM & HOLD pad. “WARM” will flash and “
Note: If no pad is touched within 25 seconds the request to turn ON the Keep Warm feature and all functions previously
programmed will be cleared.

3.

Press the or pad, “WARM” will stop flashing and remain in the display. Also temperature will appear in the
display.

4.

When the Time Bake has finished, the keep warm mode will turn ON automatically. The desired temperature, “BAKE”
and “TIMED” will disappear. “HLd” will appear. The oven icon will remain in the display.
Note: The Keep Warm feature will automatically turn OFF after 3 hours.

-----------------------

” will appear in the display.

Pressing STOP pad at any time will stop all oven baking operations.

Setting Convection- Lower Oven Only

The CONV BAKE pad controls the Convection feature. Use the Convection feature when cooking speed is desired. The
oven can be programmed for Convection at any temperature between 170°F (77° C) to 550°F (288° C).

Convection uses a fan to circulate the oven’s heat evenly and continuously within the oven. This improved heat distribution
allows for fast, even cooking and browning results. It also gives better baking results when using 2 or 3 racks at the same
time. Breads and pastries brown more evenly. Convection cooks most foods faster and more evenly than conventional
baking.

Note: This feature is only available in the lower oven.

m

General Convection Instructions

1. When using Convection, check food at minimum cooktime.

2. Preheating is not necessary when cooking casseroles with Convection.

3. When using Convection with a single rack, place oven rack in position 2 or 3. If cooking on
multiple racks, place the oven racks in positions 2 and 4.

To set the oven for Convection

1. Arrange interior oven racks.
Press CONV BAKE pad, “LOWER” and “BAKE” will flash and “
Press or pad to set the desired temperature. “LOWER” and “BAKE” will continue to flash and desired temperature will
appear in the display.
Wait 5 seconds, “LOWER” and “BAKE” will stop flashing and remain in the display and the actual oven temperature will appear
in the display. The convection fan icon will start spinning in the display. A beep will sound once the oven temperature reaches the
desired baking temperature.
Place food in oven.

5.

Note: The convection fan will start AS SOON AS the oven is set for Convection.
Press STOP to cancel Convection Bake at any time.

--------------

” will appear in the display.

Air circulation during

Convection

18

Setting Oven Controls

To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays)

The COOK TIME and DELAY START pads are used to set the Sabbath feature. The Sabbath feature may only be used with
the BAKE pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven temperature
adjustment feature should be used only during Jewish Holidays), however the display will not visibly show or provide
any audible tones indicating whether the change occurred correctly. Once the oven is properly set using Bake with the
Sabbath feature active, the oven will remain continuously ON until cancelled. This will override the factory preset 12-Hour
Energy Saving feature. ^
If the oven light will be needed during the Sabbath, press (Qj before activating the Sabbath feature.

Once the oven light is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath
feature is turned OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath
feature.

IMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the
Sabbath feature is active. ONLY the following key pads will function after setting the Sabbath feature; BAKE
& STOP. ALL OTHER KEYPADS will not function once the Sabbath feature is properly activated.

To Program the Oven to Begin Baking Immediately & activate the Sabbath feature:

1. Be sure that the clock is set with the correct time of day.

2. Place the food in the oven.

3. Press BAKE. “—” will appear, “BAKE” will flash in the display.

4. Press the .y\ or pad until the desired temperature appears. “BAKE” will flash in the display.

5. Wait 5 seconds, “BAKE” stop flashing, the oven icon and the actual oven temperature will appear in the display.

6. If you desire to set the oven control for a Timed Bake or Delayed Start Bake do so at this time. If not, skip this step
and continue to step 8. Refer to the Timed Bake (complete steps 6-8) / Delayed Start Bake (complete steps 6-8)
section for complete instructions. Remember the oven will shut down after using Timed Bake or Delayed Timed Bake
and therefore may only be used once during the Sabbath/Jewish Holidays. The maximum Delayed Timed Bake time is
11 hours & 59 minutes.

7. The oven will turn ON and begin heating.

8. Press and hold both the COOK TIME and DELAY START pads for at least 3 seconds. SAb will appear in the display.
Once SAb appears in the display the oven control will no longer beep when a keypad is pressed or display any
further changes. The oven is properly set for the Sabbath feature.
Note: You may change the oven temperature once baking has started by pressing BAKE pad, the or pads
for the temperature you want (for Jewish Holidays only). Remember that the oven control will no longer beep when a
keypad is pressed or display any further changes once the oven is set for the Sabbath feature.

9. The oven may be turned OFF at any time by first pressing STOP pad (this will turn the oven OFF).

10. To turn off the Sabbath mode, press and hold both the COOK TIME and DELAY START pads for at least 3 seconds.

Should you experience a power failure or interruption, the oven will shut off. When power is returned the oven will not
turn back on automatically. If your food was nearly fully cooked, you may allow the trapped heat in the oven to finish the
cooking process. Otherwise, you should remove the food when the power failure occurs, because you may only start the
oven once during the Sabbath/Jewish Holidays. After the Sabbath observance turn OFF the Sabbath feature and the oven
may be used with all normal functions.
After the Sabbath observance turn OFF the Sabbath feature by pressing COOK TIME and DELAY START. SAb will
disappear from the display and the oven may be used with ali normal functions.

For further assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at

http:Wwww.star-k.org.

19

Adjusting the Oven Temperature

Your oven thermostat has been precisely set at the factory. This setting may differ from your previous oven, however, so
your recipe times may not give you the results you expect. If you think that the oven is cooking too hot or cool for your
recipe times, you can adjust the thermostat so that the oven cooks hotter or cooler than the temperature displayed.
Note: Upper and lower oven can be adjusted independently.

To Adjust Oven Temperature:

1. Press and hold upper or lower oven BAKE pad for 6 seconds. The preset adjustment number will appear and “UPPER” or
“LOWER” will flash in the display.

2. To increase the temperature use the pad to enter the desired change. The temperature may be increased as much as 35°F
(19°C). To decrease the temperature use the "V pad to enter the desired change. The temperature may be decreased as much as

35°F (19°C).

3. Wait 5 seconds to accept the temperature change and the display will return to the time of day. Press STOP pad to reject the
change if necessary.

Note: Oven temperature adjustment made will not change the Broil and the Self-Cleaning feature temperatures.

20

Seif-Cieanîng

A CAUTION

cle, the outside of the wall oven can become
very hot to the touch. DO NOT leave small
children unattended near the appliance.

A CAUTION

extremely sensitive to the fumes given off
during the self-clean cycle of any wall oven.
Move birds to another well ventilated room.

A CAUTION

______________! DO NOT line the oven
walls, racks, bottom or any other part of
the appliance with aluminum foil. Doing
so will destroy heat distribution, produce
poor baking results and cause permanent
damage to the interior (aluminum foil will
melt to the interior surface of the oven).

A CAUTION

______________! DO NOT force the oven door
open. This can damage the automatic door
locking system. Use caution when opening
the door after the Self-Cleaning cycle is
completed. The oven may still be VERY HOT.

Note: See additional cleaning information
for the oven door in the General Care &
Cleaning section.

During the self-cleaning cy

I The health of some birds is

Self-Cleaning Oven

A Self-Cleaning oven cleans itself with high temperatures (well above
cooking temperatures) which eliminate soils completely or reduces them
to a fine powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions:

• Allow the oven to cool before cleaning.

• Wear rubber gloves when cleaning any exterior parts of the oven
manually.

• DO NOT use oven cleaners or oven protective coatings in or around

any part of the oven interior.

• DO NOT clean the oven door gasket. The woven material of the oven

door gasket is essential for a good seal. Care should be taken not to
rub, damage or remove the gasket.

• DO NOT use any cleaning materials on the oven door gasket. Doing
so could cause damage.

• Remove all utensils and any aluminum foil. These items cannot

withstand high cleaning temperatures.

• Oven racks do not have to be removed, but remaining in the oven

during the Self-Clean will turn them slightly blue and dull their finish.

If left in, after the cycle is complete and the oven has cooled, rub the

sides of the oven racks with wax paper or a cloth containing a small
amount of salad oil (this will make the racks glide easier into the

rack position).

• Remove any excessive spillovers in the oven cavity before starting

the Self-Cleaning cycle. To clean, use hot, soapy water and a cloth.

Large spillovers can cause heavy smoke or fire when subjected to
high temperatures. DO NOT allow food spills with a high sugar or

acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie
filling) to remain on the surface as they may leave a dull spot even
after cleaning.

• Clean any soil from the oven frame, the door liner outside the oven

door gasket and the small area at the front center of the oven

bottom. These areas heat sufficiently to burn soil on. Clean with soap

and water. DO NOT hand clean the oven door gasket.

NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the
oven bottom should be removed.

Some models have an exposed Bake element in the lower oven cavity.
On these models the bake element is designed to be tilted up using your
hand from the front of the bake element. This will allow easier access to
the oven bottom for cleaning. Be careful not to raise the element more
than 4 or 5 inches from the resting position.

A CAUTION

cooled after they have been turned OFF. The elements may still be hot
and burns may occur if these elements are touched before they have
cooled sufficiently.

The oven bake and broil elements may appear to have

21

Self-Cleaning

What to Expect during Cleaning:

While the oven is in operation, the oven heats to temperatures much higher than
those used in normal cooking. Sounds of metal expansion and contraction are
normal. Odor is also normal as the food soil is being removed. Smoke may appear
through the oven vent.

If heavy spillovers are not wiped up before cleaning, they may flame and cause
more smoke and odor than usual. This is normal and safe and should not cause
alarm. If available, use an exhaust fan during the self-cleaning cycle.

Self-Clean Cycle time length

For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour
cycle for average or a 4 hour cycle for heavy soils. NOTE: The kitchen area
should be well ventilated using an open window, ventilation fan or exhaust hood
during the Self-Clean cycle. This will help eliminate the normal odors associated
with the Self-Clean cycle.

_____________

ik CAUTION

burns use care when opening the
oven door after the Self-Cleaning
cycle. Stand to the side of the oven
when opening the door to allow hot
air or steam to escape.

ik CAUTION

oven door open. This can damage
the automatic door locking system.
Use caution and avoid possible
burns when opening the door
after the Self-Cleaning cycle has
completed. The oven may still be
VERY HOT.

To Set the Controls for a Self-Clean Cycle or a Delayed Start Self-Clean Cycle:

(Note: If you do not want to set a Delayed Self-Clean Cycle, skip steps 2 & 3.)

1. Be sure that the clock is set with the correct time of day and the oven door is closed.

2. Press DELAY START. “DELAY” will flash.

3. Press and hold the pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the
desired time is displayed.

4. Press FLEX CLEAN. “CLN

5. Press the or once. “3 00” appears in the display for a 3 hour cycle. To change to a 2 hour cycle press'^^.
“2 00” appears in the display or to select a 4 hour cycle press “4 00” appears in the display.
As soon as the controls are set, the motor driven lock will begin to close automatically and the “DOOR” and
“LOCKED” indicator light will appear. DO NOT open the oven door while the light is flashing (it takes about 15
seconds for the oven door to lock).

6. “CLn” will appear in the display during the Self-Clean cycle and the “DOOR” and “LOCKED” light will glow until the
Self-Cleaning cycle is complete or cancelled and the oven temperature has cooled.

---------------

” appears in the display.

To avoid possible

j DO NOT force the

When the Self-Clean Cycle is Completed:

1. The time of day or “Hot” will appear in the display window and the “Clean” and “DOOR” and “LOCKED” light will
continue to glow.

2. Once the oven has cooled down for about 1 HOUR and the “DOOR” and “LOCKED” light has gone out, the oven door
can be opened.

NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.

Stopping or Interrupting a Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a Self-Cleaning cycle:

1. Press STOP.

2. The time of day or “Hot” will appear in the display window, “DOOR” and “LOCKED” light will continue to glow.

3. Once the oven has cooled down for about 1 HOUR and the “DOOR” and “LOCKED” light has gone out, the oven door
can be opened.

4. Restart the Self-Clean cycle once all conditions have been corrected.

22

General Care & Cleaning

Cleaning Various Parts of Your Oven

Before cleaning any part of the oven, be sure all controls are turned OFF and the oven is COOL. REMOVE SPILLOVERS AND
HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS NOW WILL REDUCE THE EXTENT AND DIFFICULTY OF
MAJOR CLEANING LATER.

Surfaces How to Clean

Aluminum (Trim Pieces)

& Vinyl

Painted and Plastic Control
Panel, Body Parts, and Decora

tive Trim

Stainless Steel, Chrome Control
Panel, Decorative Trim

Porcelain Enamel Broiler Pan

and Insert (some models). Door

Liner, Body Parts

Oven Racks

Use hot, soapy water and a cloth. Dry with a clean cloth. Do not scour or use all
purpose cleaners, ammonia, powdered cleaners or commercial oven cleaner. They can
scratch and discolor aluminum.

For general cleaning, use hot, soapy water and a cloth. For more difficult soils and
built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to
60 minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of
these materials; they can scratch.

To remove control knobs, turn to the OFF position; grasp firmly and pull straight off the
shaft. To replace knobs after cleaning, line up the flat sides of both the knob and the
shaft; then push the knob into place.

Before cleaning the control panel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean using hot, soapy water
and a dishcloth. Rinse with a clean water using a dishcloth. Be sure to squeeze excess
water from the cloth before wiping the panel; especially when wiping around the
controls. Excess water in or around the controls may cause damage to the appliance.
To replace knobs after cleaning, line up the flat sides of both the knob and the shaft;
then push the knob into place.

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and
a cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not
use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for
cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish
stains may occur during heating that cannot be removed.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a
1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a
clean cloth. Remove all cleaners or the porcelain may become damaged during future
heating. DO NOT use spray oven cleaners on the cooktop.

This oven comes with chrome oven racks, clean by using a mild, abrasive cleaner
following manufacturer’s instructions. Rinse with clean water and dry.

// ' ■

t

a '

Oven Door

DO Hand y

Clean Door

DO Hand

Clean Frame

Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse
well. You may use a glass cleaner on the outside glass of the oven door. DO NOT
immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter
the door vents.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on Self-Cleaning models, which is essential for a good seal. Care should be
taken not to rub, damage or remove this gasket.

23

General Care & Cleaning

Ceramic Glass Cooktop Cleaning & Maintenance

IMPORTANT Consistent and proper cleaning is essential to maintaining your Ceramic glass cooktop.

Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth
or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream
leaves a protective finish on the glass to help prevent scratches and abrasions.

^Sliding aluminum or copper clad bottom pans on the cooktop can cause metal

markings on the cooktop surface. These marks should be removed immediately after
the cooktop has cooled using the cooktop cleaning cream. Metal marks can become
permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch
the cooktop surface. Do not slide anything metal or glass across the cooktop. Do not
use your cooktop as a cutting board or work surface in the kitchen. Do not cook foods
directly on the cooktop surface without a pan. Do not drop heavy or hard objects on
the glass cooktop, because they may cause it to crack.

Cleaning Recommendations for the Ceramic Glass Cooktop

^3 Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

[mmm

chemically damage the ceramic glass surface.

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic
type no-scratch pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the X
soiled area using a non-abrasive plastic type no-scratch pad, applying pressure as v,
needed. Do not use the pad you use to clean the cooktop for any other purpose.
If soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper
at a 30 degree angle to the surface. Remove loosened soils, then apply a few drops of
cleaning cream and buff surface clean.

IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you use an

abrasive type scratch pad. Only use cleaning products that have been specifically
designed for ceramic glass cooktop.

Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent
damage (such as pitting of the cooktop surface) may occur if not removed immediately. After turning the surface
elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as
illustrated).

24

General Care & Cleaning

Ceramic Glass Cooktop Cleaning & Maintenance

Do not use the following on the ceramic glass cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal and some nylon

pads. They may scratch the cooktop, making it more difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as

they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on

the cooktop which can burn and cause discoloration.

R

)

Special Caution for Aluminum Foil and Aluminum Cooking Utensils

• Aluminum foil

Use of aluminum foil will damage the cooktop. Do not use under any circumstances.

• Aluminum utensils

Since the melting point of aluminum is much lower than that of other metals, care must be taken when aluminum pots
or pans are used. Pans that boil dry may permanently damage cooktop by breaking, fusing to, or marking it.

AMMON

Care and Cleaning of Stainless Steel (Stainless Steel models only)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning section
in this Use & Care Guide.

Changing the Oven Light

On some models an interior oven light will turn automatically when the oven door is opened. The oven light may be
turned on when the door is closed by pushing © located on the control panel. On some models, the lamp is covered

with a glass shield held in place by a wire holder. THE GLASS SHIELD MUST BE IN PLACE WHENEVER THE OVEN IS IN
USE.

To replace the light bulb:
CAUTION: BE SURE THE OVEN IS COOL.

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against possible broken glass.

3. Replace bulb with 40-watt appliance bulb only.

4. For models with glass shield, press holder on one side to release glass shield,
change bulb and be sure to replace the glass shield.

25

General Care & Cleaning

Removing and Replacing the Lower Oven Lift-Off Door

Door Hinge
locations with
oven door fully
open

Fig. 1

Fig. 2

 CAUTION

with the inside of the door facing down.

To Remove Oven Door:

1. Open oven door completely (horizontal with floor - See Fig. 1).

2. Pull the door hinge locks on both left and right door hinges down from the
oven frame completely towards the oven door (See Fig. 2). A tool such as a
small flat-blade screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).

i The door is heavy. For safe, temporary storage, lay the door flat

4. Close the door to the broil stop position (the oven door will stop into this

position just before fully closing).

5. With the oven door in the broil stop position, lift the oven door hinge arms

over the roller pins located on each side of the oven frame (See Fig. 4).

To Replace Oven Door:

1. Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
Holding the oven door at the same angle as the removal position, seat the

2.

hook of the hinge arm over the roller pins located on each side of the oven
door frame (See Fig. 4). The hook of the hinge arms must be fully seated
onto the roller pins.
Fully open the oven door (horizontal with floor - See Fig. 1).

3.
Push the door hinge locks up towards and into the oven frame on both left

4.
and right oven door hinges (See Fig. 2) to the locked position.
Close the oven door.

5.

Roller pin

Hinge arm
hook

Special Door Care Instructions - Most oven doors contain glass that can break.
Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.

fКKКККККККККККККr

Fig. 4

26

Before You Cali

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are
not the result of defective workmanship or materials in this appliance.

OCCURRENCE POSSIBLE CAUSE/SOLUTION

Oven Control Beeps
and Displays any F
code error (ex.: FIT).

“d-O” is displayed. The door was left open and controls set for self-cleaning cycle. Close the door and push STOP pad.
Faulty installation.

Bad cooking results.
Range not leveled.

Surface unit does not
heat.

Surface units too hot Incorrect control setting. Make sure the correct control is on for the surface unit to be used.
or not hot enough.

Metal marks. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on cooktop

Scratches or abrasions
on cooktop surface.

Brown streaks or
specks.

Areas of discoloration
with metallic sheen.

Entire oven does not
operate.

Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display and

stop the beeping. Reprogram the oven. If a fault reoccurs, record the fault number. Press STOP/

CLEAR and call Sears or another qualified servicer.

1- Place oven rack in center of oven.
2- Place a level or a marked glass measuring cup filled with water on the center of the oven rack.
3- If the water level is uneven, adjust the leveling legs of the unit (refer to the installation

instructions for leveling the range).
4- If the level is still uneven, contact an installing agent to adjust the cabinet cutout flooring.

Kitchen cabinet misalignment may make oven appear to be not level. Be sure cabinets are
square and level. Contact cabinet maker to correct problem.

No power to the appliance. Check steps under “Entire Range or Oven Does Not Operate” in
this Before you Call checklist.

Incorrect control setting. Make sure the correct control is on for the surface unit to be used.

Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight cook
ware. Flat pans heat better than warped pans. Cookware materials and weight of the material
affect heating. Heavy-and medium- weight pans heat evenly. Because lightweight pans heat

unevenly, foods may burn easily.

surface. Use a ceramic-glass cooktop cleaning cream to remove the marks. “Cooktop Cleaning

- Ceramic Glass Cooktop Models” section under General Cleaning.

Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be
sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not
affect cooking and will become less visible with time.

Cleaning materials not recommended for ceramic-glass cooktop have been used. See “Cooktop

Cleaning - Ceramic Glass Cooktop Models” section under General Cleaning.

Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.

Boilovers are cooked onto surface. Use razor blade scraper to remove soil. “Cooktop Cleaning -

Ceramic Glass Cooktop Models” section under General Cleaning.

Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning cream.

Use cookware with clean, dry bottoms
When the oven is first plugged in, or when the power supply to the oven has been interrupted,

the display will flash. The oven cannot be programmed until the clock is set.

Be sure electrical cord is securely connected into the electrical junction box.

Cord/plug is not installed and/or connected. Cord is not supplied with oven. Contact Sears or
another qualified servicer.

Service wiring not complete. Contact Sears or another qualified servicer.

Power outage. Check house lights to be sure. Call your local electric company.
Short in cord/plug. Replace cord/plug.

Controls are not set properly. See instructions under Setting Oven Controls to set the controls.

House fuse has blown or circuit breaker has tripped immediately following installation. House
fuse may not be fully engaged. Check fuse and screw or engage circuit breaker securely.

House fuse has blown or circuit breaker has tripped after the oven has been

installed and previously operating. Call Sears or another qualified servicer.

27

Before You Cali

Solutions to Common Problems

OCCURRENCE POSSIBLE CAUSE/SOLUTION
Oven smokes excessively during Oven door is closed. Door should be open during broiling.

broiling.

Poor baking results. Many factors affect baking results. See Baking for hints, causes and

Oven light does not work. Burned-out or loose bulb. Follow the instructions under Changing Oven Light to

Fan noise during cooking operation. A cooling fan may automatically turn on and off to cool internal parts. This is

Self-cleaning cycle does not work. Make sure the oven door is closed.

Meat too close to the broiler unit. Reposition the rack to provide more
clearance between the meat and the broiler. Preheat broil element for quick
searing operation.

Meat not properly prepared. Remove excess fat from meat. Slash remaining
fatty edges to prevent curling, but do not cut into the lean.

Grid on broiler pan wrong side-up. Grease does not drain into broiler pan.
Always place the grid on the broiler pan with the ribs up and the slots down to
allow grease to drip into the pan.

Broiler pan used without grid or grid cover with foil. DO NOT use the broiler
pan without the grid or cover the grid with foil.

Oven needs to be cleaned. Grease has built up on oven surfaces. Regular
cleaning is necessary when broiling frequently. Old grease or food spatters
cause excessive smoking.

corrections. See Adjusting Oven Temperature.

replace or tighten the bulb.

normal, and the fan may continue to run even after oven is turned off.

Soil not completely removed after self

cleaning cycle is completed.

Flames inside oven or smoke from

vent.

Controls not set properly. Follow instructions.
Self-cleaning cycle was interrupted. Stop time must be set 2-4 hours past the

start time. Follow steps under “Stopping or Interrupting a Self-Cleaning Cycle”
in this Use & Care Guide.

Failure to clean bottom, from top of oven, frame of oven or door area outside
oven seal. These areas are not in the self-cleaning area, but get not enough
to burn on residue. Clean these areas before the self-cleaning cycle is started.
Burned on residue can be cleaned with a stiff nylon brush and water or a nylon
scrubber. Be careful not to damage the oven gasket.

Excessive spillovers in oven. Set the self-clean cycle for longer cleaning time.
Excessive spillovers in oven. This is normal, especially for high oven

temperatures, pie spillovers or for large amounts of grease on bottom of oven.
Wipe up excessive spillovers.

28

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new ;
Kenmore® product is designed and manufactured for years of ;
dependable operation. But like all products, it may require :
preventive maintenance or repair from time to time. That’s when i
having a Master Protection Agreement can save you money ;
and aggravation. ’

The Master Protection Agreement also helps extend the life of ,
your new product. Here’s what the Agreement* includes: i

0 Parts and labor needed to help keep products operating ;

properly under normal use, not just defects. Our coverage ;
goes well beyond the product warranty. No deductibles, ;
no functional failure excluded from coverage - real i
protection. i

0 Expert service by a force of more than 10,000 authorized ;

Sears service technicians, which means someone you ’
can trust will be working on your product. ,

0 Unlimited service calls and nationwide service, as |

often as you want us, whenever you want us. ;

0 «No-lemon» guarantee - replacement of your covered ;

product if four or more product failures occur within twelve :
months. ;

0 Product replacement if your covered product can’t be :

fixed. ;

0 Annual Preventive Maintenance Check at your request - ;

no extra charge. ^

0 Fast help by phone - we call it Rapid Resolution -

phone support from a Sears representative on all products. ;
Think of us as a «talking owner’s manual». ;

0 Power surge protection against electrical damage due to I

power fluctuations. i

0 $250 Food Loss Protection annually for any food ;

spoilage that is the result of mechanical failure of any ’
covered refrigerator or freezer. ,

0 Rental reimbursement if repair of your covered product |

takes longer than promised. ;

0 10% discount off the regular price of any non-covered ;

repair service and related installed parts. :

Once you purchase the Agreement, a simple phone call is all ’
that it takes for you to schedule service. You can call anytime ,
day or night, or schedule a service appointment online. ;

The Master Protection Agreement is a risk free purchase. If you :
cancel for any reason during the product warranty period, we ,
will provide a full refund. Or, a prorated refund anytime after the ;
product warranty period expires. Purchase your Master ^
Protection Agreement today! :

Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.

* Coverage in Canada varies on some items. For full details :
call Sears Canada at 1-800-361-6665. !

Sears Installation Service ,

For Sears professional installation of home appliances, garage I
door openers, water heaters, and other major home items, in :
the U.S.A. or Canada call 1-800-4-MY-HOME®. I

Acuerdos maestros de protección

Enhorabuena por haber hecho una compra inteligente. Su nuevo producto
Kenmore® está diseñado y fabricado para brindarle años de funcionamiento
fiable. Pero, como cualquier producto, puede necesitar mantenimiento
preventivo o reparaciones periódicas. Es por eso que tener un Acuerdo maestro
de protección podría ahorrarle dinero y molestias.

El Acuerdo maestro de protección también sirve para prolongar la durabilidad
de su nuevo producto. El acuerdo* incluye lo siguiente:

0 Piezas y mano de obra necesarias para contribuir a mantener el

funcionamiento adecuado de los productos utilizados en condiciones
normales de uso, no sólo en caso de defectos de los productos. Nuestra
cobertura va mucho más allá que la garantía del producto. No se
aplican deducibles ni exclusiones por fallas del funcionamiento: es decir,

verdadera protección.

0 Servicio técnico por expertos (más de 10000 técnicos autorizados de

Sears), lo cual significa que quien repare o realice el mantenimiento de su

producto será un profesional de confianza.

0 Servicio técnico a escala nacional y número ilimitado de llamadas de

solicitud de servicio técnico: se puede poner en contacto con nosotros

cuantas veces lo desee y cuando lo desee.

0 Garantía «sin sorpresas»: se reemplaza el producto cubierto por el

acuerdo si ocurren cuatro o más fallas del producto en un periodo de 12
meses.

0 Reemplazo del producto: en caso de que no se pueda reparar el

producto cubierto por el acuerdo.

0 Revisión anual preventiva de mantenimiento del producto: puede

solicitarla en cualquier momento, sin costo alguno.

0 Rápida asistencia telefónica, la cual denominamos Solución rápida: es

decir, asistencia telefónica a través de cualquiera de nuestros
representantes de Sears, sobre cualquiera de nuestros productos. Piense
en nosotros como en un «manual parlante del usuario».

0 Protección contra fallas eléctricas, contra daños debidos a fluctuaciones

de la corriente eléctrica.

0 $250 al año para cubrir cualquier posible deterioro de alimentos que

haya tenido que desechar debido a una falla mecánica de cualquiera de
nuestros refrigeradores o congeladores cubiertos por este acuerdo.

0 Devolución de gastos de alquiler de electrodomésticos si la reparación

de su producto asegurado toma más que el tiempo prometido.

0 10% de descuento aplicable tanto a los costos del servicio de reparación,

como de las piezas instaladas relacionadas que no hayan quedado
cubiertos por este acuerdo.

Una vez que haya realizado el pago de este acuerdo, bastará una simple
llamada telefónica para concertar una visita de servicio. Puede llamar a
cualquier hora del día o de la noche, o bien concertar una visita de servicio por
Internet.

La adquisición del Acuerdo maestro de protección es una inversión exenta de
riesgos. Si por cualquier motivo decide cancelar dicho acuerdo durante el
periodo de garantía del producto, le haremos un reintegro total del valor. O bien
un importe proporcional si cancela el acuerdo en cualquier otro momento
posterior al vencimiento del periodo de garantía del producto. ¡Adquiera hoy
mismo su Acuerdo maestro de protección!

Algunas limitaciones y exclusiones podrían aplicarse. Para solicitar
precios e información adicional, llame al 1-800-827-6655 (en los EE.UU.).

* La cobertura en Canadá varía en el caso de algunos artículos. Para
obtener detalles completos al respecto, llame al 1-800-361-6665 de Sears
de Canadá.

Servicio de instalación de Sears

Para solicitarla instalación por profesionales de Sears de electrodomésticos,
abridores de puertas de garaje, calentadores de agua y otros artículos de uso
prioritario en el hogar, llame al 1-800-4-MY-HOME en los EE.UU. o Canadá.

29

Get it fixed, at your home or ours!

Your Home

For troubleshooting, product manuals and expert advice:

@managemylife

www.managemylife.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1 -800-488-1222 (U S a ) 1 -800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U S A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

(1-888-784-6427)

v\/v\/v\/.sears.com

Au Canada pour service en français:

1-800-LE-FOYER“''

(1-800-533-6937)

www.sears.ca

® Registered Trademark / ™ Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / Marca de Fábrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros países

Marque de commerce / “° Marque déposée de Sears Brands, LLC
