Kenmore 790.9621 User Manual

KGnmorG

Electric Range

e

Cl % Cl Pi fp,. (C

O w tX Xj CJ I C# VJIJ i \J o

1 1 1 tl A

Estufa eléctrica

J iX. I cl- cl- i tí CC i cJ tí V C./ d I %Ji O tí

Models, Modelos 790.9621*, 9622*, 9623*, 9631*, 9632*, 9633*,

9641*, 9642*, 9643*
* = color number, número de color

www.sears.com Sears Roebuck and Co,, Hoffman Estates, IL 60179 U.S.A. p/n 316417207 REV A (0404)

®‘F|

Table of Contents Product Record

Free-Standing Range Warranty.........................................2

Product Record

IMPORTANT SAFETY INSTRUCTIONS

Protection Agreements

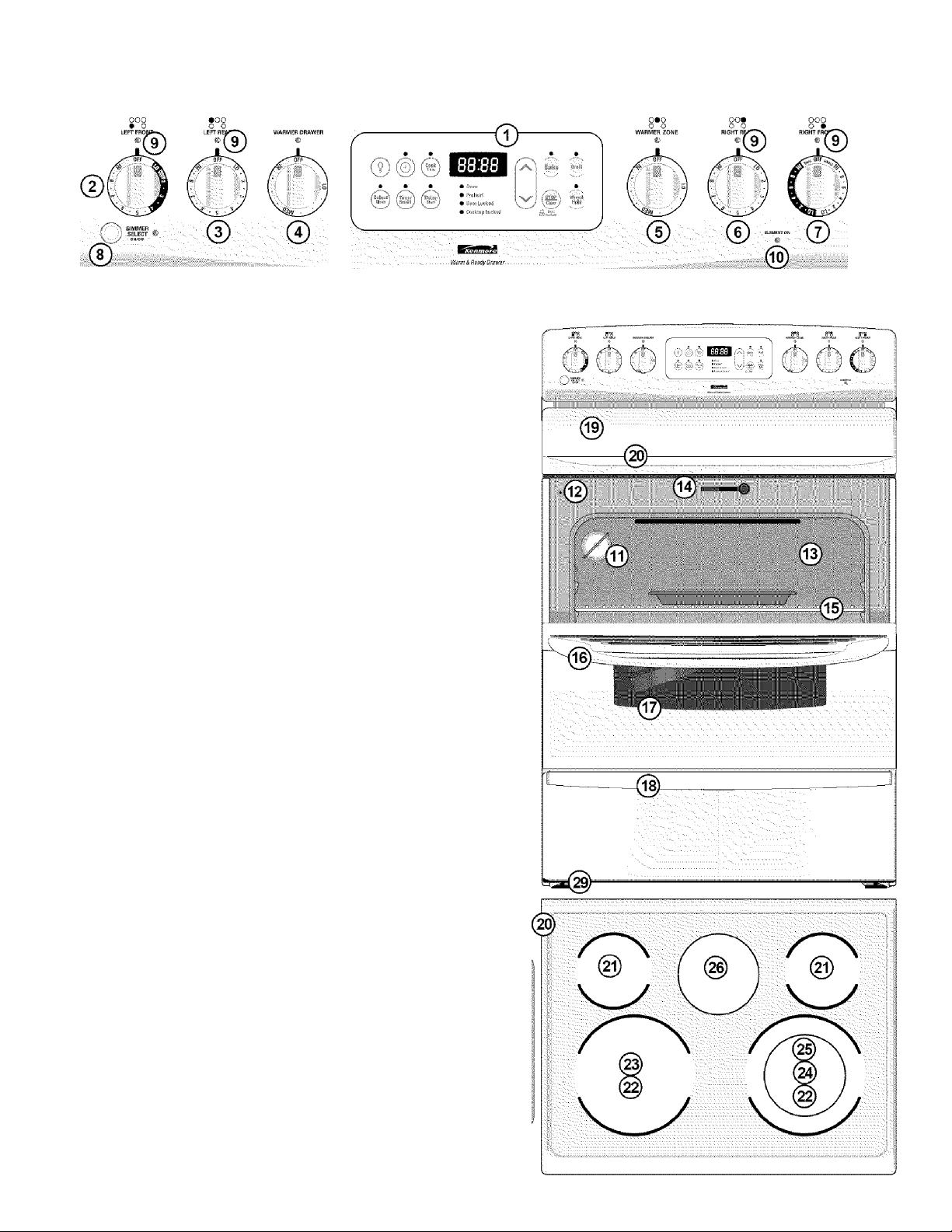

Range Features ................................................................6

Before Setting Oven Controls

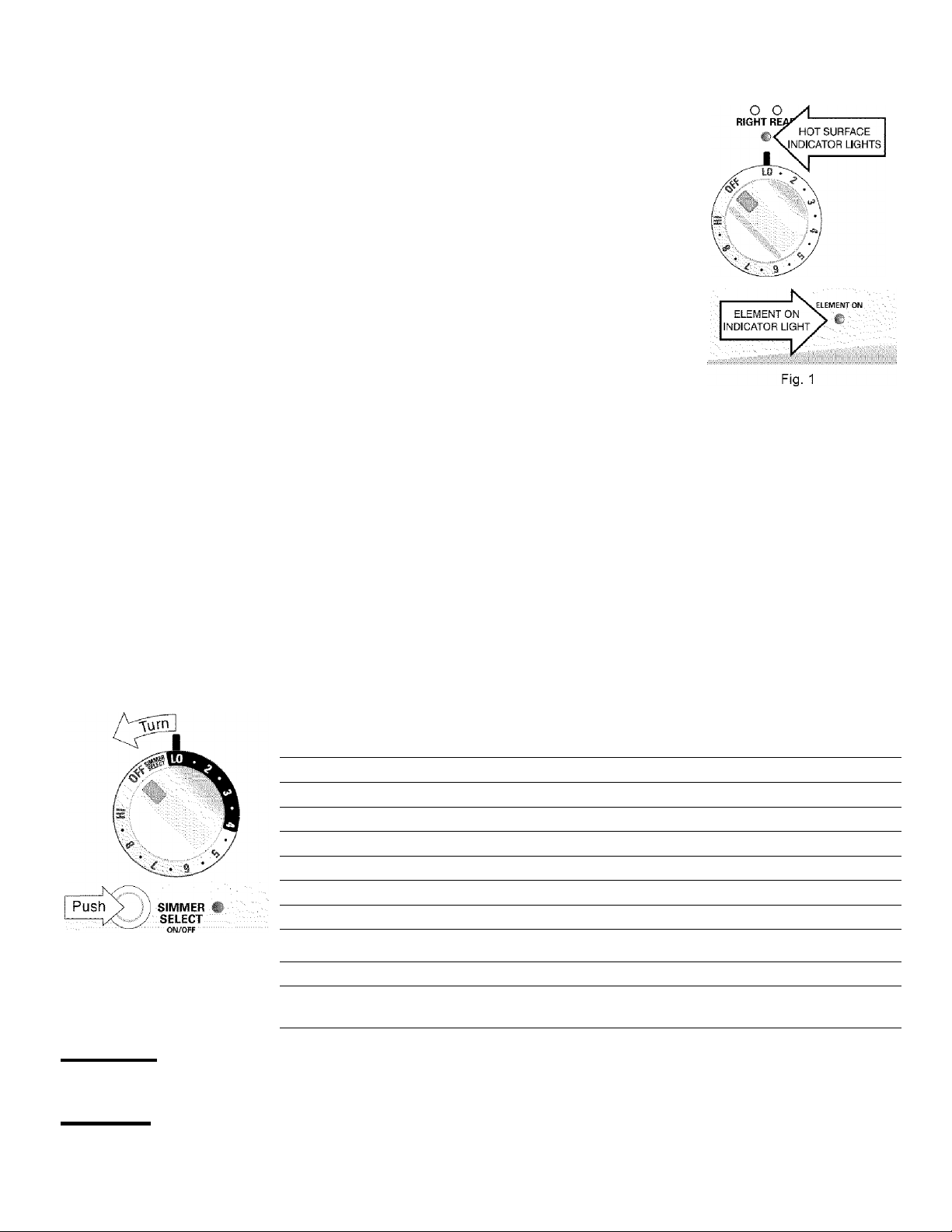

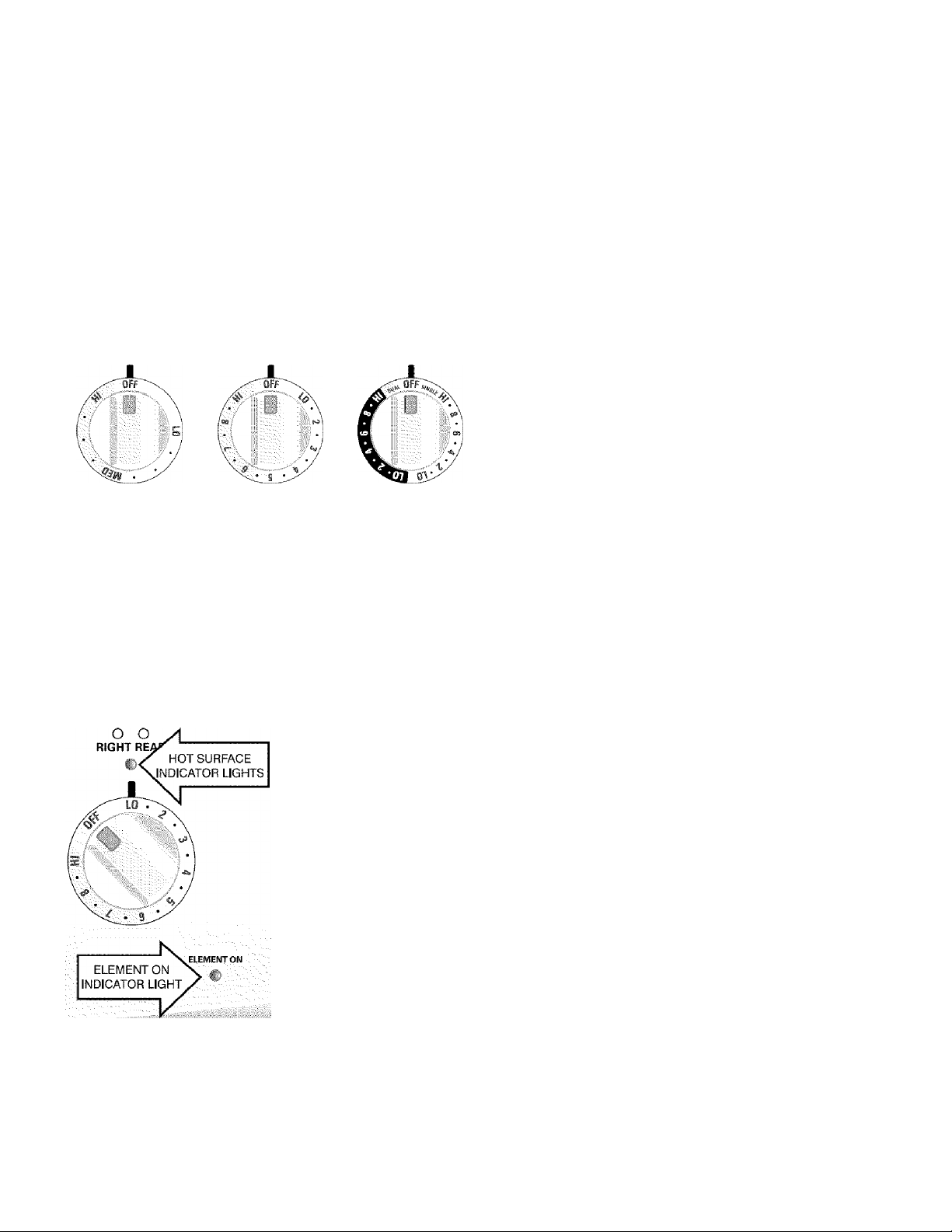

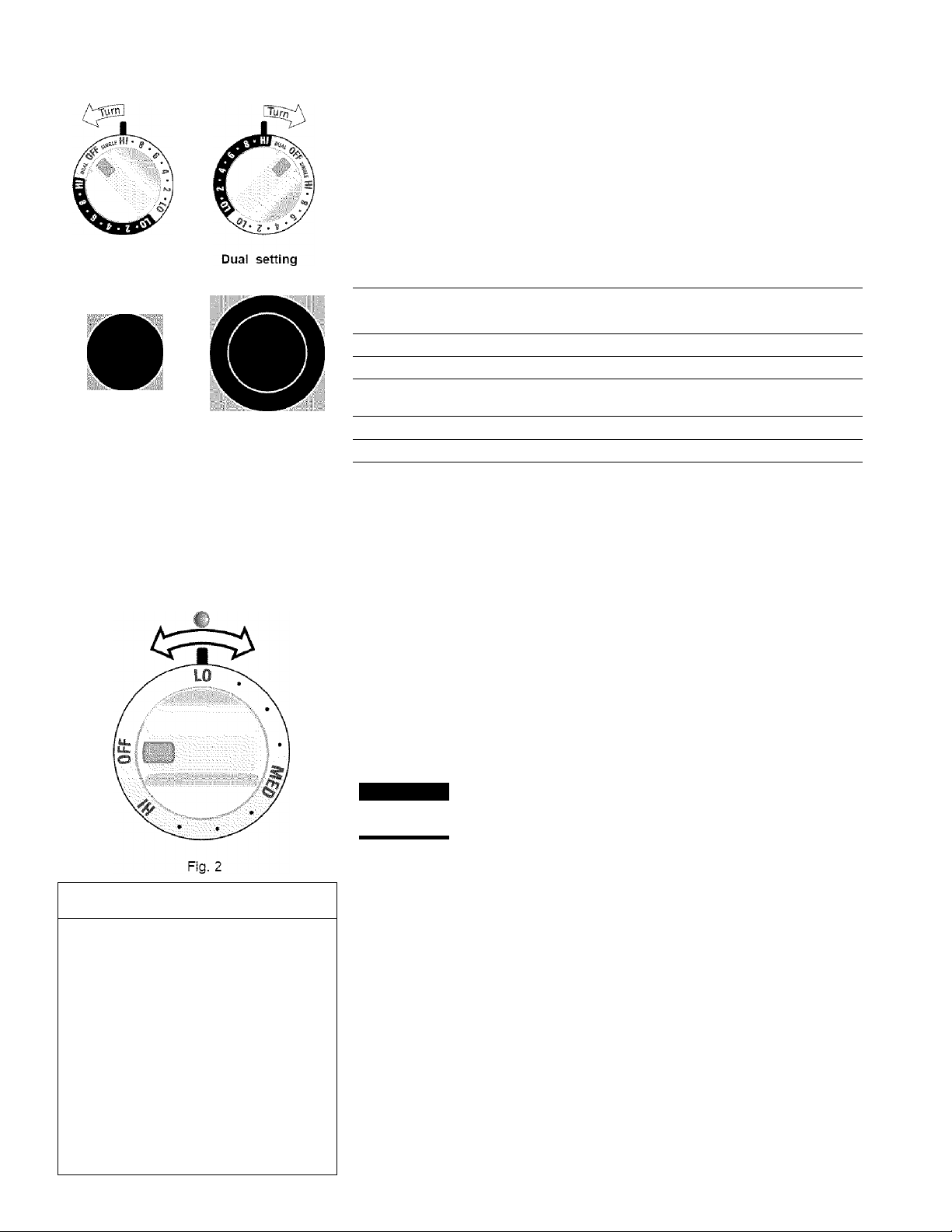

Setting Surface Controls

Surface Cooking..............................................................11

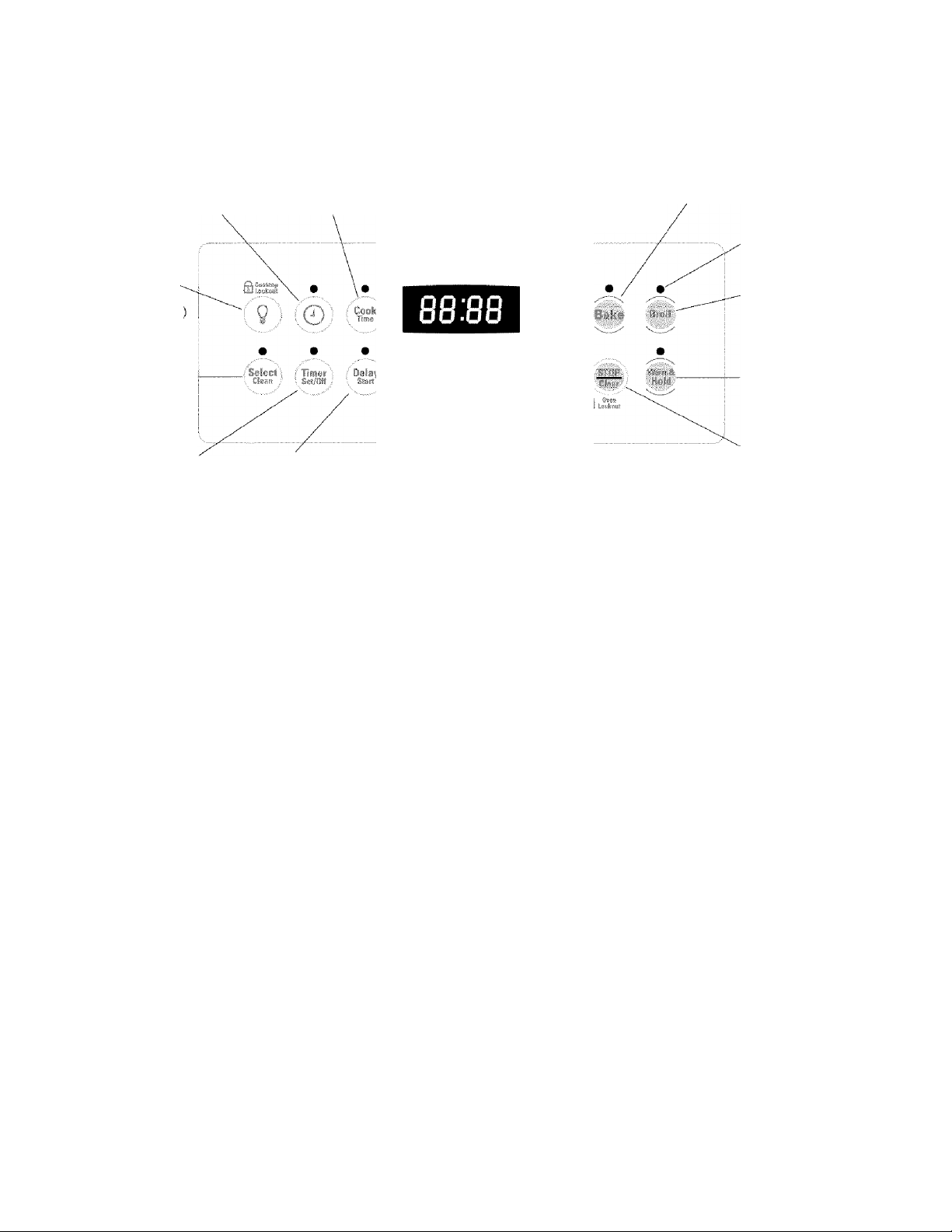

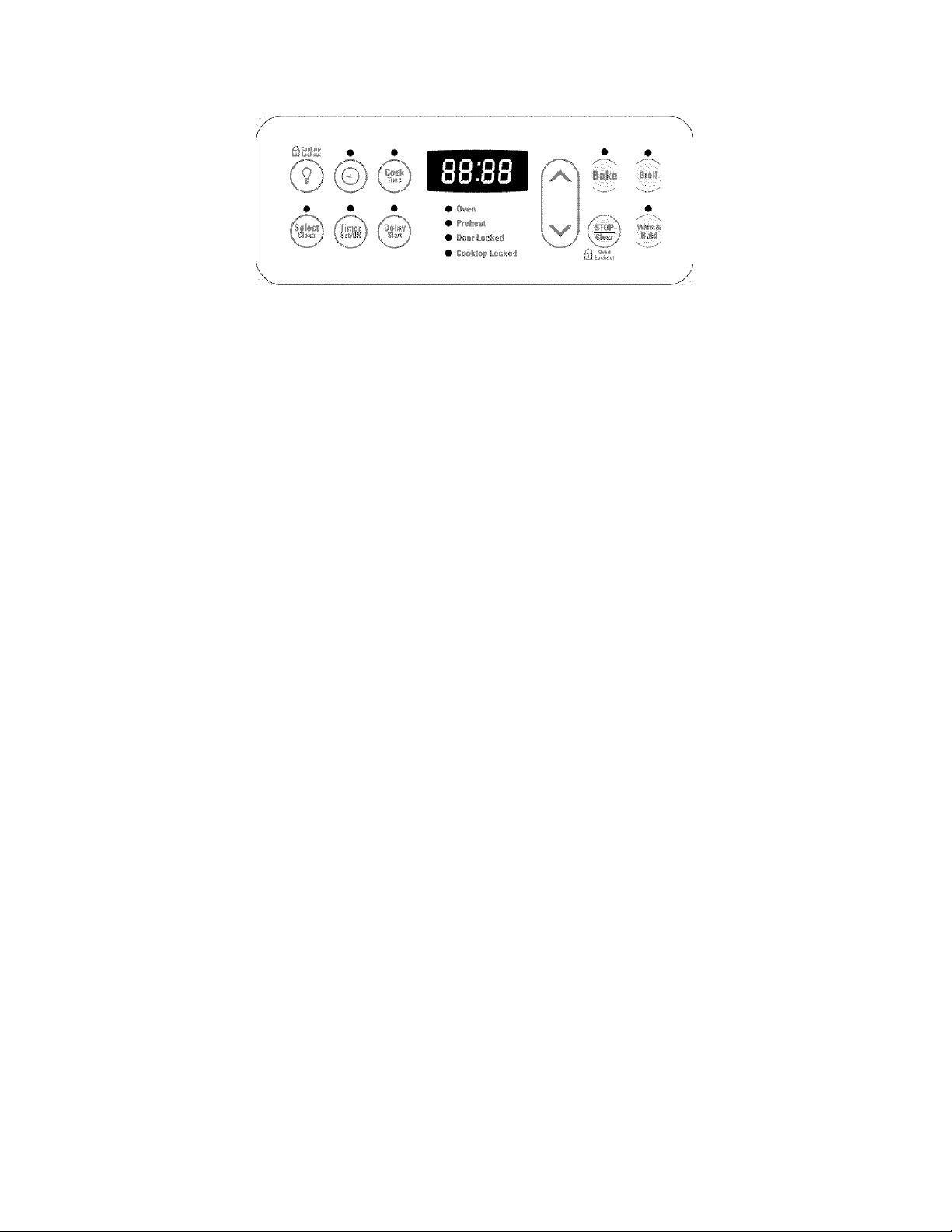

Oven Control Functions...................................................12

Setting Oven Controls

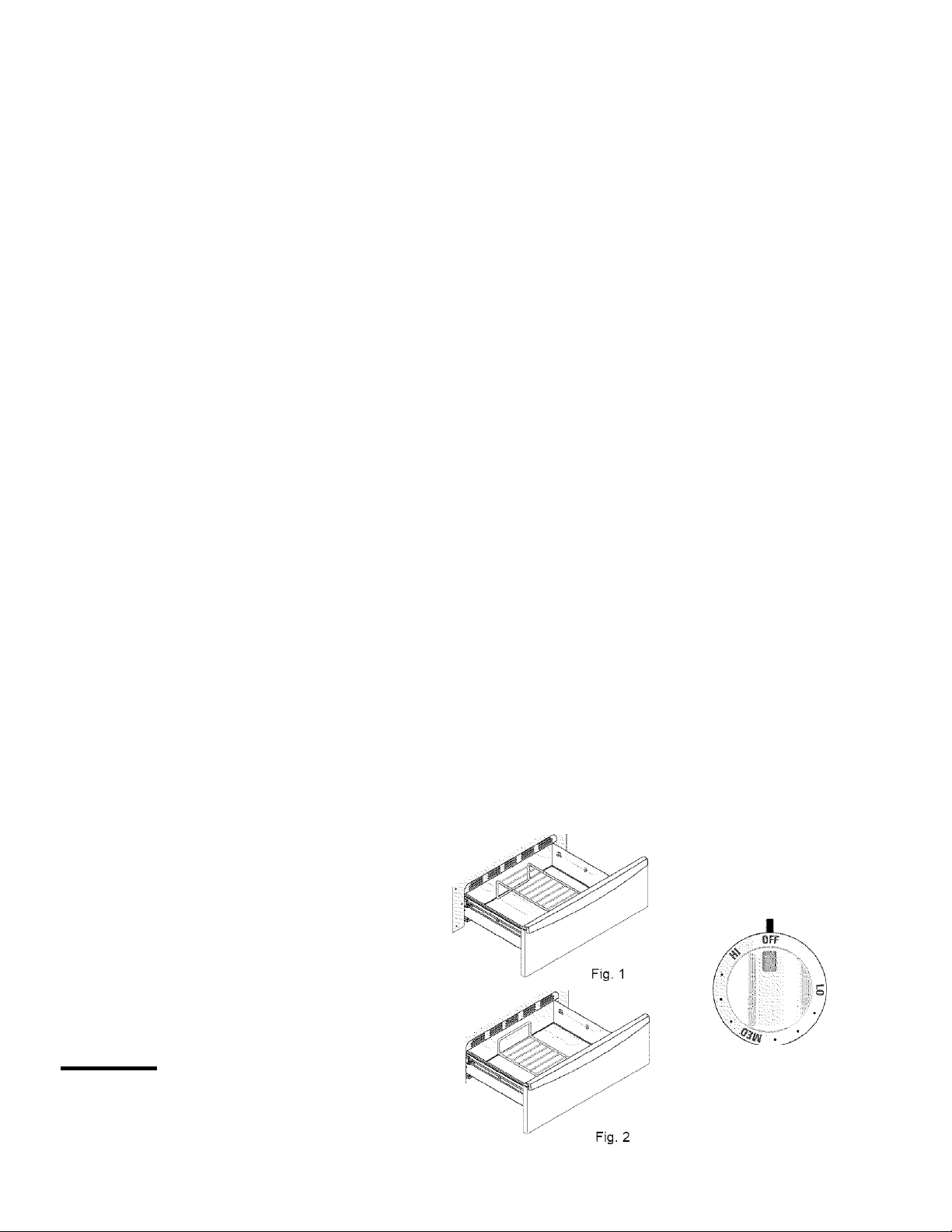

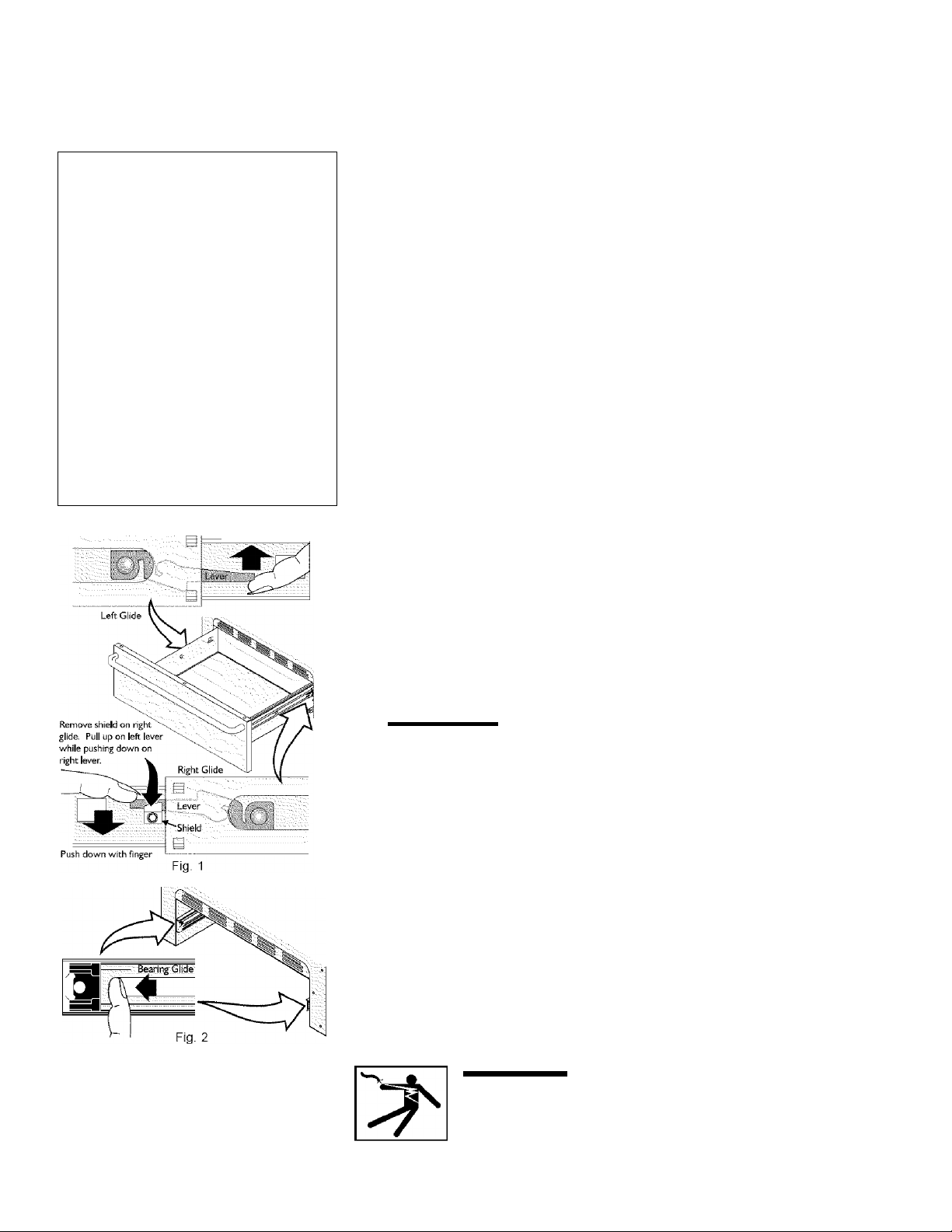

Setting Warmer Drawer Controls

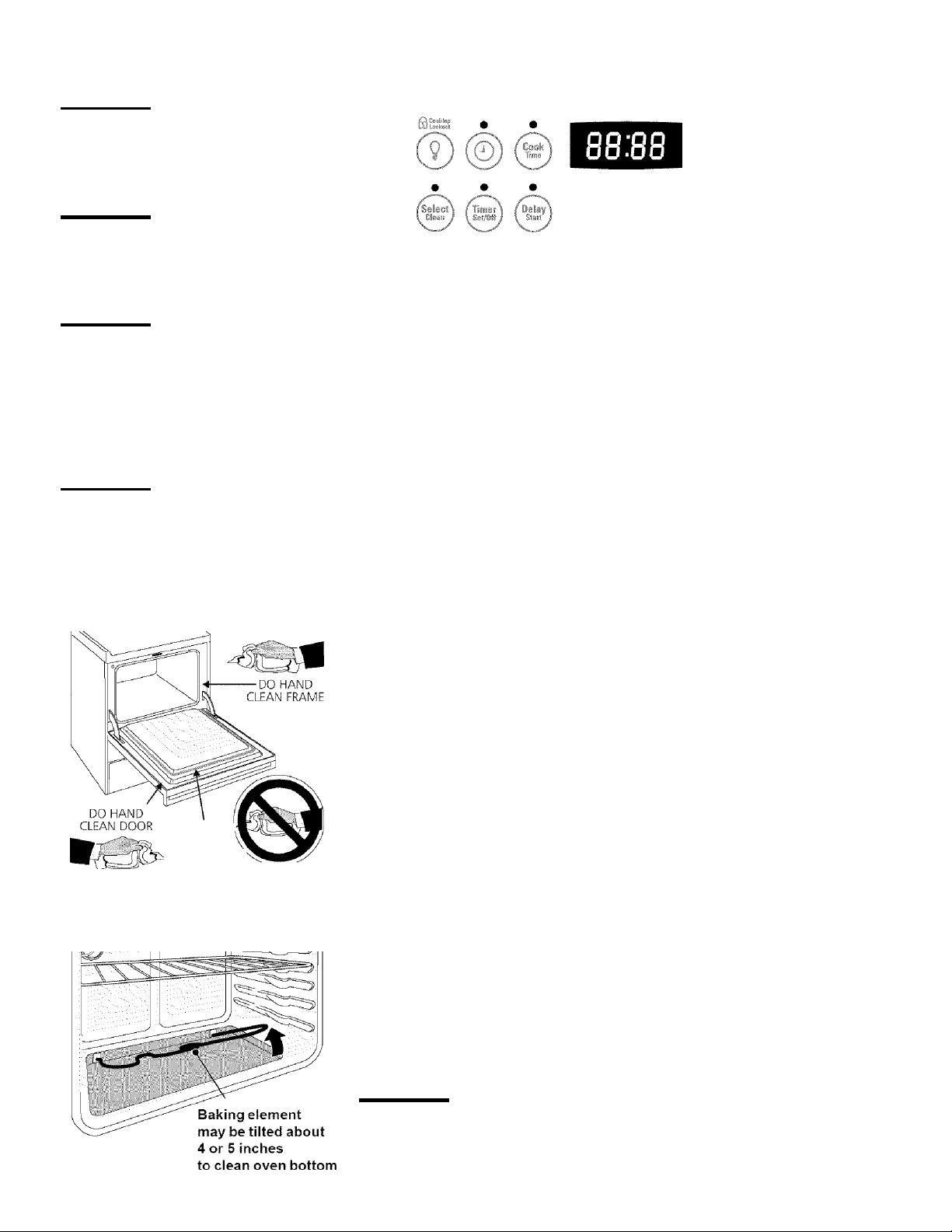

Select Self Cleaning

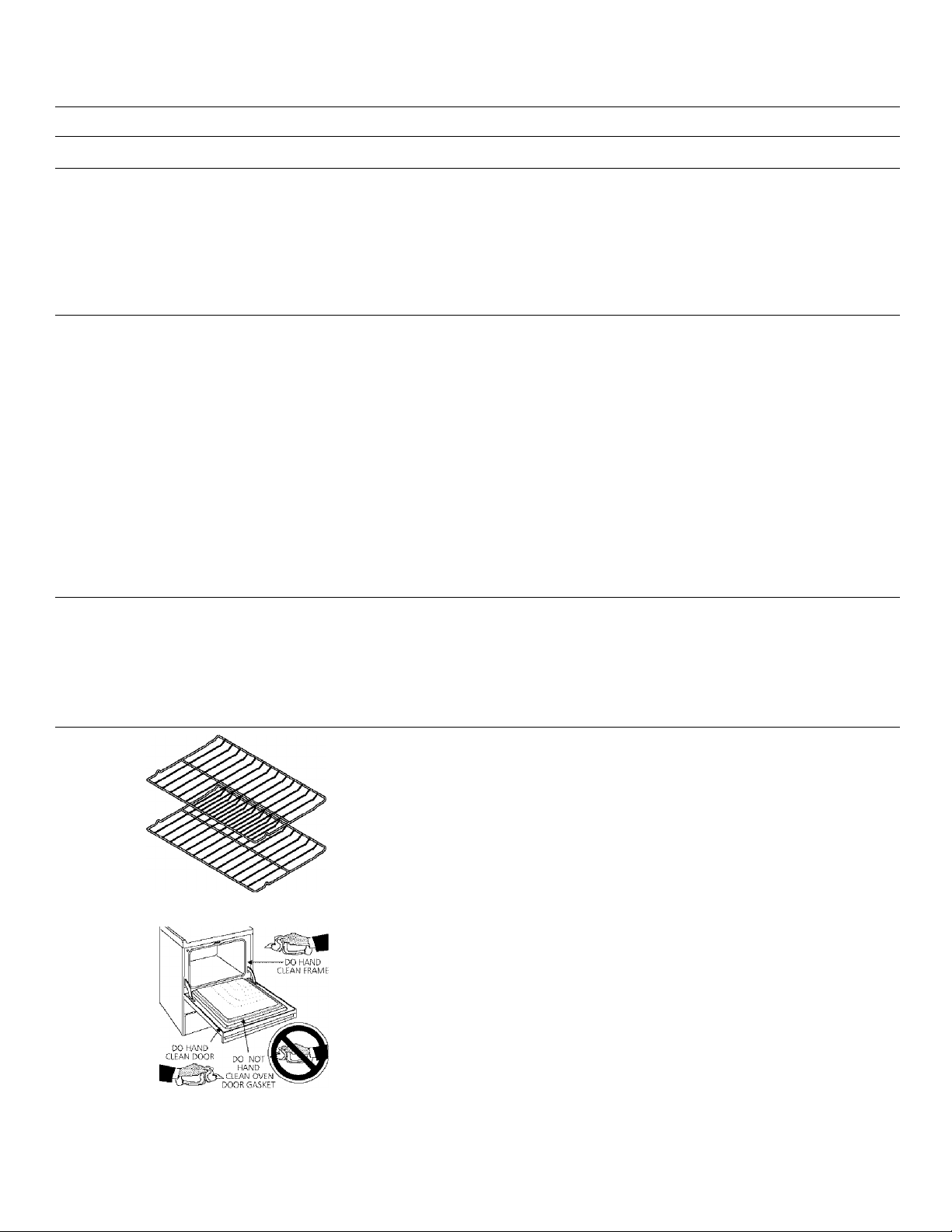

General Care & Cleaning

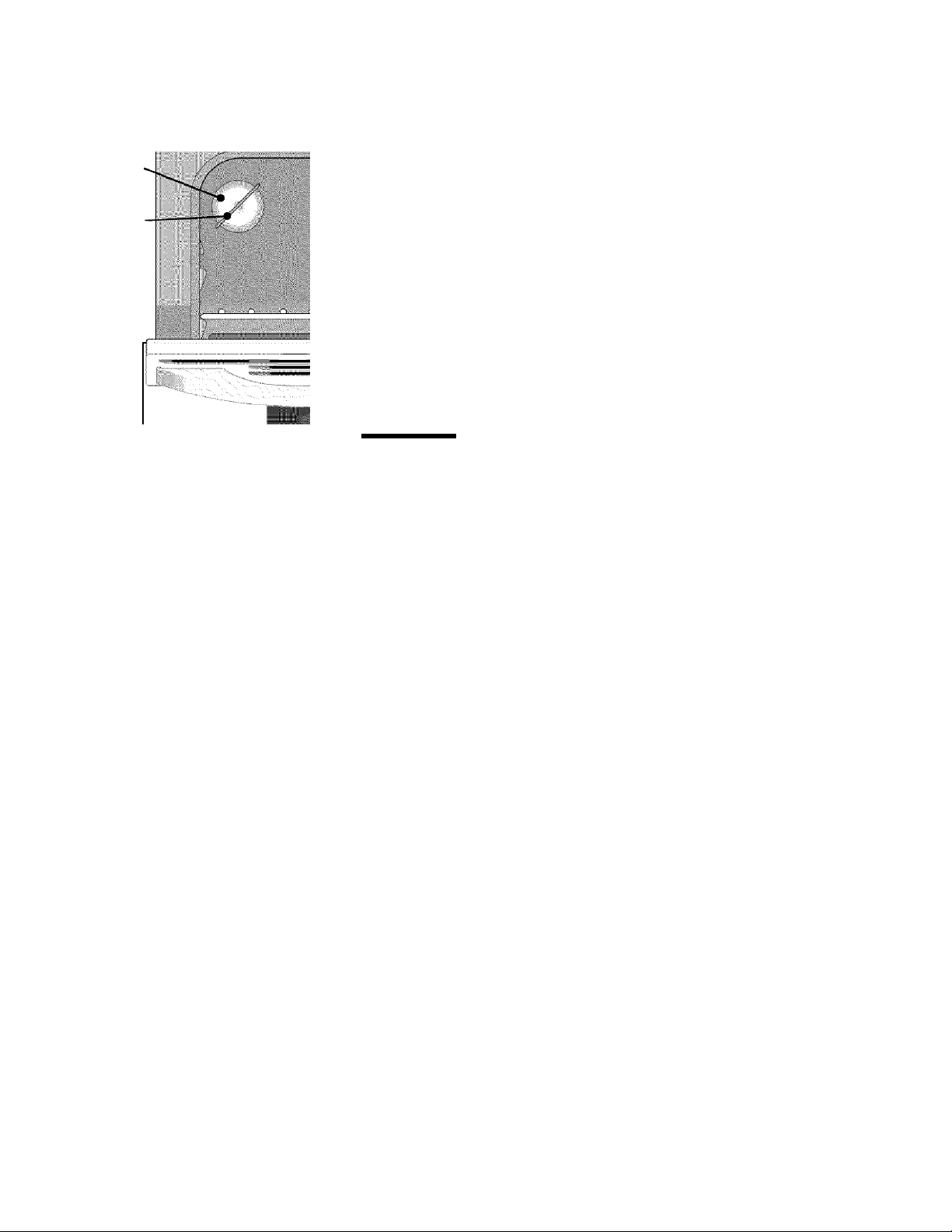

Adjusting Your Oven Temperature
Before You Make a Service Call

Sears Service......................................................Back Page

Español.......................................................................29-56

............

....................................................2

........................

......................................................

........................................

.............................................

................................................

...............................

...................................................

...........................................

..................................

...............................

7-8

9-10

13-17
17-18
19-20
22-24

25-26

In this space below, record the date of purchase, model and
serial number of your product. You will find the model and
serial number printed on an identification plate. This serial

34

plate is located on the right side of the oven front frame in

5

the storage or warmer drawer compartment. See bottom of
this page for the serial plate location.

Model No. 790.
Serial No.
Date of Purchase
Save these instructions and your sales receipt for future

24

reference.

Free-Standing Range Warranty

FULL ONE YEAR WARRANTY ON ALL PARTS

If, within one year from the date of installation, any part fails to function properly due to a defect in material or workmanship.
Sears will repair or replace it, at our option, free of charge.

Your ceramic glass smoothtop is covered by an additional 2nd through 5th year limited warranty. This warranty provides for
replacement for any defective surface heating element, deteriorated rubberized-silicone seal, orglass smoothtop that
cracks due to thermal breakage. Damage or breakage due to customer abuse is not covered by this warranty.

If the product is subjected to other than private residential use, the above warranty is effective for only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CCNTACTING THE NEAREST SEARS SERVICE CENTER IN THE UNITED

STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179

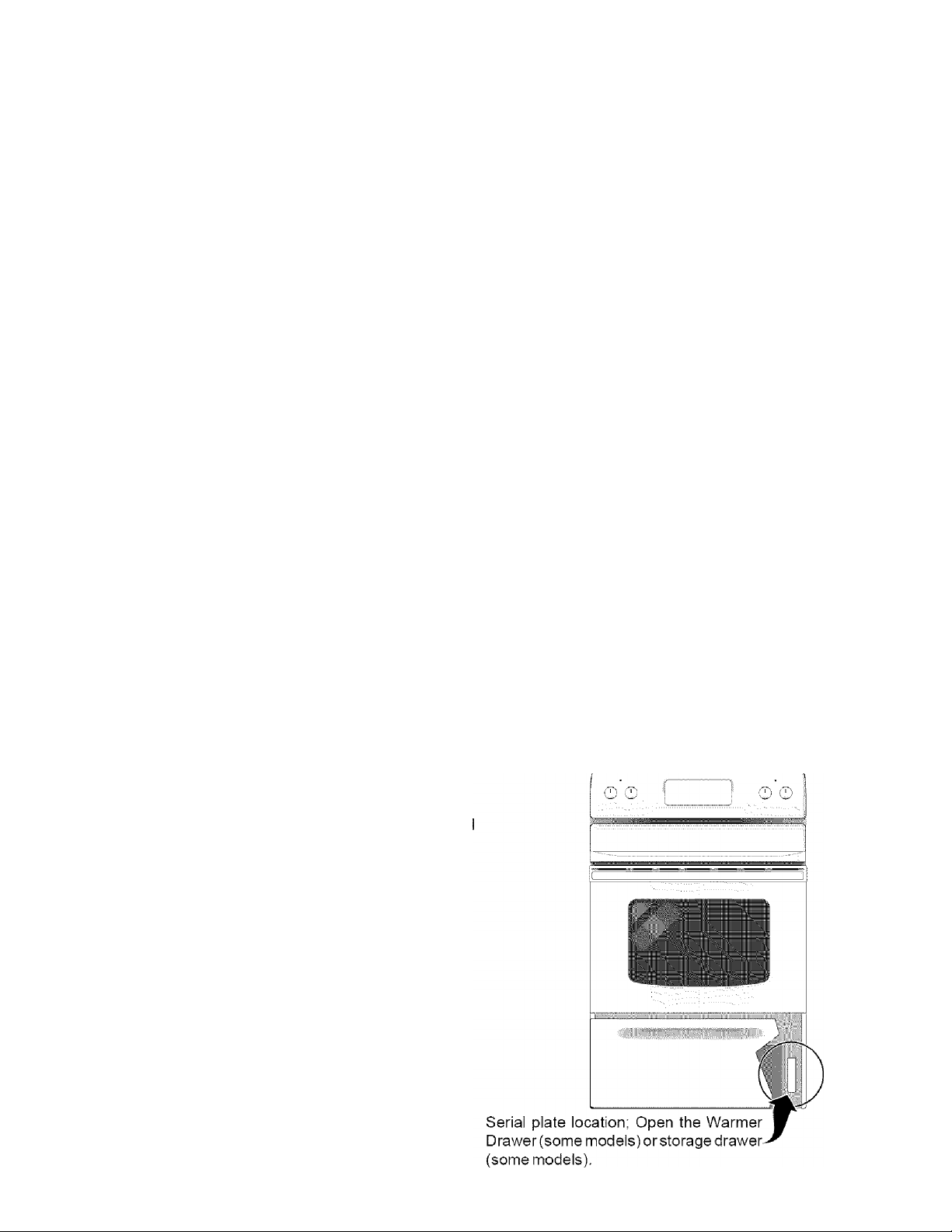

Serial Plate Location

You will find the model and serial number printed on the seria
plate. The serial plate is located on the right side of the oven
frontframein the storage or warmer drawer compartment.

Please see the illustration for exact location.
Remeber to record the serial numberforfuture reference (See

top of page under Product Record).

Important Safety Instructions

Read all instructions before using this appliance. Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

^WARNING

^CAUTION

• Remove all tape and packaging before using the range.

Destroy the carton and plastic bags after unpacking the

range. Never allow children to play with packaging material.

• Proper Installation—Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/

NFPA No. 70 latest edition and local electrical code

requirements. Installonlyperinstallation instructions provided

in the literature package for this range.
Ask yourdealerto recommend a qualified technician and an
authorized repairservice. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.

• User servicing—Do not repairor replace any part ofthe
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a

qualified technician. This may reduce the risk of personal
injury and damage to the range.

• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.

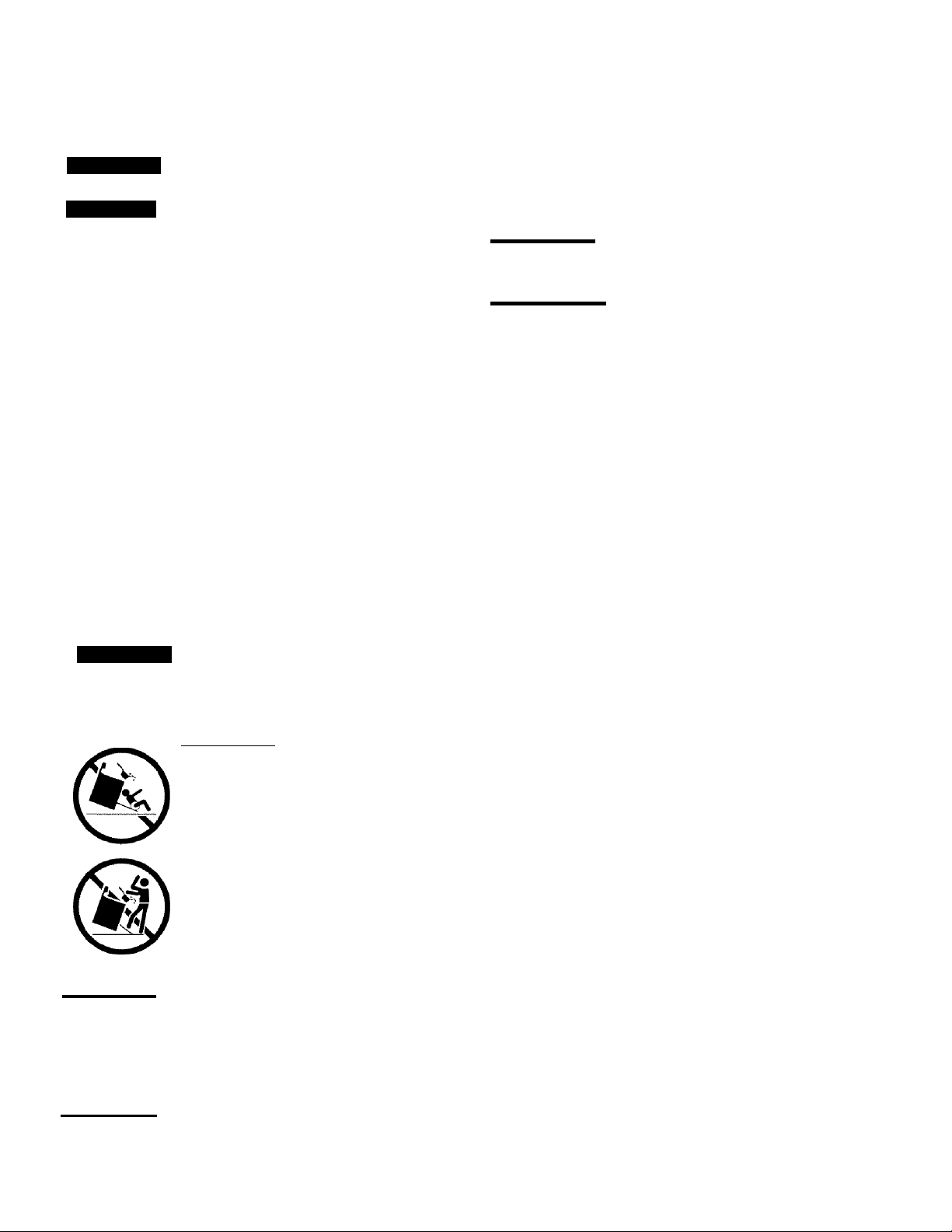

^WARNING

All ranges can tip.

Injury to persons could result.
Install anti-tip device packed with range.

See Installation Instructions.

^WARNING

drawers of this range can result in serious injuries and
also cause damage to the range. Do not allow children to

climb or play around the range. The weight of a child on an open
door may cause the range to tip, resulting in serious burns or
other injury.

CAUTION

the cabinets above a range or on the backguard of a
range. Children climbing on the range to reach items could be

seriously injured.

This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.

This symbol wilt help alert you to situations that may cause bodily injury or property damage.

equipped) for storage.

43^ WARNING

Heating the Room.

• Storage in or on Appliance—Flammable materials

• Do Not Leave Children Alone—Children should not be

• DO NOTTOUCH SURFACE UNITS, AREAS NEAR THESE

^WARNING

tipping, the rangemust be secured by
properly installed anti-tip bracket provided
with the range. To check if the bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully
secured by the anti-tip bracket by
removing lower panel or storage drawer.
For models with a warmer drawer, grasp
the top rear edge of the range and
carefully attempt to tilt it forward. Refer to
the installation instructions for proper anti
tip bracket installation.

■ stepping, leaning or sitting on the doors or

Do not store items of interest to children in

To reduce the risk of

• Wear Proper Apparel—Loose-fitting orhanging garments

• Do Not Use Water or Flour on Grease Fires—Smother

•When heating fat or grease, watch it closeiy. Fat or

• Use Only Dry Potholders - Moist or damp pothoiders on

•Do Not Heat Unopened Food Containers - Buildup of

• Remove the oven door from any unused range if it is to

IMPORTANT—Do not attempt to operatethe range during
a power failure. If the power fails, always turn off the range.

If the range is not turned off and the power resumes, the range
will begin to operate again. Once the power resumes, reset the
clockand oven function.

WARNING

should not be stored in an oven, warmer drawer, near
surface units or in the storage drawer. This includes

paper, plasticand cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the range,

left alone or unattended in the area where appliance is
in use. They should never be allowed to sit or stand on any

part of the appliance.

UNITS, HEATING ELEMENTS OR INTERIOR SURFACES
OFTHE OVEN. Both surface units and oven heating elements

may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns. During
and afteruse,donot touch, or let clothing orotherflammable
materials touch these areas until they have had sufficient time
to cool. Among these areas are the cook top, surfacesfacing
the cooktop, the oven vent openings and surfaces near these
openings, oven doorand window.

should never be worn while using the appliance. Do not
letclothing orotherflammable materials contact hotsurfaces.

the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.

grease may catch fire if allowed to become too hot.
hot surfaces may result in burns from steam. Do not let

potholders touch hot heating elements. Do not use a towel or
other bulky cloth instead of a potholder.

pressure may cause container to burst and result in
injury.

be stored or discarded.

Do not use the oven or warmer drawer (if

Never Use Your Appliance for Warming or

Important Safety Instructions

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating unit. Place a

pan of food on the unit before turning it on, and turn the unit off
before removing the pan.

• Use Proper Pan Size—This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also
improve efficiency.

• Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Elements—T o reduce the risk of burns, ignition

of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface
units.

• Never Leave Surface Elements Unattended at High Heat
Settings—Boilovers cause smoking and greasy spillovers that

may ignite, or a pan that has boiled dry may melt.

• Do Not Immerse or Soak Removable Heating Elements—

Heating elements should never be immersed in water. Heating

elements clean themselves during normal operation.

• Glazed Cooking Utensils—Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer’s
recommendations for cook top use.

• When flaming foods under a ventilating hood, turn the fan on.

IMPORTANT INSTRUCTIONS FOR USING YOUR

OVEN

• Use Care When Opening Oven Door or Warmer Drawer (if
equipped)—Stand to the side of the range when opening the door

of a hot oven. Let hot air or steam escape before you remove or
replace food in the oven.

• Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped with
coil elements. The oven vent is located below the backguard for
models equipped with ceramic-glass cook tops. Touching the
surfaces In this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or ignite.

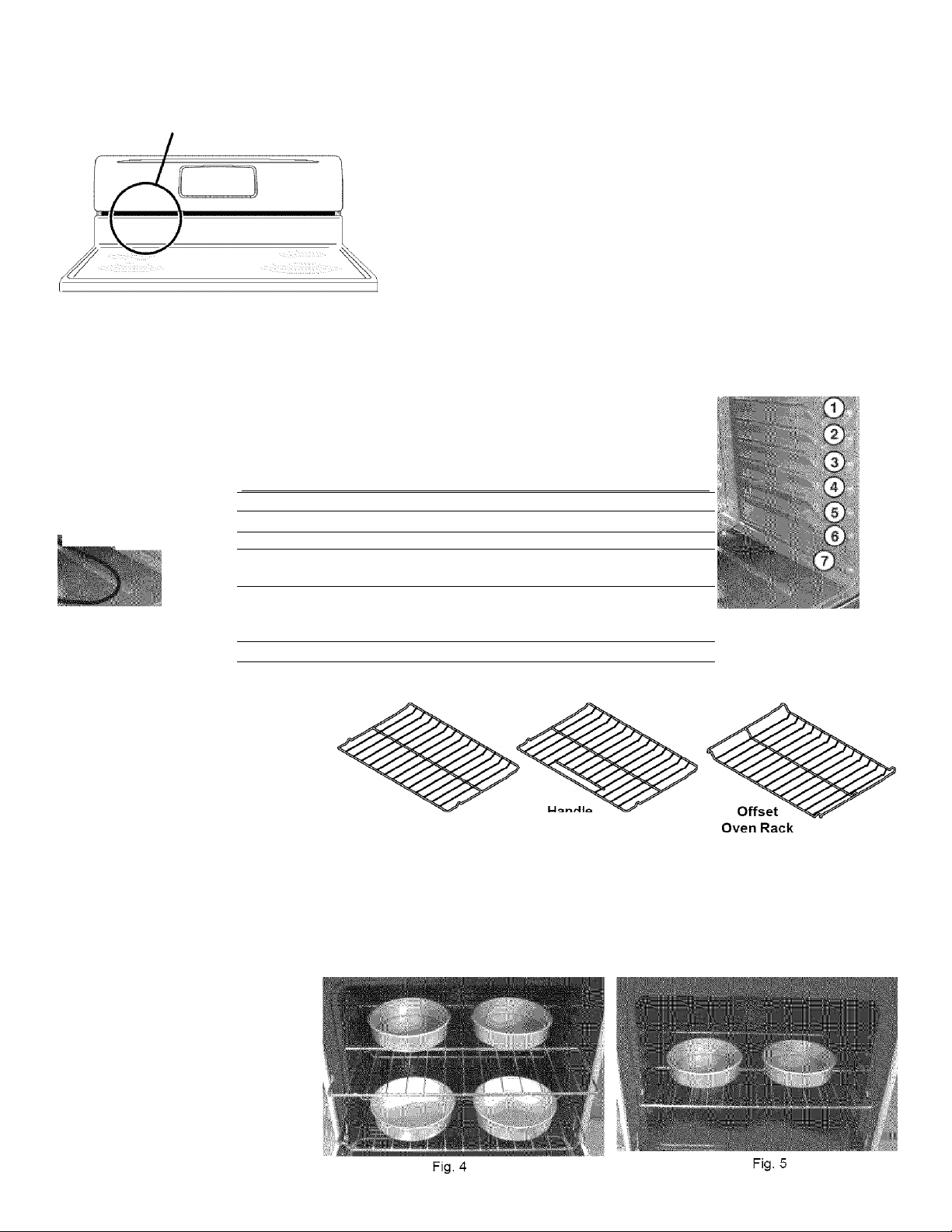

• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not iet pothoiders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.

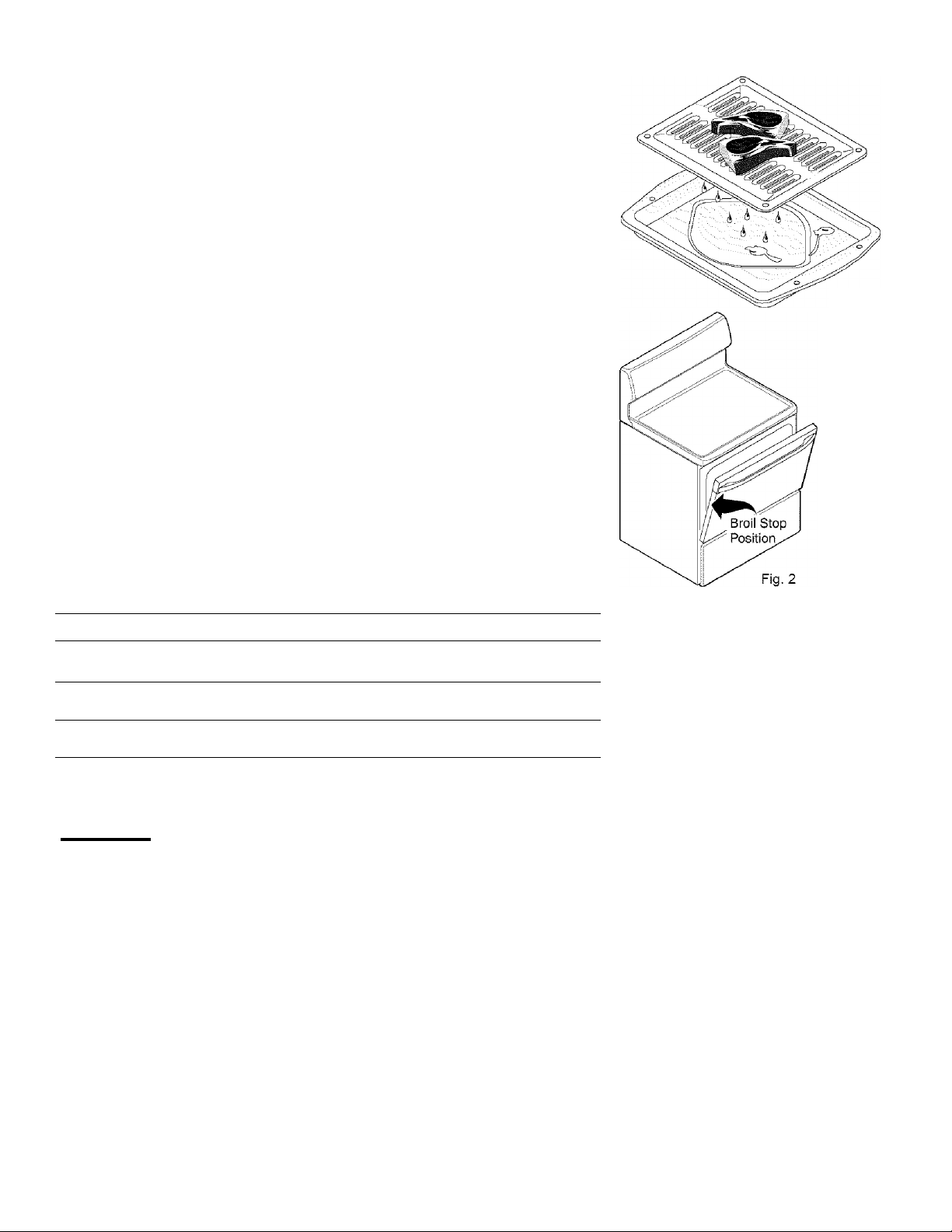

• Do not use the broiler pan without its insert. The broiler pan and
its insert ailow dripping fat to drain and be kept away from the high
heat of the broiler.

• Do notcoverthe broiler insert with aluminum foil. Exposed fat
and grease could ignite.

• Protective Liners—Do not use aluminum foil to line the oven

bottom. Only use aluminum foii as recommended in this manual.
Improper installation of these iiners may result in risk of electric
shock, or fire.

SELF CLEANING OVENS

• Clean in the self-cleaning cycle only the parts listed in this Use & Care Manual. Before self cleaning the oven, remove the broiler

pan and any utensils or foods from the oven.

• Do Not Use Oven Cleaners—No commercial oven cleaner or oven liner protective coating of any kind should be used in or around

any part of the oven.

• Do Not Clean Door Gasket—The door gasket is essential fora good seal. Care should be taken not to rub, damage or move the gasket.

•The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another
well-ventilated room.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

• Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area underneath each

surface element. Do not allow grease to accumulate.

• Kitchen cleaners and aerosols—Always follow the manufacturer’s recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing damage and injury.

• Clean Ventilating Hoods Frequently—Grease should not be allowed to accumulate on the hood or filter. Follow manufacturer’s
instructions for cleaning.

FOR CERAMIC-GLASS COOK TOP MODELS

• Do Not Cook on Broken Cook Top—If cook top should break, cleaning solutions and spillovers may penetrate the broken cook top
and create a risk of electric shock. Contact a qualified technician immediateiy.

• Clean Cook Top with Caution—If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn.
Some cleaners can produce noxious fumes if applied to a hot surface.

Important Safety Notice

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.

PROTECTION AGREEMENTS

In the U.S.A.

Master Protection Agreements

Congratulations on making a smart purchase. Your
new Kenmore® product is designed and manufactured

for years of dependable operation. But like all products,

it may require preventive maintenance or repair from
time to time. That’s when having a Master Protection
Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and
protect yourself from unexpected hassle and

expense.

The Master Protection Agreement also helps extend
the life of your new product. Here’s what’s included in
the Agreement:

0 Expert service by our 12,000 professional repair

specialists

И Unlimited service and no charge for parts and

labor on all covered repairs

Ш “No-lemon” guarantee - replacement

of your covered product if four or more product
failures occur within twelve months

0 Product replacement if your covered product

can’t be fixed

0 Annual Preventive Maintenance Check at your

request - no extra charge

0 Fast help by phone - phone support from a Sears

technician on products requiring in-home repair, plus
convenient repair scheduling

0 Power surge protection against electrical

damage due to power fluctuations

0 Rental reimbursement if repair of your covered

product takes longer than promised

In Canada

Maintenance Agreements

Your purchase has added value because you
can depend on Sears HomeCentral® for service.

With over 2400 Service Technicians and more than a
million parts and accessories, we have the tools,
parts, knowledge and skills to ensure our pledge:
We Service What We Sell.

Your Kenmore® product is designed, manufactured
and tested to provide years of dependable operation.
But like all products, it may require service from time to
time. The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.

The Sears Maintenance Agreement:

• Is your way to buy tomorrow’s service at today’s
price

• Eliminates repair bills resulting from normal wear
and tear

• Provides phone support from a Sears technician on
products requiring in-home repair

• Even if you don’t need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running condition.

Some limitations apply. For more information
about Sears Canada Maintenance Agreements,
call 1-800-361-6665

Once you purchase the Agreement, a simple phone
call is all that it takes for you to schedule service. You
can call anytime day or night, or schedule a service
appointment online.

Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That’s the kind of professionalism you
can count on to help prolong the life of your new

purchase for years to come. Purchase your Master
Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional Information call
1-800-827-6655.

Sears Installation Service

For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call

1-800-4-MY-HOME®

REV. 030509

Range Features

Your Electric Range Features Include:

1. Electronic Oven Control with Kitchen Timer.

2. Simmer Select Element Control (some models)
Single Radiant Element Control (some models)

Radiant Power Boil Control (some models).

3. Single Radiant Element Control.

4. Warm & Ready Drawer Control & Indicator Light (some
models).

5. Warm & Ready Zone & Surface Indicator Light (some models).

6. Single Radiant Element Control.

7. Single Radiant Element Control (some models) or Dual

Element Radiant Control (some models).

8. Simmer Select Push Button & Indicator Light (some models).

9. HOT SURFACE Indicator Lights.

10. “ELEMENT ON" Indicator Light.

11. Oven Interior Light with removable Cover.

12. Automatic Oven Door Light Switch (some models).

13. Self-Cleaning Oven interior.

14. Self-Clean Door Latch.

15. Adjustable Oven Rack(s).

16. Large 1 piece Oven Door Handle.

17. Full width Oven Door with Window.

18. Warm & Ready Drawer (some models) or Storage Drawer with
Drawer Handle.

19. Easy to clean upswept Cooktop.

20. Ceramic Smoothtop.

21. 6” Single Radiant Element(s).

22. 9” Single Radiant Element (some models).

23. 9” Single Radiant “Power Element” (some models).

24. 6-9” Dual Radiant Element (some models).

25. 9-12" Dual Radiant Element (some models).

26. Warm & Ready Zone Radiant Element (some models).

27. Broil Pan.

28. Broil Pan Insert.

29. Leveling Legs and Anti-tip Bracket

(included). (2^

or

or Single

NOTE: The features of your range may
vary according to model type & coior.

Before Setting Oven Controls

OVEN VENT

Fig. 1

Oven with visible

Bake Element - Fig.

Oven Vent Location

The oven vent is located under the left side of the control panel
(See Fig. 1). When the oven is on, warm air passes through the vent.
This venting is necessary for proper air circulation in the oven and good
baking results, DO NOT BLOCK OVEN VENT.

Removing & Replacing Oven Racks

To remove, pull the rack forward until it stops. Lift upfront of rack and slide

out. To replace, fit the rack onto the guides on the oven walls. Tilt the front
of the rack upward and slide the rack back into place.

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL

(PRIOR TO OPERATING THE OVEN). Always use oven mitts when

using the oven.

For models with a visible Bake Element (Refer to Fig. 2)
For models with a hidden Bake Element* (Refer to Fig. 3)

Recommended Rack Positions for Broiling, Baking & Roasting:
Food Rack Position Rack Position*

Broiling hamburgers & steaks 1 1
Broiling meats, chicken or fish 1,2 or 3 1,2, or3
Cookies, cakes, pies, biscuits
& Muffins

Frozen pies, angel food cake,
yeast, bread, casseroles, small
cuts of meat or poultry
Turkey, roast or ham 6 7

3 or 4 3 or 4
5 or 6 6

Oven with hidden

Bake Element - Fig. 3*

Types of Oven Racks

Your range may be equipped with
one or more of the oven rack types
shown; Flat Rack, Handle Rack
and Offset Rack. To maximize
cooking space the Offset rack can be
used in the lowest rack position to
roast large cuts of meat and poultry.

Flat

Oven Rack

Handle

Oven Rack

Baking Layer Cakes with 1 or 2 Oven Racks

For best results when baking cakes using 2 oven racks, place cookware on rack positions 2 & 5 as shown (for models with a
visible bake element). For models with a hidden bake element place oven racks in positions 3 (Flat rack) & 6 with the Offset rack
if equipped (Refer to Fig. 4).

For best results when using a single oven rack, place cookware on rack position 4 (for all models - Refer to Fig. 5).

Air Circulation in the Oven

For best air circulation and baking
results allow 2-4" (5-10 cm) around
the cookware for properaircirculation
and be sure pansand cookware do not
touch each other, the oven door, sides
or back of the oven cavity. The hot air
must be able to circulate around the
pans and cookware in the oven for
even heat to reach around the food.

Before Setting Oven Controls (cont d)

About the Ceramic Glass Cooktop

The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the
element outline on the cooktop. Heat is transferred up through the surface of the cooktop to the cookware. Only flat­bottomed cookware should be used.

The type and size of cookware, the number of surface elements in use and their settings, are all factors that will affect the
amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become

hot enough to cause burns.

About the Radiant Surface Elements

090

O O

WARMER ZONE

00

»

o o

RIGHT REAR

ooo
o •

RIGHT FRONT

The elementtemperature rises gradually and evenly.
As the temperature rises, the element will glow red.
To maintain the selected setting, the element will
cycle on and off. The heating element retains
enough heat to provide a uniform and consistent

heat during the off cycle.
For efficient cooking, turn off the element several

minutes before cooking is complete. This will allow
residual heat to complete the cooking process.

Warmer Zone

Surface Control

(some models)

Single Radiant Single Radiant (some models)

Surface Control Dual Radiant (some models)

(some models) Surface Control

NOTE: Please read detailed instructions for ceramic glass cooktop cleaning in the General Care & Cleaning and Before
You Call checklist sections of this Use & Care Guide.

NOTE: Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI setting. This helps to

prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and will occur more often if the cookware
is too small for the radiant element or if the cookware bottom is not flat.

ELEMENT ON and Hot Surface Indicator Lights

oo<

Your range is equipped with two different types of radiant surface control indicator
lights that will glow on your range— the ELEMENT ON indicator light and the Hot
Surface indicator lights {See illustration at left).

The ELEMENT ON located on the control panel and will glow when a surface
element is turned ON. A quick glance at this indicator light after cooking is an
easy check to be sure ALL surface controls are turned OFF.

The Hot Surface indicator lights located above each surface radiant control
knob will glow as the surface cooking area heats up and will REMAIN ON until
the glass cooktop has cooled to a MODERATE level.

Setting Surface Controls

To Operate Single Radiant Surface Elements (all models)

To Operate a Single Radiant Element;

1. Place correctly sized cookware on the radiant surface element.

2. Push in and turn the surface control knob in either direction to the desired setting (See
Fig. 1). Start most cooking operations on a higher setting and then turn to a lower

setting to finish cooking. The surface control knobs do not have to be set exactly on a

particular mark. Use the marks as a guide and adjust the control knob as needed. Each

surface element provides a constant amount of heat at each setting. A glowing red
surface heating area extending beyond the bottom edge of the cookware indicates the
cookware is too small for the surface heating area.

3. When cooking is complete, turn the surface element OFF before removing the

cookware. Note: The ELEMENT ON indicator light will glow when one or more elements
are turned ON. A quick glance at this indicator light when cooking is finished is an easy

check to be sure all control knobs are turned OFF. The Hot Surface indicator light will

continue to glow AFTER the control knob is turned to the “OFF” position and will glow

until the heating surface area has cooled sufficiently.

To Operate Simmer Select Surface Element (some models)

The left front element control may be used as a normal element or as a simmer element. The “Simmer Select” feature heats
the element at a much lower temperature than when used as a normal surface element. You may switch between normal
cooking and the Simmer Select feature at any time during the cooking process. When using the element control for normal
cooking all of the settings on the control knob (LO to HI) function as normal.

OO*

To Start Simmer Select:

1. Place correctly sized cookware on the radiant surface element.

2. Push in the Simmer button located below the left front control knob. The Simmer Select indicator light will glow and
remain ON while simmering (See Fig. 2).

3. Turn the surface control knob to the desired simmer setting within the dark band on the control knob (LO to 4). Use the
marks as a guide and adjust the control knob from LO to 4 as needed (see illustration below).

4. To return to normal cooking, push in and release the “Simmer Select” button and the indicator light will turn OFF. When

cooking is complete, be sure to set the control knob to the OFF position.

The suggested settings found in the table below are based on cooking in medium-weight
aluminum pans with lids. Settings may vary when using other types of pans.

STANDARD SETTING FORSURFACE ELEMENTS

Setting Type of Cooking

HIGH (HI-9) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (7-8) Continue a rapid boil, fry, deep fat fry
MEDIUM (5-6) Maintain a slow boil, thicken sauces and gravies, steam vegetables
MEDIUM LOW (2-4) Keep foods cooking, poach, stew

LOW(LO- 1) Keep warm, melt, simmer

Simmer Select Surface Control

shown in LO setting

Fig. 2

Max. Simmer (4) Larger quantities of food, stews and soups

Min. Simmer (LO) Smaller quanitites of food, delicate foods, meiting chocolate or

SIMMER SELECTSURFACE ELEMENT

butter

CAUTION

Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may

still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.

^CAUTION

Do not place plastic items such as sait and pepper shakers, spoon hoiders or piastic wrappings on top

of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed

too close to the surface elements.

9

Setting Surface Controls (contd)

To Operate Dual Radiant Surface Element (some models)

The right front control knob offers flexibilty for different sized cookware with the
Dual Radiant surface element. The inner element alone can be used for smaller
or both the inner and outer in combination for larger cookware.

To operate the Dual Radiant surface element push in the control knob and turn
counterclockwise to operate the small inner coil or turn clockwise to operate

single setting

Dual Radiant heating areas

on ceramic smooth top (shown In black)

Fig. 1

both the innerand outer portions of the element together (See Fig 1).

Setting

HIGH (HI-9) Start most foods, bring water to a boil, pan broiling

MEDIUM HIGH (7-8) Continue a rapid boil, fry, deep fat fry

MEDIUM (5-6) Maintain a slow boil, thicken sauces and gravies or

MEDIUM LOW (2-4) Keep foods cooking, poach, stew

LOW (LO - 1) Keep warm, melt, simmer

Note: The size and type of utensil used, and the amount and type of food being
cooked will influence the setting needed for best cooking results.

t

SINGLE ANDDUALRADIANTSURFACE ELEMENTS

Type of Cooking

steam vegetables

orno

o o

WARMER ZONE

Warmer Zone Recommended Food

Settings Table

Food Item Heating

Level

Breads/Pastries LO
Casseroles LO
Dinner Plates with Food LO
Eggs
Gravies LO
Meats MED
Sauces MED
Soups (cream) MED
Stews MED
Vegetables MED
Fried Foods HI
Hot Beverages HI
Soups (liquid) HI

LO

Setting the Warmer (Warm & Ready™) Zone (some models)

The purpose of the Warmer Zone is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold
food on the WarmerZone.

All food placed on the Warmer Zone should be covered with a lid or aluminum
foil to maintain quality. For best results, when warming pastries or breads, the
cover should have an opening to allow moisture to escape. Do not use plastic

wrap to cover food. Plastic may melt onto the surface and be very
difficult to clean.

Use only dishware, utensils and cookware recommended for oven and cooktop
use on the Warmer Zone.

^CAUTION

when it is hot.

^CAUTION

the warm zone as cookware and plates will be hot.

Setting the Warmer (Warm & Ready™) Zone Control

1.

To set the control, push in either direction and turn the knob (See Fig 2),
The temperatures are approximate, and are designated by HI, MED and

LO. However, the control can be set at any position between HI and LO for

different levels of heating.

2.

When ready to serve, turn the control to OFF, The Warmer Zone will remain
warm until the indicator light goes OFF,

Temperature Selection - Refer to the chart at the side column for
recommended heating levels. If a particular food is not listed, start with the
medium level, and adjust as needed. Most foods can be kept at serving
temperatures by using the medium level.

Note: Use the Warmer Zone to keep cooked foods hot such as; vegetables,

gravies. casseroles, soups, stews, breads, pastries and oven-safe dinner plates.

Unlike the surface elements, the Warmer Zone will not glow red

I Always use potholders or oven mitts when removing food from

10

Surface Cooking

To Set the Cooktop Lockout Feature (some models) A Cooktop

The (

9

) pad is used to activate the Cooktop Lockout feature which will lock all surface elements from being accidentally

turned ON. This feature will only lock the cooktop.

To turn the Cooktop Lockout Feature ON:

1. BE SURE ALL surface element controls are set to the OFF position.

2. Press and hold until one beep is heard (after 3 seconds). If a triple beep sounds instead, check all surface
elements and turn them to the OFF position and repeat this step. The Cooktop Locked indicator light will turn ON and the

cooktop controls and functions are locked out until the cooktop is unlocked.

To turn the Cooktop Lockout Feature OFF:

1. BE SURE ALL surface element controls are set to the OFF position.

2. Press and hold until one beep is heard (after 3 seconds). If a triple beep sounds instead, check all surface
elements and turn them to the OFF position and repeat this step. The Cooktop Locked indicator light will turn OFF and the

cooktop may be used normally. Note: Starting a Self-Clean cycle will also turn ON the Cooktop Lockout feature. The
cooktop will remain locked until the Self-Clean cycle has completed and the oven door has unlocked. If a power failure
occurs after the Cooktop Lockout has been activated, you must turn OFF the Cooktop Lockout feature before being able to
use the cooktop features again.

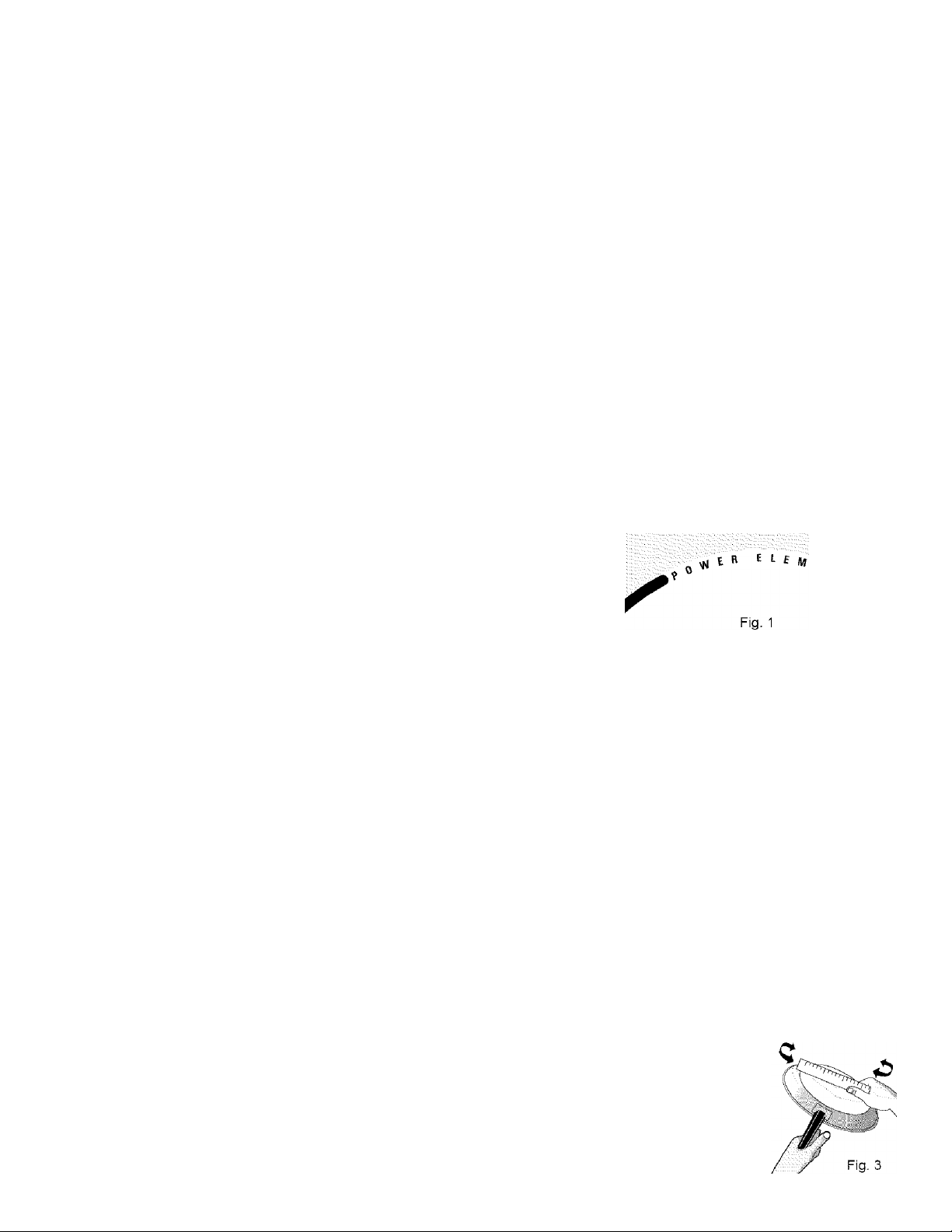

Using Power Element (some models)

The “Power Element” feature uses a higher wattage surface radiant element which
can bring food items to boil much quicker. The left front radiant element will be
clearly marked if thisfeature is available on your range (See Fig. 1). If equipped
with the “Power Element” feature, place the cookware to boil on the left front
surface element and follow the instructions “To Operate a Single Radiant Element”
in the Settings Surface Controls section.

yj Lockout

Using proper cookware

The size and type of cookware used will influence the setting
needed for best cooking results. Cookware should have flat
bottoms that make good contact with the entire surface heating
element (See Fig, 2), Check for flatness by rotating a ruler across
the bottom of the cookware (See Fig. 3),

Cookware Material Types

The cookware material determines how evenly and quickly heat is
transferred from the surface element to the pan bottom. The most
popular materials available are:
ALUMINUM - Excellent heat conductor. Some types of food will
cause it to darken (Anodized aluminum cookware resists staining
& pitting). If aluminum pans slide across the ceramic cooktop,
they may leave metal marks which will resemble scratches.
Remove these marks immediately.
COPPER - Excellent heat conductor but discolors easily. May
leave metal marks on ceramic glass (see Aluminum above).
STAINLESS STEEL - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining,
CAST IRON - A poor heat conductor however will retain heat very
well. Cooks evenly once cooking temperature is reached. Not
recommended for use on ceramic cooktops.
PORCELAIN-ENAMEL on METAL - Heating characteristics will
vary depending on base material. Porcelain-enamel coating must
be smooth to avoid scratching ceramic cooktops.
GLASS - Slow heat conductor. Not recommended for ceramic
cooktop surfaces because it may scratch the glass.

11

•CORRECT

• Flat bottom and straight
sides.

• Tight fitting lids.

• Weight of handle does not
tilt pan. Pan is well
balanced.

• Pan sizes match the
amount of food to be
prepared and the size of
the surface element.

• Made of a material that
conducts heat well.

• Easy to clean.

• Always match pot diameter
to element surface
diameter. Fig. 2

INCORRECT

‘ Curved and warped pan

bottoms.

Pan overhangs element b
more than one-half inch.

' Pan is smaller than

element.

Heavy handle tilts pan.

Be sure to follow the
recommendationsfor using
proper cookware as illustrated in
Figs. 2 & 3. For more information
about the ceramic cooktop see
“Cooktop Cleaning &
Maintenance” in the General
Care & Cleaning section.

Oven Control Functions

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. Forsatisfactory use of youroven, becomefamiliarwith

the various pad functions of the oven as described below.

CLOCK SET
PAD— Used

fo set the
time of day.

OVEN INTERIOR
LIGHT PAD— Used to

turn oven interior light
ON or OFF. This pad is
also used to activate
the Cooktop Lockout
feature (some models

SELECT SELF-CLEAN
PAD— Used to select

the Self-Cleaning
cycle. A 2. 3 or 4 hour
Self-Ciean time may be
seiected.

TIMER SET/OFF PAD—

Used to set or cancel the
minute timer. The minute
timer does not start or stop
cooking. Also,

TIMER SET/OFF pad is

used to set the Continuous
Bake feature.

COOK TIME
PAD— Used to

enter the length of
the baking time.

DELAY START
PAD— Used to set

the desired start
time for baking &
Self-Clean. May be

used with COOK

TIME to program a

delayed bake cycle.

UP and DOWN ARROW PADS— Used along

with the function pads to select oven
temperature, cook time, start time (when
programming an automatic start time), time of
day, clean time and minute timer.

BAKE PAD—Used

to select the bake
function.

• Oven

• Preiieal

• Ooer Lflickei

• CüiCfklop Locked

OVEN, PREHEAT & DOOR LOCKED LIGHTS* — The "OVEN" light

will glow each time the oven turns on to maintain the set oven
temperature. The "PREHEAT" light will glow when the oven is first
set to operate, or if the desired temperature is reset higher than the
actual oven temperature. The "DOOR LOCKED" light will flash
when the oven door locks and unlocks or when using the Self
Clean cycle or the oven door lockout is activated. The indicator light
will glow constantly after the door locks. COOKTOP LOCKED light
will glow when the cooktop has been locked (some models).

FEATURE INDICATOR
LIGHTS— These light to

show which feature is in
use.

BROIL PAD— Used to

select the variable broil

function.

WARM & HOLD PAD—

Used to set the Warm &
Flold feature.

STOP/CLEAR PAD—

Used to clear any

function previously

entered except the time
of day and minute timer.
Press STOP/CLEAR to
stop cooking. Also the

STOP/CLEAR pad is

used to activate oven
door lockout setting.

*Note: The OVEN indicator light on the electronic display will turn ON and OFF when using the Bake feature and during
preheat. This is normal and indicates that the oven 1s cycling to maintain the selected baking temperature. When the

preheat indicator light turns OFF, your oven is ready........................................................: : : : : : : : : : :

For a silent control panel

When choosing a function, a beep will be heard each time a pad is pressed. If desired, the control can be programmed for
silent operation. Press and hold (®). After 7 seconds, the control will beep once. This will block the controls from

sounding when a pad is pressed. To return the sound, press and hold (^) again for 7 seconds until the control beeps
once.

Temperature conversion

The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be programmed
for any temperature from 170°F to 550°F (77°C to 287°C).

To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode);

1. Press . "

2. Press and hold the until "HI" appears in the display.

3. Press and hold ^ until °F or °C appears in the display.

-----------

" appears in the display.

4. Press the >S. or 'V'' to change °F to °C or °C to °F.

5. Press any control pad to return to normal operating mode.

12

Setting Oven Controls

: ■ Warm & Eeady Drawer ! ' ■ ■ ■

Note: The time of day must first be set in order to operate the oven. : ^ ^ ^ ^ ^ ^ ^ ^ '

To Set the Clock

When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash

"12:00".

1. Press (O) once (do not hold pad down).

2. Within 5 seconds, press and hold the orN<^ until the correct time of day appears in the display.

Note: The clock cannot be changed during any timed bake or Self-Clean cycle.

To Set the Minute Timer:

1. Press .

2. Press the to increase the time in one minute increments. Press and hold the to increase the time in 10
minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.

Note: If the N'' pad is pressed first, the timer will advance to 11 hours and 59 minutes.

3. The display shows the timer countdown in minutes until 1 minute remains. Then the display will countdown in seconds,

4. When the set time has run out, the timer will beep 3 times and will continue to beep 3 times every 60 seconds until

is pressed.

Note: The indicator light located above the(S) pad will glow while the minute timer is active.
Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when the set

time has run out. The minute timer can be used alone or during any of the other oven functions. When the minute timer is in
use with any other function, the minute timer will be shown in the display. To view other functions, press the pad for that
function.

To Change the Minute Timer while it is in use: While the timer is active and shows in the display, press and hold the vV or 'V to increase or decrease the time.

Note: Toturn the time of day display OFF or ON in the display press (Oj and hold for 15 seconds (the control will beep

once) and then release. This feature does not remove the set time of day from the memory of the control . When the display
is turned OFF the time of day will re-appear for a few seconds any time the pad is touched.

13

Setting Oven Controls (cont d)

To Set or Change the Temperature for Baking

The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C).

To Set the Controls for Baking:

1. Press ^ . "

2. Within 5 seconds, press the or "V". The display will show "350°F (177°C)," By pressing and holding the or

N/’, the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).

3. As soon as the vV or’V/' pad is released, the oven will begin heating to the selected temperature. When the

displayed temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control
will beep 3 times.

4. To cancel baking, press (S),

To Change the Oven Temperature after Baking has Started:

1. Press Bake and make sure the bake temperature is displayed.

2. Press the or pad to increase or decrease the set temperature.

-------------

" appears in the display.

To Set Control for Continuous Bake or 12 Hour Energy Saving

The oven control has a built-in 12 Flour Energy Saving feature that will shut off the oven if the control is left on for more than

11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.

To set control for continuous baking:

1. Press and hold (s) down for 5 seconds until tone is heard, "
The current time of day will return to the display,

2. To cancel the Continuous Bake function, press (S) and hold for 5 seconds until tone is heard. "12hr" will appear in
display indicating that the control has returned to the 12 Hour Energy Saving feature.

---------

hr" will appear in display for continuous cooking.

To Set Control for Oven Lockout [?] Lockout

The control can be programmed to lock the oven door and lockout the oven control pads.

To set Control for Oven Lockout feature:

1. Press (S) and hold for 3 seconds, “Loc” will appear in display, the “Door Locked” indicator light will flash and the
motor driven door lock will begin to close automatically. DO NOT open the oven door while the indicator light is

flashing. Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will
appear in the display.

2. To cancel the Oven Lockout feature, press (s) and hold for 3 seconds. The control will unlock the oven door and
resume normal operation.

Note: If any control pad is pressed while in the Oven Lockout mode, “Loc” wiii appear In the dispiay until the

control pad is released.......................................................................................................................................................

14

Setting Oven Controls (cont d)

To Set the Timed Bake and Delay Start Features

The (S) COOK TIME and DELAY START pads operate the features that will turn the oven ON and OFF at the times
you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Sake) or to

begin baking at a later time with a delayed start time (Delay Start).

Note: During Timed Bake the preheat indicator light will not function. ^ ^ ^ ^ ^ ^ ^ ^

To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake);

1. Be sure that the clock shows the correct time of day.

2. Place the food in the oven.

3. Press "------------°" appears in the display.

4. Within 5 seconds, press the jAk. or N/’, The display will show "350°F (177°C)." By holding the or , the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).

5. Press (^). "0:00" will flash in the display (HR:IV!IN).

6. Press the >V or 'V' until the desired baking time appears in the display.

7. The oven will turn ON and begin heating.

To Program Oven fora Delayed Start Time and to Shut-Off Automatically (Delayed Start Bake);

1. Be sure that the clock shows the correct time of day.

2. Place the food in the oven.

3. Press "------------°" appears in the display.

4. Within 5 seconds, press the yN. or . The display will show "350°F (177°C)." By holding the >\. or 'V', the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).

5. Press @. "0:00" will flash in the display (HR:IV!IN).

6. Press the or until the desired baking time appears.

7. Press The earliest possible start time will appear in the display.

8. Press the or 'V' until the desired start time appears in the display.

9. Once the controls are set, the control calculates the time when baking will stop in order to start at the time you have
set.

10. The oven will turn ON at the delayed start time and begin heating.

When the Set Bake Time Runs Out:

a. "END" will appear in the display window and the oven will shut-off automatically.
b. The control will beep 3 times every 60 seconds until (^) is pressed.

To Change the Oven Temperature or Bake Time after Baking has Started;

1. Press the function pad you want to change,

2. Press the yV or "V to adjust the setting.

40^ CAUTION

eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for
more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.

Use caution with the Timed Bake and Delayed Start features. Foods that can easily spoil such as milk,

15

Setting Oven Controls (cont d)

To Set for Broiling:

1. Arrange the oven rack while oven is still cool. Position the rack as
suggested in the Broil Rack Position Table below.

2. Press "

3. Press and hold the or until the desired broil setting level appears in
the display. Press the >*V for HI broil or the for LO broil. Most foods

may be broiled at the HI broil setting. Select the LO broil setting to avoid
excess browning or drying of foods that should be cooked to the well-done
stage.

4. For optimum browning, preheat broil element for 3 - 4 minutes

before adding food.

5. Place the insert on the broil pan, then place the food on the insert (See
Fig. 1). DO NOT use the broil pan without the insert or cover the insert with

aluminum foil. The exposed fat could ignite.

6. Place the pan on the oven rack. Open the oven door to the broil stop
position when broiling (See Fig 2).

7. Broil on one side until food is browned. Turn and broil food on 2nd side.
Note: Always pull the oven rack out to the stop position before turning or
removing the food,

8. When broiling is finished, press (S),

Broil Rack Position Table (Refer to Fig. 3)
Rack Postion from Top Food category

-------------

"will appear in display.

Fig. 1

1st rack position Medium-rare steaks & hamburgers
2nd rack position Fish, medium steaks & pork chops
3rd rack position Well-done foods such as chicken & lobster

Note: The broiler pan and the insert allows grease to drain and be kept away

from the high heat of the broiler. DO NOT use the pan without the insert. DO

NOT cover the insert with foil; the exposed grease could ignite.

^CAUTION

OFF. If the fire continues, use a fire extinguisher. DO NOT put water or flour on
the fire. Flour may be explosive.

Should an oven fire occur, close the oven door and turn the oven

To Operate the Oven Light

The interior oven light will automatically turn ON when the oven door is opened.
Press to turn the interior oven light ON and OFF whenever the oven door is

closed.
The interior oven light is located at the upper left rear wall of the oven interior and

is covered with a glass shield held by a wire holder. The glass shield must be in
place wheneverthe oven is in use. To change the interioroven light, see "Changing
the Oven Light" in the General Care & Cleaning section.

1 )

Fig. 3

16

Setting Oven Controls (cont d)

Setting the Warm & Hold™ Feature

The ^ pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of 170° F. The Warm & Hold feature
will keep oven baked foods warm forserving up to 3 hours after cooking hasfinished. After 3 hours the Warm & Hold feature will

shut the oven OFF automatically. The Warm & Hold feature may be used without any other cooking operations or can be used
aftercooking hasfinished using TIMED BAKE or DELAY START BAKE.

To set Warm & Hold:

1. Arrange interior oven racks and place baked food in oven. If the food is already in the oven go to step 2.

2. Press

Note: If no further pads are touched within 6 seconds the request to turn ON Warm & Hold will be cleared.

3. Press yV or to start.

4. To turn Warm & Hold OFF at any time press (S), The Warm & Hold indicator light above the pad will turn OFF.

To set Warm & Hold to turn ON automatically:

1. Arrange interior oven racks and place food in oven. Set the oven properly for Timed Bake or Delay Start Bake.

2. Press

3. Press yN. or tostart.Warm&HoldissettoturnONautomaticallyafterTimedBakeorDelayedStartBakehasfinished.

WamiS li

WainS II

------

" will appear in the display and the Warm & Hold indicator light above the pad will turn ON.

------

" will appear in the display and the Warm & Hold indicator light above the pad will turn ON.

4. To turn Warm & Hold OFF at any time press (S). The Warm & Hold indicator light above the pad will turn OFF.

Setting Warmer Drawer Controls

Arranging Warmer Drawer (Warm & Ready™ Drawer) Rack Positions (some models)

Note: Use the warmer drawerto keep hot foods hot such as: vegetables, gravies, meats, casseroles, biscuits and rolls, pastries
and heated dinner plates.

The rack can be used in 2 ways:

• In the upright position to allow low profile food items to be placed both under and on top of the rack (for example, rolls

or biscuits on top of the rack and a casserole dish under - See Fig. 1 ).

• In the downward position to allow you to place light weight food items and empty dishware (for example, rolls or

pastries and dinner plates - See Fig. 2).

The warmer drawer is equipped with a catch which may require extra force when opening and closing the drawer.

To Operate the Warmer (Warm & Ready™) Drawer

Always start with hot food. It is not recommended to
heat cold food in the warmer drawer.

All food placed in the warmer drawer should be
covered with a lid or aluminum foil to maintain
quality. Do not use plastic wrap to cover food.

Plastic may melt onto the drawer and be very
difficult to clean.

WARMER DRAWER

Use only dishes, utensils and cookware
recommended for oven useinthewarmerdrawer.

CAUTION

when removing food from the warmer drawer as
cookware and plates will be HOT.

I Always use pot holders or oven mitts

Fig. 3

17

Setting Warmer Drawer Controls (cont d)

Warmer Drawer Recommended

Food Settings Table

Food Item Setting

Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI

Pizza HI
Gravies MED
Casseroles MED

Eggs

Roasts (Beef, Pork, Lamb) MED
Vegetables MED

Biscuits MED

Rolls, hard MED

Pastries MED

Rolls (soft) LO

Empty Dinner Plates LO

Pull up with finger

MED

To Set the Warmer (Warm & Ready™) Drawer Thermostat Control (some models)

The thermostat control Is used to select the temperature of the warmer drawer.
It is located on the control panel (See Fig. 3 on previous page). To set the
thermostat, push in and turn the knob to the desired setting. The temperatures
are approximate, and are designated by HI, MED and LO.

1. Turn the knob to select the desired temperature setting,

2. For best results, preheat the drawer before adding food. An empty drawer
will preheat in approximately 15 minutes.

3. Turn the thermostat control to OFF after use.

Warmer (Warm & Ready™) Drawer Temperature Selection

(some models)

Refer to the table in the side column for recommended settings. If a particular
food is not listed, start with the medium setting. If more crispness is desired,
remove the lid oraluminumfoil.

Most foods can be kept at serving temperatures by using the medium setting.
When a combination of foods are to be kept warm (for instance, a meat with 2

vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of heat

from the drawer.

Warmer (Warm & Ready ™) Drawer Indicator Light (some models)

The indicator light is located above the Warmer Drawer thermostat control. It
turns on when the control is set, and stays on until the control is turned OFF.
The warmer drawer is inoperable during the Self-Clean cycle. The indicator light
will not come on during the Self-Clean cycle.

NOTE: The warmer drawer wilt NOT

operate while in the Self-Clean and 'Oven

Lockout” modes

........

To Remove and Replace Warmer (Warm & Ready™) Drawer

(some models)

To Remove Warmer Drawer:

iOl^CAUTION

2. Open the drawer to the fully opened position.

3. On the right glide you will find a shield attached with a hex-head screw (see
figure 1). Using a 1/4” socket and ratchet remove the shield.

4. Locateglideleveroneachsideofdrawer, pull upontheleftglideleverand push
down on the right glide lever.

5. Pull the drawer away from the range.

To Replace Warmer Drawer:

1. Replace shield on the right glide of the drawer body.

2. Puli the bearing glides to the front of the chassis glide (see figure 2).

3. Align the glide on each side of the drawer with the glide slots on the range.

4. Push the drawer into the range until levers “click” (approximately 2”). Pull the
draweropen again to seat bearing glides into position. If you do not hear the

levers “click” or the bearing glides do not feel seated remove the
drawer and repeat steps 2-4. This will minimize possible damage to the

bearing glides.

Turn power OFF before removing the warmer drawer.

WARNING

serious injury or death. Disconnect appliance from electric power
before cleaning and servicing the warmer drawer.

Electrical Shock Hazard can occur and result in

18

Self-Cleaning

^CAUTION

I DuringtheSelf-Cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended nearthe
appliance.

^CAUTION

The health of some birds
is extremely sensitive to the fumes given
off during the Self-Cleaning cycle of any
range. Move birds to anotherwell­ventilated room.

^CAUTION

DO NOT line the oven
walls, racks, bottom or any other part of
the range with aluminum foil. Doing so
will destroy heat distribution, produce
poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).

^CAUTION

DO NOT force the oven

door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.

DO NOT'

HAND

■ CLEAN OVEN'
DOOR GASKET

Note: See additional cleaning information
for the oven door in the General Care &
Cleaning section.

..

........

I

• Oî/eis

• Preiieaî

• Bttor Itickeil

• Coollstcip Loeketl

Warm & Heady Drawer

Self-Cleaning Oven

A Self-Cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions;

• DO NOT use oven cleaners or oven protective coatings in or around any

part of the Self-Cleaning oven.

• DO NOT clean the oven door gasket. The woven material of the oven door
gasket is essential fora good seal. Care should be taken not to rub,
damage or remove the gasket.

• DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage,

• Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.

• Oven racks do not have to be removed. If they are not removed during the
Self-Clean cycle their color will turn slightly blue and the finish will be dull.
After the cycle is complete and the oven has cooled, rub the sides of the
oven racks with wax paper or a cloth containing a small amount of salad oil
(this will make the racks glide easier into the rack position).

• Remove any excessive spillovers in the oven cavity before starting the
Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when subjected to high
temperatures, DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on
the surface as they may leave a dull spot even after cleaning.

• Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.

NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven
bottom should be removed.

Some models have an exposed Bake element in the lower oven cavity (See
illustration at left).On these models the bake element is designed to be tilted up
using your hand from the front of the bake element. This will allow easier
access to the oven bottom for cleaning. Be careful not to raise the element
more than 4 or 5 inches from the resting position.

^CAUTION

I The oven bake and broil elements may appear to have cooled after
they have been turned OFF. The elements may still be hot and burns may occur
if these elements are touched before they have cooled sufficiently.

19

Self-Cleaning (contd)

starting the Select Self-Clean Cycle or a Delayed Start Self-Clean Cycle

For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle for
heavy soils. NOTE; The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood

during the 1st Self-Clean cycle. This will help eliminate the normal odors associated with the 1st Self-Clean cycle.

To Set the Controls for a Self-Clean Cycle or a Delayed Start Self-Clean Cycle:

(Note: If you do not want to start a Delayed Self-Clean Cycle, skips steps 2 & 3.)

1. Be sure the clock shows the correct time of day.

2. Press (S). The "; " in the time of day will flash.

3. Press and hold the VV. pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the
desired time is displayed.

4.5.Press ''

Press the or once. "3:00" appears in the display for a 3 hour cycle. To change to a 2 hour cycle press .
"2:00" appears in the display or to select a 4 hour cycle press >S.. "4:00" appears in the display.

As soon as the controls are set, the motor driven lock will begin to close automatically and the “LOCK” indicator light
will flash. DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the oven door to lock).

6. "CLn" will appear in the display during the Self-Clean cycle and the "LOCK" light will glow until the Self-Cleaning cycle

is complete or cancelled and the oven temperature has cooled.

When the Self-Clean Cycle is Completed;

1. The time of day or "End" will appear in the display window and the “Clean” and "LOCK" light will continue to glow.

2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be opened.

3. If “End” is in the display and the Select Clean indicator light remains ON, press (S). The time of day will appear in the
display.

NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.

----------

" appears in the display.

Stopping or Interrupting a Select Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a Self-Cleaning cycle;

1. Press (^).

2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be opened,

3. Restart the Self-Clean cycle once all conditions have been corrected.

Acaution

the oven when opening the door to allow hot air or steam to escape.

iSkt CAUTION

possible burns when opening the door after the Self-Cleaning cycle has completed. The oven may still be VERY HOT,

I To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the side of

I DO NOT force the oven door open. This can damage the automatic door locking system. Use caution and avoid

20

General Care & Cleaning

Cleaning Table

Surfaces How to Clean

Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted and Plastic Control Knobs,

Body Parts, and Decorative Trim

Stainless Steel, Chrome Control Panel,
Decorative Trim

Porcelain Enamel Broiler Pan and
Insert, Door Liner, Body Parts, Warmer
Drawer (some models)

For general cleaning, use hot, soapy water and a cloth. For more difficult soils and
built-up grease, apply a liquiddetergentdirectlyonto the soil. Leave on soil for 30

to 60 minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners
on any of these materials; they can scratch. To remove control knobs, turn to the
OFF position; grasp firmly and pull straight off the shaft. To replace knobs after
cleaning, line up the flat sides of both the knob and the shaft; then push the knob
into place.

Before cleaning the control panel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean using hot, soapy
water and a dishcloth. Rinse with a clean water using a dishcloth. Be sure to
squeeze excess water from the cloth before wiping the panel; especially when
wiping around the controls. Excess water in or around the controls may cause
damage to the appliance.To replace knobs after cleaning, line up the flat sides of
both the knob and the shaft; then push the knob into place.

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean
water and a cloth. Do not use cleaners with high concentrations of chlorides
or chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners
that are especially made for cleaning stainless steel. Always be sure to rinse the
cleaners from the surface as bluish stains may occur during heating that cannot
be removed.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a

1:1 solution of clearwaterand ammonia, /fnecessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
dampcioth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with
a clean cloth. Remove all cleanersorthe porcelain may become damaged during
future heating. DO NOT use spray oven cleaners on the cooktop.

Oven Racks

Oven door

Ceramic Cooktop See Cooktop Cleaning and Maintenance in the General Care & Cleaning

Oven racks may be removed or left in the oven during the Self-Clean cycle for
cleaning. If removed, clean by using a mild, abrasive cleanerfollowing manufacturer's
instructions. Rinse with clean water and dry.

If the racks are cleaned in the Self-Clean cycle, their color will turn slightly blue and
the finish will be dull. After the Self-Clean cycle is complete, and the oven has
cooled, rub the sides of the racks with wax paper or a cloth containing a small
amount salad oil (this will make the racks glide easier into the rack positions).

Use soap & water to thoroughly clean the top, sides and front of the oven door.
Rinse well. You may use a glass cleaner on the outside glass of the oven door.

DO NOT immerse the door in water. DO NOT spray or allow water or the glass
cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders

or any harsh abrasive cleaning materials on the outside of the oven door.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven

material, on Self-Cleaning models, which is essential fora good seal. Care should
be taken not to rub, damage or remove this gasket.

section.

21

General Care & Cleaning (cont’d)

Cooktop Cleaning and Maintenance

Consistent andproper cleaning is essential to maintaining your ceramic glass cooktop.

Prior to using your cooktop for the first time, apply the recommended cooktop cleaning creme (visit www.sears.com for
replacment cleaner) to the ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when
soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches
and abrasions.

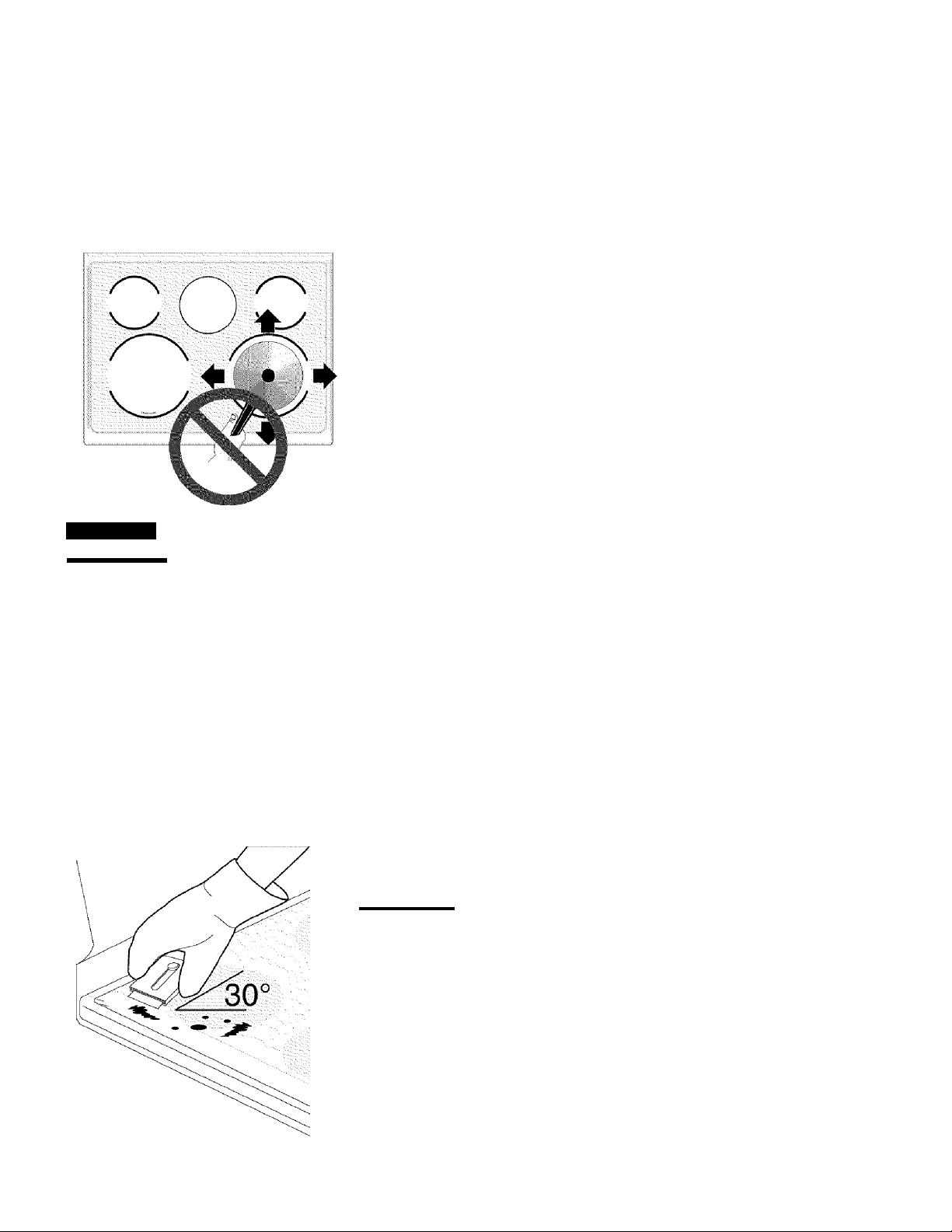

Sliding aluminum or copper clad bottom pans on the cooktop can cause
metal markings on the cooktop surface. These marks should be removed
immediately after the cooktop has cooled using the cooktop cleaning
cream. Metal marks can become permanent if not removed prior to future
use.

Cookware (cast iron, metal, ceramic orglass) with rough or dirty bottoms
can mark or scratch the cooktop surface. Do not slide anything meta!

or glass across the cooktop. Do not use cookware with dirt or dirt
build up on bottom; replace with clean cookware before using. Do not
use your cooktop as a cutting board or work surface in the kitchen. Do
not cook foods directly on the cooktop surface without a pan. Do not

drop heavy or hard objects on the ceramic glass cooktop, they may
cause it to crack.

^CAUTION

Ä WARNING

chemically damage the ceramic-glass surface.

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

Cleaning Recommendations for the Ceramic Giass Cooktop

For light to moderate soil:

Apply a few drops of the cooktop cleaning creme directly to the cooktop. Use a paper towel or a 31VI Scotch-Brite® Blue
Multi-Purpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly,
leaving no residue.

For heavy, burned on soil:

Apply a few drops of cooktop cleaning creme directly to the soiled area. Rub the soiled area using a 3M Scotch-Brite®
Blue Multi-Purpose No Scratch Scrub Sponge, applying pressure as needed. Do not use the sponge you use to clean the
cooktop for any otf

If soils remain, carefully scrape soils with a metal razor blade scraper, holding
scraper at a 30 degree angle to the surface. Remove loosened soils with
cooktop cleaning cream and buff surface clean.

CAUTION

scrub pad other than a 3M Scotch-Brite® Blue Multi-Purpose No Scratch
Scrub Sponge.

Damage to the ceramic glass cooktop may occur if you use any

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto the
ceramic cooktop surface. Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately. After turning the surface
elements OFF, use a razor blade scraper or a metal spatula with a mitt and
scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool,
and use the same method for heavy or burned on soils.

22

General Care & Cleaning

Cleaning Recommendations for Ceramic Giass Cooktops (cont’d)

Do not use the following on the ceramic glass cooktop:

BLEACH I

Fig, 2

• Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on the cooktop which can burn and cause discoloration.

Special Caution for Aluminum Use on the Ceramic Cooktop:

• Aluminum Foil - Use ofaluminumfoil on a hot cooktop will damage the ceramic

cooktop. Do not use thin aluminum cooking utensils or allow aluminum foil to
touch the ceramic cooktop under ANY circumstances.

• Aluminum utensils - The melting point of aluminum is much lowerthan that of

other metals. Care must be taken when aluminum pots or pans are used on the
cooktop. If allowed to boil dry, not only will the utensil be destroyed, but it may
fuse to, break or mark the ceramic glass surface, permanently damaging the
cooktop surface.

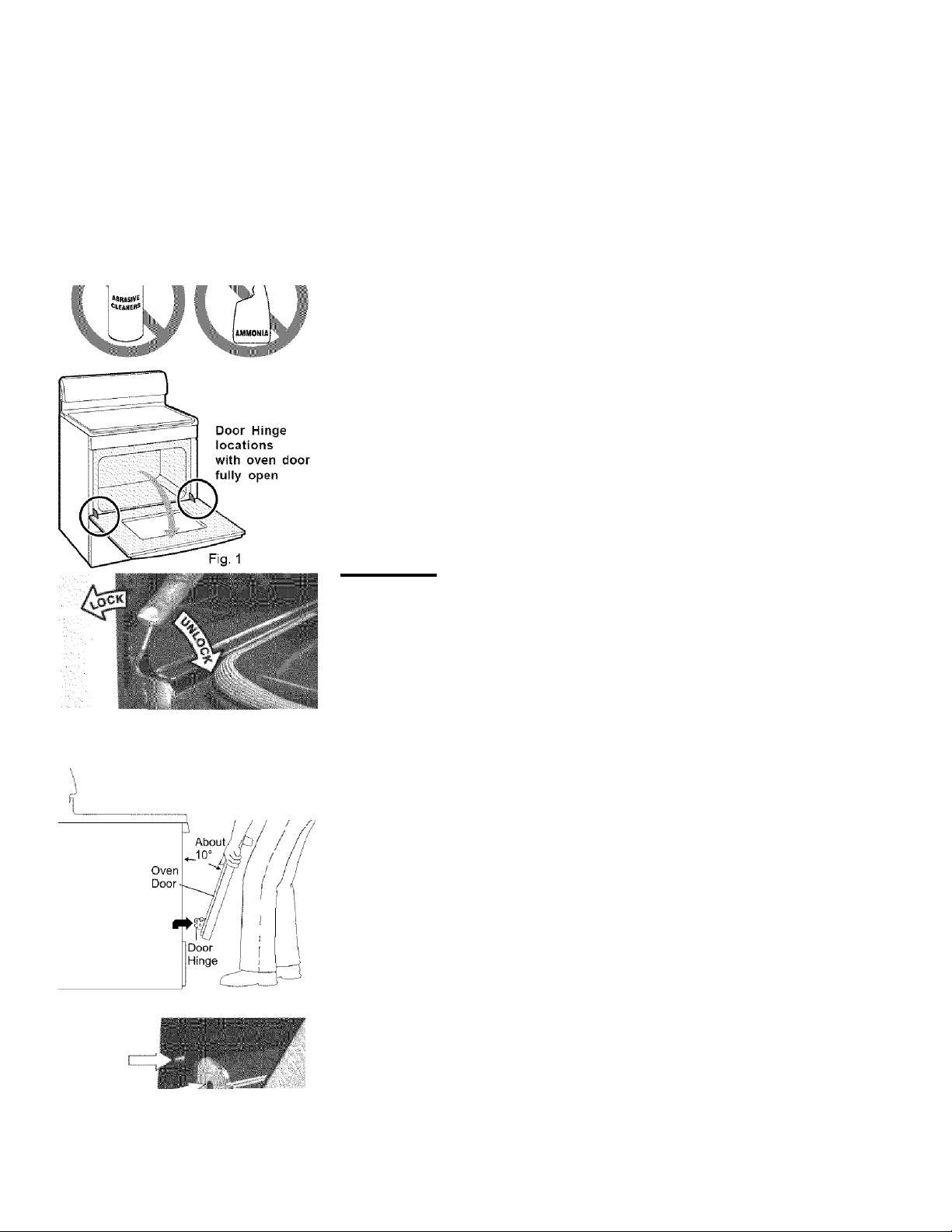

Removing and Replacing the Lift-Off Oven Door

CAUTION

the inside of the door facing down.

To Remove Oven Door:

1.

Open oven door completely (horizontal with floor - See Fig. 1).

2.

Pull the door hinge locks on both left and right door hinges down from the oven
frame completely towards the oven door (See Fig. 2). A tool such as a small
flat-blade screwdriver may be required.

3.

Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
Close the door to the broil stop position (the oven door will stop into this
position just before fully closing).

5.

With the oven door in the broil stop position, lift the oven door hinge arms over
the roller pins located on each side of the oven frame (See Fig. 4).

I The door is heavy. For safe, temporary storage, lay the door flat with

Roller

'Pin

Hinge

Arm

Hook

.........

Fig.3

Fig. 4

To Replace Oven Door:

1. Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3),

2. Holding the oven door at the same angle as the removal position, seat the
hook of the hinge arm over the roller pins located on each side of the oven
doorframe (See Fig. 4). The hook of the hinge arms must be fully seated onto
the roller pins.

3. Fully open the oven door (horizontal with floor - See Fig. 1).

4. Push the door hinge locks up towards and into the oven frame on both left and
right oven door hinges (See Fig. 2) to the locked position.

5. Close the oven door.

Special Door Care Instructions - Most oven doors contain giass that can break.

Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.

23

General Care & Cleaning

Changing the Oven Light

The oven light automatically turns ON when the door is opened. The oven light

Oven

Light

Wire

Holder

may also be manually operated by pressing the pad.

The oven light bulb is located at the rear of the oven and is covered with a glass
shield held by a wire holder. The glass shield must be in place whenever the
oven is in use.

To replace the oven light bulb:

1. Turn electrical power off at the main source or unplug the range.

2. Press wire holder to one side to release the glass shield.

3. Replace bulb with a new 40 watt appliance bulb.

4. Replace glass shield over bulb and snap wire holder into place.

5. Turn power back on again at the main source (or plug the range back in),

6. The clock will then need to be reset. To reset, see Setting the Ciock and

Minute Timer in this Use & Care Guide.

CAUTION

replacing oven light. Wear a leather-faced glove for protection against possible
broken glass.

Be sure the range is unplugged and all parts are COOL before

Care and Cleaning of Stainless Steel (some models)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Refer to the Care & Cleaning Table for detailed cleaning instructions.

Adjusting the Oven Temperature

Your oven control has been precisely set at the factory. This setting may differ from your previous oven however, so your recipe
times may not give you the results you expect. If you think that the oven is cooking too hot or too cool for your recipe times,
you can adjust the control so that the oven cooks hotter or cooler than the temperature displayed.

To Adjust Oven Temperature:

1. Press ^ .

2. Set the temperature to 550°F (287°C) by pressing and holding the .

3. Within 2 seconds, press and hold ^ until the 2 digit display appears. Release The display now indicates the amount
of degrees offset between the original factory temperature setting and the current temperature setting. If the oven control

has the original factory calibration, the display will read "0."

4. Thetemperaturecannowbeadjustedupordown35°F(17°C),in5°Fstepsbypressingandholdingthe or V . Adjust

until the desired amount of offset appears in the display. When lowering the oven temperature, a minus sign {-) will appear
before the number to indicate that the oven will be cooler by the displayed amount of degrees.

5. When you have made the desired adjustment, press (S) to go back to the time of day display.

Note: Oven temperature adjustments made will not change the Self-Cleaning feature temperature.

24

Before You Call

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in this appliance.

OCCURRENCE POSSIBLE CAUSE/SOLUTION

Range is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust

leveling legs at base of range until the oven rack is level.

Be sure floor is level and is strong and stable enough to adequately support range.

If floor is sagging or sloping, contact a carpenter to correct the situation.

Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are
square and have sufficient room for range clearance.

Cannot move appliance easily. Appliance
must be accessible for service.

Oven control beeps and displays any F code
error (for example F11).

Surface element too hot or not hot enough. Incorrect control setting. Make sure the correct control is on for the element to be used.

Surface element does not heat. Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight

Entire appliance does not operate. Make sure cord/plug is plugged correctly into outlet.

Cabinets not square or are built in too tightly. Contact builder or installer to make
appliance accessible.

Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.

Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display
and stop beeping. Reprogram oven. If fault recurs, record fault number. Press STOP/

CLEAR and call 1-800-4-MY-HOME® for assistance (See back cover).

cookware. Flat pans heat better than warped pans. Cookware materials and weight of
the material affect heating. Heavy and medium-weight pans heat evenly. Because
lightweight pans heat unevenly, foods may burn easily.

No power to the appliance. Check steps under "Entire Appliance Does Not Operate” in
this Before You Call checklist.

Incorrect control setting. Make sure the correct control is set for the surface element to
be used.

Service wiring is not complete. Call 1-800-4-MY-HOWIE® for assistance (See back
cover).

Power outage. Check house lights to be sure. Cal! your local electric company for
service.

25

Before You Call

Solutions to Common Problems

OCCURRENCE

Oven light does network. Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide.

Oven smokes excessively during broiling. Control(s) not set properly. Follow instructions under Setting Oven Controls.

POSSIBLE CAUSE/SOLUTION

Make sure oven door is opened to broil stop position.
Meat too close to the element. Reposition the rack to provide proper clearance between

the meat and the element. Preheat broil element for searing.
Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges

to prevent curling, but do not cut into lean.
Insert on broiler pan wrong side up and grease not draining. Always place grid on the

broiler pan with ribs up and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Old grease or food spatters cause excessive smoking.

Poor baking results. Many factors affect baking results. Make sure the proper rack position is used. Center

food in the oven and space pans to allow air to circulate. Allow the oven to preheat to
the set temperature before placing food in the oven. Try adjusting the recipe's
recommended temperature or baking time. If you feel the oven is too hot or cool, see

Adjusting Your Oven Temperature in this Use & Care Guide.

Self-Cleaning cycle does not work. Control(s) not set properly. Follow instructions under Self-Cleaning.

Self-Cleaning cycle was interrupted. Follow steps under "Stopping or Interrupting a Self
Cleaning Cycle" under Self-Cleaning.

Soil not completely removed after Self
Cleaning cycle.

Failure to clean bottom, front top of oven, frame of oven or door area outside oven seal.
These areas are not in the self-cleaning area, but get hot enough to burn on residue.
Clean these areas before the self-cleaning cycle is started. Burned-on residue can be
cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage
the oven gasket.

Flames inside oven or smoking from vent. Excessive spillovers in oven. Set Self-Clean cycle for a longer cleaning time.

Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie
spillovers or large amounts of grease on bottom of oven. Wipe up excessive spillovers
before starting cycle. If flames or excessive smoke are present, stop the self-clean cycle

Scratches or abrasions on cooktop surface
(Ceramic-Glass cooktop models only).

and follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in the

Cleaning section.

Coarse particles such as salt or sand between cooktop and utensils can cause
scratches. Be sure cooktop surface and bottoms of utensils are clean before usage.

Self

Small scratches do not affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. See

"Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.
Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.

Metal marks
(Ceramic-Glass cooktop models only).

Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils
on cooktop surface. Use a ceramic-glass cooktop cleaning creme to remove the marks.
See "Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.

Brown streaks or specks
(Ceramic-Glass cooktop models only).

Areas of discoloration with metallic sheen
(Ceramic-Glass cooktop models only).

Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See
"Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.

Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning
creme. Use cookware with clean, dry bottoms.

26

Notes

27

Get it fixed, at your home or ours!

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com

www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement {U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGARS“

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYER^^

(1-800-533-6937)

www.sears.ca

® Registered Trademark / ™ Trademark / Service Mark of Sears, Roebuck and Co.
® Marca Registrada / ™ Marca de Fábrica / Marca de Servicio de Sears, Roebuck and Co.

Marque de commerce / Marque déposée de Sears, Roebuck and Co. © Sears, Roebuck and Co.
