Page 1
liiliiiililiiB
Electric Range
Estufa eléctrica
Models, Modelos 790.9402*, 9403*
* = color number, número de color
rn
:
www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. p/n 316417276 (0705)
rn
CÓ
'“Í
V
:;Ki
O
Page 2
Table of Contents Prod yet Record
Free-Standing Range Warranty
Product Record
....................................................................
IMPORTANT SAFETY INSTRUCTIONS
Protection Agreements
.......................................................
...........................................
.........................
2 In this space below, record the date of purchase, model and
2 serial number of your product. You will find the model and
3-4 serial number printed on an identification plate. The serial
5 plate is located on the right side of the oven front frame in

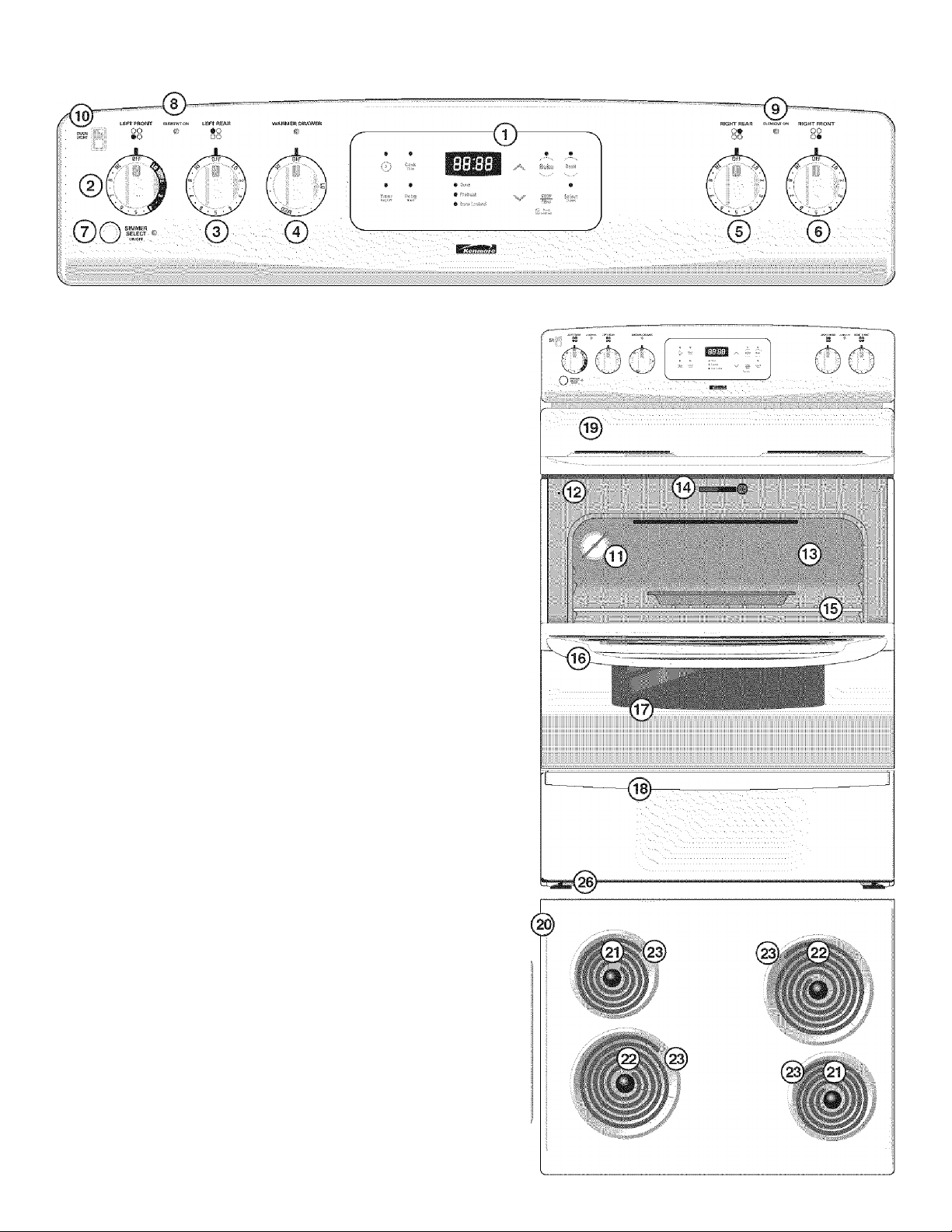

Range Features .................................................................6 the storage or warmer drawer compartment. See bottom of
Before Setting Oven Controls
Setting Surface Controls
Surface Cooking.................................................................10 Model No. 790.
..........................................
....................................................
7-8 this page for the serial plate location.
8-9
________________________________
Oven Control Functions...................................................11
Setting Oven Controls
Setting Warmer Drawer Controls
Select Self Cleaning.......................................................18-19 Date of Purchase
..................................................
.....................................
12-16 Serial No.
16-17
_____________________________________
________________________________
General Care & Cleaning.................................................20-23
Adjusting Your Oven Temperature....................................23 Save these instructions and your sales receipt for future
Before You Make a Service Call.................................. 24-25 reference.
Sears Service......................................................Back Page
Kenmore Appliance Warranty
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect
in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ® to arrange for free repair. If this
appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to ail instructions suppiied with the
product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shaii be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by
law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or
limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness,
so these exclusions or limitation may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179 Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8
Serial Plate Location
You will find the model and serial number printed on the serial plate. The
serial plate is located on the right side of the oven front frame in the
storage or warmer drawer compartment. Please see the illustration for
exact location.
Remeberto record the serial number for future reference (See top of page
under Product Record).
Serial plate location; Open the Warmer
Drawer (some models), storage drawer
(some models) or lower panel (some models)
Page 3
importarit Safety instructions
React alt instructions before using this appliance. Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
WARNING
^CAUTION
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging material.
• Proper Installation—Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/
NFPA No. 70 latest edition and local electrical code
requirements. Install only per installation instructions provided
in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing—Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician. This may reduce the risk of personal
injury and damage to the range.
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
z
Awarning
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with range.
• See Installation Instructions.
Awarning
drawers of this range can result in serious injuries and
also cause damage to the range. Do not allow children to
climb or play around the range. The weight of a child on an open
door may cause the range to tip, resulting in serious burns or
other injury.
Acaution
the cabinets above a range or on the backguard of a
range. Children climbing on the range to reach items could be
seriouslyinjured.
This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
This symbol wili help alert you to situations that may cause bodily injury or property damage.
Awarning
equipped) for storage.
Awarning
Heating the Room.
• Storage in or on Appliance—Flammable materials
• Do Not Leave Children Alone—Children should not be
• DO NOTTOUCH SURFACE UNITS, AREAS NEARTHESE
I
Awarning
tipping, the range must be secured by
properly installed anti-tip bracket provided
with the range. To check if the bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully
secured by the anti-tip bracket by
removing lower panel or storage drawer.
For models with a warmer drawer, grasp
the top rear edge of the range and
carefully attempt to tilt it forward. Refer to
the installation instructions for proper anti
tip bracket installation.
To reduce the risk of
• Wear Proper Apparel—Loose-fitting or hanging garments
• Do Not Use Water or Flour on Grease Fires—Smother
• When heating fat or grease, watch it closely. Fat or
• Use Only Dry Potholders - Moist or damp pothoiders on
• Do Not Heat Unopened Food Containers - Buildup of
I stepping, leaning or sitting on the doors or
• Remove the oven door from any unused range if it is to
IMPORTANT—Do not attempt to operate the range during
a power failure. If the power fails, always turn off the range.
Do not store items of interest to children in
Ifthe range is not turned off and the power resumes, the range
will begin to operate again. Once the power resumes, reset the
clock and oven function.
Do not use the oven or warmer drawer (if
Never Use Your Appliance for Warming or
should not be stored in an oven, warmer drawer, near
surface units or in the storage drawer. This includes
paper, plasticand cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the range.
left alone or unattended in the area where appliance is
in use. They should never be allowed to sit or stand on any
part of the appliance.
UNITS, HEATING ELEMENTSORINTERIORSURFACES
OFTHE OVEN. Both surface units and oven heating elements
may be hot even though they are dark in color. Areas near
surface units may become hot enough tocause burns. During
and after use, do not touch, or let clothing or otherflammable
materials touch these areas until they have had sufficient time
to cool. Among these areas are the cook top, surfacesfacing
the cook top, the oven ventopeningsand surfaces nearthese
openings, oven doorand window.
should never be worn while using the appliance. Do not
let clothing or other flammable materials contact hot surfaces.
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
grease may catch fire if allowed to become too hot.
hot surfaces may result in burns from steam. Do not let
potholders touch hot heating elements. Do not use a towel or
other bulky cloth instead of a potholder.
pressure may cause container to burst and result in
injury.
be stored or discarded.
Page 4
importaot Safety instructions
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
• Know which knob controls each surface heating unit. Place a
pan of food on the unit before turning it on, and turn the unit off
before removing the pan.
• Use Proper Pan Size—This appiiance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also
improve efficiency.
• Utensil Handles Should Be Turned inward and Not Extend Over
Adjacent Surface Elements—To reduce the risk of burns, ignition
of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface
units.
• Never Leave Surface Elements Unattended at High Heat
Settings—Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may meit.
• Do Not Immerse or Soak Removable Heating Elements—
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
• Glazed Cooking Utensils—Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer’s
recommendations for cook top use.
• When flaming foods undera ventilating hood, turn the fan on.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer (if
equipped)—Stand to the side ofthe range when opening the door
of a hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped with
coil elements. The oven vent is located below the backguard for
models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use pothoiders and grasp the rack with
both hands to reposition. Do not let pothoiders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler pan and
its insert allow dripping fat to drain and be kept away from the high
heat of the broiler.
• Do not cover the broilerinsertwith aluminum foil. Exposed fat
and grease could ignite.
• Protective Liners—Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this Use & Care Manual. Before self cleaning the oven, remove the broiler
pan and any utensils or foods from the oven.
• Do Not Use Oven Cleaners—No commercial oven cleaner or oven liner protective coating of any kind should be used in or around
any part of the oven.
• Do Not Clean Door Gasket—The door gasket is essential fora good seal. Care should be taken not to rub, damage or move the gasket.
•The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another
well-ventilated room.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE
• Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area underneath each
surface element. Do not allow grease to accumulate.
• Kitchen cleaners and aerosols—Always follow the manufacturer’s recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing damage and injury.
• Clean Ventilating Hoods Frequently—Grease should not be allowed to accumulate on the hood or filter. Follow manufacturer’s
instructions for cleaning.
COIL COOK TOP MODELS
• Make Sure Reflector Pans or Drip Bowls Are in Place—Absence of these pans or bowls during cooking may subject wiring or
components underneath to damage.
• Protective Liners—Do not use aluminum foil to line surface unit drip bowls, or reflector pans. Only use aluminum foil as recommended
in this manual. Improper installation of these liners may result in risk of electric shock, or fire. Improper installation of these liners
may result in risk of electric shock, or fire.
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
Page 5
Protection Agreements
Acuerodes de protección
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore®
product is designed and manufactured tor years ot dependable operation.
But like all products, it may require preventive maintenance or repair from
time to time. That’s when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new
product. Here’s what the Agreement* includes:
И Parts and labor needed to help keep products operating properly
under normal use, not just defects. Our coverage goes well
beyond the product warranty. No deductibles, no functional tailure
excluded from coverage - real protection.
0 Expert service by a force of more than 10,000 authorized Sears
service technicians, which means someone you can trust will be
working on your product.
0 Unlimited service calls and nationwide service, as often as you
want us. whenever you want us.
0 “No-lemon” guarantee - replacement of your covered product It
four or more product failures occur within twelve months.
0 Product replacement if your covered product can’t be fixed.
0 Annual Preventive Maintenance Check at your request - no extra
charge.
0 Fast help by phone - we call it Rapid Resolution - phone support
from a Sears representative on all products. Think of us as a “talking
owner’s manual”.
0 Power surge protection against electrical damage due to power
fluctuations.
0 $250 Food Loss Protection annually for any food spoilage that is
the result of mechanical failure of any covered refrigerator or
freezer.
0 Rental reimbursement it repair of your covered product takes
longer than promised.
0 10% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes
for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel
for any reason during the product warranty period, we will provide a full
refund. Or, a prorated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
Information In the U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full details call
Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation ot home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A. or
Canada call 1-800-4-MY-HOME*.
Acuerdos maestros de protección
Enhorabuena por haber hecho una compra inteligente. Su nuevo
producto Kenmore®está diseñado y fabricado para brindarle años de
funcionamiento fiable. Pero, como cualquier producto, puede necesitar
mantenimiento preventivo o reparaciones periódicas. Es por eso que
tener un Acuerdo maestro de protección podría ahorrarle dinero y
molestias.
El Acuerdo maestro de protección también sirve para prolongar la
durabilidad de su nuevo producto. El acuerdo* incluye lo siguiente:
0 Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en
condiciones normales de uso, no sólo en caso de defectos de los
productos. Nuestra cobertura va mucho más allá que la garantía
del producto. No se aplican deducibles ni exclusiones por fallas del
funcionamiento: es decir, verdadera protección.
0 Servicio técnico por expertos (más de 10000 técnicos
autorizados de Sears), lo cual significa que quien repare o realice
el mantenimiento de su producto será un profesional de confianza.
0 Servicio técnico a escala nacional y número ilimitado de
llamadas de solicitud de servicio técnico: se puede poner en
contacto con nosotros cuantas veces lo desee y cuando lo desee.
0 Garantía “sin sorpresas”: se reemplaza el producto cubierto por el
acuerdo si ocurren cuatro o más fallas del producto en un periodo
de 12 meses.
0 Reemplazo del producto: en caso de que no se pueda reparar el
producto cubierto por el acuerdo.
0 Revisión anual preventiva de mantenimiento del producto:
puede solicitarla en cualquier momento, sin costo alguno.
0 Rápida asistencia telefónica, la cual denominamos Solución
rápida: es decir, asistencia teiefónica a través de cualquiera de
nuestros representantes de Sears, sobre cualquiera de nuestros
productos. Piense en nosotros como en un “manual parlante del
usuario”.
0 Protección contra fallas eléctricas, contra daños debidos a
fluctuaciones de la corriente eléctrica.
0 $250 al año para cubrir cualquier posible deterioro de
alimentos que haya tenido que desechar debido a una falla
mecánica de cualquiera de nuestros refrigeradores o congeladores
cubiertos por este acuerdo.
0 Devolución de gastos de alquiler de electrodomésticos si la
reparación de su producto asegurado toma más que el tiempo
prometido.
0 10% de descuento aplicable tanto a los costos del servicio de
reparación, como de las piezas instaladas relacionadas que no
hayan quedado cubiertos por este acuerdo.
Una vez que haya realizado el pago de este acuerdo, bastará una simple
llamada telefónica para concertar una visita de servicio. Puede llamar a
cualquier hora del día o de la noche, o bien concertar una visita de
servicio por Internet.
La adquisición del Acuerdo maestro de protección es una inversión
exenta de riesgos. Si por cualquier motivo decide cancelar dicho acuerdo
durante el periodo de garantía del producto, le haremos un reintegro total
del valor. O bien un importe proporcional si cancela el acuerdo en
cualquier otro momento posterior al vencimiento del periodo de garantía
del producto. ¡Adquiera hoy mismo su Acuerdo maestro de protección!
Algunas limitaciones y exclusiones podrían aplicarse. Para solicitar
precios e información adicional, llame al 1-800-827-6655 (en los
EE.UU.).
* La cobertura en Canadá varía en el caso de algunos artículos. Para
obtener detalles completos al respecto, llame al 1-800-361-6665 de
Sears de Canadá.
Servicio de instalación de Sears
Para solicitarla instalación por profesionales de Sears de
electrodomésticos, abridores de puertas de garaje, calentadores de agua
y otros artículos de uso prioritario en el hogar, llame al 1-800-4-MY-
HOME en los EE.UU. o Canadá.
Page 6
Range Features
Your Electric Range Features Include:

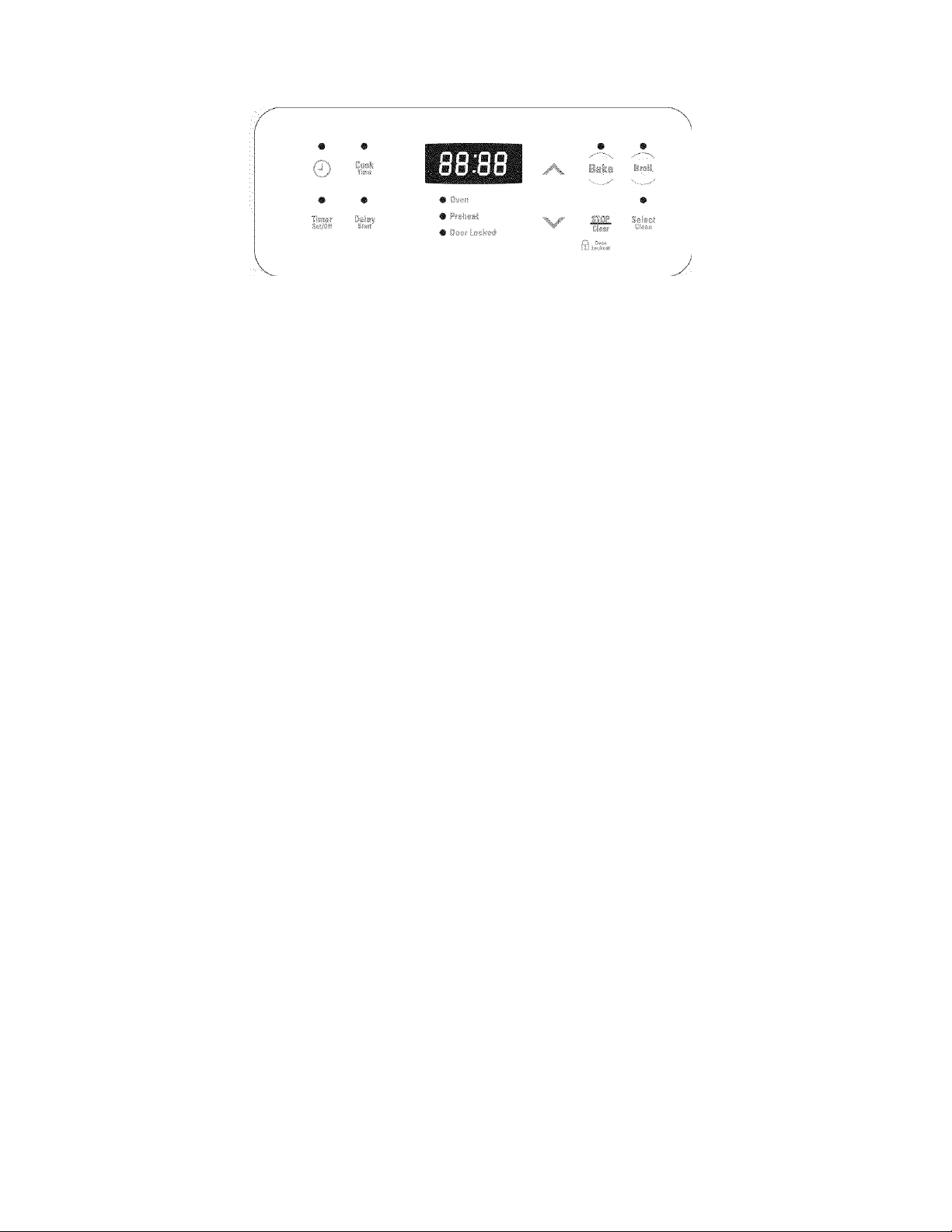

1. Electronic Oven Control with Kitchen Timer.
2. Single Element Control (some models) or
Simmer Select Element Control (some models).
3. Single Element Control.
4. Warm & Ready Drawer Control & Indicator Light (some
models).
5. Single Element Control.
6. Single Element Control.
7. Simmer Select Push Button & Indicator Light (some models).
8. “ELEMENT ON” Indicator Light.
9. “ELEMENT ON” Indicator Light.
10. Manual Oven Light Switch.
11. Interior Oven Light
12. Automatic Oven Door Light Switch (some models).
13. Self-Cleaning Oven interior.
14. Self-Clean Door Latch.
15. Adjustable Oven Rack(s).
16.
Large 1 piece Oven Door Handle.
17.
Full width Oven Door (style vary with model).
18.
Warm & Ready Drawer (some models), Storage Drawer with
Drawer Handle (some models) or lower cover panel (some
models).
19
Easy to clean upswept Cooktop.
20
Coil Element Cooktop.
21
6” Single Elements.
22
8” Single Elements.
23
Removable Element Drip Bowls.
24
Broil Pan (some models).
25
Broil Pan Insert (some models).
26
Leveling Legs and Anti-tip Bracket (included).
NOTE: The features ofyour range may
vary according to model type & color.
fpi:
'.24)
Page 7
Before Setting Oven Controls
Oven Vent Location
The oven vent is located under the left rear surface element (See
Fig. 1). When the oven is on, warm air passes through the vent. This
venting is necessary for proper air circulation in the oven and good
baking results. DO NOT BLOCK OVEN VENT.
Removing & Repiacing Oven Racks
To remove, pull the rackforward until it stops. Lift up front of rack a nd si id e
out. To replace, fit the rack onto the guides on the oven wails. Tilt the front
of the rack upward and slide the rack back into place.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL
(PRIOR TO OPERATING THE OVEN). Always use oven mitts when
using the oven.
For models with a visible Bake Element (Refer to Fig. 2)
ril ::
(4)
' V '
m3Æ
Oven with visible
Bake Element - Fig. ;
For models with a hidden Bake Element* (Refer to Fig. 3}
Food Rack Position Rack Position*
Broiling hamburgers & steaks 1 1
Broiling meats, chicken or fish 1, 2 or3 1, 2, or3
Cookies, cakes, pies, biscuits
& Muffins
Frozen pies, angel food cake,
yeast, bread, casseroles, small
cuts of meat or poultry
Turkey, roast or ham 6 7
3 or 4 3 or 4
5 or 6 6
Oven with hidden
Bake Element - Fig. 3*
Types of Oven Racks
Your range may be equipped with
one or more of the oven rack types
shown; Flat Rack, Handle Rack
and Offset Rack. To maximize
cooking space the Offset rack can be
used in the lowest rack position to
roast large cuts of meat and poultry.
Flat
Oven Rack
Handle
Oven Rack
Offset
Oven Rack
Baking Layer Cakes with 1 or 2 Oven Racks
For best results when baking cakes using 2 oven racks, place cookware on rack positions 2 & 5 as shown (for models with a
visible bake element). For models with a hidden bake element place oven racks in positions 3 (Flat rack) & 6 with the Offset rack
if equipped (Refer to Fig. 4).
For best results when using a single oven rack, place cookware on rack position 4 (for all models - Refer to Fig. 5).
Air Circulation in the Oven
For best air circulation and baking
results allow 2-4" (5-10 cm) around
the cookware for proper air circulation
and be sure pansand cookware do not
touch each other, the oven door, sides
or back of the oven cavity. The hot air
must be able to circulate around the |
pans and cookware in the oven for
even heat to reach around the food. FigT”"" ~~~ ^ ™ Fig. 5
Page 8
Before Setting Oven Controls (cont’d)
ELEMENT ON Indicator Lights
ELEMENT ON
Your range is equipped with surface control indicator lights that will glow on your
range—the ELEMENT ON Indicator lights. (See illustration at left).
The ELEMENT ON located on the control panel will glow when a surface element
is turned ON. A quick glance at these Indicator lights after cooking is an easy
check to be sure ALL surface controls are turned OFF.
Setting Surface Controls
To Operate Surface Elements (all models)
To Operate the Surface Elements:
ELEMENT ON RIGHT FRONT
i oo
1. Place cooking utensil on the surface element.
2. Push in and turn the surface control knob either direction to the desired
setting. Start most cooking operations on a higher setting and then turn to
a lower setting to finish cooking. The control knobs do not have to be set
exactly on a particular setting. Use the settings as a guide and adjust the
control knob as needed.
3. When cooking is completed, turn the surface element OFF before removing
the pan. Note: The surface “ELEMENT ON” indicator light(s) will glow
when one or more elements are turned on. A quick glance at these
indicator light(s) when cooking is finished is an easy check to be sure all
surface elements are turned off. See chart below for recommended control
settings for different types of foods.
The suggested settingsfound inthe tablebeloware based on cooking in medium-weight aluminum pans with lids. Settings may
vary when using other types of pans.
RECOMMENDED SETTINGS FORSURFACE ELEMENTS
Setting Type of Cooking
HIGH (HI-9) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (7-8) Continue a rapid boil, fry, deep fat fry
MEDIUM (5-6) Maintain a slow boil, thicken sauces and gravies, steam vegetables
MEDIUM LOW (2-4) Keep foods cooking, poach, stew
LOW(LO- 1) Keep warm, melt, simmer
RECOMMENDED SETTINGS FORSIMMERSELECTSURFACE ELEMENT
Max. Simmer (4) Larger quantities of food, stews and soups
Min. Simmer (LO) Smaller quanitites of food, delicate foods, melting chocolate or butter
Page 9
Setting Surface Controls (confd)
To Operate Simmer Select Surface Element (some models)
The left front element control may be used as a normal element or as a simmer
element. The “Simmer Select” feature heats the element at a much lower
temperature than when used as a normal surface element. You may switch between
normal cooking and the Simmer Select feature at any time during the cooking
process. When using the element control for normal cooking all of the settings on the
control knob (LO to HI) function as normal.
To Start Simmer Select:
1. Place correctly sized cookware on the surface element.
2. Push in the Simmer button located below the left front control knob. The Simmer
Select indicator light will glow and remain ON while simmering (See Fig. 1).
3. Turn the surface control knob to the desired simmer setting within the dark band
on the control knob (LO to 4). Use the marks as a guide and adjust the control
knob from LO to 4 as needed (See Recommended Settings for Simmer Select
Surface Elementen previous page).
4. To return to normal cooking, push in and release the “Simmer Select” button and
the indicator light will turn OFF. When cooking is complete, be sure to set the
control knob to the OFF position.
ACAUTION
holders or plastic wrappings on top of the range when it is in use. These items
could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too
close to the surface elements.
Do not place plastic items such as saltand pepper shakers, spoon
Simmer Select Surface Control
shown in LO setting
Fig. 1
rii
: :
CÔ
Page 10
Surface Cooking
Using proper cookware
The size and type of cookware used will influence the setting
needed for best cooking results. Cookware should have flat
bottoms that make good contact with the entire surface heating
element (See Fig. 1). Check for flatness by rotating a ruler across
the bottom of the cookware (See Fig. 2).
Cookware Material Types
The cookware material determines how evenly and quickly heat Is
transferred from the surface element to the pan bottom. The most
popular materials available are:
ALUMINUM - Excellent heat conductor. Some types of food will
cause it to darken (Anodized aluminum cookware resists staining
& pitting). If aluminum pans slide across the ceramic cooktop,
they may leave metal marks which will resemble scratches.
Remove these marks immediately.
COPPER - Excellent heat conductor but discolors easily. May
leave metal marks on ceramic glass (see Aluminum above).
STAINLESS STEEL - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
CAST IRON - A poor heat conductor however will retain heat very
well. Cooks evenly once cooking temperature is reached. Not
recommended for use on ceramic cooktops.
PORCELAIN-ENAMEL on METAL- Heating characteristics will
vary depending on base material. Porcelain-enamel coating must
be smooth to avoid scratching ceramic cooktops.
GLASS - Slow heat conductor. Not recommended for ceramic
cooktop surfaces because It may scratch the glass.
CORRECT
Flat bottom and straight
sides.
Tight fitting lids.
Weight of handle does not
tilt pan. Pan is well
balanced.
Pan sizes match the
amount of food to be
prepared and the size of
the surface element.
Made of a material that
conducts heat well.
Easy to clean.
Always match pot diameter
to surface element
diameter.
Be sure to follow the
recommendations for
using proper
cookware as
illustrated in Figs. 1 &
2. For more
information about the
ceramic cooktop see
“Cooktop Cleaning &
Maintenance” in the
General Care &
Cleaning section.
INCORRECT
Curved and warped pan
bottoms.
Pan overhangs element by
more than one-half inch.
Pan is smaller than
element.
Heavy handle tilts pan.
Fig. 1
Fig. 2
10
Page 11
Oven Control Functions
READTHEINSTRUCTIONSCAREFULLYBEFOREUSINGTHEOVEN. For satisfactoryuse ofyour oven, becomefamiliarwith
the various pad functions of the oven as described below.
CLOCK SET
PAD— Used
to set the
time of day
TIMER SET/OFF
PAD— Used to set
or cancel the minute
timer. The minute
timer does not start
or stop cooking.
Also,
TIMER SET/OFF pad
is used to set the
Continuous Bake
feature.
DELAY START PAD— Used
to set the desired start time
for baking & Self-Clean. May
be used with COOK TIME to
program a delayed bake
cycle.
COOK TIME
PAD— Used to
enter the length of
the baking time.
UP and DOWN ARROW PADS— Used aiong
with the function pads to seiect oven
temperature, cook time, start time (when
programming an automatic start time), time of
day, ciean time and minute timer.
• Otfssn
• Preheat
• Door Looked
OVEN, PREHEAT & DOOR LOCKED LIGHTS* —The "OVEN" light
will glow each time the oven turns on to maintain the set oven
temperature. The "PREHEAT" light will glow when the oven is first
set to operate, or if the desired temperature is reset higher than the
actual oven temperature. The
when the oven door locks and unlocks or when using the Self
Clean cycle or the oven door lockout is activated. The indicator light
will glow constantly after the door locks.
"DOOR LOCKED" light will flash
tar dsn, ClesH
ST9¡» Sata«
LiJ IfKkui:
BAKE PAD—Used
to seiect the bake
function.
FEATURE INDICATOR
LIGHTS— These light to
show which feature is in
use.
BROIL PAD— Used to
select the variable broil
function.
SELECTSELF-CLEAN
PAD— Used to select the
Self-Cleaning cycle. A 2,
3 or 4 hour Self-Clean
time may be selected.
STOP/CLEAR PAD—
Used to clear any
function previously
entered except the time
of day and minute timer.
Press STOP/CLEAR to
stop cooking. Also the
STOP/CLEAR pad is
used to activate oven
door lockout setting.
rn
*Note; The OVEN indicator light on the electronic display will turn ON and OFF when using the Bake feature and during
preheat This is normal and indicates that the oven is cycling to maintain the selected baking temperature. When the preheat indicator light turns OFF, your oven is ready.
..................
..........................................................................................
For a silent control panel
When choosing a function, a beep will be heard each time a pad is pressed. If desired, the control can be programmed for
silent operation. Press and hold (S). After 7 seconds, the control will beep once. This will block the controls from
sounding when a pad is pressed. To return the sound, press and hold (®) again for 7 seconds until the control beeps
once.
Note: The control will return to the audible mode after a power outage.
Temperature conversion
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be programmed
for any temperature from 170°F to 550°F (GS^C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Ciean mode):
1. Press "------------------" appears in the display.
2. Press and hold the >V until "FH" appears in the display.
3. Press and hold until °F or °C appears in the display.
4. Press the or 'V' to change °F to °C or °C to °F.
5. Press any control pad to return to normal operating mode.
11
Page 12
Setting Oven Controls
: ' . ^ ■ ;■. ■ . :
Note: The time of day must first be set in order to operate the oven.
.................
..............................................................................
To Set the Clock
When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash
"12:00".
1. Press (©) once (do not hold pad down).
2. Within 5 seconds, press and hold the or 'V until the correct time of day appears in the display.
Note; The clock cannot be changed during any timed bake or Self-Clean cycle.
To Set the Minute Timer:
1. Press (S) .
2. Press the y*v to increase the time in one minute increments. Press and hold the /\. to increase the time in 10
minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.
Note: If the pad is pressed first, the timer will advance to 11 hours and 59 minutes.
3. The display shows the timer countdown in minutes until 1 minute remains. Then the display will countdown in seconds.
4. When the set time has run out, the timer will beep 3 times and will continue to beep 3 times every 60 seconds until
© is pressed.
Note: The indicator light located above the (s) pad will glow while the minute timer is active.
Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when the set
time has run out. The minute timer can be used alone or during any of the other oven functions. When the minute timer is in
use with any other function, the minute timer will be shown in the display. To view other functions, press the pad for that
function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press and hold the or V' to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out: Press tei).
Note: To turn the time of day display OFF or ON in the display press and hold for 15 seconds (the control wili beep
once) and then release. This feature does not remove the set time of day from the memory of the control. When the display
is turned OFF the time of day will re-appear for a few seconds any time the pad is touched.
12
Page 13
Setting Oven Controls (cont’d)
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C).
To Set the Controls for Baking:
1. Press ^ . "
2. Within 5 seconds, press the yV or 'N/'. The display will show "350°F (177°C)." By pressing and holding the >V or
"V , the temperature can then be adjusted in 5°F increments (1 °C if the control is set to display Celsius).
3. As soon as the yV or 'V' pad is released, the oven will begin heating to the selected temperature. When the
displayed temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control
will beep 3 times.
4. To cancel baking, press (S).
-------------------
" appears in the display.
To Change the Oven Temperature after Baking has Started:
1. Press Bake and make sure the bake temperature is displayed.
2. Press the yv or'V' pad to increase or decrease the set temperature.
To Set Control for Continuous Bake or 12 Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more than
11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.
To set control for continuous baking:
n
r"
1. Press and hold (S) down for 5 seconds until tone is heard, "
The current time of day will return to the display.
2. To cancel the Continuous Bake function, press (™) and hold for 5 seconds until tone is heard. "12hr" will appear in
display indicating that the control has returned to the 12 Hour Energy Saving feature.
--------------------------
hr" will appear in display for continuous cooking.
To Set Control for Oven Lockout g Lockout
The control can be programmed to lock the oven door and lockout the oven control pads.
To set Control for Oven Lockout feature:
1. Press and hold for 3 seconds. “Loc” will appear in display, the “Door Locked” indicator light will flash and the
motor driven door lock will begin to close automatically. DO NOT open the oven door while the indicator light is
flashing. Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will
appear in the display.
2. To cancel the Oven Lockout feature, press and hold for 3 seconds. The control will unlock the oven door and
resume normal operation.
Note: If any control pad is pressed while in the Oven Lockout mode, “Loc” will appear in the display until the
control pad is released. V T 7 7: 7 7 7 7 7 7 7 7 7 7 7
13
Page 14
Setting Oven Controls (cont’d)
To Set the Timecl Bake and Delay Start Features
The COOK TIME and (^) DELAY START pads operate the features that will turn the oven ON and OFF at the times
you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to
begin baking at a later time with a delayed start time (Delay Start).
Note; During Timed Bake the preheat indicator lightwill not function.
.......................
...................................................
To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press Bak«, " .
4. Within 5 seconds, press the W or . The display will show "350°F (177°C)." By holding the yv or , the
temperature can then be adjusted in 5°F increments (1 °C if the control is set to display Celsius).
5. Press @. "0:00" will flash in the display (HR:MIN).
6. Press the W or 'V' until the desired baking time appears in the display.
7. The oven will turn ON and begin heating.
appears in the display.
To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Delayed Start Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press "
4. Within 5 seconds, press the W or . The display will show "350°F (177°C)." By holding the yV or 'V , the
-----------------------
temperature can then be adjusted in 5°F increments (1 °C if the control is set to display Celsius).
° " appears in the display.
5. Press @. "0:00" will flash in the display (HR:MIN).
6. Press the yV or 'V' until the desired baking time appears.
7. Press (^. The earliest possible start time will appear in the display.
8. Press the or "Sy until the desired start time appears in the display.
9. Once the controls are set, the control calculates the time when baking will stop in order to start at the time you have
set.
10. The oven will turn ON at the delayed start time and begin heating.
When the Set Bake Time Runs Out;
a. "END" will appear in the display window and the oven will shut-off automatically.
b. The control will beep 3 times every 60 seconds until (S) is pressed.
To Change the Oven Temperature or Bake Time after Baking has Started:
1. Press the function pad you want to change.
2. Press the yV or 'V to adjust the setting.
ikCAUTION
eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for
more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.
Use caution with the Timed Bake and Delayed Start features. Foods that can easily spoil such as milk,
14
Page 15
Setting Oven Controls (cont’d)
To Set for Broiling:
1. Arrange the oven rack while oven is still cool. Position the rack as
suggested in the Broil Rack Position Table below.
2. Press . "
3. Press and hold the or 'V' until the desired broil setting level appears in
the display. Press the y\ for Hi broil or the 'V for LO broil. Most foods
may be broiled at the HI broil setting. Select the LO broil setting to avoid
excess browning or drying of foods that should be cooked to the well-done
stage.
For optimum browning, preheat broil element for 3 - 4 minutes
4.
-----------------
"will appear in display.
before adding food.
Place the insert on the broil pan, then place the food on the insert (See
5.
Fig. 1; some models). DO NOT use the broil pan without the insert or cover
the insert with aluminum foil. The exposed fat could ignite.
Place the pan on the oven rack. Open the oven door to the broil stop
6.
position when broiling (See Fig 2).
Broil on one side until food is browned. Turn and broil food on 2nd side.
7.
Note: Always pull the oven rack out to the stop position before turning or
removing the food.
8. When broiling is finished, press (S).
Broil Rack Position Table (Refer to Fig. 3)
Rack Postion from Top Food category
Fig. 1
1st rack position Medium steaks & hamburgers
2nd rack position Fish, medium-well steaks & pork chops
3rd rack position Well-done foods such as chicken & lobster
Note: The broiler pan and the insert allows grease to drain and be kept away
from the high heat of the broiler. DO NOT use the pan without the insert (some
models). DO NOT cover the insert with foil; the exposed grease could ignite.
Acaution
OFF. If the fire continues, use a fire extinguisher. DO NOT put water or flour on
the fire. Flour may be explosive.
Should an oven fire occur, close the oven door and turn the oven
Fig. 3
15
Page 16
Setting Oven Controls (cont’d)
To Operate the Oven Light
The interior oven light will automatically turn ON when the oven door is opened. Press
the Oven Light Switch located on the upper left control panel to turn the interior oven light
ON and OFF whenever the oven door is closed.
The interior oven light is located at the upper left rear wall of the oven interior and is
covered with a glass shield held by a wire holder. The glass shield must be in place
whenever the oven isin use. T o change the interior oven light, see "Changing the Oven
Light" in the General Care & Cleaning section.
Setting Warmer Drawer Controls
Arranging Warmer Drawer {Warm & Ready™ Drawer) Rack Positions (some models)
Note: Use the warmer drawer to keep hot foods hot such as: vegetables, gravies, meats, casseroles, biscuitsand rolls, pastries
and heated dinner plates.
The rack can be used in 2 ways:
• In the upright position to allow low profile food items to be placed both under and on top of the rack (for example, rolls
or biscuits on top of the rack and a casserole dish under - See Fig. 1 ).
• In the downward position to allow you to place light weight food items and empty dishware (for example, roils or
pastries and dinner plates - See Fig. 2).
The warmer drawer is equipped with a catch which may require extra force when opening and closing the drawer.
To Operate the Warmer {Warm &
Ready™) Drawer
Always start with hot food. It is not recommended to
heat cold food in the warmer drawer.
All food placed in the warmer drawer should be
covered with a lid or aluminum foil to maintain
quality. Do not use plastic wrap to cover food.
Plastic may melt onto the drawer and be very
difficult to clean.
Use only dishes, utensils and cookware
recommended for oven use in the warmer drawer.
^CAUTION
when removing food from the warmer drawer as
cookware and plates will be FIOT.
Always use pot holders or oven mitts
WARMER DRAWER
Fig. 3
16
Page 17
Setting Warmer Drawer Controls (cont’d)
Warmer Drawer Recommended
Food Settings Table
Food Item Setting
Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI
Pizza HI
Gravies MED
Casseroles MED
Eggs MED
Roasts (Beef, Pork, Lamb) MED
Vegetables MED
Biscuits MED
Rolls, hard MED
Pastries MED
Rolls (soft) LO
Empty Dinner Plates LO
Puli up with finge.
To Set the Warmer (Warm & Ready™) Drawer Thermostat
Control (some models)
The thermostat control is used to select the temperature of the warmer drawer.
It is located on the control panel (See Fig. 3 on previous page). To set the
thermostat, push in and turn the knob to the desired setting. The temperatures
are approximate, and are designated by HI, MED and LO.
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty drawer
will preheat in approximately 15 minutes.
3. Turn the thermostat control to OFF after use.
Warmer (Warm & Ready™) Drawer Temperature Selection
(some models)
Refer to the table in the side column for recommended settings. If a particular
food is not listed, start with the medium setting. If more crispness is desired,
remove the lid oraluminum foil.
Most foods can be kept at serving temperatures by using the medium setting.
When a combination of foods are to be kept warm (for instance, a meat with 2
vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of heat
from the drawer.
Remove shield on right
glide. Pull up on left lever
while pushing down on
right lever.
Push down with finge
Right Glide
Fig. 1
Fig. 2
Warmer(Wanm & Ready™) Drawer IndicatorLight (some models)
The indicator light is located above the Warmer Drawer thermostat control. It
turns on when the control is set, and stays on until the control is turned OFF.
The warmer drawer is inoperable during the Self-Clean cycle. The indicator light
will not come on during the Self-Clean cycle.
To Remove and Replace Warmer (Warm & Ready™) Drawer
(some models)
To Remove Warmer Drawer:
^CAUTION
2. Open the drawer to the fully opened position.
3. On the right glide you will find a shield attached with a hex-head screw (see
figure 1). Using a 1/4" socket and ratchet remove the shield.
4. Locate glide lever on each side of drawer, pull upon the left glide lever and push
down on the rightglide lever.
5. Pull the drawer away from the range.
To Replace Warmer Drawer:
1. Replace shield on the right glide of the drawer body.
2. Pull the bearing glides to the front of the chassis glide (see figure 2).
3. Align the glide on each side of the drawer with the glide slots on the range.
4. Push the drawer into the range until levers “click” (approximately 2”). Pull the
drawer open again to seat bearing glides into position. If you do not hearthe
levers “click” or the bearing glides do not feel seated remove the
drawer and repeat steps 2-4. This will minimize possible damage to the
bearingglides.
Turn power OFF before removing the warmer drawer.
NOTE: The warmer drawer will NOT
operate while inthe Self-Clean and ‘Oven
Lockout” modes
A WARNING
serious injury or death. Disconnect appliance from electric power
before cleaning and servicing the warmer drawer.
Electrical Shock Hazard can occur and result in
17
Page 18
Seif“Cieaning
i^CAUTION
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
^CAUTION
is extremely sensitive to the fumes given
off during the Self-Cleaning cycle ofany
range. Move birds to another wellventilated room.
ikCAUTION
walls, racks, bottom or any other part of
the range with aluminum foil. Doing so
will destroy heat distribution, produce
poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
ikCAUTION
door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Seif-Cleaning cycle is completed. The
oven may still be VERY HOT.
Note: See additional cleaning information
for the oven door in the General Care &
During the Self-Cleaning
The health of some birds
DO NOT line the oven
DO NOT force the oven
Cleaning section.
©
Iwm
%(Aim
B8'68
I Pr&hiiiit
I Sser Urcked
Smil.
Semm
CAs-211
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions;
• DO NOT use oven cleaners or oven protective coatings in or around any
partofthe Self-Cleaning oven.
• DO NOT clean the oven door gasket. The woven material of the oven door
gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.
• DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
• Remove the broiler pan and insert, ail utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
• Remove oven racks. If they are not removed during the Self-Clean cycle
their color will turn slightly blue and the finish will be dull. After the cycle is
complete and the oven has cooled, rub the sides of the oven racks with
wax paper or a cloth containing a small amount of salad oil (this will make
the racks glide easier into the rack position).
• Remove any excessive spillovers in the oven cavity before starting the
Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke orfire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruitjuices or pie filling) to remain on
the surface as they may leave a dull spot even after cleaning.
• Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven
bottom should be removed.
Some models have an exposed Bake element in the lower oven cavity. On
these models the bake element is designed to be tilted up using your hand
from the front of the bake element. This will allow easier access to the oven
bottom for cleaning. Be careful not to raise the element more than 4 or 5 inches
from the resting position.
ACAUTION
they have been turned OFF. The elements may still be hot and burns may occur
if these elements are touched before they have cooled sufficiently.
I The oven bakeand broil elements may appear to havecooled after
18
Page 19
Self-Cleaning (cont’d)
starting the Select Self-Clean Cycle or a Delayed Start Self-Clean Cycle
For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle for
heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood
during the 1 st Self-Clean cycle. This will help eliminate the normal odors associated with the 1 st Self-Clean cycle.
To Set the Controls for a Self-Clean Cycle or a Delayed Start Self-Clean Cycle:
(Note: If you do not want to start a Delayed Self-Clean Cycle, skips steps 2 & 3.)
1. Be sure the clock shows the correct time of day.
2. Press (^. The " : " in the time of day will flash.
3. Press and hold the W pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the
desired time is displayed.
4. Press (^). "-------------------" appears in the display.
5. Press the W or once. "3:00" appears in the display for a 3 hour cycle. To change to a 2 hour cycle press 'V'.
"2:00" appears in the display or to select a 4 hour cycle press W . "4:00" appears in the display.
As soon as the controls are set, the motor driven lock will begin to close automatically and the “LOCK” indicator light
will flash. DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the oven door to lock).
6. "CLn" will appear in the display during the Self-Clean cycle and the "LOCK" light will glow until the Self-Cleaning cycle
is complete or cancelled and the oven temperature has cooled.
When the Self-Clean Cycle is Completed:
1. The time of day or "End" will appear in the display window and the “Clean” and "LOCK" light will continue to glow.
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be opened.
3. If “End” is in the display and the Select Clean indicator light remains ON, press (®). The time of day will appear in the
display.
NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.
Stopping or Interrupting a Select Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a Self-Cleaning cycle:
1. Press (S).
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be opened.
3. Restart the Self-Clean cycle once all conditions have been corrected.
^CAUTION
the oven when opening the door to allow hot air or steam to escape.
I To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the side of
ikCAUTION
possible burns when opening the door after the Self-Cleaning cycle has completed. The oven may still be VERY HOT.
DO NOT force the oven door open. This can damage the automatic door locking system. Use caution and avoid
19
Page 20
General Care & Cleaning
Cleaning Table
Surfaces
How to Clean
Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted and Plastic Control Knobs,
Body Parts, and Decorative Trim
Stainless Steel, Chrome Control Panel,
Decorative Trim
For general cleaning, use hot, soapy water and a cloth. For more difficult soils and
built-up grease, applya liquid detergent directly onto the soil. Leave on soil for 30
to 60 minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners
on anyofthese materials; they can scratch. To remove control knobs, turn to the
OFF position; grasp firmly and pull straight off the shaft. To replace knobs after
cleaning, line up the flat sides of both the knob and the shaft; then push the knob
into place.
Before cleaning the control panel, turnall controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean using hot, soapy
water and a dishcloth. Rinse with a clean water using a dishcloth. Be sure to
squeeze excess water from the cloth before wiping the panel; especially when
wiping around the controls. Excess water in or around the controls may cause
damage to the appliance.To replace knobs after cleaning, line uptheflat sides of
both the knob and the shaft; then push the knob into place.
Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean
water and a cloth. Do not use cleaners with high concentrations of chlorides
or chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners
that are especially made for cleaning stainless steel. Always be sure to rinse the
cleaners from the surface as bluish stains may occur during heating that cannot
be removed.
Porcelain Enamel Broiler Pan and
Insert, Door Liner, Body Parts, Wanner
Drawer (some models)
Porcelain
Coated
Oven
Racks
Oven door
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a
1:1 solution ofclearwaterand ammonia, if necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean waterand a
damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with
a clean cloth. Remove all cleaners orthe porcelain may become damaged during
future heating. DO NOT use spray oven cleaners on the cooktop.
Porcelain coated Oven Racks may be left in the oven during the Self-Clean cycle.
Iffurthercleaning is required, remove the racks after the oven has cooled & clean
using a mild non-abrasive cleanerfollowing manufacturer's instructions. Rinse with
clean waterand let dry. After the Self-Clean cycleisdone and the oven has cooled,
rub the sides of the oven racks with wax paper or a cloth containing a small amount
of vegetable oil. This will make the racks glide easierintothe oven rack positions.
Use soap &waterto thoroughly clean the top, sides and front of theoven door. Rinse
well. You may use a glass cleaner on the outside glass of the oven door. DO NOT
immerse the door in water. DO NOT spray or allow water or the glass cleaner
to enter the door vents, DO NOT use oven cleaners, cleaning powders or any
harsh abrasive cleaning materials on the outside of the oven door.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on Self-Cleaning models, which is essential for a good seal. Care should
be taken not to rub, damage or remove this gasket.
Ceramic Cooktop
See Cooktop Cleaning and Maintenance in the General Care & Cleaning section.
20
Page 21
Generai Care & Cleaning (cont’d)
Surface Elements and Drip Bowls
Surface elements can be unplugged and removed to make cleaning the drip pans easier. The surface elements clean
themselves when they are turned on. Food spilled on a hot element will burn off. Food spilled on a cool element may be
cleaned with a damp cloth—any remaining soil will burn off the next time the element is used.
Hold
Down
dtp
(if equipped)
Aijow Element
Support to rest
on drip pan
inside rim.
Terminal End
^CAUTION
before removing elements or drip bowls. Be
careful not to bend terminal ends when
replacing elements after cleaning.
ikCAUTION
range top, grasp the sideswith finger-tips
only. Be careful not to pinch fingers. DO
Be sure the range is cool
I
When lowering the lift-up
NOT drop or bend the range top when
raising or lowering. This could damage
the surface.
ià CAUTION
Never immerse a surface element in water.
To Remove the Surface Elements and Drip Bowls
1. Lift the edge of the drip bowl across from the terminal end. Lift the surface
element and drip bowl together just enough to clear the cooktop.
2. While holding the drip bowl and surface element, gently pull the terminal
end out from the terminal plug. If equipped, DO NOT remove the hold down
clip from the drip bowl.
To Clean Drip Bowls
Wash in hot, soapy water or in the dishwasher. Rinse and dry while still warm.
Hard to remove, burned on soil can be removed by soaking the drip bowls for
about 20 minutes in a lightly diluted liquid cleanser or a solution of ammonia
and water (1/2 cup ammonia to 1 gallon of water). A nylon scrubber may be
used after soaking. DO NOT use abrasive cleaners or steel wool, as they will
scratch the surface. Always rinse with clean water and polish dry with a soft
cloth.
To Replace Drip Bowls and Surface Elements
1. Slide the terminal end on the element through the opening in the drip bowl.
2. Align the element support to rest on the rim inside the drip bowl. If your drip
bowl is equipped with a hold down clip, align the element support opposite
the terminal end with the slot in the hold down clip, and snap into place.
3. After the element is positioned in the drip bowl, line up the terminal end
with the terminal plug as shown.
4. Hold the surface element and drip bowl together as level as possible and
firmly push the terminal end into the terminal plug. Make sure element
terminal is seated properly into terminal plug. Make sure the surface
element is level to reduce the hazard of pans sliding off the element.
To Raise the Top for Cleaning
1. Grasp the sides and lift from the front. Lift-up rods will support the top in a
raised position. Only lift the top far enough to allow the support rods to
snap into place.
2. Clean underneath using a clean cloth and hot, soapy water.
3. To lower the top, gently push back on each rod to release the notched
support. Hold the range top and slide the lift rods down into the range
frame.
21
Page 22
General Care & Cleaning
Removing and Replacing the Lift-Off Oven Door
Fig. 2
i^CAUTION
the inside of the door facing down.
The door is heavy. For safe, temporary storage, lay the door flat with
To Remove Oven Door:
1.
Open oven door completely (horizontal with floor - See Fig. 1).
2.
Pull the door hinge locks on both left and right door hinges down from the oven
frame completely towards the oven door (See Fig. 2). A tool such as a small
flat-blade screwdriver maybe required.
3.
Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
Close the door to the broil stop position (the oven door will stop into this
position just before fully closing).
5.
With the oven door in the broil stop position, lift the oven door hinge arms over
the roller pins located on each side of the oven frame (See Fig. 4).
To
Replace Oven Door:
1.
Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
Holding the oven door at the same angle as the removal position, seat the
hook of the hinge arm over the roller pins located on each side of the oven
door frame (See Fig. 4). The hook of the hinge arms must be fully seated onto
the roller pins.
3.
Fully open the oven door (horizontal with floor - See Fig. 1).
4.
Push the door hinge locks up towards and into the oven frame on both left and
right oven door hinges (See Fig. 2) to the locked position.
5.
Close theoven door.
Fig. 4
Special Door Care Instructions
Most oven doors contain glass that can break. Read the following
recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
22
Page 23
Generai Саге & Cleaning
Changing the Oven Light
The oven light automatically turns ON when the door Is opened. The oven light
may also be manually operated by pressing the Oven Light switch located on
the upper left control panel.
The oven light bulb is located at the rear of the oven and is covered with a glass
shield held by a wire holder. The glass shield must be in place whenever the
oven is in use.
To replace the oven light bulb:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back in).
6. The clock will then need to be reset. To reset, see Setting the Clock and
Minute Timer in this Use & Care Guide.
CAUTION
replacing oven light. Wear a leather-faced glove for protection against possible I
broken glass.
Care and Cleaning of Stainless Steel (some models)
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the f|*
appearance of stainless parts. Refer to the Care & Cleaning table for detailed cleaning instructions.
Be sure the range is unplugged and all parts are COOL before
г
Adjusting the Oven Temperature
Youroven control has been precisely setatthefactory. This setting may differ from your previous oven however, so your recipe
times may not give you the results you expect. If you think that the oven is cooking too hot or too cool for your recipe times,
you can adjust the control so that the oven cooks hotter or cooler than the temperature displayed.
To Adjust Oven Temperature:
1. Press Bake ,
2. Set the temperature to 550°F (287°C) by pressing and holding the .
3. Within 2 seconds, press and hold ^ until the 2 digitdisplayappears. Release The display now indicates the amount
of degrees offset between the original factory temperature setting and the current temperature setting. If the oven control
has the original factory calibration, the display will read "0."
4. The temperature can now be adjusted up or down 35°F (17°C), in 5°F steps by pressing and holding the W or "V^ , Adjust
until the desired amount of offset appears in the display. When lowering the oven temperature, a minus sign (-} will appear
before the number to indicate that the oven will be cooler by the displayed amount of degrees.
5. When you have made the desired adjustment, press (ffi) to go back to the time of day display.
Note: Oven temperature adjustments made will not change the Self-Cleaning feature temperature.
23
Page 24
Before You Call
Solutions to Common Problems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in this appliance.
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Range Is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the oven rack is level.
Be sure floor is level and is strong and stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are
square and have sufficient room for range clearance.
Cannot move appliance easily. Appliance
must be accessible for service.
Oven control beepsand displaysany F code
error (for example F11).
Surface elementtoo hot or not hot enough. Incorrect control setting. Make sure the correct control is on for the element to be used.
Surface element does not heat. Lightweight orwarped pans used. Useonlyfiat, evenly balanced, medium or heavyweight
Entire appliance does not operate. Make sure cord/plug is plugged correctly into outlet.
Cabinets not square or are built in too tightly. Contact builder or installer to make
appliance accessible.
Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.
Electronic control has detected a fault condition. Press STOP/CLEARto clearthe display
and stop beeping. Reprogram oven. If fault recurs, record fault number. Press STOP/
CLEAR and call 1-800-4-MY-HOME® for assistance (See back cover).
cookware. Flat pans heat better than warped pans. Cookware materials and weight of
the material affect heating. Heavy and medium-weight pans heat evenly. Because
lightweight pans heat unevenly, foods may burn easily.
No power to the appliance. Check steps under "Entire Appliance Does Not Operate" in
this Before You Call checklist.
Incorrect control setting. Make sure the correct control is set for the surface element to
be used.
Service wiring Is not complete. Call 1-800-4-MY-HOME® for assistance (See back
cover).
Power outage. Check house lights to be sure. Call your local electric company for
service.
24
Page 25
Before You Call
Solutions to Common Problems
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Oven light does network.
Oven smokes excessively during broiling.
Poor baking results.
Self-Cleaning cycle does not work.
Soil not completely removed after Self
Cleaning cycle.
Flames inside oven or smoking from vent.
Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide.
Control(s) not set properly. Follow instructions under Setting Oven Controls.
Make sure oven door is opened to broil stop position.
Meat too close to the element. Reposition the rack to provide proper clearance between
the meat and the element. Preheat broil element for searing.
Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges
to prevent curling, but do not cut into lean.
Insert on broiler pan wrong side up and grease not draining. Always place grid on the
broiler pan with ribs up and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive smoking.
Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to
the set temperature before placing food in the oven. Try adjusting the recipe's
recommended temperature or baking time, if you feel the oven is too hot or cool, see
Adjusting Your Oven Temperature in this Use & Care Guide.
Control(s) not set properly. Follow instructions under Self-Cleaning.
Self-Cleaning cycle was interrupted. Follow steps under "Stopping or Interrupting a Self
Cleaning Cycle" under Self-Cleaning.
Failure to clean bottom, front top of oven, frame of oven or door area outside oven seal.
These areas are not in the seif-cleaning area, but get hot enough to burn on residue.
Clean these areas before the self-cleaning cycle is started. Burned-on residue can be
cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage
the oven gasket.
Excessive spillovers in oven. Set Self-Clean cycle for a longer cleaning time.
Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie
spillovers or large amounts of grease on bottom of oven. Wipe up excessive spillovers
before starting cycle. If flames or excessive smoke are present, stop the self-clean cycle
and follow steps under "Stopping or Interrupting a Seif-Cleaning Cycle" in the
Self
Cleaning section.
Drip bowlsarepittingorrusting (Coil cooktop
modelsonly).
Drip bowls turning color or distorted (Coil
cooktop modelsonly).
Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause
corrosion. Remove and wash drip bowls as soon as possible after a spillover
Normal environment. Houses along sea coast are exposed to salt air. Protect bowls
as much as possible from direct exposure to salt air.
Bottom surface of cookware extends beyond surface elements and touches cooktop
surface. This can cause high enough temperatures to discolor the drip bowls. DO MOT
use cookware of this type. Pan sizes should be matched to the size of the element.
Replacement drip bowls may be purchased from your dealer.
25
Page 26
Your Home
For repair - in your home - of ail major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1 -800-4-iV!Y-HOME® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.comwww.sears.ca
For expert home solutions advice: www.managemyhome.com
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Service Center
1 “800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
Call anytime, day or night
www.sears.comwww.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361 -6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR®
(1-888-784-6427)
® Registered Trademark / Trademark / Service Mark of Sears Brands, LLC
® Marca Registrada / ™ Marca de Fábrica / Marca de Servicio de Sears Brands, LLC
Marque de commerce / ** Marque déposée de Sears Brands, LLC
Au Canada pour service en français:
1-800-LE-FOYER^^
(1-800-533-6937)
www.sears.ca
) Sears Brands, LLC
Loading...
