Use & Care Guide
Guía de uso y cuidada
English / Español
Model/Modelos: 790. 9021*
Ken more
P/N 316902006 Rev A
Sears Brands Management Corporation
Hoffman Estates, II 60179 US.A.
wv/v/.ken more.com
www.sears.com
Page 2
Table of Contents
Appliance Warranty......................................................................................... 2
Important Safety Instructions
Product Record/Serial Plate Location..............................................................6
Before Setting Oven Controls...........................................................................7
Removing, replacing and arranging oven racks
Before Setting Surface Controls
Using proper cookware................................................................................8
Cookware material types
Home canning..............................................................................................9
Setting Surface Controls.................................................................................10
Surface element settings
Oven Control Features...................................................................................11
Setting Oven Controls.............................................................................. 11-15
Setting Clock..............................................................................................11
Changing oven temperature display (F° or C°)
......................................................................
..........................................
..................................................................
.............................................................................
...........................................................................
.........................................
3-6
8-9
10
12
7
9
Setting Timer..............................................................................................12
Oven Lockout.............................................................................................13
Setting Bake...............................................................................................13
Broil............................................................................................................14
Adjusting Oven Temperature.....................................................................15
Select Clean .............................................................................................16-17
Care & Cleaning........................................................................................18-22
Cleaning recommendation table................................................................18
General cleaning........................................................................................19
Surface elements and drip bowls...............................................................20
Replacing oven light..................................................................................21
Removing and replacing lift-off oven door.................................................22
Before You Call - Solutions to common problems....................................23-25
Master Protection Agreement.........................................................................27
Sears Service
.................................................................................
Kenmore Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due
to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange
for free repair. This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other
than private family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all
instructions supplied with the product.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied
with the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
back cover
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or conseguential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of
implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8
All rights reserved. Printed in the USA.
Page 3
important Safety instructions
Read all instructions before using this appliance.
This manual contains important safety symbols and
instructions. Please pay attention to these symbols and
follow all instructions given.
Definitions
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or
death.
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a
WARNING or CAUTION statement based on the risk type.
iiWARNING
situation which, if not avoided, may result in death or
serious injury.
ii CAUTION
situation which, if not avoided, may result in minor or
moderate injury.
indicates a potentially hazardous
- indicates a potentially hazardous
* •
A WARNING
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with
range.
• See Installation Instructions.
To reduce the risk of tipping, the range
must be secured by properly installed
anti-tip bracket provided with the
range. To check if the bracket is
installed properly, visually check that
rear leveling leg is inserted into and
fully secured by the anti-tip bracket by
removing lower front panel or storage
drawer from the range.
For models equipped with a warmer drawer or lower oven,
grasp the top rear edge of the range and carefully attempt
to tilt it forward. Refer to the installation instructions for
proper anti- tip bracket installation.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging
material.
• Proper installation—Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/
NFPA No. 70 latest edition and local electrical code
requirements. Install only per installation instructions
provided in the literature package for this range.
• User servicing—Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician. This may reduce the risk of personal
injury and damage to the range.
Ask your dealer to recommend a qualified technician and
an authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in
case of an emergency.
• Never modify or alter the construction of a range by
removing the leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the range.
• Remove the oven door from any unused range if it is to
be stored or discarded.
• Do not attempt to operate the range during o power
failure. If the power fails, always turn off the range. If
the range is not turned off and the power resumes, the
range will begin to operate again. Once the power
resumes, reset the clock and oven function.
Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries and also
cause damage to the appliance. DO NOT allow children
to climb or play around the range. The weight of a child on
an open oven door may cause the range to tip, resulting in
serious burns or other injury.
ii WARNING
materials should not be stored in an oven, near surface
units or in the storage drawer, warmer drawer or lower
oven. This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol cans, on or
near the range.
Storage in or on appliance — flammable
Save these instructions for future reference.
Page 4
important Safety instructions
I
 WARNING
the oven bottom or cover an entire oven rack with materials
such as aluminum foil. Aluminum foil linings may trap heat,
causing o fire hazard.
iiWARNING
children should not be left alone or unattended in the
area where appliance is in use. They should never be
allowed to sit or stand on any part of the appliance,
including the storage drawer, lower broiler drawer, warmer
drawer or lower double oven.
NEVER cover any slots, holes or passages in
DO NOT LEAVE CHILDREN ALONE —
ik CAUTION
buildup of pressure may cause container to burst and
result in injury.
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement
Act reguires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and reguires businesses
to warn customers of potential exposure to such substances.
Do not heat unopened food containers —
A CAUTION
the cabinets above a range or on the backguard of the
range. Children climbing on the range to reach items
could be seriously injured.
ik CAUTION
UNITS, OR SURFACE COOKING ELEMENTS, AREAS
NEAR THESE SURFACE HEATING UNITS, OR INTERIOR
SURFACE OF THE OVEN. Both surface heating and oven
heating elements may be hot even though they are dark in
color. Areas near surface cooking units may become hot
enough to cause burns. During and after use, do not touch,
or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool. Among
these areas are the cook top, surfaces facing the cook top,
the oven vent openings and surfaces near these openings,
oven door and oven door window.
ik CAUTION
hanging garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
ik CAUTION
fires — smother the fire with a pan lid, or use baking
soda, o dry chemical or foam-type extinguisher.
ik CAUTION
closely. Fat or grease may catch fire if allowed to become
too hot.
I Do not store items of interest to children in
I DO NOT TOUCH SURFACE HEATING
I Wear proper apparel — loose-fitting or
I
DO NOT USE WATER OR FLOUR on grease
I When heating fat or grease, watch it
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
Protective Liners — DO NOT USE
ALUMINUM FOIL to line the oven bottom. Only use
aluminum foil as recommended in this manual. Improper
installation of these liners may result in risk of electric
shock, or fire.
• Use care when opening oven door, warmer drawer or
lower oven door — Stand to the side of the range when
opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven.
• Keep oven vent ducts unobstructed. The oven vent is
located below the backguard. Touching the surfaces in
this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or
ignite.
• Placement of interior oven racks. Always place oven
racks in desired location while oven is cool. If rack must
be moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler
pan and its insert allow dripping fat to drain and be kept
away from the high heat of the broiler.
j
ik CAUTION
potholders on hot surfaces may result in burns from
steam. Do not let potholders touch hot heating elements.
Do not use a towel or other bulky cloth instead of a
potholder.
Use dry potholders — moist or damp
Save these instructions for future reference.
• Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
Page 5
important Safety instructions
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
• Know which knob controls each surface heating unit.
Place a pan of food on the surface element unit before
turning it on, and turn the element off before removing
the pan.
• Use proper pan size — This appliance is equipped with
one or more surface units of different sizes. Select
utensils having flat bottoms large enough to cover the
surface unit heating element. The use of undersized
utensils will expose a portion of the heating element to
direct contact and may result in ignition of clothing.
Proper relationship of utensil to element will also improve
efficiency.
• Utensil handles should be turned inward and not extend
over adjacent surface elements — To reduce the risk of
burns, ignition of flammable materials, and spillage due
to unintentional contact with the utensil, the handle of the
utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface units.
COIL COOK TOP MODELS
ii CAUTION
foil to line surface unit drip bowls, or reflector pans. Only
use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of
electric shock, or fire.
• Make sure reflector pans or drip bowls are in place —
Absence of these pans or bowls during cooking may
subject wiring or components underneath to damage.
Protective liners — Do not use aluminum
• Never leave surface elements unattended at high heat
settings — Boilovers cause smoking and greasy spillovers
that may ignite, or a pan that has boiled dry may melt.
• Glazed cooking utensils — Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without
breaking due to the sudden change in temperature.
Check the manufacturer’s recommendations for cook top
•
use.
• When flaming foods under a ventilating hood, turn the
fan on.
Save these instructions for future reference.
Page 6
important Safety instructions
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
Ak CAUTION
range, be sure all controls are turned OFF and the range is
COOL. The range may be hot and can cause burns.
• Clean the range regularly to keep all parts free of
grease that could catch fire. Pay particular attention to
the area around each surface element. Do not allow
grease to accumulate.
• Kitchen cleaners and aerosols — Always follow the
manufacturer’s recommended directions for use. Be
aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
• Clean ventilating hoods frequently — Grease should not
be allowed to accumulate on the hood or filter. Follow
the manufacturer’s instructions for cleaning hoods.
Before manually cleaning any part of the
Product Record
In this space below, record the date of purchase, model
and serial number of your product. You will find the model
and serial number printed on an identification plate.
bottom of this page for serial plate location.
Model No.
Serial No.
Date of Purchase
Save sales receipt for future reference.
790.
See
Serial Plate Location
To locate the serial plate open the storage drawer. The
serial plate is attached to the lower right oven frame.
Save these instructions for future reference.
Page 7
Before Setting Oven Controls
Oven vent location
The oven vent is located under the left rear surface
element (See Fig. 1). When the oven is on, warm air passes
through this vent. This venting is necessary for proper air
circulation in the oven and good baking results. Do not
block oven vent.
Removing, replacing and arranging racks
ii CAUTION
using the oven. When cooking, the oven interior and
exterior, oven racks and cooktop will become very hot
which can cause burns.
ifWroiilMrfcl Protective Liners — DO NOT USE
ALUMINUM FOIL to line the oven bottom. Only use
aluminum foil as recommended in this manual. Improper
installation of these liners may result in risk of electric
shock, or fire.
Arranging - always arrange
the oven racks when the oven
is cool (prior to operating th(.
oven).
I Always use pot holders or oven mitts when
Types of oven racks
flat handle
oven rack
flat
oven rack
offset
oven rack
The flat oven rack or flat handle oven rack (on some
models) may be used for most cooking needs.
The offset oven rack (on some models) will place the base
of the rack about 1/2 of a rack position lower than a flat
oven rack. This feature provides several additional possible
oven rack positions.
Air circulation in the oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or
back of the oven cavity. Flot air must be able to circulate
around the pans and cookware in the oven for even heat to
reach around the food.
To remove - pull the rack
forward until it stops. Lift up
front of rack and slide out.
To replace - fit oven rack
onto the rack guides on both
sides of oven walls. Tilt the
front of oven rack upward
and slide the rack back into
place. Be sure oven racks an.
level before using. p.^ 2
Recommended oven rack positions by food type:
Food type Position
Broiling See broil
Cookies, cakes, pies, biscuits & muffins 4 or 5
Frozen pies, angel food cake, yeast, bread
and casseroles 2 or 3
Small cuts of meat or poultry 1 or 2
Turkey, roast or ham 1 or 2
Baking layer cakes with 1 or 2 oven racks
For best results when baking cakes or cookies using 2 oven
racks, place cookware on rack positions 2 and 5 (6 using
the offset oven rack on some models). For best results when
baking cakes or cookies using a single oven rack, place
cookware on rack in positions 2, 3 or 4 (See Fig. 2).
7
Page 8
Before Setting Surface Controls
About the surface elements
The element temperature rises gradually and evenly. As the
temperature rises, the element will glow red.
For efficient cooking, turn OFF the surface element just
before cooking is complete. This will allow residual heat to
complete the cooking process.
Surface elements may appear to have
cooled after they have been turned off. The surface
element may still be hot and burns may occur if the
surface element is touched before it has cooled sufficiently.
Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top
of the range when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could catch fire
if placed too close to the surface elements.
ik CAUTION
unit drip bowls, or reflector pans. Only use aluminum foil as
recommended in this manual. Improper installation of these
liners may result in risk of electric shock, or fire.
Do not place aluminum foil or ANY material that could
melt on the surface elements.
Do not use aluminum foil to line surface
Using proper cookware
The size and type of
cookware used will
influence the surface
element power level
setting needed for best
cooking results. Be sure to
follow the
recommendations for
using proper cookware as
illustrated in both Figs. 1
& 2.
Check for flatness by rotating a ruler across the bottom of
the cookware (See Fig. 1). Cookware should have flat
bottoms that make good contact with the entire surface
heating element (See Fig. 2).
y
0
Make sure reflector pans or drip bowls are in place —
Absence of these pans or bowls during cooking may
subject wiring or components underneath to damage.
Element On indicator lights
The ELEMENT ON indicator lights are marked on the
control panel and will glow when a surface cooking
element is turned ON. A quick glance at these indicator
lights after cooking is an easy check to be sure ALL surface
controls are turned OFF.
ELEMENT ON
Flat bottom and straight
sides.
Tight fitting lids.
Weight of handle does
not tilt pan. Pan is well
balanced.
Pan sizes match the
amount of food to be
prepared and the size
of the surface element.
Made of material that
conducts heat well.
Easy to clean.
Always match pot
diameter to surface
element size.
Curved and warped pans.
Cookware larger than
surface element on
cooktop by more than
one-half inch or 12mm.
Fleavy handle tilts pan.
Pan is smaller than the
surface element on
cooktop.
Fig. 2
Page 9
Before Setting Surface Controls
Cookware material types
The cookware material determines how evenly and quickly
heat is transferred from the surface element to the pan
bottom. The most popular materials available are:
Aluminum - Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware
resists staining & pitting).
Copper - Excellent heat conductor but discolors easily.
Stainless - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain heat
very well. Cooks evenly once cooking temperature is
reached.
Porcelain-enamel on metal - Heating characteristics will
vary depending on base material.
Glass - SI ow heat conductor.
Home Canning
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as well
as follow their recommendations for home canning
procedures.
• Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom.
• Use only a completely flat bottom canner with no ridges
that radiate from the bottom center when home canning
using a ceramic cooktop.
• Make sure the diameter of the canner does not exceed 1
inch beyond the surface element markings or burner. It is
recommended to use smaller diameter canners on
electric coil and ceramic glass cooktops.
• Start with hot tap water to bring water to boil more
quickly.
Use the highest heat seating when first bringing the water
to a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
NEVER place or straddle a cooking utensil over 2
different surface cooking areas at the same time. This
will cause uneven heating results and may cause the
ceramic cooktop to fracture.
Page 10
Setting Surface Controls
Surface element settings
The size and type of utensil used, and the amount and type
of food being cooked will influence the surface element
power level setting needed for best cooking results.
The suggested settings found in Fig. 1 below are based
when cooking with medium-weight aluminum pans with
lids. Settings may vary when using other types of pans.
Suggested settings for surface elements
Settings Type of cooking
High (HI - 9) Start most foods, bring water to a
boil, pan broiling
Medium high (7 - 8)
Medium (5 - 6) Maintain a slow boil, thicken
Medium Low (2 - 4) Keep foods cooking, poach, stew
Low (LO - 1)
Continue a rapid boil, fry, deep
fat fry
sauces and gravies or
steam vegetables
Keep warm, melt, simmer
To operate the single radiant element:
1. Place correctly sized cookware on surface element.
2. Push in and turn the surface control knob in either
direction to the desired setting (See Fig. 2).
3. When cooking is complete, turn the surface element
OFF before removing the cookware.
Important notes:
• The surface control knobs do not have to be set exactly
on a particular spot. Use the graphics provided as a
guide and adjust the control knob as needed. Refer to
Fig. 1 for suggested power level settings.
Fig. 1
ii CAUTION
cooled after they have been turned off. The surface
element may still be hot and burns may occur if the
surface element is touched before it has cooled sufficiently.
pepper shakers, spoon holders or plastic wrappings on top
of the range when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could catch fire
if placed too close to the surface elements.
I Surface elements may appear to have
Do not place plastic items such as salt and
• Start most cooking operations on a higher setting and
then turn to a lower setting to finish cooking.
• The ELEMENT ON indicator light(s) will glow when one
or more surface elements are turned ON. A quick glance
at this indicator light when finished surface cooking is an
easy check to be sure all surface controls are turned OFF.
10
Page 11
Oven Control Functions
For satisfactory use of your oven, become familiar v/ith the various key pad functions and features of the oven.
©
Broil
®
•
Timer
Sef/Off
Select
Clean
Í3)
Oven control keypads
1. Clock - Use to set the time of day.
2. Broil - Use to select variable broil function.
3. Timer Set/Off - Use to set or cancel the timer. Timer
Set/Off is used to set the continuous bake feature.
4. Select Clean - Use to select a 2, 3 or 4 hour Self-Clean
cycle time.
5. OVEN indicator light - The OVEN light will glow each
time the oven turns on to maintain the set oven
temperature.
6. PREHEAT indicator light - The PREFIEAT light will glow
when the oven is first set for cooking and remain on until
the oven reaches the set temperature.
{5 J • OVEN
• PREHEAT
if) • DOOR LOCKED
7. DOOR LOCKED indicator light - The DOOR LOCKED
light will glow when the oven door locks or unlocks, oven
lockout is active or when Select Clean is active.
8. Up / Down arrow key pads - Use with the function key
pads to accept settings and to adjust temperature and
times.
9. Bake - Use to select Bake function.
10. STOP - Use to cancel any active oven function except
clock or timer. Use to activate or cancel OVEN
LOCKOUT.
i Bake
/\
8
8
V
STOP ;
OVEN
LOCKOUT
e
9
Function indicator
lights - These
indicator lights
glow when a
function is active.
Setting Oven Controls
Setting Clock
When the appliance is first powered up or when the power
supply to the appliance has been interrupted, 12:00 will
flash in the display (See Fig. 1). The time of day must first
be set before operating the oven.
To set the clock:
1. Press key pad once (do not hold key pad down).
2. Within 5 seconds, press and continue pressing the /\
or \/ key pad until the correct time of day appears
in the display. Release key pad.
Important note:
The time of day cannot be changed when the oven is set
for cooking or when Select Clean is active.
Operating oven light (on some models)
The interior oven light will automatically turn ON when the
oven door is opened.
Press the interior oven light rocker switch located on the
top left-hand control panel to turn the interior oven light
ON and OFF whenever the oven door is closed.
The interior oven light is located at the upper left rear wall
of the oven interior and is covered with a glass shield held
by a wire holder. The glass shield protects the bulb from
high temperatures and should always be in place whenever
the oven is in use.
To change the interior oven light, see Changing oven light
in the Care & Cleaning section.
11
Page 12
Setting Oven Controls
Changing temperature display (°F or °C)
The electronic oven control is set to display °F (Fahrenheit)
v/hen shipped from the factory. The display may be
changed to show either Fahrenheit or Celsius oven
temperatures.
To change temperature display mode from °F to °C
(Celsius) or from °C to °F (Fahrenheit):
1. Press Broil key pad.----------------appears in the display.
2. Press and hold y\ until HI appears in display.
3. Press and hold Broil key pad until F or C appears in the
display.
4. Press either /\ or \/ key pad to toggle between F
(Fahrenheit) or C (Celsius) mode choices. Release key
pad when desired mode is displayed.
5. To accept selection, press any control key pad once. The
display will return to the time of day.
Important note:
The temperature display mode cannot be changed when
the oven is set for cooking or Select Clean is active.
Changing between continuous bake setting or 12-Hour Energy Saving feature
The oven control has a factory preset 12-Flour Energy
Saving feature that will turn the oven off automatically if
the oven is left on for more than 12 hours. The control may
be programmed to override this feature to continuously
bake.
To change to continuous bake mode:
Press and hold Timer Set/Off key pad until the control
beeps once (about 6 seconds). - - hr will appear in
display indicating the control is now set for continuous
bake setting.
To change to 12-Hour Energy Saving feature:
Press and hold Timer Set/Off key pad until the control
beeps once (about 6 seconds). 12hr will now appear in
display indicating the control is set for 12-Flour Energy
Saving feature.
Setting Timer
The timer allows you to track your cooking times without
interferring the cooking process. The timer may be set from
1 minute up to 11 hours and 59 minutes.
To set the timer:
1. Press Timer Set/Off key pad.
2. Press the /\ to increase the time in one minute
increments. Press and hold /\ to increase the time in
10 minute increments. Release /\ when the desired
time appears in the display. The timer will begin to
count down.
3. When the set time has run out, the Timer will sound with
3 beeps and will continue to beep 3 times every 60
seconds until Timer Set/Off key pad is pressed.
To change time remaining in Timer:
While the timer is active, press and hold the /\ or \/
key pad to increase or decrease any time remaining.
To cancel the Timer before the set time has run out:
Press Timer Set/Off key pad once.
Important notes:
• The timer does not start or stop the cooking process. It
serves as an extra timer in the kitchen that will beep
when the set time has run out. The timer may be used
alone or when any other oven function is active.
• The indicator light located above the Timer Set/Off key
pad will glow when the timer is active.
• The timer will display hours and minutes until 1 hour
remains. When less than 1 hour remains, the display will
count down in minutes and seconds. Once the timer has
less than 1 minute remaining only seconds will display.
• If the timer is active when oven cooking, the minute timer
will show in the display by default. To view information
of any other
for the active function to view status.
active oven function, press the key pad once
Important note:
Changing between continuous bake or the 12-Flour Energy
saving mode does not change how the cooktop controls
operate.
12
Page 13
Setting Oven Controls
Oven Lockout ^
The control may be programmed to lockout
the oven control key pads and oven door.
To activate OVEN LOCKOUT feature:
1. Be sure oven door is completely closed.
2. Press and hold stop key pad for 3 seconds. Loc will
appear in the display. The DOOR LOCKED indicator
light will flash and the motor driven door latch
mechanism will begin locking the oven door
automatically. Do not open the oven door at this time.
Allow about 15 seconds for the oven door to completely
lock. Once the oven door is locked, the time of day will
appear in the display.
To cancel OVEN LOCKOUT feature:
1. Press and hold stop key pad for 3 seconds. The DOOR
LOCKED indicator light will flash and the motor driven
door latch mechanism will begin to unlock the oven
door. Do not open the oven door at this time. Allow
about 15 seconds for the oven door to completely
unlock.
2. The oven control key pads will be available and the
oven door may be opened.
Important notes:
OVEN
LOCKOUT
Setting Bake
Use the bake function whenever the recipe calls for baking
using normal temperatures. A reminder tone will sound
when the set bake temperature is reached. Bake may be
programmed for any temperature from 170°F to 550°F
(77°C to 287°C). The factory preset bake temperature is
350°F (177°C).
ii CAUTION
using the oven. When cooking, the oven interior, oven
racks and cooktop will become very hot which can cause
burns.
To set Bake:
1. Arrange oven racks and close oven door.
2. Press Bake key pad.
3. Within 5 seconds, press /\ or \/- The display will
show the default oven temperature of 350°F (177°C). By
pressing /\ or \/^ the oven temperature may be
adjusted in 5°F increments (1°C if the control is set to
display Celsius).
4. As soon as the^^ or \/ key pad is released, the
oven will begin heating to the selected temperature.
When the oven temperature reaches the set
temperature, the PREHEAT indicator light will turn off
and the oven control will beep 3 times.
I Always use pot holders or oven mitts when
--------------------
° appears in display.
• To avoid possible damage to the oven door latch
mechanism, do not attempt to open or close the oven
door whenever the DOOR LOCKED indicator light is
flashing.
• If a control key pad is pressed when OVEN LOCKOUT is
active, Loc will appear in the display as a reminder that
the key pad action is not available when the OVEN
LOCKOUT feature is active.
To cancel bake at anytime:
Press STOP .
To change the oven temperature after Bake has started:
1. Press Bake key pad. The current set oven temperature
will display.
2. Press the^^ or \/ pad to increase or decrease the
current set temperature to the new oven temperature.
Important notes:
• The oven will bake no longer than 12 hours. If you wish
to continuously bake, see Changing between continuous
bake setting or 12-Hour Energy Saving mode for detailed
information.
• Dark or dull pans absorb more heat than shiny
bakeware resulting in dark or overbrowning of foods. It
may be necessary to reduce the oven temperature or
cook time to prevent overbrowning of some foods. Dark
pans are recommended for pies. Shiny pans are
recommended for cakes, cookies and muffins.
13
Page 14
Setting Oven Controls
Broil
Use the broil function to cook meats that require direct
exposure to flame heat for optimum browning results. The
Broil function is factory preset to broil at 550°F.
The suggested broil settings table (See Fig. 3) is provided
for recommendations only. Increase or decrease broiling
times, or move to a different rack position to suit for
doneness. If the food you are broiling is not listed in the
table, follow the instructions provided in your cookbook
and watch the item closely.
To set Broil:
1. Arrange the oven racks when cool. For optimum
browning results, preheat oven for 5 minutes before
adding food.
2. Position cookware in oven. Leave oven door open at
broil stop position when broiling (See Fig. 2).
3. Press Broil key pad.
4. Press /\ or \/ key pad until the desired broil
setting level appears in the display. Press for Fll
broil or \/ for LO broil setting. Most foods may be
broiled at the Fll broil setting. Select the LO broil setting
to avoid excess browning or drying of foods that should
be cooked to the well-done stage.
5. Broil on one side until food is browned. Turn and broil
food on 2nd side.
6. When finished broiling press stop,.
To cancel Broil at anytime press stop .
----------------
will appear in display.
H
■
H
H
M
H
some
models
Fig. 1
ii WARNING
door and turn the oven OFF. If the fire continues, use a fire
extinguisher. DO NOT put water or flour on the fire. Flour
may be explosive.
ii CAUTION
using the oven. When cooking, the oven interior, exterior,
oven racks and cooktop will become very hot which can
cause burns
Important notes:
• Always arrange oven racks when the oven is cool.
• For best results when broiling, use a quality broil pan
along with a broil pan insert. A broil pan is designed to
drain the fat from the food, help avoid spatter and
reduce smoking.
• When broiling, always pull the oven rack out to the stop
position before turning or removing food.
• Cook Time or Delay Start will not operate with the Broil
function.
Should an oven fire occur, close the oven
I Always use pot holders or oven miffs when
Suggested broil settings table (electric oven)
Food
Steak 1” thick 6th or 7th* Hi
Steak 1” thick 6th or 7th* Hi
Steak 1” thick 6th or 7th* Hi
Pork chops 3/4” thick 6th Hi
Chicken-bone in
Chicken-boneless 6th Lo
Fish 6th Hi - as directed - Well
Shrimp 5th Hi - as directed - Well
ffamburger 1” thick 6th or 7th* Hi
ffamburger 1” thick 6th Hi
Cook times given are approximate and should be used only as a guide.
*Use the off-set rack only in rack position 7 (on some models).
Rack position Setting Cook time in minutes
(See Fig. 1)
5th Lo
1st side 2nd side Doneness
6
7 5
8 7
8 6
20 10
8 6
9 7
10 8
Fig. 3
14
4 Medium
Well
Well
Well
Well
Medium
Well
Medium-well
Page 15
Setting Oven Controls
Adjusting Oven Temperature
Your appliance has been factory calibrated and tested to
ensure an accurate baking temperature. For the first few
uses, follow your recipe times and temperature
recommendations carefully. If you think the oven is cooking
too hot or too cool for your recipe times, you may adjust
the control so the oven cooks hotter or cooler than the oven
temperature displayed.
The oven temperature may be increased as much as +35°F
(+19°C) or decreased -35°F (-19°C) from the factory
calibrated settings.
To adjust oven temperature:
1. Press Bake key pad.
2. Set the oven temperature to 550°F (287°C) by pressing
and holding the /\ key pad. Release when 550°F
appears in display (287°C if control is set for Celsius
display mode).
3. Within 2 seconds, press and hold Bake key pad until
numeric digit(s) appear. Release Bake keypad. The
display now indicates the amount of degrees offset from
the original factory temperature setting and the current
temperature setting. If the control still has the original
factory calibration, the display will read 0.
Important notes:
• Oven temperature adjustments made will not change the
Broil or Select Clean operating temperatures.
• DO NOT USE oven thermometers such as those found in
grocery stores to check the temperature settings inside
your oven. These oven thermometers may vary as much
as 20 to 40°F degrees from actual temperatures.
• The oven temperature adjustment may be made if your
oven control has been set to display °C (Celsius)
temperatures. Minimum and maximum settings for
Celsius is plus (+) or minus (-) 19°C.
• If the display mode is set for Celsius, adjustments made
will be in 1°C increments each press of the /\ or \/
key pads.
4. The temperature may be adjusted up or down 35°F
(19°C), in 5°F increments by pressing and holding the
/\ or \/ key pads. Adjust until the desired amount
of temperature offset appears in the display and release
key pad.
5. Press STOP to accept and return to normal operation.
15
Page 16
Select Clean
A self-cleaning oven cleans itself with high temperatures
(well above normal cooking temperatures) which eliminate
soils completely or reduces them to a fine powdered ash
you can wipe away aftwerwards with a damp cloth.
The Select Clean function allows you to select 3 different
cleaning times from 2, 3 or 4 hours. A 3-hour cleaning time
is best used for normal cleaning; 2-hour time for light soils
and
a 4-hour clean time for heavier stubborn soils.
Read before starting Select Clean
Be sure to read all the following caution and important
statements BEFORE starting a self-clean cycle:
I
ii CAUTION
near the appliance. During the self-cleaning cycle, the
outside of the range can become very hot to touch and can
cause burns.
ii CAUTION
or any other part of the range with aluminum foil. Doing
so will destroy heat distribution, produce poor baking
results and cause permanent damage to the oven interior.
Aluminum foil will melt to the interior of the oven.
DO NOT leave small children unattended
I
DO NOT line the oven walls, racks, bottom
Remove any excessive spillovers. Any spills on the oven
bottom should be wiped-up and removed before starting
a self-clean cycle. To clean, use hot, soapy water and a
cloth. Large spillovers can cause heavy smoke or fire
when subjected to high temperatures. DO NOT allow
food spills with a high sugar or acid content (such as
milk, tomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may leave a dull spot even
after cleaning.

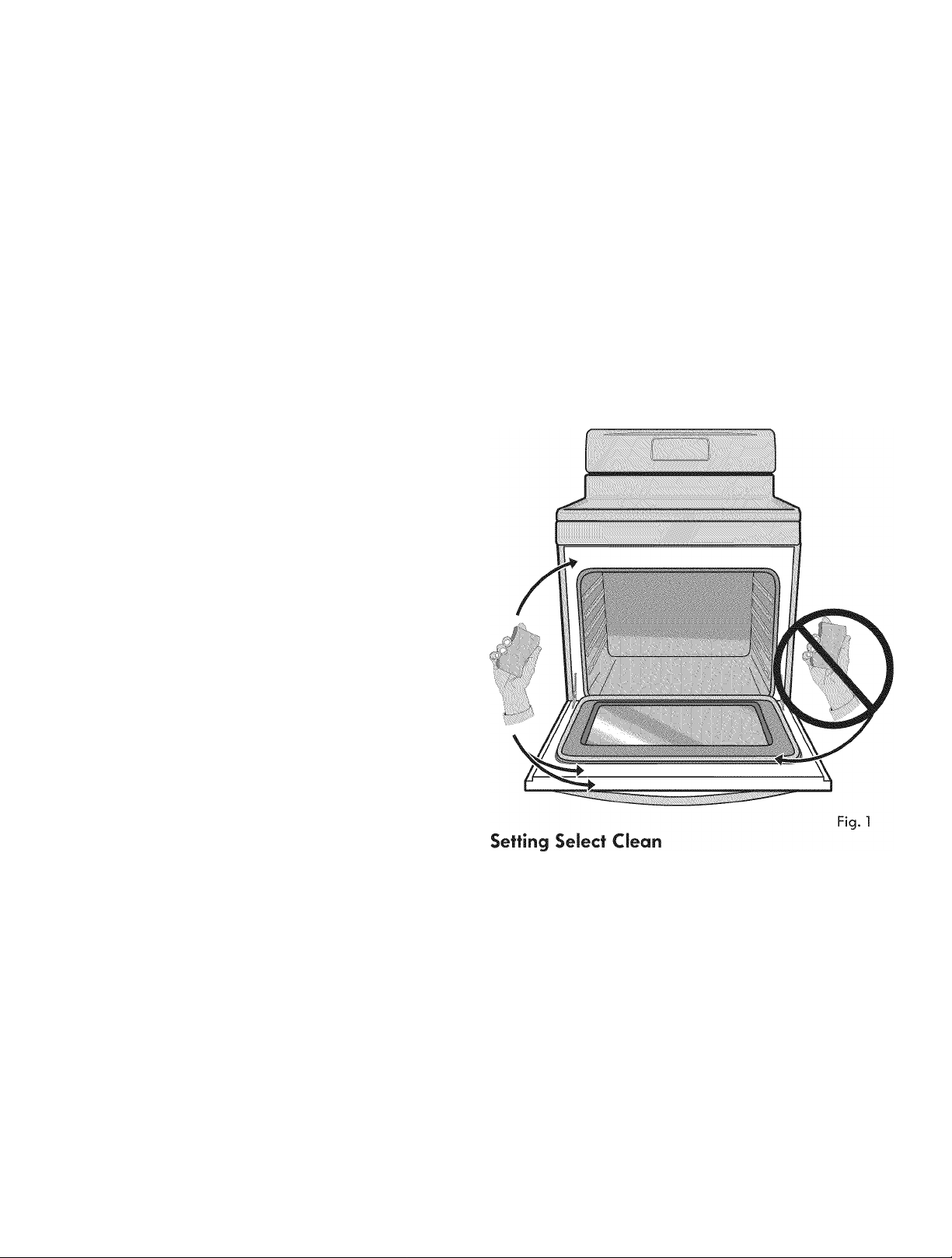

DO NOT clean the oven door gasket (See Fig. 1). The
woven material of the oven door gasket is essential for a
good seal. Care should be taken not to rub, damage or
remove the gasket. DO NOT use any cleaning materials
on the oven door gasket. Doing so could cause damage
to the door gasket.
ii CAUTION
sensitive to the fumes given off during the self-cleaning
cycle of any range. Move birds to another well-ventilated
room.
ii CAUTION
damage the automatic door locking system.
after self-cleaning. The oven may still be VERY HOT and
can cause burns. To avoid possible burns stand to the side
of the oven when opening the oven door to allow hot air or
steam to escape.
Important notes:
• Completely remove ALL OVEN RACKS and ANY
ACCESSORIES FROM OVEN CAVITY to avoid damage
to oven racks. If the oven racks are not removed they
may discolor.
• Remove ALL items from the oven and cooktop including
cookware, utensils and ANY ALUMINUM FOIL.
Aluminum foil will not withstand high temperatures from
a self-clean cycle and will melt.
• DO NOT use oven cleaners or oven protective coatings
in or around any part of the oven interior.
• Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at the
front center of the oven bottom (See Fig. 1). These areas
heat sufficiently to burn soil on. Clean using soap and
water prior to starting Select Clean (See Fig. 1).
The health of some birds is extremely
I DO NOT force the oven door open. This can
Use caution when opening the oven door
To set Select Clean to start immediately:
1. Be sure the oven is empty and ALL oven racks are
removed. Remove all items from the cooktop. Be sure
oven door is completely closed.
2. Press Select Clean key pad.
display.
3. Press /\ or \/ once. 3:00 appears in the display
indicating the default 3 hour clean time is selected. To
change to a 2 hour clean time press \^; "2:00"
appears in the display. To select a 4 hour clean time
press '4:00" appears in the display.
4. After selecting the clean time Select Clean will activate.
The DOOR LOCKED indicator light will glow and CLn
will appear in the display.
----------------------
appears in the
16
Page 17
Select Clean
When Select Clean begins the cleaning cycle, the
motorized door latch mechanism will automatically start to
lock the oven door and the DOOR LOCKED indicator light
will flash. DO NOT open the oven door when the DOOR
LOCKED indicator light is flashing. Allow about 15 seconds
for the oven door to completely lock.
Once the oven door has locked the DOOR LOCKED
indicator light will glow steady. When CLn will appears in
the display Select Clean is active.
ii CAUTION
after self-cleaning. The oven may still be VERY HOT and
can cause burns. To avoid possible burns stand to the side
of the oven when opening the oven door to allow hot air or
steam to escape.
When Select Clean is finished:
1. The time of day will appear in the display window and
the Select Clean and DOOR LOCKED indicator lights
will continue to glow.
2. Once the oven has cooled down (about 1 hour) and the
DOOR LOCKED indicator light has turned off the oven
door may be opened.
3. When the oven interior has completely cooled, wipe
away any residue or powdered ash with a damp cloth
or paper towel.
Use caution when opening the oven door
If it becomes necessary to stop Select Clean when active:
1. Press STOP .
2. If Select Clean has heated the oven to a high
temperature, allow enough time for the oven to cool
and for the DOOR LOCKED indicator light to turn off.
When this indicator light turns OFF the oven door may
be opened.
3. Restart Select Clean if needed.
Important notes:
• If Select Clean is active and a power failure occurs, the
oven may not have thoroughly cleaned. This would
depend on how much cleaning time had elapsed before
the power failure. If needed after power is restored, set
Select Clean again.
Important notes:
• The kitchen area should be well ventilated using an open
window, ventilation fan or exhaust hood during the 1st
self-clean cycle. This will help eliminate the normal odors
associated with the 1st self-clean cycle.
• DO NOT attempt to open the oven door when the
DOOR LOCKED indicator light is flashing. Allow about
15 seconds for the motorized door latch mechanism to
completely lock or unlock the oven door.
• When the clean time finishes the oven door will remain
locked until the range has cooled sufficiently. In addition
to the clean time that was programmed, you must allow
about 1 additional hour for the oven to cool before you
will be able to open the oven door.
• The Select Clean function will not operate when oven
lockout is active.
17
Page 18
Care & Cleaning
Cleaning recommendation table
Surface type Recommendation
Control knobs
Painted body parts
Painted decorative trim
Aluminum, plastic or vinyl trim
pieces
Control panel
Control key pad membrane
Decorative trim (some models)
Porcelain enamel parts & door
liner
For general cleaning, use hot, soapy water and a cloth. For more difficult soils and
built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30
60 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners on any of
these materials; they can scratch. To remove control knobs, turn to OFF position;
grasp firmly and pull straight off the shaft. To replace knobs after cleaning, line up
the flat sides of both knob and shaft; then push knob into place.
Before cleaning the control panel, turn all controls OFF, activate oven lockout (on
some models) and if needed remove any knobs from panel. Do not use abrasive
cleaners on any of these materials; they can scratch. Clean using hot, soapy water
and a dishcloth. Be sure to squeeze excess water from dishcloth before wiping
control panel; especially when wiping around the controls area. Excess water in or
around the controls may cause damage to the appliance. When rinsing, use clean
water and a dishcloth and be sure to squeeze excess water from dishcloth before
wiping the control panel.
Gentle scubbing with a soapy no-scratch cleaning pad will remove most spots. Rinse
with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots
with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water
a damp cloth, and then scrub with a soap-filled no-scratch cleaning pad. Rinse
and
and wipe dry with a clean cloth. Do not allow food spills with high sugar or acid
content (milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on the
surface; they may cause a dull spot even after cleaning.
Oven interior
Oven racks Remove oven racks from oven cavity before starting Select Clean. Clean by using a
Oven door
For oven interior remove excessive spillovers from oven cavity bottom before
starting Select Clean. Clean any soils from oven frame and door liner outside the
oven door gasket. For very important cleaning precautions be sure to read all the
instructions in the Select Clean section.
mild, abrasive cleaner following manufacturer's instructions. Rinse with clean water,
dry and then replace in oven.
Use soap & water to thoroughly clean the top, sides and front of the oven door.
Rinse well. You may use a glass cleaner on the outside glass of the oven door. Do
not immerse the door in water. Do not spray or allow water or the glass cleaner to
enter the door vents. Do not use oven cleaners, cleaning powders or any harsh
abrasive cleaning materials on the outside of the oven door.
Surface elements and drip
bowls
Stainless Steel (some models) Only use cleaners and polishes that are specifically manufactured for cleaning
Do not use spray oven cleaners on the cooktop. See “Surface elements and drip
bowls” in the Care & Cleaning section.
stainless steel. Always rub in direction of metal grain to avoid damaging. Do not use
cleaners with high concentrations of chlorides or chlorine. Do not use harsh
scrubbing cleaners. Polish with a lint-free cloth. Always be sure to wipe excess
cleaner/polish off from the metal surface as bluish stains may occur during future
oven heating that cannot be removed. Clean heavier soils with hot, soapy water and
a
dishcloth. Rinse and dry using clean water and a cloth.
18
Page 19
Care & Cleaning
General cleaning
Refer to the Cleaning recommendation table in the Care &
Cleaning section for more detailed information about
cleaning specific parts of the range.
ik CAUTION
range, be sure all controls are turned OFF and the range is
COOL. The range may be hot and can cause burns.
ik CAUTION
oven. Provide adeguate ventilation.
Remove soils using hot, soapy water. Do not allow food
spills with a high sugar or acid content (such as milk,
tomatoes, saukerkraut, fruit juices or pie filling) to remain
on the surface as they may cause a dull spot even after
cleaning. Remove spillovers and heavy soiling as soon as
possible. Regular cleaning will reduce the effort reguired
for major cleaning later.
Cleaning oven bottom (some models)
after they have been turned off. The oven bake and broil
elements
before they have cooled sufficiently.
may still be hot and burns may occur if touched
Before manually cleaning any part of the
I Ammonia must be rinsed before operating the
Oven elements may appear to have cooled
Aluminum foil and utensils
i
A WARNING
the oven bottom or cover an entire oven rack with materials
such as aluminum foil. Aluminum foil linings may trap heat,
causing o fire hazard.
ik WARNING
ALUMINUM FOIL to line the oven bottom. — DO NOT
USE aluminum foil to line surface drip bowls, or reflector
pans. Only use aluminum foil as recommended in this
manual. Improper installation of these liners may result in
risk of electric shock, or fire.
NEVER cover any slots, holes or passages in
Protective liners — DO NOT USE
Please note:
On some models the lower oven bake element is visible.
The following cleaning instruction applies ONLY for models
that have a visible lower bake element.
The lower bake element may be tilted from the front for
better access to the oven bottom for cleaning purposes. Be
careful not to raise the element more than 4 or 5 inches
from the resting position.
On models with visible
bake element only;
1-^
lower bake element
may be raised from the
front 4-5 inches to
clean oven bottom.
19
Page 20
Care & Cleaning
Surface elements and drip bowls
Surface elements may appear to have
cooled after they have been turned off. The surface
elements may still be hot and burns may occur if touched
before they have cooled sufficiently.
ii CAUTION
foil to line surface drip bowls, or reflector pans. Only use
aluminum foil as recommended in this manual. Improper
installation of these liners may result in risk of electric
shock, or fire.
Surface elements may be unplugged and removed to make
cleaning the drip pans easier. The surface elements clean
themselves when they are turned on. Food spilled on a hot
element will burn off. Food spilled on a COOL element
may be cleaned with a damp cloth — any remaining soil
will burn off the next time the element is used.
To remove the surface elements and drip bowls:
1. Lift the edge of the drip bowl across from the terminal
end. Lift the surface element and drip bowl together just
enough to clear the cooktop.
2. While holding the drip bowl and surface element,
gently pull the terminal end out from terminal plug (See
j Protective liners — Do not use aluminum
Fig. 1).
Cleaning drip bowls
Wash in hot, soapy water or in the dishwasher. Rinse and
dry while still warm. Flard to remove, burned on soil can be
removed by soaking the drip bowls for about 20 minutes in
a lightly diluted liguid cleanser or a solution of ammonia
and water
A no-scratch scrubbing pad may be used after soaking.
DO NOT use abrasive cleaners or steel wool, they will
scratch the surface. Always rinse with clean water and
polish dry with a soft cloth.
To replace drip bowls and surface elements:
1. Slide the terminal end on the surface element through
2. Align the surface element support to rest on the rim
3. After the surface element is positioned in the drip bowl,
(1/2 cup ammonia to 1 gallon of water).
the opening in the drip bowl (Refer to Fig. 1).
inside the drip bowl.
line up the terminal end with the terminal plug as shown
(Fig. 1).
4. Flold the surface element and drip bowl together as
level as possible and firmly push the terminal end into
the terminal plug. Make sure element terminal is seated
properly into terminal plug. Make sure the surface
element is level to reduce the hazard of cookware
sliding off the element.
Fig. 1
Allow element
support to rest on
drip pan inside rim.
Terminal end
Terminal plug
Important notes:
• Be sure the range is cool before removing surface
elements or drip bowls.
• Never immerse a surface element in water.
• Make sure drip bowls are in place - Absence of these
bowls during cooking may subject wiring or
components underneath to damage.
• Be careful not to bend terminal ends when replacing
surface elements after cleaning.
20
Page 21
Care & Cleaning
Raising and lowering the cooktop (some models)
A WARNING
the surface elements on when the cooktop is raised. Be
sure that the top is completely lowered and securely in
place before turning on any of the surface burners.
ii CAUTION
grasp the sides with fingertips only. Be careful not to
pinch fingers. Do not drop or bend the cooktop when
raising or lowering. This may permanently damage the
cooktop surface.
To avoid possible burns DO NOT turn
I
When lowering the lift-up range cooktop,
Replacing oven light (some models)
ik CAUTION
are COOL before replacing oven light. Wear a leather
faced glove for protection against possible broken glass.
The oven light is located at the rear of the oven cavity and
is covered with a glass shield held by a wire holder. The
glass shield protects the light bulb and must be in place
whenever the oven is in use.
Be sure the range is unplugged and all parts
To raise and lower the cooktop:
1. Remove all items from cooktop and set aside.
Grasp the sides of the cooktop and then lift from the
2.
front (See Fig. 1).
Lift the cookop high enough to allow the support rods
3.
to snap into place. The lift-up rods will support the
cooktop in the raised position.
If necessary, clean underneath using hot, soapy water
4.
and a clean cloth; then dry.
To lower the cooktop, grasp the front corner of each
5.
side of the top while pushing back on each rod with
the heel of your hand. This will release the notched
support. Hold the range cooktop and gently slide the
top back down level to the range.
To replace the interior oven light bulb:
1. Turn electrical power off at the main source or unplug
the range.
2. Press wire holder to one side to release the glass shield
that covers the light bulb.
3. Replace light with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder
back into place.
5. Turn power on at the main source (or plug the appliance
in).
6. The clock will then need to be reset. To reset, see
Setting clock in this Use & Care Guide.
21
Page 22
Care & Cleaning
Removing and replacing the lift-off oven door
ii CAUTION
replacing the oven door, follow the instructions below carefully
and always hold the oven door with both hands positioned away
from the door hinge area.
ii CAUTION
lay the door flat with the inside of the door facing down.
To remove oven door:
1. Open oven door completely (horizontal with floor - Fig.l).
2. Pull the door hinge locks on both left and right door hinges
down from the oven frame completely towards the oven door
(Fig. 2). A tool such as a small flat-blade screwdriver may be
reguired.
3. Firmly grasp both sides of oven door along the door sides (Do
not use the oven door handle - Fig. 3).
4. Close the door to the broil stop position (the oven door will stop
into this position just before fully closing).
5. With the oven door in the broil stop position, lift the oven door
hinge arms over the roller pins located on each side of the oven
frame (Fig. 4).
To replace oven door:
1. Firmly grasp both sides of oven door along the door sides (Do
not use the oven door handle - Fig. 3).
2. Flolding the oven door at the same angle as the removal
position, seat the hook of the hinge arm over the roller pins
located on each side of the oven door frame (Fig. 4). The hook
of the hinge arms must be fully seated onto the roller pins.
3. Fully open the oven door (horizontal with floor - Fig. 1).
4. Push the door hinge locks up towards and into the oven frame
on both left and right oven door hinges (Fig. 2) to the locked
position; then close the oven door.
I To avoid possible injury when removing or
I
The door is heavy. For safe, temporary storage,
Fig. 1
Fig. 2
Special door care instructions
Most oven doors contain glass that can break. Read the following
recommendations:
• Do not close the oven door until all the oven racks are fully in
place inside the oven cavity.
• Do not hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring or stressing the glass may weaken its
structure causing an increased risk of breakage at a later time.
roller
pin |:
hinge
arm
hook
Fig. 4
22
Page 23
Before You Cali ® Solutions to common problems
Before you call for service, review the following list. It may save you time & expense. Possible solutions to these problems
are provided with the problem listed:
Problem Solution
Poor baking results. Many factors affect baking results. Make sure the proper oven rack position
is used. Center food in the oven and space pans to allow air to circulate.
Allow the oven to preheat to the set temperature before placing food in the
oven. Try adjusting the recipe's recommended temperature or baking time.
If you feel the oven is too hot or cool, see Adjusting oven temperature in
Setting Oven Controls section.
Appliance is not level.
Cannot move appliance easily.
Appliance must be accessible for
service.
Entire appliance does not operate.
Oven portion of appliance does not
operate.
Be sure floor is level, strong & stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Poor installation. Place oven rack in center of oven. Place a level on the
oven rack. Adjust leveling legs at base of appliance until the rack is level.
Kitchen cabinet alignment may make range appear not level. Be sure
cabinets are square & have sufficient room for appliance clearance.
Cabinets not square or are built in too tightly. Contact builder or installer to
make appliance accessible.
Carpet interferes with appliance. Provide sufficient space so appliance can
be lifted over carpet.
Make sure power cord is plugged properly into outlet.
Electrical power outage. Check house lights to be sure. Call your local
electric company for service outage information.
Service wiring is not complete. Call 1-800-4-MY-HOME® for assistance (See
back cover).
The time of day is not set. The time of day must first be set in order to
operate the oven. See Setting clock in Setting Oven Controls section.
Be sure the oven controls are set properly for the desired function. See
Setting Oven Controls section and review instructions for the desired
cooking function in this manual or see “Entire appliance does not operate”
in this checklist.
Surface element is too hot or not hot
enough.
Surface element does not heat or does
not heat evenly.
Oven light does not work. Be sure the oven light is secure in the socket. Also see Replacing oven light
Incorrect surface control setting. Adjust power level setting.
Be sure the correct surface control knob is turned ON for element needed.
Lightweight or warped pans used. Use only flat, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped pans. Cookware
materials and weight of the material affect heating. Heavy & medium-
weight pans heat evenly. Because lightweight pans heat unevenly, foods may
burn easily.
in the Care & Cleaning section.
23
Page 24
Before You Call ® Solutions to common problems
Problem
Oven smokes excessively v/hen broiling.
Flames inside oven or smoking from oven
vent.
Oven control panel beeps & displays
any F code error.
Solution
• Incorrect setting. Follow broiling instructions in Setting Oven Controls
section.
• Be sure oven door is opened to broil stop position when broiling.
• Meat too close to the broil element. Reposition the broil rack to provide
proper clearance between the meat & the element. Preheat the broil
element for searing.
• Meat not properly prepared. Remove excess fat from meat. Cut remaining
fatty edges to prevent curling, but do not cut into lean.
• Grease has built up on oven surfaces. Regular cleaning is necessary when
broiling frequently. Old grease or food spatters cause excessive smoking.
Excessive spillovers in oven. For example this will happen for pie
spillovers or large amounts of grease left on the oven bottom. Wipe up
excessive spillovers before starting oven. If flames or excessive smoke
are present see
Oven control has detected a fault or error condition. Press stop key pad to
clear the error code. Try Bake or Broil function. If the F code error repeats,
remove power from appliance, wait 5 minutes and then repower appliance
and set clock with the correct time of day. Try Bake or Broil function again.
Broil in Setting Oven Controls section.
If the fault recurs, press stop to clear and call 1-800-4-MY-HOME® for
assistance (See back cover).
Select Clean does not work. • Oven control not set properly. Review instructions in Select Clean section.
Soil not completely removed after
running Select Clean cycle.
Oven racks discolored.
Select Clean was interrupted. See Select Clean instructions.
Excessive spillovers on oven bottom. Remove before starting Select Clean.
Failure to clean soil from the oven frame, the door liner outside the oven
door gasket and the small area at the front center of the oven bottom.
These areas are not in the self-cleaning area, but get hot enough to burn
on residue. Clean these areas before the self-cleaning cycle is started.
Burned-on residue can be cleaned with a stiff nylon brush and water or a
nylon scrubber. Be careful not to damage the oven gasket.
Oven racks left in oven cavity during Select Clean. Always remove oven
racks from oven cavity before starting a self-clean cycle. Clean by using a
mild, abrasive cleaner following manufacturer's instructions. Rinse with clean
water, dry and replace in oven.
24
Page 25
Before You Cali ® Solutions to common problems
Drip bowls are pitting or rusting.
Drip bowls are turning color or distorted.
Foods with acids, such as tomatoes, if allowed to stand in/on bowls will
cause corrosion. Remove and wash drip bowls as soon as possible after a
spill over.
Normal environment. Along coastal areas, houses are exposed to high salt
content in air. Protect bowls as much as possible from direct exposure to air
with high salt content.
Bottom surface of cookware extends beyond surface element and touches
cooktop surface. This can cause high enough temperatures to discolor the
drip bowls. DO NOT use cookware of this type. Pan sizes should be matched
to the size of the element. Replacement drip bowls may be purchased from
your appliance dealer.
25
Page 26
Notes
26
Page 27
Protection Agreements
Acuerodes de protección
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore®
product is designed and manufactured for years of dependable operation.
But like all products, it may require preventive maintenance or repair from
time to time. That’s when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new
product. Here’s what the Agreement* includes;
И Parts and labor needed to help keep products operating properly
under normal use, not just defects. Our coverage goes well
beyond the product warranty. No deductibles, no functional failure
excluded from coverage - real protection.
И Expert service by a force of more than 10,000 authorized Sears
service technicians, which means someone you can trust will be
working on your product.
0 Unlimited service calls and nationwide service, as often as you
want us, whenever you want us.
0 “No-lemon” guarantee - replacement of your covered product if
four or more product failures occur within twelve months.
0 Product replacement if your covered product can't be fixed.
0 Annual Preventive Maintenance Check at your request - no extra
charge.
0 Fast help by phone - we call it Rapid Resolution - phone support
from a Sears representative on all products. Think of us as a “talking
owner’s manual”.
0 Power surge protection against electrical damage due to power
fluctuations.
0
$250 Food Loss Protection annually for any food spoilage that is
the result of mechanical failure of any covered refrigerator or
freezer.
0 Rental reimbursement if repair of your covered product takes
longer than promised.
0 10% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes
for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel
for any reason during the product warranty period, we will provide a full
refund. Or, a prorated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full details call
Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A. or
Canada call 1-800-4-MY-HOME*.
Acuerdos maestros de protección
Enhorabuena por haber hecho una compra inteligente. Su nuevo
producto Kenmore® está diseñado y fabricado para brindarle años de
funcionamiento fiable. Pero, como cualquier producto, puede necesitar
mantenimiento preventivo o reparaciones periódicas. Es por eso que
tener un Acuerdo maestro de protección podría ahorrarle dinero y
molestias.
El Acuerdo maestro de protección también sirve para prolongar la
durabilidad de su nuevo producto. El acuerdo* incluye lo siguiente:
0 Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en
condiciones normales de uso, no sólo en caso de defectos de los
productos. Nuestra cobertura va mucho más allá que la garantía
del producto. No se aplican deducibles ni exclusiones por fallas del
funcionamiento: es decir, verdadera protección.
0 Servicio técnico por expertos (más de 10000 técnicos
autorizados de Sears), lo cual significa que quien repare o realice
el mantenimiento de su producto será un profesional de confianza.
0 Servicio técnico a escala nacional y número ilimitado de
llamadas de solicitud de servicio técnico: se puede poner en
contacto con nosotros cuantas veces lo desee y cuando lo desee.
0 Garantía “sin sorpresas”: se reemplaza el producto cubierto por el
acuerdo si ocurren cuatro o más fallas del producto en un periodo
de 12 meses.
0 Reemplazo del producto: en caso de que no se pueda reparar el
producto cubierto por el acuerdo.
0 Revisión anual preventiva de mantenimiento del producto:
puede solicitarla en cualquier momento, sin costo alguno.
0 Rápida asistencia telefónica, la cual denominamos Solución
rápida: es decir, asistencia telefónica a través de cualquiera de
nuestros representantes de Sears, sobre cualquiera de nuestros
productos. Piense en nosotros como en un “manual parlante del
usuario”.
0 Protección contra fallas eléctricas, contra daños debidos a
fluctuaciones de la corriente eléctrica.
0 $250 al año para cubrir cualquier posible deterioro de
alimentos que haya tenido que desechar debido a una falla
mecánica de cualquiera de nuestros refrigeradores o congeladores
cubiertos por este acuerdo.
0 Devolución de gastos de alquiler de electrodomésticos si la
reparación de su producto asegurado toma más que el tiempo
prometido.
0 10% de descuento aplicable tanto a los costos del servicio de
reparación, como de las piezas instaladas relacionadas que no
hayan quedado cubiertos por este acuerdo.
Una vez que haya realizado el pago de este acuerdo, bastará una simple
llamada telefónica para concertar una visita de servicio. Puede llamar a
cualquier hora del día o de la noche, o bien concertar una visita de
servicio por Internet.
La adquisición del Acuerdo maestro de protección es una inversión
exenta de riesgos. Si por cualquier motivo decide cancelar dicho acuerdo
durante el periodo de garantía del producto, le haremos un reintegro total
del valor. O bien un importe proporcional si cancela el acuerdo en
cualquier otro momento posterior al vencimiento del periodo de garantía
del producto. ¡Adquiera hoy mismo su Acuerdo maestro de protección!
Algunas limitaciones y exclusiones podrían aplicarse. Para solicitar
precios e información adicional, llame al 1-800-827-6655 (en los
EE.UU.).
* La cobertura en Canadá varía en el caso de algunos artículos. Para
obtener detalles completos al respecto, llame al 1-800-361-6665 de
Sears de Canadá.
Servicio de instalación de Sears
Para solicitar la instalación por profesionales de Sears de
electrodomésticos, abridores de puertas de garaje, calentadores de agua
y otros artículos de uso prioritario en el hogar, llame al 1-800-4-MY-
HOME en los EE.UU. o Canadá.
27
Page 28
Get it fixed, at your home or ours!
Your Home
For troubleshooting, product manuals and expert advice:
managemylife
www.managemylife.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME® (i-8oo-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com
www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1 -800-488-1222 (U.S.A.) 1 -800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1 -800-827-6655 (U.S.A.) 1 -800-361 -6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR®
(1-888-784-6427)
www.sears.com
Au Canada pour service en français:
1-800-LE-FOYER“^
(1-800-533-6937)
www.sears.ca
® Registered Trademark / ™ Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / ™ Marca de Fábrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros países
Marque de commerce / “ Marque déposée de Sears Brands, LLC
Loading...
