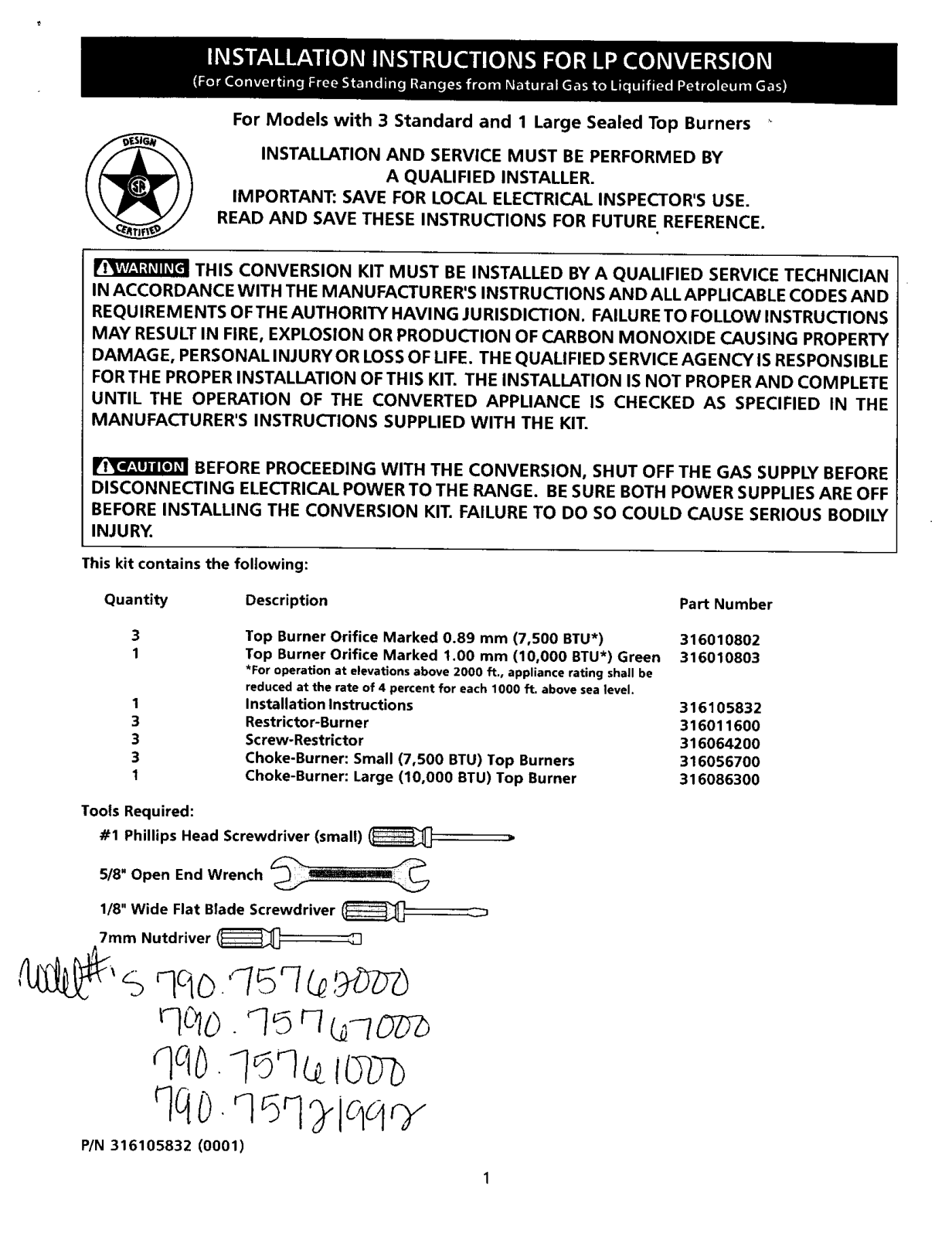

Kenmore 79075762000, 79075767000, 79075761000 Installation Guide

For Models with 3 Standard and 1 Large Sealed Top Burners

INSTALLATION AND SERVICE MUST BE PERFORMED BY

A QUALIFIED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

THIS CONVERSION KIT MUST BE INSTALLED BY A QUALIFIED SERVICE TECHNICIAN

IN ACCORDANCE WITH THE MANUFACTU RER'S INSTRUCTIONS AND ALL APPLICABLE CODES AN D
REQUIREMENTS OF THE AUTHORITY HAVING JURISDICTION. FAILURE TO FOLLOW INSTRUCTIONS
MAY RESULT IN FIRE, EXPLOSION OR PRODUCTION OF CARBON MONOXIDE CAUSING PROPERTY
DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. THE QUALIFIED SERVICE AGENCY IS RESPONSIBLE
FOR THE PROPER INSTALLATION OF THIS KIT. THE INSTALLATION IS NOT PROPER AND COMPLETE

UNTIL THE OPERATION OF THE CONVERTED APPLIANCE IS CHECKED AS SPECIFIED IN THE
MANUFACTURER'S INSTRUCTIONS SUPPLIED WITH THE KIT.

BEFORE PROCEEDING WITH THE CONVERSION, SHUT OFF THE GAS SUPPLY BEFORE

DISCONNECTING ELECTRICAL POWER TO THE RANGE. BE SURE BOTH POWER SUPPLIES ARE OFF
BEFORE INSTALLING THE CONVERSION KIT. FAILURE TO DO SO COULD CAUSE SERIOUS BODILY

INJURY.

This kit contains the following:

Quantity Description Part Number

Top Burner Orifice Marked 0.89 mm (7,500 BTU*)
Top Burner Orifice Marked 1.00 mm (10,000 BTU*) Green

*For operation at elevations above 2000 ft., appliance rating shall be

1
3
3

3

1

reducedat the rate of 4 percent for each 1000 ft. above sealevel.
Installation Instructions

Restrictor-Burner
Screw-Restrictor

Choke-Burner: Small (7,500 BTU) Top Burners
Choke-Burner: Large (10,000 8TU) Top Burner

316010802
316010803

316105832
316011600
316064200

316056700
316086300

Tools Required:

#'1 Phillips Head Screwdriver (small)

5/8" Open End Wrench

1/8" Wide Flat Blade Screwdriver

7mm Nutdriver

P/N 316105832 (0001)

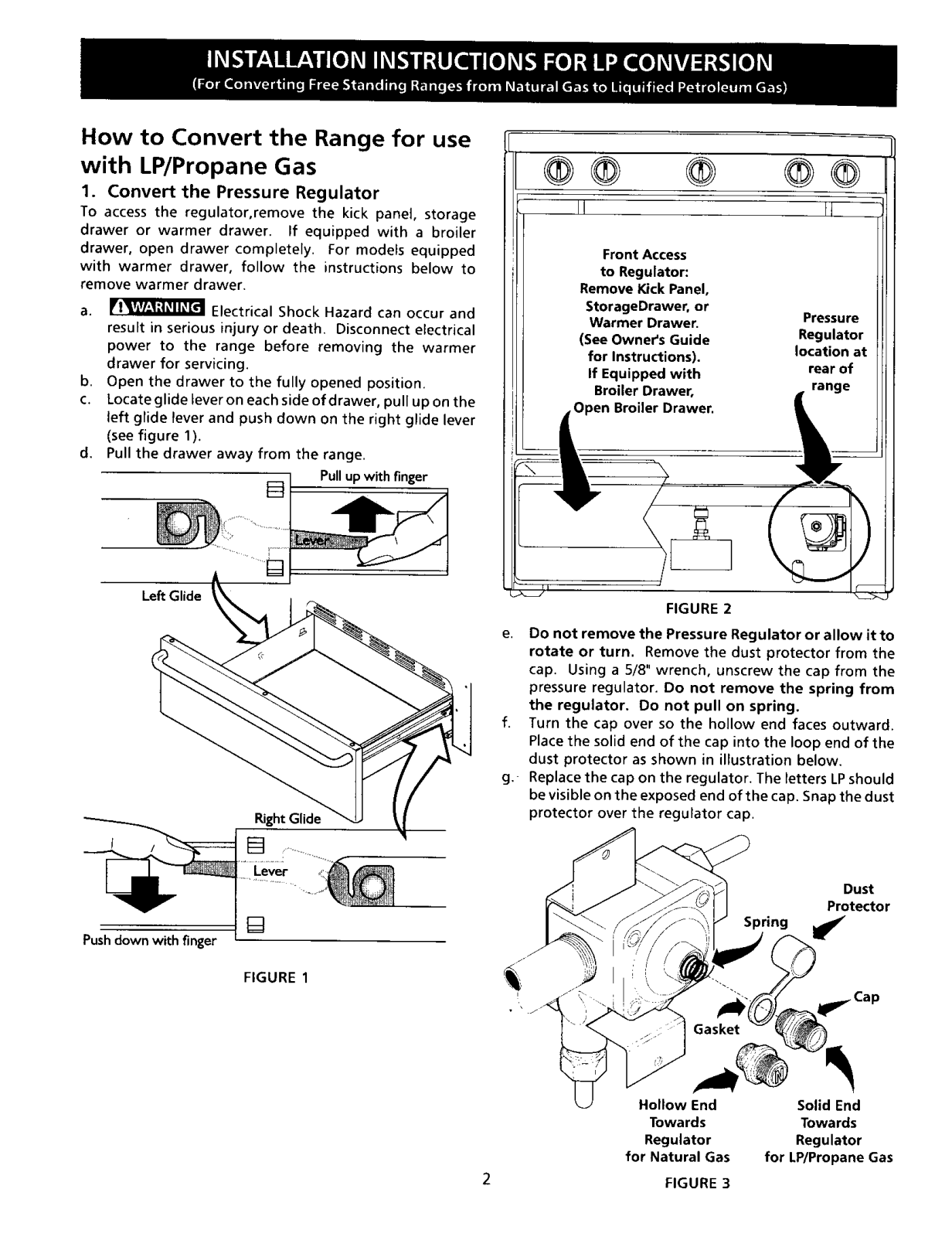

How to Convert the Range for use

with LP/Propane Gas

1. Convert the Pressure Regulator

To access the regulator, remove the kick panel, storage
drawer or warmer drawer. If equipped with a broiler

drawer, open drawer completely. For models equipped
with warmer drawer, follow the instructions below to

remove warmer drawer.
a. _ Electrical Shock Hazard can occur and

result in serious injury or death. Disconnect electrical
power to the range before removing the warmer

drawer for servicing.

b. Open the drawer to the fully opened position.
c. Locate glide lever on each side ofdrawer, pull up on the

left glide lever and push down on the right glide lever
(see figure 1).

d. Pull the drawer away from the range.

Pull up with finger

Front Access

to Regulator:

Remove Kick Panel,

StorageDrawer, or

Warmer Drawer.

(See Owner's Guide

for Instructions).
If Equipped with

Broiler Drawer,

n Broiler Drawer.

LL_

Pressure

Regulator

location at

rear of

range

Left Glide

Push down with finger

RightGlide

]

Lever

[]

FIGURE 1

FIGURE 2

e. Do not remove the Pressure Regulator or allow it to

rotate or turn. Remove the dust protector from the

cap. Using a 5/8" wrench, unscrew the cap from the
pressure regulator. Do not remove the spring from

the regulator. Do not pull on spring.

f. Turn the cap over so the hollow end faces outward.

Place the solid end of the cap into the loop end of the

dust protector as shown in illustration below.

g. Replace the cap on the regulator. The letters LPshould

be visible on the exposed end of the cap. Snap the dust
protector over the regulator cap.

Dust

Protector

Hollow End Solid End

Towards Towards

Regulator Regulator

for Natural Gas for LP/Propane Gas

FIGURE 3
