Kenmore 790.754 User Manual

GAS RANGE

lise & Care CCjfcte

ESTUFA A GAS

iviarujaj c3e[ Usuano

iVIocieis, modelos 790.7540^^

# = color number, número de color

o o o o

Vii

V

: ^

Si

: ■

-

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com

P/N 318200759 Rev. C (0601)

Table of Contents

Range Warranty.........................................................................2

IMPORTANT SAFETY INSTRUCTIONS .................................. 3-5

Product Record ........................................................................

Serial Plate Location ................................................................ 5

Protection Agreements.............................................................6

Grounding Instructions
Conversion to Liquefied Petroleum Gas
Range Features

Before Setting Surface Controls......................................... 9

Setting Surface Controls

................................................................. 8

......................................................

.................................

.................................................... 10

7

Surface Cooking
Before Setting Oven Controls
Air Circulation in the Oven

5

Control Pad Features..............................................................13

Setting Oven Controls

Adjusting Oven Temperature.................................................21

Self-Cleaning

7

General Care & Cleaning

Before You Call.................................................................... 28-29

Sears Service

Kenmore Elite Appliance Warranty

One Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to
a defect in material orworkmanship within one year from the date of purchase, call 1-800-4-MY-HOME ® to arrange for free
repair. If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of
purchase.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the userin correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with
the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those

recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

.....................................................................

..............................................

.....................................................

......................................................

......................................................................22-23

................................................ 24-27

.................................................................... 30

11

12

12

14-21

FIVE-YEAR LIMITED WARRANTY

For the second through the fifth year from the date of purchase, when installed and operated according to the Installation
Instructions and Use & Care Guide, Sears will supply the following range parts free of charge if they fail for the reasons
listed below. Customer must pay labor cost of installation.

Cooktop glass if it fails due to thermal shock.
Cooktop elements if they are defective.

What Sears will not cover:

Failure of the product if it is abused, misused, or used for other than the intended purpose.
Damage to the cooktop glass caused by the use of cleaners or utensils other than the recommended cleaning cream
and tools.
Damage to the cooktop glass caused by hardened spills of sugary materials (including starches from vegetables or
pastas) or melted plastic that are not cleaned according to the directions in the Use & Care Guide.
Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy underthis limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties
of merchantability or fitness, so these exclusions or limitation may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179 Sears Canada Inc.,Toronto, Ontario, Canada MSB 2B8

Printed in United States

Important Safety Instructions

Read all instructions before using this appliance.

Save these instructions for future reference.

This manual contains many important safety messages. Always read and obey all safety messages.
The safety symbol m calls your attention to safety messages that inform you of hazards that can kill or hurt you or
others, or cause damage to the product.

ik WARNING

A CAUTION

product damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.

I Indicates an imminently hazardous situation which, if not avoided may result in death or serious injury.

I Indicates an imminently hazardous situation which, if not avoided may result in minor or moderate injury, or

A WARNING If the information in this manuai is not foilowed

exactly, a fire or explosion may result causing property
damage, personal injury or death.

FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in

your building.

• Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by a qualified

installer, servicer or the gas supplier.

Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after

unpacking the range. Never allow children to play with
packaging material.

Proper Instaiiation-Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Fuel Gas Code ANSI
Z223.1 latest edition, and National Electrical Code
ANSI/NFPA No. 70—latest edition, and local code
requirements. Install only per installation instructions

provided in the literature package for this range.
Sears Parts & Repair is the recommended repair service

for this appliance. Know how to disconnect the power to
the range at the circuit breaker or fuse box and gas
supply at the main shutoff valve in case of an
emergency. Remove the drawer to access the valve.

User servicing—Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only by

a qualified technician. This may reduce the risk of
personal injury and damage to the range.

Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.

A WARNING

or drawer of this range can result in serious injuries
and also cause damage to the range. Do not allow

children to climb or play around the range. The weight of a

I Stepping, leaning or sitting on the door

child on an open door may cause the range to tip, resulting
in serious burns or other injury. An open drawer, when hot,
may cause burns.

A WARNING

equipped)for storage.

A CAUTION

in the cabinets above a range. Children climbing on the

range to reach items could be seriously injured.

A WARNING

to heat or warm the room. Doing so may result in carbon
monoxide poisoning.

• Storage in or on Appliance—Flammable materials should
not be stored in an oven, near surface burners or in the
drawer (if equipped). This includes paper, plastic and cloth

items, such as cookbooks, plasticware and towels, as well
as flammable liquids. Do not store explosives, such as
aerosol cans, on orneartheappliance. Flammable materials
may explode and result in fire or property damage.

• Do not leave children alone—Children should not be
left alone or unattended in the area where appliance
is in use. They should never be allowed to sit or stand

on any part of the appliance.

• DO NOTTOUCH SURFACE BURNERS, AREAS NEAR
THESE BURNERS, OVEN BURNER OR INTERIOR
SURFACES OF THE OVEN OR WARMER DRAWER (if
equipped). Areas near surface burners may become hot

3 enough to cause burns. During and after use, do not

A WARNING

All ranges can tip.
Injury to persons could result.
Install anti-tip device packed
with range.
See Installation Instructions.

A WARNING

the range must be secured by properly
installed anti-tip bracket(s) provided with the
range. To check if the bracket(s) is installed
properly, remove the lower panel or storage
drawer and verify that the anti-tip bracket(s) is
engaged. Refer to the Installation Instructions
for proper anti-tip bracket(s) installation.

I

Do not use the oven or warmer drawer (if

Do not store items of interest to children

N EVER use this appliance as a space heater

! To reduce the risk of tipping,

Important Safety Instructions

touch, or let clothing or other flammable materials touch
these areas until they have had sufficient time to cool.
Among these areas are the cooktop, surfaces facing the
cooktop, the oven vent openings and surfaces near
these openings, oven door and window.

Wearproperapparel-Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or otherflammable

materials contact hot surfaces.

Do not use water or flour on grease fires—Smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.

When heating fat or grease, watch it closely. Fat or

grease may catch fire if allowed to become too hot.

ik WARNING

off the main gas shutoff valve.

• Use only dry potholders—Moist or damp potholders
on hot surfaces may result in burns from steam. Do

not let potholders touch hot heating elements. Do not use
a towel or other bulky cloth instead of a potholder.

• Do not heat unopened food containers—Buildup of
pressure may cause container to burst and result in
injury.

• Remove the oven door from any unused range if it is
to be stored or discarded.

IMPORTANT—Do not attempt to operate the oven during
a power failure. If the power fails, always turn the oven

off. If the oven is not turns off and the power resumes, the
oven may begin to operate again. Food left unattended
could catch fire or spoil.

 WARNING

so it does not extend beyond the edge of the utensil.

The use of undersize utensils will exposed a portion of the
burner flame to direct contact and may result in ignition of
clothing. Proper relationship of utensil to flame will also
improve efficiency.

A WARNING

grates of sealed gas burners. If you use a stove top grill on
a sealed gas burner, it will cause incomplete combustion
and can result in exposure to carbon monoxide levels above
allowable current standards. This can be hazardous to your
health.

A CAUTION

by cold temperatures. When you use your appliance for
the first time, or if it has not been used for a long
period of time, make sure that it has been exposed to a
temperature above 0°C/32°F for at least 3 hours before
connecting it to the power supply.

I In case of fire or gas leak, be sure to turn

I Use proper flame size—Adjust flame size

I

Do not use stove top grills on the burner

I Electronic controllers can be damaged

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating unit.

Always turn the knob to the LITE position when igniting
the burners. Visually check that burner has lit. Then
adjust the flame so it does not extend beyond the edge
of the utensil.

• Use proper pan size. This appliance is equipped with

one or more surface burners of different sizes. Select
utensils having flat bottoms large enough to cover the
surface burner. The use of undersized utensils will
expose a portion of the surface burner to direct contact
and may result in ignition of clothing. Proper relationship
of utensil to the surface burner will also improve
efficiency.

• Utensil handles should be turned inward and not

extend over adjacent surface burners—To reduce the risk

of bums, ignition of flammable materials, and spillage due
to unintentional contact with the utensil. The handle of the
utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface burners.

• Never leave surface burners unattended at high heat

settings—Boilovers cause smoking and greasy spillovers

that may ignite, or a pan that has boiled dry may melt.

• Protective liners—Do not use aluminum foil to line oven

bottom or any other part of the appliance. Only use
aluminum foil as recommended for baking if used as a
cover placed on the food. Any other use of protective
liners or aluminum foil may result in a risk of electric
shock or fire or short circuit.

• Glazed cooking utensils—Only certain types of glass,

glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for rangetop service without breaking
due to the sudden change in temperature. Check the
manufacturer’s recommendations for rangetop use.

• Do not use decorative surface burner covers. If a

burner is accidentally turned on, the decorative cover will
become hot and possibly melt. Burns will occur if the hot
covers are touched. Damage may also be done to the
cooktop or burners because the covers may cause
overheating. Air will be blocked from the burner and
cause combustion problems.

FOR GLASS COOKTOPS ONLY

• Do not clean or operate a broken cooktop—If cooktop

should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of electric
shock. Contact a qualified technician immediately.

• Clean cooktop glass with caution—If a wet sponge or

cloth is used to wipe spills on a hot cooking area, be
careful to avoid a steam burn. Some cleaners can
produce harmful fumes if applied to a hot surface.

• Avoid scratching the cooktop glass with sharp

objects.

Important Safety Instructions

IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN

• Use care when opening oven door or warmer drawer (if

equipped)—Stand to the side of the range when opening

the door of a hot oven. Let hot air or steam escape before
you remove or replace food in the oven/ warmer drawer.

• Keep oven vent ducts unobstructed. The oven vent is

located at the rear of the cooktop. Touching the surfaces in
this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items on
or near the oven vent. These items could melt or ignite.

 WARNING

in the oven bottom or cover an entire rack with materials
such as aluminum foil. Doing so blocks air flow through the

oven and may cause carbon monoxide poisoning. Aluminum
foil linings may trap heat, causing a fire hazard.

• Placement of oven/warmer drawer {if equipped) racks.

Always place oven racks in desired location while oven/
warmer drawer (if equipped) is cool. If rack must be
moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elementsin the oven/warmerdrawer(if equipped).
Remove all utensils from the rack before moving.

• Do not use the broiler pan without its insert. The

broiler pan and its insert allow dripping fat to drain and be
kept away from the high heat of the broiler.

• Do not cover the broiler insert with aluminum foil.

Exposed fat and grease could ignite.

• Do not touch a hot light bulb with a damp cloth. Doing

so could cause the bulb to break. Disconnect the
appliance or turn off the power to the appliance before
removing and replacing light bulb.

I NEVER cover any slots, holes or passages

IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE

• Clean the range regularly to keep all parts free of
grease that could catch fire. Exhaust fan ventilation

hoods and grease filters should be kept clean. Do not
allow grease to accumulate on hood or filter. Greasy
deposits in the fan could catch fire. When you are flaming
food under the hood, turn the fan on. Refer to the hood
manufacturer’s instructions forcleaning.

SELF CLEANING OVENS

• In the self-Cleaning cycle only clean the parts listed in this
Use and Care Guide. Before self cleaning the oven, remove

the broiler pan and any utensils or foods from the oven.

• Do not use oven cleaners—No commercial oven cleaner
or oven liner protective coating of any kind should be
used in or around any part of the oven.

• Do not clean door gasket—The door gasket is essential
for a good seal. Care should be taken not to rub, damage
or move the gasket.

ii CAUTION

sensitive to the fumes given off during the self
cleaning cycle of the range. Move the birds to another
well ventilated room.

I The health of some birds is extremely

rn

siSjuM
:

.

:

Important Safety Notice

The California Safe Drinking Water and Toxic Enforcement Act
requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects
or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.

Product Record

In this space below, record the date of purchase, model and
serial number of your product. You will find the model and serial
number printed on the serial plate.

Model No. 790.
Serial No.
Date of purchase________________________________
Save these instructions and your sales receipt for future reference.

___________________________

_____________________________________

Serial Plate Location

You will find the model and serial number printed on
the serial plate. The serial plate is located on the

right side of the drawer body (see illustration below).
Rememberto record

the serial numberfor
futu re reference.

Please carefully read and save these instructions

This Use & Care Manual contains general operating instructions
for your appliance and feature information for several models. Your
product may not have all the described features. The graphics
shown are representative. The graphics on your appliance may not
look exactly like those shown. Common sense and caution must
be practiced when installing, operating and maintaining any ”
appliance.

Serial Pinte

SAVETHESE liSiSTRUCTIONS

5

! f—l

te

-------------

f n

tSii

/,

PROTECTION AGREEIVIENTS

In the U.S.A.

Master Protection Agreements

Congratulations on making a smart purchase. Your new
Kenmore® product is designed and manufactured for years
of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time.
That's when having a Master Protection Agreement can
save you money and aggravation.

Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend the life
of your new product. Here’s what’s included in the
Agreement:

0" Expert service by our 12,000 professional repair

specialists
Unlimited service and no charge for parts and labor on
all covered repairs
“No-!emon” guarantee-replacement
of your covered product if four or more product failures
occur within twelve months

гГ

Product replacement if your covered product can’t be
fixed
Annual Preventive Maintenance Check at your
request - no extra charge
Fast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling

Ei

Power surge protection against electrical damage
due to power fluctuations
Rental reimbursement if repair of your covered
product takes longer than promised

In Canada

Maintenance Agreements

Your purchase has added value because you can
depend on Sears HomeCentral® for service. With over
2400 Service Technicians and more than a million parts
and accessories, we have the tools, parts, knowledge
and skills to ensure our pledge: We Service What We
Sell.

Your Kenmore® product is designed, manufactured
and tested to provide years of dependable operation. But
like all products, it may require service from time to time.
The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.

The Sears Maintenance Agreement:

• Is your way to buy tomorrow’s service at today’s price

• Eliminates repair bills resulting from normal wear and
tear

• Provides phone support from a Sears technician on
products requiring in-home repair

• Even if you don’t need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running condition.

Some limitations apply. For more information about
Sears Canada Maintenance Agreements,
call 1-800-361-6665

Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
on-line.

Sears has over 12,000 professional repair specialists, who
have access to over 4.5 million quality parts and
accessories. That’s the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection
Agreement today!

Some limitations and exclusions apply.
For prices and additional information call
1-800-827-6655.

Sears Installation Service

For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call

1-800-4-MY-HOME®

Grounding Instructions

For personal safety, the cooktop must be properly grounded. For
maximum safety, the power cord must be plugged into an electrical
outlet that is correctly polarized and properly grounded.

DO NOT Operate the cooktop using a 2-prong adapteroran extension
cord. If a 2-prong wall receptacle is the only available outlet, it is the
personal responsibility of the consumer to have it replaced with a
properly grounded 3-prong wall receptacle installed by a qualified
electrician.

See the INSTALLATION INSTRUCTIONS packaged with this range
for complete installation and grounding instructions.

Grounding type
wail receptacle

Do not, under any
circumstances,
cut, remove, or
bypass the
grounding prong.

Power supply cord with

3-prong grounding plug

A WARNING

plug for your protection against shock hazard and should be plugged
directly intoa properly grounded receptacle. DO NOT cut or remove the
grounding prong from this plug.

A WARNING I Personal injury or death from electrical shock may

occur if the range is not installed by a qualified installer or
electrician.

I This appliance is equipped with a 3-prong grounding

A WARNING (Avoid fire hazard or electrical shock.

DO NOT use an adapter plug, an extension cord, or

removegrounding prong from electrical powercord.
Failure to follow this warning can cause serious
injury, fire or death.

Conversion to Liquefied Petroleum Gas (or L. P. Gas)

This natural gas range is designed to allow for conversion
to Liquefied Petroleum (L. P.) Gas.

Only a qualified service agent should perform the L. P.
conversion. Call 1-800-4-MY-HOME® if you wish to have
Sears Service perform the conversion. An L. P.
Conversion Kit is provided with this range and is located on
the main back of the range. The kit contains installation
instructions which must be read before and followed
carefully when installing the kit.

A WARNING ¡To avoid serious injury, any additions,

changes or conversions required in order forthis appliance
to satisfactorily meet the application needs must be made
by a qualified service agent.

rn

L:

^ .

Range Features

Your Range

Features
At a Glance

Burner Valve & Knob

Electronic Oven Controls with
Clock and Kitchen Timer

Oven Vent

Burner Valve & Knob

Burner Valve & Knob

Interior Oven Light

Searing Grill

Broil Pan Insert

N

Burner Valve
& Knob

Burner Valve

*& Knob

Self-Cleaning

. Interior Oven

Adjustable

• Oven Racks
One Piece

■ Door Handle

• Stainless
Steel Oven
Door

Broil Pan

Griddle

Ceramic
Glass
Cooktop

9,500 BTU

Burner

14,200 BTU
Power Burner

X

Storage Drawer

5,000 BTU
Simmer
Burner

17,200 BTU
Power
Burner

Note: The features of your range will vary according to model.

Stainless Steel Frame

12,000 BTU Burner

Before Setting Surface Controls

Assembly of the Surface Burner Heads, Burner Caps and Burner Grates

It is very important to make sure that all of the Surface Burner Heads, Surface Burner Caps
and Surface Burner Grates are installed correctly and at the correct locations.

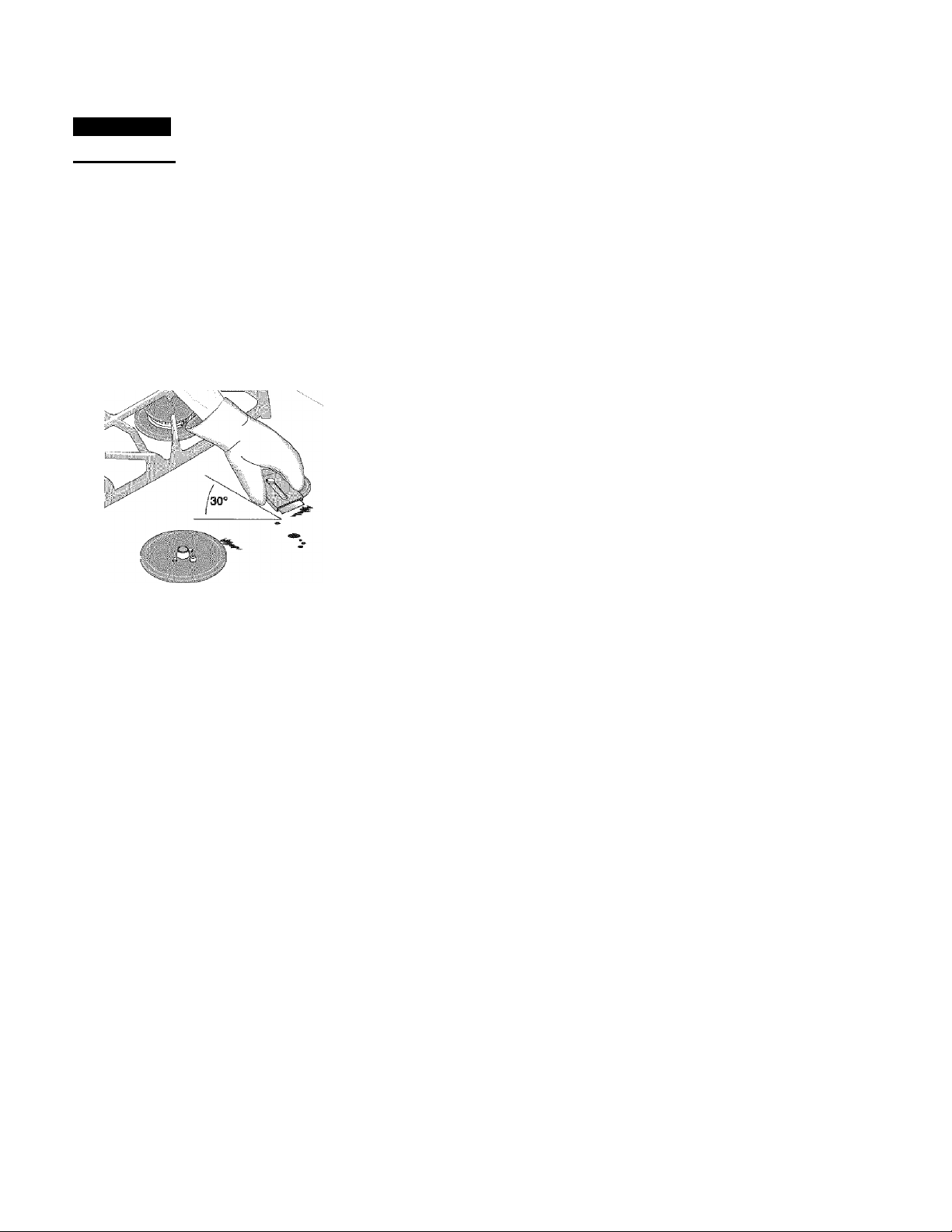

1. Remove all packing tape from cooktop. Remove Burner Caps and Burner Heads.

2. Discard all packing material located under all Burner Heads.

3. T0 replace Burner Heads & Caps, match the letters located under center of Burner Caps

with the letters located inside Burner Head (See Figure 2).

4. Match the letters stamped on Burner skirts with Burner Heads and Burner Caps on
cooktop (See Figure 2). Carefully align the Electrodes into slots or holes of the Burner

Heads (Figure 1). Note: The Burner Heads should sit flat on

Cooktop Burner Skirts.

5. Unpack Burner Grates and position on cooktop.

REMEMBER — DO NOT ALLOW SPILLS, FOOD, CLEANING

AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS
ORIFICE HOLDER OPENING. Always keep the Burner Caps and

Burner Heads in place whenever the surface burners are in use. Burner Head

Figure 1

Figures

Locations of the Gas Surface Burners

The SIMMER burner is best used tor simmering
delicate sauces, etc. This burner is located at the right

rear burner position on the cooktop.

The STANDARD sized burners are used for most
surface cooking needs. These burners are located at
the left rear and center positions on the cooktop.

The POWER burners are best used for bringing large
quantities of liquid rapidly up to temperature or when
preparing larger quantities of food. These burners are
located at the right front and left front positions on the
cooktop.

o

Setting Surface Controls

ik CAUTION

items such as salt and pepper shakers,
spoon holders or plastic wrappings on
top of the range when it is in use.

These items could melt or ignite.
Potholders, towels or wood spoons could
catch fire if placed too close to a flame.

In the event of an electrical power outage,
the surface burners can be lit manually.
To light a surface burner, hold a lit match
to the burner head, then slowly turn the
surface control knob to LITE. After burner
lights push in and turn knob to desired
setting. Use caution when lighting surface
burners manually.

I

Do not place plastic

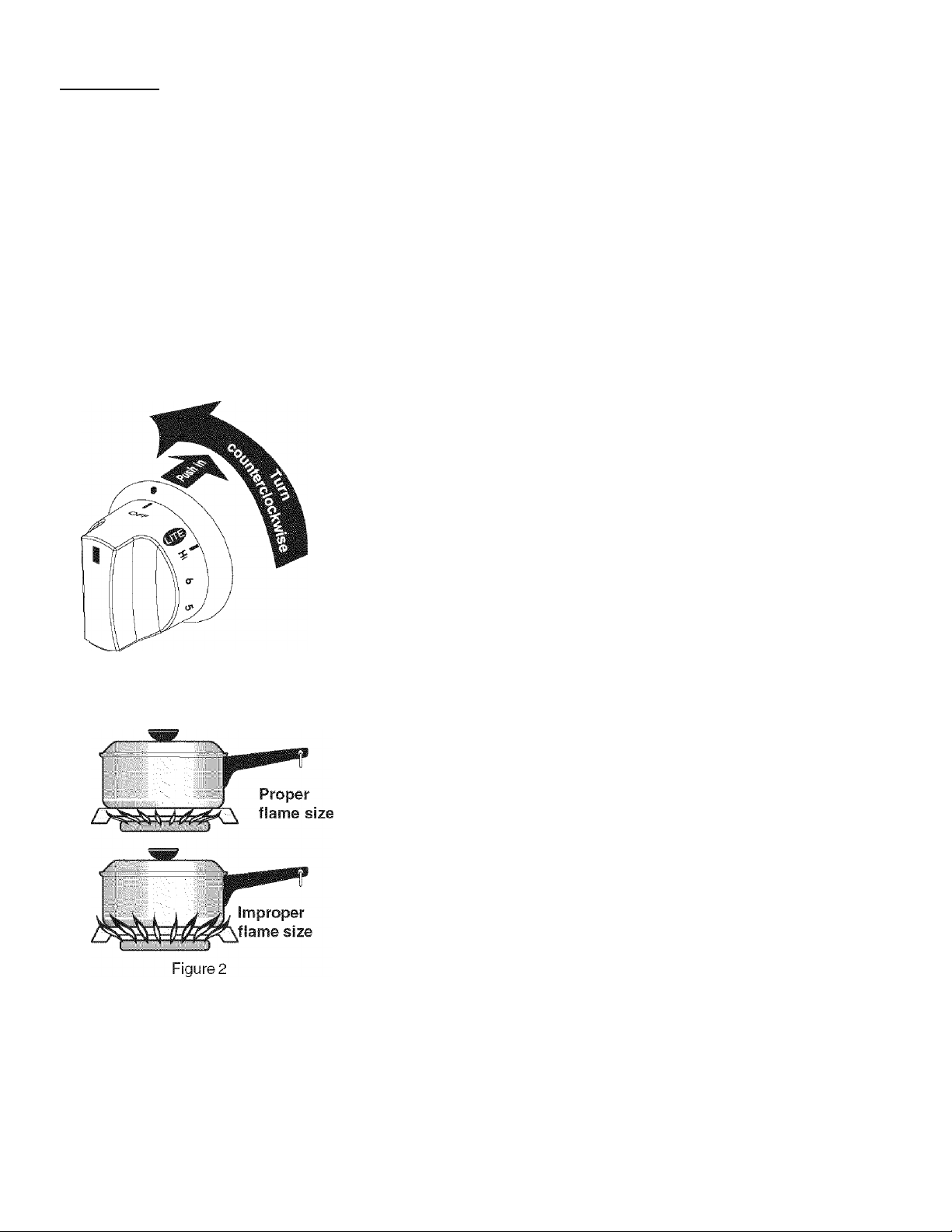

Operating the Gas Surface Controls:

1. Place cooking utensil on surface burner.

2. Push the surface control knob down and turn counterclockwise out of
the OFF position (See Figure 1).

3. Release the knob and rotate to the LITE position. Note: All four
electronic surface ignitors will spark at the same time. However, only
the burner you are turning on will ignite.

4. Visually check that the burner has a flame.

5. Turn the control knob counterclockwise to the desired flame size.
The control knobs do not have to be set at a particular setting. Use the
knob indicator settings to adjust the flame as needed. DO NOT cook
with the surface control knob in the LITE position. (The electronic
ignitor will continue to spark if the knob is left in the LITE position.)

Setting Proper Surface Burner Flame Size

For most cooking, start on the highest control setting and then turn to a
lower one to complete the process. Use the recommendations below as a
guide for determining proper flame size for various types of cooking. The
size and type of utensil used and the amount of food being cooked will
influence the setting needed for cooking.

OFF LITE HI 6 5 4 3 2 LO

Figure 1

*F!ame Size

High Flame
Medium Flame
Low Flame

*These settings are based on using medium-weight metal or
aluminum pans with lids. Settings may vary when using other types
of pans. The color of the flame is the key to proper burner adjustment. A

good flame is clear, blue and hardly visible in a well-lighted room. Each
cone of flame should be steady and sharp. Clean burner if flame is yellow­orange.
Regardless of size, always select cookware that is suitable for the amount
and type of food being prepared. Select a burner and flame size
appropriate to the pan. Never allow flames to extend beyond the outer
edge of the pan.

Never extend the flame beyond the outer edge of the utensil. A higher
flame wastes heat and energy and increases your risk of being burned
by the flame (Figure 2).

For deep fat frying, use a thermometer and adjust the surface control
knob accordingly. If the fat is too cool, the food will absorb the fat and be
greasy. If the fat is too hot, the food will brown so quickly that the center
will be undercooked. Do not attempt to deep fat fry too much food at once
as the food will neither brown nor cook properly.

Type of Cooking

Start most foods; bring water to a boil; pan broiling.
Maintain a slow boil; thicken sauces, gravies; steaming.
Keep foods cooking: poach: stewing.

10

Surface Cooking

Use Proper Cookware

Cookware should
have flat bottoms that
make good contact
with the entire surface
heating element.
Check for flatness by
rotating a ruler across
the bottom of the
cookware (See Figure

1). Be sure to follow
the recommendations for using cookware
as shown in Figure 2.

Note: The size and type of cookware used
will influence the setting needed for best
cooking results.

Note: Always use a utensil for its intended
purpose. Follow manufacturer's instructions.
Some utensils were not made to be used in
the oven oron the cooktop.

CORRECT INCORRECT

» Curved and warped pan bottoms.

__

/ t Ilf ^ ^ \

• Flat bottom and straight
sides.

• Tight fitting lids.

• Weight of handle does not tilt
pan. Pan is well balanced.

• Pan sizes match the amount
of food to be prepared.

• Made of material that
conducts heat well.

• Easy to clean.

Specialty pans such as lobster pots, griddles and pressure cookers may be
used but mustconform to the above recommended cookware requirements.

Pan overhangs burnergrate by more
than 2.5 cm (1”).

Heavy handle tilts pan.

Flame extends beyond pan.

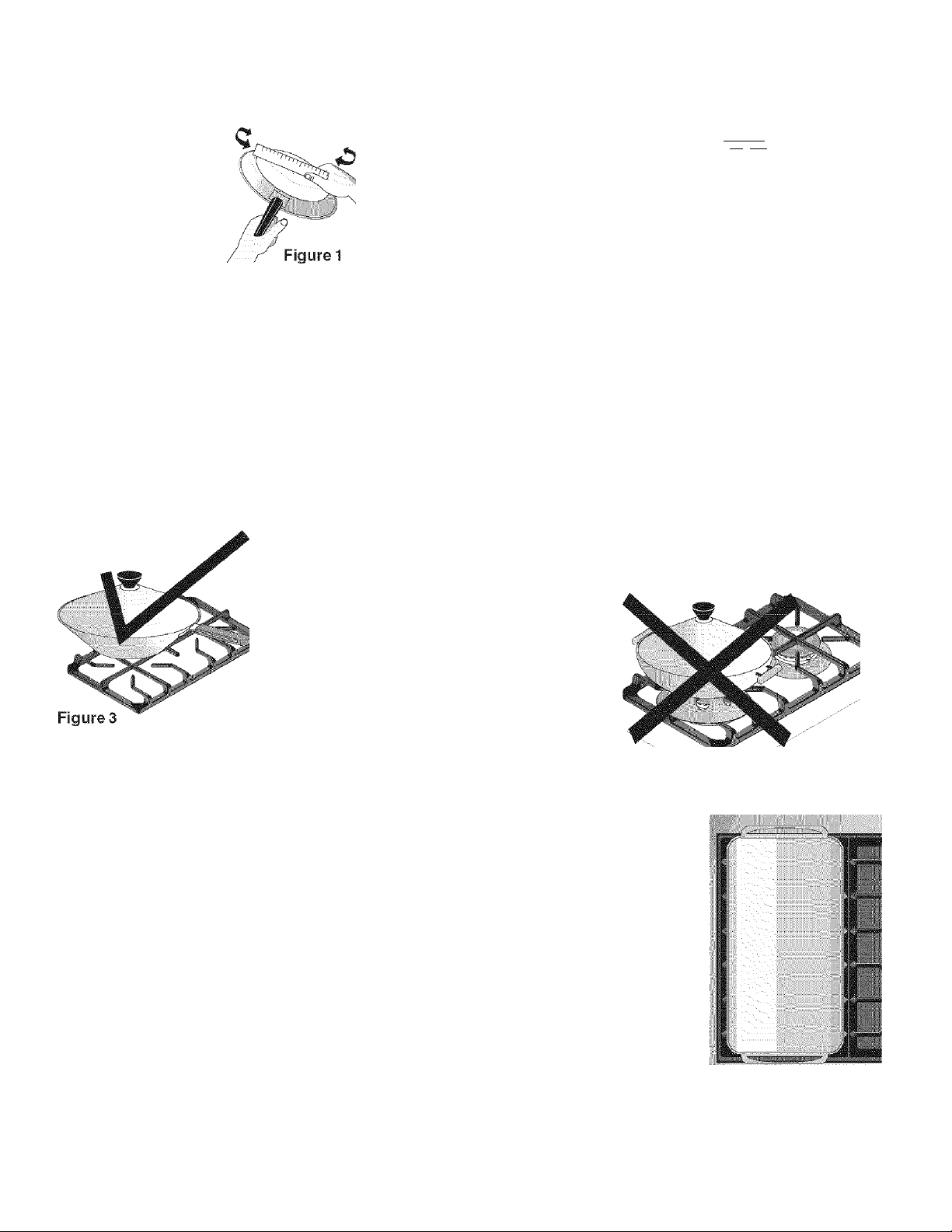

Figure 2

_ ^

Using a wok

Woks with flat bottoms suitable for use on
your cooktop are available in most
cookshop or hardware stores. Round­bottomed woks (with a support ring that
does not extend beyond the burner
circumference) may also be used. The metal

ring was designed to support the wok safely
when it is filled with large amounts of liquids
(soup making) or fat (frying).

Wire trivets: Do not use wire trivets.
Cookware bottoms must be in direct contact
with the grates.

DO NOT use a wok if it is equipped with a
metal ring that extends beyond the
burner circumference. Because this ring
traps heat, the surface unit and cooktop
surface could be damaged.

Care & Seasoning of the Griddle

Before first use:

• Wash Griddle in hot soapy water. Rinse and then dry completely.

• Apply a thin coat of vegetable oil to the entire surface (front and back of griddle).

• Preheat your oven to 350°F. Place the griddle on the upper rack in your oven.

• Bake griddle for 1 hourat350°F, then turn oven OFF and let cool before removing.

• The surface may appear to have a tacky feel to it from the seasoning process. If desired,
wash the griddle in hot soapy water, rinse well, and dry completely.

After each use:

•To prevent rusting, store in a dry place and keep uncovered.

• After each use, clean with a stiff brush and hot water only.

• DO NOT CLEAN GRIDDLE IN DISHWASHER.

• Dry immediately and apply a light coating of vegetable oil to griddle before storing.

Figure 4

Using the Griddle:

• Place either side of the griddle centered over the left side gas burners.

• Preheat the griddle for 5 minutes on medium to medium low setting. Slow preheat
ensures even heat distribution during the cooking process.

• DO NOT preheat the griddle on HI setting. Preheating on HI may warp the griddle and
prevent even heat distribution.

11

Figures

Before Setting Oven Controls

ik CAUTION

to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while.

The oven vent is located in the center rear on the
cooktop. When the oven is on, warm air passes through

the vent. This venting is necessary for proper air
circulation in the oven and good baking results. DO NOT
BLOCK OVEN VENT. Never close off the openings with
aluminum foil or any other material.

[This range has afan thatwillturn"ON"and "OFF" by itself to keep theelectronicscool.lt may continue

Oven Vent Location

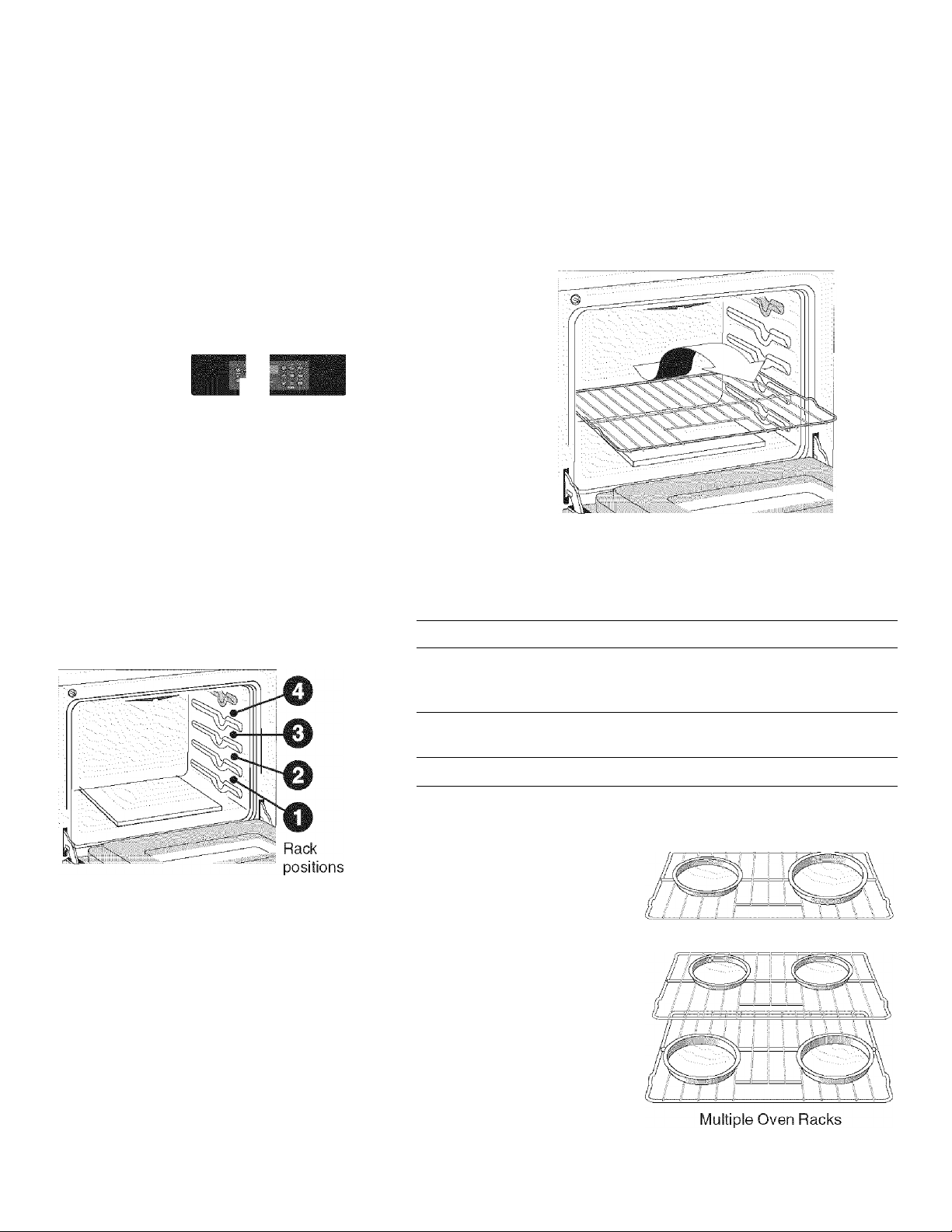

To remove, pull the rack forward until it stops. Lift up

front of rack and slide out. To replace, fit the rack onto
the guides on the oven walls. Tilt the front of the rack
upward and slide the rack back into place.

OVEN VENT

Removing and Replacing Oven Racks

'I

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN
THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN). Always use oven
mitts when the oven is hot.

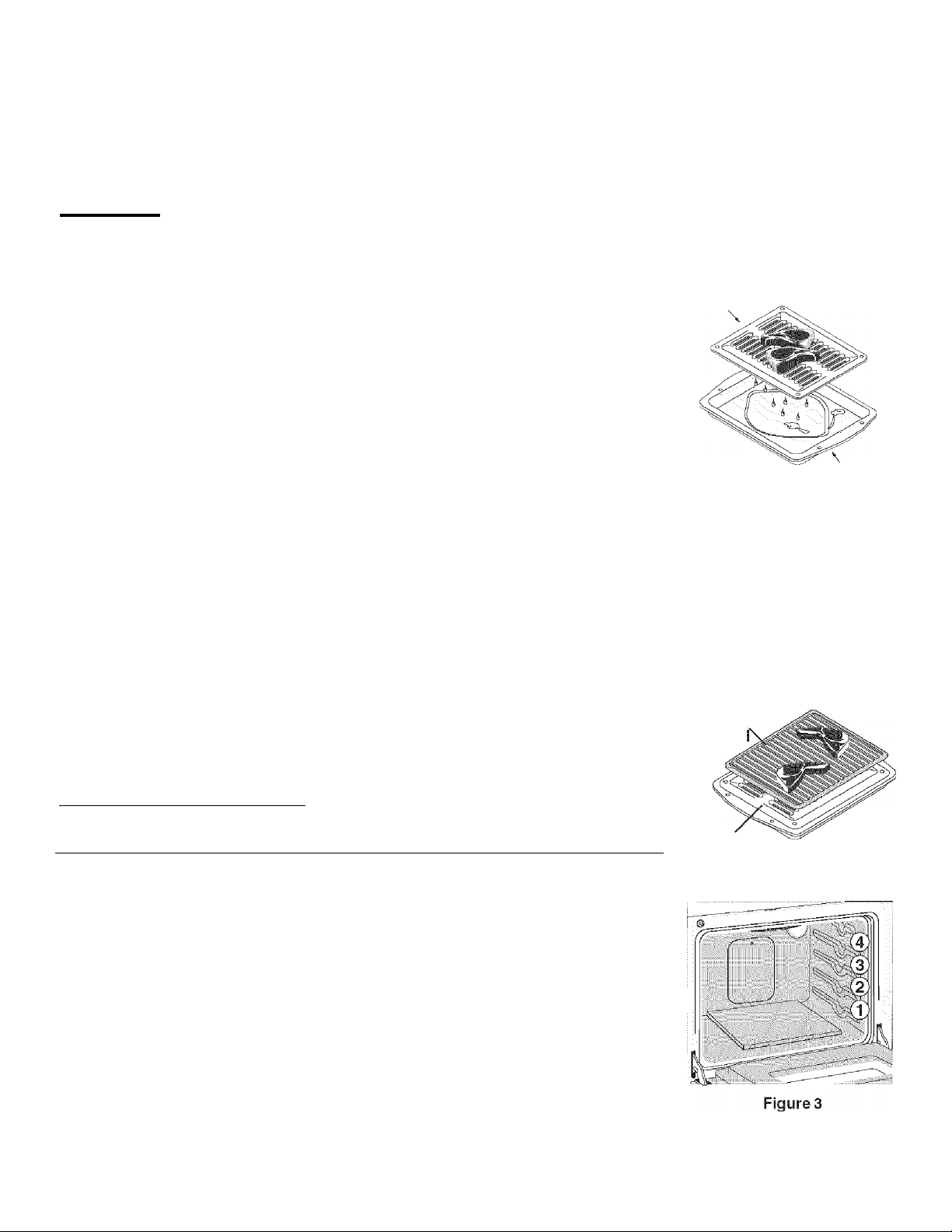

Food Rack position
Broiling meats, chicken or fish 3 or 4
Cookies, cakes, pies, biscuits & muffins

1 rack 2 or3
Multiple racks 2 &4

Frozen pies, angel food cake, yeast, bread,

casseroles, small cuts of meat or poultry
Turkey, roast or ham 1

Note: Always use caution when removing food.

RECOMMENDED RACK POSITIONS FOR

BROILING, BAKING & ROASTING

Air Circulation in the Oven

For best air circulation and baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and cookware do not touch
each other, the oven door, sides or back of the oven cavity. The hot air must
circulate around the pans and cookware in the oven for even heat to reach
around the food.

1 or 2

1 Oven Rack

12

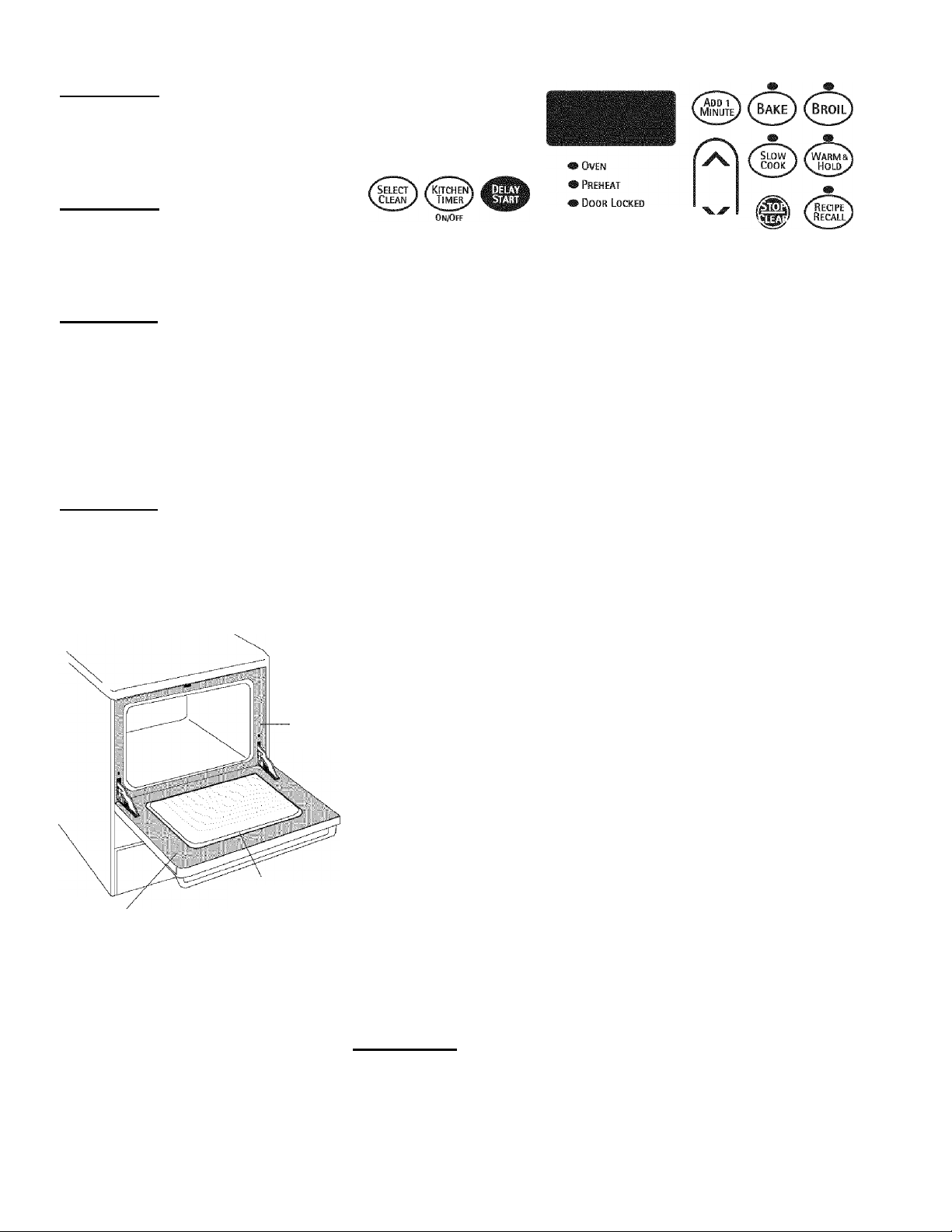

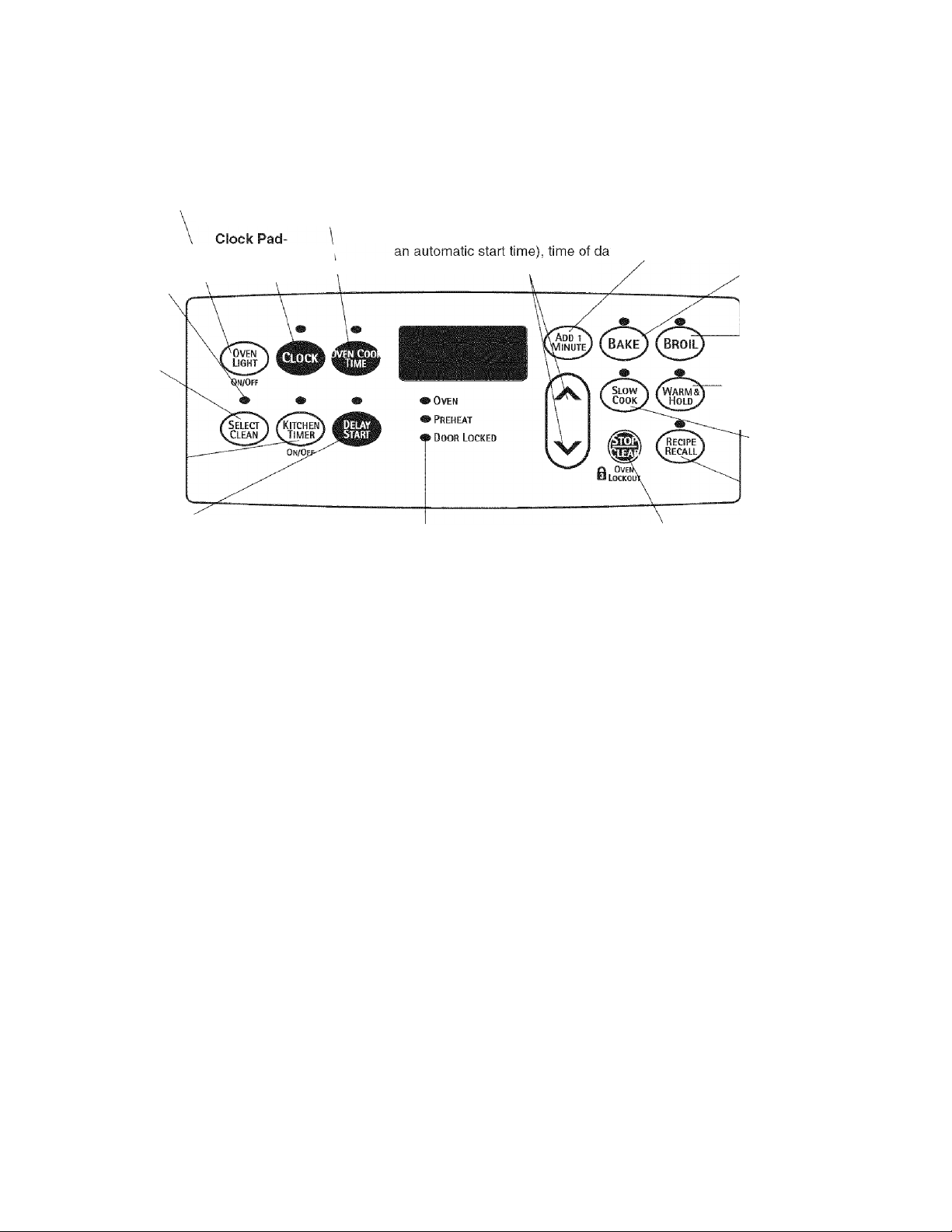

Control Pad Features

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described beiow. Detailed instructions for each feature

and function follow later in this Use & Care Guide.

Note: The oven function will not work if the time of day clock is not set.

Oven Interior Light Pad-

Used to turn oven interior
light ON and OFF.

Feature indicator

lights- These light
show which feature is
In use.

Select Clean Pad-
Used to select the
self-cleaning cycle.

Kitchen Timer
Pad- Used to set

or cancel the
minute timer. The
minute timer does­not start or stop
cooking.

Delay Start Pad- Used
to set the desired start
time for baking. Can be
used with OVEN COOK
TIME to program a
delayed bake cycle.

Cook Time Pad- Used

to enter the iength of
the baking time.

Used to set the
time of day.

Oven, Preheat, Door Locked & Cooktop Locked
lights- The "oven" light indicates that the oven is

functioning. The "Preheat" light will glow when the
oven is first set to operate, or if the desired
temperature is reset higher than the actual oven
temperature. The "Door Locked" light will flash until
the door locks when the self-clean cycle is in use. It
glows constantly after the door locks.

Up and Down arrow pads- Used
along with the function pads to
select oven temperature, cooking
time, start time (when programming

clean time and minute timer.

Add 1 Minute Pad- Used to add 1
minute to the Timer Countdown. This
feature works with the Kitchen Timer
only and does not affect any cook time
or start time functions.

y,

Stop Pad- Used to clear
any function previously
entered except the time of
day and minute timer.

Push Clear pad to stop
cooking. Also used to
activate the Oven Lock
feature.

Bake Pad- Used to
enter the normal baking
mode temperature.

Broil Pad- Used to
select the variable broil
function.

-.Warm & Hold Pad-
Used to set the Keep

Warm feature.

Slow Cook—

Used to set the Slow
Cook feature.

Recipe Recall-

Used to set the
Recipe Recall
feature.

rn
:L;

^ .

For a silent control panel

When choosing a function, a beep will be heard each time a pad is pushed. If desired, the controls can be programmed for silent
operation.

To tell if your oven is set for normal or silent operation push and hold for? seconds. or "SP" (speaker) appears in
the display. Within 5 seconds, press yv or to switch between normal sound operation and silent operation mode. The display

will show either or "SP". Waits seconds to return to normal operating mode. Note: If "SP" appears, the control will operate
with normal sounds and beeps. If appears, the control is in the silent operation mode.

Temperature Conversion (Fahrenheit / Celsius)

The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be
programmed forany temperature from 170°F to 550°F (77°C to 288°C).

To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):

1. Press and hold (Broii^ for 7 seconds until “F or “C appears in the display.
Press yv or >✓ " to change °F to °C or “C to °F.

2.

I (brÒÌ^

3. Wait 5 seconds or press (^p) to accept the changes.

To Operate the Oven Light

The interior oven light will automatically turn ON when the oven door is opened. Press to turn the interior light ON
and OFF whenever the door is closed. The interior oven light is located at the upper left rear wall of the oven interior and is

covered with a glass shield held by a wire holder. The glass shield must be in place whenever the oven is in use. To change
the interior oven light, see changing the Oven Light in the General Care & Cleaning section in this Use and Care Guide.

13

Setting the Clock and iViinute Timer

Note: The time of day must first be set in order to operate the oven.

To set the Clock

When the range is first plugged in, or when the power supply to the appliance has been interrupted, the display will flash

"12:00".

1. Press once (do not hold pad down).

2. Within 5 seconds, push and hold yy or until the correct time of day appears in the display.

3. Press to accept the new time of day. If is not pressed, the timer will return automatically to the new time
of day after 7 seconds.

Note: The clock cannot be changed during any bake, timed bake, delayed time bake, clean cycle or delayed clean cycle.

Changing between 12 or 24 Hour Time of Day Display

1. Press and hold for 7 seconds. After 7 seconds, "12Hr" or "24Hr" will appear in the display and the control will
beep once.

2. Press yv or to switch between the 12 and 24 hour time of day display. The display will show either "12Hr" or
"24Hr".

3. Wait 5 seconds or press to return to the time of day display.

4. Reset the correct time as described in To set the Clock above. Please note that it the 24 hour time of day mode was
chosen, the clock will now display time from 0:00 through 23:59 hours.

To Set the Minute Timer

1. Press Vi™/. "0:00" will appear in the display.

2. Press yy to increase or to decrease the time in one minute increments. The timer can be set for any amount of

3. The display shows the timer count down in minutes if more than 1 hour remains. When less than 1 hour remains, the

4. When the set time has run out, the timer will beep 3 times and “End” appears in the display. It will continue to beep 3

Note: To cancel the Minute Timer at any time press
Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when the set

time has run out. The minute timer can be used alone or during any of the other oven functions. When the minute timer is
in use with any other mode, the minute timer will be shown in the display. To view other functions, press the function pad
for that mode.

To Cancel the Minute Timer before the set time has run out: Press

^itchenN

On/Off

time from 1 minute to 11 hours and 59 minutes.
display will count down in seconds.

. , , №chenN . ,

times every 8 seconds until the is pressed.

ON/OFF

^TCHm

On/Off

On/Off

To Set Add 1 Minute Feature

The is used to set the Add 1 Minute feature. When is pressed, 1 minute is added to the Minute Timer

feature if this feature is already active. If the Minute Timer feature is not active and is pressed, the Minute Timer

'hm T ’

feature will become active and will begin counting down from 1 minute. For further information on howto set the Minute
Timer feature see To Set the Minute Timer instructions above.

14

Setting Oven Controls

To Set Control for Continuous Bake or 12 Hour Energy Saving

The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more
than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.

To set control for continuous baking:

1. Press and hold x™/ pad for 7 seconds until a tone is heard.

2. Within 5 seconds, press ^ or ^ to switch between Continuous Bake and 12 Hour Energy Saving mode. The
display will show either"
appears, the oven is set to 12 hour energy saving mode.

3. Wait 5 seconds or press (^p) to accept the changes.

/titchenN

On/Off

-------

hr" or "12hr". If— hr" appears, the oven will be set to continuous baking. If "12hr"

To Set Control for Oven Lockout

The control can be programmed to lock the oven door and lock the oven control pads. The Oven Lockout feature prevents the
oven from being accidentally turned on. It does not disable the clock, minute timer or the interior oven light.

To Set Control for Oven Lock feature:

1. Press ^p) and hold for 3 seconds. "LOG" will appear in the display. The "Door Locked" indicator light will flash and

the motor driven door lock will begin to close automatically. DO NOT open the oven door while the indicator light is
flashing. Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the "Door Locked" indicator
light will stop flashing and remain on in display.

To cancel the Oven lockout feature, press
resume normal operation.

i and hold for 3 seconds. The control will unlock the oven door and

rn

L:

^ .

To Set or Change the Temperature for Baking

The oven can be programmed to bake at any temperature from 170“F to 550°F (77“C to288“C).
To Set the Controls for Baking:

1. Arrange the interior oven racks and place food in the oven.

2. Press (ba^."----------------appears in the display.

3. Within 5 seconds, Press yy or The display will show "350°F (177°C)." By holding yy or v', the temperature can
then be adjusted in 5°F (1 °C if control is set to display Celsius) increments.

4. 8 seconds after
temperature reaches the desired baking temperature, the preheat indicator light will turn OFF.

5. To cancel the baking function, press ©■

To Change the Oven Temperature after Baking has Started: Press

yy

or

\y

is released, the oven will begin heating to the selected temperature. When the displayed

yy

or y/- to increase or decrease the set temperature.

Setting the Warm & Hold Feature

The WARM & HOLD pad turns ON the Keep Warm feature and will maintain an oven temperature of 170° F (77°C). The
Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours
the Warm & Hold feature will shut the oven OFF automatically. The Warm & Hold feature may be used without any other
cooking operations or can be used after cooking has finished using a Timed Bake or Delayed Timed Bake.

To set Keep Warm:

1. Arrange the interior oven racks and place baked food in the oven.

2. Press (^H*oLDy- "
Note: If no further pads are touched within 25 seconds the request to turn ON Keep Warm will be cleared.

3. Press

yy

or

-----

" will appear in the display and the Keep Warm indicator light above the pad will turn ON.

Ny

to start. "Hid" will be displayed.

4. To turn Warm & Hold feature OFF at any time press i
OFF.

I or nfoLDV' The Keep Warm indicator light above the pad will turn

15

Setting Oven Controls (cont’d)

Setting the Warm & Hold Feature (Cont’d)

To set Keep Warm to turn ON automatically:

1. Arrange the interior oven racks and place food in the oven. Set the oven properly for Timed Bake or Delayed Timed
Bake (see page 19).

2. Press "

3. Press yv or -V to start. Keep Warm is set to turn ON automatically after Timed Bake or Delayed Timed Bake has
finished.

To turn Warm & Hold feature OFF at any time press i
OFF.

------

" will appear in the display and the Keep Warm indicator light above the pad will turn ON.

I or nfoi“ 7' The Keep Warm indicator light above the pad will turn

Oven Baking Information

For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to
preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned
appliance. Referto “Adjusting the Oven Temperature” section.

Baking problems and solutions

Baking Problems Causes Corrections Cookies and

biscuits burn on
the bottom.

Cookies and biscuits put into
the oven before the preheating
time is completed.

Oven rack overcrowded.

Dark pan absorbs heat too fast.

Allow oven to preheat to the selected temperature
before placing food in oven.
Choose pan sizes that will permit 2" to 4" (5.1 cm to

10.2 cm) of air space on all sides when placed in the
oven.
Use a medium-weight aluminum baking sheet.

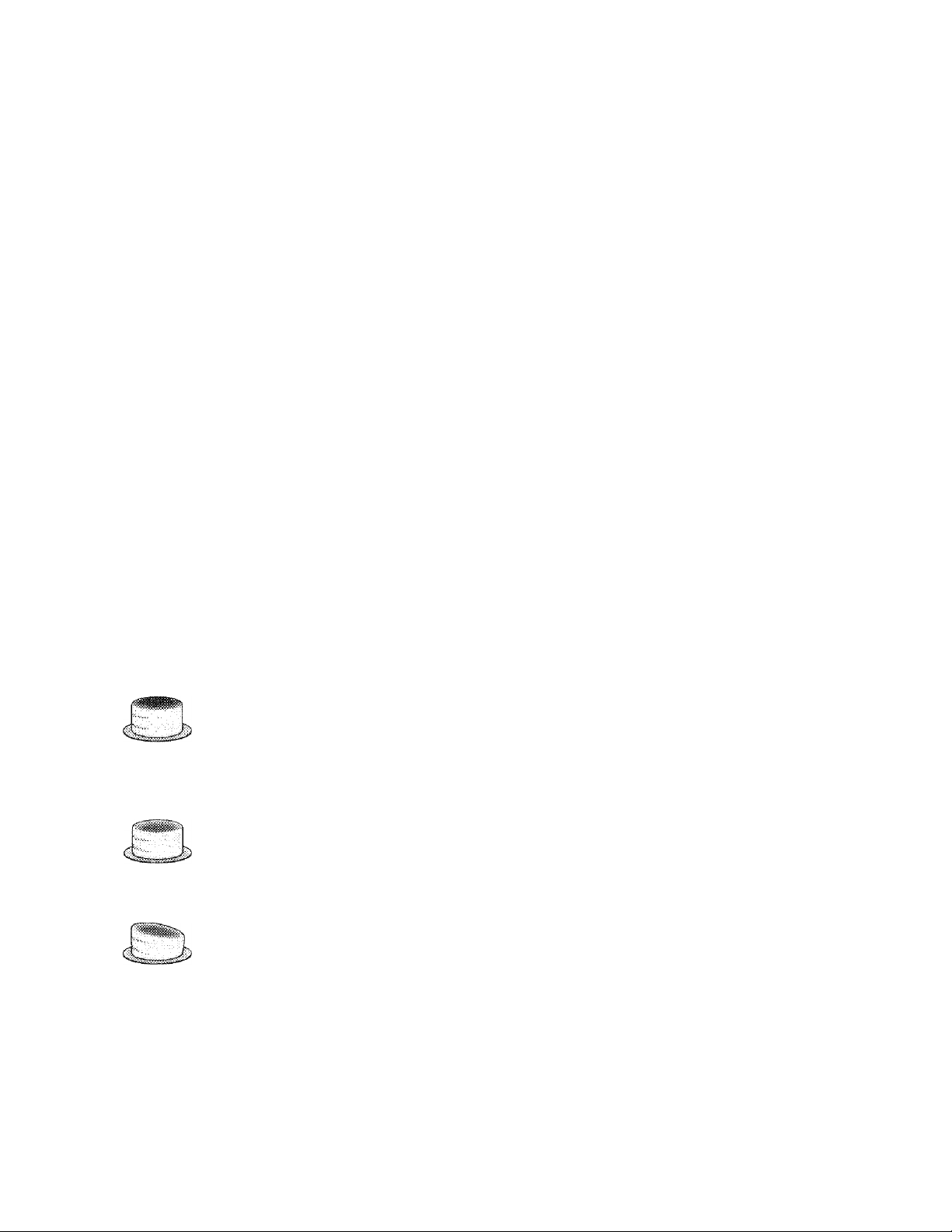

Cakes too dark on top or bottom.

Cakes not done in the center.

Cakes not level. Range not level.

Foods not done
when cooking time
is up.

Cakes put into the oven before

preheating time is completed.

Oven rack position too high or

low.

Oven too hot.

• Oven too hot.
» Incorrect pan size.

• Pan not centered in the oven.

• Pan too close to oven wall or
rack overcrowded.

• Pan warped.
Oven too cool.
Oven overcrowded.

Oven door opened too

frequently.

Allow oven to preheat to the selected temperature
before placing food in the oven.
Use proper rack position for baking needs.

Set oven temperature 25°F/12“C lower than
recommended.

Set oven temperature 25°F/12°C lower than
recommended.
Use pan size suggested in recipe.
Use proper rack position and place pan so there is 2"
to 4" (5.1 cm to 10.2 cm) of space on all sides of pan.

Place marked glass measuring cup filled with water
on the center of the oven rack. If water level is
uneven, refer to the installation instructions for
leveling the appliance.
Be sure to allow 2" to 4" (5.1 cm to 10.2 cm) of
clearance on all sides of each pan in the oven.
Do not use pans that are dented or warped.

Set oven temperature 25°F /12°C higher than
suggested and bake for the recommended time.
Be sure to remove all pans from the oven except the
ones to be used for baking.
Open oven door only after shortest recommended
baking time.

16

Setting Oven Controls (cont’d)

Setting the Slow Cook Feature

The SLOW COOK pad is used to activate this feature. The Slow Cook feature may be used to cook foods more
slowly, at lower oven temperatures and provides cooking results much the same way as a Slow Cooker or Crock-Pot. The

Slow Cook feature is ideal for roasting beef, pork & poultry. Slow Cooking meats may result in the exterior of meats
becoming dark but not burnt. This is normal.

There are 2 settings available, high (HI) or low (LO). The high setting is best for cooking foods from a 4 to 5 hour time
period. The low setting is best for cooking foods from a 8 to 9 hour time period. The maximum cook time for the Slow
Cook feature is 12 hours unless the oven control has been changed to the Continuous Bake mode. This feature may be
used with the additional settings of a Timed Bake ora Delayed Start (Delayed Timed Bake).

Some tips you should review for best possible results using Slow Cook feature:

Completely thaw all frozen foods before cooking with the Slow Cook.

When using a single rack, place in position 2 or 3 (from bottom).

Position multiple racks to accommodate size of cooking utensils when cooking multiple food items.
Do not open the oven door often or leave the door open when checking foods. If the oven heat escapes often, the
Slow Cook time may need to be extended.
Cover the foods to keep them moist or use a loose or vented type cover to allow foods to turn crisp or brown.
Roasts may be left uncovered so browning can occur. Cook times will vary; depending on the weight, fat content, bone
& the shape of the roast.
Use the recipe’s recommended food temperature and a food thermometer to determine when the food is done.
Preheating the oven will not be necessary when using the Slow Cook feature.

Add any cream or cheese sauces during the last hour of cooking.

rn

L:

^ .

To Program the Oven to begin baking with the Slow Cook feature

1. Place the food in the oven.
/siowN

Press

\^cooKj- "

3.

Press yv or 'V'' If yv is pressed "HI" will appear in the display. The Slow Cook feature will be set to the high
setting. This setting is best for cooking foods from a 4 to 5 hour time period. If v" is pressed "LO" will appear in the
display. The Slow Cook feature will be set to the low setting. This setting is best for cooking foods from a 8 to 9 hour
time period.

4.

If desired, add any Timed Bake or Delayed Start settings at this time (see page 19).

5. To cancel the Slow Cook feature press at anytime

------

" will appear in the display.

17

Setting Oven Controls (confd)

Broil

Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven. A beep lets you know
when the broil temperature is reached. Be sure you center the broiler pan directly under the broil burner for best results.
Arrange oven rack while oven is still cool. Position the rack as needed.
The broiler pan and its insert allow dripping grease to drain and be kept away from the high heat of the broiler. DO NOT use
the pan without its insert. DO NOT cover the insert with foil. The exposed grease could ignite.

A WARNING

soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water can
cause a grease fire to spread and cause personal injury.

I Should an oven fire occur, close the oven door and turn off the oven. If the fire continues, throw baking

To set for broiling:

1. Arrange the oven rack while oven is still cool.

2. Press (BRoip."

-------

" will appear in the display.

3. Press yv or until the desired broil setting level appears in the display. Press yy

for HI broil or for LO broil. Most foods may be broiled at the HI broil setting. Select
the LO broil setting to avoid excess browning or drying of foods that should be cooked
to the well-done stage.

4. Place the insert on the broiler pan, then place the food on the insert. DO NOT use the

pan without the insert or cover the insert with aluminum foil. The exposed grease
could ignite.

5. Place the pan on the oven rack. Close the oven door when broiling.

6. Broil on one side until food is browned. Turn and broil food on 2nd side.

Note: Always pull the rack out to the stop position before turning or removing food.

7. When broiling is finished, press

Broiling Times and Searing Grill

Use the following table for approximate broiling times. Increase or decrease broiling times,
or move the broiling pan to a different rack position to suit for doneness. If the food you
are broiling is not listed in the table, follow the instructions provided in your cookbook and
watch the item closely. Use the Searing Grill for meats and steaks if desired. Before
placing the meat, be sure to heat the Searing Grill using Broil for 10 minutes. Cook times
should be reduced 1 -2 minutes per side when cooking with the Searing Grill. Place
Searing Grill on top of Broiler Pan and insert for meats and steaks (See Figure 2).

Grid

Broiler Pan

Figure 1

Note: The broiler pan and the

insert allows grease to drain
and be kept away from the
high heat of the broiler. DO
NOT use the pan without the
insert. DO NOT cover the
insert with foil; the exposed
grease could ignite.

Searing
Gril

Broiling Table Recommendations

Food
Item

Steak 1" thick 3rd or 4th 550° F 8:00 6:00 Rare

Pork Chops 3/4" thick 3rd 550° F 12:00 8:00 Well
Chicken - Bone In 2nd 450° F 25:00 15:00 Well
Chicken - Boneless 3rd 450° F 10:00 8:00 Well
Fish 3rd 500° F as directed as directed Well
Shrimp 2nd 550° F as directed as directed Well
Hamburger 1" thick 4th 550° F 12:00 10:00 Well

Rack Position

(see figure 3)

3rd or 4th 550° F 10:00 8:00 Medium

3rd 550° F 14:00 12:00 Well

Temp

Setting

Cook Time in minutes

1st side 2nd side Doneness

18

Broil Pan
& insert

Figure 2

Setting Oven Controls (continued)

To Set the Timed Bake and Delayed Timed Bake Features

The COOK TIME and DELAY START pads operate the features that will turn the oven ON and OFF at the times you
select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin
baking at a later time with a delayed start time (Delay Start). Note: During Timed Bake the preheat indicator light will
function during the preheat operation.

To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):

1. Be sure that the clock shows the correct time of day.

2. Place the food in the oven.

3.

Press "

4.

Within 5 seconds, press yy of "V The display will show "350“F (177°C)". By holding yy or>y, the temperature can
then be adjusted in 5°F increments (1 ° if the control is set to display Celsius).

5.

Wait 8 seconds for the control to accept the temperature.

6.

Press "0:00" will flash in the display (MIN:SEC) or (HR:MIN) if programmed for more than 60 minutes.

7.

Press

yy

8.

The oven will turn ON and begin heating.

Note: When the control is set for this function the oven temperature will be displayed. To see the cook time remaining

or

----------

>y

appears in the display.

until the desired baking time appears in the display.

press and to see the time of day press

To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Delayed Start Bake):

1.

Be sure that the clock shows the correct time of day.

2.

Place the food in the oven.

3.

Press (bak^. "

4.

Within 5 seconds, press

------------

appears in the display.

yy

or The display will show "350°F (177°C)". By holding

yy

or the temperature can

then be adjusted in 5°F increments (1 ° if the control is set to display Celsius).

5.

Wait 8 seconds for the control to accept the temperature.

6.

Press "0:00" will flash in the display (MIN:SEC) or (FIR:MIN) if programmed for more than 60 minutes.

7.

Press

yy

or

>y

until the desired baking time appears.

8.

Wait 5 seconds for the control to accept the time.

9. Press The earliest possible start time will appear in the display.

10. Press yy or V" until the desired start time appears in the display and wait 7 seconds to accept.

11. Once the start and cook times are set, the control calculates the time when baking will stop.

12. The oven will turn ON at the delayed start time and begin heating.
Note: When the control is set for a delayed start the time of day is displayed until the delayed start time is reached. When

the oven turns on, the oven temperature will be displayed. To see the cook time remaining press and to see the

time of day press

rn

L:

^ .

When the Set Bake Time Runs Out:

1. "End" will appear in the display window and the oven will shut off automatically.

2. The control will beep 3 times every 25 seconds until is pressed.

To Change the Oven Temperature or Bake Time after Baking has Started:

1. Press the function pad you want to change.

2. Press

A CAUTION

yy

or

\y

to adjust the setting.

Use caution with the Timed Bake and Delayed Timed Bake features. Foods that can easily spoil such as

milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.

19

Setting Oven Controls (continued)

To Set the Sabbath Feature (for use on the

The OVEN COOK TIME and DELAY START pads are used to set the Sabbath feature. The Sabbath feature may only be
used with the BAKE pad. The oven temperature may be set higher or lower after setting the Sabbath feature, however the
display will not visibly show or provide any audible tones indicating whether the change occurred correctly. Once the oven
is properly set using Bake with the Sabbath feature active, the oven will remain continuously ON until cancelled. This will
override the factory preset 12-Hour Energy Saving feature.

If the oven light will be needed during the Sabbath, press the or pad before activating the Sabbath feature. Once
the oven light is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is

turned OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.

IMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the
Sabbath feature is active. ONLY the following key pads will function after setting the Sabbath feature; UP or DOWN

ARROW, BAKE & STOP. ALL OTHER KEYPADS will not function once the Sabbath feature is properly activated.

To Program the Oven to Begin Baking Immediately & activate the Sabbath feature:

1. Be sure that the clock is set with the correct time of day.

2. Place the food in the oven.

Jewish

Sabbath & Holidays)

3. Press (jtAKy. "

4. Within 5 seconds, press y\.or's/'. The display will show "350°F (177°C)." By holding yyor the temperature can
then be adjusted in 5“F increments (1 “C if the control is set to display Celsius).

5. If you desire to set the oven control for a Timed Bake or a Delayed Timed Bake do so at this time. If not, skip this
step and continue to step 6. Refer to the Bake Time (complete steps 6-7) / Delayed Timed Bake (complete steps 6

10) section for complete instructions. Rememberthe oven will shut down after using Bake Time or Delayed bake
Time and therefore may only be used once during the Sabbath/Jewish Holidays. The maximum Delayed Bake Time is
11 hours & 59 minutes.

6. The oven will turn ON and begin heating.

7. Press and hold both and for at least 3 seconds. SAb will appear in the display. Once SAb appears In
the display the oven control will no longer beep or display any further changes and the oven is properly set for the

Sabbath feature.
Note: You may change the oven temperature once baking has started by pressing yy or'v'. The oven temperature
will be adjusted in 5°F increments with each press of these pads (1 °C if the control is set to display Celsius).
Remember that the oven control will no longer beep or display any further changes once the oven is set for the
Sabbath feature.

8. The oven may be turned OFF at any time by first pressing (®l) (this will turn the oven OFF only). To turn OFF the

Sabbath feature press and hold both and for at least 3 seconds. SAb will disappear from the display.

Should you experience a power failure or interruption, the oven will shut off. When power returns, the oven remembers that
it is set to SAb and will not turn back on automatically. If your food was nearly fully cooked, you may allow the trapped
heat in the oven to finish the cooking process. Otherwise, you should remove the food when the power failure occurs,
because you may only start the oven once during the Sabbath/Jewish Holidays. After the Sabbath/Jewish Holiday obser

------------

° " appears in the display.

vance turn OFF the Sabbath feature. Press and hold both the and pads for at least 3 seconds. SAb will
disappear from the display and the oven may be used with all normal functions. For further assistance, guidelines for

proper usage, and a complete list of models with the Sabbath feature, please visit the web at http:Wwww.star-k.org.

20

Setting Oven Controls (cont’d)

To Set the Recipe Recall Feature

This feature will ONLY recall a recipe for Bake or Timed Bake. This feature will not work with any other function including
a Slow Cook, a Warm & Hold, a Delayed Timed Bake, a Clean Cycle or a Broil setting. You can only set one recipe
for recall. For a different recipe you have to reprogram the oven.

To Program the Oven to Begin Baking Immediately and record a Recipe

Place the food in the oven.

1.

Press (ba^ " _ _ _ o " appears.

2.

3.

Within 5 seconds, press yv or 'sf- The display will show "350“F (177°C)". By holding yv or >/", the temperature can
then be adjusted in 5°F increments (1 ° if the control is set to display Celsius).
If you want to include a Timed Bake follow the instructions on page 19.

4.
Press and hold until a beep is heard. The beep indicates that this recipe has been recorded for future recall.

5.

Note: It is not possible to erase the recipe, but you can overwrite it with another temperature and time.

To Begin Baking with the Stored Recipe

1. Place the food in the oven.

2.

Press I

3.

Press yv. The oven will immediately begin to cook with the stored recipe. The temperature is recalled and if a Timed .
Bake was recorded this feature will also recall the cooking time. ) :

----------

° " appears.

Adjusting the Oven Temperature

Your oven thermostat has been precisely set at the factory. This setting may differ from your previous oven, however, so
your recipe times may not give you the results you expect. If you think that the oven is cooking too hot or cool for your
recipe times, you can adjust the thermostat so that the oven cooks hotter or cooler than the temperature displayed.

To Adjust Oven Temperature:

1.

Press and hold (Bak^ for 8 seconds. The display now indicates the amount of degrees offset between the original
factory temperature setting and the current temperature setting. If the oven control has the original factory calibration,

the display will read "0".

2.

The temperature can now be adjusted up or down 35°F or 19°C, in 1 “F or 1 “C steps by pushing and holding y\ or
’V"' Adjust until the desired amount of degrees offset appears in the display. When lowering the oven temperature, a

minus sign (-) will appear before the number to indicate that the oven will be cooler by the displayed amount of

degrees.

3.

When you have made the desired adjustment, wait 5 seconds and the display will go back to the time of day.

Note: Oven temperature adjustment made will not change the Self-Cleaning or Broil feature temperature.

rn

■

21

Seif-Cleaning

ik CAUTION

Cleaning cycle, the outside of the
range can become very hot to the
touch. DO NOT leave small children
unattended neartheappliance.

ik CAUTION

birds is extremely sensitive to the
fumes given off during the Self
Cleaning cycle of any range. Move
birds to another well-ventilated room.

A CAUTION

oven walls, racks, bottom or any
other part of the range with

I During the Self

The health of some

DO NOT line the

aluminum toil. Doing so will destroy

heat distribution, produce poor baking
results and cause permanent damage
to the oven interior (aluminum toil will
melt to the interior surface of the
oven).

A CAUTION

oven door open. This can damage the
automatic door locking system. Use
caution when opening the door after
the Self-Cleaning cycle is completed.
The oven may still be VERY HOT.

DO NOT force the

DO HAND

CLEAN

FRAME

Oven
Light

On/Off

OVEN

Lockout

a

Self-Cleaning Oven

A Self-Cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions:

• DO NOT use oven cleaners or oven protective coatings in or around any

part of the Self-Cleaning oven.

• DO NOT clean the oven door gasket. The woven material of the oven door

gasket is essential fora good seal. Care should be taken not to rub,
damage or remove the gasket.

• DO NOT use any cleaning materials on the oven door gasket. Doing so

could cause damage.

• Remove the broiler pan and insert, all utensils and any aluminum

foil. These items cannot withstand high cleaning temperatures.

• Porcelain oven racks do not have to be removed. After the cycle is
complete and the oven has cooled, rub the sides of the oven racks with
wax paper or a cloth containing a small amount of salad oil (this will make
the racks glide easier into the rack position).

• Remove any excessive spillovers in the oven cavity before starting the

Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on
the surface as they may leave a dull spot even after cleaning.

• Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.

NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven
bottom should be removed.

DO NOT HAND

DOHAND

CLEAN DOOR
Note: See additional cleaning informa

tion for the oven door in the General

CLEAN SEAL

Care & Cleaning section.

What to Expect during Cleaning

While the oven is in operation, the oven heats to temperatures much higher
than those used in normal cooking. Sounds of metal expansion and contraction
are normal. Odor is also normal as the food soil is being removed. Smoke may
appear through the oven vent.

If heavy spillovers are not wiped up before cleaning, they may flame and cause
more smoke and odor than usual. This is normal and safe and should not
cause alarm. If available, use an exhaust fan during the self-cleaning cycle.

A CAUTION

after the Self-Cleaning cycle. Stand to the side of the oven when opening the
door to allow hot airor steam to escape.

I To avoid possible burns use care when opening the oven door

22

Seif-Cleaning

Se!f-C!ean Cycle time length

For satisfactory results, use a 2 hour Self-Clean cycle for light soils, a 3 hour cycle for

average, and a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well

ventilated using an open window, ventilation fan or exhaust hood during the Self-Clean cycle.
This will help eliminate the normal odors associated with the Self-Clean cycle.

To Set the Controls for a Self-Clean Cycle or a Delayed Start Self-Clean Cycle:
(Note: If you do not want to start a Delayed Self-Clean Cycle, skip steps 2 & 3.)

1. Be sure the clock shows the correct time of day.

2. Press

3. Press and hold to scroll to the time to start the delayed Self-Clean cycle. Release the
pad when the desired time is displayed.

4. Press appears in the display.

5. Press the y\ or ’%/• once. "3:00" appears in the display for a 3 hour cycle. To change to a 2
hour cycle press >/■. "2:00" appears in the display. To select a 4 hour cycle press yv­"4:00" appears in the display. As soon as the controls are set, the motor driven lock will begin

to close automatically and the "Door Locked" indicator light will flash. DO NOT open the oven
door while the light is flashing (it takes about 15 seconds for the oven door to lock).

6. "CLn" will appear in the display during the Self-Clean cycle and the "Door Locked" light

will glow until the Self-Cleaning cycle is complete or cancelled and the oven temperature

has cooled.

ik CAUTION

possible burns use care
when opening the oven
door after the Self
Cleaning cycle. Stand to
the side of the oven when
opening the door to allow
hot air or steam to escape.

ik CAUTION

force the oven dooropen.
This can damage the
automatic door locking
system. Use caution and
avoid possible burns when
opening the door after the
Self-Cleaning cycle has
completed. The oven may
still be VERY HOT.

NOTE: A smoke eliminator

in the oven vent converts
most of the soil into a
colorless vapor.

To avoid

I DO NOT

rn

L:

^ .

When the Self-Clean Cycle is Completed:

1. The time of day or "End" will appear in the display and the "Clean" and "Door Locked" light will continue to glow.

2. Once the oven has cooled down for about 1 HOUR and the "Door Locked" light has gone out, the oven door can be opened.

3. If "End" is in the display and the Select Clean indicator light remains ON, press The time of day will appear in

the display.

NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.

stopping or Interrupting a Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a Self-Cleaning cycle:

1. Press

2. Once the oven has cooled down for about 1 HOUR and the "Door Locked" light has gone out, the oven door can be opened.

3. Restart the Self-Clean cycle once all conditions have been corrected.

23

General Care & Cleaning

Cleaning Various Parts of Your Range

Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers and
heavy soiling as soon as possible. Regular cleanings will reduce the effort required for major cleanings later.

Surfaces
Aluminum & Vinyl

Control Panel and Trim
Pieces

Glass, Painted and Plastic
Body Parts, Control Knobs
and Decorative Trim
Pieces

Stainless Steel (some
models) Oven door &

drawer front panel

How to Clean

Use hot, soapy water and a cloth. Dry with a clean cloth.
Before cleaning the control panel, turn all controls to OFF and remove the control

knobs. To remove, pull each knob straight off the shaft. Clean using hot, soapy
water and a dishcloth. Rinse with a clean water and a dishcloth. Be sure to squeeze
excess water from the cloth before wiping the panel; especially when wiping around
the controls. Excess water in or around the controls may cause damage to the
appliance. Be sure to rinse the cleaners as bluish stains may occur during heating
and cannot de removed. To replace knobs after cleaning, line up the flat sides of
both the knob and the shaft; then push the knob into place.

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of
vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. DO NOT spray
liquids directly on the control pad and display area. Do not use large amounts of water
on the control panel - excess water on the control area may cause damage to the
appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or
paper towels - they will damage the finish. To remove control knobs, turn to the OFF
position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning,
line up the flat sides of both the knob and the shaft; then push the knob into place.

Clean with hot, soapy water and dishcloth. Rinse with clean water and cloth. Do not
use cleaners with high concentrations of chlorides or chlorines. Do not use
harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for
cleaning stainless steel. Always be sure to rinse the cleaners off from the surface as
bluish stains may occur during heating that cannot be removed.

Oven Racks

Porcelain Enamel

Broiler Pan and Insert, Door
Liner, Body Parts and
Warmer Drawer and Drawer
Cavity.

Oven Door

DO HAND

LEAN FRAME

DONOTHAND

CLEAN OVEN

DO HAND

CLEAN DOOR

DOOR GASKET

This oven comes with lubricated porcelain oven racks, which can remain in the oven
during the seif-clean cycle. Do not clean this vegetable oil lubrication off the racks. It
is important that the sides of the oven racks always have a light coating of vegetable
oil. To maintain optimal rack performance, re-apply a thin layer of vegetable oil to
the sides of the rack after every self-clean cycle or when the rack becomes difficult
to slide.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with
a clean cloth. Remove all cleaners or the porcelain may become damaged during
future heating. DO NOT use spray oven cleaners on the cooktop.

Use soap & water to thoroughly clean the top, sides and front of the oven door.
Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO

NOT immerse the door in water. DO NOT spray or allow water or the glass
cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders or

any harsh abrasive cleaning materials on the outside of the oven door.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven

material, on Self-Cleaning models, which is essential for a good seal. Care should
be taken not to rub, damage or remove this gasket.

Cooktop, Burner Heads,
Burner Caps & Grates

See Cleaning the Cooktop, Burner Caps, Burner Heads & Grates in the General
Care & Cleaning section for complete instructions.

24

General Care & Cleaning (cont’d)

Cleaning the Cooktop, Burner Heads, Caps & Grates

The cooktop is designed to make cleaning easier. Because the gas Burners are sealed, cleanups are easy when spillovers
are cleaned up immediately.

The cooktop, Burner Heads and Caps should be routinely cleaned. Keeping the Burner Head Ports clean will prevent
improper ignition and an uneven flame. Refer to the following instructions:

THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.

THE FIXED OVEN VENT IS NOT REMOVABLE. Do not attempt to remove the fixed oven vent cover.

A CAUTION

delayed ignition or prevent the burnerfrom igniting.

Surface

Burner

Grate

I

Use caution when replacing the Burner Caps so the Electrodes are not damaged. This may cause a

To Remove and Replace the Surface Burner Caps and Burner Heads - Remove
in the following order: (1 st) surface Burner Grates, (2nd) Burner Caps and (3rd)

Burner Heads. Replace in the following order: Burner Heads, Burner Caps and
BurnerGrates.

Do not remove any parts from the cooktop until they have completely cooled

and are safe to handle. Do not operate the surface Burners without the Burner
Caps and Burner Heads properly in piace.

To Clean the surface Burner Caps and Burner Heads (all models)- Use a soap-

filled scouring pad ora mild abrasive cleanser to clean the surface Burner Caps
and Burner Heads. The ports (or slots) around the Burner Heads must be routinely
cleaned. If residue still remains in these ports, use a small-gauge wire or needle to
clean the slots or holes. For proper flow of gas and ignition of the burner—DO NOT

ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY OTHER MATERIAL TO

ENTER THE GAS ORIFICE HOLDER OPENING. ALWAYS keep the surface

Burner Caps and Burner Heads in place whenever the gas Burners are in use.

To Clean the Burner Grates- The Burner Grates are dishwasher safe and may be
cleaned in the dishwasher. Remove any excessive soils before placing in the
dishwasher.

I

Orifice
holder

Surface

Burner

Cap

Surface

Burner

Head

Electrode

:L;
^ .

Figure 1

To Clean the Ceramic Glass Cooktop- See Ceramic Glass Cooktop Cleaning &

Maintenance later in this section.

Ceramic Glass Cooktop Cleaning and Maintenance

Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop

Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or
no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream
leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These
marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can
become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface. Do not slide

anything metal or glass across the cooktop. Do not use your cooktop as a cutting board or work surface in the kitchen.
Do not cook foods directly on the cooktop surface without a pan. Do not drop heavy or hard objects on the glass cooktop,

because they may cause it to crack.

25

General Care & Cleaning (confd)

Cleaning Recommendations for the Ceramic Glass Cooktop

ik CAUTION

ik WARNING I DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

chemically damage the ceramic-glass surface.

For light to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic
type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no
residue.

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive plastic
type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for any other
purpose.

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

If soils remain, carefully scrape soils with a metal razor blade scraper,
holding scraper at a 30 degree angle to the surface. Remove loosened soils

.

. with cooktop cleaning cream and buff surface clean.

IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if
you use an abrasive type scratch pad. Only use cleaning products that
have been specifically designed for ceramic glass cooktop.

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto
the ceramic cooktop surface. Permanent damage (such as pitting of the
cooktop surface) may occur if not removed immediately. After turning the
surface elements OFF, use a razor blade scraper or a metal spatula with a
mitt and scrape the soil from the hot surface (as illustrated). Allow the
cooktop to cool, and use the same method for heavy or burned on soils.

Do not use the following on the ceramic glass cooktop:

Cv

]

Rl thru

ASBASIVE

ClfANERS

r

• Do not use abrasive cleaners and scouring pads, such as metal
and some nylon pads. They may scratch the cooktop, making it
more difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or
oven cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave
soil or lint on the cooktop which can burn and cause
discoloration.

Special Caution for Aluminum Foil and Aluminum Cooking Utensils

• Aluminum foil

Use of aluminum foil will damage the cooktop. Do not use under any

circumstances.

• Aluminum utensils

Since the melting point of aluminum is much lower than that of other
metals, care must be taken when aluminum pots or pans are used.

Pans that boil dry may permanently damage cooktop by breaking,

fusing to, or marking it.

Care and Cleaning of Stainless Steel (Stainless steel models only)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning section
in this Use & Care Guide.

26

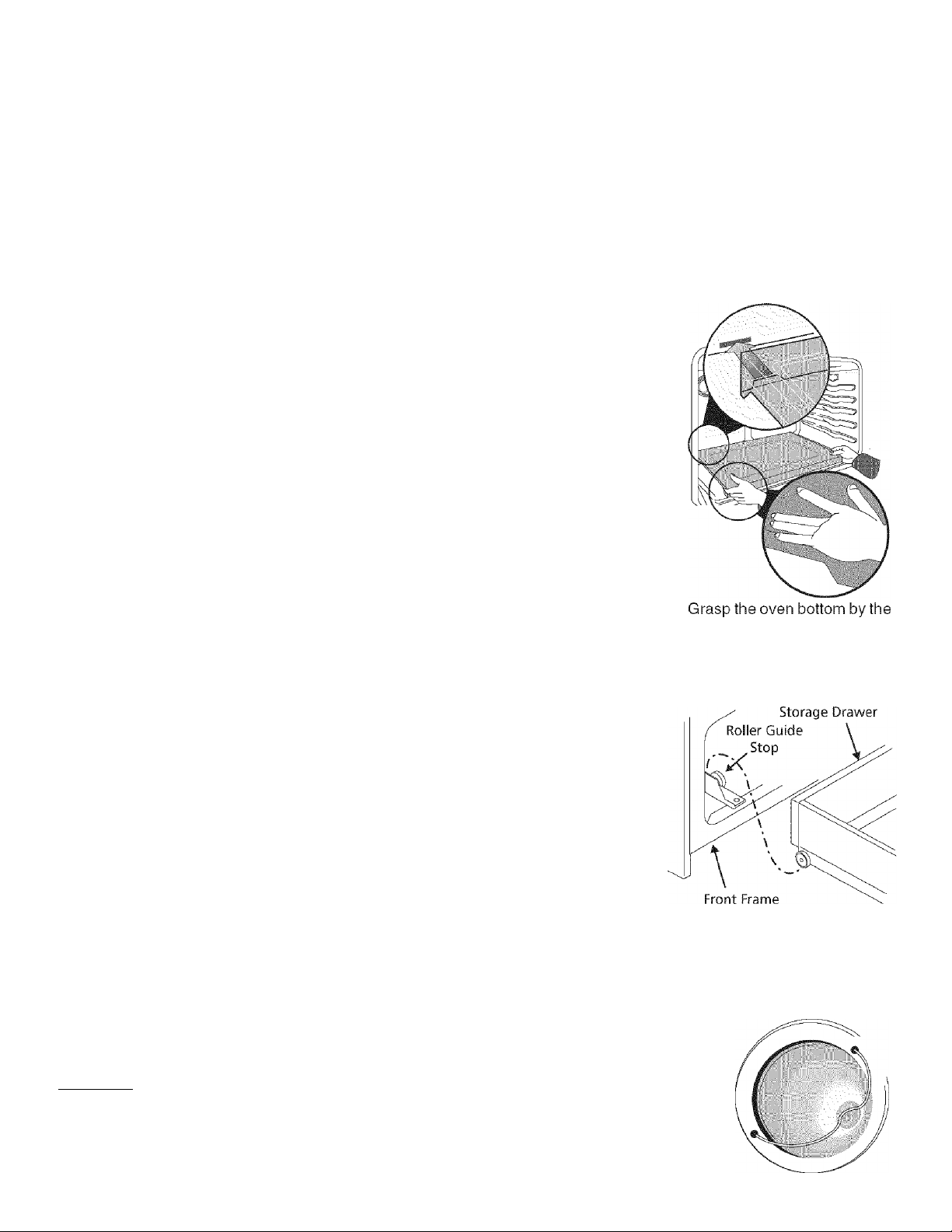

General Care & Cleaning (confd)

Removing the Oven Door

To Remove and Replace Oven Door

jnWjJIliHTI The door is heavy. For safe, temporary storage, lay the door flat with the inside
of the door facing down. The oven door can be removed to make oven cleaning easier.

To Remove Oven Door:

1. Open door approximately 4 inches to the stop position.

2. Grasp door at side edges.

3. Lift door up and off hinges.

4. To clean oven door, see the cleaning chart on page 24.

To Replace Oven Door:

1. Be sure the hinge arms are in the stop position. Be careful if pulling the hinges open by hand.
The hinges may snap back against the oven frame and could pinch fingers.

2. Hold the door at the sides near the top.

3. Slide the door down onto the hinges as far as it will go and close the door.

4. If the door is not in line with the oven frame, remove door and repeat the above steps.

To Remove and Replace Oven Bottom

To Remove the Oven Bottom:

Grasp the oven bottom by the front corner on each side, slide toward you and lift
up the oven bottom.

To Replace the Oven Bottom:

Grasp the oven bottom and position the back tabs in place in the slots at the rear of the oven. Lower
the front of the oven bottom and slide into place.

IvF-

---c

Storage Drawer

Use the storage drawer for storing cooking utensils. The drawer can be removed to
facilitate cleaning under the range. Use care when handling the drawer.

To open the storage drawer, push the drawer in gently and it will spring open.To close,
push the drawer until you hear a click, which indicates that the spring is compressed,
and the drawer is closed.

To Remove the Storage Drawer:

1. Open and empty the drawer of all utensils.

2. Pull drawer out to the drawer stop.

3. Lift the front high enough to allow the drawer to be pulled out.

To Replace the Storage Drawer:

1. Insert the rear end of the drawer into the opening.

2. Fit the end rollers onto the guide rails.

3. Hold the drawer in a horizontal position, then push in until a click is heard.

Flammable materials should not be stored in an oven, near surface
elements or in the storage drawer or compartment (if equipped). This includes paper,
plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol cans, on or nearthe range. Flammable
materials may explode and result in fire or property damage.

front corner on each side to

raise and lower the oven
bottom.

Changing Oven Light

Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on
during a self-cleaning cycle. High temperature will reduce lamp life. The interior oven light will turn on automatically when
the oven is opened. The oven light may be turned on when the door is closed by using the oven light switch located on the
Electronic Oven control. The oven light bulb is covered with a glass shield held in place by a wire
holder. THIS GLASS SHIELD MUST ALWAYS BE IN PLACE WHEN THE OVEN IS IN USE.

To Replace the Light Bulb:
PtSSjSSni BE SURE OVEN IS COOL

Turn the power off at the main source.
Wear a leather-faced glove for protection against possible broken glass.

Replace bulb with a 40 Watt appliance bulb only.
Press wire holder to one side to release glass shield, change bulb and be sure

to replace glass shield. 27

Before You Cali

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.

OCCURRENCE

Range is not level. Poor installation. Place oven rack In center of oven. Place a level on the oven rack.

Cannot move appliance
easily. Appliance must be
accessible for service.

Entire range or oven does
not operate.

Surface burners do not

light.

Surface burner flame
burns half way around.

Surface burner flame is
orange.

Scratches or abrasions on Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be
cooktop surface. sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not

POSSIBLE CAUSE/SOLUTION

Adjust leveling legs at base of range until the rack is level. When range is level, cooktop
may appear out of alignment if countertop is not level.

Weak, unstable floor. Be sure floor is level and can adequately support range. Contact a
carpenter to correct sagging or sloping floor.

Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets

are square and have sufficient room tor range clearance.
Cabinets not square or are built in too tight. Contact a cabinet maker to correct the probiem.
Contact builder or installer to make appliance accessible.
Carpeting interferes with range. Provide sufficient space so range can be lifted over carpet.
Gas line is hard-plumbed. Have a flexible C.S.A international approved metal appliance

connector installed.
Make sure cord/plug is tightly into outlet.
Service wiring is not complete. Call 1-800-4-MY-HOME® (See back cover).

Electrical power outage. Check house lights to be sure. Call your local electric company

for service. Surface burners can be lit manually.
Surface control knob has not been completely turned to LITE. Push in and turn the

surface control knob to LITE until burner ignites and then turn the surface control knob to
the desired flame size.

Burner ports are clogged. Clean burners. See “Cleaning the Burner Grates, Burner Caps

and Burner Heads” under General Cleaning.

Range power is disconnected from outlet. Be sure cord is securely plugged into the

outlet.

Electrical power outage.
Be sure the gas supply to the range is turned “ON".
Burner ports are clogged. With the burner off, clean ports by using a small-gauge wire or

needle.
Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until

flame is full. Dry the burners thoroughly following instructions in the "General Care &
Cleaning" section.

Dust particles in main line. Allow the burner to operate a few minutes until flame turns

blue.
Salt air in coastal areas. A slightly orange flame is unavoidable.

affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. See “Ceramic

Glass Cooktop Cleaning & Maintenance” section under General Care & Cleaning.
Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.

28

Metalmarks. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on cooktop

surface. Use a ceramic-glass cooktop cleaning cream to remove the marks. See “Ceramic Glass

Cooktop Cleaning & Maintenance” section under General Care & Cleaning.

Brown streaks or specks. Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See “Ceramic Glass

Cooktop Cleaning & Maintenance” section under General Care & Cleaning.

Areas of discoloration with
metallic sheen.

‘Oven control beeps and

displays any F code error
(for example F11)

Oven light does not work. Replace bulb. See “Changing Oven Light” in this Use and Care Guide for instructions.
Poor baking results.

Mineral deposits from water and food. Remove using a ceramic glass cooktop cleaning
cream. Use cookware with clean, dry bottoms.

Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display
and stop beeping. Reprogram oven. If fault recurs, record fault number. Press STOP/

CLEAR and call 1-800-4-MY-HOME ® for assistance (See back cover).

Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. If conventional baking, allow the
oven to preheat to the set temperature before placing food in the oven. Try adjusting the
recipe’s recommended temperature or baking time. If you feel the oven is too hot or cool,
see “Adjusting the Oven Temperature” section in this Use and Care Guide.

Fan noise during cooking
operation.

A cooling fan may automatically turn on and off to cool internal parts. It is normal, and the
fan may continue to run after the range has been turned “OFF”, but may also stop
immediately and then turn “ON” after a while.

Flames inside oven or
smoking from vent.

Excessive spillovers in oven. Set self-clean cycle for a longer cleaning fime.
Excessive spillovers in oven. This is normal, especially for pie spillovers or large amounts of

rn

grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean cycle.

L:

^ .

Oven smokes excessively
during broiling.

If flames or excessive smoke are present, stop the self-clean cycle and follow the steps
under "Stopping or Interrupting a Self-Cleaning Cycle" In this Use and Care Guide.

Control(s) not set properly. Follow instructions under "Self-Cleaning" in this Use and
Care Guide.

Meat is too close to the element. Reposition the rack to provide proper clearance between
the meat and the oven broil element.

The insert on broiler pan wrong side up and grease not draining. Always place insert on
the broiler pan with ribs up and slots down to allow grease to drip into pan.

Meat is not properly prepared. Remove excess fat from meat. Remove remaining fatty
edges to prevent the meat from curling, but do not cut into the lean of the meat.

Broiler pan used without the Broiler Pan Insert or insert is covered with foil. DO NOT use
the Broiler Pan without the Broiler Pan Insert or cover the insert with foil.

Broiler Pan or Broiler Pan Insert needs to be cleaned. Excessive smoking is caused by
build-up of grease or food spatters. Clean the Broiler Pan and Insert on a regular basis.

Oven door is open. Oven door should be closed when broiling.

Self-cleaning cycle does

not work.

Controi(s) not set properly. Follow instructions under “Self-Cleaning” in this Use and
Care Guide.

Self-cleaning cycle was interrupted. Stop time must be 3 to 4 hours past the start time.
Follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in this Use and Care
Guide.

Soil not completely
removed after self
cleaning cycle.

Set Self-Clean cycle for a longer cleaning time.
Hand clean bottom, front top of oven, frame or door area outside oven seal before the

seif-cleaning is started. These areas are not in the self-cleaning area, but get hot enough
to burn on residue. Burned-on residue can be cleaned with a stiff nylon brush and water or
nylon scrubber. Be careful not to damage the oven seal by attempting to clean it.

Excessive smoking from
oven vent.

Excessive spillovers in oven, especially for pie spillovers or large amounts of grease on
the oven bottom. Wipe up excessive spillovers before starfing the Self-Clean cycle. If
flames or excessive smoke are present, stop the Self-Clean cycle and follow the steps
under "Stopping or Interrupting the Self-Cleaning Cycle" in this Use and Care Guide.

29

M r home

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com

www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Cali anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (u.s.A.) 1 -800-361 -6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas;

1-888-SU-HOGAR®

(1-888-784-6427)

Au Canada pour service en français;

1-800-LE-FOYER^^

(1-800-533-6937)

www.sears.ca

® Registered Trademark / ™ Trademark / Service Mark of Sears Brands, LLC

® Marca Registrada /™ Marca de Fábrica / Marca de Servicio de Sears Brands, LLC

Marque de commerce / Marque déposée de Sears Brands, LLC

) Sears Brands, LLC
