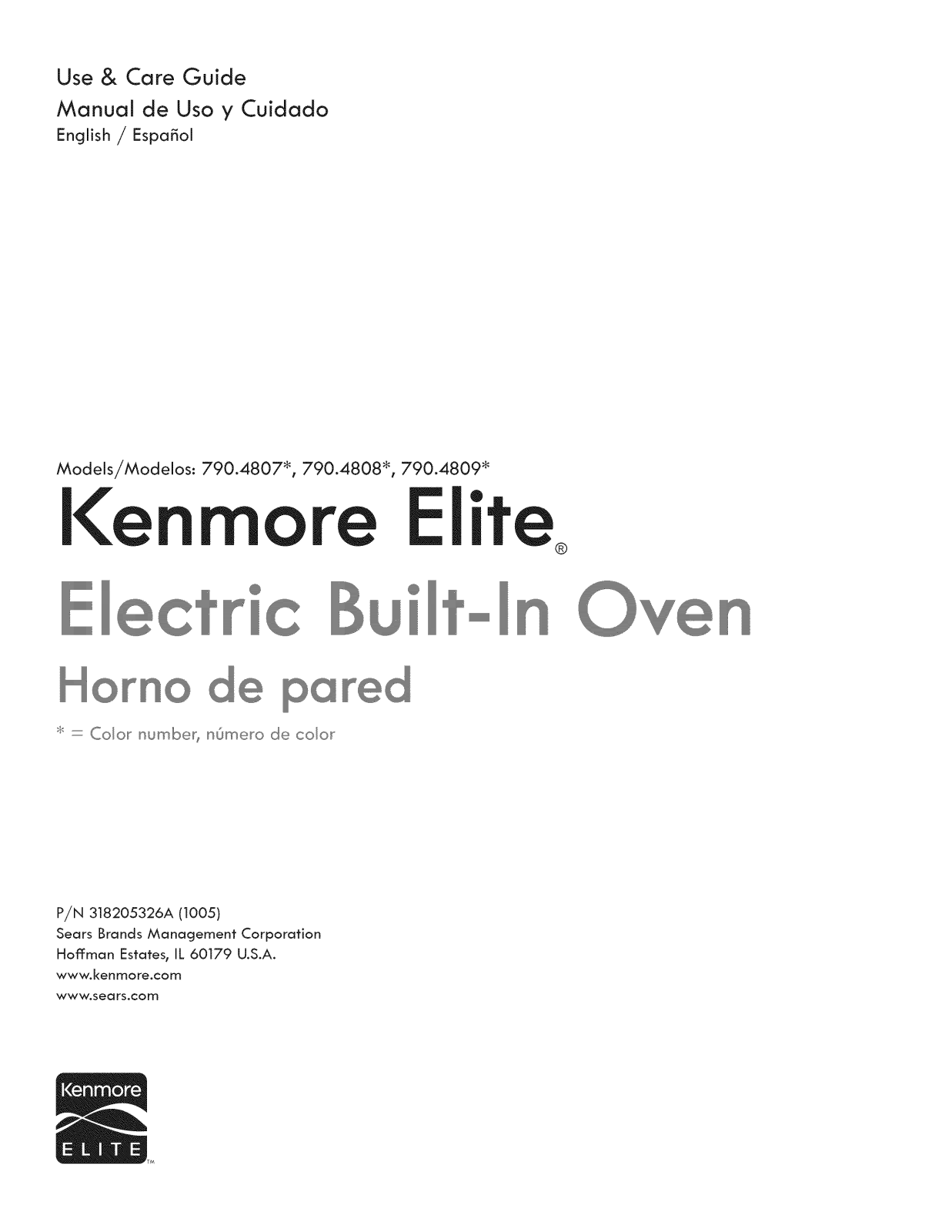

Kenmore 790.4808, 790.4807 User Manual

Use & Care Guide
Manual de Uso y Cuidado
English / Espa_ol
Models/Modelos: 790.4807% 790.4808% 790.4809 _
I<e Elite
@
IIIIIIIIIIIIIIIIIIIIIIIIIIIm @
P/N 318205326A (1005)
Sears Brands Managemenf Corporation
Hoffman Estates, IL 60179 U.S.A. www.kenmore.com
www.seolrs.com
°C
@

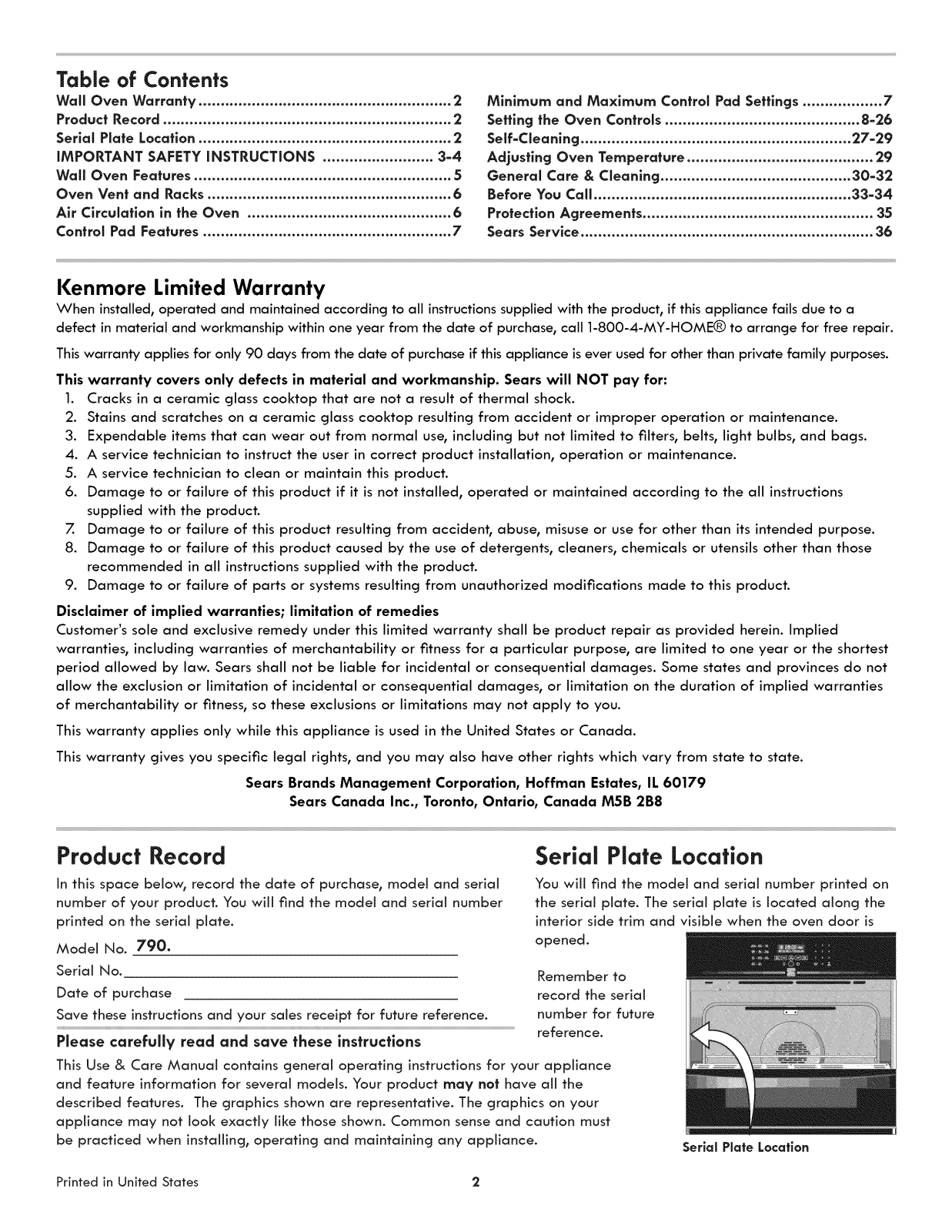

Table of Contents
Wall Oven Warranty ......................................................... 2
Product Record ................................................................. 2
Serlal Plate Location ......................................................... 2
iMPORTANT SAFETY iNSTRUCTiONS ......................... 3=4
Wall Oven Features .......................................................... 5
Oven Vent and Racks ....................................................... 6
Air Circulation in the Oven .............................................. 6

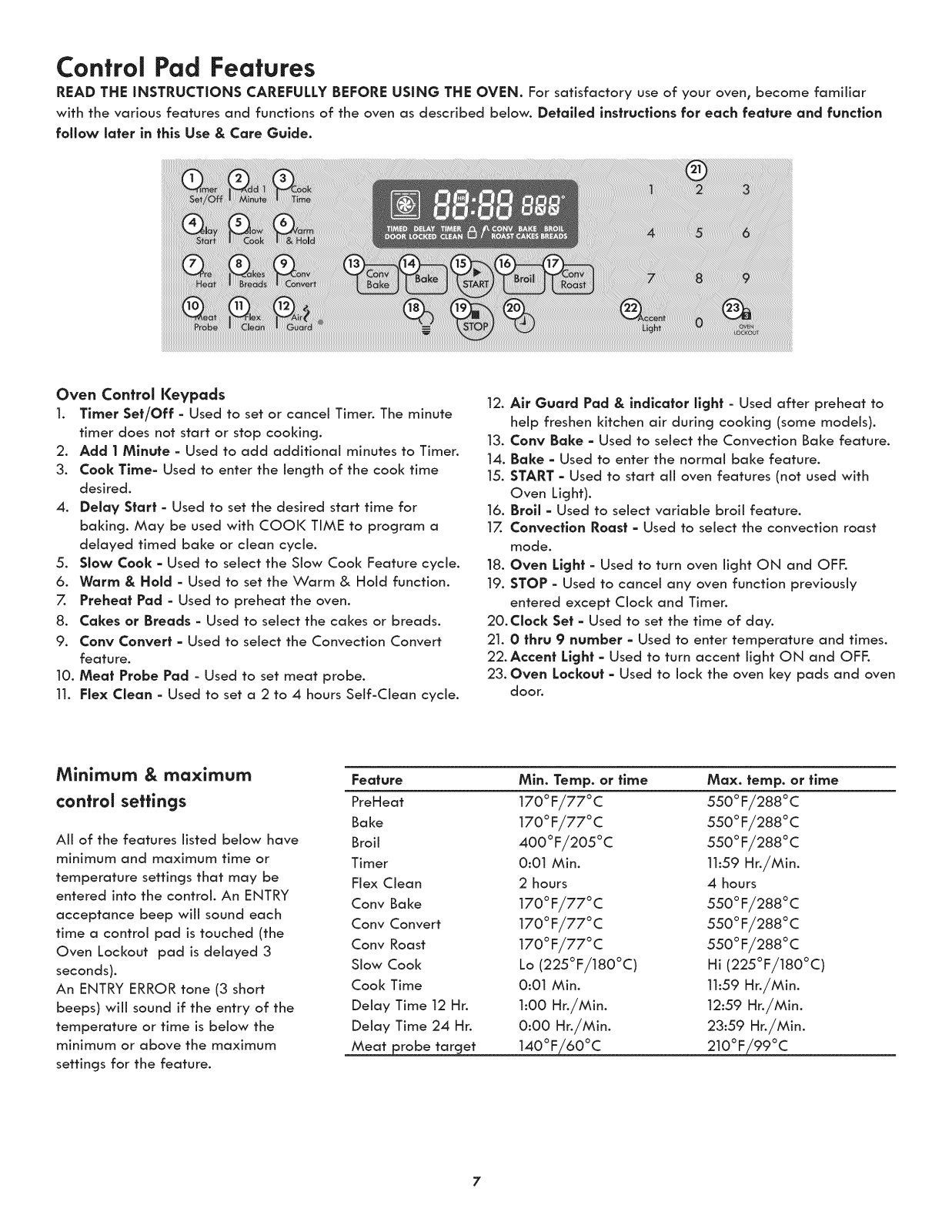

Control Pad Features ........................................................ 7
Minimum and Maximum Control Pad Settings .................. 7

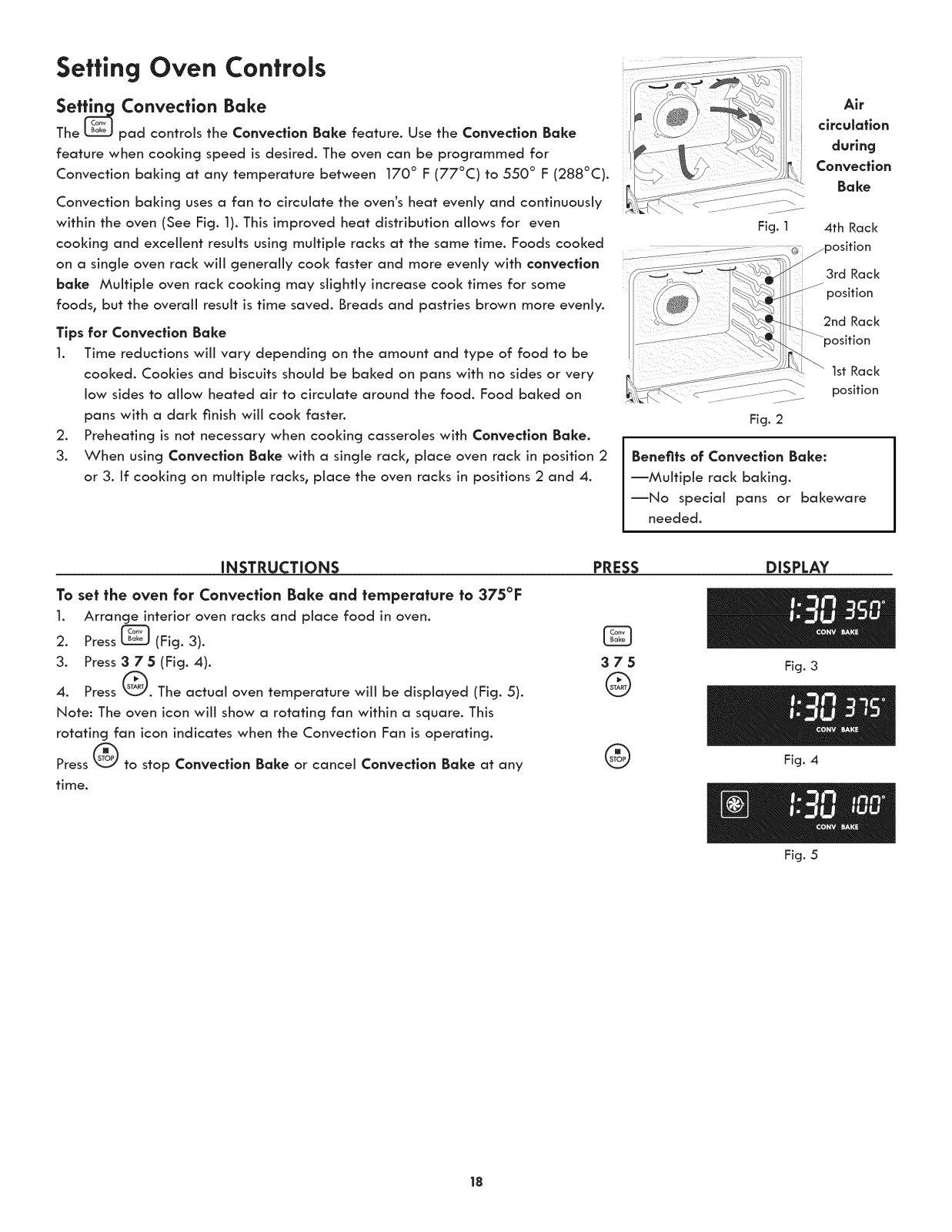

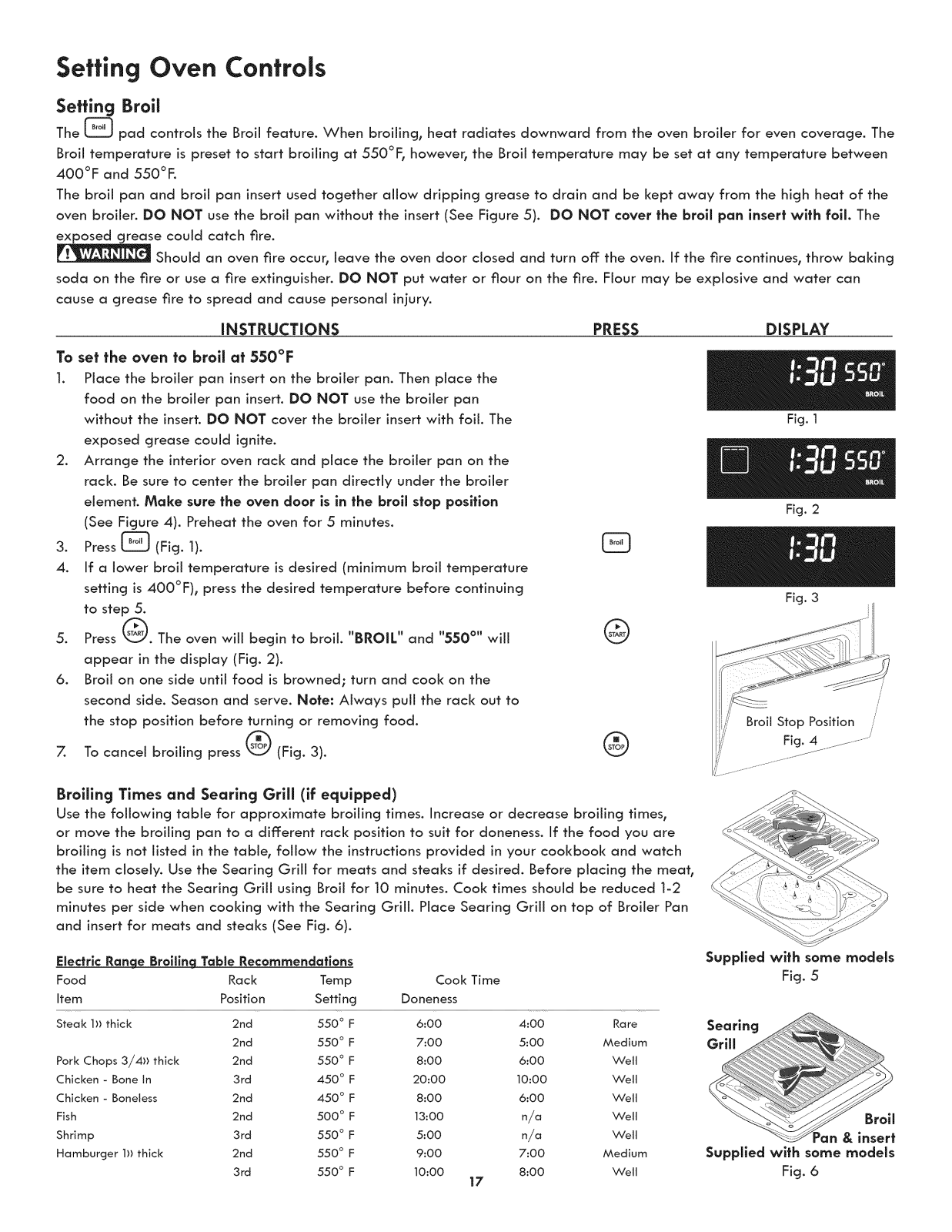

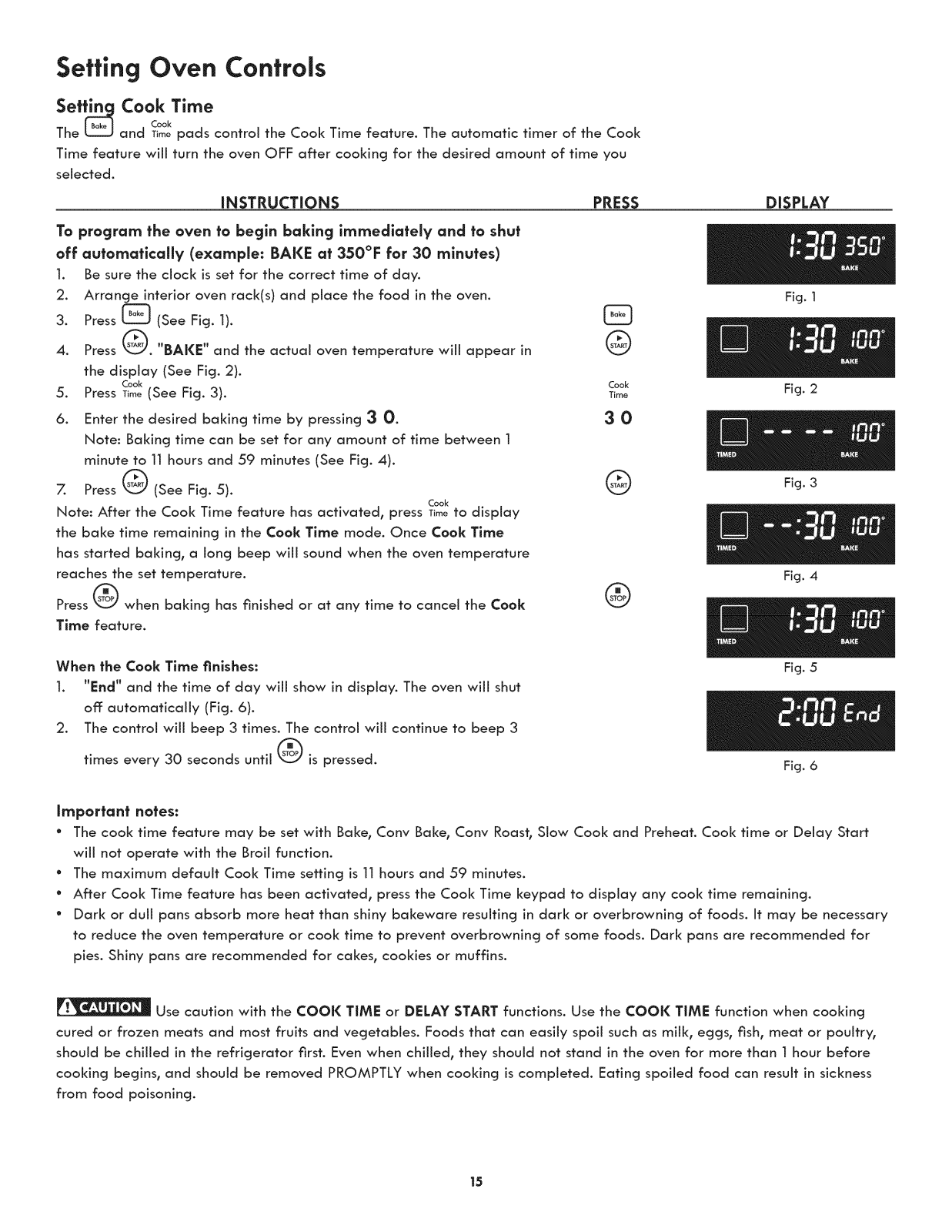

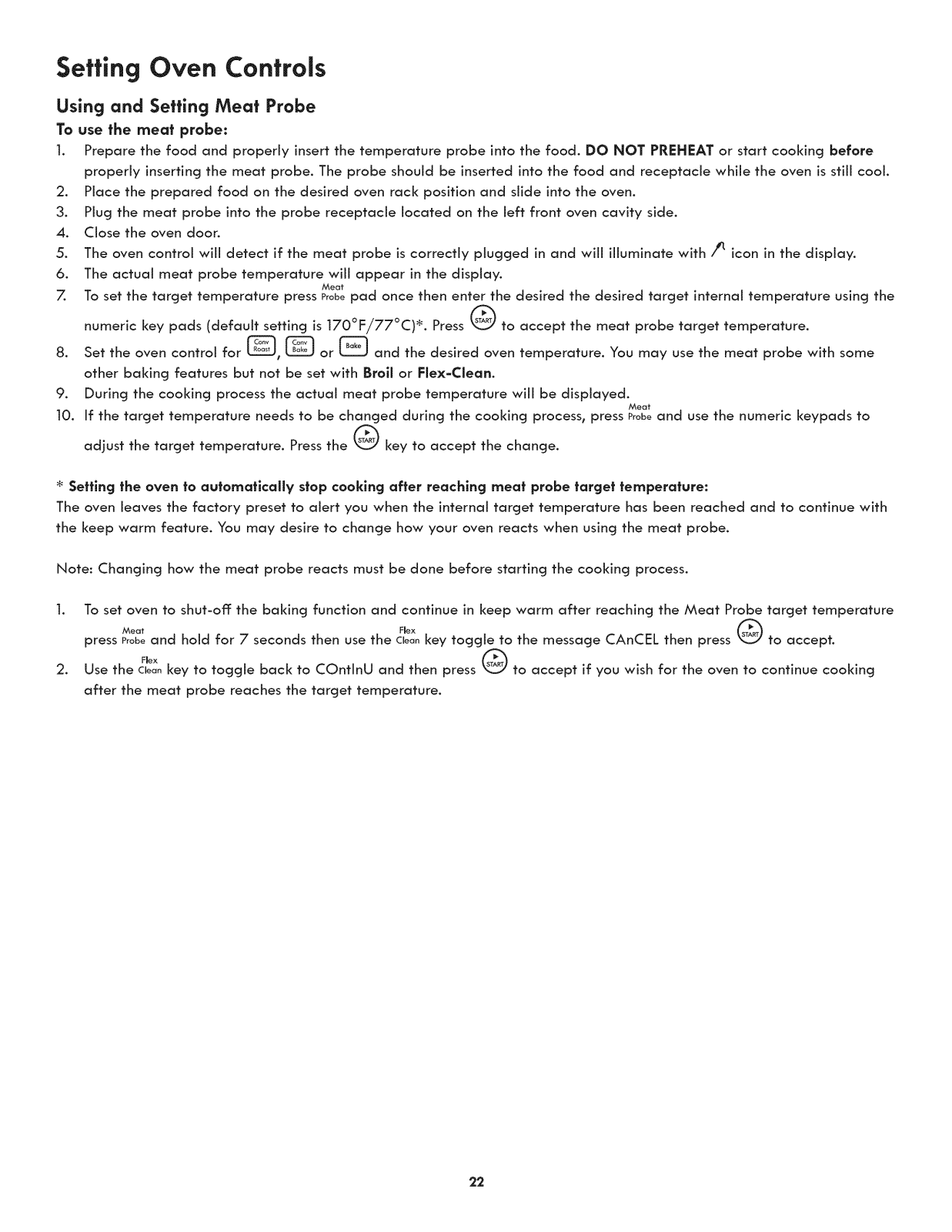

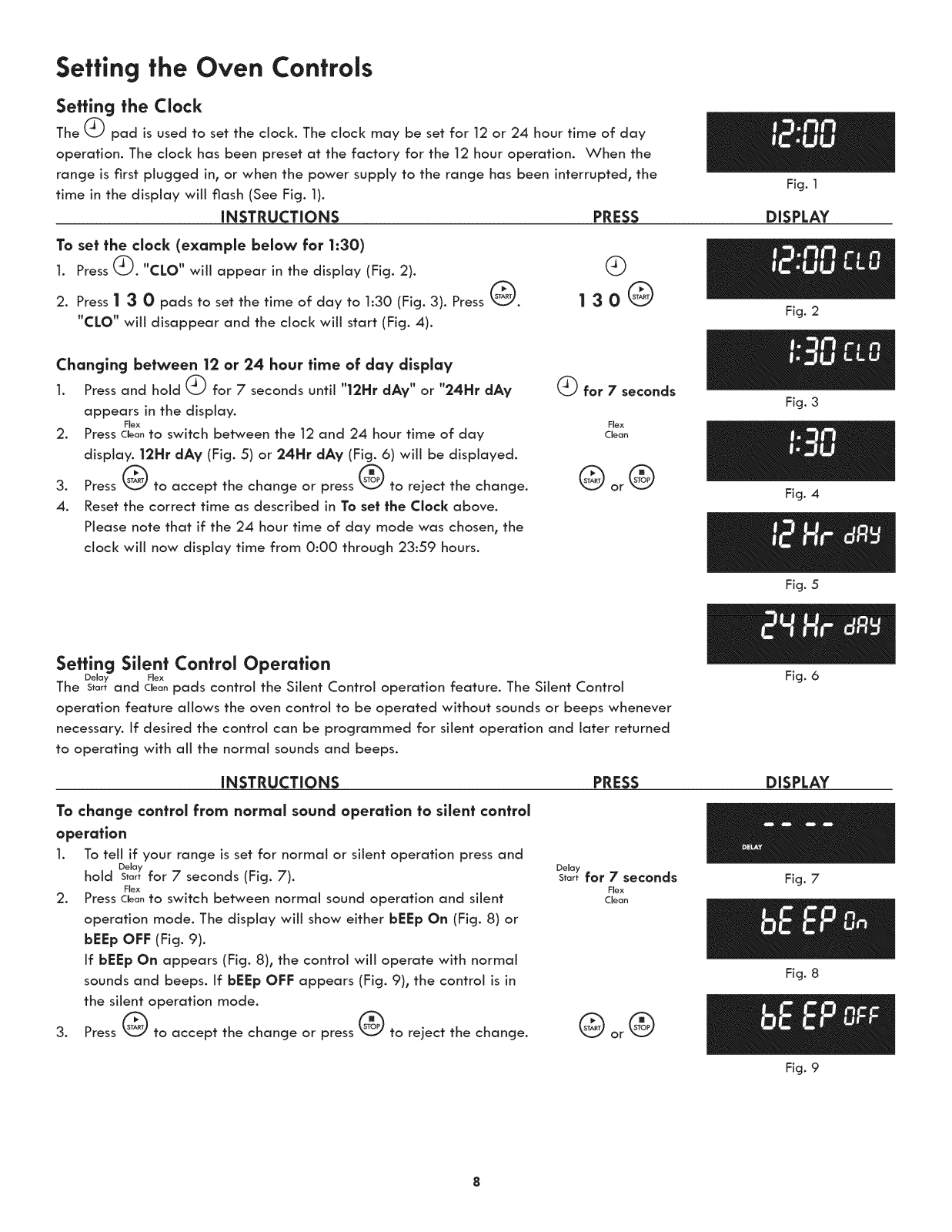

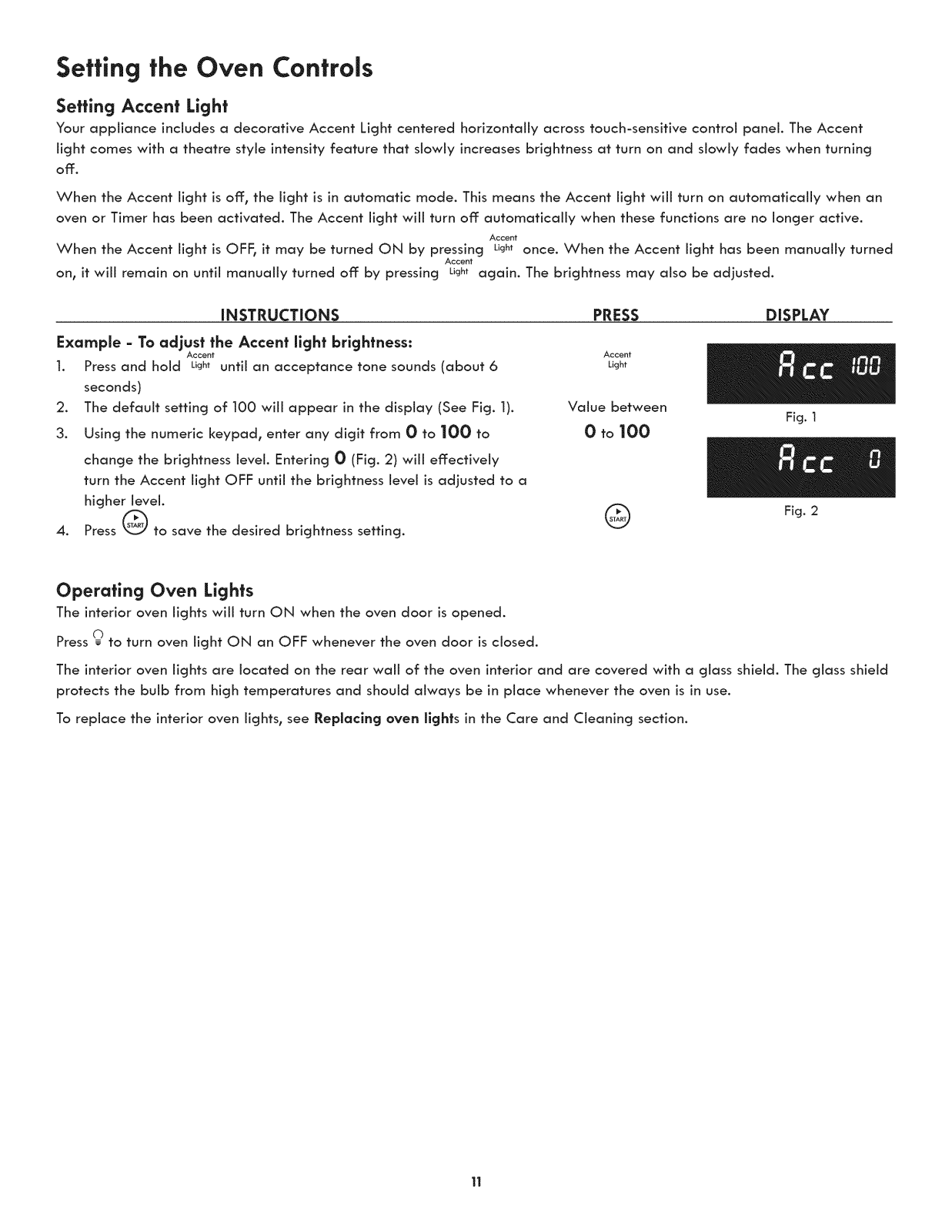

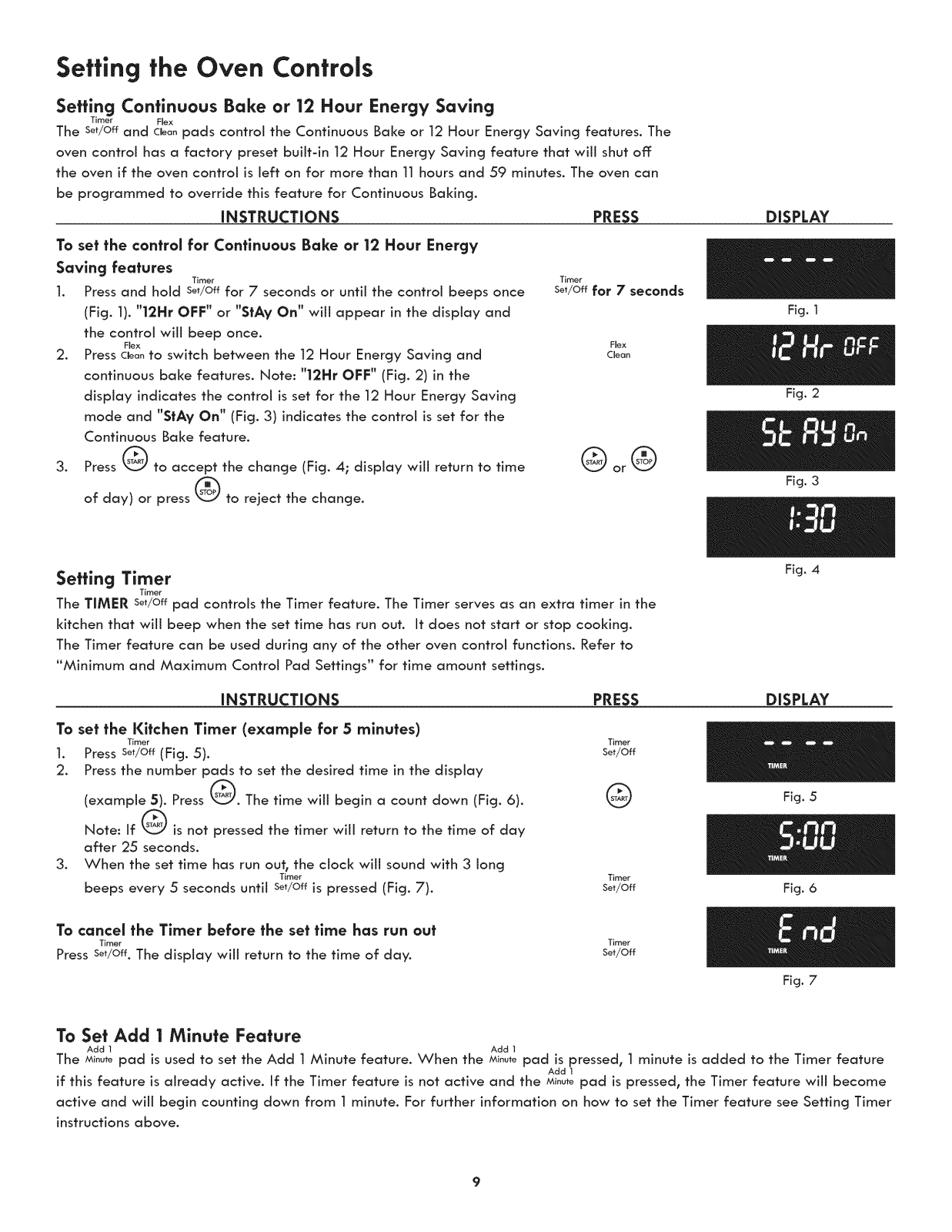

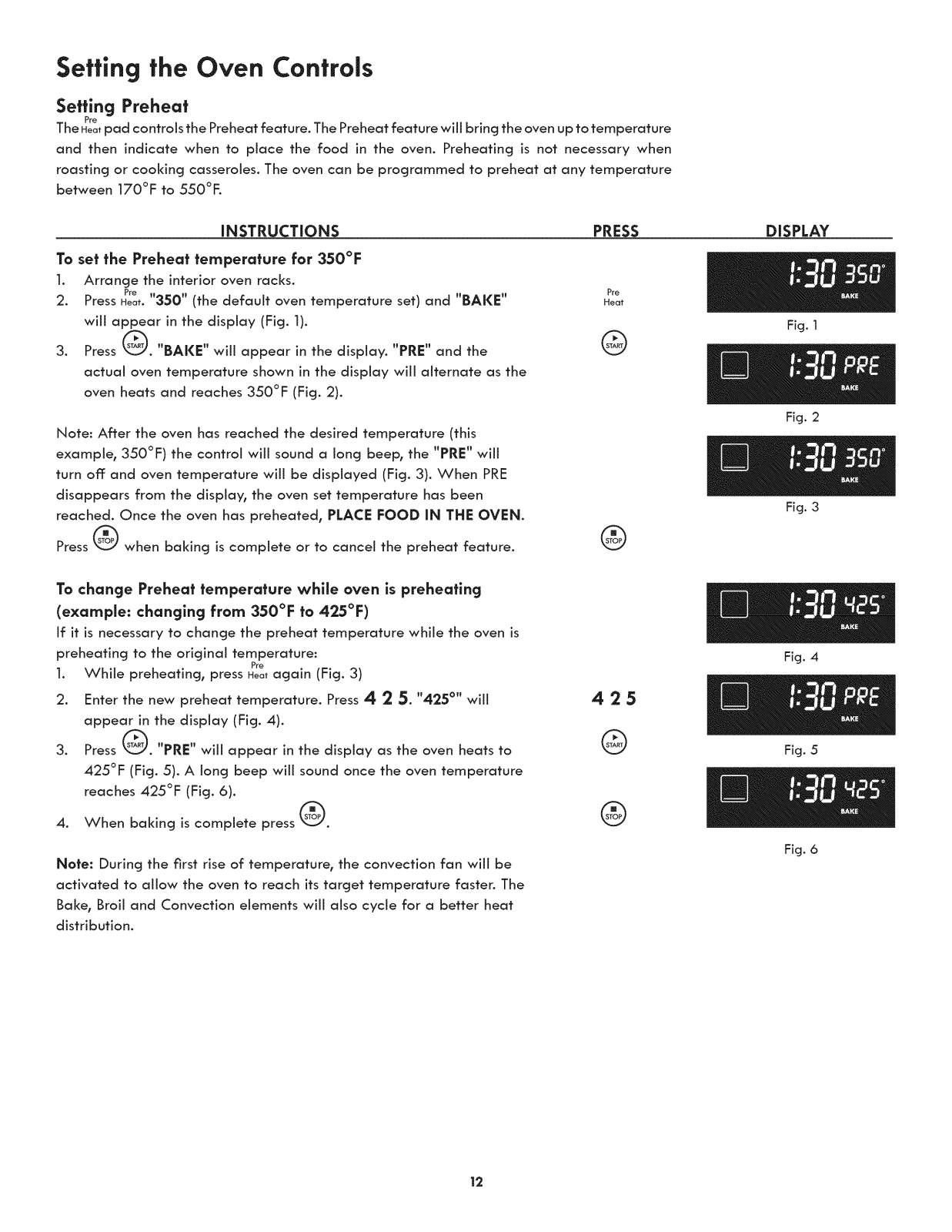

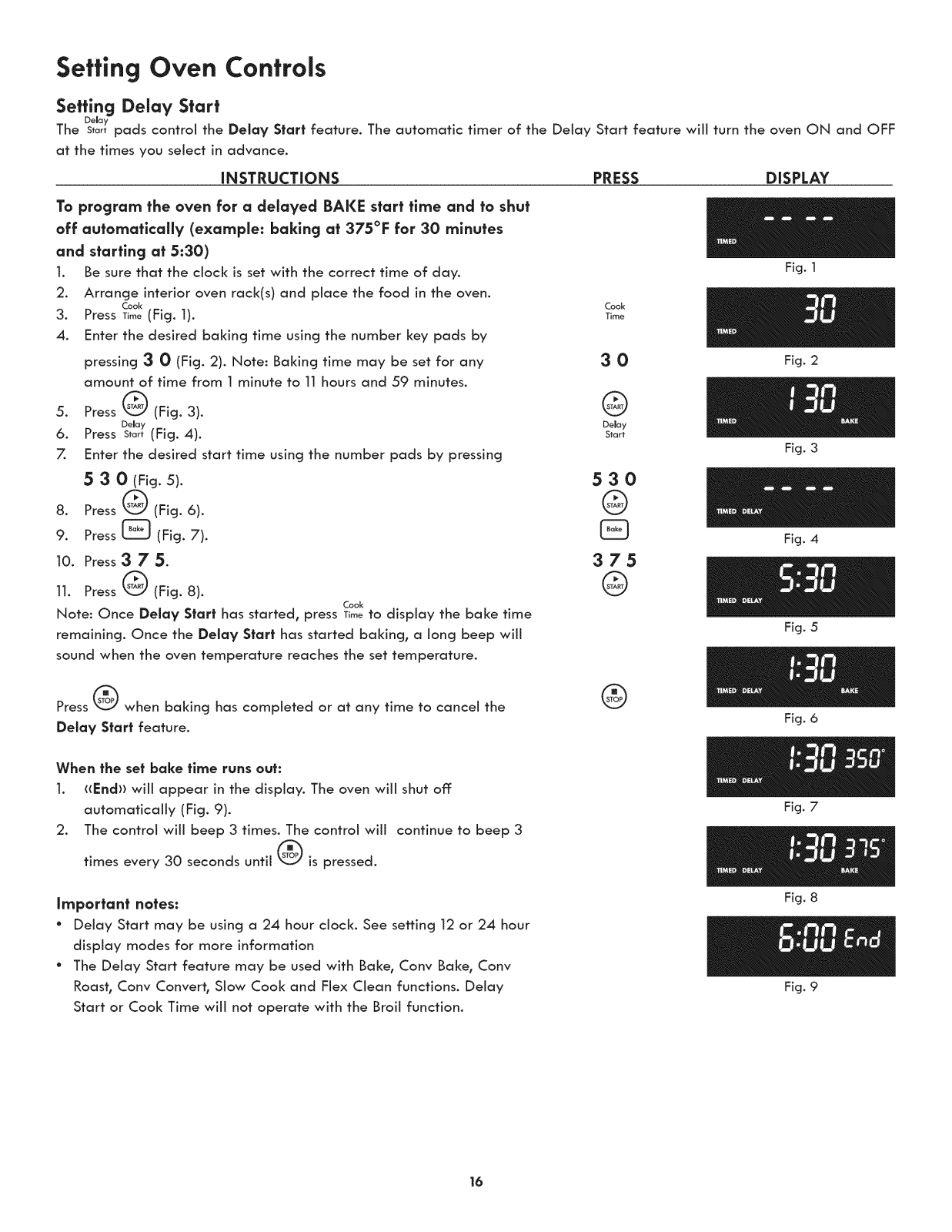

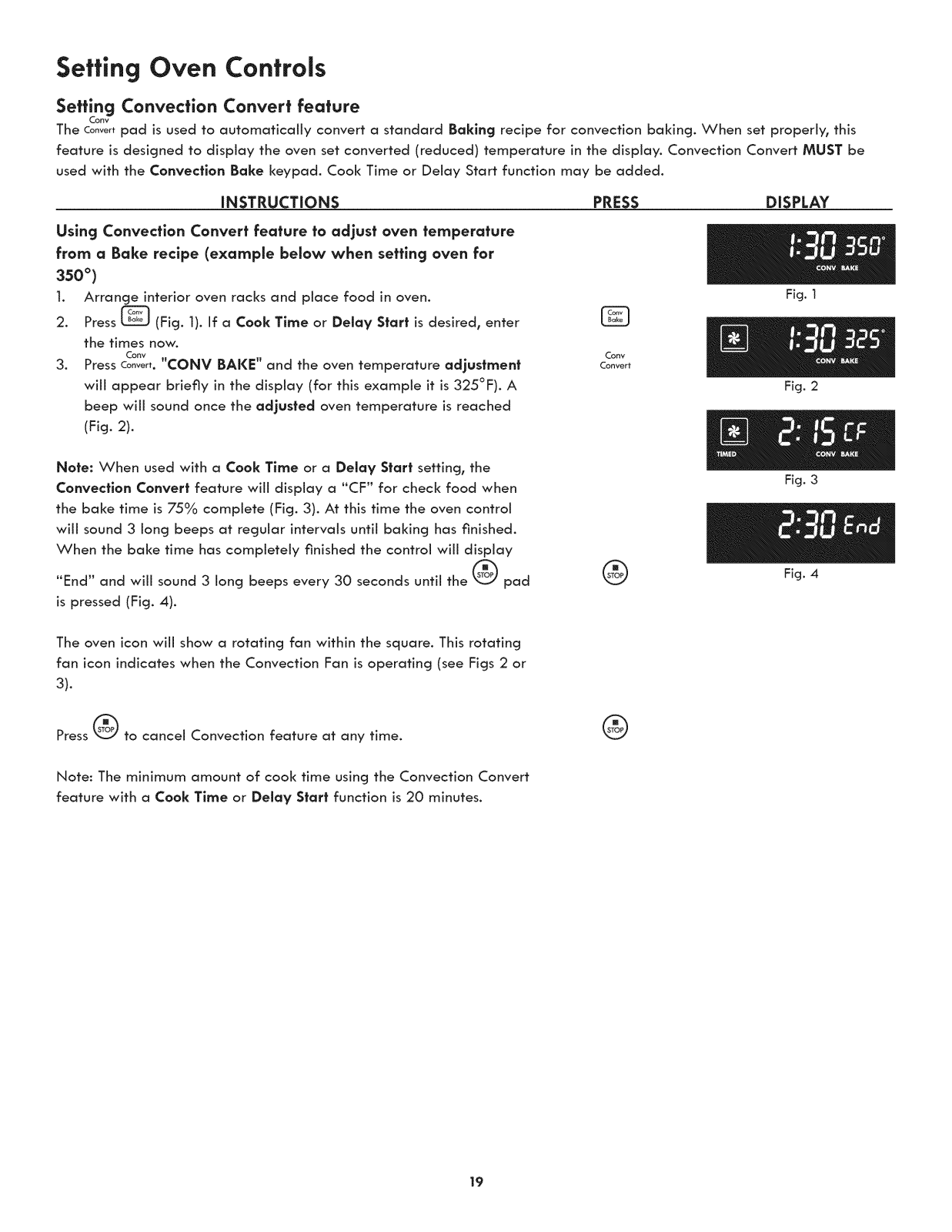

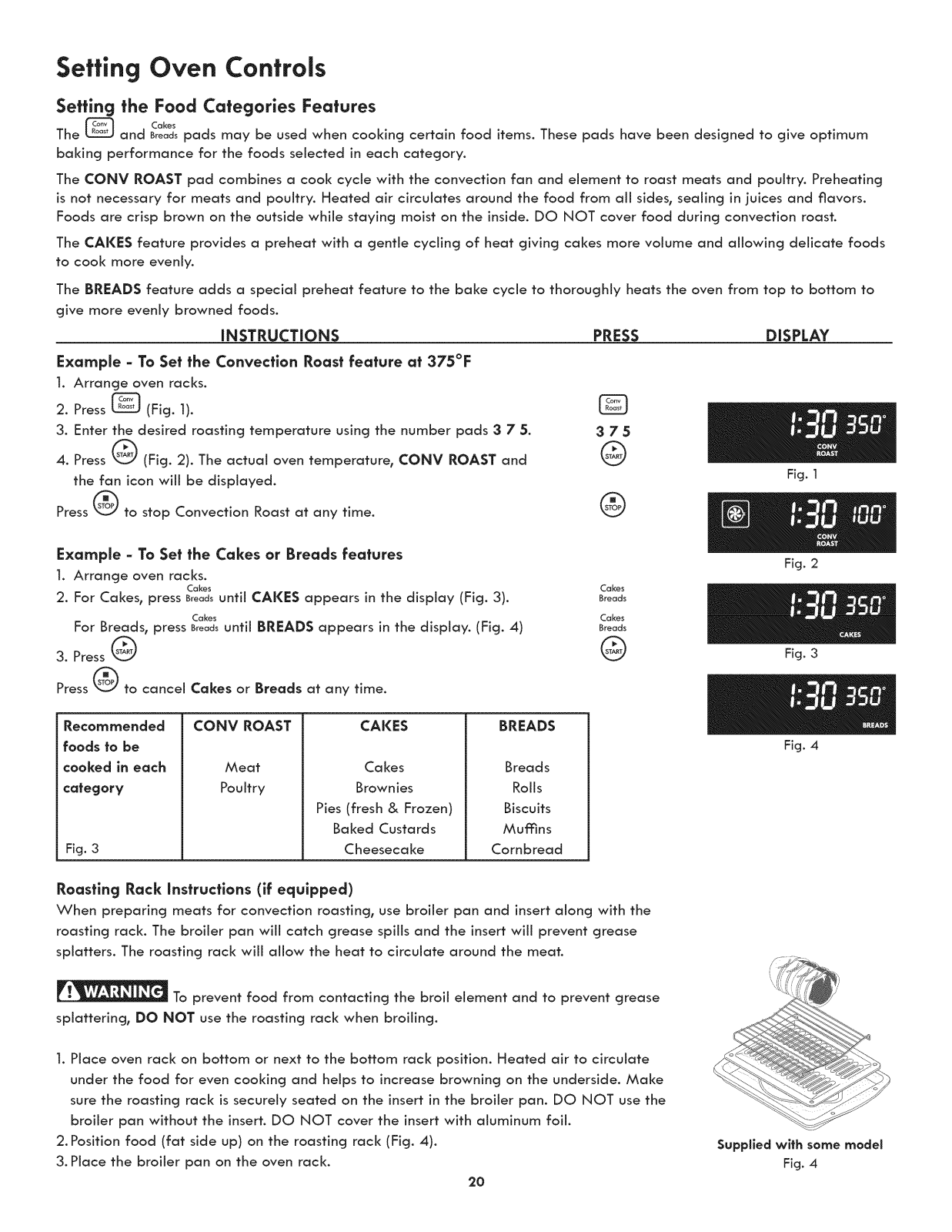

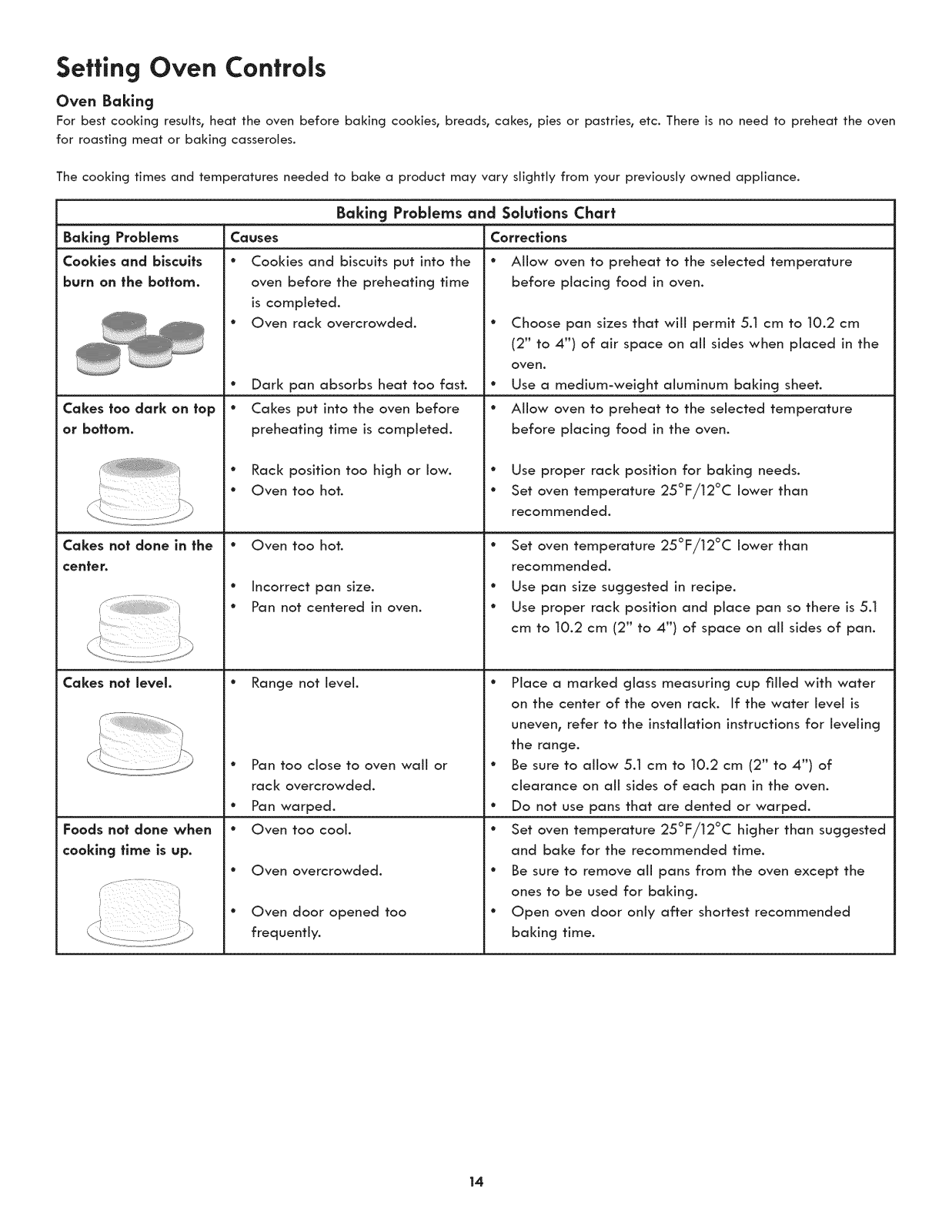

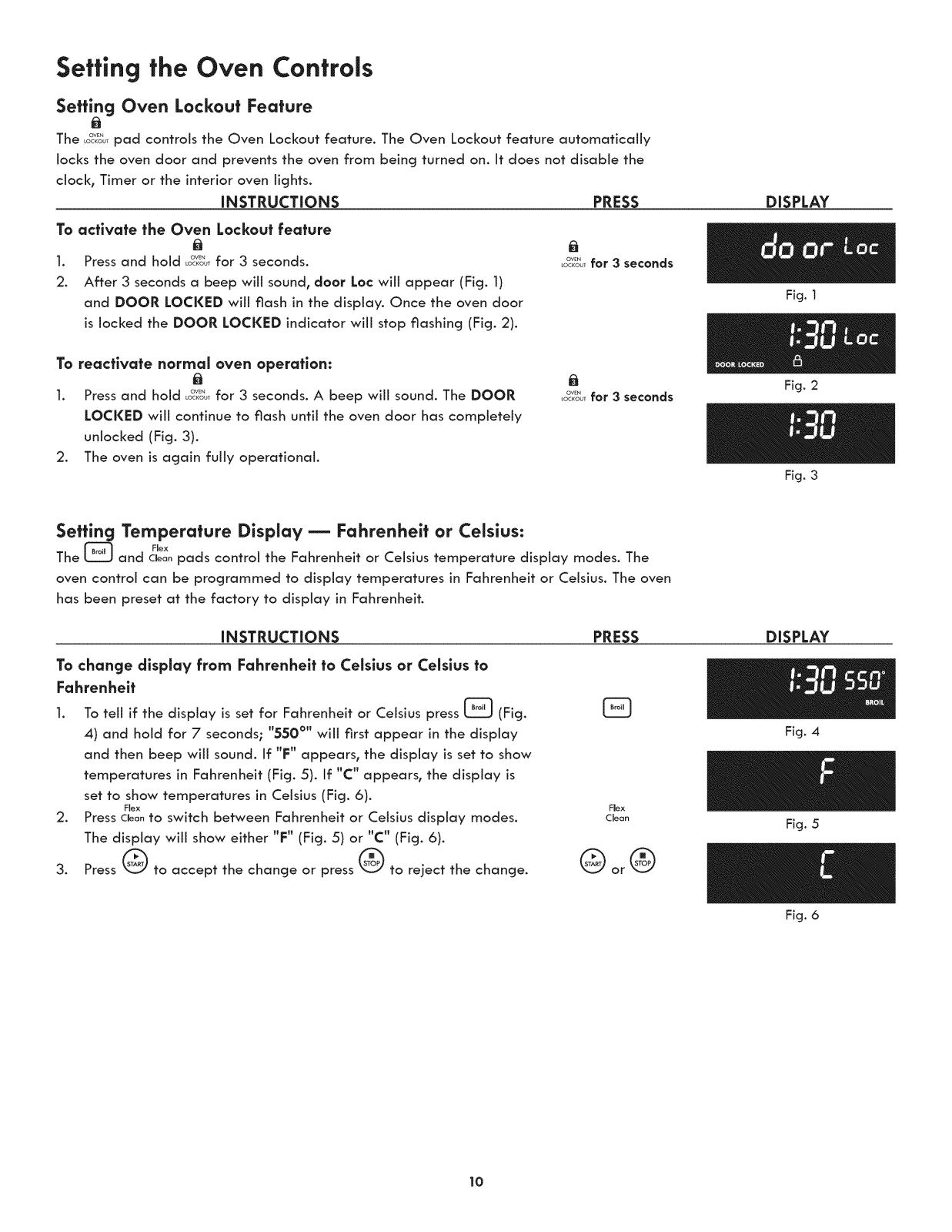

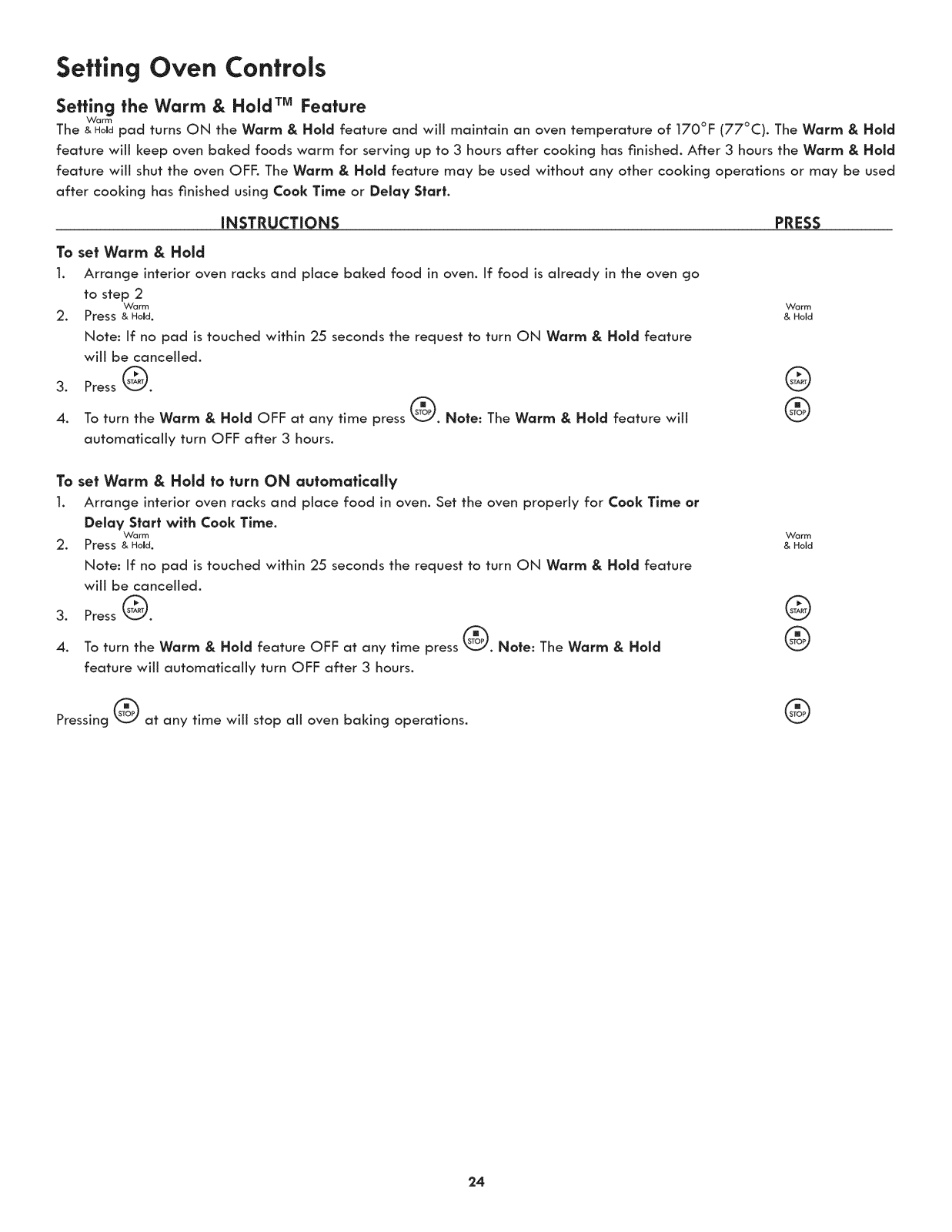

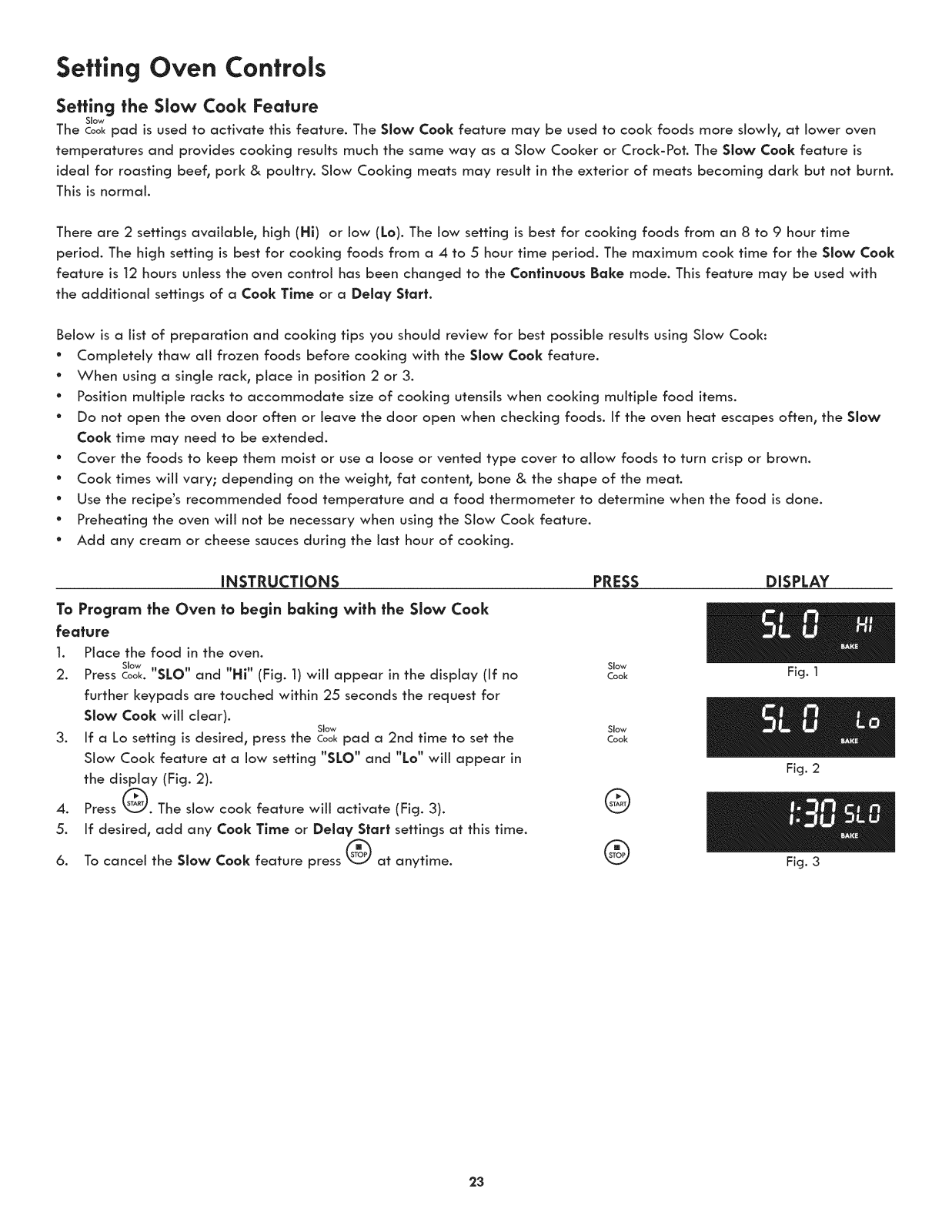

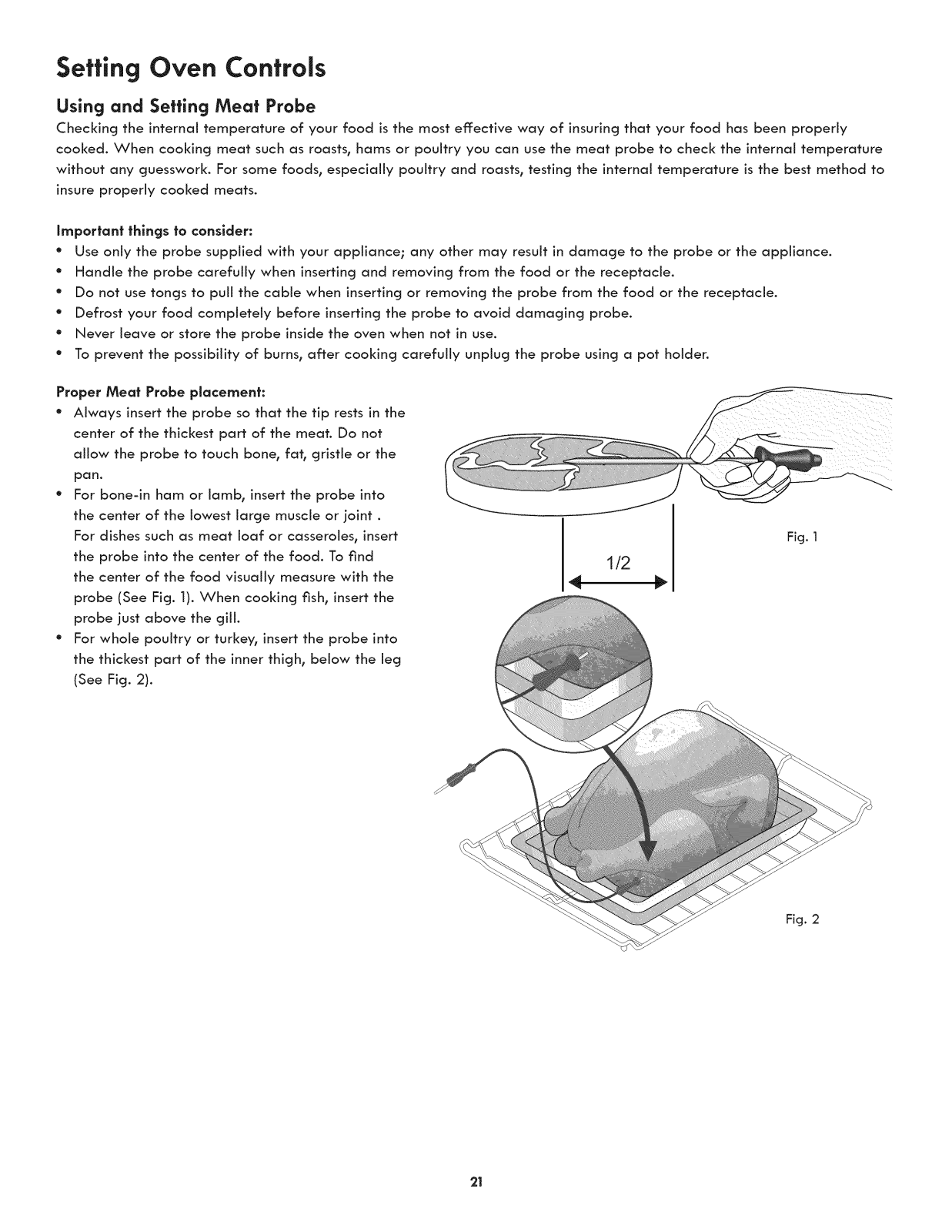

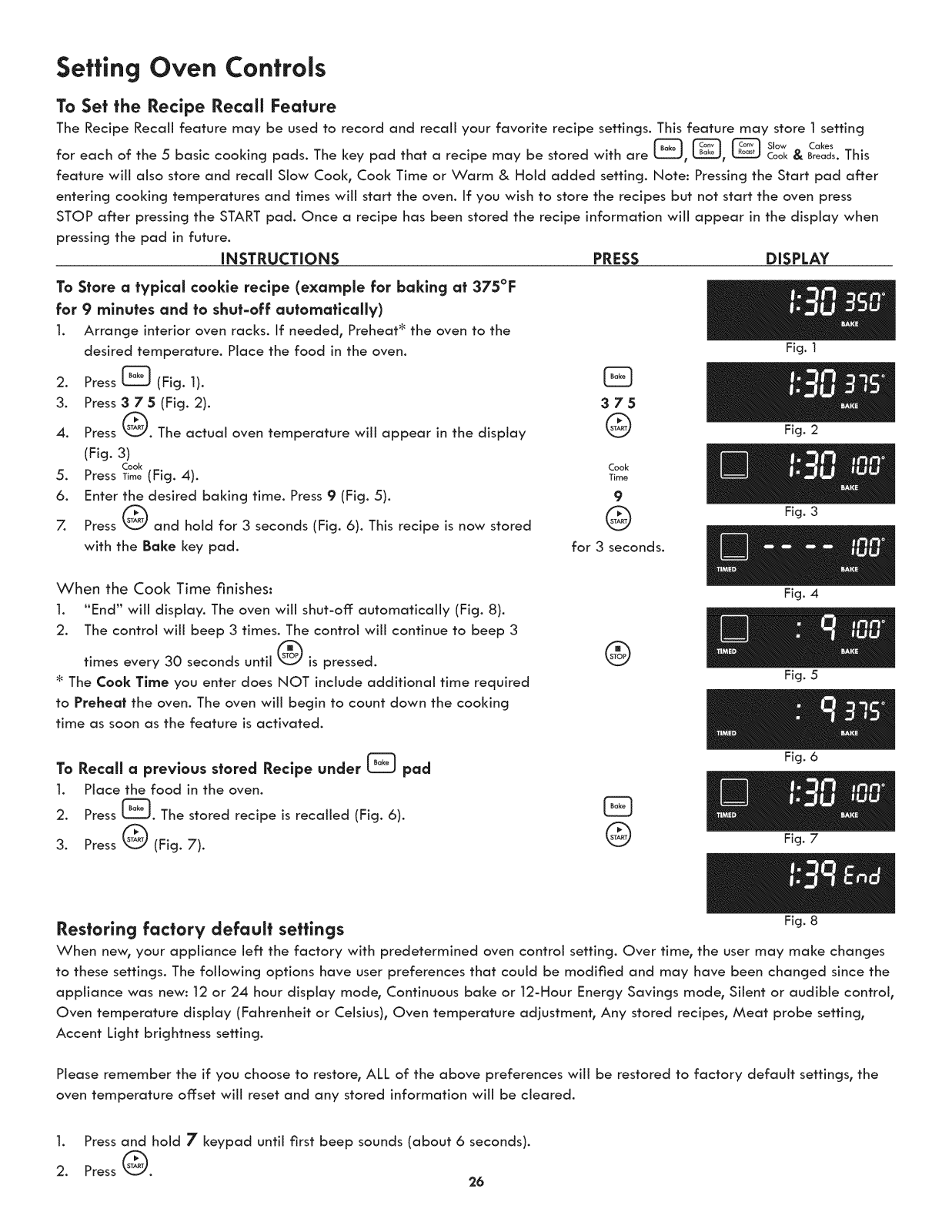

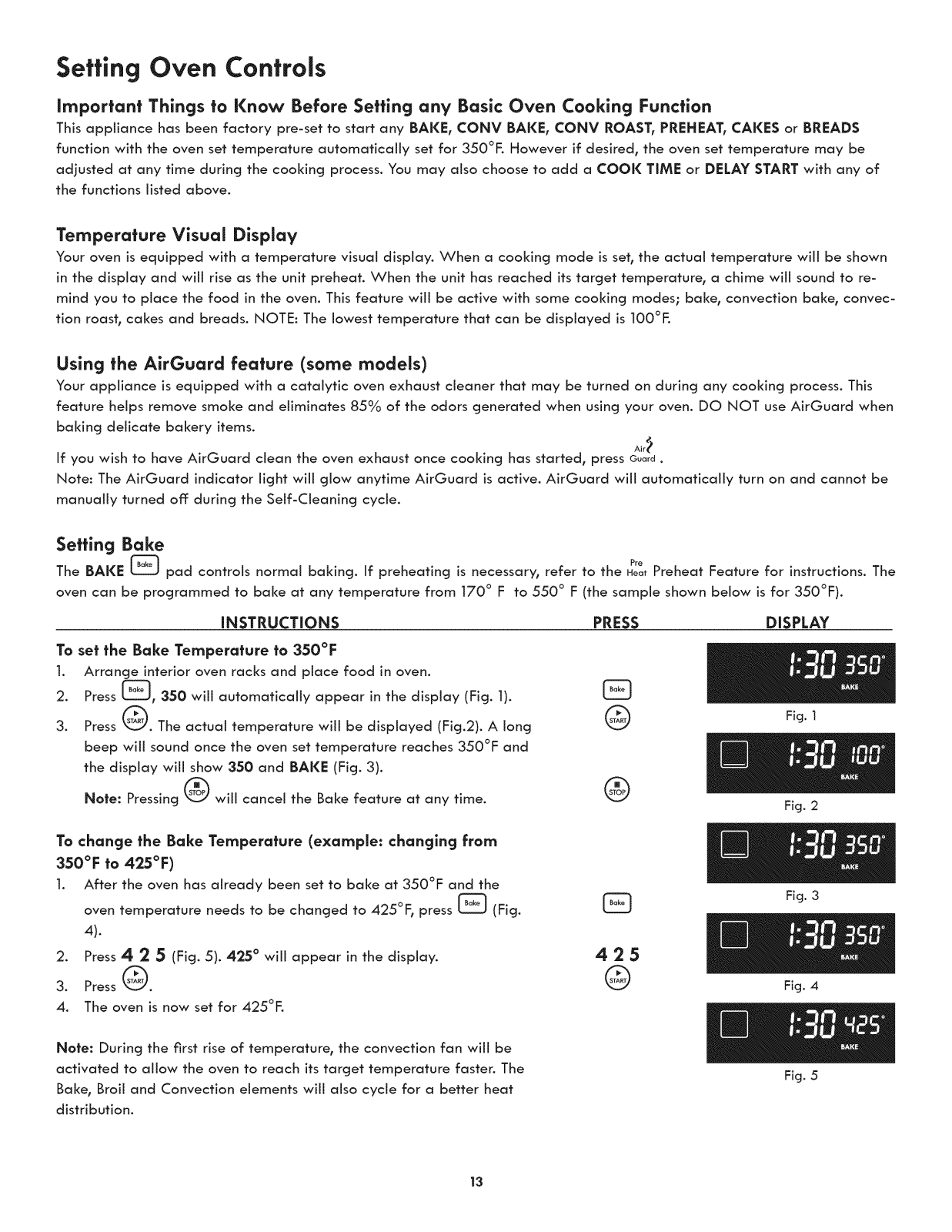

Setting the Oven Controls ............................................ 8=26

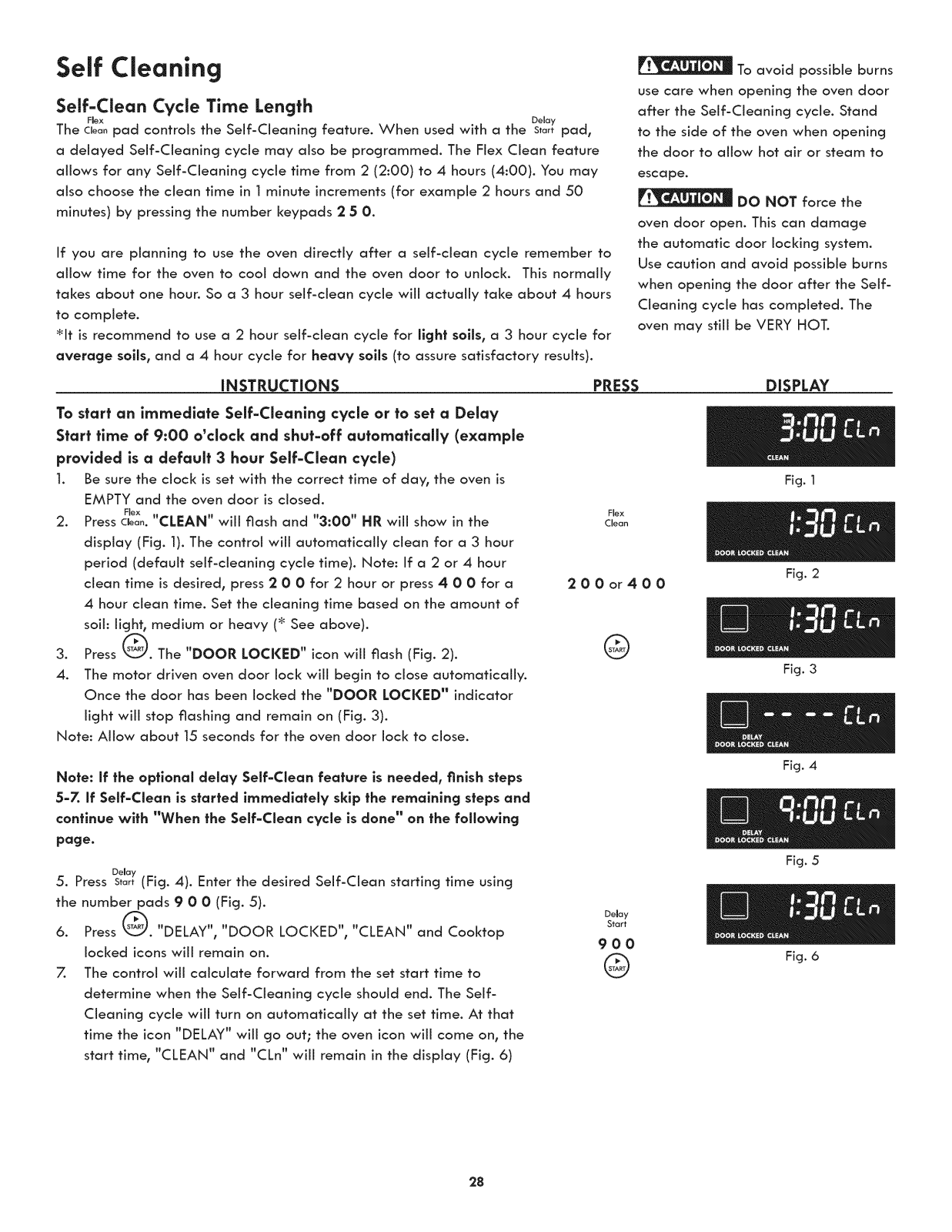

Self=Cleanlng ............................................................. 27=29

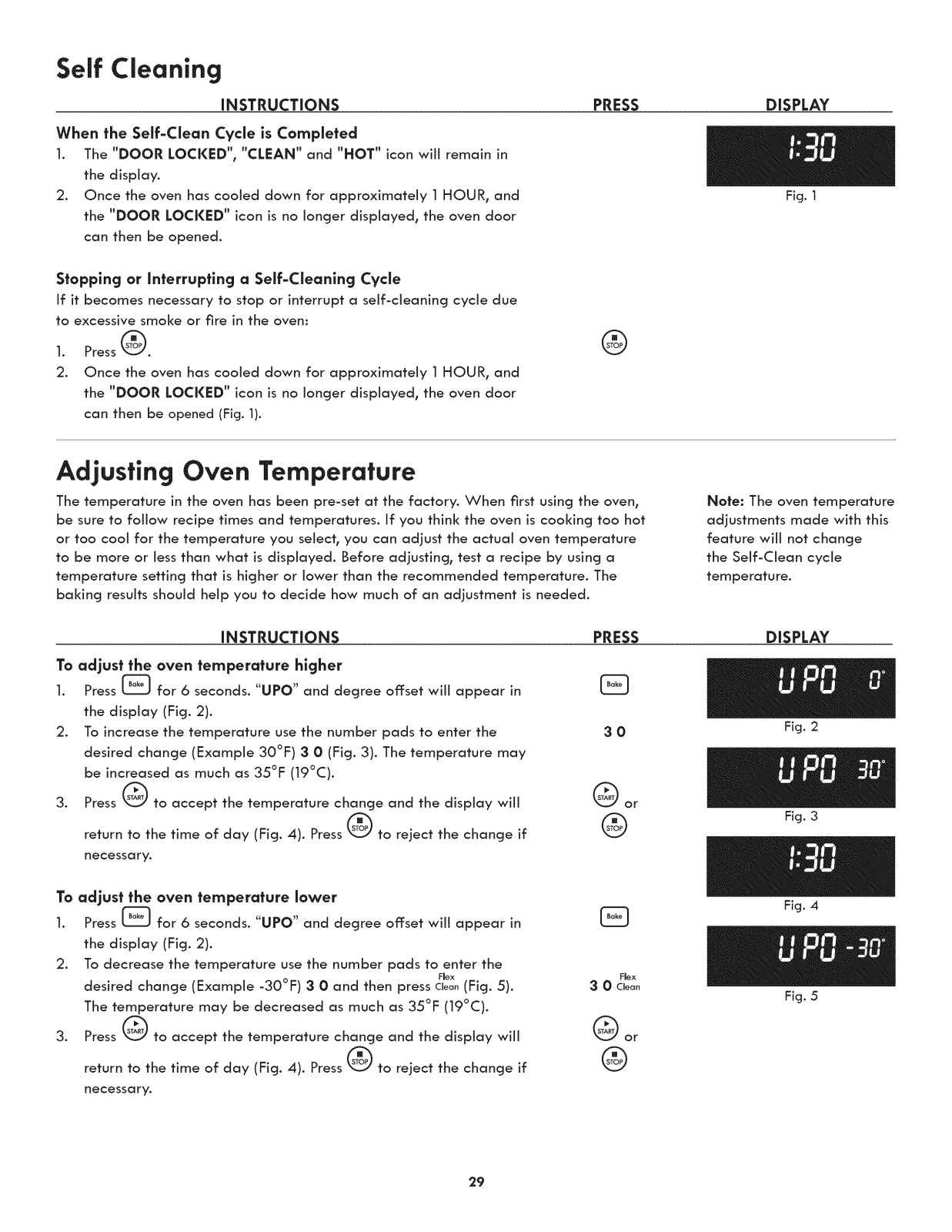

Adjusting Oven Temperature .......................................... 29

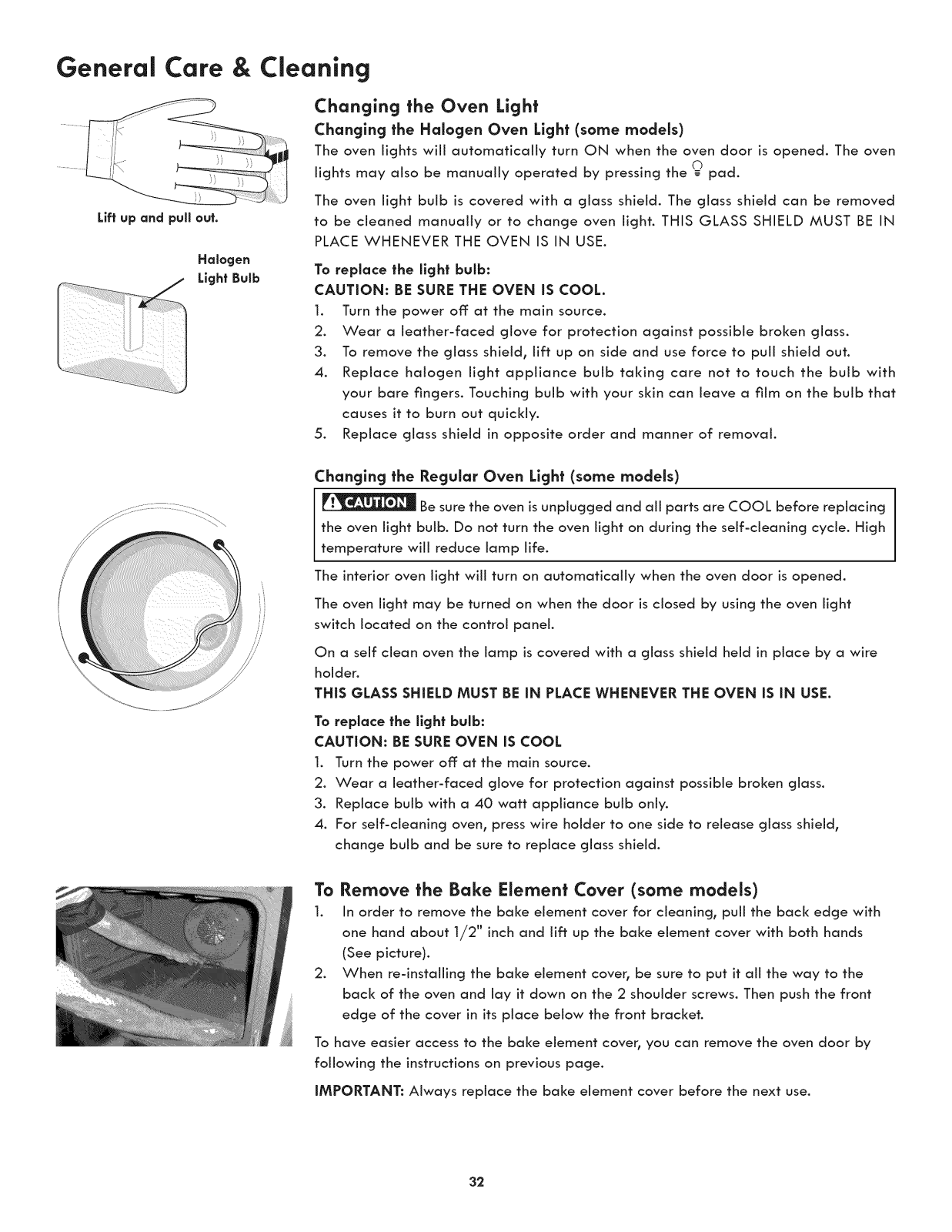

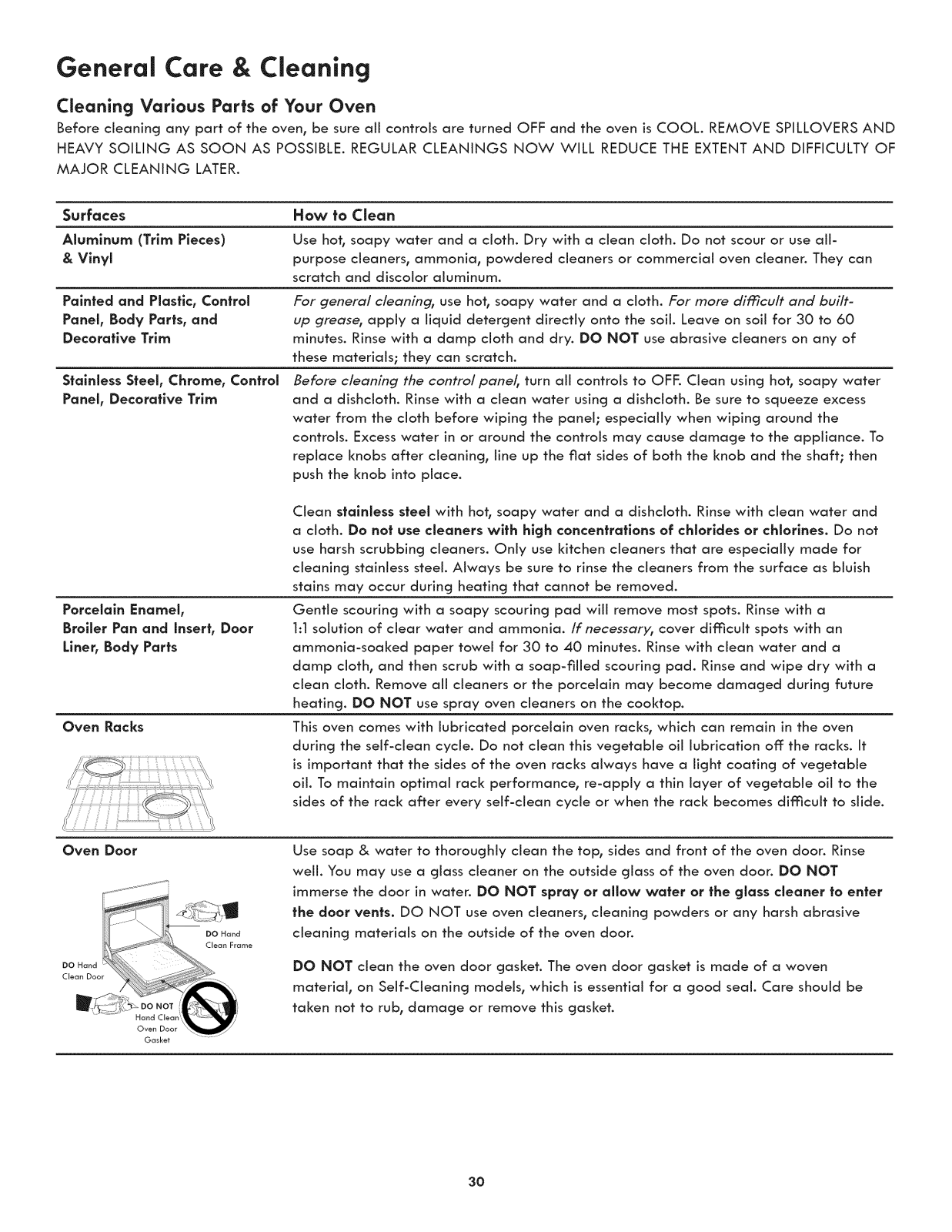

General Care & Cleaning ........................................... 30=32

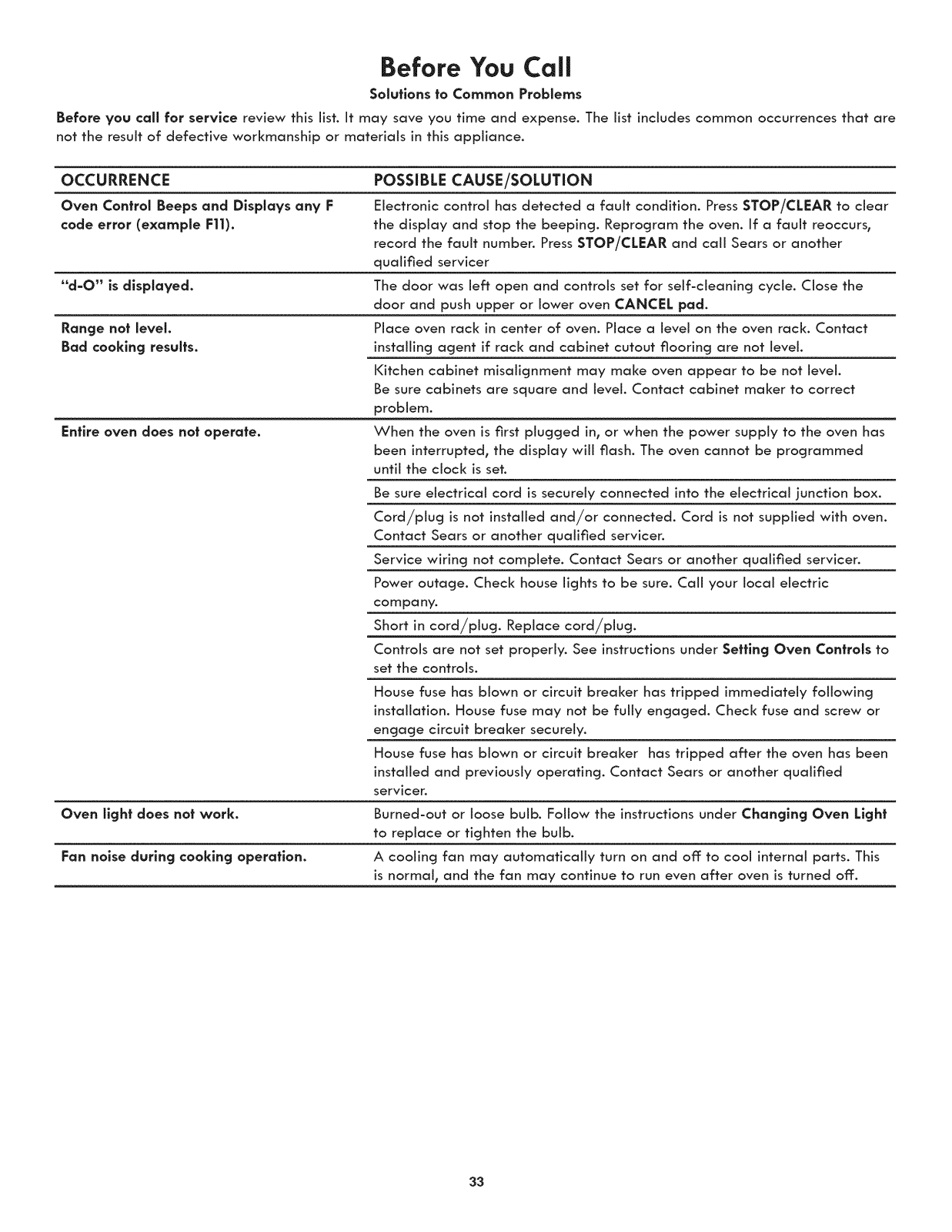

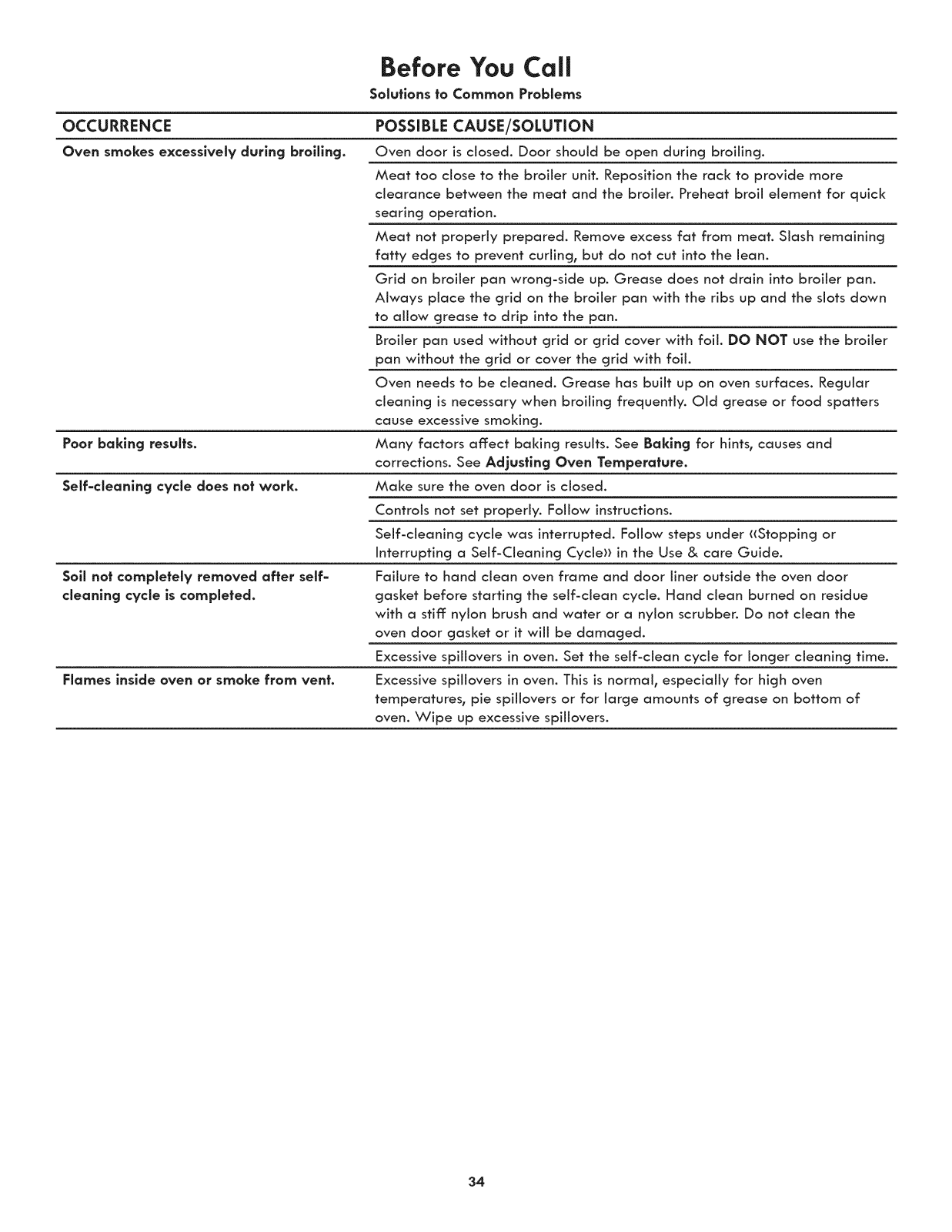

Before You Call .......................................................... 33=34

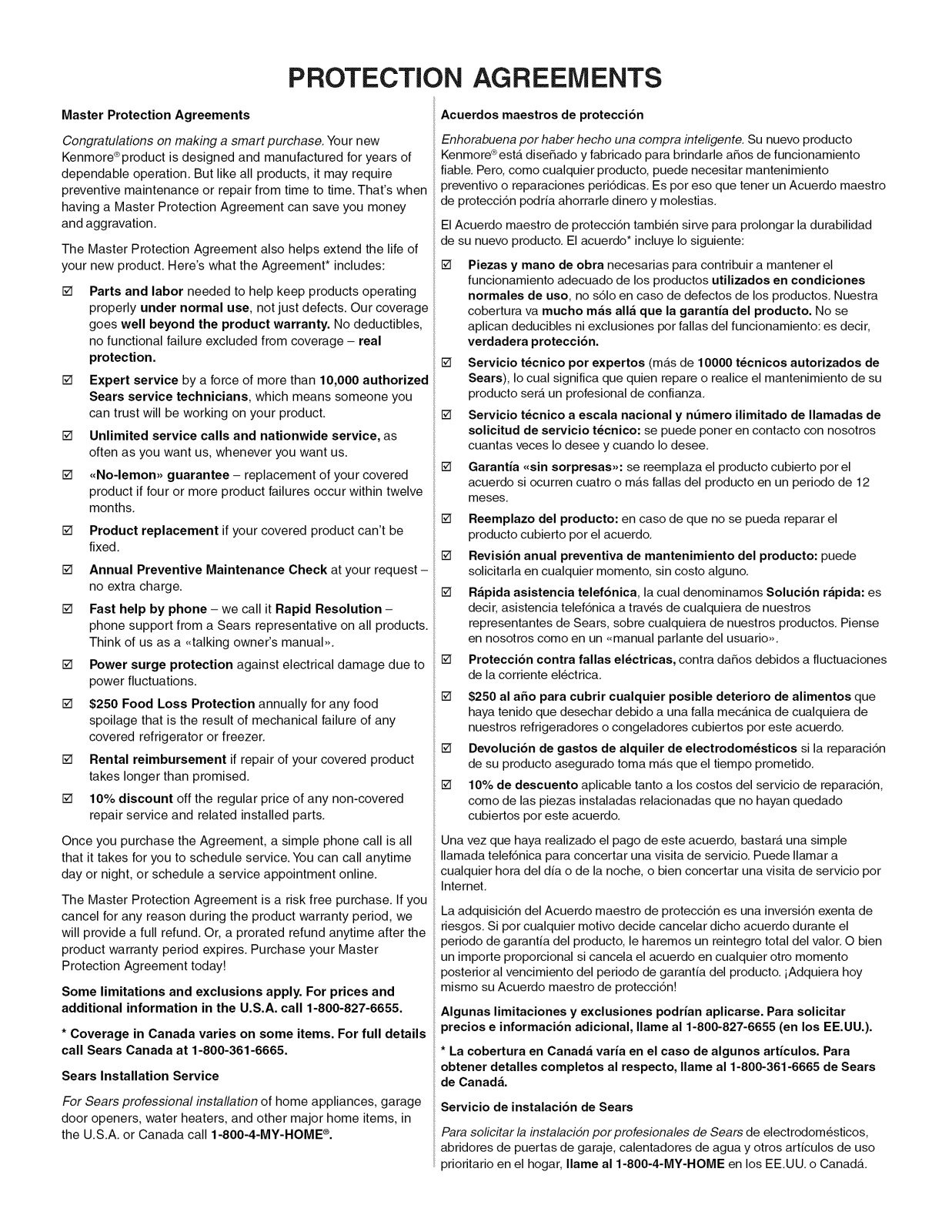

Protection Agreements .................................................... 35
Sears Service .................................................................. 36
Kenmore Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
This warranty applies for only 90 days from the date of purchase if this appliance isever used for other than private family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions supplied with the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
Product Record
In this space below, record the date of purchase, model and serial
number of your product. You will find the model and serial number printed on the serial plate.
Model No. 790. Serial No.
Date of purchase Save these instructions and your sales receipt for future reference.
Please carefully read and save these instructions reference. This Use & Care Manual contains general operating instructions for your appliance
and feature information for several models. Your product may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look exactly like those shown. Common sense and caution must be practiced when installing, operating and maintaining any appliance.
Printed in United States 2
Serial Plate Location
You will find the model and serial number printed on the serial plate. The serial plate is located along the
interior side trim and visible when the oven door is opened.
Remember to record the serial number for future
Serial Plate Location

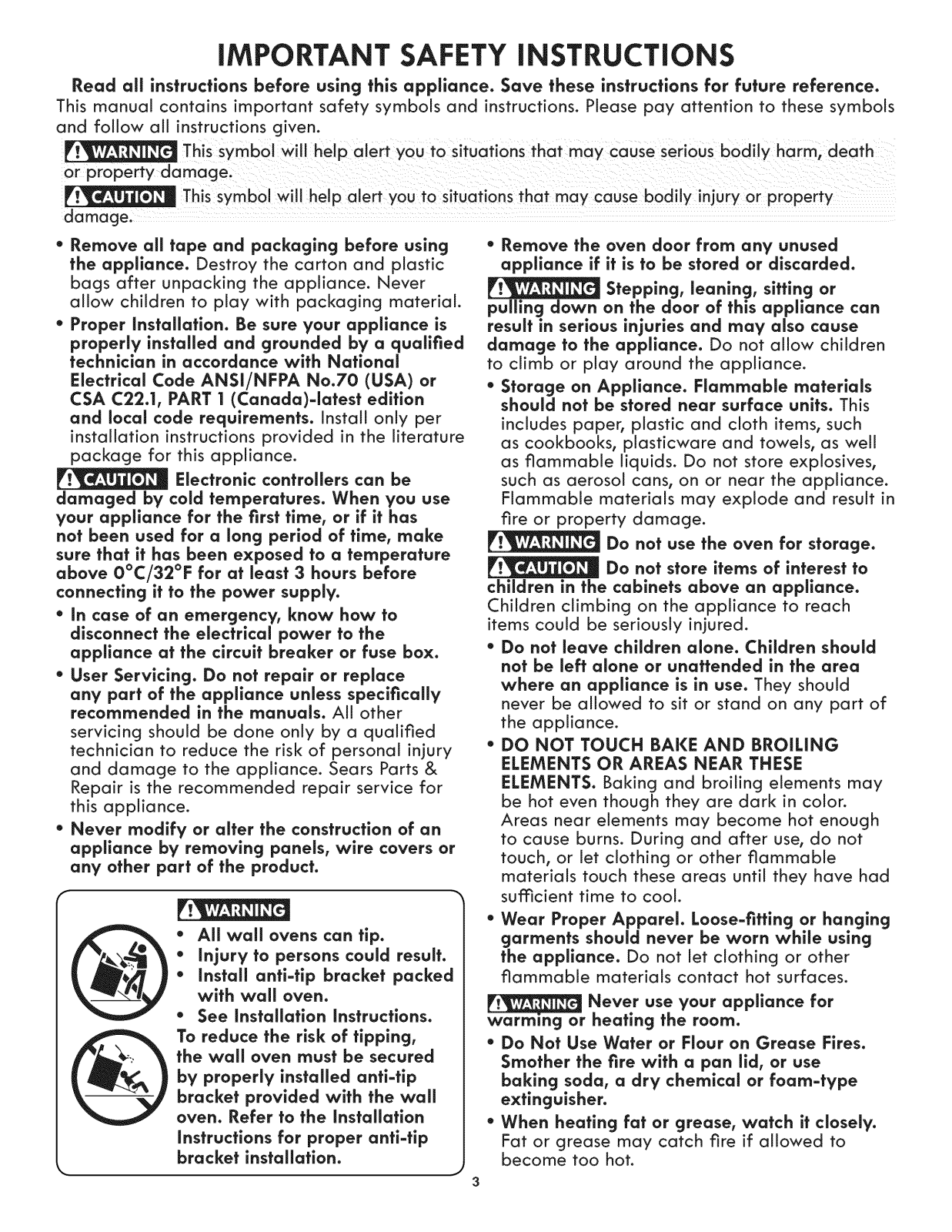

iMPORTANT SAFETY iNSTRUCTiONS
Read all instructions before using this appliance. Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
This Symbol Will help alert You to situations that may CauSe serious bodily harm, death
or property damagei
This symb01 Wi I help that may cause bodily injury or property
* Remove all tape and packaging before using
the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play with packaging material.
* Proper installation. Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with National Electrical Code ANSi/NFPA No.70 (USA) or
CSA C22.1, PART 1 (Canada)-Iatest edition and local code requirements. Install only per
installation instructions provided in the literature package for this appliance.
Electronic controllers can be
damaged by cold temperatures. When you use your appliance for the first time, or if it has
not been used for a long period of time, make sure that it has been exposed to a temperature above 0°C/32°F for at least 3 hours before connecting it to the power supply.
* in case of an emergency, know how to
disconnect the electrical power to the appffance at the circuit breaker or fuse box.
* User Servicing. Do not repair or replace
any part of the appliance unless specifically recommended in the manuals. All other
servicing should be done only by a qualified
technician to reduce the risk of personal iniury and damage to the appliance. Sears Parts &
Repair is the recommended repair service for
this appliance.
* Never modify or alter the construction of an
appffance by removing panels, wire covers or any other part of the product.
®
All wan ovens can tip.
®
injury to persons could resuff.
®
install anti-tip bracket packed with waft oven.
* See installation instructions.
To reduce the risk of tipping,
the wan oven must be secured
by properly instaffed anti=tip bracket provided with the wail
oven. Refer to the installation instructions for proper anti=tip
bracket installation.
* Remove the oven door from any unused
appliance if it is to be stored or discarded.
Stepping, leaning, sitting or
puffing down on the door of this appliance can resuff in serious injuries and may also cause damage to the appffance. Do not allow children
to climb or play around the appliance.
* Storage on Appliance. Flammable materials
should not be stored near surface units. This includes paper, plastic and cloth items, such
as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance.
Flammable materials may explode and result in
fire or property damage.
Do not use the oven for storage. Do not store items of interest to
children in the cabinets above an appffance. Children climbing on the appliance to reach
items could be seriously iniured. * Do not leave children alone. Children should
not be left alone or unattended in the area where an appliance is in use. They should
never be allowed to sit or stand on any part of
the appliance.
* DO NOT TOUCH BAKE AND BROiLiNG
ELEMENTS OR AREAS NEAR THESE ELEMENTS. Baking and broiling elements may
be hot even though they are dark in color. Areas near elements may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable
materials touch these areas until they have had sufficient time to cool.
Wear Proper Apparel. Loose-fitting or hanging garments should never be worn while using the appliance. Do not let clothing or other
flammable materials contact hot surfaces.
Never use your appliance for
warming or heating the room. * Do Not Use Water or Flour on Grease Fires.
Smother the fire with a pan lid, or use baking soda, a dry chemical or foam-type
extinguisher.
* When heating fat or grease, watch it closely.
Fat or grease may catch fire if allowed to
become too hot.
3

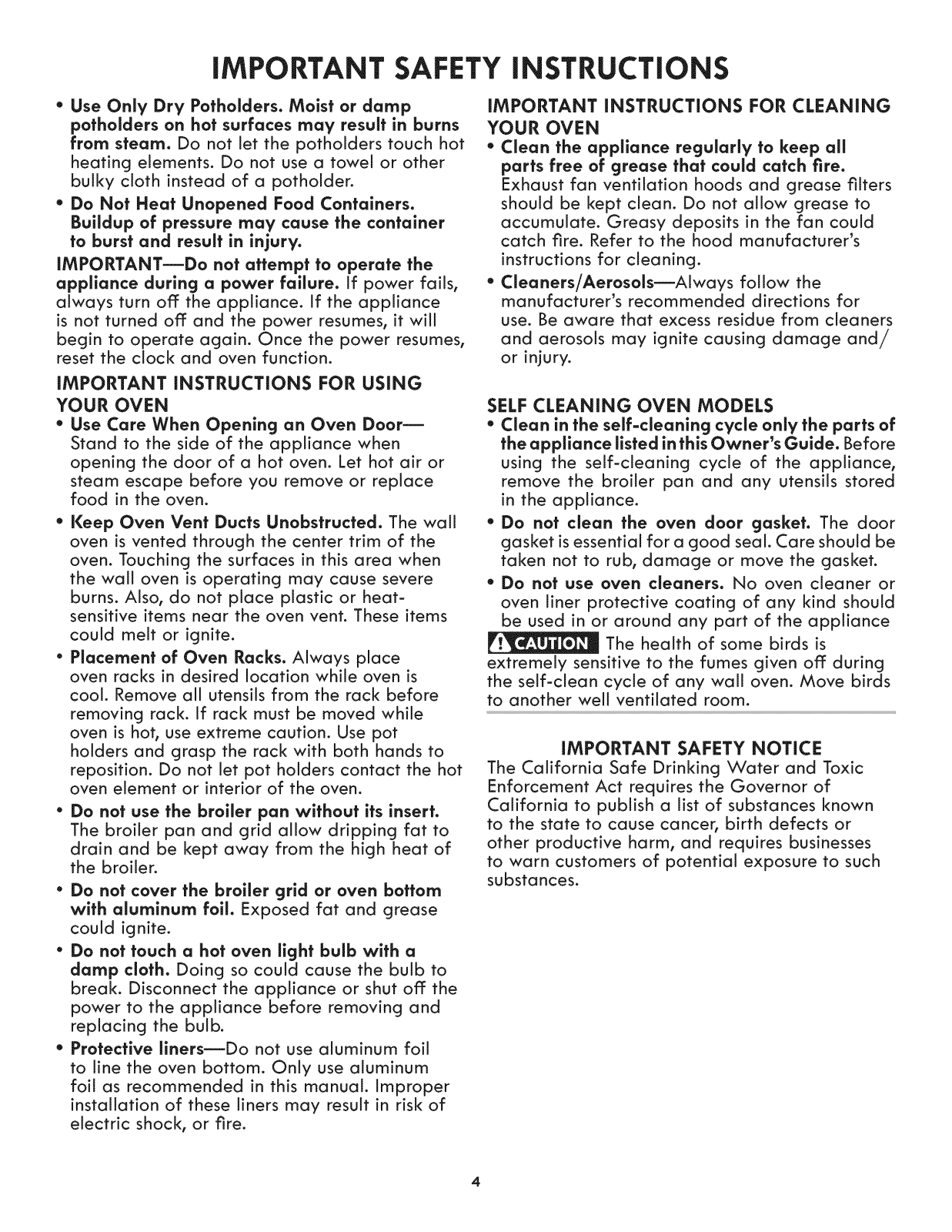

iMPORTANT SAFETY iNSTRUCTiONS
* Use Only Dry Potholders. Moist or damp
potholders on hot surfaces may result in burns
from steam. Do not let the potholders touch hot
heating elements. Do not use a towel or other bulky cloth instead of a potholder.
* Do Not Heat Unopened Food Containers.
Buildup of pressure may cause the container
to burst and result in injury.
IMPORTANT--Do not attempt to operate the appliance during a power failure. If power fails, always turn off the appliance. If the appliance is not turned off and the power resumes, it will begin to operate again. Once the power resumes,
reset the clock and oven function. iMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN * Use Care When Opening an Oven Door--
Stand to the side of the appliance when opening the door of a hot oven. Let hot air or steam escape before you remove or replace
food in the oven.
* Keep Oven Vent Ducts Unobstructed. The wall
oven is vented through the center trim of the oven. Touching the surfaces in this area when the wall oven is operating may cause severe burns. Also, do not place plastic or heat-
sensitive items near the oven vent. These items
could melt or ignite.
* Placement of Oven Racks. Always place
oven racks in desired location while oven is cool. Remove all utensils from the rack before
removing rack. If rack must be moved while oven is hot, use extreme caution. Use pot holders and grasp the rack with both hands to reposition. Do not let pot holders contact the hot
oven element or interior of the oven.
* Do not use the broiler pan without its insert.
The broiler pan and grid allow dripping fat to drain and be kept away from the high heat of
the broiler.
Do not cover the broiler grid or oven bottom with aluminum foil. Exposed fat and grease
could ignite.
Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to
break. Disconnect the appliance or shut off the power to the appliance before removing and replacing the bulb.
Protective liners--Do not use aluminum foil to line the oven bottom. Only use aluminum
foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire.
iMPORTANT iNSTRUCTiONS FOR CLEANING
YOUR OVEN * Clean the appliance regularly to keep all
parts free of grease that could catch fire.
Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease to accumulate. Greasy deposits in the fan could
catch fire. Refer to the hood manufacturer's
instructions for cleaning.
* Cleaners/Aerosois_AIways follow the
manufacturer's recommended directions for use. Be aware that excess residue from cleaners
and aerosols may ignite causing damage and/ or injury.
SELF CLEANING OVEN MODELS * Clean in the serf-cleaning cycle only the parts of
the appffance ffsted in this Owner's Guide. Before using the self-cleaning cycle of the appliance,
remove the broiler pan and any utensils stored
in the appliance.
* Do not clean the oven door gasket. The door
gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.
* Do not use oven cleaners. No oven cleaner or
oven liner protective coating of any kind should
be used in or around any part of the appliance
The health of some birds is
extremely sensitive to the fumes given off: during the self-clean cycle of any wall oven. Move birds
to another well ventilated room.
iMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of
California to publish a list of substances known to the state to cause cancer, birth defects or
other productive harm, and requires businesses to warn customers of potential exposure to such
substances.

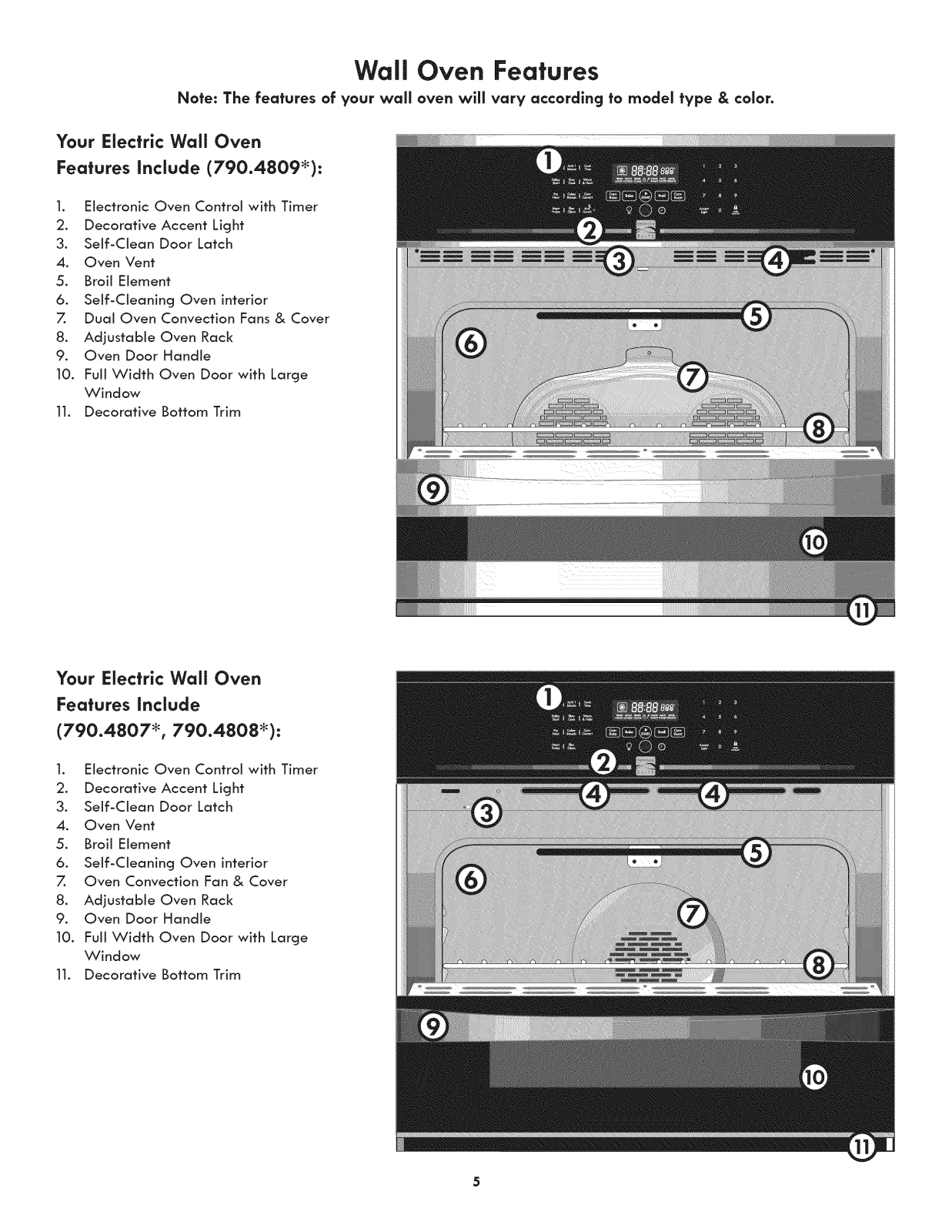

Note: The features of your wall oven wlll vary according to rnodel type & color.
Your Electric Wall Oven Features include (790.4809_):
1. Electronic Oven Control with Timer
2. Decorative Accent Light
3. Self-Clean Door Latch
4. Oven Vent
5. Broil Element
6. Self-Cleaning Oven interior
7. Dual Oven Convection Fans & Cover
8. Adjustable Oven Rack
9. Oven Door Handle
10. Fuji Width Oven Door with Large Window
11. Decorative Bottom Trim
Wall Oven Features
Your Electric Wall Oven
Features include (790.4807 _, 790.4808_):
1. Electronic Oven Control with Timer
2. Decorative Accent Light
3. Self-Clean Door Latch
4. Oven Vent
5. Broil Element
6. Self-Cleaning Oven interior
7. Oven Convection Fan & Cover
8. Adjustable Oven Rack
9. Oven Door Handle
10. Full Width Oven Door with Large Window
11. Decorative Bottom Trim

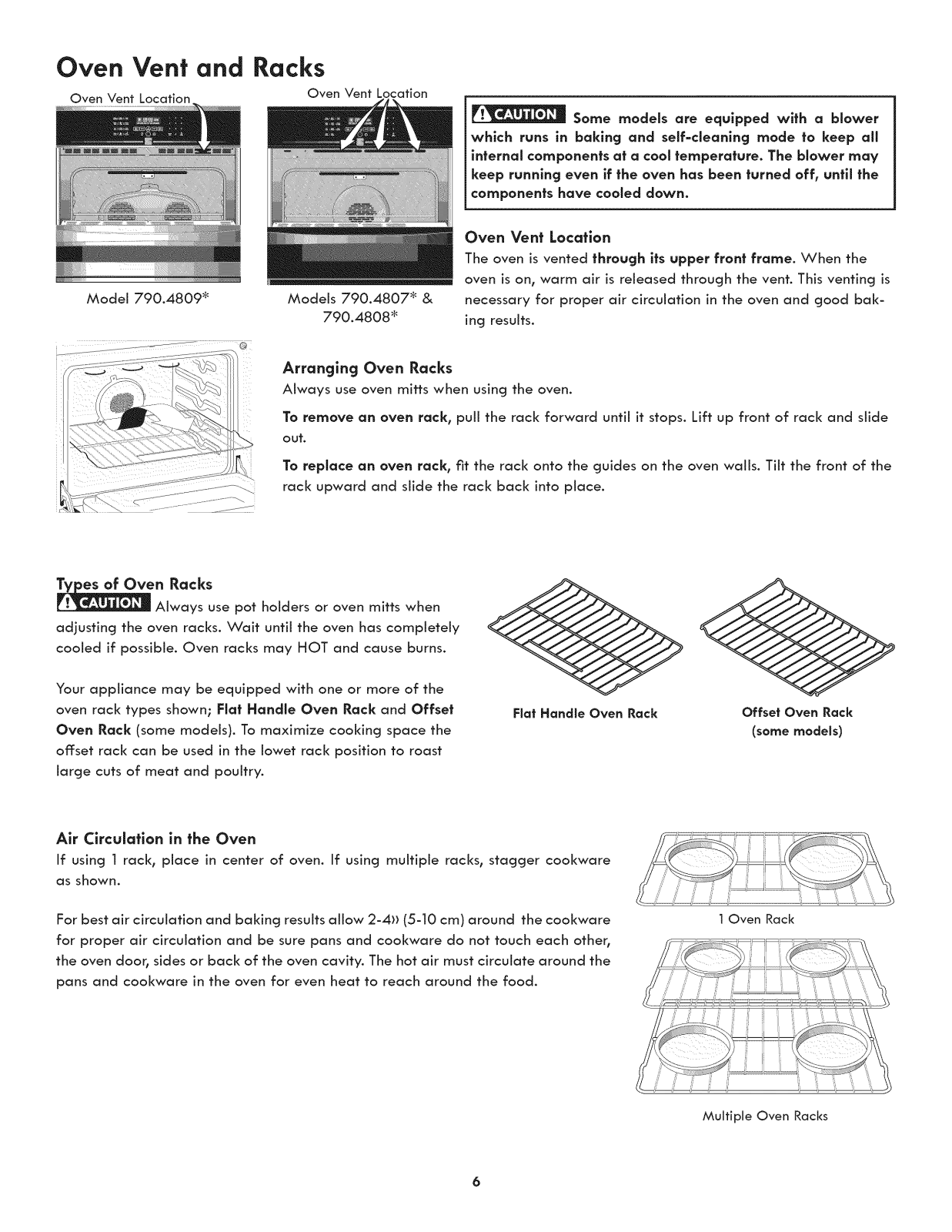

Oven Vent and
Oven Vent Location
Model 790.4809 _
Racks
Oven Vent Location
Some models are equipped with a blower
which runs in baking and self-cleanlng mode to keep all
internal components at a cool temperature. The blower may keep running even if the oven has been turned off, until the components have cooled down.
Oven Vent Location The oven is vented through its upper front frame. When the oven is on, warm air is released through the vent. This venting is
Models 790.4807 _ &
790.4808 _
Arranging Oven Racks Always use oven mitts when using the oven.
To remove an oven rack, pull the rack forward until it stops. Lift up front of rack and slide
out.
To replace an oven rack, fit the rack onto the guides on the oven wails. Tilt the front of the
rack upward and slide the rack back into place.
necessary for proper air circulation in the oven and good bak- ing results.
n Racks
Always use pot holders or oven mitts when
adjusting the oven rad<s. Wait until the oven has completely cooled if possible. Oven racks may HOT and cause burns.
Your appliance may be equipped with one or more of the oven rack types shown; Flat Handle Oven Rack and Offset
Oven Rack (some models). To maximize cooking space the offset rack can be used in the iowet rack position to roast large cuts of meat and poultry.
Air Circulation in the Oven
If using 1 rack, place in center of oven. If using multiple racks, stagger cookware as shown.
For best air circulation and baking results allow 2-4)> (5-10 cm) around the cookware for proper air circulation and be sure pans and cool<ware do not touch each other,
the oven door, sides or back of the oven cavity. The hot air must circulate around the pans and cookware in the oven for even heat to reach around the food.
Offset Oven Rack
(some models)
1 Oven Rack
Multiple Oven Racks
Control Pad Features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function
follow later in this Use & Care Guide.
Oven Control Keypads
1. Timer Set/Off = Used to set or cancel Timer. The minute
timer does not start or stop cooking.
2. Add 1 Minute = Used to add additional minutes to Timer.
3. Cook Time= Used to enter the length of the cook time
desired.
4. Delay Start = Used to set the desired start time for
baking. May be used with COOl( TIME to program a delayed timed bake or clean cycle.
5. Slow Cook = Used to select the Slow Cook Feature cycle.
6. Warm & Hold - Used to set the Warm & Hold function.
7. Preheat Pad = Used to preheat the oven.
8. Cakes or Breads - Used to select the cakes or breads.
9. Cony Convert = Used to select the Convection Convert
feature.
10. Meat Probe Pad - Used to set meat probe.
11. Flex Clean - Used to set a 2 to 4 hours Self-Clean cycle.
Minimum & maximum control settings
Aii of the features listed below have minimum and maximum time or
temperature settings that may be entered into the control. An ENTRY
acceptance beep will sound each time a control pad is touched (the Oven Lockout pad is delayed 3
seconds).
An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature or time is below the
minimum or above the maximum settings for the feature.
Feature PreHeat Baize
Broil Timer Flex Clean Conv Baize Conv Convert Conv Roast Slow Cool<
Cook Time
Delay Time 12 Hr. Delay Time 24 Hr.
Meat probe target
12. Air Guard Pad & indicator light - Used after preheat to help freshen kitchen air during cooking (some models).
13. Cony Bake = Used to select the Convection Bake feature.
14. Bake = Used to enter the normal baize feature.
15. START = Used to start all oven features (not used with Oven Light).
16. Broil = Used to select variable broil feature.
17. Convection Roast = Used to select the convection roast
mode.
18. Oven Light - Used to turn oven light ON and OFF.
19. STOP - Used to cancel any oven function previously entered except Clock and Timer.
20.Clock Set = Used to set the time of day.
21.0 thru 9 number = Used to enter temperature and times.
22. Accent Light = Used to turn accent light ON and OFF.
23. Oven Lockout = Used to lock the oven key pads and oven door.
Min. Temp. or time
170°F/77°C 170°F/77°C
400°F/205°C
0:01 Min. 2 hours
170°F/77°C 170°F/77°C
170°F/77°C Lo (225°F/180°C)
0:01 Min. 1:00 Hr./Min.
0:00 Hr./Min. 140°F/60°C
Max. temp. or time
SS0°F/288°C SS0°F/288°C SS0°F/288°C
11:59 Hr./Min. 4 hours
SS0°F/288°C
SS0°F/288°C
550°F/288°C
Hi (225°F/180°C) 11:59 Hr./Min. 12:59 Hr./Min. 23:59 Hr./Min. 210°F/99°C
7
Setting the Oven Controls
Setting the Clock
The 4(_ pad is used to set the dock. The clock may be set for 12 or 24 hour time of day operation. The clock has been preset at the factory for the 12 hour operation. When the
range is first plugged in, or when the power supply to the range has been interrupted, the time in the display will flash (See Fig. 1).
INSTRUCTIONS PRESS
To set the clock (example below for 1:30)
1. Press (_. "CLO" will appear in the display (Fig. 2).
®
Fig. 1
DISPLAY
2. Press ] 3 0 pads to set the time of day to 1:30 (Fig. 3). Press _(_.
130_
"CLO" will disappear and the clock will start (Fig. 4).
Changing between 12 or 24 hour time of day dlsplay
1. Press and hold 4_ for 7 seconds until "12Hr day" or "24Hr dAy appears in the display.
Flex
2. Press Cleo,to switch between the 12 and 24 hour time of day
@ for 7 seconds
Flex
Clean
display. 12Hr dAy (Fig. 5) or 24Hr dAy (Fig. 6) will be displayed.
3. Press _ to accept the change or press _ to reject the change.
4. Reset the correct time as described in To set the (:lock above. Please note that if the 24 hour time of day mode was chosen, the
clock will now display time from 0:00 through 23:59 hours.
Setting Silent Control Operation
_, Delay , Flex
/he Startand Cleonpads control the Silent Control operation feature. The Silent Control operation feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the control can be programmed for silent operation and later returned
to operating with aii the normal sounds and beeps.
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
INSTRUCTIONS PRESS DISPLAY
To change control from normal sound operation to silent control operation
1. To tell if your range is set for normal or silent operation press and
2. Press Cleanto switch between normal sound operation and silent
3. Press _ to accept the change or press _ to reject the change.
Delay
hold Startfor 7 seconds (Fig. 7).
Flex
operation mode. The display will show either bEEp On (Fig. 8) or bEEp OFF (Fig. 9). If bEEp On appears (Fig. 8), the control will operate with normal
sounds and beeps. If bEEp OFF appears (Fig. 9), the control is in the silent operation mode.
Delay
Start for 7 seconds
Flex
Clean
Fig. 7
Fig. 8
Fig. 9
Setting the Oven Controls
Seffing Continuous Bake or 12 Hour Energy Saving
Flex
The Set/Off and Cba. pads control the Continuous Bake or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12 Hour Energy Saving feature that wiii shut off
the oven if the oven control is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking.
INSTRUCTIONS PRESS DISPLAY
To set the control far Continuous Bake or 12 Hour Energy
Saving features
Timer
1. Press and hold Set/Off for 7 seconds or until the control beeps once (Fig. 1). "12Hr OFF" or "StAy On" wiii appear in the display and the control wii[ beep once.
2. Press Cleanto switch between the 12 Hour Energy Saving and
Flex
continuous bake features. Note: "|2Hr OFF" (Fig. 2) in the display indicates the control is set for the 12 Hour Energy Saving
mode and "StAy On" (Fig. 3) indicates the control is set for the Continuous Bake feature.
3. Press _ to accept the change (Fig. 4; display will return to time
of day) or press _ to reject the change.
Timer
Set/Off for 7 seconds
Flex
Clean
Fig. 1
Fig. 2
Fig. 3
Setting Timer
Timer
The TUMER Set/Off pad controls the Timer feature. The Timer serves as an extra timer in the kitchen that will beep when the set time has run out. It does not start or stop cooking.
The Timer feature can be used during any of the other oven control functions. Refer to "Minimum and Maximum Control Pad Settings" for time amount settings.
INSTRUCTIONS PRESS DISPLAY
To set the Kitchen Timer (example for 5 minutes)
1. Press Set/Off (Fig. 5).
2. Press the number pads to set the desired time in the display
3. When the set time has run ouh the clock wiii sound with 3 long
Timer
(example 5). Press _. The time wiii begin a count down (Fig. 6).
Note: If _ is not pressed the timer wiii return to the time of day after 25 seconds.
Timer
beeps every 5 seconds until Set/Off is pressed (Fig. 7).
Set/Off
Timer
Q Fig. 5
Timer
Set/Off Fig. 6
To cancel the Timer before the set time has run out
T_mer
Press Set/Off. The display wiii return to the time of day.
Timer
Set/Off
Fig. 4
Fig. 7
To Set Add 1 Minute Feature
Add I Add 1
The Minutepad is used to set the Add 1 Minute feature. When the Minutepad is pressed, 1 minute is added to the Timer feature if this feature is already active. If the Timer feature is not active and the M_nutepad is pressed, the Timer feature will become active and will begin counting down from 1 minute. For further information on how to set the Timer feature see Setting Timer
instructions above.
Add 1
Setting the Oven Controls
Setting Oven Lockout Feature
The _o_ pad controls the Oven Loci<out feature. The Oven Lockout feature automatically locks the oven door and prevents the oven from being turned on. It does not disable the clock, Timer or the interior oven lights.
INSTRUCTIONS PRESS DISPLAY
To activate the Oven Lockout feature
1. Press and hold ,o%%Tfor 3 seconds.
OVEN
_oc_o0_for 3 seconds
2. After 3 seconds a beep will sound, door Loc will appear (Fig. 1) and DOOR LOCKED will flash in the display. Once the oven door is locked the DOOR LOCKED indicator will stop flashing (Fig. 2).
To reactivate normal oven operation:
OVEN
1. Pressand hold ,%%Tfor 3 seconds. A beep will sound. The DOOR
,ocKo0Tfor 3 seconds
LOCKED will continue to flash until the oven door has completely unlocked (Fig. 3).
2. The oven is again fully operational.
Setting Temperature Display- Fahrenheit or Celsius:
Fbx
Fbx
INSTRUCTIONS
PRESS
Flex
Cban
The _ and Cleonpads control the Fahrenheit or Celsius temperature display modes. The oven control can be programmed to display temperatures in Fahrenheit or Celsius. The oven
has been preset at the factory to display in Fahrenheit.
To change dlsplay from Fahrenheit to Celslus or Celslus to
Fahrenheit
1. To tell if the display is set for Fahrenheit or Celsius press U (Fig.
4) and hold for 7 seconds; "550 °" wiii first appear in the display and then beep will sound. If "F" appears, the display is set to show temperatures in Fahrenheit (Fig. 5). If "C" appears, the display is
set to show temperatures in Celsius (Fig. 6).
.
Press Cleonto switch between Fahrenheit or Celsius display modes. The display will show either "F" (Fig. 5) or "C" (Fig. 6).
Fig. 1
Fig. 2
Fig. 3
DISPLAY
Fig. 4
Fig. 5
.
Press _ to accept the change or press _ to reject the change.
Fig. 6
lO
Setting the Oven Controls
Setting Accent Light
Your appliance includes a decorative Accent Light centered horizontally across touch-sensitive control panel. The Accent light comes with a theatre style intensity feature that slowly increases brightness at turn on and slowly fades when turning
of. When the Accent light is off, the light is in automatic mode. This means the Accent light will turn on automatically when an
oven or Timer has been activated. The Accent light will turn of automatically when these functions are no longer active.
When the Accent light is OFF, it may be turned ON by pressing Lightonce. When the Accent light has been manually turned on, it will remain on until manually turned of by pressing Light again. The brightness may also be adjusted.
Accent
Accent
INSTRUCTIONS
E×ample - To adjust the Accent llcjht brightness:
1.
Press and hold Lightuntil an acceptance tone sounds (about 6 seconds)
2. The default setting of 100 will appear in the display (See Fig. 1).
3. Using the numeric keypad, enter any digit from 0 to ]00 to change the brightness level. Entering 0 (Fig. 2) wiil effectively
turn the Accent light OFF until the brightness level is adjusted to a higher level.
4. Press _ to save the desired brightness setting.
Accent
PRESS DISPLAY
Accent
Light
Value between
0 to100
©
Fig. 1
Fig. 2
Operating Oven Lights
The interior oven lights will turn ON when the oven door is opened. Press @ to turn oven light ON an OFF whenever the oven door is closed.
The interior oven lights are located on the rear wall of the oven interior and are covered with a glass shield. The glass shield protects the bulb from high temperatures and should always be in place whenever the oven is in use.
To replace the interior oven lights, see Replacing overl lights in the Care and Cleaning section.
Loading...
+ 25 hidden pages
