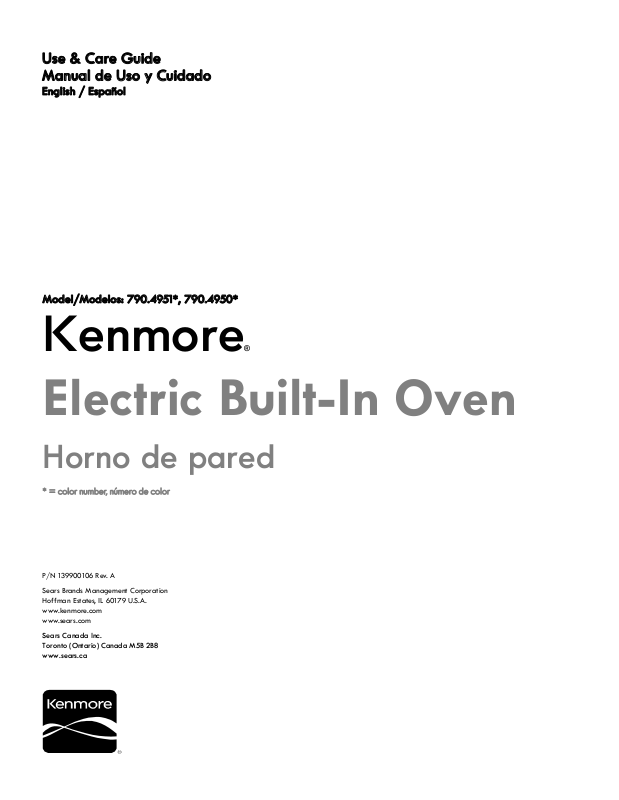

Use & Care Guide Manual de Uso y Cuidado

English / Español

Model/Modelos: 790.4951*, 790.4950*

Kenmore®

Electric Built-In Oven

Horno de pared

* = color number, número de color

P/N 139900106 Rev. A

Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A. www.kenmore.com www.sears.com

Sears Canada Inc. Toronto (Ontario) Canada M5B 2B8 www.sears.ca

Page 2

Table of Contents

Please carefully read and save these instructions ...............................2

Kenmore Limited Warranty .....................................................................2

Before Setting oven controls ........................................................................ 7

Oven vent location .....................................................................................7

Oven Controls ................................................................................................. 8

Self Clean ..................................................................................................19

Care and Cleaning ..................................................................................... 21

Cleaning Various Parts of Your Oven .................................................21

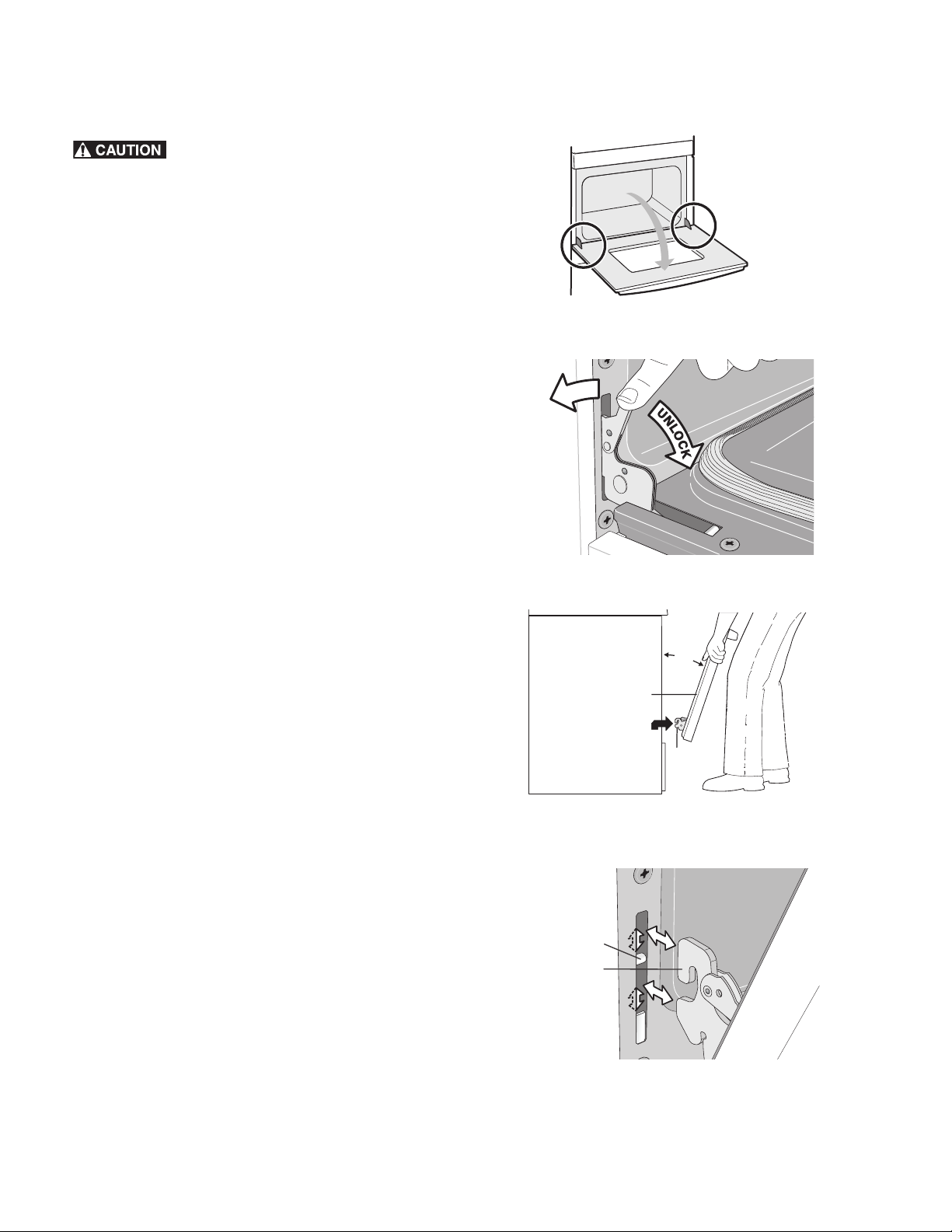

Removing and Replacing the Oven Door ............................................22

Replacing the oven light .........................................................................23

Before You Call........................................................................................... 24

Oven Baking .............................................................................................24

Solutions to Common Problems ..............................................................25

Please carefully read and save these instructions

This Use & Care guide contains operating instructions for your appliance and feature information for several models. Your product may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look exactly like those shown. Common sense and caution must be practiced with installing, operating and maintaining any appliance.

Kenmore Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair. This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes.

This warranty covers only defects in material and workmanship. Sears will not pay for:

1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.

2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions supplied with the product.

3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

4. A service technician to instruct the user in correct product installation, operation or maintenance.

5. A service technician to clean or maintain this product.

6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A. Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

This manual contains important safety symbols and instructions. Pay attention to these symbols and follow all instructions given.

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the hazard type.

DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety message that follow this symbol to avoid possible injury or death.

- Indicates a potentially

hazardous situation which, if not avoided, may result in death or serious injury

- Indicates a potentially

hazardous situation which, if not avoided, may result in minor or moderate injury.

Storage In or On Appliance—

Flammable materials should not be stored in an oven. This includes paper, plastic, and cloth items, such as cookbooks, plastic ware, and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the oven.

Do Not Leave Children Alone -

Children should not be left alone or unattended in the area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance, including the storage drawer, lower broiler drawer, warmer drawer, or lower double oven.

When heating fat or grease, watch it closely. Grease may catch fire if it becomes too hot.

Tip Over Hazard

• A child or adult can tip the oven and be killed.

• Install the anti-tip device to oven and/or structure per installation instructions.

• Ensure the anti-tip device is re-engaged when the oven is moved.

• Do not operate the oven without the anti-tip device in place and engaged.

• Failure to follow these instructions can result in death or serious burns to children and adults.

Refer to the installation instructions supplied with your appliance for proper installation.

Check for proper instal-

Anti-tip mounting

holes

Test the installation with light downward pressure on the open oven door. The oven should not tip forward.

Stepping, leaning, or sitting on the

lation with a visual check that the anti-tip screws are present.

door or drawers of an oven can result in serious injuries and also cause damage to the appliance. Do not allow children to climb or play around the oven. The weight of a child on an open over door may cause the oven to tip, resulting in serious burns or other injury.

Never cover any slots, holes, or

passages in the oven bottom or cover an entire oven rack with materials, such as aluminum foil. Aluminum foil linings may trap heat, causing a fire hazard.

Save these instructions for future reference.

Page 4

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Wear proper apparel. Loosefitting or hanging garments should never be worn while using this appliance. Do not let clothing or other flammable materials come into contact with hot surfaces

Do not heat unopened food

containers. Build-up of pressure may cause container to burst and result in injury.

Do not use water or flour on

grease fires. Cover the fire with a pan lid, use baking soda, or use a dry chemical or foam type extinguisher.

Use dry potholders. Moist or

damp potholders on hot surfaces may result in burns from steam.Do not let potholders touch hot cooking areas. Do not use towels or other bulky cloths.

The California Safe Drinking

Water and Toxic Enforcement Act requires the governor of California to publish a list of substances known to cause cancer, birth defects, or other reproductive harms, and it requires businesses to warn customers of potential exposures to such substances.

Read and follow all the warnings,

cautions and important notes regarding the instructions and precautions for unpacking, installing, and servicing your appliance:

Remove all tape and packaging before using the oven. Destroy the carton and plastic bags after unpacking the oven. Never allow children to play with packaging material.

Do not touch heating elements or

interior surfaces of oven. Heating elements may be hot even though they are dark in color. Interior surfaces of ovens become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements

or interior surfaces of oven until

they have sufficient time to cool. Other surfaces of the appliance may become hot enough cause burns such as the oven door, windows, and the oven vent.

• Remove the oven door from any unused

oven if it is to be stored or discarded.

• Proper Installation—Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 70 latest edition and local electrical code requirements. In Canada, install in accordance with CSA Standard C22.1, Canadian Electrical code, Part 1, and local electrical code requirements. Install only per installation instructions provided in the literature package for this oven.

• User Servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manuals. All other servicing should be done only by a qualified technician. This reduces the risk of personal injury and damage to the oven.

• Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the oven at the circuit breaker or fuse box in case of an emergency.

• Never modify or alter the construction of an oven by removing the leveling legs, panels, wire covers, anti-tip brackets/ screws, or any other part of the oven.

• Do not attempt to operate the oven during a power failure. If the power fails, always turn off the oven. If the oven is not turned off and the power resumes, the oven will begin to operate again. Once the power resumes, reset the clock and oven function.

• Cold temperatures can damage the electronic control. When using this appliance for the first time, or when the appliance has not been used for an extended period of time, be sure the appliance has been in temperatures above 32ºF (0ºC) for at least 3 hours before turning on the power to the appliance.

• Be sure to have an appropriate foam-type fire extinguisher available, visible, and easily located near the appliance.

Save these instructions for future reference.

Page 5

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR OVEN

• Never use your appliance for warming or heating the room.

• Use care when opening oven door, lower oven door, or warmer drawer (some models). Stand to the side of the oven when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.

• Keep oven vent ducts clear. Touching surfaces in this area when the oven is on may cause severe burns. Do not place plastic or heat-sensitive items on or near the oven vent. These items can melt or ignite.

• Always handle oven racks when the oven is cool. Place oven racks in desired positions while the oven is cool. if a rack must be moved while the oven is hot, use extreme caution. Use potholders and grasp the rack with both hands to reposition. Do not let potholders contact the hot heating elements in the oven. Remove all bakeware and utensils before moving the rack.

• Do not use a broiler pan without its insert. Do not cover the broiler insert with aluminum foil; exposed fat and grease could ignite.

• Do not use aluminum foil or other protective liners to line the oven bottom. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock or fire.

• Do not cook food on the oven bottom. Always use proper bakeware and use the oven racks

Before manually cleaning any

part of the oven, be sure all controls are turned off and the oven is cool. Cleaning a hot oven can cause burns.

Clean the oven regularly to keep all parts free of grease that could catch fire. Do not allow grease to accumulate. Always follow the manufacturer’s recommended directions for use of kitchen cleaners and aerosols. Be aware that excess residue from cleaners and aerosols may ignite causing damage and injury.

Clean ventilating hoods frequently. Grease should not be allowed to accumulate on the hood or filter. Follow the manufacturer’s instructions for cleaning hoods.

SELF-CLEANING OVENS

• Use the self-clean cycle to clean only the parts listed in this manual. Before using self-clean, remove the broiler pan, any food, utensils, and bakeware from the oven. Remove oven racks unless otherwise instructed.

• Do not use oven cleaners. No commercial oven cleaner, oven liner, or protective coating of any kind should be used in or around any part of the oven.

• Do not clean the oven door gasket. The door gasket is essential for a good seal. Do not rub, damage, or move the gasket.

• Some birds are extremely sensitive to the fumes given off during the self-clean cycle of any oven. Move birds to another well-ventilated room.

Save these instructions for future reference.

Page 6

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

GROUNDING INSTRUCTIONS

Do not use an adapter plug or an

extension cord, or remove grounding prong from the power cord. Failure to follow this warning may cause serious injury, fire, or death

For personal safety, this appliance must be properly grounded.

For models factory-equipped with a power cord:

For maximum safety, the power cord must be plugged into an electrical outlet that is the correct voltage, is correctly polarized, and properly grounded in accordance with local codes.

For ovens to be wired into a junction box: It is the personal responsibility of the

consumer to have the appropriate outlet with the correct, properly grounded wall receptacle installed by a qualified electrician. See the installation instructions packaged with this appliance for complete installation and grounding instructions.

Save these instructions for future reference.

Page 7

Before Setting oven controls

oven vent location

Oven vent location

The oven vent is located under the control panel. When the oven is on, warm air passes through this vent. This venting is necessary for proper air circulation in the oven and good baking results. Do not block oven vent.

Figure 1: Do not block oven vent location

Protective Liners — Do not use aluminum foil to line the oven bottom. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock or fire.

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior and exterior, as well as the oven racks, will become very hot which can cause burns.

Removing, replacing, and arranging flat or offset oven racks

To arrange - Always arrange the oven racks when the oven is cool (prior to operating the oven).

To remove - Pull the oven rack straight forward until it reaches the stop position. Lift up front of oven rack slightly and slide out.

To replace - Place the oven rack on the rack guides on both sides of oven walls. Tilt the front of oven rack upward slightly and slide the oven rack back into place. Be sure oven racks are level before using.

at oven rack

at handle oven rack

oset oven rack

Figure 2: Types of oven racks

Oven Rack Descriptions

• Flat oven racks (or the flat handle oven rack) may be used for most cooking needs and may be placed in most oven rack positions.

• The offset oven rack (some models) provides additional step down positions from the standard flat rack design. The offset design positions the base of the rack about half of a rack position lower than the flat rack and may be used in most oven rack positions.

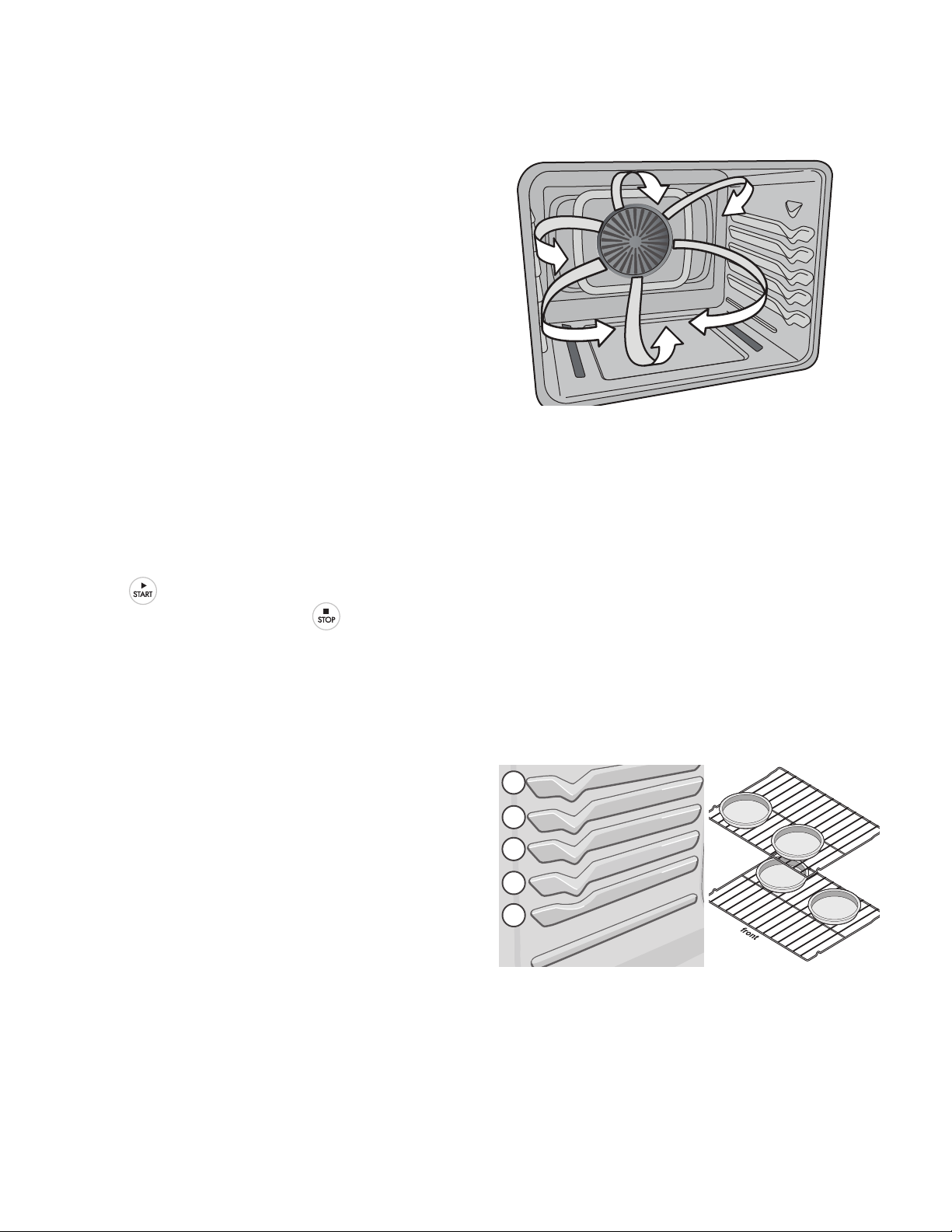

Air circulation in the oven

For best air circulation when baking, allow a space of 2 inches (5 cm) around the bakeware for proper air circulation. Be sure pans and bakeware do not touch each other, the oven door, sides, or back of the oven cavity.

Hot air must be able to circulate around bakeware for even heat to reach the food.

Page 8

Oven Controls

11 12

Oven control features

1. Timer Set-Off - Use to set or cancel timer.

2. Add 1 Minute - Use to add additional minutes to timer.

3. Slow Cook - Use to set Slow Cook function.

4. Warm & Hold - Use to select Warm & Hold function.

5. Pre Heat - Use to bring the oven to set temperature.

6. Self Clean - Use to set a 2, 3, or 4 Hr self clean cycle.

7. O v e n L i g ht - Use to turn oven lights on and off.

8. Clock - Use to set time of day.

9. Bake - Use to start a normal Bake function.

10. Conv Bake - Use to select Conv Bake function.

11. Conv Roast - Use to select Conv Roast function.

12. Conv Convert - Use to select Conv Convert function.

13. Broil - Use to select Broil function.

14. Cook Time - Use to enter length of cook time desired.

15. Delay Start - Use with Bake, Conv Bake, Conv Convert and Self Clean functions to program a delay start time.

16. START - Use to start oven functions.

17. STOP - Use to cancel any oven function previously entered except clock and timer.

18. Oven Lockout - Uses STOP key to activate oven lock. STOP key must be pressed and held for at least 3 seconds to activate the lockout function.

19.

0-9 keypads - Use to enter oven temperatures and times.

Minimum & maximum control settings

All of the cooking features listed have minimum and maximum time and temperature settings that may be entered into the control. An entry acceptance beep will sound each time a key is pressed.

An entry error tone (3 short beeps) will sound if the entry of the temperature or time is below the minimum allowable setting or above the maximum setting for the cooking feature.

The error tone will also sound any time a key is pressed if the entry is determined to be an invalid selection

Table 1: Minimum and maximum control settings

Feature Min. Temp. or Time Max. Temp. or Time

PreHeat 170°F (77° C) 550°F (288°C)

Bake 170°F (77° C) 550°F (288°C)

Broil 400°F (205°C) 550°F (288°C)

Timer 1 Min 11 Hrs. 59 Mins.

Self Clean 2 Hours 4 Hours

Conv Bake 170°F (77° C) 550°F (288°C)

Conv Convert 170°F (77° C) 550°F (288°C)

Conv Roast 170°F (77° C) 550°F (288°C)

Slow Cook LO 225°F (108°C) HI 275°F (134°C)

Warm & Hold 170°F (77° C) 3 hours

Cook Time 1 Min. 11:59

Delay time 12hr 1:00 12:59

Delay time 24hr 0:00 23:59

Clock 12hr 1:00 12:59

Clock 24hr 0:00 23:59

Page 9

Oven Controls

Setting The Clock

When the appliance is first powered up, 12:00 will flash in the display (Figure 3). The time of day must first be set before operating the oven.

Figure 3: 12:00 in display before setting clock

To set clock to 1:30:

1. Press .

2. Enter 1 3 0 using numeric keypad.

3. Press .

Important note:

The clock cannot be changed when a Cook Time, Self Clean, Delay Start or cooking feature is active.

Setting Timer

Add 1 Minute

Use Add 1 Minute to set additional minutes to the timer. Each press of the key will add 1 minute. If Add 1 Minute is pressed when the timer is not active, the timer will activate and begin counting down from 1 minute.

To add 2 minutes to the timer:

Press Add 1 Minute twice.

Setting 12 hour or 24 hour display mode

The clock display mode allows you to select 12 hr or 24 hr modes. The factory pre-set clock display mode is 12 hours.

To set 12 hr or 24 hr display mode:

1. Press and hold for 6 seconds.

2. Press Self Clean to toggle between 12 Hr day or 24 Hr day display modes. (Figure 4)

3. Press to accept choice.

The minute timer allows you to track your cooking times without interfering with the cooking process. The timer may be set from a minimum time of 1 minute to a maximum of 11 hours and 59 minutes.

To set timer for 5 minutes:

1. Press Timer Set-Off.

2. Enter 5 using numeric keypad.

3. Press to start timer. When set time ends, END will show in the display and the control will sound a beep three times every 30 seconds until Timer Set-Off key is pressed.

To cancel the timer when active press Timer Set-Off again.

Important note:

• The timer does not start or stop the cooking process. It serves as an extra minute timer that will beep when the set time has run out. The timer may be used alone or while using any of the other oven functions.

• When timer is set for more than 1 hour it will display hours and minutes until 1 hour remains. When less than 1 hour remains, the display counts down in minutes and seconds. With less than 1 minute remaining, only seconds will display.

• If the timer is active during a cooking process, the timer will show in the display. To view the status of any other active oven function, press the key of the cooking function once and it will appear in the display for a few seconds.

Figure 4: 12 Hr dAy and 24 Hr dAy settings

Changing Between Continuous Bake Setting or 12 Hour Energy Saving

The oven control has a factory preset built-in 12 Hour Energy Saving feature that will turn off the oven if the oven is left on for more than 12 hours. The control may be programmed to override this feature to bake continuously.

To change between continuous bake or 12 Hour Energy Saving feature:

1. Press and hold Timer Set-Off for 6 seconds

2. Press Self Clean to toggle between 12 Hour OFF or Stay On (Figure 5) feature.

3. Press to accept choice

Figure 5: 12 hr energy saving (L) and continuous setting (R)

Page 10

Oven Controls

Changing Oven Temperature Display

The oven control is preset for temperatures in °F (Fahrenheit) when shipped from the factory. The control can be changed to display either Fahrenheit or Celsius.

To change the display to F (Fahrenheit) or C (Celsius):

1. Press and hold Broil for 6 seconds.

2. Once F (or C) appears in the display, press Self Clean to toggle between Fahrenheit and Celsius temperature display modes (Figure 6).

3. Press to accept choice.

Important note:

The oven temperature display cannot be changed during the cooking process or if a Delay Start has been set or Self Clean is active.

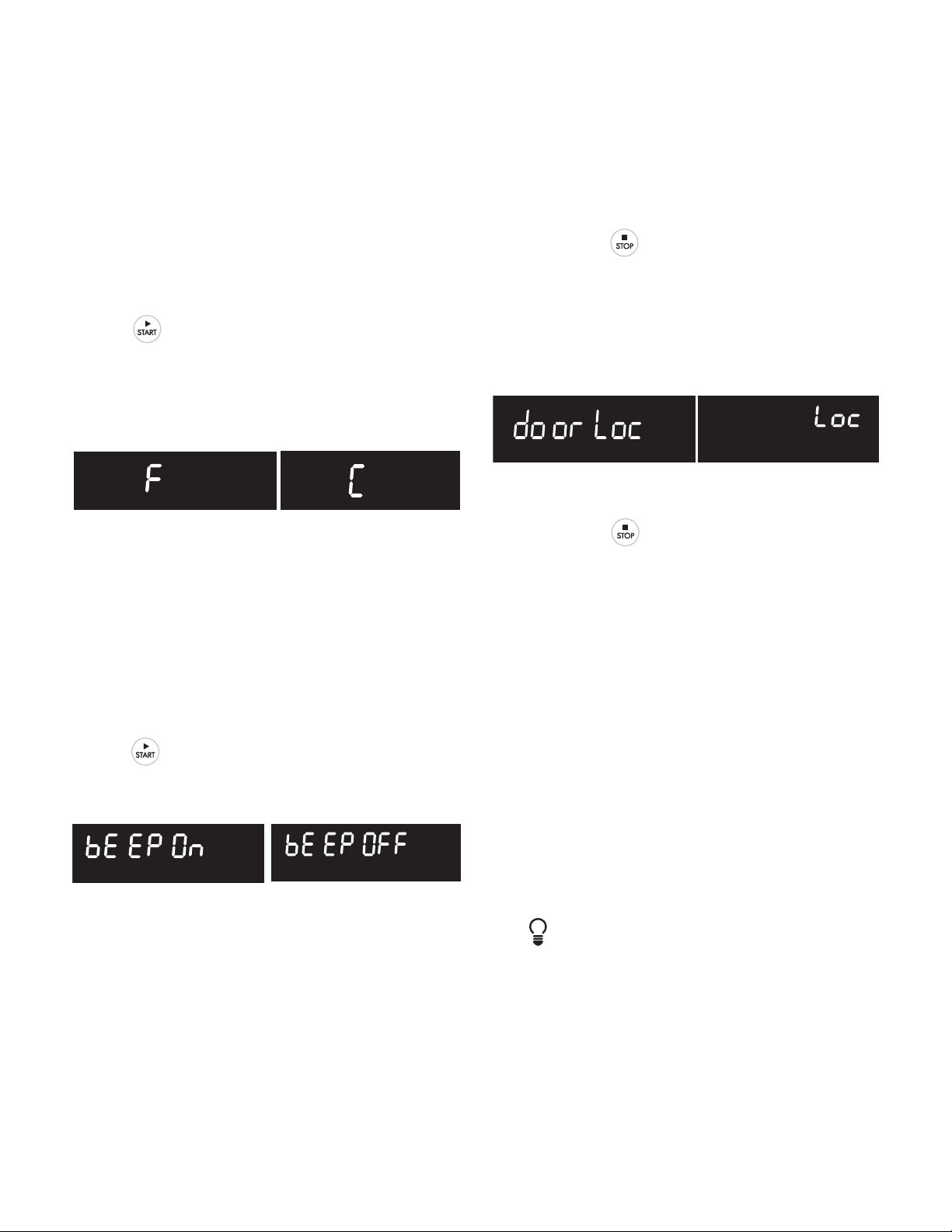

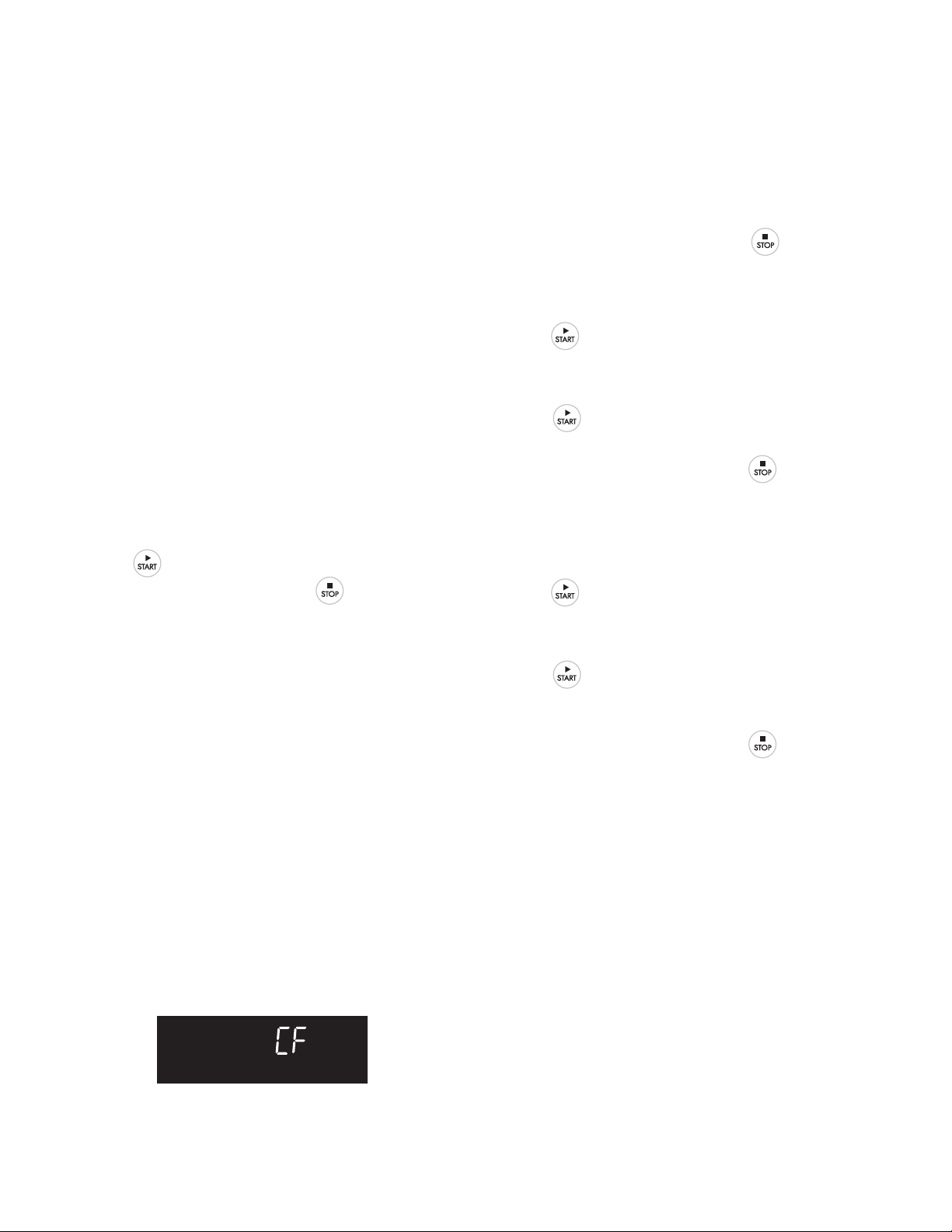

Figure 6: Display showing Fahrenheit and Celsius

Setting Silent or Audible Control mode

Silent mode allows the oven control to operate without audible tones. The control may be programmed for silent operation and later reset to operate with all the normal audible tones.

To set for silent or audible mode:

1. Press and hold Delay Start for 6 seconds.

2. Press Self Clean to toggle between bEEP On or bEEP OFF. (Figure 7)

3. Press to accept choice.

Setting Oven Lockout

The control may be programmed to lock the oven door and lock the oven control keys.

To activate the oven lockout features:

1. Be sure oven door is completely closed.

2. Press and hold for 3 seconds. (Figure 8) door Loc will appear in the display. The motor driven door latch mechanism will begin locking the oven door automatically. Do not open the oven door. Allow about 15 seconds for the oven door to completely lock. Once door is locked, Loc will appear in the display.

Figure 8: Display showing door locking and in locked position

To cancel the oven lockout feature:

1. Press and hold for 3 seconds. The motor door latch will begin unlocking the oven door automatically. Do not open the oven door. Allow about 15 seconds for the oven door to completely unlock.

2. When the Loc message no longer displays, the oven door may be opened and the oven control keypad will be available for use.

Important note:

• To avoid damage to the oven door latching mechanism, do not attempt to open or close the oven door whenever the door Loc message is displayed.

• If a control key is pressed when oven lockout is active, the control will triple beep indicating the key action is not available when the oven lockout feature is active.

Figure 7: Display showing audible and silent operation

Operating Oven Lights

The interior oven lights will automatically turn on when the oven door is opened.

Press to turn the interior oven lights on and off whenever the oven door is closed.

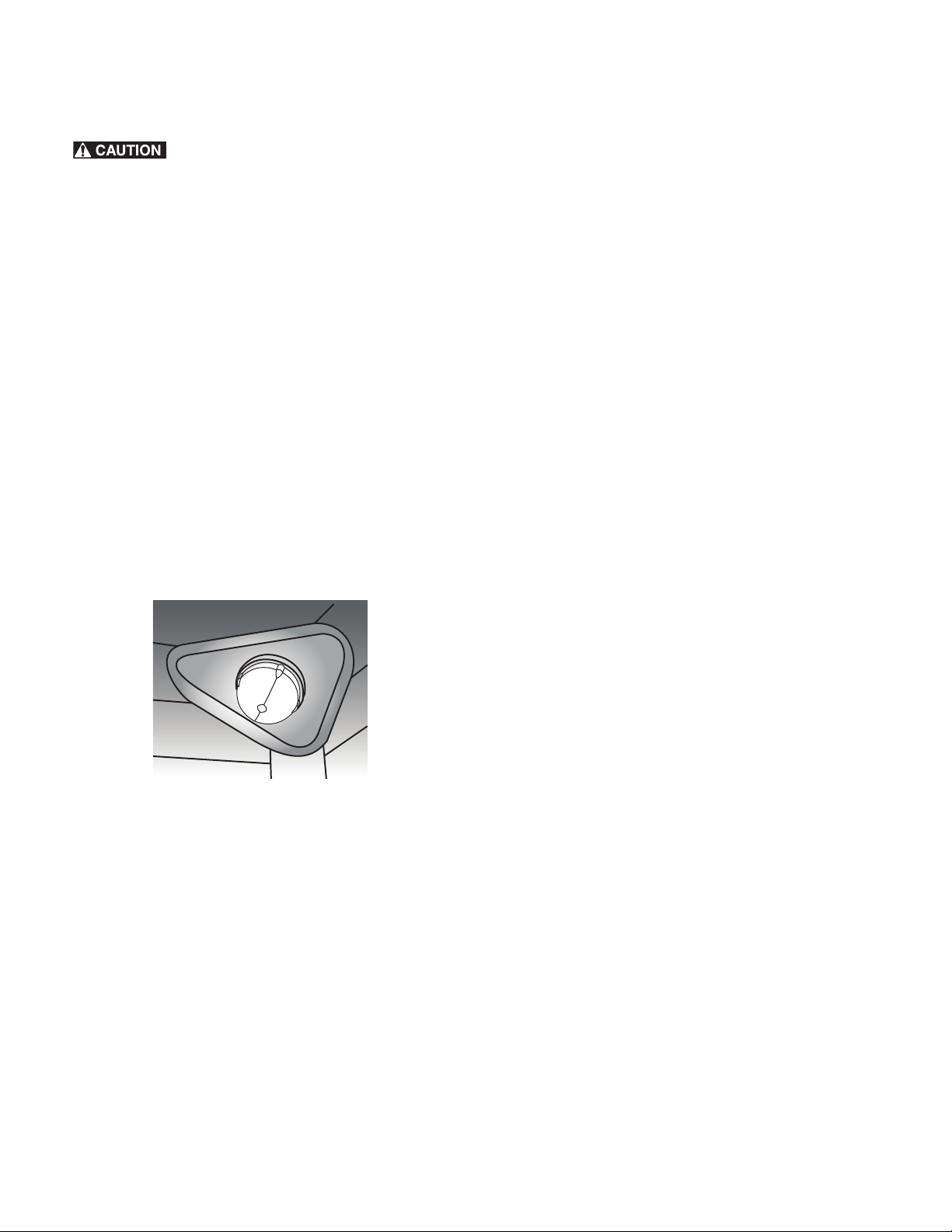

The interior oven lights are located on the rear wall of the oven interior and are covered with a glass shield. The glass shield protects the bulb from high temperatures and should always be in place whenever the oven is in use.

To replace the interior oven light, see “Replacing the oven light” on page 23.

Page 11

Oven Controls

Setting Preheat

For best baking performance, when baking more delicate goods such as cakes, pastries, and breads, use the normal bake function to preheat the oven.

For all other baking use the Preheat feature. A reminder tone will sound indicating when the set temperature is reached and to place the food in the oven.

When the oven is finished preheating the Bake feature will be active and continue to maintain the oven set temperature until cancelled.

Preheat may be set for any oven temperature between 170°F (77°C) and 550°F (288°C).

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior, oven exterior, oven racks and oven will become very hot which can cause burns.

To set Preheat with default oven temperature of 350°F:

1. Press PreHeat.

2. Press (Figure 9).

To cancel preheating at anytime press .

Figure 9: Oven in preheat mode before baking

To set Preheat with a temperature of 450°F:

1. Press PreHeat.

2. Press 4 5 0 using numeric keypad.

3. Press .

To cancel preheating at any time press .

Setting Bake

Use the bake feature whenever the recipe calls for baking using normal temperatures. A reminder tone will sound indicating when the set bake temperature is reached and to place the food in the oven.

Bake may be set for any oven temperature between 170°F (77°C) to 550°F (288°C).

To set Bake for oven temperature of 425°F:

1. Press Bake.

2. Enter 4 2 5 using numeric keypad.

3. Press .

To cancel Bake at any time press .

Radiant bake rack positions

• Fully preheat the oven before baking items like cookies, biscuits and breads.

• When using any single rack, position the rack so that the food is in the center of the oven.

• For best results when baking cakes using 2 oven racks, place racks in positions 2 and 4 (Figure 10).

• When baking using 2 oven racks, position bakeware as shown

Figure 10. Allow at least 2 inches (5 cm) of space

between bakeware for proper air circulation.

• Dark or dull pans absorb more heat than shiny bakeware, resulting in dark or overbrowning of foods. It may be necessary to reduce the oven temperature or cook time to prevent overbrowning of some foods. Dark pans are recommended for pies. Shiny pans are recommended for cakes, cookies and muffins.

• For batter and dough-based baked goods such as cakes, pastries, and breads, use the regular bake function for best results.

Important note:

• When setting Bake or any cooking feature that preheats the oven (except Broil), the convection fan will turn on and stay on until the oven reaches set temperature.

• Preheating is not necessary when roasting or cooking casseroles.

• The oven is factory set to run no longer than 12 hours. If you wish to cook continuously, see “Changing Between Continuous

Bake Setting or 12 Hour Energy Saving” on page 9 for more

detailed information.

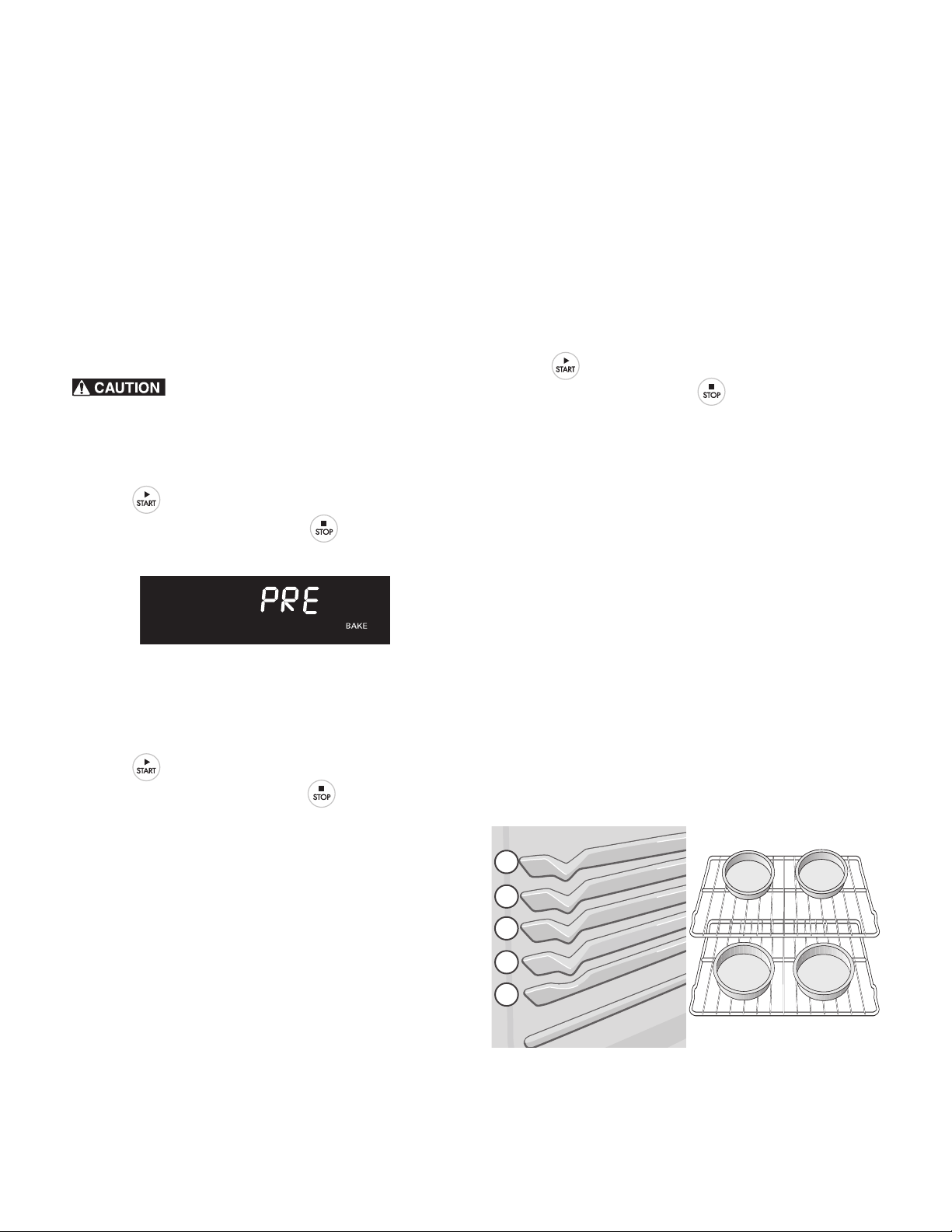

Figure 10: Rack positions and pan spacing recommendations

Page 12

Oven Controls

Setting Cook Time

Use Cook Time to program the oven control to automatically turn the oven function off after a desired length of time.

To program oven to bake with oven default temperature of 350°F and to shut-off after 30 minutes:

1. Press Cook Time.

2. Enter 3 0 using numeric keypad.

3. Press to accept.

4. Press Bake.

5. Press .

When the programmed cook time ends:

End will appear in the display window and the oven will shut-off automatically. (Figure 11) The oven control will beep 3 times every 30 seconds as a reminder until is pressed.

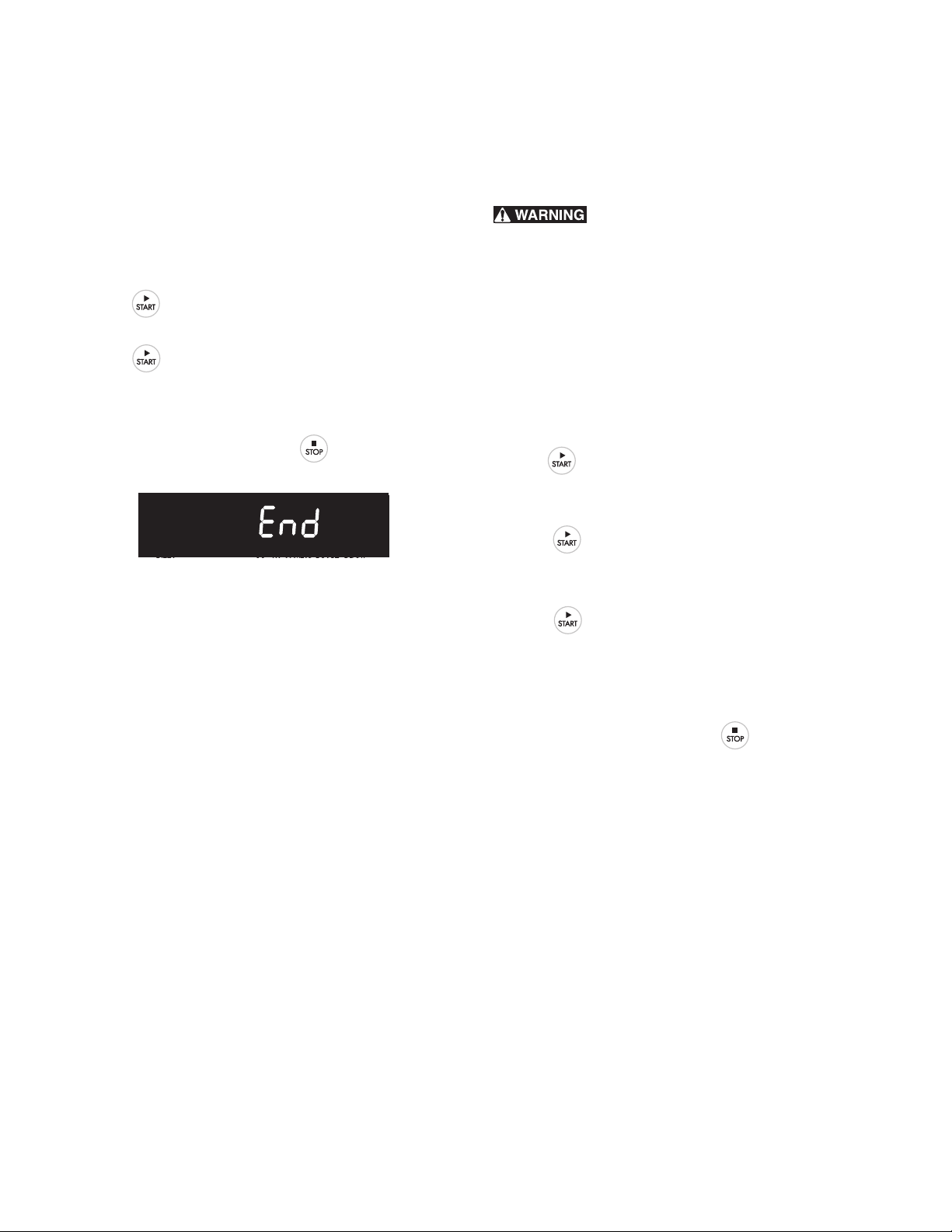

Figure 11: Display showing cooking has ended

Important note:

• The Cook Time feature may be set with Bake, Conv Bake, Conv Roast, Slow Cook and Preheat. Cook Time or Delay Start will not operate with the Broil function.

• The maximum Cook Time setting is 11 hours and 59 minutes unless oven is set for continuous cooking.

• To check the time remaining during a timed cooking function, press the Cook Time key once and the time remaining will appear in the display momentarily.

Setting Delay Start

Delay Start sets a delayed starting time to oven cooking or cleaning functions. Prior to setting a delay start, be sure the time of day is set correctly.

Food poisoning hazard.Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when finished cooking.

To pro g r am ov e n f or a Dela y S tart beginning at 5:30, to shut-off automatically after 50 minutes and for baking at 375°F:

1. Press Cook Time.

2. Enter 5 0 using numeric keypad.

3. Press to accept.

4. Press Delay Start.

5. Enter 5 3 0 using numeric keypads.

6. Press to accept.

7. Press Bake.

8. Enter 3 7 5 using numeric keypads.

9. Press .

When the programmed cook time ends:

End will appear in the display window and the oven will shut off automatically. (Figure 11) The oven control will beep 3 times every 30 seconds as a reminder until key is pressed.

Important note:

• Delay Start may be set using a 24 hr clock. To set clock for

24 Hr operation See “Setting 12 hour or 24 hour display

mode” on page 9 for more information.

• The Delay Start feature may be used with Conv Bake, Conv

Roast, Conv Convert, Bake, Slow Cook and Preheat functions and Self Clean. Delay Start or Cook Time will not operate with the Broil function.

Page 13

Setting Conv Bake

Benefits of the convection bake feature:

• Foods may cook up to 25% faster, saving time and energy.

• Multiple rack baking.

• No special pans or bakeware needed.

The convection function uses a fan to circulate the oven's heat uniformly and continuously around the oven (Figure 12). This improved heat distribution allows for fast, even cooking and browning results. It also gives better baking results when using two oven racks at the same time.

Heated air flows around the food from all sides, sealing in juices and flavors. Breads and pastry brown more evenly. Because most food items will cook faster and more evenly with the convection feature, it is advisable to reduce recipe’s recommended temperature by 25° for best results. Follow the remainder of the recipe’s instructions using the minimum recommended cook time.

Conv Bake may be set for any oven temperature between 170°F (77°C) to 550°F (288°C).

To set Conv Bake with a default oven set temperature of 350°F:

1. Press Conv Bake.

2. Press .

To cancel Conv Bake at any time press .

Convection bake rack positions:

• Fully preheat the oven before baking items like cookies, biscuits and breads.

• When using any single rack, position the rack so that the food is in the center of the oven.

• For best results when baking cakes using 2 oven racks, place racks in positions 2 and 4 (Figure 13).

Oven Controls

Figure 12: Air circulation in the convection function

• The convection fan will begin rotating once Conv Bake, Conv Roast or Conv Convert has been activated.

• If the oven door is opened when the convection function is active, the convection fan will stop rotating until the oven door is closed.

• When using Conv Bake, cook time reductions may vary depending on the amount and type of food being cooked.

• Dark or dull pans absorb more heat than shiny bakeware resulting in dark or over browning of foods. It may be necessary to reduce the oven temperature or cook time to prevent over browning of some foods. Dark pans are recommended for pies. Shiny pans are recommended for cakes, cookies and muffins.

• When baking using 2 oven racks, position bakeware as shown

Figure 13. Allow at least 2 inches (5 cm) of space

between bakeware for proper air circulation.

• Cookies and biscuits should be baked on pans with no sides or very low side to allow heated air to circulate around the food

Figure 13: Convection rack positions and pan spacing

Page 14

Oven Controls

Setting Conv Roast

The Conv Roast function combines a cook cycle with the convection fan to roast meats and poultry. Meats cooked using the Conv Roast function will be juicier and poultry will be crisp on the outside while staying tender and moist on the inside.

Conv Roast may be set for any oven temperature between 170°F (77°C) to 550°F (288°C).

Suggestions for Conv Roast:

• Preheating is not necessary when roasting foods using Conv Roast. Since Conv Roast cooks food faster, reduce the cook time by 25% from the recommended cook time of your recipe. If necessary, increase cooking time until the desired doneness is obtained.

• The broiler pan will catch grease drippings, and the grid will help prevent splatters. The roasting rack will hold the meat. Use the offset rack on rack position 1.

• Do not cover foods when dry roasting as this will prevent the meat from browning properly.

To set Conv Roast with a default oven set temperature of 350°F:

1. Press Conv Roast.

2. Press .

To cancel Conv Roast at any time press .

Important note:

• The convection fan will begin rotating once Conv Bake, Conv Roast or Conv Convert has been activated.

• If the oven door is opened when any convection function is active, the convection fan will stop rotating until the oven door is closed.

• It is not recommended to roast chicken on a roasting rack. Use a deep pan instead.

Setting Conv Convert

Pressing the Conv Convert key automatically converts the cooking temperature entered for any standard baking recipe to the lower temperature required for convection baking.

When Conv Convert is used with a timed Conv Bake setting of 20 minutes or more, the Conv Convert function will display a CF message (Figure 14) as a reminder to check food when the bake time is 75% complete. At this time the oven control will sound 1 long beep at regular intervals until the set cook time has finished.

To add Conv Convert to Conv Bake function using default oven set temperature of 350°F:

1. Press Conv Bake.

2. Press Conv Convert.

To cancel Conv Convert at any time press .

To program oven for Conv Convert with oven default temperature of 350°F and to shut-off after 30 minutes:

1. Press Conv Bake.

2. Press to accept.

3. Press Cook Time.

4. Enter 3 0 using numeric keypads.

5. Press to accept.

6. Press Conv Convert.

To cancel Conv Convert at any time press .

To program oven for Conv Convert with recipe temperature of 425°F and to shut-off after 30 minutes:

1. Press Conv Bake.

2. Enter 4 2 5 using numeric keypad.

3. Press to accept.

4. Press Cook Time.

5. Enter 3 0 using numeric keypads.

6. Press to accept.

7. Press Conv Convert. Set bake temperature will convert to a lower temperature and begin baking process.

To cancel Conv Convert at any time press .

Important note:

• Conv Convert may only be used with the Conv Bake function and with a minimum of 20 minutes cook time.

• When using Conv Convert feature Cook Time reductions may vary depending on the oven set temperature.

• The convection fan will begin rotating once Conv Bake, Conv Roast or Conv Convert has been activated.

• If the oven door is opened when any convection function is active, the convection fan will stop rotating until the oven door is closed.

Figure 14: Check Food reminder shown in display.

Page 15

Oven Controls

Setting Broil

Use the broil function to cook meats that require direct exposure to radiant heat for optimum browning results. The Broil feature is factory preset to broil at 550°F. The Broil function temperature may be set at any temperature between 400°F (205°C) and 550°F (288°C).

The suggested broil settings table (Table 2) are recommendations only. Depending on cooking preferences you can increase or decrease cooking times or move food to a different rack position. If the food you are broiling is not listed in the table, follow the instructions provided in your cookbook and watch the item closely.

Should an oven fire occur, close the oven door and turn the oven off. If the fire continues, use a fire extinguisher. Do not put water or flour on the fire. Flour may be explosive.

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior, exterior, oven racks and oven will become very hot which can cause burns.

Important note:

• Always arrange oven racks when oven is cool.

• For best results when broiling, use quality broil pan along

with a broil pan insert. A broil pan is designed to drain the fat from food, helping to reduce smoking and avoid splatter.

• When broiling, always pull the oven rack out to the stop

position before turning or removing food. Note: A broiler pan and insert are not supplied with this appliance. To purchase them, call Sears at 1-800-4-MY-HOME (1-800469-4663) and order broiler pan kit 5304442087.

Table 2: Suggested Broil Settings

To set Broil with the default broil oven temperature of 550°F:

1. Arrange the oven racks when cool. For optimum browning results, preheat oven for 5 minutes before adding food.

2. Position bakeware in oven to the preferred rack position. (Figure 15).

3. Press Broil.

4. Press .

5. Broil on one side until food is browned; turn an broil other side until done to your satisfaction.

6. When finished broiling press .

7. To cancel Broil at any time press .

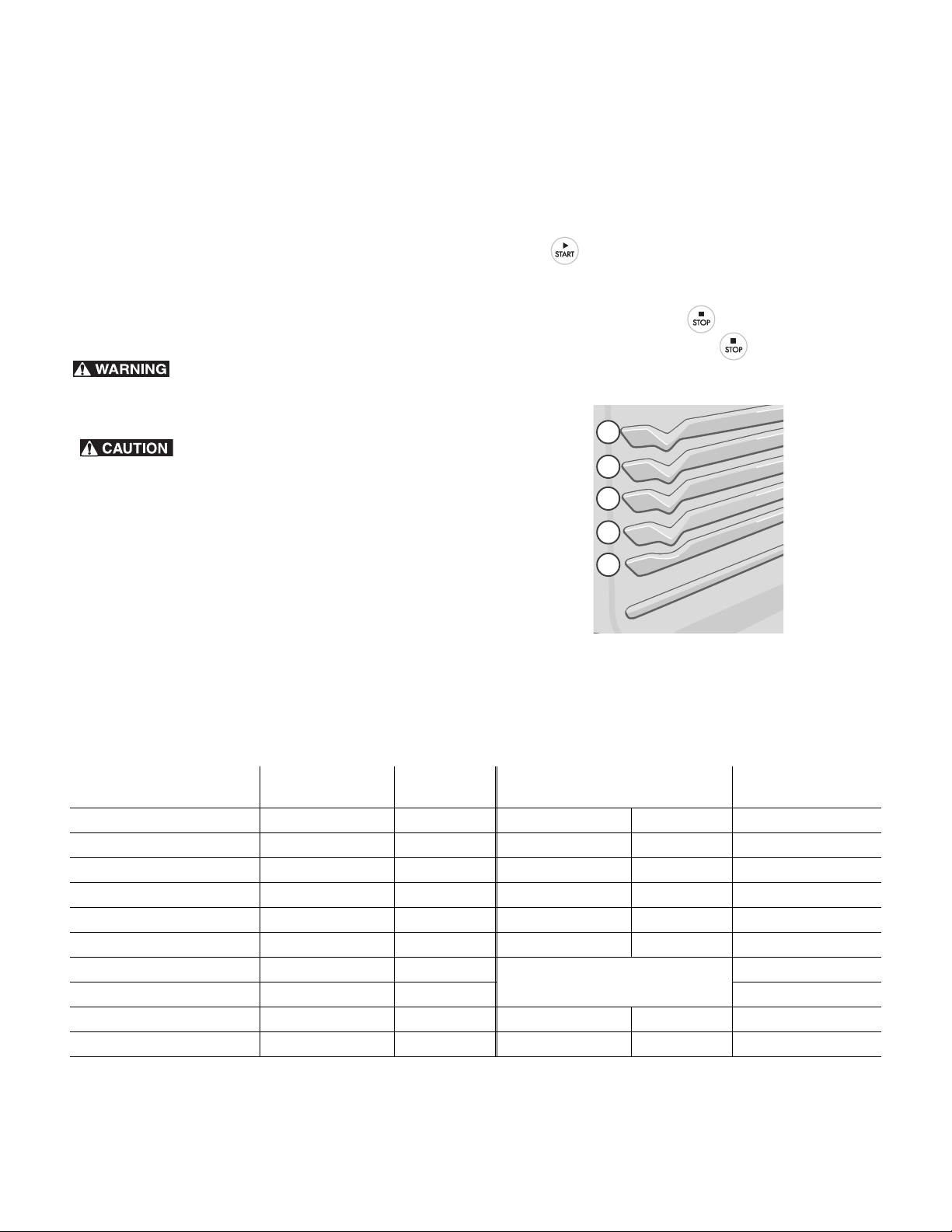

Figure 15: Broil rack positions

Food Rack Position Setting

Cook Time in minutes

Preparation

1st side 2nd side

Steak 1” thick 4th or 5th 550°F 6 4 Medium

Steak 1” thick 4th or 5th 550°F 7 5 Medium-well

Steak 1” thick 4th or 5th 550°F 8 7 Well

Pork chops 3/4” thick 4th 550°F 8 6 Well

Chicken (bone in) 3rd 450°F 20 10 Well

Chicken (boneless) 3rd 450°F 8 6 Well

Fish 5th 550°F - as directed -

Shrimp 4th 550°F Well

- as directed -

Well

Hamburger 1” thick 5th* 550°F 9 7 Medium

Hamburger 1” thick 4th 550°F 10 8 Well

Page 16

Oven Controls

Setting Slow Cook

The Slow Cook feature cooks foods more slowly and at lower oven temperatures for longer periods of time. Slow Cook is ideal for roasting beef, pork and poultry. Slow cooking meats may result in the exterior of meats becoming dark but will not burn the outside as it seals in the meat’s juices.

Two Slow Cook settings are available, high (Hi) or low (Lo). The high setting is best for cooking foods between 4 and 5 hours. The low setting is best for cooking foods up to 9 hours or longer.

Food poisoning hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when finished cooking.

Some tips for best results when using Slow Cook:

• Completely thaw all frozen foods before cooking.

• When using a single oven rack, place in oven rack position

2 or 3. Position racks to accommodate the size of various bakeware when cooking multiple food items.

• Do not open the oven door often or leave the door open

when checking foods. If the oven heat escapes often, the Slow Cook time may need to be extended.

• Cover to keep foods moist or use a loose or vented type

cover to allow foods to turn crisp or brown.

• Roasts may be left uncovered so browning can occur. Cook

times will vary depending on the weight, fat content, bone, and the shape of the roast. Preheating the oven will not be necessary when using the Slow Cook feature.

• Add any cream or cheese sauces during the last hour of

cooking.

Important note:

• Slow Cook may be used with additional settings of Cook

Time and Delay Start.

• The maximum cook time for Slow Cook function is 11 hours

and 59 minutes unless the control has been changed to the continuous bake mode.

To set S l ow Co o k:

Warm & Hold™

Food poisoning hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness

Warm & Hold should only be used with foods that are already at serving temperatures. Warm & Hold will keep cooked foods warm and ready for serving for up to 3 hours after cooking has finished. After 3 hours the Warm & Hold will shut-off automatically. Warm & Hold will keep the oven temperature at 170° F (77°C).

To set W a r m & Hold:

1. If needed, arrange oven racks and place cooked food in

oven.

2. Press Warm & Hold. HLd will appear in the display. If no

other keys are touched within 25 seconds the request for Warm & Hold will clear.

3. Press . Warm & Hold will automatically turn on and

then turn off after 3 hours unless cancelled.

To turn Warm & Hold off at any time press .

To add Warm & Hold to turn ON after baking 45 minutes with a set temperature of 425°F:

1. Press Cook Time.

2. Enter 4 5 using numeric keypad.

3. Press .

4. Press Bake and enter 425 on numeric keypad.

5. Press to accept.

6. Press Warm & Hold. Hld will appear in the display.

7. Press to accept. When the cook time is over, the Warm

& Hold will automatically turn ON. The Warm & Hold function will automatically turn OFF after 3 hours.

Important note:

• Warm & Hold will maintain the oven temperature at 170° F

(77°C) for 3 hours.

• Warm & Hold may be set when finished cooking or may be

added to automatically turn on after cooking using Cook Time. Delay Start may also be added.

1. Position bakeware in oven and close oven door.

2. Press Slow Cook. HI will appear in the display indicating the default temperature setting is for high.

3. If a low setting is needed, press Slow Cook again to select the low setting.

4. Press to activate Slow Cook.

To cancel Slow Cook at any time press .

Page 17

Oven Controls

Setting the Sabbath feature (for use on the Jewish Sabbath and Holidays)

For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at www.star-k.org.

This appliance provides special settings for use when observing the Jewish Sabbath/Holidays. Sabbath mode disables all audible tones or visual display changes on the oven control. Bake heating is the only cooking feature available while in the Sabbath mode. Oven controls are locked during Sabbath mode.

You must first set the Bake feature and temperature(s) needed for the oven, and the Cook Time and Delay Start options (if needed). Any settings made prior to setting the Sabbath mode will be visible in the displays. The Cook Time option, if set prior to the Sabbath mode, will give one audible alert at the end of Cook Time.

The Sabbath mode will override the factory preset 12 Hour Energy Saving mode and the appliance will stay on until the cooking features are cancelled. If any of the cooking features are cancelled when the appliance is in the Sabbath mode, no audible or visual indicators will be available to verify the cancellation.

If the oven interior lights are needed, be sure to activate them prior to setting the Sabbath mode. Once the oven light is turned on and the Sabbath mode is active, the oven light will remain on until the Sabbath mode is turned off and the oven lights are turned off. The oven door will not activate the interior oven lights when the oven door is opened or closed.

It is recommended that any oven temperature modification made within an active Sabbath mode be followed with 2 presses of the START key. This will insure the oven remains on even if an attempt is made to set the oven temperature outside of its temperature range. If the oven temperature is set outside of the temperature range, the oven will default to the nearest available temperature. Try to set the desired oven temperature again.

Food poisoning hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when finished cooking.

To program oven to Bake with default oven temperature of 350°F and activate the Sabbath feature:

1. Be sure the clock is set with the correct time of day.

2. Arrange oven racks, place bakeware in oven and close oven door.

3. Press Bake.

4. Press .

5. If Cook Time or Delay Start are not needed, skip this step and continue to step 6. If a Cook Time or Delay Start are desired enter the times at this point. Refer to the “Setting

Cook Time” and “Setting Delay Start” on page 12 for

detailed instructions.

6. Press and hold Cook Time and Delay Start simultaneously for about 3 seconds to set the Sabbath feature. Once the feature is set, SAb (Figure 16) will appear in the display indicating the oven is properly set for the Sabbath feature.

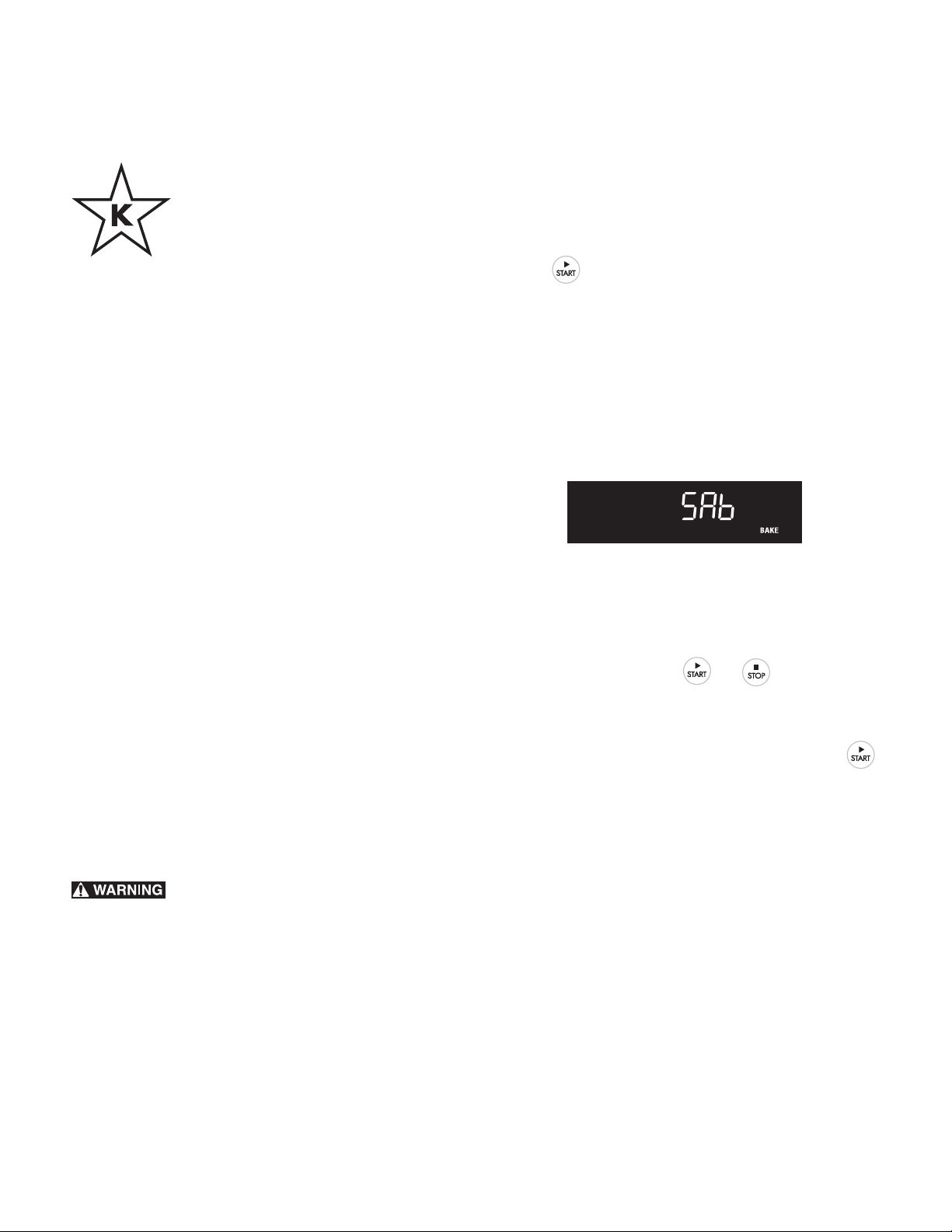

Figure 16: Oven set for Sabbath baking.

Important note:

• Do not attempt to activate any other oven function except Bake while the Sabbath feature is active. The following keys will function correctly when the Sabbath feature is active: 0-9 number keypad, Bake, and . All other keys should not be used once the Sabbath feature is active.

• You may change the oven temperature once baking has started. Press Bake, use the numeric keypad to enter the oven temperature change (170°F to 550F°) and press (for Jewish Holidays only).

• Remember that the oven control will no longer provide audible tones or display any further changes when the Sabbath feature is active.

• Remember the oven will shut-off automatically after completing a Cook Time, Delay Start or Warm & Hold and therefore may only be used once during the Sabbath/ Jewish Holidays.

•

If a Delay Start time longer than 11 hours and 59 minutes is desired, set the oven control for the 24 hour day display mode setting. For detailed instructions see “Setting 12 hour

or 24 hour display mode” on page 9.

Page 18

Oven Controls

To turn the oven off and keep the Sabbath feature active:

Press .

To turn off the Sabbath feature:

Press and hold both Cook Time and Delay Start simultaneously for at least 3 seconds to turn the Sabbath feature off. The control will provide an acceptance tone and SAb will disappear from the display. The oven is no longer programmed for the Sabbath feature.

What to do during a power failure or power interruption after the Sabbath feature was activated:

Should you experience a power failure or interruption, the oven will shut-off. When power is restored the oven will not turn back on automatically. The oven will remember that it is set for the Sabbath and the oven display will show the message SF for Sabbath failure (Figure 17).

3. Press Self Clean to toggle between plus (+) if increasing temperature or minus (-) if decreasing the temperature.

4. Press to accept change.

Important note:

• Oven temperature adjustments will not change the Broil or Self Clean function temperatures.

• If the temperature shows an adjustment of -20°F, and a +20°F adjustment is needed, toggle between the minus (-) or plus (+) in the display by pressing the Self Clean key.

• Do not use oven thermometers such as those found in grocery stores to check the temperature settings inside your oven. These oven thermometers may vary as much as 20 to 40°F degrees from actual temperatures.

• The oven temperature adjustment may be made if your oven control is set to display temperatures in °C (Celsius). Minimum and maximum settings for Celsius range from plus (+)19°C to minus (-) 19°C.

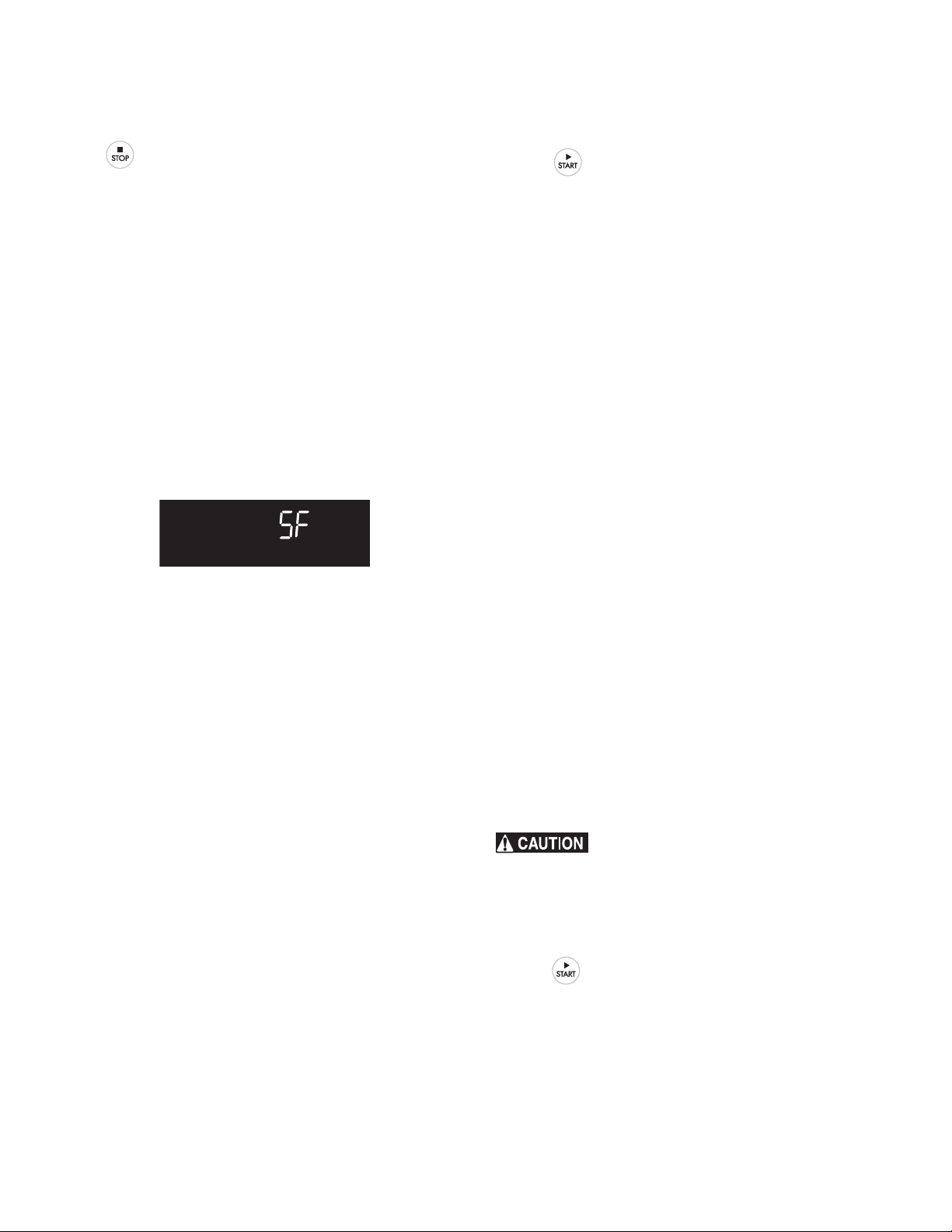

Figure 17: Display showing Sabbath failure

The food may be safely removed from the oven while still in the Sabbath feature, however the oven cannot be turned back on until after the Sabbath/Holidays. After the Sabbath observance turn off the Sabbath feature. Press and hold both Cook Time and Delay Start keys for at least 3 seconds simultaneously to turn the Sabbath feature off. SF will disappear from the display and the oven may be used with all normal functions.

Adjusting Oven Temperatures

Your appliance has been factory calibrated and tested to ensure accurate baking temperatures. For the first few uses, follow your recipe times and temperature recommendations carefully. If you think the oven is cooking too hot or too cool for your recipe times, you may adjust the control so the oven cooks hotter or cooler than the oven temperature displayed.

The oven temperature may be increased as much as +35°F (+19°C) or decreased -35°F (-19°C) from the factory calibrated settings.

To increase (+) or decrease (-) the oven temperature by 20°F:

1. Press and hold Bake until the control produces an audible tone (about 6 seconds). The factory offset temperature of 0 (zero) should appear in the display.

2. Enter 2 0 using numeric keypad.

Restoring Factory Default Settings

Your appliance was set with predetermined (default) oven control settings. Over time, users may have made changes to these settings. The following options may have been modified since the appliance was new:

• 12 or 24 hr display mode

• Continuous bake or 12 Hour Energy Savings mode

• Silent or audible control

• Oven temperature display (Fahrenheit or Celsius)

• Oven temperature adjustments (UPO)

To restore oven control to factory default settings:

If you choose to restore any of the options to a

factory default setting using this method, all of the above user settings will be restored to the factory default settings. This includes the oven temperature offset that will reset to (0) zero.

1. Press and hold 7 on numeric keypad until acceptance tone sounds (about 6 seconds).

2. Press . The control has been reset with the default settings.

Page 19

Oven Controls

Self Clean

A self cleaning oven cleans with very high temperatures well above normal cooking temperatures. The high temperature eliminates soils completely or reduces them to a fine powdered ash you can wipe away afterwards with a damp cloth.

The Self Clean function allows you to set a cleaning time from 2 hours to 4 hours. A 3 hour cleaning time is recommended for normal cleaning, 2 hours for light cleaning, and 4 hours for heavy cleaning.

Read before starting Self Clean:

Do not leave small children unattended near the appliance. During the self cleaning cycle, the outside of the oven can become very hot to touch and can cause burns.

Do not line the oven walls, racks, bottom or any other part of the oven with aluminum foil. Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the oven interior. Aluminum foil will melt to the interior of the oven.

The health of some birds is extremely sensitive to the fumes given off during the self cleaning cycle of any oven. Move birds to another well-ventilated room.

• Remove any excessive build up caused by spills. Any spill on the oven bottom should be wiped up and removed before starting a self clean cycle. To clean, use hot, soapy water and a cloth. Large spill residue can cause heavy smoke or fire when subjected to high temperatures. Do not allow food spills with a high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface as they may leave a dull spot even after cleaning.

• Do not clean the oven door gasket (Figure 18). The woven material of the oven door gasket is essential for a good seal. Care should be taken not to rub, damage or remove the gasket. Do not use any cleaning materials on the oven door gasket. Doing so could cause damage to the door gasket.

Do not force the door open. This can damage the automatic door locking system. Use caution when opening the oven door after self cleaning. The oven may still be very hot and can cause burns. To avoid possible burns stand to the side of the oven when opening the oven door to allow hot air or steam to escape.

Important note:

Completely remove all oven racks and any accessories from oven cavity to avoid damage to oven racks. If the oven racks are not removed they may discolor.

• Remove all items from the oven including bakeware, utensils

and any aluminum foil. Aluminum foil will not withstand high temperatures from a self clean cycle and will melt.

• Do not use oven cleaners or oven protective coatings in or

around any part of the oven interior.

• Clean any soil from the oven frame, the door liner outside

the oven door gasket and the small area at the front center of the oven bottom (Figure 18). These areas heat sufficiently to burn soil on. Clean using soap and water prior to starting Self Clean.

Figure 18: Oven door area to clean and not clean (gasket).

To set s e l f clean:

1. Be sure the oven is empty and all oven racks are removed. Remove all items from the oven. Be sure oven door is completely closed.

2. Press Self Clean and the default 3 hour clean time will appear in the display. You may accept the default 3 hour clean time by going to step 3, or choose a different clean time. Press Self Clean and use the numeric keypad to select any time between 2 hours and 4 hours. Once you have the desired clean time selected proceed to step 3.

3. Press to activate Self Clean.

Page 20

Oven Controls

As soon as Self Clean becomes active, a motor driven lock mechanism will begin locking the oven door automatically and door Loc will appear in the display (Figure 19). Do not open the oven door when door Loc is displayed (allow 15 seconds for the lock mechanism to lock the oven).

Once the oven door has locked, CLn will appear in the display indicating Self Clean has started.

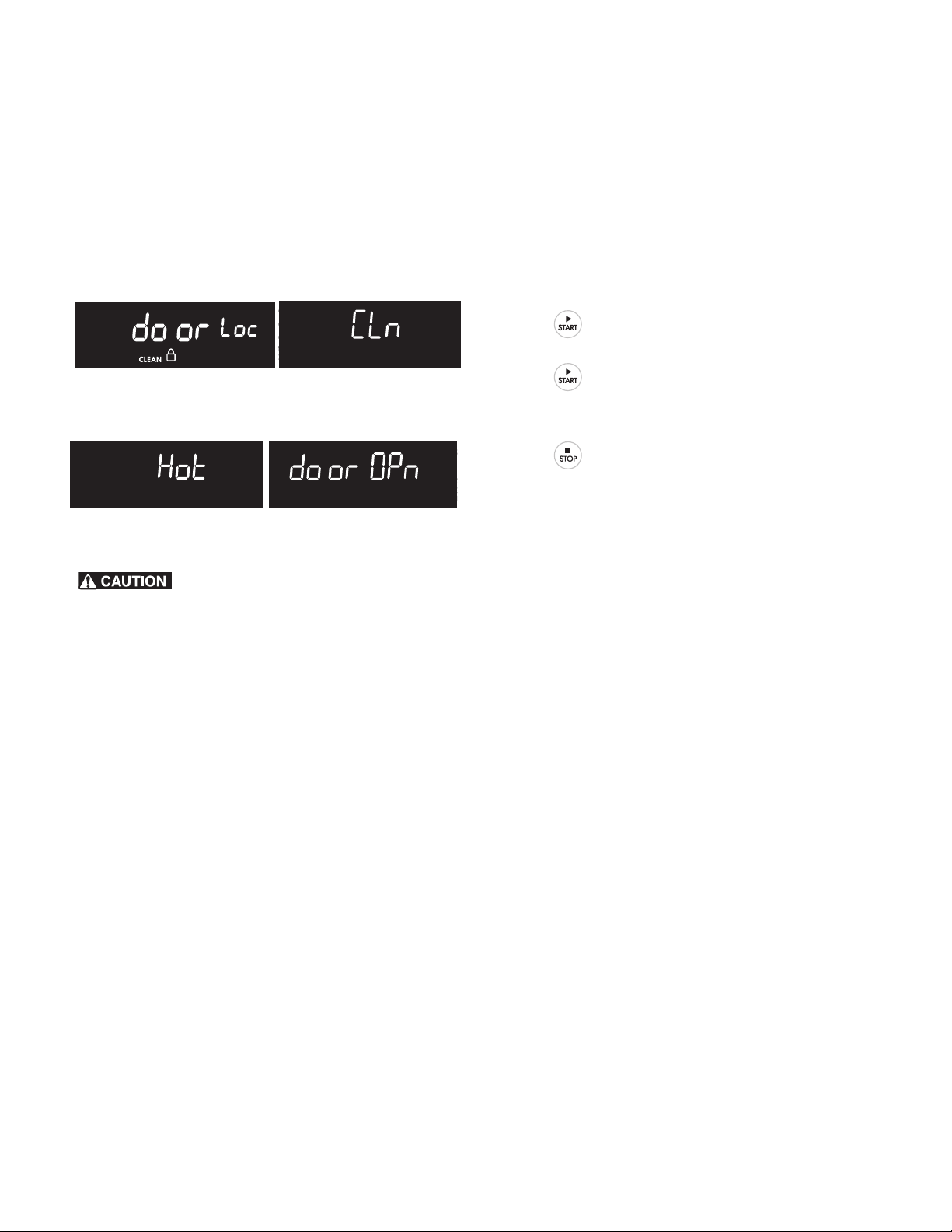

Figure 19: Door locking (L) and active Clean (R) shown

Figure 20: Hot oven door locked (L) door open message (R).

When Self Clean is finished:

Use caution when opening the oven door after self cleaning. The oven may still be very hot and can cause burns. To avoid possible burns stand to the side of the oven when opening the oven door to allow hot air or steam to escape.

1. Cln message will turn off and Hot will appear in display window (Figure 20).

2. Once the oven has cooled down (about 1 hour) and Hot is no longer displayed, the door Opn message will appear. When this message turns off the oven door may be opened.

3. When the oven interior has completely cooled, wipe away any residue or powdered ash with a damp cloth or paper towel.

Important note:

The kitchen area should be well ventilated. Use an open window, ventilation fan or exhaust hood during the first self clean cycle to help eliminate the normal odors associated with the 1st self clean cycle.

When the clean time finishes the oven door will remain locked until the oven has cooled sufficiently. In addition to the clean time that was programmed, allow about 1 additional hour for the oven to cool before opening the oven door. The Self Clean function will not operate when the oven lockout is active.

Setting Delay Start Self Clean

To start a delay Self Clean with default clean time of 3 hours and a start time of 9:00 o’clock:

1. Be sure the clock is set with the correct time of day, the oven is empty and ALL oven racks are removed. Be sure oven door is completely closed.

2. Press Delay Start.

3. Using numeric keypad enter 9 0 0 for time to start.

4. Press to accept

5. Press Self Clean.

6. Press .

If it becomes necessary to stop Self Clean when active:

1. Press .

2. If Self Clean has heated the oven to a high temperature, allow enough time for the oven to cool and the door Opn message to appear (Figure 20). When this message turns off the oven may be opened.

3. Before restarting Self Clean, be sure to read important notes below.

Important note:

• When Self Clean is active you may check the amount of clean time remaining by pressing the Self Clean key once.

• If your clock is set with the (default) 12 hr display mode, the Delay Start for a Self Clean can only be programmed to start up to 11 hours and 59 minutes after the time showing in the display (be sure to set the clock to current time before programming a delay start). To set a Delay Start Self Clean to begin 12 or more hours (maximum is 23 hours and 59 minutes) after the time of setting, be sure to first set the control in the 24 Hr display mode.

• If Self Clean was active and then interrupted by a power failure or cancelled before the oven was thoroughly cleaned, it may be necessary to run another Self Clean cycle.

• If the oven temperature was high enough when Self Clean was interrupted the oven control may not allow another Self Clean cycle to be set for up to 4 hours.

Page 21

Care and Cleaning

Cleaning Various Parts of Your Oven

Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool. Remove spills and any heavy soiling as soon as possible. Regular cleaning will reduce the difficulty of major cleaning later.

Surface Type Recommendation

Aluminum and Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.

Painted body parts

Painted decorative trims

Stainless Steel Clean the stainless with warm soapy water using a clean sponge or cloth. Rinse with clean

Porcelain enamel broiler pan and insert (available by mail order)

Door liner and body parts

Oven racks Oven racks must be removed from oven cavity. Clean by using a mild, abrasive cleaner

Oven door Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse well.

Use a soft cloth and clean with mild dish detergent and water or a 50/50 solution of vinegar and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. Do not spray liquids directly on the oven control and display area. Do not use large amounts of water on the control panel. Excess water on the control area may cause damage to the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or paper towels. They will damage the finish.

water and dry with a soft clean cloth. Do not use any store bought cleaners like stainless steel cleaners or any other types of cleaners containing any abrasive, chlorides, chlorine, or ammonia. It is recommended to use mild dish soap and water or a 50/50 solution of water and vinegar.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating.

following manufacturer’s instructions. Rinse with clean water and dry.

You may use a glass cleaner on the outside glass of the door. Do not immerse the door in water. Do not spray or allow water or the glass cleaner to enter the door vents. Do not use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the oven door.

Do not clean the oven door gasket. On self-clean models, the oven door gasket is made of a woven material which is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket.

Page 22

Care and Cleaning

Oven door hinge locations

about

10°

hinge

oven door

roller

hinge

arm

Removing and Replacing the Oven Door

The door is heavy. For safe, temporary storage,

lay the door flat with the inside of the door facing down.

To remove the oven door:

1. Open oven door completely, horizontal with floor (See

Figure 21).

2. Pull the door hinge locks on both left and right door hinges down from the oven frame completely toward the oven door (See Figure 22). A tool such as a small flat-blade screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides. Do not use the oven door handle (See Figure 23).

4. Close the door to 10 degrees from the door frame (Figure 23).

5. Lift the oven door hinge arms over the roller pins located on each side of the oven frame (See Figure 23).

To Replace Oven Door:

1. Firmly grasp both sides of oven door along the door sides. Do not use the oven door handle (See Figure 23).

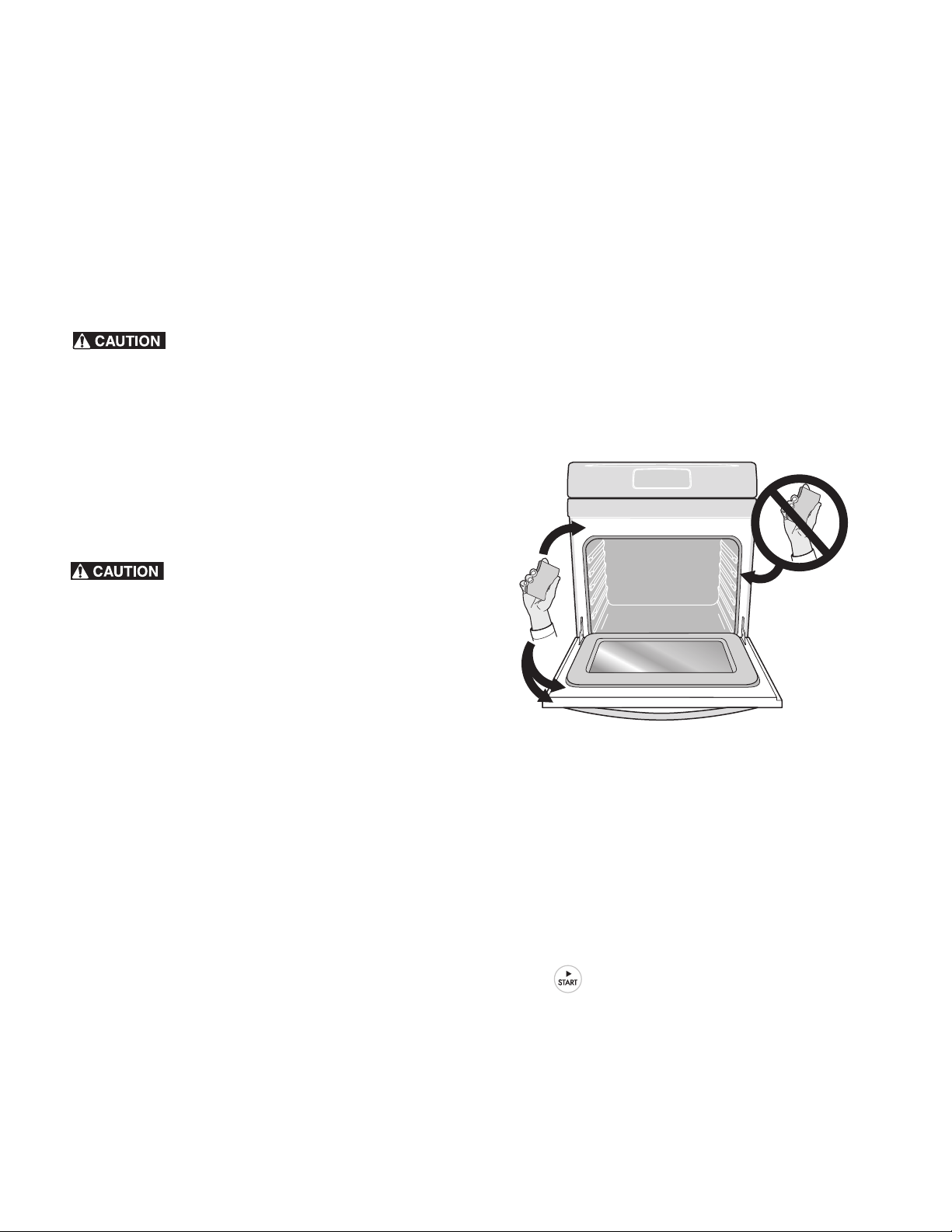

Figure 21: Door hinge location

2. Holding the oven door at the same angle as the removal position (See Figure 23), seat the hook of the hinge arm over the roller pins located on each side of the oven door frame (SeeFigure 24). The hook of the hinge arms must be fully seated onto the roller pins.

3. Fully open the oven door, horizontal with floor (See

Figure 21).

4. Push the door hinge locks up toward and into the oven frame on both left and right oven door hinges to the locked position (Figure 22).

5. Close the oven door.

Important:

Special Door Care Instructions - Most oven doors contain glass that can break. Do not close the oven door until all the oven racks are fully in place. Do not hit the glass with pots, pans, or any other object. Scratching, hitting, jarring, or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.

Figure 22: Door hinge locks

Figure 23: Holding door for removal

Figure 24: Location of hinge arm and roller pin

Page 23

Replacing the oven light

Be sure the oven is unplugged and all parts are

cool before replacing oven light.

The interior oven lights are located at the rear of the oven cavity and are covered with a glass shield. The glass shield must be in place whenever the oven is in use (See Figure 25).

To replace the oven interior light bulb:

Important note:

Do not allow your fingers to touch the new bulb when replacing. This will shorten the life of the bulb. Use a paper towel or cotton glove while handling the new bulb when installing.

1. Turn electrical power off at the main source.

1. Remove interior oven light shield by turning a quarter turn counter-clockwise.

2. Replace bulb with a new T-4 type Halogen 25 watt appliance bulb.

3. Replace glass oven light shield by rotating clockwise.

Care and Cleaning

4. Turn power back on again at the main source .

5. Be sure to reset the time of day on the clock.

Figure 25: Wall oven Halogen light

Page 24

Before You Call

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

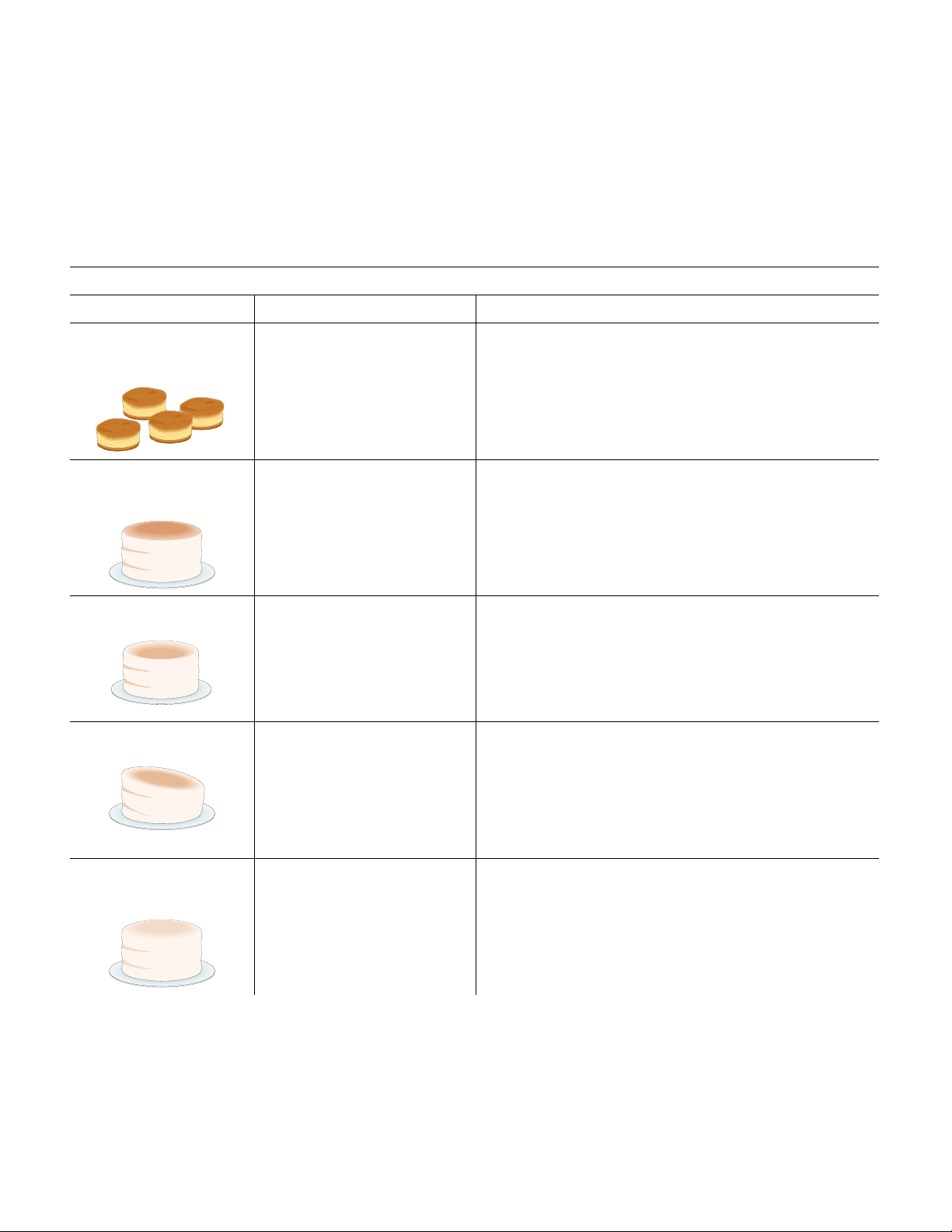

Baking Problems and Solutions

Baking Problems Causes Corrections

Cookies and biscuits burn on the bottom.

Cakes too dark on top or bottom

Cakes not done in center • Oven too hot.

Cakes not level. • Oven not level.

• Cookies and biscuits put into oven before the preheating time is completed.

• Oven rack is overcrowded.

• Dark pans absorbs heat too fast.

• Cakes put in oven before preheating time is completed.

• Rack position too high or too low.

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Pan too close to oven wall or rack overcrowded.

• Pan warped.

• Allow oven to preheat to desired temperature before placing food in oven.

• Choose pan sizes that will permit 2” to 4” of air space (5.1 cm o 10.2 cm) on all sides when placed in the oven.

• Use a medium weight baking sheet.

• Allow oven to preheat to the selected temperature before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F/12°C lower than recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 5.1 cm to

10.2 cm (2” to 4”) of space on all sides of pan.

• Place a marked glass measuring cup filled with water on the center of the oven rack. If the water level is uneven, refer to the installation instructions for leveling the oven.

• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clearance on all sides of each pan in the oven.

• Do not use pans that are dented or warped.

Foods not done when cooking time is over.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too frequently.

• Set oven temperature 25°F/12°C higher than suggested and bake for the recommended time.

• Be sure to remove all pans from the oven except the ones to be used for baking.

• Open oven door only after shortest recommended baking time.

Page 25

Before You Call

Solutions to Common Problems

Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the problem listed:

Problem Solution

Poor baking results Many factors effect baking results. Use proper oven rack position. Center food in the oven

and space pans to allow air to circulate. Preheat oven to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. See

“Setting the Sabbath feature (for use on the Jewish Sabbath and Holidays)” on page 17 if

you feel the oven is too hot or cold.

Oven does not operate. The time of day is not set. The oven clock must first be set in order to operate the oven.

Be sure oven controls are set properly. See “Setting The Clock” on page 9 and review instructions for the desired cooking function in this manual.

Service wiring is not complete.

Oven light does not work. Be sure the oven light is secure in the socket. See “Replacing the oven light” on page 23.

Flames inside oven or smoking from oven vent.

Self clean does not work. Oven control not set properly. Review “Self Clean” on page 19.

Oven racks discolored or do not slide easily.

Oven smokes excessively when broiling.

Oven control panel beeps and displays any F or E code error.

Soil not completely removed after self clean.

Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe up excessive spills before starting oven. If flames or excessive smoke are present when using broil, see “Setting Broil” on page 15.

Oven racks left in oven cavity during self clean. Always remove oven racks from oven cavity before starting a self-clean cycle. Clean using a mild abrasive cleaner following manufacturer's instructions. Rinse with clean water, dry, and replace in oven.

Incorrect setting. Follow broiling instructions in “Setting Broil” on page 15 Be sure oven door is opened to broil stop position when broiling.

Meat too close to the broil element. Reposition broil rack to provide proper clearance between the meat and broil element. Remove excess fat from meat. Cut remaining fatty edges to prevent curling.

Grease build up on oven surfaces. Regular cleaning is necessary when broiling frequently. Grease or food splatters will cause excessive smoking.

Oven control has detected a fault or error condition. Press STOP to clear the error code. Try bake or broil function. If the F or E code error repeats, turn off power to appliance, wait 5 minutes and then repower appliance. Set clock with correct time of day. Try bake or broil function again. If fault recurs, press STOP to clear.

Self Clean was interrupted. Review instructions in “Self Clean” section on page 19.

Excessive spills on oven bottom. Clean before starting self clean.

Failure to clean soil from the oven frame, the door liner outside the oven door gasket, and the small area at the front center of the oven bottom. These areas are not in the selfcleaning area, but they get hot enough to burn on residue. Clean these areas before starting the self-cleaning cycle. Burned-on residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

Page 26

Page 27



Page 28
