Kenmore 790.4662 User Manual

DUAL FUEL RANGE

Slide-in models

ESTUFA DE FUEL DUAL

IViodeios deslizables

iViodeiSj modelos 790.46622^

# = color number, número de color

m

::::

: ^

FTi

-

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com

pm 318203850 Rev. B (0601)

Table of Contents

Slide-in Range Warranty

IMPORTANT SAFETY INSTRUCTIONS .................................. 3-5

Product Record ....................................................................5

Serial Plate Location

Conversion to Liquefied Petroleum Gas (or L.P. Gas).........5

Protection Agreements

Range Features.....................................................................7

Before Setting Surface Controls
Setting Surface Controis
Surface Cooking

............................................................

......................................................

.....

..................................................... 5

....................................................

............

.......................

................................ ................

6
8

9-10

11-12

Before Setting Oven Controis ............................................ 12-13

2

Air Circulation in the Oven
Control Pad Features
Minimum and Maximum Control Pad Settings

Setting Oven Controls.............

.................................................

....

.....................................................

................

.....................................

Setting Warmer Drawer Controls.................................32-33

Self-Cleaning
Adjusting Oven Temperature
General Care & Cleaning
Before You Caii
Sears Service

...

.....................................................

34-36

............................................

............

..................................

....................................................... 42-43

......................................................................

Please carefully read and save these instructions

This Use & Care Manual contains general operating instructions foryourappliance and feature information for several
models. Your product may not have all the described features. The graphics shown are representative. The graphics on your
appliance may not look exactly like those shown. Common sense and caution must be practiced when installing, operating
and maintaining any appliance.

Kenmore Elite Appliance Warranty

One Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a
defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ©to arrange for free repair.
If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the userin correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with
the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those

recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

13
14
14

15-31

36

37-41

44

FIVE-YEAR LIMITED WARRANTY

For the second through the fifth year from the date of purchase, when installed and operated according to the Installation
Instructions and Use & Care Guide, Sears will supply the following range parts free of charge if they fail for the reasons
listed below. Customer must pay labor cost of installation.

• Cooktop glass if it fails due to thermal shock.

• Cooktop elements if they are defective.

What Sears will not cover:

• Failure of the product if it is abused, misused, or used for other than the intended purpose.

• Damage to the cooktop glass caused by the use of cleaners or utensils other than the recommended cleaning cream

and tools.

• Damage to the cooktop glass caused by hardened spills of sugary materials {including starches from vegetables or

pastas) or melted plastic that are not cleaned according to the directions in the Use & Care Guide.

• Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy underthis limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties
of merchantability or fitness, so these exclusions or limitation may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada Inc.,Toronto, Ontario, Canada MSB 2B8 „

Printed in United States

Important Safety Instructions

Read all instructions before using this appliance.

Save these instructions for future reference.

This manual contains many important safety messages. Always read and obey all safety messages.

The safety symbol m calls your attention to safety messages that inform you of hazards that can kill or hurt

others, or cause damage to the product.

Indicates an imminently hazardous situation which, if not avoided may result in death or

serious injury.
rf^rolliWB Indicates an imminently hazardous situation which, if not avoided may result in minor or

moderate injury, or product damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
instructions are not followed.

you or

happen if the

A WARNING

exactly, a fire or explosion may result causing property damage,
personal injury or death.

FOR YOUR SAFETY:

— Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in

your building.

• Immediately call your gas supplier from a neighbor's phone.

Followthe gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.
— installation and service must be performed by a qualified

installer, servicer or the gas supplier.

• Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after

unpacking the range. Never allow children to play with
packaging material.

• Proper Instaiiation-Be sure your appliance is properly
installed and grounded by a qualified technician in

accordance with the National Fuel Gas Code ANSI
Z223.1 latest edition, and National Electrical Code
ANSI/NFPA No. 70—latest edition, and local code
requirements. Install only per installation instructions

provided in the literature package for this range.
Sears Parts & Repair is the recommended repair service

for this appliance. Know how to disconnect the power to
the range at the circuit breaker or fuse box and gas supply
at the main shutoff valve in case of an emergency.

Remove the drawer to access the valve.

• User servicing—Do not repair or replace any part of

the appliance unless specifically recommended in the
manuals. All other servicing should be done only by a

qualified technician, This may reduce the risk of personal
injury and damage to the range.

• Never modify or alter the construction of a range by

removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.

drawer of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb

or play around the range. The weight of a child on an open

If the information in this manual is not followed

Stepping, leaning or sitting on the door or

A WARNING

All ranges can tip.
Injury to persons could result.
Install anti-tip device packed
with range.
See Installation Instructions.

A WARNING

the range must be secured by properly
installed anti-tip bracket(s) provided with the
range. To check if the bracket(s) is installed
properly, remove the lower panel or storage
drawer and verify that the anti-tip bracket(s)
is engaged. Refer to the Installation
Instructions for proper anti-tip bracket(s)
installation.

door may cause the range to tip, resulting in serious burns or
other injury. An open drawer, when hot, may cause burns.

Do not use the oven or warmer drawer (if

equipped)for storage.

not store items of interest to children

in the cabinets above a range. Children climbing on the

range to reach items could be seriously injured.

NEVER use this appliance as a space heater

to heat or warm the room. Doing so may result in carbon

monoxide poisoning and overheating of the oven.

• Storage in or on Appliance—Flammable materials should
not be stored in an oven, near surface burners or in the
drawer (if equipped). This includes paper, plastic and cloth

items, such as cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as aerosol
cans, on or near the appliance. Flammable materials may
explode and result in fire or property damage.

• Do not leave children alone—Children should not be
left alone or unattended in the area where appliance is
in use. They should never be allowed to sit or stand on

any part of the appliance.

• DO NOTTOUCH SURFACE BURNERS, AREAS NEAR
THESE BURNERS, OVEN HEATING ELEMENTS OR
INTERIOR SURFACES OF THE OVEN OR WARMER

DRAWER (if equipped). Both surface burners and oven

heating elements may be hot even though they are dark in
color. Areas near surface burners may become hot
enough to cause burns. During and after use, do not

I To reduce the risk of tipping,

Important Safety Instructions

touch, or let clothing or other flammable materials touch
these areas until they have had sufficient time to cool.
Among these areas are the cooktop, surfaces facing the
cooktop, the oven vent openings and surfaces near
these openings, oven door and window.

• Wear proper apparel—Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable

maferials contact hot surfaces.

• Do not use water or flour on grease fires—Smother
the fire with a pan lid, or use baking soda, a dry
chemical orfoam-type extinguisher.

• When heating fat or grease, watch it closely. Fat or

grease may catch fire if allowed to become too hot.

case of fire or gas leak, be sure to turn

off the main gas shutoff valve.

• Use only dry potholders—Moist or damp potholders
on hot surfaces may result in burns from steam. Do

not let potholders touch hot heating elements. Do not use
a towel or other bulky cloth instead of a potholder.

• Do not heat unopened food containers—Buildup of
pressure may cause container to burst and result in
injury.

• Remove the oven door from any unused range if it is
to be stored or discarded.

IMPORTANT—Do not attempt to operate the oven during
a power failure. If the power fails, always turn the oven
off. If the oven is not turns off and the power resumes, the

oven may begin to operate again. Food left unattended
could catch fire or spoil.

ik WARNING

so it does not extend beyond the edge of the utensil.

The use of undersize utensils will exposed a portion of the
burner flame to direct contact and may result in ignition of
clothing. Proper relationship of utensil to flame will also
improve efficiency.

PTmraMfraM Do not use stove top grills on the burner
grates of sealed gas burners. If you use a stove top grill on
a sealed gas burner, it will cause incomplete combustion
and can result in exposure to carbon monoxide levels above
allowable current standards. This can be hazardous to your
health.

ik CAUTION

cold temperatures. When you use your appliance for the
first time, or if it has not been used for a long period of
time, make sure that it has been exposed to a
temperature above 0°C/32°F for at leasts hours before
connecting it to the power supply.

I Use proper flame size—Adjust flame size

I Electronic controllers can be damaged by

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating unit.

Always turn the knob to the LITE position when igniting
the burners. Visually check that burner has lit. Then
adjust the flame so it does not extend beyond the edge of
the utensil.

• Use proper pan size. This appliance is equipped with one
or more surface burners of different sizes. Select utensils
having flat bottoms large enough to cover the surface
burner. The use of undersized utensils will expose a portion
of the surface burner to direct contact and may result in
ignition of clothing. Proper relationship of utensil to the
surface burner will also improve efficiency.

• Utensil handles should be turned inward and not
extend over adjacent surface burners—To reduce the risk

of burns, ignition of flammable materials, and spillage due
to unintentional contact with the utensil. The handle of the
utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface burners.

• Never leave surface burners unattended at high heat
settings—Boilovers cause smoking and greasy spillovers

that may ignite, or a pan that has boiled dry may melt.

• Protective liners—Do not use aluminum foil to line oven
bottom or any other part of the appliance. Only use
aluminum foil as recommended for baking if used as a
cover placed on the food. Any other use of protective
liners or aluminum foil may result in a risk of electric
shock or fire or short circuit.

• Glazed cooking utensils—Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for rangetop service without breaking
due to the sudden change in temperature. Check the
manufacturer’s recommendations for rangetop use.

• Do not use decorative surface burner covers. If a
burner is accidentally turned on, the decorative cover will
become hot and possibly melt. Burns will occur if the hot
covers are touched. Damage may also be done to the
cooktop or burners because the covers may cause
overheating. Airwill be blocked from the burner and
cause combustion problems.

FOR GLASS COOKTOPS ONLY

• Do not clean or operate a broken cooktop—If cooktop

should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of electric
shock. Contact a qualified technician immediately.

• Clean cooktop glass with caution—If a wet sponge or

cloth is used to wipe spills on a hot cooking area, be
careful to avoid a steam burn. Some cleaners can produce
harmful fumes if applied to a hot surface.

• Avoid scratching the cooktop glass with sharp

objects.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

• Use care when opening oven door or warmer drawer (if

equipped)—Stand to the side of the range when opening

the door of a hot oven. Let hot air or steam escape before
you remove or replace food in the oven/ warmerdrawer.

• Keep oven vent ducts unobstructed. The oven vent is

located at the rear of the cooktop. Touching the surfaces
in this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or ignite.

Important Safety Instructions

• Placement of oven/warmer drawer {if equipped) racks.
Always place oven racks In desired location while oven/
warmer drawer (if equipped) is cool. If rack must be

moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven/warmer drawer (if equipped).
Remove all utensils from the rack before moving.

• Do not use the broiler pan without its insert. The

broiler pan and its insert allow dripping fat to drain and be
kept away from the high heat of the broiler.

• Do not cover the broiler insert with aluminum foil.

Exposed fat and grease could ignite.

• Do not touch a hot light bulb with a damp cloth. Doing

so could cause the bulb to break. Disconnect the

appliance or turn off the power to the appliance before

removing and replacing light bulb.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR RANGE

• Clean the range regularly to keep all parts free of
grease that could catch fire. Exhaust fan ventilation

hoods and grease filters should be kept clean. Do not
allow grease to accumulate on hood or filter. Greasy
deposits in the fan could catch fire. When you are flaming
food underthe hood, turn the fan on. Refer to the hood

manufacturer’s instructions for cleaning.

SELF CLEANING OVENS

• in the self-Cleaning cycle only clean the parts listed in
this Use and Care Guide. Before self cleaning the oven,

remove the broiler pan and any utensils or foods from the
oven.

• Do not use oven cleaners—No commercial oven cleaner
or oven liner protective coating of any kind should be used
in or around any part of the oven.

• Do not clean door gasket—The door gasket is essential
fora good seal. Care should be taken not to rub, damage
or move the gasket.

• Remove oven racks. Oven racks color will change if left
in the oven during a self-cleaning cycle.

ik CAUTION

sensitive to the fumes given off during the self
cleaning cycle of the range. Move the birds to another
well ventilated room.

I The health of some birds is extremely

Important Safety Notice

The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects orother reproductive harm, and requires
businesses to warn customers of potential exposure to
such substances.

rn

L:

^ .

Product Record

In this space below, record the date of purchase, model and serial
number of your product. You will find the model and serial number
printed on the serial plate.

Model No. 790._________________________________
Serial No.

Date of purchase_____________________________________
Save these instructions and your sales receipt for future reference.

__________________________________________

Serial Plate Location

You will find the model and

serial number printed on the
serial plate. The serial plate
is located as shown below.

Rememberto record the
serial numberforfuture
reference. Serial Plat

Conversion to Liquefied Petroleum Gas (or L.P. Gas)

This natural gas range is designed to allow for conversion
to Liquefied Petroleum (L.P.) Gas.

Only a qualified service agent should perform the L.P.
conversion. Call 1-800-4-MY-HOME® if you wish to have
Sears Service perform the conversion. An L.P. Conversion

Kit is provided with this range and is located on the right
panel (right side) of the range. The kit contains installation
instructions which must be read before and followed
carefully when installing the kit.

ik WARNING I To avoid serious injury, any additions,

changes or conversions required in order for this appliance
to satisfactorily meet the application needs must be made
by a qualified service agent.

LocatiiJi:

PROTECTION AGREEIVIENTS

In the U.S.A.

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore® product is designed and manufactured for years

of dependable operation. But like all products, it may

require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can

save you money and aggravation.

Purcha se a M as ter Protectio n Agreem en t now and protect

yourself from un expec ted ha ssle a nd expen se.

The Master Protection Agreement also helps extend the life

of your new product. Here’s what’s included in the

Agreement:
0" Expert service by our 12,000 professional repair

specialists
Unlimited service and no charge for parts and labor on
all covered repairs
“No-!emon” guarantee-replacement
of your covered product if four or more product failures
occur within twelve months

гГ

Product replacement if your covered product can’t be
fixed
Annual Preventive Maintenance Check at your
request - no extra charge
Fast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling

Ei

Power surge protection against electrical damage
due to power fluctuations
Rental reimbursement if repair of your covered
product takes longer than promised

In Canada

Maintenance Agreements

Your purchase has added value because you can
depend on Sears HomeCentral® for service. With over
2400 Service Technicians and more than a million parts
and accessories, we have the tools, parts, knowledge
and skills to ensure our pledge: We Service What We
Sell.

Your Kenmore® product is designed, manufactured
and tested to provide years of dependable operation. But
like all products, it may require service from time to time.
The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.

The Sears Maintenance Agreement:

• Is your way to buy tomorrow’s service at today’s price

• Eliminates repair bills resulting from normal wear and
tear

• Provides phone support from a Sears technician on
products requiring in-home repair

• Even if you don’t need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running condition.

Some limitations apply. For more information about
Sears Canada Maintenance Agreements,
call 1-800-361-6665

Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
on-line.

Sears has over 12,000 professional repair specialists, who
have access to over 4.5 million quality parts and
accessories. That’s the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection
Agreement today!

Some limitations and exclusions apply.
For prices and additional information call
1-800-827-6655.

Sears Installation Service

For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call

1-800-4-MY-HOME®

Range Features

Your

Dual Fuel

Slide-In

Range
Features

At a Glance

Left Front Burner
Valve & Knob

Bridge Burner

Valve & Knob

Electronic Oven Controls with
Clock and Kitchen Timer

Electronic Warmer

Dishwasher Safe
Burner Grates

Right Front
Burner Valve &
Knob

Right Rear
Burner Valve

& Knob

Oven Vent
Broil Element

Self-Cleaning
Interior Oven

Broil Pan Insert

Broil Pan

Convection
Rack

IB

Searing Grill

Griddle

One Piece
Door Handle

Dishwasher Safe
Burner Grates

Ajustable
Oven Racks

Interior
Halogen
Oven Ligths

Glass Oven ^

: Door with :

Large Window i
Opening :

' Warmer

Drawer

with Rack

Dishwasher Safe
Center Burner Grate

*9,000 BTU
Burner

*9,000 BTU
Burner

27,000 BTU when used with all 3
burners combined as a Bridge Burner.

Note: The features of your range will vary according to model.

5,000 BTU
Simmer Burner

17,200 BTU
Power Burner

Glass Cooktop

Before Setting Surface Controls

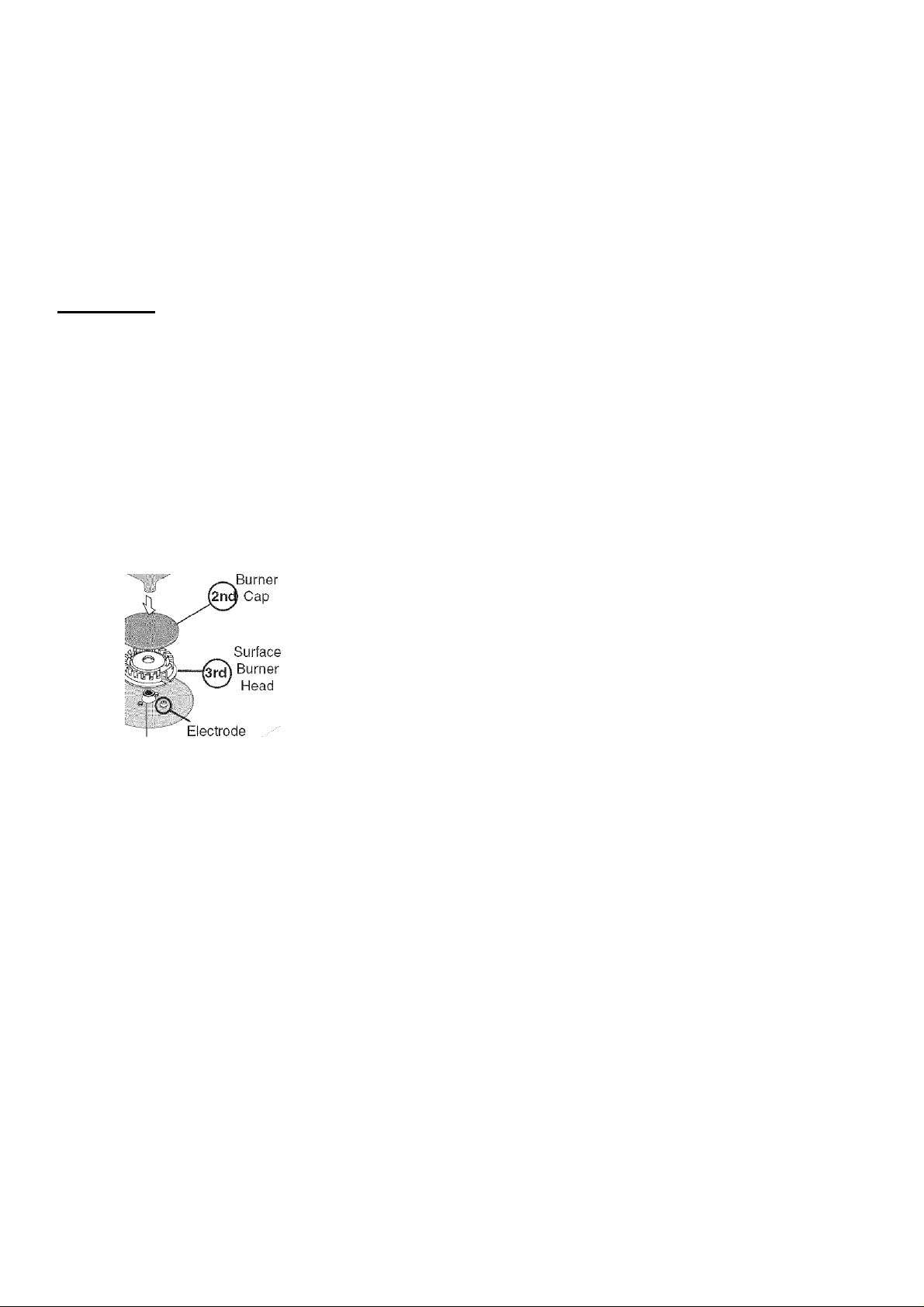

Assembly of the Surface Burner Heads, Burner Caps and Burner Grates

It is very important to make sure that all of the Surface Burner Heads, Surface Burner Caps and Surface Burner Grates
are installed correctly and at the correct locations.

1. Be sure to follow the Installation Instructions before
installing and using your new range.

2. Remove all packing tape from cooktop. Remove Burner
Caps and Burner Heads (See Figure 1).

3. Discard all packing material located under all Burner

Heads (if applicable).

4. To replace Burner Heads & Caps, match the letters
located under center of Burner Caps with the letters
located inside Burner Head (only positions A & F are
marked with letters - See Figure 2). Place all Burner

Heads & Caps on the cooktop (See Figure 1) while

carefully aligning the Electrodes into slots or holes of the

Burner Heads (Figure 4). Note: The Burner Heads should

sit flat on Cooktop Burner Skirts.

5. Replace Bridge Burner Caps. These include one Bridge

Burner Center Cap (rectangular shaped) and the two

Bridge Burner End Caps (The Bridge Burner End Caps
will fit either the front or rear Bridge Burner Head loca
tions). Make sure that the tabs located under the Bridge

Burner Caps fall into the slots located in the Bridge

Burner Head (See arrows in Figure 3) and that all the

Bridge Burner Caps lie flat and evenly on the Bridge

Burner Head.

6. Unpack Burner Grates. NOTE: Do not force End Burner
Grates down on cooktop. Be careful to line up the 2 Grate

Pins located on each of the 2 End Burner Grates into the
Pilot holes located on top of the Burner Caps (See Figure

5). Position Burner Grates on cooktop and check that all
the Burner Grate legs lie on the glass surface.

7. Place Center Burner Grate between the end Burner
Grates.

REMEMBER — DO NOT ALLOW SPILLS, FOOD,

CLEANING AGENTS OR ANY OTHER MATERIAL TO
ENTER THE GAS ORIFICE HOLDER OPENING. Always

keep the Burner Caps and Burner Heads in place whenever
the surface burners are in use.

Figure 5

Locations of the Gas Surface Burners (See Figure 6)

The SIMMER burner is best used for simmering delicate
sauces, etc. This burner is located at the right rear burner
position on the cooktop.

The STANDARD sized burner are used for most surface
cooking needs. These burners are located at the left front
and left rear positions on the cooktop.

The POWER burner is best used for bringing large
quantities of liquid rapidly up to temperature or when
preparing larger quantities of food. This burner is located at
the right front position on the cooktop.

The BRIDGE burner is best suited when using rectangular
or long shaped cookware. The left rear and left middle are
combined and controlled by the same control knob. The left
front burner may also be added for a total of 3 burners.

, ,

Figure 6

Setting Surface Controls

ik CAUTION

items such as salt and pepper shakers,
spoon holders or plastic wrappings on
top of the range when it is in use.

These items could melt or ignite.
Potholders, towels or wood spoons could
catch fire if placed too close to a flame.

In the event of an electrical power outage,
the surface burners can be lit manually.
To light a surface burner, hold a lit match
to the burner head, then slowly turn the
surface control knob to LITE. After burner
lights push in and turn knob to desired
setting. Use caution when lighting surface
burners manually.

I

Do not place plastic

Operating the Gas Surface Controls:

1. Place cooking utensil on surface burner.

2. Push the surface control knob down and turn counterclockwise out of
the OFF position (See Figure 1).

3. Release the knob and rotate to the LITE position. Note: All four
electronic surface ignitors will spark at the same time. However, only
the burner you are turning on will ignite.

4. Visually check that the burner has a flame.

5. Turn the control knob counterclockwise to the desired flame size.
The control knobs do not have to be set at a particular setting. Use the
knob indicator settings to adjust the flame as needed. DO NOT cook
with the surface control knob in the LITE position. (The electronic
ignitor will continue to spark if the knob is left in the LITE position.)

Setting Proper Surface Burner Flame Size

For most cooking, start on the highest control setting and then turn to a

lower one to complete the process. Use the recommendations below as a
guide for determining proper flame size for various types of cooking. The
size and type of utensil used and the amount of food being cooked will
influence the setting needed for cooking.

Figure 1

Proper

flame size

*F!ame Size

High Flame
Medium Flame
Low Flame

*These settings are based on using medium-weight metal or
aluminum pans with lids. Settings may vary when using other types
of pans. The color of the flame is the key to proper burner adjustment. A

good flame is clear, blue and hardly visible in a well-lighted room. Each
cone of flame should be steady and sharp. Clean burner if flame is yellow­orange.
Regardless of size, always select cookware that is suitable for the amount
and type of food being prepared. Select a burner and flame size
appropriate to the pan. Never allow flames to extend beyond the outer
edge of the pan.

Never extend the flame beyond the outer edge of the utensil. A higher
flame wastes heat and energy and increases your risk of being burned
by the flame (Figure 2).

For deep fat frying, use a thermometer and adjust the surface control

knob accordingly. If the fat is too cool, the food will absorb the fat and be
greasy. If the fat is too hot, the food will brown quickly and the center will be
undercooked. Do not attempt to deep fat fry too much food at once as the
food will neither brown nor cook properly.

Type of Cooking

Start most foods: bring water to a boil: pan broiling.
Maintain a slow boil; thicken sauces, gravies; steaming.
Keep foods cooking: poach: stewing.

U-,.. VT i J Improper

flame size

Figure 2

Setting Surface Controls (confd)

Setting the Bridge Burner

The Bridge Burner should be used with rectangular shaped cookware.
Cookware like the cast-iron Griddle that is supplied with your range is designed
specifically for best results with the Bridge Burner.

The Bridge Burner feature may be used to combine the cooking power of 2 or if
needed 3 gas surface Burners located along the left-hand side of the glass
cooktop.The left rear and left center Burners are controlled by the left rear surface
Control Knob. In addition the left front Burner may be added to the Bridge Burner
with the left front gas Control Knob (See Figure 1).

Operating the Bridge Burner

1. Push the left rear surface control knob in and turn counterclockwise out of
the OFF position (See Figure 2).

2. Release the knob and rotate to the LITE position (See Figures 2 & 3). Note:
All electronic surface ignitors will spark at the same time. However, only the
selected surface Burner will life.

3. Visually check that the left rear Burner has lit.

4. Continue to rotate the gas control knob counterclockwise past the first LO
setting to the arrow marked BRIDGE.

5. Visually check that both the left rear and left center Burners are lit.

6. When both burners are lit, continue to turn the control knob
counterclockwise to adjust to the desired flame size for both burners
together. Note: The markings between the 2nd HI and LO settings on the left

rear control knob adjust the flame size for both burners. Use the guide marks
between the 2nd HI and LO settings and adjust the flame size as needed
(Refer to Figure 3).

7. Add the left front Burner if needed. Once lit, visually adjust the flame size of
the left front Burner to match the flame size of the Bridge Burner.

8. Place cooking utensil centered over the left-hand cooktop surface Burner
Grate. DO NOT cook with any of the surface control knobs in the LITE
position (The electronic ignitor will continue to spark if the knob is left in the

LITE position).
Note: If only the left rear surface Burner is needed, follow the instructions
provided below.

Figure 1

Operating only the Left rear Gas Surface Burner

1. Place cooking utensil centered over the left-rear surface Burner Grate.

2. Push the left rear surface control knob in and turn counterclockwise out of

the OFF position (See Figure 2).

3. Release the knob and rotate to the LITE position. Note: All electronic surface

ignitors will spark at the same time. However, only the left rear Burner will
ignite.

4. Visually check that the left-rear burner has lit. Adjust the

flame size by turning the control knob between the first HI
and LO settings (See Figure 3). DO NOT cook with the
surface control knob in the LITE position (The electronic
ignitor will continue to spark if the knob is left in the LITE
position).

10

Surface Cooking

Use Proper Cookware

Cookware should
have flat bottoms that
make good contact

with the entire surface

heating element.
Check for flatness by

rotating a ruler across
the bottom of the
cookware (See Figure

1). Be sure to follow
the recommendations for using cookware
as shown in Figure 2.

Note: The size and type of cookware used
will influence the setting needed for best
cooking results.

CORRECT INCORRECT

» Curved and warped pan bottoms.

Flat bottom and straight
sides.

Tight fitting lids.
Weight of handle does not tilt

pan. Pan is well balanced.
Pan sizes match the amount

of food to be prepared.
Made of material that

conducts heat well.
Easy to clean.

Pan overhangs bumergrate by
more than 2.5 cm (1”).

Heavy handle tilts pan.

Flame extends beyond pan.

Note: Always use a utensil for its intended

purpose. Follow manufacturer's instructions.

Some utensils were not made to be used in
the oven oron the cooktop.

Using a wok

Woks with flat bottoms suitable for use

on your cooktop are available in most
cookshop or hardware stores. Round­bottomed woks (with a support ring
that does not extend beyond the
burner circumference) may also be
used. The metal ring was designed to
support the wok safely when it is filled
with large amounts of liquids (soup
making) or fat (frying).

Wire trivets: Do not use wire trivets.

Cookware bottoms must be in direct
contact with the grates.

Figure 2

Specialty pans such as lobster pots, griddles and pressure cookers may be
used but must conform to the above recommended cookware requirements.

DO NOT use a wok if it is equipped with
a metal ring that extends beyond the

burner circumference. Because this

ring traps heat, the surface unit and
cooktop surface could be damaged.

11

Surface Cooking

Care & Seasoning of the Griddle

Before first use:

• Wash Griddle in hot soapy water. Rinse and then dry completely.

• Apply a thin coat of vegetable oil to the entire surface (front and back of griddle).

• Preheat your oven to 350°F. Place the griddle on the upper rack in your oven.

• Bake griddle for 1 hour at 350°F, then turn oven OFF and let cool before remov

ing.

• The surface may appear to have a tacky feel to it from the seasoning process. If

desired, wash the griddle in hot soapy water, rinse well, and dry completely.

After each use:

•To prevent rusting, store in a dry place and keep uncovered.

• After each use, clean with a stiff brush and hot water only.

• DO NOT CLEAN GRIDDLE IN DISHWASHER.

• Dry Immediately and apply a light coating of vegetable oil to griddle before

storing.

Using the Griddle:

• Place either side of the griddle centered over the left side gas burners or over

the Bridge Burner. For location refer to Figure 1.

• Preheat the griddle for 5 minutes on medium to medium low setting. Slow

preheat ensures even heat distribution during the cooking process.

• DO NOT preheat the griddle on HI setting. Preheating on HI may warp the

griddle and prevent even heat distribution.

Before Setting Oven Controls

À CAUTION

to run after the range has been turned “OFF”, but may also stop immediately and then turn “ON” after a while.

The oven vent is located at right side of the front panel
and visible when the oven door is open. When the oven
is on, hot air is released through the vents. This venting is
necessary for proper air circulation in the oven and good

baking results. OVEN VENT

[This rangehasafan that will turn “ON” and “OFF” by itself to keep the electronics cool. It may continue

Oven Vent Location

■1

To remove, pull the rack forward until it stops. Lift up
front of rack and slide out. To replace, fit the rack onto
the guides on the oven walls. Tilt the front of the rack
upward and slide the rack back into place.

§■

Removing and Replacing Oven Racks

12

Before Setting Oven Controls (confd)

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use
oven mitts when the oven is hot.

RECOMMENDED RACK POSITIONS FOR

BROILING, BAKING & ROASTING

Food Rack position
Broiling meats, chicken or fish 3 or 4

Cookies, cakes, pies, biscuits Smuffins 2 or 3

Frozen pies, angel food cake, yeast, bread. 1 or 2

casseroles, small cuts of meat or poultry
Turkey, roast or ham 1

Note: Always use caution when removing food.

Types of Oven Racks

rn

::

o

Flat Handle Oven Rack

Figure 2

____________

ik CAUTION

oven mitts when adjusting the oven racks.
Wait until the oven has completely cooled if
possible. Oven racks may be HOT and may
cause burns.

Your appliance may be equipped with one
or more of the oven rack types shown; Flat

Handle Oven Rack (Figure 2) and Flat
Oven Half Rack (Figure 3).

The Flat Half Rack has a removable insert
that can provide extra space for larger food
items. The right half rack portion may still be used for other food items like a
casserole dish (See Figure 3). To remove the insert, squeeze on the left front
insert side (See Figure 4) of the rack and tilt out clockwise. To reinstall insert rear
hooks at back of insert (See Figure 5) and lay insert down. Make sure both insert
front hooks snap into rack (See Figure 5).

Do not use cookware that extends beyond the edge of the Flat Half Rack. For
best results, allow 2 inches between the pan placed on the rack and oven side or
rear walls.

I Always use pot holders or

Flat Half Oven Rack

Air Circulation in the Oven

Figure 3

Figure 5

1 Oven Rack

For best air circulation and baking results allow 2-4" (5-10 cm) around
the cookware for proper air circulation and be sure pans and cookware
do not touch each other, the oven door, sides or back of the oven
cavity. The hot air must circulate around the pans and cookware in
the oven for even heat to reach around the food.

13

Control Pad Features

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described beiow. Detailed instructions for each feature

and function follow later in this Use & Care Guide.

DELAY START— Use with

BAKE, COOK TIME and

CLEAN to program a Delayed

Timed Bake or Delay Self
Cleaning cycle start time

OVEN COOK TIME—

Use to enter the length
of the baking time.

ADD 1 MINUTE—Use

to select Add 1 Minute
feature.

SLOW COOK—

Use to select the
Slow Cook feature.

FLEX CLEAN
PAD— Use to

select the Self
Cleaning
feature.

START—Use

to start all
oven features

(not used

with Oven

BAKE PAD— BROIL PREHEAT—

Use to enter PAD— Use Use to raise

the normal to select
Bake feature, variable

broil
function.

oven to
cooking
temperature.

OTHRU 9
NUMBER PADS

— Use to enter
temperature and
times.

CONV CONVERT—Use

to select the Convection
Convert feature.

OVEN LIGHT—Use to

turn the oven light ON
and OFF.

KITCHEN TIMER ON/OFF Use

to set or cancel the Kitchen
Timer. The Kitchen Timer does
not start or stop cooking.

Minimum and

Maximum
Control Pad
Settings

FEATURE

PREHEAT TEMP.
BAKE, CAKES, BREADS TEMP
BROIL TEMP.
KITCHEN TIMER

CLOCK TIME

COOK TIME

DELAY START

CLEAN TIME
CONVECTION BAKE, MEATS TEMP.

^CiDCK

WARM & HOLD PAD—

Use to select the Warm

& Hold feature.

CONVECTION BAKE— Use

to select the Convection
Bake feature.

All of the features listed below have minimum and maximum time or temperature settings
that may be entered into the control. An ENTRY acceptance beep will sound each time a
control pad is touched (the Oven Lockout pad is delayed 3 seconds).

An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature or time
is below the minimum or above the maximum settings for the feature.

MINIMUM TEMP. /TIME
170“F/77“C
170“F/77°C
400“F/205°C

12Hr.

24 Hr.
12Hr.
24 Hr.
12 Hr.
24 Hr.
12Hr.
24 Hr.

0:01 Min.

0:01 Min.
1:00 Hr./Min.

0:00Hr./Min.

0:01 Min.
0:01 Min.
1:00 Hr./Min.

0:00 Hr./Min.
2 hours

325“F/163“C

MEATS, CAKES &
BREADS— Use to select

the Meats, Cakes & Breads
cooking feature.

CLOCK SET— Use to set

the time of day.

STOP CLEAR—Use to

cancel any oven mode
previously entered except
the time of day and minute

^ timer. Press STOP/CLEAR

/

to stop cooking. STOP/

CLEAR also controls the

Oven Lockout feature.

MAXIMUM TEMP. /TIME

550°F/288“C
550°F/288“C
550“F/288“C
11:59 Hr./Min.
11:59 Hr./Min.
12:59 Hr./Min.
23:59 Hr./Min.
11:59 Hr./Min.
11:59 Hr./Min.
12:59 Hr./Min.
23:59 Hr./Min.
4 hours
550“F/288“C

"A: - STOÍ' ■ ’

■ ^ M (CLLAii ;■
si"- '■

14

Setting Oven Controls

Setting the Clock

The CLOCK (cLocy pad is used to set the clock. The clock may be set for 12 or 24 hour
time of day operation. The clock has been preset at the factory for the 12 hour

operation. When the range is first plugged in, or when the power supply to the range
has been interrupted, the timer in the display will flash with "PF" (power failure, See
Figure 1).

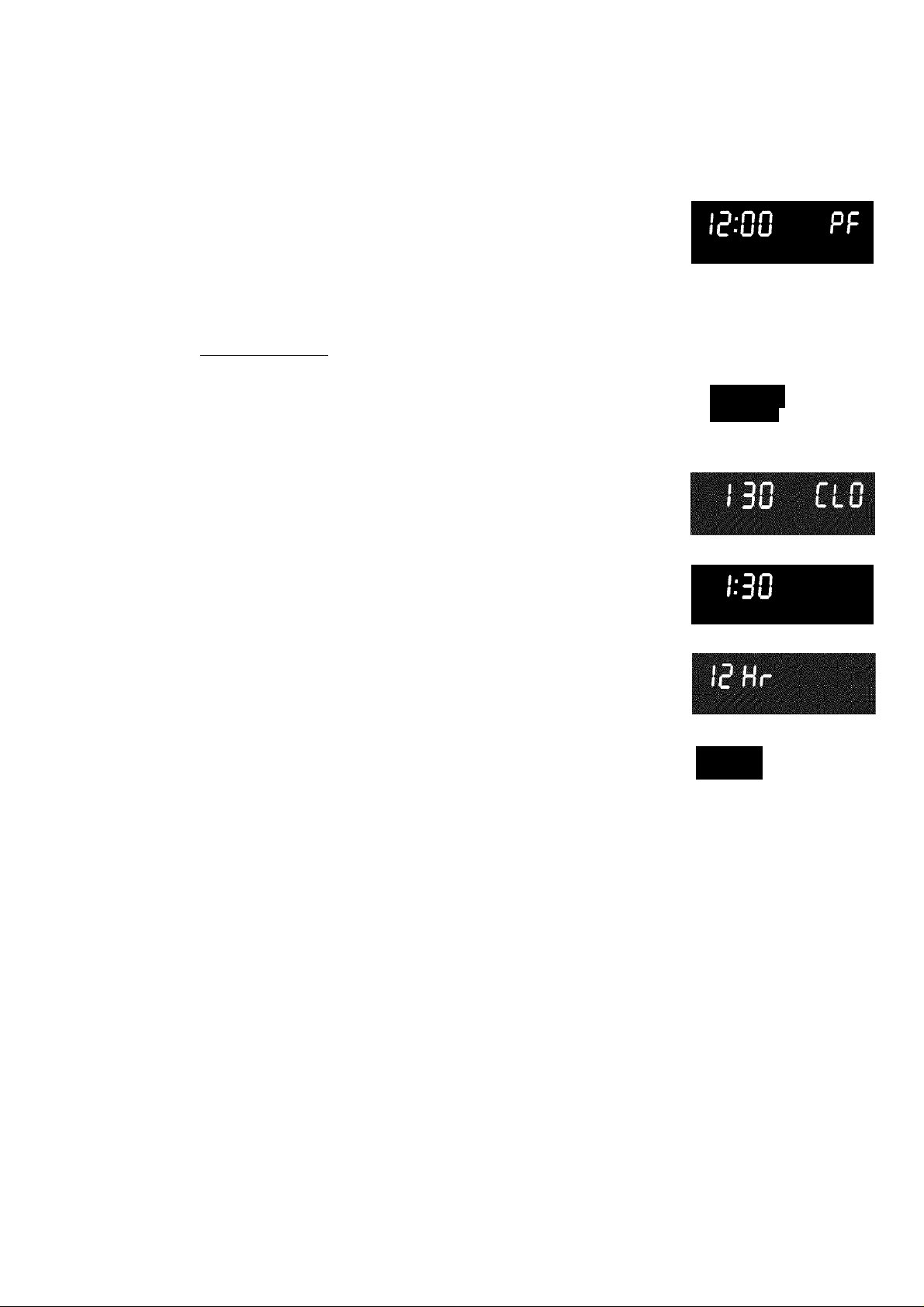

When PF appears in the display, press
a beep will sounds and PF will disappear.

1. No sound will be heard, but after 10 seconds

INSTRUCTIONS

To set the clock (example: 1:30)

1. Press (cLo^. "CLO" will appear in the display (Figure 2).

2. Press CD CD® pads to set the time of day to 1:30

(Figure 3). "CLO" will stay in the display. Press

"CLO" will disappear and the clock will start (Figure 4).

Changing between 12 or 24 hour time of day display

1. Press and hold (^ocD for 7 seconds (Figure 3). While holding
the pad down the current time of day will remain and "CLO"

will disappear from the display (Figure 4). CONTINUE holding
the pad until "12Hr" (Figure 5) or "24Hr" (Figure 6) appears in
the display.

2. Press to switch between the 12 and 24 hour time of day
display. The display will show either "12Hr" (Figure 5) or

"24Hr" (Figure 6).

3. Press QTARy to accept the desired change or press i

reject the change.

4. Reset the correct time as described in To set the Clock
above. Please note that if the 24 hour time of day mode was
chosen, the clock will now display time from 0:00 through
23:59 hours.

Figure 1

PRESS

DISPLAY

1-3 n n

IC UU

®@®

for 7 seconds

to

Start) or \

IHHI

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

15

Setting Oven Controls (con’t)

Setting Continuous Bake or 12 Hour Energy Saving

The KITCHEN TIMER and FLEX CLEAN (clea^n) pads control the Continuous Bake or 12 Hour Energy Saving
features. The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven

control is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for
Continuous Baking. INSTRUCTIONS

To set the control for Continuous Bake or 12 Hour Energy Saving features

1. Press and hold for 7 seconds (Figurel). "12Hr" or-Hr" will

appear in the display and the control will beep once.

ON/OFF

ON/OFF

PRESS

fKitchenN ,

kjiME^ for 7

ON/OFF

seconds

DISPLAY

n-nn

uuu

Figure 1

!5:Hr

2. Press to switch between the 12 Hour Energy Saving and
continuous bake features. Note: "12Hr" (Figure 2) in the display indicates

the control is set for the 12 Hour Energy Saving feature and -Hr"
indicates the control is set for the Continuous Bake feature (Figure 3).

3. Press <STA^ to accept the change (Figure 4; display will return to

time of day) or press to reject the change. ^

Figure 2

Setting Kitchen Timer

FiQure 4

The KITCHEN TIMER \t!m^ pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the
kitchen that will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be

used during any of the other oven control functions. Refer to “Minimum and Maximum Control Pad Settings” for time
amount settings.

ON/OFF

INSTRUCTIONS PRESS DISPLAY

To set the Kitchen Timer (example: 5 minutes)

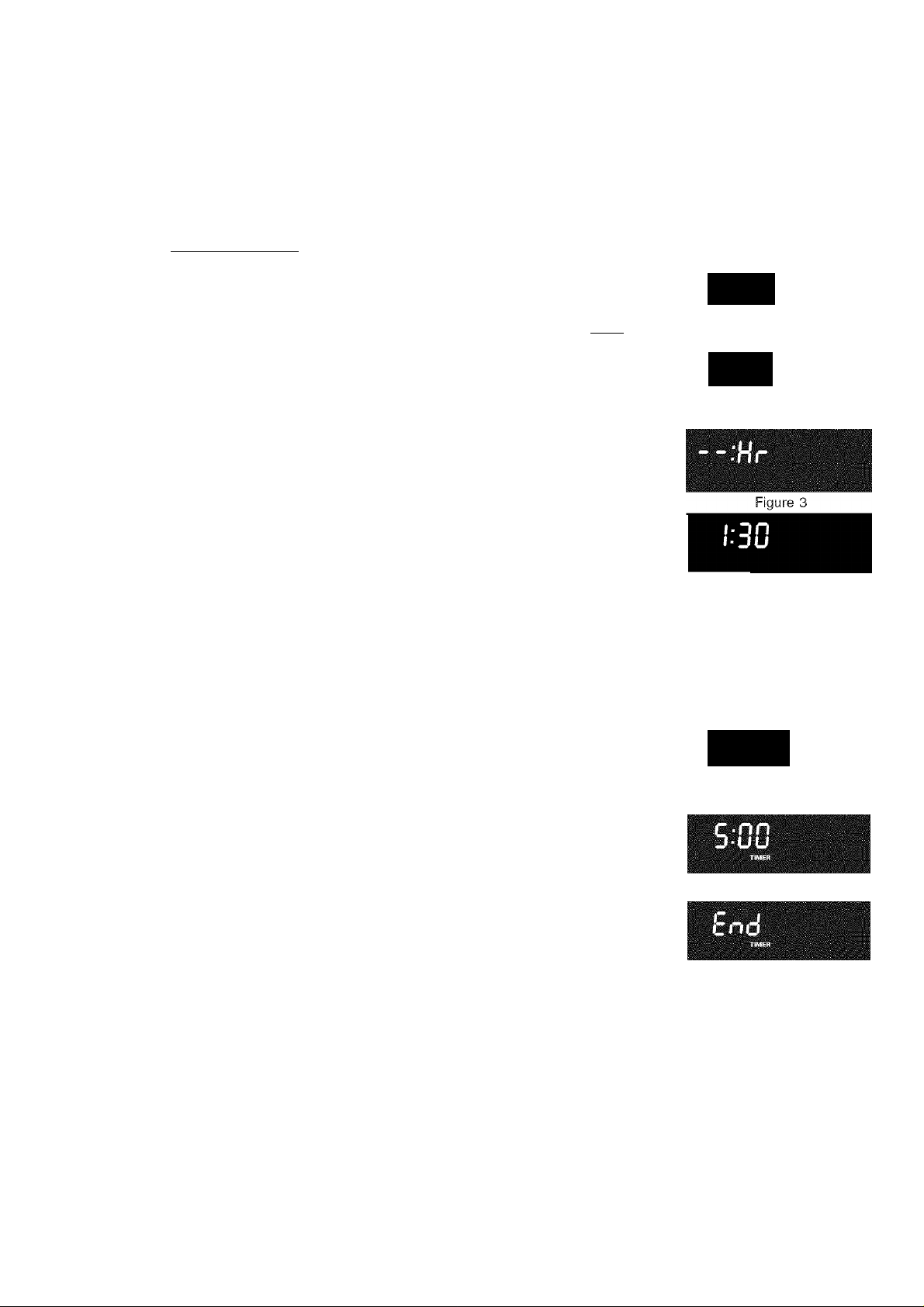

1. Press vHy. "0:00" will appear and "TIMER" will flash in the display

(Figure 5).

2. Press the number pads to set the desired time in the display (example
& Press The time will count down with "5:00" and

"TIMER" showing in the display (Figure 6).
Note: If is not pressed the timer will return to the time of day.

3. When the set time has run out, "End" and "TIMER" will show in the
display (Figure 7). The clock will sound with 3 beeps every 5 seconds

until IS pressed.

ON/OFF

. /kitcheeK .

ON/OFF

0:00

Figure 5

Figure 6

Figure 7

To cancel the Kitchen Timer before the set time has run out

Press The display will return to the time of day.

KlTCHEri

ON/OFF ON/OFF

To Set Add 1 Minute Feature

The ADD 1 MINUTE pad is used to set additional minutes to the Kitchen Timer. Each time the pad is
pressed, another minute is added to the Kitchen Timer if the Kitchen Timer is already active. If the Kitchen Timer feature

is not active and the pad is pressed, the Kitchen Timer feature will become active and will begin counting down
from 1 minute. For further information on how to set the Kitchen Timer feature see To Set the Kitchen Timer instructions

above. -| 0

Setting Oven Controls (con’t)

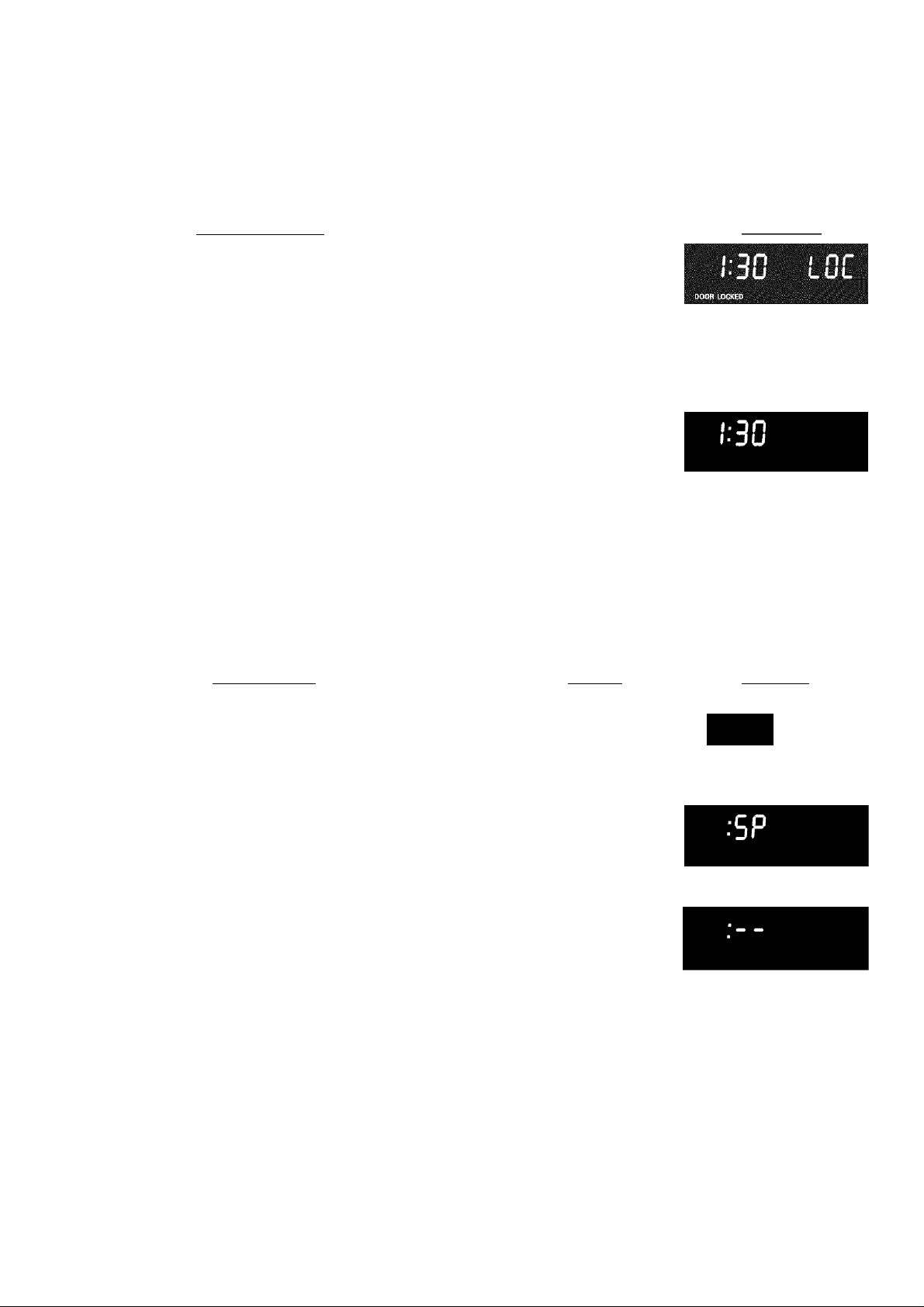

Setting Oven Lockout Feature

The pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and
prevents the Oven from being turned ON. It does not disable the clock, Kitchen Timer or the interior oven lights.

INSTRUCTIONS

PRESS

DISPLAY

To activate the Oven Lockout feature

Press and hold for 3 seconds (Figure 1).

2. After 3 seconds "LOG" will appear, a beep will sound and
"DOOR LOCKED" will flash in the display. Once the oven door
is locked the "DOOR LOCKED" indicator will stop flashing and
remain on along with the "LOC".

^ for 3

seconds

Figure 1

To reactivate normal oven operation:

1. Press and hold for 3 seconds. A beep will sound. The

"DOOR LOCKED" will flash in the display until the oven door
has completely unlocked and "LOC" has cleared (Figure 2).

2. The appliance is again fully operational.

^for3

seconds

Figure 2

Setting Silent Control Operation

The DELAY START and FLEX CLEAN
operation feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the

control can be programmed for silent operation and later returned to operating with all the normal sounds and beeps.

■IMSIRyCIIOMS

pads control the Silent Control operation feature. The Silent Control «1»

.PB.ESS ■DISPLAY

rn

.

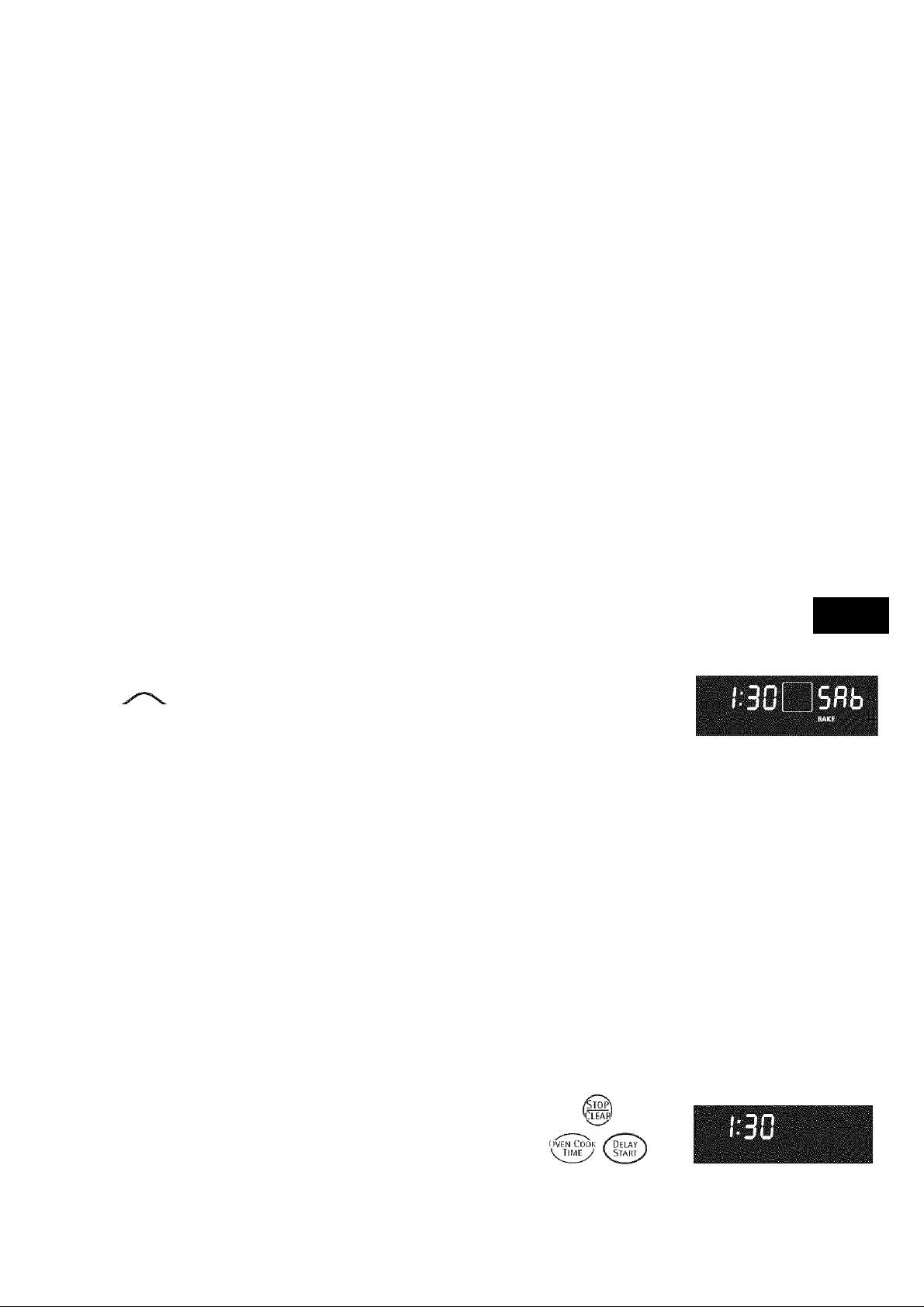

To change control from normal sound operation to silent control operation

1.

To tell if your range is set for normal or silent operation press
and hold for 7 seconds. "0:00" will appear and

"DELAY" will flash in the display (Figure 3). After 7 seconds
":SP" will appear in the display (Figure 4).

2.

Press to switch between normal sound operation and
silent operation mode. The display will show either ":SP"

(Figure 4) or(Figure 5).
If ":SP" appears (Figure 4), the control will operate with normal

sounds and beeps. Ifappears (Figure 5), the control is in

the silent operation mode.

3.

change.

to reject thePress to accept the change or press

n¿ñn

u-uu

Figure 3

for 7 seconds

Figure 4

Figure 5

Start) or I

17

Setting Oven Controls (con’t)

Setting Temperature Display — Fahrenheit or Celsius:

The BROIL (br^ and FLEX CLEAN (¿Sy pads control the Fahrenheit or Celsius temperature display modes. The
oven control can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the

factory to display in Fahrenheit.

INSTRUCTIONS

To change display from Fahrenheit to Celsius or Celsius to Fahrenheit

1. To teli if thè display is set for Fahrenheit or Celsius press

(Figure 1) and hold for 7 seconds; "550°" will appear

and "BROIL" will flash in the display and a beep will sound. If

"F" appears, the display is set to show temperatures in
Fahrenheit (Figure 2). If "C" appears, the display is set to show

temperatures in Celsius (Figure 3).
Press to switch between Fahrenheit or Celsius display

modes. The display will show either "F" (Figure 2) or "C"
(Figure 3).

Press QTARy to accept the change or press i
change.

to reject the

PRESS DISPLAY

ion ccn

lOu

3j u

(broiu

Figure 1

for 7 seconds

I.-30 f

Figure 2

f FlexA

V^LEAfW

I'30

start! or I

c

Figure 3

BROIL

18

Setting Oven Controls (con’t)

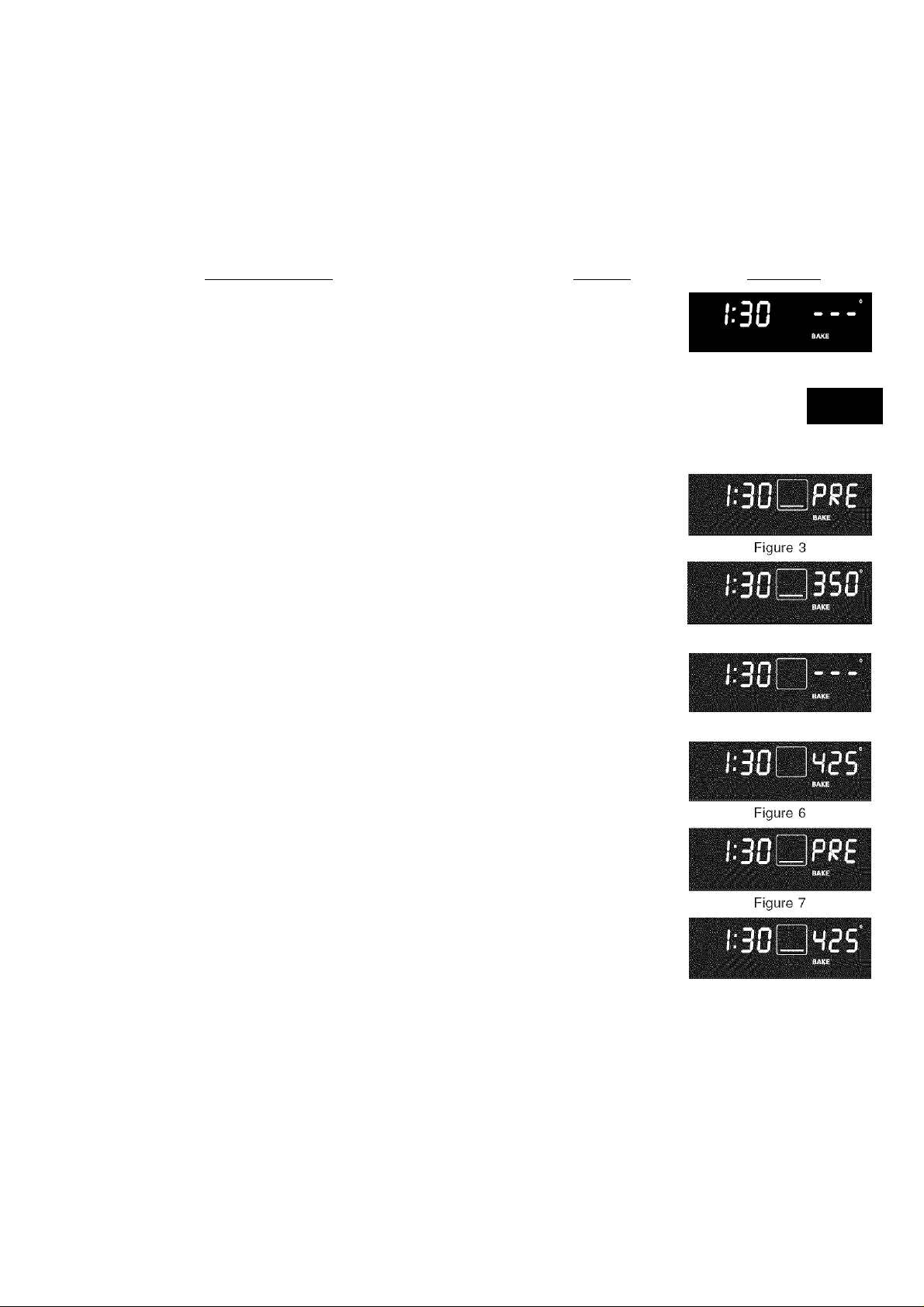

Setting Preheat

The PREHEAT pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature
and then indicate when to place the food in the oven. Use this feature when recipes call for preheating. Preheating is

not necessary when roasting or cooking casseroles. The oven can be programmed to preheat at any temperature
between 170°F to 550°F.

INSTRUCTIONS

To set the Preheat temperature (example: 350°F)

1. Arrange the interior oven racks.

2. Press and "BAKE" will appear in the display

(Figure 1).

3. Press (D CD ® " will appear in the display

(Figure 2).

4. Press (Sta^. "PRE" and "BAKE" will appear in the display as
the oven heats and reaches 350°F (Figure 3).

Note: After the oven has reached the desired temperature (this
example, 350°F) the control will beep and the "PRE" light will turn

off and oven temperature will be displayed (Figure 4). If you

missed hearing the beep, you can tell that the oven has reached

preheat temperature if you see the oven temperature showing in
the oven display. Once the oven has preheated, place food in the
oven. The "BAKE" light will stay on.

Press when baking is complete or to cancel the preheat

process.

PRESS DISPLAY

CDCDCD

Figure 1

3S0‘

Figure 2

Figure 4

To change Preheat temperature while oven is

preheating (example: changing from 350°F to 425°F)

If it is necessary to change the preheat temperature while the oven

is preheating to the original temperature:

1. While preheating, press and "BAKE" will appear
in the display (Figure 5)

2. Enter the new preheat temperature. Press CD CD CD

"425°" and "BAKE" will appear in the display (Figure 6).

3. Press "PRE" and "BAKE" will appear in the display as
the oven heats to 425°F (Figure 7). A beep will sound once the

oven temperature reaches 425°F and the display will show

"425°" and "BAKE (Figure 8).

4. When baking is complete press

Figure 5

CD CD CD

Figure 8

19

Setting Oven Controls (con’t)

Setting Bake

The BAKE (ba^ pad controls normal baking. If preheating is necessary, referto the PREHEAT Q hem} feature for
instructions. The oven can be programmed to bake at any temperature from 170° F to 550° F.

INSTRUCTIONS

To set the Bake Temperature (example: 350°F)

1. Arrange interior oven racks and place food in oven.

2. Press - - °" will appear and "BAKE" will flash in the
display (Figure 1).

3. Press (3) CD CD 2). "BAKE " will continue to

flash and "350°" will appear in the display.

4. Press (STA^. A beep will sound once the oven temperature

reaches 350° F and the display will show "350°" and "BAKE"
(Figure 3).

Pressing will cancel the Bake feature at any time.

To change the Bake Temperature (example: changing from 350°F to 425°F)

1. After the oven has already been set to bake at 350°F and the
oven temperature needs to be changed to 425°F, press (^bak^

(Figure 4) and "— ° " will appear and "BAKE" will flash in

the display.

2. Press CD CD CD (f^'aure 5). BAKE " will continue to

flash and "425°" will appear in the display.

3. Press C^art^

"BAKE" and "425°" will stay in the display (See

PRESS

<Dd) Co)

(£)CDCD

DISPLAY

Figure 1

350”

Figure 2

350'

Figure 3

Figure 4

y?5'

Figure 5

435"

Figure 6).

Note: If the oven was recently heated from prior cooking and
has remaining heat, the bake element symbol may not show in

the display immediately.

Figure 6

20

Setting Oven Controls (confd)

Oven Baking Information

For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to
preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned
appliance. Referto “Adjusting the Oven Temperature” section.

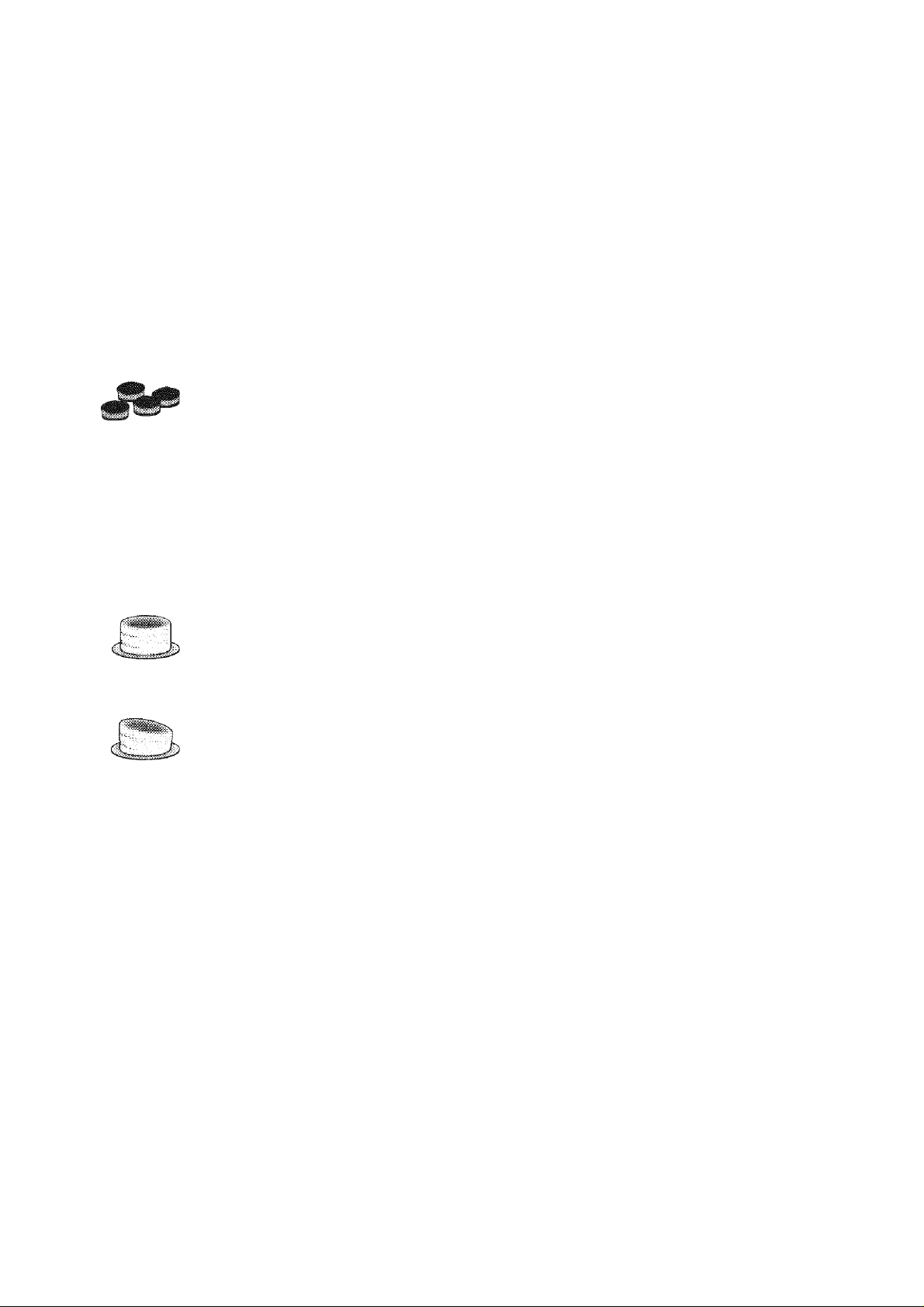

Baking problems and solutions

Baking Problems Causes Corrections Cookies and

biscuits burn on

the bottom.

Cookies and biscuits put into
the oven before the preheating
time is completed.
Oven rack overcrowded.

Dark pan absorbs heat too fast.

Allow oven to preheat to the selected temperature
before placing food in oven.
Choose pan sizes that will permit 2" to 4" (5.1 cm to

10.2 cm) of air space on all sides when placed in the

oven.
Use a medium-weight aluminum baking sheet.

Cakes too dark on

top or bottom.

Cakes not done in

the center.

Cakes not level. • Range not level.

Foods not done

when cooking time

is up.

Cakes put into the oven before
preheating time is completed.
Oven rack position too high or
low.
Oven too hot.

• Oven too hot.

• Incorrect pan size.

• Pan not centered in the oven.

• Pan too close to oven wall or
rack overcrowded.

• Pan warped.

Oven too cool.

Oven overcrowded.
Oven door opened too
frequently.

Allow oven to preheat to the selected temperature
before placing food in the oven.
Use proper rack position for baking needs.

Set oven temperature 25°F/12°C lower than
recommended.

Set oven temperature 25°F/12°C lower than
recommended.
Use pan size suggested in recipe.
Use proper rack position and place pan so there is 2"
to 4" (5.1 cm to 10.2 cm) of space on all sides of pan.

Place marked glass measuring cup filled with water
on the center of the oven rack. If water level is
uneven, refer to the installation instructions tor
leveling the appliance.
Be sure to allow 2" to 4" (5.1 cm to 10.2 cm) of
clearance on all sides of each pan in the oven.
Do not use pans that are dented or warped.

Set oven temperature 25°F /12°C higher than
suggested and bake for the recommended time.
Be sure to remove all pans from the oven except the
ones to be used for baking.
Open oven door only after shortest recommended
baking time.

21

Setting Oven Controls (confd)

Setting Convection Bake

The CONVECTION BAKE pad controls the Convection Bake feature.

Use the Convection Bake feature when cooking speed is desired. The oven can
be programmed for Convection baking at any temperature between 300“ F (149“
C) to 550“ F (288“ C).

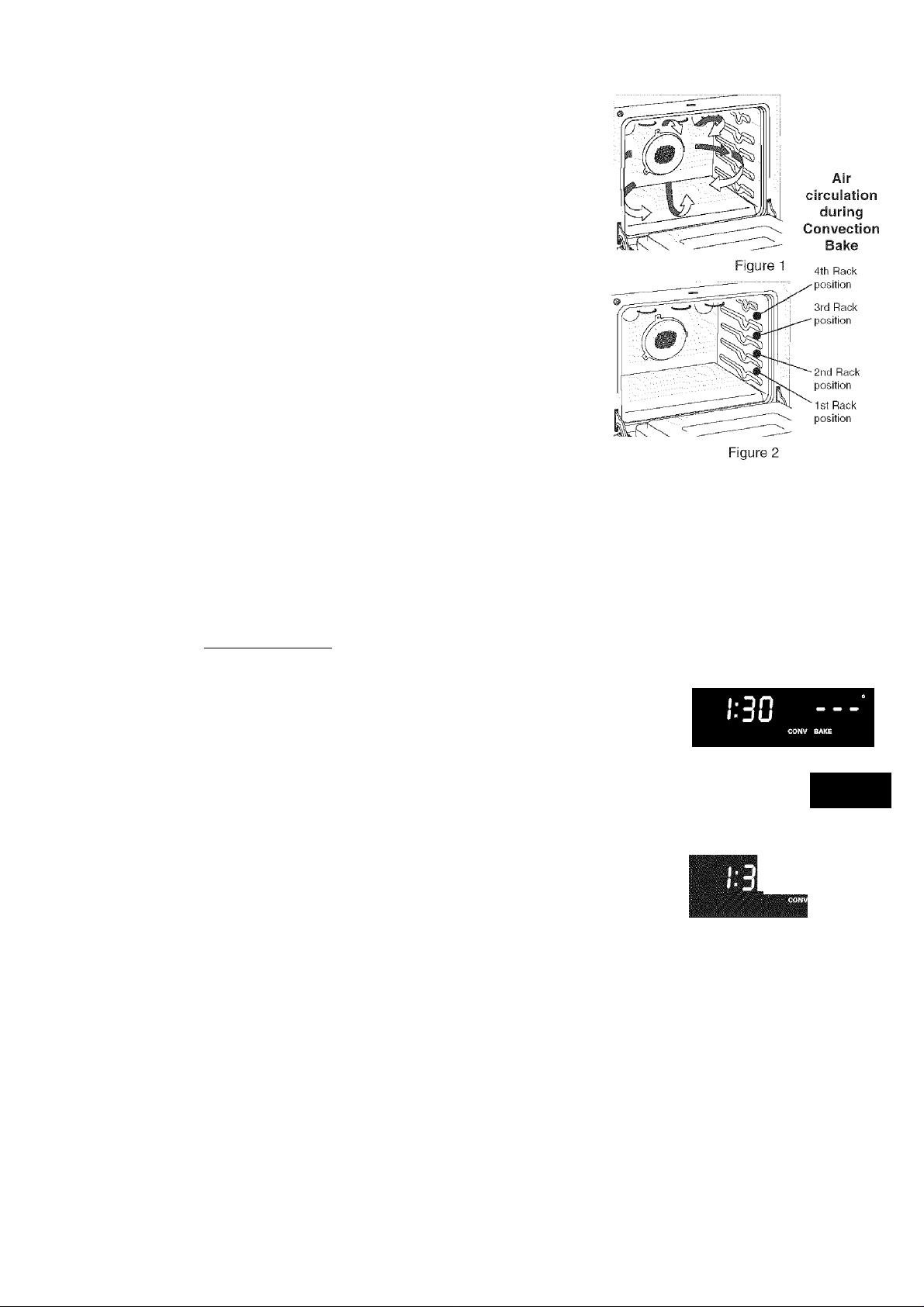

Convection baking uses a fan to circulate the oven's heat evenly and
continuously within the oven (See Figure 1 ). This improved heat distribution
allows for fast, even cooking and browning results. It also gives better baking

results when using 2 or 3 racks at the same time. Breads and pastries brown
more evenly. Convection bake cooks most foods faster, more evenly and at
lower temperatures than conventional bake.

General Convection Bake Instructions

1. Convection Bake Time reductions will vary depending on the amount and
type of food to be cooked. Cookies and biscuits should be baked on pans
with no sides or very low sides to allow heated air to circulate around the
food. Food baked on pans with a dark finish will cook faster.

2. The oven control automatically reduces the convection bake temperature
called for in a conventional bake recipe.

3. Preheating is not necessary when cooking casseroles with Convection Bake.

4. When using Convection Bake with a single rack, place oven rack in position
2 or 3. If cooking on multiple racks, place the oven racks in positions 2 and

4.

5. Cakes have better results when baked using the Food Categories CAKES pad.

Benefits of Convection Bake:

—Some foods cook up to 30%

faster, saving time and energy.
—Multiple rack baking.
—No special pans or bakeware

needed.

INSTRUCTIONS

To set the oven for Convection Bake (example: conventional baking recipe calls for 350°F)

1. Arrange interior oven racks and place food in oven.

2. Press (ba^- "CONV BAKE" will flash and will appear

in the display (Figure 3).

3. Press (^'3'^ CE) BAKE" will keep flashing

and "350°" will appear in the display (Figure 4).

4. Press (|ta^."CONV BAKE" and the oven temperature
adjustment will appear in the display (for this example it is

325°F). A beep will sound once the adjusted oven temperature
is reached. The display will show "350“", "CONV BAKE" and
the fan icon (Figure 5).

Note: The oven icon will show a rotating fan within the square.
This rotating fan icon indicates when the Convection Fan is
operating (See rotating fan in Figure 5).

Press to stop Convection Bake or cancel Convection Bake at
any time.

PRESS DISPLAY

(DCD®

Figure 3

350”

Figure 4

0@I335"

Figure 5

Note: As soon as the pad is pressed the set temperature
will be decreased by 25“F (13“C).

22

Setting Oven Controls (confd)

Setting Convection Convert Feature

The COTrarPsd is used to automatically convert a standard baking recipe for convection baking. When set properly, this

feature is designed to display the actual converted (reduced) temperature in the display.

Convection Convert may ONLY be used with a Bake, Timed Bake, Delayed Start or Delayed Timed Bake setting. When

used with a Timed Bake, a Delayed Timed Bake setting, the Convection Convert feature will display a “CF” for check

food when the bake time is 75% complete (see Figure 4). At this time the oven control sound 3 beeps at regular

intervals until baking has finished. When the bake time has completely finished the control will display “End” and will

sound 3 beeps every 30 seconds until the (Mffl is pressed (see Figure 5).

INSTRUCTIONS PRESS DISPLAY

Using Convection Convert (Bake) feature to

automatically adjust oven temperature (example: below

when setting oven for 350T)

1. Arrange interior oven racks and place food in oven.

2. Press (B^

3. Press C^- "BAKE" will flash and "350°" will appear (DCD®
in the display (Figure 2). If a Timed Bake or a Delayed Timed Bake

is desired, enter time now.

- - will appear in the display (Figure 1).

Figure 1

JU JJU

Figure 2

4. Press "CONV", "BAKE" and the oven temperature

adjustment will appear in the display (for this example 325°F). A

beep will sound once the adjusted oven temperature is reached. The

display will show "325°", "CONV", "BAKE" and the fan icon (Figure

3).

Note: The oven icon will show a rotating fan within the square. This
rotating fan icon indicates when the Convection Fan is operating (See
rotating fan in Figure 3).

Press to cancel Convection feature at any time.

Note: The minimum amount of cook time using the Convection Convert
feature with a Timed Bake or a Delay Timed Bake is 20 minutes.

Convert

:30S3?S’

Figure 3

iiliKlII.

Figure 4

2^30 End

Figure 5

23

Setting Oven Controls (confd)

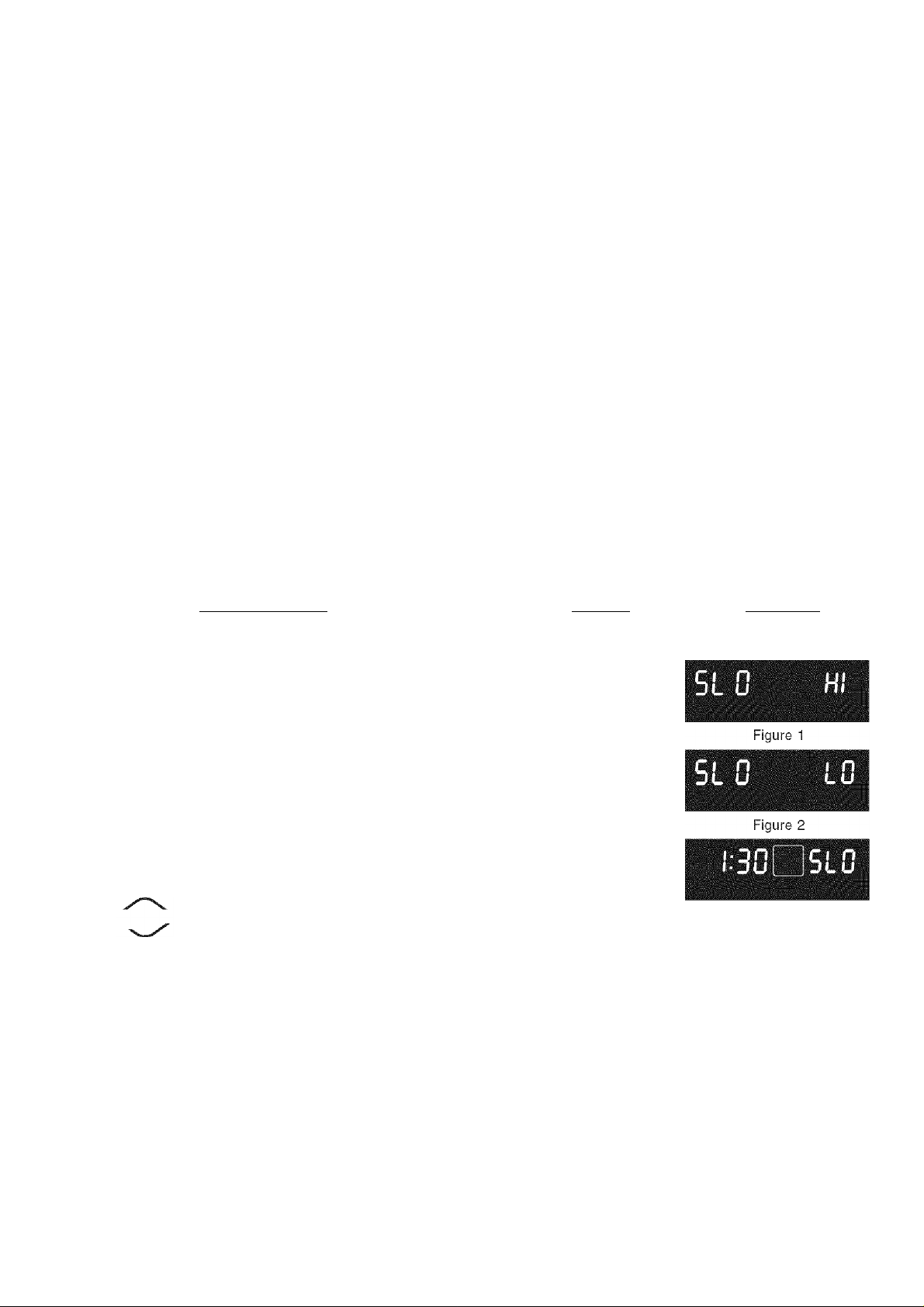

Setting the Slow Cook Feature

The SLOW COOK QSy pad is used to activate this feature. The Slow Cook feature may be used to cook foods more
slowly, at lower oven temperatures and provides cooking results much the same way as a Slow Cooker or Crock-Pot.

The Slow Cook feature is ideal for roasting beef, pork & poultry. Slow Cooking meats may result in the exterior of
meats becoming dark but not burnt. This is normal.

There are 2 settings available, high (HI) or low (LO). The high setting is best for cooking foods from a 4 to 5 hour time
period. The low setting is best for cooking foods from a 8 to 9 hour time period. The maximum cook time for the Slow
Cook feature is 12 hours unless the oven control has been changed to the Continuous Bake mode. This feature may be
used with the additional settings of a Timed Bake or a Delayed Start (Delayed Timed Bake).

Some tips you should review for best possible results using Slow Cook feature:

Completely thaw all frozen foods before cooking with the Slow Cook.

When using a single rack, place in position 2 or 3 (see page 12).

Position multiple racks to accommodate size of cooking utensils when cooking multiple food items.
Do not open the oven door often or leave the door open when checking foods. If the oven heat escapes often, the
Slow Cook time may need to be extended.
Cover the foods to keep them moist or use a loose or vented type cover to allow foods to turn crisp or brown.
Roasts may be left uncovered so browning can occur. Cook times will vary; depending on the weight, fat content,
bone & the shape of the roast.
Use the recipe’s recommended food temperature and a food thermometer to determine when the food is done.
Preheating the oven will not be necessary when using the Slow Cook feature.

Add any cream or cheese sauces during the last hour of cooking.

INSTRUCTIONS

To Program the Oven to begin baking with the Slow Cook feature

1. Place the food in the oven.

2. Press "SLO" and "HI" will appear in the display (Figure

1) (if no further keypads are touched within 25 seconds the
request for Slow Cook will clear). The Slow Cook feature will be
set to the high setting. This setting is best for cooking foods
from a 4 to 5 hour time period.

3. If a low setting is desired, press a 2nd time to set the
Slow Cook feature with a low setting. "SLO" and "LO" will

appear in the display (Figure 2). This setting is best for cooking
foods from a 8 to 9 hour time period.

4. Press QtartO. The Slow Cook feature will activate (Figure 3).

5. If desired, add any Timed Bake or Delayed Start settings at
this time.

6. To cancel the Slow Cook feature press (ggS at any time.

PRESS DISPLAY

Figure 3

24

Setting Oven Controls (cont’d)

Setting Cook Time for Timed Bake orTimed Convection Bake

The BAKE (Bake) or CONVECTION BAKE Í and OVEN COOK TIME
The automatic timer of the Timed Bake feature will turn the oven OFF after cooking for the desired amount of time you

s©l©ct

' INSTRUCTIONS PRESS DISPLAY

To program the oven to begin baking immediately and to shut off automatically (example: BAKE at 350T for 30 minutes)

1. Be sure the clock is set for the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

OVEN Cook

pads control the Timed Bake feature.

Figure 1

3. Press (ВАКу, will appear and "BAKE" will flash in the
display (Figure 1).

4. Press CDd)® (Figure 2). "BAKE" will continue to

flash and "350“" will appear in the display.

5. Press C^TA^. "BAKE" and "350“" will appear in the display
(See Figure 3).

6. Press "TIMED" will flash; "BAKE", "0:00" and "350“"

will appear in the display (Figure 4).

7. Enter the desired baking time by pressing (T) (5) TIMED"
will continue to flash and "BAKE", "30:00" and "350“" will stay in

the display (Figure 5). Note: Baking time can be set for any
amount of time between 1 minute to 11 hours and 59 minutes.

8. Press <ST^. Both the "TIMED" and "BAKE " icons will remain

on in the display (Figure 6). Once the Timed Bake feature has

started, the current time of day will appear in the display.

Note: After the Timed Bake feature has activated, press to

display the bake time remaining in the Timed Bake mode. Once
Timed Bake has started baking, a beep will sound when the oven
temperature reaches the set temperature.

(DCD®

OVEN Cook

(D®

П‘ПП

UULf

Л-ЛП

1

u-uu

3SG

Figure 2

350‘

Figure 3

350‘

Figure 4

3S0'

Figure 5

350’

Figure 6

Press when baking has finished or at any time to cancel the

Timed Bake feature.

When the timed bake finishes:

1. "End", "TIMED", "BAKE" and the time of day will show in display.
The oven will shut off automatically (Figure 7).

2. The control will beep 3 times. The control will continue to beep 3
times every 30 seconds until is pressed.

NOTE: Remember that the lowest BAKE temperature is 170“F and that the lowest CONVECTION BAKE temperature you

can set is 325“F (300“F will be the oven temperature adjusted).

A CAUTION

timer when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk,

eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven
tor more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled
food can result in sickness from food poisoning.

I Use caution with the TIMED BAKE or DELAY START (Delayed Timed Bake) features. Use the automatic

25

Figure 7

Setting Oven Controls (cont’d)

Setting Delayed Start Bake or Convection Bake

The BAKE (b^ or CONVECTION BAKE (b^- OVEN COOK TIME and DELAY START pads control
the Delayed Time Bake feature. The automatic timer of the Delayed Time Bake will turn the oven on and off at the time

you select in advance. Note: If your clock is set for normal 12 hour display mode the Delayed Timed Bake or Delayed
Timed Convection Bake cycle can never be set to start more than 12 hours in advance. To set for Delayed Timed Bake
or Delayed Timed Convection Bake 12-24 hours in advance set the control for the 24 hour time of day display mode.

INSTRUCTIONS PRESS DISPLAY

To program the oven for a delayed BAKE start time and to shut off automatically (example: baking at 350°F, starting at 5:30 and baking for 30 minutes)

1. Be sure that the clock is set with the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

Press (ВАКу. will appear and "BAKE" will flash in the
display (Figure 1).

Press ® CD CD ('"'sure 2). BAKE " will continue to flash (Dd)®

and "350°" will appear in the display.
Press (STA^. "BAKE" and "350°" will stay in the display. (See

Figure 3).

6.

Press "TIMED" will flash, "0:00" will appearand "BAKE
and "350°" will remain in the display (Figure 4).

7.

Enter the desired baking time using the number pads by pressing

CD CD will flash; BAKE", "30:00" and "350°" will

appear in the display (Figure 5). Note: Baking time can be set for
any amount of time from 1 minute to 11 hours and 59 minutes.

Press "TIMED", "BAKE" and "350°" will remain in the

display (Figure 6).

9. Press

start time using the number pads CDd)® (Figure 7).

10. Press When Delayed Time Bake starts, the set oven
temperature will disappear, "DELAY", "BAKE" and the current

time of day will appear in the display (Figure 8).

11. When the desired start time is reached, "350°" appears in display

and “DELAY" disappears. Oven starts to bake at the previously
selected temperature (Figure 9).

Note: Once Delayed Time Bake has started, press to display

the bake time remaining . Once the Delayed Timed Bake has started
baking, a beep will sound when the oven temperature reaches the set
temperature.

"DELAY" will flash in the display. Enter the desired

Oven Cook

V Time J

(D®®

Oven Cook

V. Time J

nnn

и ÜU

1-ЗП

hJU

5:30

IMED

ton
lOU

tMED ОШЛУ BAKE

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

.........

Figure ($

Figure 7

Figure 1Ì

350“

350

3Sff

350’

J350

BAKE

] 350

ВЛКЕ

1350'

Press when baking has completed or at any time to cancel the
Delayed Time Bake feature.

When the set bake time runs out:

1. "End" will appear in the display and the oven will shut off

automatically (Figure 10).

2. The control will beep 3 times. The control will continue to beep 3
times every 30 seconds until is pressed.

26

Figure 9

Figure 10

Setting Oven Controls (cont’d)

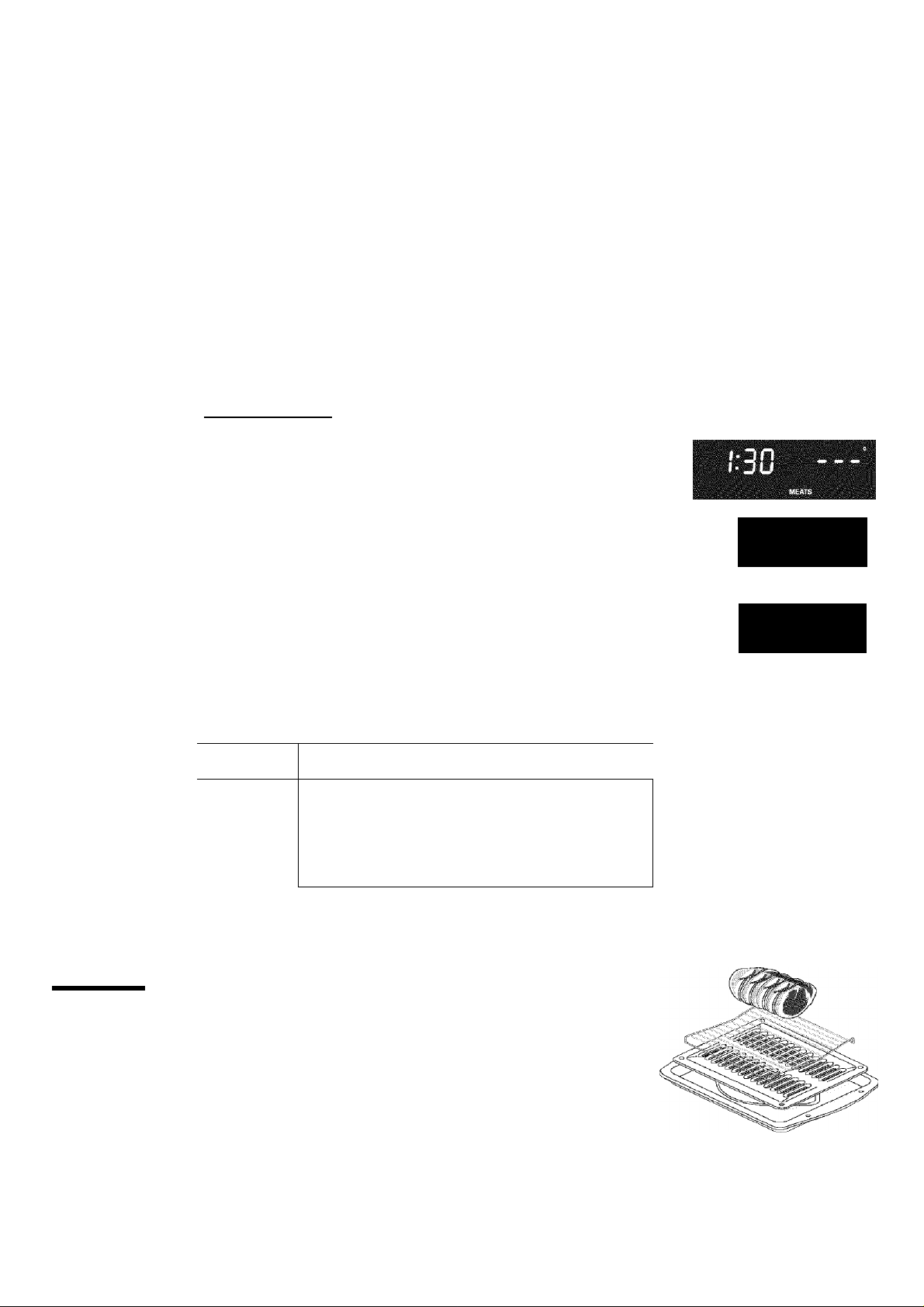

Setting the Food Categories Feature:

The MEATS CAKES (CA^and BREADS ^REA^ pads in the Food Categories feature are used when
cooking certain food items. These pads have been designed to give optimum cook performance for the foods selected

in each category.

The MEATS pad combines a cook cycle with the convection fan and element to roast meats and poultry. Preheating is

not necessary for meats and poultry. Heated air circulates around the food from all sides, sealing in juices and flavors.
Foods are crispy brown on the outside while staying moist on the inside.

The CAKES pad provides a preheat with a gentle cycling of heat giving cakes more volume and allowing delicate foods
to cook more evenly.

The BREADS pad adds a preheat feature to the bake cycle to thoroughly heat the oven from top to bottom to give more

evenly browned foods. Refer to (Figure 4) for foods to cook in each category.

INSTRUCTIONS

To set the Food Categories feature (example for

Meats to cook at 350°F):

1. Arrange interior oven racks and place food in oven.

2. Press (Meatj) . "MEATS" will flash and "—will be displayed

(See Figure 1).

3. Press (2) CE) Cl) " flash and "350“"
will appear in the display (See Figure 2).

4. Press "MEATS" and "350“" will appear in the
display (See Figure 3). The convection fan icon will come on.

Press to stop cooking Meats, Cakes or Breads, or to cancel

cooking Meats, Cakes or Breads at any time.

Recommended

foods to be
cooked in each

category

Figure 4

Meats

i Meat

1 Poultry

Pies (fresh & frozen) : Biscuits

Cakes i Breads

Cakes , Breads

Brownies Rolls

Baked Custards : Muffins

Cheesecake ^ Cornbread

PRESS DISPLAY

Figure 1

■ao 3si

(T)CDCD

Figure 2

iillsiio'

Figure 3

.................................

Roasting Instructions for Meats Pad:

When using the Meats pad for roasting, use the broiler pan and insert along with the

roasting rack. The broiler pan will catch grease spills and the insert will help prevent

grease spatters. The roasting rack will allow the heat to circulate around the meat.

ik CAUTION

grease spattering, DO NOT use the roasting rack when broiling.

1.

Place oven rack on bottom or next to the bottom rack position. See Arranging
Oven Racks in this Use & Care Guide.

2.

Place the insert in the broiler pan. The roasting rack fits on the insert allowing the
heated air to circulate under the food for even cooking and helps to increase
browning on the underside. Make sure the roasting rack is securely seated on the
insert in the broiler pan . DO NOT use the broiler pan without the insert. DO NOT

cover the insert with aluminum foil.

3.

Position food (fat side up) on the roasting rack (See Figure 5).

4.

Place the broiler pan on the oven rack.

! To prevent food from contacting the broil element and to prevent

27

Figure 5

Setting Oven Controls (confd)

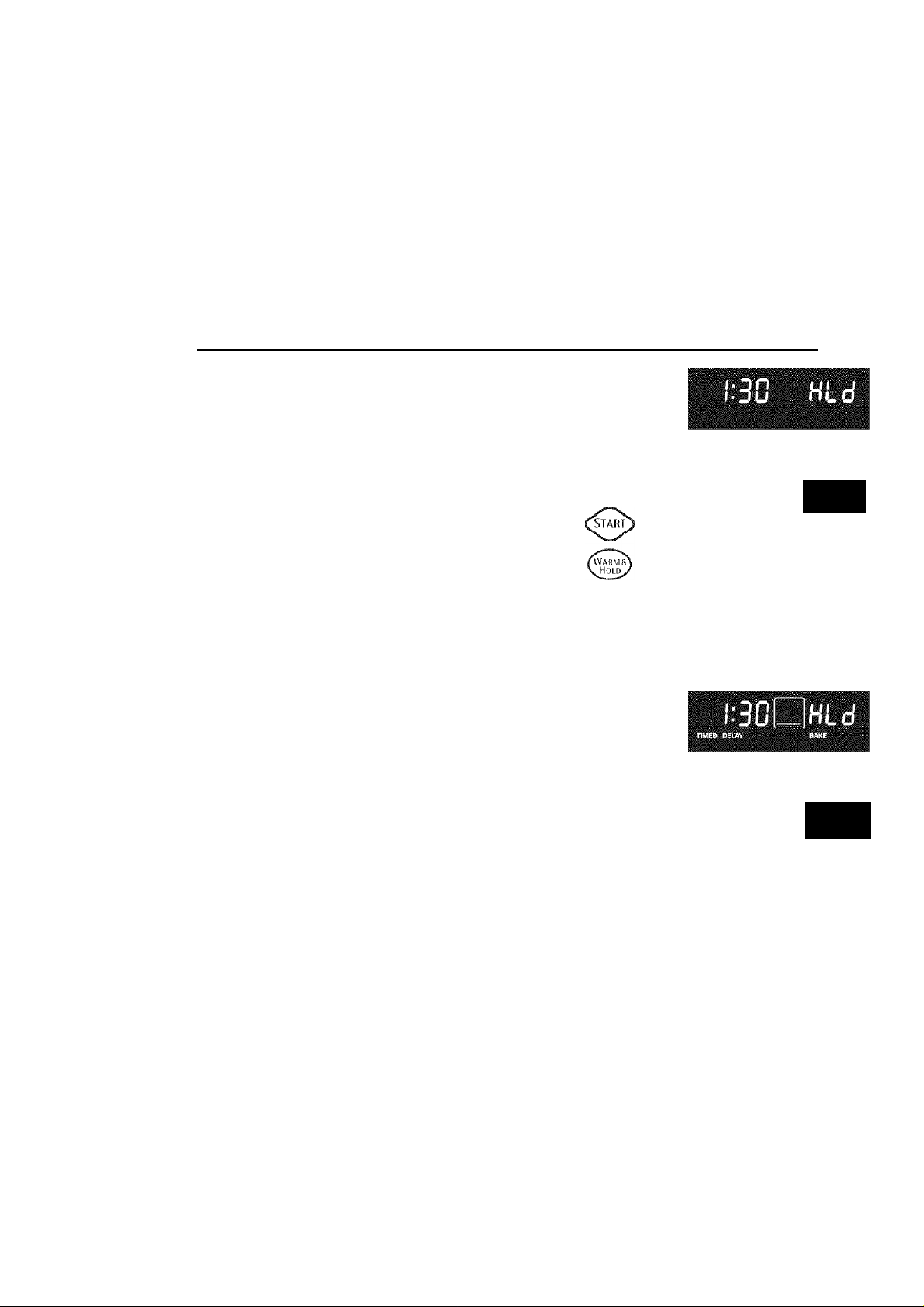

Setting the Warm & Hold^“ Feature

The Warm & Hold pad turns ON the Warm & Hold feature and will maintain an oven temperature of 170°F

(77°C). The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished.
After 3 hours the Warm & Hold feature will shut the oven OFF. The Warm & Hold feature may be used without any other
cooking operations or can be used after cooking has finished using BAKE, CONVECTION BAKE .

The Warm & Hold feature may be used with TIMED BAKE if you wish to have the Warm & Hold feature turn ON
automatically when cooking has finished. The Timed Bake features require you to set start time and the amount of
cooking time. With this information the control can calculate the time when cooking will complete and can then start the
Warm & Hold feature automatically.

INSTRUCTIONS PRESS DISPLAY

To set Warm & Hold

1. Arrange interior oven racks and place food in oven. If the food is
already in the oven go to step 2.

Prac-Q f Warms'

riw&ij V Hold

Note: If no pad is touched within 25 seconds the request to turn

ON Warm & Hold feature will be cancelled.

HLd" will appear in the display (Figure 1).

3. Press Qtaro. The oven icon will appear in the display (Figure 2).

4. To turn the Warm & Hold OFF at any time press or
Note: The Warm & Hold feature will automatically turn OFF after

3 hours.

Figure 1

HLd

Figure 2

To set Warm & Hold to turn ON automatically

1. Arrange interior oven racks and place food in oven. Set the oven
properly for Timed Bake or Delayed Timed Bake.

2. "HLd" will appear in the display (Figure 3).Press

Note: If no pad is touched within 25 seconds the request to turn
ON Warm & Hold feature and all functions previously programmed
will be cleared.

3. Press C^TA^. "HLd" will disappear and the temperature will be
displayed (Figure 4). The Warm & Hold mode is set to turn ON

automatically after Timed Bake has finished (See Figure 1).

4. To turn the Warm & Hold feature OFF at any time press
again.

Note: The Warm & Hold feature will automatically turn OFF after
3 hours.

Pressing at any time will stop all oven baking operations.

Figure 3

350

Figure 4

28

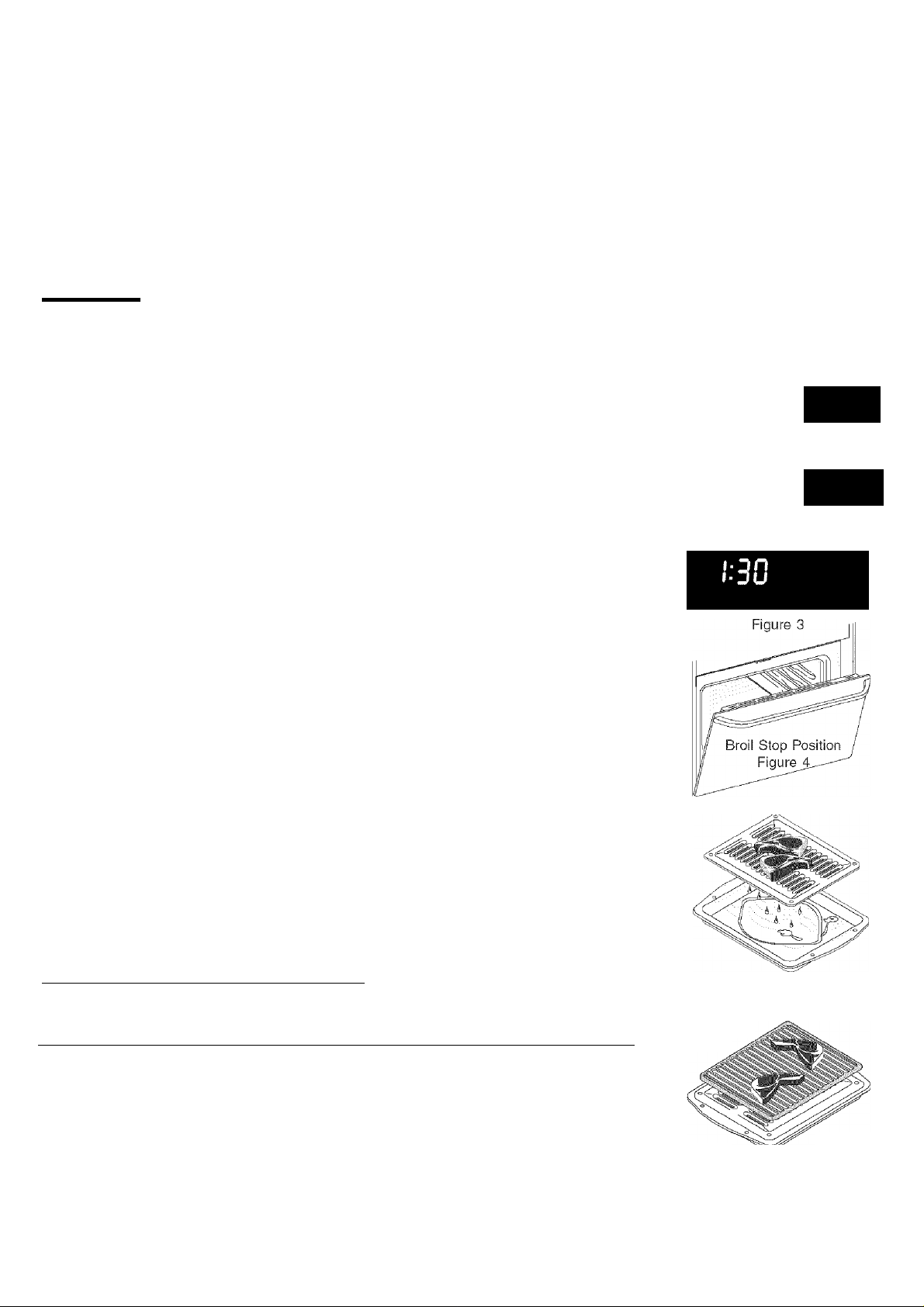

Setting Oven Controls (cont’d)

Setting Broil

The (BRoiy pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler tor even coverage. The
Broil feature is preset to start broiling at 550°F; however, the Broil feature temperature may be set between 400°F and 550°F. For

optimum browning results when broiling, preheat the broil element for 3 to 4 minutes. This appliance includes a Searing Grill for
searing meats (Figures). The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from
the high heat of the oven broiler. DO NOT use the broil pan without the insert; always place insert on the broiler pan with ribs and
slots down to allow grease to drip into pan(See Figure 5). DO NOT cover the broil pan insert with foil. The exposed grease
could catch fire.

ik WARNING

baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water
can cause a grease fire to spread and cause personal injury.

To set the oven to broil at the default setting (550°F)

1.

Place the broiler pan insert (ribs down) on the broiler pan. Then
place the food on the broiler pan insert. DO NOT use the broiler pan

without the insert. DO NOT cover the broiler insert with foil. The

exposed grease could ignite.

2.

Arrange the interior oven rack and place the broiler pan on the rack.

Be sure to center the broiler pan directly underthe broiler element.

Make sure the oven door is in the broil stop position (See
Figure 4).

i Should an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw

INSTRUCTIONS PRESS DISPLAY

550'

Figure 1

55 0

Figure 2

3.

Press (BRoiy. "BROIL" will flash and "550°" will appear (Figure 1 ).

4.

If a lower broil temperature is desired (minimum broil temperature
setting is 400°F), press the desired temperature before continuing to
step 5.

5. Press <|sta^. The oven will begin to broil. "BROIL" and "550°" will
appear in the display (Figure 2).

6. Broil on one side until food is browned; turn and cook on the second

side. Season and serve. Note: Always pull the rack out to the stop
position before turning or removing food.

7. To cancel broiling or if finished broiling press (Figure 3).

Broiling Times and Searing Grill

Use the following table for approximate broiling times. Increase or decrease broiling times, or
move the broiling pan to a different rack position to suit for doneness. If the food you are
broiling is not listed in the table, follow the instructions provided in your cookbook and watch the
item closely. Use the Searing Grill for meats and steaks if desired. Before placing the meat, be
sure to heat the Searing Grill using Broil for 10 minutes. Cook times should be reduced 1-2
minutes per side when cooking with the Searing Grill. Place Searing Grill on top of Broiler Pan
and insert for meats and steaks (See Figure 6).

Electric Range Broiling Table Recommendations

Food Rack Temp Cook Time (in minutes)
Item Position Setting 1st side 2nd side Doneness

Steak 1" thick 3rd 550° F 6:00 4:00 Rare

3rd 550° F 7:00 5:00 Medium
Pork Chops 3/4“ thick 3rd 550° F 8:00 6:00 Well
Chicken - Bone In 2nd 450° F 20:00 10:00 Well
Chicken - Boneless 3rd 450° F 8:00 6:00 Well
Fish 3rd 500° F 13:00 n/a Well
Shrimp 2nd 550° F 5:00 n/a Well
Hamburger 1" thick 3rd 550° F 9:00 7:00 Medium

2nd 550° F 10:00 8:00 Well

29

Searing

Grill

Broil Pan

& insert

Figure 5

Figure

Setting Oven Controls (confd)

To Set the Sabbath Feature {for use on the Jewish Sabbath & Holidays)

The ‘v^jiySy* COOK TIME and Qta^ DELAY START pads are used to set the Sabbath feature. The Sabbath feature may

only be used with the pad. The oven temperature may be set higheror lower after setting the Sabbath feature (the
oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly

show or provide any audible tones indicating whether the change occurred correctly. Once the oven is properly set using
Bake with the Sabbath feature active, the oven will remain continuously ON until cancelled. This will override the factory
preset 12-Hour Energy Saving feature.

If the oven light will be needed during the Sabbath, press v-"^”V before activating the Sabbath feature. Once the oven light
is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is turned OFF. If the

oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.
IMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the

Sabbath feature is active. ONLY the following key pads will function after setting the Sabbath feature; to

/'OvenN

On/Off

' Bake). CStartI & ALL OTHER KEYPADS will not function once the Sabbath feature is properly activated.

START) & @

INSTRUCTIONS PRESS DISPLAY

To Program the Oven to Begin Baking Immediately & activate the Sabbath feature (example: baking at 350°F)

1.

Be sure that the clock is set with the correct time of day.

2.

Place the food in the oven.
Press (BAKE). "

3.

4.

Within 5 seconds, press the (T),(T).Co). The display will CDCD®

show "350°F (177°C)."

5.

Press C^T^RT) (Figure 1).

6.

If you desire to set the oven control for a Timed Bake or Delayed
Start Bake do so at this time. If not, skip this step and continue to
step 6. Refer to the Timed Bake (complete steps 6-8) / Delayed
Start Bake (complete steps 6-10) section for complete
instructions. Remember the oven will shut down after using Timed
Bake or Delay Start Bake and therefore may only be used once

during the Sabbath/Jewish Holidays. The maximum Delayed Start

Bake time is 11 hours & 59 minutes.

7.

The oven will turn ON and begin heating.

-------------

°" appears in the display. ( bake ’

350'

Figure 1

Figure 2

8.

Press and hold both the SBid
seconds. SAb will appear in the display (figure 2). Once SAb appears

in the display the oven control will no longer beep or display any

further changes and the oven is properly set for the Sabbath feature.

Note: You may change the oven temperature once baking has started by pressing (ba^, the numeric key pads for the

temperature you want (example for 425“C press C±)(D(D) and then pressing TWICE (for Jewish

Holidays only). Remember that the oven control will no longer beep or display any further changes once the oven is
set for the Sabbath feature.

9.

The oven may be turned OFF at any time by first pressing

pad (this will turn the oven OFF only). To turn OFF the Sabbath

feature press and hold both the and pads for at

least 3 seconds. SAb will disappear from the display (Figure 3).

pads for at least 3

Figure 3

30

Setting Oven Controls (confd)

To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays) (continued)

Should you experiencea powerfailure or interruption, the oven will shutoff. When power returns, the oven remembers
that it is set to SAb and will not turn back on automatically. If your food was nearly fully cooked, you may allow the
trapped heat in the oven to finish the cooking process. Otherwise, you should remove the food when the power failure
occurs, because you may only start the oven once during the Sabbath/Jewish Holidays. After the Sabbath observance

turn OFF the Sabbath feature. Press and hold both the and (jj^ pads for at least 3 seconds. SAb will
disappear from the display and the oven may be used with all normal functions. For further assistance, guidelines for

proper usage, and a complete list of models with the Sabbath feature, please visit the web at http:Wwww.star-k.org.

To Set the Recipe Recall Feature

This feature will ONLY recall a recipe for Bake, Convection Bake, Convection Roast, Meats, Cakes, Breads, Slow

Cook orTimed Bake. This feature will not work with any other function including a Delayed Timed Bake, a Clean Cycle
or a Broil setting. You can only set one recipe for recall. For a different recipe you have to reprogram the oven.

INSTRUCTIONS PRESS DISPLAY

To Program the Oven to Begin Baking Immediately and record a

Recipe (example: Baking at 350°F for 30 minutes)

1. Place the food in the oven.

2. Press (ba^. "

display (Figure 1).

3. Within 5 seconds, press CD-CD'®. The display will

show"350“F(177°C)(Figure2).

4. Press The oven icon will appear in the display (See

Figures).

5. Press "TIMED" will flash; "0:00" will appear in the
display (Figure 4).

6. Enter the time by pressing (CD CD " will continue

to flash and BAKE", "30:00 " and ""350”"" will stay in the display

(Figure 5).

7. Press and hold C^TARp pad for at least 3 seconds or until a
beep sounds. The beep indicates that this recipe has been

recorded for future recall. Now each time you press the Bake
pad, this recipe will be recalled. Note: It is not possible to erase

the recipe, but you can overwrite it with another temperature and
time.

To begin Baking with the stored Recipe

1. Place the food in the oven.

-----------------

“" appears and "BAKE " will flash in the

CD CD-®

OVEN Cook

V^TlME ^

®®

"rthiEB:TL :y: :y: :y: c L Y-Yic é:;í :-4c

Figure 1

Figure 2

Figure 3

Figure 4

liiiB

Figure i5

¡liiliiii

Figure <8

350"

350"

350"

J350

350

2. Press (b^. "TIMED ", "350”" will appear and BAKE" will flash
in the display (Figure 6).

3. Press"BAKE" will stop flashing and remain on, and

the oven icon will appear in the display (Figure 7). The oven will

Immediately begin to cook with the stored recipe (in this
example 350°F for 30 minutes).

31

Start,

Uso

Figure 7

Setting Warmer Drawer Controls

Arranging Warmer (Warm & Ready^“) Drawer Rack Positions

The rack can be used in 2 ways:

• In the upright position to allow low profile food items to be placed both under and on top of the rack (for example,
rolls or biscuits on top of the rack and a casserole dish underneath).

• In the downward position to allow you to place light weight food items and empty dishware (for example, rolls or
pastries and dinner plates) on the rack.

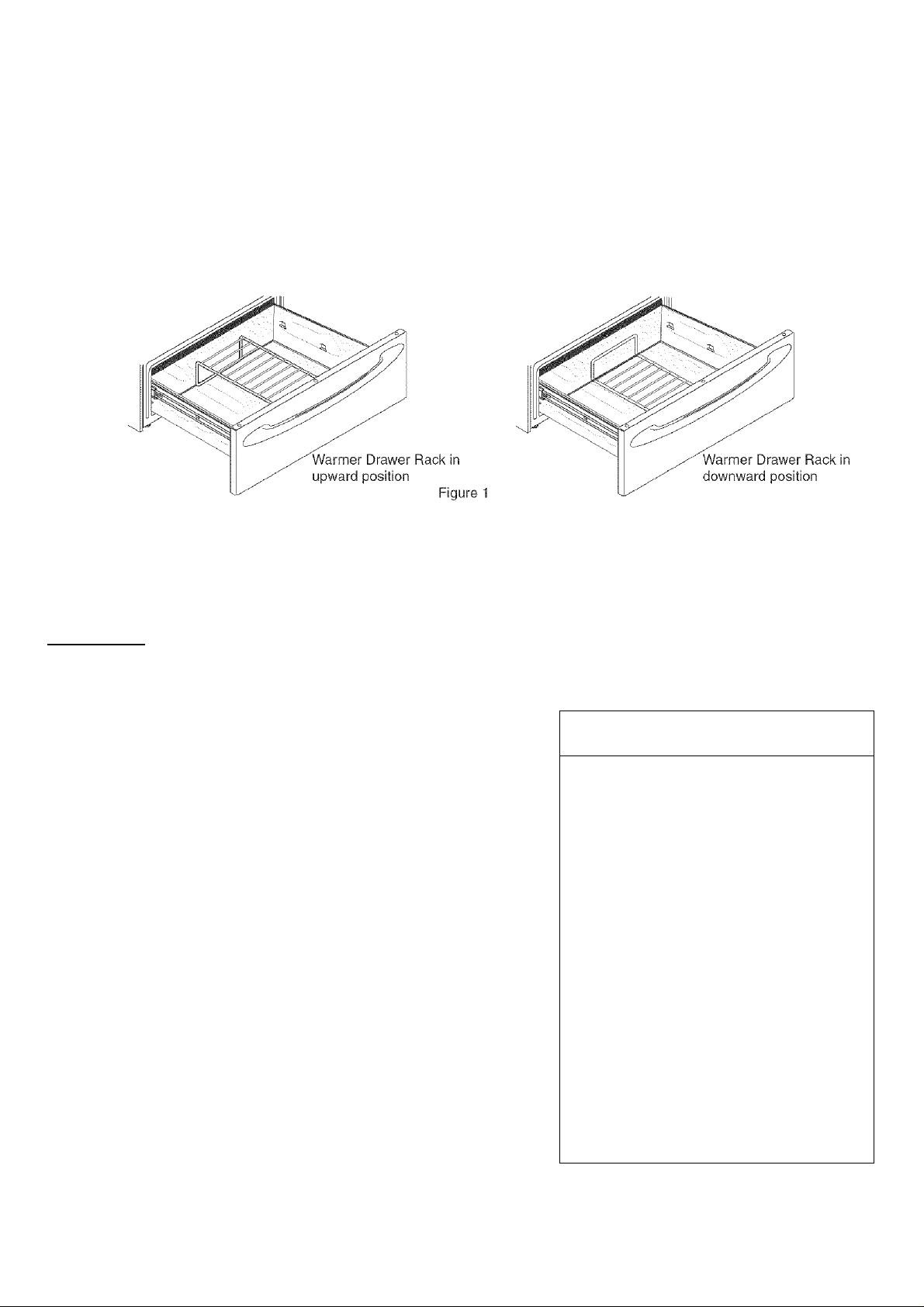

Set the Warmer Drawer Rack in either position as shown below (Figure 1).

Operating the Warmer Drawer

The purpose of the Warmer Drawer is to keep hot cooked foods at serving temperature. Always start with hot food. It is

not recommended to heat cold food in the Warmer Drawer. All food placed in the Warmer Drawer should be covered
with a lid or aluminum foil to maintain quality. Do not use plastic wrap to cover food. Plastic may melt onto the
drawer and be very difficult to clean. Use only utensils and cookware recommended for oven use in the Warmer

Drawer.

ik CAUTION

I Always use potholders or oven mitts when removing food from the Warmer Drawer as cookware and

plates will be hot and you can be burned.

Warmer Drawer Food Temperature Settings

Use the recommended settings in the Warmer Drawer settings table. If a

particular food is not listed, start with the MED setting. If more crispness

is desired, remove the lid or aluminum foil from the food. Most foods can

be kept at serving temperatures on the MED setting. When a
combination of foods are to be kept warm (for instance, meat with 2
vegetables and rolls), use the HI setting. To avoid heat loss, do not
open the Warmer Drawer repeatedly while in use.

Warmer (Warm & Ready^”) Drawer & Bread Proofing

Indicator Lights

The control and indicator lights forthe Warmer Drawer and Bread

Proofing features are located on the control panel. The indicator lights
will turn ON when the control is set, and remain ON until the controls are
turned OFF.

Note: The warmer Drawer will not operate during the Self-Clean

cycle.

Warmer Drawer Settings Table

Food Item Setting

Bacon HI
Flamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI
Pizza HI
Gravies MED
Casseroles MED
Eggs MED
Roasts (Beef, Pork, Lamb) MED
Vegetables MED
Biscuits MED
Rolls, hard MED
Pastries MED
Roils (soft) LO
Empty Dinner Plates LO

32

Figure 2

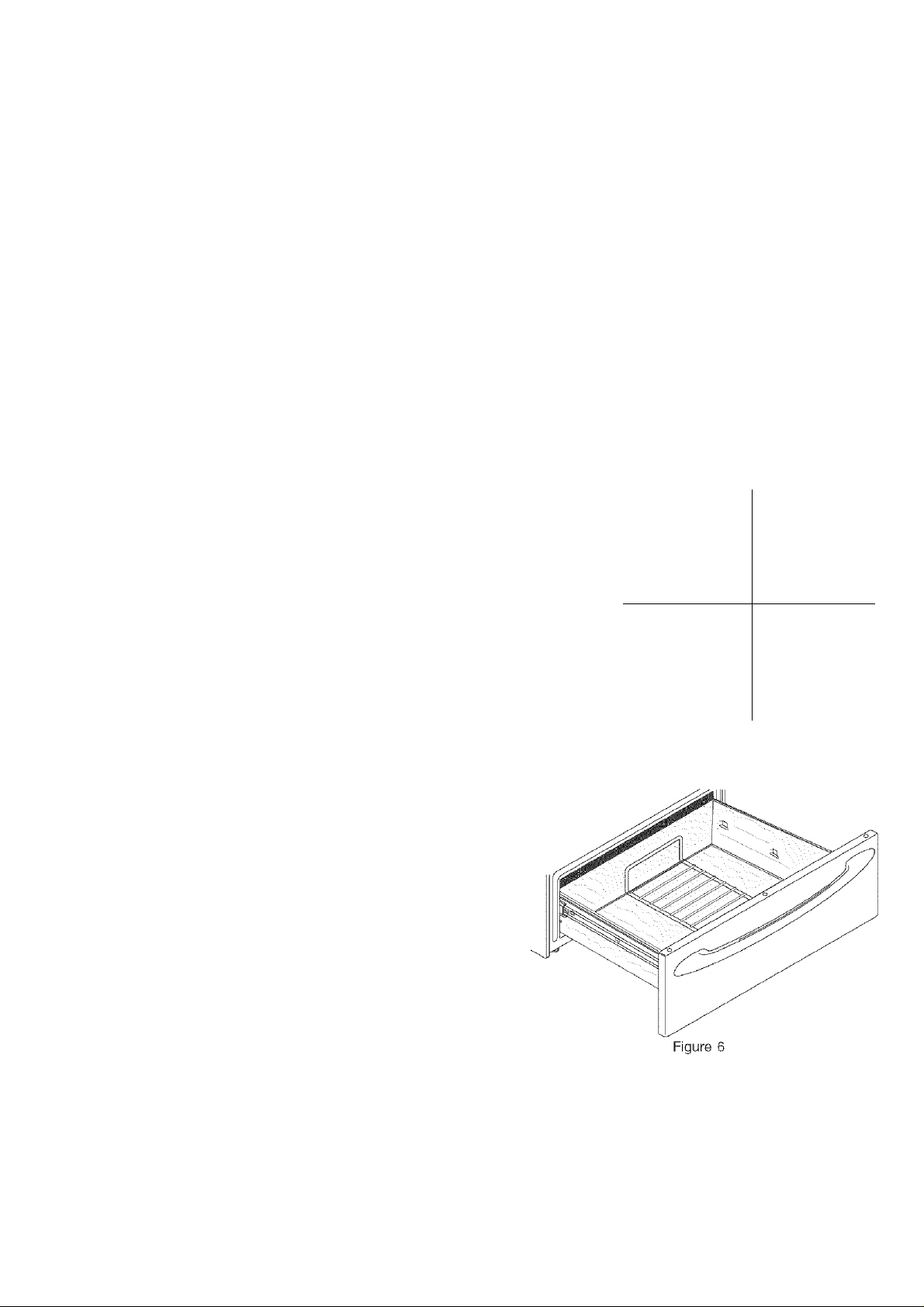

Setting Warmer Drawer Controls (cont’d)

To Set the Warmer Drawer & Bread Proof Controls:

The control and indicator lights for the Warmer Drawer Bread Proof features are

located on the control panel. The temperatures are approximate, and are

designated by HI (high), MED (medium) and LO (low) and BREAD PROOF.

1. Touch the опт pad at the Warmer Drawer control position. The Warmer

Drawer indicator light will flash. Note: If no further pads are touched within 25
seconds the request to power the Warmer Drawer ON will clear.

2. Set the desired power level. Touch (^) once to turn ON the power level for HI
(see Figure 2) or (^) to turn ON the power level for LO (see Figure 4). The

Warmer Drawer indicator light located above the ON/OFF pad will turn ON
steady.

3. Each touch of the О or (2) P3ds will decrease or increase through 6
power levels from HI (see Figure 2) to MED (see Figure 3) to LO (see Figure

4) and to the Bread Proof feature (see Figure 5). If the Warmer Drawer is set
at the LO setting and the (v) pad is touched again the Bread Proof feature

and indicator light will be set (see Figure 5 and bread dough preparation
instructions on this page). To return to standard Warmer Drawer setting touch

(2) pad at least once.

Note: For best results, preheat the Warmer Drawer before adding the food or

bread dough. An emptydrawerwill preheat in approximately 15 minutes.

4. When the food is ready for removal, touch the owoff pad once to turn the
Warmer Drawer or bread Proof feature OFF. The Warmer Drawer indicator light

will turn OFF.

HL

Med ■

Proof
Bread

LO.

On/Off

Warmer

Drawer

Figure 1

HI*

*

MED *

A Proof

LO * o

Med c::>

LO * o

Bread

Figure 2 Figure 3

Hi vo Hio

C':> o

Proof

■ Bread

Med*

Medo

HI o

o

A Proof

Bread

Lo m o

Proof

' Bread

LO c.:3 *

ГГ1

L:

^ .

Preparing Bread Dough for the Warmer Drawer

The Warmer Drawer has a “Proof Bread” feature that can be used to

help prepare bread dough. The recommended length of time to keep
bread dough in the Warmer Drawer is about 45-60 minutes. Be sure
however to follow the recipe’s recommended times.

The prepared bread dough should be placed in a large bowl since
the dough will nearly double in volume. Arrange the Warmer Drawer

Rack in the downward position (see Figure 6). Place the bowl in the

Warmer Drawerand follow the Warmer Drawer and Bread Proof

Control setting instructions at the top of this page.

Figure 4

Figure 5

33

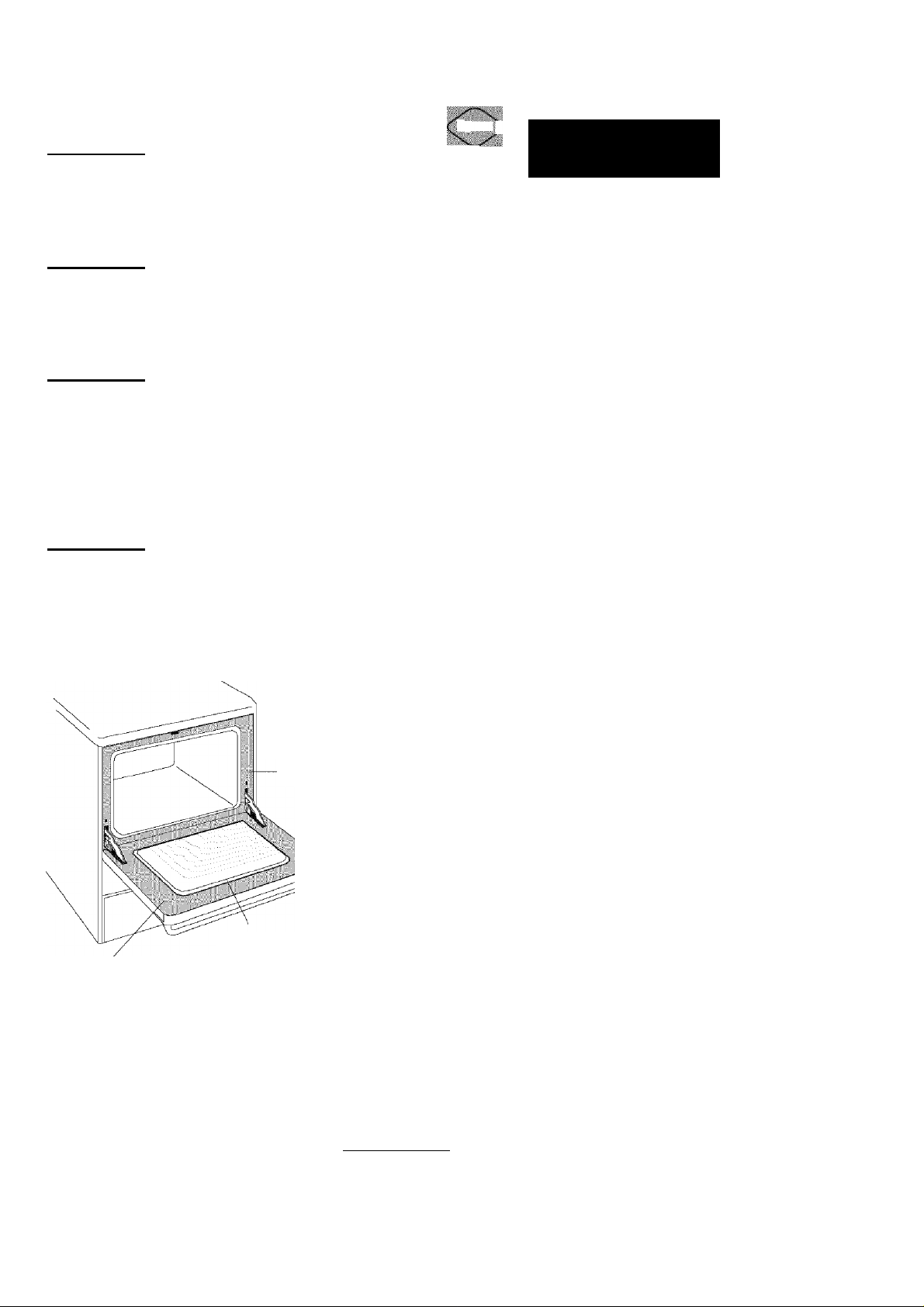

Seif-Cleaning

ik CAUTION

Cleaning cycle, the outside of the
range can become very hot to the

touch. DO NOT leave small children

unattended near the appliance.

ik CAUTION

birds is extremely sensitive to the

fumes given off during the Self

Cleaning cycle of any range. Move
birds to another well-ventilated room.

 CAUTION

walls, racks, bottom or any other part
of the range with aluminum foil.

Doing so will destroy heat distribution,
produce poor baking results and

cause permanent damage to the oven

interior (aluminum foil will melt to the
interior surface of the oven).

A CAUTION

oven door open. This can damage the
automatic door locking system. Use
caution when opening the door after
the Self-Cleaning cycle is completed.
The oven may still be VERY HOT.

I During the Self

The health of some

DO NOT line the oven

DO NOT force the

DO HAND

CLEAN

FRAME

V'rSïÂRT)

8§;881Ж1888'

•OVl-N OlOK! 1/1-1 AY „

;■ Tl4l • ‘'.lAlil

'. i.Sf'DVv ''' Arili V.'.. ■ CoNV '

XYXiK.. , ; "MliNUTF .. CONVF.fÌT

'■'VrrJ . KlTCHTN ; ШП\'А К

iitìHi ' .'H-iHU.

Self-Cleaning Oven

A Self-Cleaning oven cleans itself with high temperatures (well above
cooking temperatures) which eliminate soils completely or reduces them to
a fine powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions:

• DO NOT use oven cleaners or oven protective coatings in or around

any part of the Self-Cleaning oven.

• DO NOT clean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to

rub, damage or remove the gasket.

• DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.

• Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.

• Porcelain oven racks do not have to be removed. After the cycle is
complete and the oven has cooled, rub the sides of the oven racks with
wax paper or a cloth containing a small amount of salad oil (this will
make the racks glide easier into the rack position).

• Remove any excessive spillovers in the oven cavity before starting
the Self-Cleaning cycle. To clean, use hot, soapy water and a cloth.

Large spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid
content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to

remain on the surface as they may leave a dull spot even after cleaning.

• Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.

TIMED DELAY TIMER a CONV BAKE BROIL

DOOR ШГКГО Cl FAN Ш MEATS CAKFS BRFADS

CoNV

1'.Лр1

Bake Bhoil

■■'Meats,. ^:лке&,-;В:гел:

I

li: Ч

ООО'TArefiOKÎcS': ■■■ У .

||сооктг>|': Ж Qcyî'x'' '

DO NOT HAND

DO HAND

CLEAN SEAL

CLEAN DOOR

Note: See additional cleaning informa

tion for the oven door in the General

Care & Cleaning section.

NOTE: A smoke eliminator in the oven

vent converts most of the smoke into a
colorless vapor.

NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the
oven bottom should be removed.

What to Expect during Cleaning

While the oven is in operation, the oven heats to temperatures much higher
than those used in normal cooking. Sounds of metal expansion and
contraction are normal. Odor is also normal as the food soil is being
removed. Smoke may appear through the oven vent.

If heavy spillovers are not wiped up before cleaning, they may flame and
cause more smoke and odor than usual. This is normal and safe and should
not cause alarm. If available, use an exhaust fan during the self-cleaning
cycle.

A CAUTION

door after the Self-Cleaning cycle. Stand to the side of the oven when
opening the door to allow hot air or steam to escape.

To avoid possible burns use care when opening the oven

34

Seif-Cleaning (confd)

Self-Clean Cycle Time Length

The FLEX CLEAN pad is used to start a Self-Cleaning cycle. When used with the DELAY START pad, a
delayed Self Cleaning cycle may also be programmed. The FLEX CLEAN feature allows for any Self-Cleaning cycle time

from 2 (2:00) to 4 hours (4:00) to be selected. You may also choose the clean time in 1 minute increments (for example 2
hours and 50 minutes) by pressing the number keypads (DCD®.

A CAUTION

small children unattended near the appliance.

A CAUTION

opening the oven door after the Self-Cleaning cycle. Stand to the side of the oven when opening the door to allow hot airor
steam to escape. The oven may still be VERY HOT.

I During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave

I DO NOT force the oven door open. This can damage the automatic door locking system. Use care when

INSTRUCTIONS PRESS DISPLAY

To set an immediate Self-Cleaning Cycle or to set a delay start time of 9:00 o’clock (example: default 3 hour Self-Clean cycle)

1. Be sure the clock is set with the correct time of day, the oven is
empty and the oven door is closed.

Press i CLEAN

display (Figure 1). 2-4 hours of Self-Cleaning time may be chosen

by pressing any amount of time from ®(2)Co) (2 hours)

through (4 hours) in one minute increments.
You may also skip the time entry and accept the default cleaning

time of 3 hours by pressing the Start key pad (See Step 3).

3. Press (STARy."DOOR", "LOCKED" will flash; "CLEAN" and the
letters "CLn" will remain on in the display (Figure 2).

4.

As soon as the control is set, the motor driven oven door lock will

begin to close automatically. Once the door has been locked the
"DOOR", "LOCKED" indicator light will quit flashing and remain on.

Note: Allow about 15 seconds for the oven door lock to close.

Note: If the optional delay Self-Clean feature is needed, finish steps 5-7. if Self-Clean is started immediately skip
the remaining steps and continue with “When the self-clean cycle is completed” on the following page.

"CLEAN" will flash and "3:00" HR will show in the

/TleTN

V^IEAIW

i¡|i|¡||¡|n

Figure 1

Figure 2

5. Press (JjARy (see Figure 3). Enter the desired Self-Clean starting

time using the number pads (See figure 4).

Pressdr^. "DELAY", "DOOR", "LOCKED", "CLEAN" will6.
remain on and the display returns to the time of day.

7.

Based on the time amount you selected in step 2, the control will

calculate forward from the set start time to determine when the

Self-Cleaning cycle should end. The Self-Cleaning cycle will turn

on automatically at the set time. At that time the icon "DELAY"
will go out; the oven icon will come on, "CLEAN" and "CLn" will

remain in the display (see Figure 5).

When the Self-Clean Cycle is Completed

1. The time of day, the 'DOOR", "LOCKED" and "CLEAN icon will

remain in the display.

2. Once the oven has cooled down for approximately 1 HOUR, and

the "DOOR", "LOCKED" icon is no longer displayed, the oven door
can then be opened.

35

nnn
uuu

-nh

8

ÉÉiil

Figure 3

■uu

Figure 4

Figure 5

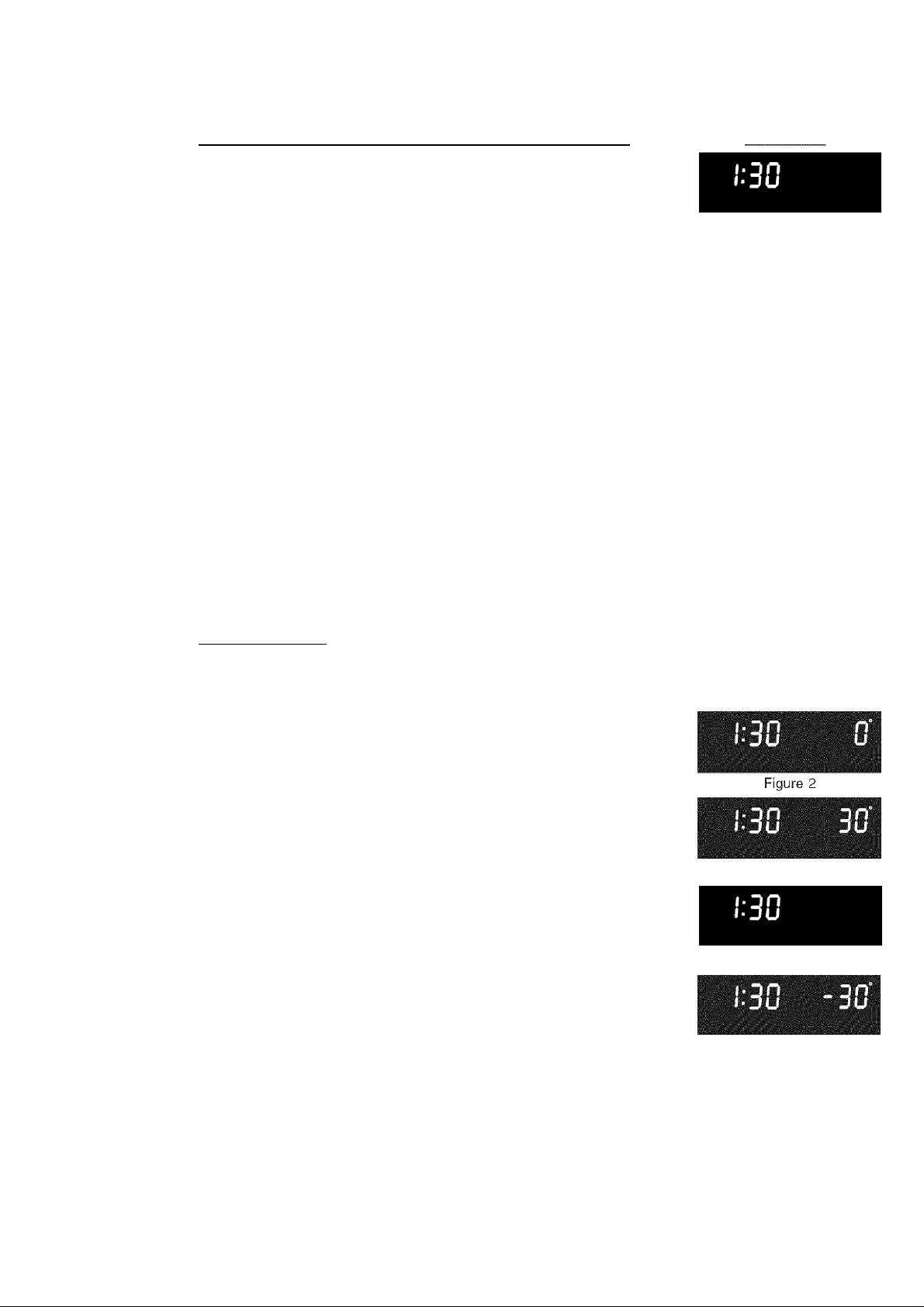

Self-Cleaning (confd)

INSTRUCTIONS PRESS

DISPLAY

Stopping or Interrupting a Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a self-cleaning cycle due to
excessive smoke or fire in the oven:

1. Press I

2. Once the oven has cooled down for approximately 1 HOUR and the

"DOOR", "LOCKED" icon is no longer displayed, the oven door can
beopened(Figurel).

IMPORTANT NOTES when using the Self-Clean feature:

1. The Self-Clean feature will not operate whenever a radiant element remains ON.

Figure 1

2. A Self-Clean cycle cannot be started if Oven Lockout feature is active.

3. If a Self-Clean cycle has started but not finished and a power failure occurs, the appliance may not have thoroughly
cleaned. Once power is restored, set for another Self-Clean cycle to finish.

4. If your clock is set for normal 12 hour display mode the Delay Self-Clean cycle can never be set to start more than

12 hours in advance. To set for Delay Self-Clean 12-24 hours in advance see instructions to set the control for the 24
hour time of day display mode.

Adjusting Oven Temperature

The temperature in the oven has been preset at the factory. When first using the oven, be

sure to follow recipe times and temperatures. If you think the oven is cooking too hot or too
cool for the temperature you select, you can adjust the actual oven temperature to be more
or less than what is displayed. Before adjusting, test a recipe by using a temperature setting
that is higheror lower than the recommended temperature. The baking results should help
you to decide how much of an adjustment is needed.

Note: The oven

temperature adjustments

made with this feature

will not change the Self

Clean cycle temperature.

INSTRUCTIONS

PRESS DISPLAY

To adjust the oven temperature higher

1. Press (ВАКу for 6 seconds (Figure 2). 0“ will appear in the display

(Figure2).

2. To increase the temperature use the number pads to enter the

desired change. (Example 30°F) CD Co) (Figure 3). The CD CD

temperature may be increased as much as 35°F (19°C).

3. Press to accept the temperature change and the display will (^^or

return to the time of day (Figure 4). Press (^^ to reject the change
if necessary.

To adjust the oven temperature lower

1. Press (bai^ for 6 seconds. 0° will appear in the display (Figure 2).

2. To decrease the temperature use the number pads to enter the

desired change. (Example -30°F) CD CD and then press

(Figure 5). The temperature may be decreased as much as

35°F(19°C).

CD CD

"bake’

Figure 3

Figure 4

Figure 5

3. Press C!^^ to accept the temperature change and the display will

return to the time of day (Figure 4). Press (^^ to reject the change
if necessary.

36

START) or

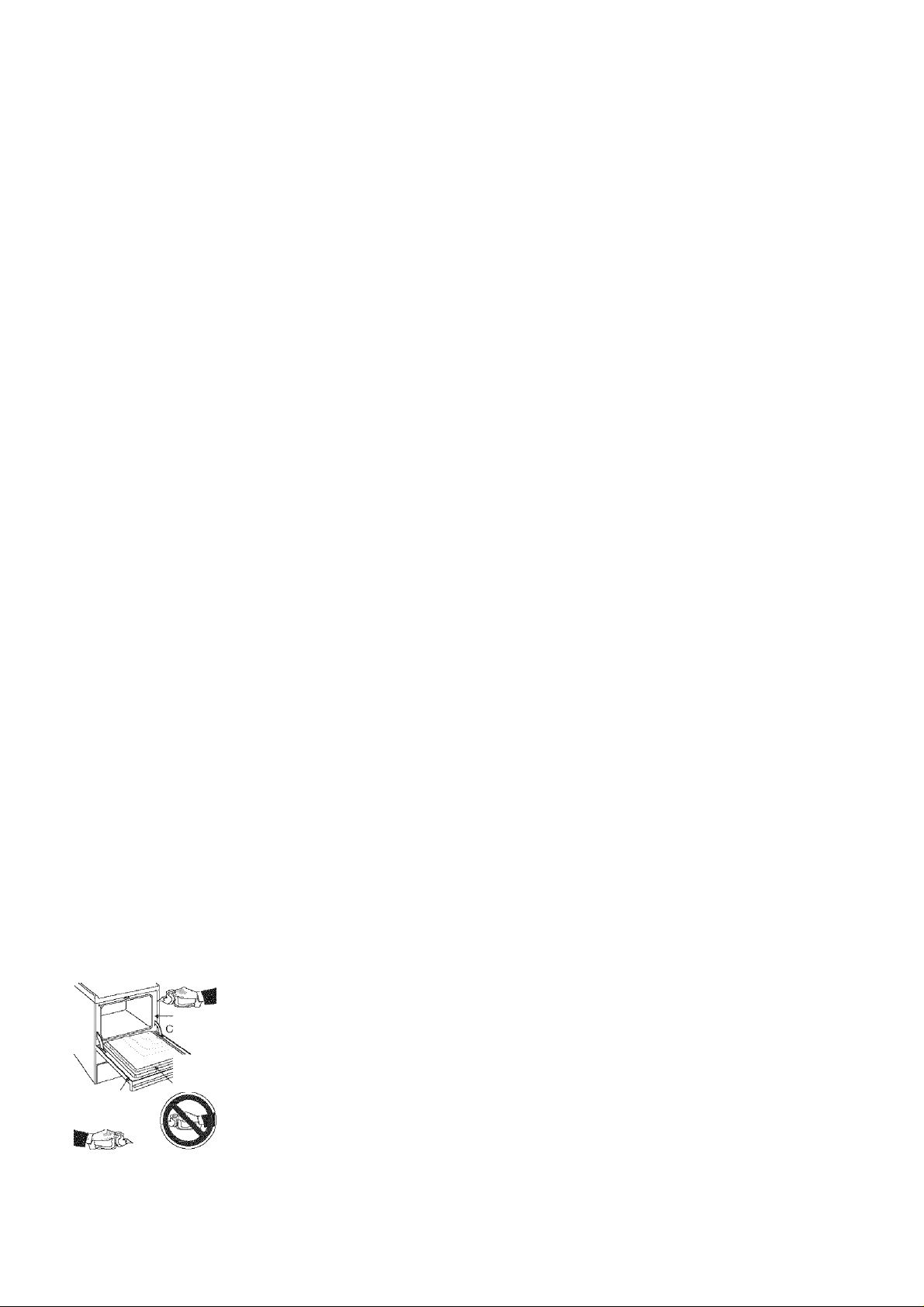

General Care & Cleaning

Cleaning Various Parts of Your Range

Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers and

heavy soiling as soon as possible. Regular cleanings will reduce the effort required for major cleanings later.

Surfaces How to Clean
Aluminum & Vinyl

Control Panel and Trim
Pieces

Glass, Painted and Plastic

Body Parts, Control Knobs
and Decorative Trim
Pieces

Stainless Steel (some
models) Oven door &

drawer front panel

Use hot, soapy water and a cloth. Dry with a clean cloth.
Before cleaning the control panel, turn all controls to OFF and remove the control

knobs. To remove, pull each knob straight off the shaft. Clean using hot, soapy
water and a dishcloth. Rinse with a clean water and a dishcloth. Be sure to squeeze
excess water from the cloth before wiping the panel; especially when wiping around
the controls. Excess water in or around the controls may cause damage to the
appliance. Be sure to rinse the cleaners as bluish stains may occur during heating
and cannot de removed. To replace knobs after cleaning, line up the flat sides of
both the knob and the shaft; then push the knob into place.

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of
vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. DO NOT spray
liquids directly on the control pad and display area. Do not use large amounts of water
on the control panel - excess water on the control area may cause damage to the
appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or
paper towels - they will damage the finish. To remove control knobs, turn to the OFF
position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning,
line up the flat sides of both the knob and the shaft; then push the knob into place.

Clean with hot, soapy water and dishcloth. Rinse with clean water and cloth. Do not
use cleaners with high concentrations of chlorides or chlorines. Do not use
harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for
cleaning stainless steel. Always be sure to rinse the cleaners off from the surface as
bluish stains may occur during heating that cannot be removed.

Oven Racks

Porcelain Enamel

Broiler Pan and Insert, Door
Liner, Body Parts and
Warmer Drawer and Drawer
Cavity.

Oven Door

DO HAND

LEAN FRAME

DONOTHAND

CLEAN OVEN

DO HAND

CLEAN DOOR

DOOR GASKET

This oven comes with lubricated porcelain oven racks, which can remain in the oven
during the seif-clean cycle. Do not clean this vegetable oil lubrication off the racks. It
is important that the sides of the oven racks always have a light coating of vegetable
oil. To maintain optimal rack performance, re-apply a thin layer of vegetable oil to
the sides of the rack after every self-clean cycle or when the rack becomes difficult
to slide.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with
a clean cloth. Remove all cleaners or the porcelain may become damaged during
future heating. DO NOT use spray oven cleaners on the cooktop.

Use soap & water to thoroughly clean the top, sides and front of the oven door.
Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO

NOT immerse the door in water. DO NOT spray or allow water or the glass
cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders or

any harsh abrasive cleaning materials on the outside of the oven door.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven

material, on Self-Cleaning models, which is essential for a good seal. Care should
be taken not to rub, damage or remove this gasket.

Cooktop, Burner Heads,
Burner Caps & Grates

See Cleaning the Cooktop, Burner Caps, Burner Heads & Grates in the General
Care & Cleaning section for complete instructions.

37

General Care & Cleaning (confd)

Cleaning the Cooktop, Burner Heads, Caps & Grates

The cooktop is designed to make cleaning easier. Because the gas Burners are sealed, cleanups are easy when

spillovers are cleaned up immediately.

The cooktop, Burner Heads and Caps should be routinely cleaned. Keeping the Burner Head Ports clean will prevent

improper ignition and an uneven flame. Refer to the following instructions:

THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.

A CAUTION

delayed ignition or prevent the burner from igniting.

Surface

Burner

Grate

Figure 1

Use caution when replacing the Burner Caps so the Electrodes are not damaged. This may cause a

To Remove and Replace the Surface Burner Caps and Burner Heads -

Remove in the following order: (1 st) surface Burner Grates, (2nd) Burner Caps

©

Surface

Orifice
holder

and (3rd) Burner Heads. Replace in the following order: Burner Heads, Burner
Caps and BurnerG rates.

PLEASE NOTE: The Bridge Burner Head is not removable.

Do not remove any parts from the cooktop until they have completely

cooled and are safe to handle. Do not operate the surface Burners without
the Burner Caps and Burner Heads properly in place.

To Clean the surface Burner Caps and Burner Heads- Use a soap-filled

scouring pad or a mild abrasive cleanser to clean the surface Burner Caps and

Burner Heads. The ports (or slots) around the Burner Heads must be routinely
cleaned. If residue still remains in these ports, use a small-gauge wire or
needle to clean the slots or holes. For proper flow of gas and ignition of the
burner—DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY

OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING.
ALWAYS keep the surface Burner Caps and Burner Heads in place whenever

the gas Burners are in use.

To Clean the Burner Grates- The Burner Grates are dishwasher safe and may
be cleaned in the dishwasher. Remove any excessive soils before placing in
the dishwasher.

To Clean the Ceramic Glass Cooktop- See Ceramic Glass Cooktop Cleaning &

Maintenance on next page.

38

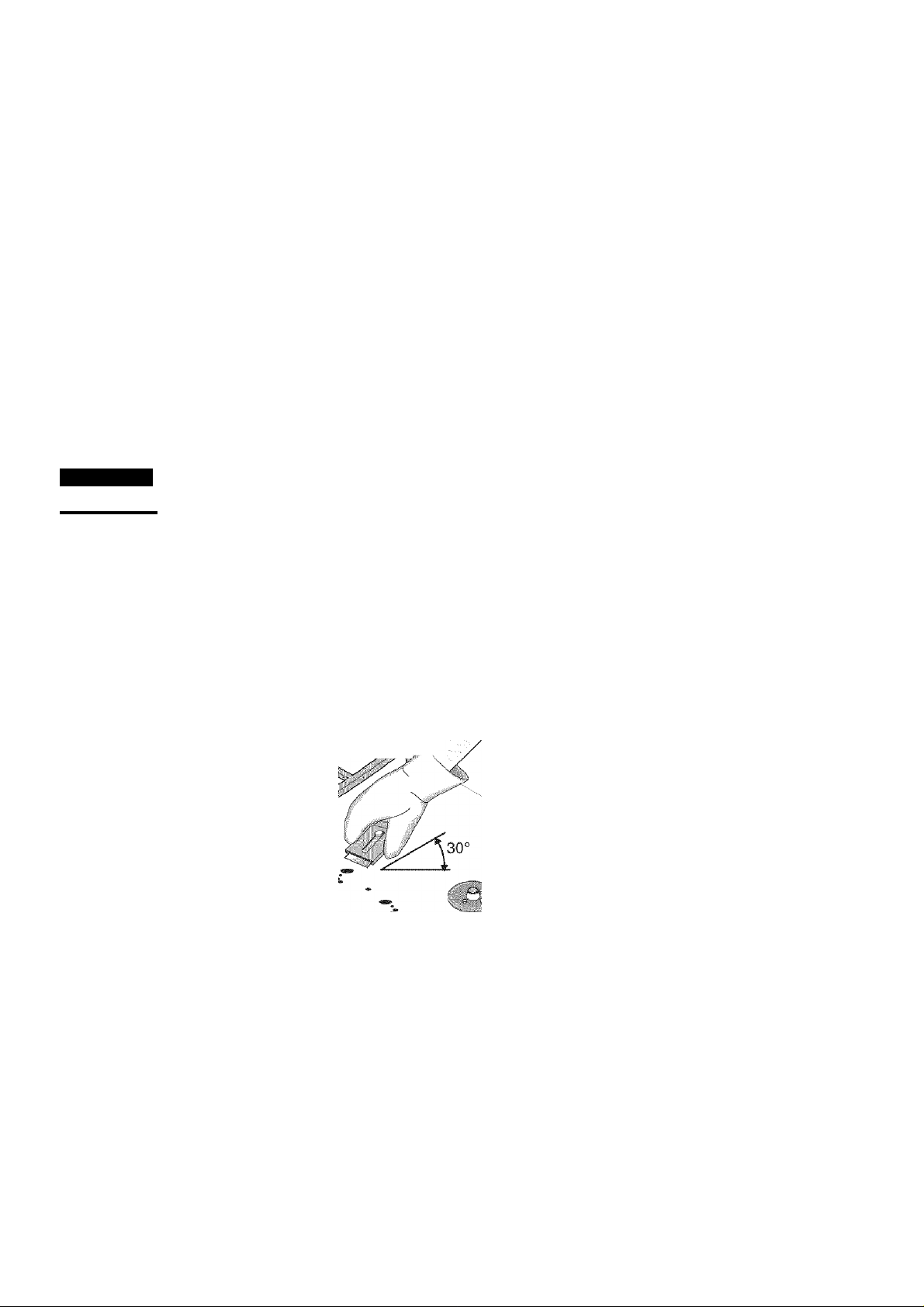

General Care & Cleaning (confd)

Ceramic Glass Cooktop Cleaning and Maintenance

: Consistent and proper cleaning is essentm! to maintaining your ceramic glass cooktop- i

Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or
no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream
leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These
marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can
become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface. Do not slide

anything metal or glass across the cooktop. Do not use your cooktop as a cutting board or work surface in the kitchen.

Do not cook foods directly on the cooktop surface without a pan. Do not drop heavy or hard objects on the glass cooktop,

because they may cause it to crack.

Cleaning Recommendations for the Ceramic Glass Cooktop

A CAUTION

A WARNING I DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

chemically damage the ceramic-glass surface.

For light to moderate soil;

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic
type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no

residue.

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive

plastic type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for

any other purpose.

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

If soils remain, carefully scrape soils with a metal

Hi

razor blade scraper, holding scraper at a 30 degree
angle to the surface. Remove loosened soils with
cooktop cleaning cream and buff surface clean.

IMPORTANT NOTE: Damage to the ceramic glass
cooktop may occur if you use an abrasive type
scratch pad. Only use cleaning products that have
been specifically designed for ceramic glass cooktop.

I

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if
spilled or melted onto the ceramic cooktop surface.

Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately.
After turning the surface elements OFF, use a razor
blade scraper or a metal spatula with a mitt and
scrape the soil from the hot surface (as illustrated).
Allow the cooktop to cool, and use the same method
for heavy or burned on soils.

39

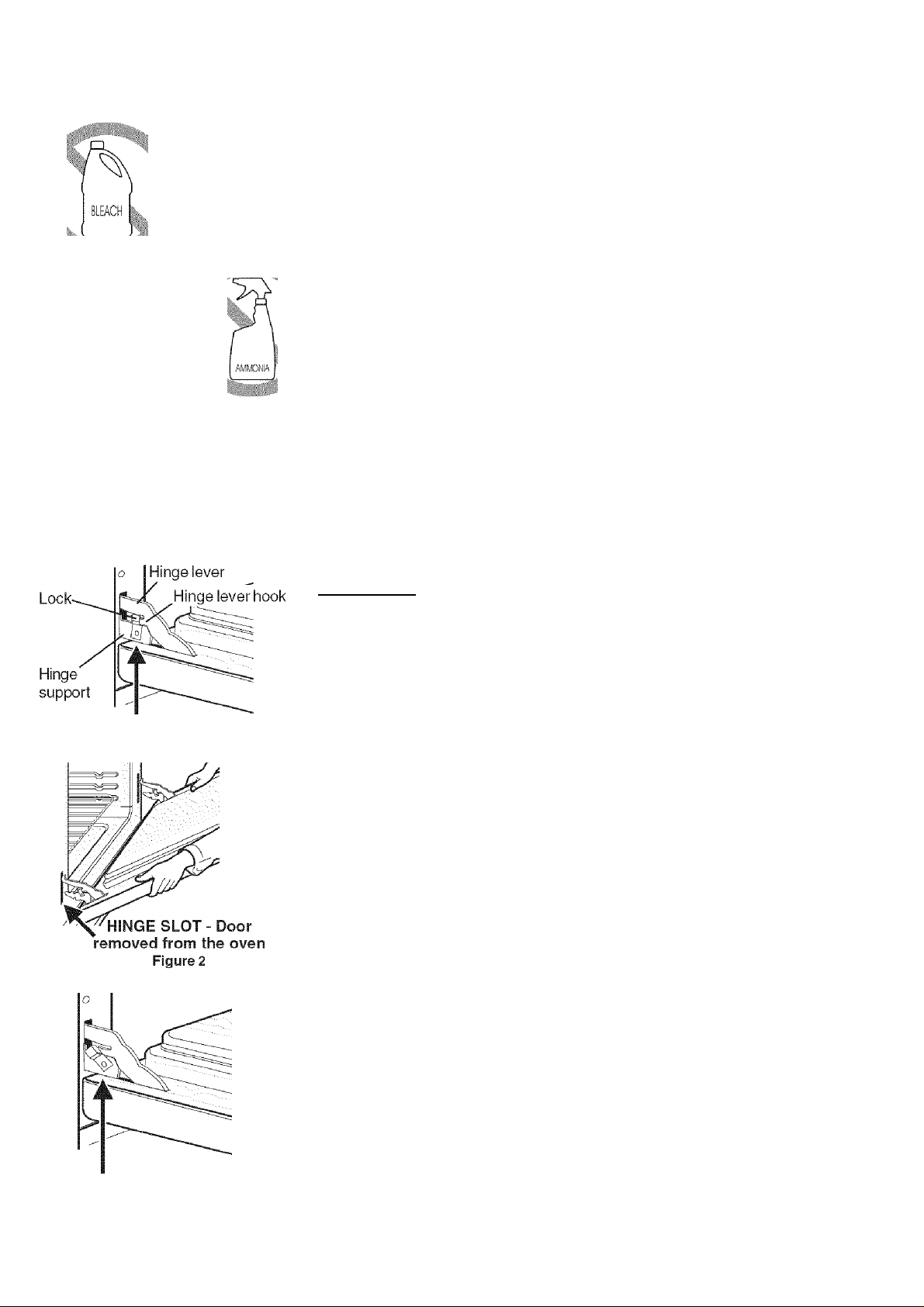

General Care & Cleaning (confd)

Do not use the following on the ceramic glass cooktop:

4

'0£

Care and Cleaning of Stainless Steel (Stainless steel models only)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining

the appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning

section in this Use & Care Guide.

• Do not use abrasive cleaners and scouring pads, such as metal and
some nylon pads. They may scratch the cooktop, making it more
difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven
cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave
soil or lint on the cooktop which can burn and cause discoloration.

Special Caution for Aluminum Foil and Aluminum Cooking Utensils

• Aluminum foil

Use of aluminum foil will damage the cooktop. Do not use under any
circumstances.

• Aluminum utensils

Since the melting point of aluminum is much lower than that of other metals,
care must be taken when aluminum pots or pans are used. Pans that boil
dry may permanently damage cooktop by breaking, fusing to, or marking it.

Lock engaged for door removal

Figure 1

Removing and Replacing the Oven Door

ik CAUTION

with the inside of the door facing down.

To Remove Oven Door:

1.

Open the door to the fully opened position.

2.

Pull up the lock located on each hinge support and engage it onto the hinge
lever hook (Figure 1). You may have to apply a little downward pressure on the
door to pull the lock fully over the hinge lever hook.

3.

Grab the door by the sides and pull the bottom of the door up and toward
you to disengage the hinge supports. Keep pulling the bottom of the door
toward you while rotating the top of the door toward the range to completely
disengage the hinge levers (Figure 2).

4.

To clean oven door, follow the instructions provided in the General Care &

Cleaning table.

To Replace Oven Door:

1. Grab the door by the sides; place the hinge supports and levers into the hinge

slots. Open the door to the fully opened position.

2. Disengage the lock from the hinge lever hooks on both sides (Figure 3).
Note: Make sure the hinge supports are fully engaged before unlocking the
hinge levers.

3. Close the oven door.

I The door is heavy. For safe, temporary storage, lay the door flat

Lock in normal position

Figure 3

Special Door Care Instructions -

doors contain glass that can break.
Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure

causing an increased risk of breakage at a later time.

ik CAUTION

Most oven

40

General Care & Cleaning (confcl)

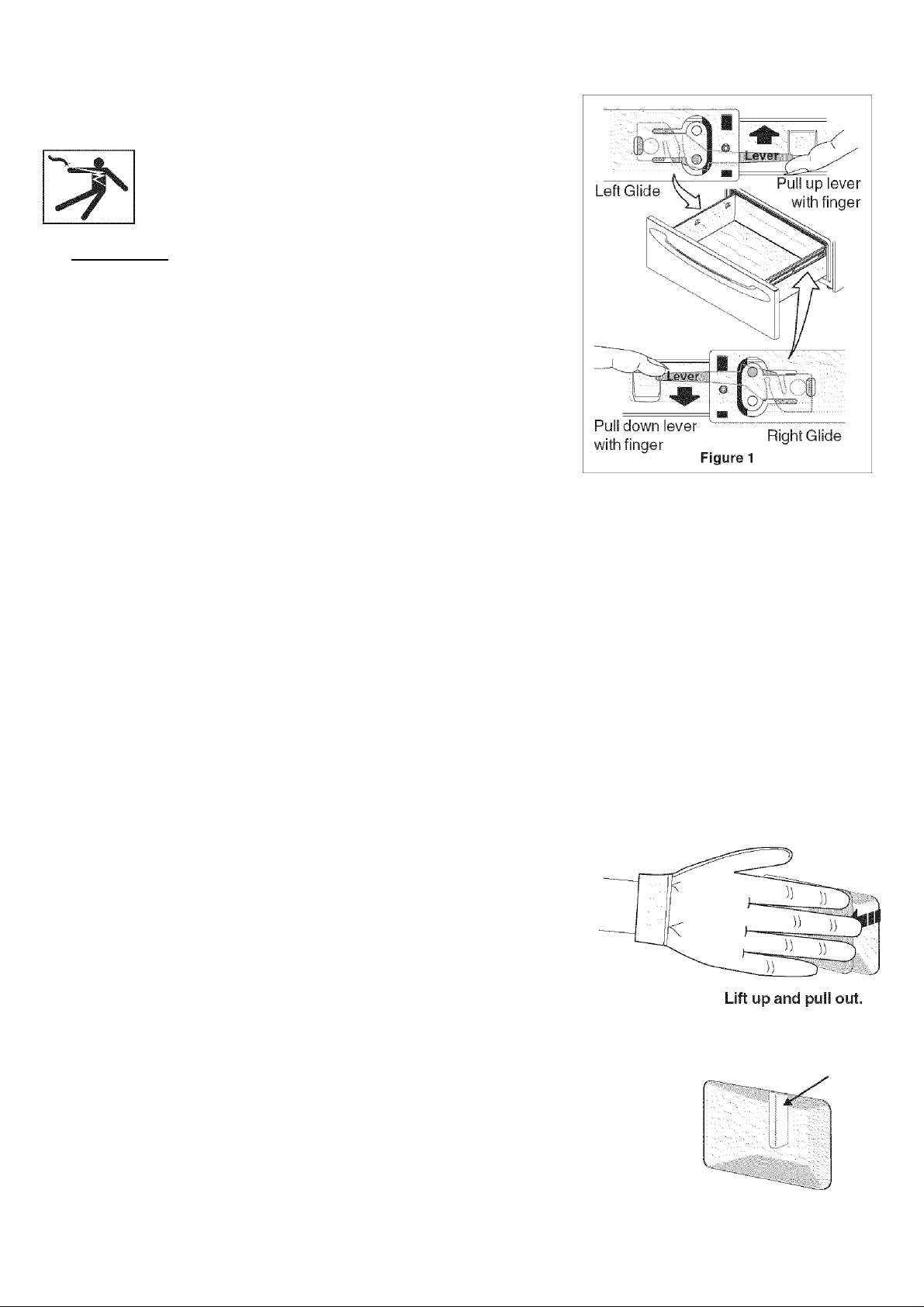

Removing and Replacing Warmer (Warm & Ready^“) Drawer

A WARNING

in serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmerdrawer.

To Remove Warmer Drawer:

A CAUTION

¡Turn power off before removing the warmerdrawer.

I

Electrical Shock Hazard can occur and result

2. Open the drawer to the fully opened position.

3. Locate glide lever on each side of drawer, pull up on the left glide lever
and push down on the right glide lever (See Figure 1).

4. Pull the drawer away from the range.

To Replace Warmer (Warm & Ready™) Drawer:
To Replace the Drawer:

1. Align the glide ends on each side of the drawer with the glide slots on
the range.

2. Push the drawer into the range until the levers “click” (approximately 3
inches).

3. Pull the drawer open again to make sure the glides are properly seated.
Note: If you do not hear the levers “click” or the glides do not feel
seated, remove the drawer and repeat steps 1 and 2.

NOTE: The Warmer Drawer will NOT operate while in the “Self-Clean” and “Oven
Lockout” modes

rn

::

o

Changing the Oven Light

The oven lights will automatically turn ON when the oven door is opened. The oven lights may also be manually

Oven

operated by pressing the

The lamp is covered with a glass shield. The glass shield can be removed to be cleaned manually or to change oven

light. THIS GLASS SHIELD MUST BE IN PLACE WHENEVER THE OVEN IS IN USE.

To replace the light bulb:

CAUTION: BE SURE THE OVEN IS COOL.

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against possible broken glass.

3. To remove the glass shield, lift up on side with gloved finger and use

force to pull shield out.

4. Replace halogen light appliance bulb taking care not to touch the bulb

with your bare fingers. Touching bulb with your skin can leave a film on
the bulb that causes it to burn out quickly.

5. Replace glass shield in opposite order and manner of removal.

Light

On/Off

pad.

Halogen Light Bulb

41

Before You Cali

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences

that are not the result of defective workmanship or materials in this appliance.

OCCURRENCE

Range is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack.

Cannot move appliance

easily. Appliance must

be accessible for
service.

Entire range or oven

does not operate.

Surface burners do not Surface control knob has not been completely turned to LITE. Push in and turn the
light. surface control knob to LITE (until burner ignites) and then turn the surface control knob

POSSIBLE CAUSE/SOLUTION

Adjust leveling legs at base of range until the rack is level. When range Is level, cooktop
may appear out of alignment if countertop is not level.

Weak, unstable floor. Be sure floor Is level and can adequately support range. Contact a
carpenter to correct sagging or sloping floor.

Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets are

square and have sufficient room for range clearance.
Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.
Contact builderor installer to make appliance accessible.
Carpeting interferes with range. Provide sufficient space so range can be lifted over carpet.
Gas line is hard-plumbed. Have a flexible C.S.A international approved metal appliance

connectorinstalled.

Make sure cord/plug is tightly into outlet.

Service wiring is not complete. Call 1-800-4-MY-HOME® (See back cover).

Power outage. Check house lights to be sure. Call your local electric company for

service. Surface burners can be lit manually.

to the desired flame size.

Burner ports are clogged. Clean burners. See “Cleaning the Burner Grates, Burner Caps

and Burner Heads” underGeneral Cleaning.

Electrical poweroutage.
Be sure the gas supply to the range is turned “ON”.

Surface burnerflame
burns half way around.

Surface burner flame is Dust particles in main line. Allow the burner to operate a few minutes until flame turns
orange. blue.

Scratches or abrasions
on cooktop surface.

Metalmarks. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on

Brown streaks or specks.

Burner ports are clogged. With the burner off, clean ports by using a small-gauge wire or

needle.

Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until
flame is full. Dry the burners thoroughly following instructions in the "General Care &
Cleaning" section.

Salt air in coastal areas. A slightly orange flame is unavoidable.
Coarse particles such as salt or sand between cooktop and utensils can cause scratches.

Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches
do not affect cooking and will become less visible with time.

Cleaning materials not recommended for ceramic-glass cooktop have been used. See
“Ceramic Glass Cooktop Cleaning & Maintenance” section under General Care & Cleaning.

Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.

cooktop surface. Use a ceramic-glass cooktop cleaning cream to remove the marks. See
“Ceramic Glass Cooktop Cleaning & Maintenance” section underGeneral Care &
Cleaning.

Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See “Ceramic Glass
Cooktop Cleaning & Maintenance” section underGeneral Care & Cleaning.

42

Areas of discoloration
with metallic sheen.

*Oven control beeps and
displays any F code
error (for example F11)

Oven light does not
work.

Poor baking results.

Mineral deposits from water and food. Remove using a ceramic glass cooktop cleaning
cream. Use cookware with clean, dry bottoms.

Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display
and stop beeping. Reprogram oven. If fault recurs, record fault number. Press STOP/
CLEAR and call 1-800-4-MY-HOME ® for assistance (See back cover).

Replace bulb. See “Changing Oven Light” in this Use and Care Guide for instructions.

Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. If conventional baking, allow the
oven to preheat to the set temperature before placing food in the oven. Try adjusting the
recipe’s recommended temperature or baking time. If you feel the oven is too hot or cool,
see “Adjusting the Oven Temperature” section in this Use and Care Guide.

Fan noise during cooking operation.

Flames inside oven or smoking from vent.

Oven smokes
excessively during
broiling.

Self-cleaning cycie does not work.

Soil not completely
removed after self
cleaning cycle.

Excessive smoking from oven vent.

A cooling tan may automatically turn on and off to cool internal parts. It is normal, and the
fan may continue to run after the range has been turned “OFF”, but may also stop
immediately and then turn “ON” after a while.

Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.
Excessive spillovers in oven. This is normal, especially for pie spillovers or large

amounts of grease on the oven bottom. Wipe up excessive spillovers before starting the
self-clean cycle. If flames or excessive smoke are present, stop the self-clean cycle and
follow the steps under "Stopping or interrupting a Self-Cleaning Cycle" in this Use and
Care Guide.

Control(s) not set properly. Follow instructions under “Setting Broil” in this Use and Care
Guide.

Make sure oven is opened to Broil Stop Position.
Meat too close to the element. Reposition the rack to provide proper clearance between

the meat and the element.
The insert on broiler pan wrong side up and grease not draining. Always place insert on

the broiler pan with ribs up and slots down to allow grease to drip into pan.
Meat is not properly prepared. Remove excess fat from meat. Remove remaining fatty

edges to prevent the meat from curling, but do not cut into the lean of the meat.
Broiler pan used without the Broiler Pan Insert or insert is covered with foil. DO NOT use

the Broiler Pan without the Broiler Pan Insert or cover the insert with foil.
Broiler Pan or Broiler Pan Insert needs to be cleaned. Excessive smoking is caused by

build-up of grease or food spatters. Clean the Broiler Pan and Insert on a regular basis.
Control(s) not set properly. Follow instructions under “Self-Cleaning” in this Use and

Care Guide.
Self-cleaning cycle was interrupted. Stop time must be 3 to 4 hours past the start time.

Follow steps under "Stopping or Interrupting a Self-Cleaning Cycle” in this Use and
Care Guide.

Set Self-Clean cycle for a longer cleaning time.
Hand clean bottom, front top of oven, frame or door area outside oven seal before the

self-cleaning is started. These areas are not in the self-cleaning area, but get hot enough
to burn on residue. Burned-on residue can be cleaned with a stiff nylon brush and water or
nylon scrubber. Be careful not to damage the oven seal by attempting to clean it.

Excessive spillovers in oven, especially for pie spillovers or large amounts of grease on
the oven bottom. Wipe up excessive spillovers before starting the Self-Clean cycle. If
flames or excessive smoke are present, stop the Self-Clean cycle and follow the steps
under "Stopping or Interrupting the Self-Cleaning Cycle" in this Use and Care Guide.

rn

L:

^ .

43

Get it

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

Your Home

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

1-800-4-MY-HOME® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com

www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1 -800-827-6655 (U.S.A.) 1 -800-361 -6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

(1-888-784-6427)

Au Canada pour service en français;

1-800-LE-FOYER“^

(1-800-533-6937)

www.sears.ca

® Registered Trademark / ™ Trademark / Service Mark of Sears Brands, LLC

® Marca Registrada /™ Marca de Fábrica / Marca de Servicio de Sears Brands, LLC

Marque de commerce / Marque déposée de Sears Brands, LLC

) Sears Brands, LLC
