Kenmore 790.45 User Manual

Electric Range with Induction Cooktop

Slide-in models

Estufa eléctrica con cubierta de inducción

Modelos deslizables

Models, Modelos

790.4500*

* = Color number, número de color

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

P/N 318203841 Rev. A (0808)

Table of Contents

Kenmore Elite Limited Warranty

IMPORTANT SAFETY INSTRUCTIONS...........................3-5

Product Record....................................................................5

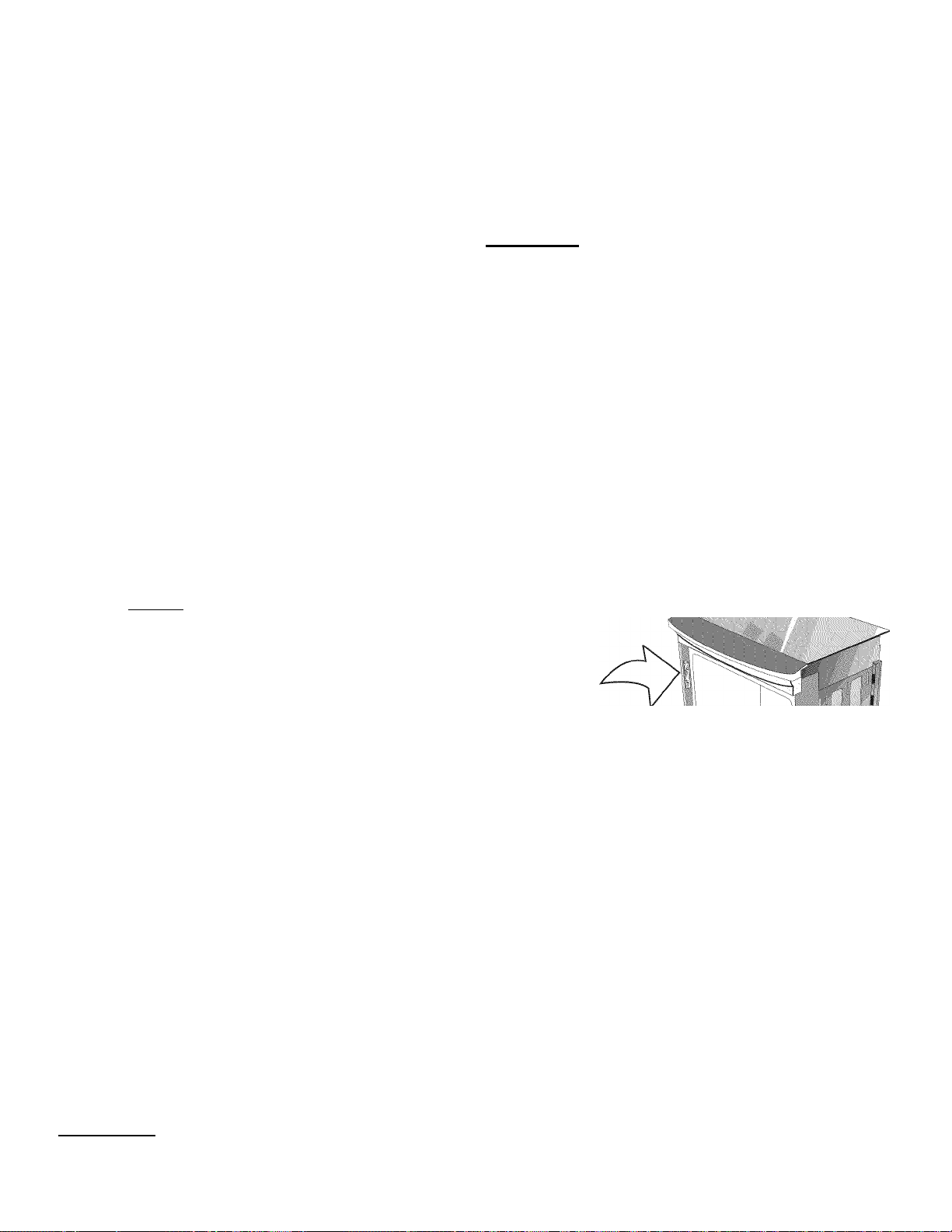

Serial Plate Location............................................................5

Induction Cooktop Features...............................................5

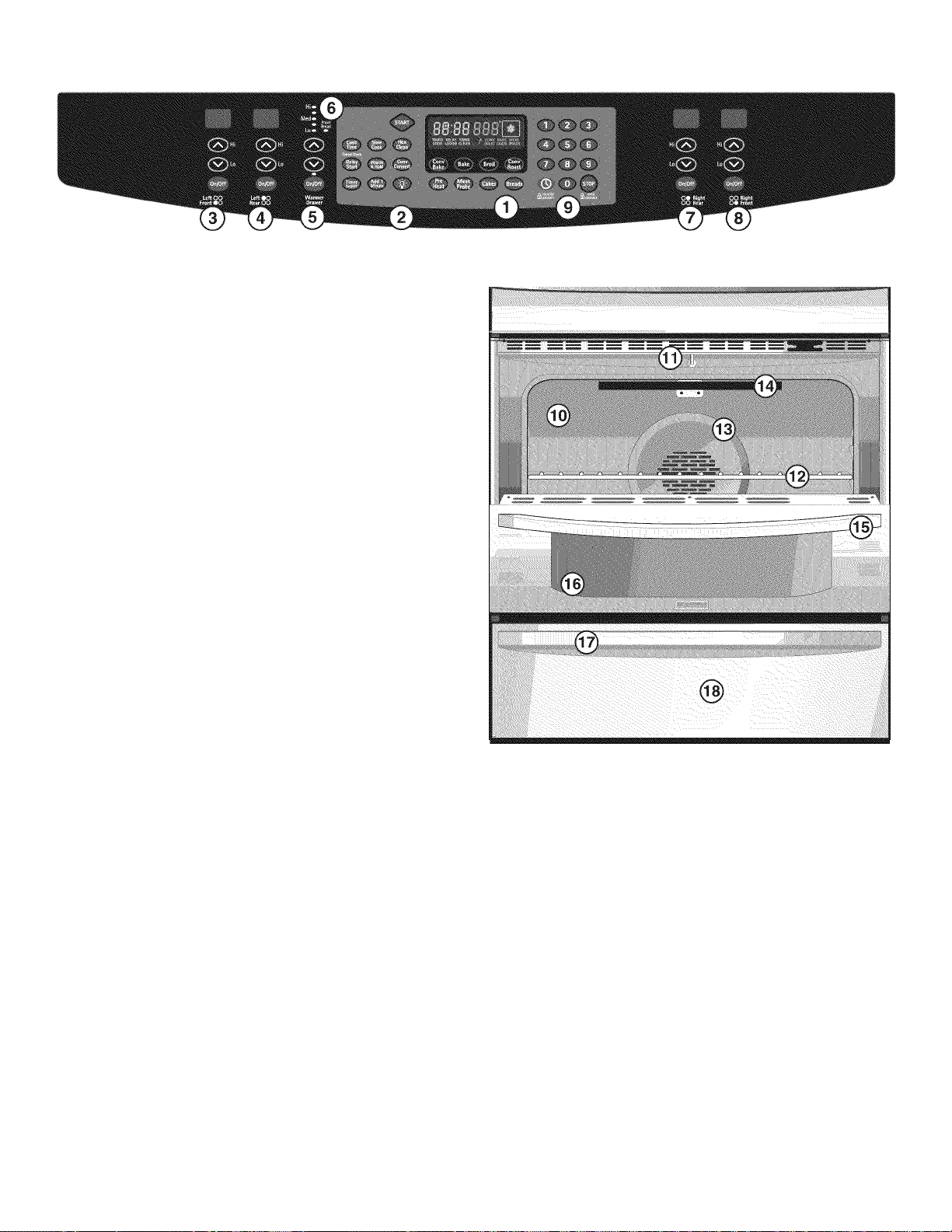

Range Features ................................................................

Before Using the Cooktop

Before Setting the Cooktop .........................................

Setting the Cooktop Controls

Using the Touch Control
Operating the Cooking Zones

Preheat Recommendations.............................................................. 11

Recommended Settings for Induction Cooking Zones .. 11
Power Sharing

Operational Noises............................................................................ 12

..................................................................................

...................................................................

...........................................................

Before Setting Oven Controls

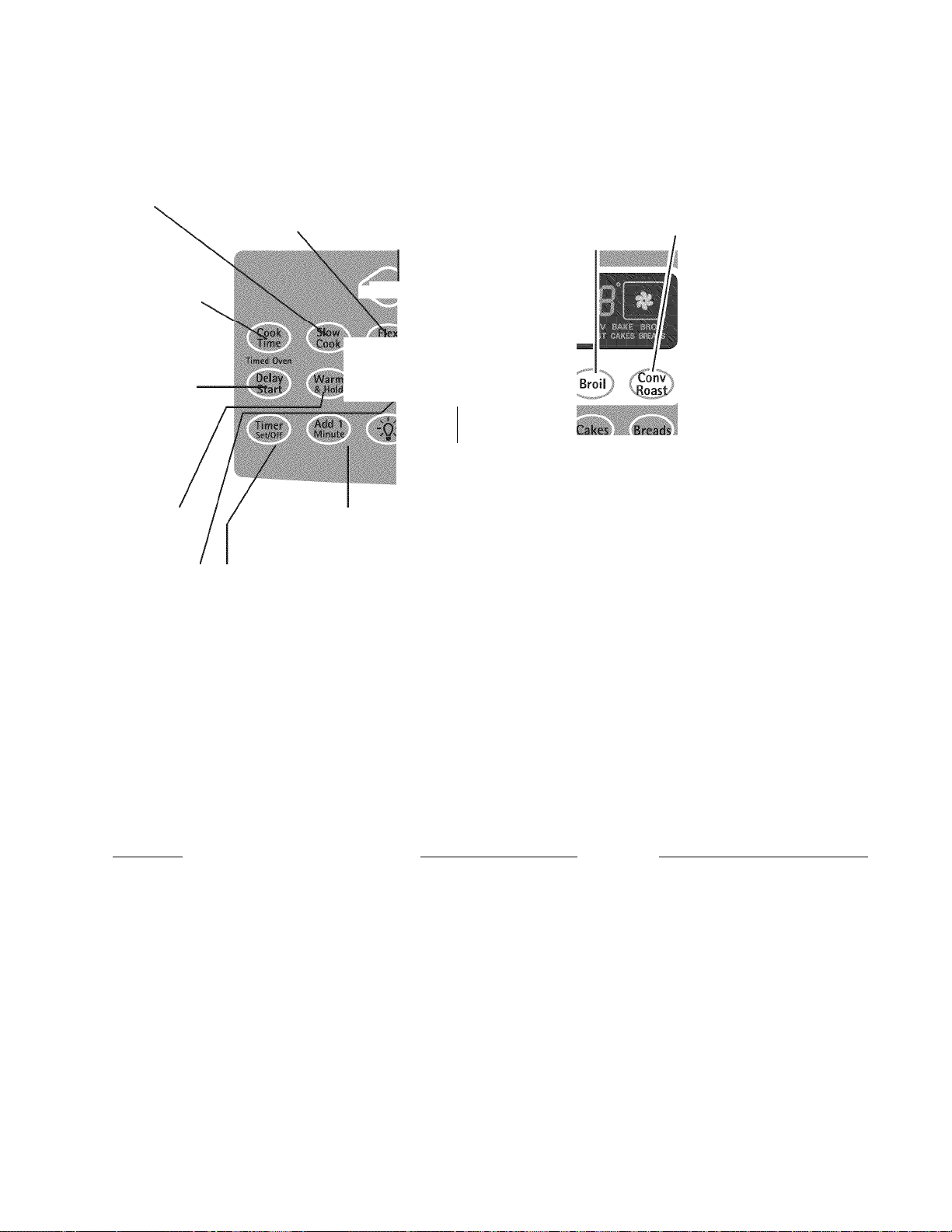

Electronic Oven Control Pad Features
Minimum and Maximum Control Pad Setting
Setting the Oven Controls

Setting the Clock............................................................................... 15

Setting Continuous Bake or 12 Hour Energy Saving ... 16

Setting Timer..................................................................................... 16

Setting Oven Lockout Feature

.........

............................

...............................................

.....................................

...

.................................... 13

...

.......................

10-12

...............

...........................................

..........................................................

15-33

2

6

7-8

9-10

10
10

12

14

14

17

Setting Silent Control Operation

Setting Temperature Display............................................................. 18

Setting Preheat

Setting Bake.................................................................................20-21

Setting Convection Bake....................................................................22

Setting Convection Roast...................................................................23

Setting Convection Convert

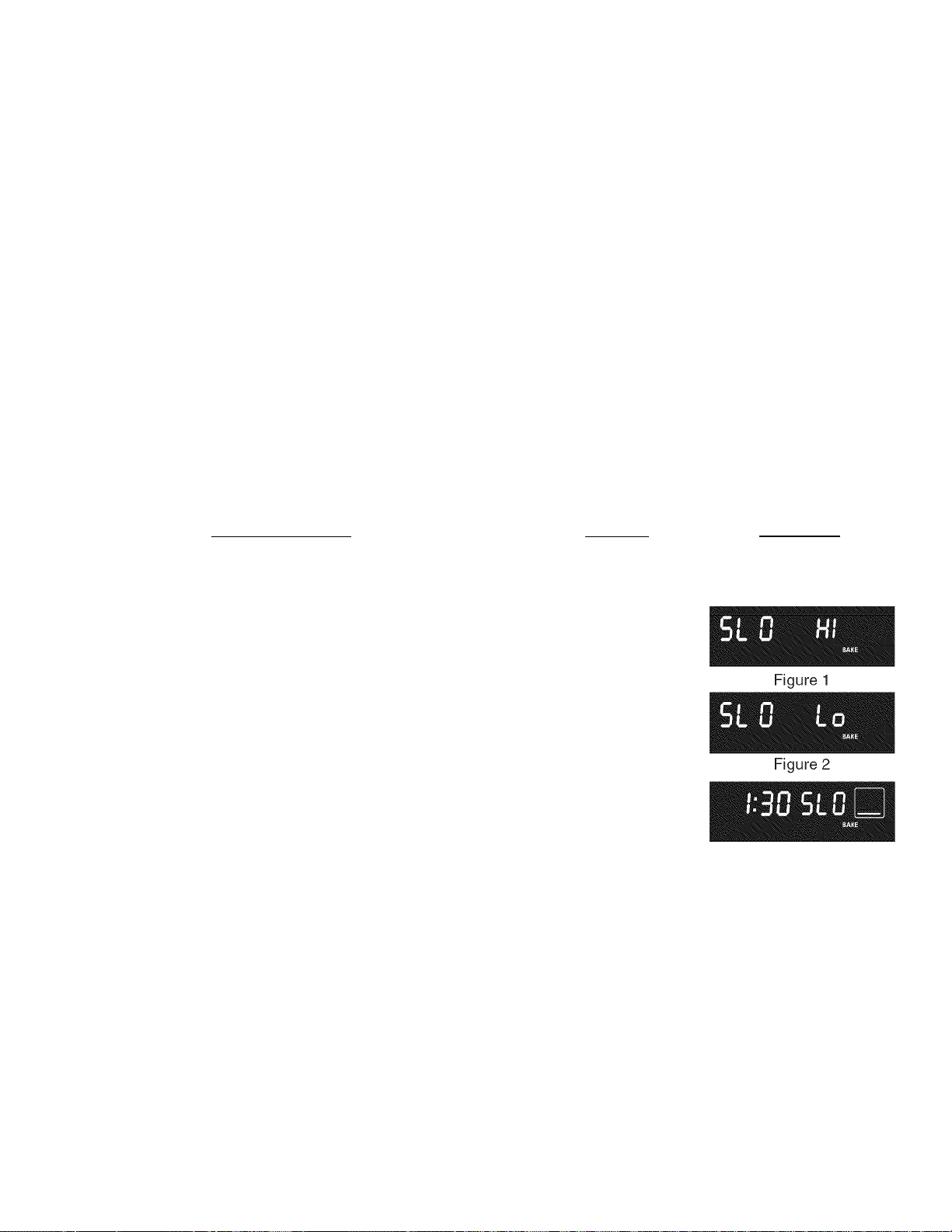

Setting the Slow Cook Feature
Setting Cooking Timed Feature

Setting Delayed Cooking Timed Feature...........................................26

Setting food Categories Feature

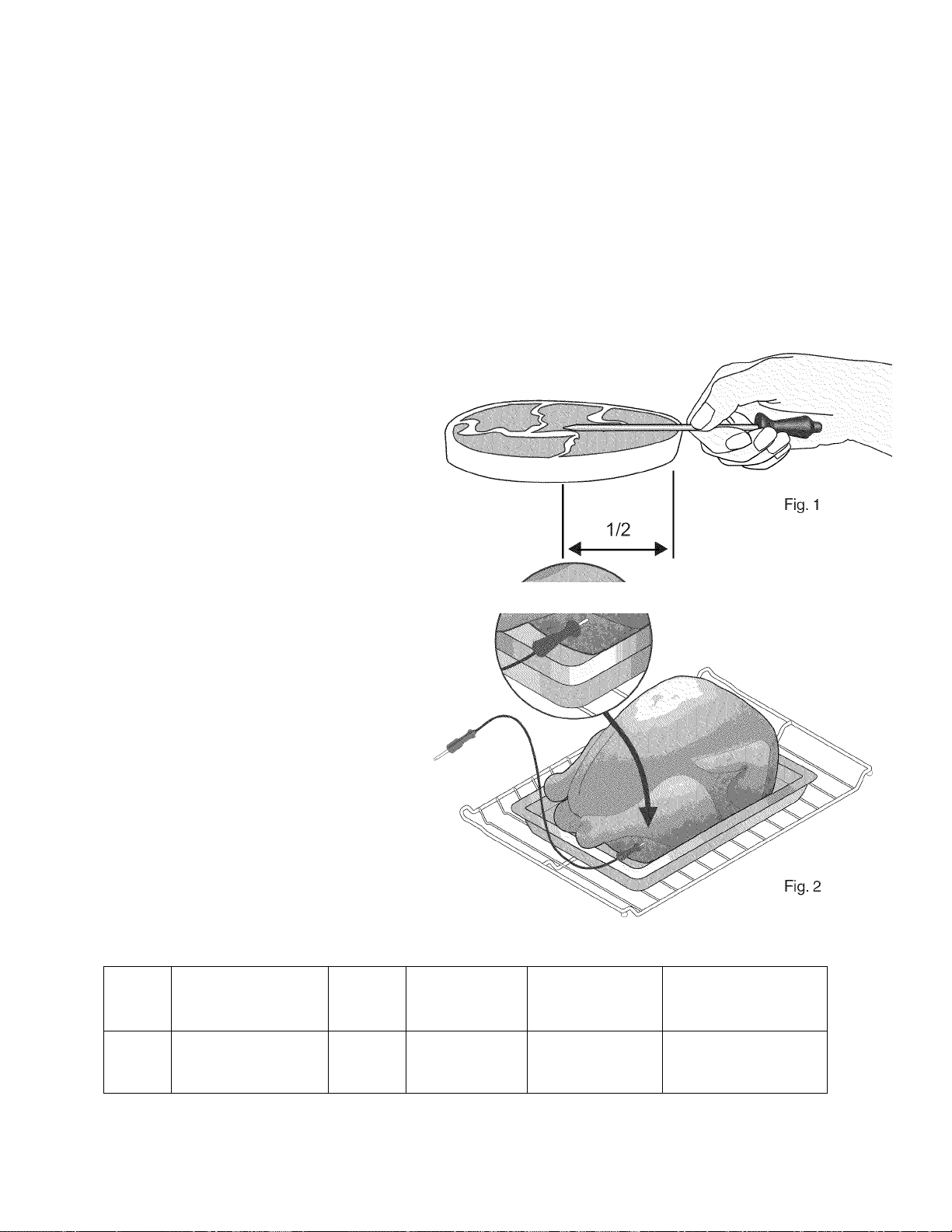

Using and Setting the Meat Probe................................................28-29

Setting the Warm & Hold Feature

Setting Broil.......................................................................................31

To Set the Sabbath Feature..........................................................32-33

To set the Rcipe Recall Feature.........................................................33

.................................................................................

.......................................................

...............................................................

..........................................................

.........................................................

........................................................

......................................................

17

19

23
24
25

27

30

Setting Warmer Drawer Controls................................34-35

Self Cleaning
Adjusting the Oven Temperature

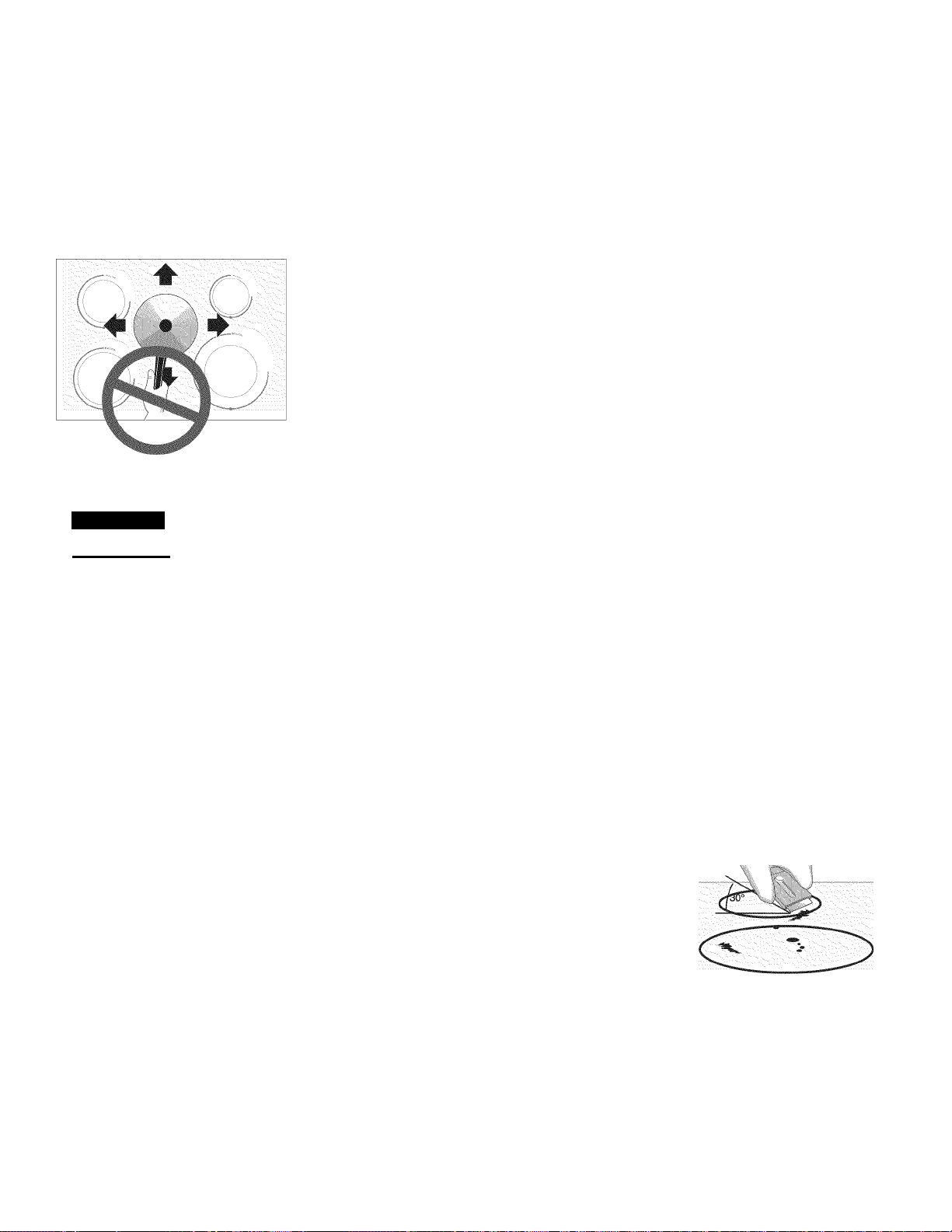

General Care & Cleaning

............................................................

.....................................

.............................................

36-39

39

40-43

Before you call..............................................................44-45

Notes ................................................................................ 46

Protection Agreements

.....................................................

47

Sears Service......................................................................48

Kenmore Elite Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due
to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange
for free repair.

For five years from the date of purchase, if the cooktop glass fails due to thermal shock or the cooktop elements are
defective, call 1-800-4-MY-HOME® to arrange for free part replacement. After the first year from purchase date, you must
pay the labor cost of part installation.

This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.

2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.

3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

4. A service technician to instruct the user in correct product installation, operation or maintenance.

5. A service technician to clean or maintain this product.

6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions
supplied with the product.

7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended
purpose.

8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than
those recommended in all instructions supplied with the product.

9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of
implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

_ Printed in United States

important Safety instructions

Read ail iostroctions before using this appliance. Save these instructions for future reference.

This manual contains many important safety messages. Always read and obey all safety messages.

The safety symbol m calls your attention to safety messages that inform you of hazards that can kill or hurt you or others,

or cause damage to the product.

Indicates an imminently hazardous situation which, if not avoided may result in death or serious injury.

ik CAUTION

product damage.

Ail safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.

• Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after unpack

ing the range. Never allow children to play with packag
ing material.

• Proper Installation-Be sure your appliance is prop
erly installed and grounded by a qualified technician
in accordance with the National Electrical Code
ANSI/NFPA No. 70 latest edition, and local code
requirements. Install only per installation instructions

provided in the literature package for this range.

• In case of an emergency, know how to disconnect

the electrical power to the appliance at the circuit
breaker or fuse box.

• User Servicing. Do not repair or replace any part of

the appliance unless specifically recommended in
the manuals. All other servicing should be done only by

a qualified technician to reduce the risk of personal

injury and damage to the appliance. Sears Parts &
Repair is the recommended repair service for this

appliance.

• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip

brackets/screws, or any other part of the product.

installed anti-tip bracket(s) provided with the
range. To check if the bracket(s) is installed
properly, remove the lower panel or storage drawer
and verify that the anti-tip bracket(s) is engaged.
Refer to the Installation Instructions for proper
anti-tip bracket(s) installation.

ik CAUTION

in the cabinets above a range.

• Do not leave children alone—Children should not

be left alone or unattended in the area where
appliance is in use. They should never be allowed to

sit or stand on any part of the appliance.

Indicates an imminently hazardous situation which, if not avoided mciy result in minor or moderate injury, or

This unit has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 18 of the

FCC rules. These limits are designed to provide reason
able protection against harmful interference in a residen
tial installation. This unit generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However there is no
guarantee that interference will not occur in a particular
installation. If this unit does cause harmful interference to
radio or television reception, which can be determined by
turning the unit off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antennae.

• Increase the distance between the unit and receiver.

• Connect the unit into an outlet or a circuit different
from that to which the receiver is connected.

j

Persons with a pacemaker or similar

J Never use your appliance for warming

I

Stepping, leaning or sitting on the door

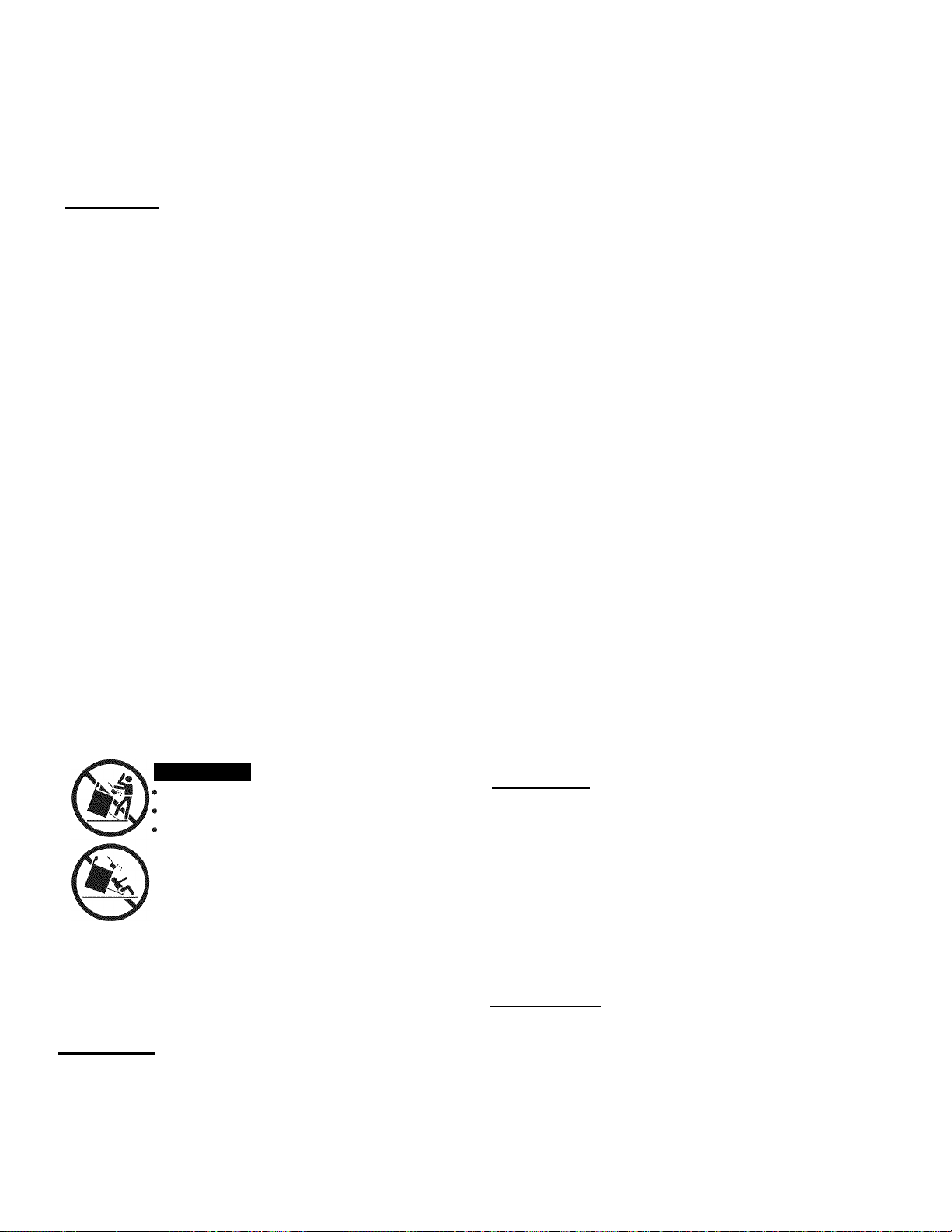

ik WARNING

All ranges can tip.

Injury to persons could result.
Install anti-tip device packed with
range.

* See Installation Instructions.
To reduce the risk of tipping, the range

oven must be secured by properly

j

Do not store items of interest to children

ik CAUTION

medical device should exercise caution using or standing
near an induction unit while it is in operation, as the
electromagnetic field may affect the working of the pace
maker or similar medical device. It would be advisable to
consult your Doctor or the pacemaker or similar medical
device manufacturer about your particular situation.

____________I DO NOT TOUCH COOKING ZONES,

ik CAUTION

AREAS NEAR THESE ZONES, HEATING ELEMENTS OR
INTERIOR SURFACES OFTHE OVEN OR AREAS NEAR
THESE SURFACES. Cooking zones may be hot from

residual heat even though they are dark in color. Areas near
the Cooking Zones may become hot enough to cause burns.
Among these areas are the cooktop, surfaces facing the
cooktop, the oven door and window. During and after use, do
not touch, or let clothing or other flammable materials touch
these areas until they have had sufficient time to cool.

ik WARNING

. . _ _ _____

up or heating up the room.

ik WARNING

or drawer of this range can result in serious injuries
and also cause damage to the range. Do not allow

children to climb or play around the range. The weight of a
child on an open door may cause the range to tip, result
ing in serious burns or other injury. An open drawer, when
hot, may cause burns.

important Safety instructions

À WARNING

equipped) for storage.

• Storage in or on appliance—Flammable materials
should not be stored in an oven, near surface units
or in the drawer (if equipped). This includes paper,

plastic and cloth items, such as cookbooks, plasticware

and towels, as well as flammable liquids. Do not store

explosives, such as aerosol cans, on or near the appli
ance. Flammable materials may explode and result in
fire or property damage.

• Wear proper apparel—Loose-fitting or hanging
garments should never be worn while using the

appliance. Do not let clothing or other flammable

materials contact hot surfaces.

• Do not use water or flour on grease fires—Smother

the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat or

grease may catch fire if allowed to become too hot.

• Use only dry potholders—Moist or damp potholders

on hot surfaces may result in burns from steam. Do

not let potholders touch hot heating elements. Do not
use a towel or other bulky cloth instead of a potholder.

• Do not heat unopened food containers—Buildup of
pressure may cause container to burst and result in
injury.

• Remove the oven door from any unused range if it is

to be stored or discarded.

IMPORTANT—Do not attempt to operate the oven
during a power failure. If the power fails, always turn
the oven off. If the oven is not turned off and the power

resumes, the oven may begin to operate again. (Food left
unattended could catch fire or spoil.)

ik CAUTION

by cold temperatures. When you use your appliance for
the first time, or if it has not been used for a long
period of time, make sure that it has been exposed to a
temperature above 0°C/32°F for at least 3 hours before
connecting it to the power supply.

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating

unit. Place a pan of food on the unit before turning it on,

and turn the unit off before removing the pan.

• Use proper pan size. This appliance is equipped with

one or more surface units of different sizes. Select

utensils having flat bottoms large enough to cover the
surface unit. The use of undersized utensils will expose a
portion of the surface heating unit to direct contact and
may result in ignition of clothing. Proper relationship of
utensil to the surface unit will also improve efficiency.

• Utensil handles should be turned inward and not

extend over adjacent surface units. To reduce the risk

of burns, ignition of flammable materials, and spillage
due to unintentional contact with the utensil.

I Do not use the oven or warmer drawer (if

Electronic controllers can be damaged

• Never leave surface burners unattended at high heat
settings—Boilovers cause smoking and greasy accu

mulations that may ignite, or a pan that has boiled dry
may melt.

• Protective liners—Do not use aluminum foil to line oven
bottom or any other part of the appliance. Only use
aluminum foil as recommended for baking if used as a
cover placed on the food. Any other use of protective
liners or aluminum foil may result in a risk of electric
shock or fire or short circuit.

• Glazed cooking utensils—Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for rangetop service without break
ing due to the sudden change in temperature. Check the
manufacturer’s recommendations for cooktop use.

• Do not use decorative surface element covers. If an
element is accidentally turned on, the decorative cover
will become hot and possibly melt. Burns will occur if the
hot covers are touched. Damage may also be done to
the cooktop.

• When flaming foods under a ventilating hood, turn
the fan on.

FOR GLASS COOKTOPS ONLY

• Do not cook on or clean a broken cooktop—If cooktop
should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of electric
shock. Contact a qualified technician immediately.

• Clean cooktop glass with caution—If a wet sponge or
cloth is used to wipe spills on a hot cooking area, be
careful to avoid a steam burn. Some cleaners can
produce harmful fumes if applied to a hot surface.

• Avoid scratching the cooktop glass with sharp
objects.

IMPORTANT INSTRUCTIONS FOR USING

YOUR OVEN

• Use care when opening oven door or warmer drawer
(if equipped)—Stand to the side of the range when

opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven /
warmer drawer.

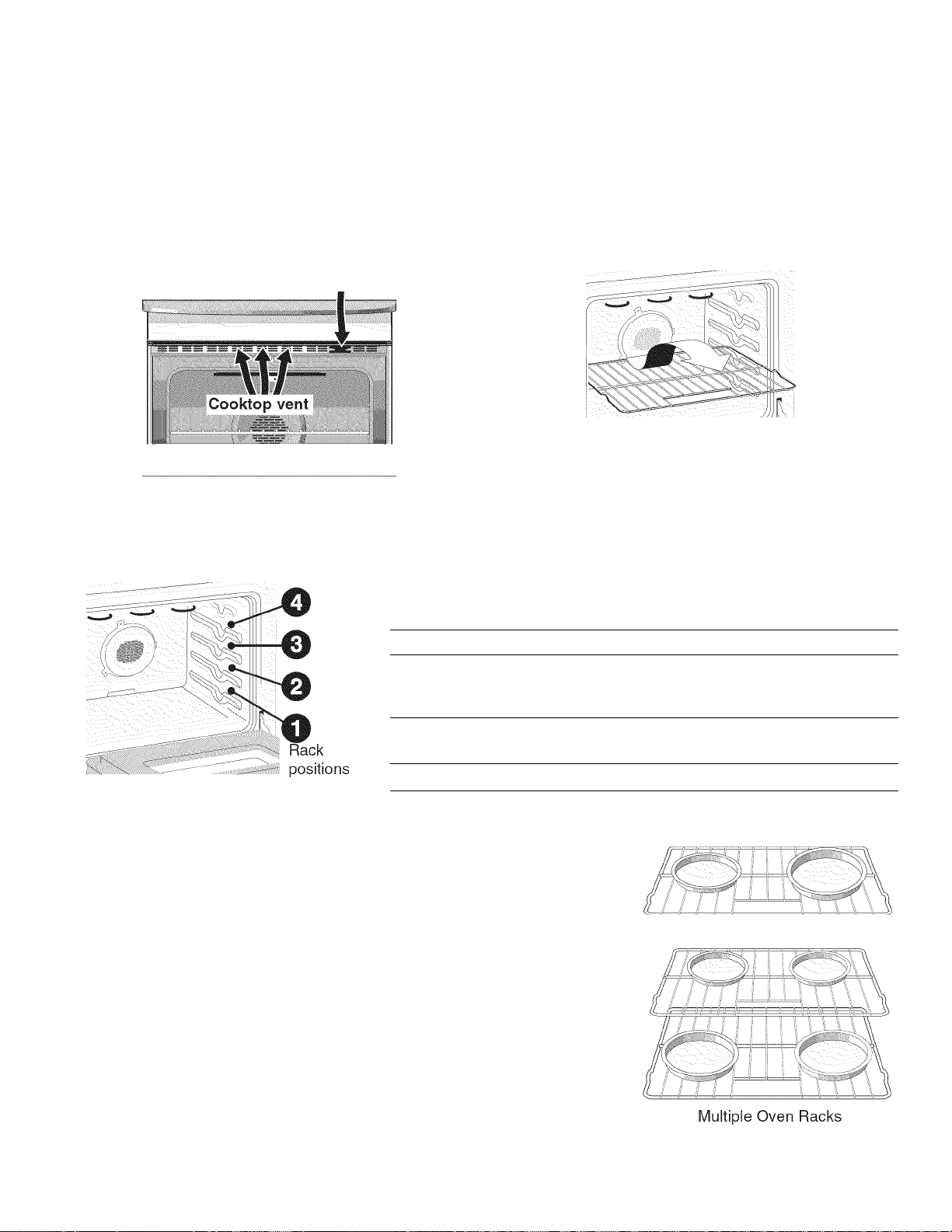

• Keep oven vent ducts unobstructed. The oven vent is
located at right side of the front panel and visible when
the oven door is open. Touching the surfaces in this area
when the oven is operating may cause severe burns.
Also, do not place plastic or heat-sensitive items on or
near the oven vent. These items could melt or ignite.

• Placement of oven/warmer drawer (if equipped)
Racks. Always place oven racks in desired location

while oven/warmer drawer (if equipped) is cool. If rack
must be moved while oven is hot use extreme caution.
Use potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven/warmer drawer (if equipped).

Remove all utensils from the rack before moving.

• Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and
be kept away from the high heat of the broiler.

important Safety instructions

• Do not cover the broiler insert with aluminum foil.

Exposed fat and grease could ignite.

• Do not touch a hot light bulb with a damp cloth.

Doing so could cause the bulb to break. Disconnect the

appliance or turn off the power to the appliance before

removing and replacing light bulb.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

• Clean the range regularly to keep all parts free of
grease that could catch fire. Exhaust fan ventilation

hoods and grease filters should be kept clean. Do not
allow grease to accumulate on hood or filter. Greasy
deposits in the fan could catch fire. When you are
flaming food under the hood, turn the fan on. Refer to
the hood manufacturer’s instructions for cleaning.

• In the self-cleaning cycle, only clean the parts listed
in this Use and Care Guide. Before self-cleaning the

oven, remove the broiler pan and any utensils or foods
from the oven.

Save these safety instructions

Product Record

In this space below, record the date of purchase, model
and serial number of your product. You will find the model
and serial number printed on the serial plate.

Model No. 790.4500
Serial No.
Date of purchase
Save these instructions and your sales receipt for future

reference.

________________________________________

____________________________________

__________________________________

Do not use oven cleaners—No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
Do not clean door gasket—The door gasket is
essential for a good seal. Care should be taken not to
rub, damage or move the gasket.
Remove oven racks. Oven racks color will change if
left in the oven during a self-cleaning cycle.

A CAUTION

sensitive to the fumes given off during the self

cleaning cycle of any range. Move birds to another

well ventilated room.

I The health of some birds is extremely

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic

Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause
cancer, birth defects or other reproductive harm, and
requires businesses to warn customers of potential
exposure to such substances.

Serial Plate Location

You will find the model and serial number printed on the
serial plate. The serial plate is located as shown below.

Remember to record the serial number for future
reference.

Serial Plate

Location

V /
f

...

Please carefully read and save these instructions

This Use & Care Manual contains general operating instructions for your appliance and feature information for several
models. Your product may not have all the described features. The graphics shown are representative. The graphics on
your appliance may not look exactly like those shown. Common sense and caution must be practiced when installing,
operating and maintaining any appliance.

Induction Cooktop Features

Fast and Efficient - Induction cooking heats faster while using less energy. Induction power levels are quick to boil and

efficient when simmering.
A Cooler Cooktop - A unique feature of the Induction cooking is that whether elements are ON or recently turned OFF,
the cooktop will be cooler than radiant element ceramic cooktops. Virtually no wasted heat is produced since the heat
begins with the presence of a pan.
Easy Clean-ups - The cooler cooktop surface (when compared to a radiant cooktop) makes clean-ups easier. Spills resist
sticking or burning so they wipe up easier.
Magnetic Detector - The coil sensor automatically detects whether the pan is made of magnetic materials and eliminates
any accidental “turn-ONs”, such as might occur from contact with a spatula or spoon
Pan Size Detection - The pan size recognition sensor automatically detects and adapts the Cooking Zones to the pan
sizes in use for consistent, more even cooking.
More Responsive - Induction cooktops are more responsive than their electric or gas counterparts because only the pan
heats. This type of cooking heats easier and will be just as responsive when reducing to a simmer.

A CAUTION

glass surface may be HOT from residual heat transferred from the cookware and burns may occur if touched.

I The Cooking Zones may appear to be cool while turned ON and after they have been turned OFF. But the

5

Range features

Your Electric Range Features:

1. Electronic Oven Control with Timer

2. Glass Touch Sensitive Control Panel

3. Left Front 8” Cooking Zone Controls & Digital Display

4. Left Rear 7” Cooking Zone Controls & Digital Display

5. Warm & Ready Drawer Control & Indicator Light

6. Bread Proof Indicator Light

7. Right Rear 6” Cooking Zone Controls & Digital Display

8. Right Front 10” Cooking Zone Controls & Digital Display

9. Cven & Cooktop Lockout Controls

10. Self Cleaning Cven Interior

11. Self-Clean Door Latch

12. Adjustable Heavy Duty Porcelain Cven Racks

13. Convection Fan & Cover

14. Broil Element

15. Large 1-piece Cven Door Handle

16. Full Width Cven Door with Large Window

17. Warm & Ready Drawer Rack (not illustrated)

18. Warmer Drawer Humidity Controller

19. Ceramic Glass Smoothtop

20. 7” Single Induction Cooking Zone

21. 6” Single Induction Cooking Zone

22. 8” Single Induction Cooking Zone

23. 10” Single Induction Cooking Zone

24. Broil Pan

25. Broil Pan Insert
26 Searing Grill

27. Convection Roasting Rack

@

i26Jy

Before Using the Cooktop

USETHE CORRECT COOKWARE TYPE - The magnetic Cooking Zone sensors
located below the cooktop surface require the use of cookware made with magnetic
material in order to start the heating process on any of the Cooking Zones.

When purchasing pans, look for cookware specifically identified by the manufacturer
for use with Induction cooktops. If you are not sure, use a magnet to test whether
the cookware type will work. If a magnet sticks to the bottom of the cookware, the
material type is correct for Induction cooking (See Fig. 1). Fig-1
It is recommended to always use heavier high quality stainless steel cookware on
your Induction Cooktop surface. This will greatly reduce the possibility of developing scratches on the ceramic surface.
Even quality cookware can scratch the cooktop surface, especially if cookware is slid over the ceramic cooktop surface
without being lifted up. Over time sliding ANY type of cookware over the ceramic cooktop will likely alter the overall appear
ance of the cooktop. Eventually the buildup of scratches will make cleaning the surface difficult and degrade the overall
appearance of the cooktop.

Minimum Pan Size Requirements for each Cooking Zone

NOTE: Pan bottoms should not
extend more than Vs” (13mm) beyond
outer Cooking Zone (Induction) rings.

125mm

' 145mm

— 5-3/4”-

Min.

-5”“
Min.

0

Right Rear

Cooking Zone

Left Rear

Cooking Zone

180mm

180mm

■7-1/4”"

Min.

Left Front ""'

Cooking Zone

Fig. 2

USETHE CORRECT SIZE COOKWARE - The Cooking Zones available on the Induction Cooktop require a MINIMUM

pan size to be used at each location (Fig. 2). The inner ring of each Cooking Zone is your guide to the correct MINIMUM
pan size. The pan bottom must FULLY cover the inner ring for proper cooking to occur.

The thicker outer ring at each Cooking Zone is helpful to determine the pan MAXIMUM size. After centering the cookware
on the cooktop, make sure the cookware does not extend more than 1/2” beyond the thicker line on the Cooking Zone
(See example in Fig. 2).

NOTE: If a pan made of the correct material is centered properly on any of the active Cooking Zones but is TOO SMALL,
the affected Cooking Zone display will flash the power level and the pan will not heat.

■7-1/4”"

Min.

Right Front

Cooking Zone

Before Using the Cooktop

Use Quality Cookware in Good
Condition

The cookware used with the Induction
Cooktop should have flat bottoms that
make good contact with the entire surface
of the Cooking Zone. Check for flatness by
rotating a ruler across the bottom of the
cookware (See Fig. 1). Be sure to follow
all the recommendations for using
cookware as shown in Fig. 2.

Also remember to:

• Use cookware made with the correct
material type for Induction Cooking (See
page 7 Fig. 1).

• Use quality cookware with heavier
bottoms for better heat distribution
allowing for more even cooking results.

• The pan size should match the amount
of food being prepared.

• Do not let pans boil dry. This may

cause permanent damage in the form of
breakage, fusion, or marring that can
affect the ceramic cooktop. (This type of
damage is not covered by your
warranty).

• Do not use dirty pans with grease
buildup. Always use pans that are easy
to clean after cooking.

INCORRECT

• Cookware not centered on

Cooking Zone surface.

• Curved or warped pan bottoms
or sides.

induction Cookware Recommendations

CORRECT

Cookware centered correctly on

Cooking Zone surface.

Flat pan bottom & straight sides.

Fig. 1

 CAUTION

appear to be cool while turned ON and
after they have been turned OFF. But the
glass surface may be HOT from residual
heat transfered from the cookware and
burns may occur if touched.

 CAUTION

COOKWARE or PANS directly with
hands. Always use oven mitts or pot

holders to protect hands from burns.

 CAUTION

Cookware across the cooktop surface.

Doing so may permanently damage the
appearance of the ceramic cooktop.

I The Cooking Zones may

DO NOT TOUCH HOT

DO NOT SLIDE

■Min. size-

Pan does not meet the minimum
size required for the Cooking
Zone used (See page 7).

Pan bottom rests on cooktop trim
or does not rest completely on the
cooktop surface.

Heavy handle tilts pan.

Fig. 2

PLEASE NOTE - ANY one of the incorrect conditions listed above in
Fig. 2 may be detected by the sensors located below the ceramic
cooktop surface. If the cookware does not meet any of these
conditions, one or more of the Cooking Zones will not heat, which will
be indicated by flashing power level display. Correct the problems
before attempting to reactivate the cooktop.

H—Min. size—H

Pan size meets or exceeds the

recommended minimum size for

the Cooking Zone (See Page 7).

Pan rests completely on the

Cooktop surface.

Pan is properly balanced.

Before Setting the Cooktop

Prior to using your cooktop for the first time, apply the recommended cooktop cleaning creme (on the web visit

www.sears.com for replacement cleaner, item number 40079) to the ceramic surface. Buff with a non-abrasive cloth or no

scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning creme
leaves a protective finish on the glass to help prevent scratches and abrasions.

NOTE: Be sure to read detailed instructions for ceramic glass cooktop cleaning in the General Care & Cleaning section

and Before You Call checklist section of this manual.

To Set the Cooktop Lockout Feature

The (^) pad is used to activate the Cooktop Lockout feature which will lock all surface
elements from being accidentally turned ON. This feature will only lock the cooktop.

To turn the Cooktop Lockout Feature ON:

Press and hold (^) until a 2nd beep sounds. If a triple beep sounds instead, check all
surface elements and turn them to the OFF position and repeat this step. The Cooktop

Locked indicator light will turn ON and the cooktop controls and functions are locked out
until the cooktop is unlocked (See Fig. 1).

To turn the Cooktop Lockout Feature OFF:

Press and hold (^) until a 2nd beep sounds (after 3 seconds).The Cooktop Locked Fig. 2
indicator light will turn OFF and the cooktop may be used normally (See Fig. 2).

Note: Starting a Self-Clean cycle will automatically turn ON the Cooktop Lockout feature. The cooktop will remain locked until

the Self-Clean cycle has completed and the oven door has unlocked. If a power failure occurs after the Cooktop Lockout has
been activated, you must turn OFF the Cooktop Lockout feature before being able to use the cooktop again.

■

on

OU

a

Fig.1

COOKTOP
LOCKOUT

Display Window Messages

The Electronic Surface Element Control (ESEC) feature provides a digital display of the settings for the
induction cooking zones on the cooktop. The ESEC displays in combination with the touch pads are
designed to replace the conventional control knob and power level tick mark indicators.

Note: Unlike standard ceramic cooktops, induction cooktops do not directly heat up or glow red. Only the

pan heats. Also, induction cooking zones cannot be turned on without a properly placed pan made of

magnetic material such as steel or cast iron.

ik CAUTION I The Cooking Zones may appear to be cool while turned ON and after they have been

turned OFF. But the glass surface may be HOT from residual heat transferred from the cookware and
burns may occur if surface is touched.

COOKING ZONE ON/OFF PAD - Each of the Cooking Zones have separate ON/OFF key pads. Touch

the corresponding Cooking Zone ON/OFF key pad once to activate the Cooking Zone needed. will
appear in the Alpha-Numeric display. If the corresponding UP/DOWN Arrow key pad is not touched
within 10 seconds, the request to turn the Cooking Zone ON will cancel.

To set a Cooking Zone power level touch the corresponding Cooking Zone UP or DOWN Arrow key pad
once. To turn OFF a Cooking Zone, touch the Cooking Zone ON/OFF key pad once.

POWER LEVEL SETTINGS - Once active, the Cooking Zones will provide 23 Power Levels to choose

from. These include Lo (Fig. 3), 1.2 (Fig. 4), 1.4,1.6,1.8, 2.0, 2.2, 2.4, 2.6, 2.8,3.0, 3.5, 4.0, 4.5, 5.0, 5.5,

6.0, 6.5 (Fig. 5), 7.0, 8.0, 9.0, Hi and Pb (Fig. 6).

The highest setting of Pb or “Power Boost” provides 25% more power than the Hi setting for 10 minutes

(See Fig. 10).
Each key pad touch (or just holding down the Power Level key pad) will scroll through all the available

power levels for any Cooking Zone quickly.

RESIDUAL HEAT - Once any Cooking Zone has been used for cooking and turned OFF, and if the

cooktop surface temperature on any of the Cooking Zones is still too HOT, HE (See Fig. 7) will appear

in the Alpha-Numeric display for the affected Cooking Zone. The HE will continue to display if the

temperature is still too HOT.

Fig. 3

m

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Before Setting the Cooktop

Display Window Messages

Pan detection

All four Cooking Zones provide a Pan Detection message. If a Cooking Zone is turned ON and no pan is detected (the
pan has been moved, the pan is not centered correctly, or the pan is not made of magnetic material), the power level will
flash in the cooking zone display window. To correct the situation, first lower the power level setting, then make sure that
the pan is centered correctly and is made of magnetic material.
If any of the above conditions are not corrected within 3 minutes, the cooking zone will automatically turn off.

ESEC Lockout Feature Q

The ESEC feature will not operate during a Self-Clean cycle or when the Cootop Lockout feature is active. Whenever the
ESEC Lockout feature is active, Q will appear in the oven control display.

Error Codes E11 thru E77

Each pair of cooking zones may display error messages concerning the cooktop. If an error code displays,
the cooktop control has detected a fault condition. Press stop to attempt to clear the display. You may also
need to re-power the appliance. If error recurs, record error number and call 1-800-4-MY-HOME® for
further assistance (See back cover of this manual).

Setting Cooktop Controls

Using the Touch Control

Be sure that your finger is placed in the center of the touch pad. If the finger is not placed on the center of a pad, the
cooktop may not respond to the selection made.

Lightly contact the pad with the flat part of your entire fingertip. Do not just use the narrow end of your fingertip.

m

B

Fig. 1

Operating the Cooking Zones

The Induction cooktop has four Cooking Zones designed for cookware of various sizes. Be sure to place cookware that
meets the minimum and maximum pan size requirements (see Fig. 2, page 7) for the Cooking Zone desired and is best
for the amount of food being prepared. Place the cookware with the prepared food on the Cooking Zone BEFORE setting
any of the Cooktop controls.

To Turn ON one or more of the Cooking Zones:

1. Place the prepared food using the correct type and size cookware on the desired Cooking Zone. Be sure to center
the cookware on Cooking Zone completely covering the minimum ring marked on the Zone surface. NOTE: If the
cookware requirements for the Cooking Zone (See Fig. 2, page 8) are not met the sensors will detect a problem and
the display will flash with the power level in the affected Cooking Zone Alpha-Numeric display. Any problems must be
corrected before proceeding.

2. To start one or more of the four Cooking Zones lightly touch the key pad for the Cooking Zones needed. A beep
will sound and the chosen Cooking Zone power level Alpha-Numeric display will show indicating no power level

for the Zone has been set yet. NOTE: If no other key pad is touched within 10 seconds the request to Power ON the
Cooktop Zone will clear.

3. Set the desired power level for the Cooking Zone by touching either the or (2) key pad. If the (^) key pad is
touched the Cooking Zone will start at a “Power Boost” maximum power level (the Cooking Zone Alpha-Numeric

display will indicate Pb and the control will beep once). If the (v) key pad is touched once, the Cooking Zone will
start at low (the Cooking Zone Alpha-Numeric display will show “Lo” and the control will beep once).

NOTE: Touch once, or repeatedly touch the (^) or (^) key pads to adjust or scroll through power levels at any

time during the cooking process (To scroll through the power levels quickly touch and hold the or (^)
pads until the power level desired is reached). Once the Cooking Zone power level has been set the food will begin

to heat at that level until the power level is manually changed. For more information about the available Cooktop
Zone power levels available see “Power Level Settings” section on page 9.

10

Setting Cooktop Controls

ik CAUTION

hot and burns may occur if the glass surface is touched before it has cooled sufficiently.

ik CAUTION

plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or

wooden spoons could catch fire if placed too close to the surface elements.

IMPORTANT OPERATING NOTES:

• Fluids spilled or objects lying on the controls area of the cooktop may cause the cooktop to display an error code and

turn OFF while cooking. Clean the spills or remove the objects from the cooktop.

• If the cookware or pan is moved from the center of any active Cooking Zone for any reason, a sensor will detect the

situation and the cookware will no longer heat. The affected Cooking Zone Alpha-Numeric display will flash the power
level set for the Cooking Zone. The Cooking Zone will remember the power level setting for up to 3 minutes before the
Cooking Zone will automatically shut CFF.

To Turn OFF the Cooking Zones:

1. Cnee cooking is complete, touch the (o^ key pad to turn the Cooking Zone CFF.

2. A beep will sound, the chosen Cooking Zone and its Alpha-Numeric display will turn off.

3. When any Cooking Zone is CFF, the corresponding Cooking Zone Alpha-Numeric display may show HE if the
Cooking Zone temperature is HCT. The Alpha-Numeric display will continue to display HE, and even if the Cooktop

is switched CFF the Alpha-Numeric display will continue to indicate HE as long as the cooking zone remains HCT.

The cooling fan will operate as long as the HE indicator is displayed.

i Cooking zones will appear to be cool after they have been turned off. The glass surface may still be

Do not place aluminum foil or plastic items such as salt and pepper shakers, spoon holders or

ik CAUTION

glass surface may be HOT from residual heat transferred from the cookware and burns may occur.

I The Cooking Zones may appear to be cool while turned CN and after they have been turned CFF. But the

Preheat Recommendations

When preheating a pan on the cooktop always watch carefully. Whenever using the cooktop, always pay attention to
any items cooking and remain attentive until the cooking process is complete.

Keep in mind that induction may decrease the amount of time required to preheat a cooking utensil.

Recommended Settings for Induction Cooking Zones

Setting

PCWER BCCST (Pb)

HIGH (8.0-Hi)
MEDIUM HIGH (5.0 - 8.0)
MEDIUM (3.0 - 5.0)
MEDIUM LCW (2.0 - 4.0)
LCW/SIMMER (Lo - 2.0)

Note: The size and type of cookware used will influence the setting needed for best cooking results. The Simmer
settings are used to simmer and keep larger quantities of foods warm such as stews and soups. The lower Simmer
settings are ideal for delicate foods and melting chocolate or butter.

Type of Cooking

Use when first starting to heat pans that contain large amounts of food or to bring
large pans of water to boil.

Start most foods, bring water to a boil or pan broiling
Continue a rapid boil, fry, deep fat fry
Maintain a slow boil, thicken sauces and gravies, steam vegetables
Keep foods cooking, poach, stew (2.8 or lower is a simmer setting).
Keep warm, melt, simmer (2.8 or lower is a simmer setting).

11

Setting Cooktop Controls

Power Sharing

The range is equipped with four
cooking zones divided into two heating
sections: right and left. Each section
has two zones that share the power of
one induction inverter.

If you are cooking in both zones of a
heating section, the last zone that
began to heat will cook at the power
setting you selected. The other zone
might experience a slight decrease
from its power setting.

Power Sharing Tips: Remember to
select the power setting last for the
cooking zone you want to maintain at
full setting heat. To maintain full setting
heat for two items, place one item on a
zone in one section, and the other item
on a zone in another section.

Cooking Zones section

Operational Noises

The electronic processes involved with Induction Cooking create some unusual background noises. These noises are
normal and part of the Induction Cooking process.

Please note that these noises are more noticeable while cooking at the Power BOOST level.

Left-hand

Cooking Zones section

Fig.i

12

Before Setting Oven Controls

____________

ik CAUTION

This range has a fan that will turn “ON” and “OFF” by itselftokeeptheelectronicscool.lt may continue

to run after the range has been turned “OFF”, but may also stop immediately and then turn “ON” after a while.

Cooktop and Oven Vent Location

The cooktop and the oven are vented through its

upper front frame. When the cooktop of the oven is on,

hot air is released through the vents. This venting is
necessary for proper air circulation and good baking
results.

To remove, pull the rack forward until it stops. Lift up

front of rack and slide out. To replace, fit the rack onto
the guides on the oven walls. Tilt the front of the rack

upward and slide the rack back into place.

Removing and Replacing Oven Racks

Oven vent

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use
oven mitts when the oven is hot.

RECOMMENDED RACK POSITIONS FOR

BROILING, BAKING & ROASTING
Food Rack position
Broiling meats, chicken or fish 3or4
Cookies, cakes, pies, biscuits &muffins

Using 1 rack 2 or 3
Using multiple racks 2 and 4

Figure 1

Frozen pies, angel food cake, yeast, bread,

casseroles, small cuts of meat or poultry
Turkey, roast or ham 1

Note: Always use caution when removing food.

1 or 2

Air Circulation in the Oven

For best air circulation and baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and cookware do not
touch each other, the oven door, sides or back of the oven cavity. The hot
air must circulate around the pans and cookware in the oven for even heat
to reach around the food.

13

1 Oven Rack

Electronic Oven Control Pad Features

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become

familiar with the various features and functions of the oven as described below. Detailed instructions for each feature

and function follow later in this Use & Care Guide.

SLOW COOK—

Use to select the
Slow Cook
feature.

OVEN COOK TIME—

Use to enter the length
of the baking time

FLEX CLEAN START—Use BAKE PAD— BROIL
PAD— Use to

select the Self
Cleaning
feature.

to start all
oven features
(not used
with Oven
Light).

Use to enter

the normal

Bake feature.

PAD— Use

to select
variable
broil
function.

CONVECTION 0 THRU 9 ROAST— Use to NUMBER PADS

select the — Use to enter
Convection temperature and
Roast feature. times.

DELAY START— Use

with BAKE, com

BAKE, PREHEAT,
SLOW COOK COOK

TIME and CLEAN to

program a Delayed
Timed Bake or Delay
Self-Cleaning cycle
start time.

WARM & HOLD
PAD—Use to select the

Warm & Hold feature.

CONV CONVERT—Use

to select the Convection
Convert feature.

ADD 1 MINUTE—Use to

select Add 1 Minute feature.

OVEN LIGHT—Use to turn

the oven light ON and OFF.

KITCHEN TIMER ON/OFF Use to set or

cancel the Kitchen Timer. The Kitchen
Timer does not start or stop cooking.

Minimum and
Maximum Control
Pad Settings

Clean

Conv

Convert

;!(■

Bake

CAKES & BREADS— Use

to select the Cakes &
Breads cooking features.

MEAT PROBE— Use to activate

the meat probe feature.

PREHEAT— Use

CONVECTION BAKE—

Use to select the
Convection Bake feature.

All of the features listed below have minimum and maximum time or temperature
settings that may be entered into the control. An ENTRY acceptance beep will sound
each time a control pad is touched (the Oven Lockout pad is delayed 3 seconds).

An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature or

time is below the minimum or above the maximum settings for the feature.

to raise oven to
cooking
temperature.

CLOCK SET— Use to

set the time of day; also
controls the Cooktop
Lockout feature.

! V! N

■

Í Ù XOlil

STOP—Use to

cancel any oven
mode previously
entered except the
time of day and
minute timer. Press

STOP to stop

cooking. STOP also
controls the Oven
Lockout feature.

FEATURE

PREHEAT TEMP.
BAKE, CAKES,BREADS TEMP.
BROIL TEMP.
KITCHEN TIMER

CLOCK TIME

COOK TIME

DELAY START

CLEAN TIME
CONVECTION BAKE
CONVECTION ROAST
MEAT PROBE

12 Hr. Mode

24 Hr.

12 Hr.
24 Hr.
12 Hr.
24 Hr.

12 Hr.
24 Hr.

MINIMUMl TEMP. /TIME

170°F/77°C
170°F/77°C

400°F/205°C
0:01 Min.
0:01 Min.
1:00 Hr./Min.
0:00 Hr./Min.
0:01 Min.
0:01 Min.
1:00 Hr./Min.
0:00 Hr./Min.
2 hours

170°F/77°C
170°F/77°C

130°F/54°C

14

IVI AX! D/f U ^/1 TEfVIPn /TIIVIE

550°F/288°C
550°F/288°C

550°F/288°C

11:59 Hr./Min.
11:59 Hr./Min.
12:59 Hr./Min.

23:59 Hr./Min.

11:59 Hr./Min.
11:59 Hr./Min.

12:59 Hr./Min.
23:59 Hr./Min.
4 hours

550°F/288°C

550°F/288°C
210°F/99°C

Setting Oven Controls

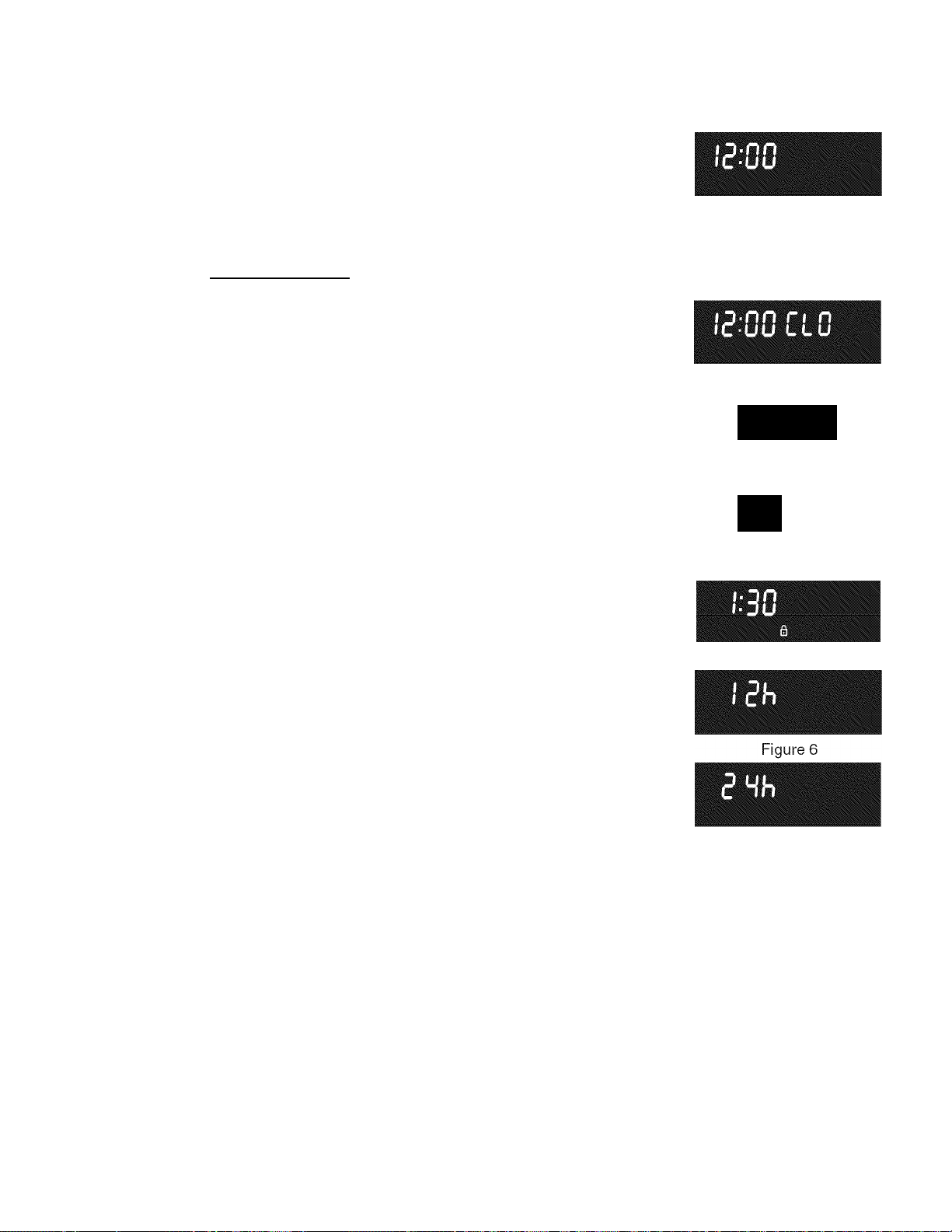

Setting the Clock

The (^) pad is used to set the clock. The clock may be set for 12 or 24 hour time of day
operation. The clock has been preset at the factory for the 12 hour operation. When the

range is first plugged in, or when the power supply to the range has been interrupted, the
timer in the display will flash (See Fig. 1).

Figure 1

INSTRUCTIONS

To set the clock (example below for 1:30)

1. Press (^). "CLO" will appear in the display (Figure 2).

2. Press Co^ pads to set the time of day to 1:30

(Figure 3). "CLO" will stay in the display. Press Cstart>. "CLO"

will disappear and the clock will start (Figure 4).

Changing between 12 or 24 hour time of day display

Press and hold (^) for 7 seconds. "CLO" will appear in the

1.

display. After 3 seconds Q will appear in the display indicating
that the cooktop lockout is active (Figure 5). CONTINUE

holding the pad until "12h" (Figure 6) or "24h" (Figure 7)

appears in the display and the control beeps once.

Press to switch between the 12 and 24 hour time of day

2.

display. The display will show either "12h" (Figure 6) or "24h"

(Figure 7).

3. Press Tstart^,) to accept the change or press (s^ to reject the

change. Q will disappear from the display.

4. Reset the correct time as described in To set the Clock

above. Please note that if the 24 hour time of day mode was
chosen, the clock will now display time from 0:00 through
23:59 hours.

PRESS

©CD®

for 7 seconds

START or ( STOP

DISPLAY

Figure 2

on n n

Ou LLU

■

Figure 3

on

Ou

■

Figure 4

Figure 5

15

Figure 7

Setting Oven Controls

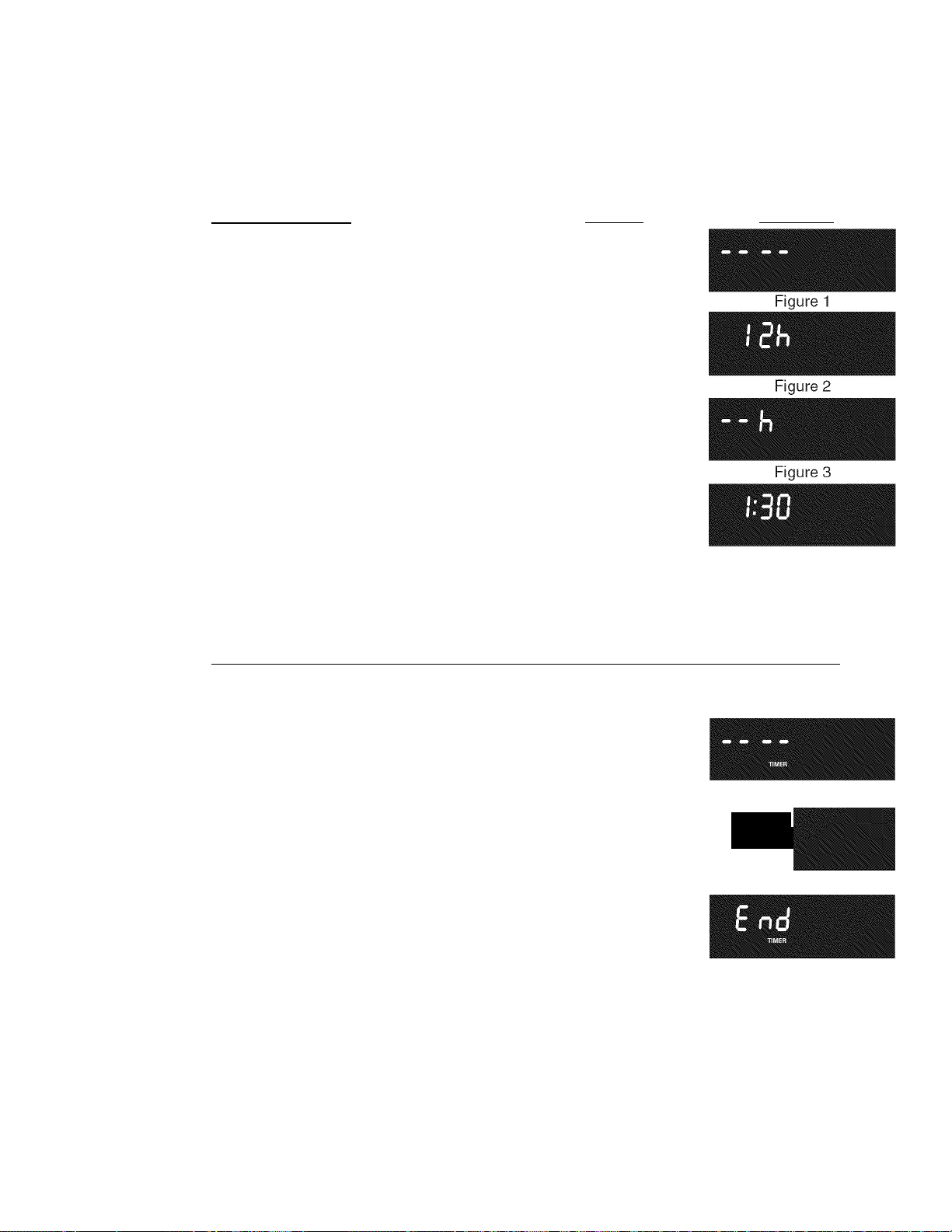

Setting Continuous Bake or 12 Hour Energy Saving

The TIMER (t^) and FLEX CLEAN pads control the Continuous Bake or 12 Hour Energy Saving features. The
oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is

left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous
Baking.

INSTRUCTIONS

To set the control for Continuous Bake or 12 Hour Energy Saving features

1. Press and hold (¡^) for 7 seconds (Figurel). After 7 seconds "12h" or

-h" will appear in the display and the control will beep once.

2. Press to switch between the 12 Hour Energy Saving and

continuous bake features. Note: "12h" (Figure 2) in the display indicates
the control is set for the 12 Hour Energy Saving mode and -h"

indicates the control is set for the Continuous Bake feature (Figure 3).

3. Press START to accept the change (Figure 4; display will return to START

PRESS

(^)for7

seconds

DISPLAY

time of day) or press (stopI to reject the change.

or (STOP

Setting Timer Figure 4

The TIMER pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the kitchen that
will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be used during

any of the other oven control functions. Refer to “Minimum and Maximum Control Pad Settings” for time amount settings.

INSTRUCTIONS PRESS DISPLAY

To set the Kitchen Timer (example for 5 minutes)

1. Press (|^-will appear and "TIMER" will flash in the display

(Figure 5).

2. Press the number pads to set the desired time in the display (example

(^^). Press -..STARTThe time will begin to count down with "5:00" and (^^5^ : start)

"TIMER" will stay in the display (Figure 6). Note: If start ¡snot

pressed the timer will return to the time of day after 25 seconds.

3. When the set time has run out, "End" and "TIMER" will show in the

display (Figure 7). The clock will sound with 3 beeps every 5 seconds

until is pressed.

Figure 5

c-nn

3-uu

Figure 6

To cancel the Kitchen Timer before the set time has run out

Press (T^. The display will return to the time of day.

To Set Add 1 Minute Feature

The (^|) ADD 1 MINUTE pad is used to set the Add 1 Minute feature. When the pad is pressed, 1 minute is

added to the Kitchen Timer feature if this feature is already active. If the Kitchen Timer feature is not active and the
pad is pressed, the Kitchen Timer feature will become active and will begin counting down from 1 minute.

16

Figure 7

Setting Oven Controls

Note: Adjustments to the Oven Lockout, Temperature Display, and Silent Control Operation features will not affect
cooking results.

Setting Oven Lockout Feature

The pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and
prevents the oven from being turned on. It does not disable the clock. Kitchen Timer or the interior oven lights.

INSTRUCTIONS

PRESS

DISPLAY

To activate the Oven Lockout feature

1. Press and hold (stop) for 3 seconds.

2. After 3 seconds "Loc" will appear, a beep will sound and

"DOOR LOCKED" will flash in the display. Once the oven door

is locked the "DOOR LOCKED" indicator will stop flashing and
remain on along with the "Loc" (Figure 1).

(si^for3

seconds

LOC

Figure 1

To reactivate normal oven operation:

1. Press and hold for 3 seconds. A beep will sound. The

"DOOR LOCKED" will flash in the display until the oven door

has completely unlocked (Figure 2).

2. The wall oven is again fully operational.

(si^for3

seconds

Figure 2

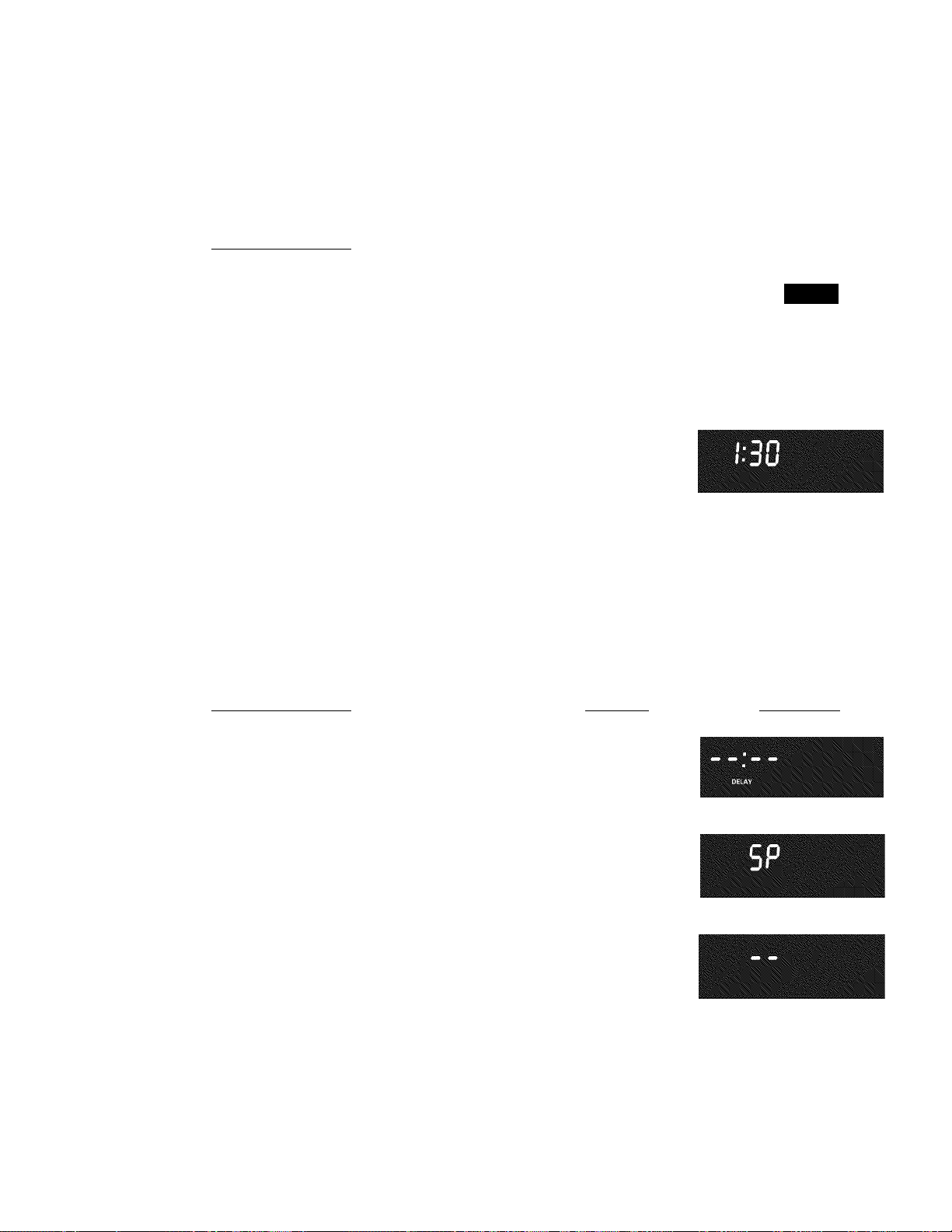

Setting Silent Control Operation

The DELAY TIME and FLEX CLEAN (a^ pads control the Silent Control operation feature. The Silent Control
operation feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the

control can be programmed for silent operation and later returned to operating with all the normal sounds and beeps.

INSTRUCTIONS

PRESS DISPLAY

To change control from normal sound operation to silent control operation

1. To tell if your range is set for normal or silent operation press

and hold (^). will appear and "DELAY" will flash in the
display (Figure 3). After 7 seconds "SP" (Speaker) will appear

in the display. (Figure 4)

2. Press to switch between normal sound operation and

silent operation mode. The display will show either "SP"

(Figure 4) or (Figure 5).

If "SP" appears (Figure 4), the control will operate with normal

sounds and beeps. If appears (Figure 5), the control is in
the silent operation mode.

3. Press START to accept the change or press to reject the \ start or Figure 5

change.

for 7 seconds

Note: The control will always beep at the end of a kitchen timer period, and will beep when a set temperature has been

reached, even if the control is set to silent operation.

Figure 3

Figure 4

17

Setting Oven Controls

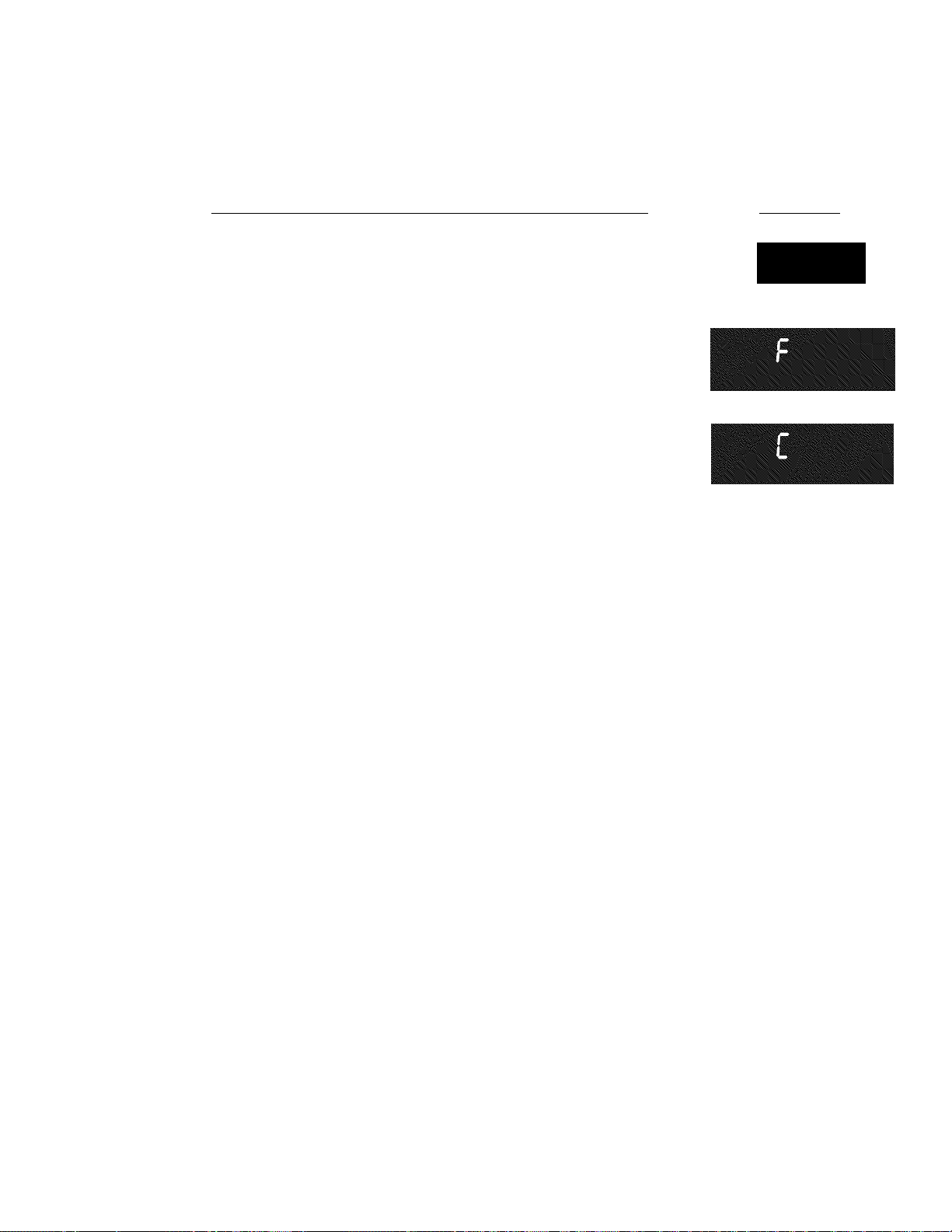

Setting Temperature Display — Fahrenheit or Celsius:

The BROIL (Broil) and FLEX CLEAN pads control the Fahrenheit or Celsius temperature display modes. The
oven control can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the

factory to display in Fahrenheit.

INSTRUCTIONS PRESS

DISPLAY

To change display from Fahrenheit to Celsius or Celsius to Fahrenheit

1. To tell if the display is set for Fahrenheit or Celsius press (Broil)
(Figure 1) and hold for 7 seconds; "550°" will appear and

"BROIL" will flash in the display and a beep will sound. If "F"

appears, the display is set to show temperatures in Fahrenheit

(Figure 2). If "C" appears, the display is set to show

temperatures in Celsius (Figure 3).

2. Press (g) to switch between Fahrenheit or Celsius display

modes. The display will show either "F" (Figure 2) or "C"
(Figure 3).

3. Press Cstart); to accept the change or press to reject the •, start > or (stop

change.

Broil

forTseconds

30 55(3

Figure 1

Figure 2

Figure 3

Setting Oven Controls

Important Things to Know Before Setting any Basic Oven Cooking Function

This appliance has been factory pre-set to start any BAKE, CONV BAKE, CONV ROAST, PREHEAT, CAKE or BREAD
function with the oven set temperature automatically set for 350°F. However if desired, the oven set temperature may be
adjusted at any time during the cooking process. You may also choose to add a COOKTIME or DELAY START with any of
the functions listed above.

Temperature Visual Display

Your oven is equipped with a temperature visual display. When a cooking mode is set, the actual temperature will be
shown in the display and will rise as the unit preheat. When the unit has reached its target temperature, a beep will sound
to remind you to place the food in the oven. This feature will be active with the following cooking modes: bake, convection
bake, convection roast, cakes and breads.
NOTE: The lowest temperature that can be displayed is 100°F.

18

Setting Oven Controls

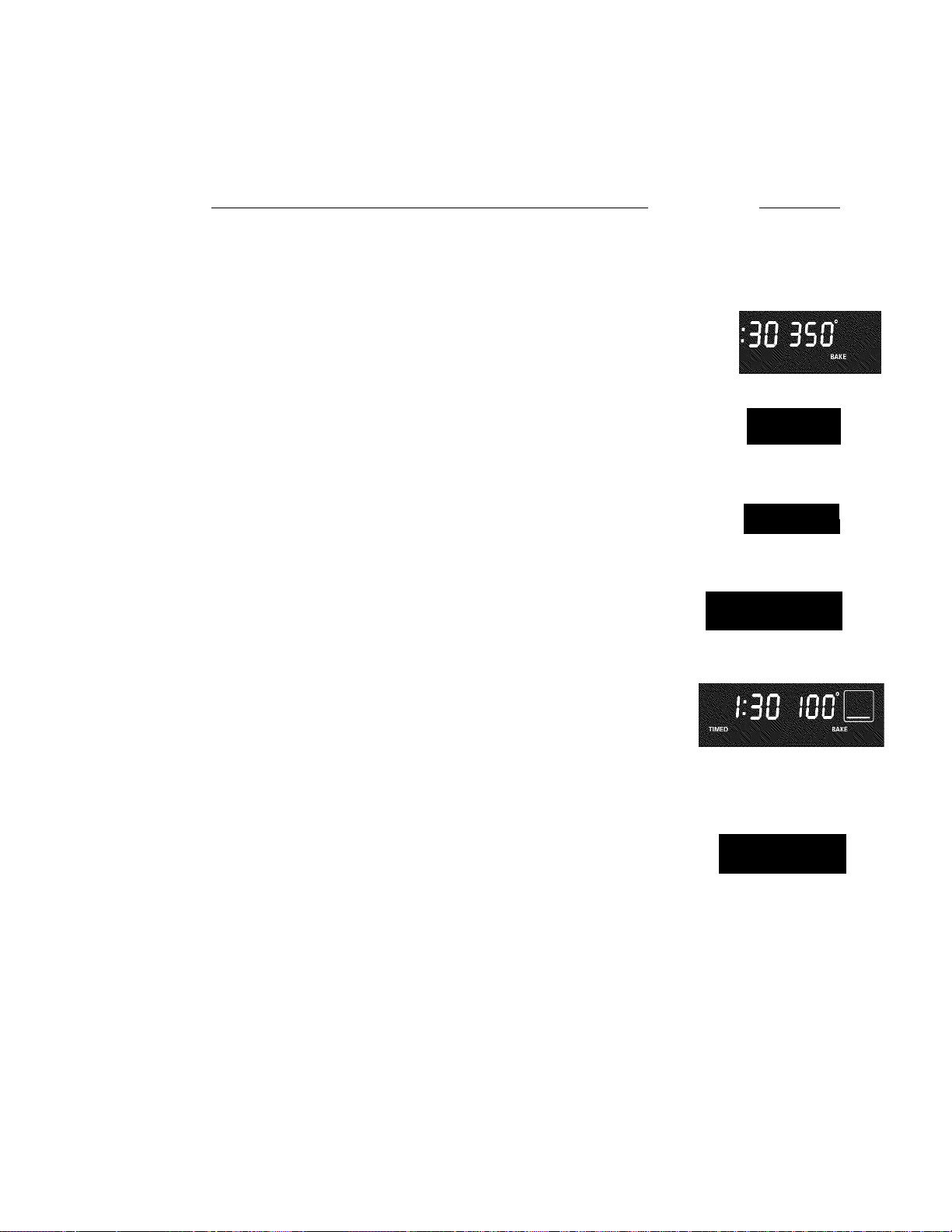

Setting Preheat

The PREHEAT pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and
then indicate when to place the food in the oven. Use this feature when recipes call for preheating. Preheating is not

necessary when roasting or cooking casseroles. The oven can be programmed to preheat at any temperature between
170°F to 550°F.

To set the Preheat temperature for 375°F

1. Arrange the interior oven racks.
Press "350" and "BAKE" will appear in the display

2.

(Figure 1). Note that if a preheat of 350°F is needed, press

INSTRUCTIONS

PRESS

DISPLAY

30 350’

3. Press (3^ (^. "375°" and "BAKE" will appear in the

display (Figure 2).

4. Press START . "BAKE" will appear in the display. "PRE" and

the actual oven temperature shown in the display will alternate
as the oven heats and reaches 375°F (Figure 3).

Note: After the oven has reached the desired temperature (this
example, 375°F) the control will beep and the "PRE" light will turn
off and oven target temperature will be displayed (Figure 4). If you
missed hearing the beep, you can tell that the oven has reached
preheat temperature if you see the oven temperature showing in
the oven display. Once the oven has preheated, PLACE FOOD IN
THE OVEN. The "BAKE" light will stay on.

Press to cancel the preheat feature.

To change Preheat temperature while oven is preheating (example: changing from 375°F to 425°F)

If it is necessary to change the preheat temperature while the oven
is preheating to the original temperature:

1. While preheating, press "375" and "BAKE" will appear
in the display (Figure 5)

CD®CE)

START

Figure 2

30 PPE

Figure 3

Figure 4

30 315'

Figure 5

Figure 6

2. Enter the new preheat temperature. Press (^4^ C^'
"425°" and "BAKE" will appear in the display (Figure 6).

3. Press start;;. "BAKE" will appear in the display. "PRE" and

the actual oven temperature shown in the display will alternate
as the oven heats and reaches 425°F (Figure 7).

Note: A beep will sound once the oven temperature reaches 425°F
and the display will show "425°" and "BAKE" (Figure 8).

4. When baking is complete press

Note: While in preheat mode, the convection fan will be activated
during the first rise of temperature to allow the oven to reach its
target temperature faster. The Bake, Broil and Convection
elements will also cycle for better heat distribution.

19

®CD(D

I

START

■

Figure 8

Setting Oven Controls

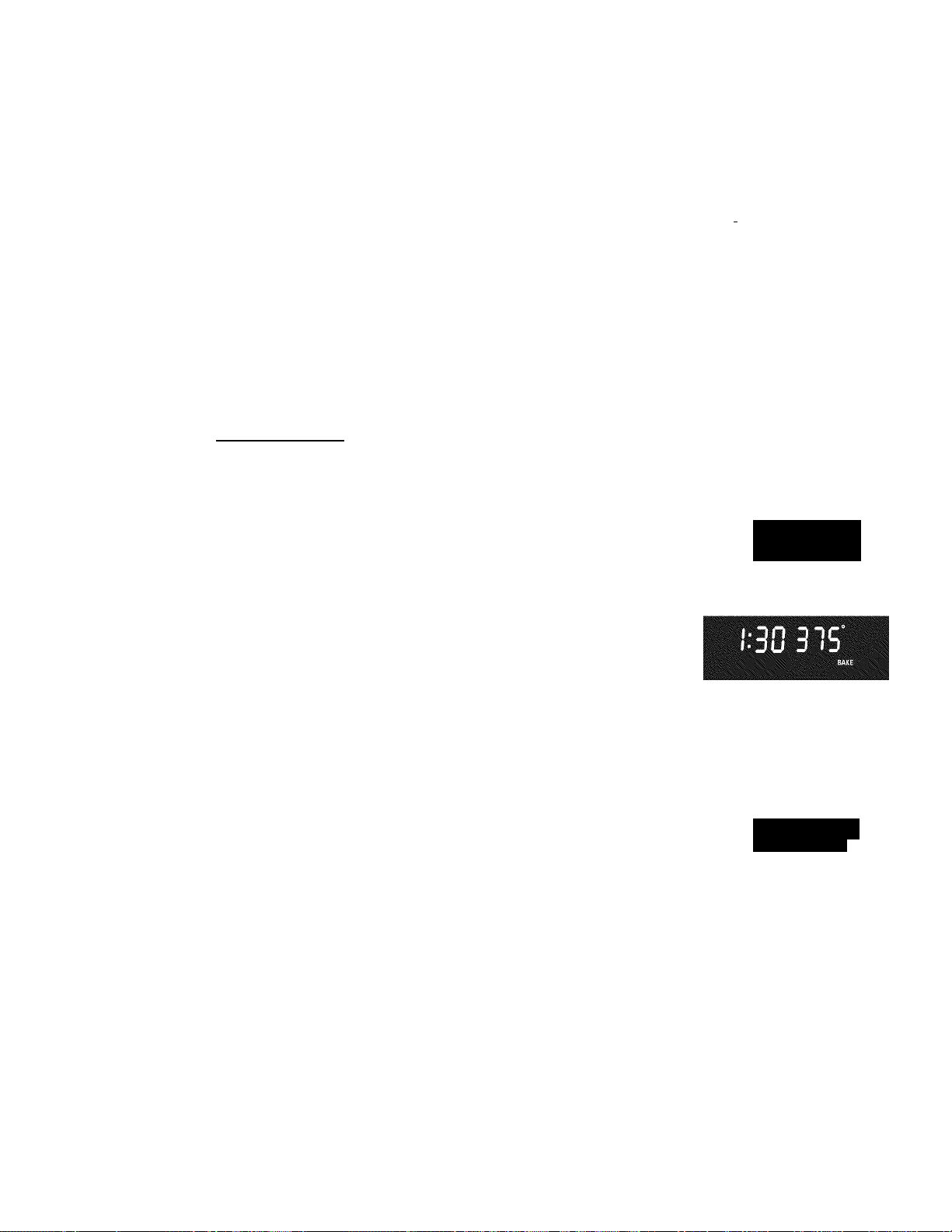

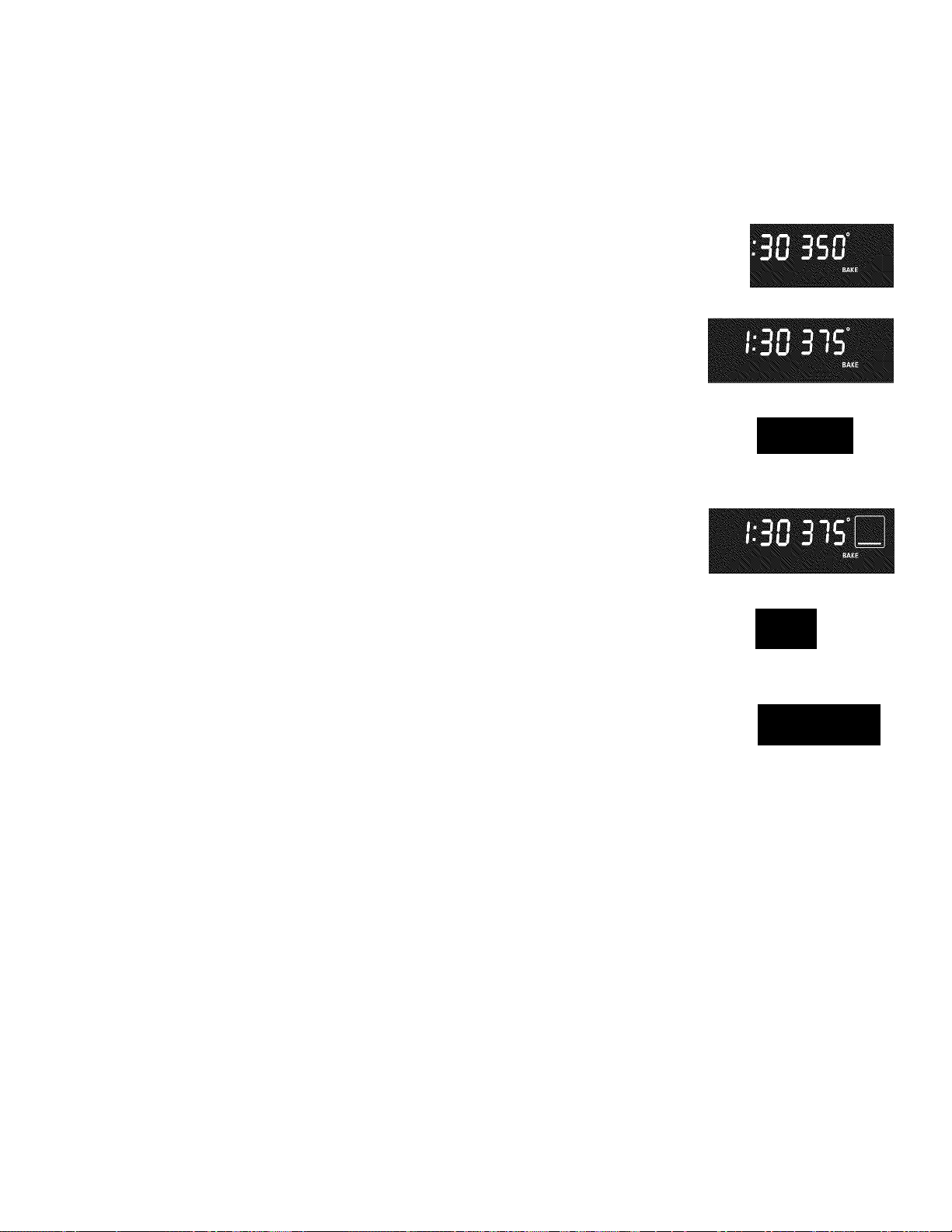

Setting Bake

The BAKE (Bake) pad controls normal baking. If preheating is necessary, referto the (S) Preheat Feature for
instructions. The oven can be programmed to bake at any temperature from 170° F to 550° F (the sample shown below

is for 350° F).

INSTRUCTIONS

To set the Bake Temperature to 375°F

1. Arrange interior oven racks and place food in oven.

Press (Bake), "350" Will appear and "BAKE" will flash in the2.

display(Figure 1). If a bake of 350°F is needed, press start \

3.

Press CK^ (Figure 2). "BAKE" will continue to flash

and "375°" will appear in the display.

Press START The actual temperature will be displayed (Figure

4.

3). A beep will sound once the oven temperature reaches 375°F
and the display will show "375°" and "BAKE" (Figure 4).

PRESS

I

CDCDCD

START

DISPLAY

Figure 1

Figure 2

Dn inn“

Du luu

Pressing (sro^ will cancel the Bake feature at any time.

To change the Bake Temperature (example: changing

from 375°F to 425°F)

1. After the oven has already been set to bake at 375°F and the

oven temperature needs to be changed to 425°F, press (Bake)

(Figure 5) and "375" will appear and "BAKE" will flash in the

display.

2. Press (Figure 6). "BAKE" will continue to flash

and "425°" will appear in the display.

3. Press START .

Note: During the first rise of temperature, the convection fan will be
activated to allow the oven to reach its target temperature faster. The
Bake, Broil and Convection elements will also cycle for better heat
distribution.

(DCDCD

START ;

Figure 3

Figure 4

:30 3

m

Figure 5

30 M35'

Figure 6

20

Setting Oven Controls

Oven Baking

For best cooking results, pre-heat the oven before baking cookies, breads, cakes, pies or pastries, etc.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

If you feel your oven is too hot or too cold, you can adjust its temperature. Refer to the “Adjusting oven temperature” section.

Baking Problems and Solutions Chart

Baking
Problems

Cookies and bis
cuits burn on the
bottom.

.

Cakes too dark on
top or bottom.

Cakes not done in
the center.

Causes Corrections

• Cookies and biscuits put into
the oven before the preheat

ing time is completed.

• Oven rack overcrowded. • Choose pan sizes that will permit 2” to 4” (5.1 cm to

» Dark pan absorbs heat too

fast.

• Cakes put into the oven be
fore preheating time is com
pleted.

• Rack position too high or low. • Use proper rack position for baking needs.

» Oven too hot. • Set oven temperature 25°F/12°C lower than recom

• Oven too hot. • Set oven temperature 25°F/12°C lower than recom

• Incorrect pan size. • Use pan size called for in recipe.

» Pan not centered in oven. • Use proper rack position and place pan so there is

• Allow oven to preheat to the selected temperature
before placing food in oven.

10.2 cm) of air space on all sides when placed in

the oven.

» Use a medium-weight aluminum baking sheet.

• Allow oven to preheat to the selected temperature
before placing food in the oven.

mended.

mended.

2” to 4” (5.1 cm to 10.2 cm) of space on all sides of
pan.

Cakes not level.

Foods not done

when cooking
time is up.

• Range not level. • Place a marked glass measuring cup filled with wa
ter on the center of the oven rack. If the water level

is uneven, refer to the installation instructions for
leveling the appliance.

• Pan too close to oven wall or

rack overcrowded.

» Pan warped. • Do not use pans that are dented or warped.

• Oven too cool. • Set oven temperature 25°F/12°C higher than sug

• Oven overcrowded. • Be sure to remove all pans from the oven except

» Oven door opened too fre

quently.

• Be sure to allow 2” to 4” (5.1 cm to 10.2 cm) of
clearance on all sides of each pan in the oven.

gested and bake for the recommended time.

the ones to be used for baking.

» Open oven door only after recipe recommended

baking time.

21

Setting Oven Controls

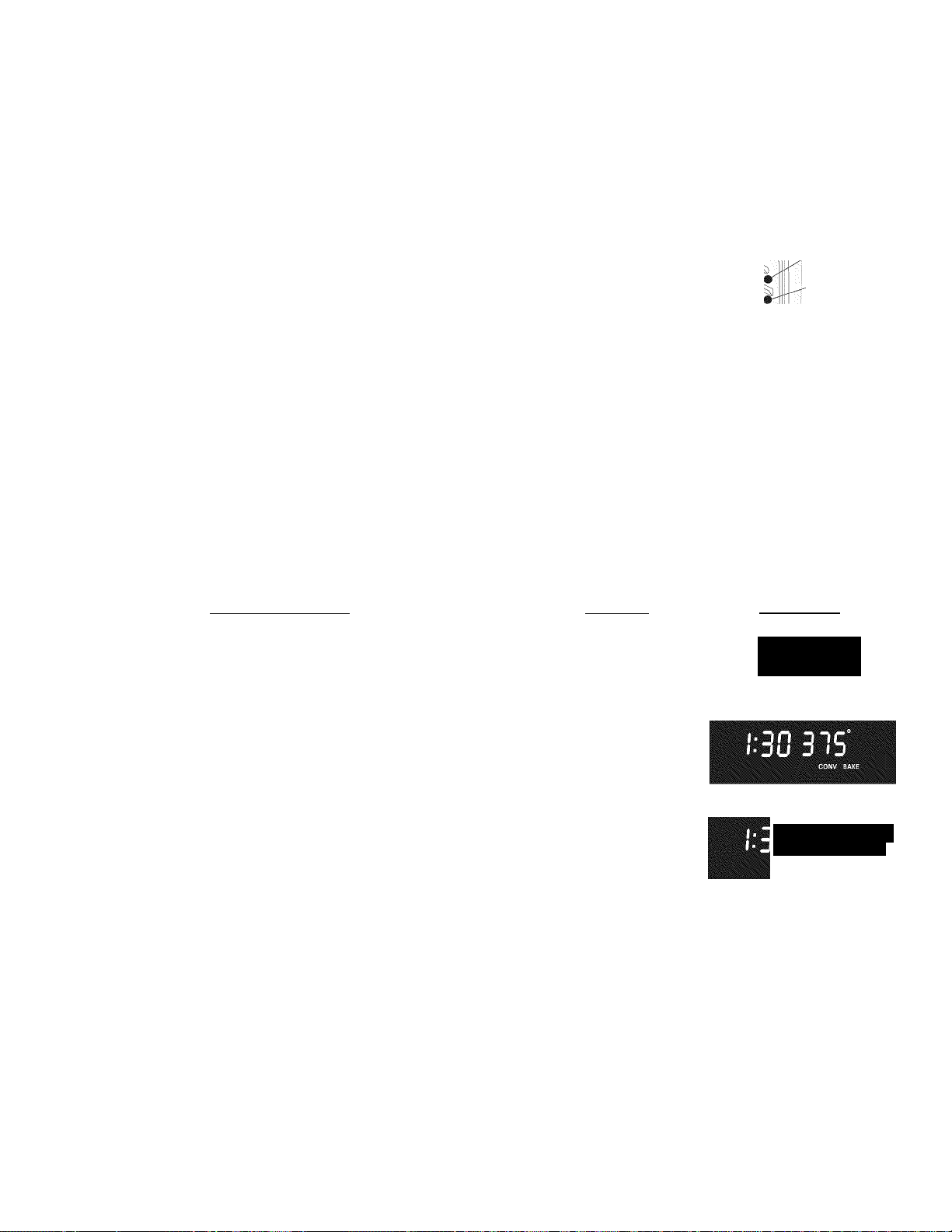

Setting Convection Bake

The CONVECTION BAKE pad controls the Convection Bake feature.
Use the Convection Bake feature when cooking speed is desired. The oven can

be programmed for Convection baking at any temperature between 170°F

(77°C) to 550°F (288°C).

Convection baking uses a fan to circulate the oven's heat evenly and continuously
within the oven (See Figure 1). This improved heat distribution allows for fast, even
cooking and browning results. It also gives better baking results when using 2 or 3
racks at the same time. Breads and pastries brown more evenly. Convection bake
cooks most foods faster and more evenly than conventional bake. This oven is
equipped with multiple fan speeds for even cooking when baking and better tasting
meats when roasting. It will use a slower fan speed for convection baking. The
slow fan speed slowly and evenly moves the air through the cavity to produce
lighter flakier crusts for pies and evenly brown cookies.

General Convection Bake Instructions

1. Time reductions will vary depending on the amount and type of food to be
cooked. Cookies and biscuits should be baked on pans with no sides or
very low sides to allow heated air to circulate around the food. Food baked
on pans with a dark finish will cook faster.

2. Preheating is not necessary when cooking casseroles with Convection

Bake.

3. When using Convection Bake with a single rack, place oven rack in position
2 or 3. If cooking on multiple racks, place the oven racks in positions 2 and

4.

circulation

during

Convection

%

Figure 1 4th Rack

Figure 2

Benefits of Convection Bake:

—Multiple rack baking.
—Some foods cook faster, saving

time and energy.

—No special pans or bakeware

needed.

Bake

, qDOSition

3rd Rack

position

2nd Rack

^ position

1st Rack

position

Air

INSTRUCTIONS

To set the oven for Convection Bake and temperature to 375°F

1. Arrange interior oven racks and place food in oven.

2. Press conv "CONV BAKE" will flash and "350" will appear in
the display (Figure 3). If a Conv Bake of 350°F is needed,

press START .

3. Press (2) CZ) d) ■ "CONV BAKE" will keep flashing
and "375°" will appear in the display (Figure 4).

4. Press START .The actual oven temperature will be displayed.

"CONV BAKE" will stop flashing and the fan icon will appear in

the display (Figure 5).

Note: The convection fan will start AS SOON AS the oven is set for
Convection Bake. The display will show an icon of rotating fan
within a square. This rotating fan icon indicates when the
Convection Fan is operating. The Bake, Broil and Convection
elements will also cycle for a better heat distribution.

Press i sTopj to cancel Convection Bake at any time.

PRESS

i''Conv‘'|
V.|ake,/

(D®(D

DISPLAY

30 350

Figure 3

Figure 4

n I n n’ (flïv

u l(JU ^

Figure 5

22

Setting Oven Controls

Setting Convection Roast

This method of cooking enables you to obtain the best results when roasting. The oven can be programmed to
convection roast at any temperature from 170°F to 550°F (77°C to 288°C). Remember to use tested recipes with times
adjusted for convection roasting when using the convection mode. Times may be reduced by as much as 30% when
using the convection feature. This oven is equipped with multiple fan speeds for even cooking when baking and better
tasting meats when roasting. It will use a faster fan speed for roasting which will quickly strip the cold air away from the
meats replacing it with warm air (making a crisp outside type of searing) sealing in juices for better tasting meats.

INSTRUCTIONS

To Set the oven to Convection Roast at 375°F

1. Arrange oven racks.

2. Press (g|); "350" will be displayed; CONV ROAST will flash (Fig. 1 ).

3. Enter the desired roasting temperature using the number pads

PRESS

/Convx

CBoasjt/

(DCDCD

DISPLAY

l'3u 35u

Figure 1

4. Press START ; The actual oven temperature will be displayed,

CONV ROAST and the fan icon will be displayed (Fig. 3). The Bake,
Broil and Convection elements will also cycle for better heat
distribution.

To Change the Convection Roast temperature

START

Figure 2

inn^

ILJ LI

(example: changing from 375°F to 425°F)

1. Press (g^; "375" will be displayed; CONV ROAST will flash (Fig. 2).

2. Enter the desired roasting temperature using the number pads

/Conv

Vi

Figure 3

30 435'

® CD CD c^'g-4)-

3. Push START ; the current oven temperature, CONV ROAST and

the fan icon will be displayed.

After the oven has reached the desired temperature, the control will beep and CONV ROAST light will stay on. Note:
The Bake, Broil and Convection elements will cycle for better heat distribution. When convection roasting is complete

press

Setting Convection Convert

The CONV CONVERT pad is used to automatically convert a standard baking recipe for convection baking.
When set properly, this feature is designed to display the actual converted (reduced) temperature in the display.

Convection Convert may ONLY be used with a Conv Bake, Timed Conv Bake or a Delay Start (Delayed Timed Conv
Bake) setting. When used with a Timed Bake or a Delay Start (Delayed Timed Bake) setting, the Convection Convert
will display a “CF” for check food when the bake time is 75% complete (See Fig. 8). At this time the oven control will
sound 3 long beeps at regular intervals until baking had finished. When the bake time has completely finished the

C±)CDCD

START

I

Figure 4

control will display "End" and will sound 3 long beeps every 30 seconds until the pad is pressed.

To change from a normal bake recipe to a convection bake recipe (example: changing a 400°F normal bake recipe to a convection bake recipe)

When the conv bake mode is on at 400°F (Figure 6), press fcgvp­"CONV BAKE" and the oven temperature adjustment will appear

briefly in the display (for this example it is 375°F) (Fig. 7) then the
actual oven temperature will be displayed. A beep will sound once the

adjusted oven temperature is reached. The display will show “375°”,
"CONV BAKE" and the fan icon (Fig. 7). NOTE: When using a Cook

Time, the convection convert will not operate if you have a timed bake
under 20 minutes.

23

/tonv\
C^pnveTi

nn' (SA

UU ^

Figure 7

30 СЯ

Figure 8

Setting Oven Controls

Setting the Slow Cook Feature

The (|^ SLOW COOK pad is used to activate this feature. The Slow Cook feature may be used to cook foods more
slowly, at lower oven temperatures and provides cooking results much the same way as a Slow Cooker or Crock-Pot.

The Slow Cook feature is ideal for roasting beef, pork & poultry. Slow Cooking meats may result in the exterior of meats
becoming dark but not burnt. This is normal.

There are 2 settings available, high (HI) or low (LO). The maximum cook time for the Slow Cook feature is 12 hours
unless the oven control has been changed to the Continuous Bake mode.This feature may be used with the additional
settings of a Timed Bake Slow Cook (see Timed Bake steps 5-7) or a Delayed Start Bake Slow Cook (see Delayed

Start Bake steps 6-10).

Below is a list of preparation and cooking tips you should review for best possible results using Slow Cook:

Completely thaw all frozen foods before cooking with the Slow Cook feature.

When using a single rack, place in position 2 or 3 (see figure 1 on page 15).

Position multiple racks to accommodate size of cooking utensils when cooking multiple food items.
Do not open the oven door often or leave the door open when checking foods. If the oven heat escapes often, the
Slow Cook time may need to be extended.
Cover the foods to keep them moist or use a loose or vented type cover to allow foods to turn crisp or brown.
Cook times will vary; depending on the weight, fat content, bone & the shape of the meat.
Use the recipe’s recommended food temperature and a food thermometer to determine when the food is done.
Preheating the oven will not be necessary when using the Slow Cook feature.

Add any cream or cheese sauces during the last hour of cooking.

INSTRUCTIONS

To Program the Oven to begin baking with the Slow Cook feature

1. Place the food in the oven.

2. Press d^. "SLO" and "HI" will appear in the display. The
Slow Cook feature will be set to the high setting. This setting is

best for cooking foods from a 4 to 5 hour time period (Figure 1).

4. Press again (S) to set the Slow Cook feature to the low
setting (Lo will appear in the display). This setting is best for

cooking foods from an 8 to 9 hour time period (Figure 2).

5. Press START (Figure 3).

6. If desired, add any Timed Bake or Delayed Start Bake
settings at this time.

7. To cancel the Slow Cook feature press (s^ at anytime.

PRESS

DISPLAY

Figure 3

24

Setting Oven Controls

Setting Timed Bake, Timed Convection Bake or Timed Convection Roast

The BAKE (Bake) or CONVECTION BAKE or CONVECTION ROAST and OVEN COOK TIME pads
control the Timed Bake feature. The automatic timer of the Timed Bake feature will turn the oven OFF after cooking for the

desired amount of time you selected.

INSTRUCTIONS PRESS

To program the oven to begin baking immediately and to shut off automatically (example: BAKE at 350°F for 30 minutes)

1. Be sure the clock is set for the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

3. Press Bake , "350" will appear and "BAKE" will flash in the {sake)
display (Figure 1).

4. Press START . "BAKE" and the actual oven temperature will
appear in the display (See Figure 2).

5.

Press C

wTime>

temperature will appear in the display (Figure 3).

6. Enter the desired baking time by pressing (^3^ (Figure 4).

Note: Baking time can be set for any amount of time between 1
minute to 11 hours and 59 minutes.

7. Press START . Both the "TIMED" and "BAKE" icons will remain on

in the display and the actual oven temperature will be displayed
(Figure 5). Once the Timed Bake feature has started, the current

time of day will appear in the display.

Note: After the Timed Bake feature has activated, press (|^|) to

TIMED" will flash; "BAKE", and the actual

Timed Oven

START

(D®

START

DISPLAY

I

Figure 1

Dn inn°

Du luu

■

Figure 2

_ _ mn

lUU

Figure 3

__on mn'

■Du luu

I

Figure 4

display the bake time remaining in the Timed Bake mode. Once
Timed Bake has started baking, a beep will sound when the oven
temperature reaches the set temperature.

Press when baking has finished or at any time to cancel the
Timed Bake feature.

When the timed bake finishes:

1. "End" and the time of day will show in display. The oven will shut

off automatically (Figure 6).

2. The control will beep 3 times. The control will continue to beep 3
times every 30 seconds until is pressed.

Figure 5

?'uu End

Figure 6

25

Setting Oven Controls

Setting Delayed Timed Bake or Delayed Timed Convection Bake

Timed Oven

The BAKE (^ake) or CONVECTION BAKE (|g), OVEN COOK TIME (g) and DELAY START (g) pads control the
Delayed Time Bake feature. The automatic timer of the Delayed Time Bake will turn the oven on and off at the time you

select in advance. Note: If your clock is set for normal 12 hour display mode the Delayed Timed Bake or Delayed Timed
Convection Bake cycle can never be set to start more than 12 hours in advance. To set for Delayed Timed Bake or
Delayed Timed Convection Bake 12-24 hours in advance set the control for the 24 hour time of day display mode.

INSTRUCTIONS PRESS DISPLAY

To program the oven for a delayed BAKE start time and to shut off automatically (example: baking at 350°F, starting at 5:30 and baking for 30 minutes)

1. Be sure that the clock is set with the correct time of day.
Arrange interior oven rack(s) and place the food in the oven.

Press Bake). "350" will appear and "BAKE" will flash in the display ( Bake)
(Figure i).

Press start). "BAKE" and the actual oven temperature will stay in the

display (Figure 2).

Timed Oven

Press (g). "TIMED" will flash, will appear and "BAKE" and the

actual oven temperature will remain in the display (Figure 3).

Enter the baking time using the number pads by pressing (g) (g). CDC®)

"TIMED" will flash; "BAKE", "-:30" and the actual oven temperature will
appear in the display (Figure 4). Note: Baking time can be set for any Figure 3
amount of time from 1 minute to 11 hours and 59 minutes.

Press start). "TIMED", "BAKE" and the actual oven temperature will

7.

remain in the display (Figure 5).

8.

Press (g). "DELAY" will flash in the display. Enter the desired start
time using the number pads (g) (g) (Figure 6).

CD®®

30

3sa

Figure 1

on mn”

JU lUU

Figure 2

on mn

JU

lUU

Figure 4

on mn

JU lUU

Press START . When Delayed Time Bake starts, the set oven

9.

temperature will appear, "DELAY", "BAKE" and the current time of
day will appear in the display (Figure 7).

10. When the desired start time is reached, the actual oven temperature
appears in display and “DELAY" disappears. Oven starts to bake at
the previously selected temperature (Figure 8).

Note: Once Delayed Time Bake has started, press (g) to display the
bake time remaining . Once the Delayed Timed Bake has started baking,

a beep will sound when the oven temperature reaches the set
temperature.

Press when baking has completed or at any time to cancel the
Delayed Time Bake feature.

When the set bake time runs out:

1. "End" will appear in the display and the oven will shut off

automatically (Figure 9).
The control will beep 3 times. The control will continue to beep 3

2.

times every 30 seconds until (s^ is pressed.

ik CAUTION

frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should
be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before
cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness
from food poisoning.

Use caution with the DELAY START (Delayed Timed Bake) features. Use only when cooking cured or

Timed Oven

26

Figure 5

on mn'

S

■JU

tuu

Figure 6

:30 3S0'

Figure 7

C-Dn mn”

J-JU lUU

Figure 8

6'uu End

Figure 9

Setting Oven Controls

Setting the Food Categories Feature:

The CAKES (CA^ and BREADS pads in the Food Categories feature are used when cooking certain food

items. These pads have been designed to give optimum cook performance for the foods selected in each category.
The CAKES pad provides a preheat with a gentle cycling of heat giving cakes more volume and allowing delicate foods to

cook more evenly.
The BREADS pad adds a preheat feature to the bake cycle to thoroughly heat the oven from top to bottom to give more

evenly browned foods. Refer to (Figure 4) for foods to cook in each category.

INSTRUCTIONS

To set the Food Categories feature (example: for Cakes to cook at 375°F)

1. Arrange interior oven racks and place food in oven.

2. Press . "CAKES" will flash and "350°" will be displayed

(See Figure 1). Note that if a bake temperature of 350°F is

needed, simply press start .

3. Press (T) (X) ■ "CAKES" will flash and "375°" will

appear in the display (See Figure 2).

4. Press START . "CAKES" will stop flashing and "375°" will

remain in the display (See Figure 3).

Press to stop cooking Cakes or Breads, or to cancel cooking
Cakes or Breads at any time.

Recommended
foods to be
cooked in each
category

Cakes

Cakes ;

Brownies '

Pies (fresh & frozen) i

Baked Custards '

Cheesecake :

Breads

Breads

Rolls

Biscuits

Muffins

Cornbread

PRESS

dXDCD

START

DISPLAY

:30 3SG

Figure 1

:30 315“

Figure 2

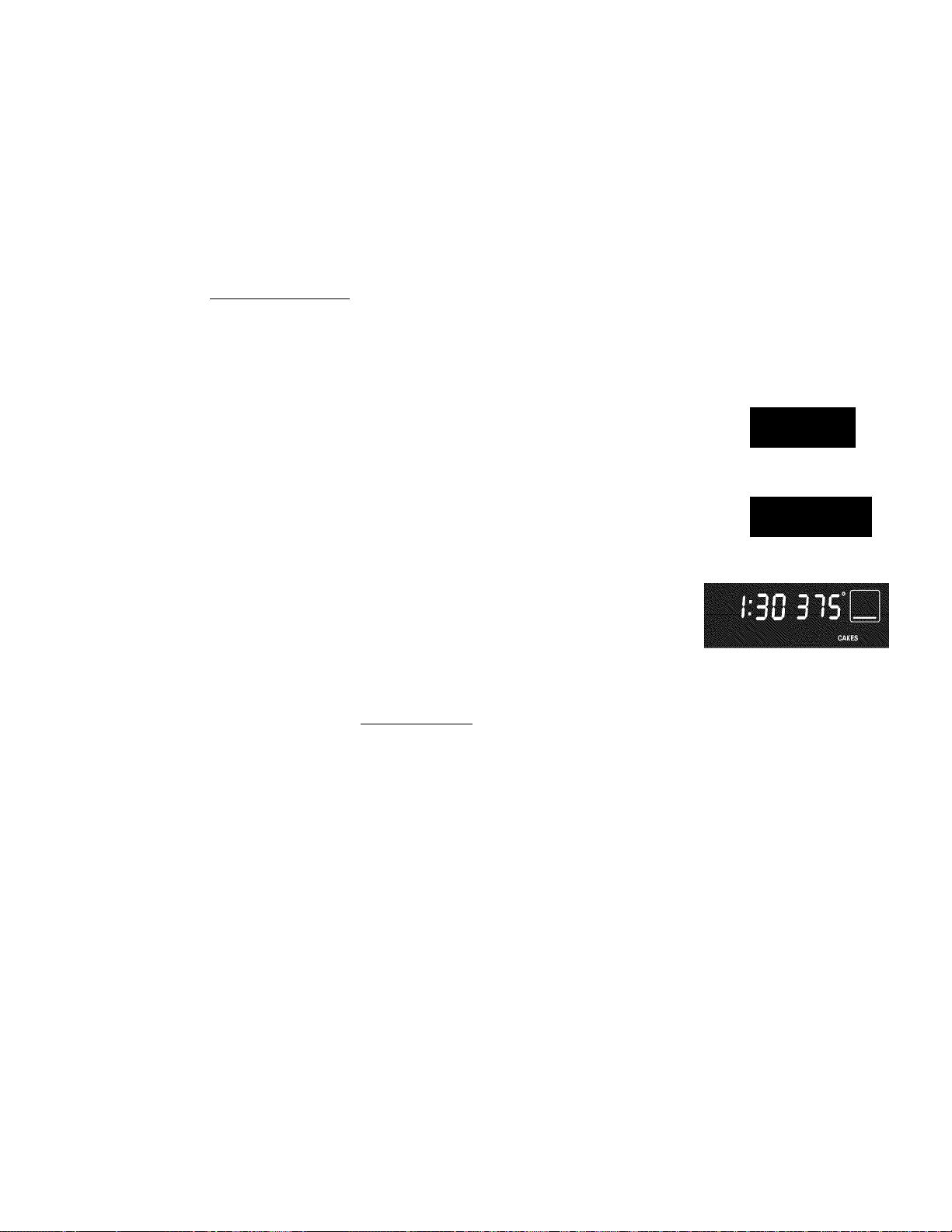

Figure 3

Figure 4

27

Setting Oven Controls

Using and Setting Meat Probe

Checking the internal temperature of your food is the most effective way of insuring that your food has been properly
cooked. When cooking meat such as roasts, hams or poultry you can use the meat probe to check the internal
temperature without any guesswork. For some foods, especially poultry and roasts, testing the internal temperature is the
best method to insure properly cooked meats.

Important things to consider:

• Use only the probe supplied with your appliance; any other may result in damage to the probe or the appliance.

• Handle the probe carefully when inserting and removing from the food or the receptacle.

• Do not use tongs to pull the cable when inserting or removing from the food or the receptacle.

• Defrost your food completely before inserting the probe to avoid damaging probe.

• Never leave or store the probe inside the oven when not in use.

• To prevent the possibility of burns, after

cooking carefully unplug the probe using a pot

holder.

Proper Meat Probe placement:

• Always insert the probe so that the tip rests in

the center of the thickest part of the meat. Do

not allow the probe to touch bone, fat, gristle or

the pan.

• For bone-in ham or lamb, insert the probe into

the center of the lowest large muscle or joint.

For dishes such as meat loaf or casseroles,

insert the probe into the center of the food. To
find the center of the food visually measure with
the probe (See Fig. 1). When cooking fish,

insert the probe just above the gill.

• For whole poultry or turkey, insert the probe into
the thickest part of the inner thigh, below the leg

(See Fig. 2).

USDA Minimum Recommended Internal Food Temperature

Fish

145° F

63°C

Beef, Veal, Lamb
Steaks & Roasts

145° F

63°C

Pork Egg Dishes

160°F

71 °C

160°F

71 °C

For more information, visit: www.isitdoneyet.gov

28

Beef, Veal,
Lamb Ground

160°F

71 °C

Turkey, Chicken &
Duck Whole,

Pieces & Ground

165°F

74°C

Setting Oven Controls

Using and Setting Meat Probe

To use the meat probe:

1. Prepare the food and properly insert the temperature probe into the food. DO NOT PREHEAT or start cooking

before properly inserting the meat probe. The probe should be inserted into the food and oven receptacle while the

oven is still cool.

2. Place the prepared food on the desired oven rack position and slide into the oven.

3. Plug the meat probe into the probe receptacle located on the left front oven cavity side.

4. Close the oven door.

5. The oven control will detect if the meat probe is correctly plugged in and will illuminate with icon in the display.

6. The actual meat probe temperature will appear in the display.

7. To set the target temperature press pad once then enter the desired the desired target internal temperature

using the numeric key pads (default setting is 170°F/77°C)f. Press to accept the meat probe target

temperature.

8. Set the oven control for or and the desired oven temperature. You may use the meat probe with

some other baking features but it cannot be set with Broil or Flex-Clean.

9. During the cooking process you may check the actual internal temperature by pressing the key once. The

actual temperature will display. After 8 seconds the display will return to the actual oven temperature.

10. If the target temperature needs to be changed during the cooking process, press twice and use the numeric

V /

f

...

keypads to adjust the target temperature. Press the key to accept the change.

t The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F/60°C
means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USD A Rev. June 1985.)

The lowest temperature recommended by the USD A is 145°F/63°C for medium rare fresh beef.

Setting the oven to automatically stop cooking after reaching meat probe target temperature:
The oven leaves the factory preset to alert you when the internal target temperature has been reached but to continue

cooking at the oven set temperature. You may desire to change how your oven reacts when using the meat probe.

Note: Changing how the meat probe reacts must be done before starting the cooking process.

1. To set oven to shut-off automatically after reaching the Meat Probe target temperature press and hold for 7

seconds then use the key toggle to the message P CC (Probe, cancel cooking) then press to accept.

2. Use the key to toggle back to PnCC (Probe, no cancel cooking) and then press depart to accept if you wish for

the oven to continue cooking after the meat probe reaches the target temperature.

29

Setting Oven Controls

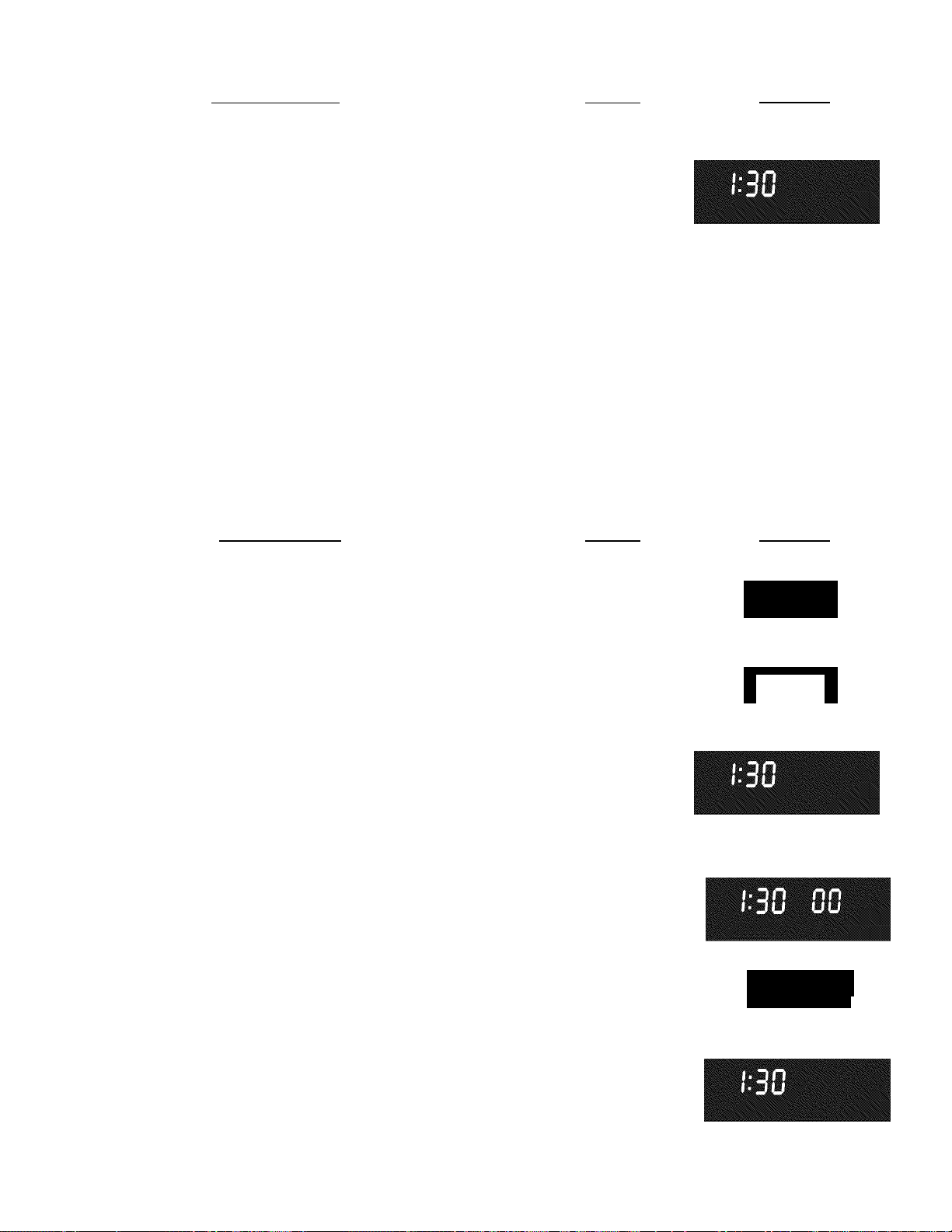

Setting the Warm & Hold™ Feature

The Warm & Hold pad turns ON the Warm & Hold feature and will maintain an oven temperature of 170°F (77°C).
The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3

hours the Warm & Hold feature will shut the oven OFF. The Warm & Hold feature may be used without any other cooking
operations or can be used after cooking has finished using BAKE, CONVECTION BAKE, CONVECTION ROAST.

The Warm & Hold feature may be used with TIMED BAKE if you wish to have the Warm & Hold feature turn ON
automatically when cooking has finished. The Timed Bake features require you to set start time and the amount of
cooking time. With this information the control can calculate the time when cooking will complete and can then start the
Warm & Hold feature automatically.

INSTRUCTIONS PRESS

To set Warm & Hold

1. Arrange interior oven racks and place food in oven.

2. Press "HLd" will appear in the display (Figure 1).

Note: If no pad is touched within 25 seconds the request to turn

ON Warm & Hold feature will be cancelled.

3. Press START . The oven icon will appear in the display (Figure 2).

4. To turn the Warm & Hold OFF at any time press (sro^.

Note: The Warm & Hold feature will automatically turn OFF after

3 hours.

To set Warm & Hold to turn ON automatically

1. Arrange interior oven racks and place food in oven. Set the oven

properly for Timed Bake or Delayed Timed Bake.

2. Press (Figure 3).

Note: If no pad is touched within 25 seconds the request to turn
ON Warm & Hold feature and all functions previously
programmed will be cleared.

3. Press start';.. "HLd" will disappear and the temperature will be

\&Holdy

; START ;;

DISPLAY

3£3 HLd

Figure 1

30 Hid

Figure 2

...

i;30 HL d

Figure 3

displayed (Figure 4). The Warm & Hold mode is set to turn ON
automatically after Timed Bake has finished (See Figure 2).

4. To turn the Warm & Hold feature OFF at any time press (^)­Note: The Warm & Hold feature will automatically turn OFF after

3 hours.

Pressing at any time will stop all oven baking operations.

1:30 350

Figure 4

30

Setting Oven Controls

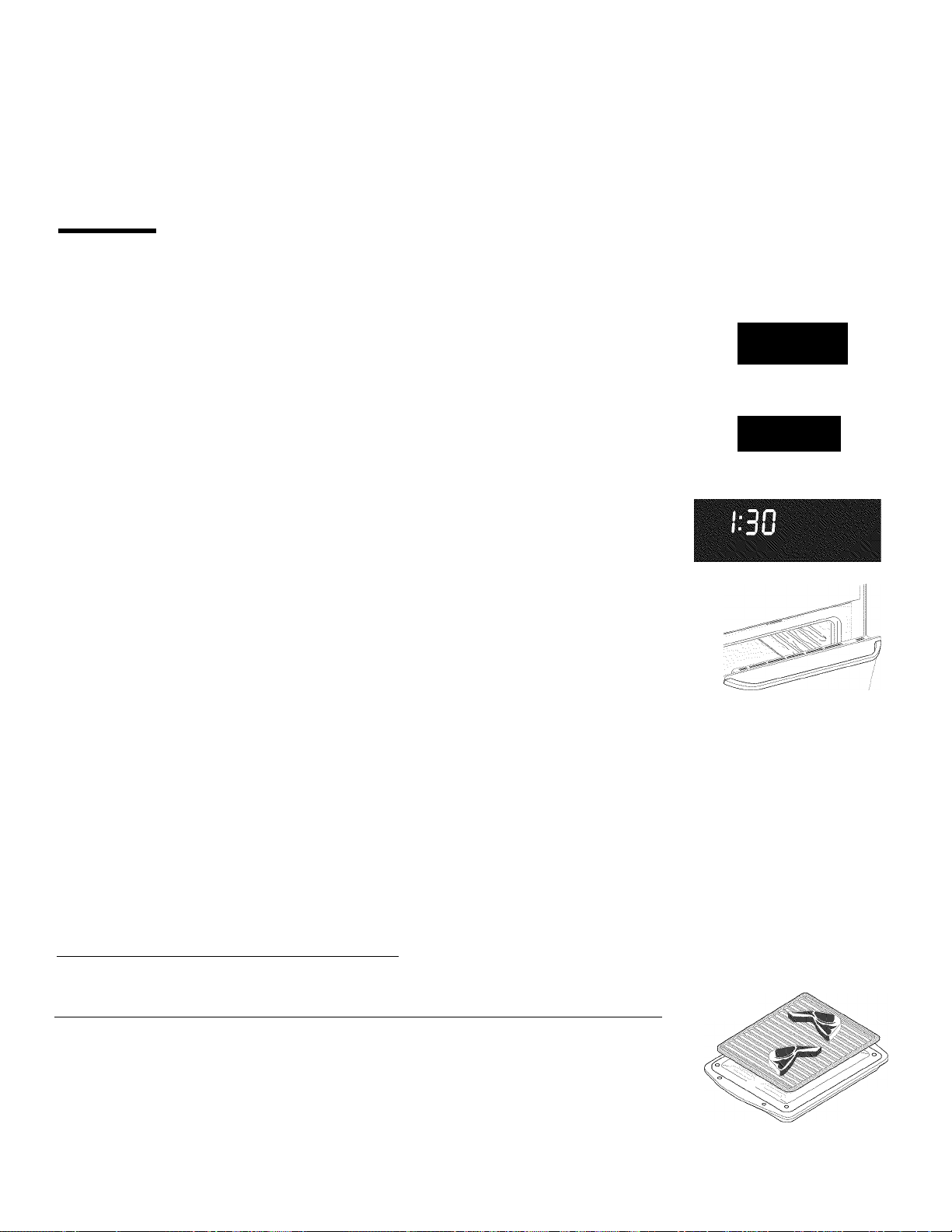

Setting Broil

The (Broii^ pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage.
The Broil temperature may be set between 400°F and 550°F. An optional Searing Grill for searing meats (Figure 6) is

available via the enclosed mail-in card. The optional broil pan and broil pan insert used together allow dripping grease to
drain and be kept away from the high heat of the oven broiler. DO NOT use the broil pan without the insert (See Figure

5). DO NOT cover the broil pan insert with foil. The exposed grease could catch fire.

ik WARNING

baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and
water can cause a grease fire to spread and cause personal injury.

To set the oven to broil at 500°F.

1. Place the broiler pan insert on the broiler pan. Then place the food

on the broiler pan insert. DO NOT use the broiler pan without the

insert. DO NOT cover the broiler insert with foil. The exposed

grease could ignite.
Arrange the interior oven rack and place the broiler pan on the

2.
rack. Be sure to center the broiler pan directly under the broiler

element. Make sure the oven door is in the broil stop position

(See Figure 4).

Press (Broil). "BROIL" will flash and "550" will appear (Figure 1). Press

If a lower broil temperature is desired (minimum broil temperature

setting is 400°F), press the desired temperature before continuing
to step 6.

6. Press f start):. The oven will begin to broil. "BROIL" and "500°" will

appear in the display (Figure 2).

7. Preheat for 5 minutes before broiling.

8. Broil on one side until food is browned; turn and cook on the

second side. Season and serve. Note: Always pull the rack out to
the stop position before turning or removing food.

I Should an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw

INSTRUCTIONS PRESS

DISPLAY

:30 550

■

Figure 1

on cnn°
Ou juu

I

Figure 2

(I) (2)®

Figure 3

START

Broil Stop Position

Figure 4

.....

9. To cancel broiling press (Figure 3).

Broiling Times and Searing Grill (if equipped)

Use the following table for approximate broiling times. Increase or decrease broiling times,
or move the broiling pan to a different rack position to suit for doneness. If the food you are
broiling is not listed in the table, follow the instructions provided in your cookbook and
watch the item closely. Use the Searing Grill for meats and steaks if desired. Before placing
the meat, be sure to heat the Searing Grill using Broil for 10 minutes. Cook times should be
reduced 1 -2 minutes per side when cooking with the Searing Grill. Place Searing Grill on
top of Broiler Pan and insert for meats and steaks (See Figure 6).

Electric Range Broiling Table Recommendations

Food Rack Temp Cook Time

Item Position Setting 1st side 2nd side Doneness

Steak 1" thick 2nd 550° F 6:00 4:00 Rare

2nd 550° F 7:00 5:00 Medium
Pork Chops 3/4" thick 2nd 550° F 8:00 6:00 Well
Chicken - Bone In 3rd 450° F 20:00 10:00 Well
Chicken - Boneless 2nd 450° F 8:00 6:00 Well
Fish 2nd 500° F 13:00 n/a Well
Shrimp 3rd 550° F 5:00 n/a Well
Hamburger 1" thick 2nd 550° F 9:00 7:00 Medium

3rd 550° F 10:00 8:00 Well

31

Supplied with some

models Figure 5

Searing
Grill '

Broil Pan
& insert

Supplied with some

models

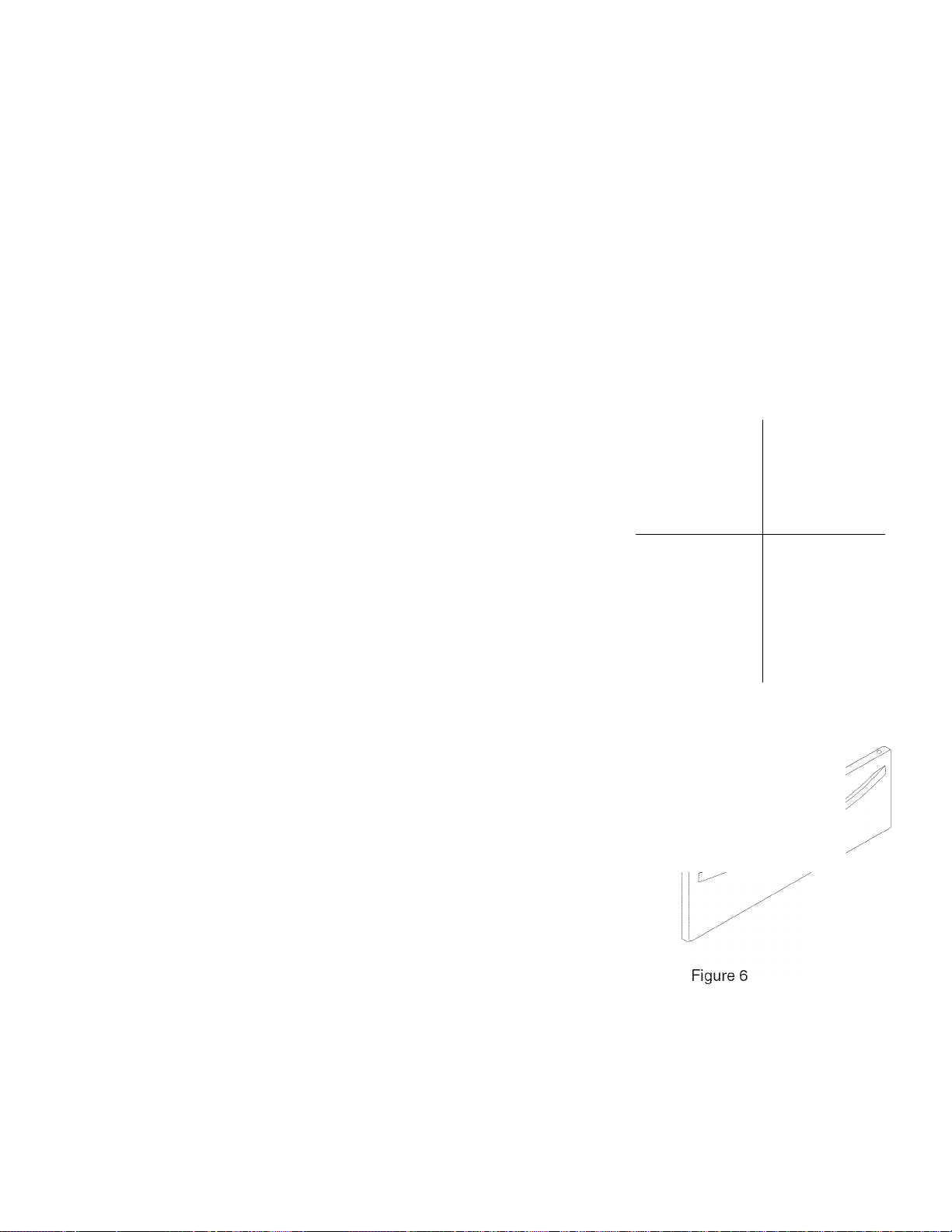

Figure 6

Setting Oven Controls

To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays)

Timed Oven

The COOK TIME and p DELAY START pads are used to set the Sabbath feature. The Sabbath feature may
only be used with the (Bake) pad. The oven temperature may be set higher or lower after setting the Sabbath feature

(the oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not
visibly show or provide any audible tones indicating whether the change occurred correctly. Once the oven is properly
set using Bake with the Sabbath feature active, the oven will remain continuously ON until cancelled. This will override
the factory preset 12-Hour Energy Saving feature.

If the oven light will be needed during the Sabbath, press before activating the Sabbath feature. Once the oven
light is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is turned

OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.

IMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the

Sabbath feature is active. ONLY the following key pads will function after setting the Sabbath feature; to

& ALL OTHER KEYPADS should not be used once the Sabbath feature is properly activated.Bake ;

INSTRUCTIONS PRESS

DISPLAY

To Program the Oven to Begin Baking Immediately & activate the Sabbath feature (example: baking at 350°F)

1. Be sure that the clock is set with the correct time of day.

Place the food in the oven.2.

3.

Press Bake . "350°" appears in the display.

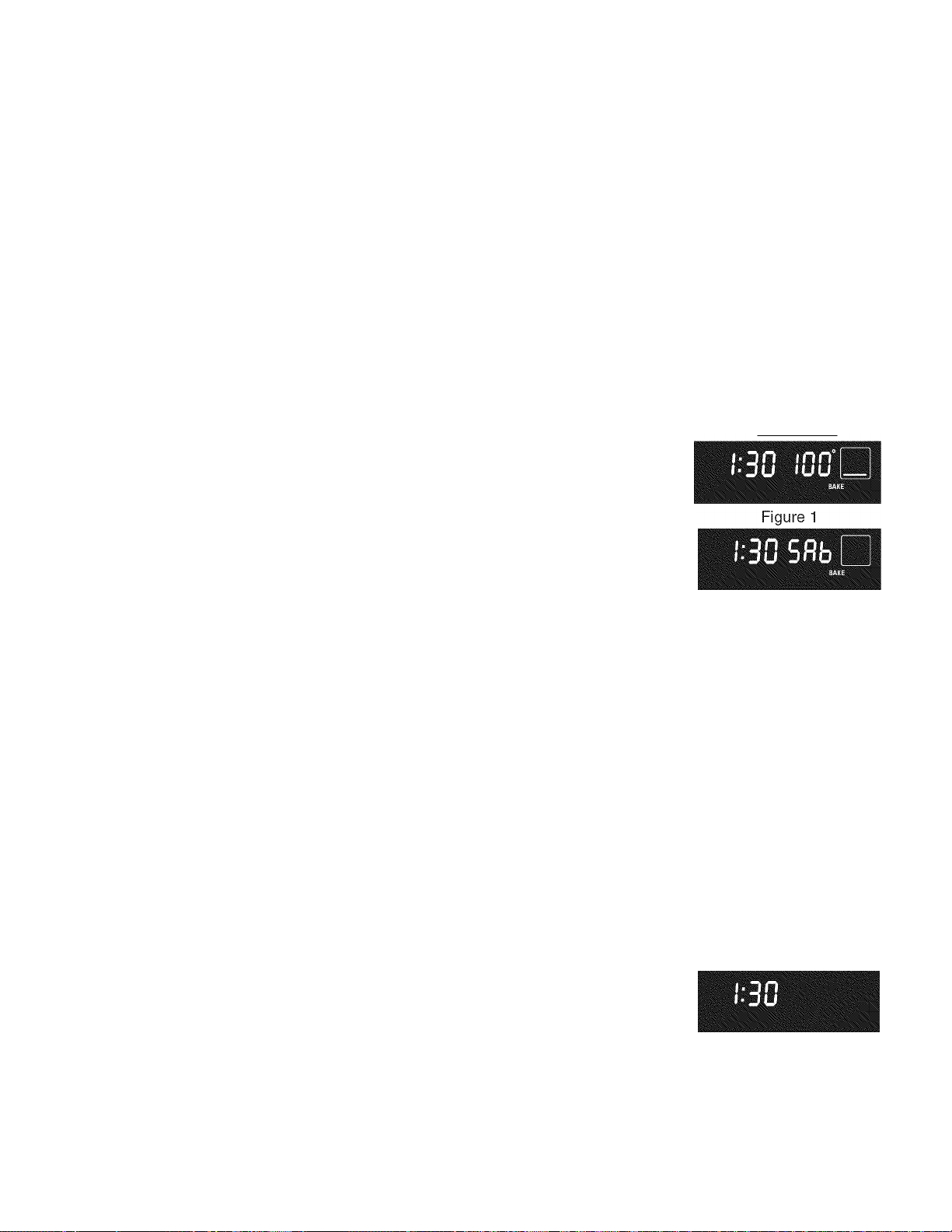

Press START . The actual oven temperature appears in the display

4.

(Figure 1).

5.

If you desire to set the oven control for a Timed Bake or Delayed

Start Bake do so at this time. If not, skip this step and continue to step 7. Refer to the Timed Bake (complete steps

5-7) / Delayed Start Bake (complete steps 6-10) section for complete instructions. Remember the oven will shut
down after using Timed Bake or Delay Start Bake and therefore may only be used once during the Sabbath/Jewish

Holidays. The maximum Delayed Start Bake time is 11 hours & 59 minutes.

6.

The oven will turn ON and begin heating.

7.

Press and hold both the and pads for at least 3

seconds. SAb will appear in the display (Figure 2). Once SAb
appears in the display the oven control will no longer beep or
display any further changes and the oven is properly set for the
Sabbath feature.

Note: On Jewish Holidays only, you may change the oven temperature once baking has started by pressing (Bake), the

Bake '

START

Figure 2

numeric key pads for the temperature you want (example for 425°C press ((^, ((^, ((5^) and then pressing 7start)

TWICE. Remember that the oven control will no longer beep or display any further changes once the oven is set

for the Sabbath feature.

8. The oven may be turned OFF at any time by first pressing

pad (this will turn the oven OFF only). To turn OFF the Sabbath

Timed Oven

feature press and hold both the and pads for at least 3
seconds. SAb will disappear from the display (Figure 3).

32

Figure 3

Setting Oven Controls

To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays) (continued)

Should you experience a power failure or interruption, the oven will shut off. When power is returned the oven will not
turn back on automatically. If your food was nearly fully cooked, you may allow the trapped heat in the oven to finish the
cooking process. Otherwise, you should remove the food when the power failure occurs, because you may only start the
oven once during the Sabbath/Jewish Holidays. After the Sabbath observance turn OFF the Sabbath feature and the
oven may be used with all normal functions.

Timed Oven ^

After the Sabbath observance turn OFF the Sabbath feature. Press and hold both the (|^) and pads for at least 3
seconds. SAb will disappear from the display and the oven may be used with all normal functions. For further assistance,

guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at

http:Wwww.star-k.org.

To Set the Recipe Recall Feature

This feature will ONLY recall a Bake, Convection Bake, Convection roast, Slow Cook, Cakes, Breads, Timed Bake
or a Timed Bake with a Warm & Hold added setting. This feature will not work with any other function including a

Delayed Timed Bake, a Clean Cycle or a Broil setting.

_

INSTRUCTIONS

To Program the Oven to Begin Baking Immediately
and record a Recipe (example: for a Bake mode at
375X)

1. Place the food in the oven.

Press (Bake). "350" appears and "BAKE" will flash in the display

2.

(Figure 1).
Enter the desired roasting temperature using the number pads

3.

® (f"'Sure2).

4. Press and hold start pad for at least 3 seconds or until a beep

sounds. The beep indicates that this recipe has been recorded
for future recall.

To Program the Oven to Begin Baking with a stored Recipe

1. Place the food in the oven.

2. Press (Bake) " 375 " appears and "BAKE" will flash in the display

(Figure 2) and : start;; (Figure 3).

To Quickly Erase all Stored Recipes:

1. Press and hold the key pad until the first single beep

sounds (6 seconds).

PRESS

dXDCD

START

for 3 seconds.

Bake ’

START

DISPLAY

30 350'

Figure 1

Figure 2

DO inn°

JU lUU

Figure 3

2. After the first beep press the start key pad once. Any stored

recipes will be erased. Please note: Clearing the recipes will
also reset all other adjustments back to the factory settings.
These include 12 or 24 Hour Time of Day Display,

Continuous Bake or 12 Hour Energy Savings mode. Silent
Control Operation, Fahrenheit or Celsius Temperature

Display and any Oven Temperature adjustments that are set.

33

Setting Warmer Drawer Controls

Arranging Warmer (Warm & Ready'^“) Drawer Rack Positions

The rack can be used in 2 ways:

• In the upright position to allow low profile food items to be placed both under and on top of the rack (for example,
rolls or biscuits on top of the rack and a casserole dish underneath).

• In the downward position to allow you to place larger food items and empty dishware (for example, rolls or pastries

and dinner plates) on the rack.
Set the Warmer Drawer Rack in either position as shown below (Figure 1).

Warmer Drawer Rack in
upward position

Figure 1

 CAUTION

plates will be hot and you can be burned.

I Always use potholders or oven mitts when removing food from the Warmer Drawer as cookware and

Operating the Warmer Drawer

The purpose of the Warmer Drawer is to keep hot cooked foods at
serving temperature. Always start with hot food. It is not recommended
to heat cold food in the Warmer Drawer. All food placed in the Warmer
Drawer should be covered with a lid or aluminum foil to maintain quality.

Do not use plastic wrap to cover food. Plastic may melt onto the
drawer and be very difficult to clean. Use only utensils and cookware

recommended for oven use in the Warmer Drawer.

Warmer Drawer Food Temperature Settings

Use the recommended settings in the Warmer Drawer settings table. If
a particular food is not listed, start with the MED setting. If more
crispness is desired, remove the lid or aluminum foil from the food. Most
foods can be kept at serving temperatures on the MED setting. When a
combination of foods are to be kept warm (for instance, meat with 2
vegetables and rolls), use the HI setting. To avoid heat loss, do not
open the Warmer Drawer repeatedly while in use.

Warmer (Warm & Ready'^“) Drawer & Bread Proofing Indicator Lights

The control and indicator lights for the Warmer Drawer and Bread
Proofing features are located on the control panel. The indicator lights
will turn ON when the control is set, and remain ON until the controls
are turned OFF.

Warmer Drawer Rack in
downward position

Warmer Drawer Settings Table

Food Item Setting

Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI

Pizza HI
Gravies MED
Casseroles MED

Eggs MED

Roasts (Beef, Pork, Lamb) MED
Vegetables MED

Biscuits MED

Rolls, hard MED

Pastries MED

Rolls (soft) LO

Empty Dinner Plates LO

Figure 2

Note: The Warmer Drawer will NOT operate while in Self-Clean and
“Oven Lockout” modes.

34

Setting Warmer Drawer Controls

To Set the Warmer Drawer & Bread Proofing Controls:

1. Touch the owoff pad at the Warmer Drawer control position. The Warmer
Drawer indicator light will flash. Note: If no further pads are touched within 25

seconds the request to power the Warmer Drawer ON will clear.

2. Set the desired power level. Touch (^) once to turn ON the power level for
HI (see Figure 2) or (v) to turn ON the power level for LO (see Figure 4).

The Warmer Drawer indicator light located above the ON/OFF pad will turn
ON steady.

Med

LO

HI

Proof
Bread

3. Each touch of the or (2) will decrease or increase through 6

power levels from HI (see Figure 2) to MED (see Figure 3) to LO (see Figure

4) and to the Proof bread feature (see Figure 5). If the Warmer Drawer is set
at the LO setting and the (^) pad is touch again the Proof bread feature

and indicator light will be set (see Figure 5 and bread dough preparation

instructions on this page). To return to standard Warmer Drawer setting touch

(2)P3d at least once.

Note: For best results, preheat the Warmer Drawer before adding the food or

bread dough. An empty drawer will preheat in approximately 15 minutes.

4. When the food is ready for removal, touch the on/off pad once to turn the

Warmer Drawer or Proof bread feature OFF. The Warmer Drawer indicator

light will turn OFF.

Preparing Bread Dough for the Warmer Drawer

The Warmer Drawer has a “Proof Bread” feature that can be used
to help prepare bread dough. The recommended length of time to
keep bread dough in the Warmer Drawer is about 45-60 minutes.
Be sure however to follow the recipe’s recommended times.

Hi*

Med*

Hi

Medo

A Proof

Bread

LO*

Figure 2

o

o

o

Lo*

Figure 4

Warmer

Drawer

o

Proof
Bread

o

ON/OFF

Figure 1

Hio

Med*

Figure 3

Hio

Med

LOo *
Figure 5

o

A Proof

Bread

LO*

o

o

o

r-) Proof

Bread

The prepared bread dough should be placed in a large bowl since
the dough will nearly double in volume. Arrange the Warmer
Drawer Rack in the downward position (see Figure 6). Place the
bowl on the rack in the Warmer Drawer and follow the Warmer
Drawer and Proof bread Control setting instructions at the top of
this page.

Note: For best results, do not operate the main oven while using
the Proof Bread feature.

35

Seif-Cleaning

 CAUTION

cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near
the appliance.

ik CAUTION

birds is extremely sensitive to the fumes
given off during the Self-Cleaning cycle
of any range. Move birds to another
well-ventilated room.

 CAUTION

walls, racks, bottom or any other part of
the range with aluminum foil. Doing so
will destroy heat distribution, produce
poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).

ik CAUTION

door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.

I

During the Self-Cleaning

The health of some

DO NOT line the oven

DO NOT force the oven

DO HAND

CLEAN FRAME

. gasket and the small area at the front center of the oven bottom. These

^ areas heat sufficiently to burn soil on. Clean with soap and water.

s

»

Time

■fitTied Oi'tn

Delay

Timer

Warm

Add 1
Minute

Conv

i“[<e

Pre Meat

Heat Probe

Conv

Roast

Breads

'^STOP

0

Self-Cleaning Oven

A Self-Cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions:

• DO NOT use oven cleaners or oven protective coatings in or around any

part of the Self-Cleaning oven.

• DO NOT clean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.

• DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.

• Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.

• Porcelain oven racks do not have to be removed. After the cycle is
complete and the oven has cooled, rub the sides of the oven racks with
wax paper or a cloth containing a small amount of salad oil (this will make

the racks glide easier into the rack position).

• Remove any excessive spillovers in the oven cavity before starting the

Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid content

(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on

the surface as they may leave a dull spot even after cleaning.

• Clean any soil from the oven frame, the door liner outside the oven door

/

DO HAND

CLEAN DOOR

■ CLEAN*1?VEN^DOOR NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven

GASKET

Note: See additional cleaning informa
tion for the oven door in the General
Care & Cleaning section.

Note: If your range is equipped with a

warmer drawer, the warmer drawer
cannot be used during a self-clean
cycle. Warmer drawer must be turned
off before the clean cycle is started.

bottom should be removed.

What to Expect during Cleaning

While the oven is in operation, the oven heats to temperatures much higher
than those used in normal cooking. Sounds of metal expansion and
contraction are normal. Odor is also normal as the food soil is being removed.
Smoke may appear through the oven vent.

If heavy spillovers are not wiped up before cleaning, they may flame and
cause more smoke and odor than usual. This is normal and safe and should
not cause alarm. If available, use an exhaust fan during the self-cleaning cycle.

A CAUTION

after the Self-Cleaning cycle. Stand to the side of the oven when opening the
door to allow hot air or steam to escape.

To avoid possible burns use care when opening the oven door

36

Seif-Cleaning

The cooktop lockout Q feature will be activated during the self-clean and will unlock after the oven has cooled down.

Self-Clean Cycle Time Length

The FLEX CLEAN (n^ pad controls the Self-Cleaning feature. If you are planning to use the oven directly after a self

clean cycle remembeTfo allow time for the oven to cool down and the oven door to unlock. This normally takes about

one hour. So a 3 hour self-clean cycle will actually take about 4 hours to complete.
*lt is recommend to use a 2 hour self-clean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for

heavy soils (to assure satisfactory results).

A CAUTION

side of the oven when opening the door to allow hot air or steam to escape.

A CAUTION

avoid possible burns when opening the door after the Self-Cleaning cycle has completed. The oven may still be VERY
HOT.

To set the controls for a 3 hour Self-Cleaning cycle to start immediately and shut off automatically

1. Be sure the clock is set with the correct time of day and the oven
door is closed.

Press (g). "CLEAN" will flash and "3:00" HR will show in the

2.
display (Figure 1). The control will automatically clean for a 3

hour period (default self-cleaning cycle time). Note: If a 2 or 4
hour clean time is desired, press (g) (g) (g) for 2 hour or

press (g) (g) (g) for a 4 hour clean time. Set the cleaning
time based on the amount of soil: light, medium or heavy (* See

above).

3. Press ■’"start . The "DOOR LOCKED" icon will flash; "CLEAN",
Q icon and the letters "CLn" will remain on in the display

(Figure 2).

4. As soon as the control is set, the motor driven oven door lock will
begin to close automatically. Once the door has been locked the

"DOOR LOCKED" indicator light will stop flashing and remain on.

Also, the oven icon will appear in the display (Figure 3).

Note: Allow about 15 seconds for the oven door lock to close.

To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the

DO NOT force the oven door open. This can damage the automatic door locking system. Use caution and

INSTRUCTIONS

PRESS DISPLAY

D-nn ri _

JUULtn

dXSXS)'^

Figure 1

(D®®

n ri „

U Lun

Figure 2

n n „

u llh

Figure 3

I

When the Self-Clean Cycle is Completed

1. “HOT” will appear in the display. The time of day, the "DOOR

LOCKED" and "CLEAN" icon will remain in the display (Figure 4).

2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" and Q icon is are longer displayed, the
oven door can then be opened (Figure 5).

Stopping or Interrupting a Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a self-cleaning cycle due
to excessive smoke or fire in the oven:

1. Press (stop

2. The oven door can only be opened after the oven has cooled
down for approximately 1 HOUR and the "DOOR LOCKED" icon

is no longer displayed (Figure 5).

37

4'3u Hot

Figure 4

5:30

Figure 5

Self-Cleaning

To Start the delayed Self-Clean Cycle

The FLEX CLEAN DELAY START (^) pads and length of clean cycle, controls the Delayed Self-Clean
operation. The automatic timer will turn the oven on and off at the time you select in advance. Be sure to review TO

START THE SELF-CLEAN CYCLE for recommended clean times.

INSTRUCTIONS PRESS

To set the control for the Self-Cleaning Cycle to start at a delayed time and shut off automatically (example: 3 hour self-clean cycle to start at 4:30)

1. Be sure the clock is set with the correct time of day and the
oven door is closed.

2. Press (g). "CLEAN" will flash and "3:00" HR will show in
the display (Figure 1). The control will automatically clean for

a 3 hour period (default self-cleaning cycle time). Note: If a 2
or 4 hour clean time is desired, press (^2^ for 2

hour or press (T) for a 4 hour clean time. Set

the cleaning time based on the amount of soil—light, medium
or heavy (*See previous page).

3. Press START . The "DOOR LOCKED" icon will flash;

"CLEAN", Q icon and the letters "CLn" will remain on in the

display (Figure 2).

4. Press Enter the desired start time using the number

CD®®"

CD®®

START

/Delay's

\$tar^

DISPLAY

D-nn n ^

JUULLn

Figure 1

n ri

U LLn

Figure 2

n ri

U LLn

Figure 3

pads (Figure 3).

5. Press START . "DELAY", "DOOR LOCKED" and "CLEAN"

icons will remain on (Figure 4).

6. As soon as the control is set, the motor driven oven door lock
will begin to close automatically. Once the door has been

locked the "DOOR LOCKED" indicator light will quit flashing

and remain on.

7. The control will start the self-cleaning at the set start time, for
the period of time previously selected. At that time, the icon

"DELAY" will go out; "CLn" and oven icon will appear in the

display (Figure 5).

When the Self-Clean Cycle is Completed

1. “HOT” will appear in the display.The time of day, the "DOOR

LOCKED" and "CLEAN" icon will remain in the display

(Figure 6).

2. Once the oven has cooled down for approximately 1 HOUR,
and the "DOOR LOCKED" and Q icon are no longer
displayed, the oven door can then be opened (Figure 7).

®@®

■

Du LLn

"d CLEAN a

Figure 4

n ri

U LLn

Figure 5

30 Hot

LD CLEAN a

Figure 6

n 1

u

Figure 7

1

38

Seif-Cleaning

INSTRUCTIONS

Stoppirig or Interrypting a Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a self-cleaning cycle
due to excessive smoke or fire in the oven:

1. Press (stop

PRESS

DISPLAY

2. Once the oven has cooled down for approximately 1 HOUR
and the "DOOR LOCKED" icon is no longer displayed, the
oven door can then be opened (Figure 1).

Note: Self-Clean cycle can never be set to start more than 12 hours in advance.

Adjusting Oven Temperature

The temperature in the oven has been pre-set at the factory. When first using the
oven, be sure to follow recipe times and temperatures. If you think the oven is cooking
too hot or too cool for the temperature you select, you can adjust the actual oven
temperature to be more or less than what is displayed. Before adjusting, test a recipe
by using a temperature setting that is higher or lower than the recommended
temperature. The baking results should help you to decide how much of an adjustment
is needed.

INSTRUCTIONS

To adjust the oven temperature higher

1. Press (Bake) for 6 seconds (Figure 2).

2. To increase the temperature use the number pads to enter the
desired change (Example 30°F) (Figure 3). The

temperature may be increased as much as 35°F (19°C).

3. Press START to accept the temperature change and the display

will return to the time of day (Figure 4). Press to reject the
change if necessary.

PRESS

(D®

START , or (STOP

Figure 1

Note: The oven

temperature adjustments

made with this feature will
not change the Self-Clean

cycle temperature or the

Broil temperature.

DISPLAY

n nn

3

U UU

■

Figure 2

on Dn’

Du JU

■

Figure 3

To adjust the oven temperature lower

1. Press (Bake) for 6 seconds. 0° will appear in the display (Figure 5).

2. To decrease the temperature use the number pads to enter the

desired change (Example -30°F) (^3^ and then press

(Figure 6). The temperature may be decreased as much as 35°F
(19°C).

3. Press (start to accept the temperature change and the display

will return to the time of day (Figure 7). Press to reject the
change if necessary.

Note: The oven temperature adjustments are permanent and will

stay forever in the unit memory unless you manually change it again.
Even a power outage will not reset these changes. Follow the same
procedure again if you wish to change it to a different setting.

39

START ; or ( STOP

Figure 4

Figure 5

on _Dn°

■ JU JU

I

Figure 6

Figure 7

General Care & Cleaning

Cleaning Various Parts of Your Range

Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers and
heavy soiling as soon as possible. Regular cleanings now will reduce the extent and difficulty of major cleaning later.

Surfaces How to Clean

Aluminum & Vinyl

Control Panel and Trim
Pieces

Glass, Painted and Plastic
Body Parts, Control Knobs

and Decorative Trim

Pieces

Stainless Steel (some
models) Oven door &

drawer front panel

Oven Racks

,

//

Use hot, soapy water and a cloth. Dry with a clean cloth.
Before cleaning the control panel, turn all controls to OFF. Clean using hot, soapy

water and a dishcloth. Rinse with a clean water and a dishcloth. Be sure to squeeze

excess water from the cloth before wiping the panel; especially when wiping around
the controls. Excess water in or around the controls may cause damage to the
appliance. Be sure to rinse the cleaners as bluish stains may occur during heating
and cannot de removed.

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of
vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. DO NOT spray

liquids directly on the control pad and display area. Do not use large amounts of water
on the control panel - excess water on the control area may cause damage to the
appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or
paper towels - they will damage the finish. To remove control knobs, turn to the OFF
position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning,

line up the flat sides of both the knob and the shaft; then push the knob into place.
Clean with hot, soapy water and dishcloth. Rinse with clean water and cloth. Do not

use cleaners with high concentrations of chlorides or chlorines. Do not use

harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for
cleaning stainless steel. Always be sure to rinse the cleaners off from the surface as
bluish stains may occur during heating that cannot be removed.

This oven comes with lubricated porcelain oven racks, which can remain in the oven
during the self-clean cycle. Do not clean this vegetable oil lubrication off the racks. It

is important that the sides of the oven racks always have a light coating of vegetable
oil. To maintain optimal rack performance, re-apply a thin layer of vegetable oil to the
sides of the rack after every self-clean cycle or when the rack becomes difficult to
slide.

Porcelain Enamel

Broiler Pan and Insert, Door
Liner, Body Parts and

Warmer Drawer and Drawer

Cavity.

Oven Door

1

DO HAND

4— DO HAND

^ 1 CLEAN FRAME

, DO NOT HAND

, - \ CLEAN OVEN

/'1 DOOR GASKET

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with
a clean cloth. Remove all cleaners or the porcelain may become damaged during
future heating. DO NOT use spray oven cleaners on the cooktop.

Use soap & water to thoroughly clean the top, sides and front of the oven door.

Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO

NOT immerse the door in water. DO NOT spray or allow water or the glass
cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders or

any harsh abrasive cleaning materials on the outside of the oven door.

DO NOT clean the oven door gasket or it will be damaged. The oven door gasket is

made of a woven material, on Self-Cleaning models, which is essential for a good
seal. Care should be taken not to rub, damage or remove this gasket.

40

General Care & Cleaning

Ceramic Glass Cooktop Cleaning & Maintenance

Consistent and proper cleaning is essential to maintaining your Ceramic glass cooktop

Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth
or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning
cream leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal
markings on the cooktop surface. These marks should be removed immediately
after the cooktop has cooled using the cooktop cleaning cream. Metal marks can
become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or
scratch the cooktop surface. Do not slide anything metal or glass across the
cooktop. Do not use your cooktop as a cutting board or work surface in the kitchen.

Do not cook foods directly on the cooktop surface without a pan. Do not drop

heavy or hard objects on the glass cooktop, because they may cause it to crack.

Cleaning Recommendations for the Ceramic Glass Cooktop

 CAUTION

^WARNING

chemically damage the ceramic glass surface.

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

For light to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive
plastic type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly,
leaving no residue.

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive
plastic type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for
any other purpose.

If soils remain, carefully scrape soils with a metal razor blade scraper, holding \ A,
scraper at a 30 degree angle to the surface. Remove loosened soils, then apply a \ \
few drops of cleaning cream and buff surface clean. ^ ^

IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you use an

abrasive type scratch pad. Only use cleaning products that have been specifically
designed for ceramic glass cooktop.

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto the
ceramic cooktop surface. Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately. After turning the surface elements

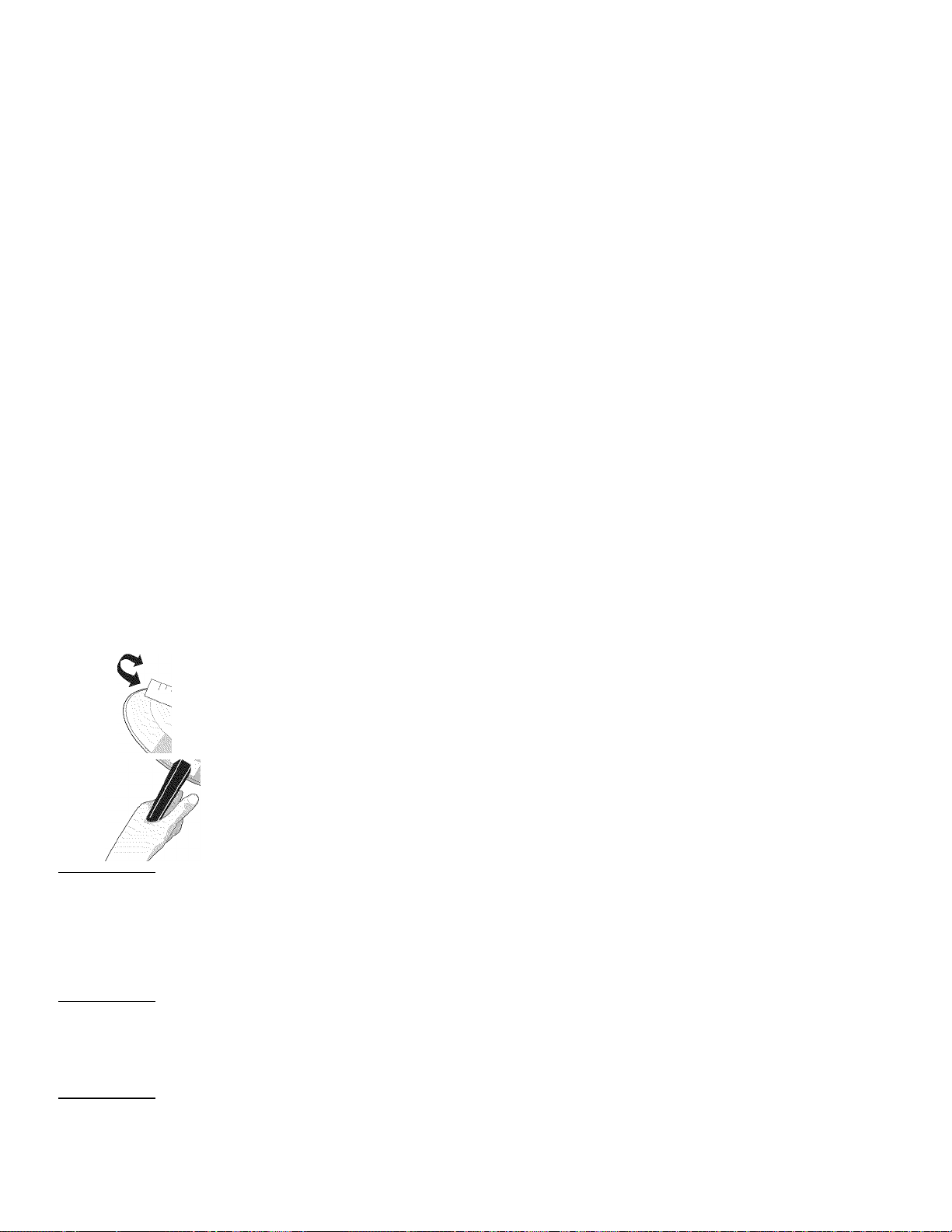

OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil
from the hot surface (as illustrated). Allow the cooktop to cool, and use the same
method for heavy or burned on soils.

41

Generai Care & Cleaning

Do not use the following on the ceramic glass cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal and some
nylon pads. They may scratch the cooktop, making it more difficult to

clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven

cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil

or lint on the cooktop which can burn and cause discoloration.

Special Caution for Aluminum Foil and Aluminum Cooking Utensils

• Aluminum foil

Use of aluminum foil will damage the cooktop. Do not use under any circumstances.

• Aluminum utensils

Since the melting point of aluminum is much lower than that of other metals, care must be taken when
pots or pans are used. Pans that boil dry may permanently damage cooktop by breaking, fusing to, or

AVMON

aluminum

marking it.

Care and Cleaning of Stainless Steel (Stainless Steel models only)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining
the appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning
section in this Use & Care Guide.

I Hinge lever

Lock-

Hinge
support

Lock engaged for door removal

Figure 1

Hinge lever hook

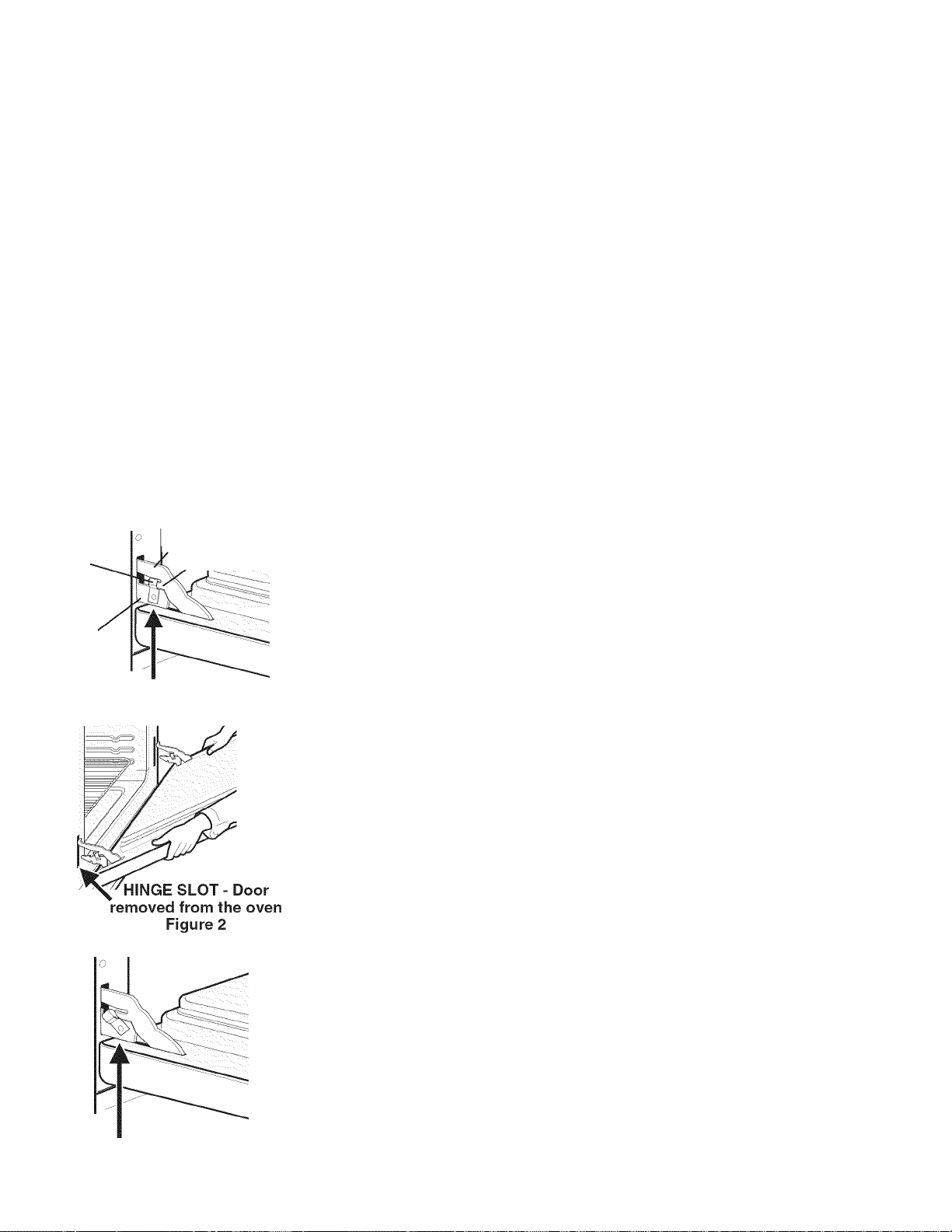

Removing and Replacing the Oven Door

ik CAUTION

with the inside of the door facing down.

To Remove Oven Door:

Open the door to the fully opened position.
Pull up the lock located on each hinge support and engage it onto the hinge
lever hook (Figure 1). You may have to apply a little downward pressure on the
door to pull the lock fully over the hinge lever hook.

3.

Grab the door by the sides and pull the bottom of the door up and toward you
to disengage the hinge supports. Keep pulling the bottom of the door toward
you while rotating the top of the door toward the range to completely disen
gage the hinge levers (Figure 2).

4.

To clean oven door, follow the instructions provided in the General Care &

Cleaning table.

I The door is heavy. For safe, temporary storage, lay the door flat

Lock in normal position

Figure 3

To Replace Oven Door:

1. Grab the door by the sides; place the hinge supports and levers into the
hinge slots. Open the door to the fully opened position.

2. Disengage the lock from the hinge lever hooks on both sides (Figure 3).

Note: Make sure the hinge supports are fully engaged before unlocking the

hinge levers.

3. Close the oven door.

Special Door Care Instructions - Most oven doors contain glass

that can break.

Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure

causing an increased risk of breakage at a later time.

42

General Care & Cleaning

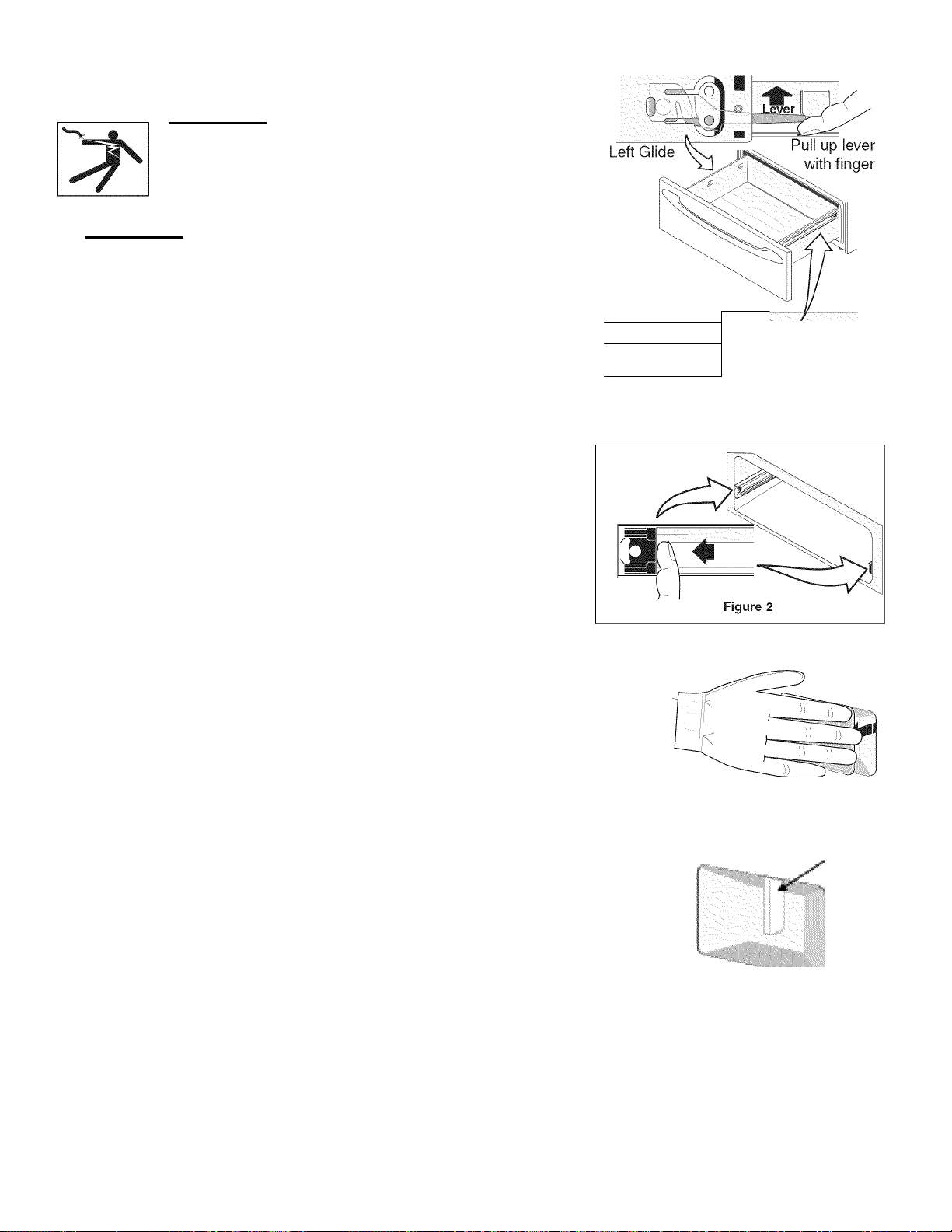

Removing and Replacing Warmer (Warm & Ready‘s“) Drawer

ik WARNING Electrical Shock Hazard can occur and result

in serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.

To Remove Warmer Drawer:

ik CAUTION

drawer.

2. Open the drawer to the fully opened position.

3. Locate glide lever on each side of drawer, pull up on the left
glide lever and push down on the right glide lever (See Figure

1).

4. Pull the drawer away from the range.

To Replace Warmer (Warm & ReadyDrawer:

1. Pull the plastic slider to the front of the glide slots on each

side of the drawer cavity (See Figure 2).

2. Align the glide on each side of the drawer with the drawer
cavity glide slot.

3. Push the drawer into the drawer cavity until glide levers “click”

(approximately 2”). If you do not hear the glide levers

“click” or the drawer does not feel seated remove the

drawer and repeat steps 1 thru 3.

I Turn power off before removing the warmer

—^^.._>Lever

Pull down lever

with finger

Is

^

-----------

Figure 1

Right Glide

Changing the Oven Light

The oven lights will automatically turn ON when the oven door is opened. The
oven lights may also be manually operated by pressing the pad.

The oven light bulb is covered with a glass shield. The glass shield can be
removed to be cleaned manually or to change oven light. THIS GLASS SHIELD
MUST BE IN PLACE WHENEVER THE OVEN IS IN USE.

To replace the light bulb:
CAUTION: BE SURE THE OVEN IS COOL.

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against possible broken glass.

3. To remove the glass shield, lift up on side with gloved finger and use force
to pull shield out.

4. Replace halogen light appliance bulb taking care not to touch the bulb with
your bare fingers. Touching bulb with your skin can leave a film on the bulb
that causes it to burn out quickly.

5. Replace glass shield in opposite order and manner of removal.

Lift backside
of glass shield
and remove it.

Halogen
Light Bulb

43

Before you call

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences

that are not the result of defective workmanship or materials in this appliance.

OCCURRENCE POSSIBLE CAUSE/SOLUTION

Range is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust

leveling legs at base of range until the rack is level. When range is level, cooktop may
appear out of alignment if countertop is not level.

Weak, unstable floor. Be sure floor is level and can adequately support range. Contact a
carpenter to correct sagging or sloping floor.

Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets are
square and have sufficient room for range clearance.

Cannot move appliance
easily. Appliance must be
accessible for service.

Oven control beeps and
displays any F or E11-E77
code error

Surface element too hot
or not hot enough.

Surface element does not
heat.

Surface elements do not
glow when on.

Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.
Contact builder or installer to make appliance accessible.
Carpeting interferes with range. Provide sufficient space so range can be lifted over carpet.

Electronic controls have detected a fault condition. Press the STOP key pad to clear the

display and ctop beeping. Turn appliance off and back on again. Try selected feature
again. If fault recurs, record fault number. Press the STOP key pad and call 1-800-4-MY-

HOME© for assistance (See back cover).

Incorrect control setting. Make sure the correct control is ON for the cooking zone.

Make sure to use correct cookware type for induction cooking. Look for cookware
specifically identified by the manufacturer for use with Induction cooktops. If you’re not
sure, use a magnet to test whether the cookware type will work. If a magnet sticks to the
bottom of the cookware, the material type is correct for Induction cooking. It is
recommended to always use heavier HIGH quality stainless steel cookware on your

Induction Cooktop surface.

Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight
cookware. Flat pans heat better than warped pans. Cookware materials and weight of the
material affect heating. Heavy and medium weight pans heat evenly. Because light weight
pans heat unevenly, foods may burn easily.

The induction cooking zones will not glow when they are on as cooking zone do. Induction
cooking uses electromagnetic energy to induce heat directly to the cookware.

Entire range or oven does
not operate.

Oven control displays Q
icon.

Cookware make noises.

Oven light does not work.

No power to the appliance. Check steps under “Entire range or oven does not operate” in
this Before You Call checklist.

Incorrect control setting. Make sure the correct control is set for the surface element to be

used.
Make sure cord/plug is plugged correctly into outlet. Check household circuit breakers.
Service wiring is not complete. Contact 1-800-4-MY-HOME® for assistance (See back cover).

Power outage. Check house lights to be sure. Call your local electric company for service.

The Q will display in the oven control in the digital windows indicating that the ESEC has a
“lockout” condition. This condition is normal when using the cooktop lockout or Self-Clean
features. Wait for the Self-Clean cycle to completely finish or if using the Cooktop Lockout
feature, touch the CLOCK key pad for 3 seconds to unlock the cooktop.

The electronic processes involved with Induction cooking may create some unusual noises.
These are normal for induction cooking process.

Replace or tighten bulb. See “Changing Oven Light” in this Use and Care Guide for

instructions.

44

Oven smokes excessively
during broiling.

Control(s) not set properly. Follow instructions under “Setting Broil” in this Use and
Care Guide.

Make sure oven is opened to Broil Stop Position.
Meat too close to the element. Reposition the rack to provide proper clearance between

the meat and the element. Preheat broil element.
Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges to

prevent curling, but do not cut into lean.
The insert on broiler pan wrong side up and grease not draining. Always place insert on

the broiler pan with ribs up and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Old grease or food spatters cause excessive smoking.

Poor baking results.

Self-cleaning cycle does
not work.

Door won’t open after self
clean cycle has completed.

Soil not completely
removed after self-clean
ing cycle.

Flames inside oven or
smoking from vent.

Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. If conventional baking, allow
the oven to preheat to the set temperature before placing food in the oven. Try adjusting
the recipe’s recommended temperature or baking time. If you feel the oven is too hot or
cool, see “Adjusting Oven Temperature” section in this Use and Care Guide.

Control(s) not set properly. Follow instructions under “Self-Cleaning” in this Use and
Care Guide.

Self-cleaning cycle was interrupted. Follow steps under “Stopping or Interrupting a Self

Cleaning Cycle” in this Use and Care Guide.

After any self-cleaning cycle, the oven will become extremely hot. Allow at least 1 hour after
the cycle has completed for the oven to cool and the door locked.

Indicator light to turn off before opening the oven door.

Failure to clean bottom, front top of oven, frame or door area outside oven seal. These
areas are not in the self-cleaning area, but get hot enough to burn on residue. Clean
these areas before the self-cleaning cycle is starting. Burned-on residue can be cleaned
with a stiff nylon brush and water or nylon scrubber. Be carefull not to damage the oven
gasket.

Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.

Excessive spillovers in oven. This is normal, especially for pie spillovers or large amounts of
grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean cycle.

If flames or excessive smoke are present, stop the self-clean cycle and follow the steps
under “Stopping or Interrupting a Self-Cleaning Cycle” in this Use and Care Guide.

V /

f

...

Scratches or abrasions on
cooktop surface.

Metal marks.

Brown streaks or specks.

Areas of discoloration
with metallic sheen.

Coarse particles such as salt or sand between cooktop and utensils can cause scratches.
Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do
not affect cooking and will become less visible with time.

Cleaning materials not recommended for ceramic-glass cooktop have been used. See

“Ceramic Glass Cooktop Cleaning & Maintenance” section under General Care & Cleaning.

Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.
Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on cooktop

surface. Use a ceramic-glass cooktop cleaning cream to remove the marks. See “Ceramic Glass

Cooktop Cleaning & Maintenance” section under General Care & Cleaning.

Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See “Ceramic Glass

Cooktop Cleaning & Maintenance” section under General Care & Cleaning.

Mineral deposits from water and food. Remove using a ceramic glass cooktop cleaning
cream. Use cookware with clean, dry bottoms.

45

Notes

46

PROTECTION AGREEIVIENTS

Master Protection Agreements ■

Congratulations on making a smart purchase. Your new ;

Kenmore® product is designed and manufactured for years of i
dependable operafion. Buf like all products, it may require ;
preventive maintenance or repair from fime fo fime.Thaf’s when ;
having a Masfer Profection Agreemenf can save you money i
and aggravafion. ;

The Masfer Profection Agreement also helps extend the life of ;
your new product. Here’s what the Agreement* includes: ;

Acuerdos maestros de protección

Enhorabuena por haber hecho una compra Inteligente. Su nuevo producto

Kenmore®está diseñado y fabricado para brindarle años de funcionamiento
fiable. Pero, como cualquier producto, puede necesitar mantenimiento
preventivo o reparaciones periódicas. Es por eso que tener un Acuerdo maestro
de protección podría ahorrarle dinero y molestias.

El Acuerdo maestro de protección también sirve para prolongar la durabilidad
de su nuevo producto. El acuerdo* incluye lo siguiente:

0 Piezas y mano de obra necesarias para contribuir a mantener el

0 Parts and labor needed to help keep products operating i

properly under normal use, not just defects. Our coverage :

goes well beyond the product warranty. No deductibles, |

no functional failure excluded from coverage - real ;

protection. ■

0 Servicio técnico por expertos (más de 10000 técnicos autorizados de

0 Expert service by a force of more fhan 10,000 authorized :

Sears service technicians, which means someone you ;

can trust will be working on your product. I

0 Servicio técnico a escala nacional y número ilimitado de llamadas de

0 Unlimited service calls and nationwide service, as ;

often as you want us, whenever you want us. :

0 «No-lemon» guarantee - replacement of your covered :

0 Garantía «sin sorpresas»: se reemplaza el producto cubierto por el

product if four or more product failures occur within twelve ;
months. ;

0 Product replacement if your covered product can’t be ■

fixed. i

0 Reemplazo del producto: en caso de que no se pueda reparar el

0 Revisión anual preventiva de mantenimiento del producto: puede

0 Annual Preventive Maintenance Check at your request - =

no extra charge. :

0 Rápida asistencia telefónica, la cual denominamos Solución rápida: es

0 Fast help by phone - we call it Rapid Resolution - |

phone support from a Sears representative on all products.:

Think of us as a «talking owner’s manual». ;

0 Power surge protection against electrical damage due to ;

0 Protección contra fallas eléctricas, contra daños debidos a fluctuaciones

power fluctuations. ;

0 $250 Food Loss Protection annually for any food ;

0 $250 al año para cubrir cualquier posible deterioro de alimentos que

spoilage that is the result of mechanical failure of any :

covered refrigerator or freezer. ;

0 Rental reimbursement if repair of your covered product ;

takes longer than promised. ■

0 Devolución de gastos de alquiler de electrodomésticos si la reparación

0 10% de descuento aplicable tanto a los costos del servicio de reparación,

0 10% discount off the regular price of any non-covered I

repair service and related installed parts. j

Once you purchase the Agreement, a simple phone call is all |
that it takes for you to schedule service. You can call anytime ;
day or night, or schedule a service appointment online. ■

The Master Protection Agreement is a risk free purchase. If you ;
cancel for any reason during the product warranty period, we :
will provide a full refund. Or, a prorated refund anytime after the ■
product warranty period expires. Purchase your Master ;
Protection Agreement today! :

Some limitations and exclusions apply. For prices and :
additional information in the U.S.A. call 1-800-827-6655. ;

* Coverage in Canada varies on some items. For full details ;
call Sears Canada at 1-800-361-6665. ;

Sears Installation Service I

For Sears professional installation of home appliances, garage I

door openers, water heaters, and other major home items, in i
the U.S.A. or Canada call 1-800-4-MY-HOME®. I

Una vez que haya realizado el pago de este acuerdo, bastará una simple
llamada telefónica para concertar una visita de servicio. Puede llamar a
cualquier hora del día o de la noche, o bien concertar una visita de servicio por
Internet.

La adquisición del Acuerdo maestro de protección es una inversión exenta de
riesgos. Si por cualquier motivo decide cancelar dicho acuerdo durante el
periodo de garantía del producto, le haremos un reintegro total del valor. O bien
un importe proporcional si cancela el acuerdo en cualquier otro momento
posterior al vencimiento del periodo de garantía del producto. ¡Adquiera hoy
mismo su Acuerdo maestro de protección!

Algunas limitaciones y exclusiones podrían aplicarse. Para solicitar
precios e información adicional, llame al 1-800-827-6655 (en los EE.UU.).

* La cobertura en Canadá varía en el caso de algunos artículos. Para
obtener detalles completos al respecto, llame al 1-800-361-6665 de Sears
de Canadá.

Servicio de instalación de Sears

Para solicitar la Instalación por profesionales de Sears de electrodomésticos,

abridores de puertas de garaje, calentadores de agua y otros artículos de uso
prioritario en el hogar, llame al 1-800-4-MY-HOME en los EE.UU. o Canadá.

funcionamiento adecuado de los productos utilizados en condiciones

normales de uso, no sólo en caso de defectos de los productos. Nuestra

cobertura va mucho más allá que la garantía del producto. No se
aplican deducibles ni exclusiones por fallas del funcionamiento: es decir,

verdadera protección.

Sears), lo cual significa que quien repare o realice el mantenimiento de su

producto será un profesional de confianza.

solicitud de servicio técnico: se puede poner en contacto con nosotros

cuantas veces lo desee y cuando lo desee.

acuerdo si ocurren cuatro o más fallas del producto en un periodo de 12
meses.

producto cubierto por el acuerdo.

solicitarla en cualquier momento, sin costo alguno.

decir, asistencia telefónica a través de cualquiera de nuestros
representantes de Sears, sobre cualquiera de nuestros productos. Piense
en nosotros como en un «manual parlante del usuario».

de la corriente eléctrica.

haya tenido que desechar debido a una falla mecánica de cualquiera de
nuestros refrigeradores o congeladores cubiertos por este acuerdo.

de su producto asegurado toma más que el tiempo prometido.

como de las piezas instaladas relacionadas que no hayan quedado
cubiertos por este acuerdo.

47
