Page 1
GAS COOKTOP
Use & Care Guide
PARRILLA DE COCINAR A GAS
Manual del Usuario
Models, Modelos 790. SIGO?:«, 790.3101
5!« = color number, número de color
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
P/N 318200678 Rev. A (0603)
Page 2
Table of Contents
Cooktop Warranty..................................................................2
Product Record......................................................................2
Serial Plate Location..............................................................2
IMPORTANT SAFETY INSTRUCTIONS
Protection Agreements

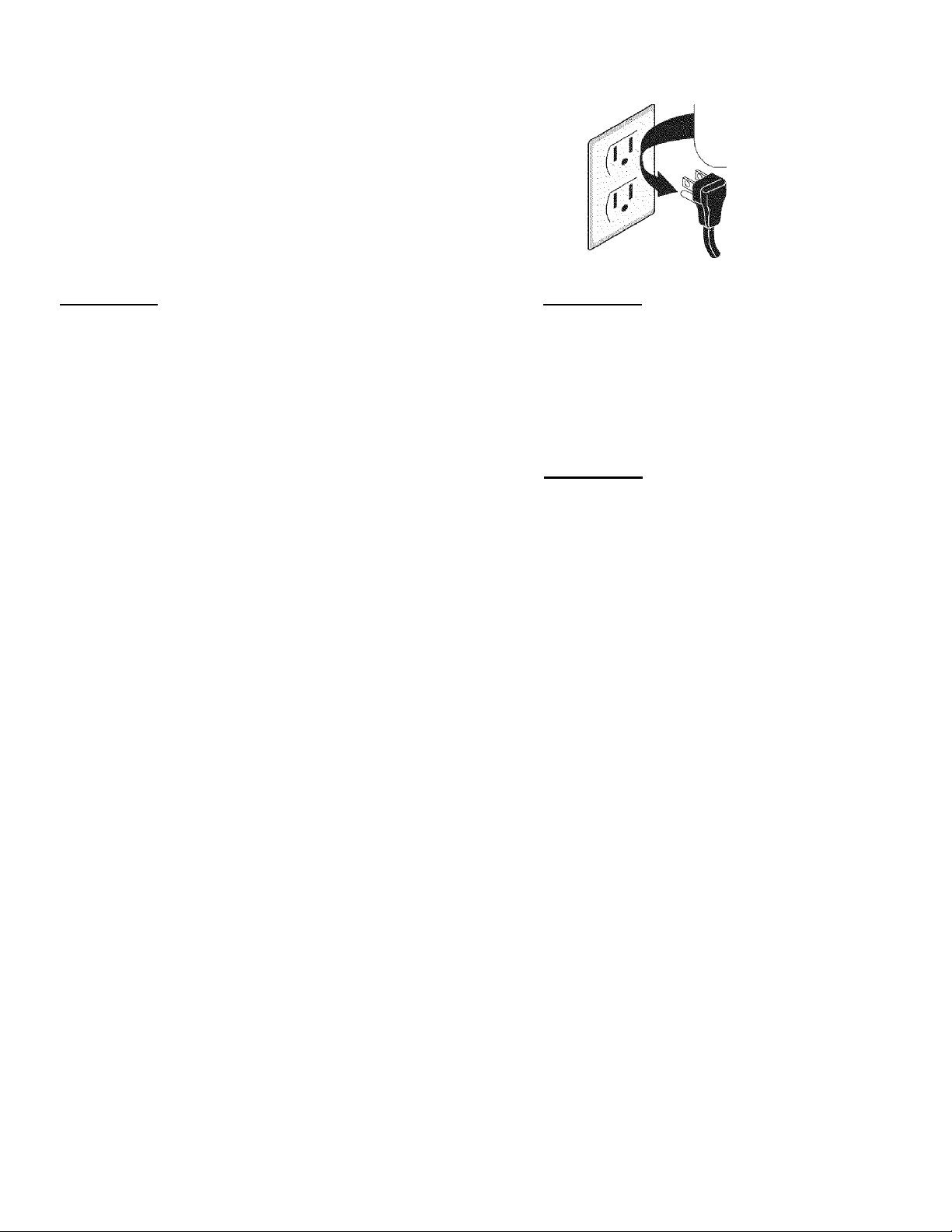

Grounding Instructions...........................................................6
Liquefied Petroleum (Propane) Gas Conversion
Surface Cooking.....................................................................7
Before setting Surface Controls.............................................8
Setting Surface Controls...................................................9-10
General Care & Cleaning
Before You Call....................................................................13
Sears Service.......................................................................14
.........................................................
...............................................
...........................
.................
11-12
3-4
Product Record
In this space below, record the date of purchase, model and
serial number of your product. You will find the model and
serial number printed on the serial plate. This serial plate is
located under the cooktop. See bottom of this page for the
5
serial plate location.
Model No. 790.____________________________________
6
Serial No.
Date of purchase
Save these instructions and your sales receipt for future
reference.
______
_________________________________
_________________________________
Kenmore Pro Appliance Warranty
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to
a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ® to arrange for free
repair. If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of
purchase.
FIVE-YEAR LIMITED WARRANTY
For five years from the date of purchase, when this range is installed, operated, and maintained according to all instructions
supplied with this product. Sears will replace the following range parts free of charge if they fail for the reasons below. After
the first year, customer must pay labor cost of installation.
• Cooktop glass if it fails due to thermal shock.
• Cooktop elements if they are defective.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with
the product.
5. Damage to orfailure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy underthis limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness tor a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties
of merchantability or fitness, so these exclusions or limitation may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc.,Toronto, Ontario, Canada MSB 2B8
Serial Plate Location
You will find the model and serial number printed on the
serial plate. The serial plate is located under the cooktop.
Please see the illustration for exact location. Remember to
record the serial number for future reference (See Product
Record above).
Printed in United States
Serial plate is
located under
the burner box
Page 3
Important Safety instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all
instructions given.
r I Thig symbol will help alert you to situations that may cause serious bodily, harm, death or property damage.
EESSlEfclThis symbol will help alert you to situations that may cause bodily injury or property damage. ' ■ ^
ik WARNING
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, servicer or the gas supplier.
Remove ail tape and packaging wrap before using the
cooktop. Destroy the carton and plastic bags after
unpacking the cooktop. Never allow children to play
with packaging material. Do not remove the model/serial
plate attached to the cooktop.
Proper Installation—Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National Fuel Gas
Code ANSI Z223.1 latest edition and CAN/CGA
B149.2, and the National Electrical Code ANSI/NFPA
No. 70—latest edition, and local code requirements.
Install and/or adjust only per installation instructions
provided in the literature package for this cooktop.
In case of an emergency, know how to disconnect
the electrical power to the appliance at the circuit
breaker or fuse box and how to turn off the gas
supply at the main shutoff valve.
User Servicing—Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only by
a qualified technician to reduce the risk of personal injury
and damage to the cooktop. Sears Parts & Repair is the
recommended repair service forthis appliance.
Never modify or alter the construction of a cooktop
by removing panels, wire covers, or any other part of
the product.
ik WARNING
result in serious injuries and may also cause damage
to the cooktop. Do not allow children to climb or play
around the cooktop.
Stepping or leaning on this cooktop can
Storage on Appliance—Flammable materials should
not be stored on the cooktop, near surface burners.
This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as
aerosol cans, on the cooktop. Flammable materials may
explode and result in fire or property damage.
ik CAUTION
children in the cabinets above the cooktop.
• Do not leave children alone—Children should not be
left alone or unattended in the area where an
appliance is in use. They should never be allowed to
sit or stand on any part of the appliance.
• DO NOTTOUCH SURFACE BURNERS, GRATES, OR
AREAS NEAR THESE BURNERS. Surface burners
may be hot even though the flames are not visible.
Areas near surface burners may become hot enough to
cause burns. During and after use, do not touch or let
clothing or other flammable materials touch these areas
until they have had sufficient time to cool. Among these
areas are the cooktop and the surfaces facing the
cooktop.
• Wear Proper Apparel—Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
A WARNING
heater to heat or warm the room. Doing so may result
in carbon monoxide poisoning.
Do not store items of interest to
NEVER use this appliance as a space
Page 4
Important Safety Instructions
Do Not Use Water or Flouron Grease Fires—Smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
Use Only Dry Potholders—Moist or damp pot holders
on hot surfaces may result in burns from steam. Do not
let the potholders touch the flame or burners. Do not use a
towel or other bulky cloth instead of a pot holder.
Do Not Heat Unopened Food Containers—Buildup of
pressure may cause container to burst and result in
injury.

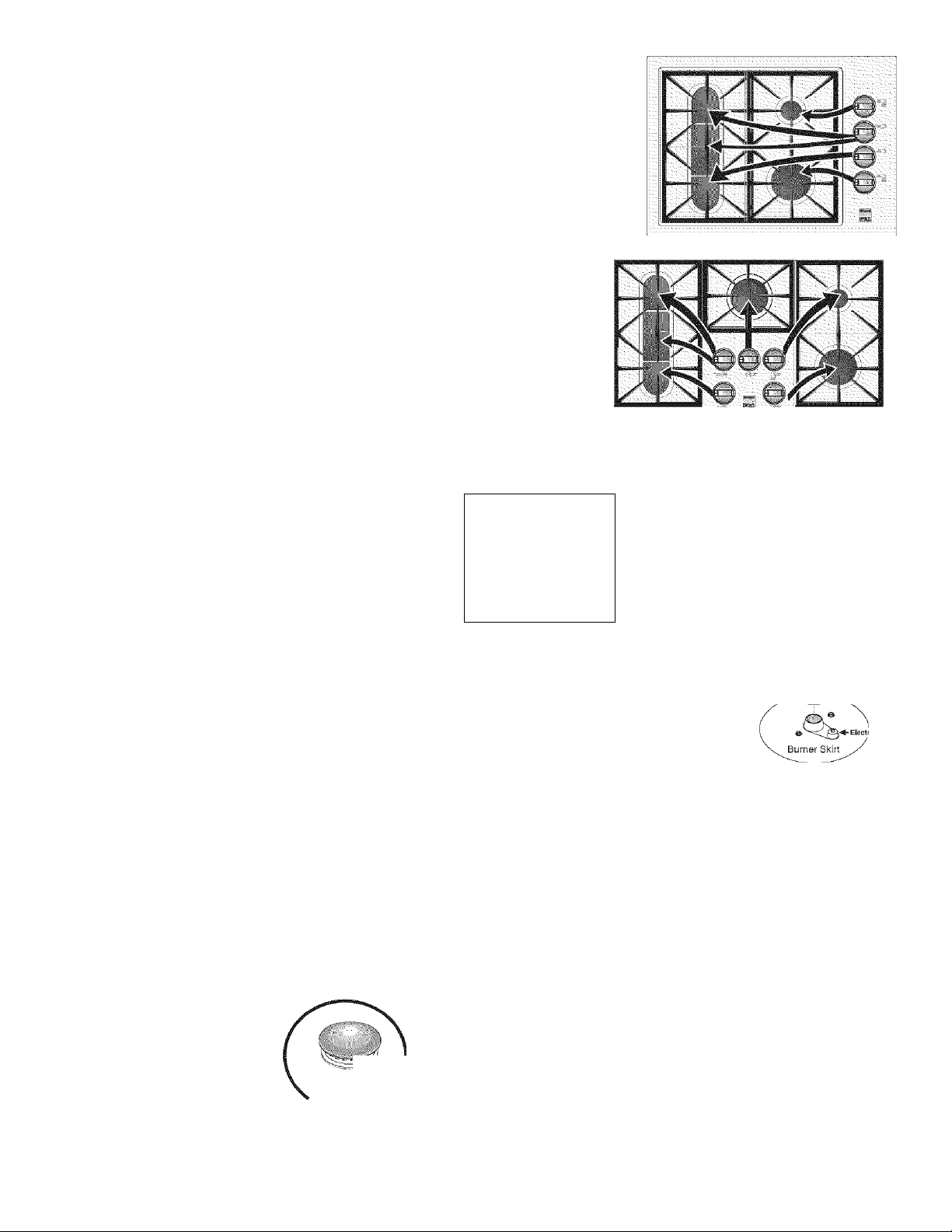

Know which knob controls each surface burner.

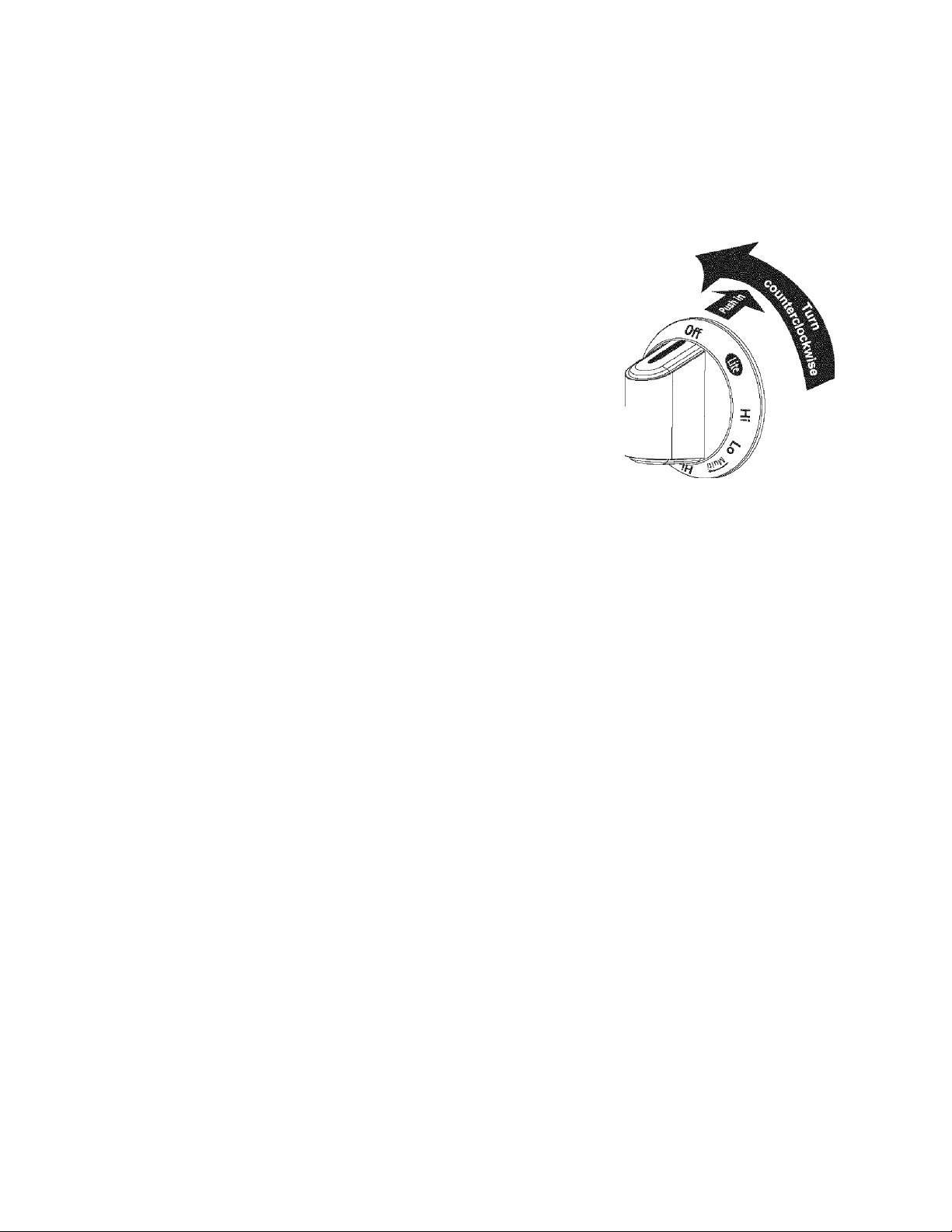

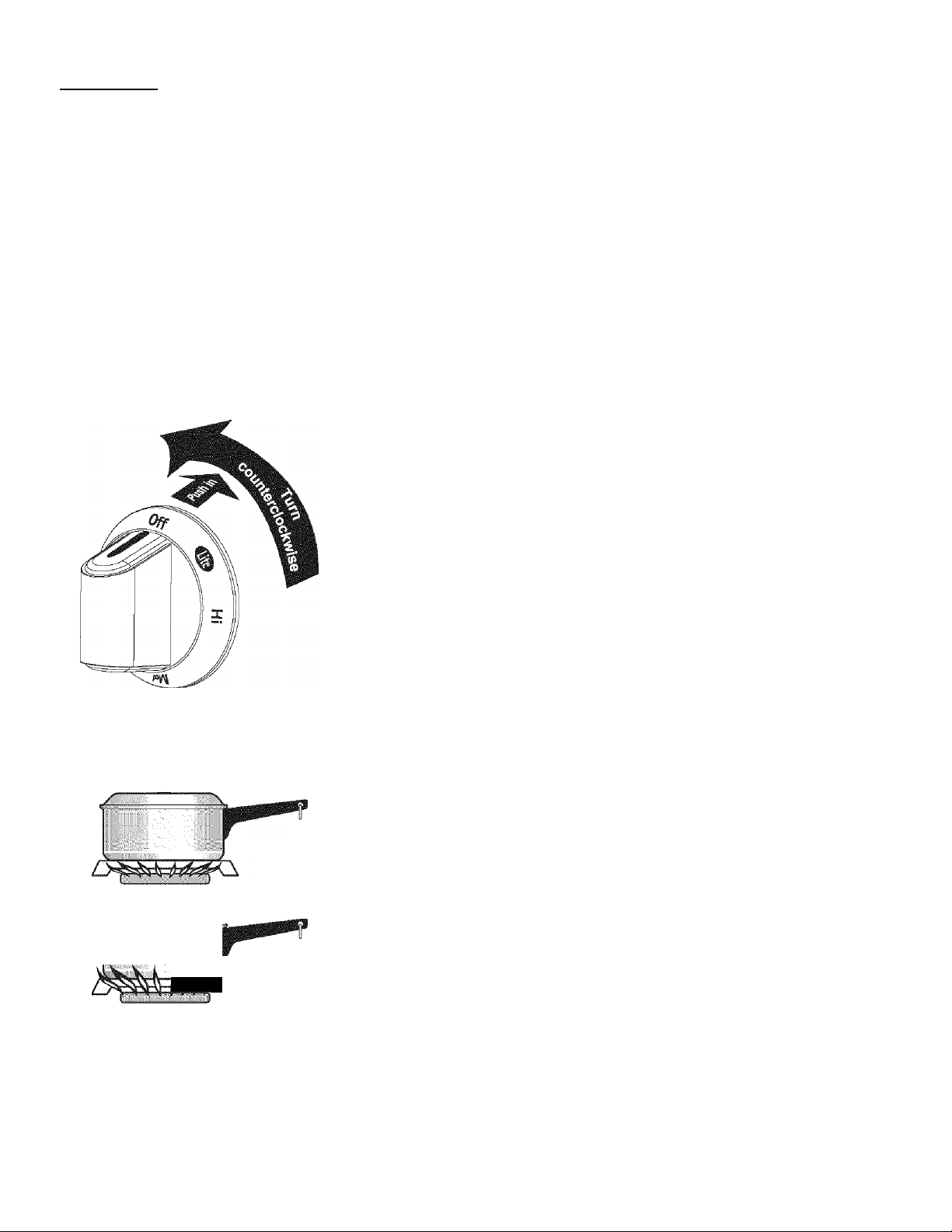

Always turn the knob to the LITE position when igniting the
burners. Visually check that the burner has lit. Then adjust
the flame so it does not extend beyond the edge of the
utensil.
ik WARNING Use Proper Flame Size—Adjust flame
size so it does not extend beyond the edge of the
utensil. The use of undersized utensils will expose a portion
of the burner flame to direct contact and may result in
ignition of clothing. Proper relationship of utensil to flame will
also improve efficiency.
ik WARNING
sealed gas burners. If you use a stove top grill on a sealed
gas burner, it will cause incomplete combustion and can
result in exposure to carbon monoxide levels above allow
able current standards. This can be hazardous to your
health.

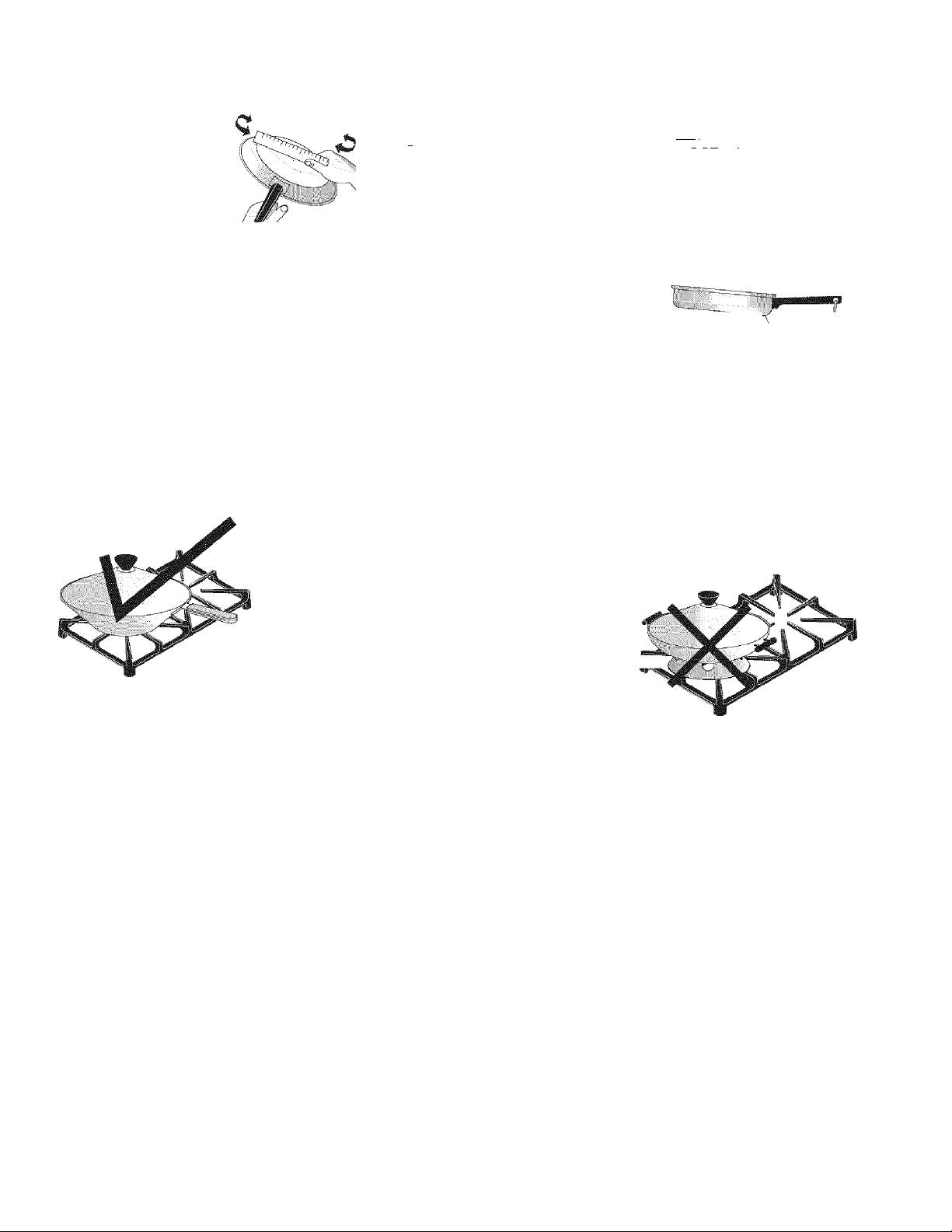

ik WARNING
equipped with one or more surface burners of different sizes.
Select utensils having flat bottom large enough to cover the
surface burner. The use of undersized utensils will expose a
portion of the surface burner to direct contact and may result
in ignition of clothing. Proper relationship of utensil to the
surface burner will also improve efficiency.
Do not use stove top grills on your
I
Use proper pan size—This appliance is
• Never Leave Surface Burners Unattended at High
Heat Settings—Boil overs cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry
may melt.
• Protective Liners—Do not use aluminum foil to line
surface burner pans. Protective liners or aluminum foil
may interfere with heat and air distribution, and
combustion. Damage to the cooktop or personal injury
may result.
• Glazed Cooking Utensils—Only certain types of glass,
glass/ceramic, ceramic, earthenware, orotherglazed
utensils are suitable for cooktop service without
breaking due to the sudden change in temperature.
Check the manufacturer's recommendations for cooktop
use.
• Do Not Use Decorative Surface Burner Covers. If a
burner is accidentally turned on, the decorative cover
will become hot and possibly melt. You will not be able
to see that the burner is on. Burns will occur if the hot
covers are touched. Damage may also be done to the
cooktop or burners because the covers may cause
overheating. Airwill be blocked from the burner and
cause combustion problems.
GLASS COOKTOPS (some models):
• Do Not Clean or Operate a Broken Cooktop. If
cookfop should break, cleaning solutions and
spillovers may penetrate the broken cooktop and create
a risk of electric shock. Contact a qualified technician
immediately.
• Clean Cooktop with Caution. If a wet sponge or cloth
is used to wipe spills on a hot cooking area, be careful
to avoid a steam burn. Some cleaners can produce
harmful fumes if applied to a hot surface.
• Do Not Place Hot Cookware on Cold Cooktop Glass.
This could cause glass to break.
• Do not slide pans across the cooktop surface. They
may scratch the cooktop surface.
• Clean the appliance regularly to keep all parts free of
grease that could catch fire. Exhaust fan ventilation
hoods and grease filters should be kept clean. Do not
allow grease to accumulate on hood or filter. G reasy
deposits in the fan could catch fire. When flaming food
underthe hood, turn fan on. Refer to hood manufacturer's
instructions for cleaning.
• Utensil Handles Should Be Turned Inward from Edges
of Cooktop and Not Extend Over Adjacent Surface
Burners—To reduce the risk of burns, ignition of
flammable materials, and spillage due to unintentional
contact with the utensil, the handle of the utensil should be
positioned so that it is turned inward, and does not extend
over adjacent surface burners.
•
• Do not let pans boil dry. Pans that boil dry may
permanently damage the cooktop by breaking, fusing
to, or marking it. (This type of damage is not covered
by your warranty).
IMPORTANT SAFETY NOTICE
The California Safe Drinking Waterand Toxic
Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause
cancer, birth defects or other reproductive harm, and
requires businesses to warn customers of potential
exposure to such substances.
Page 5
PROTECTION AGREEIVIENTS
IntheU.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore® product is designed and manufactured for
years of dependable operation. But like all products, it
may require preventive maintenance or repair from time to
time. That’s when having a Master Protection Agreement
can save you money and aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the
life of your new product. Here’s what’s included in the
Agreement:
fvf
Expert service by our 12,000 professional repair
specialists
Unlimited service and no charge for parts and labor
on all covered repairs
“No-iemon” guarantee-replacement
of your covered product if four or more product
failures occur within twelve months
гГ
Product replacement if your covered product can’t
be fixed
Annual Preventive Maintenance Check at your
request - no extra charge
Fast help by phone - phone support from a Sears
representative on products requiring in-home repair,
plus convenient repair scheduling
Power surge protection against electrical damage
due to power fluctuations
Rental reimbursement if repair of your covered
product takes longerthan promised
In Canada
Maintenance Agreements
Your purchase has added value because you can depend
on Sears HomeCentral®for service. With over 2400
Service Technicians and more than a million parts and
accessories, we have the tools, parts, knowledge and
skills to ensure our pledge: We Service What We Sell.
Your Kenmore*product is designed, manufactured
and tested to provide years of dependable operation. But
like all products, it may require service from time to time.
The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.
The Sears Maintenance Agreement:
■ Is your way to buy tomorrow’s service at today’s price
■ Eliminates repair bills resulting from normal wear and
tear
■ Provides phone support from a Sears representative on
products requiring in-home repair
■ Even if you don’t need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running condition.
Some limitations apply. For more information about
Sears Canada Maintenance Agreements,
call 1-800-361-6665
Y
f”
T.:
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That’s the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection
Agreementtoday!
Some limitations and exclusions apply.
For prices and additional information call
1-800-827-6655.
Sears Installation Service
For Sears professional installation of home
appliances, garage dooropeners,waterheaters,
and other major home items, in the U.S.A. call
1-800-4-MY-HOME®
REV. 030509
Page 6
Grounding instructions
For personal safety, the cooktop must be properly grounded. For
maximum safety, the power cord must be plugged into an electrical
outlet that is correctly polarized and properly grounded.
DO NOT Operate the cooktop using a 2-prong adapter or an extension
cord. If a 2-prong wall receptacle is the only available outlet, it is the
personal responsibility of the consumer to have it replaced with a
properly grounded 3-prong wall receptacle installed by a qualified
electrician.
See the INSTALLATION INSTRUCTIONS packaged with this cooktop
for complete installation and grounding instructions.
Grounding type
wall receptacle
Do not, under any
circumstances,
cut, remove, or
bypass the
grounding prong.
Power supply cord with
3-prong grounding plug
À WARN INC I This appliance is equipped with a 3-prong grounding
plug for your protection against shock hazard and should be plugged
directly into a properly grounded receptacle. DO NOT cut or remove
the grounding prong from this plug.
Liquefied Petroleum (Propane) Gas Conversion
This appliance can be used with Natural Gas or Propane (L.P.) Gas.
It is shipped from the factory for use with Natural Gas.
If you wish to covert the appliance to LP Gas, use the supplied LP
Gas conversion kit and instructions, contained in an envelope
marked FOR LP/PROPANE GAS CONVERSION. The conversion
must be performed by a Sears or other qualified LP service
dealer following the supplied instructions.
A WARNING I Avoid fire hazard or electrical
shock. DO NOT use an adapter plug, an extension
cord, or remove grounding prong from electrical
power cord. Failure to follow this warning can cause
serious injury, fire or death.
A WARNING
additions, changes or conversions required for this
appliance to operate with either LP or Natural Gas
must be made by a Sears or other qualified LP
service dealer.
I To avoid serious injury or death, any
Page 7
Surface Cooking
Use Proper Cookware
Cookware should have
flat bottoms that make
good contact with the
entire surface heating
element. Check for
flatness by rotating a
ruler across the bottom
of the cookware (See
Figure 1). Be sure to follow the
recommendations for using cookware as
shown in Figure 2.
Note: The size and type of cookware used
will influence the setting needed for best
cooking results.
Note: Always use a utensil for its intended
purpose. Follow manufacturer's instructions.
Some utensils were not made to be used in
the oven oron the cooktop.
Figure 1
CORRECT INCORRECT
» Curved and warped pan bottoms.
_
/ (s w V t, Ì ^
> Flat bottom and straight sides.
> Tight fitting lids.
> Weight of handle does not tilt
pan. Pan is well balanced.
> Pan sizes match the amount of
food to be prepared.
Made of material that conducts
heat well.
Easy to clean.
Specialty pans such as lobster pots,
griddles and pressure cookers may be
used but must conform to the above
recommended cookware requi rements.
Figure 2
W."* ■ . ..J — ,
! ih Nni V li i (if ■fn*'.!* 'S
Pan overhangs unit by more than
2.5cm(1”).
Heavy handle tilts pan.
Flame extends beyond unit.
Using a wok
Woks with flat bottoms suitable for use on your
cooktop are available in most cookshop or
hardware stores. Round-bottomed woks (with a
support ring that does not extend beyond the
burner unit) may also be used. The metal ring
was designed to support the wok safely when it
is filled with large amounts of liquids (soup
making) or fat (frying).
DO NOT use a wok it it is equipped
with a metal ring that extends beyond
the burner unit. Because this ring
traps heat, the surface unit and
cooktop surface could be damaged.
Wire trivets: Do not use Vv^ire trivets. Cook
ware bottoms must be in direct contact with the
grates.
Using the Griddle
Before first use:
• Wash Griddle in hot soapy water. Rinse and then dry completely.
• Apply a thin coat of vegetable oil to the entire surface (front and back of griddle).
• Preheat your oven to 350“F. Place the griddle on the upper rack in your oven.
• Bake griddle for 1 hourat350°F, then turn oven OFF and let cool before removing.
• The surface may appear to have a tacky feel to it from this seasoning process. If desired, wash
the griddle in hot soapy water, rinse well, and dry completely.
After each use:
•To prevent rusting, store in a dry place and keep uncovered.
• After each use, clean with a stiff brush and hot water only.
• DO NOT CLEAN GRIDDLE IN DISHWASHER.
• Dry immediately and apply a light coating of vegetable oil to griddle before storing.
:
r'
T.:
Using the Griddle:
• Place either side of the griddle centered over the left side gas burners. L ,
• Preheat the griddle for 5 minufes on medium to medium low setting.
Slow preheat ensures even heat distribution during the cooking process.
• DO NOT preheat the griddle on HI setting. Preheating on HI may warp the griddle and prevent even heat distribution.
EUSilSliislill Always place the griddle on the grate before turning on the burner.
Always use potholders to remove the griddle from the grate. Allow the griddle to coo! before
removing. Do not set hot griddle on surfaces that cannot withstand high heat such as countertops.
Be sure the griddle is positioned correctly and is stable before use to prevent hot spills and possible burns.
7
Page 8
Before Setting Surface Controls
Locations of the Gas Surface Burners
The SIMMER burner (5000 BTU) is best used for simmering delicate sauces,
etc. This burner is located at the right rear burner position on the cooktop.
The STANDARD burners (7000 BTU or 9500 BTU) are used for most surface
cooking needs. These burners are located at the left front and left rear
positions on the cooktop (and there is one more standard burner located at the
center rear position on the 36" cooktop models).
The POWER burner (17200 BTU) is best used forbringing large
quantities of liquid rapidly up to temperature or when preparing larger
quantities of food. This burner is located at the right front position on
the cooktop.
The BRIDGE burner is best suited when using rectangular or long
shaped cookware. The left rear (7000 BTU) and left middle (7000 BTU)
are combined and controlled by the same control knob. The left front
burner (7000 BTU) may also be added for a total of 3 burners
(21000 BTU).

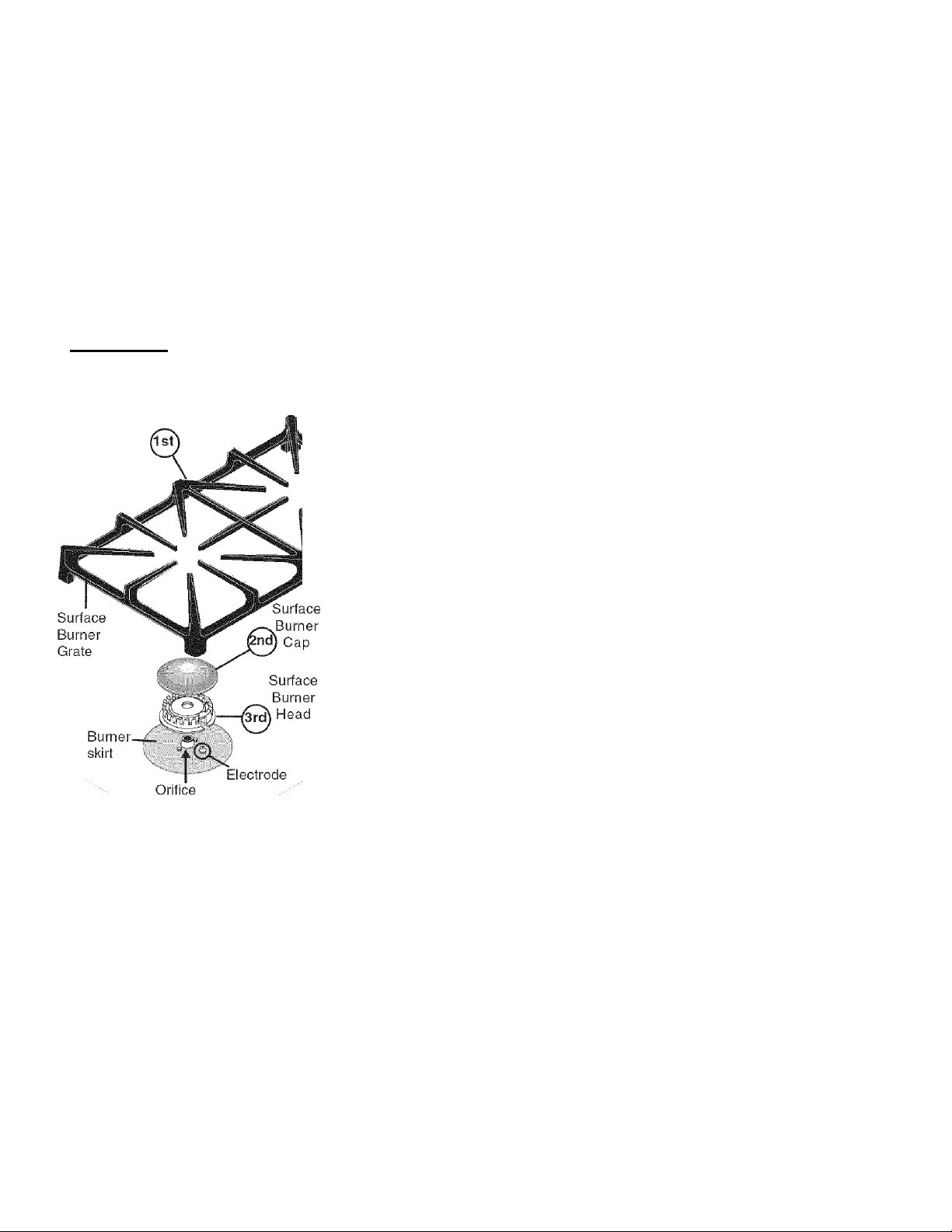

Assembly of the Surface Burner Heads, Burner Caps and Burner Grates
It is very important to make sure that all of the
Surface Burner Heads, Surface Burner Caps and
Surface Burner Grates are installed correctly and at
the correct locations.
1. Be sure to follow the Installation Instructions
when installing your new cooktop.
2. Remove all packing tape from cooktop. Remove
Burner Caps and Burner Heads (See Figure 1).
3. Discard all packing material located under all
Burner Heads (if applicable).
4. To replace Burner Heads & Caps, match the
letters located under center of Burner Caps with
the letters located inside Burner Head (only 5K,
9.5K and 17.2K burners are marked with letters -
See Figure 1). Place all Burner Heads & Caps on
the cooktop (See Figure 1) while carefully
aligning the Electrodes into slots or holes of the
Burner Heads (Figure 3). Note: The Burner Heads
should sit flat on Cooktop Burner Skirts.
Bridge Burner Head
„ , .
Bridge
: : . : Bumer
■—End
Cap
5. Replace Bridge Burner Caps. These include one Bridge Burner Center Cap (rectangular
shaped) and the two Bridge Burner End Caps (The Bridge Burner End Caps will fit either
the front or rear Bridge Burner Head locations). Make sure that the tabs located under the
Bridge Burner Caps fall into the slots located in the Bridge Burner Head (See arrows in
Figure 2) and that all the Bridge Burner Caps lie flat and evenly on the Bridge Burner
Head.
6. Unpack Burner Grates. NOTE: Do not force End Burner Grates down on cooktop. Posi
Bridge
Burner
tion Burner Grates on cooktop and check that all the Burner Grate legs lie on the glass
surface.
Center
Cap
Bridge
Burner
'End
Cap
properly in slot of each Burner Caps and Burner Heads in place whenever the
must be located ^NTER THE GAS ORIFICE OPENING. Always keep the
Burner Head surface burners are in use.
p. . CLEANING AGENTS OR ANY OTHER MATERIAL TO
30” Cooktop Layout
i ...
1 •
36” Cooktop Layout
7K
7K
7K
7. Place Center Burner Grate between the end Burner Grates
(36" models only).
REMEMBER — DO NOT ALLOW SPILLS, FOOD,
7K
i®)
5K
^ : 17.2K
:^.5K
Figure 1
©■
5K
17.2K
Example of Burner Assembly
Match letter located
under center ot
Burner Cap ;
with letter ■
located J
Inside ■
Burner
Head
Burner/
Head
Burner
Cap
Figure 2
Figure 3
Page 9
Setting Surface Controls
ik CAUTION
items such as salt and pepper shakers,
spoon holders or plastic wrappings on
top of the range when it is in use. These
items could melt or ignite. Potholders,
towels or wood spoons could catch fire if
placed too close to a flame.
In the event of an electrical power outage,
the surface burners can be lit manually. To
light a surface burner, hold a lit match to
the burner head, then slowly turn the
surface control knob to LITE. After burner
lights push in and turn knob to desired
setting. Use caution when lighting surface
burners manually.
I Do not place plastic
Operating the Gas Surface Controls:
1. Place cooking utensil on surface burner.
2. Push the surface control knob down and turn counterclockwise out of
the OFF position (See Figure 1).
3. Release the knob and rotate to the LITE position. Note: All electronic
surface ignitors will spark at the same time. However, only the burner
you are turning on will ignite.
4. Visually check that the burner has a flame.
5. Turn the control knob counterclockwise to the desired flame size. The
control knobs do not have to be set at a particular setting. Use the knob
indicator settings to adjust the flame as needed. DO NOT cook with the
surface control knob in the LITE position. (The electronic ignitor will
continue to spark if the knob is left in the LITE position.)
Setting Proper Surface Burner Flame Size
For most cooking, start on the highest control setting and then turn to a
lower one to complete the process. Use the recommendations below as a
guide for determining proper flame size for various types of cooking. The
size and type of utensil used and the amount of food being cooked will
influence the setting needed for cooking.
*F!ame Size Type of Cooking
Off Hi Med Lo
Figure 1
i Improper
Proper
flame size
flame size
High Flame ; Start most foods; bring water to a boil; pan broiling.
Medium Flame < Maintain a slow boil; thicken sauces, gravies; steaming.
Low Flame ; Keep foods cooking; poach; stewing.
*These settings are based on using medium-weight metal or aluminum
pans with lids. Settings may vary when using other types of pans. The
color of the flame is the key to proper burner adjustment. A good flame is
clear, blue and hardly visible in a well-lighted room. Each cone of flame
should be steady and sharp. Clean burner if flame is yellow-orange.
Regardless of size, always select cookware that is suitable for the amount
and type of food being prepared. Select a burner and flame size appropriate
to the pan. Never allow flames to extend beyond the outer edge of the pan.
Never extend the flame beyond the outer edge of the utensil. A higher
flame wastes heat and energy and increases your risk of being burned by
the flame (Figure 2).
For deep fat frying, use a thermometer and adjust the surface control knob
accordingly. If the fat is too cool, the food will absorb the fat and be greasy.
If the fat is too hot, the food will brown quickly and the center will be
undercooked. Do not attempt to deep fat fry too much food at once as the
food will neither brown nor cook properly.
Figure 2
Page 10
Setting Surface Controls (cont’d)
Setting the Bridge Burner
The Bridge Burner should be used with rectangular shaped cookware. Cookware like the cast-iron Griddle that is
supplied with your cooktop is designed specifically for best results with the Bridge Burner.
The Bridge Burner feature may be used to combine the cooking power of 2 or if needed 3 gas surface Burners located
along the left-hand side of the glass cooktop. The left rear and left center Burners are controlled by the left rear surface
Control Knob. In addition the left front Burner may be added to the Bridge Burner with the left front gas Control Knob.
Operating the Bridge Burner
1. Push the left rear surface control knob in and turn
counterclockwise out of the OFF position (See Figure).
2. Release the knob and rotate to the LITE position (See Figure).
Note: All electronic surface ignitors will spark at the same time.
However, only the selected surface Burner will life.
3. Visually check that the left rear Burner has lit.
4. Continue to rotate the gas control knob counterclockwise past the
first LO setting to the arrow marked Multi.
5. Visually check that both the left rear and left center Burners are lit.
Adjust the flame size by turning the control knob between the
second HI and LO settings (See Figure).
6. Add the left front Burner if needed. Once lit, visually adjust the
flame size of the left front Burner to match the flame size of the
Bridge Burner.
7. Place cooking utensil centered over the left-hand cooktop surface
Burner Grate. DO NOT cook with any of the surface control knobs
in the LITE position (The electronic ignitor wili continue to spark if
the knob is left in the LITE position).
Note: If only the left rear surface Burner is needed, follow the instructions provided below.
Off Hi Lo Multi Hi Lo
Operating only the Left rear Gas Surface Burner
1.
Place cooking utensil centered over the I eft-rear surface Burner Grate.
2.
Push the left rear surface control knob in and turn counterclockwise out of the OFF position (See Figure).
3.
Release the knob and rotate to the LITE position. Note: All electronic surface ignitors will spark at the same time.
However, only the left rear Burnerwill ignite.
4.
Visually check that the left-rear burner has lit. Adjust the flame size by turning the control knob between the first HI
and LO settings (See Figure). DO NOT cook with the surface control knob in the LITE position (The electronic
ignitor will continue to spark if the knob is left in the LITE position).
10
Page 11
General Care & Cleaning
Cleanirig Various Parts of Yoor Cooktop
Before cleaning any part of the cooktop, be sure all controls are turned OFF and the cooktop is COOL. REMOVE SPILLOVERS
AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS NOW WILL REDUCE THE DIFFICULTY AND
EXTENT OF A MAJOR CLEANING LATER.
Surfaces How to Clean
Aluminum (Trim Pieces) &
Vinyl
Painted and Plastic Control
Knobs, Body Pieces, and
DecorativeTrim
Control Panel
Stainless Steel, Chrome
DecorativeTrim
Use hot, soapy water and a cloth or paper towel. Dry with a clean cloth.
For general cleaning, use hot soapy water and a cloth. For more difficult soils and
built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to
60 minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any
of these materials; they can scratch or dull the finish.
Wipe the control panel clean after each use. Before cleaning the control panel, turn all
controls to OFF and remove the control knobs. To remove, pull each knob straight off
the shaft. Clean using hot, soapy water and a cloth. Be sure to squeeze excess water
from the cloth before wiping the panel; especially when wiping around the controls.
Excess water in or around the controls may cause damage to the appliance. To
replace knobs after cleaning, line up the flat sides of both the knob and the shaft;
then push the knob into place.
Clean with hot, soapy water and a dishcloth. Rinse with clean water and cloth. Do
not use cleaners with high concentrations of chlorides or chlorines. Do not use
harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for
cleaning stainless steel. Always be sure to rinse the cleaners off from the surface as
bluish stains may occur during heating that cannot be removed.
Porcelain Enamel
Burner Grates, Burner Pans
(some models), Burner Rings
(some models), Cooktop
Surface
Surface Burners
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a
clean cloth or paper towel. Remove all cleaners or the porcelain may become
damaged during future heating. DO NOT use spray oven cleaners on the cooktop.
The holes in the burners of your cooktop must be kept clean at all times for proper
ignition and a complete, even flame. Clean the burner holes routinely with a small
gauge wire or needle and especially after bad spillovers which could clog these holes.
To remove and replace burner units per your model, see instructions under General
Cleaning. To clean, soak the burners in a 1:1 solution of ammonia and water for 30 to
40 minutes. For stubborn stains, scrub with soap and water or a mild abrasive
cleanser and damp cloth. Dry the burners thoroughly in a warm oven for 30 minutes.
Then replace them, making sure they are seated and level. DO NOT wash burner
units in the dishwasher.
11
Page 12
General Care & Cleaning (confd)
Care end Cleaning of Stainless Steel
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning section.
Cleaning the Cooktop, Burner Heads, Caps & Grates
The cooktop is designed to make cleaning easier. Because the gas Burners are sealed, cleanups are easier than with
conventional burners.
The cooktop, Burner Heads and Caps should be routinely cleaned. Keeping the Burner Head Ports clean will prevent
improper ignition and an uneven flame. Refer to the following instructions:
THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.
A CAUTION
delayed ignition or prevent the burner from igniting.
Figure 1
Use caution when replacing the Burner Caps so the Electrodes are not damaged. This may cause a
To Remove and Replace the Surface Burner Caps and Burner Heads -
Remove in the following order: (1 st) surface Burner Grates, (2nd) Burner Caps and
(3rd) Burner Heads. Replace in the following order: Burner Heads, BurnerCaps
and Burner Grates.
Do not remove any parts from the cooktop until they have completely cooled
and are safe to handle. Do not operate the surface Burners without the
Burner Caps and Burner Heads properly in place.
To Clean the surface Burner Caps and Burner Heads- Use a soap-filled
scouring pad or a mild abrasive cleanser to clean the surface Burner Caps and
Burner Heads. The ports (or slots) around the Burner Heads must be routinely
cleaned. If residue still remains in these ports, use a small-gauge wire or needle
to clean the slots or holes. For proper flow of gas and ignition of the burner—DO
NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY OTHER
MATERIAL TO ENTER THE GAS ORIFICE OPENING. ALWAYS keep the
surface Burner Caps and Burner Heads in place whenever the gas Burners are in
use.
To Clean the Burner Grates- Be sure burners and grates are cool before you
place your hand, a potholder, cleaning cloths or other material on them. The cast
iron burner grates can be washed in hot soapy water. Rinse thoroughly and dry the
grates with a cloth; don't put them on the cooktop while still wet. Be sure the
grates are positioned securely over the burners.
To remove burned on food, place the grates in a covered containerorplastic bag. Add
1/4 cup ammonia and soak tor 30 minutes. Wash, rinse well and dry. An abrasive
cleaner can be used for stubborn stains.
To Clean the Contoured Burner Skirts
The bumerskirts are attached to the cooktop and are not removable. The burnerskirt
forms a recessed well area located around each burnerunit. If a spill occurs in one of
the well areas, be su re the area is cool and blot up spill with an absorbent cloth. Rinse
with a clean, damp cloth and wipe dry.
12
Page 13
Before You Cali
Solutions to Common Problems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Surface burners do not light. Surface Control knob has not been completely turned to LITE. Push in and turn the
Surface Control knob to LITE until burner ignites and then turn control to desired flame
size.
Be sure gas supply valve is open.
Burner ports or slots are clogged. With the burner off, use a small-gauge wire or
needle to clean ports or slots.
Power cord is disconnected from outlet (electric ignition models). Be sure cord is
plugged securely into outlet.
Electrical power outage (electric ignition models). Burners can be lit manually. See
Setting Surface Controls in this Use & Care Guide.
Surface burner flame burns Burner ports or slots are clogged. With the burner off, clean ports and slots with a
half way around. small-gauge wire or needle.
Moisture is present after cleaning. Lightly fan the flame and allow burner to operate
until flame is full. To avoid this occurrence dry the burners thoroughly following
instructions under General Care & Cleaning.
■ T
f”
Surface burner flame is
orange.
Dust particles in main line. Allow the burner to operate a few minutes until flame turns
blue.
In coastal areas, a slightly orange flame is unavoidable due to salt air.
13
Page 14
Get it fiiiiiit your home itf É>iri!
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com
www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Service Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR®
(1-888-784-6427)
Au Canada pour service en français;
1-800-LE-FOYER“^
(1-800-533-6937)
www.sears.ca
® Registered Trademark / ™ Trademark / Service Mark of Sears Brands, LLC
® Marca Registrada / ™ Marca de Fábrica / Marca de Servicio de Sears Brands, LLC
Marque de commerce / Marque déposée de Sears Brands, LLC
) Sears Brands, LLC
Loading...
