EXPLODED VIEW AND PARTS LIST

INTRODUCTION

MODEL:

SENSOR PARTS

OVEN CAVITY PARTS

OUT CASE PARTS

BASE PLATE PARTS

DOOR PARTS

OVEN INTERIOR PARTS

SWITHES PARTS

CONTROL PANEL PARTS

–1–

Page 2

13581A

14890A

13213A

15244H

13552A

15244U

15244T

14026U

14510A

15244L

14026L

14970A

13720D

WPZ017

#EV#

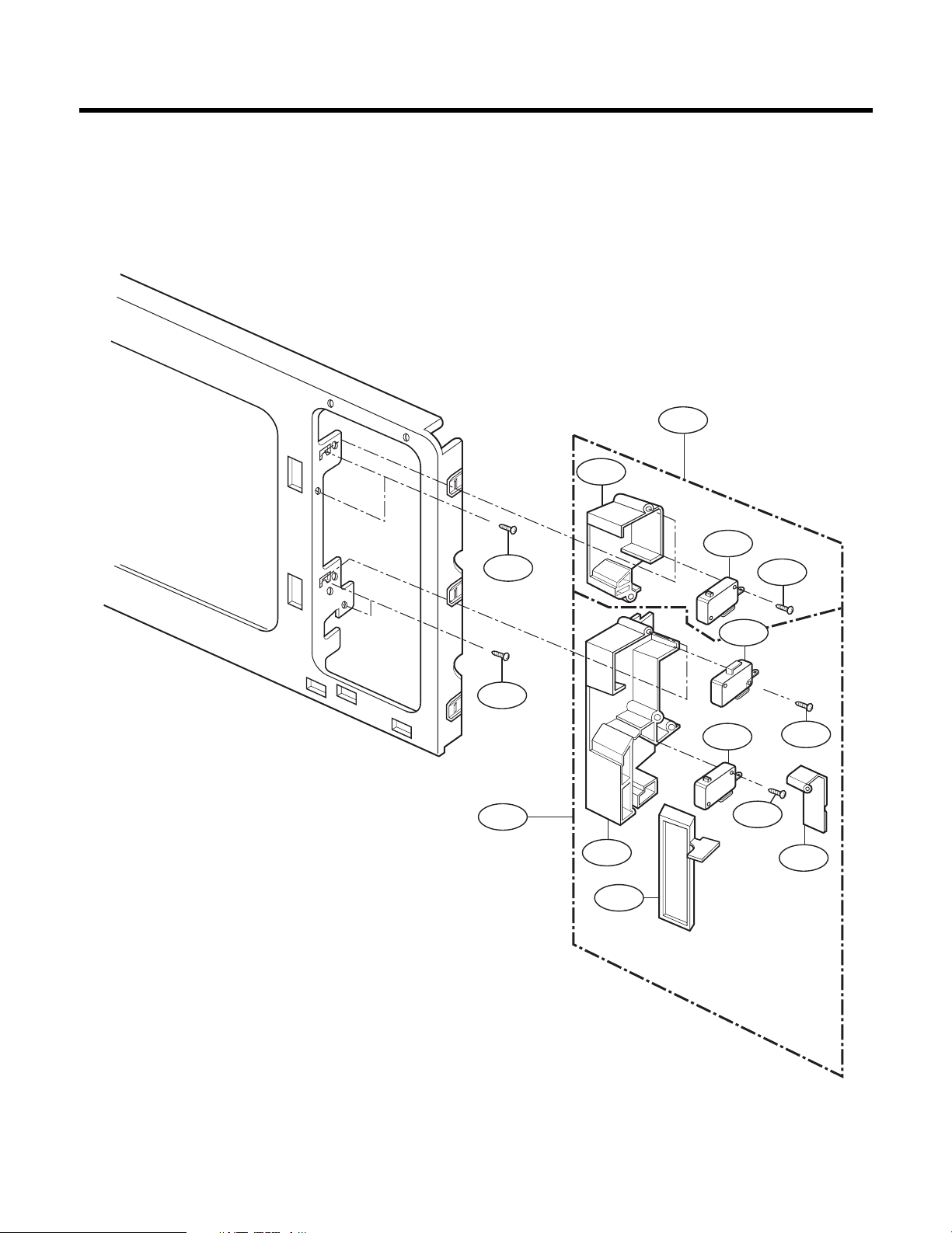

1. DOOR PARTS

–2–

Page 3

23506A

250201

23790D

23572A

268711

24781M

WTP018

24970A

24510L

#EV#

2. CONTROL PANEL PARTS

–3–

Page 4

#EV#

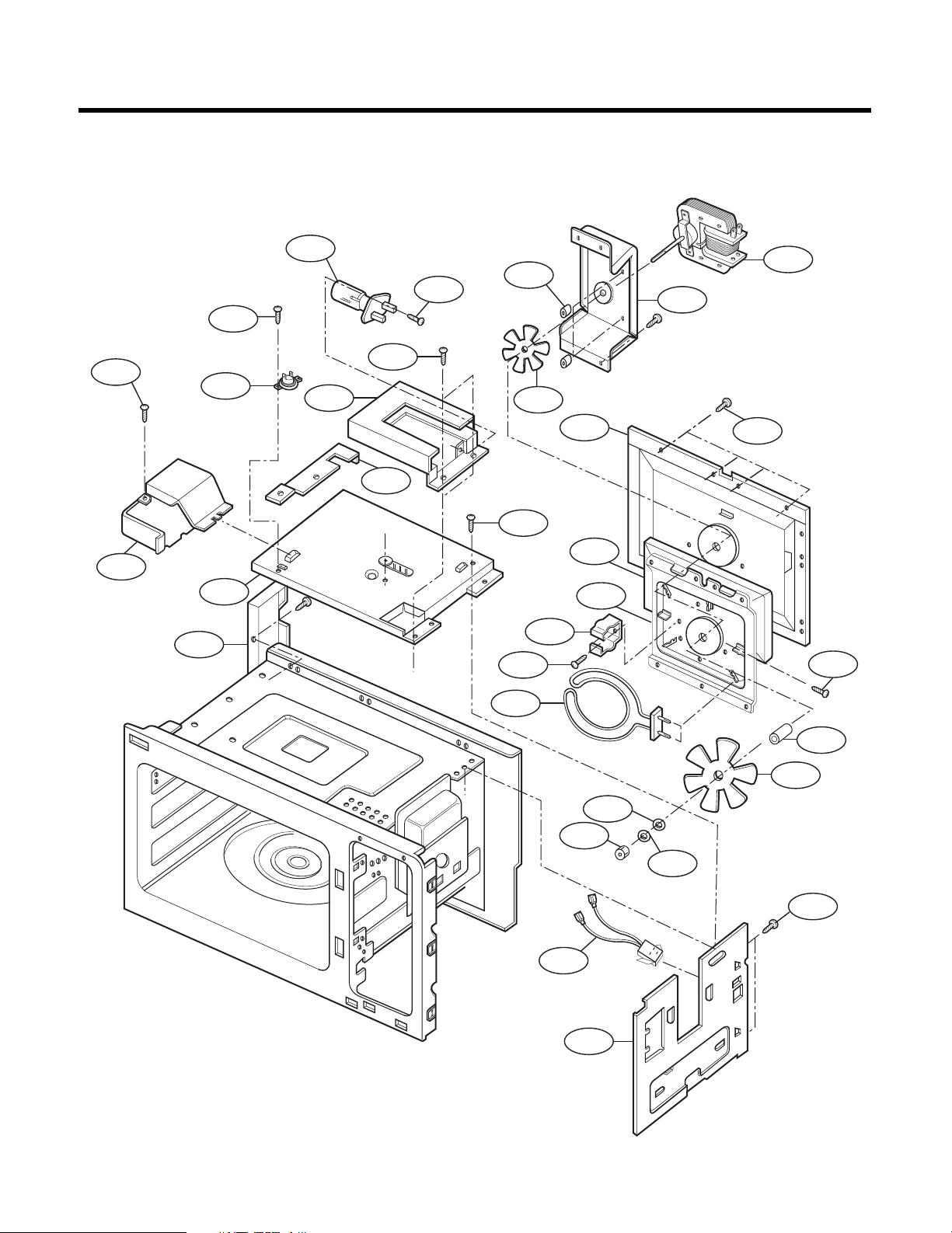

3. OVEN CAVITY PARTS

WTT021

33112U

WSZ137

34774U

WTT011

33052M

WTT010

WTT028

34890C

34370T

35026G

36549S

35026C

WTP013

53300C

35889A

–4–

Page 5

#EV#

4. OVEN INTERIOR PARTS (1)

SENSOR PARTS

54974T

56501A

WTT011

WSZ002

56411A

WMT001

53551S

56201A

WTT021

WTP015

50FZZA

56549F

34930W

54370D

54810U

54932A

55262A

56420A

WTT021

–5–

WTP002

56324A

55900A

54974S

56930M

WSZ137

368771

Page 6

#EV#

5. OVEN INTERIOR PARTS (2)

WTT010

35264A

35012T

34810Q

WTP002

56930G

56912B

53550L

WTT021

33741A

WTT010

WNH002

55900N

WTT021

34990A

WTT022

53504A

56208A

54975G

36549C

54810S

WTT021

WMT002

35301A

343501

55900C

WWP008

WNH003

WWS005

WTT010

568773

35012R

–6–

Page 7

#EV#

6. SWITCHES PARTS

43501U

43500U

WSZ085

43501L

43500L

44360A

466004

466001

466003

WTP007

44510A

–7–

Page 8

56170D

50CZZH

56851D

54810C

34774L

63302A

63303A

WSZ137

647781

WTT028

13806F

647781

WTT021

WSZ153

WSZ002

56851C

#EV#

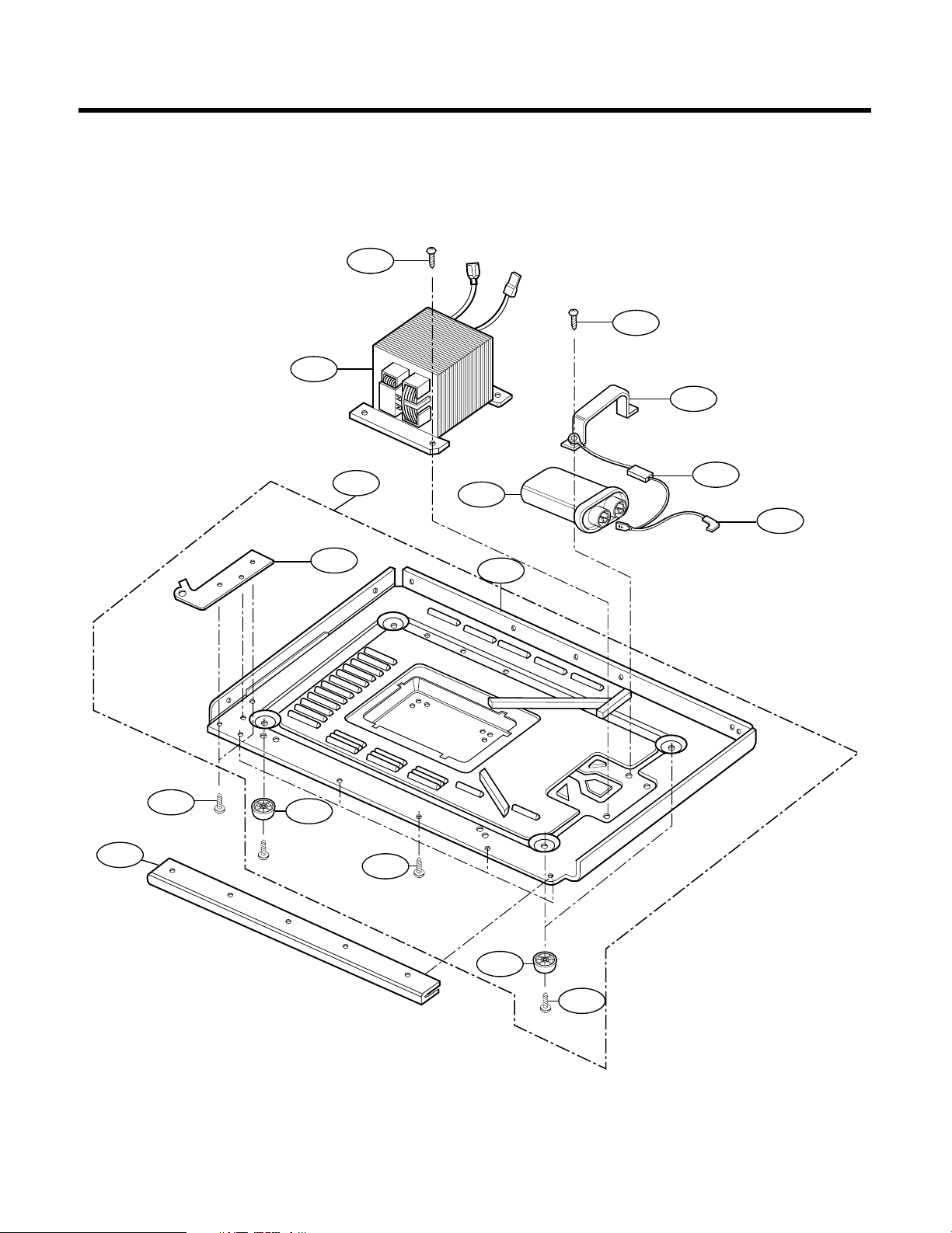

7. BASE PLATE PARTS

–8–

Page 9

568772

568771

#EV#

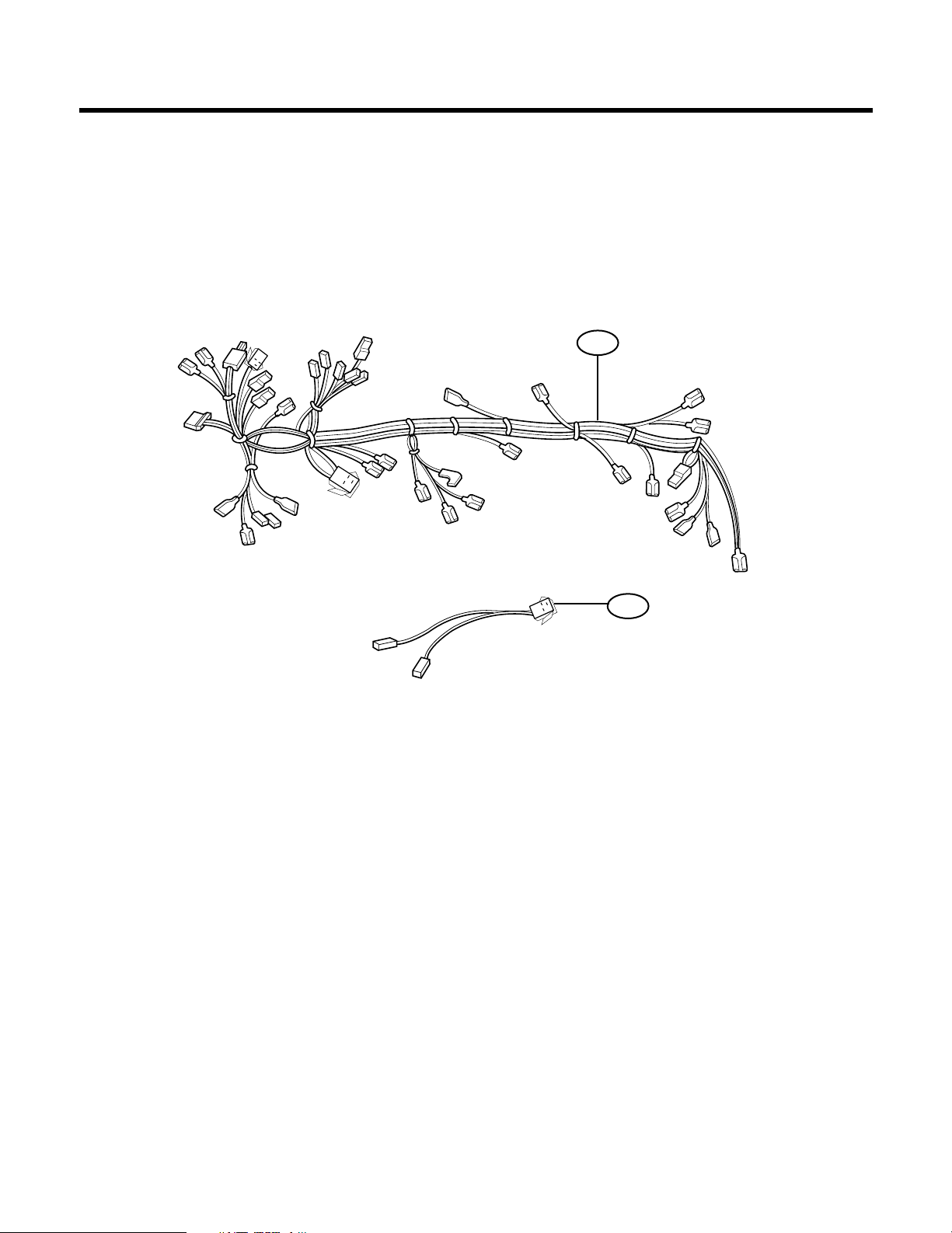

8. WIRING HARNESS PARTS

–9–

Page 10

REPLACEMENT PARTS LIST

For Model: 721.68361890

LOC.

NO. *01 3828W5A0925 Manual,Owners R *07 3858W3T014X Card,Technical R *10 3890W2Y042L Box R

13213A 1B71582C Frame Assembly,Door R 13552A 1B71371A Cover,Choke R 13581A 3581W1A147K Door Assembly R 13720D 3720W1D025C Panel,Door R 13806F 3B70060D Decor,Front R 14026L 3B71930A Locker R 14026U 3B71929A Locker R 14510A 3B72692A Lever R 14890A 4890W2D047A Window R 14970A 4B73100A Spring R 15244H 4B74139B Gasket R 15244L 4B74141B Gasket R 15244T 4B74140B Gasket R 15244U 4B74142B Gasket R 23506A 6638W2A134B Membrane R 23572A 3572W1A043C Panel,Control R 23790D 3790W3D009B Window,Display R 24510L 3B73251A Lever R 24781M 4781W1M160L Controller Assembly,Keypad R 24970A 4B72388A Spring R 250201 5020W3G044G Button R 268711 5247W2YS76A PCB Assembly,Sub R 33052M 4B73904A Cover,Insulator R 33112U 0B71047J Case,U Bending R 33741A 3B73691A Supporter Assembly R 343501 4B73725A Ring R 34370T 4B75372A Shaft,Turntable R 34774L 4B73895A Bracket,Hinge R 34774U 4B73896A Bracket,Hinge R 34810Q 2B72369A Bracket,Mount R 34890C 4B72492A Window R 34930W 4B72944B Holder,Wire R 34990A 4B73754A Supporter R 35012T 1B71367C Insulator Assembly R 35012R 1B72119B Insulator Assembly R 35026C 1B72025B Shelf R 35026G 5026W1A035B Shelf R 35264A 2B72122B Guide,Air R 35301A 1B71187C Heater Assembly R 35889A 5889W2A005P Turntable Assembly R 36549C 2B72066F Motor,Unclassified R 36549S 2B71932D Motor,AC R 368771 4B73008D Multi Harness R 43500L 3B72853A Holder,Locker R 43500U 3B71933A Holder,Locker R

PART NO. DESCRIPTION

Rev.1 Sep 04, 2006

SVC

ALTERNATE

–10–

R : SERVICE PARTS

Page 11

LOC.

NO. 43501L 3B72938B Holder Assembly,Locker R 43501U 3B72277G Holder Assembly,Locker R 44360A 4B74858A Bar R 44510A 4B70698A Lever R 466001 3B73361D Switch,Micro R 3B73361E 466003 3B73362A Switch,Micro R 466004 3B73362F Switch,Micro R 3B73362E 50CZZH 6120W3H003F Capacitor,High Voltage R 2B71261H 50CZZH 6120W3H003F Capacitor,High Voltage R 3B71774G 50FZZA 3B74133K Fuse,Time Delay R 3B74133H 53300C 1B72060A Tray,Ceramic R 53504A 1B71278A Chamber R 53550L 3B73601A Cover,Lamp R 53551S 1B71586C Cover Assembly,Heater R 54370D 4B74088B Shaft,Damper R 54810C 4B75031A Bracket,Capacitor R 54810S 3B72717A Bracket,Motor R 54810U 4B75026A Bracket,Damper R 54932A 4B74087A Bar R 54974S 4974W2S015A Guide,Suction R 54974T 4810W4G063A Bracket,Idle R 54975G 1B71513A Chamber Assembly R 55262A 1B72015A Duct R 55900A 2B72279B Fan R 55900C 3B72561A Fan R 55900N 3B72559A Fan R 56170D 6010W2H070B Transformer,high voltage R 56208A 2B72302A Insulator R 56324A 2B71165E Magnetron R 56411A 2B72325E Power Cord Assembly R 56420A 6420W3S001C Solenoid R 56501A 6501W2A006A Sensor Assembly R 56549F 2B72294A Motor,AC R 56820A 4930W3B005A Fuse Holder R 56851C 6861W3A001B Harness,Single R 56851D 6021W3B001C Drawing,Assembly R 568771 6877W1A014A Multi Harness R 568773 6877W3T080A Harness,Multi R 56912B 3B71543J Lamp,Incandescent R 56930G 6930W3A001B Thermostat R 56930M 6930WRT003A Thermostat R 63302A 0B70792A Plate,Base R 63303A 0B70876A Plate Assembly,Base R 647781 4B73900A Foot R WMT001 1MTC0402418 Screw,Machine R WMT002 1MTC0402432 Screw,Machine R WNH002 1NHA0400018 Nut,Common R WNH003 1NHA0400032 Nut,Common R

PART NO. DESCRIPTION

SVC

ALTERNATE

–11–

R : SERVICE PARTS

Page 12

LOC.

NO. WPZ017 4B70898A Pin,Customized R WSZ002 1SBF0402418 Screw,Taptite R WSZ085 4B70188C Screw,Customzied R WSZ137 4B73763A Screw,Customzied R WSZ153 4B75265A Screw,Customzied R WTP002 1TPL0302018 Screw,Tapping R WTP007 1TPL0303118 Screw,Tapping R WTP013 1TPL0402418 Screw,Tapping R WTP015 1TPL0402618 Screw,Tapping R WTP018 1TPL0402818 Tapping Screw R WTT010 1TTG0402422 Screw,Tapping R WTT011 1TTG0402632 Screw,Tapping R WTT021 1TTL0402418 Screw,Tapping R WTT022 1TTL0402422 Screw,Tapping R WTT028 1TTL0402818 Screw,Tapping R WWP008 1WPL0500032 Washer,Common R WWS005 1WSD0400032 Washer,Common R

PART NO. DESCRIPTION

SVC

ALTERNATE

R : SERVICE PARTS

–12–

Page 13

REPLACEMENT PARTS LIST

For Model: 721.68360790

LOC.

NO. *01 3828W5A0925 Manual,Owners R *07 3858W3T014X Card,Technical R *10 3890W2Y042G Box R

13213A 1B71582C Frame Assembly,Door R 13552A 1B71371A Cover,Choke R 13581A 3581W1A147A Door Assembly R 13720D 3720W1D025B Panel,Door R 13806F 3B70060D Decor,Front R 14026L 3B71930A Locker R 14026U 3B71929A Locker R 14510A 3B72692A Lever R 14890A 4890W2D010T Window R 14970A 4B73100A Spring R 15244H 4B74139B Gasket R 15244L 4B74141B Gasket R 15244T 4B74140B Gasket R 15244U 4B74142B Gasket R 23506A 6638W2A134A Membrane R 23572A 3572W1A043B Panel,Control R 23790D 3790W3D009B Window,Display R 24510L 3B73251A Lever R 24781M 4781W1M160H Controller Assembly,Keypad R 24970A 4B72388A Spring R 250201 5020W3G044E Button R 268711 5247W2YS76A PCB Assembly,Sub R 33052M 4B73904A Cover,Insulator R 33112U 0B71047G Case,U Bending R 33741A 3B73691A Supporter Assembly R 343501 4B73725A Ring R 34370T 4B75372A Shaft,Turntable R 34774L 4B73895A Bracket,Hinge R 34774U 4B73896A Bracket,Hinge R 34810Q 2B72369A Bracket,Mount R 34890C 4B72492A Window R 34930W 4B72944B Holder,Wire R 34990A 4B73754A Supporter R 35012R 1B72119B Insulator Assembly R 35012T 1B71367C Insulator Assembly R 35026C 1B72025B Shelf R 35026G 5026W1A035B Shelf R 35264A 2B72122B Guide,Air R 35301A 1B71187C Heater Assembly R 35889A 5889W2A005P Turntable Assembly R 36549C 2B72066F Motor,Unclassified R 36549S 2B71932D Motor,AC R 368771 4B73008D Single Harness R 43500L 3B72853A Holder,Locker R 43500U 3B71933A Holder,Locker R

PART NO. DESCRIPTION

Rev.1 Sep 04, 2006

SVC

ALTERNATE

–13–

R : SERVICE PARTS

Page 14

LOC.

NO.

43501L 3B72938B Holder Assembly,Locker R 43501U 3B72277G Holder Assembly,Locker R 44360A 4B74858A Bar R 44510A 4B70698A Lever R 466001 3B73361D Switch,Micro R 3B73361E 466003 3B73362A Switch,Micro R 466004 3B73362F Switch,Micro R 3B73362E 50CZZH 6120W3H003F Capacitor,High Voltage R 2B71261H 50CZZH 6120W3H003F Capacitor,High Voltage R 3B71774G 50FZZA 3B74133K Fuse,Time Delay R 3B74133H 53300C 1B72060A Tray,Ceramic R 53504A 1B71278A Chamber R 53550L 3B73601A Cover,Lamp R 53551S 1B71586C Cover Assembly,Heater R 54370D 4B74088B Shaft,Damper R 54810C 4B75031A Bracket,Capacitor R 54810S 3B72717A Bracket,Motor R 54810U 4B75026A Bracket,Damper R 54932A 4B74087A Bar R 54974S 4974W2S015A Guide,Suction R 54974T 4810W4G063A Bracket,Idle R 54975G 1B71513A Chamber Assembly R 55262A 1B72015A Duct R 55900A 2B72279B Fan R 55900C 3B72561A Fan R 55900N 3B72559A Fan R 56170D 6010W2H070B Transformer,high voltage R 56208A 2B72302A Insulator R 56324A 2B71165E Magnetron R 2B71165D 56411A 2B72325E Power Cord Assembly R 56420A 6420W3S001C Solenoid R 56501A 6501W2A006A Sensor Assembly R 56549F 2B72294A Motor,AC R 56820A 4930W3B005A Fuse Holder R 56851C 6861W3A001B Harness,Single R 56851D 6021W3B001C Cable,Assembly R 568771 6877W1A014A Single Harness R 568773 6877W3T080A Harness,Single R 56912B 3B71543J Lamp,Incandescent R 56930G 6930W3A001B Thermostat R 56930M 6930WRT003A Thermostat R 63302A 0B70792A Plate,Base R 63303A 0B70876A Plate Assembly,Base R 647781 4B73900A Foot R WMT001 1MTC0402418 Screw,Machine R WMT002 1MTC0402432 Screw,Machine R WNH002 1NHA0400018 Nut,Common R WNH003 1NHA0400032 Nut,Common R

PART NO. DESCRIPTION

SVC

ALTERNATE

–14–

R : SERVICE PARTS

Page 15

LOC.

NO.

WPZ017 4B70898A Pin,Customized R WSZ002 1SBF0402418 Screw,Taptite R WSZ085 4B70188C Screw,Customzied R WSZ137 4B73763A Screw,Customzied R WSZ153 4B75265A Screw,Customzied R WTP002 1TPL0302018 Screw,Tapping R WTP007 1TPL0303118 Screw,Tapping R WTP013 1TPL0402418 Screw,Tapping R WTP015 1TPL0402618 Screw,Tapping R WTP018 1TPL0402818 Screw,Tapping R WTT010 1TTG0402422 Screw,Tapping R WTT011 1TTG0402632 Screw,Tapping R WTT021 1TTL0402418 Screw,Tapping R WTT022 1TTL0402422 Screw,Tapping R WTT028 1TTL0402818 Screw,Tapping R WWP008 1WPL0500032 Washer,Common R WWS005 1WSD0400032 Washer,Common R

PART NO. DESCRIPTION

SVC

ALTERNATE

R : SERVICE PARTS

–15–
