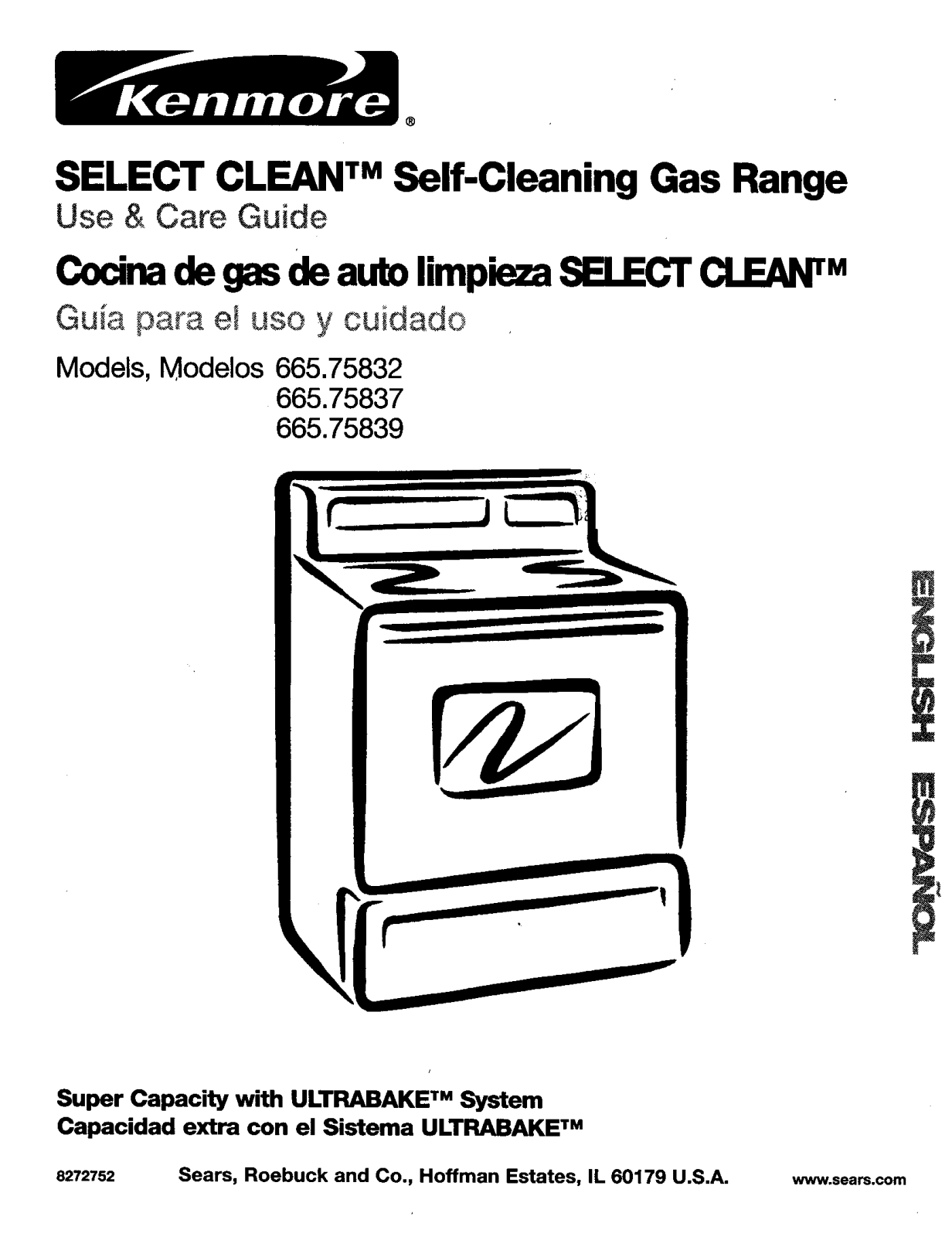

Kenmore 665.75837, 665.75839 User Manual

®

SELECT CLEANTMSelf-Cleaning Gas Range

Use & Care Guide

Cocinadegasde autolimpiezaSELECT_M

Guia para et uso y cuidado

Models, Modelos 665.75832

665.75837

665.75839

J

m

Super Capacity with ULTRABAKE TM System
Capacidad extra con el Sistema ULTP_I_BAKETM

8272752 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

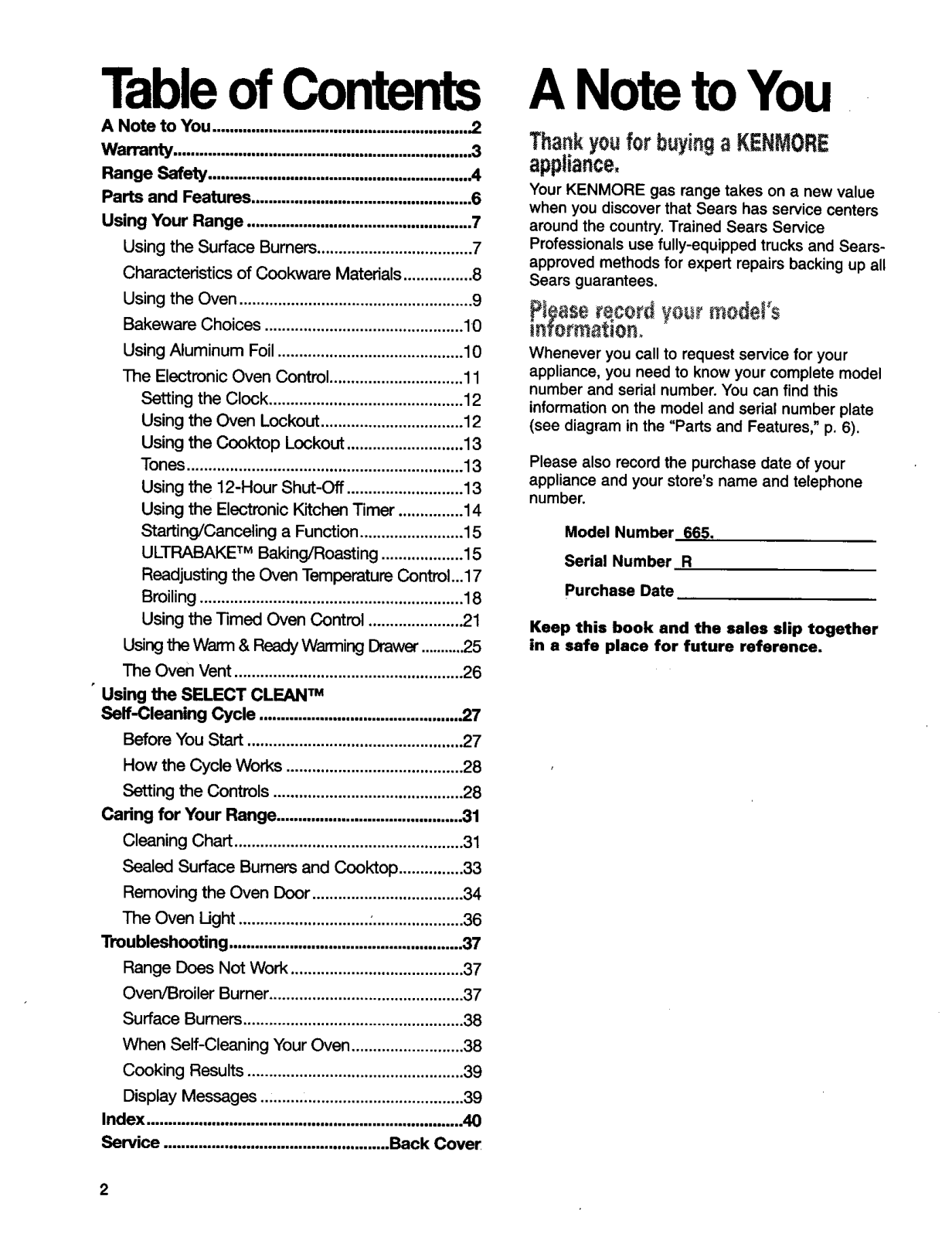

TableofContents

A Note to You ........................................................... .2

Warranty .................................................................... .3

Range Safety ............................................................. 4

Parts and Features ................................................... 6

Using Your Range .................................................... 7

Using the Surface Burners .................................... 7

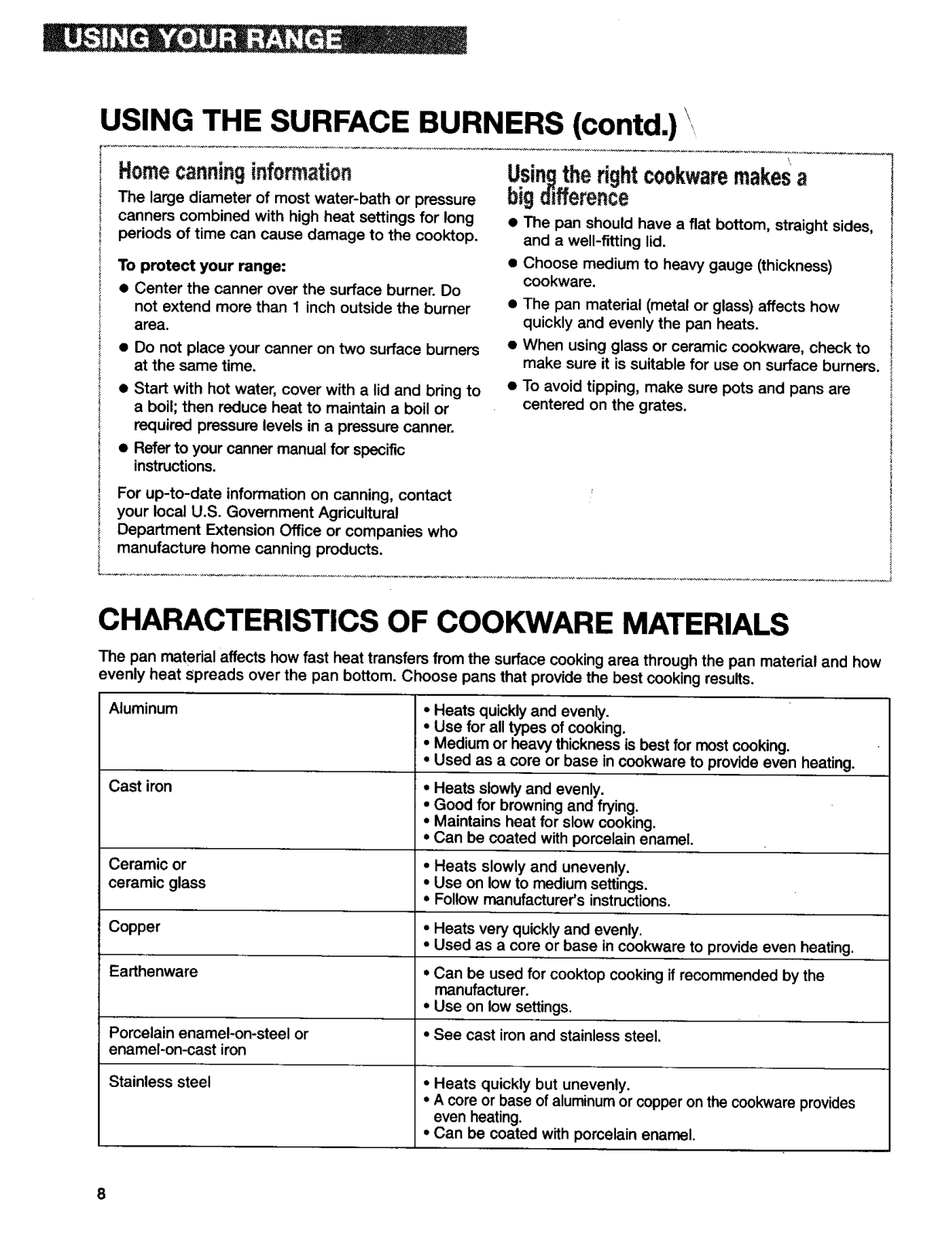

Characteristics of Cookware Materials ................ 8

Using the Oven ...................................................... 9

Bakeware Choices .............................................. 10

Using Aluminum Foil ........................................... 10

The Electronic Oven Control ............................... 11

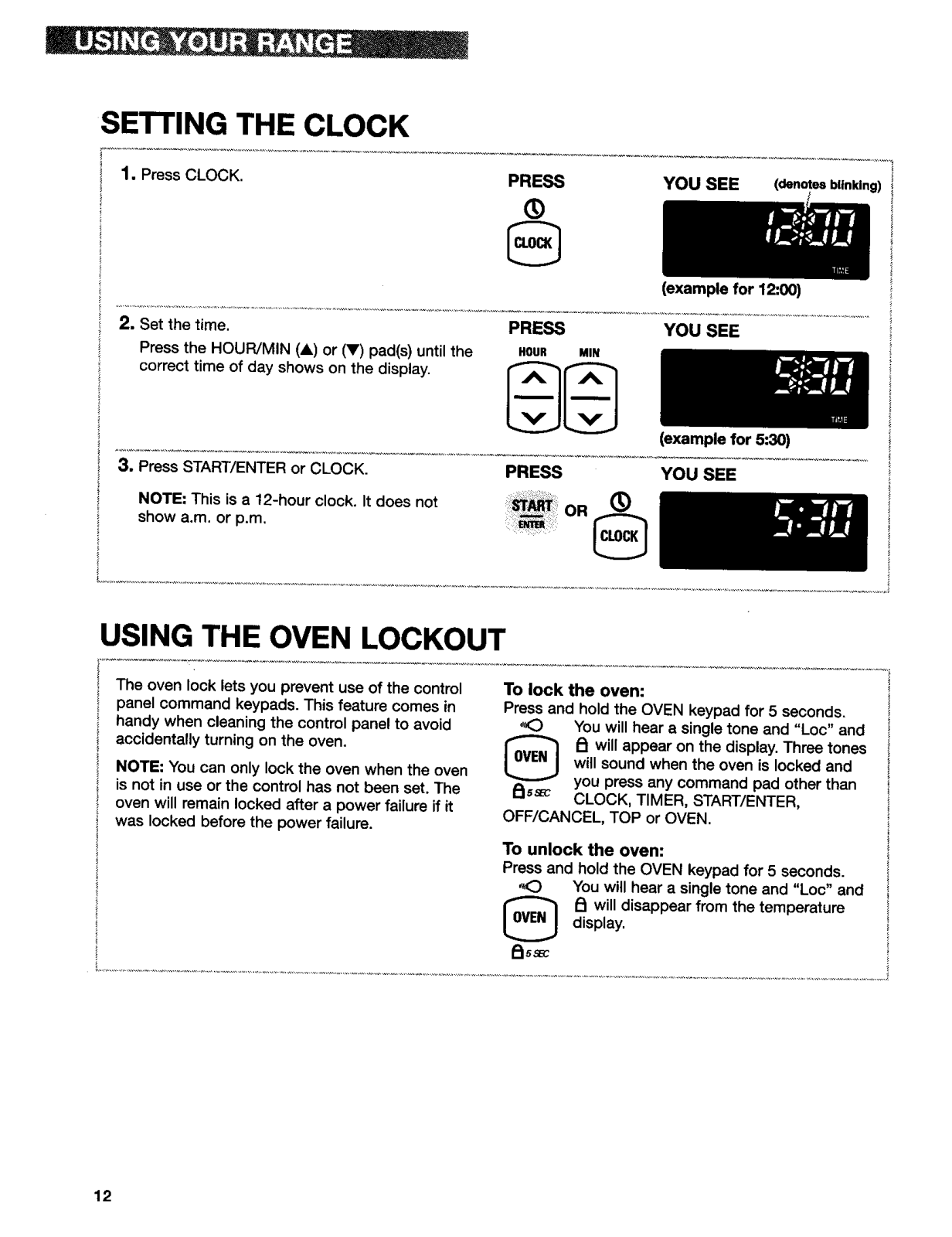

Setting the Clock ............................................. 12

Using the Oven Lockout ................................. 12

Using the Cooktop Lockout ........................... 13

Tones ................................................................ 13

Using the 12-Hour Shut-Off ........................... 13

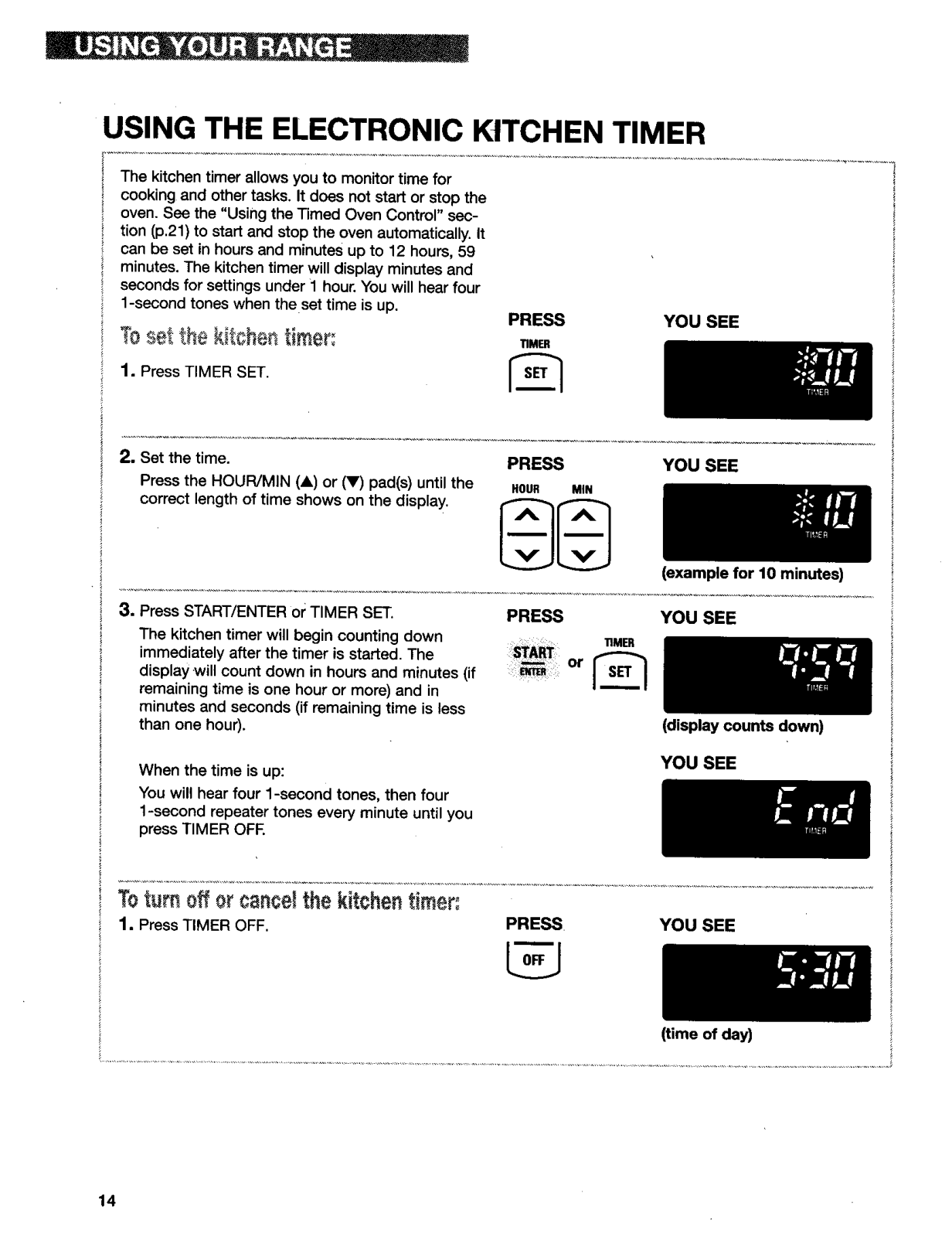

Using the Electronic Kitchen Timer ............... 14

Starting/Cenceling a Function ........................ 15

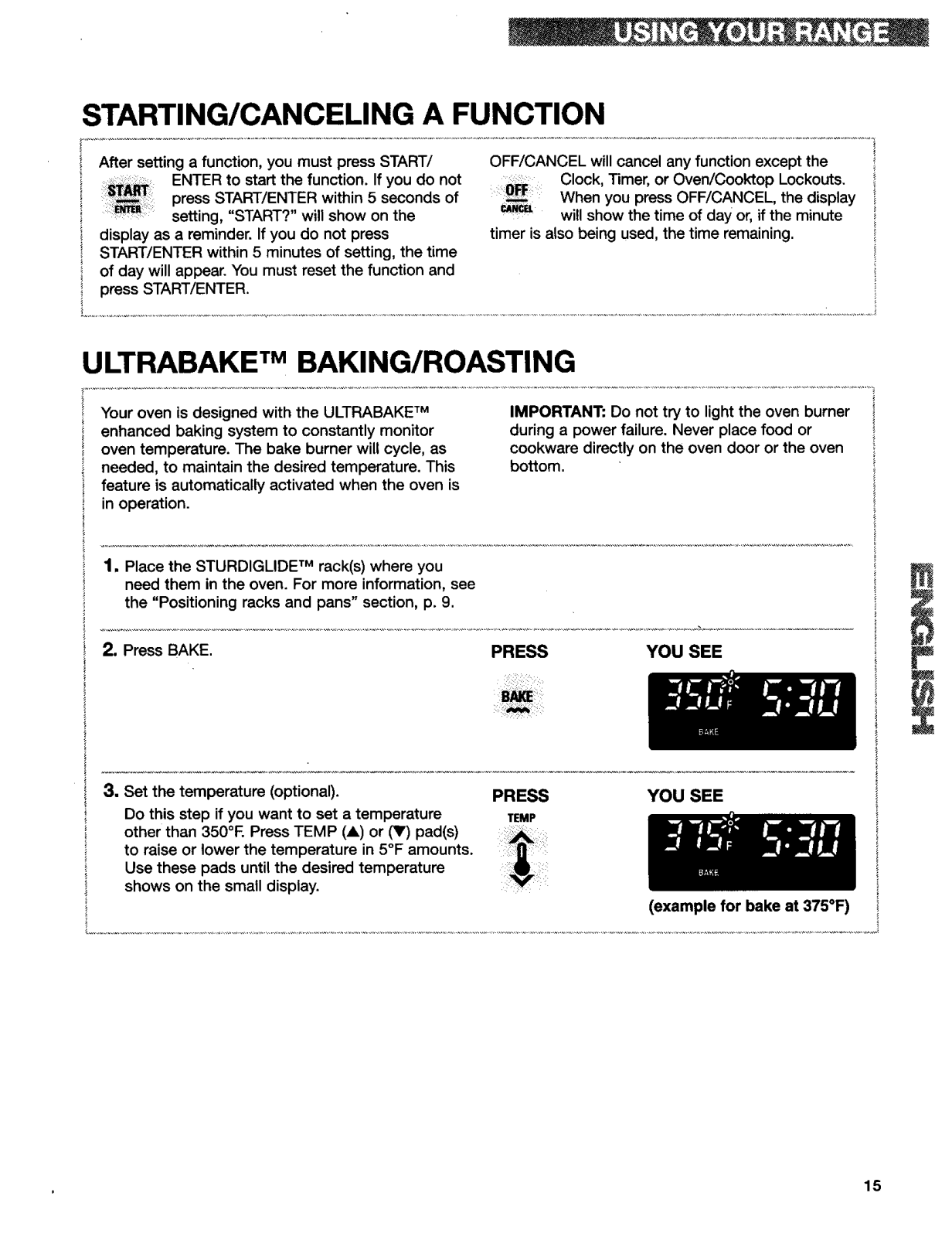

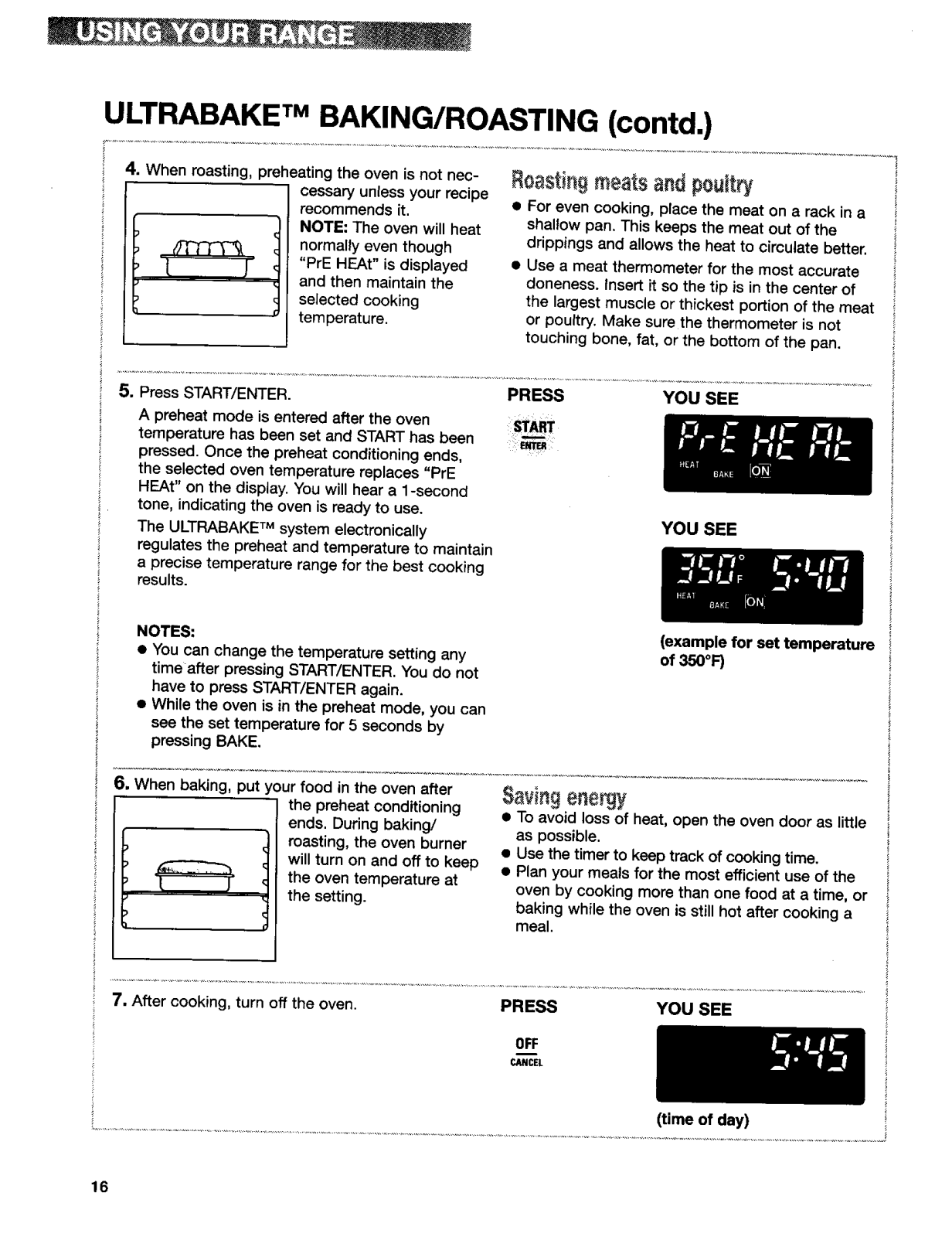

ULTRABAKE TM Baking/Roasting ................... 15

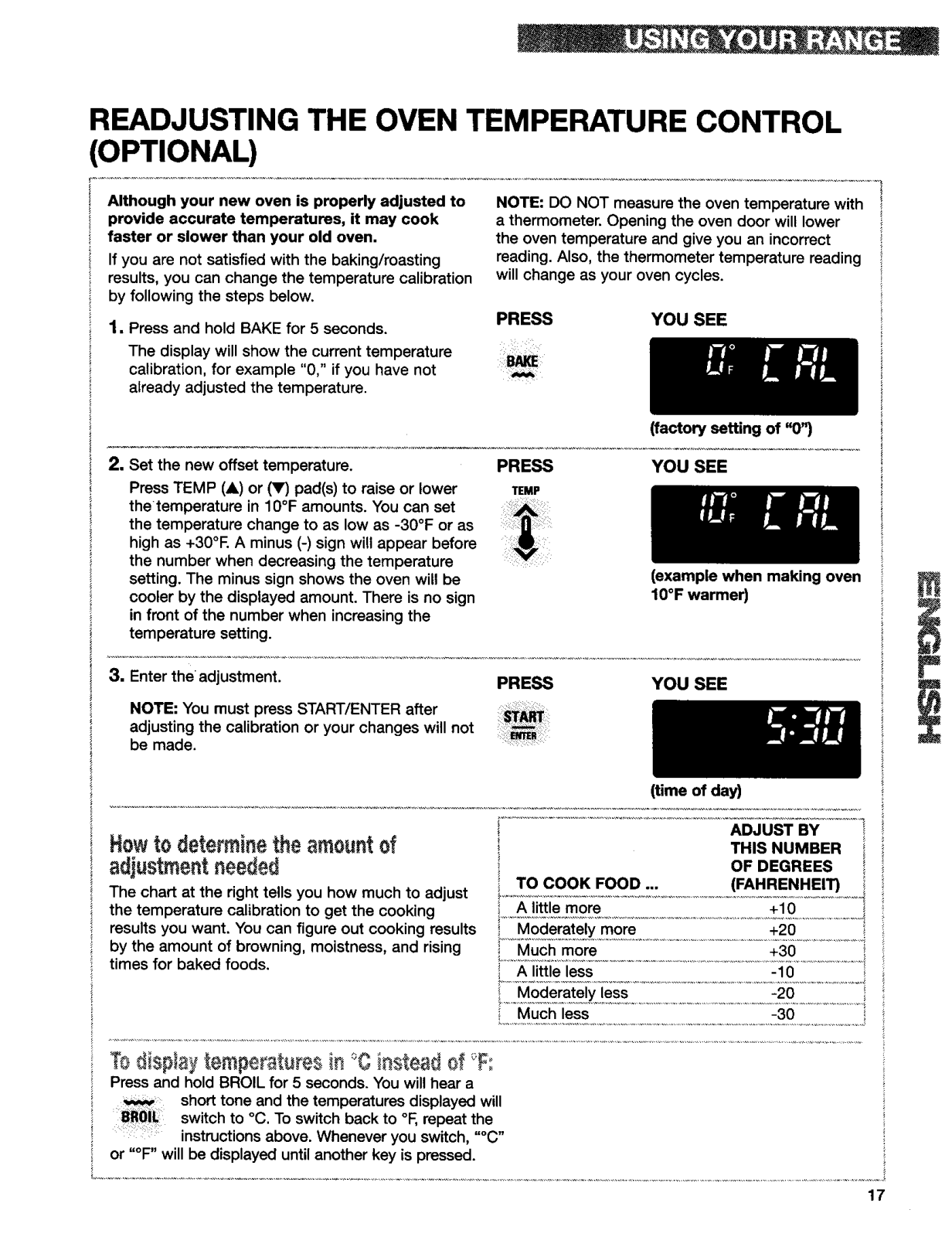

Readjusting the Oven Temperature Control...17

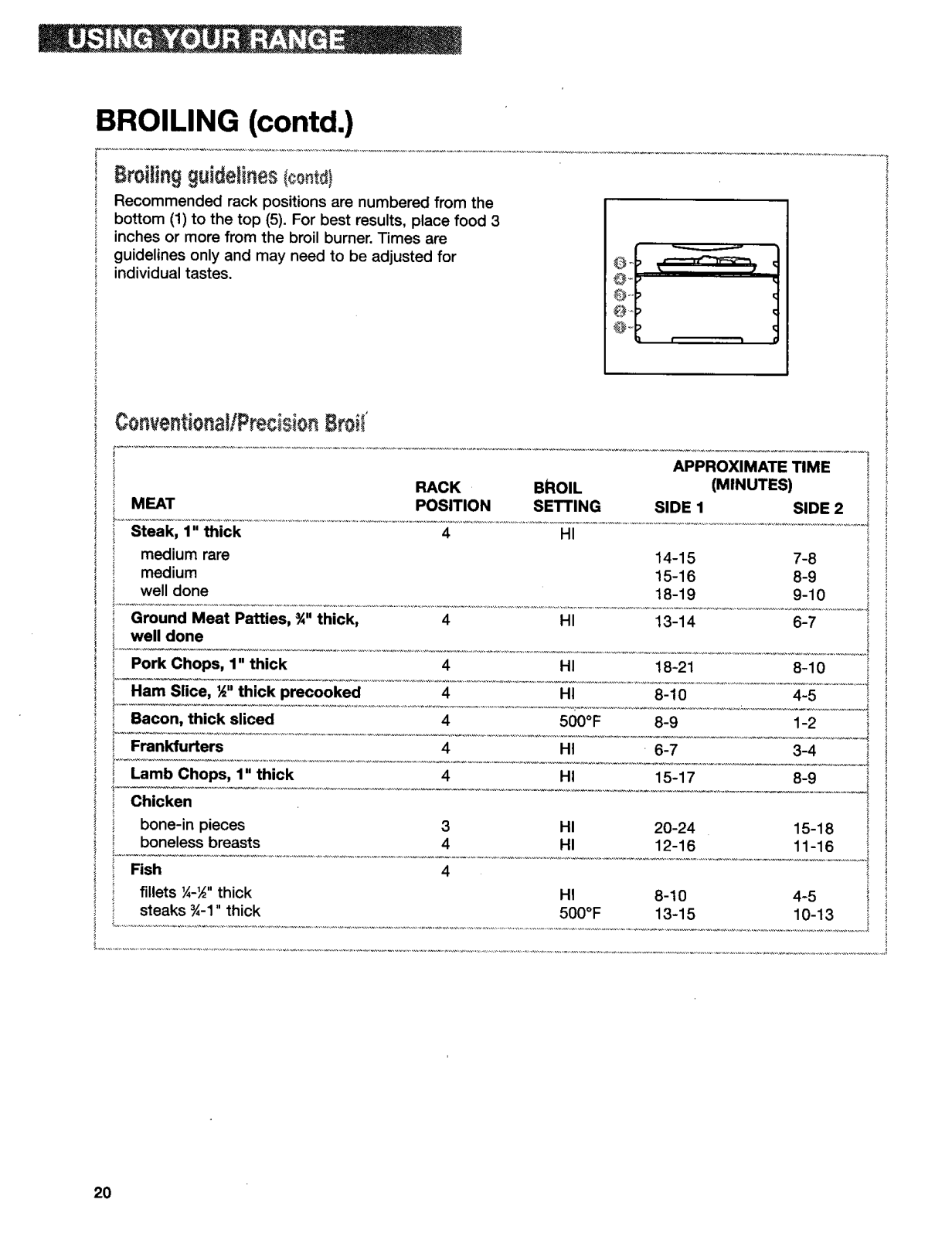

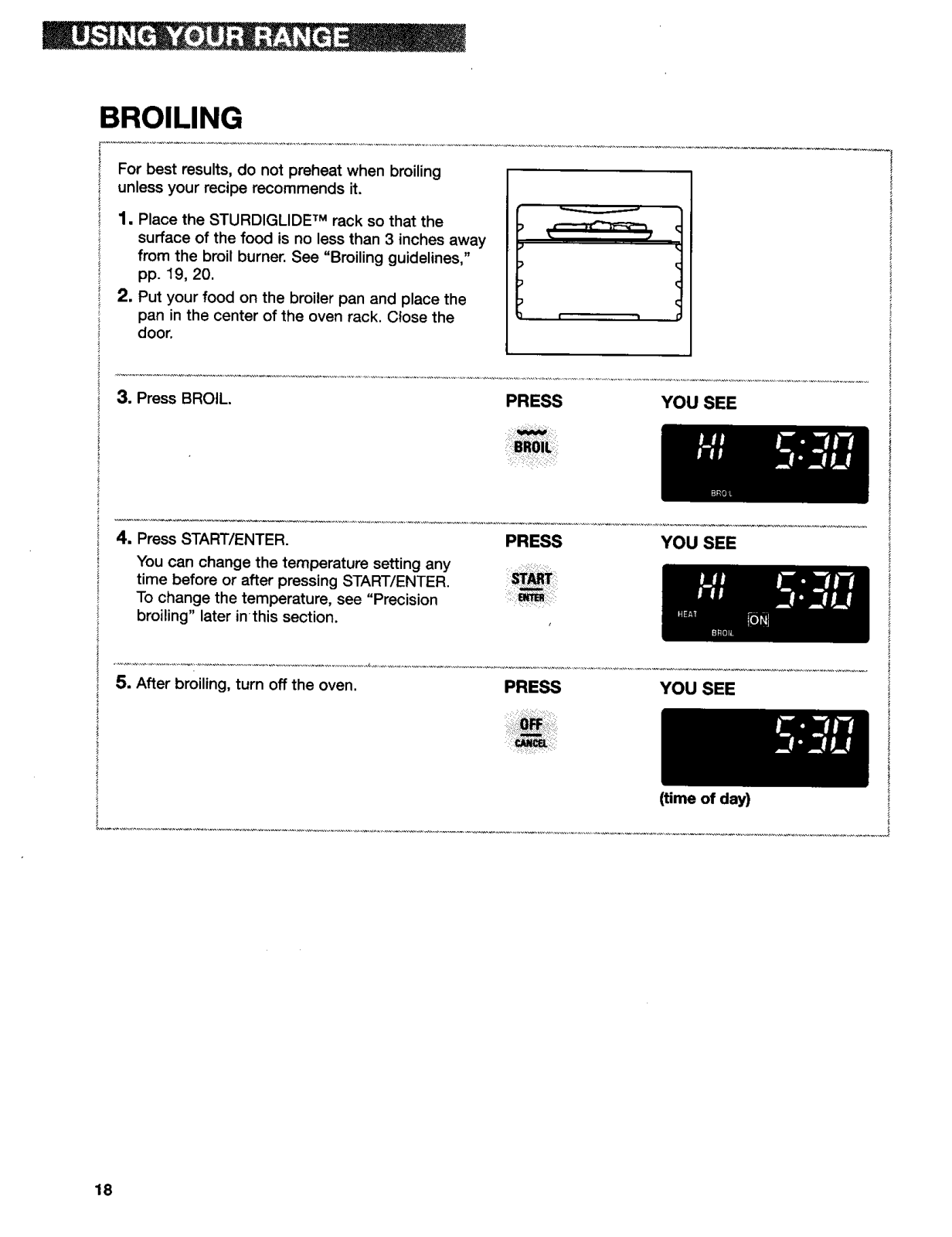

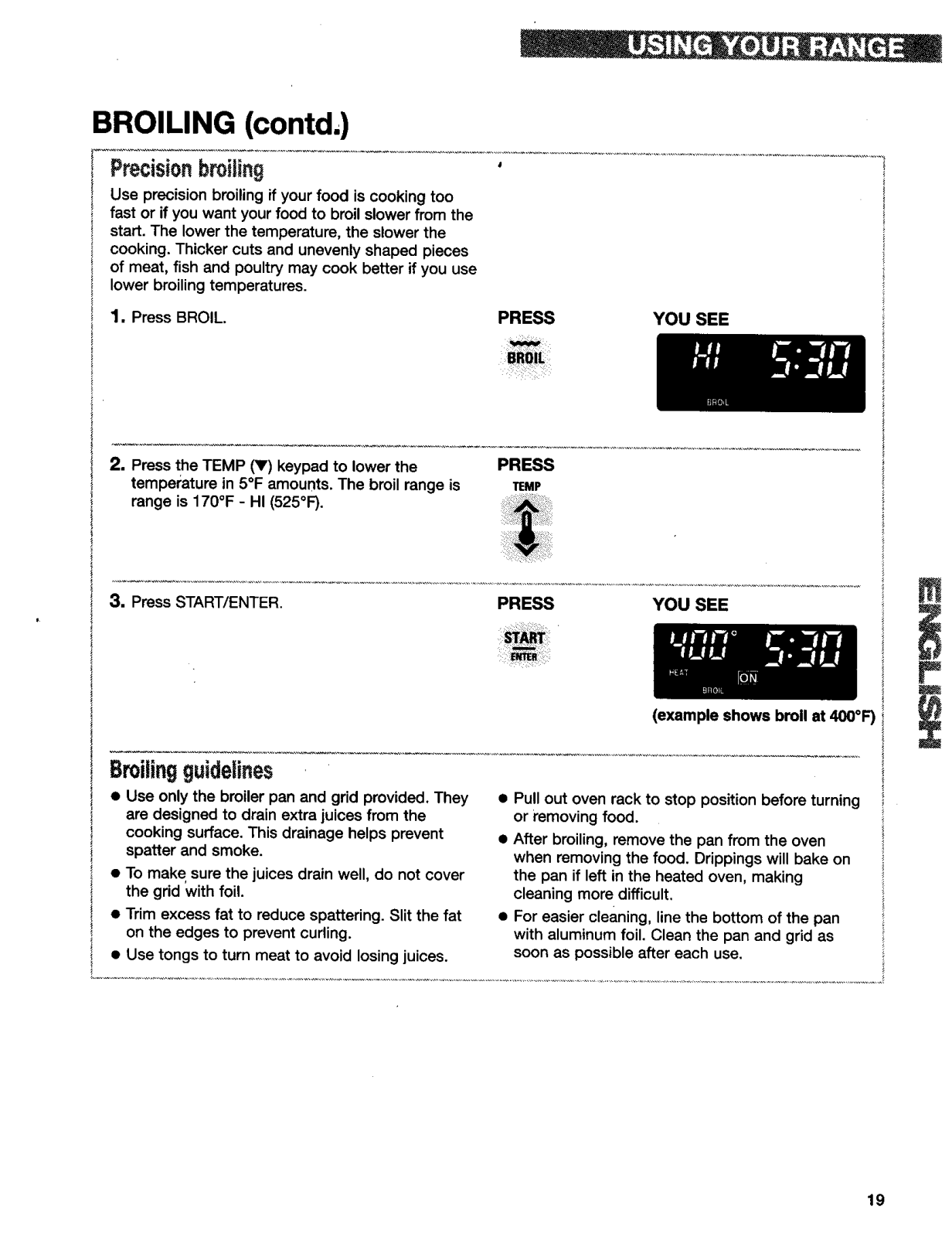

Broiling ............................................................. 18

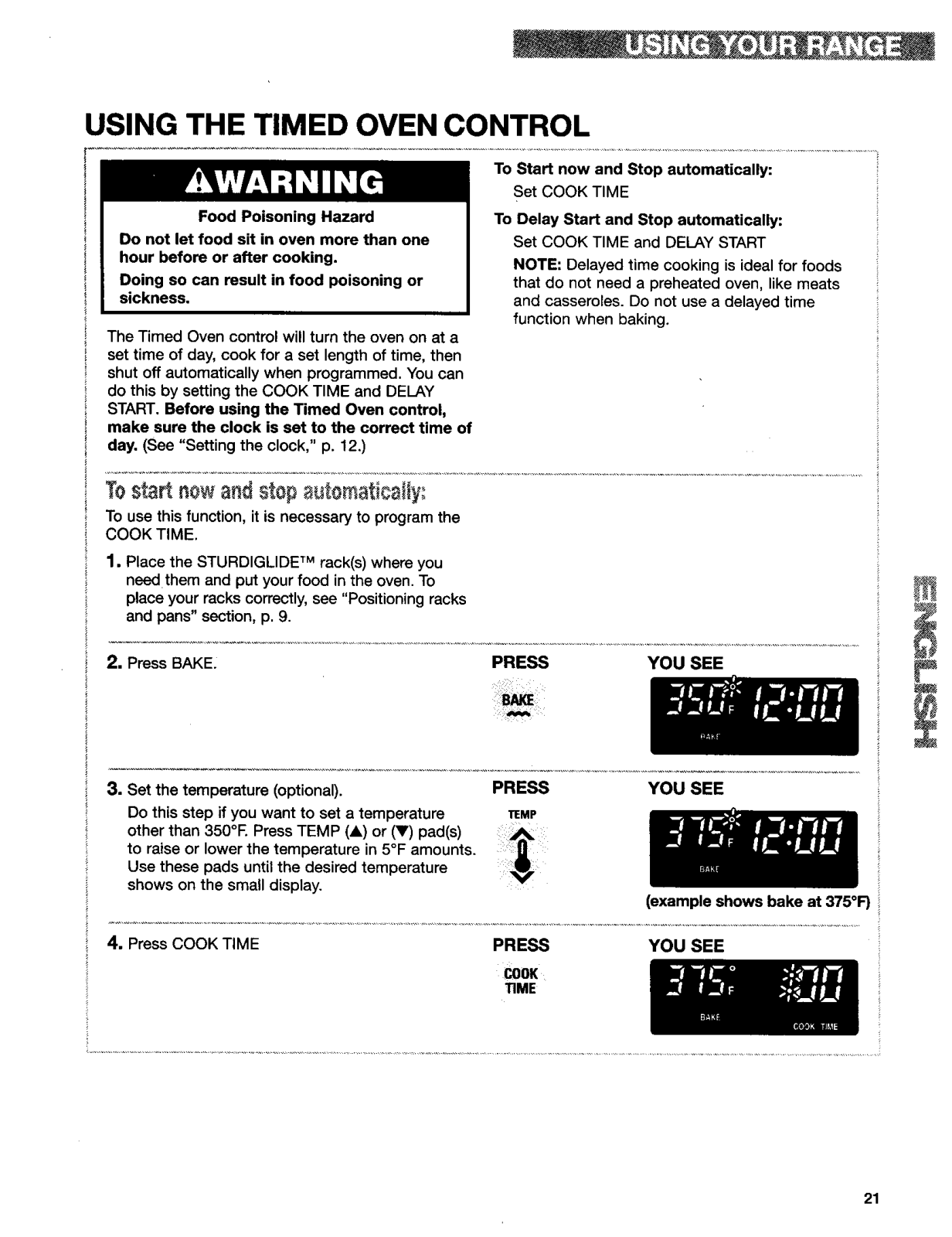

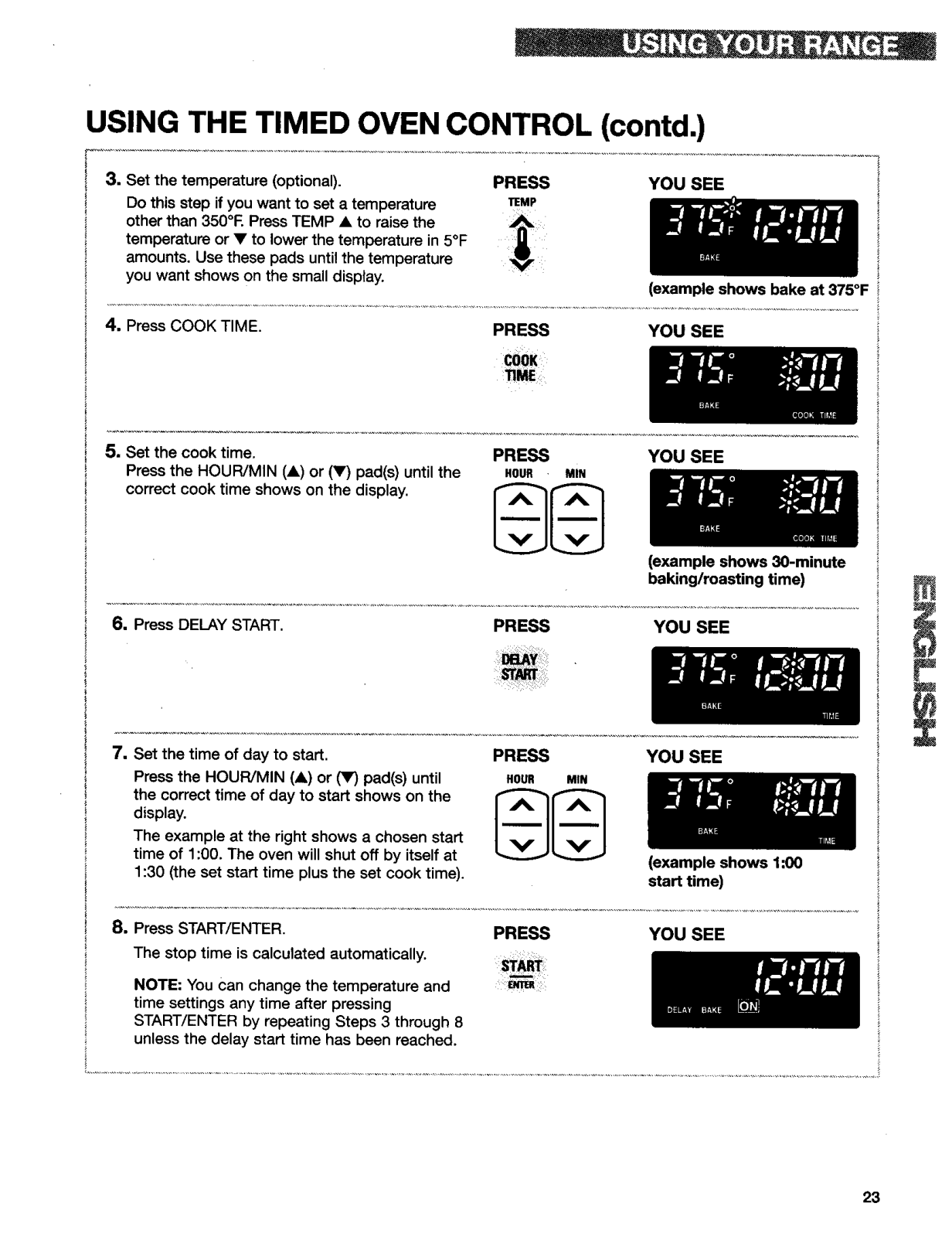

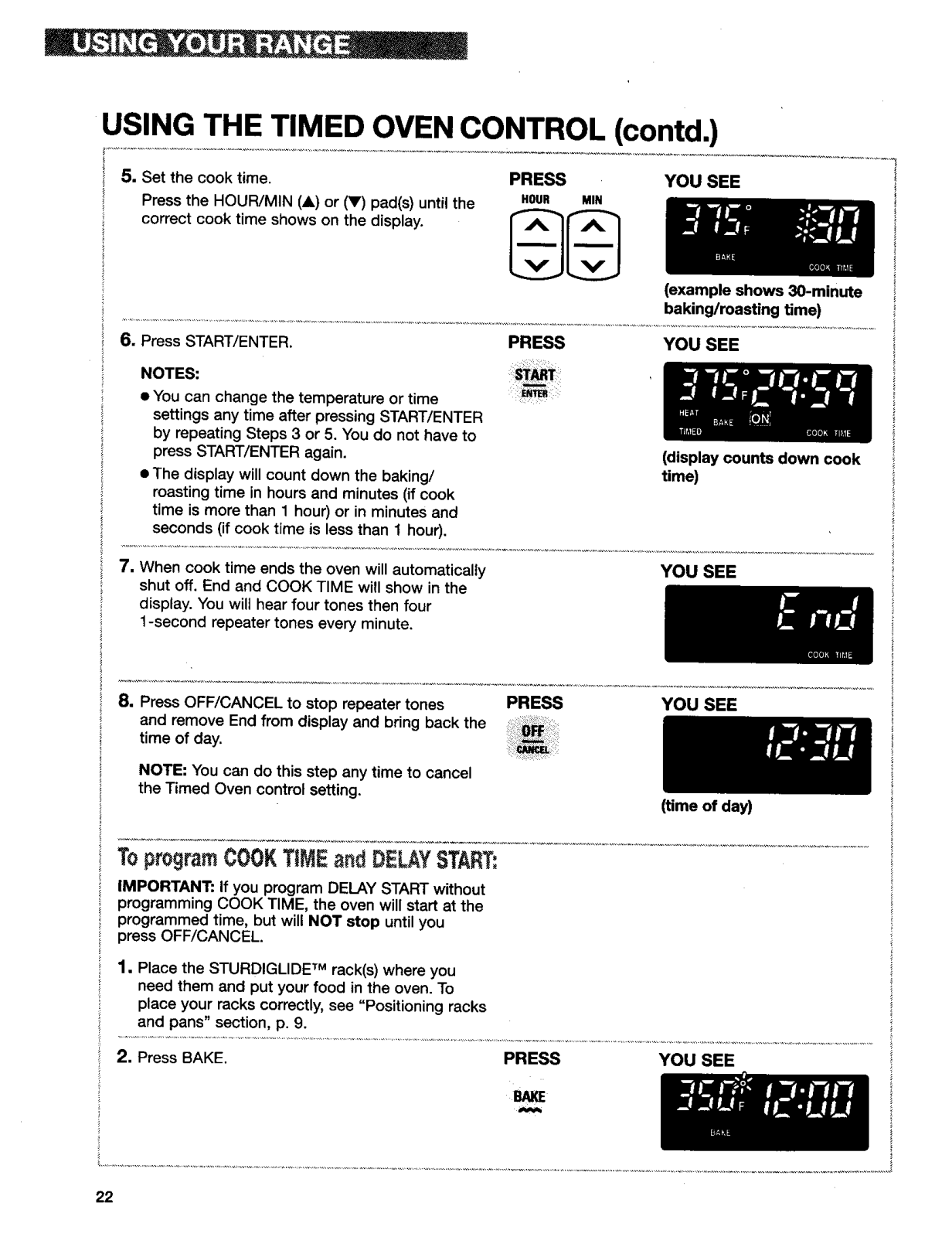

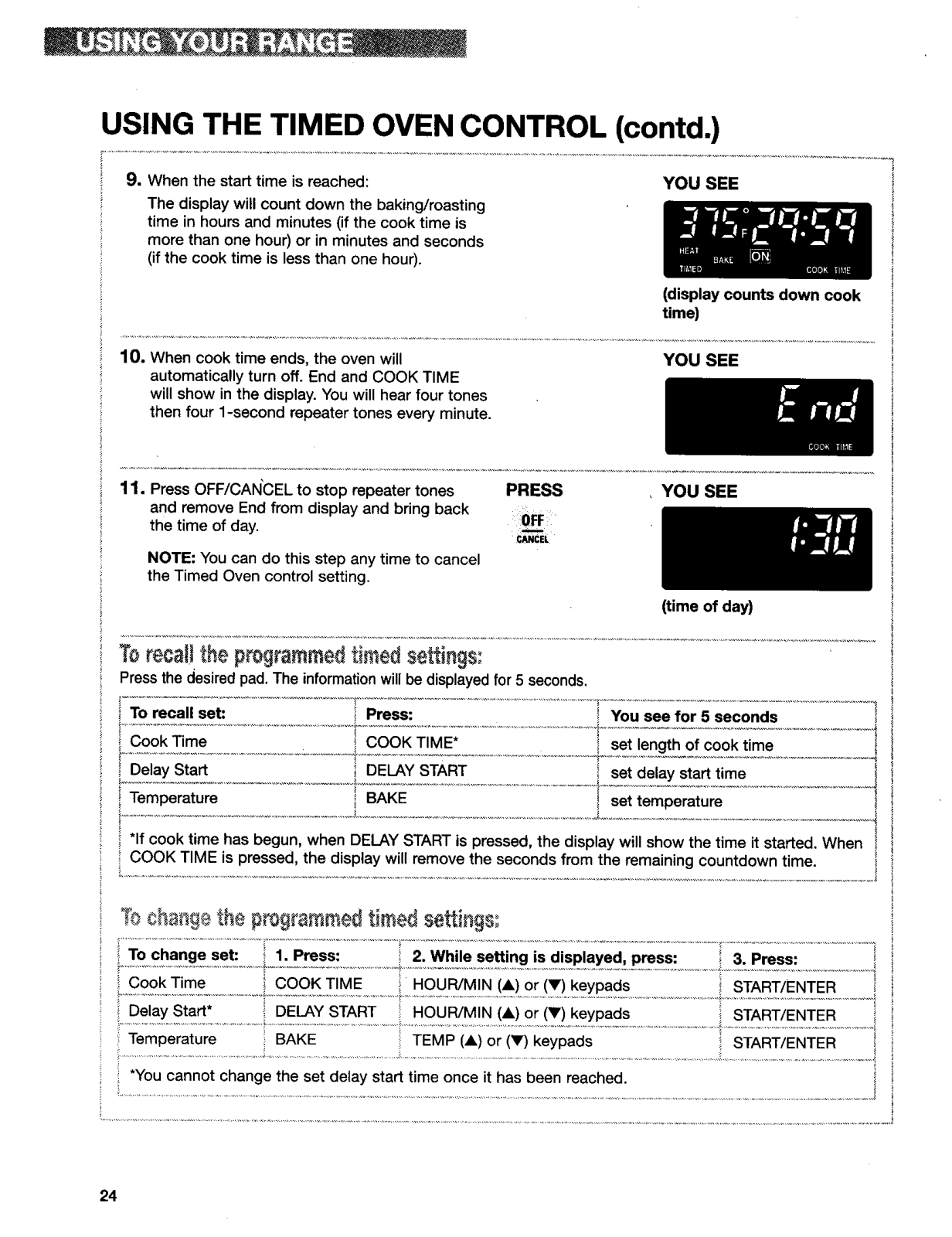

Using the Timed Oven Control ...................... 21

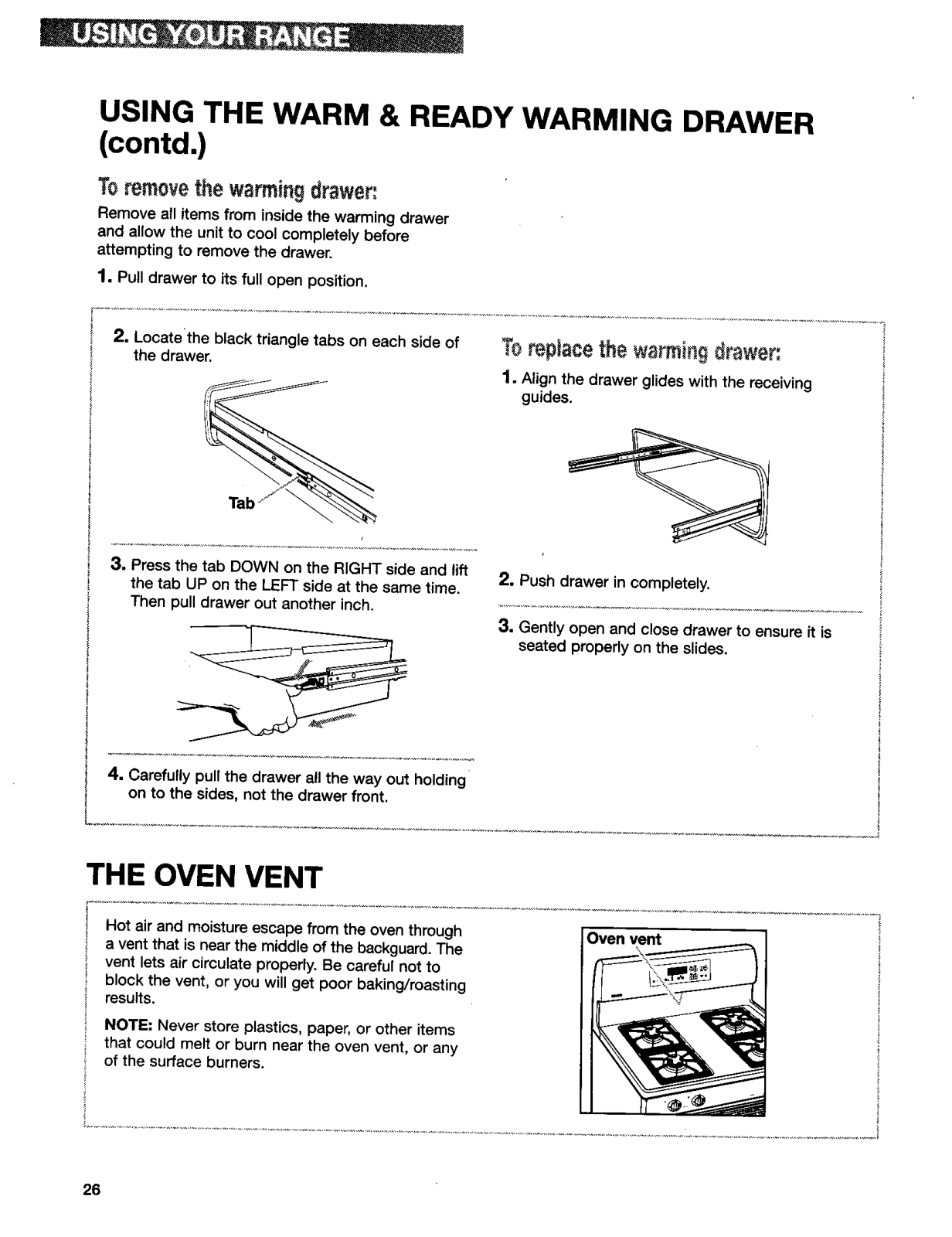

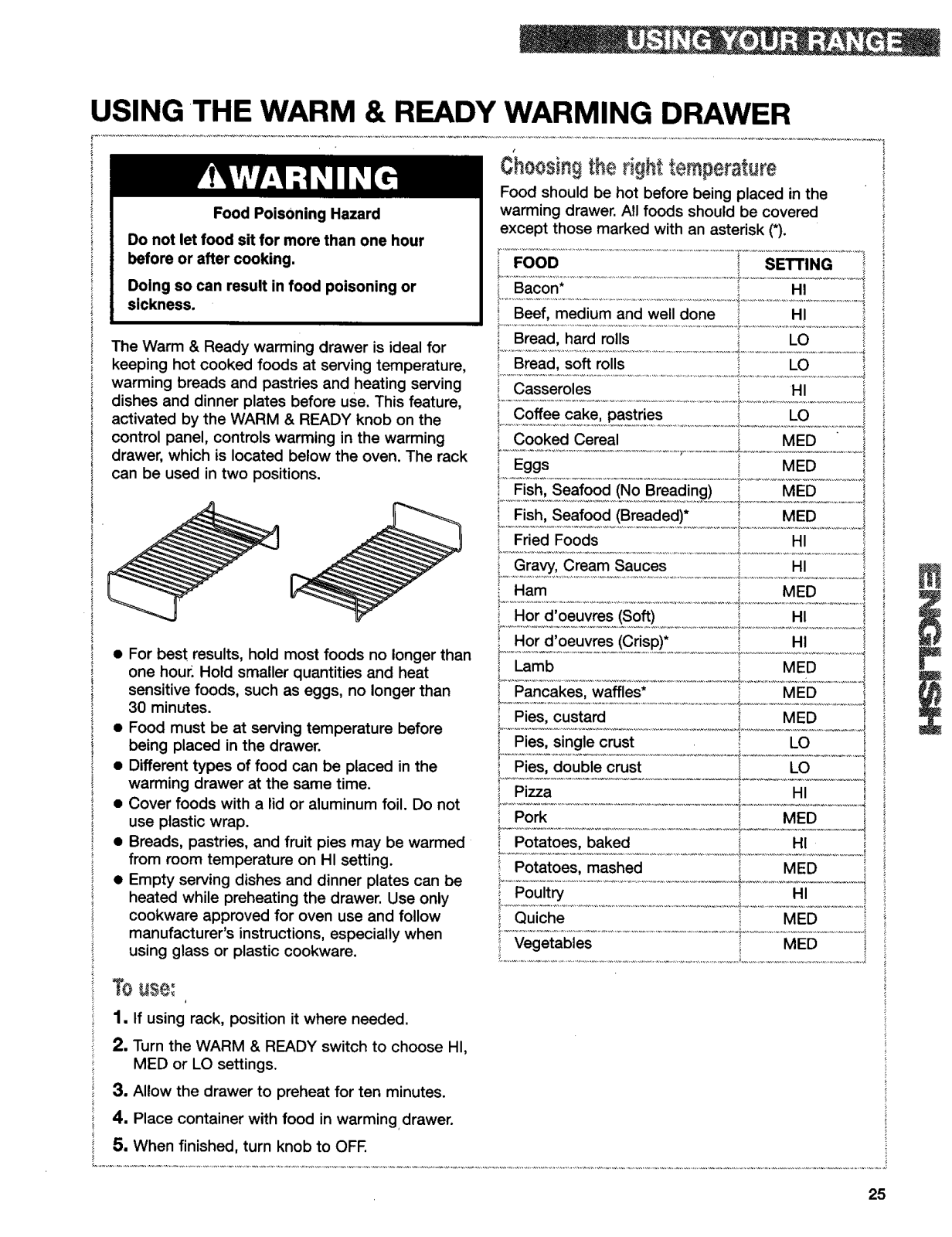

Using _ Warm & Ready Warming Drawer ...........25

The Oven Vent ..................................................... 26

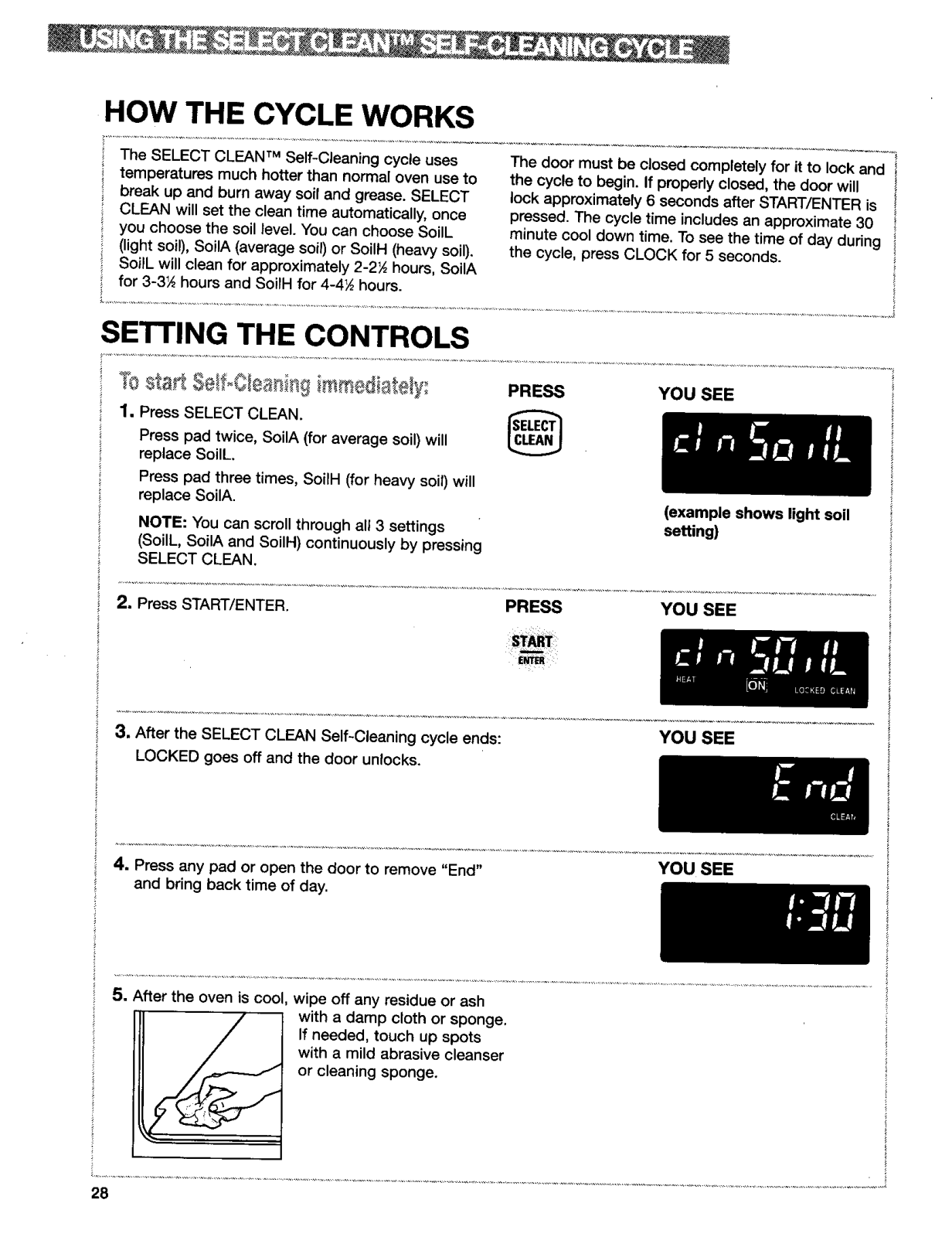

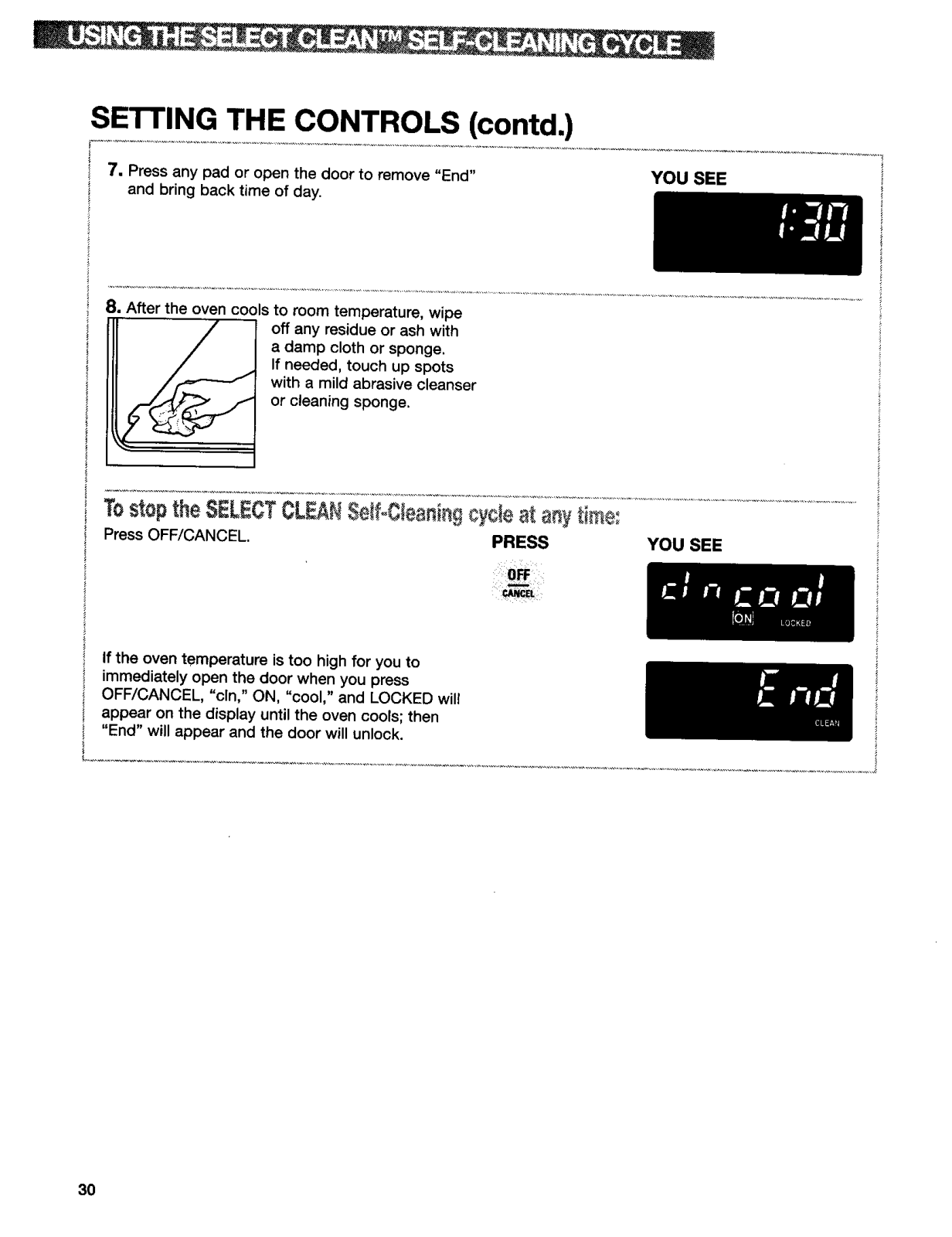

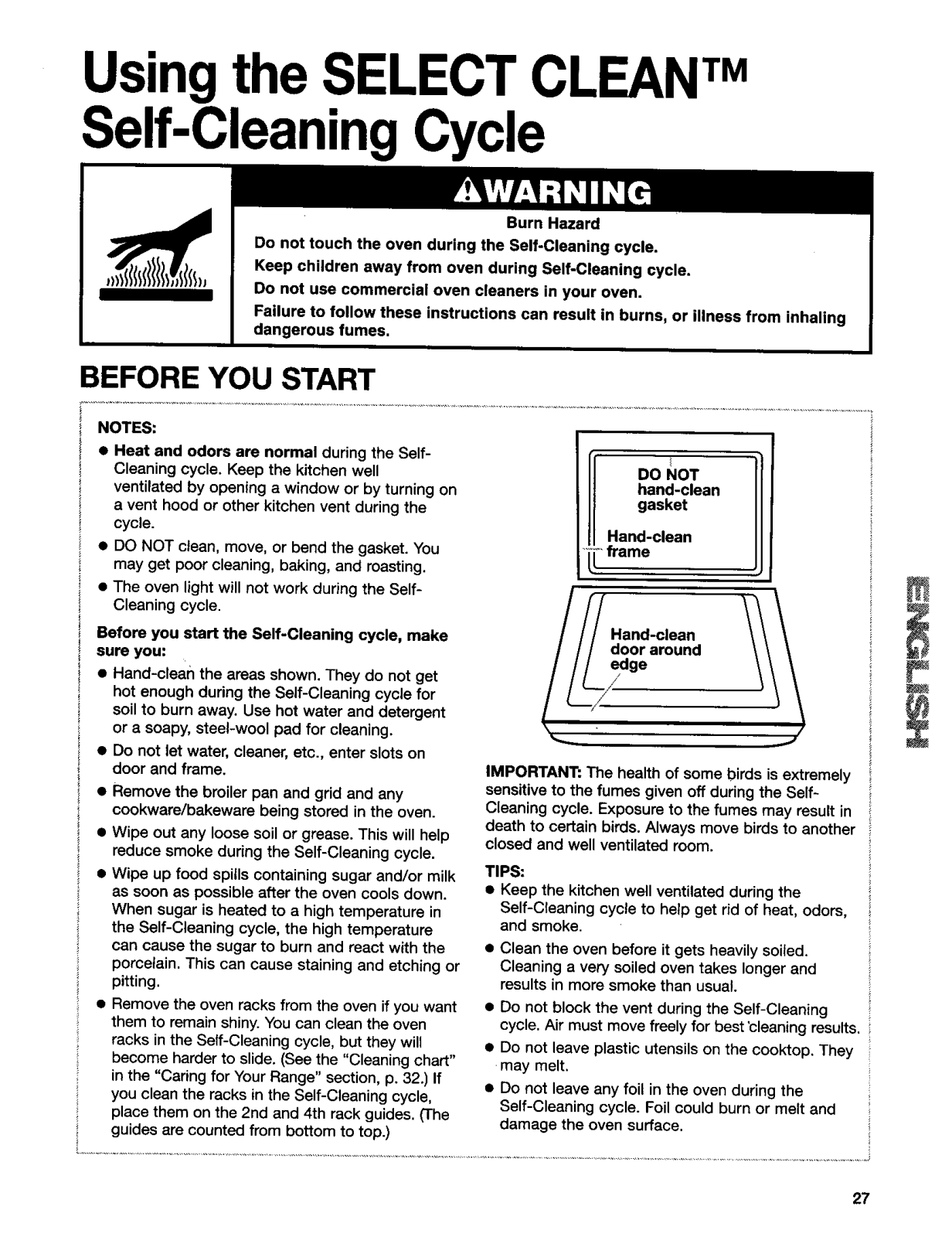

Using the SELECT CLEAN TM

Self-Cleaning Cycle ............................................... 27

Before You Start .................................................. 27

How the Cycle Works ......................................... 28

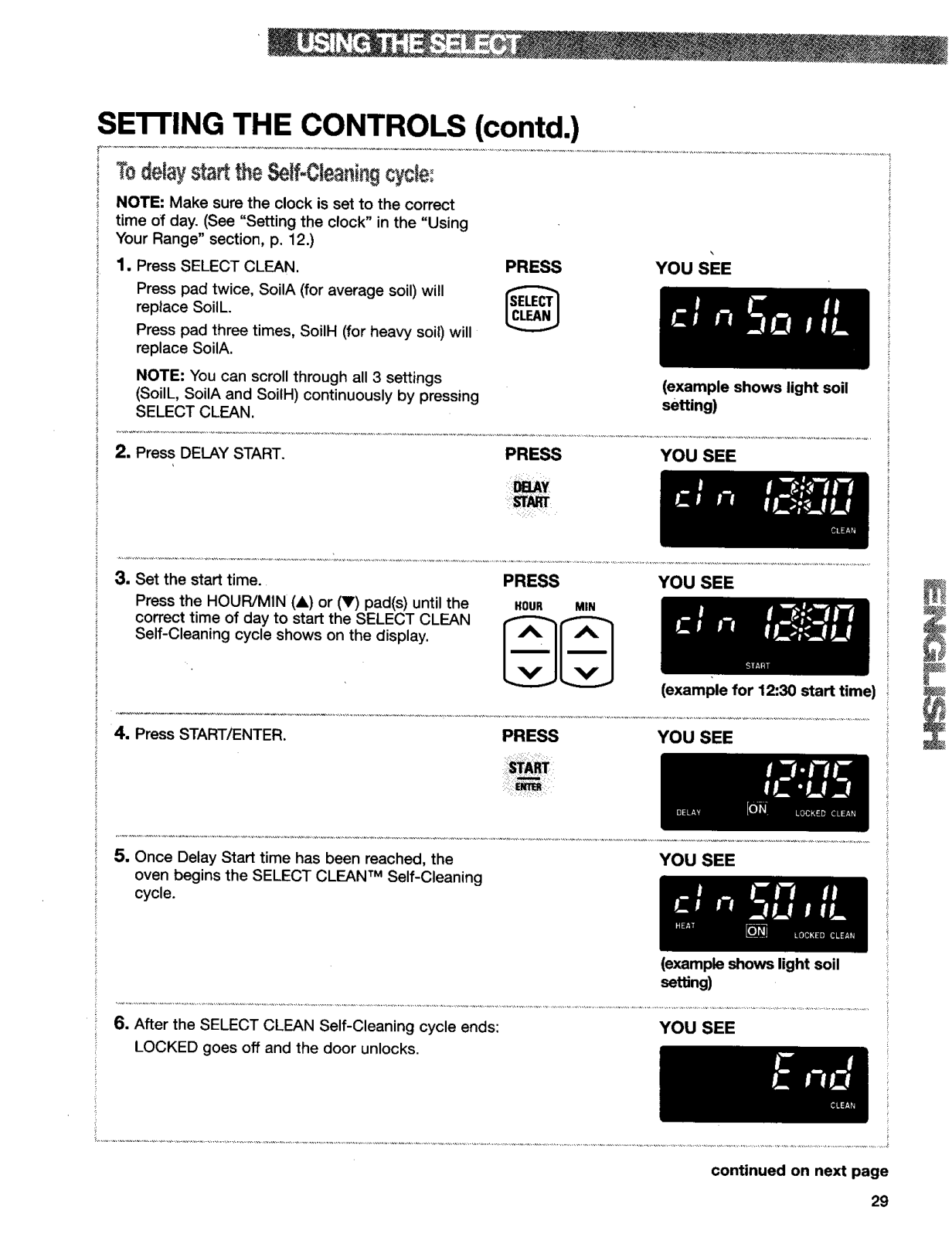

Setting the Controls ............................................ 28

Caring for Your Range ........................................... 31

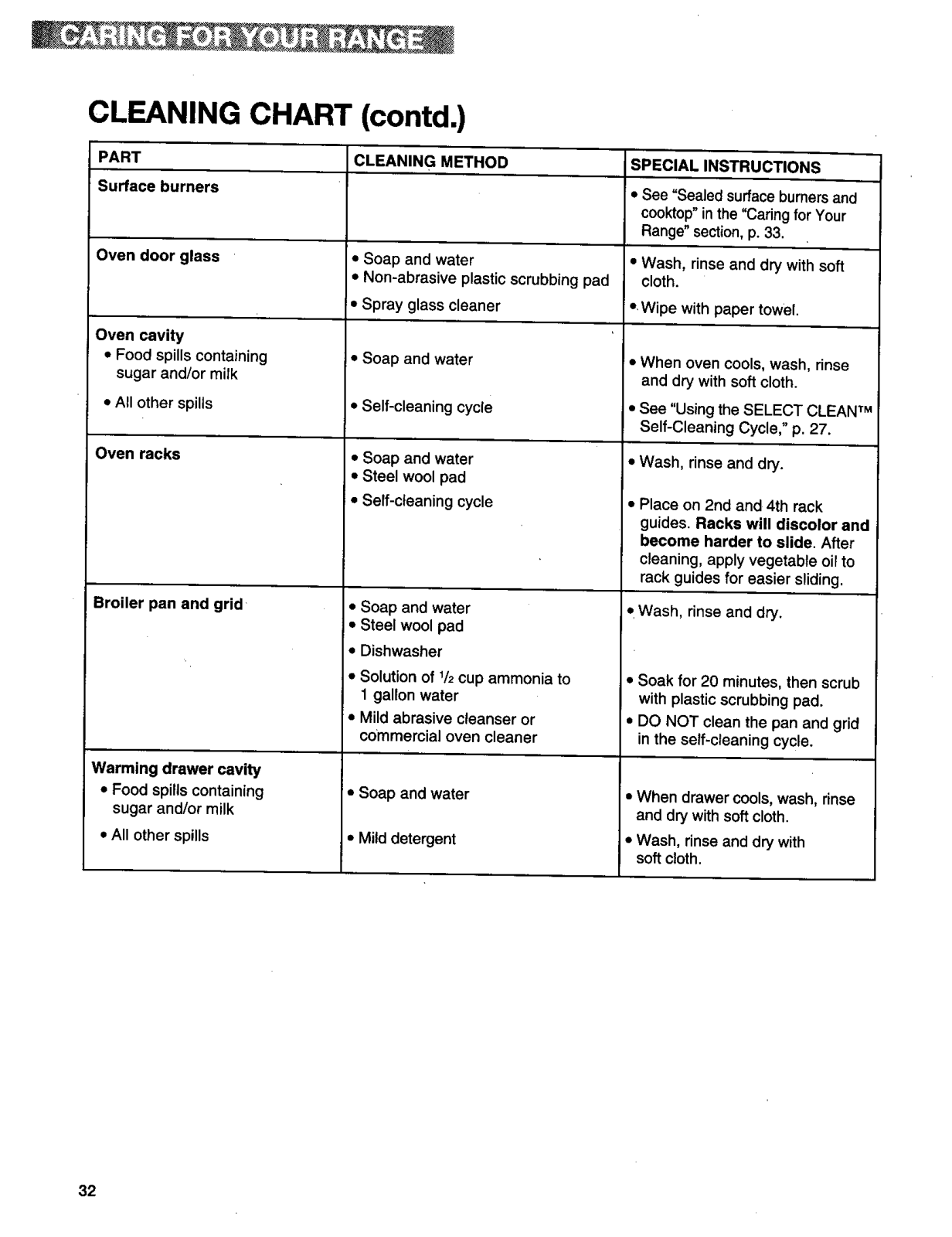

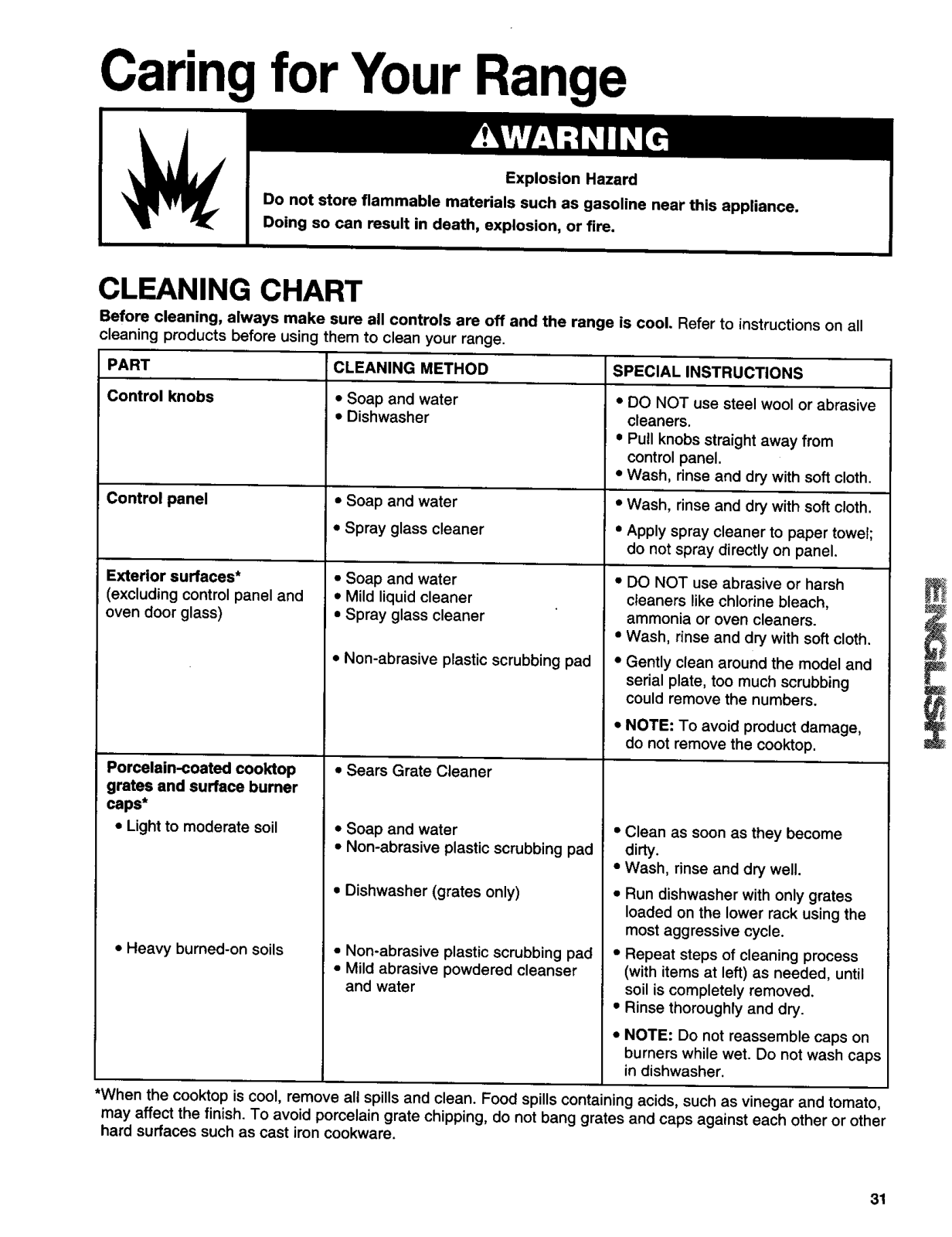

Cleaning Chart ..................................................... 31

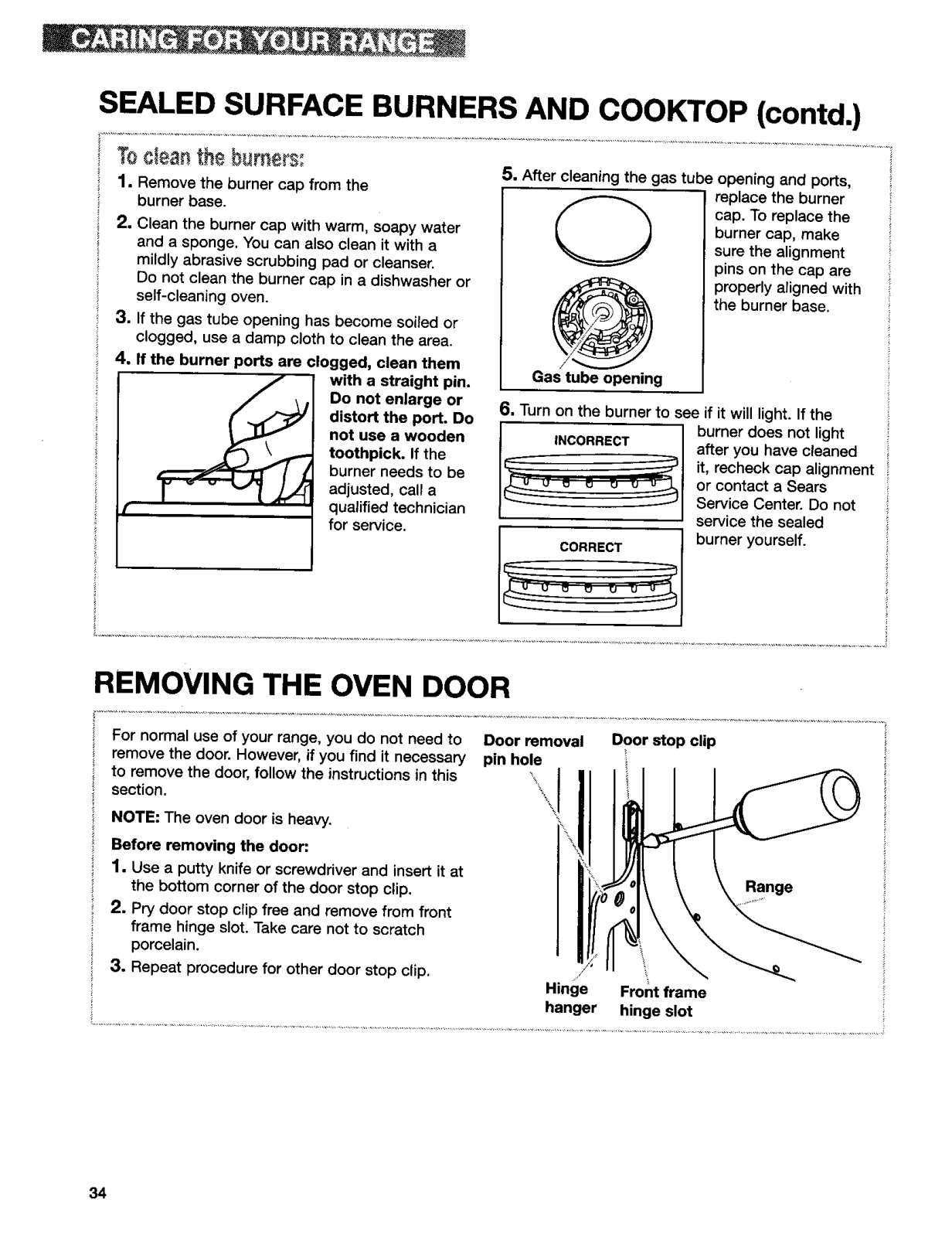

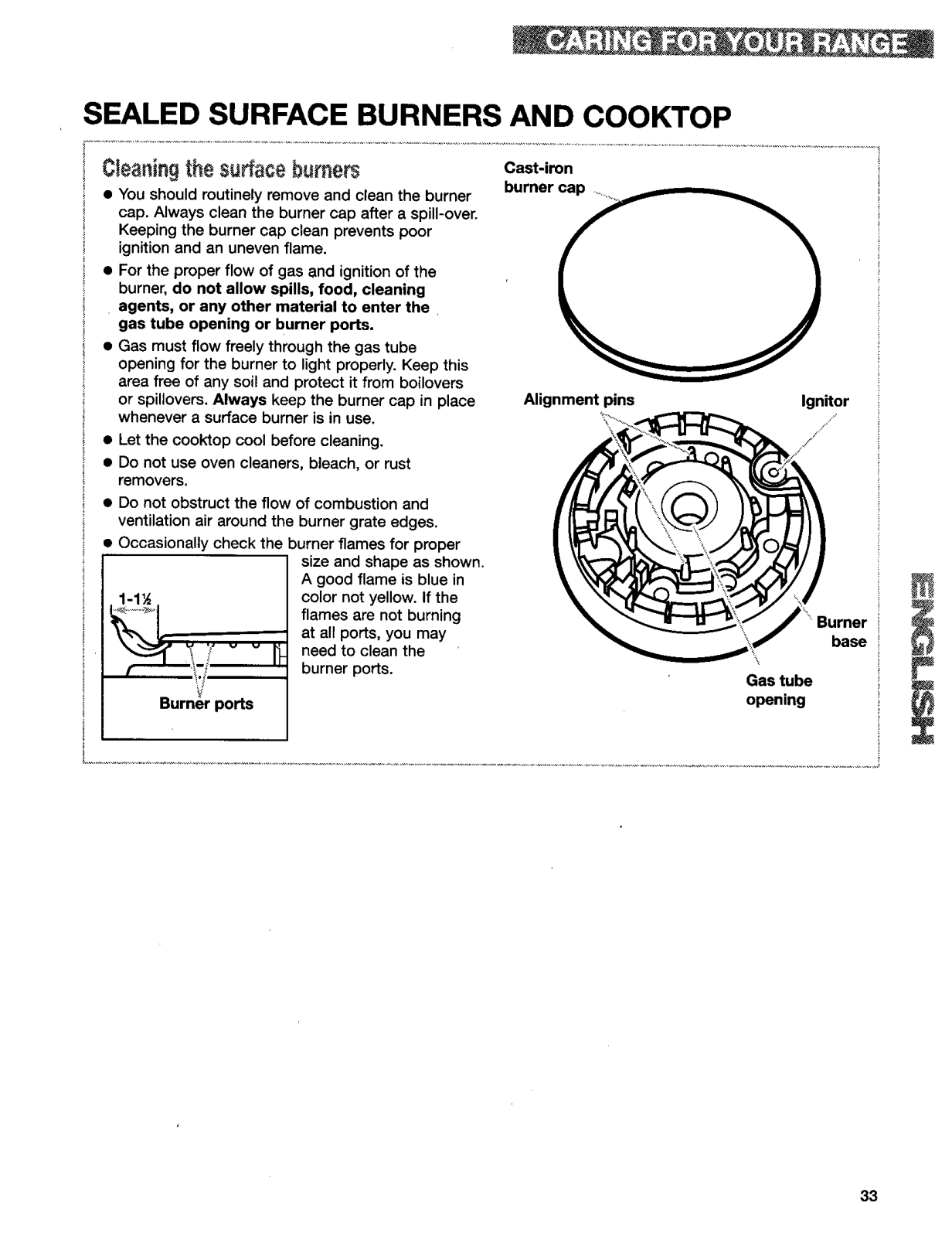

Sealed Surface Burners and Cooktop ............... 33

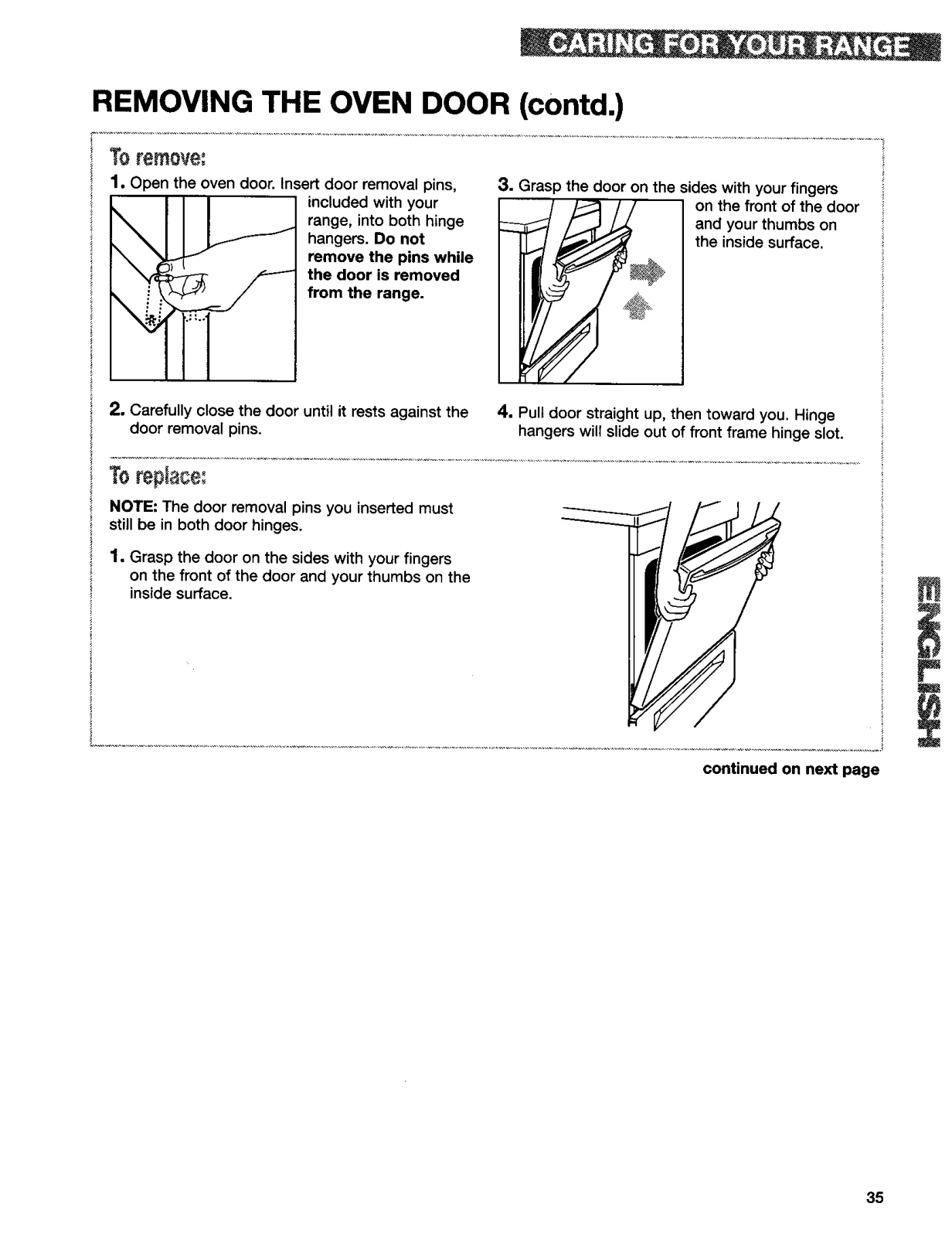

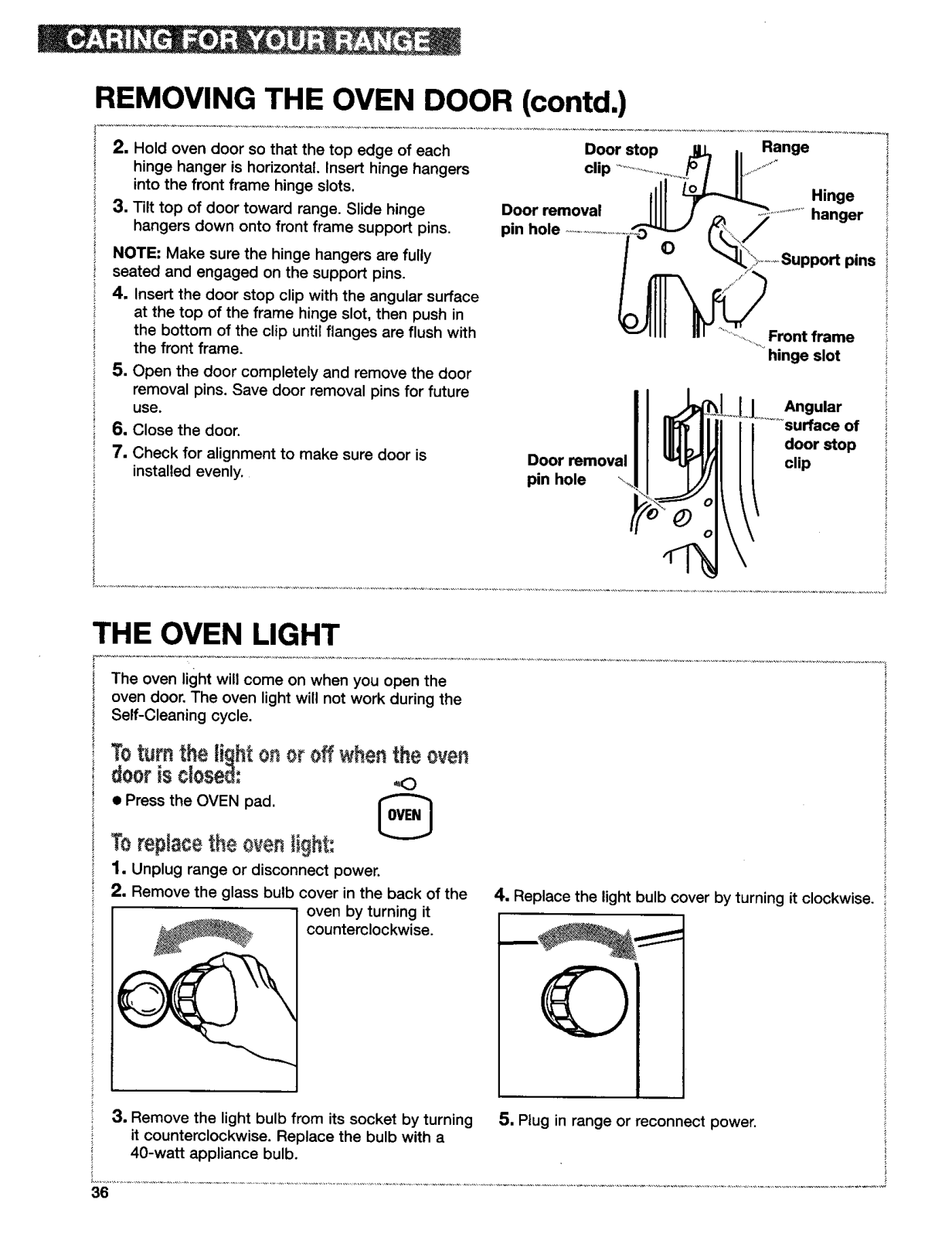

Removing the Oven Door ................................... 34

The Oven Light .............................. :..................... 36

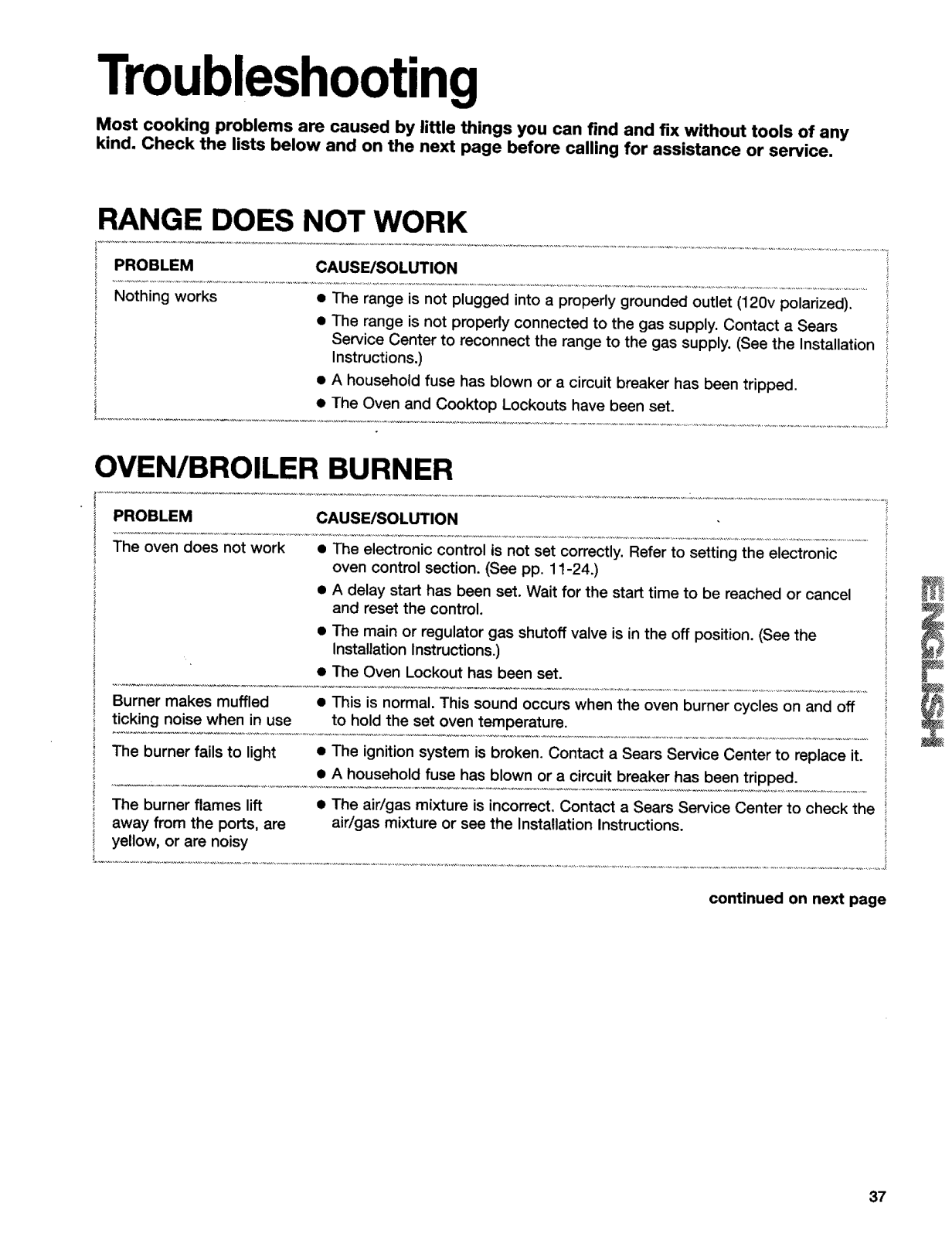

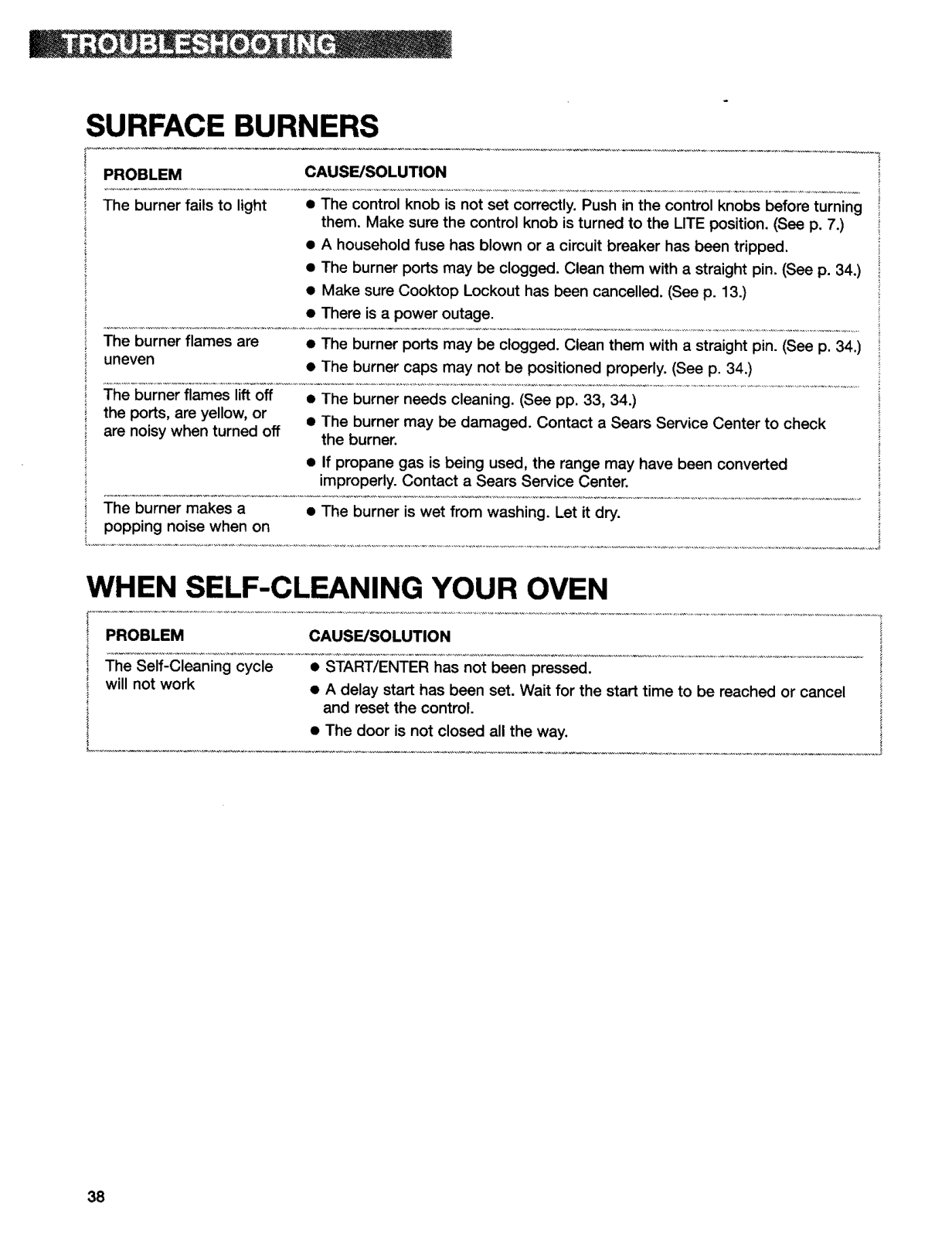

Troubleshooting ...................................................... 37

Range Does Not Work ........................................ 37

Oven/Broiler Burner ............................................. 37

Surface Burners ................................................... 38

A NotetoYou

Thankyouforbuyinga KENIVt0RE
appliance,

Your KENMORE gas range takes on a new value
when you discover that Sears has service centers

around the country. Trained Sears Service

Professionals use fully-equipped trucks and Sears-

approved methods for expert repairs backing up all
Sears guarantees,

Plgaset cord modet's

tnTotm_tlon,

Whenever you call to request service for your
appliance, you need to know your complete model

number and serial number. You can find this
information on the model and serial number plate

(see diagram in the "Parts and Features," p. 6).

Please also record the purchase date of your

appliance and your store's name and telephone
number.

Model Number 665.
Serial Number R
Purchase Date

Keep this book and the sales slip together

in a safe place for future reference.

When Self-Cleaning Your Oven .......................... 38

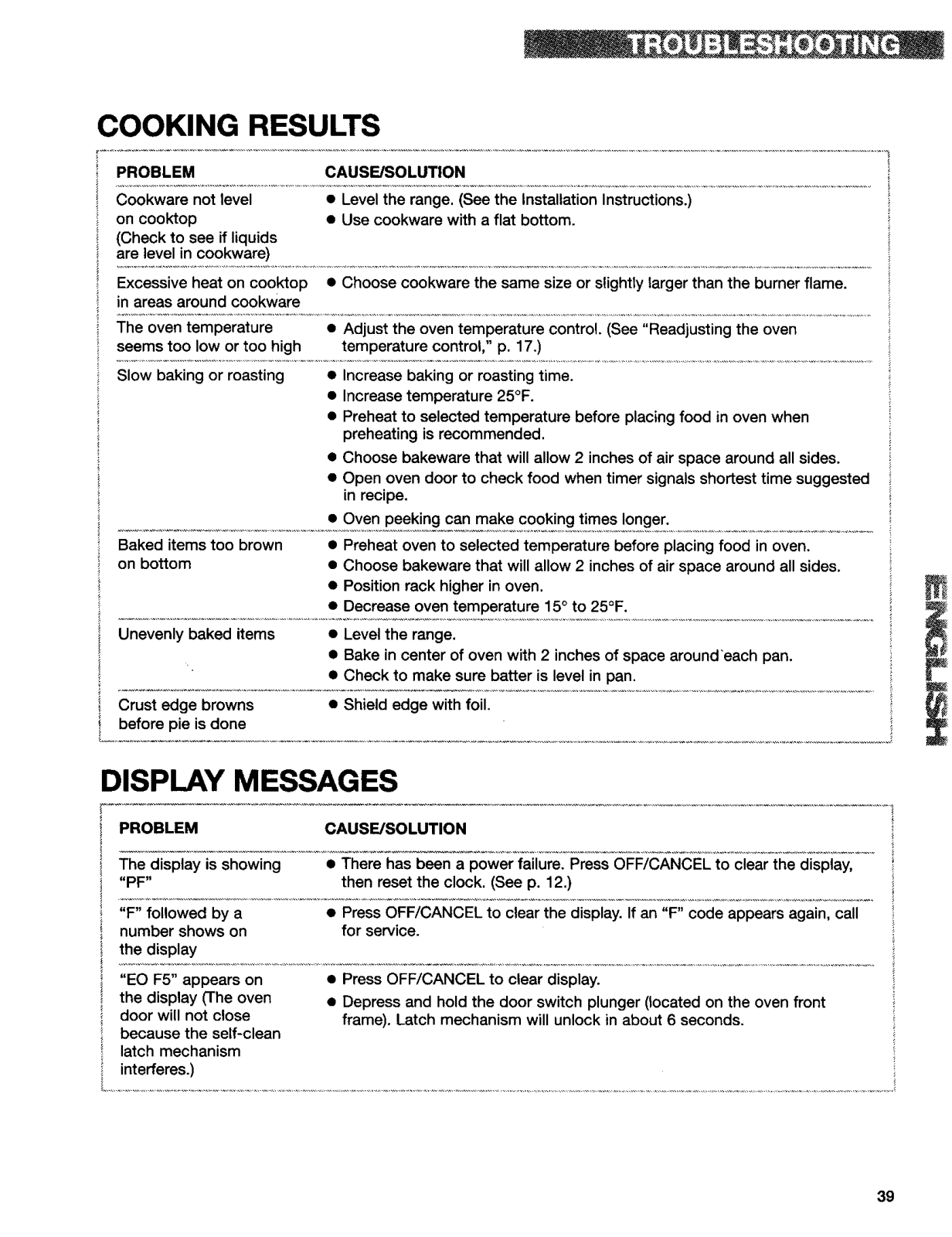

Cooking Results .................................................. 39

Display Messages ..:............................................ 39

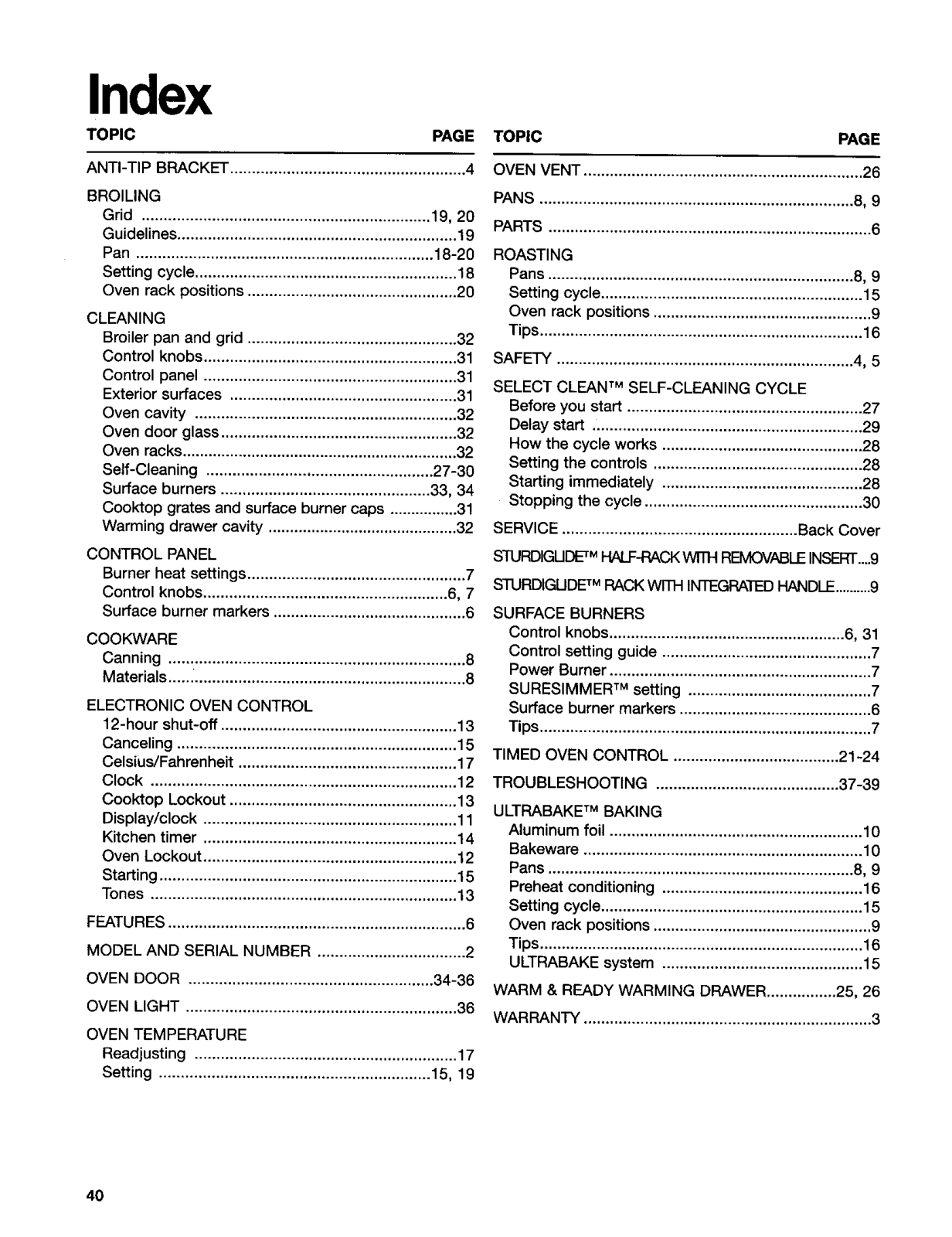

Index ......................................................................... 40

Service .................................................... Back Cover

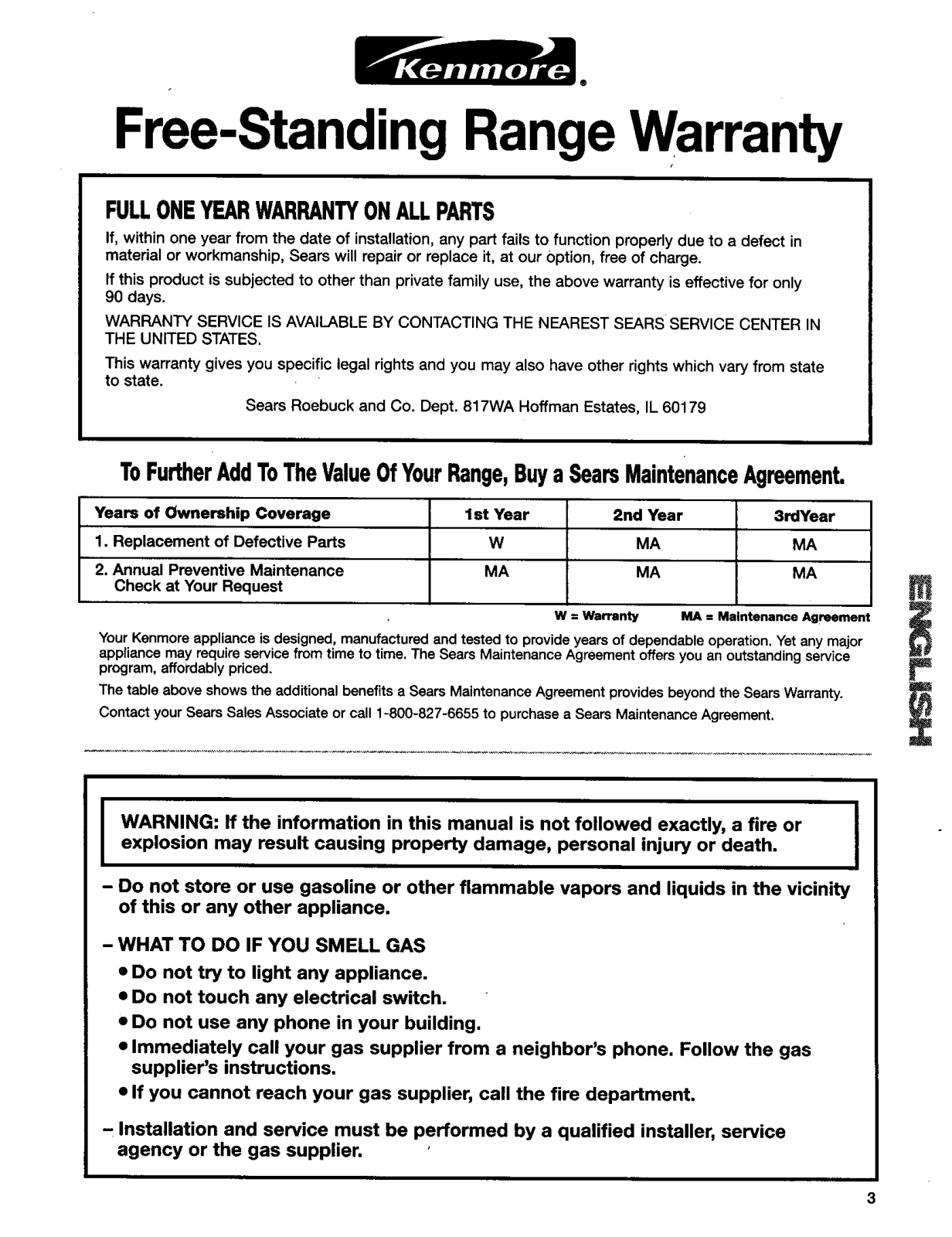

Free-StandingRangeWarranty

FULLONEYEARWARRANTYONALLPARTS

If, within one year from the date of installation, any part fails to function properly due to a defect in
material or workmanship, Sears will repair or replace it, at our Option, free of charge.

If this product is subjected to other than private family use, the above warranty is effective for only
90 days.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN
THE UNITED STATES.

This warranty gives you specific legal rights and you may also have other rights which vary from state
to state.

Sears Roebuck and Co. Dept. 817WA Hoffman Estates, IL 60179

ToFurtherAddToTheValueOfYourRange,BuyaSearsMaintenanceAgreement.

Years of Ownership Coverage 1st Year 2rid Year 3rdYear

1. Replacement of Defective Parts W MA MA

2. Annual Preventive Maintenance MA MA MA

Check at Your Request

W = Warranty MA= MaintenanceAgreement

Your Kenmore appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major
appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service

program, affordably priced.
The table above shows the additional benefits a Sears Maintenance Agreement provides beyond the Sears Warranty.

Contact your Sears Sales Associate or call 1-800-827-6655 to purchase a Sears Maintenance Agreement.

M

!=

WARNING: If the information in this manual is not followed exactly, a fire or I
explosion may result causing property damage, personal injury or death.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity

of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS

= Do not try to light any appliance.
= Do not touch any electrical switch.

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas

supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

. Installation and service must be performed by a qualified installer, service

agency or the gas supplier.

I

I

3

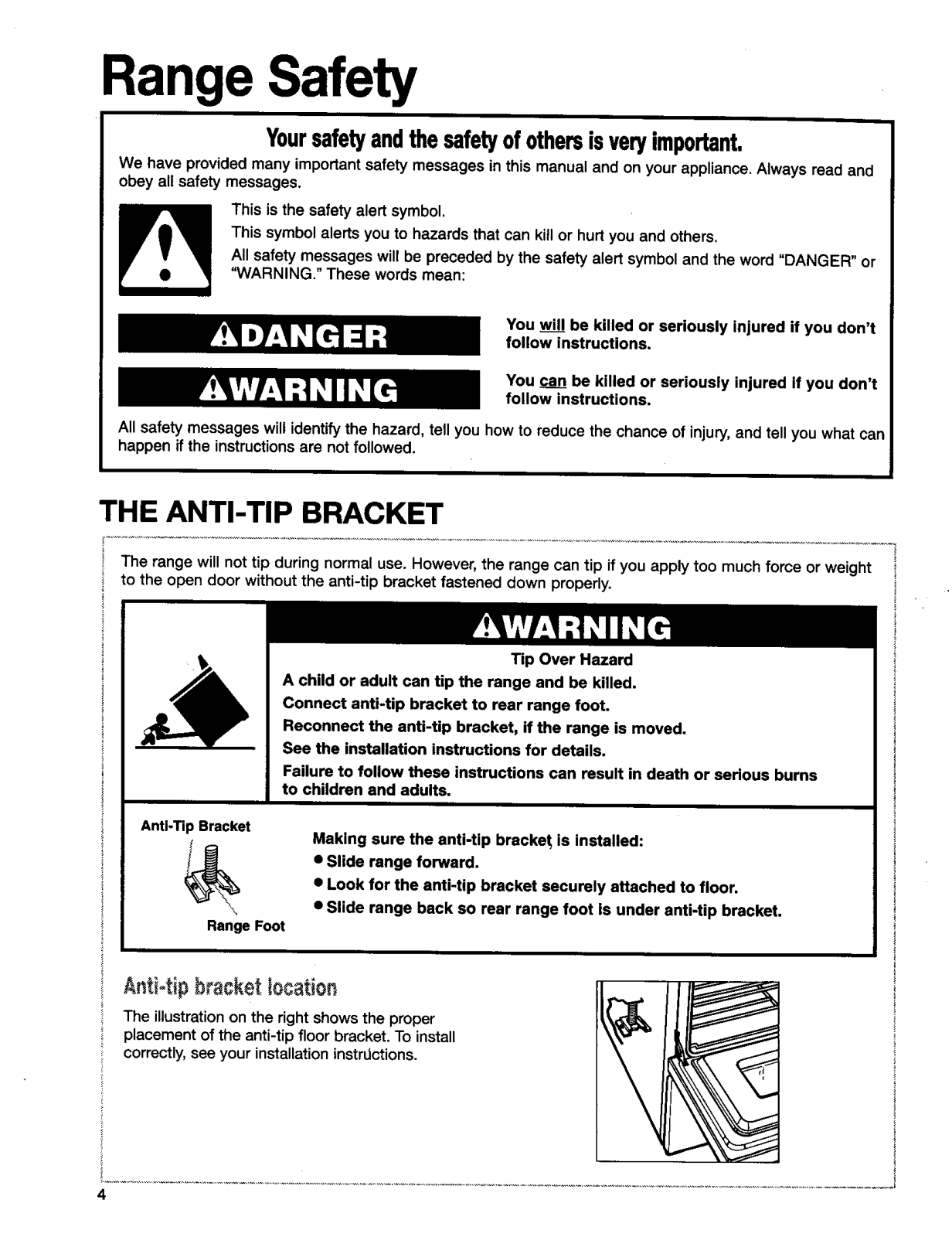

Range Safety

Yoursafetyandthesafetyofothersisveryimportant,

We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.

This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word "DANGER" or
"WARNING." These words mean:

You will be killed or seriously injured if you don't
follow instructions.

You _ be killed or seriously Injured If you don't
follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed,

THE ANTI-TIP BRACKET

The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.

Tip Over Hazard

A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.

Reconnect the anti-tip bracket, if the range is moved.

See the Installation instructions for details.

Failure to follow these instructions can result in death or serious burns

to children and adults.

Anti-Tip Bracket

Range Foot

Making sure the anti-tip bracket, is installed:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor.

• Slide range back so rear range foot is under anti-tip bracket.

Antiotipbracketlocation

The illustration on the right shows the proper

placement of the anti-tip floor bracket. To instait
correctly, see your installation instrdctions.

4

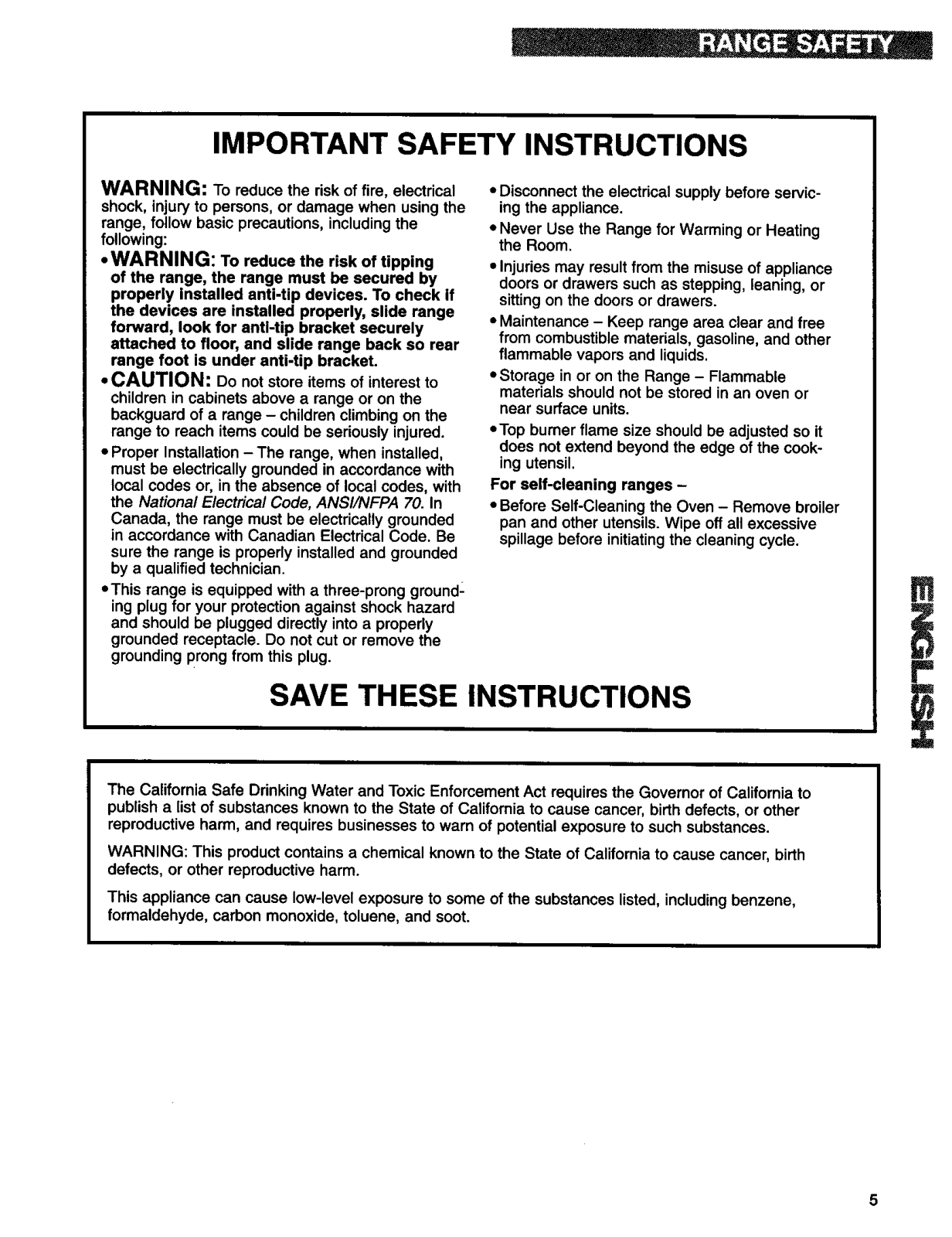

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the riskof fire, electrical

shock, injury to persons, or damage when using the
range, follow basic precautions, including the

following:

•WARNING: To reduce the risk of tipping

of the range, the range must be secured by
properly installed anti-tip devices. To check if

the devices are installed properly, slide range
forward, look for anti-tip bracket securely

attached to floor, and slide range back so rear
range foot is under anti-Up bracket.

•CAUTION: Donotstoreitems of interest to

children in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.

• Proper Installation -The range, when installed,

must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70. In

Canada, the range must be electrically grounded
in accordance with Canadian Electrical Code. Be

sure the range is properly installed and grounded
by a qualified technician.

oThis range is equipped with a three-prong ground-

ing plug for your protection against shock hazard

and should be plugged directly into a properly
grounded receptacle. Do not cut or remove the
grounding prong from this plug.

SAVE THESE INSTRUCTIONS

• Disconnect the electrical supply before servic-

ing the appliance.

• Never Use the Range for Warming or Heating

the Room.

• Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or

sitting on the doors or drawers.

• Maintenance - Keep range area clear and free
from combustible materials, gasoline, and other
flammable vapors and liquids•

• Storage in or on the Range - Flammable

materials should not be stored in an oven or
near surface units.

• Top bumer flame size should be adjusted so it
does notextend beyond the edge of the cook-

ing utensil.

For self-cleaning ranges -

• Before Self-Cleaning the Oven - Remove broiler

pan and other utensils. Wipe off all excessive

spillage before initiatingthe cleaning cycle.

m

!=

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the State of California to cause cancer, birth defects, or other

reproductive harm, and requires businesses to warn of potential exposure to such substances.

WARNING: This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm.

This appliance can cause low-level exposure to some of the substances listed, including benzene,
formaldehyde, carbon monoxide, toluene, and soot.

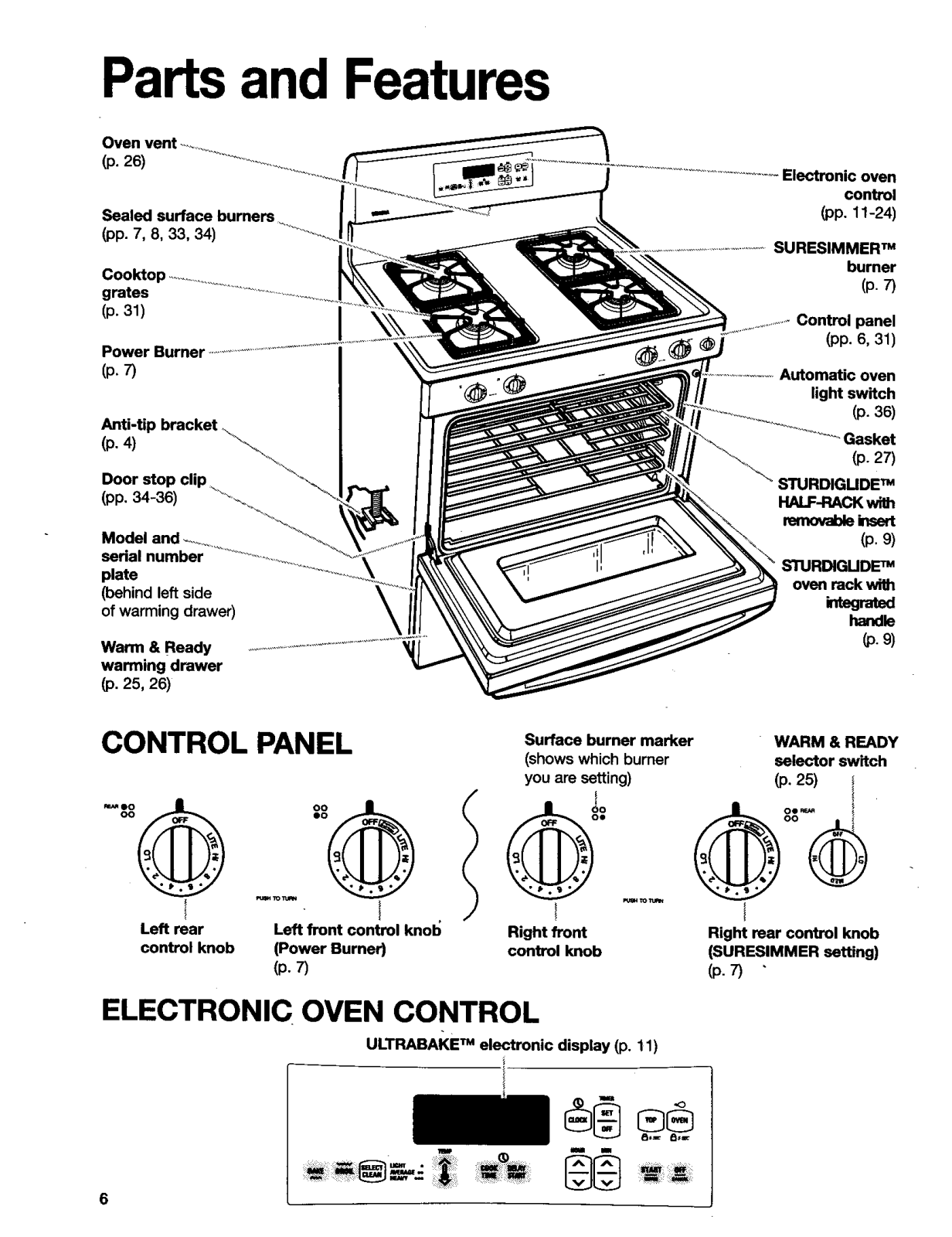

Partsand Features

Oven vent ....

(p. 26}

Sealed surface burners
(pp. 7, 8, 33, 34)

grates
(p. 31)

I

Power Burner

(p. 7)

Anti-tip bracket

(p. 4) \'''-_.,

Door stop clip -.

(pp. 34-36) _.._

Model =
serial number
plate
(behind left side
of warming drawer)

Warm & Ready
warming drawer

(p. 25, 26)

SURESIMMER TM

burner

(P.7)

Control panel

(pp. 6, 31)

Automatic oven

light switch

(p. 36)

-,Gasket

(p. 27)

STURDIGUDE TM
HALF-RACK w_

removable klsert

(p. 9)

, STURDIGMDE TM

oven rack with

integrated

handle

(p.9)

CONTROL PANEL Surfaceburnermarker

(shows which burner

you are setting)

oo %o o

l -°- I ! --°-

Leftrear Left front control knol) Right front

control knob (Power Burner) control knob

(p. 7)

Right rear control knob
(SURESIMMER setting)

(P-7)

ELECTRONIC OVEN CONTROL

ULTRABAKE TM electronic display (p. 11)

8,K 8s=_

_

WARM & READY
selector switch

(p. 25)

OO

t

UsingYourRange

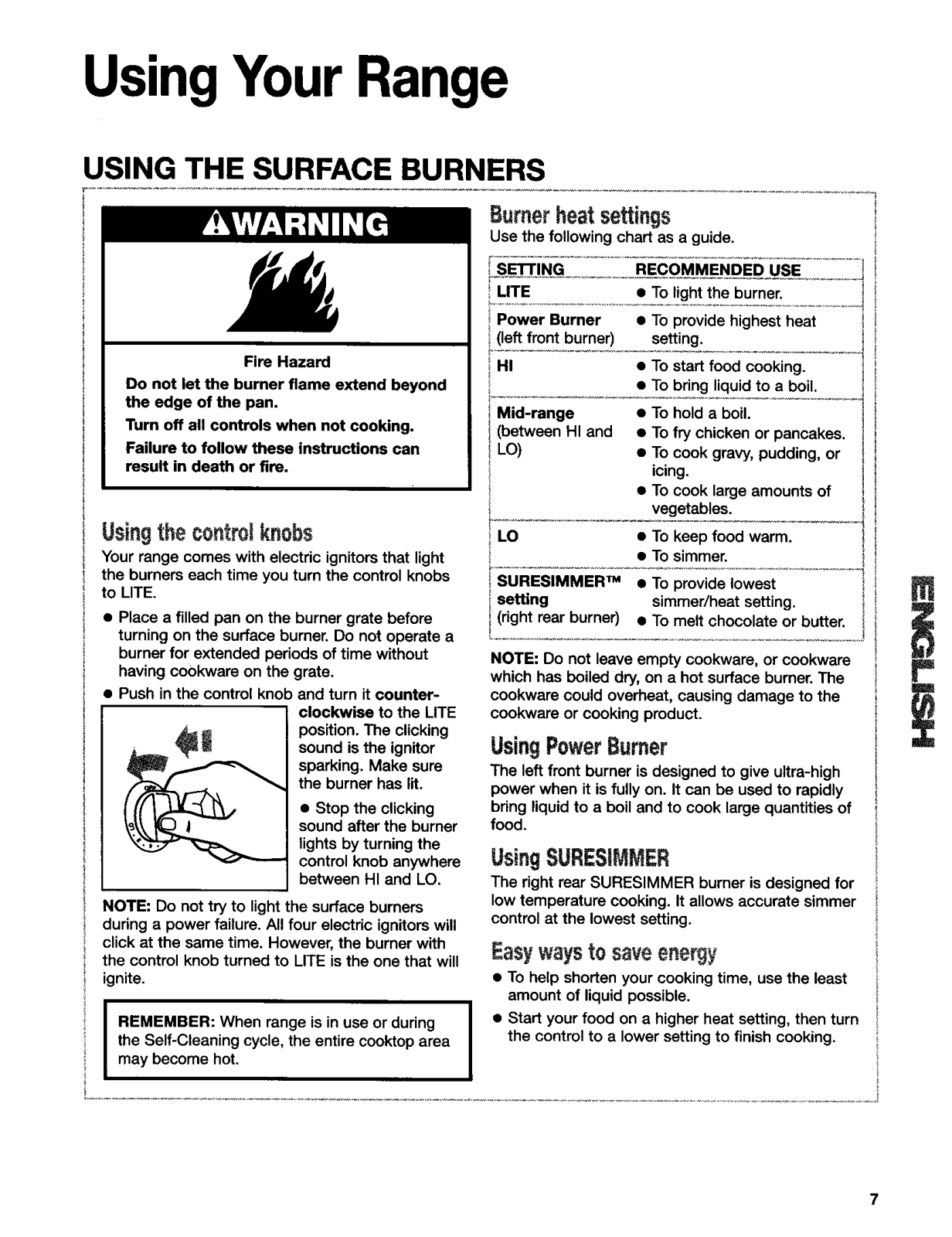

USING THE SURFACEBURNERS

gurnerheatsettings

Use the following chart as a guide.

! UTE • To light the burner.

Power Burner • To provide highest heat

I (left front burner) setting.

Fire Hazard

Do not let the burner flame extend beyond

the edge of the pan.
Turn off all controls when not cooking,

Failure to follow these instructions can
result in death or fire.

Usingthec0ntt01knobs

Your range comes with electric ignitors that light
the burners each time you turn the control knobs

to LITE.

• Place a filled pan on the burner grate before
turning on the surface burner. Do not operate a

burner for extended periods of time without
having cookware on the grate.

• Push in the control knob and turn it counter-

clockwise to the LITE
position. The clicking

sound is the ignitor
sparking. Make sure

the burner has lit.

• Stop the clicking

sound after the burner
lights by turning the

control knob anywhere
between HI and LO.

NOTE: Do not try to light the surface burners

during a power failure. All four electric ignitors will
click at the same time. However, the burner with
the control knob turned to LITE is the one that will

ignite.

the Self-Cleaning cycle, the entire cooktop area

I REMEMBER: When range is in use or during I

may become hot.

i HI • To start food cooking.

I Mid-range • To hold a boil.
I (between HI and • To fry chicken or pancakes.

I LO) • To cook gravy, pudding, or

LO

SURESIMMER w* • To provide lowest
setting simmer/heat setting.
(right rear burner) • To melt chocolate or butter.

NOTE: Do not leave empty cookware, or cookware
which has boiled dry, on a hot surface burner. The
cookware could overheat, causing damage to the

cookware or cooking product.

UsingPowerBurner

The left front burner is designed to give ultra-high

power when it isfully on. It can be used to rapidly
bring liquid to a boil and to cook large quantities of

food.

UsingSURESIMMER

The right rear SURESIMMER burner is designed for
low temperature cooking. It allows accurate simmer

control at the lowest setting.

Easywaysto saveenergy

• To help shorten your cooking time, use the least
amount of liquid possible.

I

• Start your food on a higher heat setting, then turn

the control to a lower setting to finish cooking.

I

• To bring liquid to a boil.

icing.

• To cook large amounts of
vegetables.

• To keep food warm.

• To simmer.

m

USING THE SURFACE BURNERS (contd.) \,

Homecanninginformation

The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cooktop.

To protect your range:

• Center the canner over the surface burner. Do
not extend more than 1 inch outside the burner

area.

• Do not place your canner on two surface burners

at the same time.

• Start with hot water, cover with a lid and bring to

a boil; then reduce heat to maintain a boil or
required pressure levels in a pressure canner.

• Refer to your canner manual for specific

instructions.

For up-to-date information on canning, contact
your local U.S. Government Agricultural
Department Extension Office or companies who

manufacture home canning products.

.Usingtherightc00kwaremakesa

bsgdifference

• The pan should have a fiat bottom, straight sides,

and a well-fitting lid.

• Choose medium to heavy gauge (thickness)

cookware.

• The pan material (metal or glass) affects how

quickly and evenly the pan heats.

• When using glass or ceramic cookware, check to
make sure it is suitable for use on surface burners.

• To avoid tipping, make sure pots and pans are

centered on the grates.

CHARACTERISTICS OF COOKWARE MATERIALS

The pan material affects how fast heat transfers from the surface cooking area through the pan material and how

evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

Aluminum • Heats quickly and evenly.

• Use for alltypes of cooking.

• Medium or heavy thickness is best for mostcooking.

• Used as a core orbase in cookware to provide even heating.

Cast iron • Heats slowly and evenly.

• Good for browningand frying.

• Maintains heat for slow cooking.

• Can be coated with porcelain enamel.

Ceramic or • Heats slowly and unevenly.
ceramic glass ° Use on low to medium settings.

Copper • Heats very quicklyand evenly.

Earthenware • Can be used for cooktop cooking if recommended by the

Porcelain enamel-on-steel or • See cast ironand stainless steel.
enamel-on-cast iron

Stainless steel • Heats quickly but unevenly.

• Follow manufacturer's instructions.

• Used as a core or base incookware to provide even heating.

manufacturer.

• Use on low settings.

• A core or base of aluminumor copperon the cookwars provides

even heating.

• Can be coated with porcelain enamel.

8

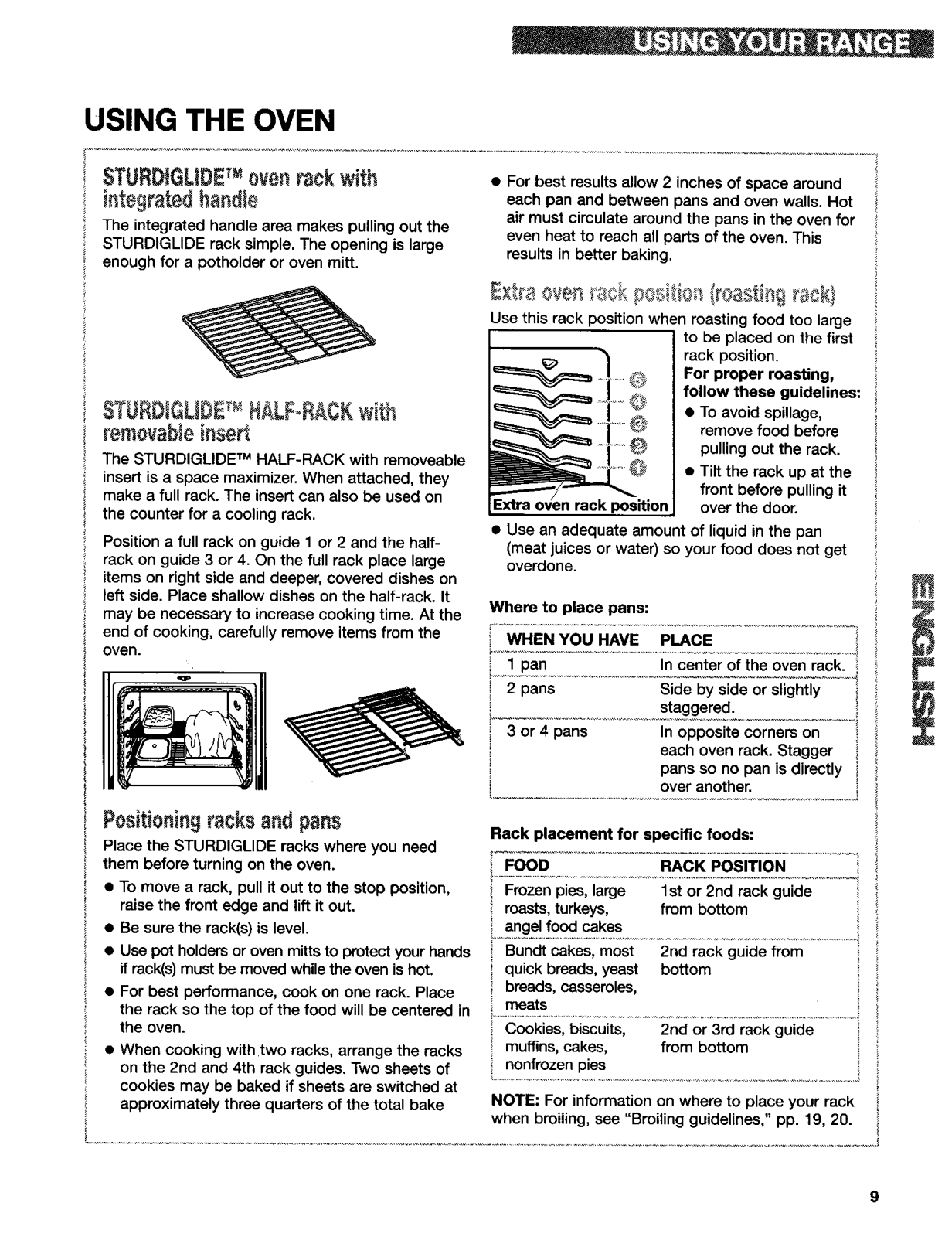

USING THE OVEN

$TURDIGLIDETM ovenrackwith
integratedhandle

The integrated handle area makes pulling out the
STURDIGLIDE rack simple. The opening is large

enough for a potholder or oven mitt.

STURDtGLtDEHALF-RACKwith
removableinsert

The STURDIGLIDE TMHALF-RACK with removeable
insert is a space maximizer. When attached, they

make a full rack. The insert can also be used on
the counter for a cooling rack.

Position a full rack on guide 1 or 2 and the half-
rack on guide 3 or 4. On the full rack place large

items on right side and deeper, covered dishes on
left side. Place shallow dishes on the half-rack. It

may be necessary to increase cooking time. At the
end of cooking, carefully remove items from the

oven.

• For best results allow 2 inches of space around
each pan and between pans and oven walls. Hot

air must circulate around the pans in the oven for
even heat to reach all parts of the oven. This

results in better baking.

E×t aove r ck p0 itio (roasti g 'eck)

Use this rack position when roasting food too large

to be placed on the first

rack position.

For proper roasting,

follow these guidelines:

• To avoid spillage,

remove food before
pulling out the rack.

• Tilt the rack up at the

oven rack positior over the door.

• Use an adequate amount of liquid in the pan
(meat juices or water) so your food does not get

overdone.

front before pulling it

m

Where to place pans:

WHEN YOU HAVE PLACE

1 pan In center of the oven rack.

2 pans Side by side or slightly

........................................................sta gge.red-.......................................

3 or 4 pans In opposite corners on

each oven rack. Stagger ',
pans so no pan is directly i
over another. _ i

t"

Positioningracksandpans

Place the STURDIGLIDE racks where you need

them before turning on the oven.

• To move a rack, pull it out to the stop position,
raise the front edge and lift it out.

• Be sure the rack(s) is level.

• Use pot holdersor oven mitts to protect your hands
if rack(s) must be moved while the oven ishot.

• For best performance, cook on one rack. Place

the rack so the top of the food will be centered in
the oven.

• When cooking with two racks, arrange the racks
on the 2nd and 4th rack guides. Two sheets of

cookies may be baked if sheets are switched at
approximately three quarters of the total bake

Rack placement for specific foods:

FOOD RACK POSITION i i
Frozen pies, large 1st or 2nd rack guide '

roasts, turkeys, from bottom
angel food cakes _ i

Bundt cakes, most 2nd rack guide from _
quick breads, yeast bottom
breads, casseroles,

meats I I
Cookies, biscuits, 2nd Or 3rd rack guide '.

muffins, cakes, from bottom i

nonfrozen pies

NOTE: For information on where to place your rack

when broiling, see "Broiling guidelines," pp. 19, 20.

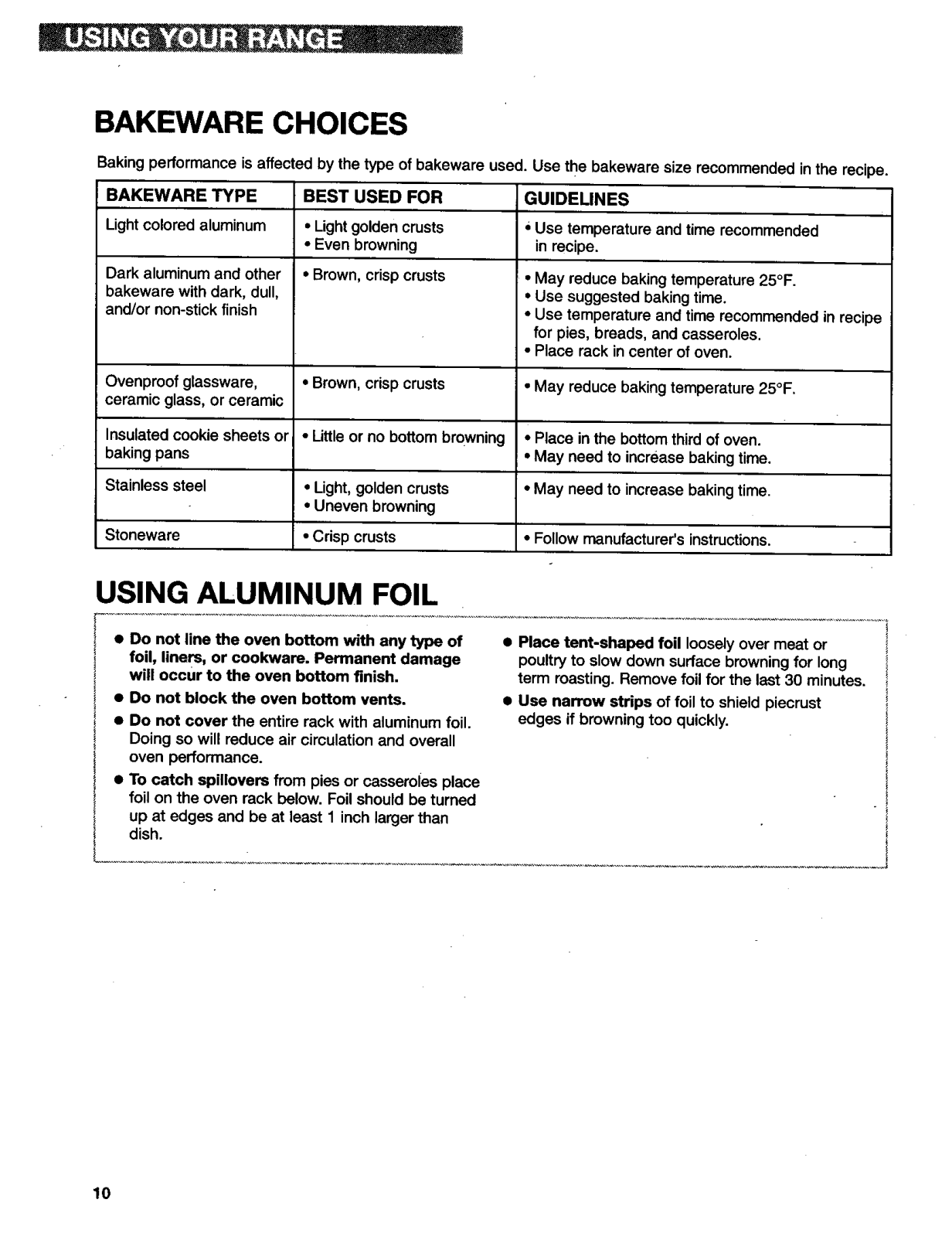

BAKEWARE CHOICES

Baking performance isaffected by the type of bakeware used. Use the bakeware size recommended inthe recipe.

BAKEWARE TYPE

Light colored aluminum

Dark aluminum and other
bakeware with dark, dull,

and/or non-stick finish

BEST USED FOR

• Lightgolden crusts

• Even browning

• Brown, crisp crusts

GUIDELINES

' Use temperature and time recommended

in recipe.

• May reduce baking temperature 25°F.

• Use suggested baking time.

• Use temperature and time recommended in recipe
for pies, breads, and casseroles.

• Place rack in center of oven.

Ovenproof glassware,

ceramic glass, or ceramic

Insulated cookie sheets or
baking pans

Stainless steel

Stoneware

• Brown, crisp crusts

• Uttle or no bottom browning

• Light,golden crusts

• Uneven browning

• Crisp crusts

USING ALUMINUM FOIL

• Do not line the oven bottom with any type of
foil, liners, or cookware. Permanent damage

will occur to the oven bottom finish.

• Do not block the oven bottom vents.

• Do not cover the entire rack with aluminum foil.
Doing so will reduce air circulation and overall

oven performance.

• To catch spillovers from piesor casseroles place
foil on the oven rack below. Foil should be turned

up at edges and be at least 1 inch larger than
dish.

• May reduce baking temperature 25°F.

• Place inthe bottom third of oven.

• May need to increase baking time.

• May need to increase baking time.

• Follow manufacturer's instructions.

• Place tent-shaped foil loosely over meat or
poultry to slow down surface browning for long

term roasting. Remove foilfor the last 30 minutes.

• Use narrow strips of foil to shield piecrust

edges if browning too quickly.

10

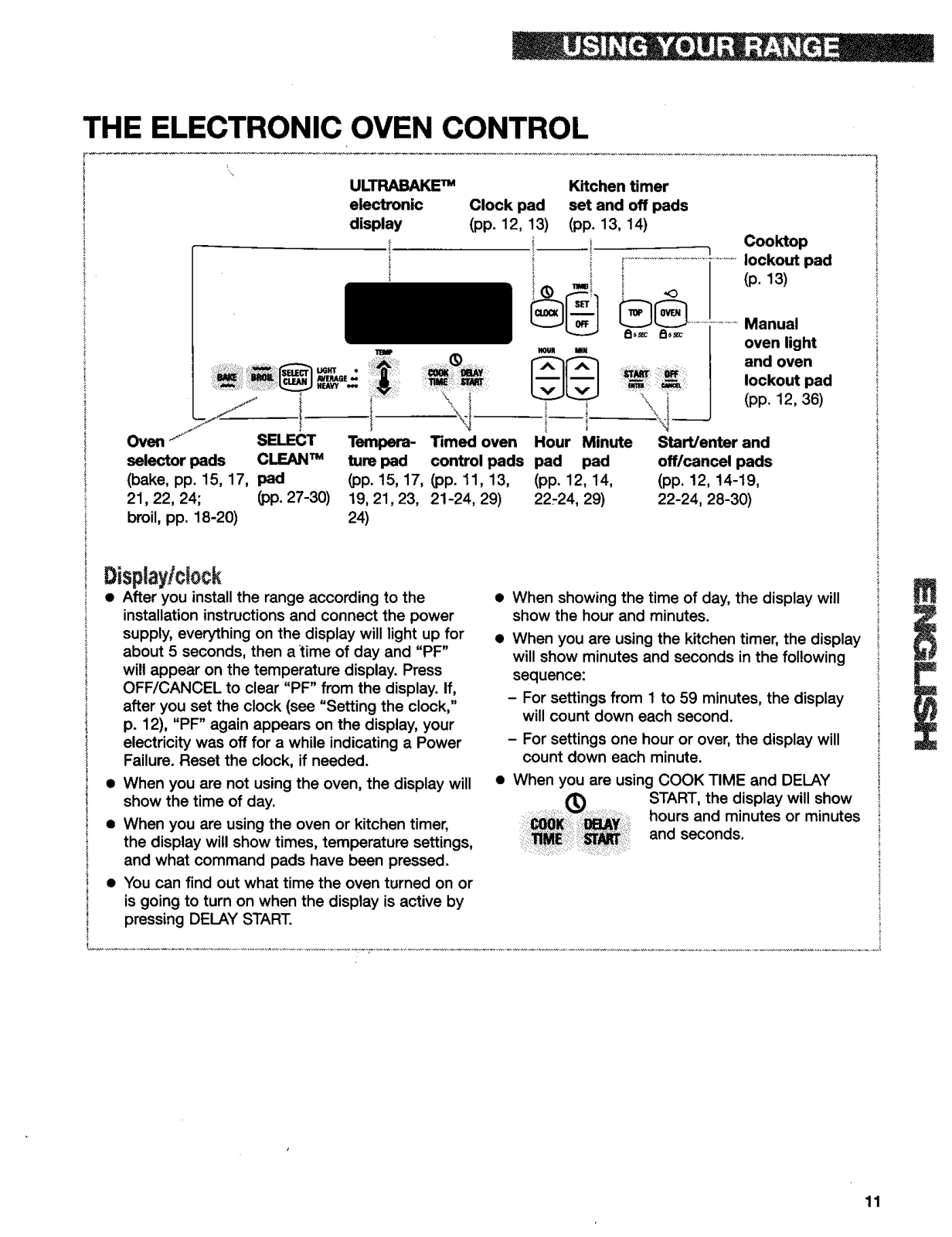

THE ELECTRONIC OVEN CONTR()L

ULTRABAKE TM Kitchen timer
electronic Clock pad set and off pads

display (pp. 12, 13) (pp. 13, 14)

! u

i '

Oven SELECT
selector pads CLEAN TM

(bake, pp. 15, 17, pad

21,22, 24; (pp. 27-30)
broil, pp. 18-20)

Tempera- Timed oven Hour Minute
ture pad control pads pad pad

(pp. 15, 17, (pp. 11, 13, (pp. 12, 14,

19, 21,23, 21-24, 29) 22r24, 29)

24)

0 H

Cooktop
lockout pad

(p. 13)

........Manual

oven light
and oven

lockout pad

(pp. 12, 36)

Start/enter and
off/cancel pads

(pp. 12, 14-19,
22-24, 28-30)

Display!cl0¢k

• After you installthe range according to the
installation instructions and connect the power

supply, everything on the display will light up for
about 5 seconds, then a _ime of day and "PF"

will appear on the temperature display. Press
OFF/CANCEL to clear "PF" from the display. If,

after you set the clock (see "Setting the clock,"
p. 12), "PF" again appears on the display, your

electricity was off for a while indicating a Power

Failure. Reset the clock, if needed.

• When you are not using the oven, the display will
show the time of day.

• When you are using the oven or kitchen timer,
the display will show times, temperature settings,

and what command pads have been pressed.

• You can find out what time the oven turned on or
is going to turn on when the display is active by

pressing DELAY START.

• When showing the time of day, the display will
show the hour and minutes.

• When you are using the kitchen timer, the display
will show minutes and seconds inthe following

sequence:

- For settings from 1 to 59 minutes, the display
will count down each second.

- For settings one hour or over, the display will
count down each minute.

• When you are using COOK TIME and DELAY
START, the display will show

hours and minutes or minutes

and seconds.

11

SE'R'ING THE CLOCK

1. Press CLOCK. PRESS YOU SEE (denotesblinking)

®

(example for 12:00)

2. Set the time. PRESS YOU SEE

Press the HOUR/MIN (&) or (V) pad(s) until the

correct time of day shows on the display.

3. Press START/ENTER or CLOCK. PRESS YOU SEE
NOTE: This is a 12-hour clock, it does not

show a.m. or p.m. OR

HOUR MIN

(example for 5:30)

USING THE OVEN LOCKOUT

The oven lock lets you prevent use of the control

panel command keypads. This feature comes in

handy when cleaning the control panel to avoid

accidentally turning on the oven.

NOTE: You can only lock the oven when the oven
is not in use or the control has not been set. The

oven will remain locked after a power failure if it
was locked before the power failure.

TO lock the oven:
Press and hold the OVEN keypad for 5 seconds.

,_O You will hear a single tone and "Loc" and

[_ PI will appear on the display. Three tones

P_5_c you press any command pad other than

OFF/CANCEL, TOP or OVEN.

To unlock the oven:

Press and hold the OVEN keypad for 5 seconds.

•_O You will hear a single tone and "Loc" and

will sound when the oven is locked and

CLOCK, TIMER, START/ENTER,

display.

F_will disappear from the temperature

12

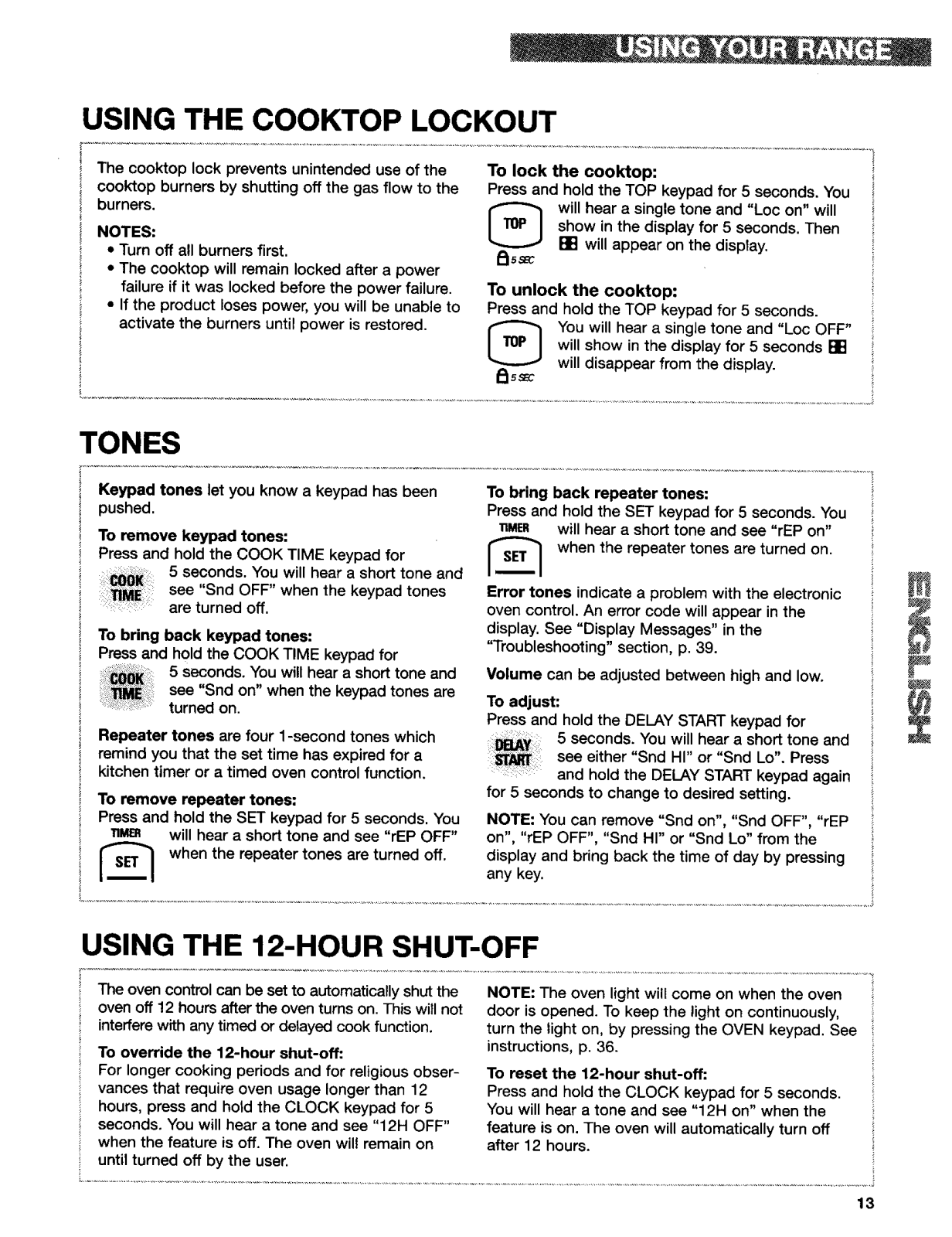

USING THE COOKTOP LOCKOUT

The cooktop lock prevents unintended use of the

cooktop burners by shutting off the gas flow to the

burners.

NOTES:

• Turn off all burners first.

• The cooktop will remain locked after a power

failure if it was locked before the power failure.

• If the product loses power, you will be unable to

activate the burners until power is restored.

TONES

Keypad tones let you know a keypad has been

pushed.

To remove keypad tones:

Press and hold the COOK TIME keypad for

5 seconds. You will hear a short tone and
see "Snd OFF" when the keypad tones

are turned off.

To bring back keypad tones:

Press and hold the COOK TIME keypad for

5 seconds. You will hear a short tone and
see "Snd on" when the keypad tones are

turned on.

Repeater tones are four 1-second tones which

remind you that the set time has expired for a

kitchen timer or a timed oven control function.

To remove repeater tones:

Press and hold the SET keypad for 5 seconds. You

nMEn will hear a short tone and see "rEP OFF"

--_ when the repeater tones are turned oft.

To lock the cooktop:

Press and hold the TOP keypad for 5 seconds. You

show in the display for 5 seconds. Then

will hear a single tone and "Loc on" will

f_5_

To unlock the cooktop:

Press and hold the TOP keypad for 5 seconds.

_5_c

To bring back repeater tones:

Press and hold the SET keypad for 5 seconds. You

_MER will hear a short tone and see "rEP on"

Error tones indicate a problem with the electronic
oven control. An error code will appear in the

display. See "Display Messages" in the
"Troubleshooting" section, p. 39.

Volume can be adjusted between high and low.

To adjust:
Press and hold the DELAY START keypad for

for 5 seconds to change to desired setting.
NOTE: You can remove "Snd on", "Snd OFF", "rEP

on", "rEP OFF", "Snd HI" or "Snd Lo" from the
display and bring back the time of day by pressing ',

any key.

[] will appear on the display.

will show in the display for 5 seconds []

You will hear a single tone and "Loc OFF"

will disappear from the display.

when the repeater tones are turned on,

5 seconds. You will hear a short tone and
see either "Snd HI" or "Snd Lo". Press

and hold the DELAY START keypad again

F

USING THE 12-HOUR SHUT-()FF

The oven control can be set to automatically shut the
oven off 12 hours after the oven turns on. Ti_iswillnot

interferewith any timed or delayed cook function.

To override the 12-hour shut-off:

For longer cooking periods and for religious obser-

vances that require oven usage longer than 12

hours, press and hold the CLOCK keypad for 5

seconds. You will hear a tone and see "12H OFF"
when the feature is off. The oven will remain on
until turned off by the user.

NOTE: The oven light will come on when the oven

door is opened. To keep the light on continuously,
turn the light on, by pressing the OVEN keypad. See

instructions, p. 36.

To reset the 12-hour shut-off:

Press and hold the CLOCK keypad for 5 seconds,

You will hear a tone and see "12H on" when the
feature is on. The oven will automatically turn off

after 12 hours.

13
