Kenmore 665.1776 User Manual

ULTRA WASH® Portable Dishwasher

Use & Care Guide

Lavavajillas portátil ULTRA WASH

Manual de uso y cuidado

Lave-vaisselle mobile ULTRA WASH

Guide d’utilisation et d’entretien

Model/Modelo/Modèle 665.1776✼ ✼ = color number, número de color, numéro de couleur

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

W10040790 Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

TABLE OF CONTENTS

PROTECTION AGREEMENTS.......................................................2

In the U.S.A...................................................................................2

In Canada .....................................................................................3

WARRANTY.....................................................................................3

DISHWASHER SAFETY..................................................................4

PARTS AND FEATURES ................................................................6

ULTRA WASH

START-UP GUIDE ..........................................................................7

Using Your New Dishwasher........................................................7

CONNECTING THE DISHWASHER ..............................................8

Connecting the Faucet Adapter...................................................8

Connecting to Water and Electrical Supply.................................8

Using the Faucet ..........................................................................9

Disconnecting the Dishwasher.....................................................9

DISHWASHER LOADING...............................................................9

Loading Suggestions....................................................................9

Loading Top Rack ..................................................................... 10

Loading Bottom Rack ............................................................... 10

Loading Silverware Basket........................................................ 11

DISHWASHER USE ..................................................................... 11

Detergent Dispenser.................................................................. 11

Rinse Aid Dispenser .................................................................. 12

Dishwasher Efficiency Tips ....................................................... 13

Cycle Selection Charts.............................................................. 13

Canceling a Cycle...................................................................... 14

Changing a Cycle or Setting ..................................................... 14

Adding Items During a Cycle..................................................... 14

Option Selections...................................................................... 14

Cycle Status Indicators ............................................................. 15

Drying System ........................................................................... 15

Overfill Protection Float............................................................. 15

WASHING SPECIAL ITEMS........................................................ 16

DISHWASHER CARE................................................................... 17

Cleaning..................................................................................... 17

Storing ....................................................................................... 17

TROUBLESHOOTING.................................................................. 18

SERVICE NUMBERS ............................................... BACK COVER

Soil Removal System..........................................7

PROTECTION AGREEMENTS

In the U.S.A.

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and protect yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend the life of your new product. Here’s what’s included in the Agreement:

✔ Expert service by our 12,000 professional repair specialists ✔ Unlimited service and no charge for parts and labor on all

covered repairs

✔ “No-lemon” guarantee – replacement of your covered

product if four or more product failures occur within twelve months

✔ Product replacement if your covered product can’t be fixed ✔ Annual Preventive Maintenance Check at your request – no

extra charge

✔ Fast help by phone – phone support from a Sears technician

on products requiring in-home repair, plus convenient repair scheduling

✔ Power surge protection against electrical damage due to

power fluctuations

✔ Rental reimbursement if repair of your covered product takes

longer than promised

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That’s the kind of professionalism you can count on to help prolong the life of your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information, call 1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. call 1-800-4-MY-HOME

In Canada

Maintenance Agreements

Your purchase has added value because you can depend on Sears HomeCentral Technicians and more than a million parts and accessories, we have the tools, parts, knowledge and skills to back our pledge: We Service What We Sell.

You r Ke nm ore provide years of dependable operation. But like all products, it may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program, affordably priced.

for service. With over 2,400 Service

product is designed, manufactured and tested to

KENMORE APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME repair.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL AND WORKMANSHIP. SEARS WILL NOT PAY FOR:

1. Expendable items that can wear out from normal use,

including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product

installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed,

operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident,

abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of

detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from

unauthorized modifications made to this product.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

to arrange for free

The Sears Maintenance Agreement

■ Is your way to buy tomorrow’s service at today’s price

■ Eliminates repair bills resulting from normal wear and tear

■ Provides phone support from a Sears technician on products

requiring in-home repair

■ Even if you don’t need repairs, provides an annual Preventive

Maintenance Check, at your request, to ensure that your product is in proper running condition.

Some limitations apply. For more information about Sears Canada Maintenance Agreements, call 1-800-361-6665.

This warranty applies only while this appliance is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co.

Dept. 817WA, Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

PRODUCT RECORD

In the space below, record your complete model number, serial number, and purchase date. You can find this information on the model and serial number label located on the product.

Have this information available to help you obtain assistance or service more quickly whenever you contact Sears concerning your appliance.

Model number __ __ __. __________________________________________

Serial number___________________________________________________

Purchase date __________________________________________________

Save these instructions and your sales receipt for future reference.

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

When using the dishwasher, follow basic precautions, including the following:

follow instructions.

can be killed or seriously injured if you don't

You instructions.

■

Read all instructions before using the dishwasher.

■

Use the dishwasher only for its intended function.

■

Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.

■

When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; and

2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.

■

Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

■

Do not touch the heating element during or immediately after use.

■

Do not operate the dishwasher unless all enclosure panels are properly in place.

SAVE THESE INSTRUCTIONS

■

Do not tamper with controls.

■

Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.

■

To reduce the risk of injury, do not allow children to play in or on the dishwasher.

■

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

■

Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

GROUNDING INSTRUCTIONS

■

For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipmentgrounding conductor must be run with the circuit conductors and connected to the equipmentgrounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

■ Install where dishwasher is protected from the elements.

Protect against freezing to avoid possible rupture of fill valve. Such ruptures are not covered by the warranty. See “Storing” section for winter storage information.

■ Install and level dishwasher on a floor that will hold the

weight, and in an area suitable for its size and use.

■ Remove all shipping plugs from hoses and connectors (such

as the cap on the drain outlet) before installing. See Installation Instructions for complete information.

PARTS AND FEATURES

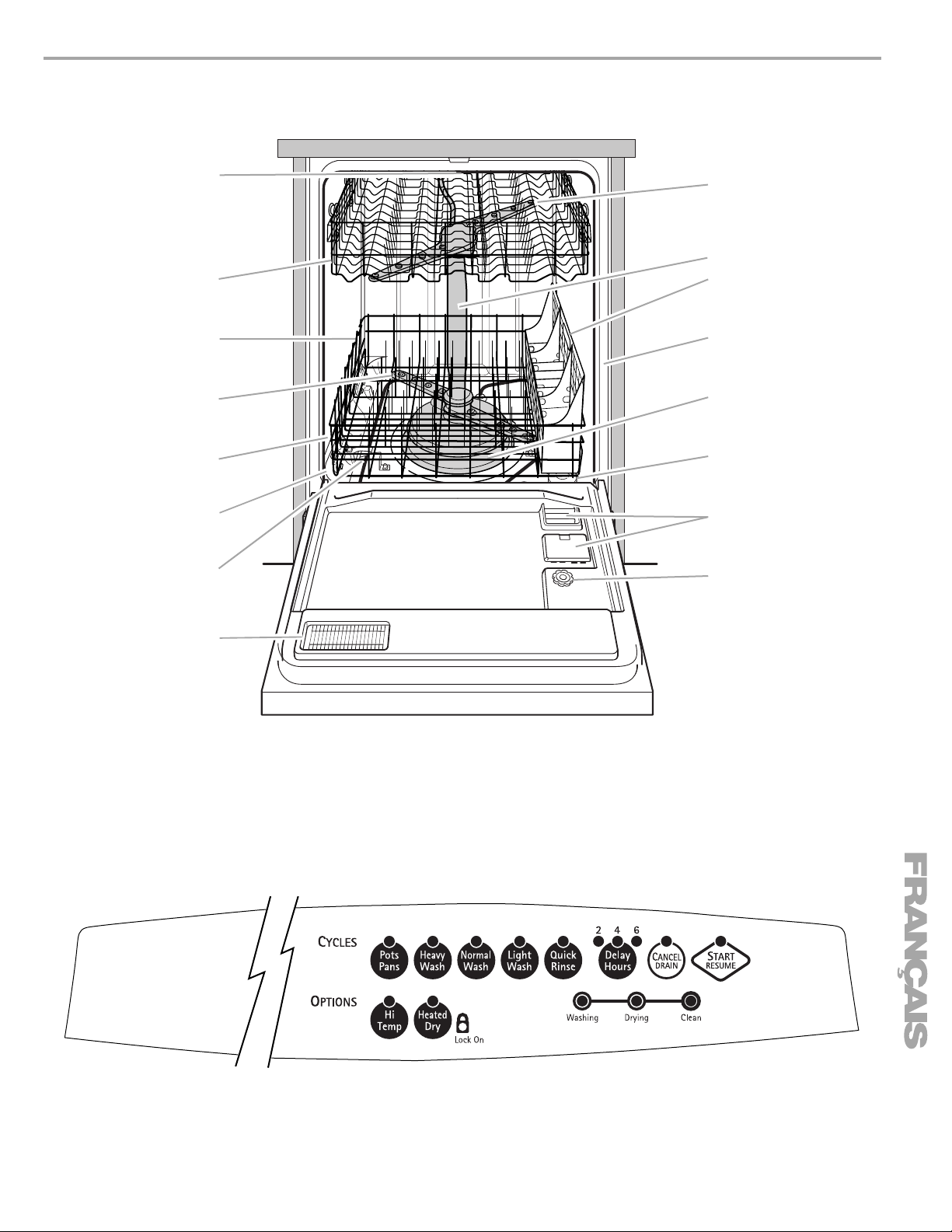

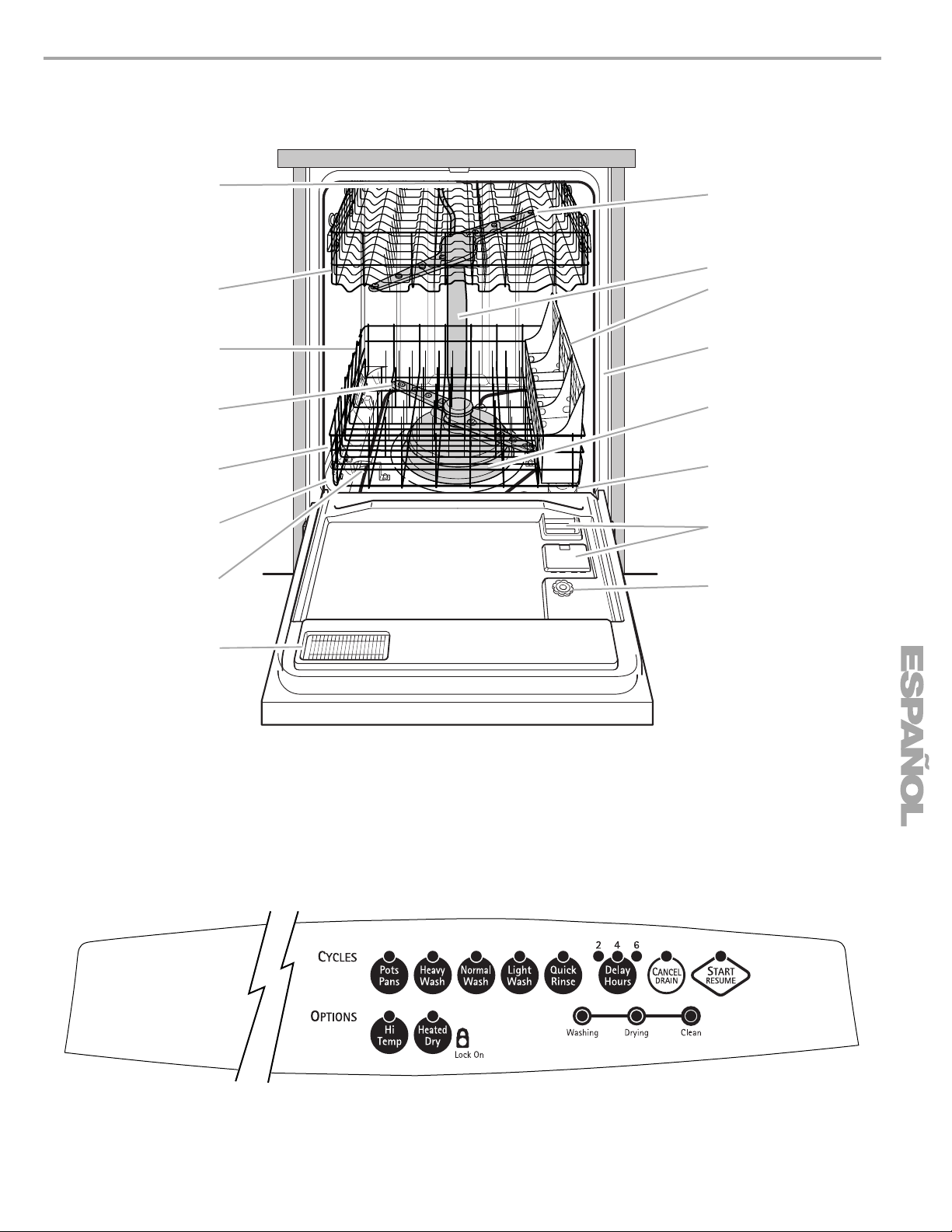

A. Upper level wash B. Top rack C. Bottom rack D. Lower spray arm E. Water inlet opening (in tub wall)

Control Panel

F. Rack bumper G. Heating element H. Vent

I. Top spray arm

J. ULTRA FLOW™ water feed tube

K. Silverware basket

L. Model and serial number label

M. ULTRA WASH

N. Overfill protection float O. Detergent dispenser P. Rinse aid dispenser

module

ULTRA WASH® Soil Removal System

The ULTRA WASH soil removal system gives you sparkling clean dishes, while using less energy and time. The ULTRA WASH soil removal system includes:

A multilevel wash sytem with a self-cleaning filter.

START-UP GUIDE

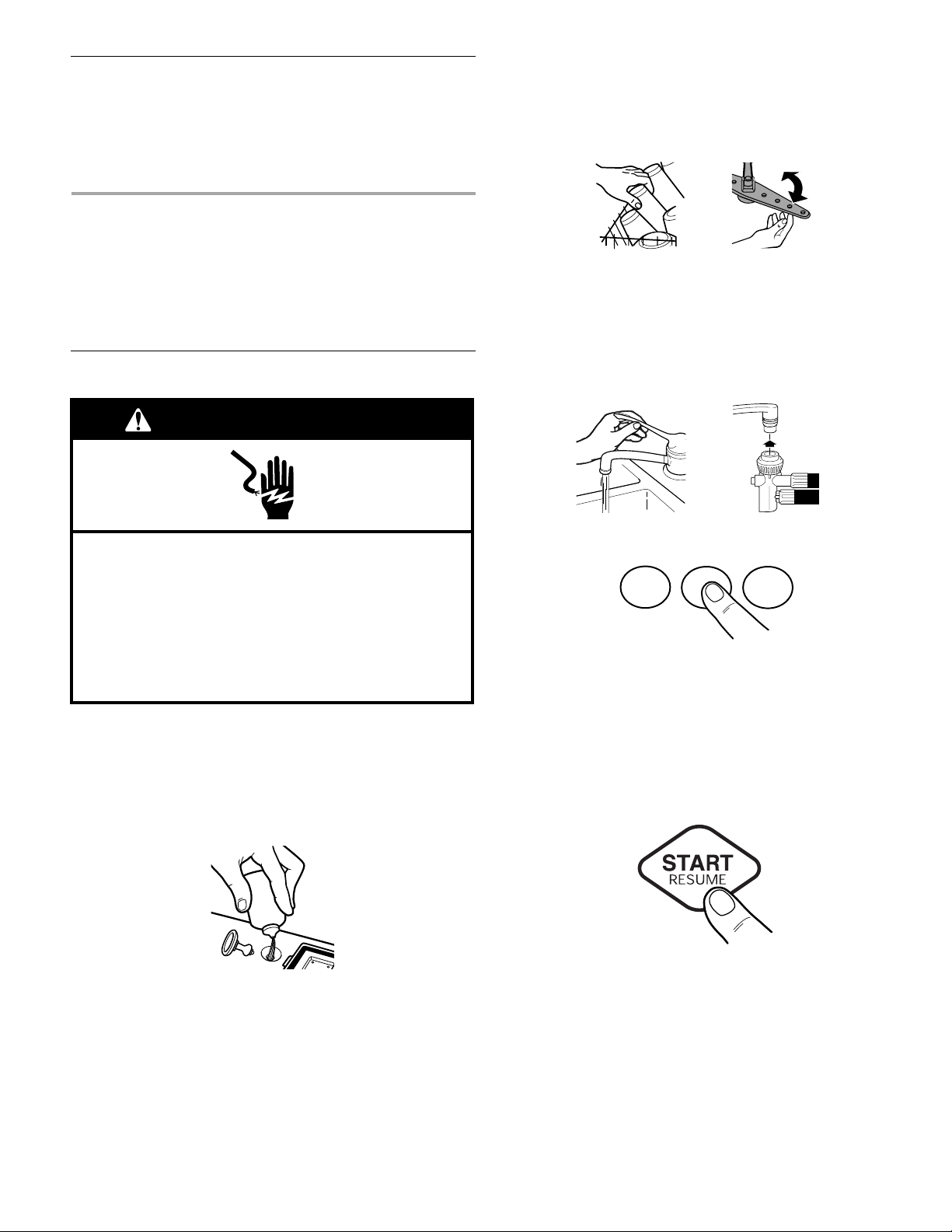

4. Properly load the dishwasher. (See “Dishwasher Loading.”)

Load dishes with space in between so water will reach the soiled surfaces. Make sure nothing keeps the spray arm(s) from spinning freely.

Before using your dishwasher, remove all packaging materials. Read this entire Use and Care Guide. You will find important safety information and useful operating tips.

Using Your New Dishwasher

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

A power supply of 120 volts, 60 Hz AC, 15 or 20 amps, is required.

1. Plug into a grounded 3 prong outlet.

2. Rinse aid is essential for good drying. Be sure to fill the

dispenser before you use your new dishwasher. Each filling will last about 1 to 3 months depending on your usage.

5. Add detergent. Always use a quality brand detergent. (See

“Dishwasher Use.”)

6. Push the door firmly closed. The door latches automatically.

Run hot water at the sink where you will connect dishwasher until water is hot. (See “Dishwasher Efficiency Tips.”) Turn off the water and hook the dishwasher to the faucet. (See “Connecting the Dishwasher.”) Turn on the hot water.

7. Press the desired cycle and options. (See “Dishwasher Use.”)

8. Press START/RESUME, or press START/RESUME to repeat

the same cycle and options as the previous cycle. IMPORTANT: The Start/Resume light will begin flashing if the

door is opened during a cycle. Power interruptions during a cycle may also cause the Start/Resume light to flash. Press START/RESUME to continue a cycle.

3. Scrape large food soil and hard items (toothpicks or bones)

from dishes.

CONNECTING THE DISHWASHER

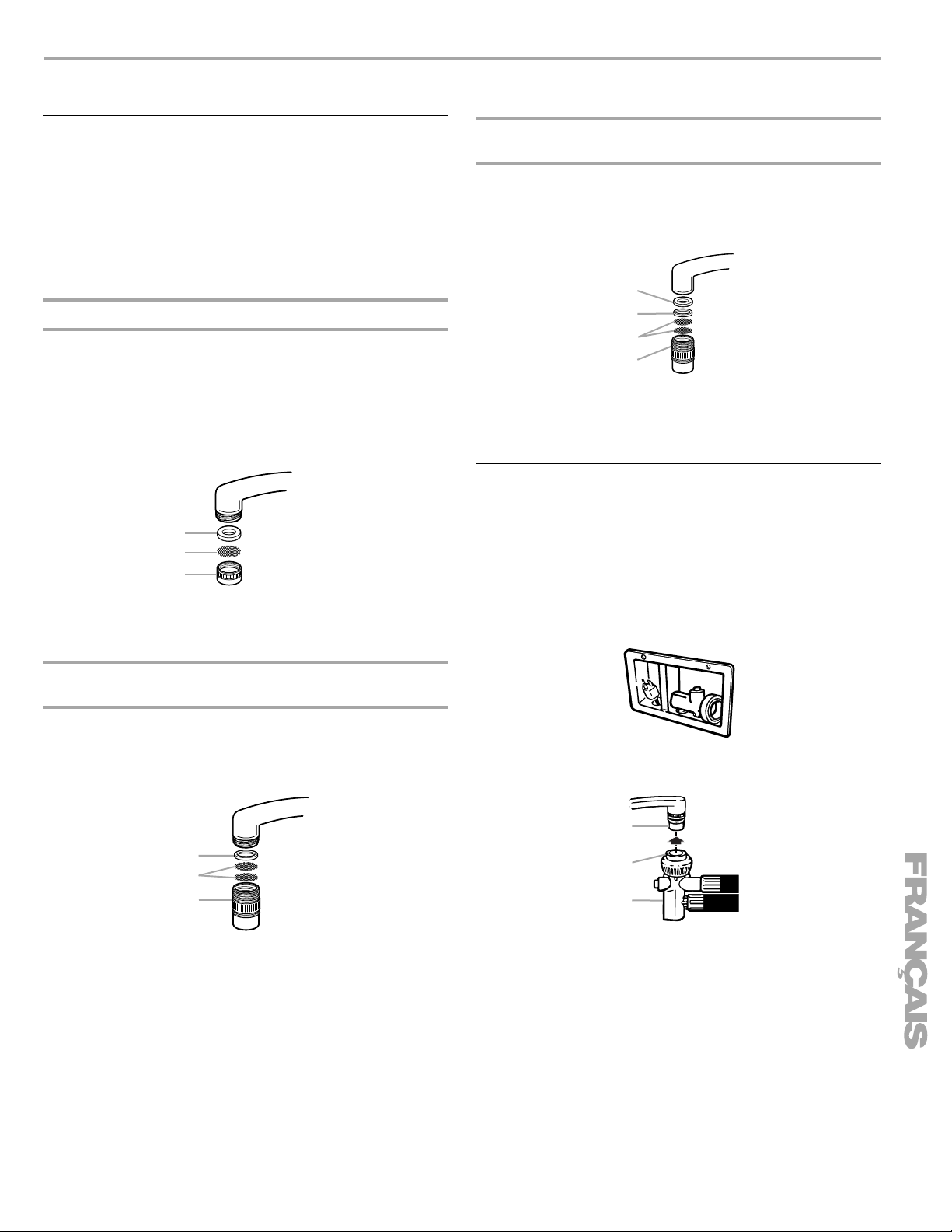

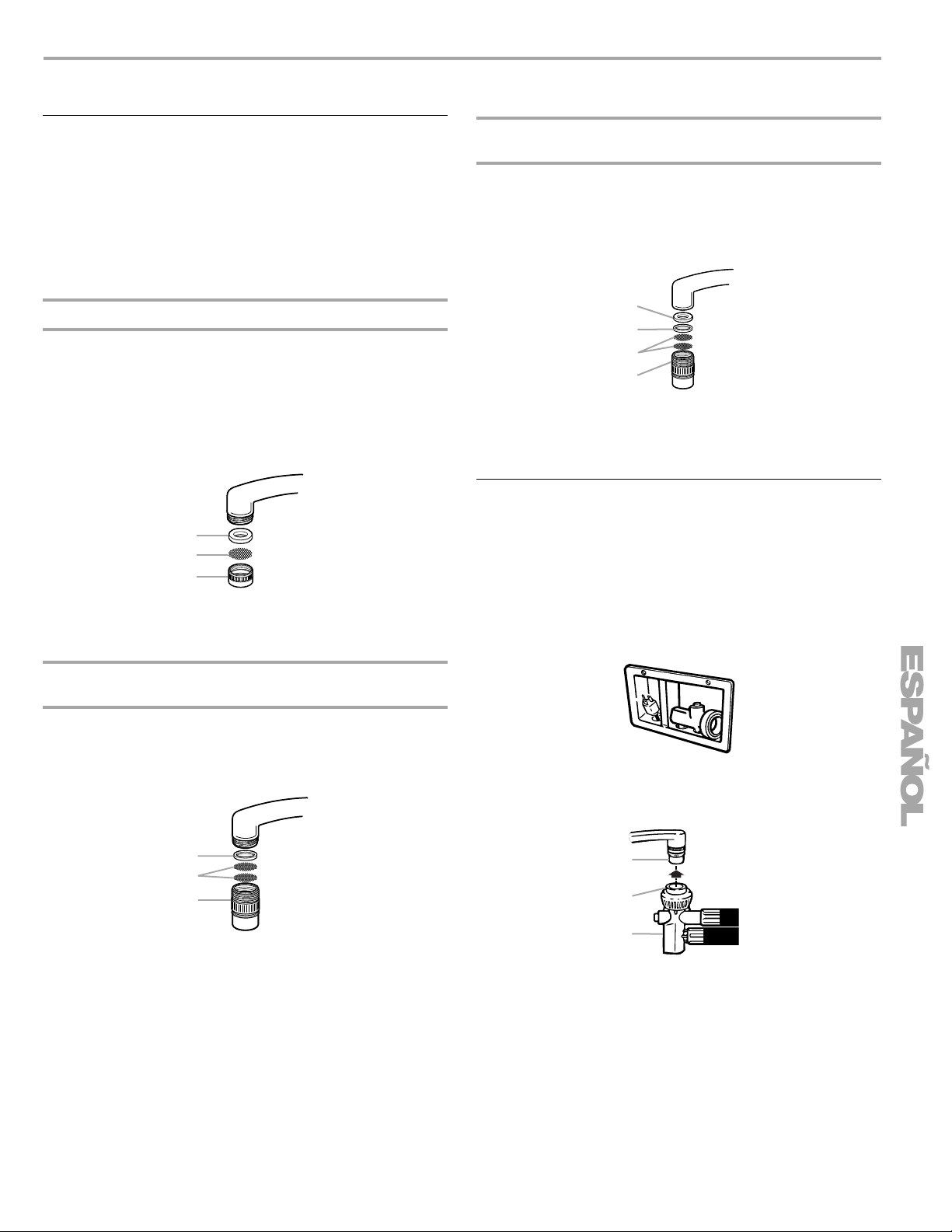

Connecting the Faucet Adapter

NOTE: A special adapter must be installed on the faucet before

the dishwasher can be connected. Complete Installation Instructions and the adapter are packed with your dishwasher. (See the Installation Instructions.)

When moving your dishwasher, make sure the door is latched. Hold the dishwasher at the top front corners.

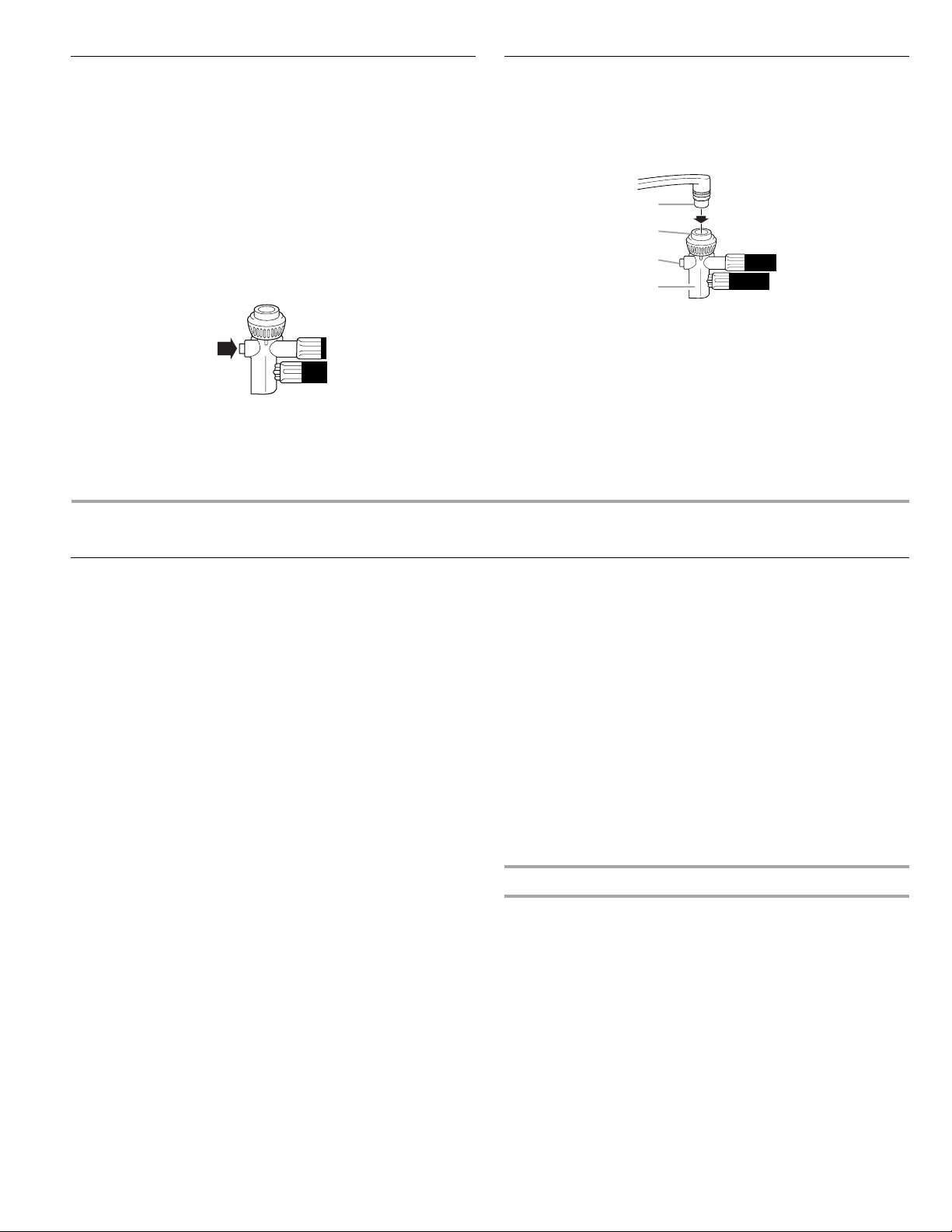

Preparing the faucet

1. Remove the screen holder or aerator, screen, and washer

from the end of the faucet.

2. Use the faucet adapter kit that came with your portable

dishwasher to modify the faucet where the dishwasher will be used.

NOTE: Remove and save the washer, screen, and screen holder or aerator for future use.

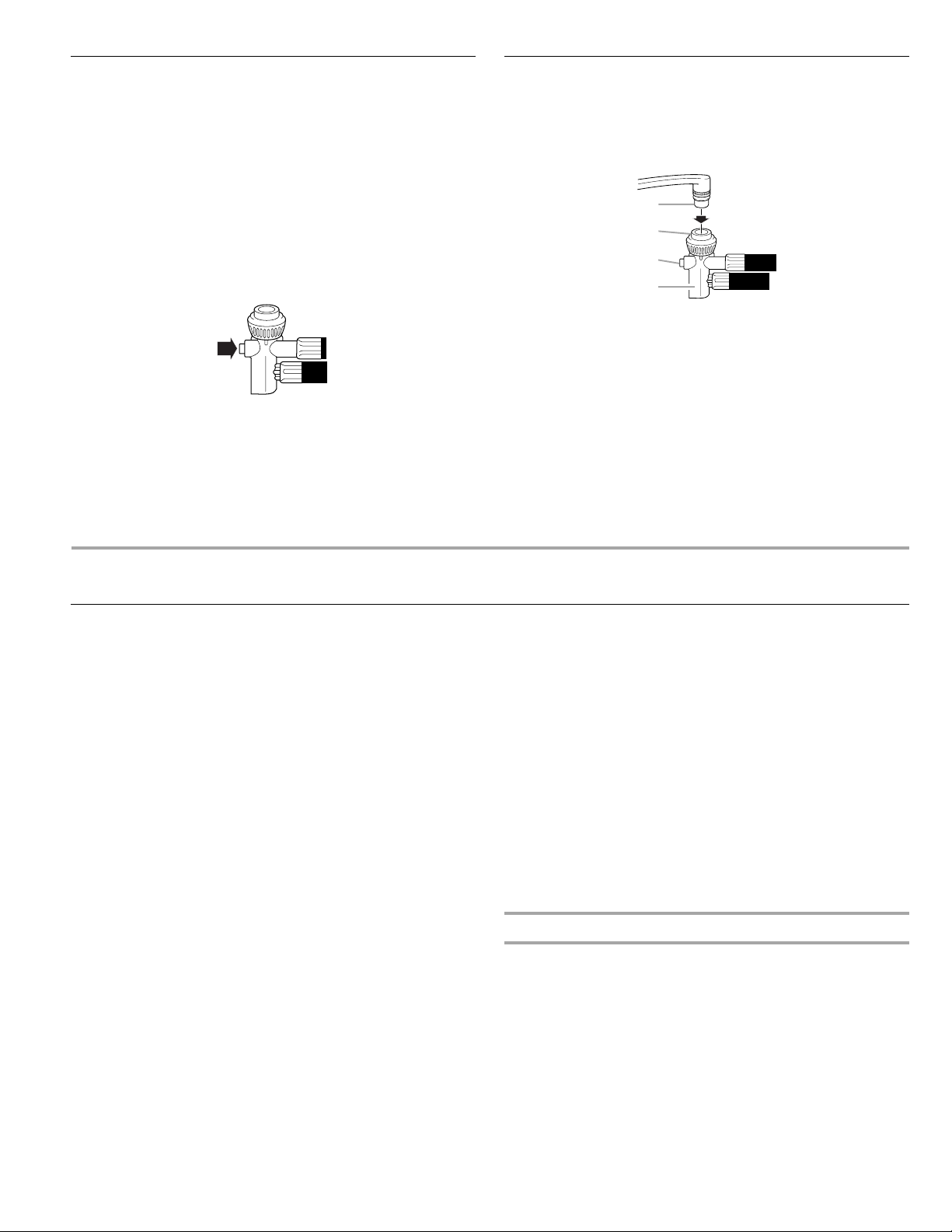

A B

A. Washer B. Screen C. Screen holder or aerator

Connecting the faucet adapter to faucets with internal threads

Insert the 2 screens, the thin washer, and then the thick washer from the faucet adapter kit into the faucet adapter. Attach the adapter onto the end of the faucet.

NOTE: Use both washers.

B C D

A. Thick washer B. Thin washer C. Screens D. Faucet adapter

Connecting to Water and Electrical Supply

1. Run water at the faucet until it is hot. Turn off the water.

2. Pull the hoses out of their storage compartment on the back

of the dishwasher. NOTE: Make sure the hoses are not kinked or twisted. Kinked

hoses reduce washing performance.

Connecting the faucet adapter to faucets with external threads

Insert the 2 screens and then the thin washer from the faucet adapter kit into the faucet adapter. Attach the adapter onto the end of the faucet.

NOTE: Do not use the thick washer.

A B

A. Thin washer B. Screens C. Faucet adapter

3. Pull down on the locking collar while lifting the hose

connector onto the faucet adapter.

A. Faucet adapter B. Locking collar C. Hose connector

4. When the connector snaps into place, release the locking

collar.

5. Turn the hot water on slowly until it is all the way on.

6. Plug into a grounded 3 prong outlet.

Using the Faucet

You can draw water from the faucet while the dishwasher is connected.

NOTE: Do not draw water while the dishwasher is filling or while water is being pumped out. (This helps avoid a low fill when dishwasher is filling or mixing drain water with fresh water when dishwasher is draining.)

Press the red button on the hose connector to draw water from the faucet. (The faucet is set on hot. Adjust the faucet for the water temperature you want.)

NOTE: Turn the hot water back on after you draw water from the faucet. Turn off the cold water.

Disconnecting the Dishwasher

1. Turn off the hot water. (This can be done after the last rinse.)

2. Press the red button on the connector to release the water

pressure.

A. Faucet adapter B. Locking collar C. Red button D. Hose connector

3. Lift slightly on the hose connector while pulling down the

locking collar. Pull down on the connector.

4. Empty any remaining water from the connector by turning the

connector upside-down.

5. Unplug the power supply cord and return it to the storage

compartment.

6. Return the hoses to the storage compartment.

DISHWASHER LOADING

Loading Suggestions

■ Remove leftover food, bones, toothpicks and other hard

items from the dishes. To conserve water and energy and save time, it is not necessary to rinse dishes before putting them into the dishwasher.

NOTE: Prerinsing dishes soiled with tomato-based products is recommended to avoid staining the dishware.

The wash module removes food particles from the water. The module contains a multilevel wash system with a self-cleaning filter.

NOTE: If hard items such as fruit seeds, nuts, and eggshells enter the wash module, you might hear grinding, crunching, or buzzing sounds. These sounds are normal when hard items enter the module. Do not let metallic items (such as pot handle screws) get into the wash module. Damage can occur.

■ For best drying, water must be able to drain from all surfaces.

■ It is important for the water spray to reach all soiled surfaces.

■ Load dishes so they are not stacked or overlapping if

possible.

■ Use special care when loading heavy pots and pans. Heavy

items can damage the interior of the door if they are dropped or bumped.

■ Make sure pot lids and handles, pizza pans, cookie sheets,

etc., do not interfere with the spray arm rotation.

■ Conserve water and energy and save time over hand rinsing

by running a rinse cycle to keep dishes moist if you do not plan to wash them soon. Foods such as eggs, rice, pasta, spinach, and cooked cereals may be hard to remove if they are left to dry over a period of time.

■ Place items so open ends face down for best cleaning and

draining.

Quiet operating tips

To avoid thumping/clattering noises during operation:

■ Make sure lightweight load items are secured in the racks.

■ Make sure pot lids and handles, pizza pans, cookie sheets,

etc., do not touch interior walls or interfere with the rotation of the spray arm(s).

■ Load dishes so they do not touch one another.

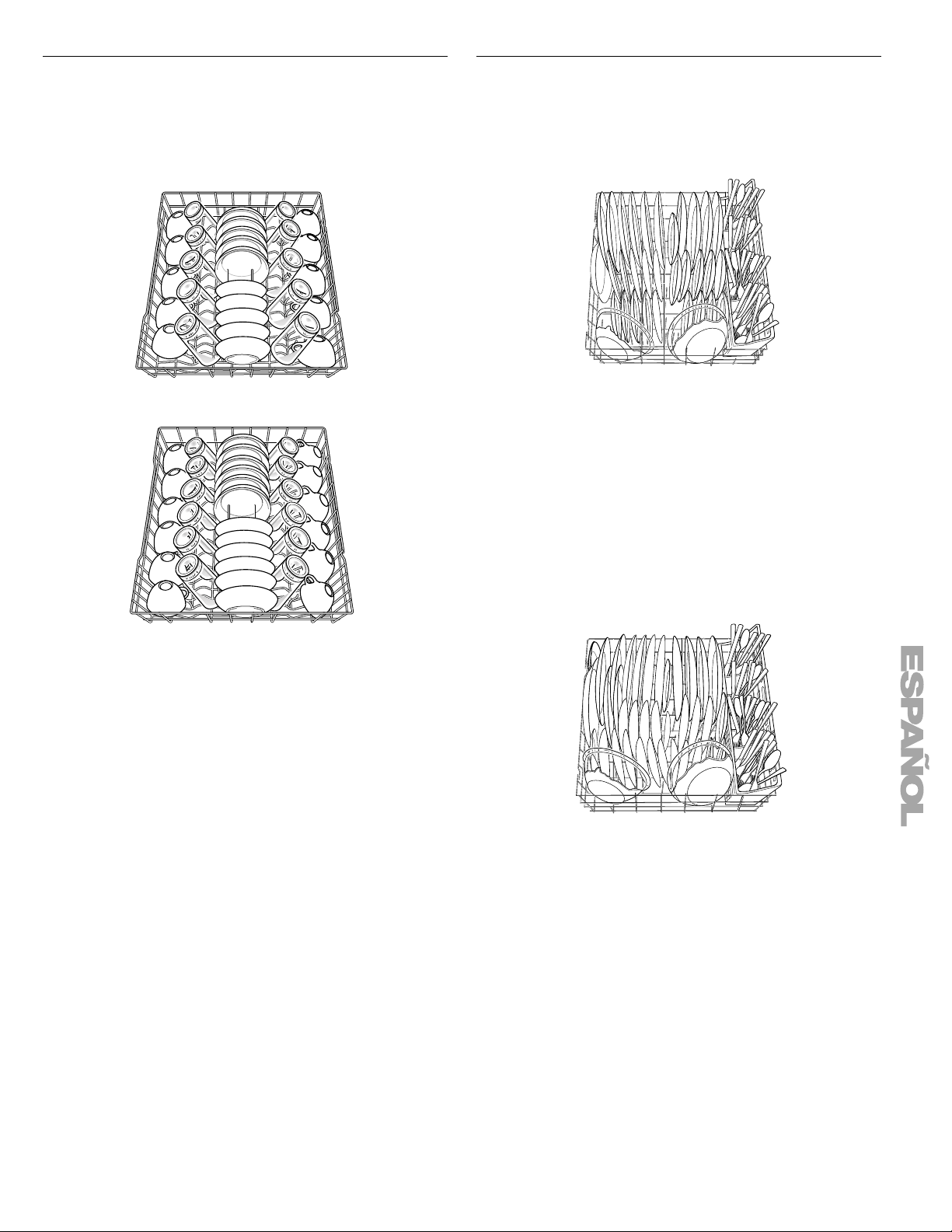

Loading Top Rack

The top rack is designed for cups, glasses, and smaller items. (See recommended loading patterns shown.)

NOTE: The features on your dishwasher rack may vary from the drawings shown.

Loading Bottom Rack

The bottom rack is designed for plates, pans, casseroles, and utensils. (See recommended loading patterns shown.)

NOTE: The features on your dishwasher rack may vary from the drawings shown.

10 place setting

12 place setting

■ Place items so open ends face down for cleaning and

draining.

■ Load glasses in top rack only. The bottom rack is not

designed for glasses. Damage can occur.

■ Place cups and glasses in the rows between tines. Placing

them over the tines can lead to breakage and water spots.

■ China, crystal, and other delicate items must not touch each

other during dishwasher operation. Damage may occur.

■ Load plastic items in the top rack only. Only plastic items

marked “dishwasher safe” are recommended.

■ Load plastic items so the force of the spray does not move

them during the cycle.

■ To avoid chipping, do not let stemware touch other items.

■ Small bowls, pans, and other utensils can be placed in the

top rack. Load bowls in the center section for best stability.

10 place setting

■ Do not load glasses, cups, or plastic items in the bottom

rack. Load small items in the bottom rack only if they are secured in place.

■ Load plates, soup bowls, etc., between tines.

■ Overlap the edges of plates for large loads.

■ Load soup, cereal, and serving bowls in the rack in a variety

of ways depending upon their size and shape. Load bowls securely between the rows of tines. Do not nest bowls because the spray will not reach all surfaces.

12 place setting

■ Load cookie sheets, cake pans, and other large items at the

sides and back. Loading such items in front can keep the water spray from reaching the detergent dispenser.

■ Secure heavily soiled cookware face down in the rack.

■ Make sure pot handles and other items do not stop rotation

of the spray arm(s). The spray arm(s) must move freely.

■ Do not load items between the bottom rack and the side of

the dishwasher tub because they might block the water inlet opening.

NOTE: If you have removed the bottom rack for unloading or cleaning, replace it with the bumpers in front.

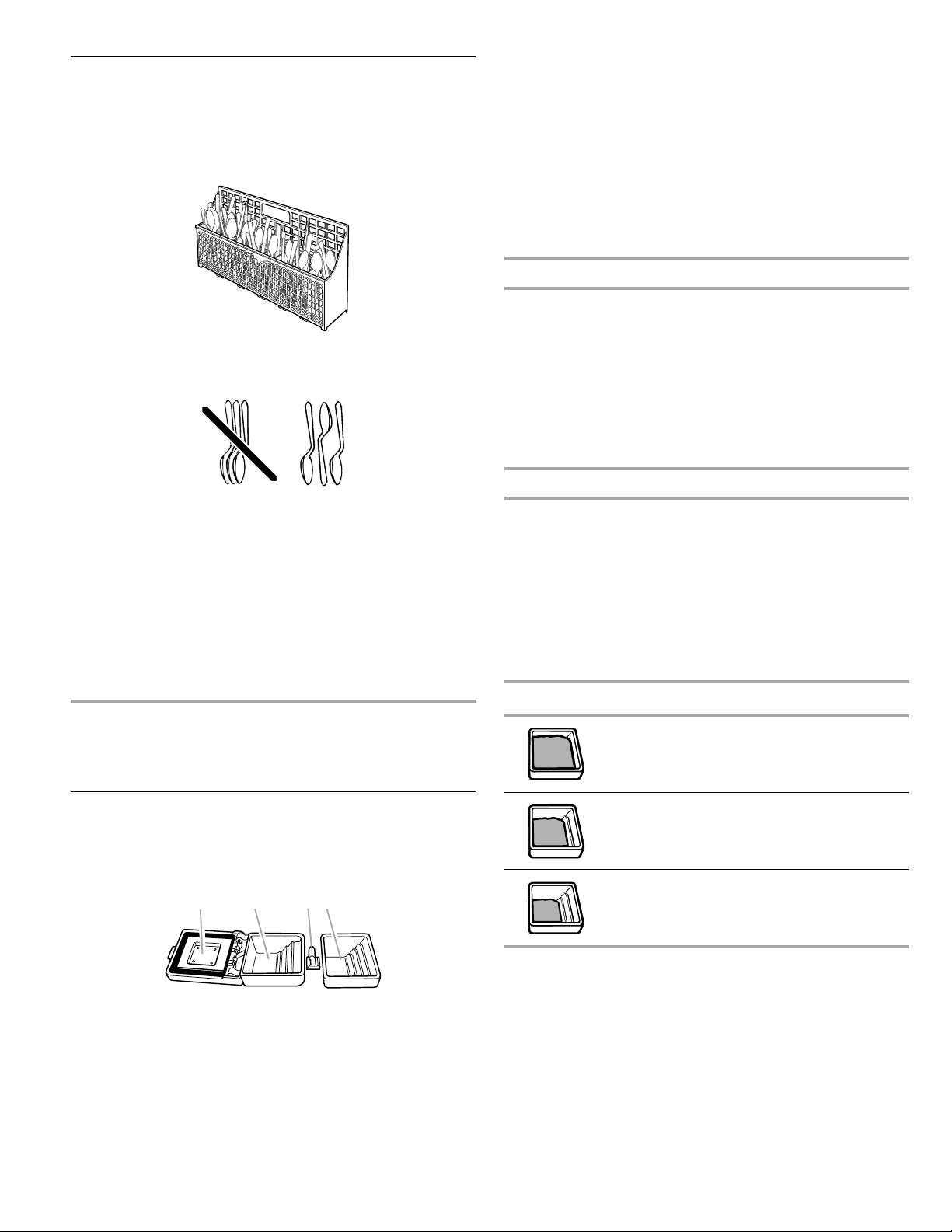

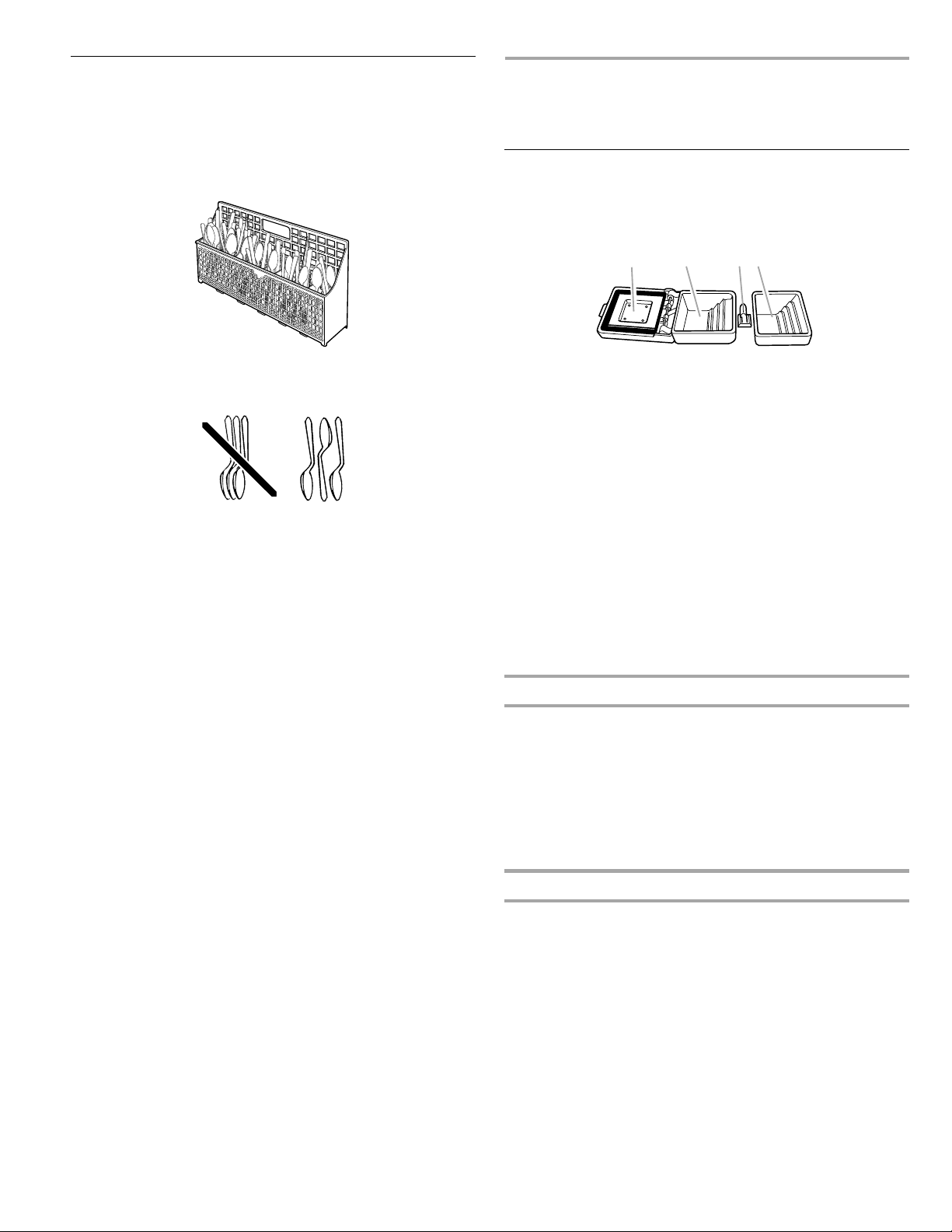

Loading Silverware Basket

Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table.

NOTE: Unload or remove the basket before unloading the racks to avoid spilling water droplets onto the silverware.

DISHWASHER USE

Detergent Dispenser

The detergent dispenser has 2 sections. The Pre-Wash section empties detergent into the dishwasher when you close the door.

Mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items.

IMPORTANT: Always load items (knives, skewers, etc.) pointing down.

NOTES:

■ Do not load silver or silver-plated silverware with stainless

steel. These metals can be damaged by contact with each other during washing.

■ Some foods (such as salt, vinegar, milk products, fruit juices,

etc.) can pit or corrode silverware. Run a rinse cycle if you do not have a full load to wash immediately.

The larger Main Wash section automatically empties detergent into the dishwasher during the main wash. (See the “Cycle Selection Charts.”)

■ Use automatic dishwashing detergent only. Other detergents

can produce excessive suds that can overflow out of the dishwasher and reduce washing performance.

■ Add detergent just before starting a cycle.

■ Store tightly closed detergent in a cool, dry place. Fresh

automatic dishwasher detergent results in better cleaning.

NOTE: Do not use detergent if you have selected a rinse cycle.

BCD

A. Cover B. Main Wash section C. Cover latch D. Pre-Wash section

Filling the dispenser

1. If the dispenser cover is closed, open the cover by pushing

the cover latch.

2. Fill the Main Wash section with detergent. See “How much

detergent to use.”

3. Fill the Pre-Wash section if needed. (See “Cycle Selection

Charts.”)

4. Close the dispenser cover. The cover will open during the cycle to dispense the detergent.

How much detergent to use

■ The amount of detergent to use depends on the hardness of

your water and the type of detergent. If you use too little, dishes will not be clean. If you use too much in soft water, glassware will etch.

■ Water hardness can change over a period of time. Find out

your water’s hardness by asking your Sears Sales Associate, local water department, water softener company, or county extension agent.

Where to fill

Top of 3rd step (9 tsp or 45 mL)

Rinse Aid Dispenser

IMPORTANT: Your dishwasher is designed to use a liquid rinse

aid. The use of rinse aids greatly improves drying by allowing water to drain from the dishes during the final rinse. They also keep water from forming droplets that can dry as spots or streaks. Do not use a solid or bar-type rinse aid.

Top of 2nd step (6 tsp or 30 mL)

Top of 1st step (3 tsp or 15 mL)

Soft to Medium Water (0-6 grains per gallon)

[typical water softener water and some city water]

Soil Level Main Wash Pre-Wash

Lightly soiled/Prerinsed dish loads

Normally soiled dish loads

Heavily soiled dish loads

3 tsp (15 mL)

[top of 1st step]

6 tsp (30 mL)

[top of 2nd step]

9 tsp (45 mL)

[top of 3rd step]

[top of 1st step]

[top of 2nd step]

Medium to Hard Water (7-12 grains per gallon)

[well water and some city water]

Soil Level Main Wash Pre-Wash

3 tsp (15 mL)

6 tsp (30 mL)

†

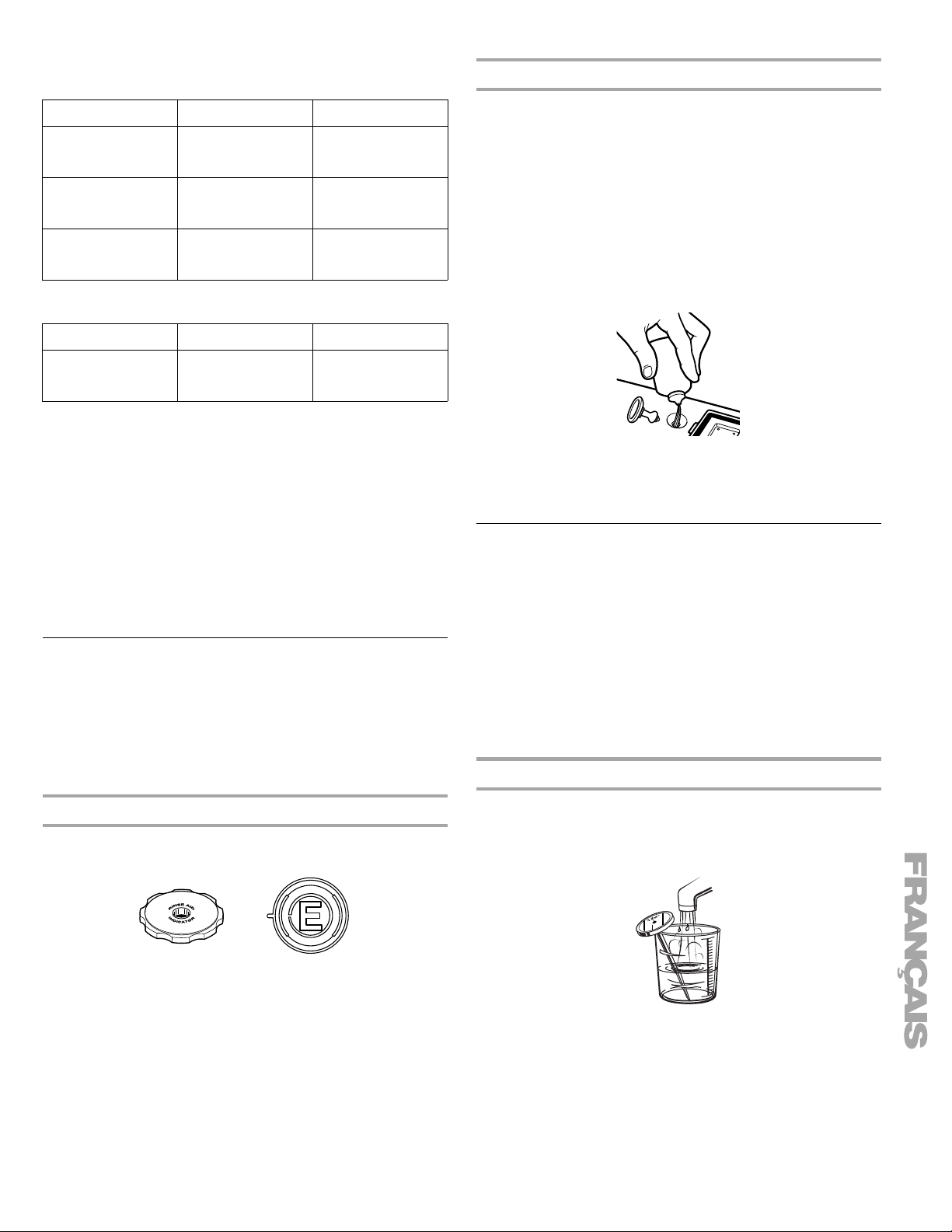

Checking the dispenser

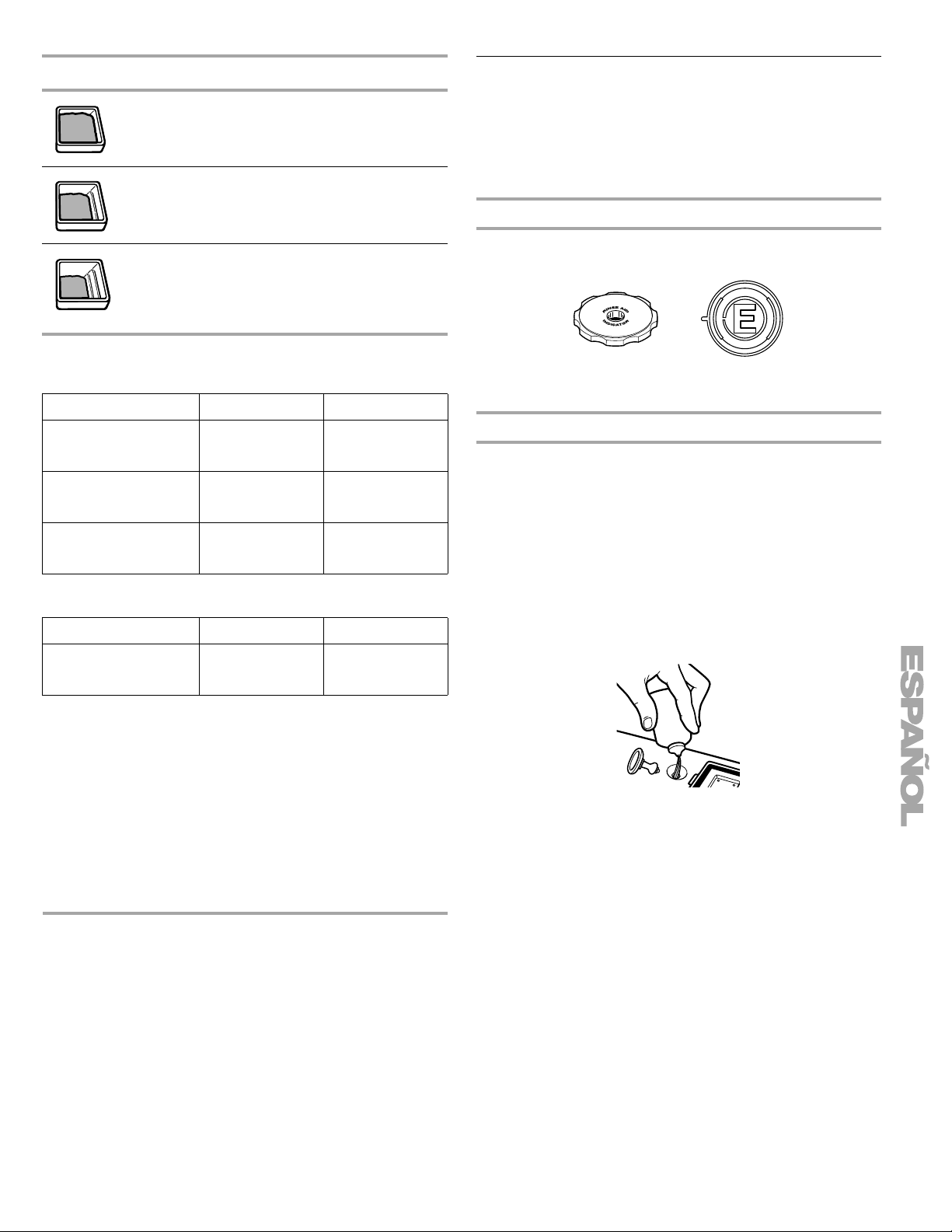

Check the center of the fill indicator cap. Clear means it needs filling.

Or you can remove the fill indicator cap. If an “E” is visible, the dispenser is empty.

Filling the dispenser

The rinse aid dispenser holds 6 oz (175 mL) of rinse aid. Under normal conditions, this will last for about 3 months. You do not have to wait until the dispenser is empty to refill it. Try to keep it full, but be sure not to overfill it.

1. Make sure the dishwasher door is completely open.

2. Remove the fill indicator cap.

3. Add rinse aid. Fill to the smallest opening in the lower part of

the dispenser. Overfilling can cause the rinse aid to leak out, and could cause oversudsing.

All soil types 9 tsp (45 mL)

†

It might be necessary to use the Hi Temp wash option for best

[top of 3rd step]

6 tsp (30 mL)

[top of 2nd step]

wash performance in very hard water.

NOTE: Fill amounts shown are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered detergent. Tablet detergents should be placed in the main wash section of the detergent dispenser with the cover closed. Follow instructions on the package when using liquid dishwasher detergent, concentrated powdered detergent or tablet detergent.

IMPORTANT: See “Cycle Selection Charts” for which detergent dispenser sections to use with each cycle.

4. Clean up any spilled rinse aid with a damp cloth.

5. Replace the fill indicator cap. Close tightly.

Dishwasher Efficiency Tips

Hot water dissolves and activates the dishwashing detergent. Hot water also dissolves grease on dishes and helps glasses dry spotfree. For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low. Water that is too hot can make some soils harder to remove and cause certain detergent ingredients not to function. If your water heater is located far from the dishwasher, it may be necessary to run the hot water at the faucet closest to the dishwasher to minimize the amount of cold water in the water line.

To check water temperature

1. Run hot water at the faucet closest to your dishwasher for at

least 1 minute.

2. Place a candy or meat thermometer in a glass measuring

cup.

3. Check the temperature on the thermometer as the water is

running into the cup.

Cycle Selection Charts

Select the wash cycle and options desired. Or press START/ RESUME to use the same cycle and options as the previous cycle.

NOTE: If the last cycle you completed was a rinse cycle, the dishwasher will run the last full wash cycle and options that you selected when you press Start/Resume.

Additional efficiency tips

■ To save water, energy and time, do not rinse dishes before

putting them into the dishwasher.

■ Use a delay feature to run your dishwasher during off-peak

hours. Local utilities recommend avoiding heavy usage of energy at certain times of day.

■ During the summer, run your dishwasher at night. This

reduces daytime heat buildup in the kitchen.

■ Use a rinse aid to improve drying.

■ Use cycles or options that add extra heat to the wash or rinse

portion of the cycle only when needed.

■ If your home is equipped with a water softener, you may want

to avoid starting the dishwasher during the regeneration of the softener, since this may contribute to poor wash performance.

Heavy Wash

Use this cycle for loads with heavy food soil.

Use both detergent dispenser sections.

A “●” shows what steps are in each cycle. Water usage is shown in U.S. gallons/liters. This model meets the ENERGY STAR

guidelines for energy

efficiency. IMPORTANT: Typical cycles may take several hours depending

on cycle selected and water temperature.

Pots Pans

Use this cycle for hard-to-clean, heavily soiled pots, pans, casseroles, and regular tableware.

Use both detergent dispenser sections.

Wash Main

Wash

●●●

Rinse or

Purge

Rinse

Final

Rinse

●●2.5 hrs* 8.6/32.6

Dry Approximate

Time

Water

Usage (gal/L)

Wash Main

●●●

Wash

Rinse or

Purge

Final Rinse

●●2 hrs* 6.9/26.1

Dry Approximate

Time

Water

Usage (gal/L)

Normal Wash

Use this cycle for loads with normal amounts of food soil. (The energy-usage label is based on this cycle.)

Use covered detergent dispenser section.

Wash Main

Rinse or

Wash

Purge

●●

Purge

Final Rinse

●●1.5 hrs* 4.6/17.4

Dry Approximate

Time

Water

Usage (gal/L)

Light Wash

Use this cycle for china and crystal. This cycle uses a light wash and gentle dry. During the heated dry, the heating element cycles on and off.

Changing a Cycle or Setting

During the first minute of a cycle

Use covered detergent dispenser section.

Wash Main

Wash

Rinse or

Purge

●●

Purge

Final

Rinse

●●

Dry Approximate

cycled

Time

1.5 hrs* 4.8/18.2

Water

Usage (gal/L)

Quick Rinse

Use this rinse cycle for rinsing dishes, glasses, and silverware that will not be washed right away.

Do not use detergent with this cycle.

Wash Main

Wash

Rinse or

Purge

●

Rinse

Final

Rinse

Dry Time

(min)

10 2.2/8.3

Water

Usage (gal/L)

*If the incoming water temperature is less than the

recommended temperature, the cycle will automatically compensate by adding time and heat as needed.

Canceling a Cycle

1. Press CANCEL/DRAIN. The Cancel/Drain light glows.

2. The dishwasher starts a 2-minute drain (if needed). Let the

dishwasher drain completely. The light turns off after 2 minutes. The door must be closed for the dishwasher to drain.

To stop the drain

You can press CANCEL/DRAIN again to stop the drain. Remember to drain the dishwasher before starting a new cycle.

1. Select a new cycle and/or options.

2. Check the detergent dispensers. They must be filled properly

for the new cycle.

3. The Start/Resume light will flash when the door is opened.

Make sure the door is closed.

4. Press START/RESUME.

After the first minute of a cycle

1. Press CANCEL/DRAIN. The Cancel/Drain light glows. Your

dishwasher starts a 2-minute drain (if needed). Let the dishwasher drain completely.

2. Check the detergent dispensers. They must be filled properly

for the new cycle.

3. Make sure the door is closed. The Start/Resume light will

flash.

4. Select a new cycle and/or options.

5. Press START/RESUME.

Adding Items During a Cycle

You can add an item anytime before the main wash starts. Open the door and check the detergent dispenser. If the cover is still closed, you can add items.

To add items

1. Open the door slightly to stop the cycle. Wait for the spraying

action to stop before opening the door. The Start/Resume light will flash.

2. Open the door. If the detergent dispenser cover is still closed,

add the item.

3. Close the door firmly until it latches. The Start/Resume light

will flash.

4. Press START/RESUME. IMPORTANT: If Lock On is selected, turn off the lock (see Lock

On section in “Option Selections”), or the Start/Resume light will continue to flash.

To clear the indicators

Press CANCEL/DRAIN before starting the dishwasher to clear all options and cycles.

Option Selections

You can customize your cycles by pressing an option. If you change your mind, press the option again to turn off the option. Select a different option if desired.

You can change an option anytime before the selected option begins. For example, you can press an unheated drying option anytime before drying begins.

Press START/RESUME to use the same cycle and option(s) as the previous wash cycle.

NOTE: If the last cycle you completed was a rinse cycle, when you press START/RESUME, the dishwasher runs the last full wash cycle and options.

Hi Temp

Select this option to heat the water to 140ºF (60ºC) during parts of the cycle. Heating the water helps improve washing results. This option adds heat, water and wash time to parts of the cycle. Hi Temp wash is useful when loads contain tough food soil items.

NOTES:

■ Pots Pans automatically uses this option. Hi Temp wash is an

option with the Heavy Wash and Normal Wash cycles.

■ Use this option for heavier than normal-soiled loads.

Heated Dry

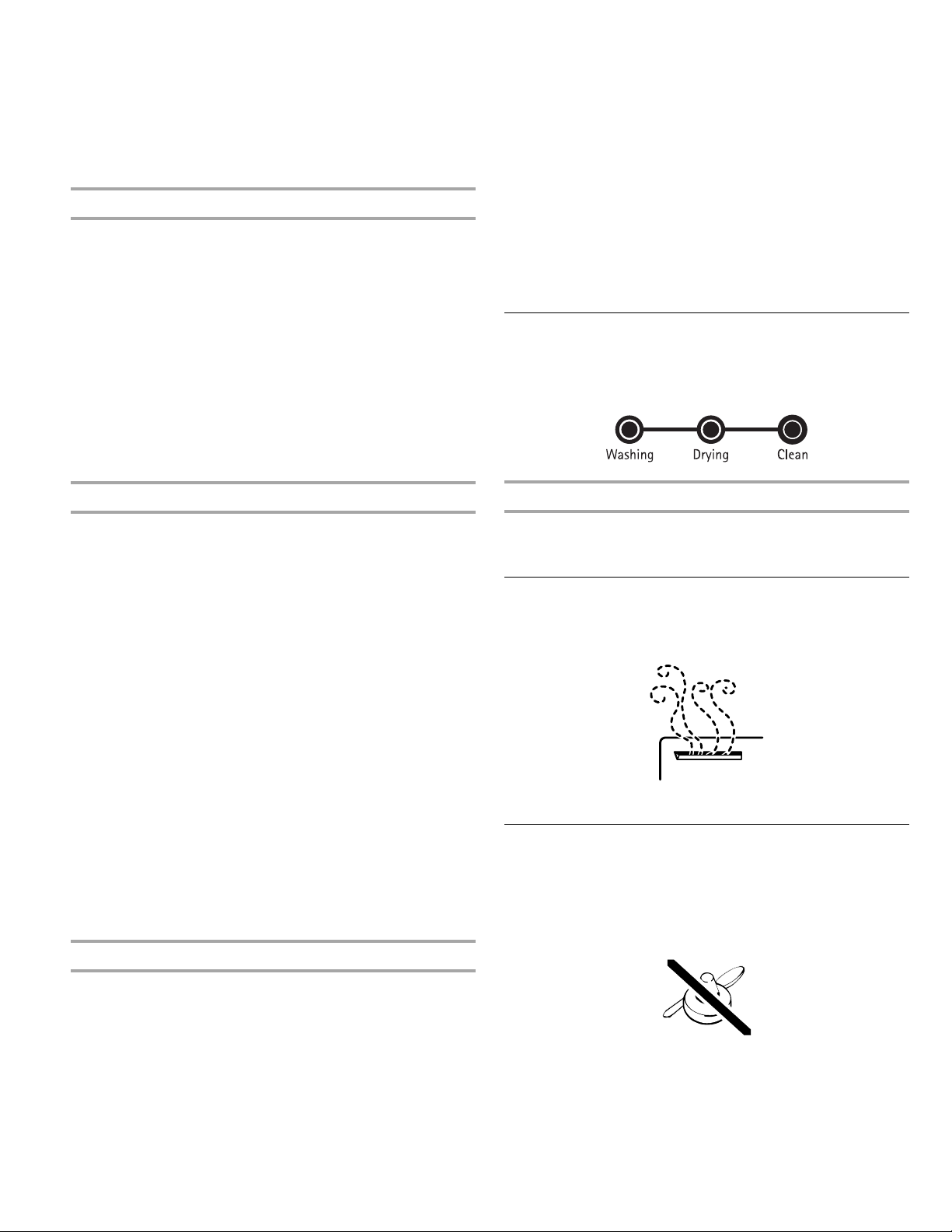

Cycle Status Indicators

Follow the progress of your dishwasher with the Cycle Status indicators.

Clean

CLEAN glows when a cycle is finished. The light turns off when you open the door or press Cancel/Drain.

The Heated Dry option in combination with rinse aid will give you excellent drying results. The energy to use Heated Dry costs pennies per cycle. Heated Dry is on when the light is lit on the Heated Dry button. Be sure to load plastic items in the upper rack to avoid damage.

You may turn off the Heated Dry option by pressing HEATED DRY so that the light goes off. However, you will have items in your dish load that will not be dry at the end of the cycle.

NOTE: The Heated Dry option is used in all cycles except Quick Rinse.

Lock On

Use the Lock On to prevent unintended use of the dishwasher. You can also use the lock feature to prevent unintended cycle or option changes during a cycle.

When LOCK ON is lit, all buttons are disabled. NOTE: The dishwasher door can be opened while the controls

are locked. However, the lock must be turned off and the Start/ Resume button pressed to resume the cycle.

To turn on the Lock

Press and hold HEATED DRY for 4 seconds. LOCK ON glows. If you press any pad while your dishwasher is locked, the light

flashes 3 times. NOTE: If the Heated Dry option is selected, the light will

temporarily turn off until Lock On glows.

To turn off the Lock

Press and hold HEATED DRY for 4 seconds. The light turns off.

Drying System

During drying, you can see steam escaping through the vent at the upper left corner of the door. This is normal as the heat dries your dishes.

IMPORTANT: The vapor is hot. Do not touch the vent during drying.

Overfill Protection Float

The overfill protection float (in the front right corner of the dishwasher tub) keeps the dishwasher from overfilling. It must be in place for the dishwasher to operate.

Check under the float for objects that may keep the protector from moving up or down.

Delay Hours

Select this option to run your dishwasher at a later time or during off-peak hours. You can add items to the load anytime during the delay. After adding items, firmly close the door until it latches and press START/RESUME, or the delay will not continue.

To delay the start

1. Press the delay button to choose the number of hours

delayed.

2. Select a wash cycle and options.

3. Press START/RESUME.

The dishwasher starts the cycle in the selected number of hours.

NOTES:

■ To cancel the delay and cycle, press CANCEL/DRAIN.

■ To cancel the delay and start the cycle, press START/

RESUME.

WASHING SPECIAL ITEMS

If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe.

Material Dishwasher Safe?/Comments

Aluminum Yes

High water temperature and detergents can affect finish of anodized aluminum.

Disposable Aluminum

Bottles and Cans No

Cast Iron No

China/ Stoneware

Crystal Yes

Gold No

Glass Yes

Hollow-Handle Knives

Do not wash throwaway aluminum pans in the dishwasher. These might shift during washing and transfer black marks to dishes and other items.

Wash bottles and cans by hand. Labels attached with glue can loosen and clog the spray arms or pump and reduce washing performance.

Seasoning will be removed, and iron will rust.

Yes

Always check manufacturer’s recommendations before washing. Antique, hand-painted, or over-the-glaze patterns may fade. Gold leaf can discolor or fade.

Always check manufacturer’s recommendations before washing. Some types of leaded crystal can etch with repeated washing.

Gold-colored flatware will discolor.

Milk glass yellows with repeated dishwasher washing.

Handles of some knives are attached to the blade with adhesives which can loosen if washed in the dishwasher.

Pewter, Brass, Bronze

Disposable Plastics

Plastics Yes

Stainless Steel Yes

Sterling Silver or Silver Plate

Tin No

Wooden Ware No

High water temperatures and detergent can discolor or pit the finish.

Cannot withstand high water temperatures and detergents.

Always check manufacturer’s recommendations before washing. Plastic items may vary in their ability to withstand high temperatures and detergents. It is recommended that light items such as lids and butter dishes be placed in the upper rack only. Sturdy items such as coolers and high-chair trays may be placed in the lower rack. When washing plastic items in the lower rack, it is recommended that an air dry be used.

Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, vinegar, milk products, or fruit juice can damage finish.

Yes

Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish.

Can rust.

Wash by hand. Always check manufacturer’s instructions before washing. Untreated wood can warp, crack, or lose its finish.

DISHWASHER CARE

Cleaning

Cleaning the exterior

In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that is necessary to keep the outside of your dishwasher looking nice and clean. If your dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended.

Cleaning the interior

To clean interior

Make a paste with powdered dishwasher detergent on a damp sponge and clean.

Use liquid automatic dishwasher detergent and clean with a damp sponge.

See the vinegar rinse procedure in “Spotting and filming on dishes” in “Troubleshooting.”

NOTE: Run a normal cycle with detergent after cleaning the interior.

Storing

Storing for the summer

Protect your dishwasher during the summer months by turning off the water supply and power supply to the dishwasher.

Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area.

Do not clean the dishwasher interior until it has cooled. Wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or sudsing.

Winterizing your dishwasher

Protect your dishwasher and home against water damage due to freezing water lines. If your dishwasher is left in a seasonal dwelling or could be exposed to near freezing temperatures, have your dishwasher winterized by authorized service personnel.

TROUBLESHOOTING

First try the solutions suggested here and possibly avoid the cost of a service call...

Dishwasher is not operating properly

■ Dishwasher does not run or stops during a cycle

Is the door closed tightly and latched? Is the right cycle selected? Refer to the “Cycle Selection

Charts.” Is there power to the dishwasher? Has a household fuse

blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

Has the motor stopped due to an overload? The motor automatically resets itself within a few minutes. If it does not restart, call for service.

Is the water shut-off valve (if installed) turned on? It is normal for certain cycles to repeatedly pause for several

seconds during the wash cycle.

■ START/RESUME light is flashing

Was the door opened during the cycle, or was the power interrupted? The Start/Resume light will flash when the door is opened during a cycle, or may flash if the power is interrupted. Press START/RESUME to resume the cycle. Make sure the door is fully closed and latched.

■ Clean light is flashing

The dishwasher has malfunctioned. Call for service.

■ Dishwasher will not fill

Is the overfill protection float able to move up and down freely? Press down to release.

■ Dishwasher seems to run too long

Is the water supplied to the dishwasher hot enough? The dishwasher runs longer while heating water. Refer to the “Dishwasher Efficiency Tips” section.

A delay automatically occurs in some wash and rinse cycles until the water reaches the proper temperature.

■ Water remains in the dishwasher

Is the cycle complete?

■ Detergent remains in the covered section of the

dispenser

Is the cycle complete? Is the detergent lump-free? Replace detergent if necessary. Is the bottom rack installed properly with the bumpers (on

some models) in the front? Refer to the “Parts and Features” section. Reinstall the rack if necessary.

■ White residue on the front of the access panel

Was too much detergent used? Refer to the “Detergent Dispenser” section.

Is the brand of detergent making excess foam? Try a different brand to reduce foaming and eliminate buildup.

■ Odor in the dishwasher

Are dishes washed only every 2 or 3 days? Run a rinse cycle once or twice a day until you have a full load.

Does the dishwasher have a new plastic smell? Run a vinegar rinse as described in “Spotting and filming on dishes” later in this Troubleshooting guide.

■ Condensation on the kitchen counter (built-in models)

Is the dishwasher aligned with the countertop? Moisture from the vent in the dishwasher console can form on the counter. Refer to the Installation Instructions for more information.

Dishes are not completely clean

■ Food soil left on the dishes

Is the dishwasher loaded correctly? Refer to the “Dishwasher Loading” section.

Is the water temperature too low? For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Refer to the “Dishwasher Efficiency Tips” section.

Did you use the correct amount of fresh detergent? Use recommended dishwasher detergents only. Refer to the “Detergent Dispenser” section. Detergent must be fresh to be effective. Store detergent in a cool, dry area. Heavy soil and/ or hard water generally require extra detergent.

Do you have hard water? You may need to increase the amount of detergent you are using. Refer to the “Detergent Dispenser” section. Also, you may need to switch to a detergent with a phosphorus content of 8.7%.

Is detergent caked in dispenser? Use fresh detergent only. Do not allow detergent to sit for several hours in a wet dispenser. Clean dispenser when caked detergent is present.

Is the pump or spray arm clogged by labels from bottles and cans?

Is the home water pressure high enough for proper dishwasher filling? Home water pressure should be 20 to 120 psi (138 to 828 kPa) for proper dishwasher fill. If you have questions about your water pressure, call a licensed, qualified plumber.

Are high suds slowing the wash arm? Do not use soap or laundry detergents. Use recommended dishwasher detergents only.

+ 42 hidden pages
