IMPORTANT SAFETY INSTRUCTIONS
ieai dll Instructions before using
this appliance.
WARNING—When using this appliance, always
exercise basic safety precautions, including the
following:
• Use this appliance only for its intended
purpose as described in this Owner's Manual.
® This refrigerator must be properly installed
in accordance with the Attention Installer
Instructions before it is used. See grounding
requirements below and on page 3.
® Never unplug your refrigerator by pulling on
the power cord. Always grip plug firmly and puli
straight out from the outlet.
® Repair or replace immediately all electric
service cords that have become frayed or
otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length or at
either the plug or connector end.
® When moving your refrigerator away from
the wall, be careful not to roll over or damage
the power cord.
* After your refrigerator is in operation, do not
touch the cold surfaces, particularly when
hands are damp or wet. Skin may adhere to the
extremely cold surfaces.
® Do not place fingers or hands on the
automatic icemaking mechanism while the
refrigerator is plugged in. This will help protect
you from possible iniury. It will also prevent
interference with the moving ports of the ejector
mechanism, or with the heating element that
releases the cubes.
® Don't refreeze frozen foods which have
thawed completely. The United States Department of
Agriculture in Home and Garden Bulletin No, 69 says:
",, You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are
still cold—below 40°F.
", Thawed ground meats, poultry or fish that have
any off-odor or off-color should not be refrozen and
should not be eaten. Thawed ice cream should be
discarded. If the odor or color of any food is poor
or questionable, get rid of it. The food may be
dangerous to eat.
"Even partial thawing and refreezing reduce the
eating quality of foods, particularly fruits, vegetables
and prepared foods. The eating quality of red meats
is affected less than that of many other foods. Use
refrozen foods as soon as possible to save as much
of their eating quality as you can'.'
o If your old refrigerator Is still around the
house but not in use, be sure to remove the
doors. This will reduce the possibility of danger
to children.
® Unplug your refrigerator:
A. Before making any repairs. Note: We strongly
recommend that any servicing be performed by a
qualified individual.
B. Before cleaning.
C. Before replacing a burned-out light bulb, the
refrigerator should be unplugged in order to avoid
contact with a live wire filament. (A burned-out light
bulb may break when being replaced.)
Note: Turning control to OFF position does not
remove power to the light circuit.
® Do not operate your refrigerator in the
presence of explosive fumes.
SAVE THESE INSTRUCTIONS
Grounding Requirements important—Please read carefully.
To connect eiectricity Have wall outlet and circuit checked by a qualified
For personal safety,
this appliance must be
properly grounded.
The power cord of this
appliance is equipped
with a three-prong
(grounding) plug which
mates with a standard
three-prong (grounding) wall outlet (Fig. 1) to minimize the
possibility of electric shock hazard from this appliance.
electrician to make sure outlet is properly grounded.
Where a standard two-prong wall outlet is
encountered, it is your personal responsibility and
obligation to have it replaced with a properly
grounded three-prong wall outlet,
DO NOT. UNDER ANY CIRCUMSTANCES. CUT OR
REMOVE THE THIRD (GROUND) PRONG FROM THE
POWER CORD.
Page 3
Starting the Refrigerator
Use of adapter plug
Because of potential safety hazards under certain
conditions, we strongly recommend against use of
an adapter plug. However, if you still elect to use an
adapter, where local codes permit, a TEMPORARY
CONNECTION may be made to a properly grounded
two-prong wall outlet by use of a UL listed adapter
(Fig. 2) available at most local hardware stores.
TEMPORARY METHOD
The larger slot in the
adapter must be aligned
(AOAPIER PLUGS HOf
PfRMtnEB IN 6AN/IDAI
with the larger slot in the
wall outlet to provide
proper polarity in the
connection of the power
cord.
INSURE PROPER
ground ms
FIRM connection
BEFORE USE
CAUTION: Attaching an adapter ground terminal
to the wall outlet cover screw does not ground the
appliance unless the cover screw is metal, and not
insulated, and the wall outlet is grounded through
the house wiring, You should have circuit checked
by a qualified electrician to make sure the outlet
is properly grounded.
When disconnecting the power cord from the
adopter, always hold the adapter with one hand.
If this is not done, the adapter ground terminal is
very likely to break with repeated use.
Should the adapter ground terminal break,
DO NOT USE the appliance until a proper
ground has again been established.
Use of Extension Cords
Because of potential safety hazards under certain
conditions, we strongly recommend against the use
of an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it
be a UL listed 3-wire grounding type appliance
extension cord having a grounding type plug and
outlet and that the electrical rating of the cord be 15
amperes (minimum) and 120 volts.
Electrical Requirements
The refrigerator should always be plugged into its
own individual electrical outlet—115 volt, 60 Hertz,
single phase AC. This is recommended for best
performance and to prevent overloading house
wiring circuits, which could cause a fire hazard
from overheating wires,
Location
o Install the refrigerator on a floor strong enough to
support it when it is fully loaded.
• Do not install it where the temperature will go
below 60°F. because it will not run often enough to
maintain proper temperatures.
® Do not install it next to your range, o heating vent
or where the son will shine directly on it.
Clearances
Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides ,5/8" Top
.........................
0" Back......................1"
(if built-in, allow 7/8" at top for hinge covers.)
Allow a 1 Vj" door clearance at refrigerator side,
Wi" at freezer side.
Leveling
Adjustable rollers behind the base grille enable you
to move the refrigerator away from the wall for
cleaning. These rollers should be set so the
refrigerator rests firmly on the floor with the front
raised just enough that the doors close easily when
opened about halfway. Specially designed door
hinges lift both doors slightly when opened; the
force of gravity helps dose
them automatically.
To adiust the rollers:
® Remove the base grille.
Grasp it at the bottom
and pull it out.
® Turn the roller adjusting
screws clockwise to raise
the refrigerator, counter
clockwise to lower it. Use
an adjustable wrench or
pliers on the 3/8" bolts.
Both doors should close
properly when bottom
front edge of refrigerator
cabinet is about 5/8"
from the floor.
® To replace the base
grille, line up the
prongs on the grille with
the damps on the
refrigerator and push
forward until the grille
snaps into place.
Page 4
Two controls let you
regulate the temperature
in the fresh food and
freezer compartments.
At first, set the fresh
food control at "4" and
the freezer control at "C"
Allow 24 hours for the temperature to stabilize,
whether you are setting the corrtrols for the first time
or adjusting them later. Then, if you want colder or
warmer temperatures in either compartment, adjust
the controls one letter or number at a time.
Note: Turning the fresh food control to OFF turns off
cooling in both compartments—fresh food and
freezer—but does not shut off power to the
refrigerator.
Turning Your Household Thermostat Below 60°F, at Night?
You may want to turn the lettered control one step
colder, as from “C" to "D'.' Cooler temperatures in the
house may cause the compressor to operate less
frequently, thus allowing the freezer compartment to
warm somewhat.
To protect your frozen food supply, leave your
lettered control at this new, colder setting for the
entire winter or for as long as you keep your
thermostat turned down.
Turning the lettered control to a colder setting
should have no effect on your fresh food
compartment. However, if freezing occurs,
turn the numbered control one step warmer,
as from "4" to "3"
When you stop turning the household thermostat
down at night, turn the refrigerator temperature
controls back to their regular settings.
How to Test Temperatures
Use the milk test for the fresh food
compartment. Place a container of milk on the top
shelf in the fresh food compartment. Check it a day
later. If the milk is too warm or too cold, adjust the
temperature controls.
Use the Ice cream test for the freezer
compartment. Place a container of ice cream in
the center of the freezer compartment. Check it
after a day. If it's too hard or too soft, adjust the
temperature controls.
Enerqv
® Don't open the doors more often than necessary,
• Close the doors as soon as possible, particularly in
hot, humid weather.
® Be sure the doors are closed tightly. Before leaving
the house or retiring for the night, check to be sure
the doors haven't been left open accidentally.
® Store only those foods requiring refrigeration in
your refrigerator.
® Wipe moisture from bottles and cartons before
putting them in the refrigerator.
• Keep foods covered to reduce moisture buildup
inside the refrigerator.
® If you turn the controls to the coldest position for
quick chilling or freezing, be sure to turn them back
to regular settings.
® Don't overcrowd your refrigerator. Overcrowding
can require extra electrical energy to keep
everything cool.
Page 5
Si
Suggested Storage Times
DAYS MONTHS
IN IN
Eating quolity drops
after time shown AT AT
Fresh Meats
Roasts (Beef & tomb)
Roasts (Pork & Veal) ............... 3to5 4 to 8
Steaks (Beef) , , 3to5 6 to 12
Chops (Lamb)
Chops (Pork)
Ground & Stew Meats 1 to 2 3to4
Voriety Meats , .
Sausoge (Pork) ........................
Processed Meats
Bacon
......................................
Frankfurters 7 ’/j
Ham (Whole)
Ham (Half)
Ham (Slices) 3
Luncheon Meals
Sausage (Smoked) . . 7 not recomSausage (Dry & Semi-Dry)
............................
Cooked Meats
Cooked Meats and
Meat Dishes 3 to 4 2to3
Gravy & Meat Broth
Fresh Poultry
Chicken & Turkey (Whole) 1 to 2 12
Chicken (Pieces)
Turkey (Pieces)
Duck & Goose (Whole)
Giblets
..........................
......................................
Cooked Poultry
Pieces (Covered with Broth) 1 to 2 6
Pieces (Not Covered) 3 to 4 1
Cooked Poultry Dishes
Fried Chicken
.............................
(Other than for meats & poultry) FREEZER
Most fruits and vegetables 8-12 months
Lean fish ., ,, , 6-8 months
Fatty fish, rolls and breads,
soups, stew, casseroles 2-3 months
Cakes, pies, sandwiches,
leftovers (cooked),
Ice creom (original carton) 1 month max.
REFRIGERATOR FREEZER
35°to40“F. 0®F.
3to5 6 to 12
3 to 5 6to9
3to5 3 to 4
1 to 2 3 to 4
1 to 2 1 to 2
7 1
7 1 to 2
3to5 1 to 2
3to5 Freezing
14 to 21 mended-
1 to 2
1 to 2 9
1 to 2
1 to 2 6
1 to 2 3
3to4
3fo4 4
1 to 2
2to3
6
4 to 6
Fresh Food Storage Tips
To store unfrozen meats, fish and poultry:
® Always remove store wrappings.
® Rewrap in foil, film or wax paper and refrigerate
immediately.
To store cheese, wrap well with wax paper or
aluminum foil, or put in a plastic bag.
• Carefully wrap to expel air and help prevent mold,
® Store pre-packaged cheese in its own wrapping if
you wish.
To store vegetables, use the vegetable drawers—
they've been designed to preserve the natural
moisture and freshness of produce.
® Covering vegetables with a moist towel helps
maintain crispness.
® As a further aid to freshness, pre-packaged
vegetables can be stored in their original wrapping.
To store ice cream—Fine-quality ice cream, with
high cream content, will normally require slightly
lower temperatures than more "airy” alreadypackaged brands with low cream content.
® It will be necessary to experiment to determine the
freezer compartment location and temperature
control setting to keep your ice cream at the right
serving temperature.
® The rear of the freezer compartment is slightly
colder than the front.
Tips on freezing foods
There are three essential requirements for efficient
home freezing.
1. Initial quality. Freeze only top-quality foods.
Freezing retains quality and flavor; it cannot improve
quality,
2. Speed. The quicker fruits and vegetables are
frozen after picking, the better the frozen product
will be. You'll save time, too, with less culling and
sorting to do.
Meats, fish and poultry purchased from the store
vary in quality and age; consequently, safe storage
times in your refrigerator will vary.
New techniques are constantly being developed.
Consult the College or County Extension Service or
your local Utility Company for the latest information
on freezing and storing foods.
3. Proper packaging. Use food wraps designed
especially for freezing; they're readily available at
most food stores.
(continued next page)
Page 6
Food Storage Suggestions Shelves
Tips on Freezing Foods
(continyed)
To freeze meot, fish and poultry, wrap well in
ireezer-weight foil {or other heavy-duty wrapping
material) forming it carefully to the shape of the
contents. This expels air. Fold and crimp ends of
the package to provide a good, lasting seal.
Don't refreeze meat that has completely thawed;
meat, whether raw or cooked, can be frozen
successfully only once.
Limit freezing of fresh (unfrozen) meats or seafoods
to 29 pounds at a time.
For Convenience.,.
® Store like things together. This saves both time and
electricity because you can find foods faster.
® Place the oldest items up front so they can be used
up promptly.
® Use bins on the door for most often used sauces
and condiments.
® Use the meat drawer for meats you do not freeze.
To Save Money in Energy and Food Costs
® Place most perishable items, such as milk, cream
or cottage cheese, toward the rear of the top shelf.
They will stay coldest in this part of the fresh food
compartment.
® Cover moist foods with tight lids, plastic film or foil.
® Leaf vegetables and fruits placed in drawers will
last longer when stored in closed plastic containers
or wrapped in plastic film.
® Do not overload your fresh food or freezer
compartment with a lot of warm food at one time.
® Open the door the fewest times possible to save
electrical energy.
® When going out of town for several days, leave
as few perishables as possible In the refrigerator.
Move the icemaker feeler arm to the OFF (up)
position and shut off water to the refrigerator.
Removable Door Bins in the Fresh Food Compartment
To remove bios; Lift bin
straight up until mounting
hooks disengage.
To reioeote bins: Select
desired bin height, engage
hooks in slots on the
tracks of the door, and
push in. Bin will lock in place.

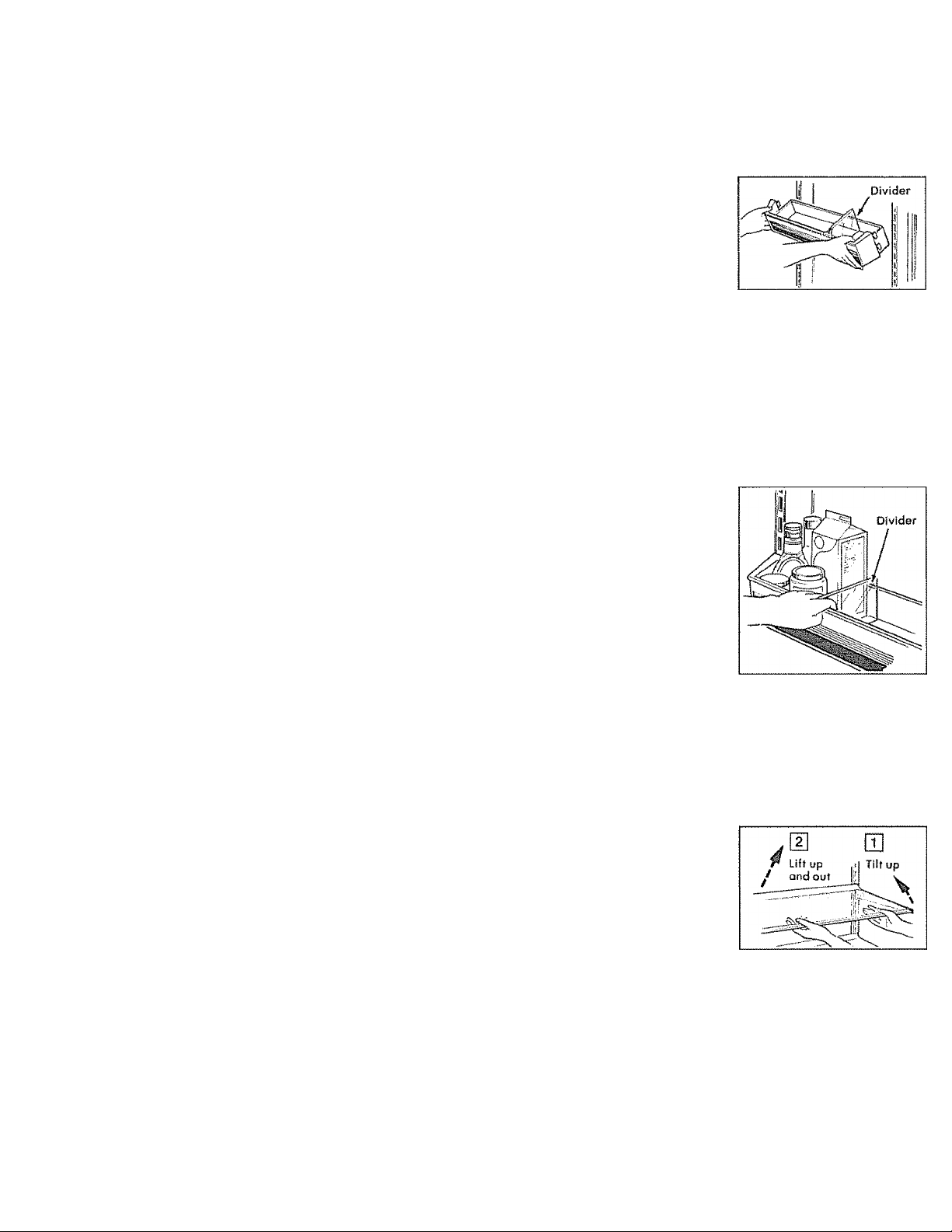

Dividers
Dividers are designed to give you storage flexibility
in door bins on your fresh food door, items such as
salad dressings, steak sauces and other condiments
can now be kept securely against the door liner to
help prevent tipping, spilling or sliding.
Place index finger and
middle finger on either
side of the divider near
the front and simply
move it back and forth to
fit your needs.
Adjustable Shelves in the Fresh Food Compartment
Adjustable shelves in the fresh food compartment
enable you to make efficient shelf arrangements to
fit your family's food storage needs.
® To remove shelves,
tilt the shelf up at front,
then lift it up and out of
the tracks on the rear
wall of the refrigerator.
To reploce shelves, select desired shelf height.
With the shelf front raised slightly, engage the top
lugs in the tracks at the rear of the cabinet. Then
lower the front of the shelf until it locks into position.
Page 7

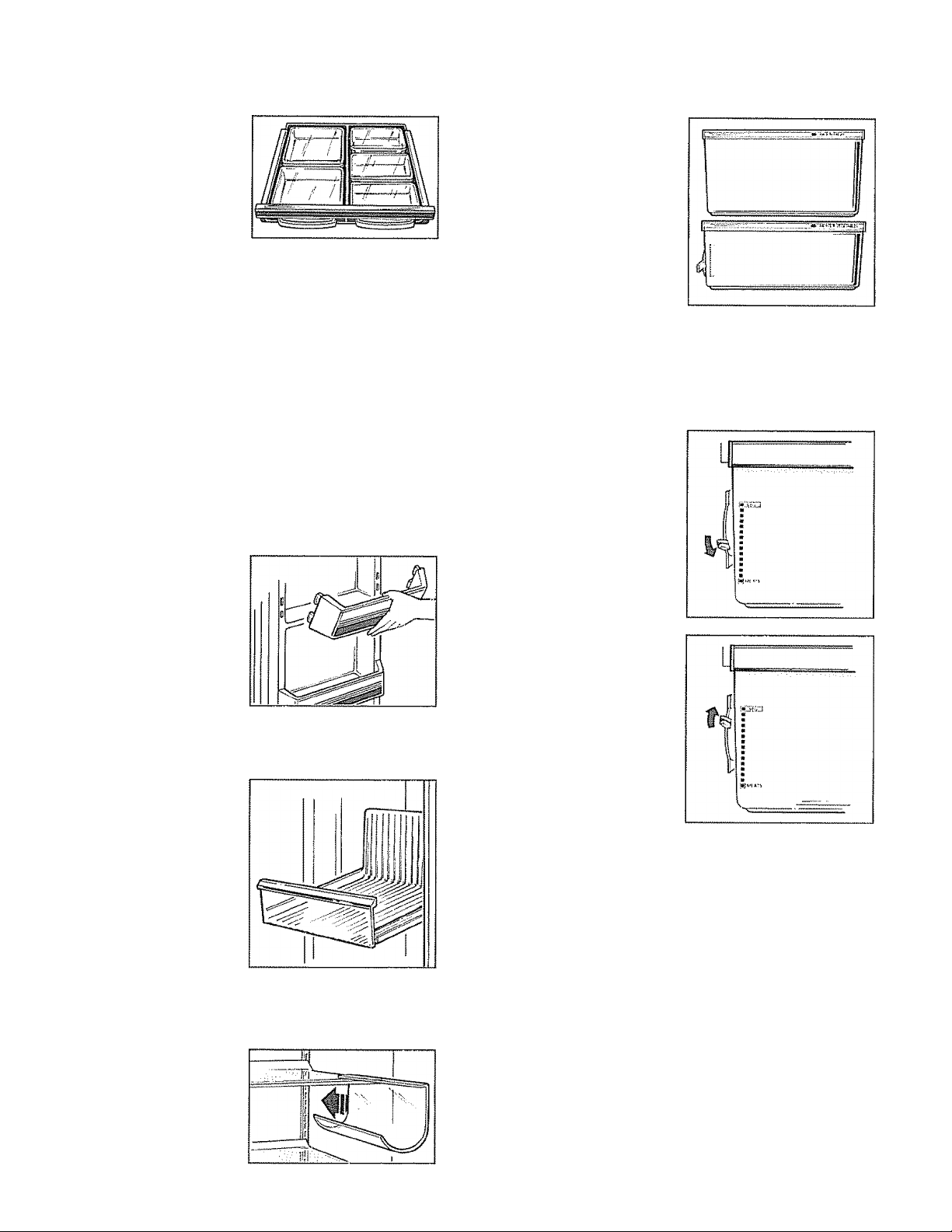

Storage Drawers
Handi Dishes
Cooking-serving-storage
dishes \wrth durable seethrough lids fit into a
slide-out troy that,
together with the shelf
to which it attaches, can
be located anywhere in the fresh food compartment.
Dishes and lids are safe for use in microwave ovens,
refrigerators, freezers, and are dishwasher-safe.
Dishes only are safe in conventional ovens at
temperatures up to 400°F.
Caution: Lids cannot withstand the heat generated in
conventional ovens. Dishes and lids are not designed
for range-top cooking or broiler use. Such use can be
hazardous.
Deep Door Shelves in the Freezer Compartment
Detachable shelf extenders deepen and enclose
three fixed door shelves, providing more storage
room and greater storage
flexibility.
Nice 'N Fresh Drawer
This drawer has been
specially designed to
help preserve fruits
and vegetables.
Meats 'R Vegetables
Drawer
The convertible meat
drawer has its own cold
air duct to allow a stream of cold air from the freezer
compartment to flow around the drawer.
The variable temperature control regulates the air
flow from the freezer compartment.
Set the control lever
all the way down—the
coldest setting—to store
fresh meats. If the lever
is left in the meat position
for a long period of time,
some frost may form on
the Inside of the drawer.
To remove, lift shelf
extender straight up until
mounting hooks come
out of slots in door.
To replace, line up hooks
with slots in door, then
push in and down.
Removable Freezer Basket Shelves
Shelves in the freezer
compartment will stop
before coming all the
way out of the freezer to
help prevent contents
from spilling onto the
floor. They can be
removed easily by lifting
up slightly and pulling
past the "stop" location.
Removable Wine Rack
The wine rack is designed to hold o bottle on its
side and will fit on any
shelf. To relocate it, pull
it straight out, position its
lip over either edge of
the shelf you want to
suspend it from, and
push it all the way in.
Set the control lever all
the way up to convert
the Meats 'R Vegetables
drawer to normal
refrigerator temperature
and provide extra
vegetable storage space.
The cold air duct is
turned off.
Variable settings between
these extremes can be
selected.
Page 8

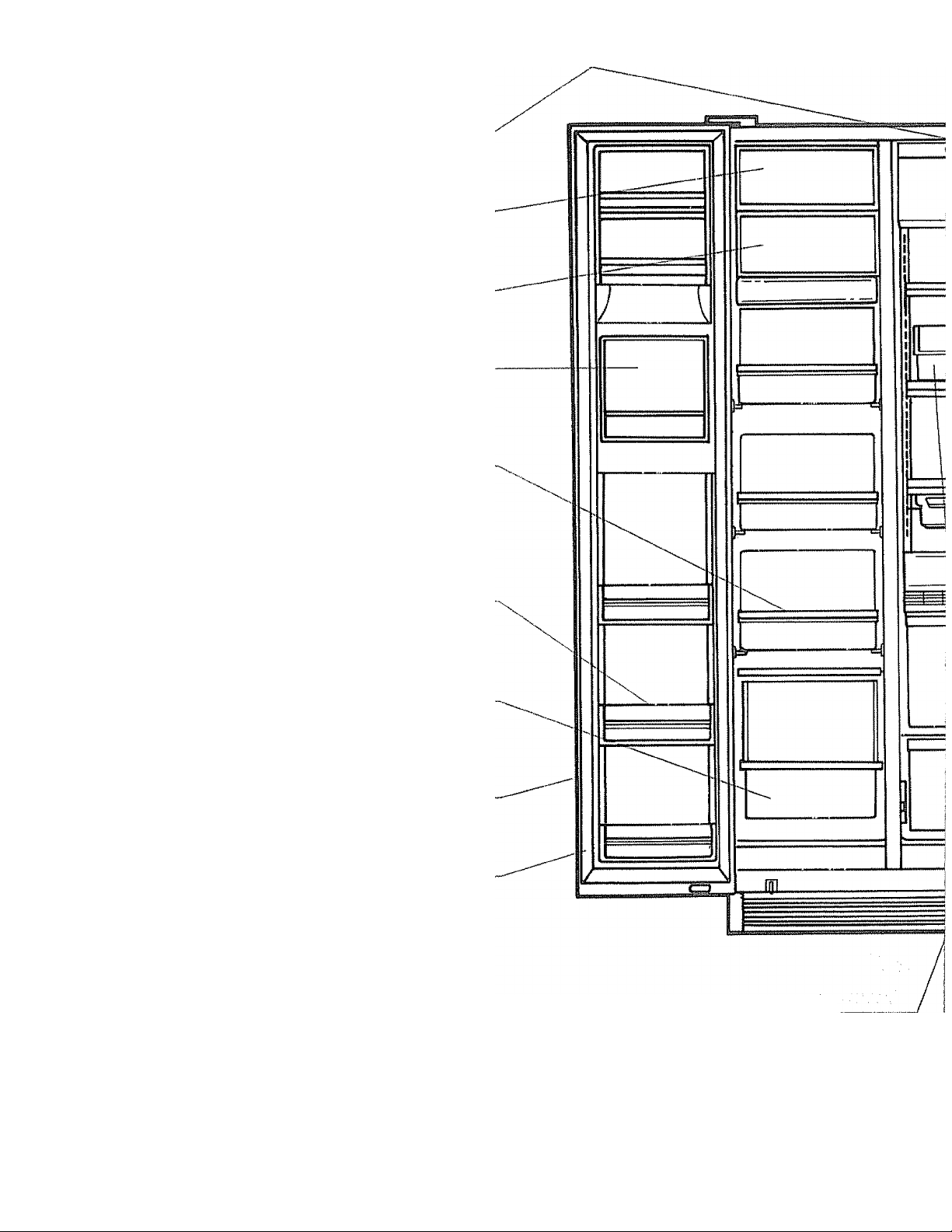

Fl
ïQîures
TEMPiUAf yii COMTIiOLS
Set Freezer control at "C," Fresh fbod control at "4."
They may need adjusting later. See page 4.
ICE ACCESS DOOR
Lift it to turn icemaker on or off, or to level ice cubes
in storage bin from time to time.
-------------------------------------
---------------------------------------------
ICE STORAGE COMPARTMiMT-
Ice is made and stored here until called for by
pressed cradle in dispenser on front of door.

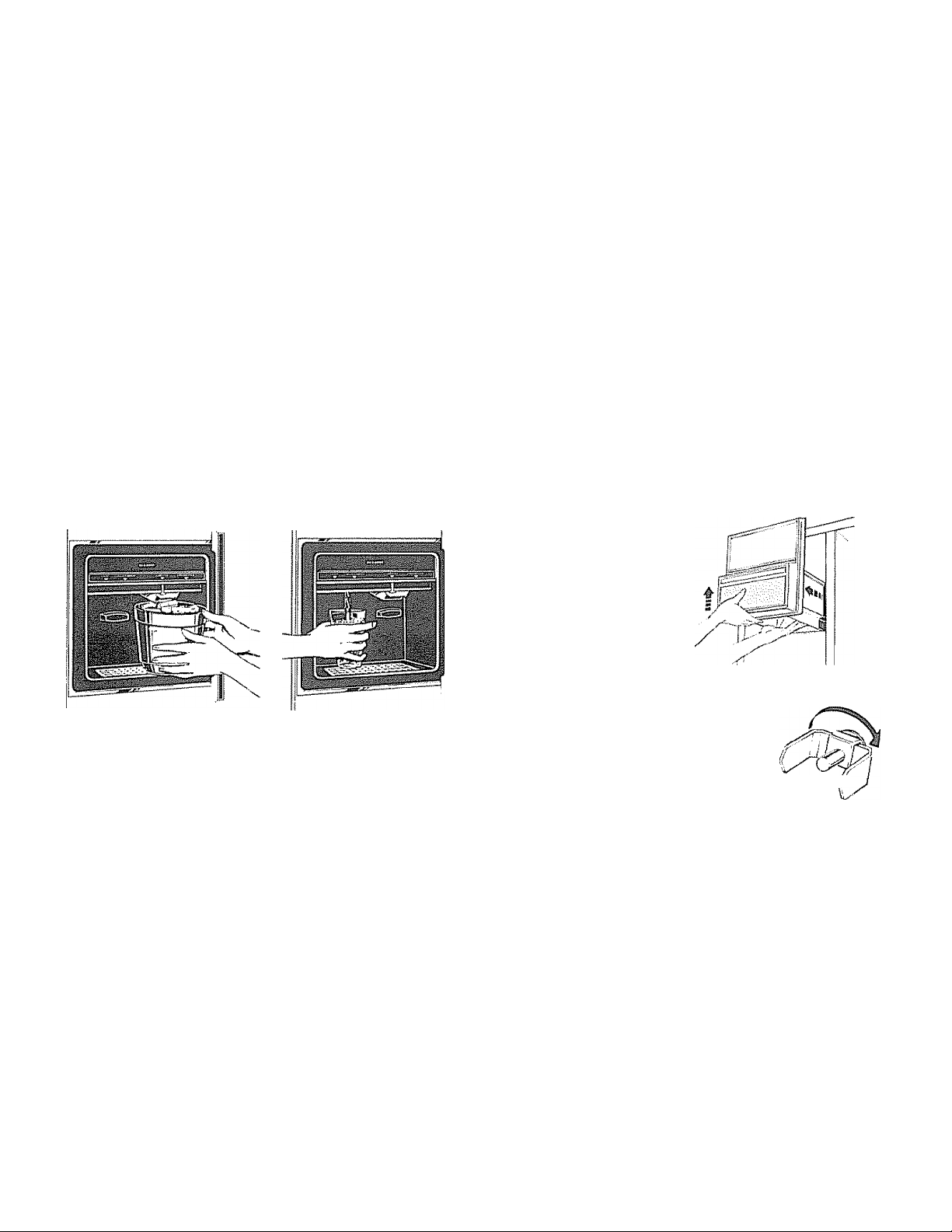

WATER AND ICE DISPENSER
Located on outside of freezer compartment door, it
dispenses ice cubes, crushed ice and chilled water
through the door.
REMOVABLE FREEZER BASKET SHELVES —
Pull a basket shelf forward to the "stop" position and
food at the back of the shelf becomes easier to
reach. Lift the shelf up slightly and you can pull It all
the way out and take it to the food preparation area
to remove things from it or add things to it.
------------------------------
---------
FREEZER DOOR SHELVES
Door shelves keep frequently-used frozen food items
within easy reach. Detachable shelf-extenders
deepen and enclose them.
--------------------------------------
FREEZER BIN--------------------------------------------------------
This slide-out bin holds bulky and odd-shaped food
packages and makes them easily accessible without
disturbing frozen food next to or on top of them.
TEXTURED STEEL DOORS —
Touch the textured doors; they won't show
fingerprints.
MAGNETIC DOOR GASKETS
Doors close quietly, and gaskets seal tightly when
the refrigerator is level—see page 3.
------------------
-----------------------------------
NO DEFROSTING
It is not necessary to defrost the freezer or fresh food
compartments. Your refrigerator is designed and
equipped to defrost itself automatically.
automatic ENERGY SAVER SYSTEM
Warm liquid from the refrigerator's condenser is
automatically circulated around the front edge of the
freezer compartment to help keep moisture from
forming on the outside of the refrigerator during
humid weather.
MODEL AND SERIAL NUMBER LOCATION
You'll find these numbers here. To order repair parts,
see the parts list that come with your refrigerator, or
take these numbers to your nearest Sears Service
Center and they will help you.
8
Page 9

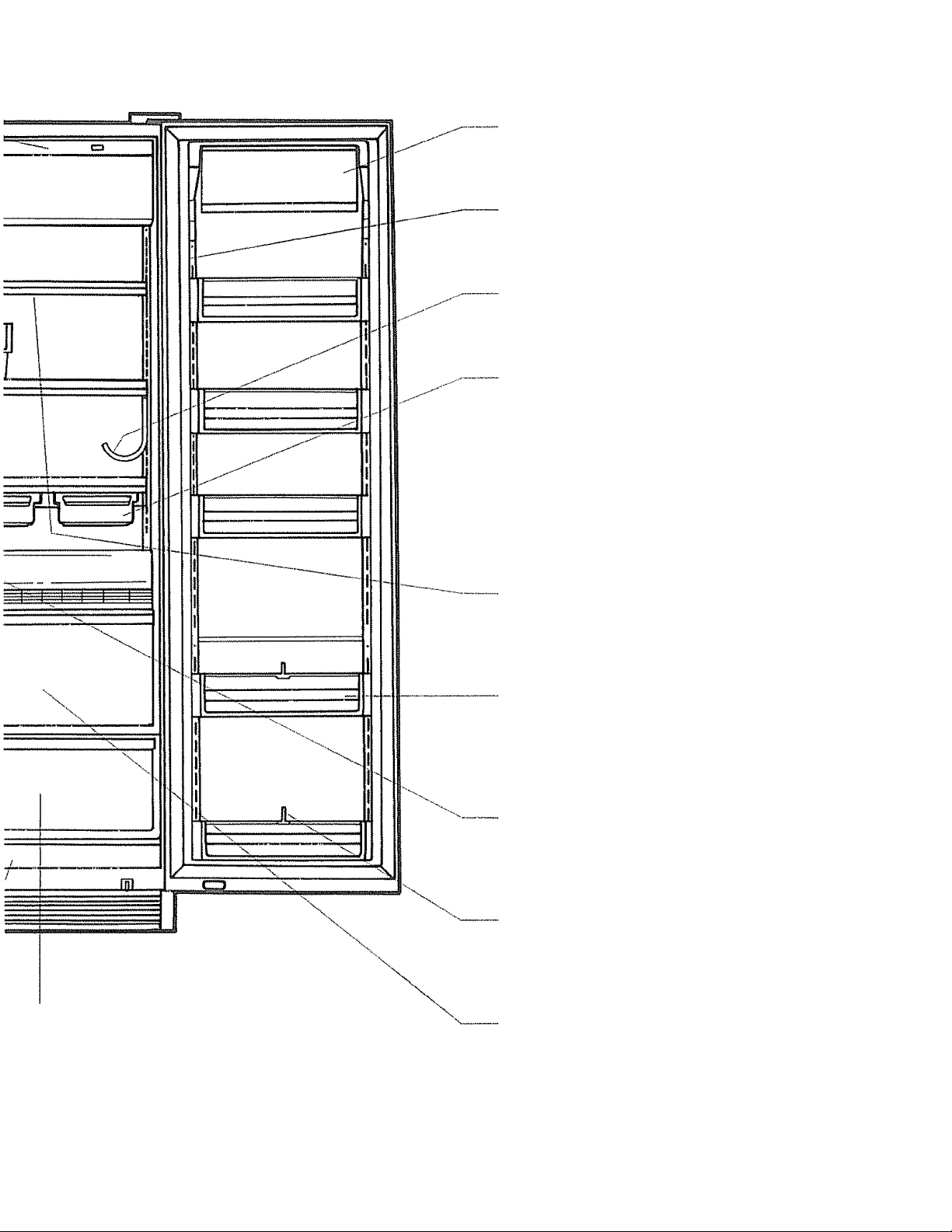

HANDI-BIN
Door stays open while bin is in use, provides easy
access to dairy products.
USE AND CARE LABEL
Information you'll want to know is right on the
refrigerator, including everyday care.
WINE RACK
Holds a bottle on its side, will fit on any shelf.
See page 6,
HAND! DISHES
Cooking-serving-storage dishes with see-through
lids fit into a slide-out tray that, together with the
shelf to which it attaches, can be located anywhere
in the fresh food compartment. Dishes are safe for
use in microwave ovens, refrigerators, freezers, and
are dishwasher-safe. Dishes only are safe in
conventional ovens at temperatures up to 400®F., lids
are not. Neither dishes or lids are for range-top
cooking or broiler use. Such use can b© hazardous.
MEim 'it VEGETABLES DRAWER WITH
ADJUSTABLE COLD CONTROL
The variable temperature control next to the
Meats 'R Vegetables drawer regulates the flow of
cold air from the freezer. Set the control lever all the
way down to the coldest setting to store meats. Set it
all the way up to convert the drawer to normal
refrigerator temperature and provide extra
vegetable storage space.
ADJUSTABLE TEMPERED GLASS SHELVES
These shelves let you arrange--and rearrange—
the interior of your refrigerator to meet your everchanging food storage needs.
DOOR BINS
Portable, lightweight bins adjust easily to
accommodate items of various heights, can be
used to carry contents directly to countertop or table
for preparation or serving.
UTILITY BIN
Dual-usage bin holds two dozen eggs in their
cartons, or stores an extra supply of ice cubes in
the freezer for special occasions.
DIVIDERS
Move them where needed on door bins to keep
items such as small bottles and jars so they won't
tip, spill or slide.
NICE 'N FRESH DRAWER
This roomy drawer has been specially designed to
help preserve the natural goodness of fruits and
vegetables.
Page 10
Automatic Icemaker and Ice & Chilled Water Dispenser
See separate Water Line Installation Requirements
included in both the literature pack and on the back
of the refrigerator.
An automatic icemaker and a dispenser provide
chilled water, ice cubes and crushed ice through the
freezer compartment door.
Here's how they work:

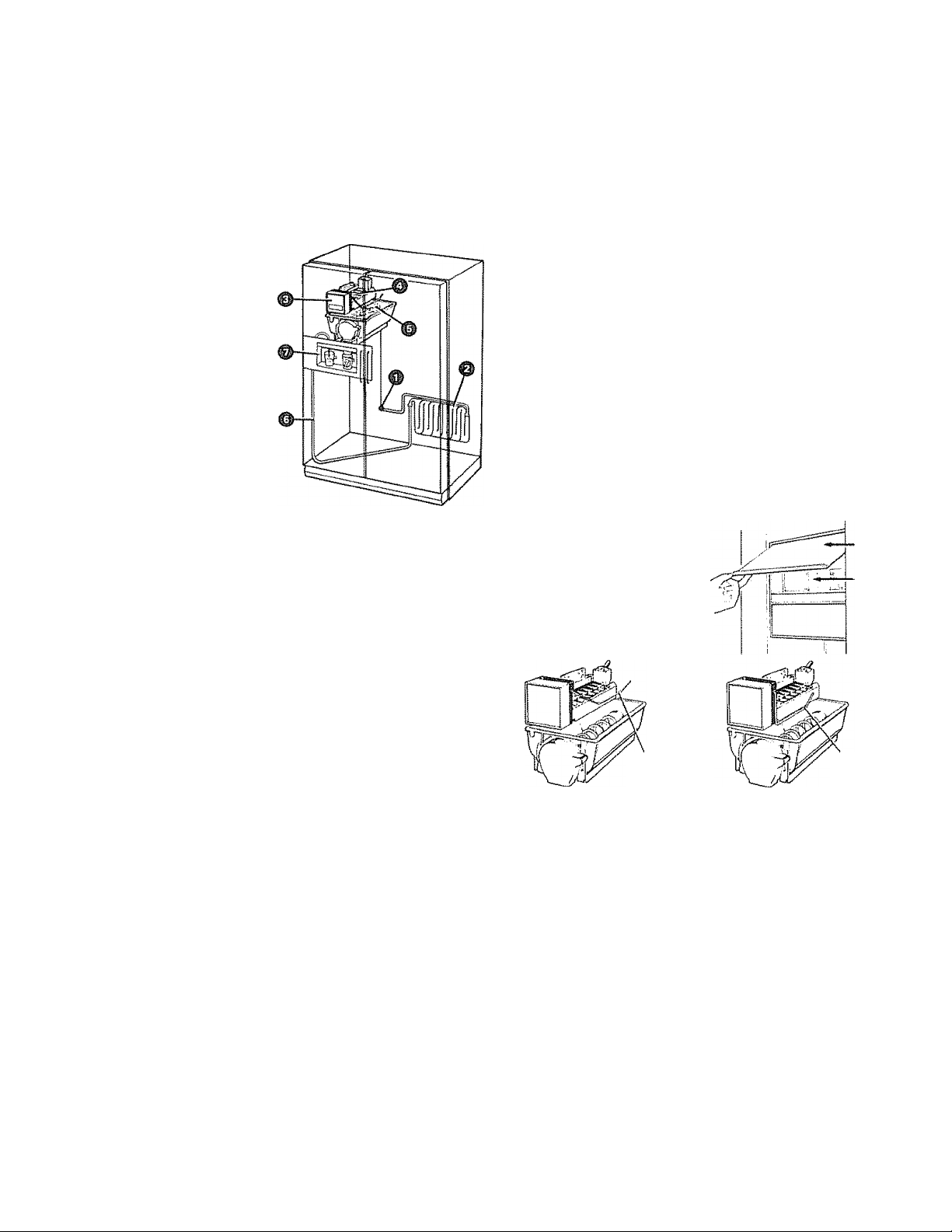

Water flows from
household water
supply through
(1) dual solenoid valve to
(2) water reservoir and to
(3) automatic icemaker
as needed.
Water is frozen in
(4) cube mold and
ejected into
(5) storage bin where a
motor-powered auger
moves cubes forward into dispensing unit.
Cubed or crushed ice, as selected, dispense through
chute in door when cradle is pressed,
When switch is moved to CRUSHED, baffle in
housing channels cubes through crusher and
crushed ice falls through chute into glass.
Chilled water from reservoir flows through
(6) tubing in door and is dispensed when cradle
is pressed.
Pressure on cradle turns light in dispenser on,
releasing pressure turns the light off.
(7) A light switch also turns night light in dispenser
on and off.
Important Facts about Your Dispenser
® Your icemaker will produce eight cubes
per cycle—approximately 120 cubes in a 24-hour
period—depending on freezer compartment
temperature, room temperature, number of door
openings and other use conditions.
« Intermittenit dispensing of ice is normal.
If ice flow interruption is more than brief, ice
clumpjs) may be the cause and should be removed
following instructions on page 11.
• Avoid overfilling glasses with ice and using
narrow or eztra-tall glasses. This can jam the
chute or cause the door in the chute to freeze shut.
Periodically open the freezer compartment door and
look down into the chute. If ice is blocking the chute,
poke it through with a wooden spoon.
° To help keep bits of ice from being sprayed
beyond the glass, place glass close to ice chute—
but not so close that it blocks outcoming ice.
« Do not dispense ice into thin glasses, fine
china or delicate crystal—they can crack or chip
from combined pressure of hand pressing them
against cradle and ice dropping into container,
« Dispense ice before filling gloss with soda or
other beverage mixes. This will prevent splashing
which is annoying and which, if the splash reaches
the ice selector switch, could cause it to stick or bind.
• Beverages and foods should not be quick-
chilled in the ice storage bin. Cans, bottles or
food packages in the storage bin may cause the
icemaker to malfunction.
• ice other than that produced by your
icemaker should not be added to the ice
storage bln—it may not crush or dispense well.
Before Using Your Icemaker and Dispenser
If refrigerator is
operated before
water connection is
made, raise ice access /
door and make sure ''
icemaker feeler arm is ^
in OFF (up) position.
Feeler Arm
In OFF
position
When wafer supply has been connected to
Icemaker, move feeler arm to ON (down) position.
Depress water dispenser cradle for about two
minutes to remove trapped air from the water line
and to fill water reservoir automatically.
The ice cube mold will automatically fill with water
after cooling to freezing temperature, and first cubes
normally freeze after several hours.
When cubes are solidly frozen, they will be ejected
from the mold into the ice storage bin by means of a
sweeper arm. Icemaking will continue until the
feeler arm senses that there are enough cubes in the
bin and halts the operation temporarily. Be sure
nothing interferes with the swing of the feeler arm.
For moximum ice storage, level the stored cubes
with your hand occasionally.
ice access
door
icemaker
Feeler Arm
m ON
position
10
Page 11
Once your icemaker is in operation, throw
away the first few batches of ice cubes. This will
flush away any impurities in the water line. Do the
same thing after vacations or long periods when ice
isn't used.
Discard the first sis: glassfuls of water in the
kitchen sink. This will eliminate the slight "plastic"
taste temporarily imparted to the water by the
water reservoir.
CAUTIOM: Under certain rare circumstances, ice
cubes may be discolored, usually appearing with
a green-bluish hue. This unusual discoloration is
apparently due to a combination of factors such as
certain characteristics of local waters, household
plumbing and the accumulation of copper salts in an
inactive water supply line which feeds the icemaker.
Continued consumption of such discolored ice cubes
may be injurious to health. If your ice cubes are
discolored, discard them and contact your Sears
Service Center.
To Dispense Ice and Water
Dispensed water is chilled, not iced. For colder
water, simply add ice before dispensing water.
To stop dispensing, release pressure from cradle
and withdraw slowly to cotch lost bits of ice or drops
of water.
Some slight dripping may occur following
dispensing of crushed ice or chilled water. If
excessive, wipe the spill dry immediately.
Do not pour water in spill shelf because it is not self
draining—pour it in the kitchen sink. Cleon the spill
shelf and its grille regularly—see page 12.
If Ice Clumps Form in Storage Bin,..
If ice is not used often, ice clumps can form in the
storage bin, resulting in temporary malfunction of
the dispenser mechanism, if this happens, remove
storage bin from freezer compartment, breok up ice
clumps with fingertip pressure and discard
remaining clumps.
Replace bin before remaining cubes melt and fuse
together.
To remove ice cube
storage bin. lift the left
corner to free the bin
from the shelf, and pull
the bin straight out while
supporting it at front and
back.
For ice, set selector switch to CUBED or CRUSHED,
For water, simply position container beneath words
"CHILLED WATER'.'
Grip container gently near the rim and press rim
firmly against ice or water dispenser cradle,
CAUTION: Never put fingers or other objects
into the ice crusher discharge opening.
When dispensing ice, some crushed ice may be
dispensed even though you selected CUBED, This
happens occasionally when a few cubes accidentally
get channeled to the crusher.
Sometimes a mound of snow will form on the door
in the ice chute. This condition is normal, and
usually occurs when you have dispensed crushed ice
repeatedly. The snow will eventually evaporate.
The water system provides approximately six
successive 6-ounce glassfuls, after which it takes
several hours for replenished water reservoir supply
to cool. You probably will not drain all the chilled
water from the reservoir on a single occoslon.
The first glass of water dispensed may be
warmer than the following ones. This is normal.
To replace bin, slide the bin back until the tab on
the bin locks into the slot in the shelf. Rotate
If bin does not go all the way back,
remove it and rotate the drive
mechanism 1/4 turn. Then push bin
back again until the tab on the bin
locks into the slot in the shelf.
Drive (/
mechanism
If ice is not used often, old cubes will become
cloudy and taste stale. Empty the ice storage bin
periodically and wash it in lukewarm water.
Move feeler arm to OFF (op) position when:
® the home water supply Is to be off for several hours.
® the Ice storage bin is to be removed for a period
of time,
® going away on vocation. (Also turn off the valve in
the water supply line to the refrigerator.)
If this is your first icemaker, you will hear
occasional sounds that may be unfamiliar. They
are normal ice-making sounds and ore not cause
for concern.
A water filter accessory kit to help purify off-tasting
incoming water and a water supply accessory kit
to help connect the icemaker to the cold water
line are optional at extra cost—see page 15.
11
Page 12
Care and Cleaning
Outside
The wafer and ice dispenser spill shelf should be
wiped dry immediately to prevent spotting. Water
left on the shelf may leave deposits that you con
remove by soaking in undiluted vinegar. You can also
use a paste of non-precipitating water softener (such
as Calgon brand) and water, or one teaspoon of citric
acid powder per pint of hot tap water. Soak until the
deposit disappears or becomes loose enough to rinse
away. Usually 30 minutes soaking time is adequate.
Avoid using wax on the spill shelf and trim.
The door handles and trim can be cleaned with
a cloth dampened with a solution of mild liquid
dishwashing detergent and water. Dry with a soft
cloth. Don't use wax on the door handles and trim.
Keep fhe finish clean. Wipe with a clean cloth
lightly dampened with kitchen appliance wax or
mild liquid dishwashing detergent. Dry and polish
with a clean, soft cloth. Do not wipe the refrigerator
with a soiled dishwashing doth or wet towel. These
may leave a residue that can harm the paint. Do not
use scouring pads, powdered cleaners, bleach or
cleaners containing bleach because these products
can scratch and weaken the paint finish.
Protect the paint finish. The finish on the outside
of the refrigerator is a high quality, baked-on paint
finish. With proper care, it will stay new-looking and
rust-free for years. Apply a coat of kitchen/appilance
wax when the refrigerator is new and then at least
twice a year.
Do not wash any plastic parts from your
refrigerator In your automatic dishwasher.
Storage Drawers
Drawers at bottom of fresh food compartment will
stop before coming all the way out of refrigerator to
help prevent contents from spilling onto floor. The
drawers can be removed easily by tilting up slightly
and pulling past the "stop" location.

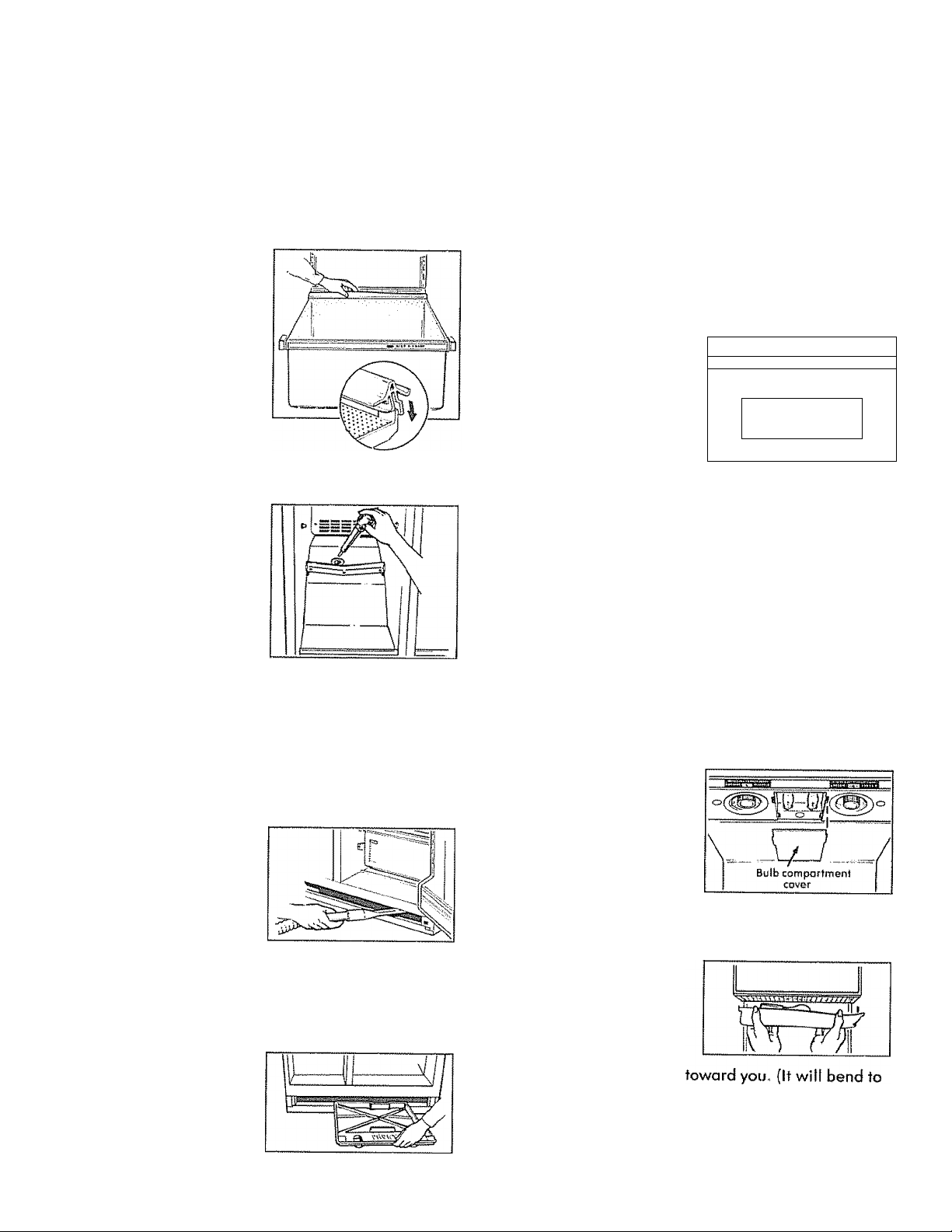

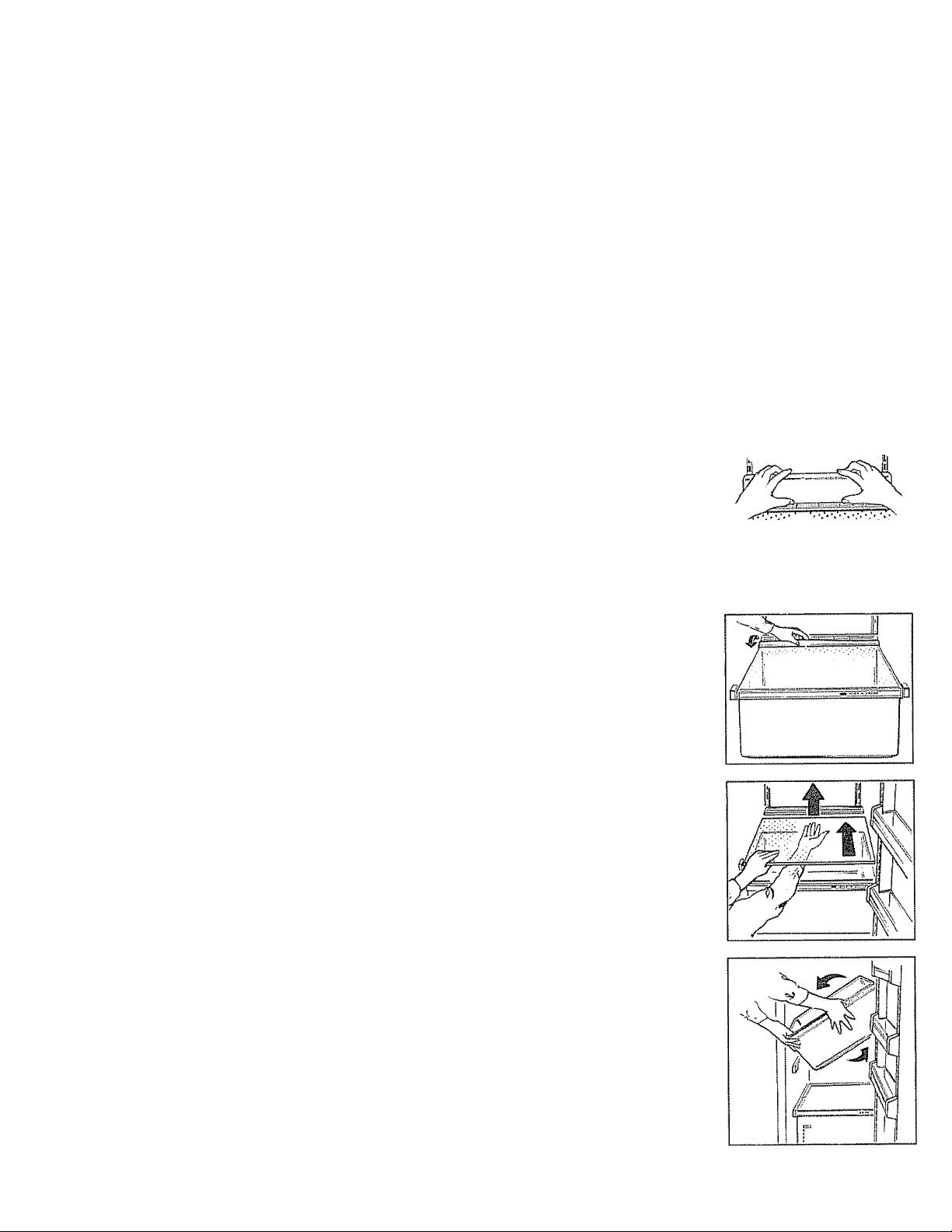

To remove storage drawers when fresh food
compartment door cannot be opened fully;
1. Remove food from shelf above top drawer and
take out shelf.
2. Take food off glass cover and out of drawer.
3. Grasp top of light
panel above the top
drawer, flex and rotate
upper surface of panel
until it clears the upper
pin on each sidewall. Then, keeping panel upright,
pull bottom of panel toward you until it clears the
lower side-wall pins.
4. Put your fingers
behind the gasket at the
rear of the drawer and
puli forward. Remove
the gasket.
Inside
The Inside of the fresh food and freezer
compartments should be cleaned at least once a
year. Unplug the refrigerator before cleaning. If this
is not practical, wring excess moisture out of sponge
or doth when cleaning around switches, lights or
controls.
Use warm water and baking soda solution—about a
tablespoon of baking soda to a quart of water. This
both cleans and neutralizes odors. Rinse thoroughly
with water and wipe dry.
Other parts of the refrigerator—including door
gaskets, meat and vegetable drawers, ice storage
bin and all plastic parts—can be cleaned the same
way. Do not use cleansing powders or other abrasive
cleaners.
To help prevent odors, leave an open box of baking
soda in the rear of the refrigerator, on the top shelf.
Change the box every three months. An open box of
baking soda in the freezer will absorb stale freezer
odors.
5. Pull the drawer
partway out. Reach in,
push the rear of the
glass up: at the same
time, push it back until it
clears front-corner
retainers.
6. Tilt and remove the
cover.
7. Pull the drawer
forward, lift the front to
clear stops, and pull the
drawer out until it hits
the door. Then lift the
drawer up until it is higher
than the drawer supports,
tilt it and take it out.
12
Page 13
8. If tape holds bottom drawer cover to drawer
supports, remove the tape. Pull drawer partway out.
Reach in, push the rear of the glass up and, at the
sometime, back, until it clears front-corner retainers.
9. Tilt and remove the cover.
10. Tilt and remove the drawer.
After cleaning, replace drawers and covers in
reverse order. Reinstall the gasket at the rear of the
top drawer. Fit the end of
the plastic drawer support
into the slot on the gasket,
with the rubber gasket
flap facing you. Make
sure the gasket snaps
into place.
Then replace the light
panel by hanging top of
panel on upper pins and
pushing in at bottom.
Drain Opening in Freezer Compartment
During yearly cleaning,
remove the freezer bln
and flush a solution of
baking soda (one
teaspoon) and two cups
of hot (not boiling) water
through the drain line
with the help of a meat
baster. This will help
eliminate odor and reduce
the likelihood of a clogged drain line.
If drain becomes clogged, use a meat baster and
baking-soda-and-water solution to force the dog
through the drain line, Continue flushing until the
line is clear, then empty and replace the defrost
water pan immediately.
Condenser
The condenser is located
behind the base grille. For
most efficient operation,
remove the base grille
(see page 3) and sweep
away or vacuum up dust
that is readily accessible. This easy cleaning
operation should be done at least once a year.
Defrost Water Pan
The pan behind the base
grille should be cleaned
at least once a year. When
reinstalling the pan, firmly
push it ALL THE WAY IN
until it stops.
Behind Refrigerator
Take care moving your refrigerator away from the
wall. All types of floor coverings can be damaged,
particularly cushioned coverings and those with
embossed surfaces. Pull the refrigerator straight out
and return it to position by pushing it straight in.
Moving refrigerator in a side direction may damage
floor covering or refrigerator.
Light Bulb Replacement
Unplug refrigerator before changing a light bulb
Fresh Food Compartment—Upper Light
1. Pull bottom of light
panel forward until panel
clears pins on rear wall,
then rotate panel
downward until tabs slide
\
\
ra Pushup unlil
L£J lobs lock Into slots
pn Posilion
'—' on pins
panel
out of slots in control
housing.
Pin
2, After replacing with standard 60-watt bulb,
reinstall tight panel by (1) sliding tabs at front of light
panel into slots in control housing, and (2) flexing
rear portion of light panel over pins on rear wall.
Fresh Food Compartment—Lower Light
1. Remove light panel. See Storage Drawers, Step 3,
on page 12.
2, After replacing the 40-watt appliance bulb with a
same-size bulb, replace light panel by hanging top of
panel on upper pins, then poshing in at bottom.
Control Housing
Bulb compartment between freezer and fresh food
compartment controls contains two 7-watt screw-in bulbs.
1. Slide bulb compartment
cover on underside of
control housing back
about 1/2 inch and it will
drop into your hand.
2. Replace with samesize, same-type bulbs.
3. Line up tabs on cover with grooves in control
housing and slide cover forward into place.
Freezer Compartment
1. Remove shelf just
below light panel. (Shelf
will be easier to remove
if it is emptied first.)
free tabs from grooves.)
3. After replacing with same size bulb, reinstall
panel and shelf.
/
li|
13
Page 14
Before You Call for Service
Save time and money. Check this list of causes of minor
operating problems you can correct yourself,
Refrigerafor does not operate
® May be in defrost cycle when motor does not operate for
about 30 minutes.
« Temperature control in OFF position.
9 If interior light is not on, refrigerator may not be plugged in at
wail outlet.
9 If plug is secure and refrigerator foils to operate, plug lamp
into same outlet to determine if there is tr ipped circuit breaker
or burned out fuse.
Motor operates for long periods
8 Modern refrigerators with more storage space and a larger
freezer require more operating time.
9 Normal when refrigerator is first delivered to your home—
usually requires 24 hours to completely cool down.
9 Large amounts of food placed in refrigerator to be cooled or
frozen.
9 Hot weather—frequent door openings.
9 Door left open.
9 Temperature controls set too cold. See page 4,
9 Condenser needs cleaning. Refer to page 13,
9 Check ENERGY-SAVING TIPS on page 4,
Operating sounds
9 The high speed compressor motor required to mointain near
zero temperatures in the large freezer comportment may
produce higher sound levels than your old refr igerotor.
9 Normal fan air flow—one fan blows cold air through the
refrigerator and freezer compartments—another fan cools the
compressor motor.
9 These NORMAL sounds will oiso be heard from time to time:
9 Defrost timer switch clicks ot defrost.
• Defrost wafer dripping into drain pan.
9 Temperature control dicks ON or OFF.
« Refr igerant boiling or gurgling,
8 Cracking or popping of cooling coils caused by expansion and
contraction during defrost and refrigeration following defrost.
9 Ice cubes dropping into the bin and water running in pipes as
icemaker refills.
Motor starts & stops frequently
9 Temperature control starts and stops motor to mointain even
temperatures. This is normal.
Door not closing properly
9 Door gasket on hinge side sticking or folding over To correct,
put a small amount of petroleum (elly on face of gasket.
Vibration or rattling
9 If refrigerator vibrates, more than likely it is not resting
solidly on the floor. The front roller screws need adjusting, or
floor is weak or uneven. Refer to page 3.
9 If dishes vibrate on shelves, try moving them. Slight vibration
is normal.
9 Defrost water pan rattling, needs to be positioned properly
Foods dry out
• Foods not covered, wrapped or sealed properly.
Fresh food or freezer compartment temperature too
warm
9 Temperature control not set cold enough. Refer to роде 4.
9 Warm weather—frequent door openings.
« Door left open for long time,
9 Package may be holding door open.
Frost or ice crystals on frozen food
9 Door may have been left ojar or package holding door open,
9 Too frequent or too long door openings.
9 Frost within pockage is normal.
Slow ice cube freezing
9 Door moy have been left ajar.
9 Turn temperature of freezer compartment colder.
Ice cubes have odor/taste
9 Old cubes need to be discarded. Empty ice bin every 30 days.
9 Ice storage bin needs to be washed.
9 Unseoled packages in refrigerator and/or freezer
compartments may be transmitting odor/taste to ice cubes.
9 Interior of refrigerator needs cleaning. Refer to page 12.
Automatic icemaker does not work
9 Icemaker feeler arm in OFF (up) position.
9 Water supply turned off or not connected,
9 Freezer compartment too warm.
9 Cubes too small—water shutoff valve connecting refrigerator
to home water line may be clogged,
9 Sometimes cubes fuse to the side of the ice mold and hold the
feeler arm in the OFF (up) position. Remove this ice to restart
the icemaker,
9 Piled up cubes in storage bin may cause icemoker to shut off
prematurely. With icemaker feeler arm in OFF (up) position,
level cubes in bin by hand.
9 When leveling cubes by hand, you may have pushed the feeler
arm into the OFF (up) position by mistake,
14
Page 15
Cube dispenser does not work.
® No ice cubes. Remove storage container. If cubes ore frozen to
wire arm, remove cubes.
® No ice cubes. Icemoker or water supply turned off.
® Irregulor ice clumps in storage container. Break up os many as
you can with fingertip pressure ond discard the remaining
clumps.
Water has poor faste/odor
If water dispenser has not been used for an extended period,
dispense water in regular manner until all water in reservoir is
replenished with fresh water
® Poor-tasting incoming water. Instoll a water filter
Water dispenser does not work
® Water supply line turned off or not connected.
® Supply line may be dogged with sediment.
Water in first gloss is worm
® Allow obout 24 hours for woter to cool to proper temperature
after refrigerator is first installed.
® If woter dispenser has not been used for extended period,
water in first glass will not be as cool as in succeeding glasses.
® If water reservoir has been drained, allow several hours for
replenished supply to chill.
Refrigerator has odor
« Food with strong odors should be tightly covered,
® Check for spoiled food.
® Interior needs cleaning, Refer to page 12,
® Defrost water pan needs cleaning.
• Keep open box of baking soda in refrigerator; replace every
three months.
Water Filter Accessory
{optionaS at extro cos!)
Your ice cubes con only be as fresh-fasting as the water that
produces them. That’s why it's a good idea to purify the woter
with a water filter.
The water filter is an optional part at extra cost and is available
from your Seors Service Center. Order Filter No, 978488 and it
may be installed in minutes when attached to the inlet woter
tube connection.
Water Supply Accessory Kit
(optional at extro cos!)
A water supply kit containing copper tubing, shot-off valve,
fittings and instructions needed to connect the icemoker to your
cold water line is also available from your Sears store or Sears
Service Center.
Moisture forms on outside of refrigerator
® Not unusual during periods of high humidify.
Moisture collects inside
® Too frequent or too long door openings,
® In humid weather, air carries moisture into refrigerator when
doors are opened
Woter on floor
® The drain in the bottom of the freezer may be clogged.
Remove any ice on the freezer bottom and clean the drain. Refer
to page 13,
® Defrost water pan full, missing or not in position.
Hot air from bottom of refrigerator
® Normol air flow cooling motor. In the refrigeration process,
it is normal that heat be expelled in the areo under the
refrigerator. Some floor coverings will discolor at these normal
and sofe operating temperatures. Your floor covering supplier
should be consulted if you object to this discolorotion.
Interior light does not work
• No power ot outlet.
® Light bulb needs replacing, See page 13
Moving Precautions
Disconnect the power cord from the wall outlet, remove all food
and dean and dry the interior Secure all loose items by taping
them securely in place Keep the refrigerator in an upright
position during actuol moving and in the van. Secure the
refrigerator in the van to prevent movement, and protect the
outside with a blanket,
Vacation Precautions
For extended vacations or obsenees, shut off power to the
refrigerator, tom the numbered control to the OFF position,
ond clean the interior with o boking soda solution of one
tablespoon of soda to one quart of wafer. Wipe dry. To prevent
odors, leave an open box of soda in the refrigerator, Leave the
doors open.
For shorter vacations, remove perishoble foods and leave
controls at their regulor settings. However, if room temperature
is expected to drop below 60°F., follow the same instructions as
for extended vacations.
Set icemoker to the OFF position and shut off water supply to
refrigerotor
15
Page 16
FULL ONE YEAR
WARRANTY ON REFRIGERATOR
For one year from the date of purchase, when this refrigerator is operated and maintained
according to instructions attached to or furnished with the product, Sears will repair this
refrigerator, free of charge, if defective in material or workmanship.
FULL FIVE-YEAR WARRANTY
ON SEALED REFRIGERATION SYSTEM
For five years from the date of purchase, when this refrigerator is operated and
maintained according to owner's instructions attached to or furnished with the product,
Sears will repair the sealed system (consisting of refrigerant, connecting tubing and
compressor motor), free of charge, if defective in material or workmanship.
The above warranty coverage applies only to refrigerators which
are used for storage of food for private household purposes.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE
NEAREST SEARS SERVICE CENTER/DEPARTAAENT IN THE UNITED STATES.
This warranty applies only while this product is in use in the United States.
This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
rn'i
II
SEARS, ROEBUCK AND CO., Dept. 698/731A, Sears Tower, Chicago, IL 60684
SEARS SERVICE iS AT YOUR SERVICE
'fbur Kenmore has added value when you consider
that Sears hos nationwide service units staffed by
Sears-trained technicians professional technicians
specifically trained to service SEARS appliances,
having the parts, tools and equipment to insure that
w® meet our pledge to you.,. "We Service What We Sell!
SEARS, ROEBUCK AND CO., Dept. 698/731A, Sears Tower, Chicago, IL 60684
iKl
ADD TO THE VALUE OF YOUR KENMORE,
BUY A SEARS MAINTENANCE AGREEMENT
Sears Kenmore refrigerators are designed, built and
tested for years of dependable use. Yet any modern
appliance may need service from time to time. The
Sears warranty plus the Sears maintenance
agreement give protection from unexpected repair
bills. Contact your salesperson or nearest service
center for details.
Port No. S596020
Printed in U.S.A.
162D3810P001
59771
59778
Loading...
