Kenmore 4900 User Manual

Front=Loading Automatic Washer

Models 4900*

Designed to use only HE High
Efficiency Detergent

_[_i_i_¸ _Ji_,¸¸

Code n° : DC68-02902A-01 Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3 www.sears.ca

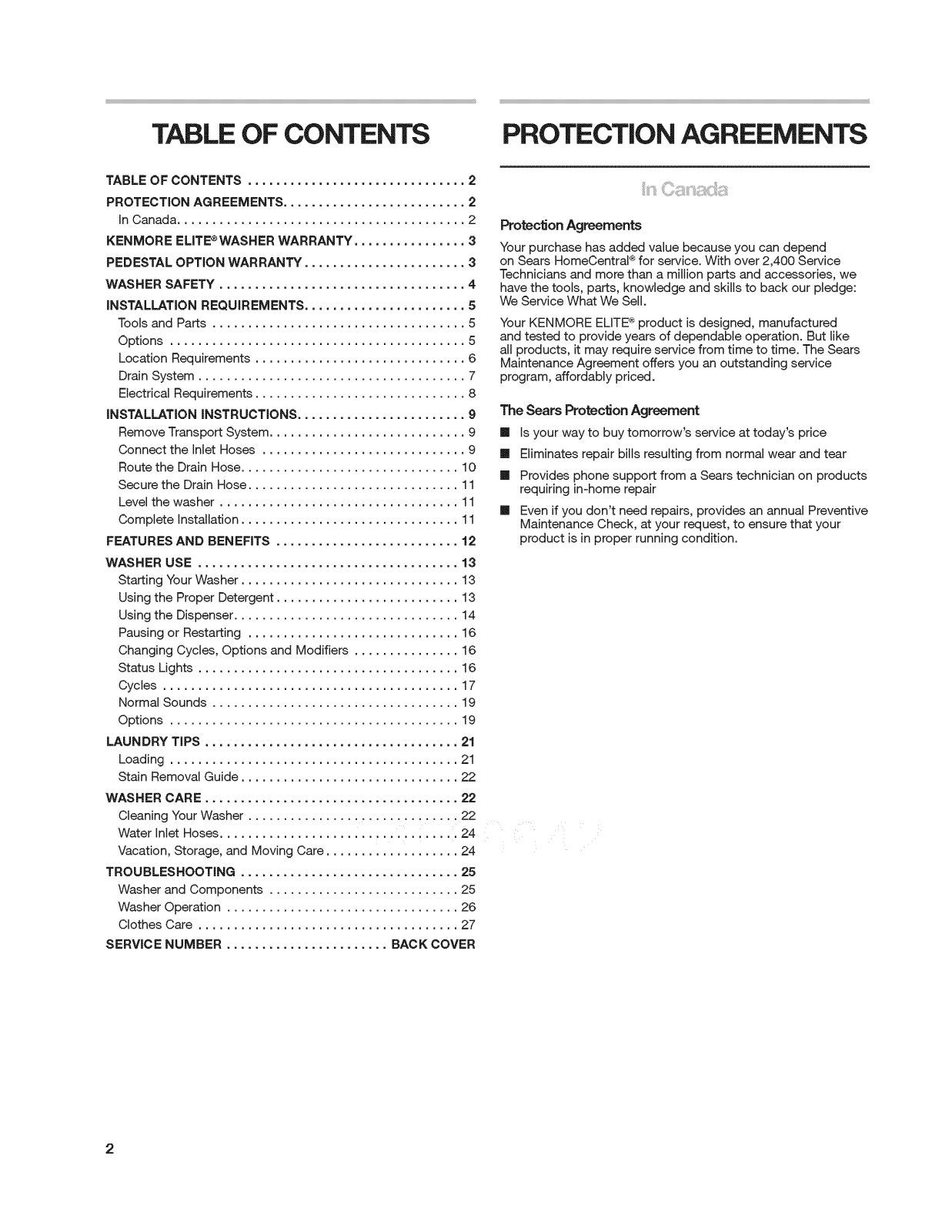

TABLE OF CONTENTS PROTECTION AGREEMENTS

TABLE OF CONTENTS ............................... 2

PROTECTION AGREEMENTS .......................... 2

In Canada ......................................... 2

KENMORE ELITE_WASHER WARRANTY ................ 3

PEDESTAL OPTION WARRANTY ....................... 3

WASHER SAFETY ................................... 4

iNSTALLATiON REQUIREMENTS ....................... 5

Tools and Parts .................................... 5

Options .......................................... 5

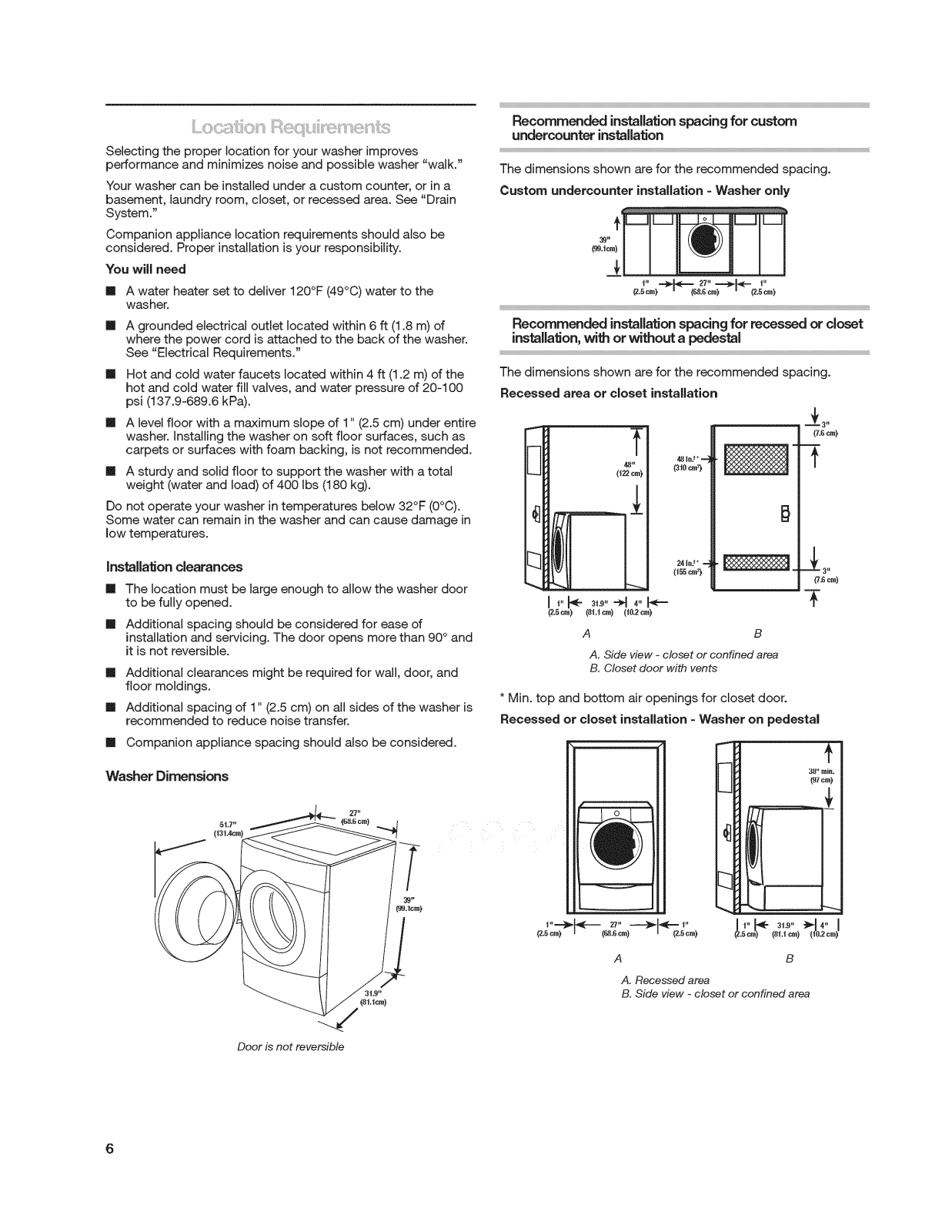

Location Requirements .............................. 6

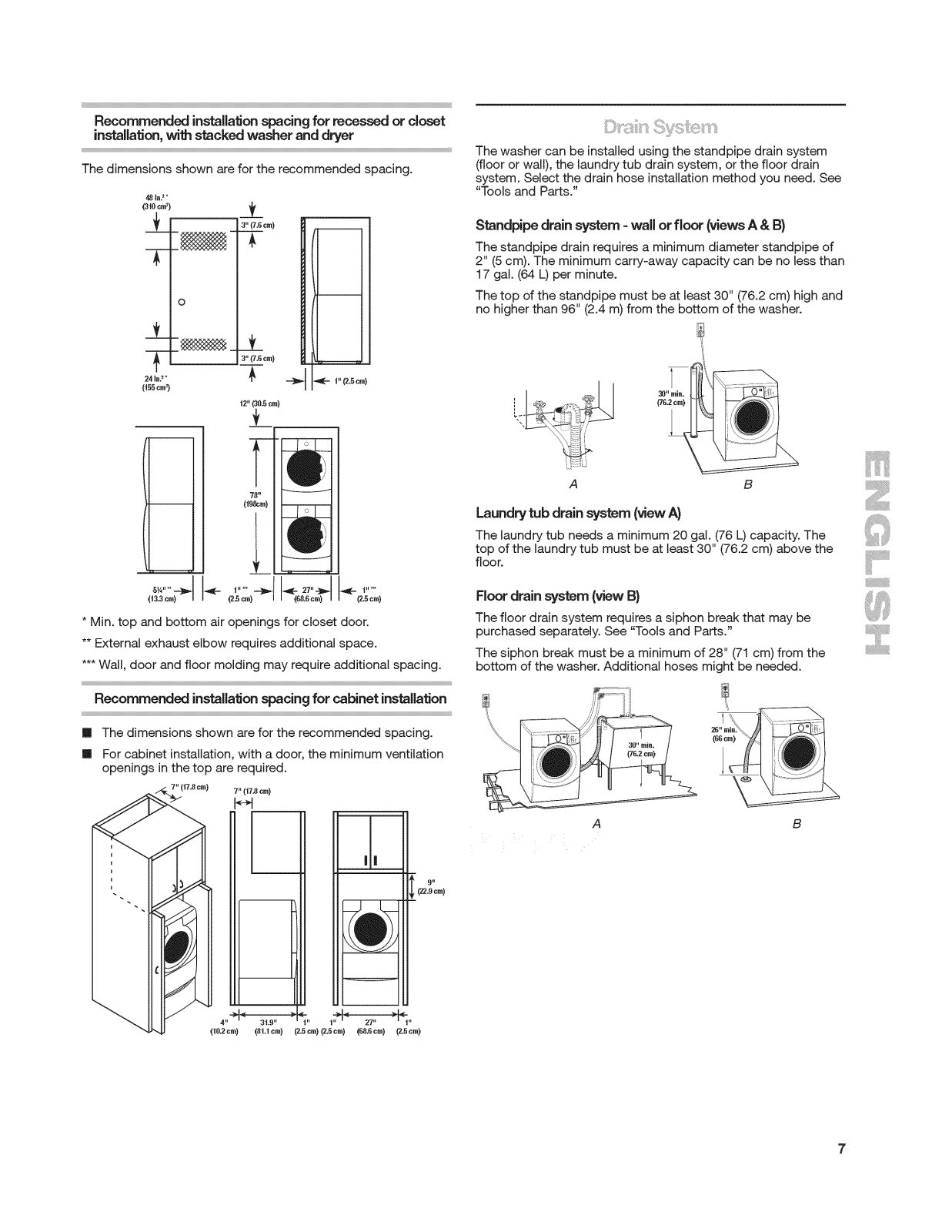

Drain System ...................................... 7

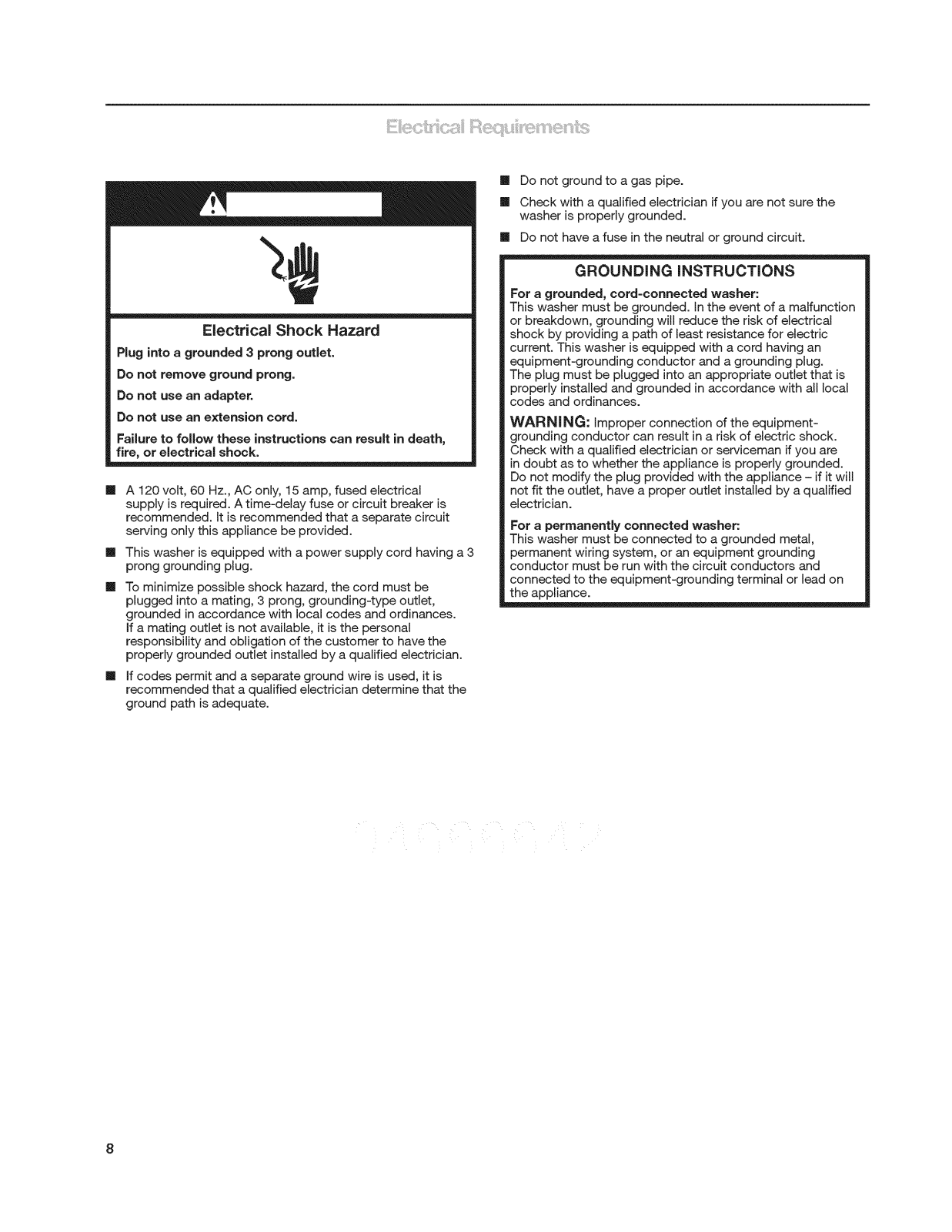

Electrical Requirements .............................. 8

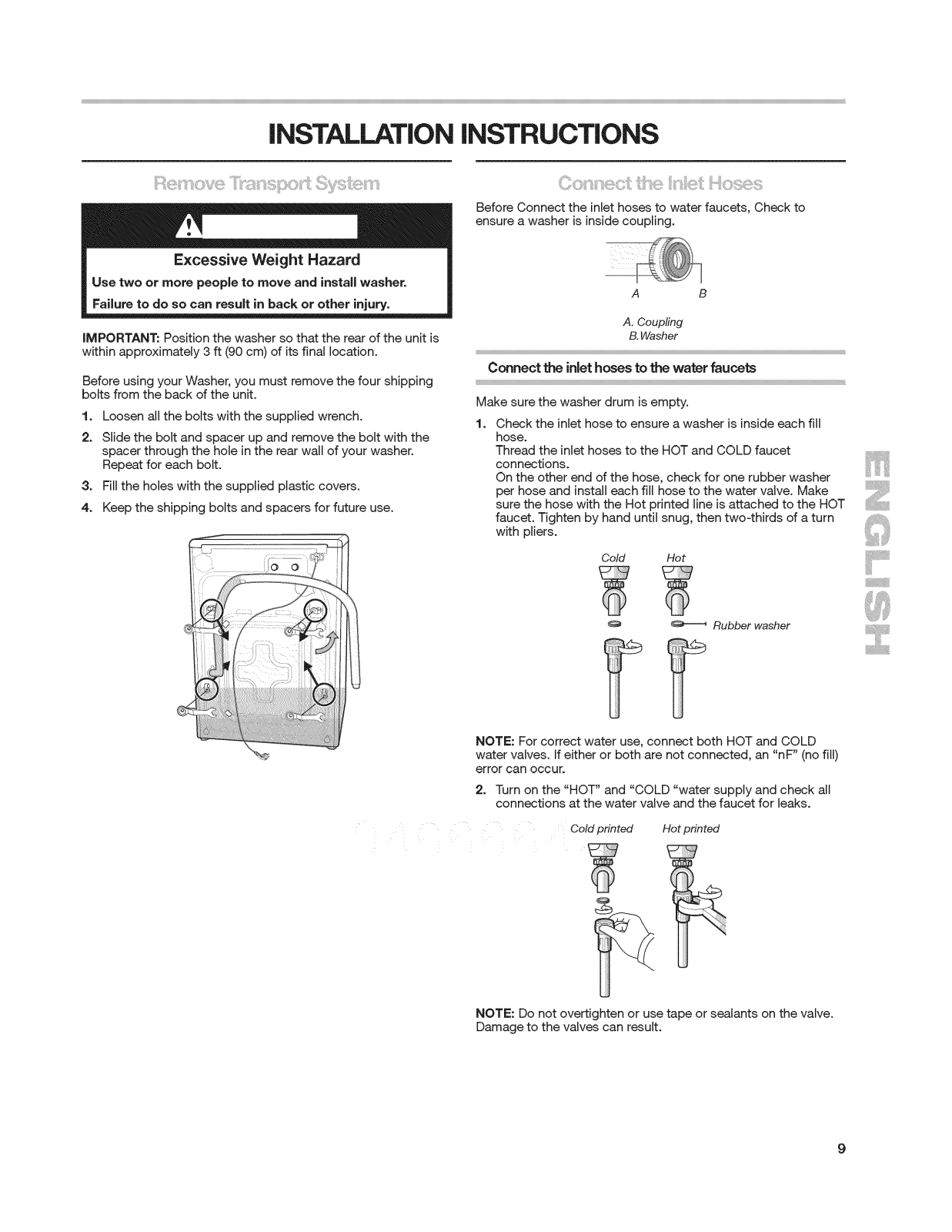

iNSTALLATiON iNSTRUCTiONS ........................ 9

Remove Transport System ............................ 9

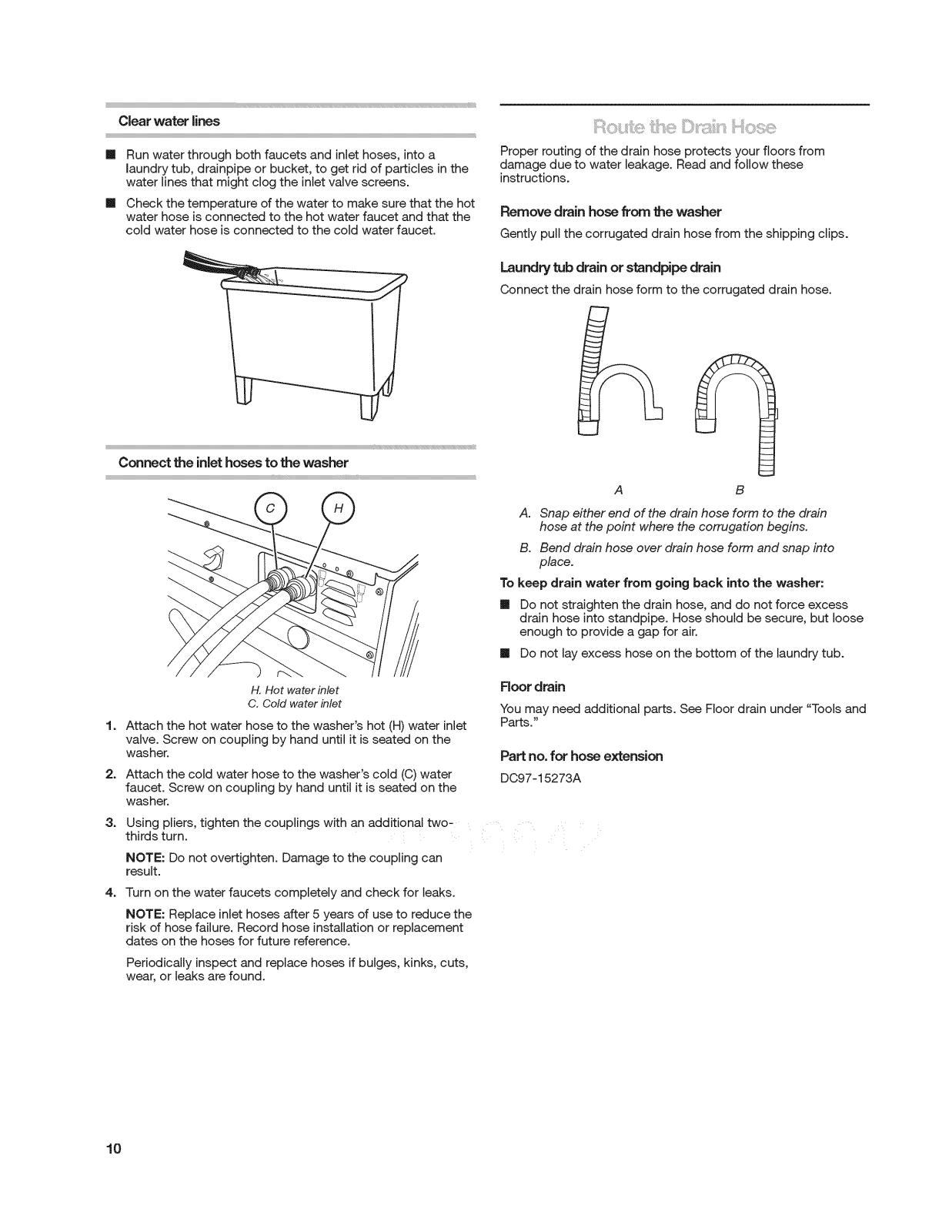

Connect the Inlet Hoses ............................. 9

Route the Drain Hose ............................... 10

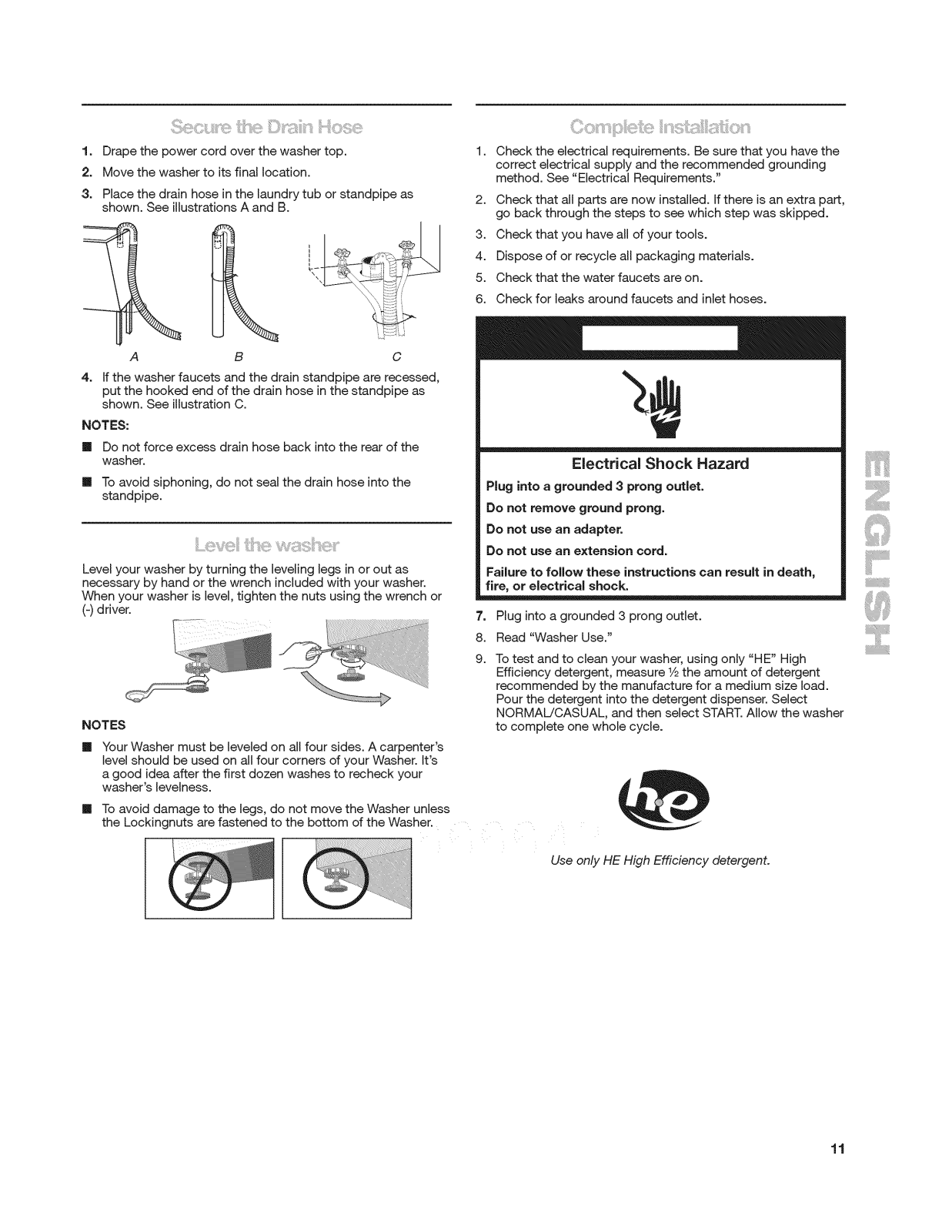

Secure the Drain Hose .............................. 11

Level the washer .................................. 11

Complete Installation ............................... 11

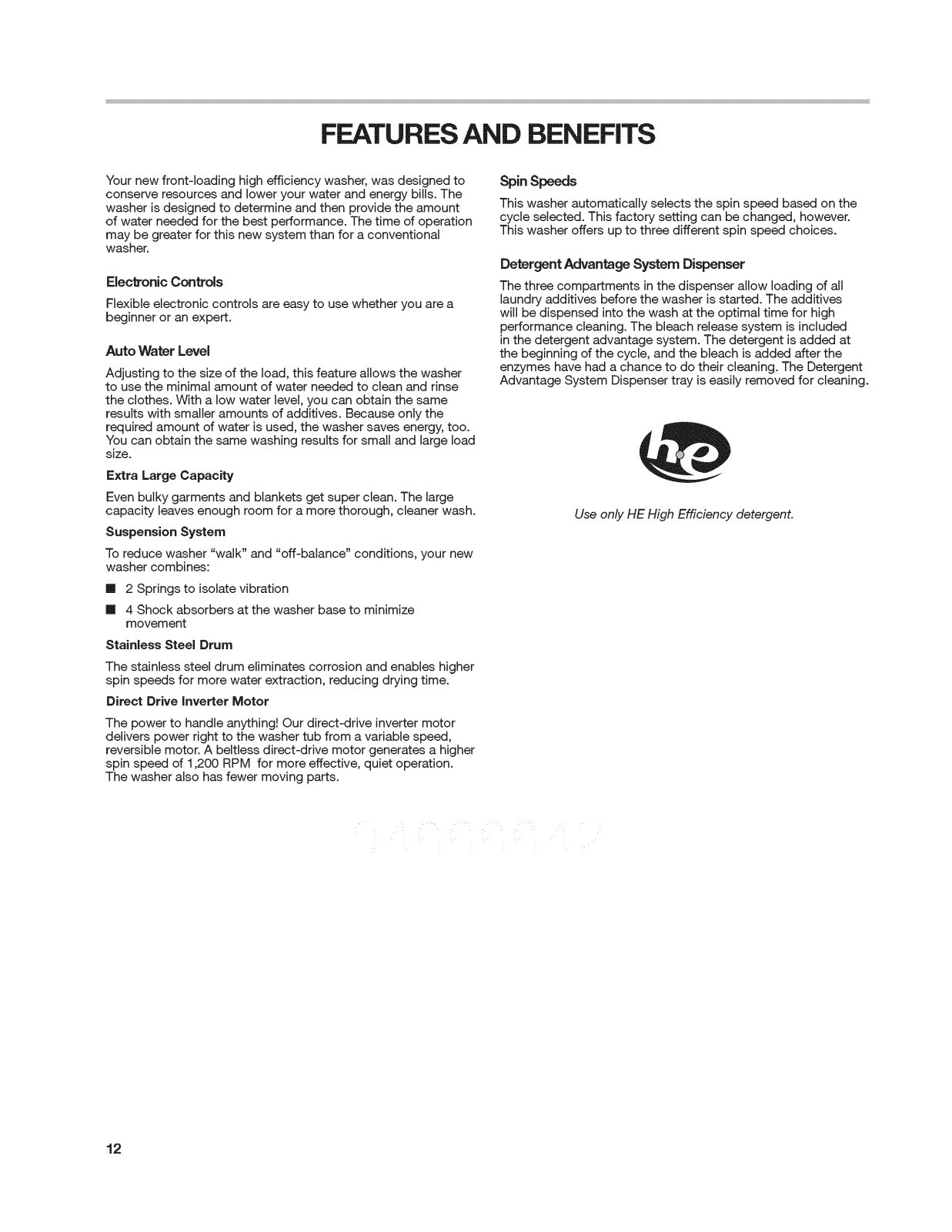

FEATURES AND BENEFITS .......................... 12

WASHER USE ..................................... 13

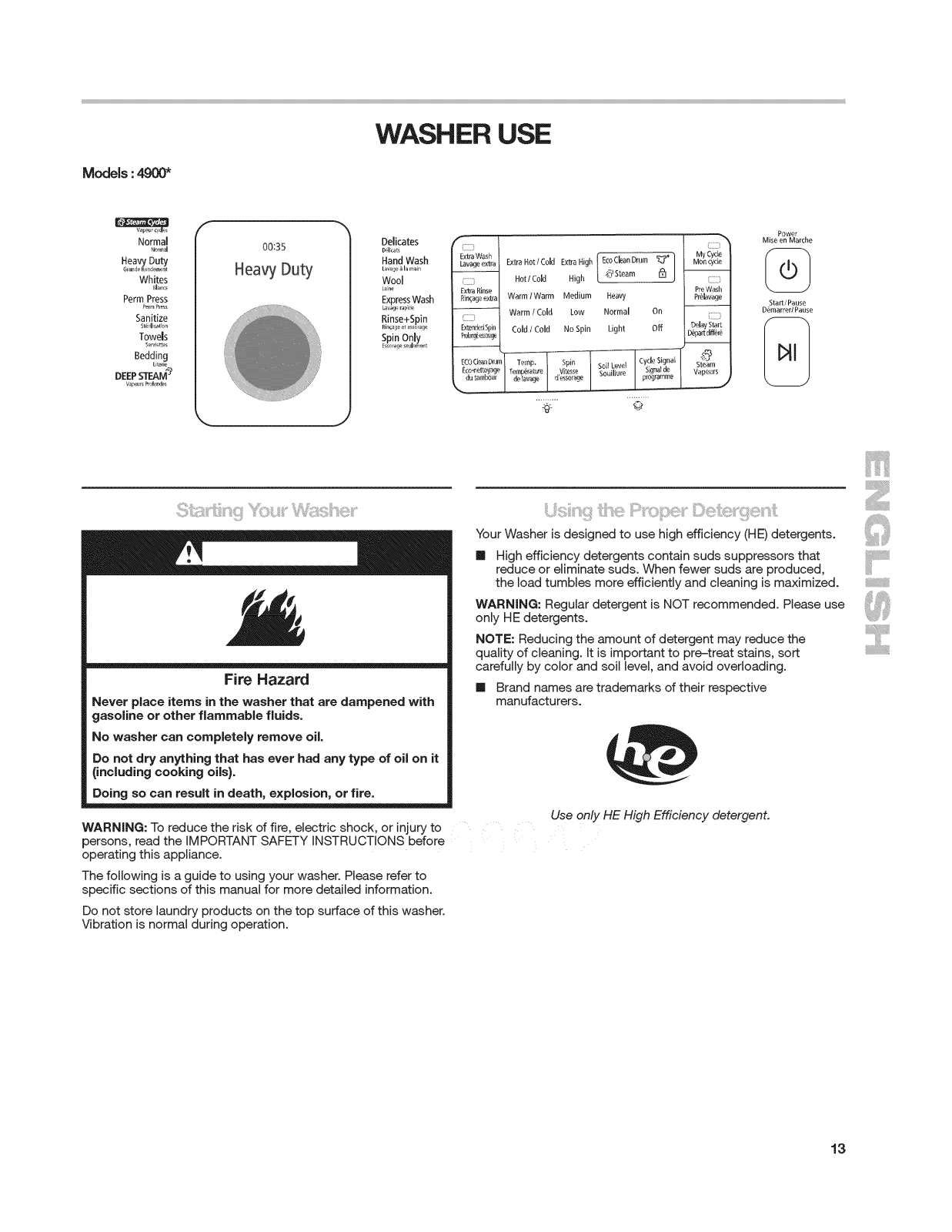

Starting Your Washer ............................... 13

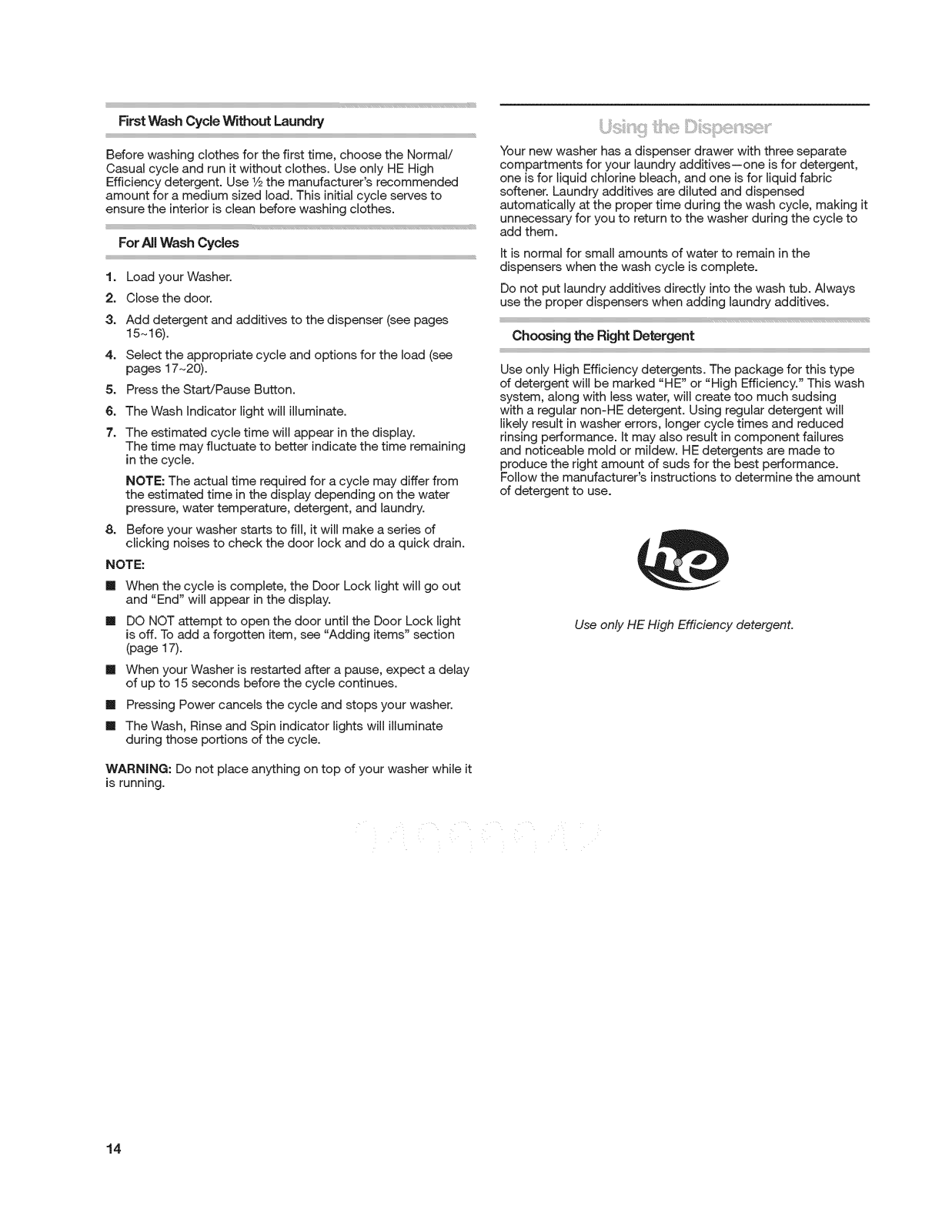

Using the Proper Detergent .......................... 13

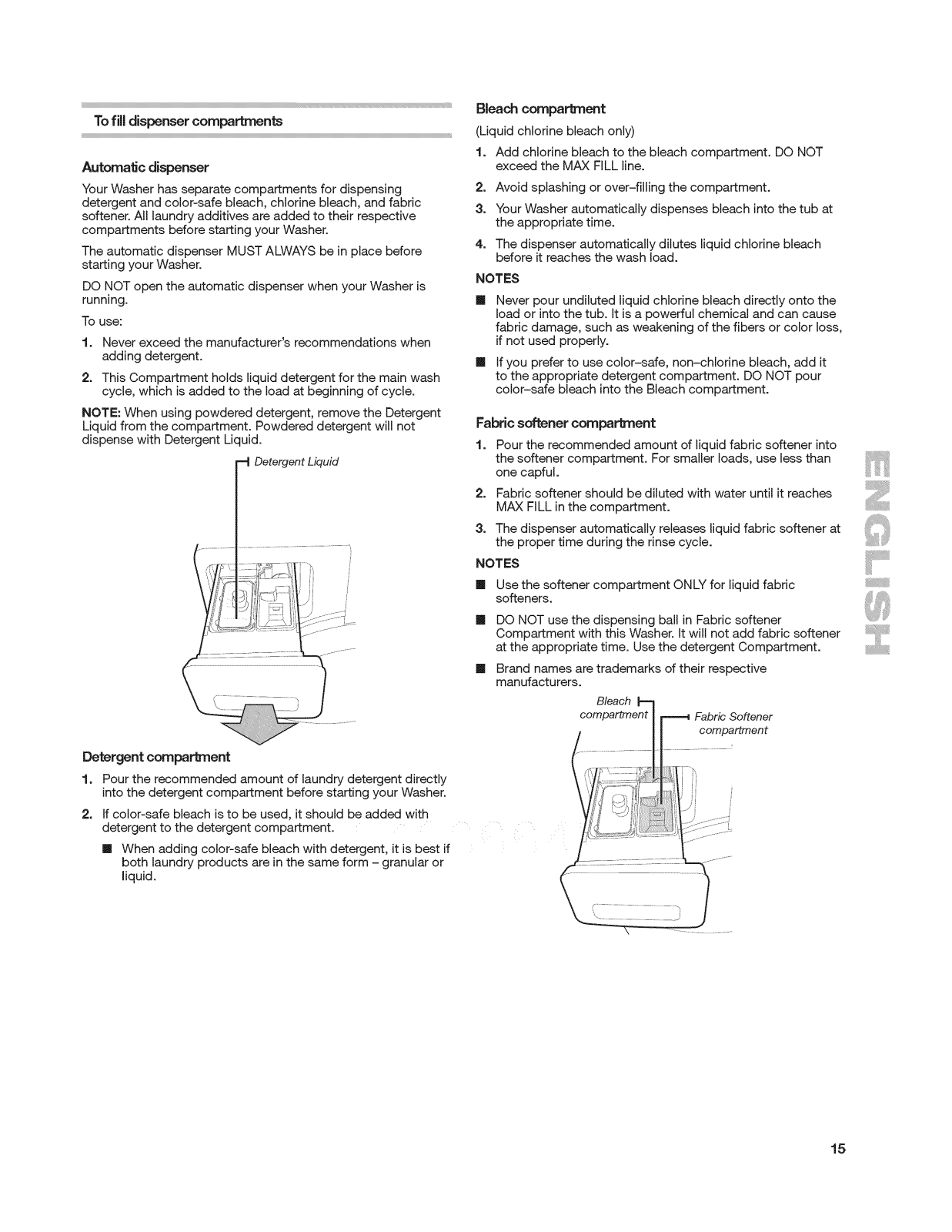

Using the Dispenser ................................ 14

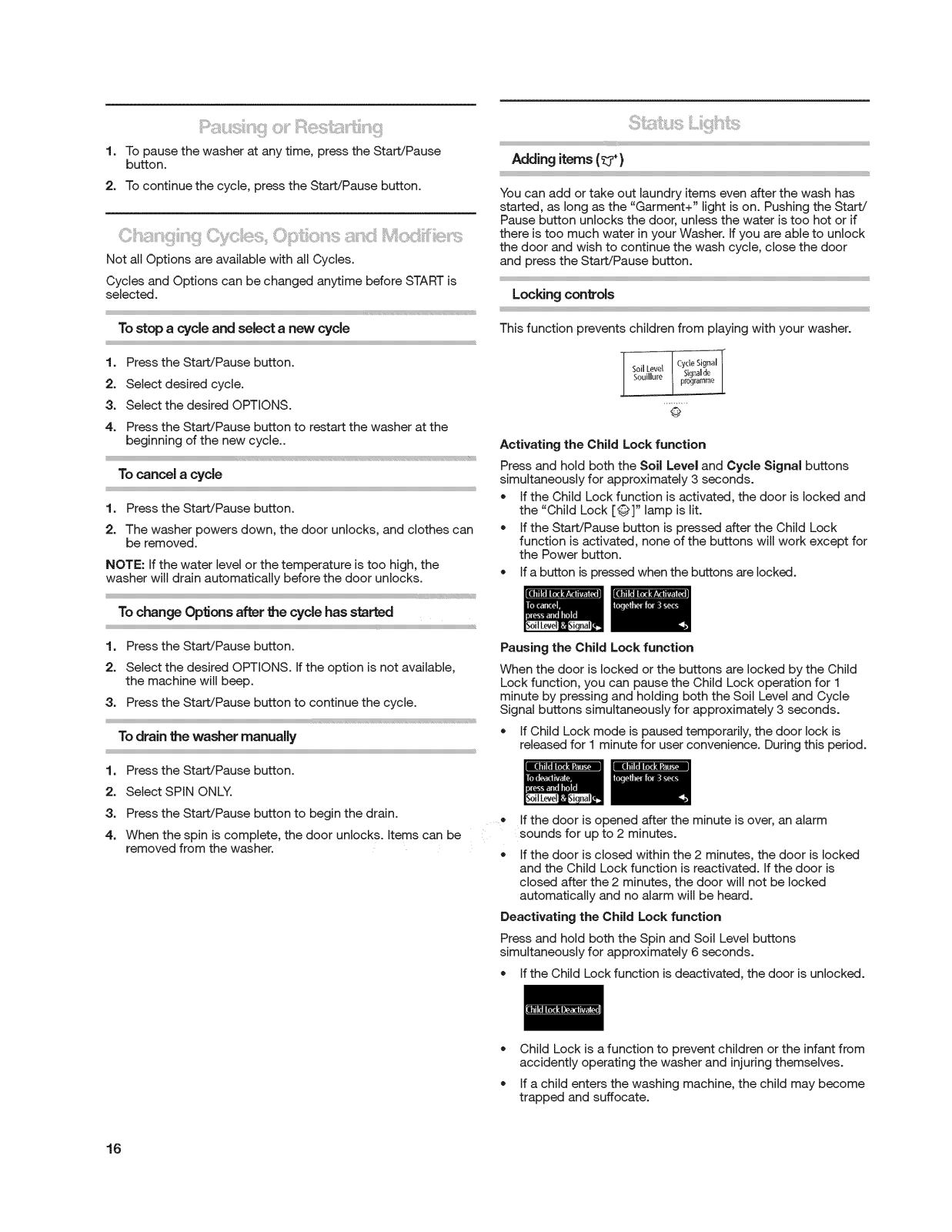

Pausing or Restarting .............................. 16

Changing Cycles, Options and Modifiers ............... 16

Status Lights ..................................... 16

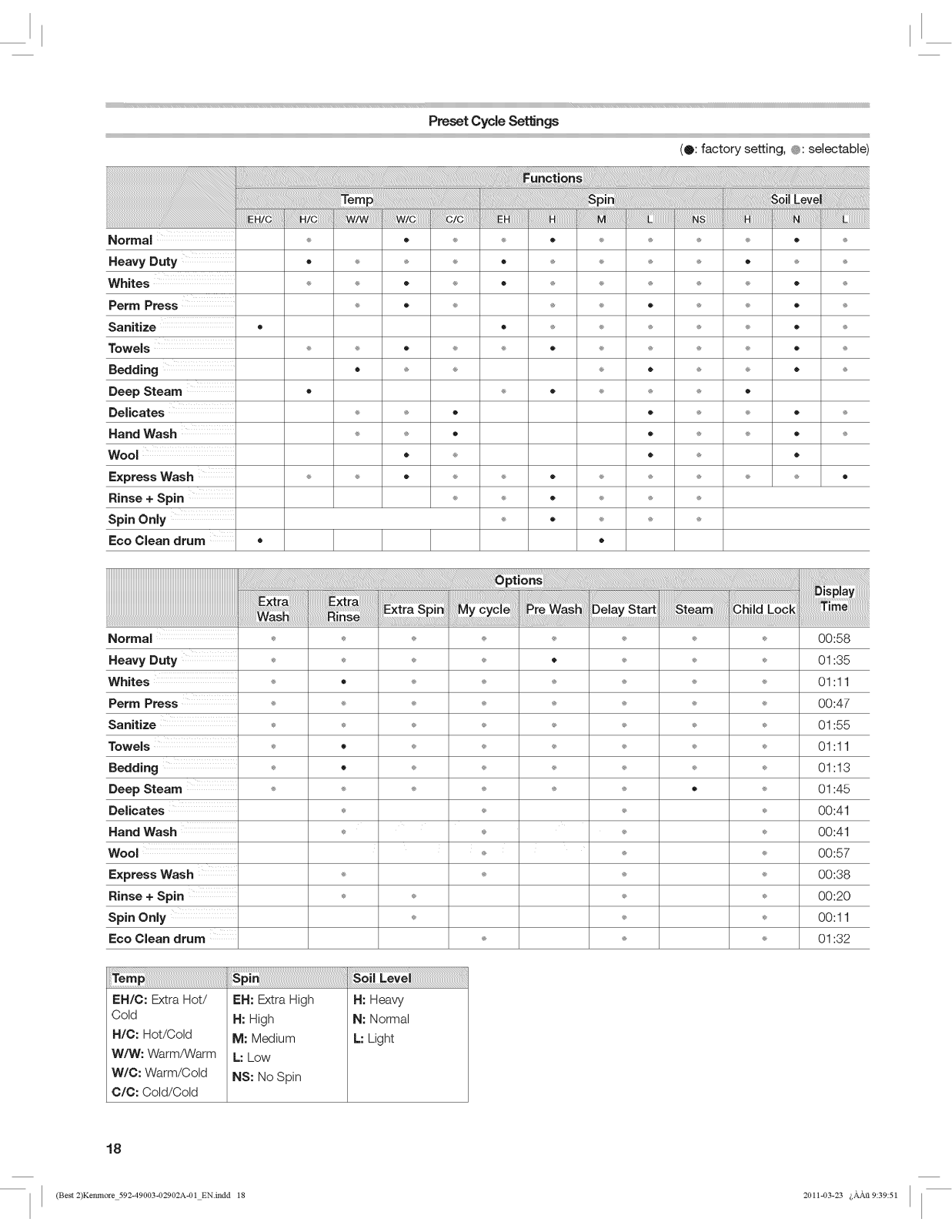

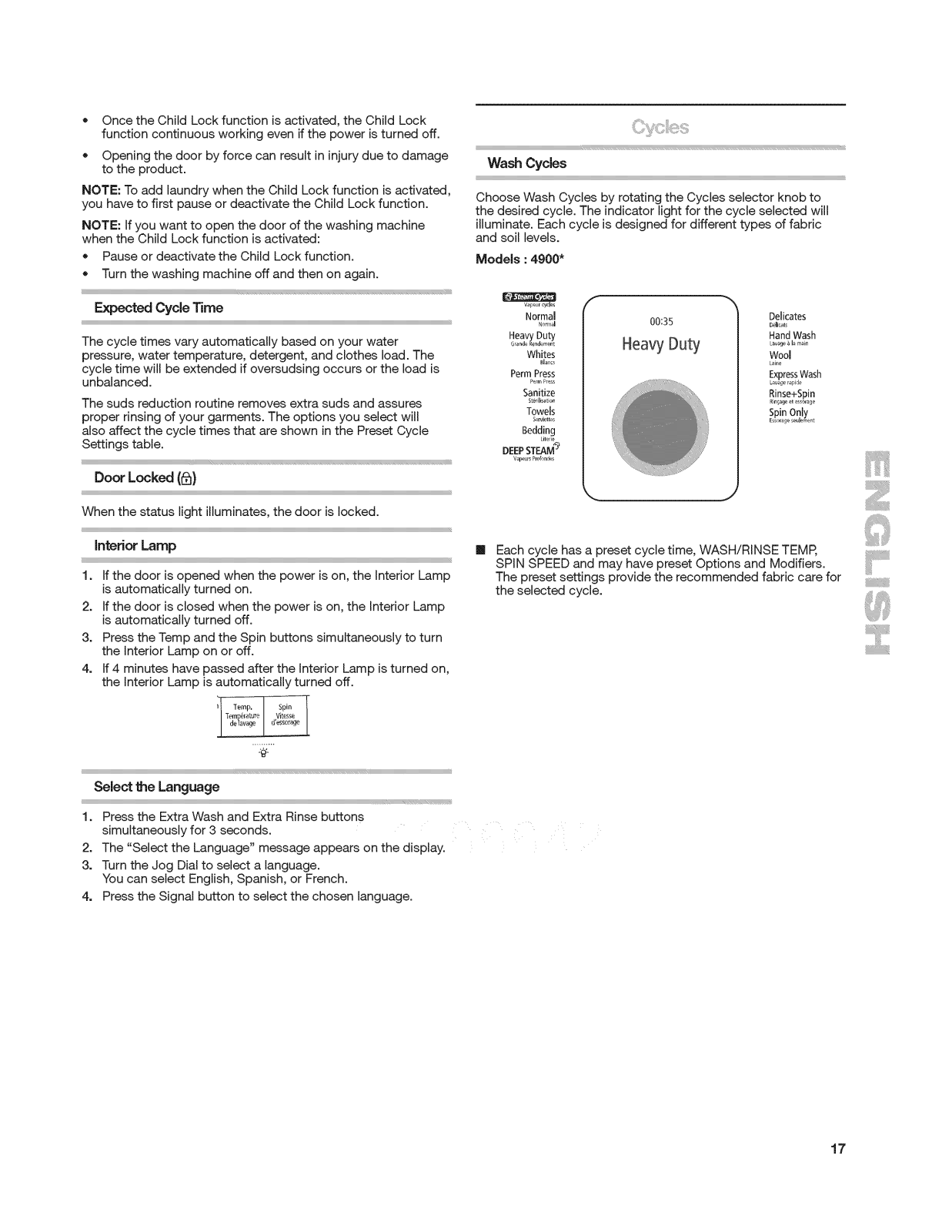

Cycles .......................................... 17

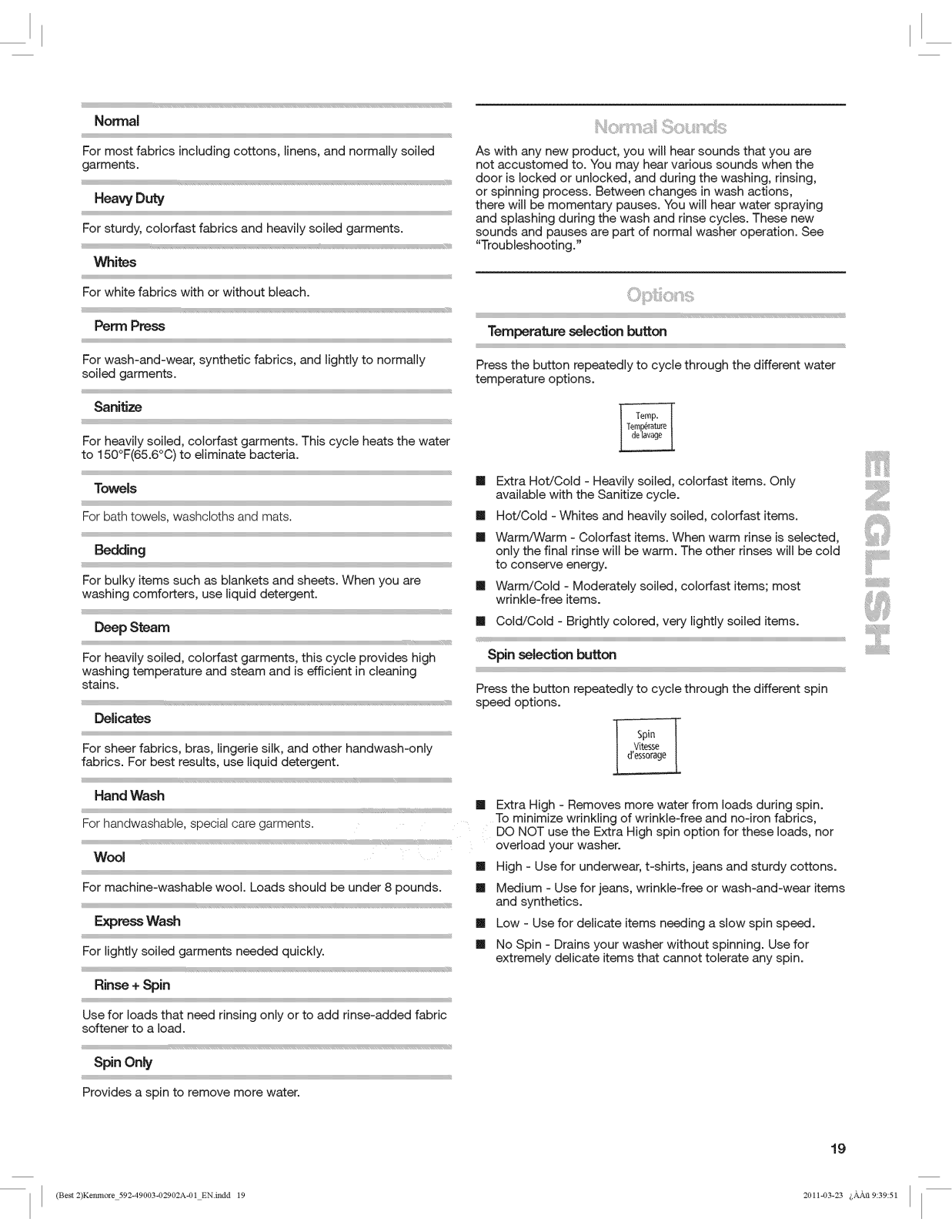

Normal Sounds ................................... 19

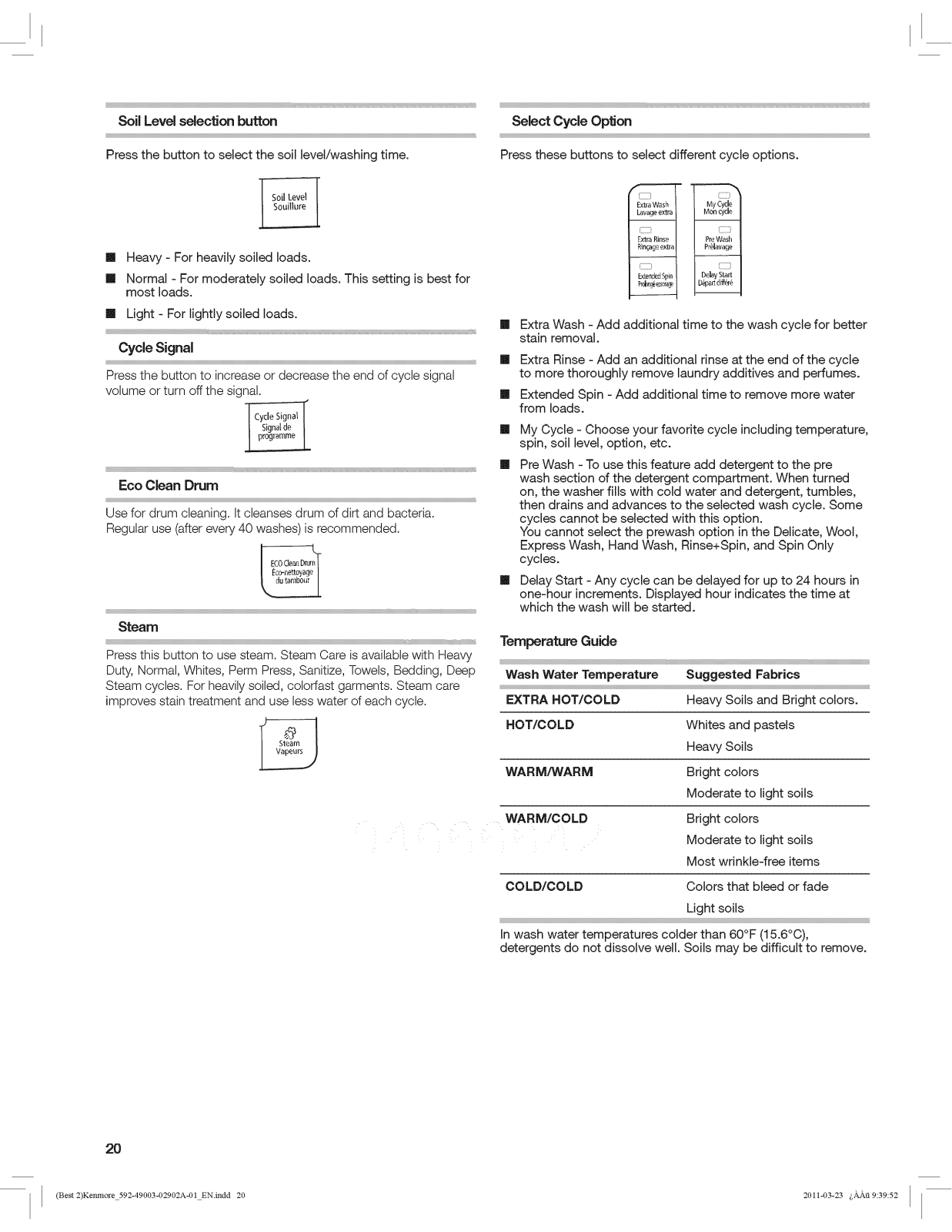

Options ......................................... 19

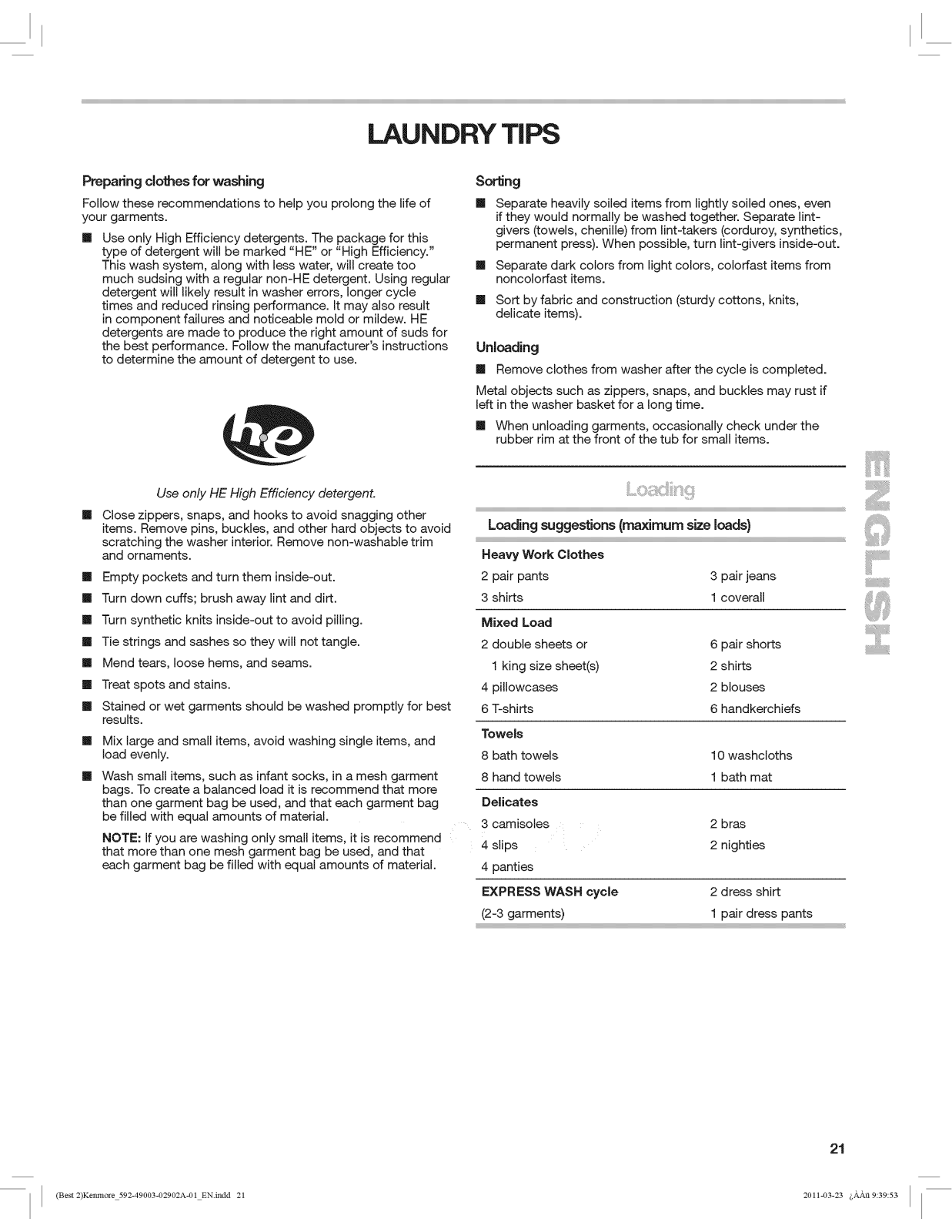

LAUNDRY TiPS .................................... 21

Loading ......................................... 21

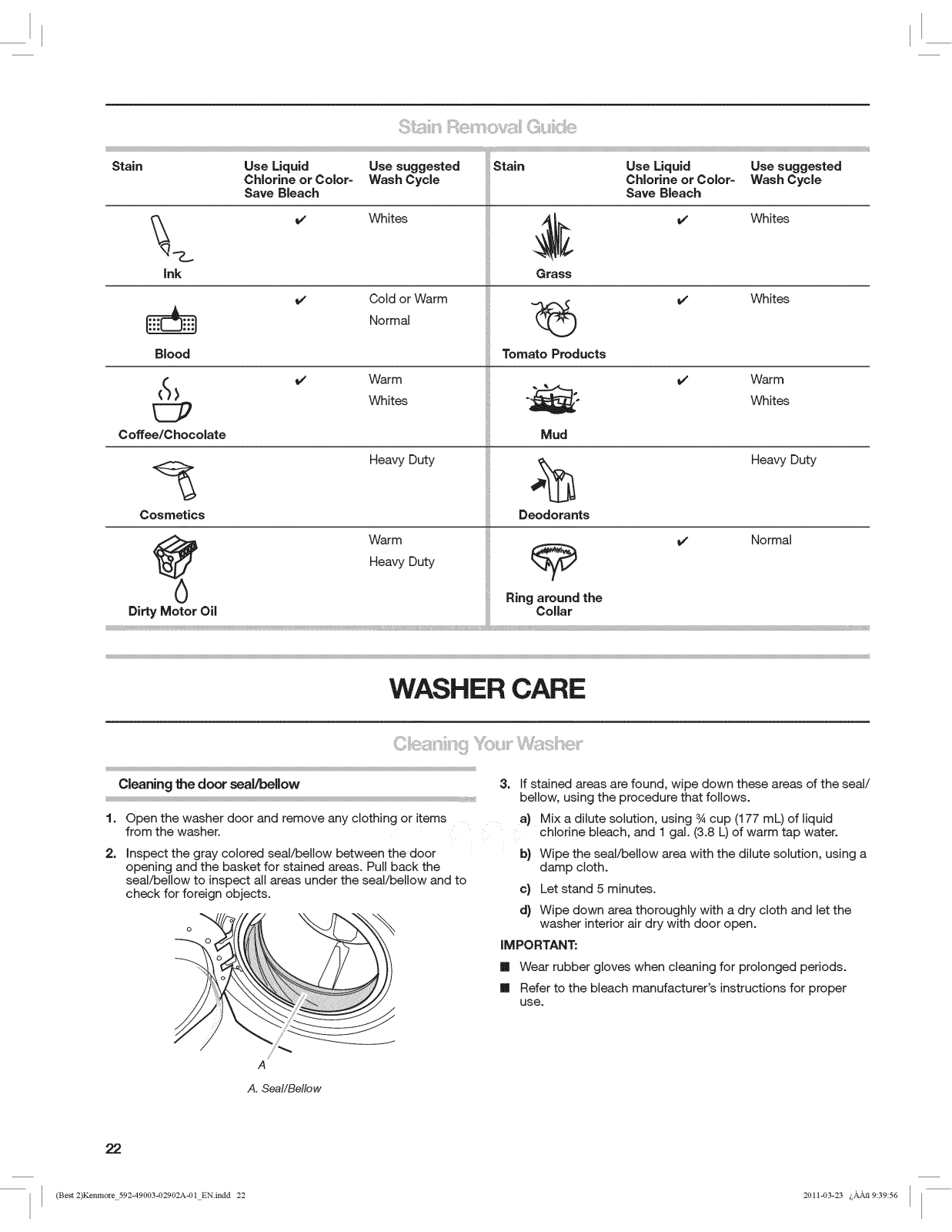

Stain Removal Guide ............................... 22

WASHER CARE .................................... 22

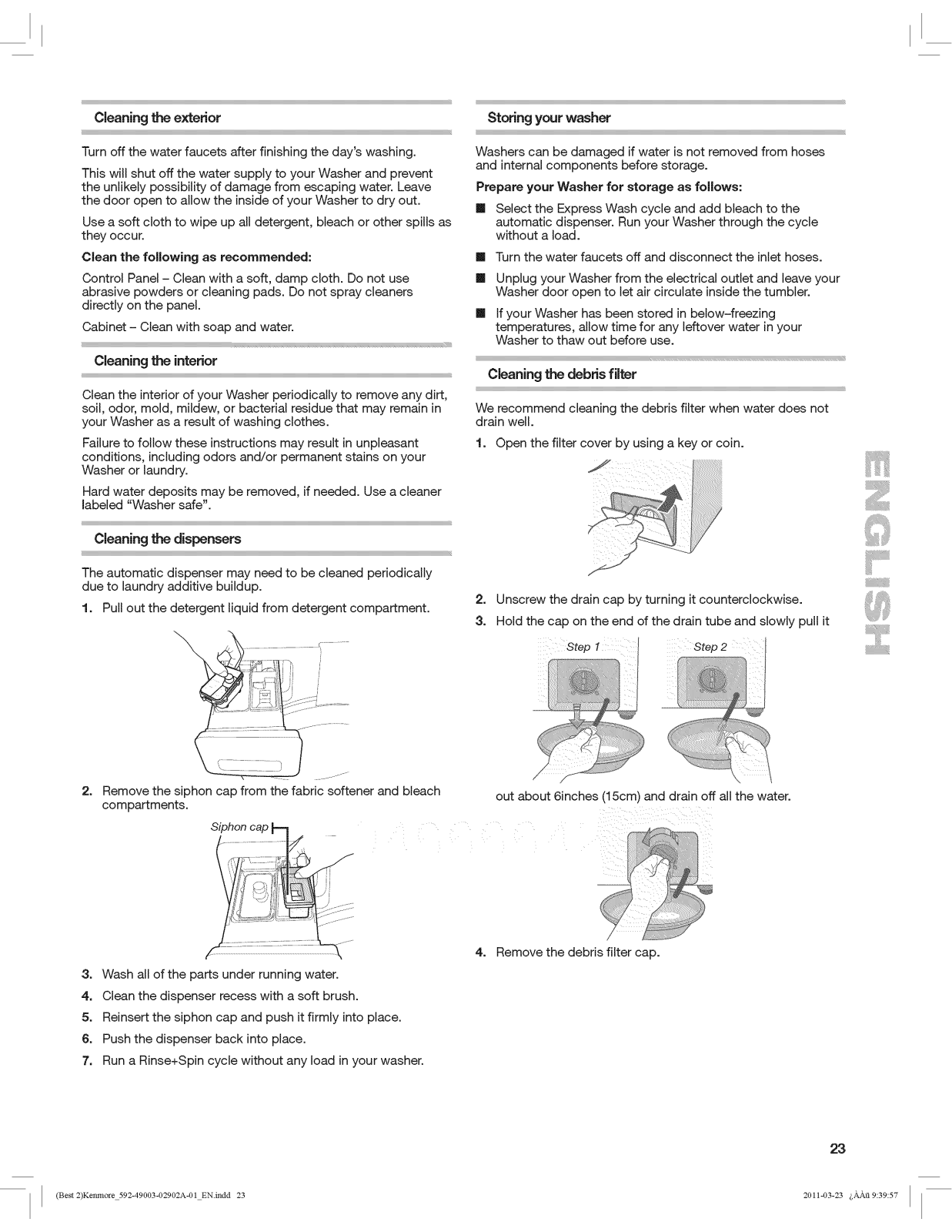

Cleaning Your Washer .............................. 22

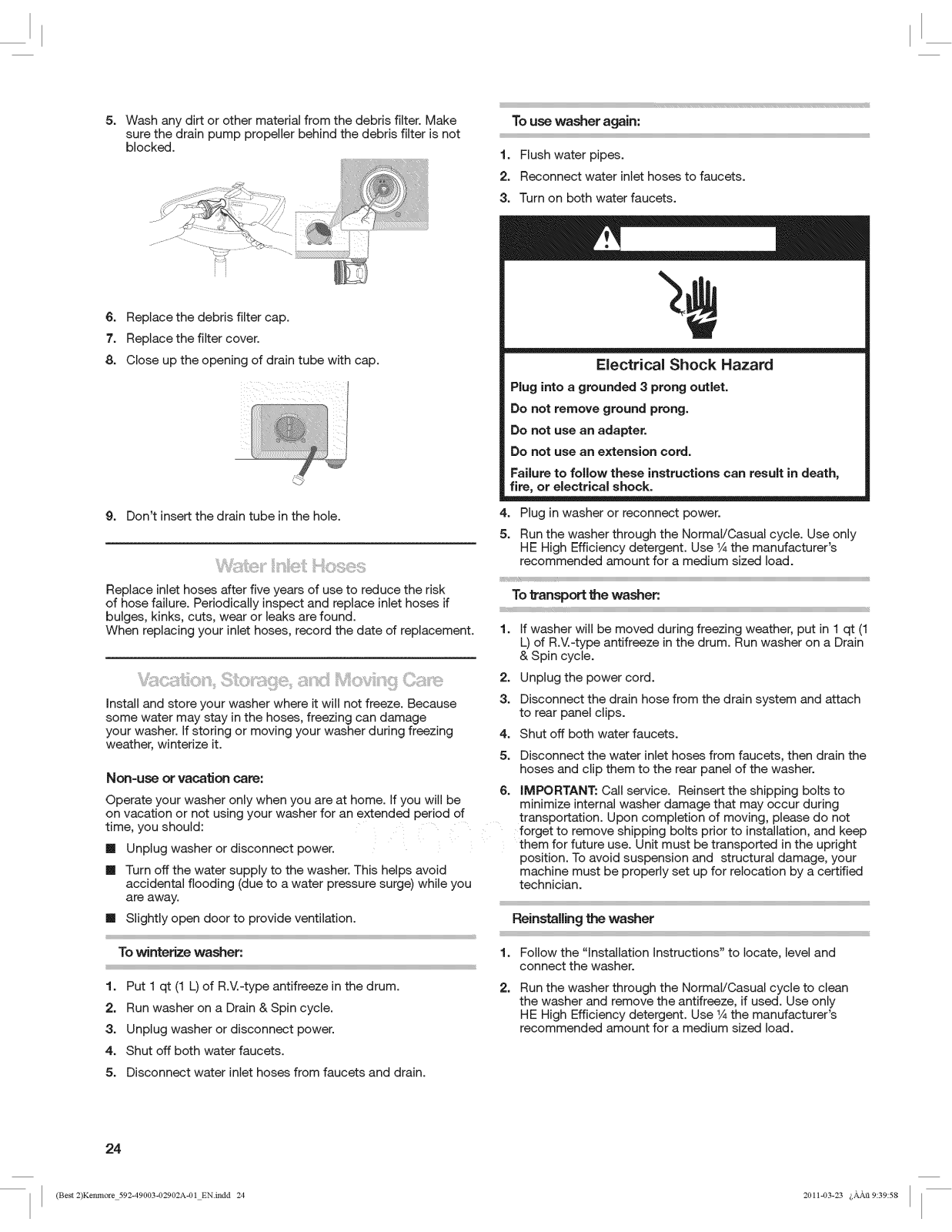

Water Inlet Hoses ......................... i ........ 24

Vacation, Storage, and Moving Care ................... 24

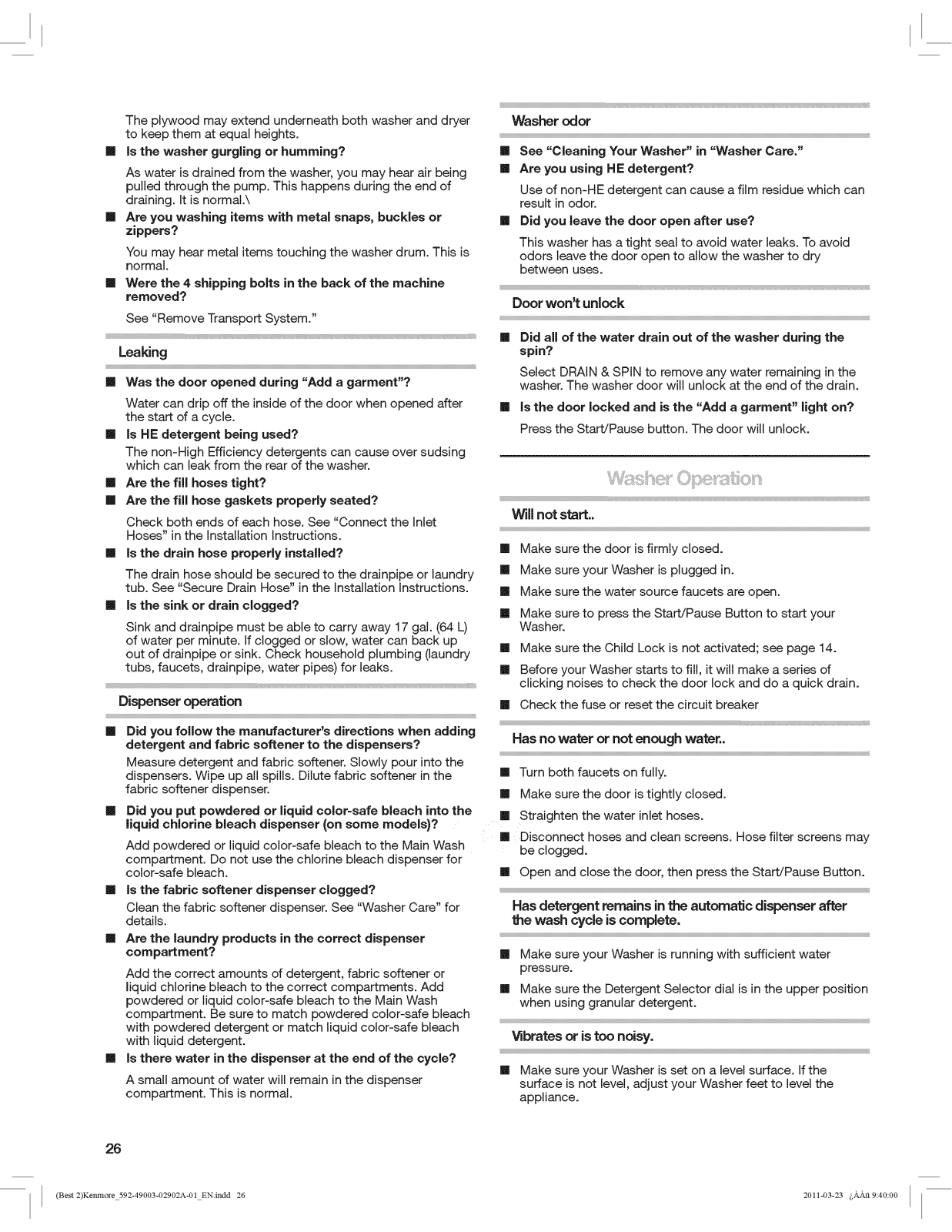

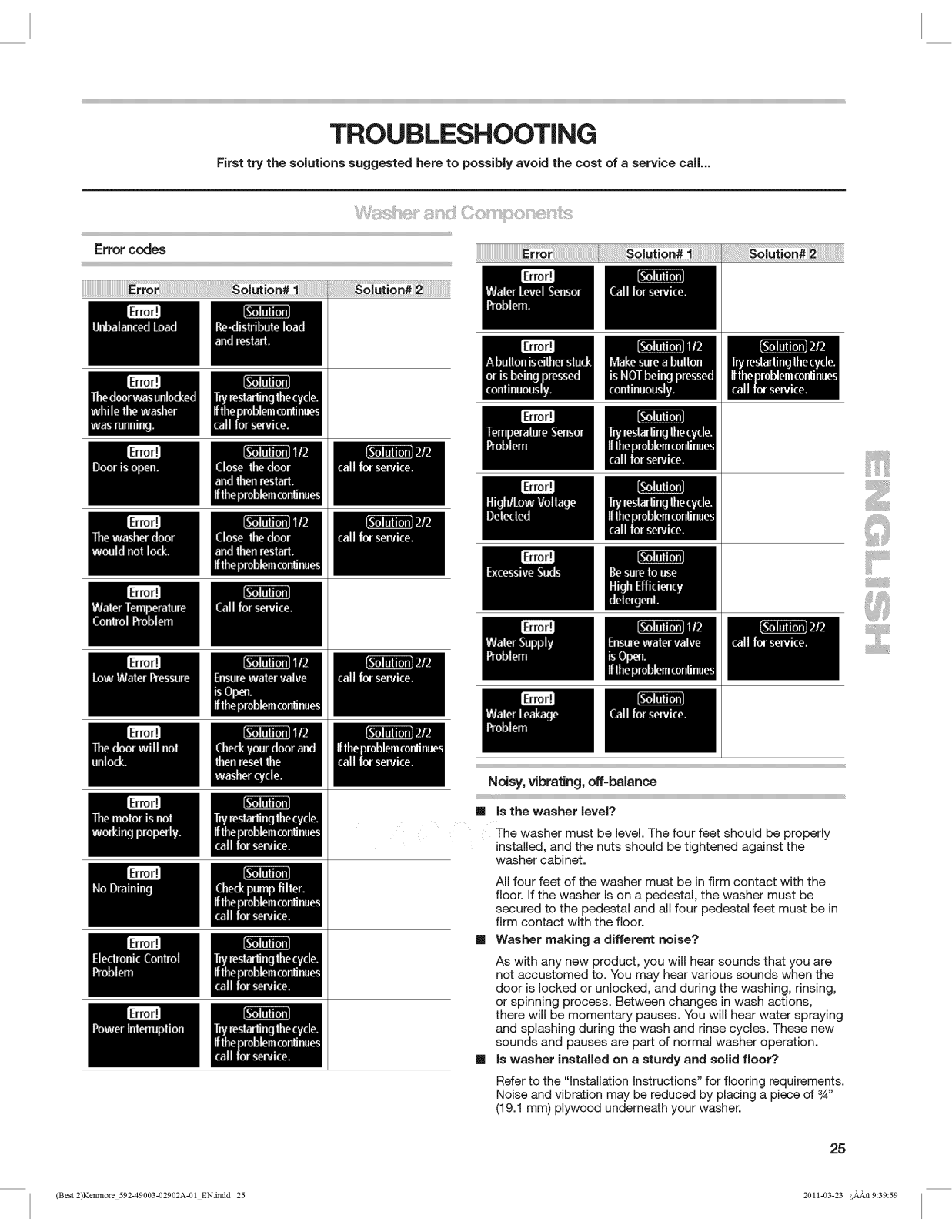

TROUBLESHOOTING ............................... 25

Washer and Components ........................... 25

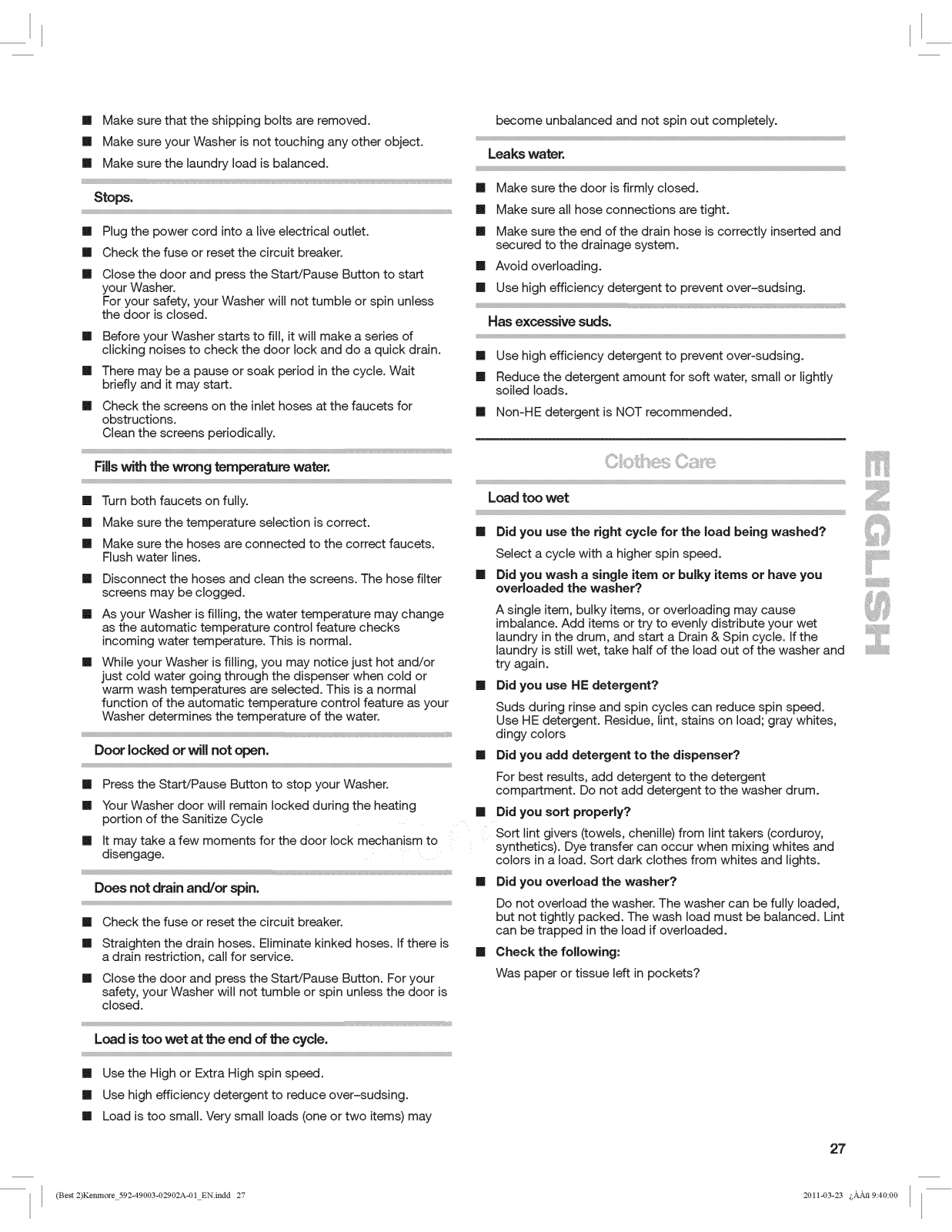

Washer Operation ................................. 26

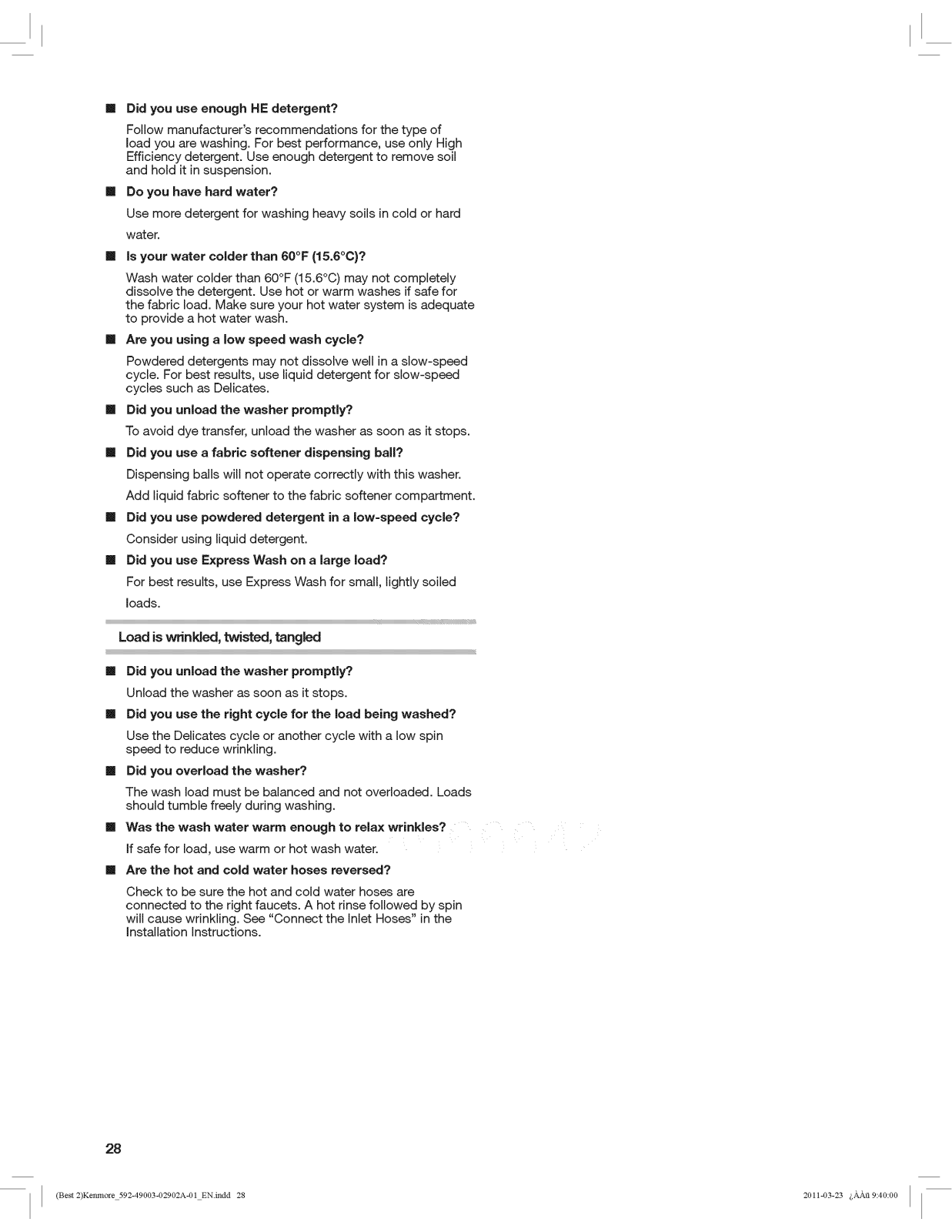

Clothes Care ..................................... 27

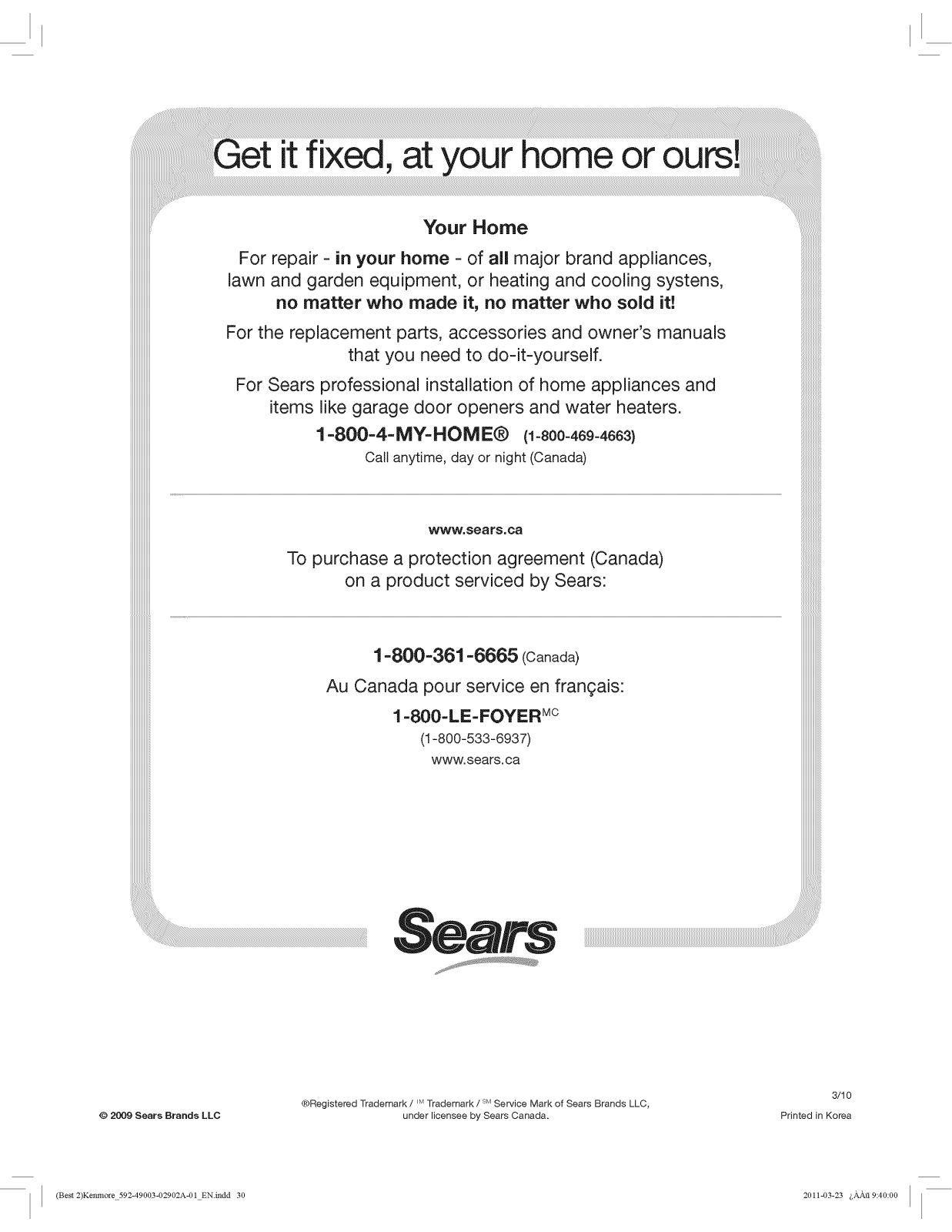

SERVICE NUMBER ....................... BACK COVER

Protection Agreements

Your purchase has added value because you can depend
on Sears HomeCentral ®for service. With over 2,400 Service

Technicians and more than a million parts and accessories, we

have the tools, parts, knowledge and skills to back our pledge:

We Service What We Sell.
Your KENMORE ELITE ®product is designed, manufactured

and tested to provide years of dependable operation. But like
all products, it may require service from time to time. The Sears

Maintenance Agreement offers you an outstanding service
program, affordably priced.

The Sears Protection Agreement
[] Is your way to buy tomorrow's service at today's price
[] Eliminates repair bills resulting from normal wear and tear
[] Provides phone support from a Sears technician on products

requiring in-home repair

[] Even if you don't need repairs, provides an annual Preventive

Maintenance Check, at your request, to ensure that your

product is in proper running condition.

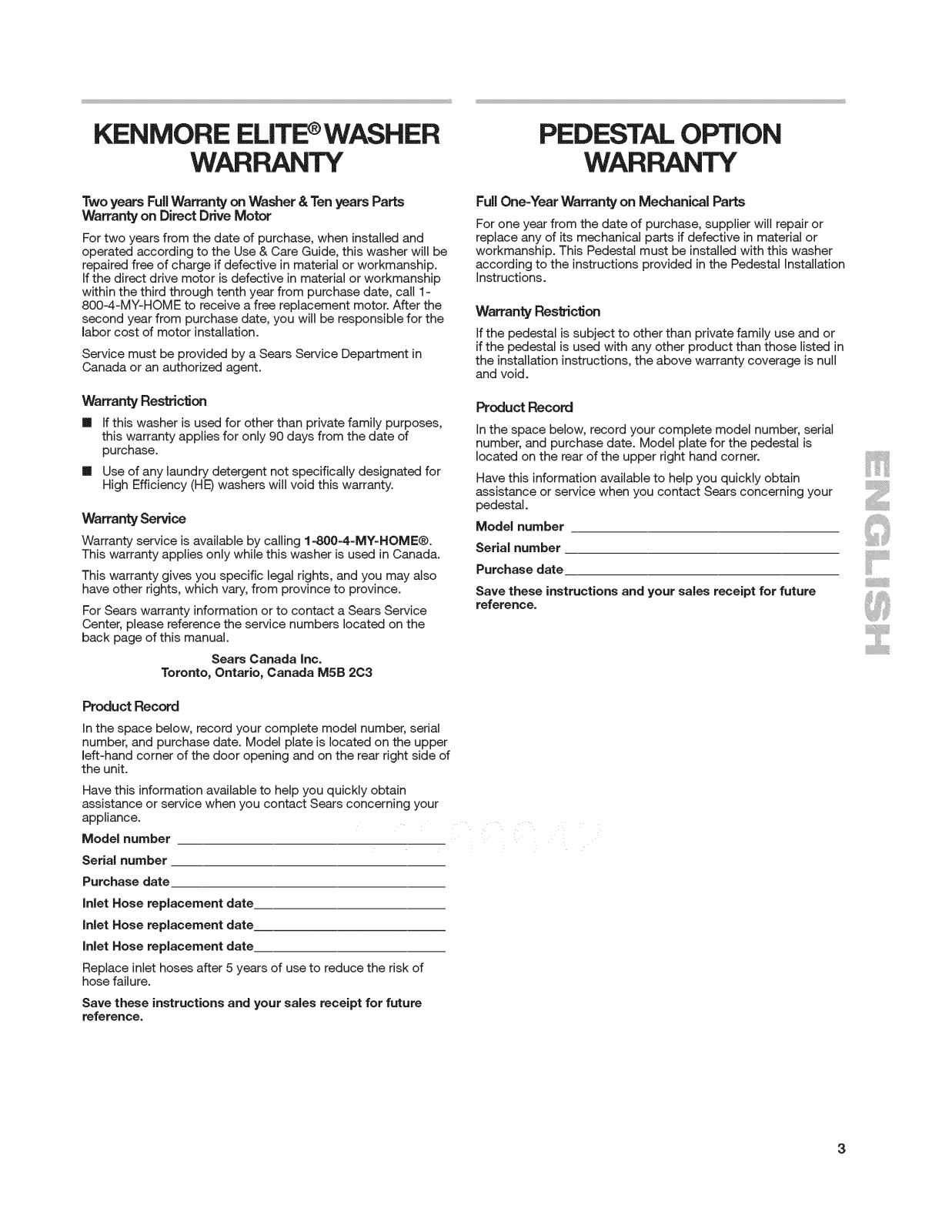

KENMORE ELITE WASHER

PEDESTAL OPTION

WARRANTY

TwoyearsFurlWarrantyonWasher&TenyearsParts

Warrantyon DirectDriveMotor

For two years from the date of purchase, when installed and
operated according to the Use & Care Guide, this washer will be

repaired free of charge if defective in material or workmanship.
If the direct drive motor is defective in material or workmanship
within the third through tenth year from purchase date, call 1-

800-4-MY-HOME to receive a free replacement motor. After the

second year from purchase date, you will be responsible for the
labor cost of motor installation.

Service must be provided by a Sears Service Department in

Canada or an authorized agent.

Warranty Restric_on

[] if this washer is used for other than private family purposes,

this warranty applies for only 90 days from the date of

purchase.

[] Use of any laundry detergent not specifically designated for

High Efficiency (HE) washers wiil void this warranty.

Warranty Service

Warranty service is available by calling 1-800-4-MY-HOME®.
This warranty applies only while this washer is used in Canada.

This warranty gives you specific legal rights, and you may also

have other rights, which vary, from province to province.
For Sears warranty information or to contact a Sears Service

Center, please reference the service numbers located on the
back page of this manual.

Toronto, Ontario, Canada IVl5B2C3

Sears Canada Inc.

WARRANTY

Furl One-Year Warranty on Mechanical Parts

For one year from the date of purchase, supplier will repair or
replace any of its mechanical parts if defective in material or

workmanship. This Pedestal must be installed with this washer
according to the instructions provided in the Pedestal installation

instructions.

Warranty RestricSon

if the pedestal is subject to other than private family use and or
if the pedestal is used with any other product than those listed in

the installation instructions, the above warranty coverage is null
and void.

Product Record

in the space below, record your complete model number, serial
number, and purchase date. Model plate for the pedestal is

located on the rear of the upper right hand corner.
Have this information available to help you quickly obtain

assistance or service when you contact Sears concerning your
pedestal.

Model number
Serial number
Purchase date

Save these instructions and your sales receipt for future

reference.

Product Record

In the space below, record your complete model number, serial
number, and purchase date. Model plate is located on the upper
left-hand corner of the door opening and on the rear right side of

the unit.

Have this information available to help you quickly obtain
assistance or service when you contact Sears concerning your
appliance.

IVlodel number
Serial number
Purchase date

inlet Hose replacement date
inlet Hose replacement date
inlet Hose replacement date

Replace inlet hoses after 5 years of use to reduce the risk of
hose failure.

Save these instructions and your sales receipt for future
reference.

3

WASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.

®

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions,

including the following:

[]

Read all instructions before using the appliance.

[]

With any equipment using electricity and moving parts,
potential hazards exist. To safely operate this appliance,
become familiar with its operation and be careful when

using it.

[]

Install and store your washer inside, away from exposure to

weather.

[]

Install and level your washer on a floor that can support its

weight.

[]

Your washer must be properly grounded. Never plug it into
an ungrounded outlet.

[]

To reduce the risk of fire or explosion:

[]

Do not wash items that have been washed, soaked, or
treated with gasoline, dry cleaning solvents, or other
flammable or explosive substances. They give off vapors

that could ignite or explode. Rinse by hand any material that
has been exposed to cleaning solvent or other flammable

liquids or solids before putting in your washer. Be sure
that all traces of such liquids, solids, and fumes have
been removed. Dangerous substances include acetone,

denatured alcohol, gasoline, kerosene, certain liquid
household cleaners and spot removers, turpentine, waxes,

and wax removers.

[]

Do not put gasoline, dry cleaning solvents, or other
flammable or explosive substances into the washer.

[]

Under certain conditions, hydrogen gas may be produced
in a hot water system-such as your hot water heater-- that

has not been used for two weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If your hot water system has not been

used for two weeks or more, turn on all hot water faucets
in your home, and let the water flow for several minutes

before using your washer. This will release any hydrogen gas
build-up. Since hydrogen gas is flammable, do not smoke
or light an open flame during this time.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."
These words mean:

Hazards or unsafe practices that may result in severe personal
injury or death.

Hazards or unsafe practices that may result in minor personal
injury or property damage.

iMPORTANT SAFETY iNSTRUCTiONS

[] Unplug the power cord before servicing your washer.
[] Do not reach into the appliance when the tumbler is moving.

[] Do not let children play on or in your washer. The washer

door isn't easily opened from the inside, and a child could

be seriously injured if trapped inside.
[] Do not tamper with the controls.
[] Do not repair, replace, or service any part of your washer

yourself unless you fully understand the recommended

user-repair instructions and have the skills to carry them

out. Work done by an unauthorized person may void your

warranty.
[] Store laundry detergents and other laundry supplies in a

cool, dry place out of children's reach.
[] Do not wash or dry items that are soiled with vegetable

or cooking oil. These items may contain some oil after

laundering. Due to the remaining oil, the fabric may smoke

or catch fire by itself.
[] Do not use chlorine bleach, ammonia, or acids (such as

vinegar or rust remover) in the same wash. Hazardous

fumes can form.
[] Do not machine wash fiberglass materials. Small particles

can stick to fabrics washed in subsequent loads and cause

skin irritation.
[] Before disposing of your washer, remove the door so that

children or small animals cannot get trapped inside.
[] Do not sit on the top of your Washer.
[] Inlet hoses are subject to damage and deterioration over

time. Check the hoses periodically for bulges, kinks, cuts,

wear or leaks, and replace them every five years.
[] Ensure pockets are free from small irregularly shaped hard

objects or foreign materials, such as coins, knives, pins, etc.

These objects could damage your washer.
[] Do not wash clothing with large buckles, buttons, or other

heavy metal.

SAVE THESE iNSTRUCTiONS

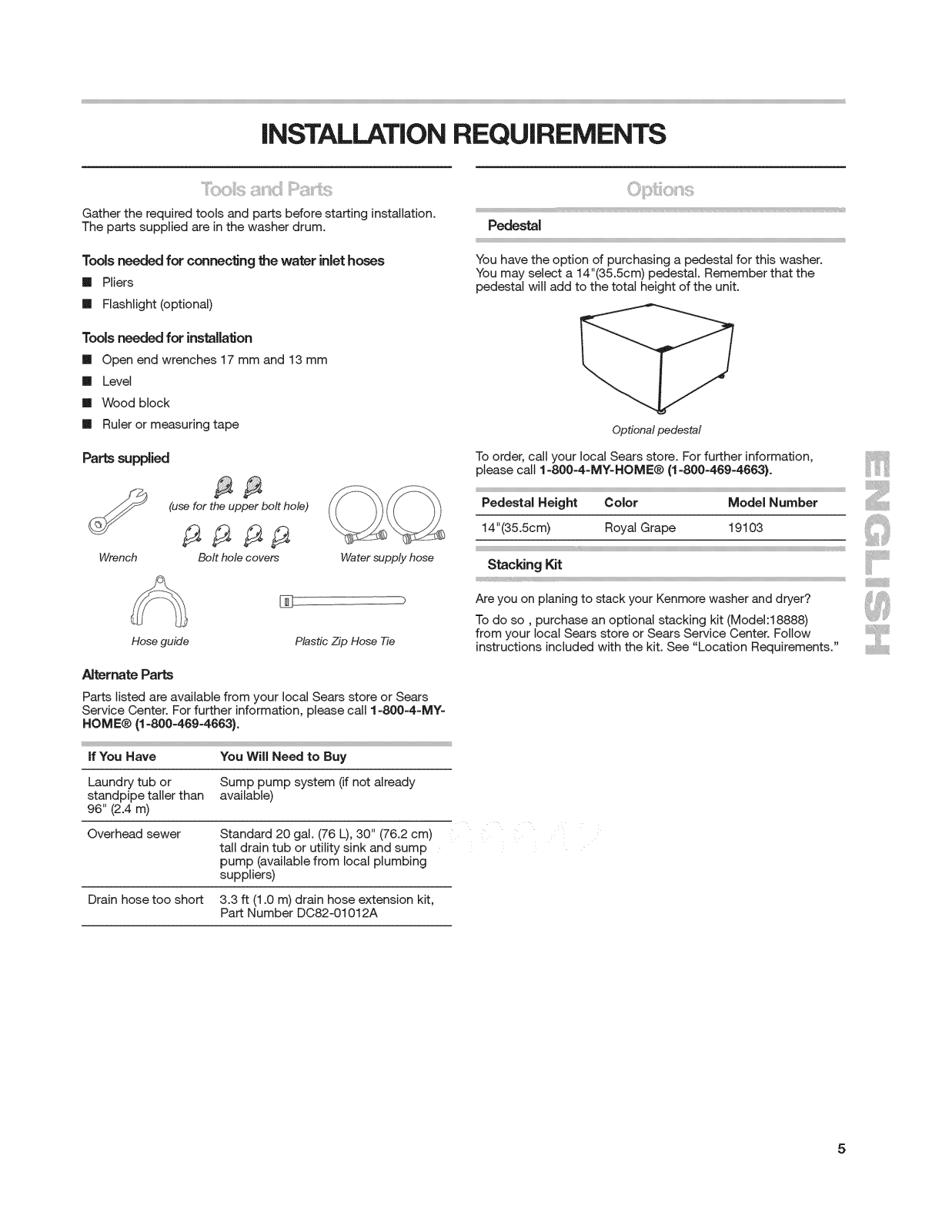

iNSTALLATiON REQUIREMENTS

....._!_i;OOiiiiS _i!!_!i!ii_ili_i:i;:iiiii::::_;ii!!_!i!i!i!;ili::S

Gather the required tools and parts before starting installation.

The parts supplied are in the washer drum.

Pedestal

Tools needed for connecting the water inlet hoses
[] Pliers

[] Flashlight (optional)

Tools needed for installation
[] Open end wrenches 17 mm and 13 mm

[] Level
[] Wood block

[] Ruler or measuring tape

Parts supplied

_ (use for the upper bolt hole)

Wrench Bolt hole covers

Hose guide Plastic Zip Hose Tie

Water supply hose

Alternate Parts

Parts listed are available from your local Sears store or Sears

Service Center. For further information, please call 1-800-4-MY-

HOME@ (1-800-469-4663).

You have the option of purchasing a pedestal for this washer.
You may select a 14"(35.5cm) pedestal. Remember that the

pedestal will add to the total height of the unit.

Optional pedesta[

To order, call your local Sears store. For further information,
please call 1-800-4-MY-HOME@ (1-800-469-4993).

Pedestal Height Color Model Number
14" (35.5cm) Royal Grape 19103

Stacking Kit

i ............................................................................................................................................................................................................................................................................................................................................................................................

Are you on planing to stack your Kenmore washer and dryer?
To do so, purchase an optional stacking kit (Model:18888)

from your local Sears store or Sears Service Center. Follow
instructions included with the kit. See "Location Requirements."

if You Have You Will Need to Buy
Laundry tub or Sump pump system (if not already

standpipe taller than available)
96" (2.4 m)

Overhead sewer

Drain hose too short 3.3 ft (1.0 m) drain hose extension kit,

Standard 20 gal. (76 L), 30" (76.2 cm)
tall drain tub or utility sink and sump
pump (available from local plumbing

suppliers)

Part Number DC82-O1012A

5

Selecting the proper location for your washer improves
performance and minimizes noise and possible washer "walk."

Your washer can be installed under a custom counter, or in a
basement, laundry room, closet, or recessed area. See "Drain
System."

Companion appliance location requirements should also be
considered. Proper installation is your responsibility.

You will need

[] A water heater set to deliver 120°F (49°C) water to the

washer.

[]

A grounded electrical outlet located within 6 ft (1.8 m) of
where the power cord is attached to the back of the washer.
See "Electrical Requirements."

[]

Hot and cold water faucets located within 4 ft (1.2 m) of the
hot and cold water fill valves, and water pressure of 20-100

psi (137.9-689.6 kPa).

[]

A level floor with a maximum slope of 1" (2.5 cm) under entire
washer. Installing the washer on soft floor surfaces, such as

carpets or surfaces with foam backing, is not recommended.

[]

A sturdy and solid floor to support the washer with a total
weight (water and load) of 400 Ibs (180 kg).

Do not operate your washer in temperatures below 32°F (0°C).
Some water can remain in the washer and can cause damage in
low temperatures.

Recommendedinstallationspacing for custom

undercounter installation

The dimensions shown are for the recommended spacing.

Custom undercounter installation - Washer only

39"

(_.lca=)

J LT-"I%;:a=)

Recommended installation spacing for recessed or closet

installation, win or without a padestai

The dimensions shown are for the recommended spacing.

Recessed area or closet installation

(7.6 ca=)

(510ca=2)

-f

InstallaSon clearances

[]

The location must be large enough to allow the washer door
to be fully opened.

[]

Additional spacing should be considered for ease of
installation and servicing. The door opens more than 90 ° and

it is not reversible.

[]

Additional clearances might be required for wall, door, and

floor moldings.

[]

Additional spacing of 1" (2.5 cm) on all sides of the washer is
recommended to reduce noise transfer.

[] Companion appliance spacing should also be considered.

Washer Dimensions

(131.4ca=)

24 In3* -=_ _=

(1_ ca=_)

I 1"N- 51_,,-_ 4,,I_.

(2.5ca=) (51.1ca=) (10.2ca=)

A B

A. Side view - closet or confined area

B. Closet door with vents

* Min. top and bottom air openings for closet door.

Recessed or closet installation - Washer on pedestal

(2.5ca=) _(68.5 ca=) _ (2.5ca=)

A B

A. Recessed area

B. Side view - closet or confined area

(2.5ca=) (51.1ca=)

_fS"

(7.6ca=)

38" a=in.

(97 ca=)

m

f

Door is not reversible

Recommended instaJJatJon spacing for recessed or closet

installation, with stacked washer and dryer

The dimensions shown are for the recommended spacing.

4_ in, _*

The washer can be installed using the standpipe drain system
(floor or wall), the laundry tub drain system, or the floor drain

system. Select the drain hose installation method you need. See
"Tools and Parts."

._L cm)

(310ca?)

o

_

24 in? _

(155 cm_)

]

l

-- T

i

i 78"

P------- (19_m)

i
I

l
i

i
i

I
I

_1/4,,".-_ _- 1""

(13.3 cm) I (2._ cm)

* Min. top and bottom air openings for closet door.
** External exhaust elbow requires additional space.

*** Wall, door and floor molding may require additional spacing.

--_ _- 1"(2.9cm)

Standpipe drain system =wail or floor (views A & B)

The standpipe drain requires a minimum diameter standpipe of
2" (5 cm). The minimum carry-away capacity can be no less than

17 gal. (64 L) per minute.
The top of the standpipe must be at least 30" (76.2 cm) high and

no higher than 96" (2.4 m) from the bottom of the washer.

1

3011 inin.

(7&2cm)

]

A

Laundry tub drain system (view A)

The laundry tub needs a minimum 20 gal. (76 L) capacity. The
top of the laundry tub must be at least 30" (76.2 cm) above the

floor.

Floor drain system (view 13)
The floor drain system requires a siphon break that may be

purchased separately, See "Tools and Parts,"
The siphon break must be a minimum of 28" (71 cm) from the

bottom of the washer, Additional hoses might be needed,

B

Recommended installation spacing for cabinet installation

[]

The dimensions shown are for the recommended spacing.

[]

For cabinet installation, with a door, the minimum ventilation
openings in the top are required.

7" (17.8 cm)

4''-_ 31.9"

(10.2 cm) (31.1 cm)

I,,

(2.5cm)(2.5cm) (68.6cm) (2.5cm)

_J L,

A B

7

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.

Do not use an adapter.
Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

[]

A 120 volt, 60 Hz., AC only, 15 amp, fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit

serving only this appliance be provided.

[]

This washer is equipped with a power supply cord having a 3

prong grounding plug.

[]

To minimize possible shock hazard, the cord must be

plugged into a mating, 3 prong, grounding-type outlet,
grounded in accordance with local codes and ordinances.
If a mating outlet is not available, it is the personal

responsibility and obligation of the customer to have the
properly grounded outlet installed by a qualified electrician.

[]

If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the

ground path is adequate.

[] Do not ground to a gas pipe.
[] Check with a qualified electrician if you are not sure the

washer is properly grounded.

[] Do not have a fuse in the neutral or ground circuit.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:
This washer must be grounded. In the event of a malfunction

or breakdown, grounding will reduce the risk of electrical
shock by providing a path of least resistance for electric

current. This washer is equipped with a cord having an
equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is

properly installed and grounded in accordance with all local
codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are
in doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance - if it will

not fit the outlet, have a proper outlet installed by a qualified
electrician.

For a permanently connected washer:
This washer must be connected to a grounded metal,

permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead on
the appliance.

iNSTALLATiON iNSTRUCTiONS

IMPORTANT: Position the washer so that the rear of the unit is
within approximately 3 ft (90 cm) of its final location.

Before using your Washer, you must remove the four shipping
bolts from the back of the unit.

1. Loosen all the bolts with the supplied wrench.

2. Slide the bolt and spacer up and remove the bolt with the
spacer through the hole in the rear wall of your washer.
Repeat for each bolt.

.3. Fill the holes with the supplied plastic covers.

4. Keep the shipping bolts and spacers for future use.

Before Connect the inlet hoses to water faucets, Check to
ensure a washer is inside coupling.

A B

A. Coupling

B.Washer

Connect the inlet hoses to the water faucets

Make sure the washer drum is empty.

1. Check the inlet hose to ensure a washer is inside each fill
hose.

Thread the inlet hoses to the HOT and COLD faucet

connections.
On the other end of the hose, check for one rubber washer

per hose and install each fill hose to the water valve. Make
sure the hose with the Hot printed line is attached to the HOT

faucet. Tighten by hand until snug, then two-thirds of a turn

with pliers.

Cold Hot

_ Rubber washer

NOTE: For correct water use, connect both HOT and COLD
water valves. If either or both are not connected, an "nF" (no fill)
error can occur.

2. Turn on the "HOT" and "COLD "water supply and check all
connections at the water valve and the faucet for leaks.

Cold printed Hot printed

NOTE: Do not overtighten or use tape or sealants on the valve.
Damage to the valves can result.

9

Clear water lines

[] Run water through both faucets and inlet hoses, into a

laundry tub, drainpipe or bucket, to get rid of particles in the
water lines that might clog the inlet valve screens.

[]

Check the temperature of the water to make sure that the hot
water hose is connected to the hot water faucet and that the

cold water hose is connected to the cold water faucet.

Connect the inlet hoses to the washer

Proper routing of the drain hose protects your floors from

damage due to water leakage. Read and follow these

instructions.

Remove drain hose fTom the washer
Gently pull the corrugated drain hose from the shipping clips.

Laundry tub drain or standpipe drain
Connect the drain hose form to the corrugated drain hose.

A B

A. Snap either end of the drain hose form to the drain

hose at the point where the corrugation begins.

B. Bend drain hose over drain hose form and snap into

place.

To keep drain water from going back into the washer:
[] Do not straighten the drain hose, and do not force excess

drain hose into standpipe. Hose should be secure, but loose
enough to provide a gap for air.

[] Do not lay excess hose on the bottom of the laundry tub.

H. Hot water inlet

C. Cold water inlet

1,

Attach the hot water hose to the washer's hot (H) water inlet

valve. Screw on coupling by hand until it is seated on the

washer.

2,

Attach the cold water hose to the washer's cold (C) water

faucet. Screw on coupling by hand until it is seated on the

washer.

3,

Using pliers, tighten the couplings with an additional two-

thirds turn.

NOTE: Do not overtighten. Damage to the coupling can
result.

4. Turn on the water faucets completely and check for leaks.
NOTE: Replace inlet hoses after 5 years of use to reduce the

risk of hose failure. Record hose installation or replacement
dates on the hoses for future reference.

Periodically inspect and replace hoses if bulges, kinks, cuts,
wear, or leaks are found.

Floor drain

You may need additional parts. See Floor drain under "Tools and

Parts."

Part no. for hose extension
DC97-15273A

10

1. Drape the power cord over the washer top.

2. Move the washer to its final location.

3. Place the drain hose in the laundry tub or standpipe as
shown. See illustrations A and B.

A B C

4. If the washer faucets and the drain standpipe are recessed,
put the hooked end of the drain hose in the standpipe as
shown. See illustration C.

NOTES:
[] Do not force excess drain hose back into the rear of the

washer.

[] To avoid siphoning, do not seal the drain hose into the

standpipe.

Level your washer by turning the leveling legs in or out as
necessary by hand or the wrench included with your washer.

When your washer is level, tighten the nuts using the wrench or

(-) driver.

NOTES

[]

Your Washer must be leveled on all four sides. A carpenter's
level should be used on all four corners of your Washer. It's

a good idea after the first dozen washes to recheck your
washer's levelness.

[] To avoid damage to the legs, do not move the Washer unless

the Lockingnuts are fastened to the bottom of the Washer.

1. Check the electrical requirements. Be sure that you have the
correct electrical supply and the recommended grounding

method. See "Electrical Requirements."

2. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.

3. Check that you have all of your tools.

4. Dispose of or recycle all packaging materials.

5. Check that the water faucets are on.

6. Check for leaks around faucets and inlet hoses.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.

Do not use an adapter.
Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

7. Plug into a grounded 3 prong outlet.

8. Read "Washer Use."

9.

To test and to clean your washer, using only "HE" High

Efficiency detergent, measure 1/2the amount of detergent
recommended by the manufacture for a medium size load.

Pour the detergent into the detergent dispenser. Select
NORMAL/CASUAL, and then select START. Allow the washer

to complete one whole cycle.

Use only HE High Efficiency detergent.

11

FEATURES AND BENEFITS

Your new front-loading high efficiency washer, was designed to
conserve resources and lower your water and energy bills. The
washer is designed to determine and then provide the amount

of water needed for the best performance. The time of operation
may be greater for this new system than for a conventional

washer.

Electronic Controls
Flexible electronic controls are easy to use whether you are a

beginner or an expert.

Auto Water Level

Adjusting to the size of the load, this feature allows the washer
to use the minimal amount of water needed to clean and rinse

the clothes. With a low water level, you can obtain the same

results with smaller amounts of additives. Because only the
required amount of water is used, the washer saves energy, too.

You can obtain the same washing results for small and large load
size.

Extra Large Capacity

Even bulky garments and blankets get super clean. The large
capacity leaves enough room for a more thorough, cleaner wash.

Suspension System

To reduce washer "walk" and "off-balance" conditions, your new

washer combines:
[] 2 Springs to isolate vibration

[] 4 Shock absorbers at the washer base to minimize

movement

Stainless Steel Drum

The stainless steel drum eliminates corrosion and enables higher

spin speeds for more water extraction, reducing drying time.
Direct Drive inverter Motor

The power to handle anything! Our direct-drive inverter motor

delivers power right to the washer tub from a variable speed,
reversible motor. A beltless direct-drive motor generates a higher
spin speed of 1,200 RPM for more effective, quiet operation.

The washer also has fewer moving parts.

Spin Speeds

This washer automatically selects the spin speed based on the
cycle selected. This factory setting can be changed, however.

This washer offers up to three different spin speed choices.

Detergent Advantage System Dispenser

The three compartments in the dispenser allow loading of all

laundry additives before the washer is started. The additives

will be dispensed into the wash at the optimal time for high

performance cleaning. The bleach release system is included
in the detergent advantage system. The detergent is added at

the beginning of the cycle, and the bleach is added after the
enzymes have had a chance to do their cleaning. The Detergent

Advantage System Dispenser tray is easily removed for cleaning.

Use only HE High Efficiency detergent.

12

WASHER USE

Models : 4900*

Normal

NormaJ

Heavy Duty

Glallde Relldemerlt

Whites

Bhncs

PermPress

PermPress

Sanitize

St_lilisatiorl

Towels

SePtettes

Bedding

Litelie

DEEPSIEAM9

Vapeurs Pr0fondes

00:35

Hea W Duty

. J

Fire Hazard

Never place items in the washer that are dampened with
gasoline or other flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it

(including cooking oils}.

Doing so can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.

The following is a guide to using your washer. Please refer to

specific sections of this manual for more detailed information.
Do not store laundry products on the top surface of this washer.

Vibration is normal during operation.

Delicates

HandWash Lavageextra

Lavage_ ]a main

Wool

Laine Extra Rinse

ExpressWash Rin_age_xtra

Lavag÷ rapide

Rinse+Spin

Rin_age et essorage Extended Spin
D61[_ts

SpinOnly 9r_1__ra_

Es_orag_seLilement

Power

Mise en Marche

@

Start/Pause

D6rnarrerlPause

ExtraWash

EC0CleanDrul

HotlCold High L _,_Steam

WarmlWarm Medium Heavy

Warm / Cold Low Normal On

ColdI Cold NoSpin Light Off

MyCyc

Mon cyc

PreWa_

Pr_lava!

Delay St_

_part diff_

Steam

Vapeur!

c_

C:

-_- ©

Your Washer is designed to use high efficiency (HE) detergents.
[] High efficiency detergents contain suds suppressors that

reduce or eliminate suds. When fewer suds are produced,

the load tumbles more efficiently and cleaning is maximized.

ii%il;iiiiiiiii

WARNING: Regular detergent is NOT recommended. Please use

only HE detergents. _ ...........

NOTE: Reducing the amount of detergent may reduce the
quality of cleaning. It is important to pre-treat stains, sort
carefully by color and soil level, and avoid overloading.

[] Brand names are trademarks of their respective

manufacturers.

Use only HE High Efficiency detergent.

13

First Wash Cycle Without Laundry

Before washing clothes for the first time, choose the Normal/
Casual cycle and run it without clothes. Use only HE High
Efficiency detergent. Use 1/2the manufacturer's recommended
amount for a medium sized load. This initial cycle serves to

ensure the interior is clean before washing clothes.

For All Wash Cycles

1. Load your Washer.

2. Close the door.

3=

Add detergent and additives to the dispenser (see pages
15-16).

4.

Select the appropriate cycle and options for the load (see
pages 17-20).

5.

Press the Start/Pause Button.

6=

The Wash Indicator light will illuminate.

7.

The estimated cycle time will appear in the display.
The time may fluctuate to better indicate the time remaining

in the cycle.
NOTE: The actual time required for a cycle may differ from

the estimated time in the display depending on the water

pressure, water temperature, detergent, and laundry.

8=

Before your washer starts to fill, it will make a series of

clicking noises to check the door lock and do a quick drain.
NOTE:
[]

When the cycle is complete, the Door Lock light will go out

and "End" will appear in the display.
[]

DO NOT attempt to open the door until the Door Lock light

is off. To add a forgotten item, see "Adding items" section

(page 17).
[]

When your Washer is restarted after a pause, expect a delay

of up to 15 seconds before the cycle continues.
[]

Pressing Power cancels the cycle and stops your washer.
[]

The Wash, Rinse and Spin indicator lights will illuminate

during those portions of the cycle.

Your new washer has a dispenser drawer with three separate
compartments for your laundry additives--one is for detergent,

one is for liquid chlorine bleach, and one is for liquid fabric
softener. Laundry additives are diluted and dispensed
automatically at the proper time during the wash cycle, making it

unnecessary for you to return to the washer during the cycle to

add them.

It is normal for small amounts of water to remain in the

dispensers when the wash cycle iscomplete.

Do not put laundry additives directly into the wash tub. Always
use the proper dispensers when adding laundry additives.

Choosing the Right Detergent

Use only High Efficiency detergents. The package for this type
of detergent will be marked "HE" or "High Efficiency." This wash
system, along with less water, will create too much sudsing
with a regular non-HE detergent. Using regular detergent will

likely result in washer errors, longer cycle times and reduced

rinsing performance. It may also result in component failures
and noticeable mold or mildew. HE detergents are made to

produce the right amount of suds for the best performance.

Follow the manufacturer's instructions to determine the amount
of detergent to use.

Use only HE High Efficiency detergent.

WARNING: Do not place anything on top of your washer while it

is running.

14

To fill dispenser compartments

AutomaSc dispenser

Your Washer has separate compartments for dispensing
detergent and color-safe bleach, chlorine bleach, and fabric

softener. All laundry additives are added to their respective
compartments before starting your Washer.

The automatic dispenser MUST ALWAYS be in place before

starting your Washer.
DO NOT open the automatic dispenser when your Washer is

running.

To use:

1. Never exceed the manufacturer's recommendations when
adding detergent.

2. This Compartment holds liquid detergent for the main wash
cycle, which is added to the load at beginning of cycle.

NOTE: When using powdered detergent, remove the Detergent
Liquid from the compartment. Powdered detergent will not
dispense with Detergent Liquid.

=J Detergent Liquid

P

Bleach compaKe'nent
(Liquid chlorine bleach only)

1. Add chlorine bleach to the bleach compartment. DO NOT
exceed the MAX FILL line.

2. Avoid splashing or over-filling the compartment.

3. Your Washer automatically dispenses bleach into the tub at

the appropriate time.

4. The dispenser automatically dilutes liquid chlorine bleach
before it reaches the wash load.

NOTES
[]

Never pour undiluted liquid chlorine bleach directly onto the
load or into the tub. It is a powerful chemical and can cause

fabric damage, such as weakening of the fibers or color loss,

if not used properly.

[]

If you prefer to use color-safe, non-chlorine bleach, add it

to the appropriate detergent compartment. DO NOT pour

color-safe bleach into the Bleach compartment.

Fabric softener comparlrnent

1. Pour the recommended amount of liquid fabric softener into

the softener compartment. For smaller loads, use less than

one capful.

2. Fabric softener should be diluted with water until it reaches
MAX FILL in the compartment.

3. The dispenser automatically releases liquid fabric softener at

the proper time during the rinse cycle.

NOTES
[] Use the softener compartment ONLY for liquid fabric

softeners.

[]

DO NOT use the dispensing ball in Fabric softener
Compartment with this Washer. It will not add fabric softener

at the appropriate time. Use the detergent Compartment.

[]

Brand names are trademarks of their respective
manufacturers.

Detergent comperlrnent

1. Pour the recommended amount of laundry detergent directly
into the detergent compartment before starting your Washer.

2. If color-safe bleach is to be used, it should be added with
detergent to the detergent compartment.

[] When adding color-safe bleach with detergent, it is best if

both laundry products are in the same form - granular or

liquid.

_ ............... z

15

iis_8_!i,l,z_Siiii_S!!!!;ii:ii0_,_¸i_:::::iii@Si4il;_%_q::iii}_ii_ii_,!!!!iil}ili

1. To pause the washer at any time, press the Start/Pause
button.

2. To continue the cycle, press the Start/Pause button.

Not all Options are available with all Cycles.
Cycles and Options can be changed anytime before START is

selected.

You can add or take out laundry items even after the wash has
started, as long as the "Garment+" light is on. Pushing the Start/

Pause button unlocks the door, unless the water is too hot or if
there is too much water in your Washer. If you are able to unlock
the door and wish to continue the wash cycle, close the door
and press the Start/Pause button.

Locking conb'ols

To stop a cycle and select a new cycle

1. Press the Start/Pause button.

2. Select desired cycle.

3. Select the desired OPTIONS.

4. Press the Start/Pause button to restart the washer at the
beginning of the new cycle..

To cancel a cycle

1. Press the Start/Pause button.

2. The washer powers down, the door unlocks, and clothes can
be removed.

NOTE: if the water level or the temperature is too high, the
washer will drain automatically before the door unlocks.

To change Options after _e cycle has started

1. Press the Start/Pause button.

2. Select the desired OPTIONS. If the option is not available,

the machine will beep.

,3. Press the Start/Pause button to continue the cycle.

To drain _e washer manually

1. Press the Start/Pause button.

2. Select SPIN ONLY.

,3. Press the Start/Pause button to begin the drain.

4. When the spin is complete, the door unlocks. Items can be
removed from the washer.

This function prevents children from playing with your washer.

@

Activating the Child Lock function

Press and hold both the Soil Level and Cycle Signal buttons

simultaneously for approximately 3 seconds.

If the Child Lock function is activated, the door is locked and

the "Child Lock [@]" lamp is lit.

If the Start/Pause button is pressed after the Child Lock

function is activated, none of the buttons will work except for
the Power button.

If a button is pressed when the buttons are locked.

Pausing the Child Lock function

When the door is locked or the buttons are locked by the Child

Lock function, you can pause the Child Lock operation for 1
minute by pressing and holding both the Soil Level and Cycle

Signal buttons simultaneously for approximately 3 seconds.

If Child Lock mode is paused temporarily, the door lock is

released for 1 minute for user convenience. During this period.

o If the door is opened after the minute is over, an alarm

sounds for up to 2 minutes.

If the door is closed within the 2 minutes, the door is locked

and the Child Lock function is reactivated. If the door is
closed after the 2 minutes, the door will not be locked

automatically and no alarm will be heard.

Deactivating the Child Lock function
Press and hold both the Spin and Soil Level buttons

simultaneously for approximately 6 seconds.

If the Child Lock function is deactivated, the door is unlocked.

16

Child Lock is a function to prevent children or the infant from
accidently operating the washer and injuring themselves.

If a child enters the washing machine, the child may become

trapped and suffocate.

Once the Child Lock function is activated, the Child Lock

function continuous working even if the power is turned off.

Opening the door by force can result in injury due to damage

to the product.

NOTE: To add laundry when the Child Lock function is activated,

you have to first pause or deactivate the Child Lock function.

NOTE: If you want to open the door of the washing machine
when the Child Lock function is activated:

Pause or deactivate the Child Lock function.

Turn the washing machine off and then on again.

...............................................................................................................................................................................................................i

Expected Cycle Time

The cycle times vary automatically based on your water

pressure, water temperature, detergent, and clothes load. The
cycle time will be extended if oversudsing occurs or the load is

unbalanced.

The suds reduction routine removes extra suds and assures

proper rinsing of your garments. The options you select will
also affect the cycle times that are shown in the Preset Cycle

Settings table.

Door Locked (_)

When the status light illuminates, the door is locked.

WashCycles

Choose Wash Cycles by rotating the Cycles selector knob to
the desired cycle. The indicator light for the cycle selected will

illuminate. Each cycle is designed for different types of fabric
and soil levels.

Models :4900*

Norma_

N0mlal

HeavyDuty

Grande Rendement

Whites

BlaNc5

PermPress

Perm Press

Sanitize

5terilisation

Towels

5e_iettes

Bedding

Litede

DEEPSTEAM_

Val_r_Prof0r_des

00:35

Heavy Duty

,, j

Delicates

beiicats

HandWash

Lavage _ la main

Wool

Laine

ExpressWash

Lavagerapide

Rinse+Spin

Rin£age et essorage

SpinOnly

Lorage seulement

interior Lamp

1. If the door is opened when the power is on, the Interior Lamp
is automatically turned on.

2. If the door is closed when the power is on, the Interior Lamp
is automatically turned off.

3. Press the Temp and the Spin buttons simultaneously to turn

the Interior Lamp on or off.

4. If 4 minutes have passed after the Interior Lamp is turned on,

the Interior Lamp is automatically turned off.

Select the Language

...................................................................................................................................................................................................................................................................................................................................................................................................i 'i

1. Press the Extra Wash and Extra Rinse buttons
simultaneously for 3 seconds.

2. The "Select the Language" message appears on the display.

3. Turn the Jog Dial to select a language.
You can select English, Spanish, or French.

4. Press the Signal button to select the chosen language.

[]

Each cycle has a preset cycle time, WASH/RINSE TEMP,

SPIN SPEED and may have preset Options and Modifiers.
The preset settings provide the recommended fabric care for
the selected cycle.

17

I I

Preset Cycle Set, rigs

(0: factory setting, _: selectable)

..... Extra Sp n My cyc e Pre Wash De ay Start Steam Ch d Lock

Extra Extra

Normal

Heavy Duty

Whites

Perm Press

Sanitize
Towels

Bedding
Deep Steam
Delicates

Hand Wash

Wool

Express Wash
Rinse + Spin

Spin Only

Eco Clean drum

EH/C: Extra Hot/
Cold

H/C: Hot/Cold
W/W: Warm/Warm
W/C: Warm/Cold

® ® ® ® ® ® ® ®

® ® ® ® • ® ® ®

® • ® ® ® ® ® ®

® ® ® ® ® ® ® ®

® ® ® ® ® ® ® ®

® • ® ® ® ® ® ®

® • ® ® ® ® ® ®

® ® ® ® ® ® • ®

® ® ® ®

® _ ® ®

® ® ®

® ® ® ®

® ® ® ®

® ® ®

® ® ®

EH" Extra High
H: High

IVl: Medium

H: HeaW
N: Normal

L: Light

L: Low

NS: No Spin

O/C: Cold/Cold

00:58
01:35

01:11
00:47
01:55
01:11

01:13
01:45
00:41
00:41

00:57
00:38
00:20
00:11

01:32

18

(Best 2)Keim_ore 592-49003-02902A-01 EN.i_dd 18

2011-03-23 _,,_Aft 9:39:51

I

I I

Normal

For most fabrics including cottons, linens, and normally soiled
garments.

Heavy Duty

For sturdy, colorfast fabrics and heavily soiled garments.

Whites

For white fabrics with or without bleach.

Perm Press

For wash-and-wear, synthetic fabrics, and lightly to normally
soiled garments.

Sanitize

For heavily soiled, colorfast garments. This cycle heats the water

to 150°F(65.6°C) to eliminate bacteria.

Towels

For bath towels, washcloths and mats.

Bedding

For bulky items such as blankets and sheets. When you are
washing comforters, use liquid detergent.

Deep Steam

For heavily soiled, colorfast garments, this cycle provides high
washing temperature and steam and is efficient in cleaning

stains.

Delicates

: :::::' :: :::::::::::::::::::::::

As with any new product, you will hear sounds that you are
not accustomed to. You may hear various sounds when the

door is locked or unlocked, and during the washing, rinsing,
or spinning process. Between changes in wash actions,
there will be momentary pauses. You will hear water spraying

and splashing during the wash and rinse cycles. These new
sounds and pauses are part of normal washer operation. See
"Troubleshooting."

Temperature selec_on button

Press the button repeatedly to cycle through the different water
temperature options.

[]

Extra Hot/Cold - Heavily soiled, colorfast items. Only
available with the Sanitize cycle.

[]

Hot/Cold - Whites and heavily soiled, colorfast items.

[]

Warm/Warm - Colorfast items. When warm rinse is selected,

only the final rinse will be warm. The other rinses will be cold

to conserve energy.

[]

Warm/Cold - Moderately soiled, colorfast items; most

wrinkle-free items.

[] Cold/Cold - Brightly colored, very lightly soiled items.

Spin selec_on button

Press the button repeatedly to cycle through the different spin
speed options.

For sheer fabrics, bras, lingerie silk, and other handwash-only

fabrics. For best results, use liquid detergent.

Hand Wash

For handwashable, special care garments.

Wool

For machine-washable wool. Loads should be under 8 pounds.

Express Wash

For lightly soiled garments needed quickly.

Rinse + Spin

Use for loads that need rinsing only or to add rinse-added fabric
softener to a load.

SpinOnly

Provides a spin to remove more water.

(Best 2)Keim_ore 592-49003-02902A-01 EN.i_dd 19

[]

Extra High - Removes more water from loads during spin.

To minimize wrinkling of wrinkle-free and no-iron fabrics,

DO NOT use the Extra High spin option for these loads, nor
overload your washer.

[]

High - Use for underwear, t-shirts, jeans and sturdy cottons.

[]

Medium - Use for jeans, wrinkle-free or wash-and-wear items
and synthetics.

[]

Low - Use for delicate items needing a slow spin speed.

[]

No Spin - Drains your washer without spinning. Use for
extremely delicate items that cannot tolerate any spin.

19

2011-03-23 /,_1i 9:39:51 I

I I

Soil Level selection button

Press the button to select the soil level/washing time.

Eco Clean Drum

Use for drum cleaning. It cleanses drum of dirt and bacteria.
Regular use (after every 40 washes) is recommended.

Steam

Press this button to use steam. Steam Care is available with HeaW
Duty, Normal, Whites, Perm Press, Sanitize, Towels, Bedding, Deep
Steam cycles. For heavily soiled, colorfast garments. Steam care

improves stain treatment and use less water of each cycle.

Select Cycle Op8on

Press these buttons to select different cycle options.

Extra Wash - Add additional time to the wash cycle for better

stain removal.

Extra Rinse - Add an additional rinse at the end of the cycle

to more thoroughly remove laundry additives and perfumes.

Extended Spin - Add additional time to remove more water

from loads.

My Cycle - Choose your favorite cycle including temperature,

spin, soil level, option, etc.

Pre Wash - To use this feature add detergent to the pre

wash section of the detergent compartment. When turned
on, the washer fills with cold water and detergent, tumbles,
then drains and advances to the selected wash cycle. Some

cycles cannot be selected with this option.
You cannot select the prewash option in the Delicate, Wool,

Express Wash, Hand Wash, Rinse+Spin, and Spin Only

cycles.

[]

Delay Start - Any cycle can be delayed for up to 24 hours in

one-hour increments. Displayed hour indicates the time at
which the wash will be started.

Temperature Guide

Wash Water Temperature Suggested Fabrics
EXTRA HOT/COLD Heaw Soils and Bright colors.
HOT/COLD Whites and pastels

Heaw Soils

WARM/WARM Bright colors

Moderate to light soils

WARM/COLD

COLD/COLD Colors that bleed or fade

In wash water temperatures colder than 60°F (15.6°C),

detergents do not dissolve well. Soils may be difficult to remove.

Bright colors
Moderate to light soils

Most wrinkle-free items

Light soils

20

(Best 2)Keim_ore 592-49003-02902A-01 EN.i_dd 20

2011-03-23 i,_ft 9:39:52 I

I I

LAUNDRY TiPS

Preparingclothesfor washing

Follow these recommendations to help you prolong the life of

your garments.

[]

Use only High Efficiency detergents. The package for this
type of detergent will be marked "HE" or "High Efficiency."
This wash system, along with less water, will create too

much sudsing with a regular non-HE detergent. Using regular

detergent will likely result in washer errors, longer cycle
times and reduced rinsing performance. It may also result

in component failures and noticeable mold or mildew. HE

detergents are made to produce the right amount of suds for
the best performance. Follow the manufacturer's instructions

to determine the amount of detergent to use.

Use only HE High Efficiency detergent.

[]

Close zippers, snaps, and hooks to avoid snagging other

items. Remove pins, buckles, and other hard objects to avoid

scratching the washer interior. Remove non-washable trim

and ornaments.

[] Empty pockets and turn them inside-out.
[] Turn down cuffs; brush away lint and dirt.
[] Turn synthetic knits inside-out to avoid pilling.
[] Tie strings and sashes so they will not tangle.

[] Mend tears, loose hems, and seams.
[] Treat spots and stains.
[] Stained or wet garments should be washed promptly for best

results.

[]

Mix large and small items, avoid washing single items, and

load evenly.

[]

Wash small items, such as infant socks, in a mesh garment

bags. To create a balanced load it is recommend that more
than one garment bag be used, and that each garment bag

be filled with equal amounts of material.

NOTE: If you are washing only small items, it is recommend
that more than one mesh garment bag be used, and that

each garment bag be filled with equal amounts of material.

Sorling

[]

Separate heavily soiled items from lightly soiled ones, even
if they would normally be washed together. Separate lint-

givers (towels, chenille) from lint-takers (corduroy, synthetics,
permanent press). When possible, turn lint-givers inside-out.

[] Separate dark colors from light colors, colorfast items from

noncolorfast items.

[] Sort by fabric and construction (sturdy cottons, knits,

delicate items).

Unloading

[] Remove clothes from washer after the cycle is completed.
Metal objects such as zippers, snaps, and buckles may rust if

left in the washer basket for a long time.
[] When unloading garments, occasionally check under the

rubber rim at the front of the tub for small items.

Loading suggestions (maximum size loads}

Heavy Work Clothes

2 pair pants 3 pair jeans
3 shirts 1 coverall

Mixed Load

2 double sheets or

1 king size sheet(s)

4 pillowcases
6 T-shirts

Towels

8 bath towels
8 hand towels

Delieates

3 camisoles
4 slips

4 panties

EXPRESS WASH cycle 2 dress shirt
(2-3 garments) 1 pair dress pants

6 pair shorts

2 shirts
2 blouses

6 handkerchiefs

10 washcloths
1 bath mat

2 bras
2 nighties

(Best 2)Kmmlore 592-49003-02902A-01 EN.i_ldd 21

21

2011-03-23 /,_1i 9:39:53 I

I I

Stain

Chlorine or Color= Wash Cycle
Save Bleach

v' Whites

Chlorine or Color= Wash Cycle
Save Bleach

Whites

Ink

v'

Blood

v'

Coffee/Chocolate

Cold or Warm

Normal

Tomato Products

Warm
Whites

Heaw Duty

%

Cosmetics

Heaw Duty

Warm _ _ Normal

Dirty Motor Oil Collar

WASHER CARE

Deodorants

Ring around the

Grass

Whites

Warm
Whites

Mud

Heaw Duty

2,

Inspect the gray colored seal/bellow between the door
opening and the basket for stained areas. Pull back the

seal/bellow to inspect all areas under the seal/bellow and to
check for foreign objects.

22

(Best 2)Keimlore 592-49003-02902A-01 EN.indd 22

If stained areas are found, wipe down these areas of the seal/

bellow, using the procedure that follows.
a} Mix a dilute solution, using 3Acup (177 mL) of liquid

chlorine bleach, and 1 gal. (3.8 L) of warm tap water.

b} Wipe the seal/bellow area with the dilute solution, using a

damp cloth.

c) Let stand 5 minutes.
d} Wipe down area thoroughly with a dry cloth and let the

washer interior air dry with door open.

iMPORTANT:

[] Wear rubber gloves when cleaning for prolonged periods.
[] Refer to the bleach manufacturer's instructions for proper

use.

A. Seal/Bellow

2011-03-23 $,_d19:39:56 I

I I

Cleaning the exterior Storing your washer

Turn off the water faucets after finishing the day's washing.
This will shut off the water supply to your Washer and prevent

the unlikely possibility of damage from escaping water. Leave
the door open to allow the inside of your Washer to dry out.

Use a soft cloth to wipe up all detergent, bleach or other spills as

they occur.
Clean the following as recommended:

Control Panel - Clean with a soft, damp cloth. Do not use
abrasive powders or cleaning pads. Do not spray cleaners

directly on the panel.
Cabinet - Clean with soap and water.

Cleaning the interior

Clean the interior of your Washer periodically to remove any dirt,
soil, odor, mold, mildew, or bacteriN residue that may remain in

your Washer as a result of washing clothes.

Failure to follow these instructions may result in unpleasant
conditions, including odors and/or permanent stains on your

Washer or laundry.

Hard water deposits may be removed, if needed. Use a cleaner

labeled "Washer safe".

Cleaning the dispensers

The automatic dispenser may need to be cleaned periodically

due to laundry additive buildup.

1. Pull out the detergent liquid from detergent compartment.

Washers can be damaged if water is not removed from hoses
and internal components before storage.

Prepare your Washer for storage as follows:
[] Select the Express Wash cycle and add bleach to the

automatic dispenser. Run your Washer through the cycle
without a load.

[] Turn the water faucets off and disconnect the inlet hoses.
[] Unplug your Washer from the electrical outlet and leave your

Washer door open to let air circulate inside the tumbler.

[] If your Washer has been stored in below-freezing

temperatures, allow time for any leftover water in your
Washer to thaw out before use.

Cleaning the debris filter

We recommend cleaning the debris filter when water does not
drain well.

1. Open the filter cover by using a key or coin.

2. Unscrew the drain cap by turning it counterclockwise.

3. Hold the cap on the end of the drain tube and slowly pull it

Step 1 Step2

2. Remove the siphon cap from the fabric softener and bleach
compartments.

,3. Wash all of the parts under running water.
4, Clean the dispenser recess with a soft brush.

5. Reinsert the siphon cap and push it firmly into place.

6. Push the dispenser back into place.

7. Run a Rinse+Spin cycle without any load in your washer.

iiiiiiiiii_iiiiiiiiii

out about 6inches (15cm) and drain off all the water.

4. Remove the debris filter cap.

(Best 2)Keim_ore 592-49003-02902A-01 EN.indd 23

23

2011-03-23 i,_ft 9:39:57 I

I I

5. Wash any dirt or other material from the debris filter. Make
sure the drain pump propeller behind the debris filter is not

blocked.

6. Replace the debris filter cap.

7. Replace the filter cover.

8. Close up the opening of drain tube with cap.

9. Don't insert the drain tube in the hole.

To use washer again:

1. Flush water pipes.

2. Reconnect water inlet hoses to faucets.

3. Turn on both water faucets.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.

Do not use an adapter.
Do not use an extension cord.

Failure to follow these instructions can result in death,
fire, or electrical shock.

4. Plug in washer or reconnect power.

5. Run the washer through the Normal/Casual cycle. Use only
HE High Efficiency detergent. Use 1Athe manufacturer's

recommended amount for a medium sized load.

Replace inlet hoses after five years of use to reduce the risk
of hose failure. Periodically inspect and replace inlet hoses if

bulges, kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, record the date of replacement.

To t_ansport the washer:

1.

If washer will be moved during freezing weather, put in 1 qt (1
L) of R.V.-type antifreeze in the drum. Run washer on a Drain

& Spin cycle.

2.

Unplug the power cord.

3.

Install and store your washer where it will not freeze. Because
some water may stay in the hoses, freezing can damage

your washer. If storing or moving your washer during freezing

weather, winterize it.

Non=use or vacation care:

Operate your washer only when you are at home. If you will be
on vacation or not using your washer for an extended period of

Disconnect the drain hose from the drain system and attach

to rear panel clips.

4. Shut off both water faucets.

5.

Disconnect the water inlet hoses from faucets, then drain the

hoses and clip them to the rear panel of the washer.

6.

IMPORTANT: Call service. Reinsert the shipping bolts to

minimize internal washer damage that may occur during
transportation. Upon completion of moving, please do not

time, you should: forget to remove shipping bolts prior to installation, and keep

[] Unplug washer or disconnect power, them for future use. Unit must be transported in the upright

position. To avoid suspension and structural damage, your

[] Turn off the water supply to the washer. This helps avoid machine must be properly set up for relocation by a certified

accidental flooding (due to a water pressure surge) while you technician.

are away. .............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

[] Slightly open door to provide ventilation.

To winterize washer:

Reinstalling the washer

1. Follow the "Installation Instructions" to locate, level and
connect the washer.

1. Put 1 qt (1 L) of R.V.-type antifreeze in the drum.

2. Run washer on a Drain & Spin cycle.

8. Unplug washer or disconnect power.

2,

Run the washer through the Normal/Casual cycle to clean

the washer and remove the antifreeze, if used. Use only

HE High Efficiency detergent. Use 1Athe manufacturer's

recommended amount for a medium sized load.

4. Shut off both water faucets.

5. Disconnect water inlet hoses from faucets and drain.

24

(Best 2)Keim_ore 592-49003-02902A-01 EN.i_dd 24

2011-03-23 /,_1i 9:39:58 I

I I

TROUBLESHOOTING

First try the solutions suggested here to possibly avoid the cost of a service caR...

[Error!]

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_;;_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i¸i:iiii!ii!ililili!iiii_!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i_!ii!iiii!i!i!g_i_ii_¸3iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸

[Error!]

[Error!]

_a

[Error!]

(Best 2)Kmmtore 592-49003-02902A-01 EN.indd 25

Noisy, vibrating, off-balance

H! [s the washer level?

The washer must be level. The four feet should be properly

installed, and the nuts should be tightened against the
washer cabinet.

All four feet of the washer must be in firm contact with the
floor. If the washer is on a pedestal, the washer must be

secured to the pedestal and all four pedestal feet must be in

firm contact with the floor.

[]

Washer making a different noise?
As with any new product, you will hear sounds that you are

not accustomed to. You may hear various sounds when the
door is locked or unlocked, and during the washing, rinsing,

or spinning process. Between changes in wash actions,

there will be momentary pauses. You will hear water spraying

and splashing during the wash and rinse cycles. These new
sounds and pauses are part of normal washer operation.

[]

is washer installed on a sturdy and solid floor?
Refer to the "installation Instructions" for flooring requirements.

Noise and vibration may be reduced by placing a piece of %"
(19.1 mm) plywood underneath your washer.

25

2011-03-23 _,P_a_ft 9:39:59 [

I I

The plywood may extend underneath both washer and dryer
to keep them at equal heights.

[]

is the washer gurgling or humming?
As water is drained from the washer, you may hear air being

pulled through the pump. This happens during the end of
draining. It is normal.,,

[]

Are you washing items with metal snaps, buckles or
zippers?

You may hear metal items touching the washer drum. This is
normal.

[]

Were the 4 shipping bolts in the back of the machine

removed?

See "Remove Transport System."

Leaking

[] Was the door opened during "Add a garment"?

Water can drip off the inside of the door when opened after
the start of a cycle.

[] is HE detergent being used?

The non-High Efficiency detergents can cause over sudsing

which can leak from the rear of the washer.
[] Are the fir hoses tight?
[] Are the fir hose gaskets properly seated?

Check both ends of each hose. See "Connect the Inlet

Hoses" in the installation instructions.
[]

is the drain hose properly installed?

The drain hose should be secured to the drainpipe or laundry
tub. See "Secure Drain Hose" in the installation instructions.

[]

is the sink or drain clogged?

Sink and drainpipe must be able to carry away 17 gal. (64 L)

of water per minute. If clogged or slow, water can back up

out of drainpipe or sink. Check household plumbing (laundry

tubs, faucets, drainpipe, water pipes) for leaks.

Dispenser operation

Washer odor

[] See "Cleaning Your Washer" in "Washer Care."
[] Are you using HE detergent?

Use of non-HE detergent can cause a film residue which can

result in odor.

[] Did you leave the door open after use?

This washer has a tight seal to avoid water leaks. To avoid
odors leave the door open to allow the washer to dry

between uses.

Door won't unlock

[] Did all of the water drain out of the washer during the

spin?
Select DRAIN & SPIN to remove any water remaining in the

washer. The washer door will unlock at the end of the drain.

[] is the door locked and is the "Add a garment" light on?

Press the Start/Pause button. The door will unlock.

Wiiinotstart..

[] Make sure the door is firmly closed.
[] Make sure your Washer is plugged in.

[] Make sure the water source faucets are open.
[] Make sure to press the Start/Pause Button to start your

Washer.

[] Make sure the Child Lock is not activated; see page 14.
[] Before your Washer starts to fill, it will make a series of

clicking noises to check the door lock and do a quick drain.

[] Check the fuse or reset the circuit breaker

P

P

[] Did you follow the manufacturer's directions when adding

detergent and fabric softener to the dispensers?

Measure detergent and fabric softener. Slowly pour into the

dispensers. Wipe up all spills. Dilute fabric softener in the

fabric softener dispenser.

[] Did you put powdered or liquid color-safe bleach into the

liquid chlorine bleach dispenser {on some models)?

Add powdered or liquid color-safe bleach to the Main Wash

compartment. Do not use the chlorine bleach dispenser for

color-safe bleach.
[]

Is the fabric softener dispenser clogged?

Clean the fabric softener dispenser. See "Washer Care" for

details.
[]

Are the laundry products in the correct dispenser

compartment?

Add the correct amounts of detergent, fabric softener or

liquid chlorine bleach to the correct compartments. Add

powdered or liquid color-safe bleach to the Main Wash

compartment. Be sure to match powdered color-safe bleach

with powdered detergent or match liquid color-safe bleach

with liquid detergent.
[]

is there water in the dispenser at the end of the cycle?

A small amount of water will remain in the dispenser

compartment. This is normal.

26

Has no water or not enough water..

[] Turn both faucets on fully.
[] Make sure the door is tightly closed.

[] Straighten the water inlet hoses.
[] Disconnect hoses and clean screens. Hose filter screens may

be clogged.

[] Open and close the door, then press the Start/Pause Button.

Has detergent remains in the automatic dispenser after

the wash cycle is complete.

[] Make sure your Washer is running with sufficient water

pressure.

[] Make sure the Detergent Selector dial is in the upper position

when using granular detergent.

Vibrates or is too noisy.

[] Make sure your Washer is set on a level surface. If the

surface is not level, adjust your Washer feet to level the
appliance.

(Best 2)Kmm_ore 592-49003-02902A-01 EN.i_dd 26

2011-03-23 i,_ft 9:40:00 ]

I I

[] Make sure that the shipping bolts are removed.
[] Make sure your Washer is not touching any other object.
[] Make sure the laundry load is balanced.

Stops.

[] Plug the power cord into a live electricN outlet.
[] Check the fuse or reset the circuit breaker.

[] Close the door and press the Start/Pause Button to start

your Washer.

For your safety, your Washer will not tumble or spin unless

the door is closed.

[] Before your Washer starts to fill, it will make a series of

clicking noises to check the door lock and do a quick drain.

[] There may be a pause or soak period in the cycle. Wait

briefly and it may start.

[] Check the screens on the inlet hoses at the faucets for

obstructions.
Clean the screens periodicNly.

Fills with the wrong temperature water.

[] Turn both faucets on fully.
[] Make sure the temperature selection is correct.

[] Make sure the hoses are connected to the correct faucets.

Flush water lines.

[] Disconnect the hoses and clean the screens. The hose filter

screens may be clogged.

[] As your Washer is filling, the water temperature may change

as the automatic temperature control feature checks
incoming water temperature. This is normal.

[] While your Washer is filling, you may notice just hot and/or

just cold water going through the dispenser when cold or

warm wash temperatures are selected. This isa normal
function of the automatic temperature control feature as your
Washer determines the temperature of the water.

Door locked or will not open.

[] Press the Start/Pause Button to stop your Washer.
[] Your Washer door will remain locked during the heating

portion of the Sanitize Cycle

[] It may take a few moments for the door lock mechanism to

disengage.

Does not drain and/or spin.

[] Check the fuse or reset the circuit breaker.
[] Straighten the drain hoses. Eliminate kinked hoses. If there is

a drain restriction, call for service.

[] Close the door and press the Start/Pause Button. For your

safety, your Washer will not tumble or spin unless the door is

closed.

become unbalanced and not spin out completely.

Leaks water.

[] Make sure the door is firmly closed.
[] Make sure all hose connections are tight.
[] Make sure the end of the drain hose is correctly inserted and

secured to the drainage system.
[] Avoid overloading.
[] Use high efficiency detergent to prevent over-sudsing.

Has excessive suds.

[] Use high efficiency detergent to prevent over-sudsing.
[] Reduce the detergent amount for soft water, small or lightly

soiled loads.
[] Non-HE detergent is NOT recommended.

Load too wet

[] Did you use the right cycle for the load being washed?

Select a cycle with a higher spin speed.
[] Did you wash a single item or bulky items or have you

overloaded the washer?

A single item, bulky items, or overloading may cause

imbalance. Add items or try to evenly distribute your wet

laundry in the drum, and start a Drain & Spin cycle. If the

laundry is still wet, take half of the load out of the washer and

try again.

[] Did you use HE detergent?

Suds during rinse and spin cycles can reduce spin speed.

Use HE detergent. Residue, lint, stains on load; gray whites,

dingy colors
[] Did you add detergent to the dispenser?

For best results, add detergent to the detergent

compartment. Do not add detergent to the washer drum.
[] Did you sort properly?

Sort lint givers (towels, chenille) from lint takers (corduroy,

synthetics). Dye transfer can occur when mixing whites and

colors in a load. Sort dark clothes from whites and lights.
[] Did you overload the washer?

Do not overload the washer. The washer can be fully loaded,

but not tightly packed. The wash load must be balanced. Lint

can be trapped inthe load if overloaded.
[] Checkthe following:

Was paper or tissue left in pockets?

Load is too wet at the end of the cycle.

[] Use the High or Extra High spin speed.
[] Use high efficiency detergent to reduce over-sudsing.

[] Load is too small. Very small loads (one or two items) may

(Best 2)Ke_mtore 592-49003-02902A-01 EN.indd 27

27

2011-03-23 i,_ft 9:40:00 I

I I

[] Did you use enough HE detergent?

Follow manufacturer's recommendations for the type of
load you are washing. For best performance, use only High
Efficiency detergent. Use enough detergent to remove soil

and hold (t (n suspension.

[] Do you have hard water?

Use more detergent for washing heavy soils in cold or hard
water.

[] is your water colder than 60°F (15.6°C)?

Wash water colder than 60°F (15.6°C) may not completely

dissolve the detergent. Use hot or warm washes if safe for
the fabric load. Make sure your hot water system (sadequate
to provide a hot water wash.

[] Are you using a low speed wash cycle?

Powdered detergents may not dissolve well (na slow-speed

cycle. For best results, use liquid detergent for slow-speed

cycles such as Dellcates.

[] Did you unload the washer promptly?.

To avoid dye transfer, unload the washer as soon as (t stops.

[] Did you use a fabric softener dispensing ball?

Dispensing balls will not operate correctly with this washer.

Add liquid fabric softener to the fabric softener compartment,

[] Did you use powdered detergent in a low-speed cycle?

Consider using liquid detergent.

[] Did you use Express Wash on a large load?

For best results, use Express Wash for small, lightly soiled

loads.

Load is wrinkled, twisted, tangled

[] Did you unload the washer promptly?.

Unload the washer as soon as it stops.

[] Did you use the right cycle for the load being washed?

Use the Delicates cycle or another cycle with a low spin

speed to reduce wrinkling.

[] Did you overload the washer?

The wash load must be balanced and not overloaded. Loads

should tumble freely during washing.

[] Was the wash water warm enough to relax wrinkles?

If safe for load, use warm or hot wash water.

[] Are the hot and cold water hoses reversed?

Check to be sure the hot and cold water hoses are

connected to the right faucets. A hot rinse followed by spin

will cause wrinkling. See "Connect the Inlet Hoses" in the

Installation Instructions.

28

(Best 2)Kmmlore 592-49003-02902A-01 EN.i_ldd 28

2011-03-23 L,_,_ft 9:40:00

I

I I

I (Best 2)Kmmlore 592-49003-02902A-01 EN.i_ldd 29

29

2011-03-23 L_,i9:40:00 ]

I I

Seairs

© 2009 Bears Brands LLC

I (Best 2)Keimlore 592-49003-02902A-01 EN.i_ldd 30 2011-03-23 i,_ft 9:40:00 ]

®Registered Trademark / Trademark / Service Mark of Sears Brands LLC,

IM SM

under licensee by Sears Canada.

Printed in Korea

3/10
