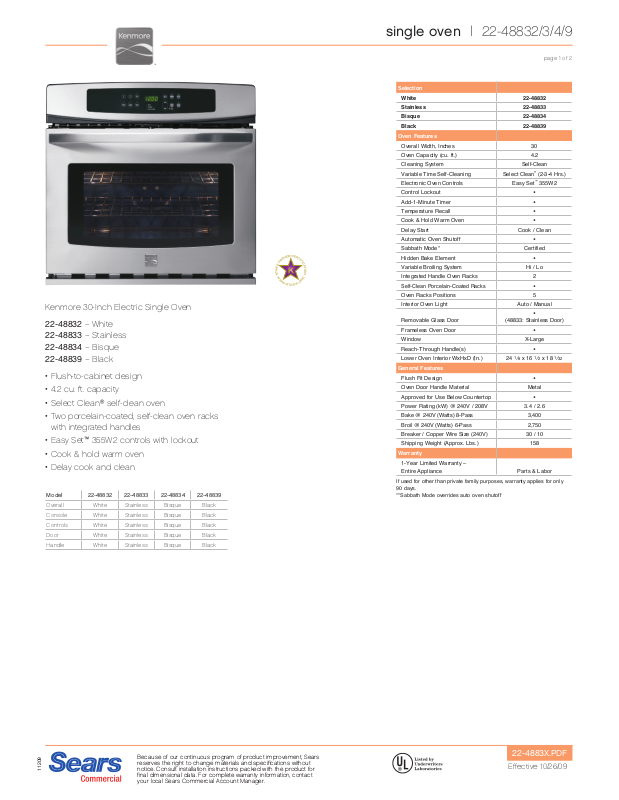

Kenmore 30-Inch Electric Single Oven

22-48832 – White 22-48833 – Stainless 22-48834 – Bisque 22-48839 – Black

• Flush-to-cabinet design

• 4.2 cu. ft. capacity

• Select Clean® self-clean oven

• Two porcelain-coated, self-clean oven racks with integrated handles

• Easy Set™ 355W2 controls with lockout

• Cook & hold warm oven

• Delay cook and clean

Model 22-48832 22-48833 22-48834 22-48839

Overall White Stainless Bisque Black

Console White Stainless Bisque Black

Controls White Stainless Bisque Black

Door White Stainless Bisque Black

Handle White Stainless Bisque Black

single oven | 22-48832/3/4/9

page 1 of 2

Selection

White 22-48832

Stainless 22-48833

Bisque 22-48834

Black 22-48839

Oven Features

Overall Width, Inches 30

Oven Capacity (cu. ft.) 4.2

Cleaning System Self-Clean

Variable Time Self-Cleaning

Electronic Oven Controls

Control Lockout

Add-1-Minute Timer

Temperature Recall

Cook & Hold Warm Oven

Delay Start Cook / Clean

Automatic Oven Shutoff

Sabbath Mode* Certified

Hidden Bake Element

Variable Broiling System Hi / Lo

Integrated Handle Oven Racks 2

Self-Clean Porcelain-Coated Racks

Oven Racks Positions 5

Interior Oven Light Auto / Manual

Removable Glass Door

Frameless Oven Door

Window X-Large

Reach-Through Handle(s)

Lower Oven Interior WxHxD (In.) 24 1⁄8 x 16 1⁄2 x 18 1⁄

General Features

Flush Fit Design

Oven Door Handle Material Metal

Approved for Use Below Countertop

Power Rating (kW) @ 240V / 208V 3.4 / 2.6

Bake @ 240V (Watts) 8-Pass 3,400

Broil @ 240V (Watts) 6-Pass 2,750

Breaker / Copper Wire Size (240V) 30 / 10

Shipping Weight (Approx. Lbs.) 158

Warranty

1-Year Limited Warranty – Entire Appliance Parts & Labor

If used for other than private family purposes, warranty applies for only 90 days. **Sabbath Mode overrides auto oven shutoff

Select Clean

(2-3-4 Hrs.)

™

Easy Set

355W2

•

(48833: Stainless Door)

•

11209

Because of our continuous program of product improvement, Sears

Because of our continuous program of product improvement, Sears reserves the right to change materials and specications without

reserves the right to change materials and specications without notice. Consult installation instructions packed with the product for

notice. Consult installation instructions packed with the product for nal dimensional data. For complete warranty information, contact

nal dimensional data. For complete warranty information, contact your local Sears Commercial Account Manager.

your local Sears Commercial Account Manager.

22-4883X.PDF

Effective 10/26/09

single oven | 22-48832/3/4/9

29 1/16"

28 1/4"

27 1/4" - 28 1/2"

28 1/2" 29"

/2"

2" Wide Wood

Spacer if Needed

Spacer

Electrical Junction Box

(Right or Left Side

Depending on Model)

/4"

min.

1" min.

31"

Suggested,

4 1/2" min.

23 1/2"

min.

Hole for Cable (Right or Left

Side Depending

on Model)

301/8"

27 3/16"
