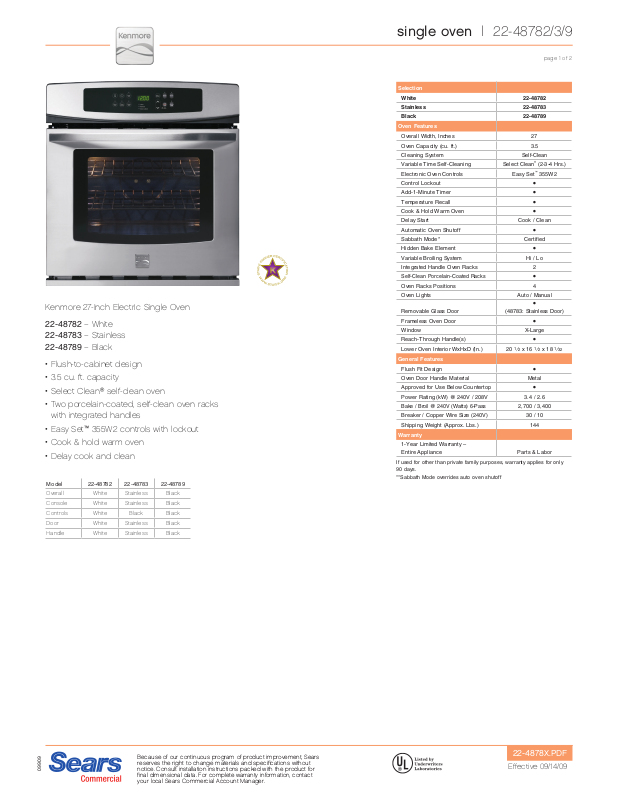

Page 1
Kenmore 27-Inch Electric Single Oven
22-48782 – White
22-48783 – Stainless
22-48789 – Black
• Flush-to-cabinet design
• 3.5 cu. ft. capacity
• Select Clean® self-clean oven
• Two porcelain-coated, self-clean oven racks
with integrated handles
• Easy Set™ 355W2 controls with lockout
• Cook & hold warm oven
• Delay cook and clean
Model 22-48782 22-48783 22-48789
Overall White Stainless Black
Console White Stainless Black
Controls White Black Black
Door White Stainless Black
Handle White Stainless Black
single oven | 22-48782/3/9
page 1 of 2
Selection
White 22-48782
Stainless 22-48783
Black 22-48789
Oven Features
Overall Width, Inches 27
Oven Capacity (cu. ft.) 3.5
Cleaning System Self-Clean
Variable Time Self-Cleaning
Electronic Oven Controls
Control Lockout
Add-1-Minute Timer
Temperature Recall
Cook & Hold Warm Oven
Delay Start Cook / Clean
Automatic Oven Shutoff
Sabbath Mode* Certified
Hidden Bake Element
Variable Broiling System Hi / Lo
Integrated Handle Oven Racks 2
Self-Clean Porcelain-Coated Racks
Oven Racks Positions 4
Oven Lights Auto / Manual
Removable Glass Door
Frameless Oven Door
Window X-Large
Reach-Through Handle(s)
Lower Oven Interior WxHxD (In.) 20 1⁄2 x 16 1⁄2 x 18 1⁄
General Features
Flush Fit Design
Oven Door Handle Material Metal
Approved for Use Below Countertop
Power Rating (kW) @ 240V / 208V 3.4 / 2.6
Bake / Broil @ 240V (Watts) 6-Pass
Breaker / Copper Wire Size (240V) 30 / 10
Shipping Weight (Approx. Lbs.) 144
Warranty
1-Year Limited Warranty –
Entire Appliance Parts & Labor
If used for other than private family purposes, warranty applies for only
90 days.
**Sabbath Mode overrides auto oven shutoff
Select Clean
®
(2-3-4 Hrs.)
™
Easy Set
355W2
•
•
•
•
•
•
•
•
(48783: Stainless Door)
•
•
•
•
2,700 / 3,400
32
09909
Because of our continuous program of product improvement, Sears
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specications without
reserves the right to change materials and specications without
notice. Consult installation instructions packed with the product for
notice. Consult installation instructions packed with the product for
nal dimensional data. For complete warranty information, contact
nal dimensional data. For complete warranty information, contact
your local Sears Commercial Account Manager.
your local Sears Commercial Account Manager.
22-4878X.PDF
Effective 09/14/09
Page 2
single oven | 22-48782/3/9
29 1/16"
24 5/8"
27 1/4" - 28 1/2"
24 7/8" 25
1
/4"
27
"
24
1
/2"
21
"
2" Wide Wood
Spacer if Needed
Spacer
Electrical Junction Box
(Right or Left Side
Depending on Model)
1
1
/4"
min.
1" min.
3"
31"
Suggested,
4 1/2" min.
23 1/2"
min.
Hole for Cable
(Right or Left
Side Depending
on Model)
27
3
/16" -
27 1/8"
page 2 of 2
09909
Because of our continuous program of product improvement, Sears
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specications without
reserves the right to change materials and specications without
notice. Consult installation instructions packed with the product for
notice. Consult installation instructions packed with the product for
nal dimensional data. For complete warranty information, contact
nal dimensional data. For complete warranty information, contact
your local Sears Commercial Account Manager.
your local Sears Commercial Account Manager.
22-4878X.PDF
Effective 09/14/09
