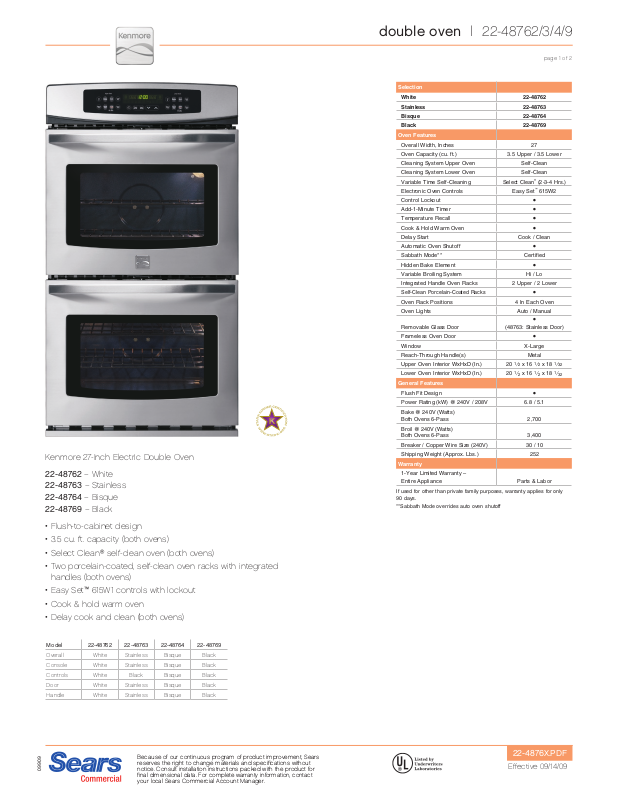

Kenmore 27-Inch Electric Double Oven
22-48762 – White
22-48763 – Stainless
22-48764 – Bisque
22-48769 – Black
• Flush-to-cabinet design
• 3.5 cu. ft. capacity (both ovens)
• Select Clean® self-clean oven (both ovens)
• Two porcelain-coated, self-clean oven racks with integrated
handles (both ovens)
• Easy Set™ 615W1 controls with lockout
• Cook & hold warm oven
• Delay cook and clean (both ovens)
double oven | 22-48762/3/4/9
page 1 of 2
Selection
White 22-48762
Stainless 22-48763
Bisque 22-48764
Black 22-48769
Oven Features
Overall Width, Inches 27
Oven Capacity (cu. ft.) 3.5 Upper / 3.5 Lower
Cleaning System Upper Oven Self-Clean
Cleaning System Lower Oven Self-Clean
Variable Time Self-Cleaning
Electronic Oven Controls
Control Lockout
Add-1-Minute Timer
Temperature Recall
Cook & Hold Warm Oven
Delay Start Cook / Clean
Automatic Oven Shutoff
Sabbath Mode** Certified
Hidden Bake Element
Variable Broiling System Hi / Lo
Integrated Handle Oven Racks 2 Upper / 2 Lower
Self-Clean Porcelain-Coated Racks
Oven Rack Positions 4 In Each Oven
Oven Lights Auto / Manual
Removable Glass Door
Frameless Oven Door
Window X-Large
Reach-Through Handle(s) Metal
Upper Oven Interior WxHxD (In.) 20
Lower Oven Interior WxHxD (In.) 20 1⁄2 x 16 1⁄2 x 18 1⁄
General Features
Flush Fit Design
Power Rating (kW) @ 240V / 208V 6.8 / 5.1
Bake @ 240V (Watts)
Both Ovens 6-Pass 2,700
Broil @ 240V (Watts)
Both Ovens 6-Pass 3,400
Breaker / Copper Wire Size (240V) 30 / 10
Shipping Weight (Approx. Lbs.) 252
Warranty
1-Year Limited Warranty –
Entire Appliance Parts & Labor
If used for other than private family purposes, warranty applies for only
90 days.
**Sabbath Mode overrides auto oven shutoff
Select Clean
®
(2-3-4 Hrs.)
™
Easy Set
615W2
•
•
•
•
•
•
•
•
(48763: Stainless Door)
•
1
⁄2 x 16 1⁄2 x 18 1⁄
•
32
32
Model 22-48762 22-48763 22-48764 22-48769
Overall White Stainless Bisque Black
Console White Stainless Bisque Black
Controls White Black Bisque Black
Door White Stainless Bisque Black
Handle White Stainless Bisque Black
Because of our continuous program of product improvement, Sears
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specications without
09909
reserves the right to change materials and specications without
notice. Consult installation instructions packed with the product for
notice. Consult installation instructions packed with the product for
nal dimensional data. For complete warranty information, contact
nal dimensional data. For complete warranty information, contact
your local Sears Commercial Account Manager.
your local Sears Commercial Account Manager.
22-4876X.PDF
Effective 09/14/09
double oven | 22-48762/3/4/9
50 1/2"
Spacer
24 5/8"
48
5
/8"
11
1
/2"
24 1/2"
21
"
49 1/8"-
49
7
/8"
27 1/8"
24 7/8" 25 1/4"
23
1/2"
min.
27
"
1" min.
3"
max.
11/4"min.
Electrical Junction Box
(Right or Left Side
Depending on Model)
27" & 30" Models:
2" Wide Wood
Spacer if Needed
Hole for Cable
(Right or Left
Side Depending
on Model)
page 2 of 2
09909
Because of our continuous program of product improvement, Sears
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specications without
reserves the right to change materials and specications without
notice. Consult installation instructions packed with the product for
notice. Consult installation instructions packed with the product for
nal dimensional data. For complete warranty information, contact
nal dimensional data. For complete warranty information, contact
your local Sears Commercial Account Manager.
your local Sears Commercial Account Manager.
22-4876X.PDF
Effective 09/14/09
