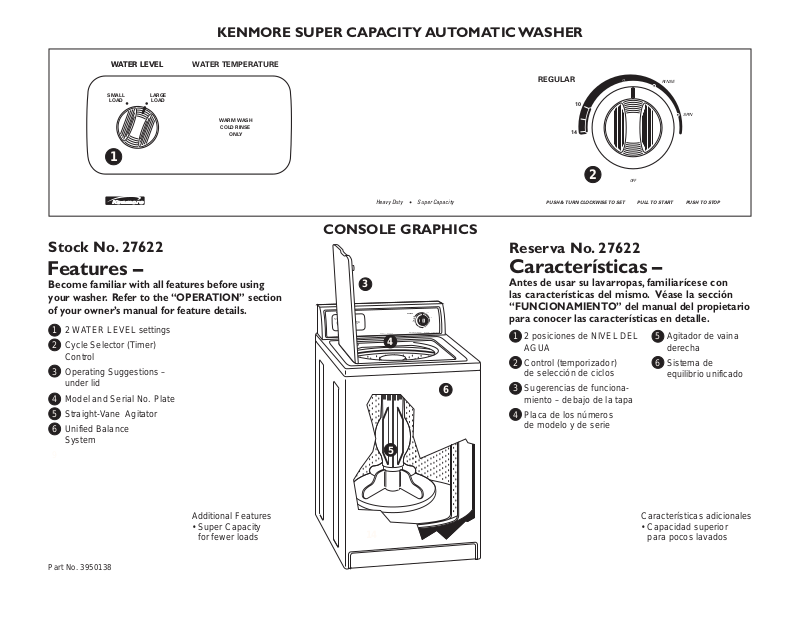

KENMORE SUPER CAPACITY AUTOMATIC WASHER
WATER LEVEL |
WATER TEMPERATURE |
|
SMALL |
LARGE |
|
LOAD |
LOAD |
|
|
|
WARM WASH |
|
|
COLD RINSE |
|
|
ONLY |
1
Stock No. 27622
Features –
Become familiar with all features before using your washer. Refer to the “OPERATION” section of your owner’s manual for feature details.
12 WATER LEVEL settings
2Cycle Selector (Timer) Control
3Operating Suggestions – under lid
4Model and Serial No. Plate
5Straight-Vane Agitator
6Unified Balance System
Additional Features
• Super Capacity
for fewer loads
Part No. 3950138
Heavy Duty |
Super Capacity |
CONSOLE GRAPHICS
3
WATER LEVEL |
REGULAR |
4
6
5
14
REGULAR |
U |
RINSE |
10 |
|
|
|
|
SPIN |
14 |
|
|
2
OFF
PUSH & TURN CLOCKWISE TO SET |
PULL TO START |
PUSH TO STOP |
Reserva No. 27622
Características –
Antes de usar su lavarropas, familiarícese con las características del mismo. Véase la sección
“FUNCIONAMIENTO” del manual del propietario para conocer las características en detalle.
1 |
2 posiciones de NIVEL DEL |
5 |
Agitador de vaina |
|
AGUA |
|
derecha |
2 |
Control (temporizador) |
6 |
Sistema de |
|
de selección de ciclos |
|
equilibrio unificado |
3Sugerencias de funcionamiento – debajo de la tapa
4Placa de los números de modelo y de serie
Características adicionales
• Capacidad superior para pocos lavados
Your washer has features that are different than those described in your Owner’s Manual. These features are illustrated and described on this sheet.
SUMMARY OF CHANGES
•Operating Instructions: WATER LEVEL Control –Your washer has two water level settings.
•Operating Instructions: WATER TEMPERATURE Control –Your washer does not have a WATER TEMPERATURE Control. A warm water wash with a cold water rinse is the only temperature combination available.
•Operating Instructions: Self-Cleaning Lint Filter –Your washer does not have a self-cleaning lint filter.
•Operating Instructions: DUAL-ACTION™ Agitator –Your washer does not have a DUAL-ACTION™ Agitator.
•Operating Instructions: Bleach Dispenser –Your washer does not have a liquid chlorine bleach dispenser.
SETTING YOUR CYCLE SELECTOR (TIMER) CONTROL
Use this control to choose your wash time and to start the washer.
•For heavy soil and sturdy fabrics, use the full time.
•For light soil and delicate fabrics, use less time.
REGULAR |
U |
RINSE |
10 |
|
|
|
|
SPIN |
14 |
|
|
OFF
REGULAR
Use this cycle to get up to 14 minutes of wash time for sturdy or heavily soiled loads.
•Wash combines fast speed agitation and fast spin speeds.
STRAIGHT VANE AGITATOR
The design of this agitator is well-suited to handle your everyday loads.
Su lavarropas tiene características diferentes a las que se describen en su Manual de propietario. Estas características son ilustradas y descritas en esta página.
LISTA DE DIFERENCIAS
•Instrucciones de operación: Control del NIVEL DE AGUA –Su lavarropas tiene dos posiciones del nivel de agua.
•Instrucciones de operación: Control de la TEMPERATURA DEL AGUA –Su lavarropas no posee un Control de la TEMPERATURA DEL AGUA. Un lavado con agua tibia y un enjuague con agua fría es la única combinación de temperatura disponible.
•Instrucciones de operación: Filtro de pelusa de limpieza autolimpiable –Su lavarropas no está equipado con un filtro de pelusa de limpieza autolimpiable.
•Instrucciones de operación: Agitador de ACCIÓN DOBLE ™ –Su lavarropas no está equipado con un Agitador de ACCIÓN DOBLE.™
•Instrucciones de operación: Recipiente de lejía clorada –Su lavarropas no está equipado con un recipíente de lejía clorada.
AJUSTE DEL CONTROL SELECTOR DE CICLO (PROGRAMADOR)
Use este control para escoger su tiempo de lavado y para iniciar el lavarropas.
•Para sucios y materiales fuertes, utilice el tiempo completo.
•Para sucios ligeros y materiales delicados, utilice menos tiempo.
REGULAR U
SPIN
OFF
REGULAR
Utilice este ciclo para lavados de hasta 14 minutos para el lavado de materiales fuertes y cargas de ropas grandes.
•El lavado combina agitación de velocidad rápida y giros de velocidades rápidas.
AGITADOR DE ALETA RECTA
El diseño de este agitador es muy conveniente para sus cargas de ropa diaria.
