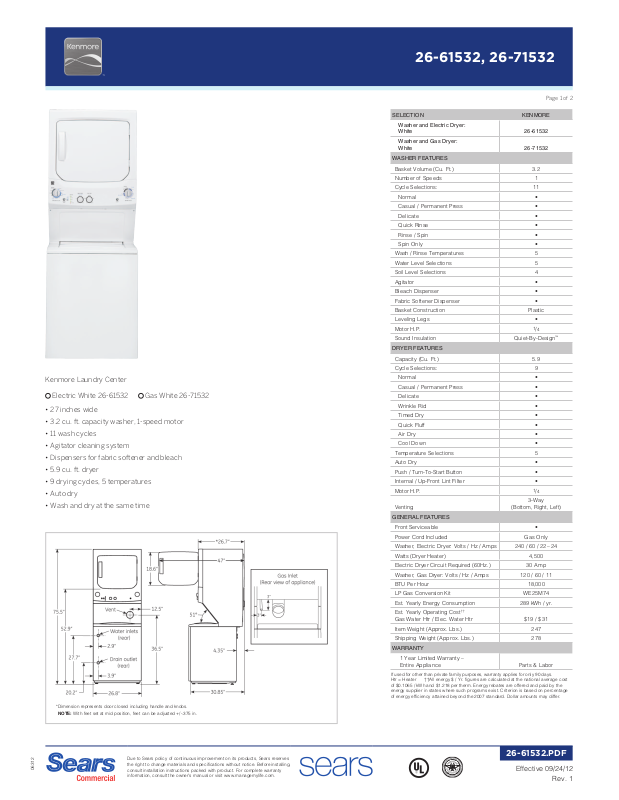

Kenmore Laundry Center
Electric White 26-61532 Gas White 26-71532
• 27 inches wide
• 3.2 cu. ft. capacity washer, 1-speed motor
• 11 wash cycles
• Agitator cleaning system
• Dispensers for fabric softener and bleach
• 5.9 cu. ft. dryer
• 9 drying cycles, 5 temperatures
• Auto dry
• Wash and dry at the same time
* Dimension represents door closed including handle and knobs.
NOTE: With feet set at mid position, feet can be adjusted +/-.375 in.
26-61532, 26-71532
Page 1 of 2
SELECTION KENMORE
Washer and Electric Dryer:
White 26-61532
Washer and Gas Dryer:
White 26-71532
WASHER FEATURES
Basket Volume (Cu. Ft.) 3.2
Number of Speeds 1
Cycle Selections: 11
Normal •
Casual / Permanent Press •
Delicate •
Quick Rinse •
Rinse / Spin •
Spin Only •
Wash / Rinse Temperatures 5
Water Level Selections 5
Soil Level Selections 4
Agitator •
Bleach Dispenser •
Fabric Softener Dispenser •
Basket Construction Plastic
Leveling Legs •
Motor H.P.
Sound Insulation Quiet-By-Design
DRYER FEATURES
Capacity (Cu. Ft.) 5.9
Cycle Selections: 9
Normal •
Casual / Permanent Press •
Delicate •
Wrinkle Rid •
Timed Dry •
Quick Fluff •
Air Dry •
Cool Down •
Temperature Selections 5
Auto Dry •
Push / Turn-To-Start Button •
Internal / Up-Front Lint Filter •
Motor H.P.
Venting
GENERAL FEATURES
Front Serviceable •
Power Cord Included Gas Only
Washer, Electric Dryer: Volts / Hz / Amps 240 / 60 / 22 – 24
Watts (Dryer Heater) 4,500
Electric Dryer Circuit Required (60Hz.) 30 Amp
Washer, Gas Dryer: Volts / Hz / Amps 120 / 60 / 11
BTU Per Hour 18,000
LP Gas Conversion Kit WE25M74
Est. Yearly Energy Consumption 289 kWh / yr.
Est. Yearly Operating Cost
Gas Water Htr / Elec. Water Htr $19 / $31
Item Weight (Approx. Lbs.) 247
Shipping Weight (Approx. Lbs.) 278
WARRANTY
1 Year Limited Warranty –
Entire Appliance Parts & Labor
If used for other than private family purposes, warranty applies for only 90 days.
Htr = Heater ††All energy $ / Yr. figures are calculated at the national average cost
of $0.1065 / kWh and $1.218 per therm. Energy rebates are offered and paid by the
energy supplier in states where such programs exist. Criterion is based on percentage
of energy efficiency attained beyond the 2007 standard. Dollar amounts may differ.
††
1
/4
1
/4
3-Way
(Bottom, Right, Left)
™
06312
Due to Sears policy of continuous improve ment on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner’s manual or visit www.managemylife.com.
26-61532.PDF
Effective 09/24/12
Rev. 1
Page 2
DRYER VENTING RECOMMENDATIONS
Clamps are recommended for wall and dryer connections. Steel clamps
designed to resist stretching, with phillips / hex head screw are included one
each on elbows and periscopes.
26-98379 — Vent Hood
Aluminum body and plastic molded hood with a 4" opening.
DRYER EXHAUST LENGTH
GTUP270EM/GM DRYER EXHAUST LENGTH
IMPORTANT NOTE:
Do not use non-metal
flexible duct. Also, when
installing the venting
system, do not exceed
the specified length for
the vent duct. Venting
systems which are
longer than specified will
accumulate lint, increase
drying time and energy
use and shorten the life of
the dryer.
No. of 90º
Elbows
0
1
2
3
RECOMMENDED MAXIMUM LENGTH
Exhaust Hood Types
Recommended
4" DIA.
4"
Rigid
Metal
56 Feet
44 Feet
34 Feet
24 Feet
4" DIA.
Use only
run installations
4" DIA.
Rigid
Metal
42 Feet
32 Feet
25 Feet
18 Feet
POWER CORDS FOR ELECTRIC DRYERS ONLY
26-49387, 26-49787 26-49388, 26-49788
*Complies with 1/1/96 NEC code revision for new construction and remodeling
All Electric Dryers Require Cord
Order Wire Length
26-49387 3 4 ft.
26-49787 3 6 ft.
26-49388* 4 4 ft.
26-49788* 4 6 ft.
for short
2-1/2"
26-61532, 26-71532
4" Clearance Behind the Dryer is Preferred for Best Airflow.
2" Clearance is Achieved With Periscopes.
4" CLEARANCE BEHIND DRYER
26-49900 — Over-The-Top™ Kit
Universal solution, 8 foot length. Kit includes two 4 ft. pipe
sections with attached elbows, two close elbows, clamps
and wall plate.
26-49608 — Flexible Pipe
4" x 6' with snap-lock fittings, 90˚ turn takes 1 foot length
and 6 inch clearance
26-49609 — Close Elbow
Turns 90˚ within 4", rotating collars and snap-lock fittings
2" CLEARANCE BEHIND DRYER
26-49901 — Periscope 0-5"
26-49908 — Periscope 0-18"
For outlets that overlap or are very close
26-49904 — Periscope 18-29"
Reaches side of most dryers
26-49905 — Periscope 29-50"
Reaches top of most dryers
Gas Dryer Connector – Stainless Steel
26-49590
26-49585*
*Los Angeles only
1
/2" - 3/8" Flex, 5 ft.
3
/8" - 3/8" Flex, 5 ft.
Page 2 of 2
06312
Due to Sears policy of continuous improve ment on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner’s manual or visit www.managemylife.com.
26-61532.PDF
Effective 09/24/12
Rev. 1
