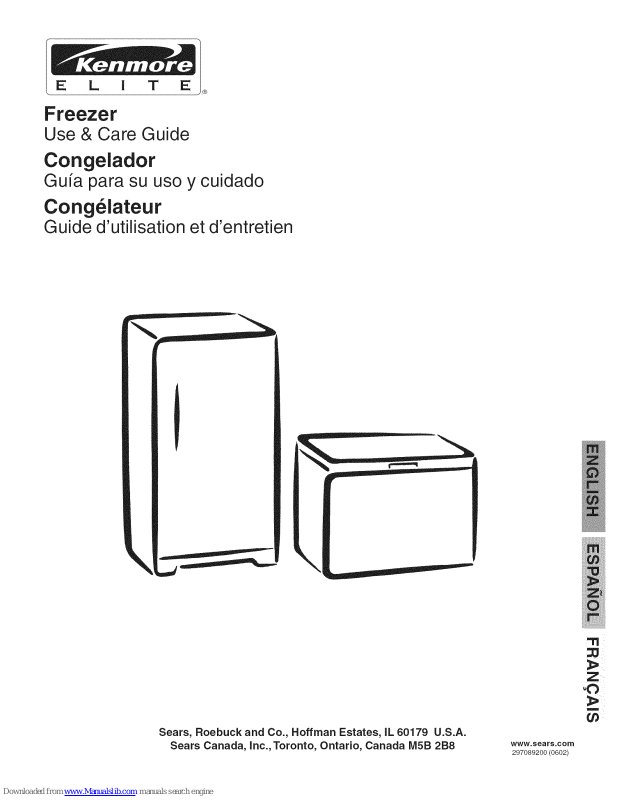

E L ! T E _
Freezer
Use & Care Guide
Congelador
Gufa para su uso y cuidado
Cong_lateur
Guide d'utilisation et d'entretien
!
2
,,0
m
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Sears Canada, inc., Toronto, Ontario, Canada IVl5B 2B8
www.sears,com
297089200 (0602)
Record Serial/Model Numbers ............ 2
Important Safety Instructions .............. 2-3
Kenmore Appliance Warranty .............. 3
Protection Agreements ........................ 4
First Steps ........................................... 5-6
Energy Saving Tips ............................. 6
Setting the Temperature Control ......... 6
Freezer Optional Features .................. 7-9
Care and Cleaning .............................. 9-10
Power Failure / Freezer Failure ............ 11
Troubleshooting Guide ......................... 12-13
Sears Service ..................................... 14
Sears Canada Customers .................. 14
READ AND SAVETHESEINSTRUCTIONS
This Owner's Guide provides specific operating instructions
for your model. Use your freezer only as instructed in this
guide. These instructions are not meant to cover every
possible condition and situation that may occur. Common
sense and caution must be practiced when installing,
operating, and maintaining any appliance.
READ ALL INSTRUCTIONS BEFORE USING THIS
FREEZER.
r'."lr_v:_:_ln_[q FOR YOUR SAFETY
Do not store or use gasoline, or other flammable vapors and
liquids in the vicinity of this or any other appliance. Read
product labels for flammability and other warnings.
r':,w.._;_,,ln,,[_ CHILD SAFETY
* Destroy carton, plastic bags, and any exterior wrapping
material immediately after the freezer is unpacked.
Children should never use these items to play. Cartons
covered with rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and can quickly
cause suffocation.
* Remove all staples from the carton. Staples can cause
severe cuts, and destroy finishes if they come in contact
with other appliances or furniture.
An empty, discarded ice box, refrigerator, or freezer is a
very dangerous attraction to children.
Remove and discard any spacers used to secure the
shelves during shipping. Small objects are a choke
hazard to children.
Record Your Model and Serial Numbers
Record the model and serial numbers in the space provided
below. The serial plates are located either on the upper left
wall inside the freezer (upright models), or the left exterior
wall (chest models).
Model Number: 253.
or 970.
Serial Number:
Purchase Date:
Model and Serial
Number Plate
Remove the door(s) of any appliance that is not in use,
even if it is being discarded.
_'!'lv,,/_,_:t_ll_[_ Risk of Child Entrapment
Child entrapment and suffocation are not problems of the past.
Junked or abandoned refrigerators or freezers are still dangerous
- even if they will sit for "just a few days". If you are getting rid of
your old refrigerator or freezer, please follow the instructions
below to help prevent accidents:
* Remove the door/lid.
,, Leave shelves in place so children may not easily climb
inside.
, Have the refrigerant removed by a qualified technician.
.f-
ELECTRICAL iNFORMATiON
These guidelines must be followed to ensure that
safety mechanisms in the design of this freezer will
operate properly.
• Refer to the serial plate for correct electrical rating.
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
shock hazards. It must be plugged directly into a
properly grounded three-prong receptacle, protected with
a 15 amp time delay fuse or circuit breaker. The
receptacle must be installed in accordance with local
codes and ordinances. Consult a qualified electrician.
Receptacles protected by Ground Fault Circuit
interrupters(GFIC) are NOT RECOMMENDED. DO NOT
USE AN EXTENSION CORD OR ADAPTER PLUG.
• If voltage varies by 10% or more, freezer performance
may be affected. Operating freezer with insufficient
power can damage the motor. Such damage is not
covered under the warranty. If you suspect your house
hold voltage is high or low, consult your power company
for testing.
• To prevent the freezer from being turned off
accidentically, do not plug unit into an outlet controlled
by a wall switch or pull cord.
Do not pinch, knot, or bend the cord in any manner.
OTHER PRECAUTIONS
• To defrost freezer, always unplug unit first.
• Never unplug the freezer by pulling on the cord.
Always grip the plug firmly, and pull straight out from
the receptacle.
Turning the temperature control to OFF turns off the
compressor, but does not disconnect the power to the
light bulb or other electrical components.
Avoid fire hazard or
electric shock. Do not use an extension
cord or an adapter plug. Do not remove
any prong from the power cord.
Grounding type
wall receptacle
Powersupply
cord with 3-prong
grounding plug
One Year Limited Warranty
When installed, operated and maintained according to all
instructions supplied with the product, if this appliance fails
due to a defect in material or workmanship within one year
from the date of purchase, call 1-800-4-MY-HOME ®to
arrange for free repair.
FULL FIVE YEAR LIMITED WARRANTY ON SEALED
REFRiGERATiON SYSTEM
For five years from the date of purchase, when this
appliance is installed,operated, and maintained
according to the instructions supplied with it, Sears will
repair the sealed system (consisting of refrigerant,
connecting tubing, and compressor), free of charge, if
defective in material or workmanship.
If this appliance is used for other than private family pur-
poses, this warranty applies for only 90 days from the date of
purchase.
This warranty covers only defects in material and
workmanship. Sears will NOT pay for:
t. Expendable items that can wear out from normal use,
including but not limited to filters, belts, light bulbs and
bags.
2. A service technician to instruct the user in correct product
installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed,
operated or maintained according to all instructions
supplied with the product.
5. Damage to or failure of this product resulting from
accident, abuse, misuse or use for other than its
intended purpose.
6. Damage to or failure of this product caused by the use of
detergents, cleaners, chemicals or utensils
other than those recommended in all instructions
supplied with the product.
7. Damage to or failure of parts or systems resulting from
unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited
warranty shall be product repair as provided
herein. Implied warranties, including warranties of merchant-
ability or fitness for a particular purpose, are limited to one
year or the shortest period allowed by law. Sears shall not be
liable for incidental or consequential damages. Some states
and provinces do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on the
duration of implied warranties of merchantability or fitness,
so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the
United States and Canada.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates,
IL 60179
Sears Canada Inc.,Toronto, Ontario, Canada M5B 2B8
In the U.S.A.
In Canada
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore Elite®product is designed and manufactured for
years of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time.
That's when having a Master Protection Agreement can save
you money and aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life
of your new appliance. Here's what's included in the
Agreement:
_" Expert service by our 12,000 professional repair
specialists
_" Unlimited service and no charge for parts and labor
on all covered repairs
_" "No-lemon" guarantee - replacement of your covered
product if four or more product failures occur within
twelve months
_" Product replacement if your covered product can't be
fixed
_" Annual Preventive Maintenance Check at your
request - no extra charge
_" Fast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling
_" Power surge protection against electrical damage due
to power fluctuations
_" Rental reimbursement if repair of your covered product
takes longer than promised
Once you purchase the Agreement, a simple phone call is all
that it takes for you to schedule service. You can call anytime
day or night, or schedule a service appointment online.
Sears has over 12,000 professional repair specialists, who
have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection Agreement
today!
Some limitations and exclusions apply. For prices and
additional information, call 1-800-827-6655.
Sears Installation Service
For Sears professional installation of home appliances and
items like garage door openers, water heaters, and other
major home items, in the U.S.A. call 1-800-4MY-HOME <_.
Maintenance Agreements
Your purchase has added value because you can depend on
Sears HomeCentral ®for service. With over 2400 Service
Technicians and more than a million parts and accessories,
we have the tools, parts, knowledge and skills to back our
pledge:
We Service What We Sell.
Your Kenmore Elite®product is designed, manufactured and
tested to provide years of dependable operation. But like all
products, it may require service from time to time. The Sears
Maintenance Agreement offers you an outstanding service
program, affordably priced.
The Sears Maintenance Agreement
• Is your way to buy tomorrow's service at today's price.
• Eliminates repair bills resulting from normal wear and
tear.
• Provides phone support from a Sears technician on
products requiring in-home repair.
• Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running condition.
Some limitations apply. For more information about
concerning Sears Canada Maintenance Agreements, call
1-800-361-6665.
This Owner's Guide provides specific operating instructions
for your model. Use the freezer only as instructed in this
Owner's Guide. Before starting the freezer, follow these
important first steps.
iNSTALLATiON
• Choose a place that is neara grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
• For the most efficient operation, the freezer should be
located where surrounding temperatures will not exceed
t t0°F (43°C). Temperatures of 32°F (0°C) and below will
NOT affect freezer operation. Additional compressor
heaters are not recommended.
• Allow space around the unit for good air circulation.
Leave a 3 inch (75 mm) space on all sides of the freezer
for adequate circulation.
3" (75ram)
(25ram)
installation
installation
NOTE: The exterior walls of the freezer may become quite
warm as the compressor works to transfer heat from the
inside. Temperatures as much as 30° F warmer than room
temperature can be expected. For this reason it is particu-
larly important in hotter climates to allow enough space for
air circulation around your freezer.
LEVELING
The freezer must have all bottom corners resting firmly on
a solid floor. The floor must be strong enough to support a
fully loaded freezer. NOTE: It is VERY IMPORTANT for
your freezer to be level in order to function properly. If the
freezer is not leveled during installation, the door may be
misaligned and not close or seal properly, causing cooling,
frost, or moisture problems.
Lower
Unpacking and Leveling - Upright Models
Plastic
Leveling Feet
Crating
Screw
Discard Th_n_ng Screws
And (2) Wood Bases
To Level Chest Models:
If needed, add metal or wood shims between foot pads and
floor.
CLEANING
Wash any removable parts, the freezer interior, and
exterior with mild detergent and warm water. Wipe dry.
Do not use harsh cleaners on these surfaces.
Do not use razor blades or other sharp instruments,
which can scratch the appliance surface when removing
adhesive labels. Any glue left from the tape can be
removed with a mixture of warm water and mild deter-
gent, or touch the residue with the sticky side of tape
already removed. Donot remove the serial plate.
_To allow door to
close and seal properly, DO NOT let
food packages extend past the front
of shelves.
To Level Upright Models:
After discarding crating screws and wood base, use a
carpenter's level to level the freezer from front-to-back.
Adjust the plastic leveling feet in front, 1/2bubble higher, so
that the door closes easily when left halfway open.
Shelf Front
DOOR REMOVAL (UPRIGHT MODELS)
If door must be removed:
1. Gently lay freezer on its back, on a rug or blanket.
2. Remove two base screws and base panel. Remove
wire from clips on bottom of cabinet, if required.
3. Unplug connector, if required, by holding the cabinet
connector in place, and pulling door connector out.
4. Remove bottom hinge screws.
5. Remove plastic top hinge cover.
6. Remove screws from top hinge.
7. Remove top hinge from cabinet.
8. Remove doorand bottom hinge from cabinet.
9. To replace door, reverse the above order and securely
tighten all screws to prevent hinge slippage.
COOL DOWN PERIOD
For safe food storage, allow 4 hours for the freezer to
cool down completely. The freezer will run continuously
for the first several hours. Foods that are already frozen
may be placed in the freezer after the first few hours of
operation. Unfrozen foods should NOT be loaded into
the freezer until the freezer has operated for 4 hours.
When loading the freezer, freeze only 3 pounds of
fresh food per cubic foot of freezer space at one time.
Distribute packages to be frozen evenly throughout the
freezer. It is not necessary to turn the control knob to a
colder setting while freezing food.
TEMPERATURE CONTROL
Base
Panet Base Panel Screws
Hinge Screws
i
Cabinet Connector
• The freezer should be located in the
coolest area of the room, away from
heat producing appliances or heating
ducts, and out of direct sunlight.
• Let hot foods cool to room
temperature before placing in
the freezer. Overloading the freezer
forces the compressor to run longer. Foods that freeze
too slowly may lose quality or spoil.
Be sure to wrap foods properly, and wipe containers dry
before placing them in the freezer. This cuts down on
frost build-up inside the freezer.
Freezer shelves should not be lined with aluminum foil,
wax paper, or paper toweling. Liners interfere with cold
air circulation, making the freezer less efficient.
Organize and label food to reduce door openings and
extended searches. Remove as many items as needed
at one time, and close the door as soon as possible.
Electromechanical Temperature Control (Chest and
Some Upright Models)
The electromechanical temperature control is located inside
the freezer on upright models, and on the left exterior wall on
chest models (see figure 1). The temperature is factory preset
to provide satisfactory food storage temperatures. However,
the temperature control is adjustable to provide a range of
temperatures for your personal satisfaction. To adjust the
temperature setting, turn the temperature control knob
clockwise or counter clockwise. Allow several hours for the
temperature to stabilize between adjustments.
Electromechanical Control
Figure 1
Standard Electronic Temperature Control (Some
Upright Frost Free Models)
The standard electronic temperature control is located inside
the freezer on upright models (see Figure 2). Temperature is
factory preset to provide satisfactory food storage temperatures.
To adjust the temperature setting, move the UP (A) button for
warmer temperature and DOWN (Y) button for colder
temperature on the control panel. Allow several hours for the
temperature to stabilize between adjustments.
off
- Arr6t
J
Standard Electronic Temperature Control
Figure 2
Delu×eElectronicTemperature Control (Some Upright
Frost Free Models)
Refer to the Electronics Control Guide supplied when you
purchase a deluxe electronic upright model. See Figure 3 for
deluxe electronics control panel.
OU[CK FREEZE
ON v
OFF
FREEZER TEMP
ALAI{M
_ESET
Chest Models
J
Indicator Lights
and Switches
/
/
/
/
/
/
:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_!_ii__!!_!_!!_i_i_:i_i_i_!_1_#_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_ii
Upright Models
Figure 3
Chest Models
Figure 4
NOTE: Your freezer may have some, or all of the
features listed below. Become familiar with these
features, and their use and care.
SECURITY LOCK WITH POP=OUT KEY
This security lock fastens the door snugly, ensuring stored
food is secure. To lock or unlock the freezer, push the key
into the lock and turn. The key pops out of the lock after it
has been turned.
POWER ON LIGHT
The yellow Power On indicator light indicates that the
freezer is properly connected to electrical power. The light
glows even when the temperature control is turned to OFF
if the light goes out, refer to Freezer Does Not Run Section
in the Troubleshooting Guide. If the freezer appears to
be operating, the light element may be burned out. Call an
authorized servicer for replacement.
TEMP ALARM (ELECTRONIC MODELS)
This feature isdesigned to provide a warning if the inside
temperatures reach an unsafe level. The Temp. Alarm
Feature operates on household electricity. [twill not
function ifhousehold electricity is interrupted. (Battery
backup models only: A battery backup feature will take
over the alarm system ifthe household electricity is
interrupted.)
./ Upright Models
J
When the freezer is initially plugged in, the red Temp. Alarm
Indicator Light blinks. The indicator light will continue to blink
until the freezer has reached a safe freezing temperature. If a
malfunction causes an unsafe temperature inside the freezer,
the red light will blink and the buzzer will sound. To silence the
buzzer, press the ALARM OFF button. The Indicator Light will
continue to blink until a safe freezing temperature is again
reached. If the problem is not resolved within 12 hours, the
buzzer will turn on again.
If the ALARM OFF button is not pressed, the buzzer will turn
itself off automatically after 48 hours, but the red Temp Alarm
Light will continue to blink.
Cabinet
temperature is
Normal None
Operation
displayed.
FF is displayed.
Temperature
flashing on and
off. Control panel
beeps every 5
seconds.
Quick Freeze
Freezer
temperature too
high
None
Check power is
connected.
Contact service
technician. Press
ALARM RESET to
shut off audible
alarm (beep).
Alternating: "b"
and temperature.
Control panel
beeps every 5
seconds.
Low/no battery
Replace 9V
battery. Press
ALARM RESET to
stop audible alarm
(beep).
Alternating: "d" Door ajar Close door. Press
and temperature. ALARM RESET to
Control panel stop audible alarm
beeps every 5 (beep).
seconds.
Alternating: "E" Operational error Contact service
and temperature, technician. Press
Control panel ALARM RESET to
beeps every 5 stop audible alarm
seconds. (beep).
Alternating: "CE" Operational error Contact service
and temperature, technician. Press
Control panel ALARM RESET to
beeps every 5 stop audible alarm
seconds. (beep).
Display off. Power failure Reconnect power
Control panel connection.
beeps every
minute
HIGH=TEMPALARM SWITCH (SOME MODELS)
An audible alarm will sound if the freezer temperature reaches
unsafe levels. The alarm operates on household electricity. If
the power fails, the alarm will not perform.
An ON/OFF switch allows the high temperature alarm to be
deactivated if desired. NOTE: You must open the freezer door to
view the alarm switch. The freezer is shipped with the switch in
the OFF position. After the freezer has run long enough to
lower the temperature, you may set the switch to the ON
position.
,, To activate the alarm, set the switch to the ON position.
,, To deactivate the alarm, set the switch to the OFF position.
Blue
High-Temp Alarm Switch
BLUE DEFROST BUTTON (SOMECHEST MODELS)
iMPORTANT: itis time to defrost and clean the freezer when
the blue defrost button is completely covered with frost.
SLIDE=OUT BASKET OR TRIVET (SOMEUPRIGHT
MODELS)
A Slide-Out Basket (some models) or Tdvet (some models),
located at the bottom of the freezer, provides separate
storage space for items that are difficult to store on freezer
shelves. To remove the basket or trivet, pull out and lift up.
DROP FRONT SHELF (UPRIGHT MODELS)
The Drop Front Shelf, located at the bottom of the freezer,
provides a separate compartment for small irregularshaped
items or large, bulky items. Lift the shelf front up and out to
remove.
ADJUSTABLE INTERIOR SHELVES
(SOME UPRIGHT MODELS)
Multi-position adjustable interior shelves can be moved to
any position for larger or smaller packages. The shipping
spacers that stabilize the shelves for shipping may be
removed and discarded.
Adjustable Interior Shelves - Upright Models Adjustable Interior Shelves - Updght Models
I
SLIDE-ASIDE BASKET (SOME CHEST MODELS)
This basket helps organize odd-shaped items. To reach other
packages in the freezer, slide the basket aside, or lift out.
INTERIOR LIGHT
The light comes on automatically when the door is opened.
To replace the light bulb, turn the temperature control to
OFF and unplug the electrical cord. Replace the old bulb
with a bulb of the same wattage.
TILT=OUT SHELF
This shelf islocated inside on the freezer door and provides
additional storage space. To access an item, tilt top of
"basket" shelf down.
Tilt-Out Shelf
Slide-Aside Basket
BASKET DIVIDER (SOME UPRIGHT MODELS)
Use these handy dividers to
keep the various items stored
in your baskets more
organized. To change the
location of the divider simply
slide your basket out, lift up on
each end of the divider until it
is disengaged from the basket,
place divider in the desired
location (make sure it is
between two vertical wires) and
press down firmly on each end
until it snaps into place.
iii_i
PIZZA SHELF (SOME UPRIGHT MODELS)
Here is the place to store up to four extra-large boxes of frozen
pizza without ever having to dig them out from beneath a pile of
other stored goods. To change the location of the pizza shelf:
support the bottom center of the shelf with one hand and use your
other hand to gently ease each support tab outward until they have
all dropped between the edge of the shelf and the liner wall. It may
help to slide the supporting shelf slightly to the side opposite that
in which you are removing the tabs in order to get a larger gap
between the edge of the supporting shelf and the liner wall.
Next, locate the pizza shelf beneath the shelf nearest your desired
location and snap each tab upwards between the wire or glass
shelf and liner until the tab has snapped into place and is resting
on top of the supporting shelf. Repeat for each tab until all four are
firmly in place and then load with desired items.
_Damp objects stick to
cold metal surfaces. Do not touch
interior metal surfaces with wet or
damp hands.
Some upright freezers are frost-free and defrost automati-
cally, but should be cleaned occasionally.
BETWEEN DEFROSTINGS
To avoid frequent defrosting, occasionally use a plastic
scraper to remove frost. Scrape with a pulling motion.
Never use a metal instrument to remove frost.
DEFROSTING
Freezer must be
unplugged (to avoid electrical
hazard) from power source when
defrosting unit.
CHEST DIVIDER (SOME CHEST MODELS)
Use these clever dividers to custom-arrange a variety of different-
sized storage bins in the bottom of your chest freezer. Use the peel-
n-stick labels found in your literature packet to help remind you
which items are stored where. Ifyou have an item that isn't already
covered by one of the pre-printed labels then use one of the blank
labels and a permanent marking pen to make your own custom
label. Labels can be peeled off when no longer needed and
replaced by new and different ones.
Examples of Chest Divider Configurations:
It is important to defrost and clean the freezer when 1Ato 1/2
inch of frost has accumulated. Frost may tend to accumu-
late faster on the upper part of the freezer due to warm,
moist air entering the freezer when the door is opened.
Remove food and leave the door open when defrosting the
freezer.
To Defrost Upright Models with Defrost Drain:
Remove the drain plug on the inside floor of the freezer by pulling
it straight out.
To access external drain tube on models with a base panel, first
remove the two screws from the base panel. Locate the drain
tube near the left center under the freezer.
Place a shallow pan under the drain tube. Defrost water will
drain out. Check the pan occasionally so water does not overflow
(see figure 1).
A V2inch garden hose adapter can be used to drain the freezer
directly into a floor drain. If your model is not equipped with an
adapter, one can be purchased at most hardware stores.
Replace the drain plug when defrosting and cleaning are
completed. If the drain is left open, warm air may enter the
freezer.
_ _ _ i II _
til ii
Drain Pan [
_i iiiiii
Figure la
Drain
Pan
To Defrost Models without Defrost Drain:
U09 Models
Only
J
/,
Place towels or newspapers on the freezer bottom to catch the
frost. The frost will loosen and fall.
Remove the towels and/or newspapers.
Ifthe frost is soft, remove it by using a plastic scraper. Ifthe frost
is glazed and hard, fill deep pans with hot water and place them
on the freezer bottom.
Close the freezer door/lid. Frost should soften in about fifteen
(15) minutes.
Repeat this procedure is necessary.
gure !b
To Defrost Chest Models with Defrost Drain:
Place a shallow pan or the Divider/Drain Pan (if equipped)
beneath the drain outlet. Pull out the outside drain plug (see
figure 2). A V2inch garden hose adapter can be used to drain the
freezer directly into a floor drain (see figure 3). If your model is
not equipped with an adapter, one can be purchased at most
hardware stores.
Pull out the drain plug inside the freezer (see figure 4). Defrost
water will drain out. Check pan occasionally so water does not
overflow.
Replace the drain plugs when defrosting and cleaning are
completed. If the drain is left open, warm air may enter the
freezer.
Defrost water will drain out. Check pan occasionally so
water does not overflow. Replace the drain plugs when
defrosting is completed.
Hose
Pan
DraiI_ Plug
CLEANING THE INSIDE
After defrosting, wash inside surfaces of the freezer with a
solution of two tablespoons of baking soda in one quart
(1.136 litres) warm water. Rinse and dry. Wring excess
water out of the sponge or cloth when cleaning in the area
of the controls, or any electrical parts.
Wash the removable parts and door basket with the baking
soda solution mentioned above, or mild detergent and
warm water. Rinse and dry. Never use metallic scouring
pads, brushes, abrasive cleaners, or alkaline solutions on
any surface. Do not wash removable parts in a dishwasher.
CLEANING THE OUTSIDE
Wash the cabinet with warm water and mild liquid deter-
gent. Rinse well and wipe dry with a clean soft cloth.
Replace parts and food.
If leaving the freezer
door open while on vacation, make
certain that children cannot get into
the freezer and become entrapped.
VACATION AND MOVING TIPS
Defrost/_
Drain Plug
Figure 2
Figure 4
Figure 3
ShortVacations:
Leave the freezer operating during vacations of less
than three weeks.
Long Vacations:
If the freezer will not be used for several months:
• Remove all food and unplug the power cord.
• Clean and dry the interior thoroughly.
• Leave the freezer door open slightly, blocking it open if
necessary, to prevent odor and mold growth.
Moving: When moving the freezer, follow these guidelines
to prevent damage:
Disconnect the power cord plug from the wall outlet.
Remove foods, then defrost, and clean the freezer.
Secure all loose items such as base panel, baskets, and
shelves by taping them securely in place to prevent
damage.
In the moving vehicle, secure freezer in an upright
position to prevent movement. Also protect outside of
freezer with a blanket, or similar item.
10
NOTE: Do not open freezer door
unnecessarily if freezer is off for
several hours.
If a power failure occurs, frozen foods will stay frozen for
at least 24 hours if the freezer is kept closed. If the power
failure continues, pack seven or eight pounds of dry ice into
the freezer every 24 hours. Look in the Yellow Pages under
Dry Ice, Dairies, or Ice Cream Manufacturers for local dry
ice suppliers. Always wear gloves and use caution when
handling dry ice.
if the freezer has stopped operating, see Freezer Does
Not Run in the Troubleshooting Guide. if you cannot
solve the problem, call an authorized servicer immediately.
If the freezer remains off for several hours, follow the
directions above for the use of dry ice during a power
failure. If necessary, take the food to a local locker plant
until the freezer is ready to operate. Look in the Yellow
Pages under Frozen Food Locker Plants.
11
TROUBLESHOOTING Before calling for service, review this list. It may save you time and expense. This list
includes common occurences that are not the result of defective workmanship or
GUIDE materials in this appliance.
PROBLEM CAUSE CORRECTION
FREEZER DOES NOT RUN
Freezer does not run.
Freezer runs too much or too
long.
interior Freezer temperature is ,, Temperature Control is set too ,, Turn the control to a warmer setting. Allow several hours
too cold. low. for the temperature to stabilize.
,, Freezer is plugged into a circuit
that has a ground fault interrupt.
,, Temperature control is in the
OFF position.
,, Freezer may not be plugged in,
or plug may be loose.
,, House fuse blown or tripped
circuit breaker.
,, Power outage.
,, Room or outside weather is hot.
,, Freezer has recently been
disconnected for a period of
time.
,, Large amounts of warm or hot
food have been stored recently.
,, Doors are opened too frequently
or too long.
,, Freezer door may be slightly
open.
,, Temperature Control is set too
low.
,, Freezer gasket is dirty, worn,
cracked, or poorly fitted.
,, Use another circuit. If you are unsure about the outlet,
have it checked by a certified technician.
, See Setting the Temperature Control Section.
,, Ensure plug is tightly pushed into outlet.
,, Check/replace fuse with a 15 amp time-delay fuse. Reset
circuit breaker.
,, Check house lights. Call local Electric Company.
,, It's normal for the freezer to work harder under these
conditions.
,, It takes 4 hours for the freezer to cool down completely.
,, Warm food will cause freezer to run more until the
desired temperature is reached.
,, Warm air entering the freezer causes it to run more.
Open doors less often.
,, See "DOOR PROBLEMS" Section.
,, Turn control knob to a warmer setting. Allow several hours
for the temperature to stabilize.
,, Clean or change gasket. Leaks in the door seal will cause
freezer to run longer in order to maintain desired
temperature.
interior Freezer temperature is
too warm.
Freezer external surface , The external freezer walls can , This is normal while the compressor works to transfer
temperature is warm. be as much as 30°F warmer heat from inside the freezer cabinet.
SOUND AND NOISE
Louder sound levels whenever , Modern freezers have increased , This is normal. When the surrounding noise level is low,
freezer is on. storage capacity and more you might hear the compressor running while it cools the
Longer sound levels when ,, Freezer operates at higher ,, This is normal. Sound will level off or disappear as freezer
compressor comes on. pressures during the start of the continues to run.
,, Temperature Control is set too
warm.
,, Door is kept open too long or is
opened too frequently.
,, Door may not be seating
properly.
,, Large amounts of warm or hot
food may have been stored
recently.
,, Freezer has recently been
disconnected for a period of
time.
than room temperature.
stable temperatures. They interior.
require a high efficiency
compressor.
ON cycle.
,, Turn control to a colder setting. Allow several hours for the
temperature to stabilize.
,, Warm air enters the freezer every time the door is
opened. Open the door less often.
,, See "DOOR PROBLEMS" Section.
,, Wait until the freezer has had a chance to reach its
selected temperature.
,, Freezer requires 4 hours to cool down completely.
12
PROBLEM l CAUSE 1 CORRECTION
SOUND AND NOISE (Cont.)
Popping or cracking sound ,, Metal parts undergo expansion ,, This is normal. Sound will level off or disappear as
when compressor comes on. and contraction, as in hot water freezer continues to run.
pipes.
Bubbling or gurgling sound, ,, Refrigerant (used to cool ,, This is normal.
like water boiling, freezer) is circulating
throughout the system.
Vibrating or rattling noise.
,, Freezer is not level. It rocks on
the floor when it is moved
slightly.
,, Floor is uneven or weak.
Freezer rocks on floor when it
is moved slightly.
,, Freezer is touching the wall.
,, Level the unit. Refer to "Leveling" in the First Steps
Section.
,, Ensure floor can adequately support freezer. Level the
freezer by putting wood or metal shims under part of the
freezer.
,, Relevel the freezer or move freezer slightly. Refer to
"Leveling" in the First Steps Section.
WATER/MOISTURE/FROST INSIDE FREEZER
,, Weather is hot and humid,
freezer wails.
WATER/MOISTURE/FROST OUTSIDE FREEZER
Moisture forms on ouside of ,, Door may not be seating ,, See "DOOR PROBLEMS" Section.
freezer, properly, causing the cold air
ODOR IN FREEZER
which increases internal rate of
frost build-up.
,, Door may not be seating
properly.
,, Door is kept open too long, or
is opened too frequently.
from inside the freezer to meet
warm moist air from outside.
,, This is normal.Moisture forms on inside
,, See "DOOR PROBLEMS" Section.
,, Open the door less often.
Odors in freezer ] ,, Interior needs to be cleaned. ,, Clean interior with sponge, warm water, and baking
,, Foods with strong odors are in soda.
/
the freezer. ,, Cover the food tightly.
DOOR PROBLEMS
Door will not close. ,, Freezer is not level. It rocks on
the floor when it is moved
slightly.
,, Floor is uneven or weak.
Freezer rocks on floor when it
is moved slightly.
LIGHT BULB IS NOT ON
Light bulb is not on. ,, Light bulb is burned out. ,, Follow directions under "Interior Light" in the Freezer
,, No electric current is reaching ,, See "FREEZER DOES NOT RUN" Section.
the freezer.
AUTOMATIC ICE MAKER NOT WORKING
Automatic ice maker not ,, Ensure the Wire Signal Arm is not in the UP position.
working. (some models) ,, Ice maker should produce 4 to 5 pounds of ice in a 24 hour period.
,, Water supply is turned off.
,, Water pressure is too low.
,, The freezer is not cold enough.
,, This condition can force the cabinet out of square and
misalign the door. Refer to "Leveling" in the First Steps
Section.
,, Level the floor by using wood or metal shims under the
freezer or brace floor supporting the freezer.
Features Section.
13
