Kenmore 15825 User Manual

Download

Ken ore

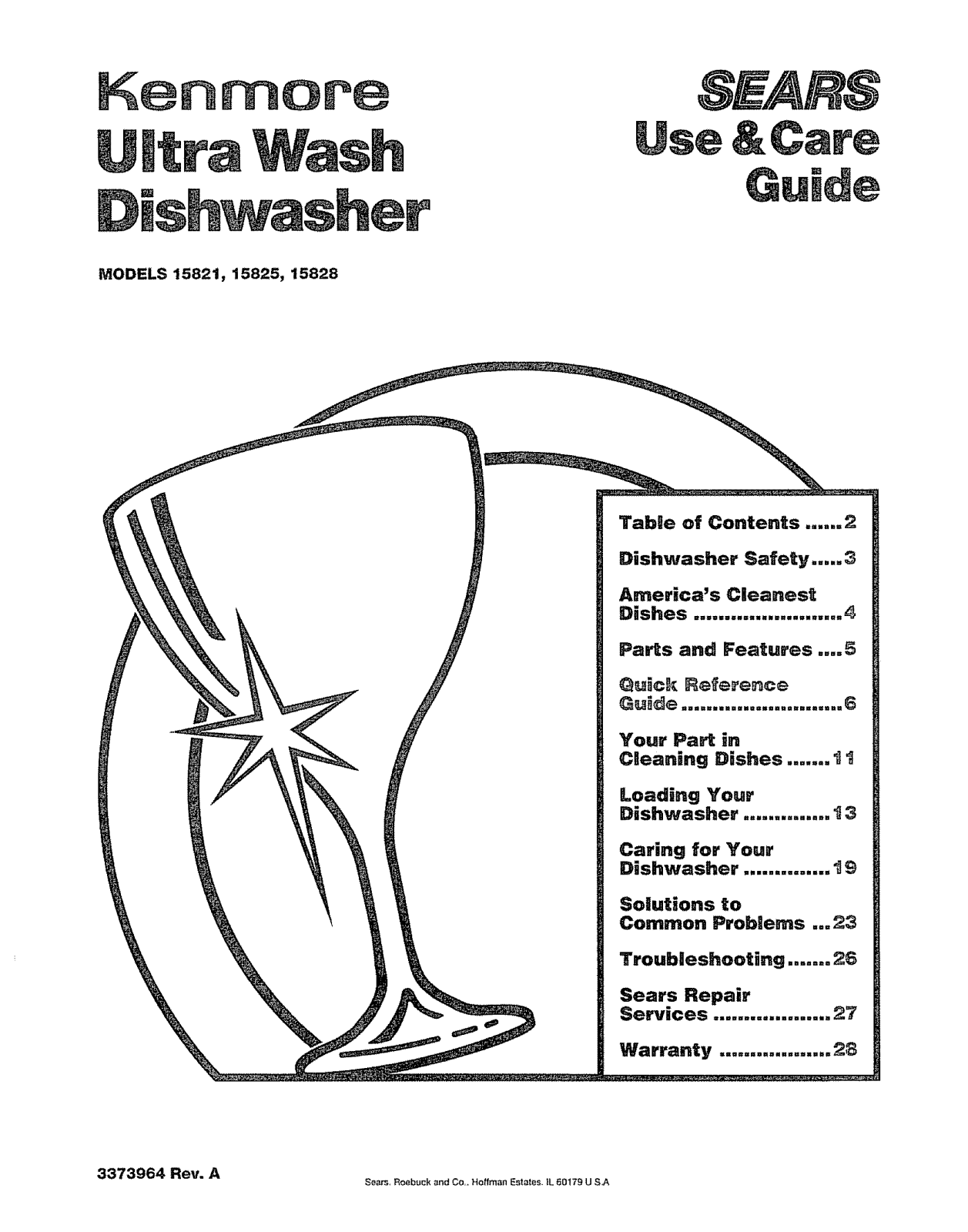

MODELS 15821, 15825, 15828

3373964 Rev. A

S_ars, Roebuck _nd Co. Hotfman Estates. IL 50179 U S_,

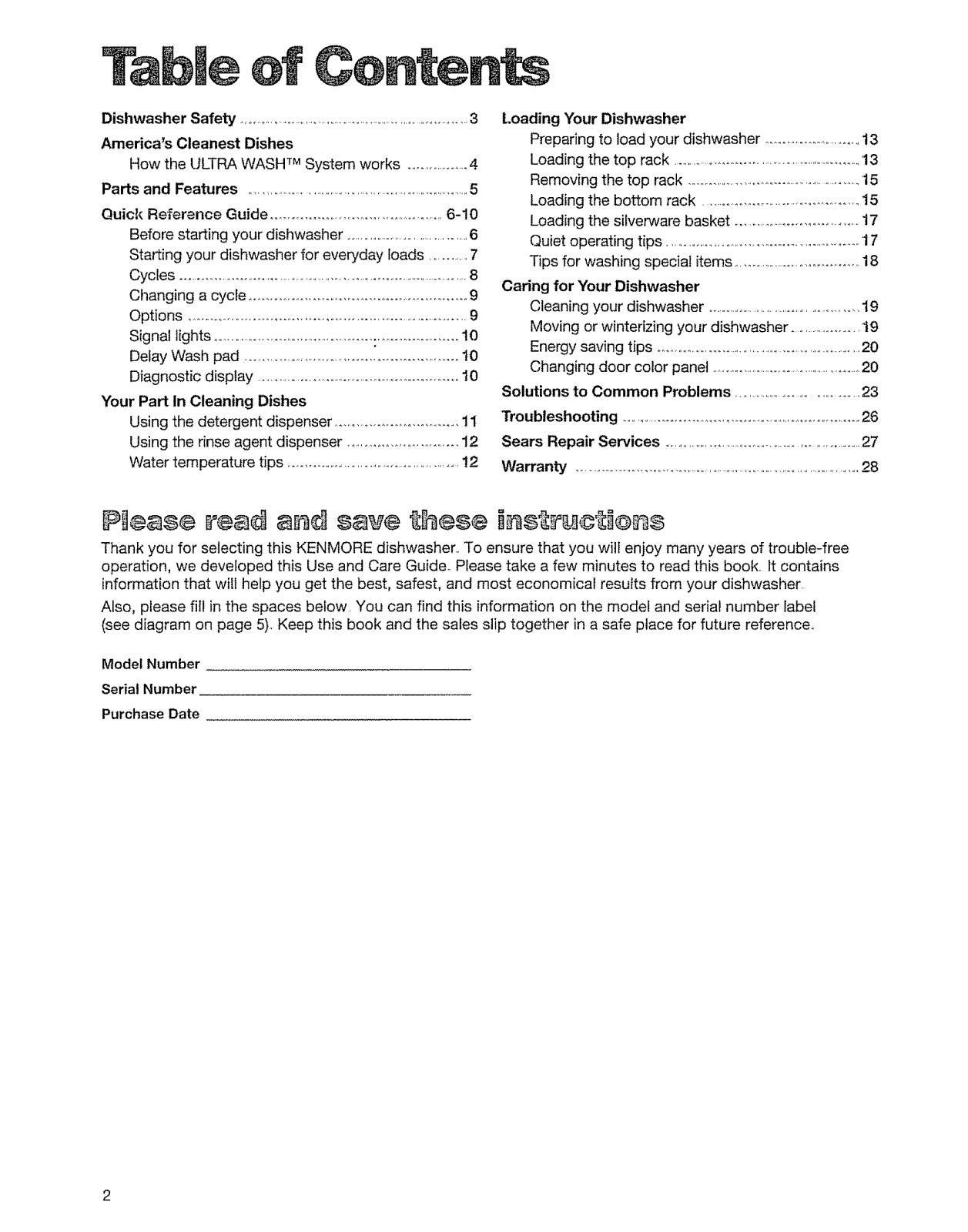

Con n

Dishwasher Safety ..............................................................................3

America's Cleanest Dishes

How the ULTRA WASHTM System works ....................4

Parts and Features .................................................................. 5

Quick Reference Guide ........................................... 6-10

Before starting your dishwasher .........................................6

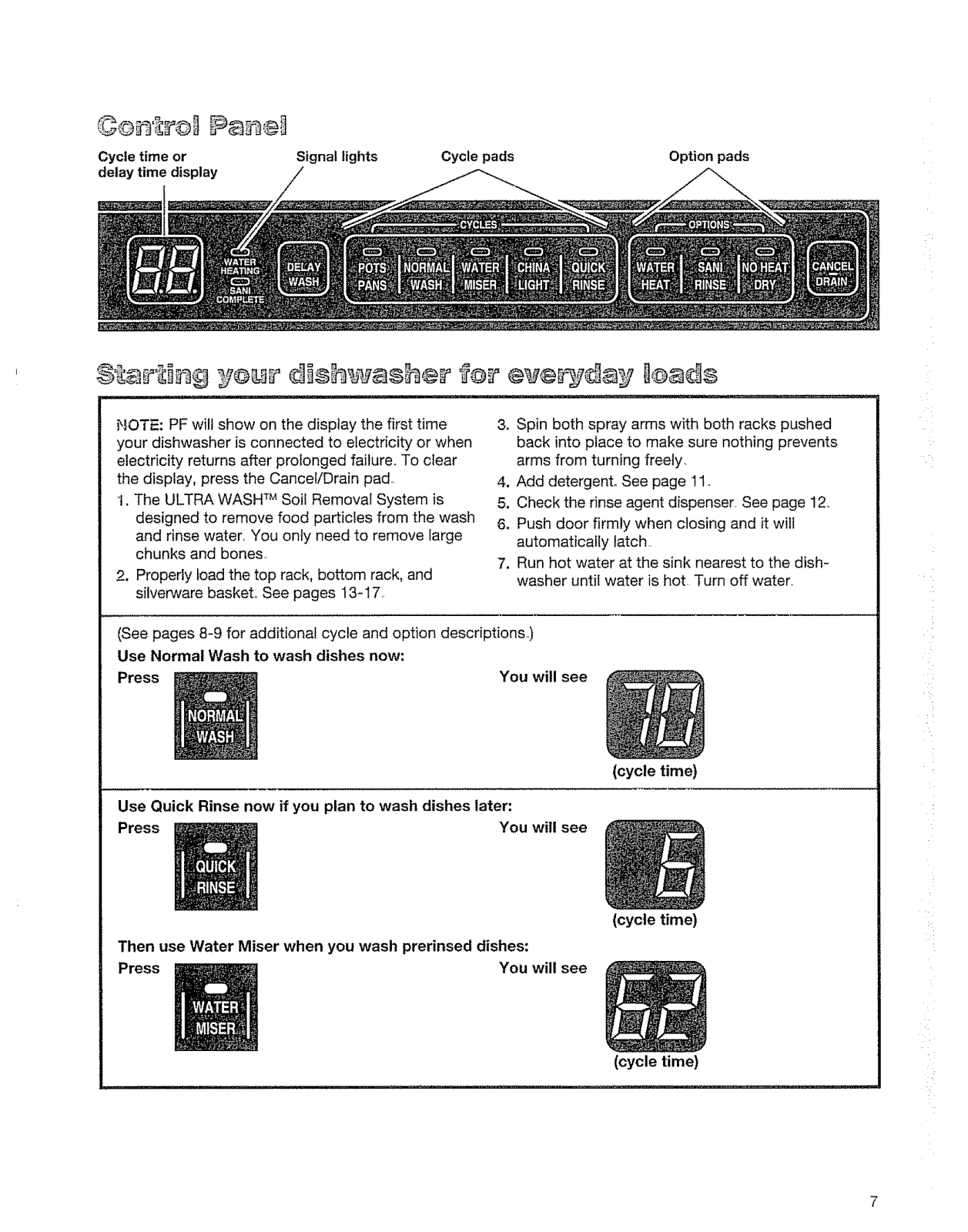

Starting your dishwasher for everyday loads .............7

Cycles ........................................................................................8

Changing a cycle .................................................... 9

Options .........................................................................9

Signal lights ............................................:.....................10

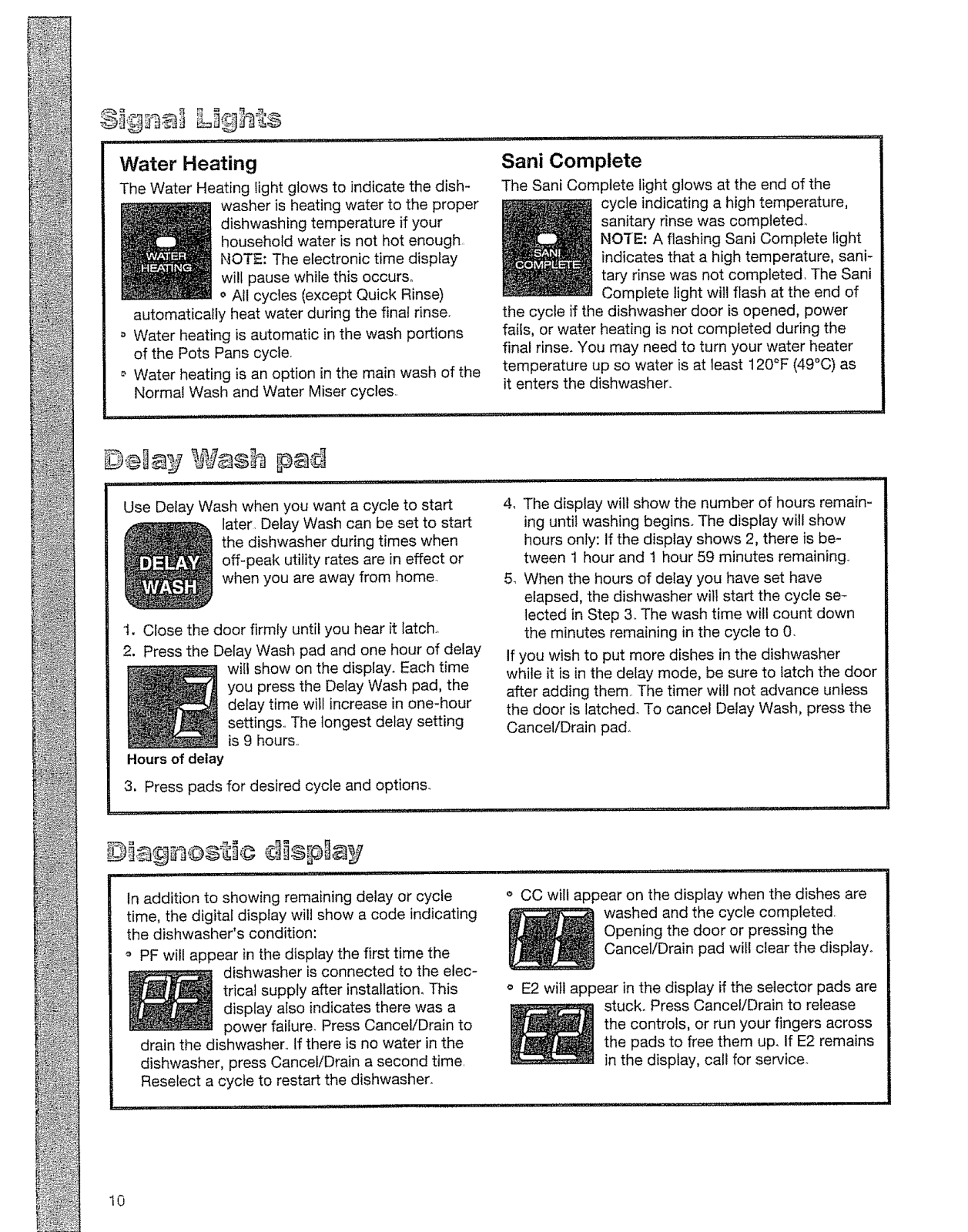

Delay Wash pad ........................................................10

Diagnostic display ......................................................I0

Your Part In Cleaning Dishes

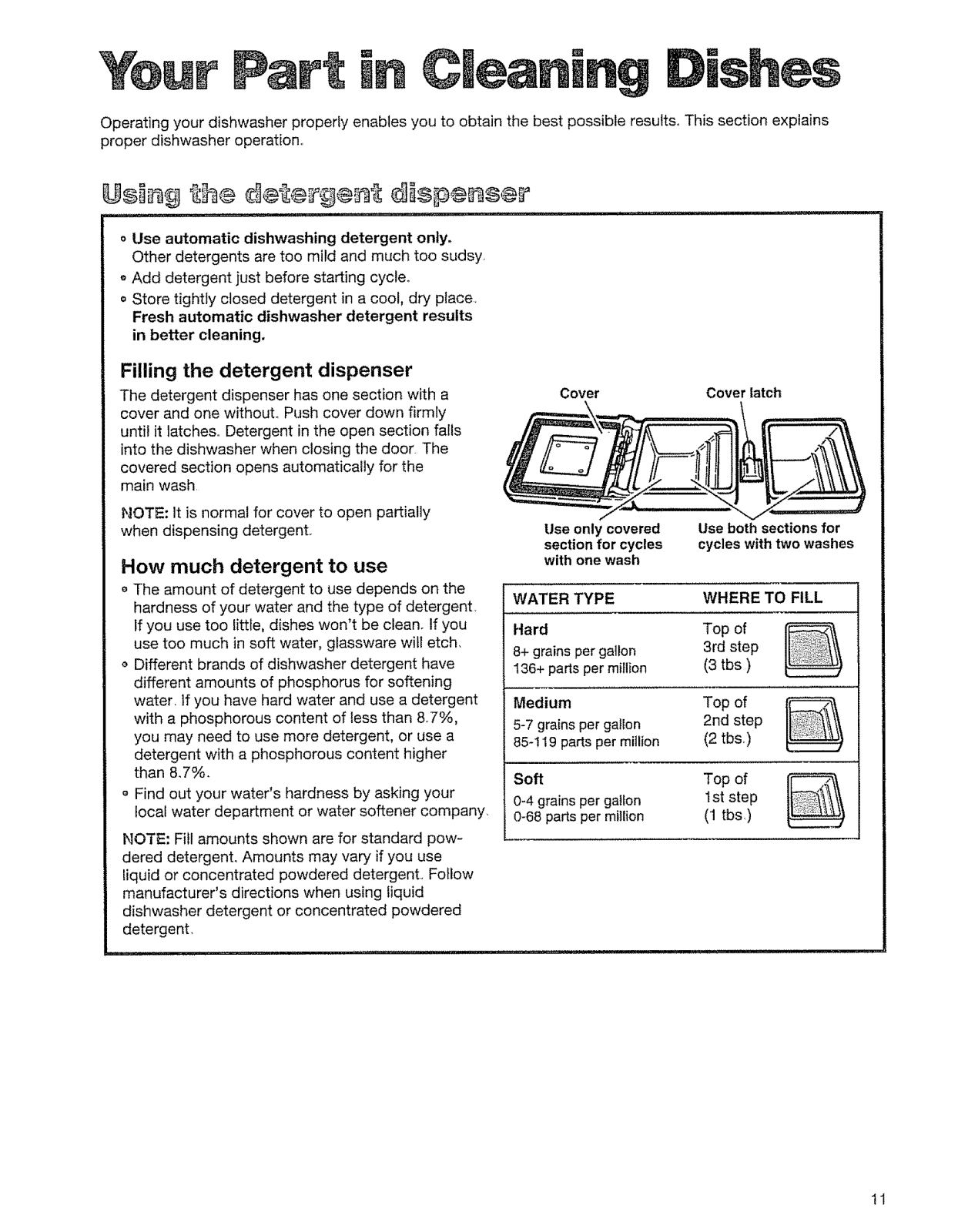

Using the detergent dispenser .................................11

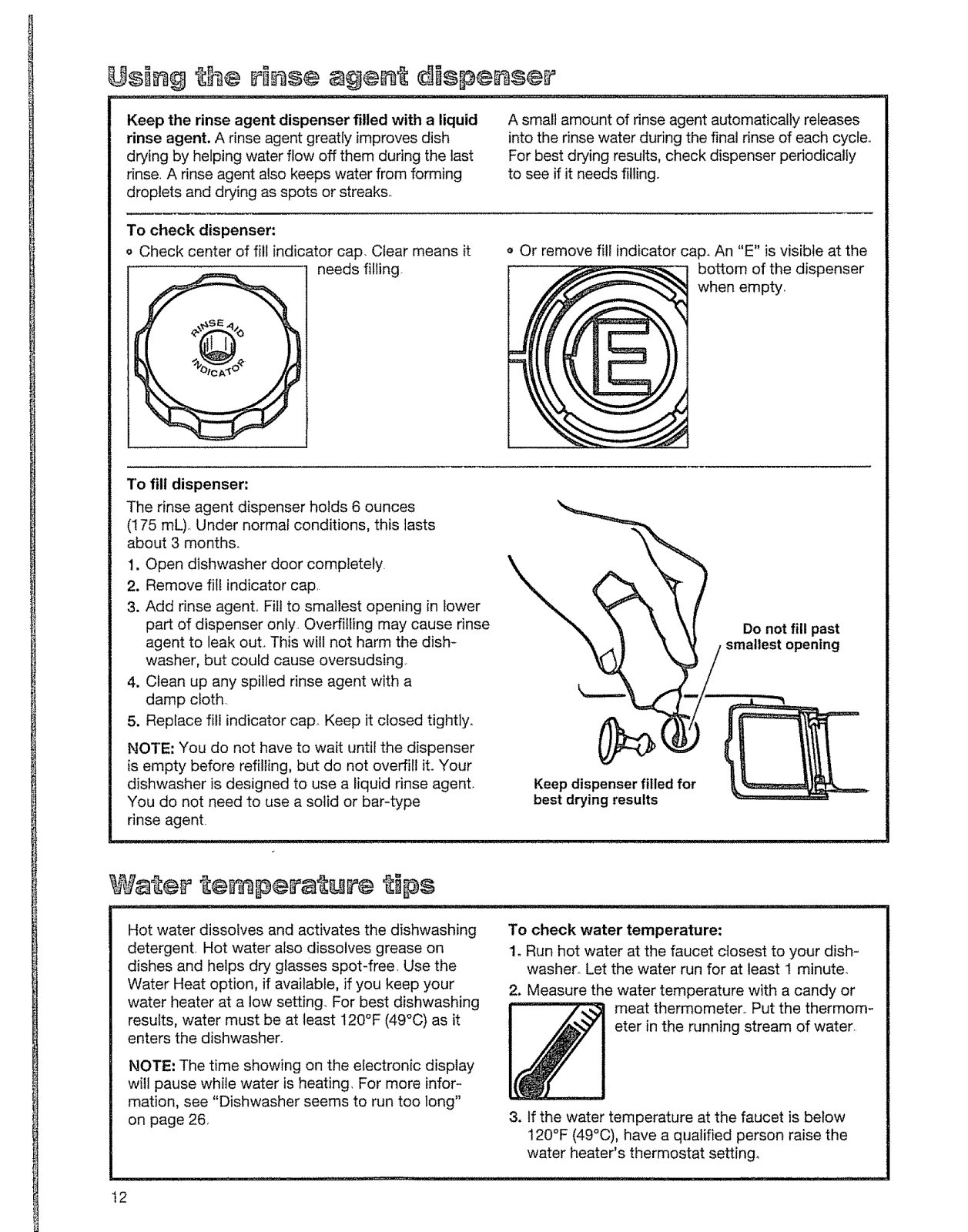

Using the rinse agent dispenser .............................12

Water temperature tips ....................................................12

Thank you for selecting this KENMORE dishwasher.. To ensure that you will enjoy many years of trouble-free operation, we developed this Use and Care Guide° Please take a few minutes to read this book. It contains

information that will help you get the best, safest, and most economical results from your dishwasher Also, please fill in the spaces below You can find this information on the model and serial number label

(see diagram on page 5)_Keep this book and the sales slip together in a safe place for future reference_

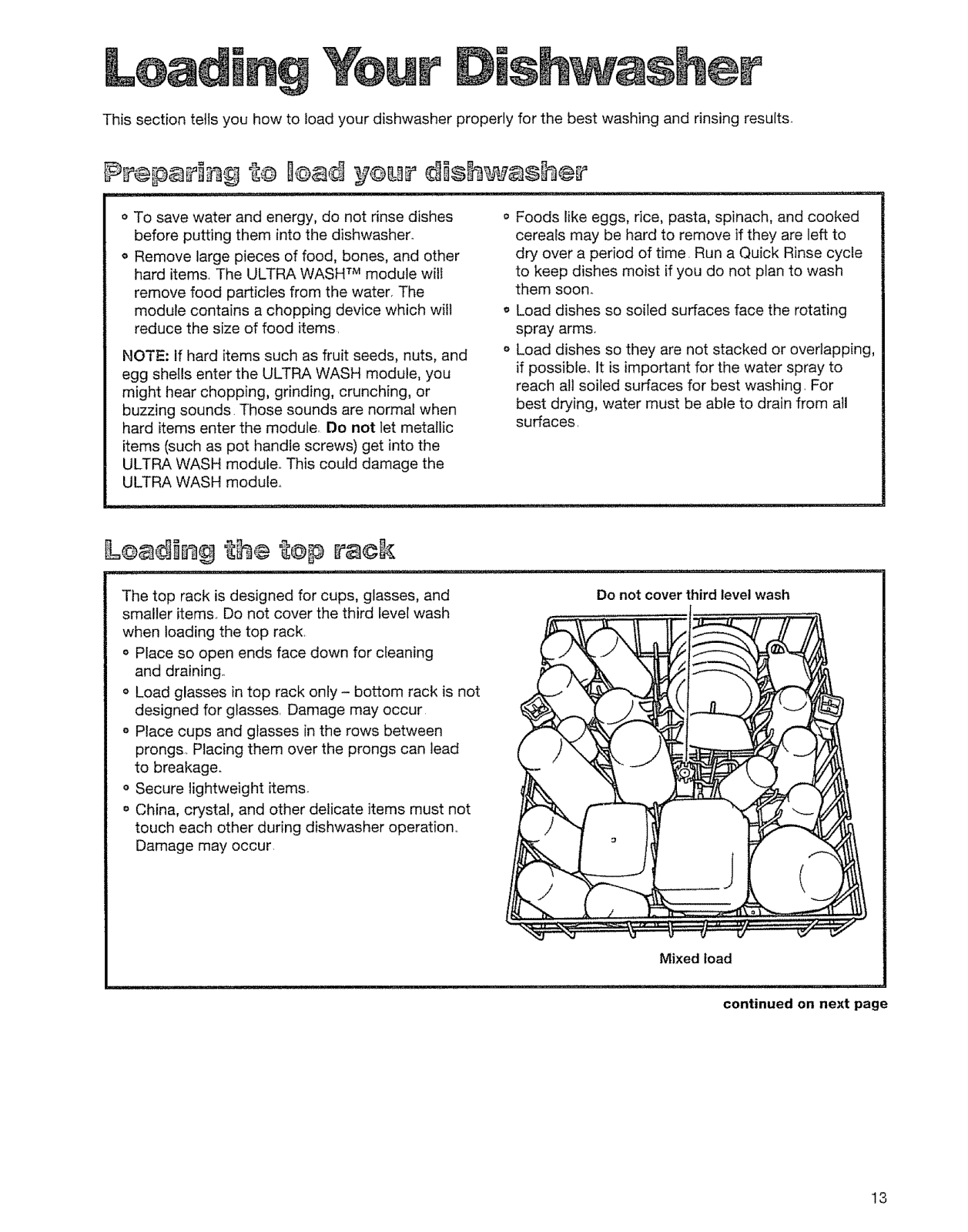

Loading Your Dishwasher

Preparing to load your dishwasher ...............................13

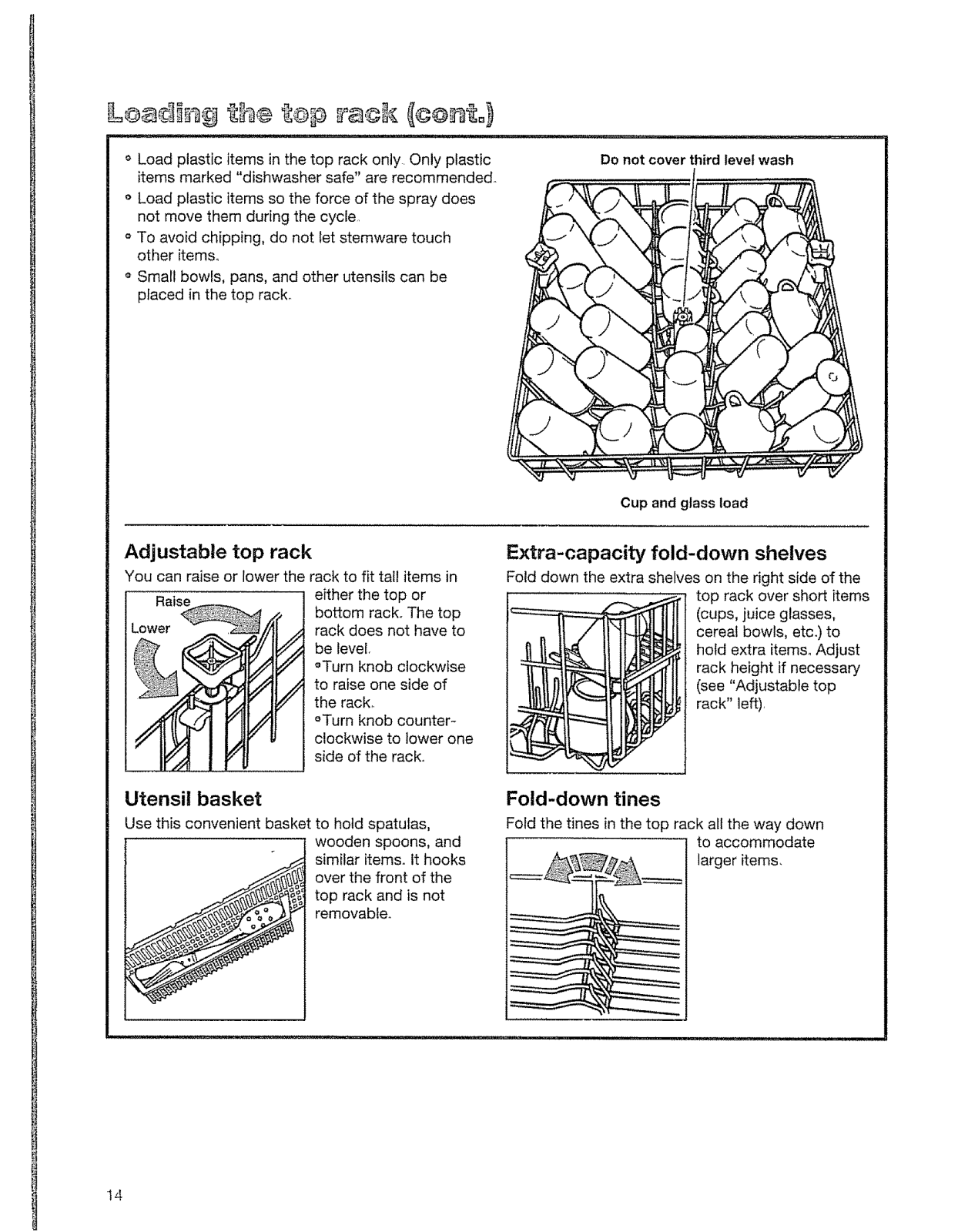

Loading the top rack ...........................................................13

Removing the top rack ............................................ 15

Loading the bottom rack ....................................... 15

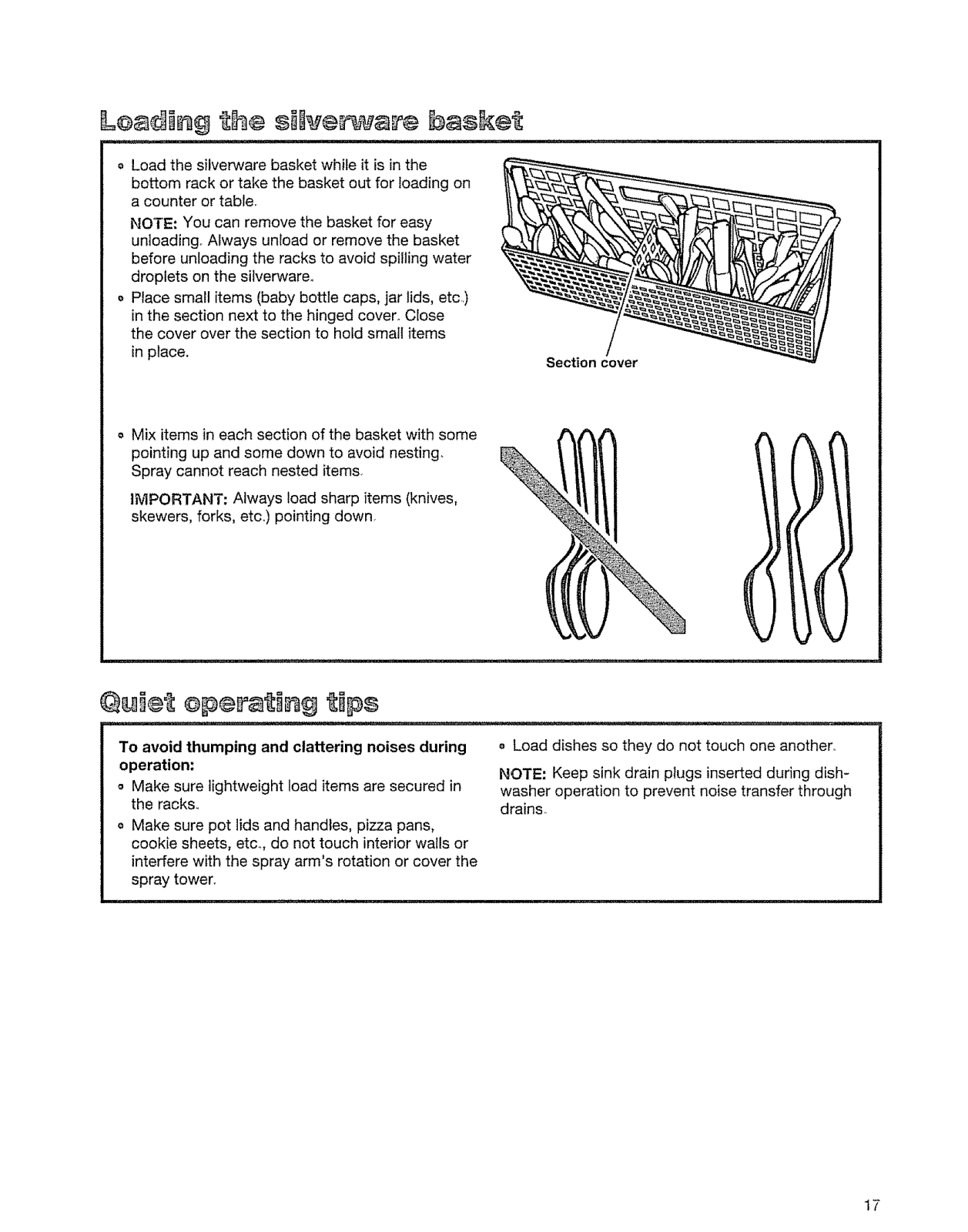

Loading the silverware basket ............................... 17

Quiet operating tips .........................................................17

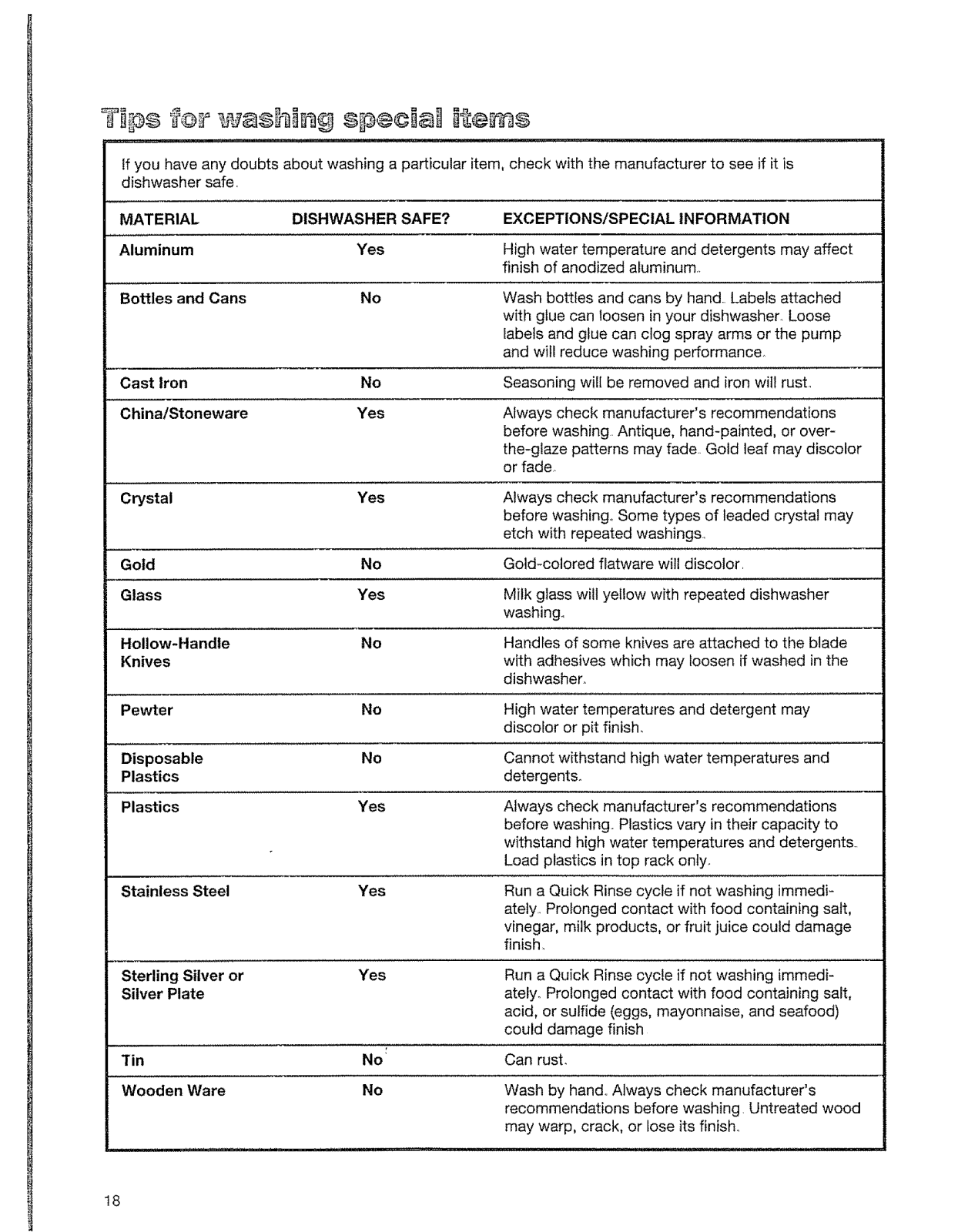

Tips for washing special items ...................................18

Caring for Your Dishwasher

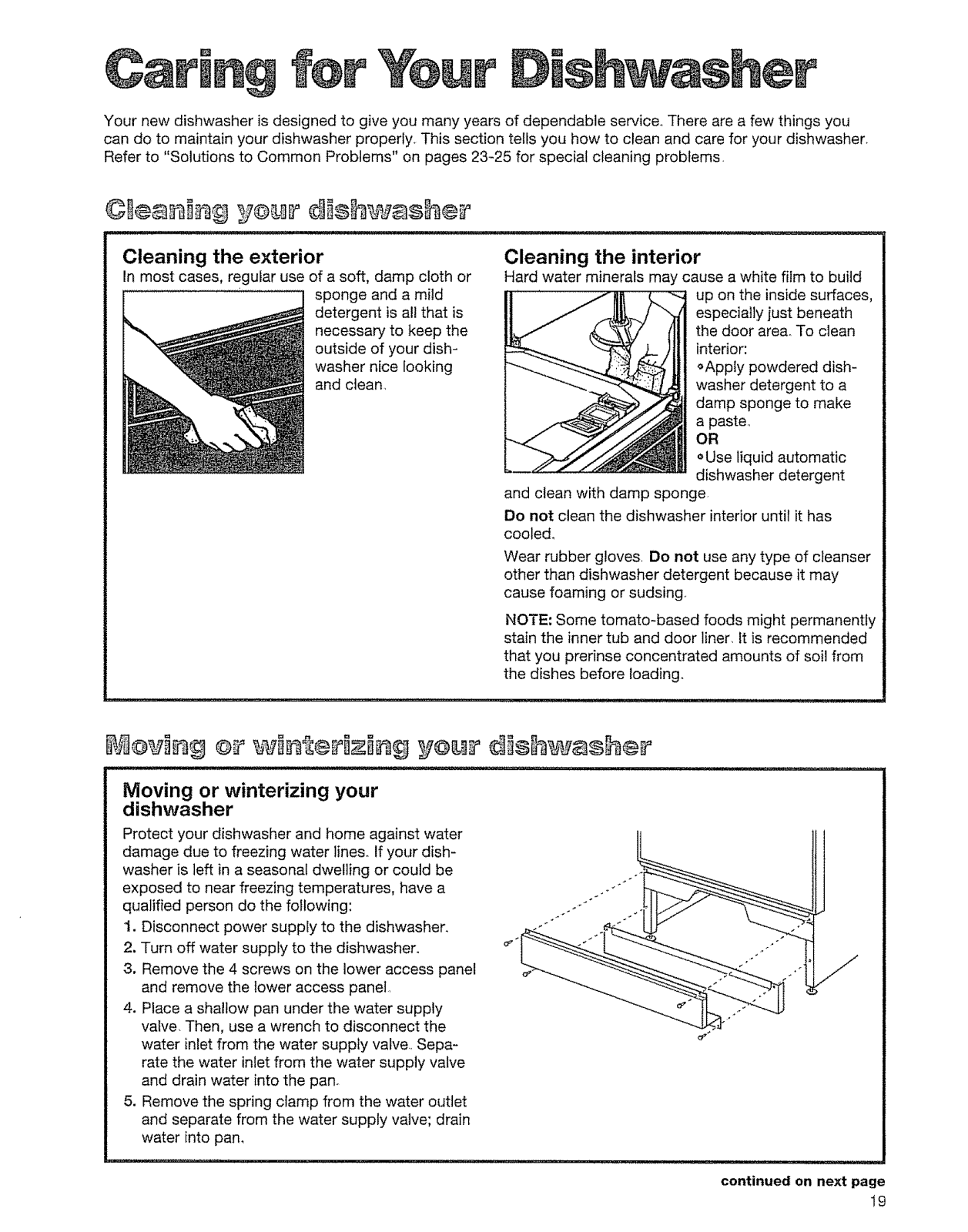

Cleaning your dishwasher .................................................19

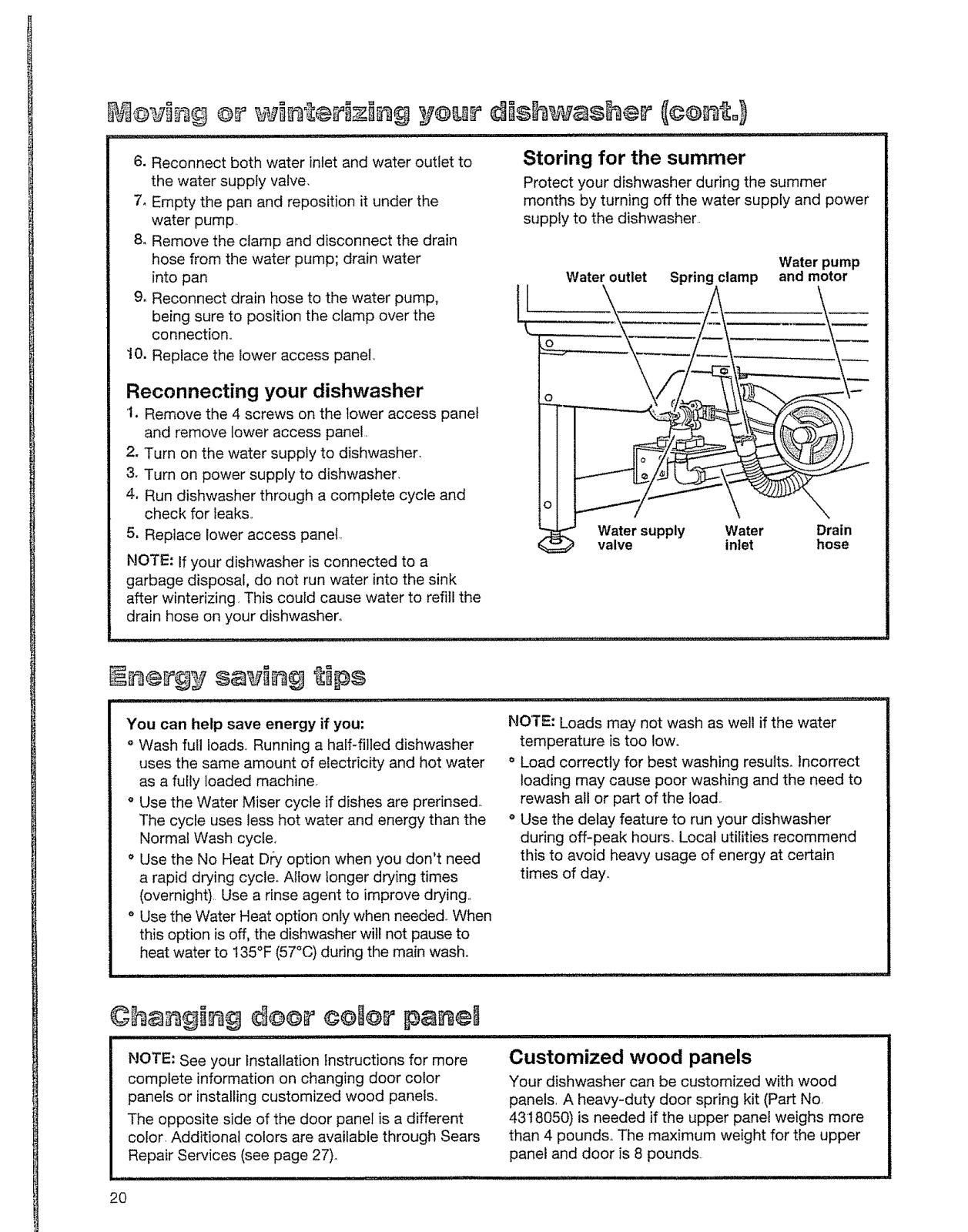

Moving or winterizing your dishwasher .......................19

Energy saving tips ..................................................................20

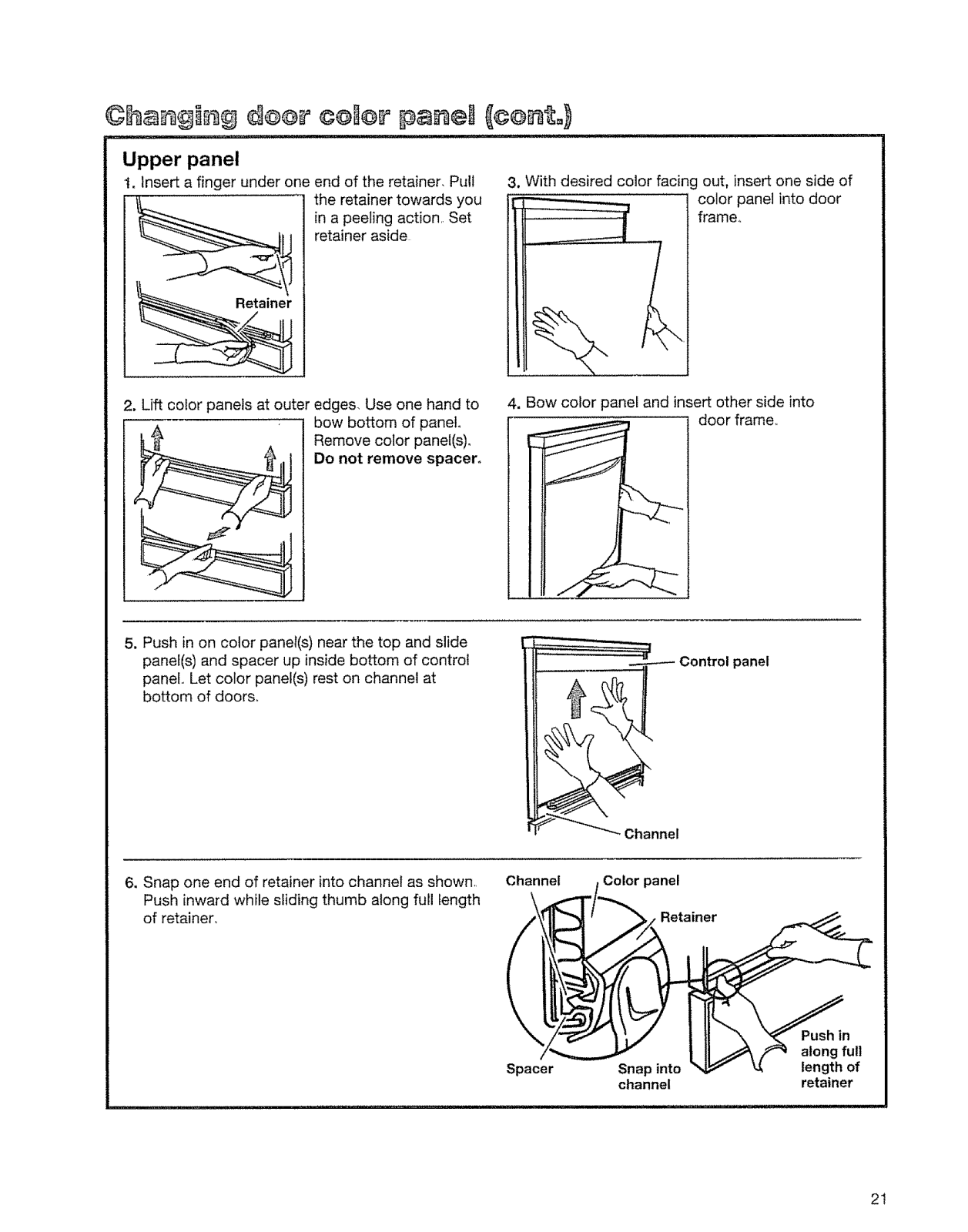

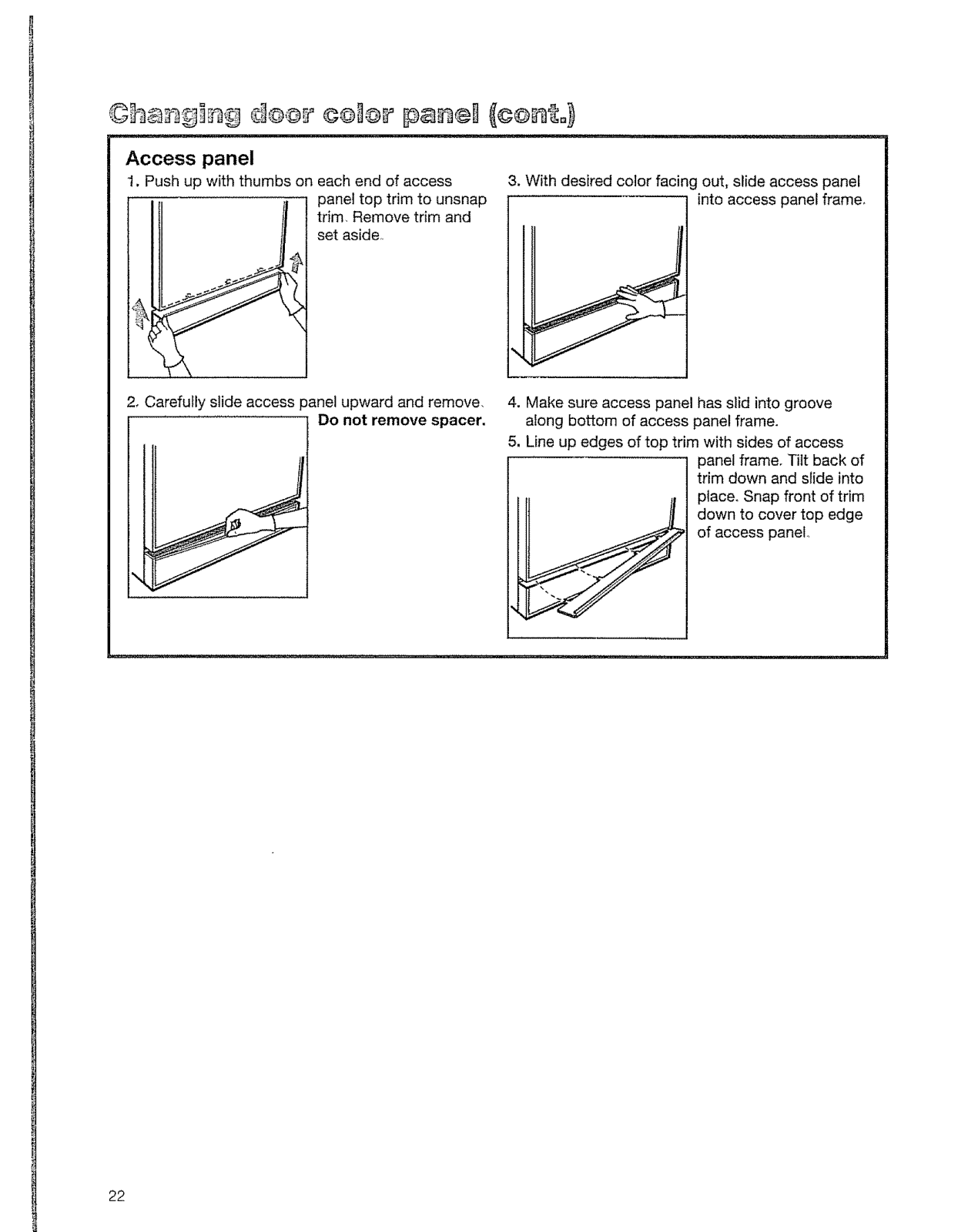

Changing door color panel ..............................................20

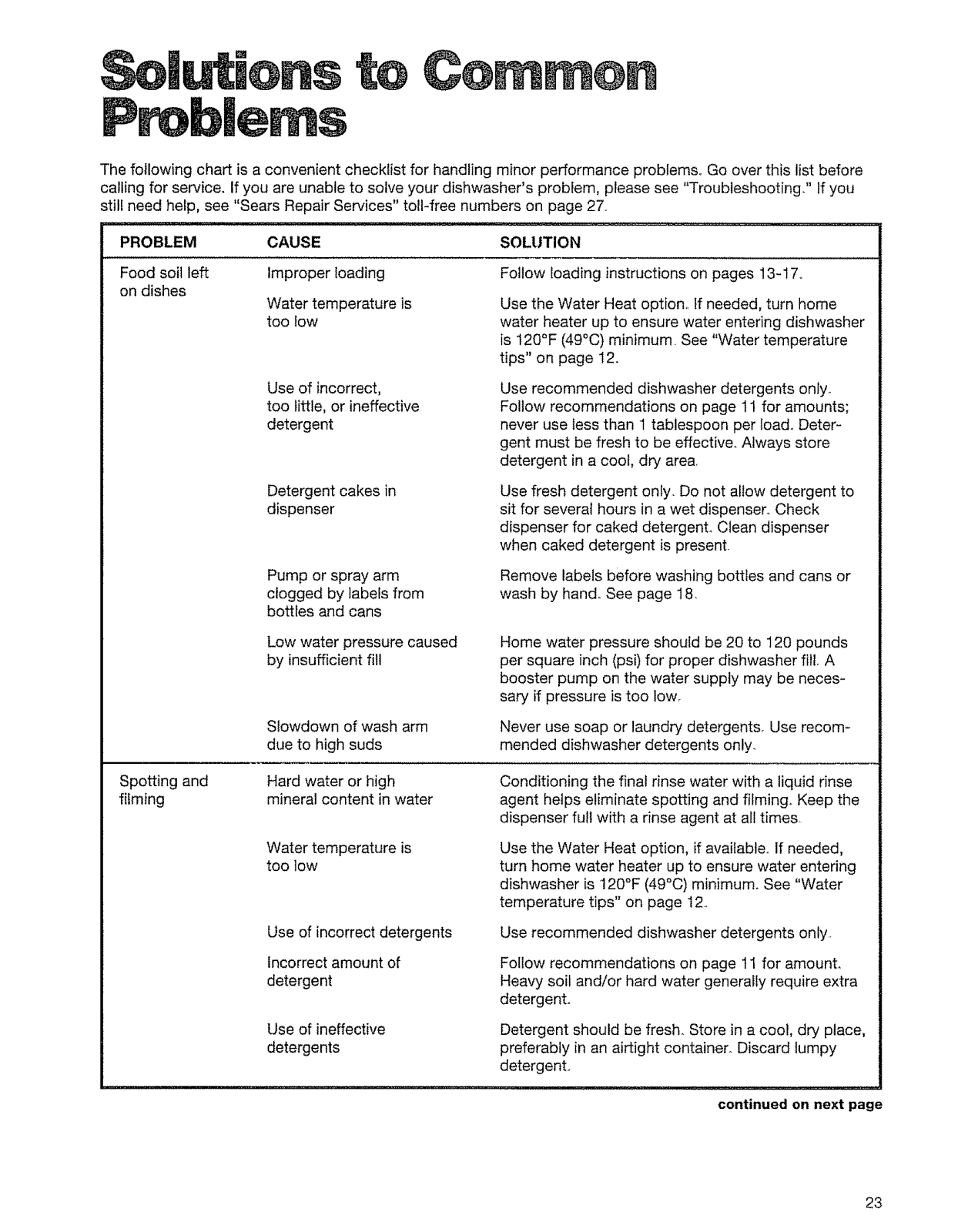

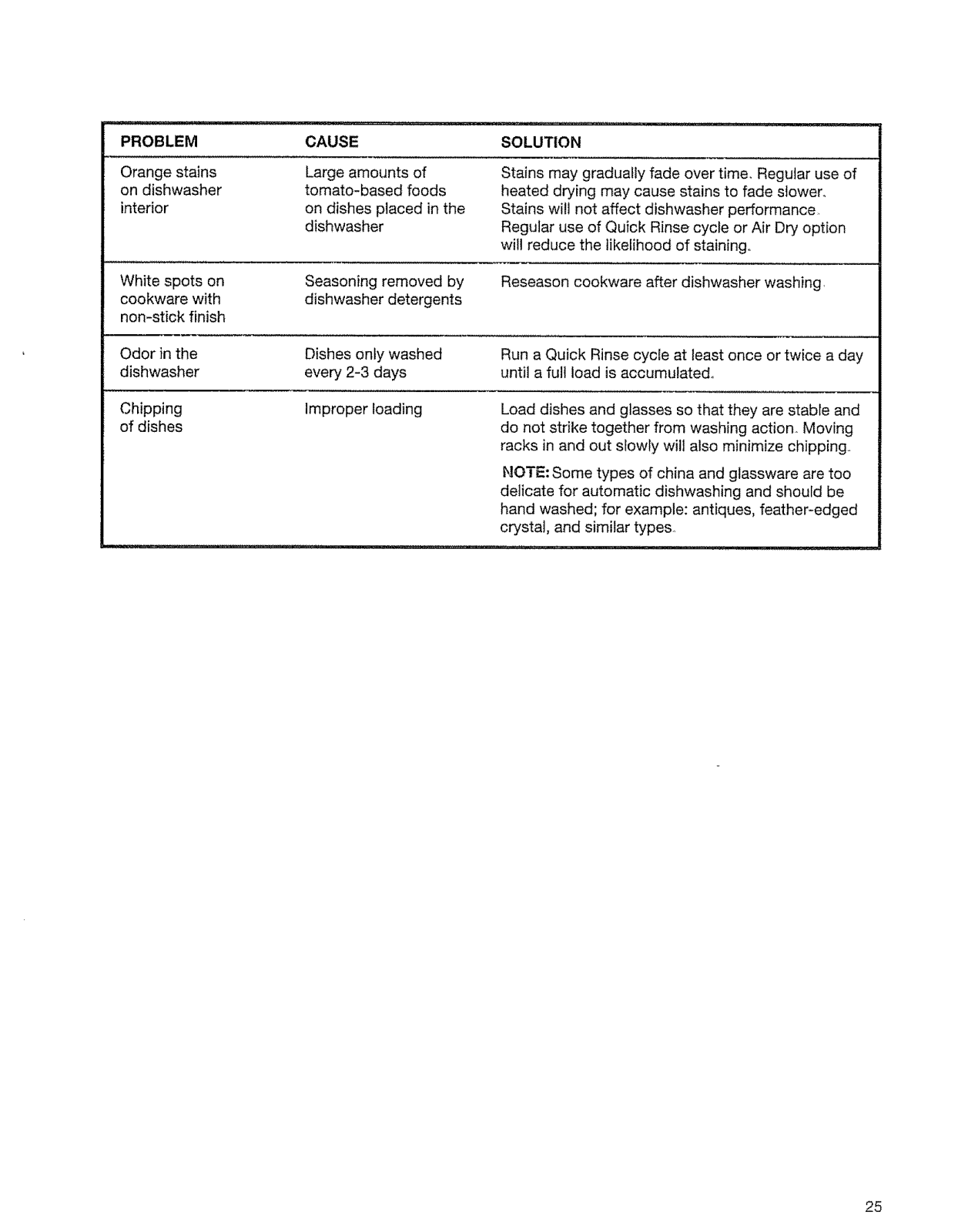

Solutions to Common Problems .....................................23

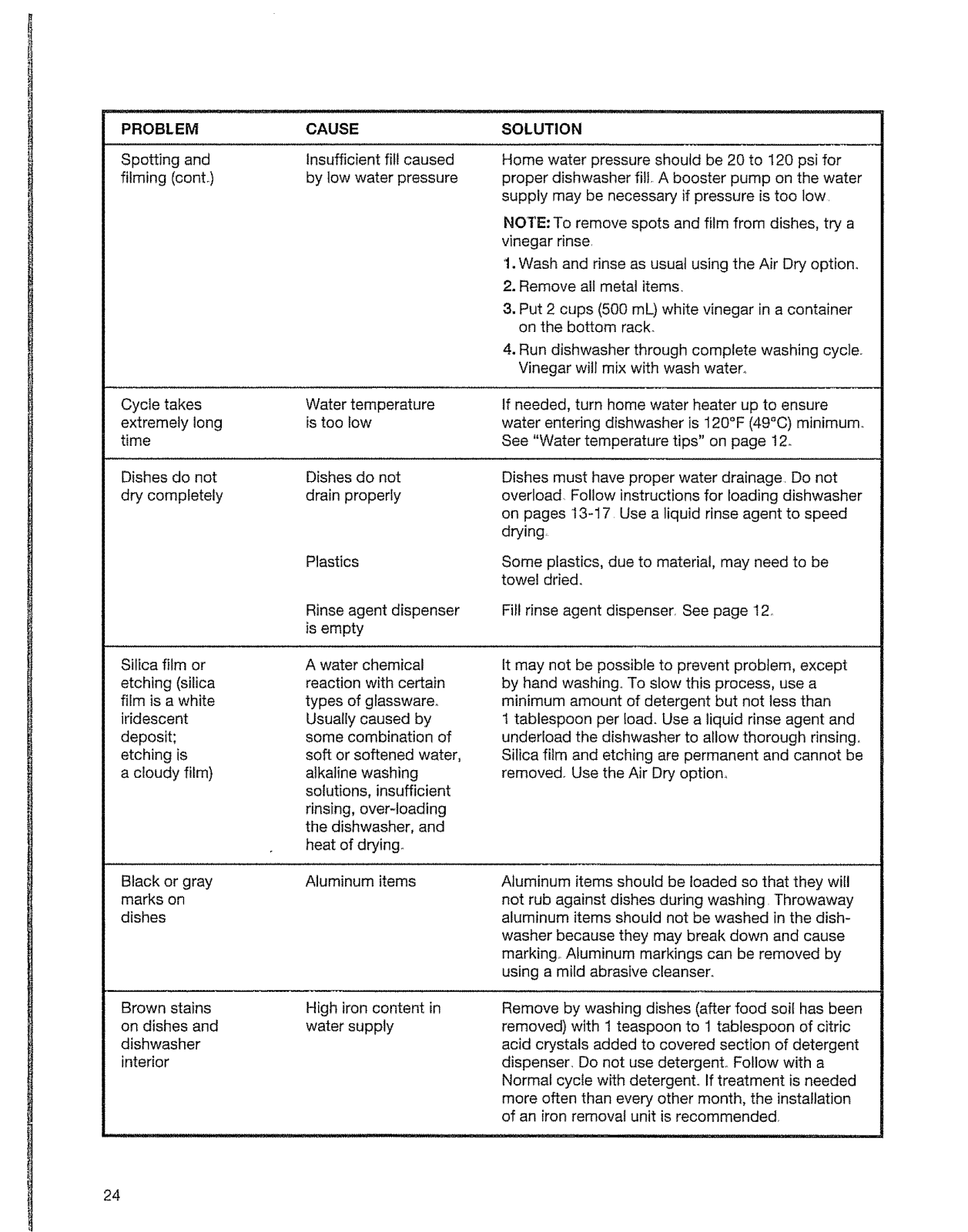

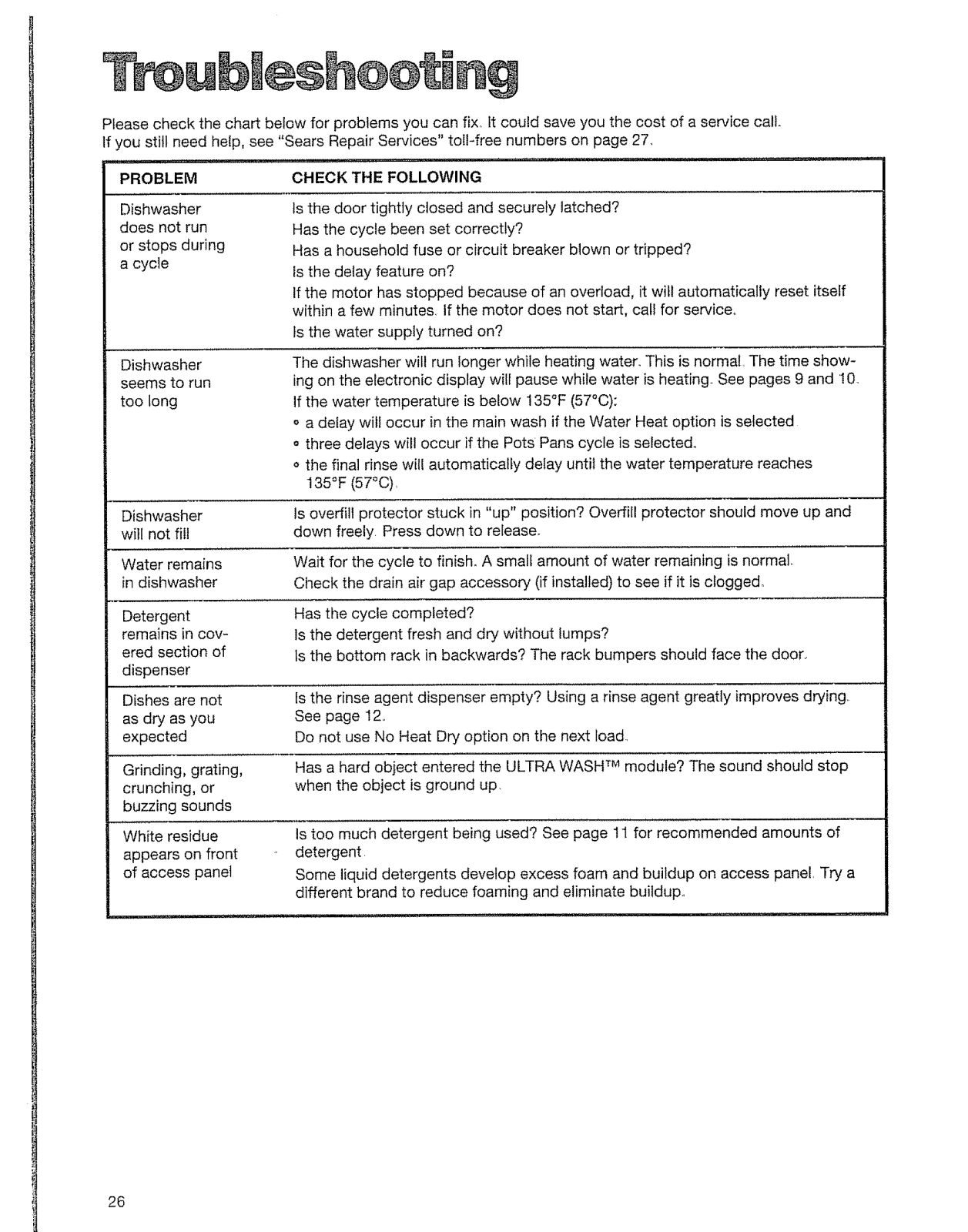

Troubleshooting ..............................................................28

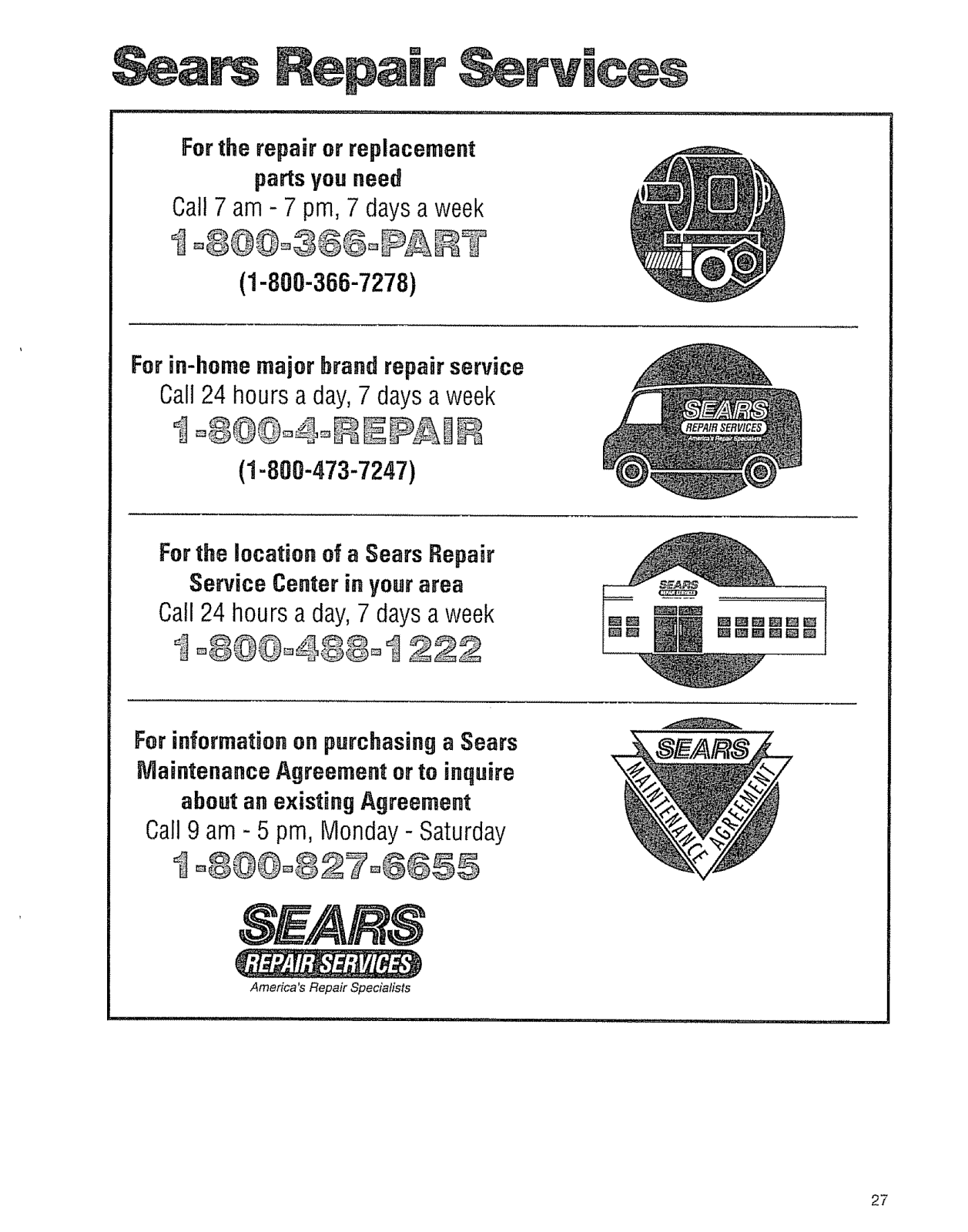

Sears Repair Services ............................................................ 27

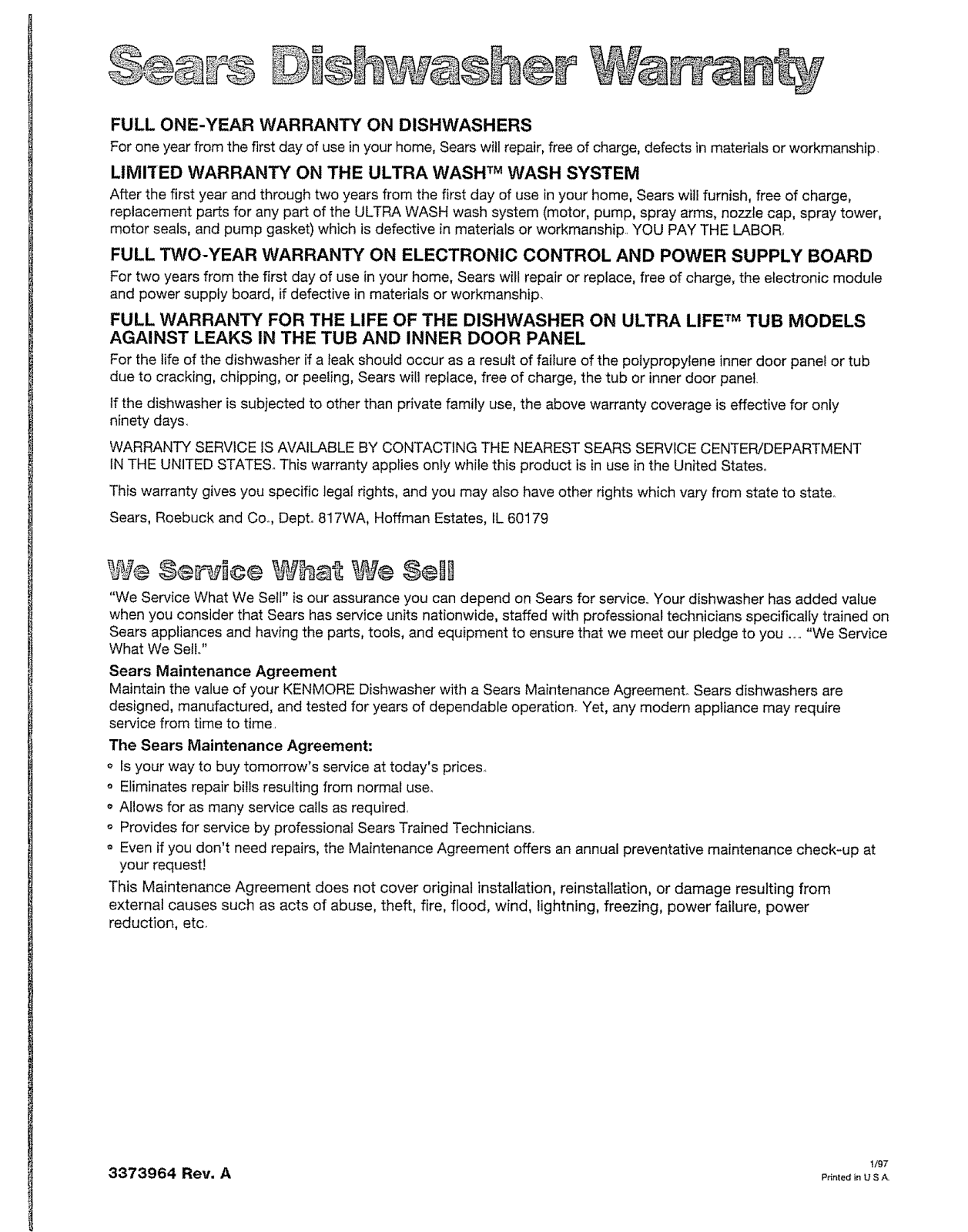

Warranty ...................................................................................... 28

Model Number Serial Number Purchase Date

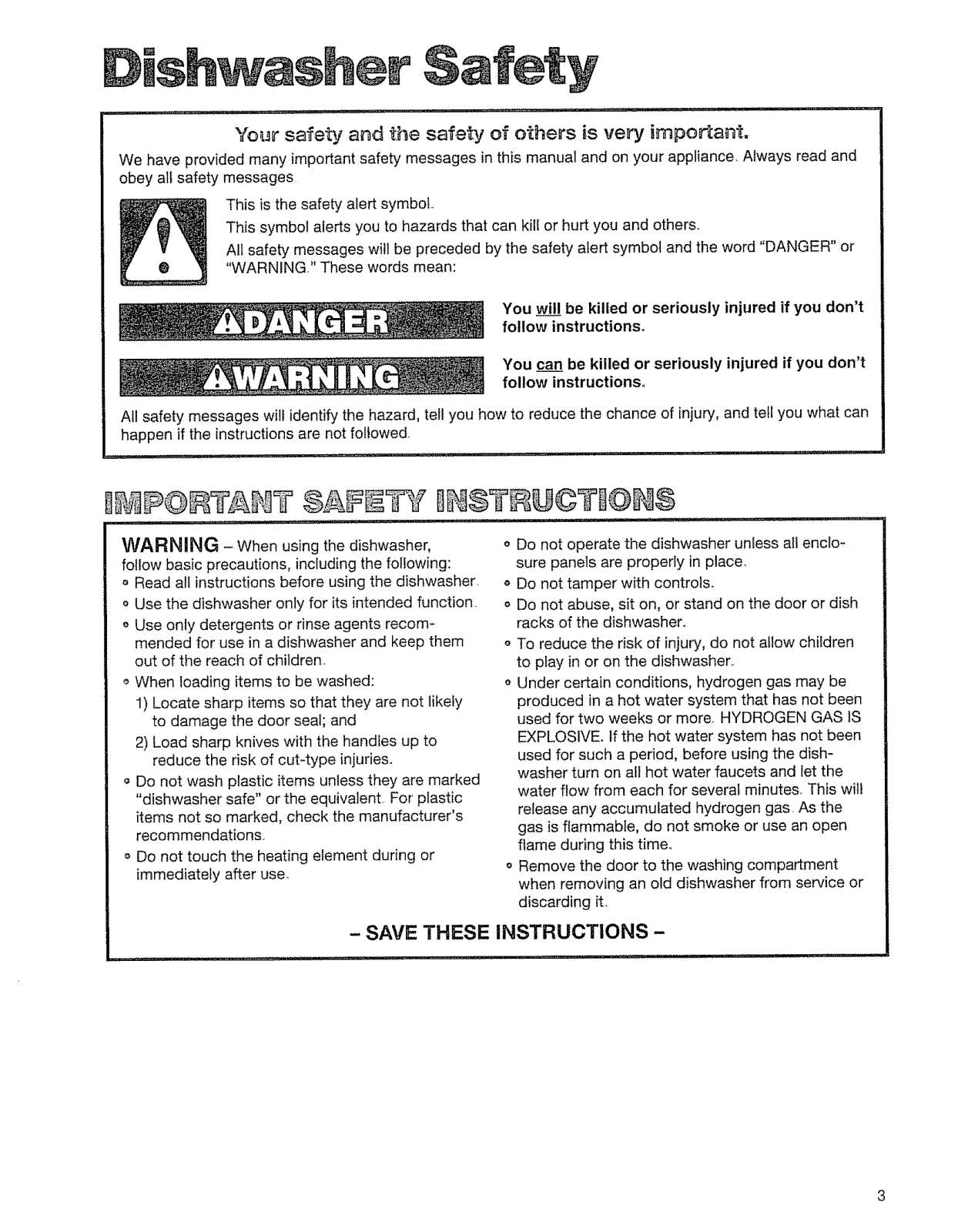

Dishwasher Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages

This is the safety alert symbol.. This symbol alerts you to hazards that can kilt or hurt you and others..

All safety messages will be preceded by the safety alert symbol and the word "DANGER" or "WARNING." These words mean:

You will be killed or seriously injured if you don't

follow instructions.

You can be killed or seriously injured if you don't follow instructions°

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

WARNING - When using the dishwasher, o

follow basic precautions, including the following:

Read all instructions before using the dishwasher o Use the dishwasher only for its intended function o o Use only detergents or rinse agents recom-

mended for use in a dishwasher and keep them o

out of the reach of children.

When loading items to be washed: o

1) Locate sharp items so that they are not/keiy to damage the door seal; and

2) Load sharp knives with the handles up to

reduce the risk of cut-type injuries°

Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For' plastic

items not so marked, check the manufacturer's recommendations.

Do not touch the heating element during or immediately after use o

- SAVE THESE INSTRUCTIONS -

Do not operate the dishwasher unless all enclo- sure panels are properly in place.

Do not tamper with controls. Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.

To reduce the risk of injury, do not allow children to play zn or on the dishwasher.

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system has not been

used for such a period, before using the dish- washer turn on all hot water faucets and let the water flow from each for several minutes This will

release any accumulated hydrogen gas. As the

gas is flammable, do not smoke or use an open flame during this time.

Remove the door to the washing compartment

when removing an old dishwasher from service or

discarding it.

America s

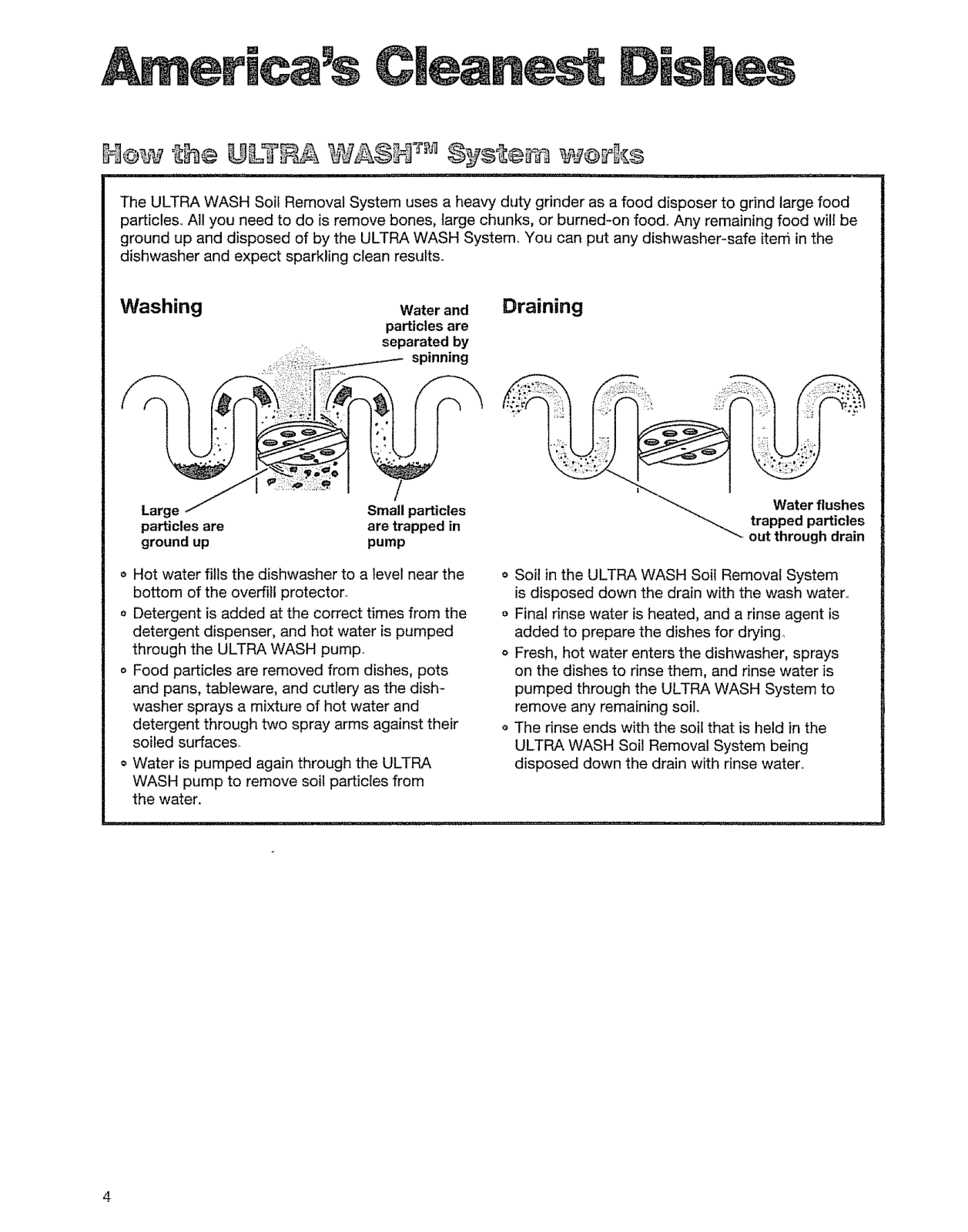

The ULTRA WASH Soil Removal System uses a heavy duty grinder as a food disposer to grind large food particles,. All you need to do is remove bones, large chunks, or burned-on food.. Any remaining food wi!l be

ground up and disposed of by the ULTRA WASH System. You can put any dishwasher-safe iterfi in the dishwasher and expect sparkling clean results.

Washing Waterand Draining

particles are

:::, separated by

spinning

Large Small particles particles are are trapped in

ground up pump

o Hot water fills the dishwasher to a level near the

bottom of the overfill protector.

o Detergent is added at the correct times from the

detergent dispenser, and hot water is pumped through the ULTRA WASH pump.

o Food particles are removed from dishes, pots

and pans, tableware, and cutlery as the dish- washer sprays a mixture of hot water and

detergent through two spray arms against their soiled surfaces.

o Water is pumped again through the ULTRA

WASH pump to remove soil particles from the water.

Water flushes

trapped particles

out through drain

o Soil in the ULTRA WASH Soil Removal System

is disposed down the drain with the wash water.. Final rinse water is heated, and a rinse agent is

added to prepare the dishes for drying,

o Fresh, hot water enters the dishwasher, sprays

on the dishes to rinse them, and rinse water is pumped through the ULTRA WASH System to remove any remaining soil.

The rinse ends with the soil that is held in the

ULTRA WASH Soil Removal System being disposed down the drain with rinse water.

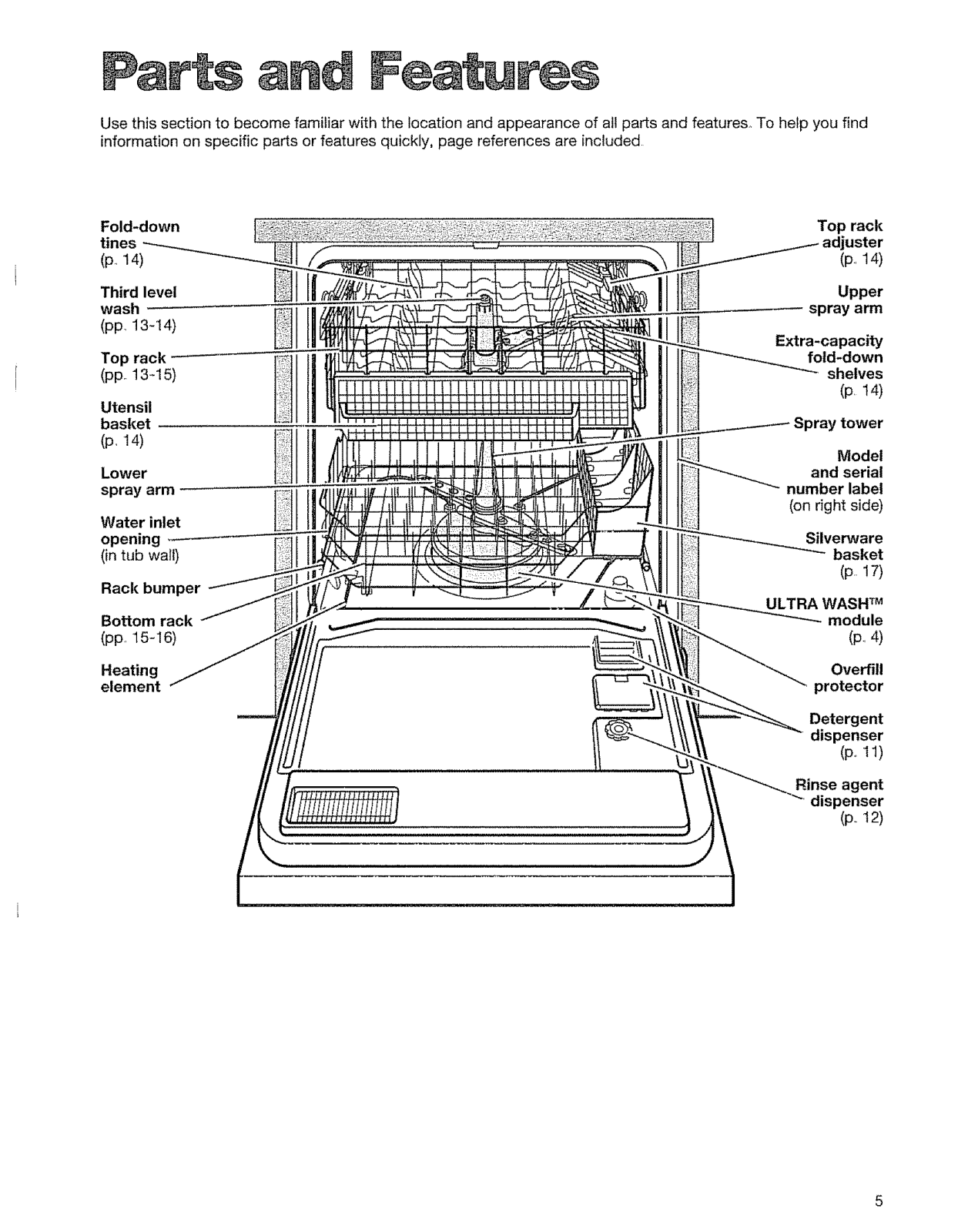

Parts and Feat

Use this section to become familiar with the location and appearance of all parts and features. To help you find information on specific parts or features quickly, page references are included

Fold-down Top rack

tines

(p, 14) (p, 14)

Third level Upper wash F_ spray arm

(pp, 13-14)

Top rack !;7 ]1 fold-down

Extra-capacity

(pp_ 13_15) I shelves

Utensil basket ' tower

Lower and serial spray arm number label

Water inlet

opening

(in tub walt)

Rack bumper

Bottom rack module (pp, 15-16) (p.,4)

Heating Overfill element protector

(on right side)

ULTRA WASH TM

(p t4)

Model

Detergent

dispenser

(p. 11)

Rinse agent

dispenser

(p..t 2)

Quick Reference

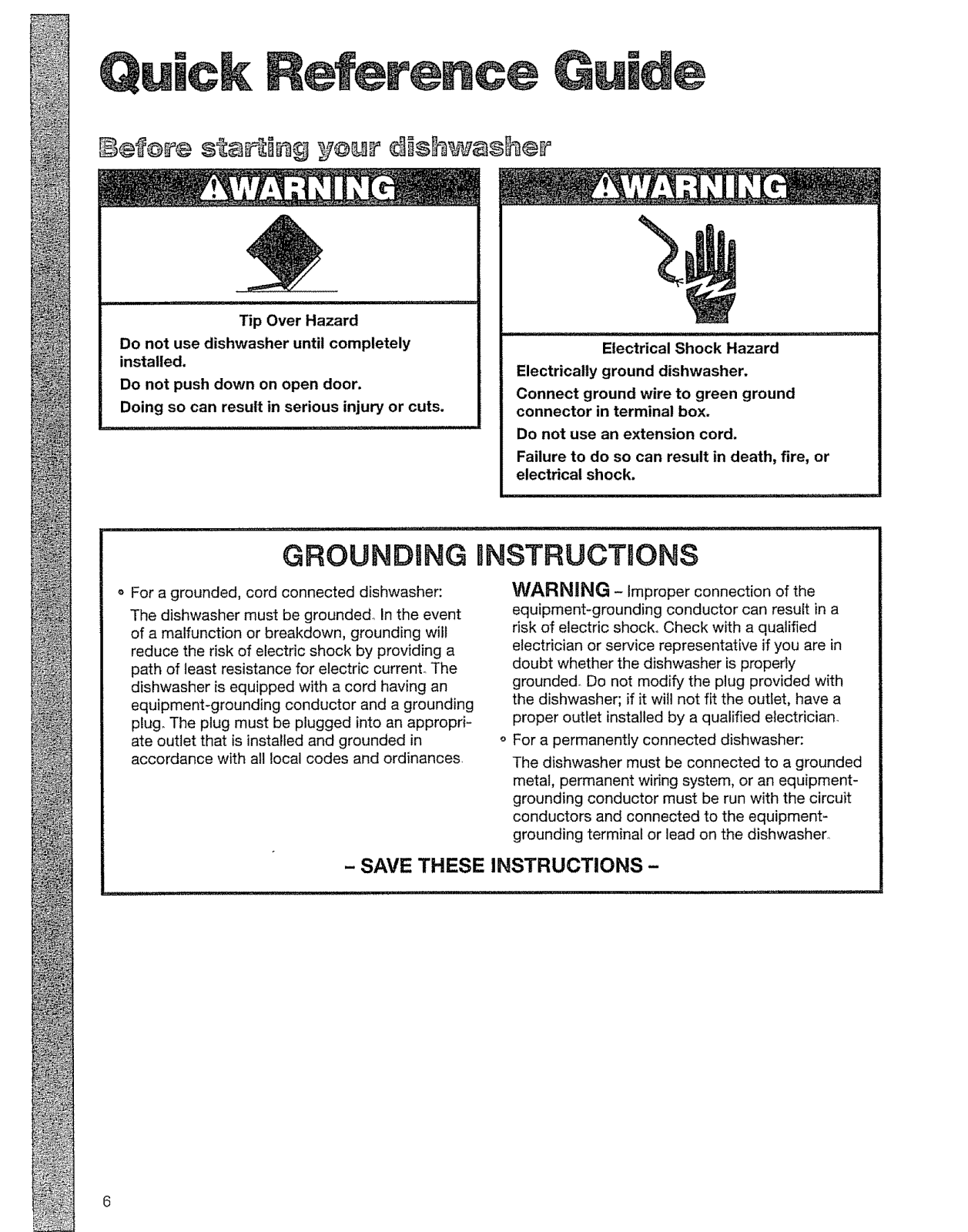

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door. Doing so can result in serious injury or cuts.

Electrical Shock Hazard

Electrically ground dishwasher. Connect ground wire to green ground

connector in terminal box. Do not use an extension cord.

Failure to do so can result in death, fire, or electrical shock.

For a grounded, cord connected dishwasher:

The dishwasher must be grounded, In the event

of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current° The

dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding

plug. The plug must be plugged into an appropri- ate outlet that is installed and grounded in

accordance with all local codes and ordinances.

- SAVE THESE INSTRUCTIONS -

WARNING - Improper connection of the

equipment-grounding conductor can result in a risk of electric shock, Check with a qualified electrician or service representative if you are in

doubt whether the dishwasher is properly grounded_ Do not modify the plug provided with

the dishwasher; if it will not fit the outlet, have a

proper outlet installed by a qualified electrician_

o For a permanently connected dishwasher:

The dishwasher must be connected to a grounded

metal, permanent wiring system, or an equipment- grounding conductor must be run with the circuit

conductors and connected to the equipment- grounding terminal or lead on the dishwasher

Cycle time or Signal lights delay time display

Cycle pads Option pads

NOTE: PF will show on the display the first time your dishwasher is connected to electricity or when electricity returns after prolonged failure. To clear the display, press the Cancel/Drain pad,

t, The ULTRA WASHTMSoi! Removal System is

designed to remove food particles from the wash and rinse water, You only need to remove large

chunks and bones

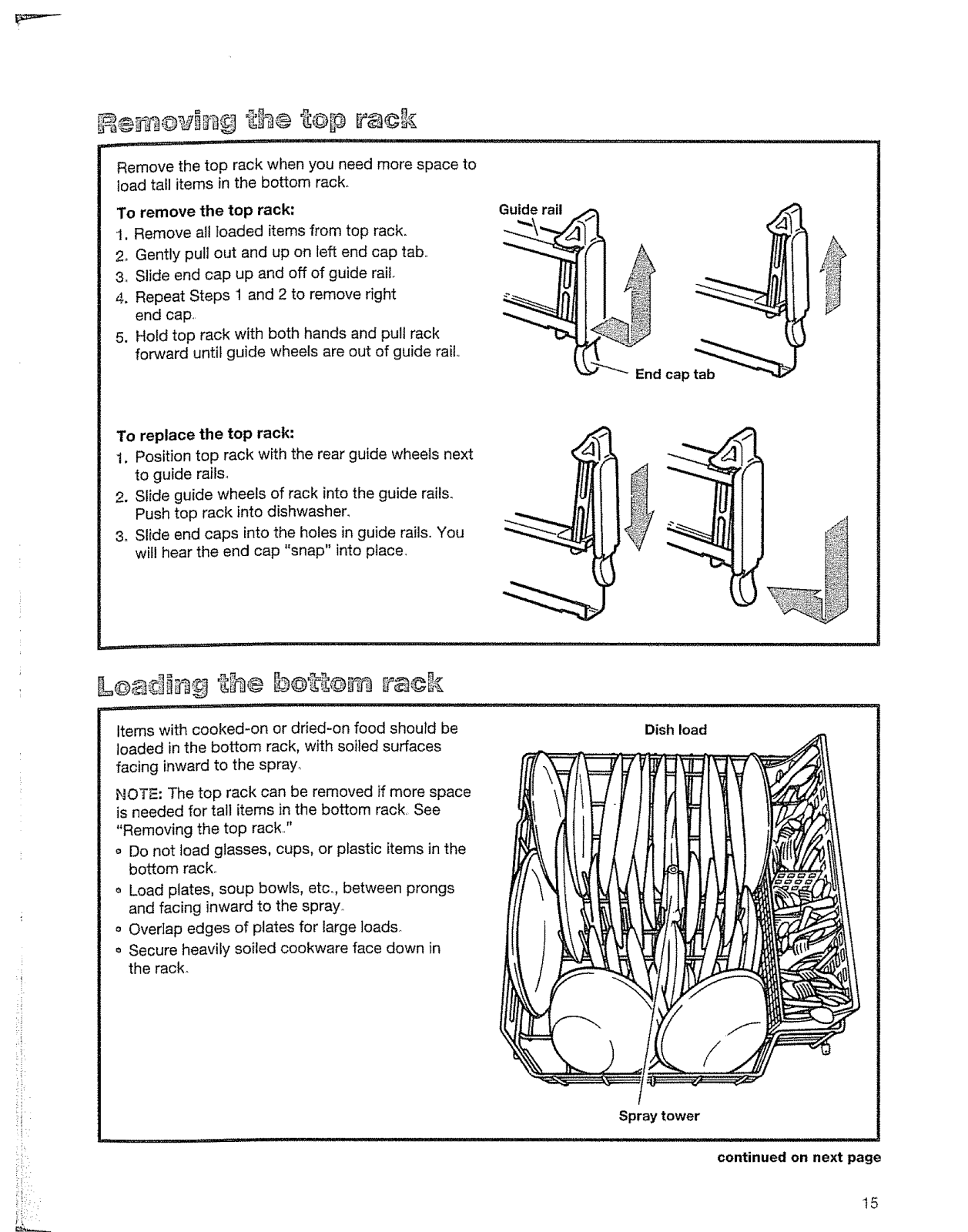

2, Properly load the top rack, bottom rack, and

3_ Spin both spray arms with both racks pushed

back into place to make sure nothing prevents arms from turning freely,

4, Add detergent° See page 11.

5. Check the rinse agent dispenser. See page 12, 6, Push door firmly when closing and it wilt

automatically latch

7. Run hot water at the sink nearest to the dish- washer until water is hot Turn off water.

silverware basket,, See pages 13-17

(See pages 8-9 for additional cycle and option descriptions,)

Use Normal Wash to wash dishes now:

Press You will see

Use Quick Rinse now if you plan to wash dishes later: Press You will see

(cycle time)

Then use Water Miser when you wash prerinsed dishes: Press You will see

(cycle time)

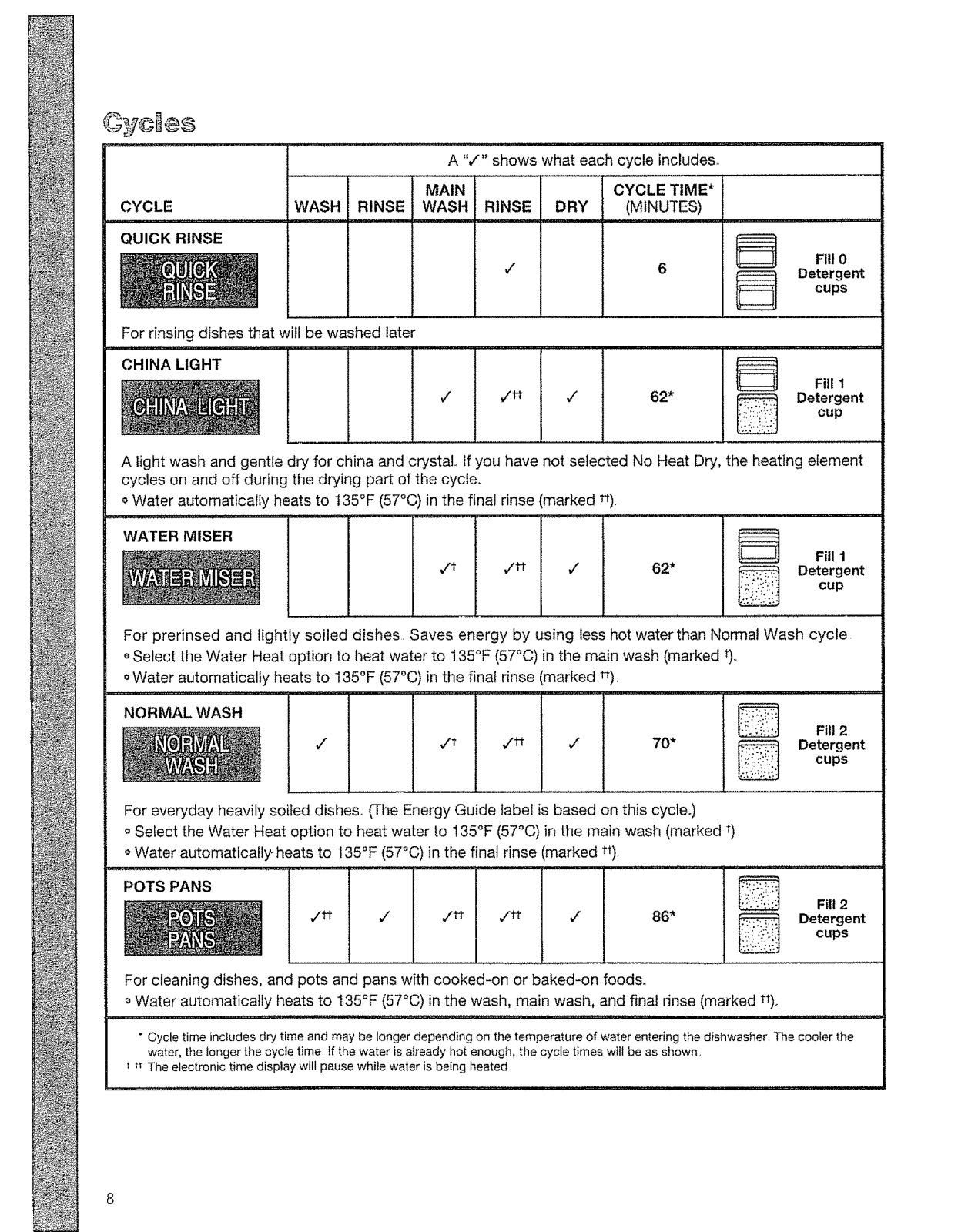

A "J" shows what each cycle includes°

MAIN

CYCLE

= ,

QUICK RINSE

WASH RINSE

DRY (MINUTES)

Nl rl

For rinsing dishes that will be washed later CHINA LIGHT

A light wash and gentle dry for china and crystal. Ifyou have not selected No Heat Dry, the heating element cycles on and off during the drying part of the cycle.

o Water automatically heats to 135°F (57°C) in the final rinse

WATER MISER

For prerinsed and lightly soiled dishes Saves energy by using less hot water than Normal Wash cycle oSelect the Water Heat option to heat water to 135°F (57°C) in the main wash (marked t)..

oWater automatically heats to 135°F (57°C) in the final rinse (marked t_).

i i .... u uuHul.u..uuuu uu,u

(marked _).

CYCLE TIME*

,I 62*

,/ 62*

Fill 0

_ Detergent

cups

Fill 1

cup

Fill 1

cup

NORMAL WASH

v" #t Jtt j" 70*

Ni!!N

For everyday heavily soiled dishes.. (The Energy Guide label is based on this cycle.) oSelect the Water Heat option to heat water to 135°F (57°C) in the main wash (marked t)

Water automatically-heats to 135°F (57°C) in the final rinse marked it).

POTS PANS

¢'t_ 4" v'_ ,/it _ 86*

For cleaning dishes, and pots and pans with cooked-on or baked-on foods° oWater automatically heats to 135°F (57°C) in the wash, main wash, and final rinse (marked tt).

. i uu..uuu...u,u

• Cycle time includes dry time and may be longer depending on the temperature of water entering the dishwasher The cooler the water, the longer the cycle time, tf the water is already hot enough, the cycle times will be as shown

ttt The electronic time display will pause while water is being heated

_ Detergent

Detergent

Fill 2

cups

Fill 2

cups

Cancel/Drain

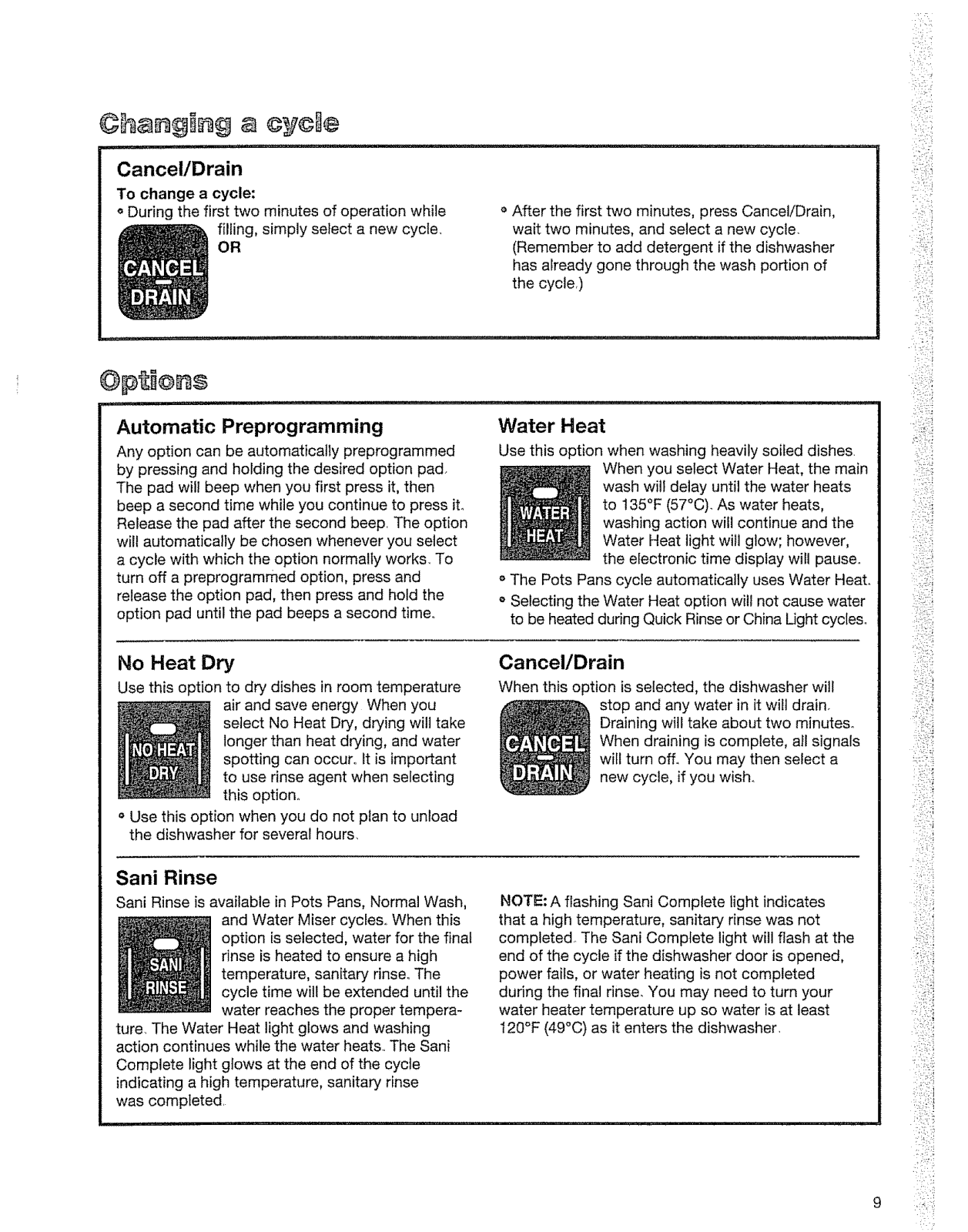

To change a cycle:

o During the first two minutes of operation while

filling, simply select a new cycle.

o After the first two minutes, press Cancel/Drain,

wait two minutes, and select a new cycle. (Remember to add detergent if the dishwasher

has already gone through the wash portion of

the cycle,)

=' t

; i

i...,.i . n.iH, i .

Automatic Preprogramming

Any option can be automatically preprogrammed by pressing and holding the desired option pad.

The pad will beep when you first press it, then

beep a second time while you continue to press ito Release the pad after the second beep. The option will automatically be chosen whenever you select

a cycle with which the option normally works. To

turn off a preprogrammed option, press and

release the option pad, then press and hold the option pad until the pad beeps a second time..

No Heat Dry

Use this option to dry dishes in room temperature

air and save energy When you select No Heat Dry, drying will take

longer than heat drying, and water spotting can occur.. It is important

to use rinse agent when selecting this option°

=Use this option when you do not plan to unload

the dishwasher for several hours.

Water Heat

Use this option when washing heavily soiled dishes.

When you select Water Heat, the main wash will delay until the water heats

to 135°F (57°C). As water heats, washing action will continue and the

Water Heat light will glow; however, the electronic time display will pause.

o The Pots Pans cycle automatically uses Water Heat. o Selecting the Water Heat option will not cause water

to be heated during Quick Rinse or China Ught cycle&

Cancel/Drain

When this option is selected, the dishwasher will

stop and any water in it wilt drain.

Draining will take about two minutes° When draining is complete, all signals will turn off. You may then select a

new cycle, if you wish..

:2:)::

Sani Rinse

Sani Rinse is available in Pots Pans, Normal Wash,

and Water Miser cycles.. When this option is selected, water for the final rinse is heated to ensure a high

temperature, sanitary rinse. The cycle time will be extended until the

water reaches the proper tempera-

ture. The Water Heat light glows and washing action continues while the water heats.. The Sani

Complete light glows at the end of the cycle

indicating a high temperature, sanitary rinse

was completed.

_i_I-_:_L

NOTE: A flashing Sani Complete light indicates

that a high temperature, sanitary rinse was not

completed, The Sani Complete light will flash at the end of the cycle if the dishwasher door is opened,

power fails, or water heating is not completed during the final rinse, You may need to turn your

water heater temperature up so water is at least 120°F (49°C) as it enters the dishwasher,

:;t;

i !i

%¸¸¸!

$ig sal " °

, ,un,,

Water Heating

The Water Heating fight glows to indicate the dish-

washer is heating water to the proper dishwashing temperature if your

household water is not hot enough NOTE: The electronic time display will pause whife this occurs°

o All cycles (except Quick Rinse)

automatically heat water during the final rinse. Water heating is automatic in the wash portions

of the Pots Pane cycle, Water heating is an option inthe main wash of the

Norma! Wash and Water Miser cycles,

#etaj £atasi l®ast

................... lU,

Use Delay Wash when you want a cycle to start

later, Delay Wash can be set to start

the dishwasher during times when off-peak utility rates are in effect or

when you are away from home

'1. Close the door firmly until you hear it latch..

2. Press the Delay Wash pad and one hour of delay will show on the display. Each time

you press the Delay Wash pad, the delay time will increase in one-hour

settings,, The longest delay setting

is9 hours.,

Hours of delay

Sani Complete

The Sani Complete light glows at the end of the

cycle indicating a high temperature, sanitary rinse was completed°

NOTE: A flashing Sani Complete light

indicates that a high temperature, sani-

tary rinse was not completed, The Sani

Complete light will flash at the end of

the cycle if the dishwasher door is opened, power fails, or water heating is not completed during the

final rinse. You may need to turn your water heater temperature up so water is at least 120°F (49°C) as

it enters the dishwasher.

4_ The display will show the number of hours remain-

ing until washing begins. The display will show hours only: If the display shows 2, there is be-

tween 1 hour and 1 hour 59 minutes remaining.,

& When the hours of delay you have set have

elapsed, the dishwasher will start the cycle se- lected in Step 3oThe wash time wi!l count down

the minutes remaining in the cycle to O.

If you wish to put more dishes in the dishwasher

while it is in the delay mode, be sure to latch the door after adding them The timer wil! not advance unless

the door is latched. To cancel Delay Wash, press the

CanceVDrain pad.

3. Press pads for desired cycle and options.

i Ul,, ii,,,,ll

In addition to showing remaining delay or cycle time, the digital display will show a code indicating the dishwasher's condition:

° PF will appear in the display the first time the

dishwasher isconnected to the elec-

trical supply after inetallation_ This

display also indicates there was a power failure. Press Cancel/Drain to

drain the dishwasher. Ifthere is no water in the dishwasher, press Cancel/Drain a second time,

Reselect a cycle to restart the dishwasher.

° CC will appear on the display when the dishes are

washed and the cycle completed, Opening the door or pressing the

Cancel/Drain pad wifl dear the display.

E2 witl appear in the display if the selector pads are

stuck. Press CanceVDrain to release the controls, or run your fingers across

the pads to free them up. If E2 remains

in the display, call for service.

Your Part ° Cleaning

Operating your dishwasher properly enables you to obtain the best possible results, This section explains

proper dishwasher operation,,

o Use automatic dishwashing detergent only,

Other detergents are too mild and much too sudsy. o Add detergent just before starting cycle. ° Store tightly closed detergent in a cool, dry place.

Fresh automatic dishwasher detergent results

in better cleaning.

Filling the detergent dispenser

The detergent dispenser has one section with a

cover and one withouL Push cover down firmly until it latches. Detergent in the open section fails

into the dishwasher when closing the door The covered section opens automatically for the

main wash

Cover Cover latch

HOTE: It is normal for cover to open partially

when dispensing detergent.

How much detergent to use

o The amount of detergent to use depends on the

hardness of your water and the type of detergent If you use too little, dishes won't be clean° If you

use too much in soft water, glassware wilt etch,

o Different brands of dishwasher detergent have

different amounts of phosphorus for softening water. ]f you have hard water and use a detergent

with a phosphorous content of less than 8.7%, you may need to use more detergent, or use a detergent with a phosphorous content higher

than 8_7%.

o Find out your water's hardness by asking your

local water department or water softener company.

NOTE: Fill amounts shown are for standard pow-

dered detergent, Amounts may vary if you use

liquid or concentrated powdered detergent,. Follow manufacturer's directions when using liquid

dishwasher detergent or concentrated powdered detergent.

Use only covered section for cycles

with one wash

WATER TYPE WHERE TO FILL

Hard Top of 8+grains per gallon 3rd step

136+parts per million (3 tbs )

Medium Top of 5-7 grains per gallon 2nd step 85-119 parts per million (2 tbs.)

Soft Top of 0-4 grains per gallon I st step

0-68 parts per million (1 tbs.)

Use both sections for cycles with two washes

Keep the rinse agent dispenser filled with a liquid

rinse agent. A rinse agent greatly improves dish

drying by helping water flow off them during the last rinse, A rinse agent also keeps water from forming

droplets and drying as spots or streaks°

To check dispenser: o Check center of fill indicator cap. Clear means it

needs filling,

To fill dispenser;

The rinse agent dispenser holds 6 ounces

(! 75 mL), Under normal conditions, this lasts about 3 months.

1. Open dishwasher door completely

2. Remove fill indicator cap1

3. Add rinse agent° Fill to smallest opening in lower part of dispenser only Overfilling may cause rinse

agent to leak out.,This will not harm the dish- washer, but could cause oversudsing

4. Clean up any spilled rinse agent with a

damp cloth

5. Replace fill indicator cap° Keep it closed tightly,

NOTE; You do not have to wait until the dispenser is empty before refilling, but do not overfill it. Your dishwasher is designed to use a liquid rinse agent.

You do not need to use a solid or bar-type rinse agent

A small amount of rinse agent automatically releases

into the rinse water during the final rinse of each cycle. For best drying results, check dispenser periodically

to see if it needs filling.

o Or remove fill indicator cap. An "E" is visible at the

bottom of the dispenser when empty,

X _ Do not fill past

_=....=.,__/,_=_ smailes;openlng

"°

Hot water dissolves and activates the dishwashing detergent. Hot water also dissolves grease on

dishes and helps dry glasses spot-free, Use the Water Heat option, if available, if you keep your

water heater at a low setting. For best dishwashing results, water must be at least 120°F (49°0) as it enters the dishwasher.

NOTE: The time showing on the electronic display

will pause while water is heating, For more infor- mation, see "Dishwasher seems to run too long"

on page 26.

To check water temperature:

1oRun hot water at the faucet closest to your dish-

washer° Let the water run for at least 1 minute.

2. Measure the water temperature with a candy or meat thermometer,, Put the thermom-

eter in the running stream of water.

3. If the water temperature at the faucet is below

120°F (49°C), have a qualified person raise the

water heater's thermostat setting.

L@ad ng Your D sh asher

This section tells you how to load your dishwasher properly for the best washing and rinsing results.

o To save water and energy, do not rinse dishes

before putting them into the dishwasher.

o Remove large pieces of food, bones, and other

hard items. The ULTRA WASH TM module will remove food particles from the water. The

module contains a chopping device which wilt reduce the size of food items.

NOTE: If hard items such as fruit seeds, nuts, and egg shells enter the ULTRA WASH module, you might hear chopping, grinding, crunching, or

buzzing sounds Those sounds are normal when hard items enter the module. Do not let metallic

items (such as pot handle screws) get into the

ULTRA WASH module. This could damage the

ULTRA WASH module.

The top rack is designed for cups, glasses, and smaller items.. Do not cover the third level wash

when loading the top rack.

o Place so open ends face down for cleaning

and draining..

o Load glasses intop rack only - bottom rack is not

designed for glasses. Damage may occur

o Place cups and glasses in the rows between

prongs. Placing them over the prongs can lead

to breakage.

o Secure lightweight items.

China, crystal, and other delicate items must not

touch each other during dishwasher operation..

Damage may occur

o Foods like eggs, rice, pasta, spinach, and cooked

cereals may be hard to remove if they are left to dry over a period of time Run a Quick Rinse cycle

to keep dishes moist if you do not plan to wash them soon.

Load dishes so soiled surfaces face the rotating

spray arms.

o Load dishes so they are not stacked or overlapping,

if possible_ It is important for the water spray to reach all soiled surfaces for best washing. For

best drying, water must be able to drain from all surfaces.

Do not cover third level wash

Mixed load

continued on next page

o Load plastic items in the top rack only Only plastic

items marked "dishwasher safe" are recommended.

o Load plastic items so the force of the spray does

not move them during the cycle To avoid chipping, do not let stemware touch

other items.

o Small bowls, pans, and other utensils can be

placed in the top rack°

Do not cover third level wash

_2 <

Cup and glass toad

Adjustable top rack

You can raise or lower the rack to fit tall items in

Raise

Lower

either the top or bottom rack,r The top

rack does not have to be level. _Turn knob clockwise

to raise one side of the rack,, "Turn knob counter-

clockwise to lower one side of the rack,,

Utensil basket

Use this convenient basket to hold spatulas,

wooden spoors, and

over the front of the similar items. It hooks

top rack and is not

_%_%_._0 =o..,_.._>" removable.

Extra-capacity fold-down shelves

Fold down the extra shelves on the right side of the

top rack over short items

(cups, juice glasses,

cereal bowls, etc.) to

hold extra items. Adjust rack height if necessary (see "Adjustable top

rack" left),

Fold-down tines

Fold the tines in the top rack all the way down

to accommodate larger items.

Removethetop rackwhenyouneedmorespaceto loadtallitemsinthebottomrack.

To remove the top rack:

t, Remove all toaded items from top rack. 2_ Gently pull out and up on left end cap tab..

3o Slide end cap up and off of guide rail.

4. Repeat Steps 1 and 2 to remove right end cap.

5. Hold top rack with both hands and pull rack

forward until guide wheels are out of guide rail..

To replace the top rack:

1. Position top rack with the rear guide wheels next

to guide rails°

2. Slide guide wheels of rack into the guide rails. Push top rack into dishwasher,

30 Slide end caps into the holes in guide rails. You

will hear the end cap "snap" into place,

Guide rail

End cap tab

i,li

i! ¸,

!:!

I:L

Items with cooked=on or dried-on food should be loaded in the bottom rack, with soiled surfaces

facing inward to the spray. NOTE: The top rack can be removed if more space

is needed for tall items in the bottom rack. See "Removing the top rack.."

o Do not load glasses, cups, or plastic items in the

bottom rack..

a Load plates, soup bowls, etc., between prongs

and facing inward to the spray.

o Overlap edges of plates for large loads°

Secure heavily soiled cookware face down in

the rack.

Spray tower

continued on next page

............................ i .. H..I..,..I

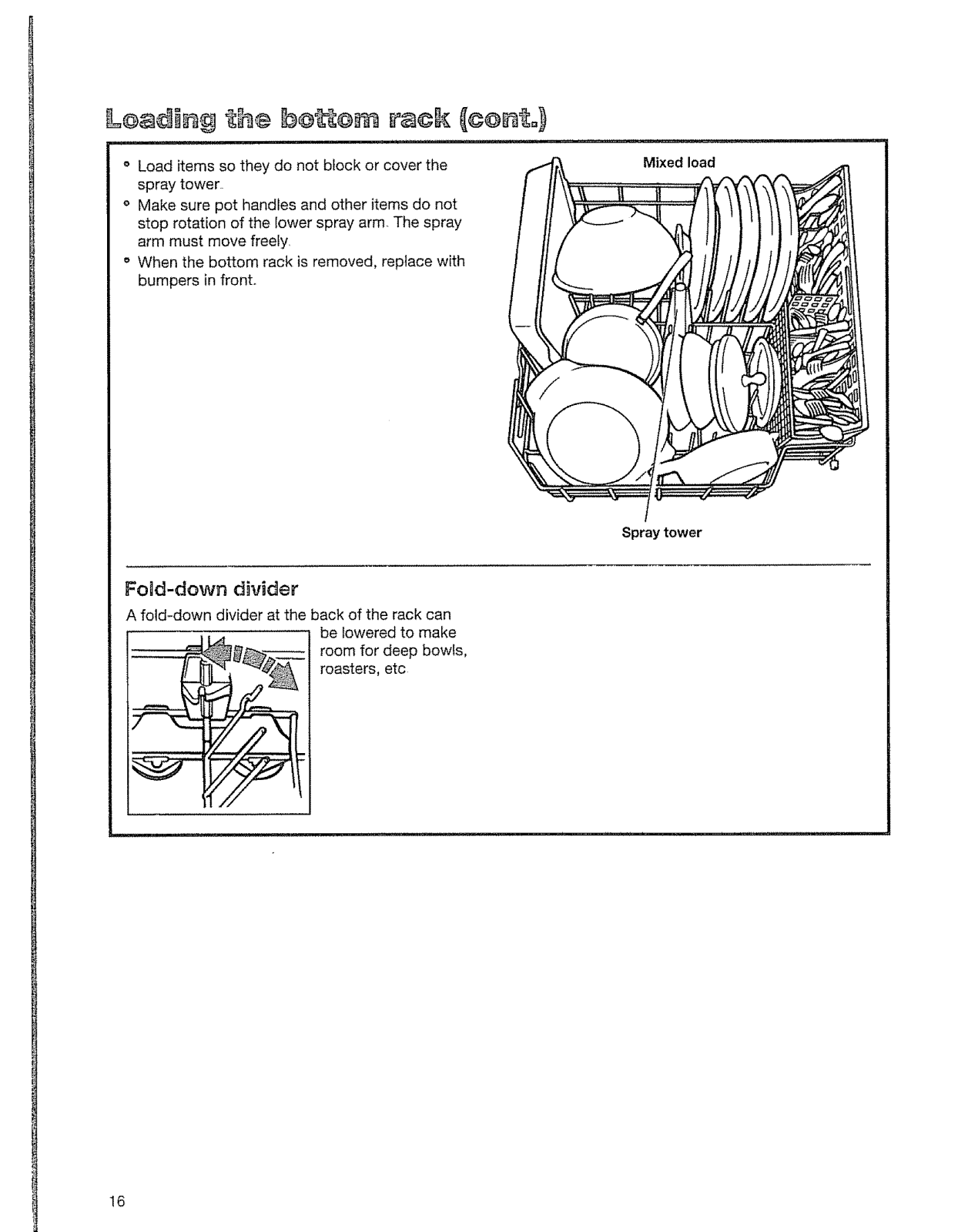

o Load items so they do not block or cover the

spray tower

o Make sure pot handles and other items do not

stop rotation of the iower spray arm_The spray arm must move freely.

o When the bottom rack is removed, replace with

bumpers in front.

FoUd-down divider

A fold-down divider at the back of the rack can

be Iowered to make room for deep bowls,

roasters, etc

Mixed load

Spray tower

.................................................... i

o Load the silverware basket while it is in the

bottom rack or take the basket out for loading on a counter or table.

NOTE: You can remove the basket for easy unloading° Always unload or remove the basket

before unloading the racks to avoid spilling water droplets on the silverware°

• Place small items (baby bottle caps, jar lids, etc.) in the section next to the hinged cover. Close

the cover over the section to hold small items in place.

Mix items in each section of the basket with some pointng up and some down to avoid nesting.

Spray cannot reach nested items. iMPORTANT: Always load sharp items (knives,

skewers, forks, etc.) poinfng down

Section cover

To avoid thumping and clattering noises during operation:

Make sure lightweight load items are secured in

the racks.

o Make sure pot lids and handles, pizza pans,

cookie sheets, etc.., do not touch interior walls or interfere with the spray arm's rotation or cover the spray tower.

o Load dishes so they do not touch one another. NOTE: Keep sink drain plugs inserted during dish-

washer operation to prevent noise transfer through drains..

Ifyouhaveanydoubtsaboutwashingaparticularitem,checkwiththemanufacturertoseeifitis dishwashersafe,

MATERIAL DISHWASHER SAFE? EXCEPTIONS/SPECIAL INFORMATION

Aluminum Yes High water temperature and detergents may affect

finish of anodized aluminum..

Bottles and Cans No Wash bottles and cans by hand. Labels attached

with glue can loosen in your dishwasher. Loose

labels and glue can clog spray arms or the pump

and will reduce washing performance.

Cast Iron No Seasoning will be removed and iron will rust, China/Stoneware Yes Always check manufacturer's recommendations

before washing Antique, hand-painted, or over-

the-glaze patterns may fade Gold leaf may discolor

or fade.

Crystal Yes Always check manufacturer's recommendations

before washing_ Some types of leaded crystal may etch with repeated washings.

Gold No Gold-colored flatware will discolor. Glass Yes Milk glass will yellow with repeated dishwasher

washing.

Hollow-Handle No Handles of some knives are attached to the blade Knives with adhesives which may loosen if washed in the

dishwasher.

Pewter No High water temperatures and detergent may

discolor or pit finish_

Disposable No Cannot withstand high water temperatures and Plastics detergents.

Plastics Yes Always check manufacturer's recommendations

before washing. Plastics vary in their capacity to withstand high water temperatures and detergents.

Load plastics in top rack only.

Stainless Steel Yes Run a Quick Rinse cycle if not washing immedi-

ately. Prolonged contact with food containing salt, vinegar, milk products, or fruit juice could damage

finish_

Sterling Silver or Yes Run a Quick Rinse cycle if not washing immedi- Silver Plate atelyo Prolonged contact with food containing salt,

acid, or sulfide (eggs, mayonnaise, and seafood) could damage finish

Tin No: Can rust. Wooden Ware No Wash by hand.. Always check manufacturer's

recommendations before washing Untreated wood may warp, crack, or lose its finish°

@ar ng ¥@

Your new dishwasher is designed to give you many years of dependable service. There are a few things you can do to maintain your dishwasher properly, This section tells you how to clean and care for your dishwasher.

Refer to "Solutions to Common Problems" on pages 23-25 for special cleaning problems,

Cleaning the exterior

In most cases, regular use of a soft, damp cloth or

sponge and a mild

detergent is al! that is

necessary to keep the outside of your dish- washer nice looking

and clean,

Cleaning the interior

Hard water minerals may cause a white film to build

up on the inside surfaces, especially just beneath

the door area. To clean

interior:

_Apply powdered dish-

washer detergent to a damp sponge to make

a paste, OR

oUse liquid automatic

dishwasher detergent

and clean with damp sponge Do not clean the dishwasher interior until it has

cooled. Wear rubber gloves. Do not use any type of cleanser

other than dishwasher detergent because it may cause foaming or sudsing.

NOTE: Some tomato-based foods might permanently

stain the inner tub and door liner. It is recommended that you prerinse concentrated amounts of soil from the dishes before loading.

Moving or winterizing your

dishwasher

Protect your dishwasher and home against water damage due to freezing water lines. If your dish-

washer is left in a seasonal dwelling or could be exposed to near freezing temperatures, have a

qualified person do the following:

1. Disconnect power supply to the dishwasher.

2. Turn off water supply to the dishwasher.

3. Remove the 4 screws on the lower access panel and remove the tower access panel,

4. Place a shallow pan under the water supply valve. Then, use a wrench to disconnect the

water inlet from the water supply valve, Sepa- rate the water inlet from the water supply valve

and drain water into the pant

5. Remove the spring clamp from the water outlet and separate from the water supply valve; drain

water into pan,

continued on next page

6.Reconnectbothwaterinletandwateroutletto thewatersupplyvalve.

7.Emptythepanandrepositionitunderthe waterpump

8.Removetheclampanddisconnectthedrain hosefromthewaterpump;drainwater

intopan

9,Reconnectdrainhosetothewaterpump,

beingsuretopositiontheclampoverthe

connection.

10.Replacetheloweraccesspanel.

Reconnecting your dishwasher

1. Remove the 4 screws on the lower access panel and remove lower access panel,

2. Turn on the water supply to dishwasher.

3. Turn on power supply to dishwasher.

4, Run dishwasher through a complete cycle and

check for leaks,

5. Replace lower access panel,

NOTE: If your dishwasher is connected to a

garbage disposal, do not run water into the sink after winterizing, This could cause water to refill the

drain hose on your dishwasher.

Storing for the summer

Protect your dishwasher during the summer months by turning off the water supply and power

supply to the dishwasher

Water outlet

Spring clamp and motor

Water pump

Water supply valve

Water Drain inlet hose

You can help save energy if you;

° Wash full loads, Running a half-filled dishwasher

uses the same amount of electricity and hot water as a fully loaded machine,

° Use the Water Miser cycle if dishes are prerinsed.

The cycle uses Jess hot water and energy than the

Normal Wash cycle.

o Use the No Heat Dry option when you don't need

a rapid drying cycle. Allow longer drying times (overnight) Use a rinse agent to improve drying.,

° Use the Water Heat option only when needed. When

this option is off, the dishwasher will not pause to

heat water to 135°F (57°C) during the main wash.,

i ii i II'l'M'llllm'lllllllll.I

NOTE; See your Installation Instructions for more complete information on changing door color panels or installing customized wood panels°

The opposite side of the door panel is a different color, Additional colors are available through Sears

Repair Services (see page 27)°

NOTE: Loads may not wash as welt if the water

temperature is too low. Load correctly for best washing results. Incorrect

loading may cause poor washing and the need to rewash all or part of the loado

Use the delay feature to run your dishwasher during off-peak hours. Local utilities recommend this to avoid heavy usage of energy at certain

times of day.

Customized wood panels

Your dishwasher can be customized with wood panels, A heavy-duty door spring kit (Part No,

4318050) is needed if the upper panel weighs more than 4 pounds. The maximum weight for the upper

panel and door is 8 pounds

, ,,, i,,,,,,, =

Upper panel

t. Insert a finger under one end of the retainer, Pull

the retainer towards you

in a peeling action. Set retainer aside

3, With desired color facing out, insert one side of

color panel into door frame,.

2, Lift color panels at outer edges. Use one hand to

• bow bottom of panel Do not remove spacer,

Remove color panel(s)_

5, Push in on color panel(s) near the top and slide

panel(s) and spacer up inside bottom of control panel. Let color panel(s) rest on channel at

bottom of doors.

4, Bow color panel and insert other side into

! door frame..

panel

Channel

6, Snap one end of retainer into channel as shown. Channel

Push inward while sliding thumb along full length of retainer.,

Spacer Snapinto

Color panel

Retainer

channel

along full length of

retainer

Access panel

. Push up with thumbs on each end of access

panel top trim to unsnap

trim, Remove trim and

set aside,,

3. With desired color facing out, slide access panel into access panel frame.

2. Carefully slide access oanel upward and remove. Do not remove spacer.

4. Make sure access panel has slid into groove along bottom of access panel frame.

5. Line up edges of top trim with sides of access

panel frame. Tilt back of trim down and slide into

placer Snap front of trim down to cover top edge

of access panel,

Thefollowingchartisaconvenientchecklistforhandlingminorperformanceproblems.Gooverthislistbefore callingforservice.Ifyouareunabletosolveyourdishwasher'sproblem,pleasesee"Troubleshooting."Ifyou

stillneedhelp,see"SearsRepairServices"toll-freenumbersonpage27.

PROBLEM CAUSE SOLUTION

Food soil left on dishes

Improper loading

Water temperature is too low

Use of incorrect, too little, or ineffective detergent

Detergent cakes in

dispenser

Pump or spray arm

clogged by labels from bottles and cans

Low water pressure caused by insufficient fill

Follow loading instructions on pages 13-17o Use the Water Heat option.. If needed, turn home

water heater up to ensure water entering dishwasher is 120°F (49°C) minimum See "Water temperature

tips" on page 12. Use recommended dishwasher detergents onlyo

Follow recommendations on page 11 for amounts; never use less than 1 tablespoon per load. Deter-

gent must be fresh to be effective. Always store detergent in a cool, dry area.

Use fresh detergent only. Do not allow detergent to sit for several hours in a wet dispenser. Check

dispenser for caked detergent° Clean dispenser when caked detergent is present.

Remove labels before washing bottles and cans or wash by hand° See page 18.

Home water pressure should be 20 to 120 pounds per square inch (psi) for proper dishwasher fill. A

booster pump on the water supply may be neces- sary if pressure is too low.

Spotting and

filming

Slowdown of wash arm due to high suds

Hard water or high mineral content in water

Water temperature is too low

Use of incorrect detergents Incorrect amount of

detergent

Use of ineffective detergents

Never use soap or laundry detergents. Use recom- mended dishwasher detergents only.

Conditioning the final rinse water with a liquid rinse agent helps eliminate spotting and filming. Keep the dispenser full with a rinse agent at ail times.

Use the Water Heat option, if available.. If needed, turn home water heater up to ensure water entering

dishwasher is 120°F (49°C) minimum. See "Water temperature tips" on page 12.

Use recommended dishwasher detergents oniy Follow recommendations on page 11 for amount,

Heavy soil and/or hard water generally require extra detergent.

Detergent should be fresh. Store in a cool, dry place, preferably in an airtight container. Discard lumpy

detergent..

continued on next page

CAUSE SOLUTIONPROBLEM

Spotting and

filming (cont.)

Cycle takes extremely long

time

Dishes do not dry completely

Insufficient fill caused by tow water pressure

Water temperature

is too low

Dishes do not

drain properly

Plastics

Home water pressure should be 20 to 120 psi for proper dishwasher fill. A booster pump on the water

supply may be necessary if pressure is too low

NOTE:To remove spots and film from dishes, try a

vinegar rinse

1.Wash and rinse as usual using the Air Dry option.

2. Remove a!f metal items

3. Put 2 cups (500 mL) white vinegar in a container on the bottom rack.

4. Run dishwasher through complete washing cycle_ Vinegar will mix with wash water°

If needed, turn home water heater up to ensure

water entering dishwasher is 120°F (49°C) minimum. See "Water temperature tips" on page t2.

Dishes must have proper water drainage. Do not

overload. Follow instructions for loading dishwasher on pages 13-17 Use a liquid rinse agent to speed

drying Some plastics, due to material, may need to be

towel dried.

Silica film or etching (silica

film is a white

iridescent deposit;

etching is a cloudy film)

Black or gray marks on dishes

Brown stains on dishes and

dishwasher interior

Rinse agent dispenser

is empty

A water chemical reaction with certain

types of glassware.

Usually caused by

some combination of soft or softened water, alkaline washing solutions, insufficient rinsing, overqoading

the dishwasher, and heat of drying.

Aluminum items

High iron content in

water supply

Fit! rinse agent dispenser, See page 12.

It may not be possible to prevent problem, except

by hand washing. To slow this process, use a minimum amount of detergent but not less than

1 tablespoon per load. Use a liquid rinse agent and

underload the dishwasher to allow thorough rinsing. Silica film and etching are permanent and cannot be

removed. Use the Air Dry option_

Aluminum items should be loaded so that they will not rub against dishes during washing Throwaway

aluminum items should not be washed in the dish- washer because they may break down and cause

marking, Aluminum markings can be removed by

using a mild abrasive cleanser.

Remove by washing dishes (after food soil has been

removed) with 1 teaspoon to 1 tablespoon of citric acid crystals added to covered section of detergent dispenser. Do not use detergent_ Follow with a

Normal cycle with detergenL If treatment is needed more often than every other month, the installation

of an iron removal unit is recommended.

PROBLEM CAUSE SOLUTION

Orange stains on dishwasher

interior

Large amounts of tomato-based foods

on dishes placed in the dishwasher

Stains may gradually fade over time. Regutar use of heated drying may cause stains to fade siowen

Stains will not affect dishwasher performance. Regular use of Quick Rinse cycle or Air Dry option

wil! reduce the likelihood of staining..

White spots on Seasoning removed by Reseason cookware after dishwasher washing. cookware with dishwasher detergents

non-stick finish

Odor in the Dishes only washed Run a Quick Rinse cycle at least once or twice a day dishwasher every 2-3 days until a full load is accumulated.

Chipping Improper loading Load dishes and glasses so that they are stable and of dishes do not strike together from washing action. Moving

racks in and out slowly will also minimize chipping..

NOTE: Some types of china and glassware are too

delicate for automatic dishwashing and should be hand washed; for example: antiques, feather-edged

crystal, and similar types.

'M',' '", m..................... 11

T oub ÷shoo ng

Please check the chart below for problems you can fix. it could save you the cost of a service call. If you still need help, see "Sears Repair Services" tofFfree numbers on page 27_

lu,H

PROBLEM CHECK THE FOLLOWING Dishwasher

does not run or stops during a cycle

Dishwasher seems to run

too long

Dishwasher ls overfill protector stuck in "up" position? Overfill protector should move up and will not fill down freely Press down to release.

Water remains Wait for the cycle to finish. A small amount of water remaining is normal in dishwasher Clqeck the drain air gap accessory (if installed) to see if it is clogged.

Detergent Has the cycle completed? remains in cow ls the detergent fresh and dry without lumps?

ered section of ls the bottom rack in backwards? The rack bumpers should face the door. dispenser

Dishes are not Isthe rinse agent dispenser empty? Using a rinse agent greatly improves drying. as dry as you See page 12.

expected Do not use No Heat Dry option on the next load.

ts the door tightly closed and securely latched? Has the cycle been set correctly?

Has a household fuse or circuit breaker blown or tripped? is the delay feature on?

If the motor has stopped because of an overload, it will automatically reset itself within a few minutes. If the motor does not start, calt for service,.

Is the water supply turned on? The dishwasher will run longer while heating water. This is normal. The time show-

ing on the electronic display will pause while water is heating- See pages 9 and !0. If the water temperature is below 135°F (57°C):

o a delay will occur in the main wash if the Water Heat option is selected o three delays will occur if the Pots Pans cycle is selected..

o the final rinse will automatically delay until the water temperature reaches

135°F (57°C),

Grinding, grating, Has a hard object entered the ULTRA WASH TM module? The sound should stop crunching, or when the object is ground up. buzzing sounds

White residue appears on front

of access panel

Is too much detergent being used? See page 11 for recommended amounts of detergent

Some liquid detergents develop excess foam and buildup on access panel. Try a different brand to reduce foaming and eliminate buildup.,

............ i ,,,,,i i, i,

Forthe repair or replacement

partsyouneed

Call7 am - 7 pm, 7 days a week

(1-800-366-7278)

Forin-home major brandrepair service

Call24 hours a day, 7 days a week

(1-800-473-7247)

Forthe locationof a Sears Repair

Service Center in yourarea

Call24 hours a day, 7 days a week

Forinformationon purchasinga Sears

Maintenance Agreementorto inquire

aboutan existingAgreement

Call9 am - 5 pm, Monday - Saturday

America's Repair Specialists

FULL ONE-YEARWARRANTY ON DISHWASHERS

Forone yearfrom the first day of use in your home, Sears will repair, free of charge, defects in materials or workmanship. LIMITED WARRANTY ON THE ULTRA WASH TM WASH SYSTEM

After the first year and through two years from the first day of use in your home, Sears will furnish, free of charge,

replacement parts for any part of the ULTRA WASH wash system (motor, pump, spray arms, nozzle cap, spray tower, motor seals, and pump gasket) which is defective in materials or workmanship. YOU PAY THE LABOR,

FULL TWO-YEAR WARRANTY ON ELECTRONIC CONTROL AND POWER SUPPLY BOARD For two years from the first day of use in your home, Sears will repair or replace, free of charge, the electronic module

and power supply board, if defective in materials or workmanship.

FULL WARRANTY FOR THE LIFE OF THE DISHWASHER ON ULTRA LIFE" rM TUB MODELS

AGAINST LEAKS IN THE TUB AND INNER DOOR PANEL

Forthe life of the dishwasher if a leak should occur as a result of failure of the polypropylene inner door panei or tub

due to cracking, chipping, or peeling, Sears will replace, free of charge, the tub or inner door panel.

If the dishwasher is subjected to other than private family use, the above warranty coverage is effective for only

ninety days WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPARTMENT

IN THE UNITED STATES. This warranty applies only while this product is in use in the United States°

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

"We Service What We Sell" is our assurance you can depend on Sears for service..Your dishwasher has added value when you consider that Sears has service units nationwide, staffed with professional technicians specifically trained on

Sears appliances and having the parts, tools, and equipment to ensure that we meet our pledge to you ....."We Service

What We SelL" Sears Maintenance Agreement

Maintain the value of your KENMORE Dishwasher with a Sears Maintenance Agreement, Sears dishwashers are designed, manufactured, and tested for years of dependable operation_ Yet, any modern appliance may require

service from time to time,

The Sears Maintenance Agreement:

o Is your way to buy tomorrow's service at today's prices,,

o Eliminates repair bills resulting from normal use° o Allows for as many service calls as required, o Provides for service by professional Sears Trained Technicians,

o Even if you don't need repairs, the Maintenance Agreement offers an annual preventative maintenance check-up at

your request!

This Maintenance Agreement does not cover original installation, reinstallation, or damage resulting from

external causes such as acts of abuse, theft, fire, flood, wind, lightning, freezing, power failure, power reduction, etc,

3373964 Rev, A P._teatnus_.

1/97

Kenmore 15825 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
