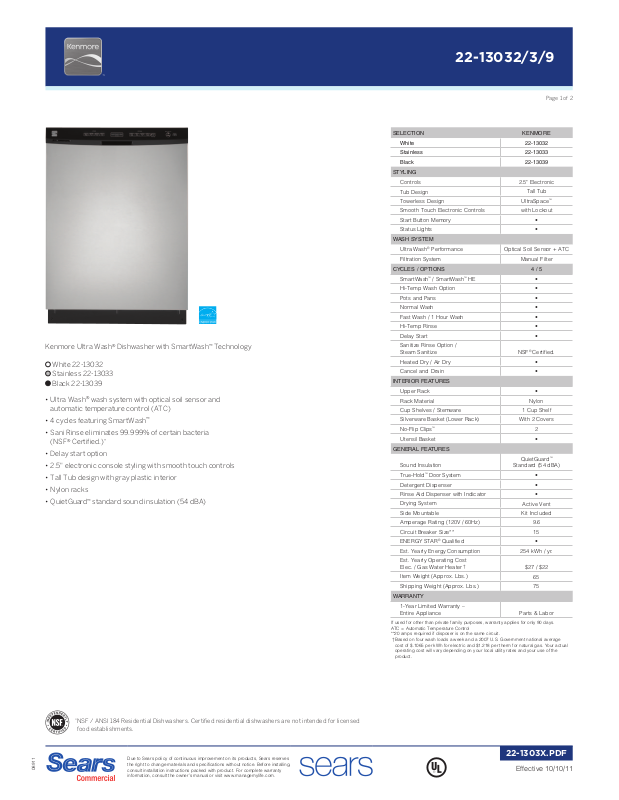

Kenmore 13032, 13039, 13033 Quick Start Manual
Kenmore Ultra Wash® Dishwasher with SmartWash™ Technology
White 22-13032
Stainless 22-13033
Black 22-13039
®
• Ultra Wash
wash system with optical soil sensor and
automatic temperature control (ATC)
• 4 cycles featuring SmartWash
• Sani Rinse eliminates 99.999% of certain bacteria
(NSF
®
Certified.)
*
™
• Delay start option
• 2.5" electronic console styling with smooth touch controls
• Tall Tub design with gray plastic interior
• Nylon racks
• QuietGuard
™
standard sound insulation (54 dBA)
22-13032/3/9
Page 1 of 2
SELECTION KENMORE
White 22-13032
Stainless 22-13033
Black 22-13039
STYLING
Controls 2.5" Electronic
Tub Design
Towerless Design
Smooth Touch Electronic Controls with Lockout
Start Button Memory •
Status Lights •
WASH SYSTEM
CYCLES / OPTIONS 4 / 5
INTERIOR FEATURES
GENERAL FEATURES
WARRANTY
If used for other than private family purposes, warranty applies for only 90 days.
ATC = Automatic Temperature Control
**20 amps required if disposer is on the same circuit.
† Based on four wash loads a week and a 2007 U.S. Government national average
cost of $.1065 per kWh for electric and $1.218 per therm for natural gas. Your actual
operating cost will vary depending on your local utility rates and your use of the
product.
®
Ultra Wash
Performance Optical Soil Sensor + ATC
Filtration System Manual Filter
™
SmartWash
Hi-Temp Wash Option •
Pots and Pans •
Normal Wash •
Fast Wash / 1 Hour Wash •
Hi-Temp Rinse •
Delay Start •
Sanitize Rinse Option /
Steam Sanitize NSF
Heated Dry / Air Dry •
Cancel and Drain •
Upper Rack
Rack Material Nylon
Cup Shelves / Stemware 1 Cup Shelf
Silverware Basket (Lower Rack) With 2 Covers
No-Flip Clips
Utensil Basket •
Sound Insulation
True-Hold
Detergent Dispenser •
Rinse Aid Dispenser with Indicator •
Drying System
Side Mountable
Amperage Rating (120V / 60Hz)
Circuit Breaker Size** 15
ENERGY STAR
Est. Yearly Energy Consumption 254 kWh / yr.
Est. Yearly Operating Cost
Elec. / Gas Water Heater
Item Weight (Approx. Lbs.)
Shipping Weight (Approx. Lbs.)
1-Year Limited Warranty –
Entire Appliance
/ SmartWash™ HE
™
™
Door System
®
Qualified
†
Tall Tub
™
UltraSpace
•
®
Certified.
•
2
™
QuietGuard
Standard (54 dBA)
•
Active Vent
Kit Included
9.6
•
$27 / $22
65
75
Parts & Labor
08911
*
NSF / ANSI 184 Residential Dishwashers. Certified residential dishwashers are not intended for licensed
food establishments.
Due to Sears policy of continuous improve ment on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner’s manual or visit www.managemylife.com.
22-1303X.PDF
Effective 10/10/11
22-13032/3/9
Page 2 of 2
33 1/2"
Call Sears Parts At: 1–800-225-2864
SIDE PANEL KIT
8171656 – White
8171657 – Stainless
8171658 – Bisque
8171657 – Black
08911
FLOOR
MOUNTING KIT
8171477
Due to Sears policy of continuous improve ment on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner’s manual or visit www.managemylife.com.
SIDE MOUNT KIT
The side mount kit allows the dishwasher to be secured to the cabinets or partitions
on either side of the unit. This kit may be required if mounting the dishwasher to the
countertop is not a desirable option (for example, granite or natural stone). Call Sears
Parts At: 1–800-225-2864. Order Kit # 22-587-8212560.
22-1303X.PDF
Effective 10/10/11
