Page 1

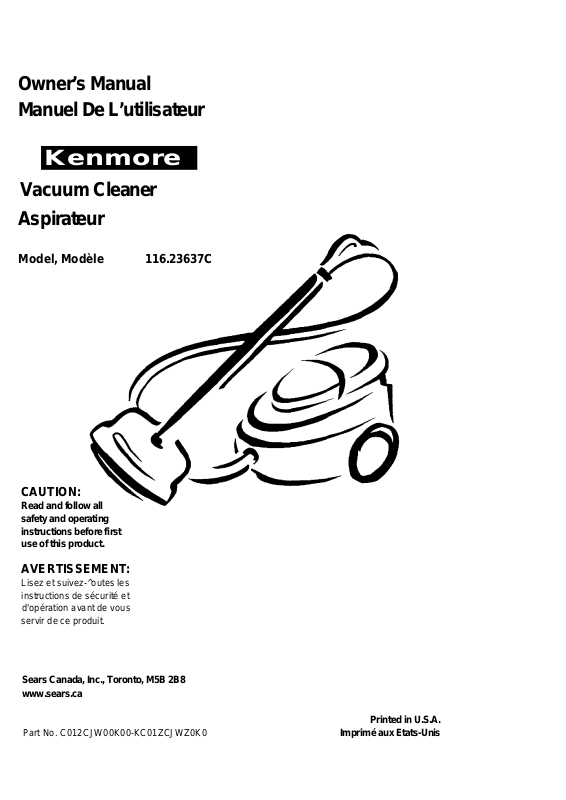

Owner’s Manual Manuel De L’utilisateur

Kenmore

Vacuum Cleaner

Aspirateur

Model, Modèle

CAUTION:

Read and follow all safety and operating instructions before first

use of this product.

116.23637C

AVERTISSEMENT:

Lisez et suivez-^outes les

instructions de sécurité et

d'opération avant de vous

servir de ce produit.

Sears Canada, Inc., Toronto, M5B 2B8 www.sears.ca

Part No. C012CJW00K00-KC01ZCJWZ0K0

Printed in U.S.A.

Imprimé aux Etats-Unis

Page 2

Before Using Your New Vacuum.........................2

Kenmore Vacuum Cleaner Warranty _________2

Important Safety Instructions..............................3

Parts and Features ..........................................4-5

Assembly Instructions

Use ....................................................................8

How to Start Vacuuming Tips Suggested Pile Height Settings

.....................................

............................................

.....................................

...........

6-7

Attachments..........................................10

Attachment Use Chart

........................

Performance Features ........................11

How Your Vacuum Works

.................

-12

8 9 9

Canister Care

..........................................

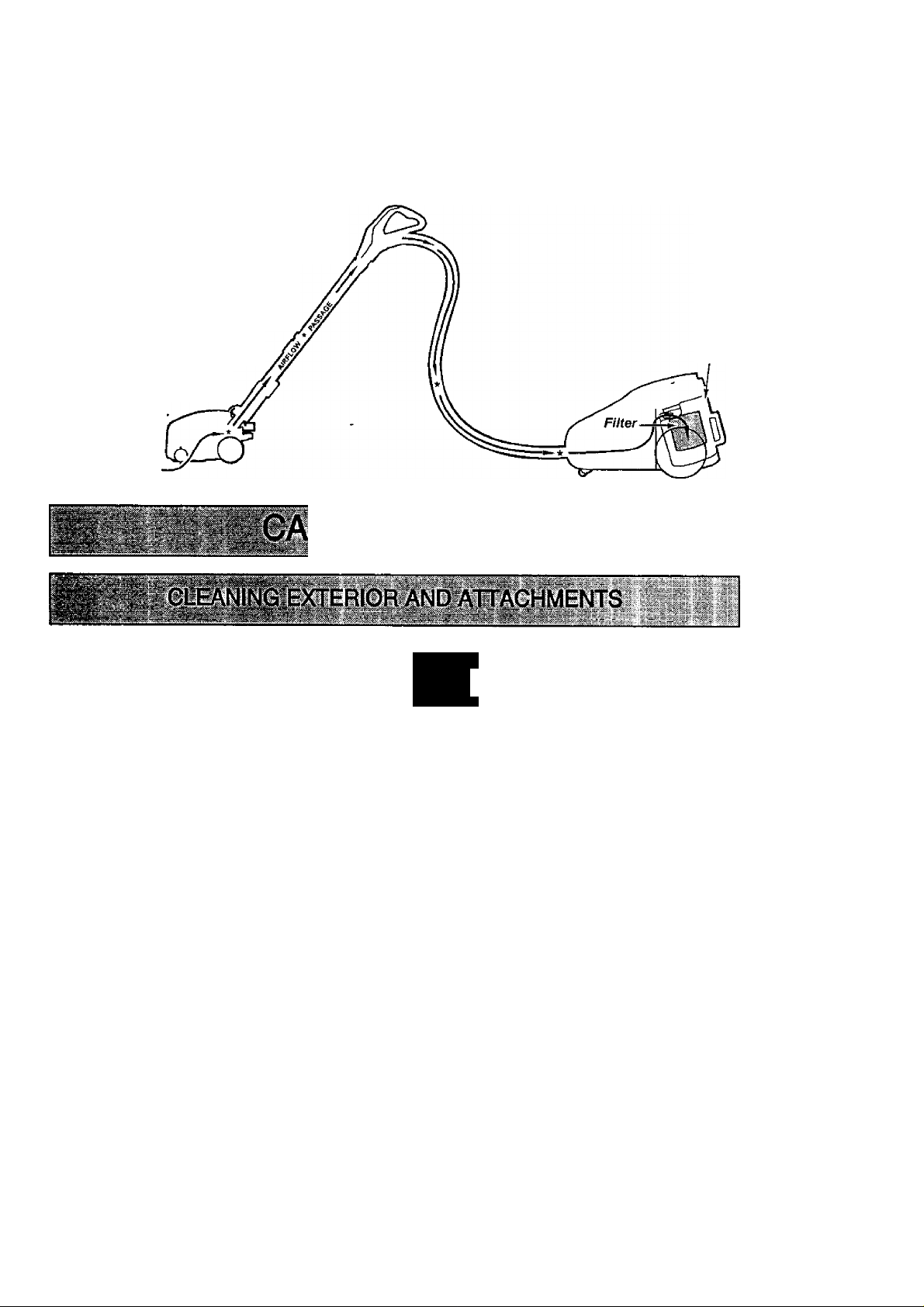

Cleaning Exterior and Attachments ..12

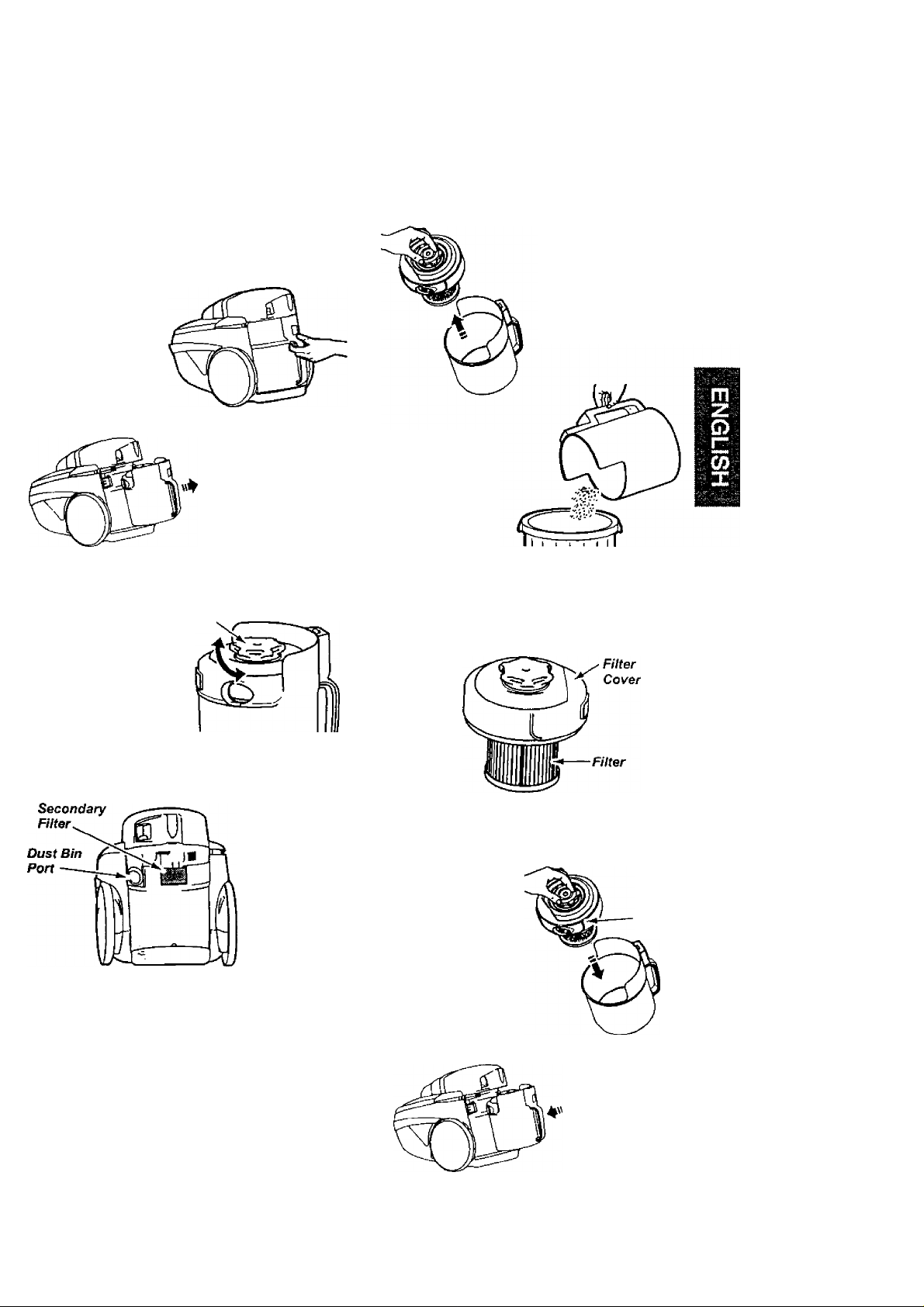

Dust Bin Cleaning ...............................13

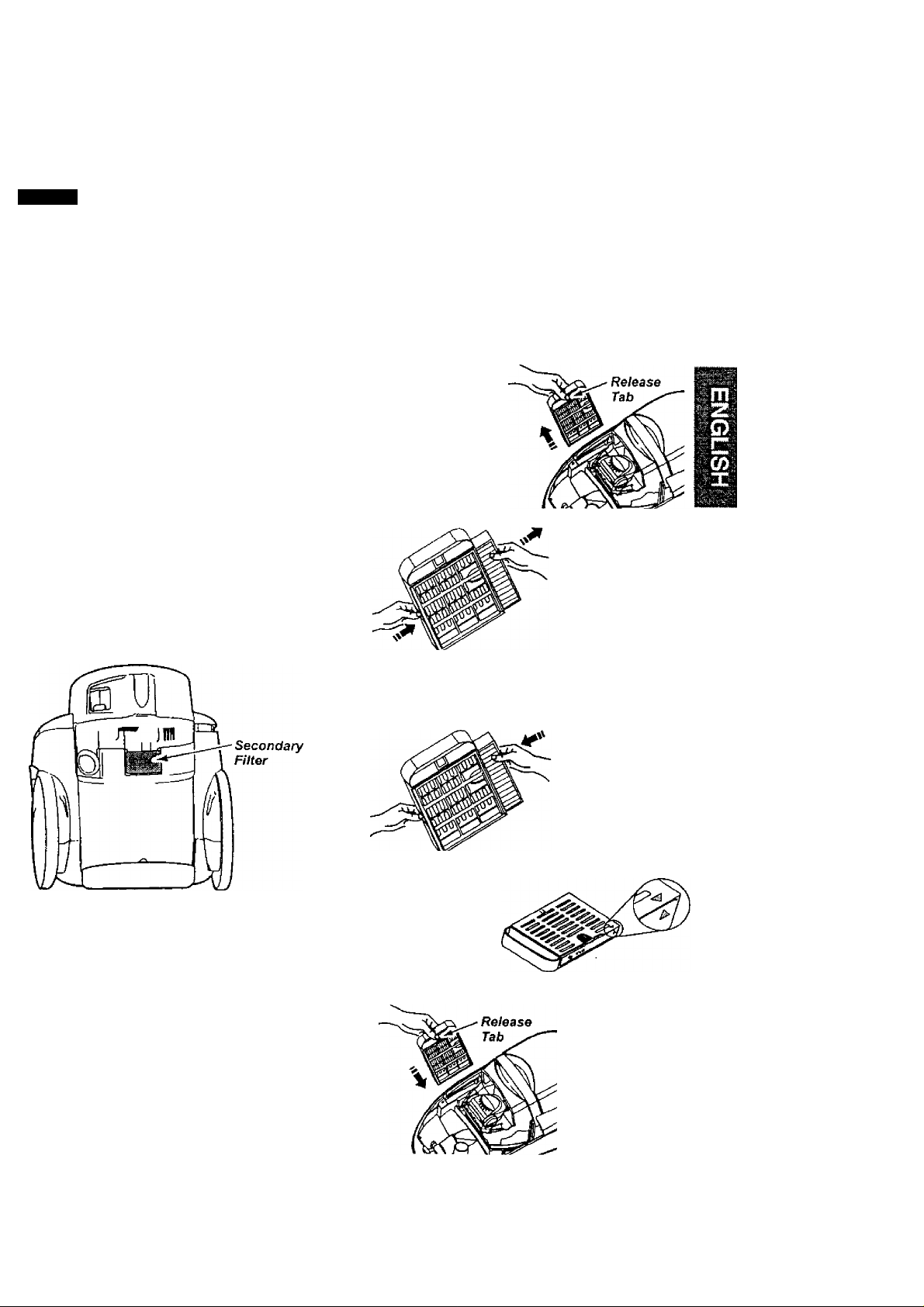

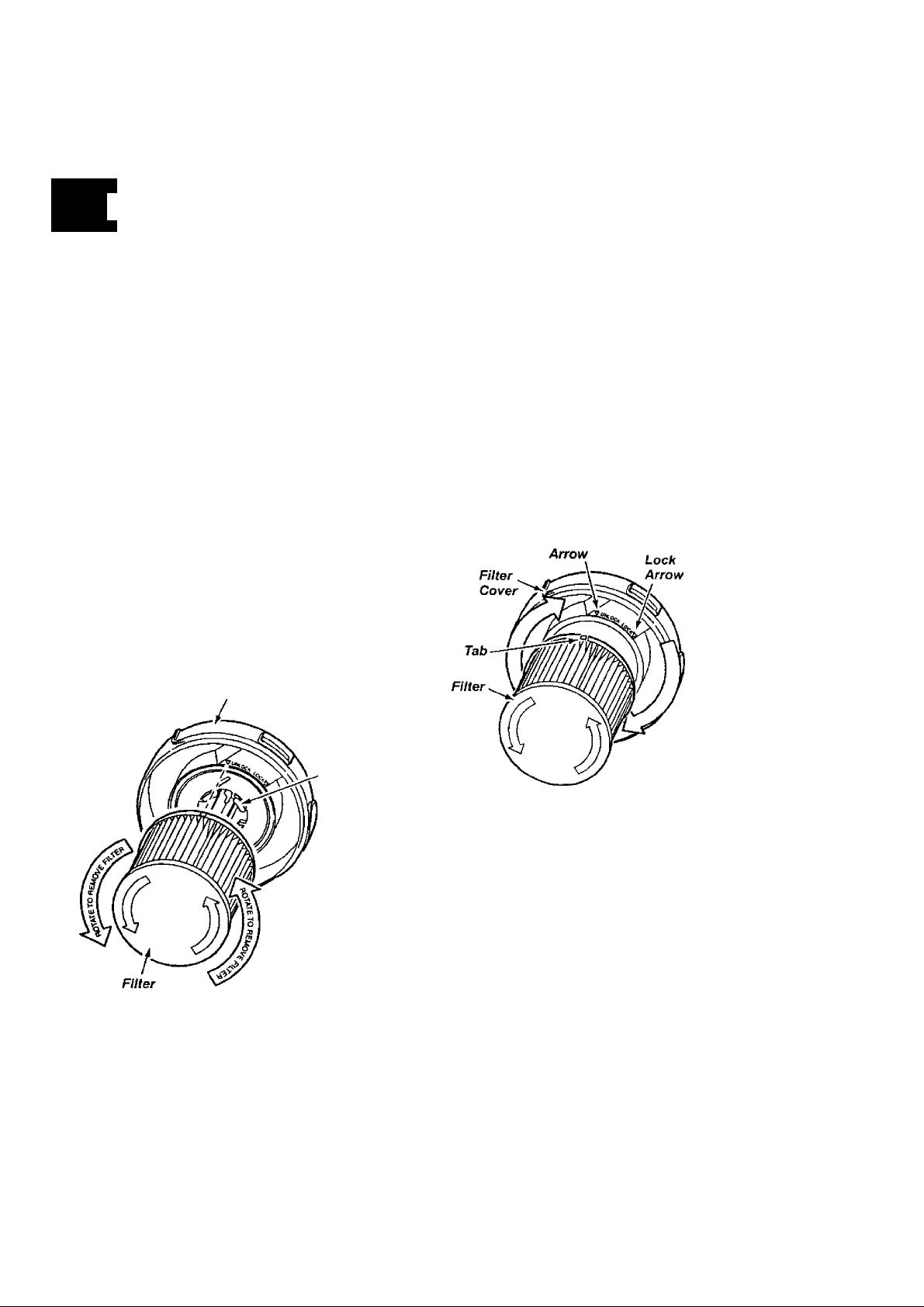

Filter Changing/Cleaning

Power-Mate* Care

.....................................

...............

14-15

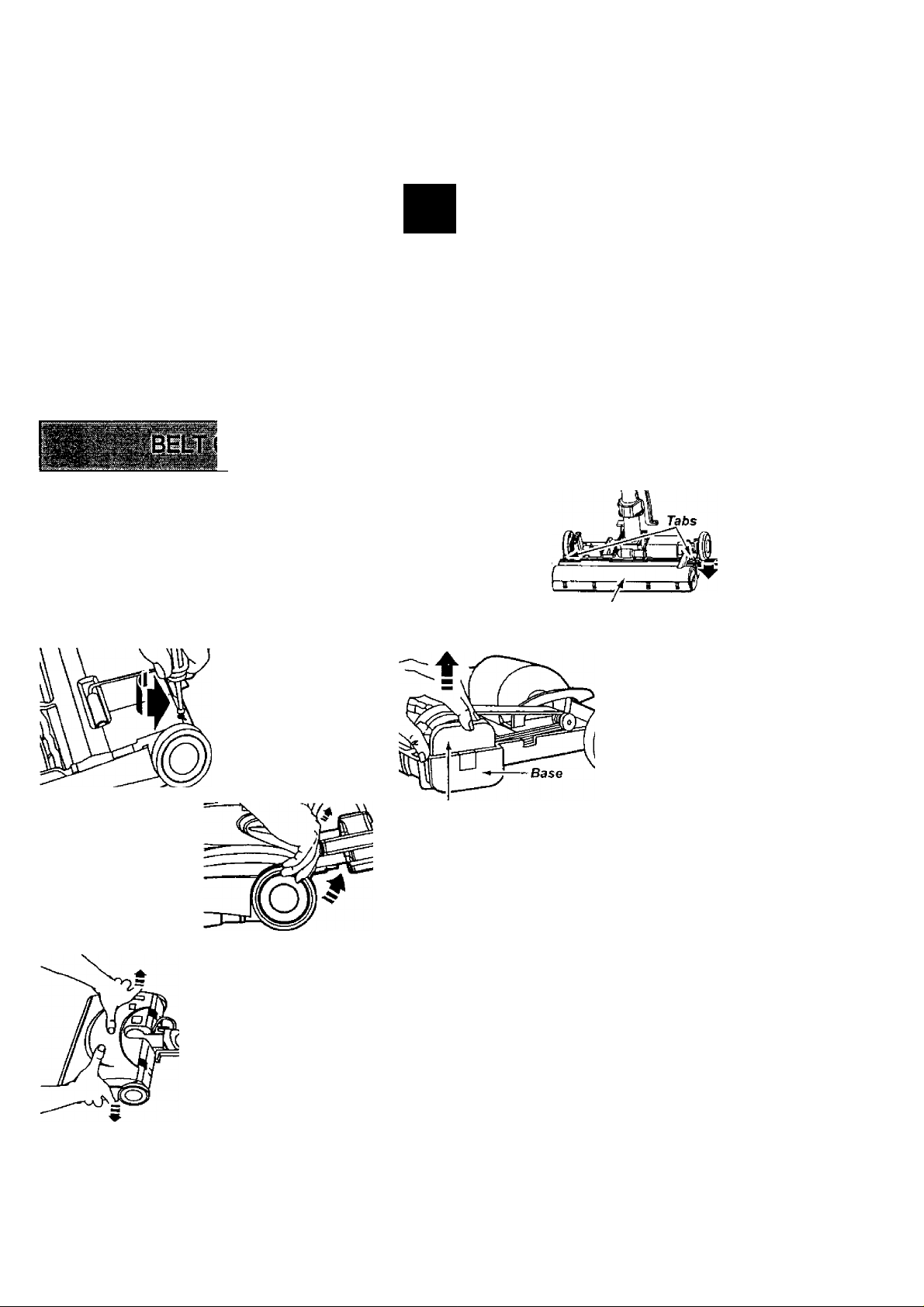

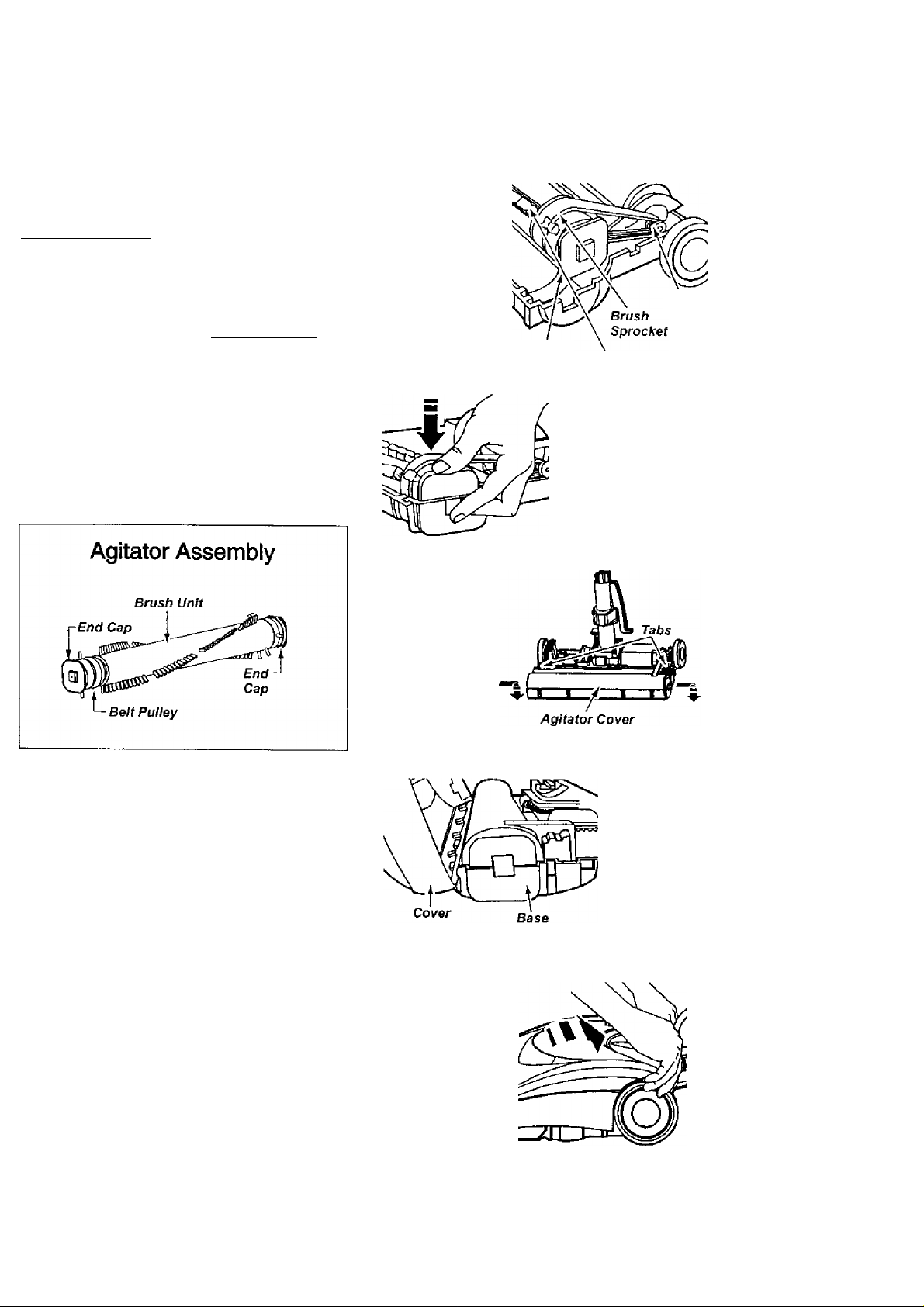

Belt Changing and Agitator Cleaning 16-17 Light Bulb Changing Agitator Servicing

Troubleshooting............

...........................

................................

.............19

Requesting Assistance

Or Service

...................

-Back Cover

18 18

Please read this guide. It will help you assemble and operate your new Kenmore vacuum in

the safest and most effective way. For more information about vacuum cleaner care and operation, call your nearest Sears store.

You will need the complete model and serial numbers when requesting information. Your vacu um’s model and serial numbers are located on the Model and Serial Number Plate.

Use the space below to record the model number and serial number of your new Kenmore vacuum.

Model No._ Serial No.

Date of Purchase Keep this book and your sales check (receipt) in a safe place for future reference.

^№it’№NM6RE.VAdDUM'CLEANER wXr^W

......................................................

LIMITED ONE YEAR WARRANTY ON KENMORE VACUUM CLEANER

This warranty is for one year from the date of purchase, and includes only private household vacuum cleaner use. During the warranty year, when this vacuum cleaner is operated and maintained according to the owner's manual instructions, Sears will repair any defects in material

or workmanship free of charge. This warranty excludes vacuum bags, belts, light bulbs, and filters, which are expendable parts

and become worn during normal use.

For warranty service, return this vacuum cleaner to the nearest Sears Service Centre In Canada.

• ■<•■ *'** • ^ • -T. f *» f ■ ■ r. 7^ ~ :

This warranty applies only while this product is in use in Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province.

Sears Canada, inc., Toronto, MSB 2B8

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Your safety is important to us. To reduce the risk of fire, electrical shock, injury to per sons or damage when using your vacuum cleaner, follow basic safety precautions including the following;

Read this manual before assembling or

using your vacuum cleaner.

Use your cleaner only as described in this

manual. Use only with Sears recommended attachments.

To reduce the risk of electrical shock - Do not use outdoors or on wet surfaces.

Disconnect electrical supply before servic

ing or cleaning out brush area. Failure to do so could result in electrical shock or brush suddenly starting.

Always turn cleaner off before connecting or

disconnecting the hose or Power-Mate*.

Always turn cleaner off before unplugging. Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Hold plug when rewinding onto cord reel.

Do not allow plug to whip when rewinding.

Do not use with damaged cord or plug. If

cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a Sears Service Center.

Do not pull or carry by cord, use cord as a

handle, close door on cord, or pull cord around sharp edges or corners. Do not run cleaner over cord. Keep cord away from heated surfaces.

Do not leave cleaner when plugged in.

Unplug from outlet when not in use and before servicing.

Do not allow to be used as a toy. Close

attention is necessary when used by or near children.

Do not handle plug or cleaner with wet

hands.

Do not put any objects into openings,

WARNING

Do not operate the cleaner with a punctured

hose. The hose contains electrical wires. Replace if cut or worn, Avoid picking up sharp objects.

Do not use with any opening blocked; keep

free of dust, lint, hair and anything that may reduce air flow.

Keep hair, loose clothing, fingers, and all

parts of body away from openings and mov ing parts.

Do not use cleaner without dust bin and/or

filters in place.

Always empty the dust bin after vacuuming

carpet cleaners or freshener, powders and fine dust.

Do not use the cleaner to pick up sharp

hard objects, small toys, pins, paper clips, etc. They may damage the cleaner.

Do not pick up anything that is burning or

smoking, such as cigarettes, matches, or hot ashes.

Do not use cleaner to pick up flammable or

combustible liquids (gasoline, cleaning flu ids, perfumes, etc.), or use in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.

Use extra care when cleaning on stairs, Do

not put on chairs, tables, etc. Keep on floor.

You are responsible for making sure that

your vacuum cleaner is not used by anyone unable to operate it properly,

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your cleaner is intended only tor household use. Read this Owner’s Manual carefully for important use and safety information. This guide contains safety statements under warning and caution symbols. Please pay special attention to these boxes and follow any instructions given. WARNING

statements alert you to such dangers as fire, electrical shock, burns and personal injury.

CAUTION

statements alert you to such dangers as personal injury and/or property damage.

Page 4

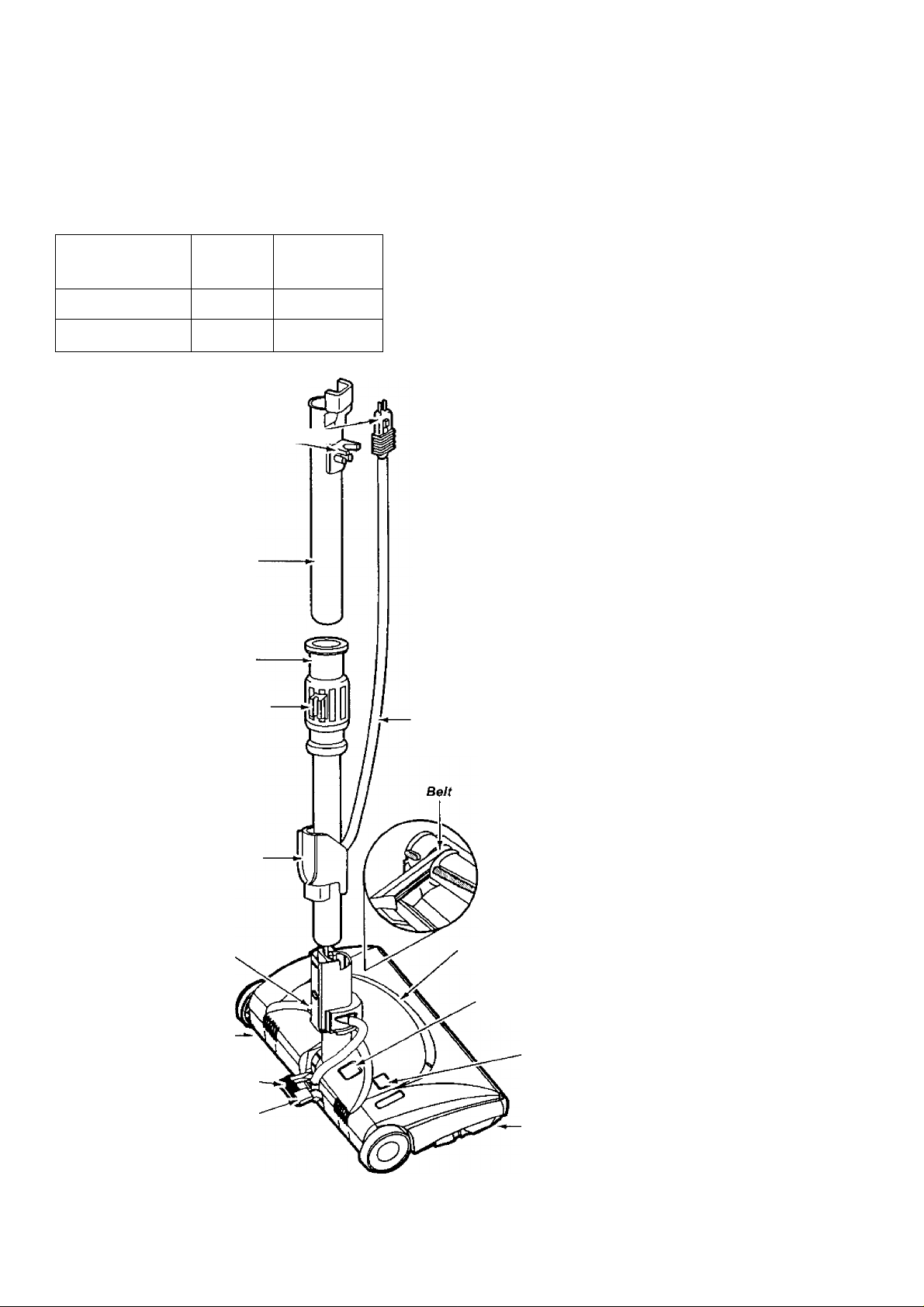

It is important to know your vacuum cleaner’s parts and features to assure its proper and safe use. Review these before using your cleaner.

Item Part No.

In U.S.

Headlight Bulb Belt

20-5240 596181 20-5201

Cord and Cord

Ho/c/er<rin^r

Upper Wand

Wand Swivel (Some

Models)

Part No.

In Canada

20-40979

- Cord and

Plug Holder

- Handle Quick

Release

Upper Wand

Cord Holder

Wand Quick Release Pedal

Power-Mate* Model/Serlal Numbers (On Bottom)

Pile Height Pedal ■

---------------

Handle Release Pedal

Power-Mate* Power Cord

Flange

POWER-MATE^

Headlight and Lens

Pile Height Indicator

Overload Protector Reset Button

Edge Cleaner (Not Shown)

Page 5

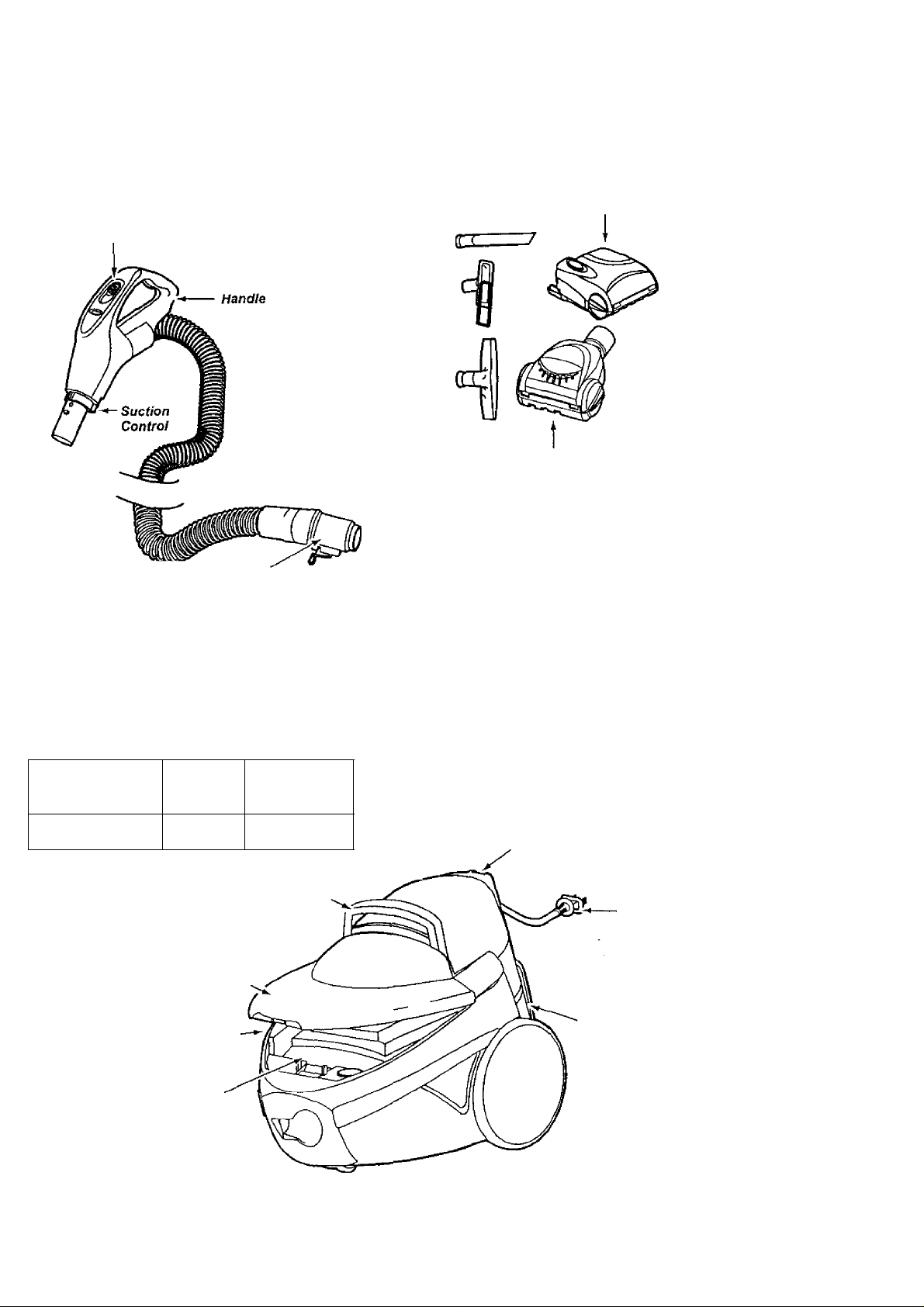

HOSE

3-Way On/Off Switch

ATTACHMENTS

Power-Mate Jr.^ (Some Models)

Crevice Tool —

Combination Brush-----------

Floor Brush

Handi-Mate Jr.' (Some Models)

Hose Swivel

CANISTER

Item Part No.

In U.S.

Exhaust Filter

Exhaust Filter (Inside)

20-86889

Attachment

Storage

Part No.

In Canada

20-86889C

Carrying Handle

Cover

Cord Rewind

Button

(not shown)

Power-Mate'

Storage slot

Power

Cord

Dust Bin

Page 6

WARNING

Electrical Shock Hazard

DO NOT plug Into electrical supply until assembly is complete. Failure to do so could result in electrical shock or

Injury.

Before assembling your vacuum cleaner, be sure you have all parts shown in PARTS AND FEATURES.

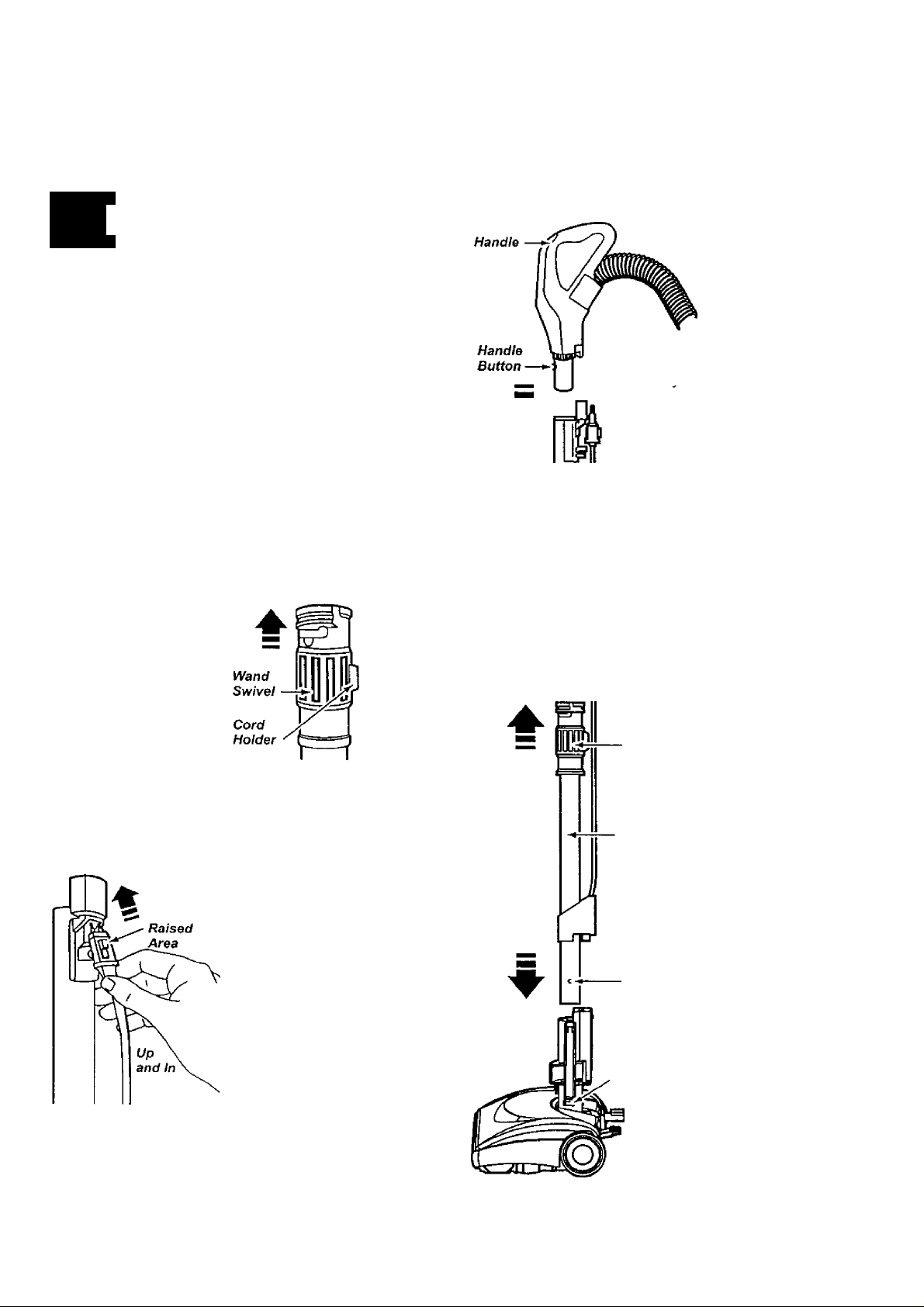

WANDS

Slide wands together until wand button snaps into

place. Turn wand

button to the slot ted area of the wand swivel.

The swivel ailows

you to turn the

handle to the left

side to reach far

ther under low fur

niture.

Button

Upper Wand -

Wand

Button

Wand Swivel

POWER-MATE®

1. Insert wands into Power-Mate* until the

wand buttons snaps into place.

2. Connect Power Mate® plug and cord as shown. DO NOT

force. Raised area

of plug must be toward hand.

3. Secure cord into cord holder on wand swivel.

To remove: Step on wand release pedal,

then pull up on wands.

Lower

Wand

Button

Wand Quick

Release Pedal

Page 7

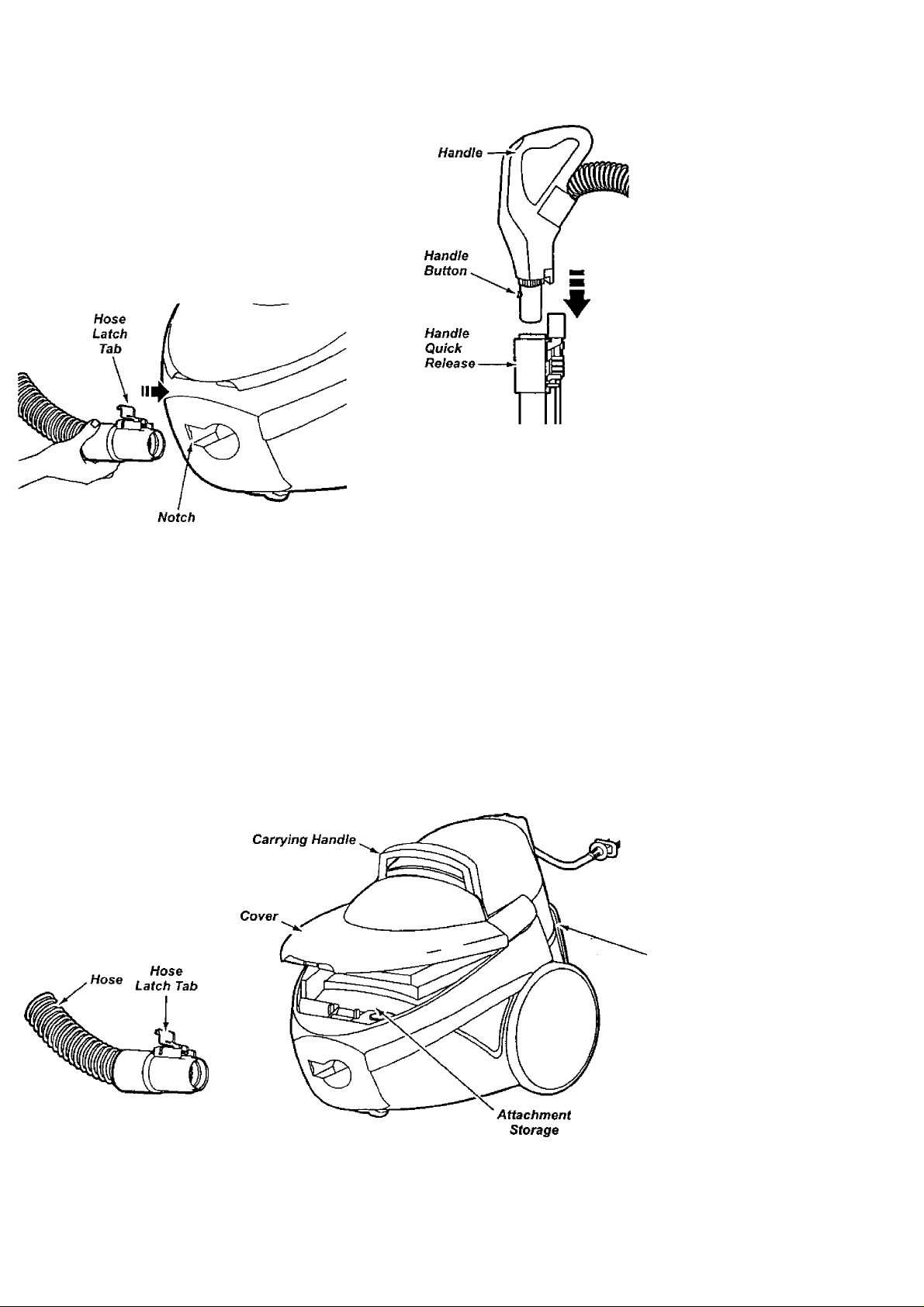

HOSE

1. Line up the hose latch tab with notch in canister and insert hose into canister until it snaps in place.

To remove: Press hose latch tab and pull hose out.

2. Insert handle into wand until lock button snaps in place. Be sure hose is not t\Msted.

To remove: Press handle release but ton and pull up on handle.

To store: Disconnect hose from wands and canister to prevent stress on hose during storage. Store hose in a loosely coiled position so the hose material is

not stressed.

Dust Bin

Page 8

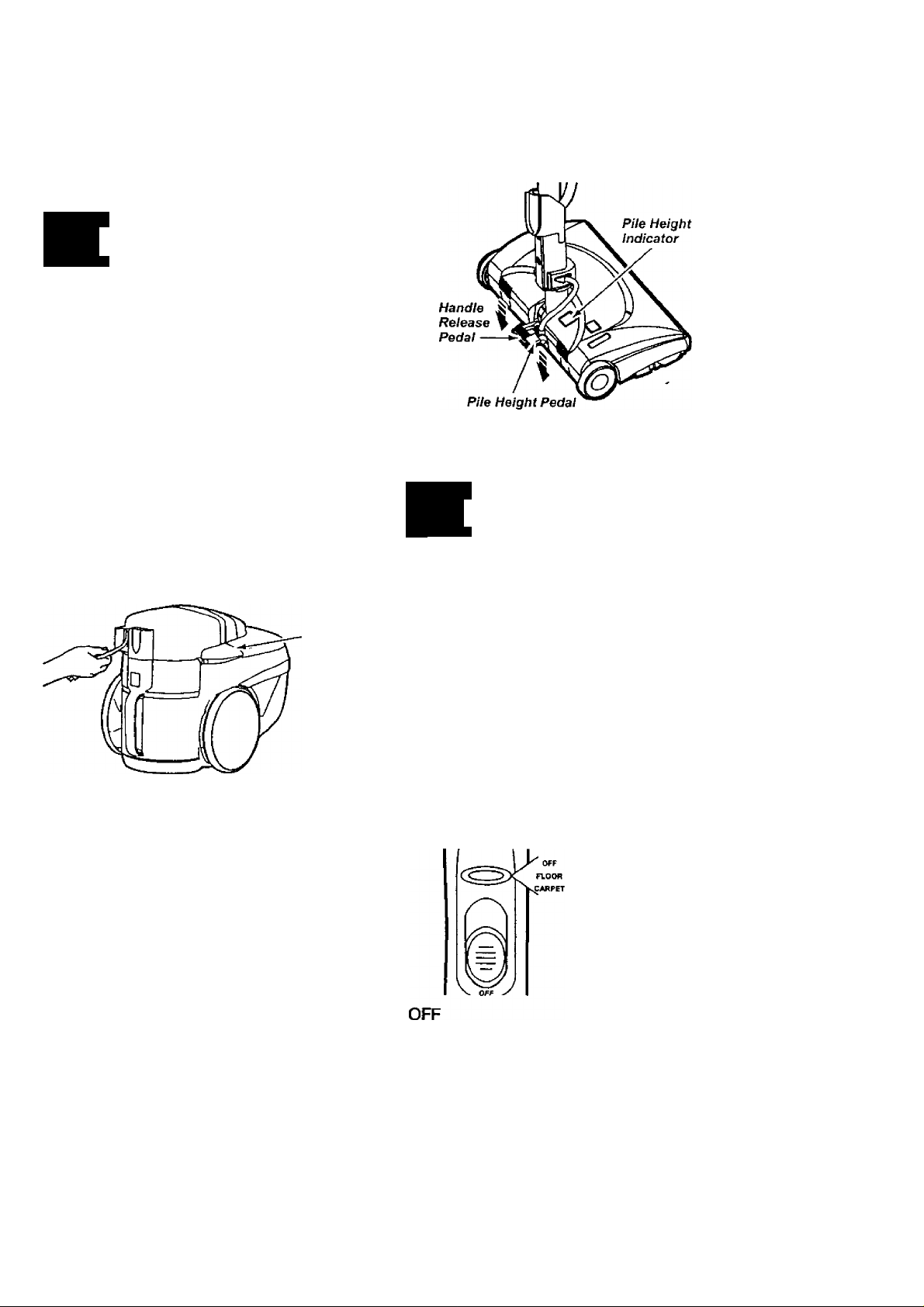

HOW TO START

WARNING

Personal Injury and Product Damage Hazard

• DO NOT plug in if switch is in ON position. Personal injury or

damage could result

• The cord moves rapidly when rewinding. Press cord rewind with foot only. Keep children away ■ and provide a dear path when

rewinding the cord to prevent

personal injury.

• DO NOT use outlets above counters. Damage from cord to

items in surrounding area

could occur.

Cord Rewind Button

3. Lower wand from upright position by pressing on the handle release pedal.

4. Select a pile height setting by pressing

the small pedal on the rear of the Power

Mate®. The pile height setting shows on the indicator. See SUGGESTED PILE HEIGHT SETTINGS.

CAUTION

DO NOT leave the Power-Mate* running in one spot in the upright position for any length of time. Damage

to carpet may occur.

1, Pull cord out of canister to desired length.

The cord will not rewind until the cord

rewind button is pushed.

NOTE: To reduce the risk of electric shock,

this vacuum cleaner has a polarized plug; one biade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, con tact a qualified electrician to install the prop er outlet. Do not change the plug in any

way.

2. Plug the polarized power cord into a 120 Volt outlet located near the floor.

To rewind: Unplug the cleaner. Hold the plug while rewinding to prevent damage or

injury from the moving cord. Push cord rewind button.

Attention: Refer to your carpet manufactur

ers cleaning recommendations. Some more delicate carpets may require that they be vacuumed with the Power-Mate® agitator turned off, to prevent carpet damage.

5. Select a switch position on the handle.

FLOOR - turns on the canister motor only. CARPET - turns on both the canister and

the Power-Mate® motors. NOTE - When this switch is in the FLOOR

position, the headlight DOES NOT function since no electricity flows to the Power Mate*.

Page 9

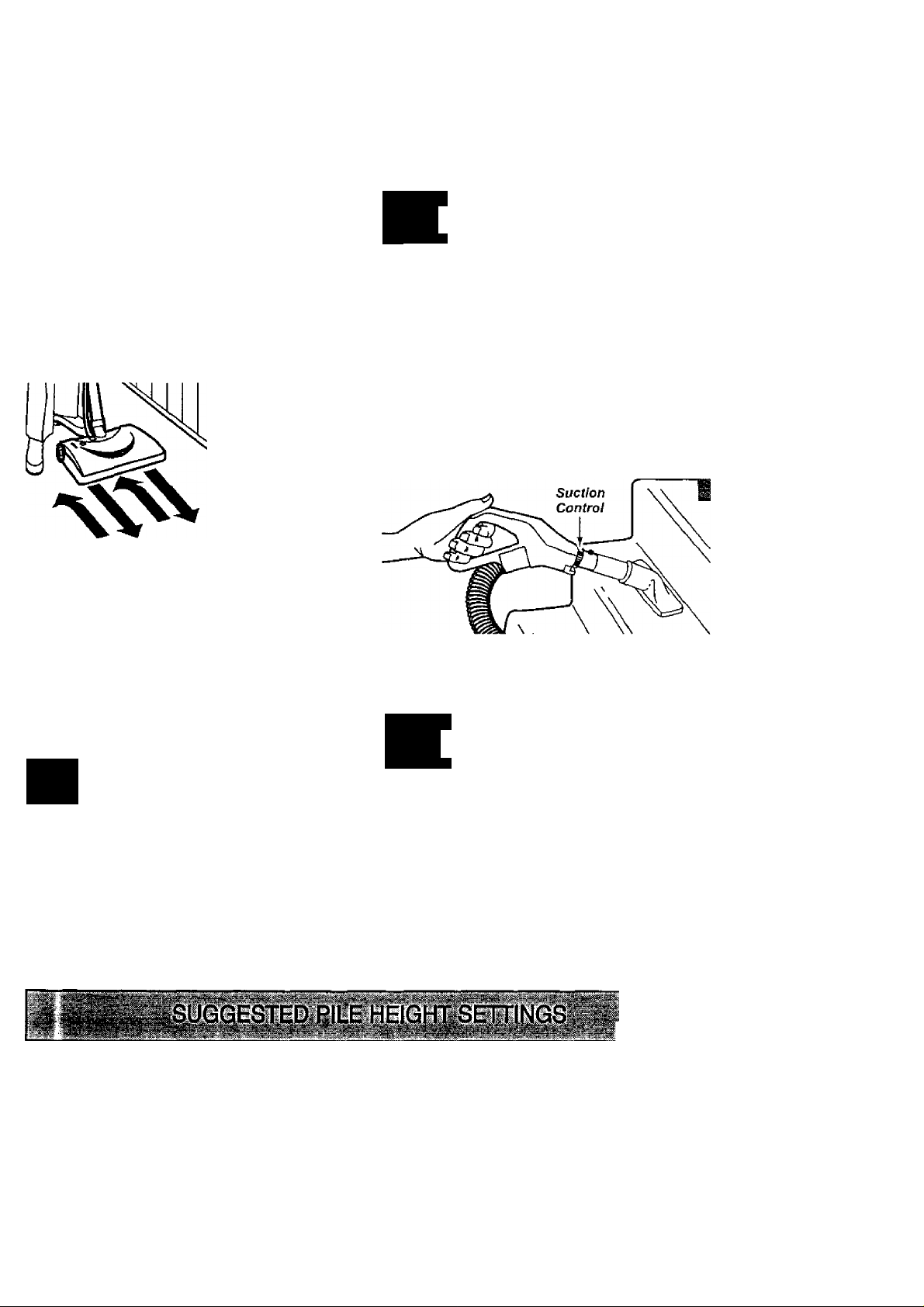

Suggested sweeping pattern.

For best cleaning action, the Power-Mate* should be pushed straight away from you and pulled straight back. At the end of each pull stroke, the direction of the Power-Mate* should be changed to point into the next section to be cleaned. This pattern should

be continued across the rug with slow, glid

ing motions.

NOTE: Fast,

jerky strokes do

not provide complete clean

ing.

The hose swivel allows the hose to turn without moving the canister. This is helpful for cleaning in small areas. Check hose for twisting before

pulling canister.

Carpeted stairs need to be vacuumed regu

larly. For best cleaning results, fully close the suction control.

WARNING

Personal Injury and Product Damage Hazard

• DO NOT ain over power cord with Power-Mate*. Persona!

injury or damage could result.

• DO NOT pull plug from wall by the power cord. If there is

damage to the cord or plug, personal injury or property damage could result.

WARNING

For best deep down cleaning, use the XLO setting. However, you may need to raise the height to make some jobs easier, such as scatter rugs and some deep pile carpets, and to prevent the vacuum cleaner from shutting off. Suggested settings are:

CAUTION

Product Damage Hazard Use care if the Power-Mate* and wand

is left in the upright position as it may tip over easily. Property damage can occur if tipped.

Personal Injury Hazard

Use care if canister is placed on stairs. If it falls, personal injury or property damage could result.

For best cleaning results, keep the airflow

passage open. Check each assembly area in HOW YOUR VACUUM WORKS occasion

ally for clogs. Unplug from outlet before

checking.

HI - Shag, deep pile, or scatter rugs, MED - Medium to deep pile, LO - Low to medium pile.

XLO - Most carpets and bare floors

Page 10

CAUTION

DO NOT attach or remove handle or wands while cleaner is ON. This could cause sparking and damage the elec trical contacts.

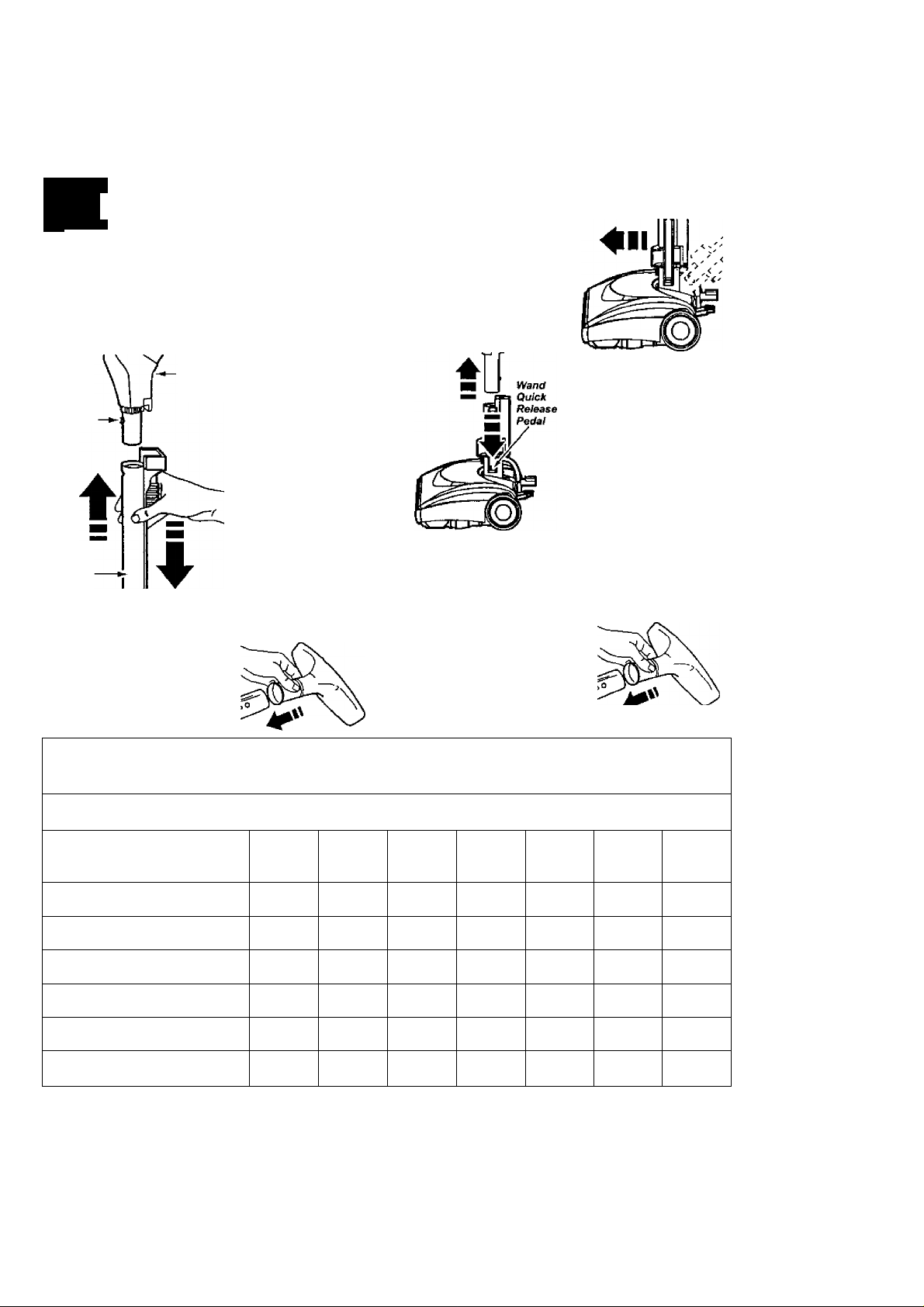

ATTACHMENTS ON HANDLE

ATTACHMENTS ON WANDS

1. To remove

wands from Power Mate®, lock wands in straight-up posi tion.

Handle

Lock Button

Upper Wand

If your model has the optional feature of a handle release, press it in similarly.

2. Slide attachments firmly on handle as need ed. See chart below.

NOTE: If the

Power-Mate® is attached, turn cleaner off ^ before removing handle from wands.

1. Press lock button, then pull to remove han dle from wand.

2. Press wa'nd release pedal

with foot and

pull the wands straight up out of Power-Mate®.

The Power-Mate® plug and cord do not have to be removed to use attachments on the wands.

3. Put attachments on wands as needed. See chart below.

CLEANING AREA

ATTACHMENT

Combination Brush Crevice Tool Roor Brush Power-Mate*

Handl-MateJr*

(Some Models)™

'Always clean attachments before using on fabrics. '' Power-Mate* switch should be in FLCX5R position.

Handi-Mate Jr.* and Power-Mate Jr.* attachnnent instructions are included with the products.

NOTE: When separating wands, depress lock button completely before pulling wands apart, wand lock button is difficult to depress, push the two wands more tightly together to line up the lock button with the hole. Depress lock button and then pull wands apart.

Furniture*

X X

Between

Cushions*

Drapes*

X X

Stairs

X X

Bare

Floors

X X**

Carpeted

Roors/RugsWalts

Page 11

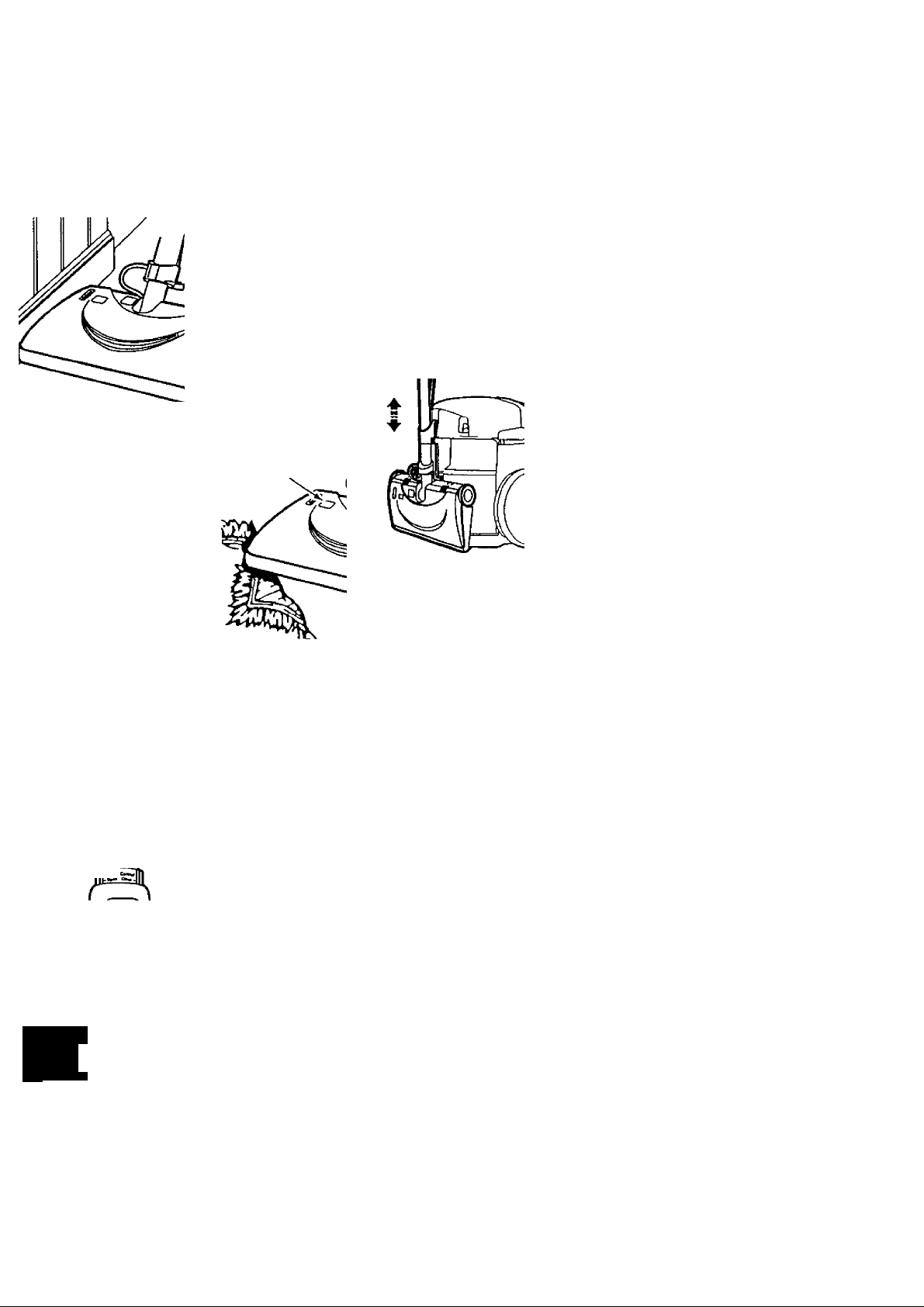

EDGE CLEANER

Active brush edge cleaners are on both sides of the Power-Mate®. Guide either side of the Power-Mate® along base-boards or next to furniture to help remove dirt trapped at carpet edges.

OVERLOAD PROTECTOR

The Power-Mate* has built-in protection against motor and belt damage should the brush jam. If the brush slows down or stops, the overload protector button pops up and shuts off the Power-Mate®. The canister motor will continue to run.

To correct problem: See

TROUBLESHOOTING.

To reset: Push in the overload protector

button.

SUCTION CONTROL

The suction control allows you to change

Suction

5 or,

Increase Suction

WARNING

Decrease

and carpet weights. Opening the control decreases suction for draperies and lightweight rugs,‘while closing the control increases suction for upholsteries and carpets.

the vacuum suction for different fabric

AUTO-CLEANING SYSTEM

This vacuum is equipped with an auto-clean ing system. Each time the power cord is extended a cleaning cam located inside the dust bin rotates and cleans the filter.

POWER-MATE® STORAGE

The lower wand has a “U” shaped flange in the area where the power cord attaches. The canis ter has a “U” shaped slot near ' the rear of the canis ter.

The slot allows the wands and Power-Mate® to be stored with the canister to conserve storage space.

The wand will slip out of the slot as it is lift

ed up for use and will slide into the slot as it is lowered for storage.

THERMAL PROTECTOR

This vacuum has a thermal protector which

automatically trips to protect the vacuum from overheating. The thermal protector turns the motor off automatically to allow the motor to cool in order to prevent possible damage to the vacuum.

To reset Turn off and unplug the vacuum

from the outlet to allow the vacuum to cool.

Check for and remove any clogs. Also check and replace any clogged filters. Wait approximately 30 minutes and plug the

vacuum in and turn back on to see if the

thermal protector has reset. In some cases, the unit may suddenly restart. DO NOT leave unattended while plugged in.

Personal Injury Hazard

Always unplug the vacuum cleaner before cleaning the brush area as brush may suddenly restart. Failure to do so can result in personal injury.

Page 12

The vacuum cleaner creates suction that

picks up dirt. Rapidly moving air carries the dirt to the dust bin through the airflow passages. The dust bin lets the air pass through, while it traps the dirt.

For best cleaning results, keep the airflow passage open. Check the starred areas occasionally for clogs. Unplug from outlet before checking

Dust

Bin

NISTER CARE

1. Unplug cord from wall outlet.

2. Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water, then wrung dry. Wipe dry after cleaning. DO NOT diip

water on cleaner.

3. To reduce static electricity and dust build up, wipe outer surface of cleaner and attachments.

______

CAUTION

Do not use attachments if they are wet. Attachments used in dirty areas, such as under a refrigerator, shouid not be used on other surfaces untii they are washed. They couid ieave marks.

Page 13

Always empty the dust bin when dirt level reaches the “MAX FILL* line.

TO EMPTY DUST BIN:

TO REMOVE DUST BIN:

Press down on

the dust bin

release tab locat

ed above the

handle of the dust bin.

dust bin is removed,

rotate cleaning knob

on top of dust bin at

least two complete

revolutions to clean filter and maintain cleaning perfor

mance.

Pull the handle and lift dust bin out of the vacu um cleaner.

Every time the

Cleaning

While holding dust bin over a trash can,

remove iid from dust bin by lifting off.

Pour dust bin contents into a trash container.

TO CLEAN FILTER

See To Clean Filter” under FILTER

CHANGING/CLEANING.

Remove any clogs that might be located in the dust bin port or the secondary filter.

TO REPLACE DUST BIN

Replace dust bin iid assembly by placing back on dust bin with the alignment rib on the iid aligned with the edge on the dust bin

Alignment rib

Place dust bin back into vacuum cleaner by insert ing until the dust bin release but ton locks dust bin securely In place.

Page 14

WARNING

Electrical Shock Hazard Unplug power cord from electrical out

let Do not operate the cleaner without

the primary or exhaust filters. Be sure the filters are properly installed to pre vent motor failure and/or electrical shock.

TO CLEAN FILTER

Clean primary filter by gently tapping over a

trash container. Tap on several sides to

ensure best cleaning. Rinse with water only

as needed. Allow 24 Hours to dry.

When cleaning the filter no longer restores vacuum suction to full power you need to replace the filter.

PRIMARY FILTER

Check primary filter frequently and clean when dirty.

TO REMOVE PRIMARY FILTER

Remove the dust bin and dust bin lid assembly as outlined in the DUST BIN CLEANING section.

While holding the dust bin lid assembly over a trash container, grasp filter, rotate counter clockwise and lift off.

Filter Cover

Slots

TO REPLACE PRIMARY FILTER '

Slide knocking cam inside the filter and align UNLOCK arrow on lid with one of four tabs located on the rim of the filter, rotate clock wise until the tab on the filter aligns with the LOCK arrow on the lid.

Unlock

Note: Under normal use and care, your filter

can be expected to last up to 5 years.

Page 15

SECONDARY FILTER

FOAM

WARNING

EXHAUST FILTER

HEPA

The exhaust filter must be replaced when dirty, it should be replaced regularly depending on use conditions.

Electrical Shock Hazard Do not operate the cleaner without the

motor safety filter. Be sure the filter is properly installed to prevent motor fail ure and/or electrical shock.

Always unplug power cord from electri cal outlet before performing any ser vice on vacuum.

Check secondary filter frequently and clean when dirty.

Remove the dust bin as outlined in the DUST BIN CLEANING section.

Remove secondary filter from vacuum cleaner.

The filter CANNOT be washed as it will lose its dust trapping ability.

NOTE; See PARTS AND FEATURES

for the exhaust filter number.

Press release tab on filter cartridge and puli out of canister. (Cover not shown for clarity).

Remove filter from cartridge by pushing out through the slot in the cartidge.

TO REPLACE FILTER

Wash the secondary filter in warm soapy water, rinse and dry thoroughly by squeez ing the filter in your hand and letting it air

dry.

DO NOT wash in the dishwasher. DO NOT install damp.

Replace dry secondary filler. Ensure filter is properly installed over filter opening.

Replace the dust bin as outlined in the DUST BIN CLEANING section.

Slide new filter into cartridge so that the foam side will face towards the canister, as shown.

The filter should be placed into the cartridge so that the “A" symbols align.

Replace the exhaust filter catridge by plac ing tabs in slots

and pushing down

until cartridge

snaps into place.

Page 16

Always follow ail safety precautions when cleaning and servicing the Power-Mate®,

|#>ing And AjirrUgR ci^iNd •'.f•;;

WARNING

Electrical Shock Or Personal Injury Hazard

Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical shock or personal injury from cleaner sud denly starting.

Disconnect cleaner from electrical outlet.

Check and remove hair, string and lint build up frequently in the Power-Mate® brush and brush support areas. If build-up becomes excessive, disconnect Power-Mate® from wand and follow the steps below.

TO REMOVE BELT

1. Turn Power Mate® upside down.

2. Unscrew the two (2) Power Mate® cover screws.

3. Turn Power Mate® right side up. Press handle release pedal and lower the swivel. Lift rear latches up.

5. Depress tabs on rear of agitator cover and rotate fon/vard to release from the Power

Mate® base.

End Cap

7. Check and clean end cap areas.

Agitator

Cover

6. Lift agitator assembly out and remove worn belt.

4. To remove cover, grasp the sides and puli out.

Page 17

TO CLEAN AGITATOR

TO REPLACE BELT

NOTE: In order to keep cleaning efficiency high and to prevent damage to your vacu um, the agitator must be cleaned every time

the belt is changed. The agitator must also be cleaned accord

ing to the following schedule:

Vacuum Use HEAVY -

(used daily)

MODERATE -

(used 2-3 times/week)

LIGHT -

(used 1time/week)

Clean Agitator

every week

every month

every 2 months

1. Install new

belt over motor drive, then over brush sprocket.

NOTE: See

PARTS AND

FEATURES for

belt number.

3. Reinstall

agitator

cover by lin

ing up the front tabs

and slots

and rotating

downward

until the

latches snap into place.

End Cap

Motor Drive

Agitator

2. Place agitator assembly back

into Power-Mate®!

5. Rotate cover

back. Press

cover firmly

until side and

rear tabs snap

into place. Turn

Power-Mate®

upside down and replace two

(2) cover screws.

4. Line up front of cover and

base. Rest cover on front edge of base as shown.

Page 18

1. Remove Power-Mate® cover as shown in

BELT CHANGING AND AGITATOR CLEAN

ING section.

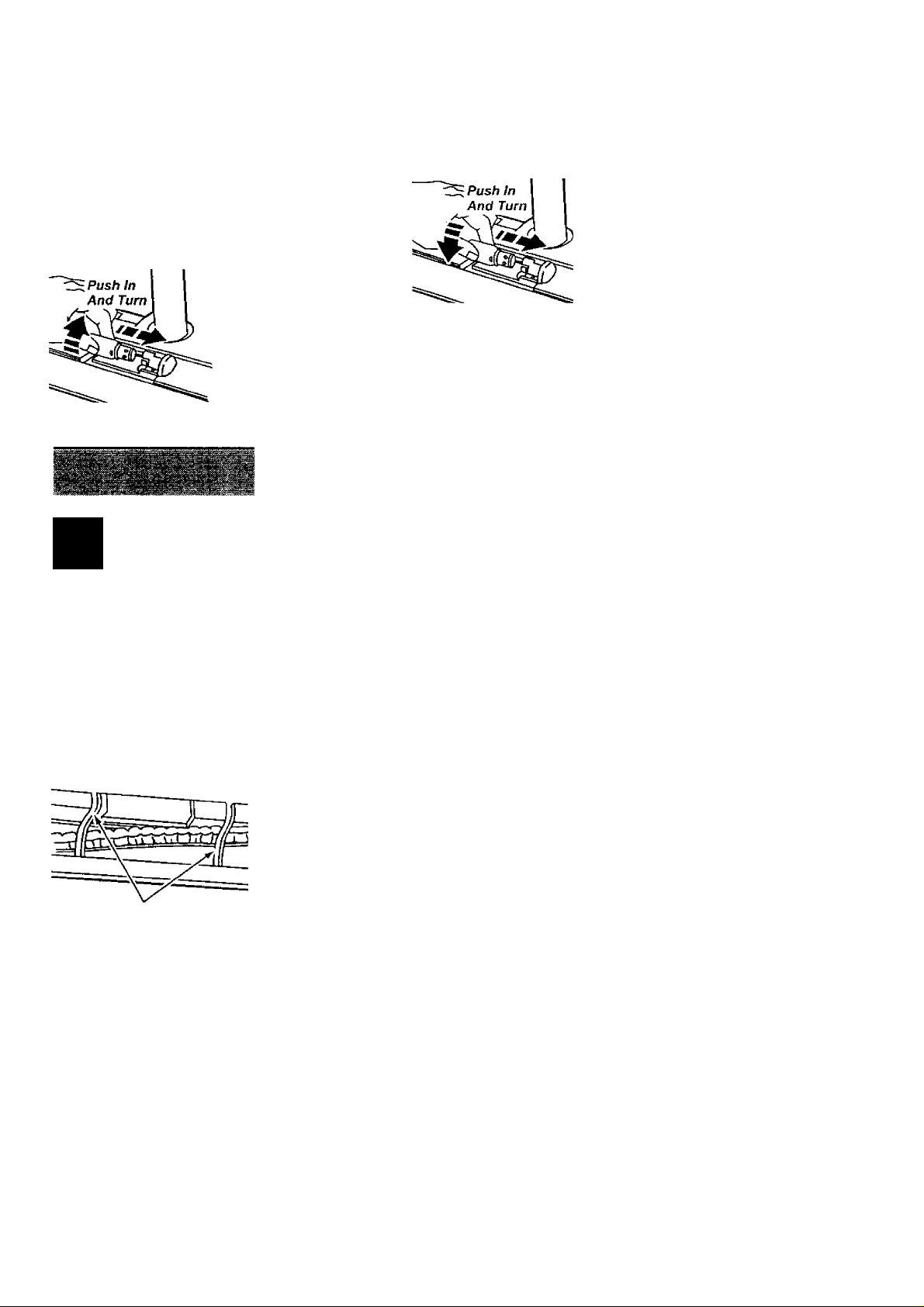

2. Push in and turn bulb counterclock

wise, then pull out to remove.

AGITAipPiSERVlCING ;

TO CHECK BRUSHES

WARNING

Electrical Shock Or Personal Injury Hazard

Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical shock or personal injury from cleaner sud denly starting.

3. Push in and turn bulb clockwise, to replace. Bulb must not be higher than 15 Watts(130 Volts).

4. Reinstall Power-Mate® cover as shown in BELT CHANGING AND AGITATOR CLEAN ING section,

NOTE: See PARTS AND FEATURES for

bulb number.

TO REPLACE AGITATOR

1. Remove Power-Mate* cover, belt and

agitator assembly. See “To Remove Belt" in

BELT CHANGING AND AGITATOR CLEANING.

2. Replace agitator assembly

3. Reassemble belt, agitator assembly, Power-Mate®cover, light bulb and light cover. See 'To replace belt" In BELT CHANGING AND AGITATOR CLEANING.

Base Support Bars

When brushes are worn to the level of the base support bars,

replace the

agitator.

Page 19

Review this table to find do-it-yourself solutions for minor performance problems. Any service needed, other than those described in this owner’s manual, should be performed by an autho rized Sears Service Center.

WARNING Electrical Shock Hazard

Disconnect electrical supply before servicing or cleaning the unit. Failure

to do so could result in electrical shock or personal injury.

Cleaner won’t start.

Poor job ot dirt

pick-up.

Cleaner starts but cuts off.

Power-Mate* will not run when attached.

POSSIBLE CAUSE

1. Unplugged at wall outlet.

2. Tripped circuit breakerAilown fuse at household service panel.

3. Loose hose electrical connections.

4. Tripped thermal protector in canister.

1. Full or clogged dust bin.

2. Clogged airflow passages.

3. Dirty filters.

4. Wrong pile height setting,

5. Open suction control.

6. Hole in hose.

7. Worn Power-Mate* agitator.

8. Worn or broken bell.

9. Dirty brush or brush supports.

1. Hose electrical connections.

2. Tripped overload protector in

Power-Mate*.

3. Tripped thermal protector

in canister.

1. Power-Mate* connections

unplugged.

2. Worn or broken bell.

3. Dirty agitator or agitator supports.

4. Tripped overload protector in

Power-Mate*

POSSlBil^SdliOTION "

1. Plug in firmly, push ON/OFF switch to ON.

2. Reset circuit breaker or replace fuse.

3. Reconnect hose ends, (page 7).

4. Reset thermal protector, (page 11).

1. Empty dust din, (page 13).

2. Clear airflow passages, (page 12).

3. Clean/change filters, (page 14,15).

4. Adjust setting, (page 8,9).

5. Adjust control, (page 11).

6. Replace hose.

7. Change agitator, (page 18).

8 & 9, See BELT CHANGING AND AGITATOR

CLEANING, (pages 16,17).

1. Check connections, reconnect hose

ends, (page 7).

2. Remove any items that may be caught

or jammed, then reset. II cleaner starts and stops again, clean agitator and agitator

supports, then reset, (pages 11,16-17).

3. Reset thermal protector, (page 11).

1. Plug in firmly, (page 6).

2 & 3. See BELT CHANGING AND AGITATOR

CLEANING, (pages 16-17).

4. Check brush area for excessive lint build-up or jamming. Clean agitator and agitator supports, then reset,

(pages 11,16-17).

Cleaner picks up moveable

rugs -or- Power-Mate*

pushes too hard. Light wont work. Cord wont rewind.

Cleaner leaves marks on carpet.

1. Wrong pile height setting.

2. Suction too strong.

1. Burned out light bulb.

1. Dirty power cord.

2. Cord jammed.

1. Wrong vacuuming pattern.

1. Adjust setting, (page 8,9).

2. Open suction control, (page 11).

1. Change light bulb, (page 18).

1. Clean the power cord.

2. Pull out cord and rewind.

1. See VACUUMING TIPS, (page 9).

Page 20

Page 21

home or oursi

Íy^-iv<• 'i

^^MÍÍÍMÍÍM^^^^^^gilMi|«fciiÍIÍilÍ

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances and items like garage door openers and water heaters.

1-800-4-MY-HOME® Anytime, day or night

(1 -800-469-4663) (U.S.A. and Canada)

www.sears.com

www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1 -800-488-1222 Anytime, day or night {U.S.A. only)

www.sears.com

/ To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

p\ 1 -800-827-6655 (U S A.) 1 -800-361 -6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®^

{1-888-784-6427)

® Registered Trademark / ™ Trademark / Senrice Mark of Sears. Roebuck and Co. ® Marca Registrada / ™ Marca de Fábrica / Marca de Servicio de Sears, Roebuck and Co.

Marque de commerce / Marque déposée de Sears, Roebuck and Co.

Au Canada pour service en français:

1-800-LE-FOYER'^

(1-800-533-6937)

www.sears.ca
