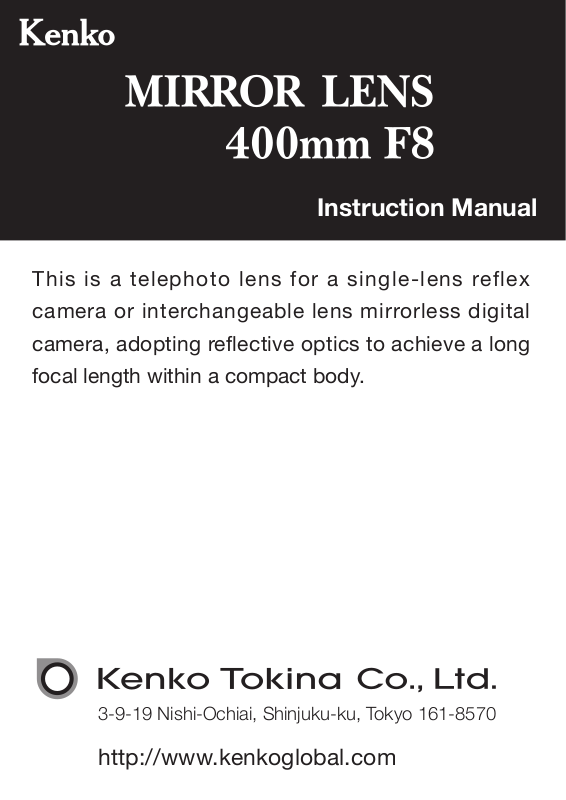

Kenko 400MM F8 User Manual

Instruction Manual

This is a telephoto lens for a single-lens re f l e x

camera or interchangeable lens mirrorless digital

camera, adopting reflective optics to achieve a long

focal length within a compact body.

3-9-19 Nishi-Ochiai, Shinjuku-ku, Tokyo 161-8570

http://www.kenkoglobal.com

1. Name of Each Part

① Focus ring

② Distance scale (in feet)

③

Distance scale (in meters)

④

Macro magnification scale

⑤

Distance scale indicator mark

⑥

T-mount adapter (Sold separately)

⑦

T-mount attachment thread

⑧

Filter attachment thread (Inside of rear)

⑨

Filter attachment thread (Front)

[Fig. 1]

② ③ ⑤①

10 12 15 20 30 50 100 ftMACRO

3 3.5 4 5 6 8 10 15 30 m1:3.5 1:4 1:4.5

⑥

④

[Fig. 1 Lens with T-Mount Removed]

10 12 15 20 30 50 100 ftMACRO

⑨

＊ The shape of the T-mount varies among the different camera brands.

3 3.5 4 5 6 8 10 15 30 m1:3.5 1:4 1:4.5

⑦

(Inside)

⑧

2. Attaching the Lens to the Camera

Align the indicator marks on the T-mount and the camera,

and then turn the lens until you hear a “click.”

(For attachment and removal, refer to “Attaching the Lens”

and “Removing the Lens” in your camera's manual.)

Check the attached lens for any looseness.

10 12 15 20 30 50 100 ftMACRO

3 3.5 4 5 6 8 10 15 30 m1:3.5 1:4 1:4.5

CameraT-mount
