1. PREFACE

1.1 GENERAL

Congratulations on choosing the Kempoweld power source. Used correctly, Kemppi products
can signicantly increase the productivity of your welding, and provide years of economical
service.

This operating manual contains important information on the use, maintenance and safety of
your Kemppi product. The technical specications of the equipment can be found at the end
of the manual.

Please read the manual carefully before using the equipment for the rst time. For your
own safety and that of your working environment, pay particular attention to the safety
instructions in the manual.

For more information on Kemppi products, contact Kemppi Oy, consult an authorised Kemppi
dealer, or visit the Kemppi web site at www.kemppi.com.

The specications presented in this manual are subject to change without prior notice.

Important notes

Items in the manual that require particular attention in order to minimise damage and
personal harm are indicated with the ’NOTE!’ notation. Read these sections carefully and follow
their instructions.

Disclaimer

While every eort has been made to ensure that the information contained in this guide
is accurate and complete, no liability can be accepted for any errors or omissions. Kemppi
reserves the right to change the specication of the product described at any time without
prior notice. Do not copy, record, reproduce or transmit the contents of this guide without
prior permission from Kemppi.

1.2 PRODUCT INTRODUCTION

The power sources Kempoweld 3200 and 3200W with wire feeder unit WIRE 400 makes
together 320 A MIG welding equipment, which is suitable for heavy industrial use. To the
product range belong in addition also the power sources Kempoweld 4200, 4200W and
5500W. Kempoweld 3200W has inbuilt water cooling unit.

Power source: Supply voltage of the power source is 3~ 230 V / 400 V. Voltage of power
source is adjusted with turn type switches; together 40 steps. The Volt/Ampere metering unit
MSD-1 (accessory) which is included in the power source displays voltage or welding current.

Wire feeder unit: The wire feeder unit WIRE 400 is a 4-roll driven unit, which is suitable for air­or liquid-cooled guns. The unit may be turnable above the power source or it may be locked at
its place. You can use the WIRE 400 wire feeder unit equipped also with interconnection cable
and push-pull gun. KMW timer controls continuous, spot and cycle-arc welding. Accessory
unit KMW sync is needed for connection and use of push-pull guns.

3

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

1.3 KEMPOWELD PANELS

1.3.1 Operation control and connectors

S1, H1

H2

S2

S3

X1

05

X2

S1 Main switch (pilot lamp H1)
S2 Voltage selecting switch (coarse grading)
S3 Voltage selecting switch (ne grading)
H2 Pilot lamp for overheating (power source)
X1 Return current connector (coarser arc)
X2 Return current connector (softer arc)
05 Accessory drawer
MSD-1 V/A metering unit (accessory)

1.3.2 Parts of cooling unit Kempoweld 3200W

Sw1

F2
S4

Hw4

Hw3

MSD-1

Sw2

S4 Main switch of cooling unit
Sw1 Selecting switch for gun´s cooling mode
Sw2 Water cooling test switch
Hw4 Pilot lamp for overheating
Hw3 Pilot lamp for lacking water pressure

4

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

F2 Fuse for cooling unit (2 A delayed)
02 Water circulation return connector
03 Water circulation output connector
04 Filler hole for water tank

1.3.3 Rear plate of Kempoweld 3200, 3200W

02
03

01

X3

F1
X4

01 Inlet of mains cable
F1 Fuse of auxiliary transformer (8 A delayed)
X3 Welding current connector for wire feeder unit (+ pole)
X4 Control connector for wire feeder unit

1.4 WIRE FEEDER PANELS

1.4.1 Front panel

K1

K2

R2

K3

X1

01

02

R1

X1

R1 Adjustment for wire feed
X1 Welding gun connector (EURO)
K1 Trigger function mode (continuous/hold)
K2 Welding mode selection (continuous/spot/cycle arc)
R2 Adjustment for welding mode timing (spot or cycle time)

5

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

1.4.2 Accessories

KMW sync

K3 Wire feed adjustment selection (panel or push-pull gun)
X1 Control connector for push-pull gun

1.4.3 Cooling unit connections

01 Return water connector for gun
02 Feed water connector for gun
04 Inlet of water hoses

1.4.4 Rear panel

X3

X2
03

04

03 Shielding gas connector
X2 Control cable connector (Kempoweld or interconnection cable)
X3 Welding current connection (Kempoweld or interconnection cable)

1.4.5 Inside wire feeder unit

K4 Wire inch switch (wire feed into gun)
R3 Burn back time adjustment (according to ller material and wire feed)
04 Locking device for wire reel
05 Box door latch
06 Box door lock
07 Wire feed mechanism

6

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

2. INSTALLATION

2.1 POSITIONING OF THE MACHINE

Place the machine on a rm, dry and level surface. Where possible, do not allow dust or other
impurities to enter the machines cooling air ow. Preferably site the machine above oor level;
for example on a suitable carriage unit.

Notes for positioning the machine

• The surface inclination should not exceed 15 degrees.

• Ensure the free circulation of the cooling air. There must be at least 20 cm of free space in

front of and behind the machine for cooling air to circulate.

• Protect the machine against heavy rain and direct sunshine.

NOTE! The machine should not be operated in the rain as the protection class of the machine,

IP23S, allows for outside preserving and storage only.

NOTE! Never aim metallic grinding spray/sparks towards the equipment.

2.2 DISTRIBUTION NETWORK

All regular electrical devices without special circuits generate harmonic currents into
distribution network. High rates of harmonic current may cause losses and disturbance to
some equipment.

This equipment complies with IEC 61000-3-12 provided that the short-circuit power Ssc
is greater than or equal to 0.9 MVA at the interface point between the user’s supply and
the public supply network. It is the responsibility of the installer or user of the equipment
to ensure, by consultation with the distribution network operator if necessary, that the
equipment is connected only to a supply with a short-circuit power Ssc greater than or equal

to 0.9 MVA.

2.3 CONNECTION TO THE MAINS SUPPLY

NOTE! Connection and change of the mains cable and the plug must be carried out only by a

competent electrician. Remove for the mounting of the mains cable the left side plate, seen from
the front of the power source.

The Kempoweld power source is equipped with 5 m supply cable without plug. The mains
cable is according to the marking H07RN-F of the norm CENELEC HD22.The mains cable must
be changed if it does not meet local regulations.

Mounting of the mains cable

05

7

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

The cable is entered into the machine through the inlet ring on the rear wall of the machine
and locked with a cable clamp (05).

The phase conductors of the cable are coupled to connectors L1, L2 and L3. The earth
protection coloured green-yellow is coupled to connector marked with earth protection
symbol

. If you are using 5-conductor cable, you must cut the zero conductor to the level of

the cable´s protective shield.

Sizes of mains cables and fuse ratings for the machine at 100% ED duty cycle are
specied in the table below:

Kempoweld 3200, 3200W

Connected voltage 230 V 400 V

Voltage range 220 – 240 V 380 – 415 V
Fuses, delayed 20 A 16 A
Connected cable 4 x 2.5 S mm² 4 x 2.5 S mm²

In cables of S type there is protective grounding conductor coloured green-yellow.

NOTE! This equipment’s electromagnetic compatibility (EMC) is designed for use in an industrial

environment. Class A equipment is not intended for use in residential location where the electrical
power is provided by the public low-voltage supply system.

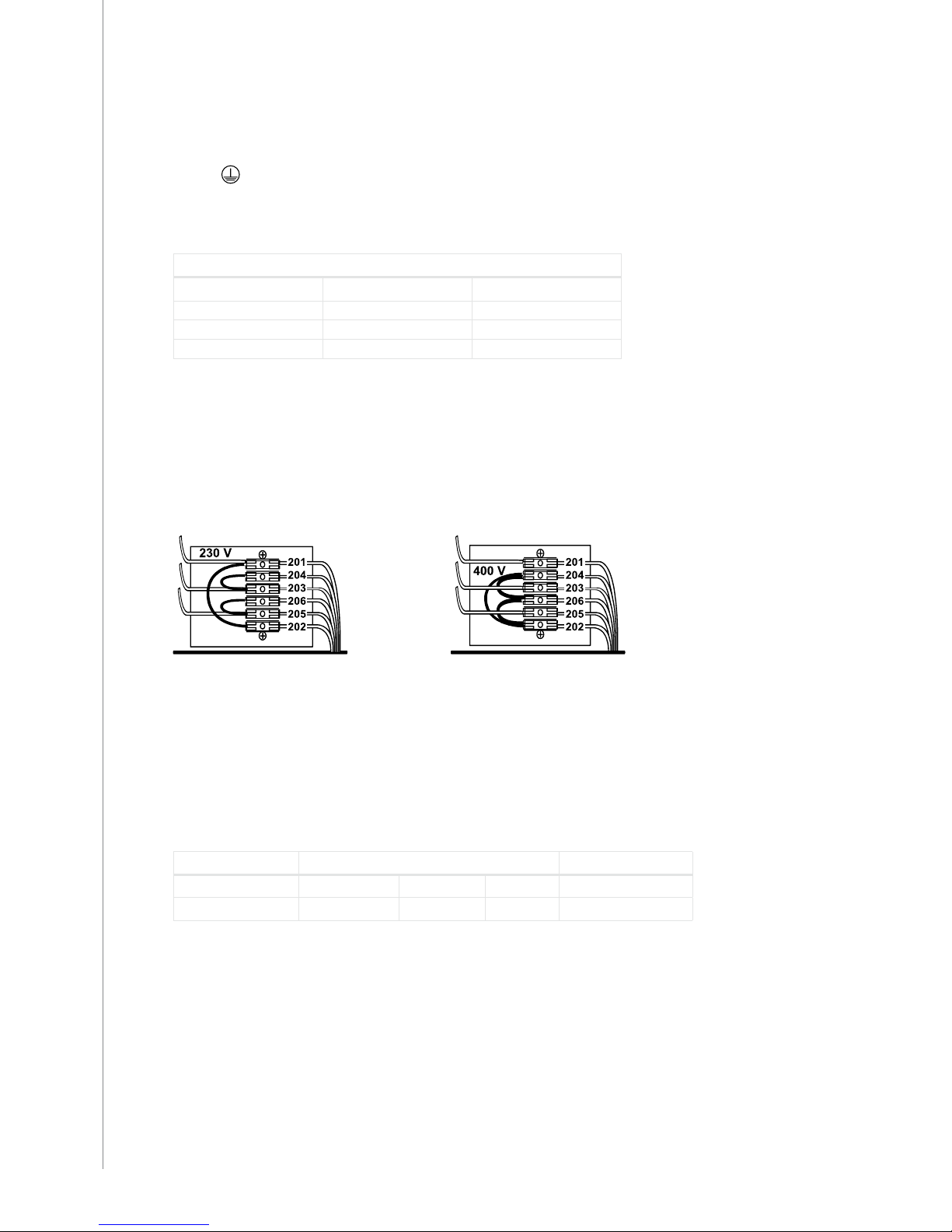

Change of mains voltage

Connection 3~ 230 or 3~ 400 V of mains voltage

By delivery from the factory the machine has been connected for mains voltage 3~ 400 V.
In order to change the mains voltage, remove the side plate of the machine. Change the
connections according to the enclosed diagram. You nd the corresponding wiring diagram
on the instruction label, which is under terminal block.

2.4 WELDING AND RETURN CURRENT CABLES

Use only copper cables with cross-sectional area of at least 50 mm². In enclosed table
are shown typical loading capacities of rubber insulated copper cables, when ambient
temperature is 25 °C and conductor temperature is 85 °C.

cable cross-section duty cycle ED voltage loss / 10 m

Cu 100 % 60 % 40 % for 100 A
50 mm² 285 A 370 A 450 A 0.35 V

Fasten the earthing press of the return current cable carefully, preferably direct onto the piece
to be welded. The contact surface area of the press should always be as large and steady as
possible.

Do not overload welding cables over permissible values due to voltage losses and heating.
Clean the contact surface from paint and rust.

8

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

2.5 OPERATION AND USE OF CONTROLS

See the page for Kempoweld PANELS and COOLING UNIT.

2.5.1 Main switch (S1)

In zero position all control and welding current circuits of the equipment are dead (without
voltage). In position I the control circuits of the machine become live (get voltage). The
primary and welding circuits are dead, if the welding mode has not been started with the gun
trigger.

NOTE! Always switch on and switch o the machine from the main switch. Never use the mains

plug for switching on or switching o the units and equipment!

2.5.2 Adjustment of welding voltage,

Table of adjustments, switch positions:

coarse control fine control open circuit voltage

1 / 4 1 / 10 – 10 / 10 15.5 – 18.2 V
2 / 4 1 / 10 – 10 / 10 18.6 – 22.5 V
3 / 4 1 / 10 – 10 / 10 23.1 – 29.3 V
4 / 4 1 / 10 – 10 / 10 30.4 – 41.6 V

The welding voltage is adjusted with two turn switches. The S2 is the 4-step switch for coarse
control, where voltage value of each step can be ne-adjusted with the 10-step switch S3.

2.5.3 Pilot lamps

Pilot lamps of the machine report about electric function:

The green pilot lamp H1 indicating that the machine is ready for operation is always lit, when
the machine is connected to mains voltage and the main switch is on position I.

The yellow pilot lamp H2 is lit, when thermal protection of the welding circuit has released
due to overheating. The protection releases if the power source is continuously loaded over
rated values or the cooling air circulation has been obstructed.

2.5.4 Control fuse (F1)

On the rear plate of the power source the fuse (F1) 8 A delayed is the short-circuit protection.
Use the fuse size and type according to markings. Damage caused by a wrong type fuse is not
covered by the guarantee. If the fuse is blowing again, send the unit to service.

2.5.5 Adjustment for arc roughness

Arc roughness is adjusted by connecting the return current cable to the applicable one of the
two dix-connectors on the front plate.

The connector marked with shorter symbol gives a rougher arc, which is used for welding
of thin sheets and ferrous metals by 0.6 – 1.0 mm wires and especially with CO² shielding
gas. The connector marked with longer symbol is suitable for thicker wires and especially for
aluminium and stainless materials. The most suitable roughness is, however, most dependent
on the welding case. You will nd the best position by testing the dierent positions.

2.5.6 Operation of cooling fan

The cooling fan on the rear plate of the Kempoweld 3200 equipment is started and stopped
according to use. The cooling fan is controlled by the gun trigger and control circuits. The
cooling fan is started after ca. 15 s after weld start and stopped after ca. 10 min after weld end
or release of the overheat protection.

NOTE! Do not switch o the unit with the main switch before the cooling fan has automatically

stopped. By open circuit the cooling fan does not get started.

9

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

2.5.7 Accessory drawer

In the accessory drawer in the cover part of the unit are by delivery the plastic guide tubes
needed for welding of aluminium and stainless steels. In the drawer are also the screw and the
insulation bushings needed for locking of rotation of the wire feeder Kempoweld WIRE 400.

2.5.8 Adjustment for wire feed

The wire feed is adjusted from the potentiometer on the control panel of the wire feeder unit
Kempoweld WIRE 400. The adjustment has been described in the operation instructions of the
wire feeder unit.

2.6 VOLT / AMPERE METERING UNIT MSD1

For the mounting of the MSD-1 remove the cover plate on the front panel of the unit.
The connector of at cable fastened to the cover plate is connected to the corresponding
connector of the MSD-1. From the metering unit you can with lever switch select momentary
display for either voltage or current. By open circuit only voltage value is displayed, because
there is no welding current present.

The voltage value is the voltage between the unit´s welding connectors or terminal voltage.
The value of the open circuit voltage has not very much importance for the welding, so that
the display of the metering unit is adjusted according to the welding situation. The display
of the open circuit voltage diers 2 – 3 V from the true voltage. During welding the terminal
voltage is varying and the arc voltage diers from the terminal voltage due to cable etc. losses.
Accuracy of voltage true value in respect to real value is ±4,0 %, ±0,2 V by welding values
according to the norm.

Accuracy of current true value in respect to real value is ±2,5 %, ±2 A.
The metering unit does not show wire feed values.
The MSD-1 does not need any calibration in the Kempoweld power source.
The switch positions: V = voltage display, A = current display.

2.7 COOLING UNIT

Kempoweld 3200W power source has inbuilt cooling unit.

2.7.1 Installation of cooling

The cooling unit is connected to the gun by means of water hoses, which are mounted to the
wire feeder unit. The interconnection cable contains also the water hoses, which are mounted
to the gun through the wire feeder unit without any extension parts. See operation instruction
for Kempoweld WIRE feeders.

Before connection check that in the hoses are no dirt, metal powder, rubber waste etc. The
connectors for hoses and cooling unit are marked with red or blue identication rings or
spots. Blue is colour for water supplied from cooling unit to gun and red is colour for water
returning back from gun to cooling unit.

The cooling unit´s tank is lled with 40 % antifreeze according to British Standard BS3151. If
the circumstances do not require frost resistance, you can use a more dilute mixture, or some
other mixture, of which you have good experriences.

Tank volume is ca. 3 litres, volume of gun and interconnection cable is 0.3 – 1.5 litres. Filling of
hoses takes 5 s – 3 min time. Check the return ow to the tank. Before lling check that tank,
cooling water, pouring tank etc. are clean, and that there is no metal powder, waste etc.

10

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

NOTE! If the water does not start circulating, see paragraph Operation disturbances: “The water does

not circulate ... etc.
Do not let any waste and dirt into the water circulation! Check lling volume before starting to weld!
Use the cooling liquid according to recommendations, or the one you know as good beforehand.
Watch over liquid material´s quality and possible sediments in hoses of the gun.
Do not swallow cooling liquid. If somebody has swallowed the liquid, take him immediately to
medical care. Avoid contact with skin and eyes, wash the liquid from your skin with clean water.

2.7.2 Operation switches

In zero (O) position of the power source´s main switch also all operations of the cooling unit
are stopped.

Cooling unit´s main switch O / I

The electric supply for the pump motor is switched on by main switch key O / I, where the
pilot lamp indicates the standby state I. In zero (O) position of the main switch the pump
motor cannot get started, but the switches and pilot lamps are operating.

Fuse (F2)

The fuse on the front wall of the cooling unit is short-circuit protection. Use the fuse size and
type according to markings. If the fuse is blowing again, send the unit to service.

Selecting switch for gun’s cooling mode (Sw1)

The Kempoweld equipment are suitable to be used with both air- and water-cooled guns.
Select cooling mode and correct use and protection functions with switch on the cooling
unit´s panel.

If your choice is GAS, but you are using water-cooled gun, no protection is operating. The pilot
lamp is illuminated in position I of the cooling unit´s main switch. However, the control does
not start the pump.

The wrong choice will destroy the gun in short time!

If your choice is (water), but you are using air-cooled gun, the pump gets started by
pressing on the trigger, if the cooling unit´s main switch is in position I.

Test switch (Sw5)

By TEST switch on the panel of the cooling unit you can circulate water without starting
welding. It is used for lling the gun and interconnection cable with cooling water before
starting welding. By disturbance situations you can always test the water circulation. Always
check entry of return water into the tank before welding!

Pilot lamps

Pilot lamp for overheating (Hw4)

If the cooling water in the tank is overheating, the thermal protection will stop the power
source. Operation of the cooling unit is continued for ca. 5 – 7 min automatically. The pilot
lamp will switch o after the water in the tank has cooled down, after which the welding will
start from the gun triggering.

Pilot lamp for lacking liquid pressure (Hw3)

If the pump does not step up sucient supply pressure, e.g. when the water is running out
or by disturbances in the pump, the whole equipment will stop after ca. 5 s and the red pilot
lamp illuminates. Check the equipment like by the installation. See paragraph for OPERATION
DISTURBANCES.

Operating control

The water circulation gets automatically started, when you are pressing on the gun trigger.
The post-circulation of water will continue for ca. 5 – 7 min. after the weld end. The time is
always counted from the latest trigger release.

11

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

3. OPERATION DISTURBANCES

By the operation or functional disturbances take the measures according to the following list.
If the disturbance cannot be eliminated, check the equipment according to the paragraphs

Installation and Maintenance, and take contact with Authorized Kemppi repair workshop.

The pump does not get started by test switch:

• check the fuse on the front plate of the cooling unit

• check the fuse on the rear plate of the power source

• check position for cooling mode selecting switch

• check positions for main switches

The water does not circulate by lever switch:

• check the tank lling volume

• disconnect the connector for the return water hose of the gun from the rear wall of the

cooling unit and use thet test switch
If the water is pumped, close the connector and run again by the test switch
A good tip: Blow compressed air into the tank; closing the lling opening by hand is enough.

The water is pumping, but does not return back to the tank or the return ow is
weak:

• lling of interconnection cable can take several minutes

• if you have lifted the gun or interconnection cable for the lling time many meters

higher than the power source, the lling will happen considerably slower. Fill the hoses

on the oor position.

• check the whole owing line connector by connector

The water is pumping, but during welding the red pilot lamp for the water
pressure is lit and the equipment is stopped:

• check the cooling water volume and return ow to the tank

• in the system are air bubbles or leakages, especially check the connections of the cooling

unit.

• the pressure switch set value (ca. 1 bar) is unsuitable for the gun you are using:

1. Open the side plate. In the middle at the upper end of the pressure guard connected to

the pump is the adjusting screw for limit value.

2. Use the pump during the adjustment by the test switch.

3. After ca. 5 s use twist the screw carefully until the pilot lamp is switched o.

4. Check the result by welding.

5. If the adjustment and checkings do not eliminate the disturbance, take contact with the

Authorized Kemppi repair workshop.

During welding the yellow pilot lamp for overheating is lit and the equipment is
stopped:

• release the trigger. When the lamp is switched o, the operation has been reset
automatically

• check if the gun is suitable for power you are using

• check condition of connectors and connections in the welding current circuit

12

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

4. MAINTENANCE

The amount of use and the working environment should be taken into consideration
when planning the frequency of maintenance of the machine. Careful use and preventive
maintenance will help to ensure trouble-free operation.

Cables

Check the condition of welding and connection cables daily. Do not use faulty cables! Make
sure that the mains connection cables in use are safe and according to regulations! The
repair and mounting of mains connection cables should be carried out only by an authorized
electrician.

Power source

NOTE! Disconnect the plug of the power source from the mains socket before removing the cover

plate.

Check at least every 6 months (twice a year):

• Electric connections of the unit - clean the oxidized parts and tighten the loosened ones.

NOTE! You must know correct tension torques before starting the repair of the joints.

• Clean the inner parts of the machine from dust and dirt e.g. with soft brush and vacuum
cleaner.

Do not use compressed air, there is a risk that dirt is packed even more tightly into gaps of
components!

Do not use pressure washing device!
Only authorized electrician shall carry out repairs to the machines.

Regular maintenance

Kemppi service repair workshops make regular maintenance according to agreement.
The major points in the maintenance procedure are listed as follows:

• Cleaning of the machine

• Checking and maintenance of the welding tools

• Checking of connectors, switches and potentiometers

• Checking of electric connections

• Metering units checking

• Checking of mains cable and plug

• Damaged parts or parts in bad connection are replaced by new ones

• Maintenance testing. Operation and performance values of the equipment are checked,

and adjusted when necessary by means of test equipment.

4.1 DISPOSAL OF THE MACHINE

Do not dispose of electrical equipment with normal waste!
In observance of European Directive 2002/96/EC on waste electrical and electronic

equipment, and its implementation in accordance with national law, electrical equipment
that has reached the end of its life must be collected separately and taken to an appropriate
environmentally responsible recycling facility.

The owner of the equipment is obliged to deliver a decommissioned unit to a regional
collection centre, per the instructions of local authorities or a Kemppi representative. By
applying this European Directive you will improve the environment and human health.

13

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

5. ORDERING NUMBERS

Units

Kempoweld 3200 230 V / 400 V 621532002
Kempoweld 3200W 230 V / 400 V 621632002

Wire feeder unit

Kempoweld WIRE 400 621740001

Accessories

KMW sync 2 6219150
MSD-1 6185666
P500 transport unit (feeder) 6185265
KV400 swing arm 6185247
KV400 50-1.5-GH 6260351
KV400 50-1.7-WH 6260353
Hub for wire reel 4289880
Branch cable KMP/Kempoweld 3151360

MIG guns

Air-cooled:

KMG 32 3 m 6253033
KMG 32 4,5 m 6253034
MMT 32 3 m 6253213MMT
MMT 32 4.5 m 6253214MMT
MMT 35 3 m 6253513MMT
MMT 35 4,5 m 6253514MMT
WS 35 (Al 1.2) 6 m 6253516A12
WS 35 (SS 1.0) 6 m 6253516S10
KMP 300 6 m 6257306
KMP 300 10 m 6257310

Liquid-cooled:

MT 51W 3 m 6255046
MT 51W 4.5 m 6255047
MMT 30W 3 m 6253043MMT
MMT 30W 4.5 m 6253044MMT
KMP 400W 6 m 6257406
KMP 400W 10 m 6257410
WS 30W (Al 1.2-1.6) 6 m 6253046A12
WS 30W (SS 1.0) 6 m 6253046S10
WS 30W (SS 1.2) 6 m 6253046S12
WS 30W (Al 1.2-1.6) 8 m 6253048A12
WS 30W (SS 1.0) 8 m 6253048S10
WS 30W (SS 1.2) 8 m 6253048S12

14

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

Air-cooled interconnection cables

Mounting cables for short distance:

KW 50-1.3-GH 6260350

Interconnection cables for long distance:

Multimig 50-5-GH 626010401
Multimig 50-10-GH 626010601

Liquid-cooled interconnection cables

Mounting cables for short distance:

KW 50-1.5-WH 6260352

Interconnection cables for long distance:

KW 50-5-WH 626035401
KW 50-10-WH 626035601

Return current cable

5 m - 50 mm² 6184511

15

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

6. TECHNICAL DATA

Kempoweld 3200 3200W

Connection voltage

3 ~ 400 V 380 V -10 % ... 415 V +6 % 380 V -10 % ... 415 V +6 %

3 ~ 230 V 220 V -10 % ... 240 V +6 % 220 V -10 % ... 240 V +6 %

Connection capacity 230 V / 400 V

40 % ED 13,6 kVA 13,6 kVA

60 % ED 10,0 kVA 10,0 kVA

100 % ED 6,6 kVA 6,6 kVA

Main cable / fuses

220 - 240 V 4 x 2,5 mm² / 20 A delayed 4 x 2,5 mm² / 20 A delayed

380 - 415 V 4 x 2,5 mm² / 16 A delayed 4 x 2,5 mm² / 16 A delayed

Connection to wire feeder unit

30 V / 250 VA 30 V / 250 VA

- Fuse delayed

8 A 8 A

Loading capacity (nominal values)

40 % ED 320 A / 32 V 320 A / 32 V

60 % ED 265 A / 27 V 265 A / 27 V

100 % ED 205 A / 24 V 205 A / 24 V

Control range 40 steps

40 – 320 A / 15 – 32 V 40 – 320 A / 15 – 32 V

Open circuit voltage 40 steps

15 – 40 V 15 – 40 V

Open circuit power

< 50 W < 50 W

Efficiency

320 A / 32 V 75 % 75 %

Power factor

320 A / 32 V 0,95 0,95

Temperature class

H (180 °C) H (180 °C)

Operation temperature range

-20 ... +60 °C -20 ... +60 °C

Storage temperature range

-40 ... +60 °C -40 ... +60 °C

Degree of protection

IP23S IP23S

EMC class

A A

Minimun short circuit power Ssc of
supply network *

0.9 MVA 0.9 MVA

Cooling unit power

- - - 230 V / 250 VA

- Fuse delayed

- - - 2 A

External dimensions

lenght 990 mm 990 mm

width 530 mm 530 mm

height 880 mm 1090 mm

Weight

106 kg 118 kg

* See paragraph 2.2

16

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

EN

17

Kempoweld 3200, 3200W / © Kemppi Oy / 1117

www.kemppi.com

1922010

1117

KEMPPI OY

Hennalankatu 39
PL 13
FIN-15801 LAHTI
FINLAND
Tel [phone]
Telefax [phone]
[e-mail]
www.kemppi.com

Kotimaan myynti:

Tel [phone]
Telefax [phone]
myynti.@kemppi.com

KEMPPI SVERIGE AB

Box 717
S-194 27 UPPLANDS VÄSBY
SVERIGE
Tel [phone]
Telefax [phone]
[e-mail]

KEMPPI NORGE A/S

Postboks 2151, Postterminalen
N-3103 TØNSBERG
NORGE
Tel [phone]
Telefax [phone]
[e-mail]

KEMPPI DANMARK A/S

Literbuen 11
DK-2740 SKOVLUNDE
DANMARK
Tel [phone]
Telefax [phone]
[e-mail]

KEMPPI BENELUX B.V.

Postbus 5603
NL-4801 EA BREDA
NEDERLAND
Tel [phone]
Telefax [phone]
[e-mail]

KEMPPI (UK) Ltd

Martti Kemppi Building
Fraser Road
Priory Business Park
BEDFORD, MK44 3WH
UNITED KINGDOM
Tel [phone]
Telefax [phone]
[e-mail]

KEMPPI FRANCE S.A.S.

65 Avenue de la Couronne des Prés
78681 EPONE CEDEX
FRANCE
Tel [phone]
Telefax [phone]
[e-mail]

KEMPPI GmbH

Otto-Hahn-Straße 14
D-35510 BUTZBACH
DEUTSCHLAND
Tel [phone]
Telefax [phone]
[e-mail]

KEMPPI SPÓŁKA Z O.O.

Ul. Borzymowska 32
03-565 WARSZAWA
POLAND
Tel [phone]
Telefax [phone]
[e-mail]

KEMPPI AUSTRALIA PTY LTD.

13 Cullen Place
P.O. Box 5256, Greystanes NSW 2145
SMITHFIELD NSW 2164
AUSTRALIA
Tel. [phone]
Telefax [phone]
[e-mail]

OOO KEMPPI

Polkovaya str. 1, Building 6
127018 MOSCOW
RUSSIA
Tel [phone]
Telefax [phone]
[e-mail]

ООО КЕМППИ

ул. Полковая 1, строение 6
127018 Москва
Tel [phone]
Telefax [phone]
[e-mail]

KEMPPI, TRADING (BEIJING) COMPANY,
LIMITED

Room 420, 3 Zone, Building B,
No.12 Hongda North Street,
Beijing Economic Development Zone,
100176 Beijing
CHINA
Tel [phone]
[phone]
Telefax [phone]
[e-mail]

肯倍贸易（北京）有限公司
中国北京经济技术开发区宏达北路12号
创新大厦B座三区420室 (100176)

电话： [phone]

[phone]
传真： [phone]
[e-mail]

KEMPPI INDIA PVT LTD

LAKSHMI TOWERS
New No. 2/770,
First Main Road,
KAZURA Gardens,
Neelangarai,
CHENNAI - 600 041
TAMIL NADU
Tel [phone]
Telefax [phone]
[e-mail]
