Kemppi Evo 150 User Manual

Minarc
Evo 150, 150VRD
Operating manual
Bruksanvisning
Gebrauchsanweisung
Manual de instrucciones
Käyttöohje
Manuel d’utilisation
Manuale d’uso
Gebruiksaanwijzing
Brugsanvisning
Instrukcja obsługi
Manual de utilização
EN
DA
DE
ES
FI
IT
NL
NO
PL
PT
Инструкции по эксплуатации
Bruksanvisning
操作手册
RU
SV
ZH
OPERATING MANUAL
English
CONTENTS
EN
1. Preface .................................................................................................................
1.1 General ....................................................................................................................................... 3
1.2 Product introduction ............................................................................................................ 3
2. Before you start using the unit ................................................................... 4
2.1 Unpacking ................................................................................................................................. 4
2.2 Positioning and location of the machine ...................................................................... 4
2.3 Distribution network ............................................................................................................. 4
2.4 Serial number ........................................................................................................................... 4
2.5 General view of the machine ............................................................................................. 5
2.6 Cable connections ................................................................................................................. 5
2.7 Operating functions .............................................................................................................. 6
3. Use ........................................................................................................................7
3.1 Prepare to weld
3.2 MMA welding
3.2.1 Filler materials and equipment ....................................................................................... 8
3.2.2 Earth return cable and clamp ......................................................................................... 8
3.2.3 Manual metal arc welding (MMA) .................................................................................. 8
3.3 TIG welding
3.3.1 DC TIG welding ..............................................................................................................10
3.3.2 Earth return cable and clamp .......................................................................................10
3.3.3 Tungsten inert gas welding (TIG) .................................................................................10
3.4 Using the shoulder strap
....................................................................................................................... 7
........................................................................................................................... 8
............................................................................................................................... 9
...................................................................................................11
3
4. Maintenance ....................................................................................................12
4.1 Daily maintenance ...............................................................................................................12
4.2 Troubleshooting ...................................................................................................................12
4.3 Storage .....................................................................................................................................13
4.4 Disposal of the machine ....................................................................................................13
5. Ordering codes ............................................................................................... 13
6. Technical data ................................................................................................. 14
2
Minarc Evo 150, Evo 150VRD
1. PREFACE
1.1 General
Congratulations on choosing Minarc Evo welding equipment. Used correctly, Kemppi products can signicantly increase the productivity of your welding, and provide years of economical service.
This operating manual contains important information on the use, maintenance and safety of your Kemppi product. The technical specications of the equipment can be found at the end of the manual.
Please read the manual carefully before using the equipment for the rst time. For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual.
Read also the separate Kemppi Safety Instructions booklet delivered in the product package. Pay particular attention to the risks associated with re and explosion.
For more information on Kemppi products, contact Kemppi Oy, consult an authorised Kemppi dealer, or visit the Kemppi web site at www.kemppi.com.
For Kemppi’s standard safety instructions and warranty terms and conditions, please visit our web site at www.kemppi.com.
The specications presented in this manual are subject to change without prior notice.
NOTE! Items in the manual that require particular attention in order to minimise damage and
personal harm are indicated with this symbol. Read these sections carefully and follow their instructions.
EN
Disclaimer
While every eort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. Kemppi reserves the right to change the specication of the product described at any time without prior notice. Do not copy, record, reproduce or transmit the contents of this guide without prior permission from Kemppi.
1.2 Product introduction
Minarc Evo is an easy-to-use welding machine for MMA (stick welding). It is suitable for professional use in metal industry, work sites and repair welding. Before use or doing any maintenance work on the machine, read the operating manual and keep it for further reference.
Models equipped with a voltage reduction device (Minarc Evo 150VRD, 150AU and 140AU) are available for maintaining the open-circuit voltage at 30 volts. There are also special models equipped with mains plug types suitable for Australia, New Zealand and Denmark. If you need another type of plug, please see the section 2.6 "Connecting cable connections" later in this manual.
Minarc Evo tolerates uctuations in input voltage, and it is suitable for on-site work using power generators and long power cables. The power source utilises PFC technology to ensure optimum usage on a single phase power supplies. IGBT inverter design delivers reliable arc ignition and welding performance with all electrode types.
Welding and earth return cables are supplied in the delivery package, including electrode holder, earth clamps and connections.
Minarc Evo can also be used for basic TIG welding, where the TIG arc is started by the lift arc ignition technique. Order numbers for the additional equipment required for TIG welding and for the remote current control devices can be found in section 5 "Ordering numbers".
© Kemppi Oy / 1336
3
EN
2. BEFORE YOU START USING THE UNIT
NOTE! Please read the separate safety instruction booklet provided before you commence welding.
Pay particular attention to the risks associated with re and explosion.
2.1 Unpacking
Always before using the equipment, make sure it was not damaged during transportation. Also check that you have received what you ordered and that instructions are included.
The packaging material of the products is suitable for recycling.
Transportation
The machine should be transported in an upright position.
NOTE! Always move the welding machine by lifting it from the handle. Never pull it from the
welding cable or other cables.
Environment
The machine is suitable for both indoor and outdoor use, but it should be protected from rain and sunshine. Store the machine in a dry and clean environment and protect it from sand and dust during use and storage. The recommended operating temperature range is –20…+40 °C. Place the machine in such a way that it does not come in contact with hot surfaces, sparks and spatters. Make sure the air ow in the machine is unrestricted.
2.2 Positioning and location of the machine
Place the machine on a rm, dry and level surface. Where possible, do not allow dust or other impurities to enter the machines cooling air ow. Preferably site the machine above oor level.
Notes for positioning the machine
• The surface inclination should not exceed 15 degrees.
• Ensure the free circulation of the cooling air. There must be at least 20 cm of free space
around the machine for cooling air to circulate.
• Protect the machine against heavy rain and direct sunshine.
NOTE! Do not operate the machine in rain. The protection class of the machine is IP23S, which
allows for outside preserving and storage only.
NOTE! Never use a wet welding machine.
NOTE! Never aim metallic grinding spray or sparks towards the equipment.
2.3 Distribution network
All regular electrical devices without special circuits generate harmonic currents into distribution network. High rates of harmonic current may cause losses and disturbance to some equipment.
Minarc Evo comply with IEC 61000-3-12.
2.4 Serial number
The serial number of the unit is marked on the rating plate. The serial number makes it possible to trace product manufacturing series. You might need the serial number when placing spare parts orders or when planning maintenance.
4
Minarc Evo 150, Evo 150VRD
2.5 General view of the machine
3.
1.
2.
7.
1. Machine case
2. ON/OFF power switch
3. Welding current display
4. Positive and negative welding circuit connection sockets
5. Electrode holder and welding cable
6. Earth return cable and clamp
7. Connection socket for remote control of welding current
2.6 Cable connections
Connection to the mains
The machine is equipped with a 3 m long supply voltage cable and plug. Connect the supply voltage cable to the mains. The mains supply cable and electrical plug are already installed to the machine. Should you need to t an alternative plug type, ensure installation is completed by an authorised electrician.
If you use an extension cable, its cross-sectional area should be at least as large as the machines supply cable (3 x 1.5 mm²). It is recommended to use 3 x 2.5 mm² extension cable. The maximum length for the extension cable is 100 meters.
The machine can also be used with a generator. The minimum power for the generator is
4.5 kVA, and the recommended power 7.0 kVA in order for the machine to be used at maximum capacity.
5.
4.
6.
EN
Electrode holder
Connect the welding cable to the power source. Normally, the welding cable with electrode holder is connected to the positive terminal (electrode +).
Earth return
Connect the earth return cable to the power source. Normally, the earth return cable and clamp is connected to the negative terminal ( – ). Clean the workpiece surface and x the earth return cable clamp to the work piece in order to create a welding circuit.
© Kemppi Oy / 1336
5

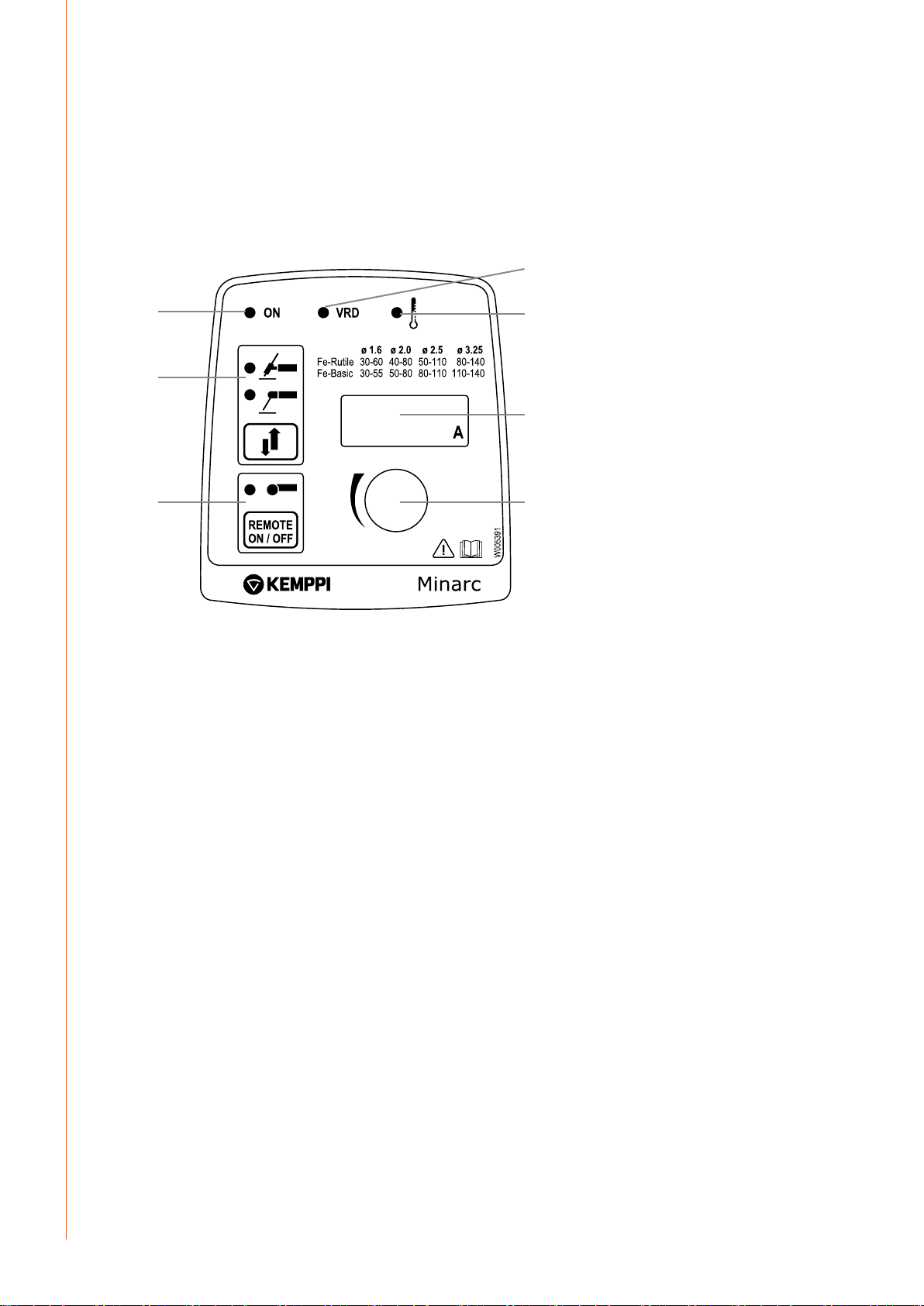

2.7 Operating functions
1. Welding current adjustment knob
2. Welding process selection button
3. Welding current meter display
4. Machine ’ON’ green light
5. VRD SAFE light. Solid green VRD safe ’ON’. Solid red if VRD failure.
6. Overheating indicator
7. Remote control ON/OFF button
5.
EN
4.
2.
7.
Main switch and 'ON' indicator
When you turn the main switch to position I, the machine ’ON’ indicator light (item 4) is illuminated and the unit is ready for welding. The indicator light is always on when the unit is connected to the mains and the main switch is in position I. In normal conditions the machine panel ’ON’ lights status is solid green. But if the machine is locked down, the light status is ashing and the machine will not weld. The machine should be reset via the main switch. If the light continues to ash, contact your Kemppi service shop.
NOTE! Always start and stop the machine from the main switch, never use the plug as a switch!
6.
3.
1.
6
Indicator 'VRD safe ON'
Minarc Evo VRD models reduce the open circuit voltage (OCV) at a low level. At switch on, the VRD indicator light (item 5) is solid green, indicating normal VRD safe limits. If VRD limits are exceeded the machine switches to 'LOCK DOWN' state and the VRD safe light changes colour to solid 'RED'. Welding is prevented and the main 'ON' panel light is also ashing. The machine should be reset via the main switch. If the machine locked status continues, contact your Kemppi service shop.
Welding process selector, MMA/TIG
This switch is used for selecting either MMA or TIG welding mode, depending on the welding process chosen.
Regulating welding current
The welding current level is regulated via a stepless adjustment knob. Set the welding current level according to the target weld piece, position and electrode type and size.
Minarc Evo 150, Evo 150VRD
Overheating indicator
The thermostatic temperature switch may become active during heavy welding or high ambient temperatures. This is indicated by a yellow indicator light. The power source fan will cool the unit and after the indicator goes o, the unit is again ready for welding.
Local and remote control
The welding machine can be controlled with a remote control device. Select remote control by pressing the Remote control ON/OFF button.
Details of available remote current control devices can be found in the Ordering codes section later in this manual.
3. USE
NOTE! Welding fumes may be dangerous to your health. Ensure that there is ample ventilation
during welding! Never look at the arc without a face shield specically designed for arc welding! Protect yourself and your surrounding area from the arc and hot welding spatter!
3.1 Prepare to weld
NOTE! Always wear protective clothing, gloves, face and eye shields suitable for welding. It is
recommended that you make practice welds before you commence welding your main work piece. If when igniting the arc or during welding, the electrode sticks or freezes to the work piece, note that it will quickly heat up, and may start to glow red hot. To release the electrode, twist the electrode holder away from the work piece and start again. If this fails, switch of the machine at the main switch and then release the electrode after it has cooled down. Note: the electrode and work piece will be very hot.
You can start welding after you have made the necessary preparation described throughout these instructions.
In addition to the welding machine, welding outcome is inuenced by the work piece type, welding position and the welding environment. Therefore, recommendations in this manual must be followed.
During welding, an electric current is owing through the cable, clamp and electrode to the workpiece.
The earth return cable attached to the workpiece guides the current back to the machine, forming the closed welding circuit. Unrestricted current ow is only possible when the earth return clamp is properly attached to the workpiece and the xing point of the clamp is clean, free from paint and rust free.
EN
© Kemppi Oy / 1336
7
EN
3.2 MMA welding
In manual metal arc (MMA) welding, the ller material is melted from the electrode to the weld pool. The rate of welding current is selected on the basis of the electrode size and welding position. The arc forms between the electrode tip and work piece. The melting electrode coating forms a gas and slag shield, which protects the molten metal in transfer to the weld pool and during solidication. As the slag solidies over the hot weld metal, it prevents weld metal oxidation. This slag coating is removed after welding e.g. with a chipping hammer. When removing the slag coating, ensure you protect your eyes and face with suitable equipment.
For more info, visit www.kemppi.com > Welding ABC.
3.2.1 Filler materials and equipment
Minarc Evo can be used with all electrode types suitable for DC welding. Electrode sizes for the unit are listed in Technical data section later in this manual.
1. Follow the welding specications given on the electrode package.
2. Before you start welding, check that you have selected the correct welding process.
3. Check that the welding cable and earth cable connections are hand tight. If a cable connection is loose, it will result in a decrease of welding performance, overheating of the connection, and it may aect your product warranty cover.
4. Select and mount the correct electrode type rmly in holder.
3.2.2 Earth return cable and clamp
If possible, always x the earth return cable and clamp directly to the welding work piece.
1. Clean the connection surface of earth clamp from paint, dirt and rust.
2. Connect the clamp carefully so that contact surface is as large as possible.
3. Finally check that the clamp remains fastened.
3.2.3 Manual metal arc welding (MMA)
Select your required welding parameters according to the manufacturer’s ller material recommendations and the joint to be welded.
1. Select the required polarity (+ or –) of welding current cable (normally + ) and return current cable (normally –) according to the ller material manufacturers recommendations.
2. Select MMA welding mode by pressing the process selection button on the control panel.
3. Select a suitable welding current by adjusting the current adjustment knob.
4. Make a small test weld to check the selections made.
8
Minarc Evo 150, Evo 150VRD
Site your equipment in a suitable location, ensuring there is adequate cable length to complete the weld pass. Before you start welding, ensure you are comfortably positioned in front of the work piece, and that you are well balanced with your weight equally distributed. Ensure that the power source current setting is correct for the electrode size selected. Draw the welding face shield over your eyes. (Electronic welding face shields like Kemppi BETA 90X, allow you to see the welding start point more accurately and better concentrate on the welding process. This reduces the possibility of arc ash). Ensure others in the welding area are aware that you're going to weld. To establish the arc, scratch the electrode on the surface of the work piece.
As the arc starts to burn you will see a bright molten material form, this is molten slag, formed from the electrode coating and the darker coloured material is the molten weld metal itself, formed from the melting core wire. Hold the electrode at an angle of approximately 75–85 degrees from the horizontal, leaning away from the weld itself. Hold this position, maintaining a 3 mm distance from electrode tip to work surface. As the electrode burns, this arc length distance needs constant maintenance throughout the welding cycle. Slowly travel the electrode away from the deposited weld pool material, maintaining a constant travel speed. Your completed weld bead should be straight and of even width and bead height, consistent in its appearance. Travel too slowly and the weld pool will get too big and may burn through the weld piece, too fast and the resulting weld will be too small and may have slag entrapments and/or poor strength. After welding, the solidied slag on the weld surface should easily remove with a chipping hammer. Ensure you wear eye and face protection when removing the slag from the weld surface.
3.3 TIG welding
EN
Minarc Evo can also be used for basic TIG welding and remote current control. The TIG arc is started by the touch and lift ignition technique. Order numbers for the additional equipment required for TIG welding and/or remote current control devices can be found in Ordering codes section later in this manual. Ensure you select TIG process on the Minarc Evo control panel before you commence welding.
The TIG process forms an arc between the tungsten electrode and the work piece. The arc melts the work piece forming a molten weld pool. The arc and tungsten electrode mounted in the TIG torch are shielded by an inert shielding gas that is connected to, and ows through, the nozzle of the TIG torch. The gas required is argon and the ow rate is approximately 8 to 10 litres per minute. If necessary, suitable ller material is added to the weld pool to complete the
© Kemppi Oy / 1336
9
weld joint. Filler wire is fed into the weld pool from the outside of the arc and gas shield. The ller wire and the welding current level are decided according to the base material type and thickness, joint form and welding position.
0.5 s
EN
NOTE! Ensure you protect your eyes and face with suitable equipment.
NOTE! The tungsten electrode tip should be sharpened as described.
D
2xD
3.3.1 DC TIG welding
Select your required welding parameters according to the joint to be welded.
1. Connect TIG torch to the negative (–) pole of the power source, and earth cable to positive (+) pole.
2. Select TIG welding mode by pressing the process selection button on the control panel.
3. Select a suitable welding current by adjusting the current adjustment knob.
4. Ensure your argon shielding gas supply is switched on and the ow rate is approximately 8 to 10 litres per minute.
5. Make a small test weld to check the selections made.
3.3.2 Earth return cable and clamp
If possible, always x the earth return cable and clamp directly to the work piece.
1. Clean the connection surface of earth clamp from paint, dirt and rust.
2. Connect the clamp carefully so that contact surface is as large as possible.
3. Finally check that the clamp remains fastened.
10
3.3.3 Tungsten inert gas welding (TIG)
Argon shielding gas is used in DC TIG welding. Your dealer will give you advice on choosing the correct gas, supplier, and supporting equipment. Open the gas valve on the Kemppi TTM 15V TIG torch. When the gas starts to ow, ignite the arc. The arc is activated by lightly touching the work piece with the tungsten electrode and lifting away. A reliable technique to practice is, lightly and briey touch the tungsten electrode to the work piece surface and then rock backwards onto the ceramic nozzle of the TIG welding torch, so the tungsten is no longer in contact with the work piece surface. This action makes and breaks a momentary contact of the tungsten electrode in a controlled manner, rst making the electrical circuit and secondly establishing the TIG welding arc the moment the tungsten leaves contact to the work piece surface.
Minarc Evo 150, Evo 150VRD
The length of arc is regulated by holding the tungsten electrode tip at a suitable distance from work piece. A suitable arc length is usually about the diameter of the tungsten electrode. When the arc is burning, move the electrode slowly forwards to the start of the weld, tilting the torch to approximately 10–15° pulling angle. If necessary, adjust power source current value so that a constant weld pool size is maintained for the forward travel speed. If necessary to complete the weld, add compatible ller wire to the weld pool.
Stop welding by lifting the torch away from the work piece and by closing the gas valve on the torch.
NOTE! Always secure the gas cylinder in an upright position with either a specially made wall rack
or cylinder trolley. Always close the cylinder valve after welding.
3.4 Using the shoulder strap
1.
2.
EN
3.
Using and xing the shoulder strap
The machine is delivered with a fabric shoulder strap and metal clip set. The shoulder strap can be used as a convenient and comfortable way to transport both the machine and cables set. There are two identical metal clips. Fix one clip to each of the metal lifting eyes, located at the top of the machine. Adjust the shoulder strap to a comfortable length. The machine can now be carried.
Should you also wish to transport and secure the cables set, place the cable bundle over the strap as shown, bring the strap and remaining free clip over the top of the cable bundle and secure to the already fastened rear clip. As you take the weight of the machine with the strap, the cable set is clamped securely into position ready for transport.
NOTE! The machine should not be used when hanging from the shoulder strap.
4.
© Kemppi Oy / 1336
11
EN
4. MAINTENANCE
NOTE! Be careful when handling electrical cables!
In maintaining the unit, take into consideration the rate of use and the environment it is used in. When the unit is used properly and serviced regularly, you will avoid unnecessary disturbances in use and production.
4.1 Daily maintenance
Perform the following maintenance daily:
• Clean the electrode holder and TIG torch’s gas nozzle. Replace damaged or worn parts.
• Check TIG torch’s electrode. Replace or sharpen, if necessary.
• Check the tightness of welding cable and earth return cable connections.
• Check the condition of mains lead and welding cables, and replace damaged cables.
• See that there is enough space around the unit for ventilation.
4.2 Troubleshooting
Problem Cause
The main switch indicator will not light up.
The machine will not weld. • Check power supply status and connections.
Poor welding results. Several factors aect the welding quality.
Overheating indicator is illuminated. Normally, this indicates that the device has reached its maximum designed operating
If the machine’s malfunction is not eliminated with the above measures, contact Kemppi service.
• No electricity connected to the machine
• Check the mains supply fuses.
• Check the mains cable and plug.
• VRD ’Lock down’ state is active. OCV level has exceeded the set limit and welding is
prevented.
• VRD light is solid RED, and GREEN main power light is ashing.
• Establish cause of VRD lock down. Reset the machine via the main on/o switch.
• If the machine will not re-set, contact your Kemppi service agent
• Ensure that the welding current selected is adequate for the selected electrode type
and size.
• Ensure the cable connections are correct and secure.
• Ensure the process selection is correct.
• Check that the earth return clamp connection area is clean and that the cable and
clamp are not damaged.
• For TIG welding, check that the shielding gas ow is switched on and set correctly. Poor ignition and arc quality in TIG welding may be a result of a poorly prepared tungsten electrode. Always maintain and grind a point on the TIG torch electrode tip before welding.
temperature. The thermostat has become active, switching the welding power o. Allow the unit to cool and the machine will soon automatically reset and allow welding to restart.
• Ensure that cooling air has unrestricted ow.
• If the machine’s duty cycle has been exceeded, wait for indicator to turn o.
In certain circumstances, this light may also indicate irregularity in the supply voltage. Too low or high supply voltage.
12
Minarc Evo 150, Evo 150VRD
4.3 Storage
Store the unit in a clean and dry place. Shield it from rain, and in temperatures exceeding +25 °C from direct exposure to sun.
4.4 Disposal of the machine
Do not dispose of electrical equipment with normal waste! In observance of European Directive 2002/96/EC on waste electrical and electronic
equipment, and its implementation in accordance with national law, electrical equipment that has reached the end of its life must be collected separately and taken to an appropriate environmentally responsible recycling facility.
The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this European directive you will improve the environment and human health.
5. ORDERING CODES
Minarc Evo 150 welding machine
Minarc Evo 150 welding machine (Denmark)
Minarc Evo 150VRD welding machine
Minarc Evo 150AU welding machine (Australia, New Zealand)
Minarc Evo 140AU welding machine (Australia, New Zealand)
Earth return cable and clamp
Welding cable and electrode holder
Carrying strap
Optional: TIG torch TTM15V
BETA 90X electronic welding helmet
R10 hand held remote control
includes earth return and welding cables 61002150 includes earth return and welding cables 61002150DK includes earth return and welding cables 61002150VRD includes earth return and welding cables 61002150AU
includes earth return and welding cables 61002140AU
6184015 6184005 9592163
4 m 6271432
9873047
5 m 6185409
EN
© Kemppi Oy / 1336
13
EN
6. TECHNICAL DATA
Minarc Evo MMA models
Connection voltage
Connection voltage (AU)
Rated power at max. current
Supply current
Supply current (140 AU)
Connection cable
Fuse
Output 40 °C
Output 40 °C (140 AU)
Welding range
Open circuit voltage
No-load power
Voltage steps
Power factor at 100 % ED
Efficiency at 100 % ED
Stick electrodes
External dimensions LxWxH
Weight
Temperature class
EMC class
Degree of protection
Operating temperature range
Storage temperature range
Standards IEC 60974-1 IEC 60974-10 IEC 61000-3-12
1 ~ 50/60 Hz 230 V ± 15 % 1 ~ 50/60 Hz 240 V ± 15 % 35 % ED MMA 140 A / 4.5 kVA 35 % ED TIG 150 A / 3.2 kVA 35 % ED I
1max
100 % ED I 100 % ED I H07RN-F 3G1.5 (1.5 mm, 3 m) type C 16 A: 140 A ED 35%
35 % ED MMA 140 A / 25.6 V 100 % ED MMA 100 A / 24.0 V 35 % ED TIG 150 A / 16.0 V 100 % ED TIG 110 A / 14.4 V 28 % ED MMA 140 A / 25.6 V 100 % ED MMA 80 A / 23.2 V MMA 10 A/15 V – 140 A/37 V TIG 10 A/1 V – 150 A/36 V average 90 V; VRD 30 V; AU VRD 12 V
MMA 82 % ø 1.5 – 3.25 mm, and some 4 mm height with handle 361x139x267 mm without connection cable 5.4 kg with connection cable 5.85 kg
1e
1e
19.7 A
12.9 A
10.0 A
10 A: 140 A ED 28%
17 W stepless
0.99
B (130 °C) A IP23S –20…+40 °C –40…+60 °C
14
Minarc Evo 150, Evo 150VRD
KEMPPI OY
Kempinkatu 1 PL 13 FIN-15801 LAHTI FINLAND Tel +358 3 899 11 Telefax +358 3 899 428 export@kemppi.com www.kemppi.com
Kotimaan myynti:
Tel +358 3 899 11 Telefax +358 3 734 8398 myynti.@kemppi.com
KEMPPI SVERIGE AB
Box 717 S-194 27 UPPLANDS VÄSBY SVERIGE Tel +46 8 590 783 00 Telefax +46 8 590 823 94 sales.se@kemppi.com
KEMPPI NORGE A/S
Postboks 2151, Postterminalen N-3103 TØNSBERG NORGE Tel +47 33 346000 Telefax +47 33 346010 sales.no@kemppi.com
KEMPPI DANMARK A/S
Literbuen 11 DK-2740 SKOVLUNDE DANMARK Tel +45 4494 1677 Telefax +45 4494 1536 sales.dk@kemppi.com
KEMPPI BENELUX B.V.
Postbus 5603 NL-4801 EA BREDA NEDERLAND Tel +31 765717750 Telefax +31 765716345 sales.nl@kemppi.com
KEMPPI (UK) LTD
Martti Kemppi Building Fraser Road Priory Business Park BEDFORD, MK44 3WH UNITED KINGDOM
Tel +44 (0)845 6444201 Telefax +44 (0)845 6444202 sales.uk@kemppi.com
KEMPPI FRANCE S.A.S.
65 Avenue de la Couronne des Prés 78681 EPONE CEDEX FRANCE Tel +33 1 30 90 04 40 Telefax +33 1 30 90 04 45 sales.fr@kemppi.com
KEMPPI GMBH
Perchstetten 10 D-35428 LANGGÖNS DEUTSCHLAND Tel +49 6 403 7792 0 Telefax +49 6 403 779 79 74 sales.de@kemppi.com
KEMPPI SPÓŁKA Z O.O.
Ul. Borzymowska 32 03-565 WARSZAWA POLAND Tel +48 22 7816162 Telefax +48 22 7816505 info.pl@kemppi.com
KEMPPI AUSTRALIA PTY LTD
13 Cullen Place P.O. Box 5256, Greystanes NSW 2145 SMITHFIELD NSW 2164 AUSTRALIA Tel. +61 2 9605 9500 Telefax +61 2 9605 5999 info.au@kemppi.com
OOO KEMPPI
Polkovaya str. 1, Building 6 127018 MOSCOW RUSSIA Tel +7 495 739 4304 Telefax +7 495 739 4305 info.ru@kemppi.com
ООО КЕМППИ
.  1,  6 127018  Tel +7 495 739 4304 Telefax +7 495 739 4305 info.ru@kemppi.com
KEMPPI, TRADING (BEIJING) COMPANY LTD
Room 420, 3 Zone, Building B, No.12 Hongda North Street, Beijing Economic Development Zone, 100176 BEIJING CHINA Tel +86-10-6787 6064 +86-10-6787 1282 Telefax +86-10-6787 5259 sales.cn@kemppi.com
肯倍贸易(北京)有限公司
中国北京经济技术开发区宏达北 路12号 创新大厦B座三区420室 (100176) 电话: +86-10-6787 6064
+86-10-6787 1282 传真: +86-10-6787 5259 sales.cn@kemppi.com
KEMPPI INDIA PVT LTD
LAKSHMI TOWERS New No. 2/770, First Main Road, Kazura Garden, Neelankarai, CHENNAI - 600 041 TAMIL NADU Tel +91-44-4567 1200 Telefax +91-44-4567 1234 sales.india@kemppi.com
KEMPPI WELDING SOLUTIONS SDN BHD
No 12A, Jalan TP5A, Taman Perindustrian UEP, 47600 Subang Jaya, SELANGOR, MALAYSIA Tel +60 3 80207035 Telefax +60 3 80207835 sales.malaysia@kemppi.com
1910010
1336
www.kemppi.com
Loading...
