Kelvinator ER 1531T User Manual

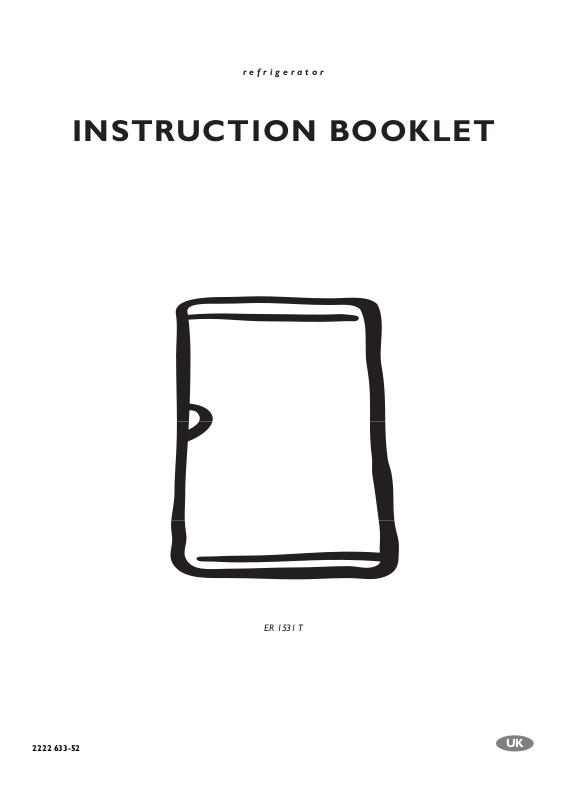

INSTRUCTION BOOKLET

2222 633-52

ER 1531 T

refrigerator

UK

2

Instructions for the User

Important Safety Instructions 3
Description of the Appliance 4
Operation 4

Before use 4
Setting the temperature 4
Fresh food refrigeration 5
The door shelves 5
Normal Operating Sounds 6

Health and Safety Guidelines 6
Defrosting 7

Maintenance and Cleaning 7

Internal cleaning 7
External cleaning 7
Changing the light bulb 8
When the appliance is not in use 8

Something Not Working? 9
Service and Spare Parts 10
Customer Care Department 10
Service Force Addresses 11
Guarantee Conditions 13

Instructions for the Installer

Technical Specifications 14
Installation 14

Positioning 14
Door reversal 15

Electrical Connection 16

CONTENTS

3

General Safety

■ This appliance contains hydrocarbons in its

cooling unit; maintenance and recharging
must therefore only be carried out by
authorised technicians.

■ Take utmost care when handling your

appliance so as not to cause any damages to
the cooling unit with consequent possible fluid
leakages.

■ The appliance must not be located close to

radiators or boilers.

■ Avoid prolonged exposure of the appliance to

direct sunlight.

■ Do not use other electrical appliances (such as

ice cream makers) inside of refrigerating
appliances.

During Use

■ This appliance is designed for domestic use only,

specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.

■ Containers with flammable gases or liquids can

leak at low temperatures. Do not store any
containers with flammable materials, such as
spray cans, fire extinguisher refill cartridges etc. in
the refrigerator.

Maintenance and Cleaning

■ Before cleaning, always switch off the appliance

and disconnect from the electrical supply.

■ When unplugging always pull the plug from the

mains socket, do not pull on the cable.

Servicing

■ This product should be serviced by an authorised

engineer and only genuine spare parts should be
used.

■ Under no circumstances should you attempt to

repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local Service
Force Centre.

At the end of the Appliance Life

■ When disposing of your appliance use an

authorised disposal site.

■ Remove the plug and ensure that any locks or

catches are removed, to prevent young children
being trapped inside.

IMPORTANT SAFETY INSTRUCTIONS

Prior to Installation

■ Check the appliance for transport damage. Under

no circumstance should a damaged appliance be
installed. In the event of damage please contact
your retailer.

Installation

■ This appliance is heavy. Care should be taken

when moving it.

■ It is dangerous to alter the specifications or

attempt to modify this product in any way.

■ Ensure that the appliance does not stand on the

electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by authorised service or qualified
personnel using a special cable of the same type.

■ Any electrical work required to install this

appliance should be carried out by a qualified
electrician or competent person.

■ Parts which heat up should not be exposed.

Whenever possible, the back of the appliance
should be close to a wall, but leaving the required
distance for ventilation, as stated in the installation
instructions.

■ The appliance should be left for 2 hours after

installation before it is turned on, in order to allow
the refrigerant to settle.

Refrigerant

■ The refrigerant isobutane (R600a) is contained

within the refrigerant circuit of the appliance, a
natural gas with a high level of environmental
compatibility, which is nevertheless flammable.

■ During transportation and installation of the

appliance, be certain that none of the components
of the refrigerant circuit become damaged.

■ If the refrigerant circuit should become damaged:

- avoid open flames and sources of ignition.

- thoroughly ventilate the room in which the
appliance is situated.

Child Safety

■ Do not allow children to tamper with the controls or

play with the product.

■ There is a risk of suffocation! Keep packaging

material away from children!

These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any
of the meanings of these warnings contact the Customer Care Department.

DESCRIPTION OF THE APPLIANCE

4

➀

➁

➂

➃

➄

➅

➆

➀

Dairy compartment

➁

Can storage shelf with
egg tray

➂

Bottle storage shelf

➃

Salad bin

➄

Glass shelf (for storing
fresh meat)

➅

Storage shelves

➆

Thermostat control

OPERATION

Before use

Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water). Do not use soap or
detergent as the smell may linger. Dry thoroughly.

Setting the temperature

The temperature inside the refrigerator is regulated by
a thermostat control knob with 6 temperature
positions and one «OFF» (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat control knob to the required
position.
An intermediate position is usually the most suitable,
although the temperature will be affected by:

l

Room temperature

l

How often the door is opened

l

How much food is stored

l

Position of the appliance

In determining the correct temperature control setting
all these factors have to be considered and some
experimentation may be necessary.

When altering the temperature setting, allow 24 hours
for the temperature to stablise before making further
changes.

Important

During prolonged periods of abnormally hot

weather, if the thermostat is set on too high a
number, the cooling system may operate
continuously and the fridge cooling plate may
not defrost. Turning the knob to a lower number
will cause the automatic defrosting to resume.
If you wish to return to a lower temperature,
turn the thermostat knob to a higher number,
however you should turn the setting lower
occasionally to allow automatic defrosting.

5

Fresh food refrigeration

To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do cover
or wrap the food, particularly if it has a strong flavour.
Do not cover the shelves with any protective material,
such as paper, cardboard or plastic, which may
obstruct the air circulation through them.
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & chicken or poultry):
wrap in polythene bags and place on top of the salad
bin.

Meat can only be stored safely in this way for one
or two days at the most.

Fruit & vegetables: these should be thoroughly

cleaned and placed in the bottom salad drawers.
Butter & cheese: these should be placed in special

airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.

The walls of the refrigerator are equipped with runners
so that shelves can be positioned as desired.

The door shelves

To permit storage of food packages of various sizes
the central door shelf can be adjusted in height.
To do this proceed as figure.

For more thorough cleaning, the top door shelf and the
bottle shelf can be removed by pulling them in the
director of the arrows, then refitting them in position.

D040

PR187

PR190

6

Normal Operating Sounds

You may hear faint gurgling or bubbling sounds when
the refrigerant is pumped through the coils or tubing at
the rear, to the cooling plate.

When the compressor is on, the refrigerant is being
pumped round, and you will hear a whirring sound or
pulsating noise from the compressor.

A thermostat controls the compressor, and you will
hear a faint ‘click’ when the thermostat cuts in and out.

HEALTH AND SAFETY GUIDELINES

Because of consumer demand, preservatives have been removed from many pre-prepared foods.
This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.

The following tips should help you to ensure that
the food in your home is in as perfect condition
as possible.

■

Keep the time between buying chilled food and
placing it in your fridge as short as possible. Tests
showed that the temperature of 1 litre of orange
juice rose to 22°C in an hour between the
supermarket and home. It then took 11 hours to
get down to 7°C in the refrigerator.

■

Keep the refrigerator door closed as much as
possible.

■

Do not push food together too much, try to allow
air to circulate around each item.

■

Cool cooked food as quickly as possible but do
NOT place in the refrigerator until cool. (Leave
food in a cool place in order that it can then be
placed in the refrigerator as soon as possible).

■

Do NOT mix raw and cooked meat, they must be
in separate containers. Take care not to let the
meat juices drip onto other food. If the meat does
drip, remove everything and clean thoroughly.

■

Do not store food uncovered.

■

Remove suspect food from your refrigerator and
clean (Refer to “Maintenance and Cleaning”).

■

Never allow spillages to dry and harden.

■

Store eggs in the egg rack provided in the
refrigerator door. Discard any broken or chipped
eggs.

■

Regularly check the refrigerator door seal to
ensure that it is clean and free from debris.

■

Always wash your hands with soapy water and dry
them with a clean towel before handling food.

■

Keep work surfaces clean and avoid cross
contamination by not using the same work surface
or knife, without washing them thoroughly in
between.

7

DEFROSTING

The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.

Important
To avoid defrost water overflowing into the

fridge, periodically clean the water
discharge hole in the centre of the V shaped
drip collector at the back of the refrigerator
compartment behind the salad bin. Use the
special cleaner provided which you will find
already inserted into the discharge hole.

MAINTENANCE AND CLEANING

Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.

Warning

This appliance contains hydrocarbons in its
cooling unit maintenance and recharging must
therefore only be carried out by authorised
technicians.

Internal cleaning

Clean the inside and accessories with warm water and
bicarbonate of soda (5ml to 0.5 litre of water). Rinse
and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE POWDERS,
HIGHLY PERFUMED CLEANING PRODUCTS OR
WAX POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND LEAVE
A STRONG SMELL.

Clean the drain hole of the water trough at regular
intervals and make sure that the drain hole is never
obstructed, so that the defrost water may flow freely.

Important
Do not use abrasive products.

External cleaning

Wash the outer cabinet with warm soapy water. Do
NOT use abrasive products.

Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance, with
a brush or vacuum cleaner, see the figure.

You MUST ensure that the appliance is switched OFF.
An accumulation of dust will affect the performance of
the appliance and cause excessive electricity
consumption.

D037

CONDENSER

DEFROST
TRAY

D662

COMPRESSOR

8

Changing the light bulb

Should the interior light fail to work, first switch off the
appliance and disconnect from the electricity supply,
then replace the bulb as follows:

1. Unscrew the light cover and then pull it outward by
pressing as shown in the figure.

2. Unscrew the bulb and replace it with a new 15 watt
bulb (available from your nearest Service Force
Centre).

3. Replace the light cover by sliding it into its original
position and replacing the screw.

When the appliance is not in use

When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all foods
and clean the appliance, leaving the door ajar to
prevent unpleasant smells.

D411

9

SOMETHING NOT WORKING?

Symptom Solution

No power to appliance

The light does not come on

The temperature in the fridge is too high

The compressor runs continuously

Excessive frost and ice has built up

Noise
Water under the salad bin

- Check there is power at the socket.

- Check there is not a power cut by checking the
household lights.

- Check the fuse has not blown.

- Ensure that the bulb is correctly fitted.

- Replace the bulb if it has blown.

- Check the door light switch is not jammed.

- Check the ambient temperature is within the appliances

operating limits of 10˚C to 32˚C.
Relocate the appliance if necessary.

- Check the thermostat control knob is turned to the

correct setting relative to ambient conditions.

- Adjust the thermostat control knob to give correct

temperature control. See page 4.

- Check that the door is closed.

- Large quantities of food have recently been placed in

the cabinet and/or door is frequently opened.

- Check that air ventilation is not obstructed.

- Ensure the door is not left open.

- Check that nothing is preventing the door from closing.

- Is the door gasket intact and clean?

- Refer to normal operating sounds.

- Check the drain hole is not blocked (see “Maintenance

and Cleaning”).

If after the above checks, there is still a fault, call your local Service Force Centre.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a

charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.

Before contacting your local Service Force Centre check the following points.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or

installation, a charge will be made even if the appliance is under guarantee.

10

CUSTOMER CARE DEPARTMENT

For general enquiries concerning your Electroluxi appliance or for further information on Electrolux products,
you are invited to contact our Customer Care Department by letter or telephone or visit our website at
www.electrolux.co.uk

Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ

Tel: [phone] (*)

(*) calls to this number may be recorded for training purposes.

SERVICE AND SPARE PARTS

In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact
your local Electrolux Service Force Centre by
telephoning:-

08705 929929

Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
The addresses are listed on the following pages.

Before calling out an engineer, please ensure you
have read the details under the heading ‘Something
Not Working’.

When you contact the Service Centre you will need to
give the following details.

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model serial no. of the appliance (found on the

rating plate)

5. The purchase date

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of the date of purchase this Electrolux appliance or any part
thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair
or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

■ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

■ The appliance has been used for normal domestic purposes only, and in accordance with the

manufactuer's instructions.

■ The appliance has not been serviced, maintained repaired, taken apart or tampered with by any person not

authoried by us.

■ All service work under this guarantee must be undertaken by an Electrolux Service Force Centre.

■ Any appliance or defective part replaced shall become the Company's property.

■ This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

■ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or

removable parts of glass or plastic.

■ Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside

the United Kingdom.

■ Appliances found to be in use within a commercial environment, plus those which are subject to rental

agreements.

■ Products of Electrolux manufacture which are not marketed by Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:

■ The guarantee starts from the date you first purchased your product.

■ The guarantee is for the same period and to the same extent for labour and parts as exists in the new

country of use for this brand or range of products.

■ This guarantee relates to you and cannot be transferred to another user.

■ Your new home is within European Community (EC) or European Free Trade Area.

■ The product is installed and used in accordance with our instructions and is only used domestically, i.e. a

normal household.

■ The product is installed taking in account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliance.

France Senlis [phone]
Germany Nurenberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

11

GUARANTEE CONDITIONS

12

CHANNEL ISLANDS

GUERNSEY Guernsey Electricity

PO Box 4
Vale, Guernsey
Channel Islands GY1 3AD

JERSEY Jersey Electricity Company

Haut De L’orme
Rue De Haut De L’orme
Trinity
Jersey
Channel Islands JE3 5FG

SCOTLAND

ABERDEEN 54 Claremont Street

Aberdeen AB10 6RA

AUCHTERMUCHTY 33a Burnside

Auchtermuchty
Fife KY14 7AJ

BLANTYRE Unit 5

Block 2
Auchenraith Ind. Estate
Rosendale Way
Blantyre G72 0NJ

DUMFRIES 93 Irish Street

Dumfries
DG1 2 PQ

DUNOON 7 Hill Street

Dunoon
Argyll
PA23 7AL

EDINBURGH Unit 12

Dumbryden Ind. Estate
2 Dumbryden Road
Edinburgh
EH14 2AB

GLASGOW Unit 4

Wellington Road
Bishopriggs
Glasgow G64 2SA

INVERNESS Unit 3BI

Smithton Ind. Estate
Smithton
Inverness IV2 7WL

ISLE OF ARRAN Arran Domestics

The Douglas Centre
Brodick
Isle of Arran KA27 8AJ

ISLE OF BARRA J Zerfah

244 Bruernish
Isle of Barra
Western Islands HS9 5QY

ISLES OF BUTE Walker Engineering

Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute PA20 9EH

To contact your local Service Force Centre telephone [phone]

ISLE OF LEWIS ND Macleod

16 James Street
Stornoway
Isle of Lewis PA87 2QW

KELSO 2, 6 & 8 Woodmarket

Kelso
Borders
TD5 7AX

ORKNEY 7 King Street

Kirkwall
Orkney
KW15 1JF

PERTH Scottish Hydro Electric

Central Warehouse
Inveralmond

(OWN SALES) Perth PH1 3AF
SHETLAND 3-4 Carlton Place

Lerwick
Shetland

(OWN SALES) ZE1 0PW
SHETLAND Bolts Shetland

26 North Road
Lerwick

(OWN SALES) Shetland ZE1 0PE
WHALSAY Leask Electrical

Harisdale
Symbister, Whalsay

(OWN SALES) Shetland ZE2 9AA

NORTHERN IRELAND

BELFAST Owenmore House

Kilwee Business Park
Dunmurry
Belfast
BT17 0HD

WALES

CARDIFF Unit 4

Guardian Industrial Estate
Clydesmuir Road
Cardiff
CF2 2QS

CLYWD Unit 6-7 Coed Parc

Abergele Road
Rhuddlan
Clwyd
LL18 5UG

DYFED Unit 9

St. Clears Business Park
Tenby Road
St. Clears
Carmarthen
SA33 4JW

OSWESTRY Plas Ffynnon Warehouse

Middleton Road
Oswestry
SY11 2PP

NORTH EAST

GATESHEAD Unit 356a

Dukesway Court
Dukesway
Gateshead NE11 0BH

GRIMSBY 15 Hainton Avenue

Grimsby
N. E. Lincs
DN32 9AS

HULL Unit 1

Boulevard Industrial Estate
Hull
HU3 4AY

LEEDS 64-66 Cross Gates Road

Cross Gates
Leeds
LS15 7YS

NEWTON AYCLIFFE Unit 23

Northfield Way
Aycliffe Industrial Park
Newton Aycliffe
DL5 6EJ

SHEFFIELD Pennine House

Roman Ridge Road
Sheffield
S9 1GB

NORTH WEST

BIRKENHEAD 1 Kelvin Park

Dock Road
Birkenhead
CH41 1LT

CARLISLE Unit 7

James Street Workshops
James Street
Carlisle
Cumbria CA2 5AH

ISLE OF MAN South Quay Ind. Estate

Douglas
Isle of Man
IM1 5AT

BOLTON Unit B

Central Industrial Estate
St Marks Street
Bolton
BL3 6NR

PRESTON Unit 250

Dawson Place
Bamber Bridge
Preston
Lancashire PR5 8AL

STOCKPORT Unit 20 Haigh Park

Haigh Avenue
Stockport
SK4 1QR

13

LONDON & EAST ANGLIA

BECKENHAM 11a Gardner Ind. Estate

Kent House Lane
Beckenham
Kent BR3 1QZ

CHELMSFORD Hanbury Road

Widford Ind. Estate
Chelmsford
Essex
CM12 3AE

COLINDALE Unit 14

Capitol Park
Capitol Way
Colindale
London NW9 0EQ

ELTHAM 194 Court Road

Mottingham
Eltham
London SE9 4EW

ENFIELD 284 Alma Road

Enfield
London
EN3 7BB

GRAVESEND Unit B4

Imperial Business Estate
West Mill
Gravesend
Kent
DA11 0DL

IPSWICH Unit 6C

Elton Park Business Centre
Hadleigh Road
Ipswich
IP2 0DD

LETCHWORTH 16-17 Woodside Ind. Park

Works Road
Letchworth
Herts
SG6 1LA

LONDON 2 - 4 Royal Lane

Yiewsley
West Drayton
Middlesex
UB7 8DL

MAIDENHEAD Reform Road

Maidenhead
Berkshire
SL6 8BY

MOLESEY 10 Island Farm Avenue

West Molesey
Surrey
KT8 2UZ

NEWBURY 9 Pipers Court

Berkshire Drive
Thatcham
Berkshire
RG19 4ER

NORWICH 2b Trafalgar Street

Norwich
NR1 3HN

SUNBURY Unit 1a

The Summit
Hanworth Road
Sunbury on Thames
TW16 5DB

MIDLANDS

BIRMINGHAM 66 Birch Road East

Wyrley Trading Estate
Witton
Birmingham
B6 7DB

BOURNE Pinfold Road

Bourne
PE10 9HT

BRIDGNORTH 68 St. Mary’s Street

Bridgnorth
Shropshire
WV16 4DR

GLOUCESTER 101 Rycroft Street

Gloucester
GL1 4NB

HEREFORD Units 3 & 4

Bank Buildings
Cattle market
Hereford
HE4 9HX

HIGHAM FERRERS 30 High Street

Higham Ferrers
Northants
NN10 8PL

ILKESTON Unit 2

Furnace Road
Ilkeston DE7 5EP

LEICESTER Unit 7

Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE9 5GF

LINCOLN Unit 8

Clifton Street
Stone Field Park
Lincoln
LN5 8LQ

NEWCASTLE 18-21 Croft Road
UNDER LYME Brampton Ind. Estate

Newcastle under Lyme
Staffordshire
ST5 0TW

REDDITCH 13 Thornhill Road

North Moons Moat
Redditch
Worcestershire
B98 9ND

TAMWORTH Unit 3

Sterling Park
Claymore
Tamworth
B77 5DQ

WORCESTER Units 1 & 2

Northbrooks Close
Gregorys Mill Ind. Estate
Worcester
WR3 8BP

To contact your local Service Force Centre telephone [phone]

SOUTH EAST

ASHFORD Unit 2

Bridge Road Business Centre
Bridge Road
Ashford
Kent TN23 1BB

FLEET Unit 1

Redfields Ind. Estate
Church Crookham
Fleet
Hampshire GU13 0RD

HAYWARDS 21-25 Bridge Road
HEATH Haywards Heath

Sussex RH16 1UA

TONBRIDGE Unit 30

Deacon Trading Estate
Morley Road
Tonbridge
TN9 1RA

SOUTH WEST

BARNSTAPLE Main Road

Fremington
Barnstaple
North Devon EX31 2NT

BOURNEMOUTH 63-65 Curzon Road

Bournemouth
Dorset
BH1 4PW

BRIDGEWATER 6 Herswell Business Park

Salmon Parade
Bridgwater
Somerset TA6 5PY

BRISTOL 11 Eldon Way

Eldonwall Trading Estate
Bristol
BS4 3QQ

EMSWORTH 266 Main Road

Southbourne
Emsworth
PO10 8JL

ISLE OF WIGHT Unit 8

Enterprise Court
Ryde Business Park
Ryde
Isle of Wight PO33 1DB

NEWTON ABBOT Unit 2

Zealley Ind. Estate
Kingsteignton
Newton Abbot
TQ12 3TD

REDRUTH Unit 7D

Pool Ind. Estate
Druids Road
Redruth

Cornwall TR15 3RH

14

DIMENSIONS Height 85 cm

Width 54,5 cm
Depth 60 cm

POWER SUPPLY VOLTAGE AND FREQUENCY 220-240 V / 50 Hz
TOT ALPOWER ABSORBED 95 W
AVERAGE DAILYUNITS ELECTRICITY(*) 0,52 kWh

:
GROSS CAPACITY 158 l

NET CAPACITY 155 l
(*)This figure is based on standard test results in accordance with European Standard EN153. Actual

consumption will depend on how the appliance is used and where it is located).

TECHNICAL SPECIFICATIONS

INSTALLATION

Positioning

For this appliance to work efficiently, it must not be
located where the temperatures will fall below 10°C
(50°F) or rise above 32°C (90°F), e.g. conservatories.

For correct operation this appliance must be located in
a dry atmosphere, away from heat sources, e.g.
cookers, radiators, boilers and direct sunlight.

You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
should be 100mm (4”) between the top of the cabinet
and any overhanging kitchen furniture. Alternatively
allow 50mm (2”) between the top of the cabinet and
any overhanging kitchen furniture and a gap of 25mm
(1”) on either side of the appliance.

Do not obstruct the space underneath. The back of the
cabinet may be placed close to the wall but must not
touch it. DO NOT install in places with restricted
ventilation.

Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers.

50-100 mm10 mm

A

NP006

B

10 mm

D200

15

Door reversal

Before carrying out the operations described below,
pull out the mains plug from the wall socket.

Carry out door reversal as follows:

1. Gently lay the appliance on its back with the top
held away from the floor by 5-8 cm (2-3 inches) of
packing.

2. Remove the bottom door hinge (5).

3. Remove the door (4) by opening it and pulling it

gently downwards to remove it from the top hinge
pin (2).

4. Unscrew the top hinge pin (2) from the top hinge (1)
and replace it in the opposite hole on the left hand
side.

5. Unscrew the foot at the base (6) of the appliance
and refit it on the opposite side.

6. Refit the door and the bottom hinge (5) to the left
hand side.

7. Remove the door handle (3) and fit it on the
opposite side. Cover the holes left open with the
plugs already provided.

When the bottom hinge is screwed in, a certain
amount of force is exerted on the screws.
It is therefore advisable to lubricate the screw tips
before starting this operation.

Important

After completion of the door reversal operation,
verify that the door gasket is sealing onto the
cabinet.
If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting
of the gasket or accelerate this process by
heating up the part involved with a normal
hairdryer on a low setting.

16

ELECTRICAL CONNECTION

WARNING:
THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability
should this safety measure not be
observed.

If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.

Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.

Important

The wires in the mains lead are coloured in
accordance with the following code:

Green and Yellow - Earth
Blue - Neutral
Brown - Live

If you fit your own plug, the colours of the wires in the
mains lead of your appliance, may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:

Connect the Green and the Yellow (earth) wire to the
terminal in the plug which is marked with the letter
«E» or the earth symbol , or coloured green and
yellow.

Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.

Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.

The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BS1362 fuse. Only
ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Service Force Centre.

This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.

This appliance complies with the following
E.E.C. Directive:

- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent amendments.

- 89/336 EEC of 3.5.89 (Electromagnetic

- Compatibility Directive) and subsequent amend-

ments.

Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of breakdown.

GREEN & YELLOW

13 AMP. FUSE

13 AMP

D207

BROWN

BLUE

CORD CLAMP

© Electrolux Household Appliances Limited 2001
