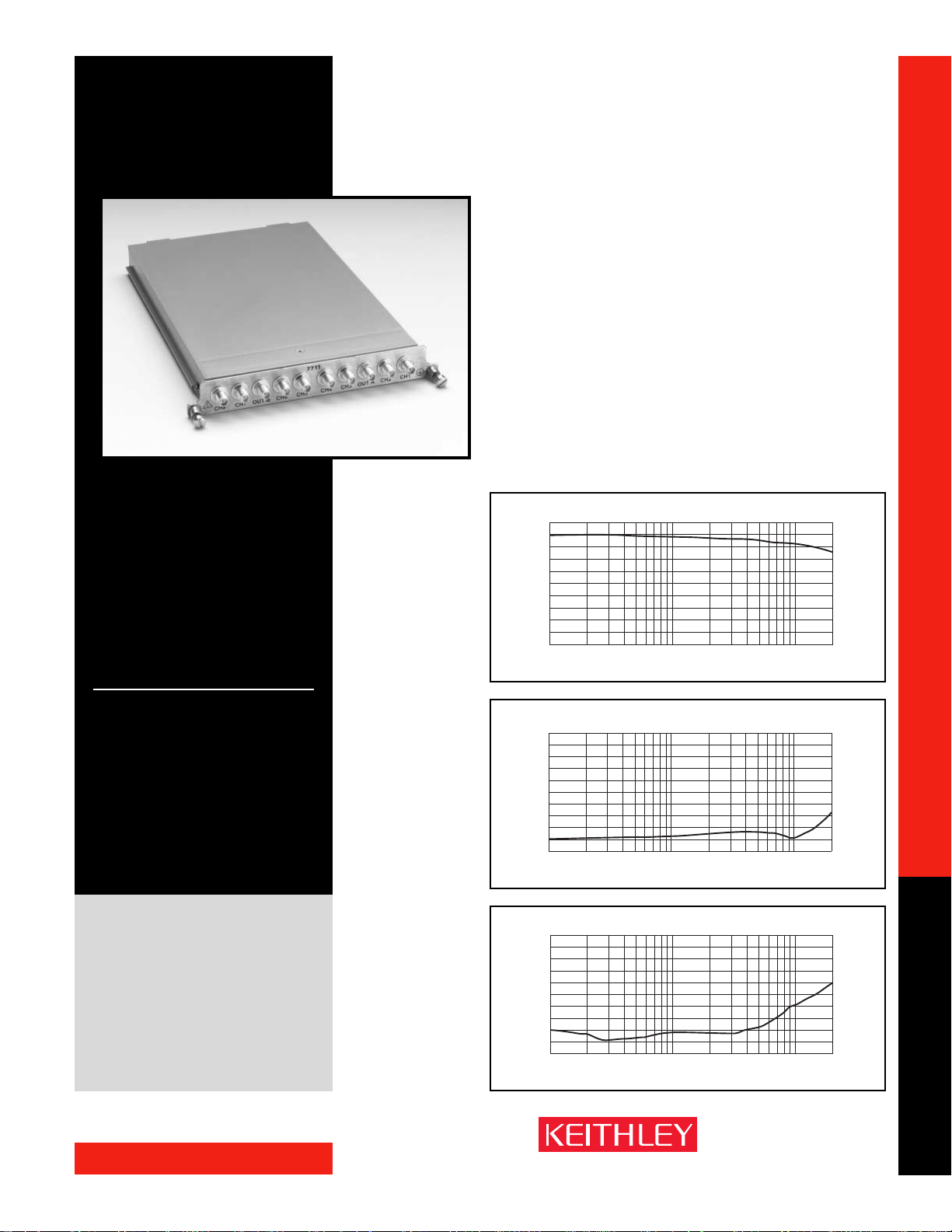

Plug-in RF switching module for Integra mainframes
SWITCH/MEASURE SYSTEMS
7711 2GHz 50ΩRF Module
• Outstanding signal routing
performance to 2GHz
• Dual 1x4 configuration
• Rear panel SMA connections
• On-board switch closure
counter
• On-board S-parameter storage
• Switch up to 60VDC
The Model 7711 2GHz RF module is part of Keithley’s Integra Series of flexible
measurement/control solutions. This new module is designed to plug into
either the two-slot Model 2700 or five-slot Model 2750 mainframe, adding RF
signal routing capability to the Integra Series’ robust DC switch and measurement performance. This module’s outstanding low frequency performance
and low cost make it useful for a wide variety of applications, including switching power supply ripple testing.
The Model 7711’s outstanding high frequency performance and on-board
S-parameter storage make it ideal for routing RF signals to instrumentation
and devices with bandwidths up to 2GHz. Its addition to the Integra Series
allows users to build cost-effective, high performance hybrid DC/RF systems
simply and economically. Like every Integra Series module, the Model 7711
has on-board switch closure counters that can be used to track relay life, simplifying preventative maintenance in production test applications.
For more information on other Integra Series products, including the Model
7712 3.5GHz RF Module, visit our web site at www.keithley.com.
APPLICATIONS
•General purpose RF signal
routing to/from oscilloscopes,
signal generators, frequency
counters, etc.
• Switching power supply ripple
test
•Wireless device testing
• High frequency component test
Ordering Information
7711 2GHz, 50Ω, Dual 1x4
RF Module
Typical Insertion Loss
0dB
–1dB
–2dB
–3dB
–4dB
10 100 1000 2000
Frequency (MHz)
Typical VSWR
1.8
1.6
1.4
1.2
1.0
10 100 1000 2000
Frequency (MHz)
Typical Crosstalk
–20dB
–40dB
–60dB
–80dB
–100dB
10 100 1000 2000
Frequency (MHz)
Page 2
Model 7711 Specifications
SWITCH/MEASURE SYSTEMS
7711 2GHz 50ΩRF Module
Specifications are subject to change without notice.
All Keithley trademarks and trade names are the property of Keithley Instruments, Inc. All other trademarks and
trade names are the property of their respective companies.
Keithley Instruments, Inc. 28775 Aurora Road • Cleveland, Ohio 44139 • 440-248-0400 • Fax: 440-248-6168
1-888-KEITHLEY (534-8453) www.keithley.com
© Copyright 2002 Keithley Instruments, Inc. No. 2370
Printed in the U.S.A. 010220KDCI
7711 50Ω 2GHz Multiplexer Specifications
AC PERFORMANCE (END OF LIFE)
For Z
load
= Z
source
= 50Ω
<100 MHz 500 MHz 1 GHz 1.5 GHz 2 GHz
Insertion Loss 0.4 dB 0.6 dB 1.0 dB 1.2 dB 2.0 dB
MAX
VSWR MAX 1.1 1.2 1.2 1.3 1.7
Ch-Ch Crosstalk
1
–85 dB –65 dB –55 dB –45 dB –35 dB
MAX
1
Specification assumes 50Ω termination.
INPUTS (CHANNELS 1-8)
MAXIMUM SIGNAL LEVEL: Any channel to any channel or chassis (1–8): 30Vrms (42V peak for AC
waveforms) or 60VDC, 0.5A.
MAXIMUM POWER: 20W per module, 10W per channel (Refer to 7711/7712 Manual PA-818 for
measurement considerations).
SAFETY: Conforms to European Union Directive 73/23/EEC EN61010-1, CAT I.
EMC: Conforms with European Union Directive 89/336/EEC; EN61326-1.
ISOLATION: Multiplexer to Multiplexer: >1GΩ.
Center to Shield: >1GΩ, <25pF.
Channel to Channel: >100MΩ.
CONTACT LIFE: 1×10
6
no load, 1×10
5
rated load (resistive load).
CONTACT POTENTIAL: <6µV.
CONTACT RESISTANCE: <0.5Ω (initial), <1Ω (end of life).
RISE TIME: <300ps (guaranteed by design).
SIGNAL DELAY: <3ns.
GENERAL
RELAY TYPE: High frequency electromechanical.
CONTACT CONFIGURATION: Dual 1×4 multiplexer, single pole four throw, Channels 1 and 5 are
normally closed.
NOTES: One channel in each multiplex bank is always closed to the corresponding OUT connector.
CLOSE CHANNEL: ROUTe:CLOSe allows a single channel in a multiplex bank to be closed.
ROUTe:MULTiple:CLOSe allows two channels (one in each bank) to be closed at one time.
OPEN CHANNEL: ROUTe:OPEN:ALL closes CH1 and CH5 to OUT A and OUT B respectively.
ACTUATION TIME: <10ms.
FIRMWARE: Specified for Model 2700 rev. B04 and Model 2750 rev. A03 or higher.
CONNECTOR TYPE: Ten external rear panel SMA connectors.
MATING TORQUE: 0.9 N·m (8 in-lb).
ENVIRONMENTAL
OPERATING ENVIRONMENT: Specified for 0°C to 50°C. Specified for 80% RH at 35°C.
STORAGE ENVIRONMENT: –25°C to 65°C.
WEIGHT: <0.5kg (1.1 lb).
*Refer to 7711/7712 Manual (PA-818) for measurement considerations.
ACCESSORIES AVAILABLE
7051-2 BNC Cable, male to male, 0.6m (2 ft.)
7051-5 BNC Cable, male to male, 1.5m (5 ft.)
7051-10 BNC Cable, male to male, 3.0m (10 ft.)
7711-BNC-SMA Male SMA to female BNC Cables (5),
0.15m (0.5 ft)
7712-SMA-1 SMA Cable, male to male, 1m (3.3 ft)
7712-SMA-N Female SMA to male N-Type Adapter
S46-SMA-0.5 SMA Cable, male to male, 0.15m (0.5 ft.)
S46-SMA-1 SMA Cable, male to male, 0.3m (1 ft.)

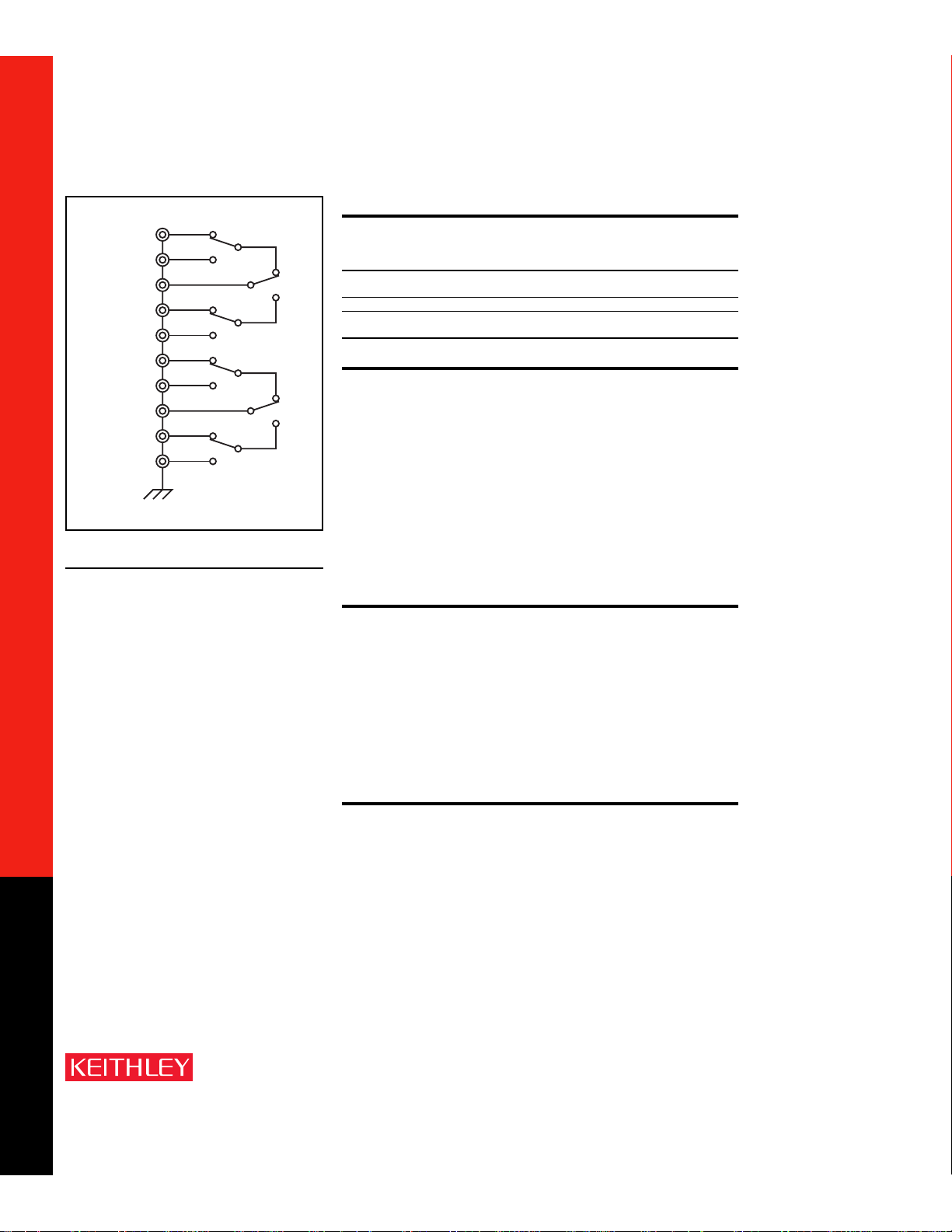

Ch. 1
Ch. 2
OUT A
Ch. 3
Ch. 4
Ch. 5
Ch. 6
OUT B
Ch. 7
Ch. 8
