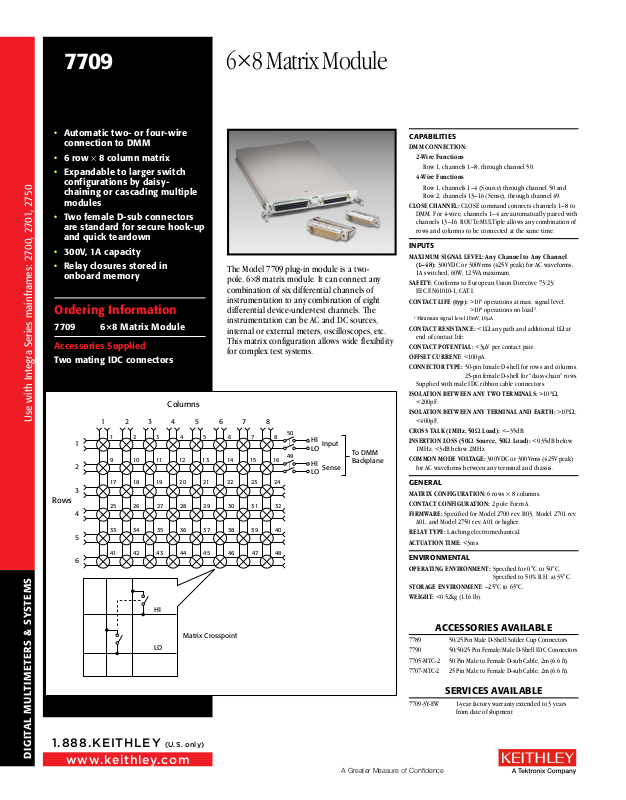

6×8 Matrix Module
• Automatic two- or four-wire
connection to DMM
• 6 row × 8 column matrix
• Expandable to larger switch
configurations by daisychaining or cascading multiple
modules
• Two female D-sub connectors
are standard for secure hook-up
and quick teardown
• 300V, 1A capacity
• Relay closures stored in
onboard memory
Ordering Information
7709 6×8 Matrix Module
Accessories Supplied
Two mating IDC connectors
Use with Integra Series mainframes: 2700, 2701, 2750
The Model 7709 plug-in module is a twopole, 6×8 matrix module. It can connect any
combination of six differential channels of
instrumentation to any combination of eight
differential device-under-test channels. The
instrumentation can be AC and DC sources,
internal or external meters, oscilloscopes, etc.
This matrix configuration allows wide flexibility
for complex test systems.
CAPABILITIES
DMM CONNECTION:
2-Wire Functions
Row 1, channels 1–8, through channel 50.
4-Wi re Functions
Row 1, channels 1–4 (Source) through channel 50 and
Row 2, channels 13–16 (Sense), through channel 49.
CLOSE CHANNEL: CLOSE command connects channels 1–8 to
DMM. For 4-wire, channels 1–4 are automatically paired with
channels 13–16. ROUTe:MULTiple allows any combination of
rows and columns to be connected at the same time.
INPUTS
MAXIMUM SIGNAL LEVEL: Any Channel to A ny Chan nel
(1–48): 300VDC or 300Vrms (425V peak) for AC waveforms,
1A switched, 60W, 125VA maximum.
SA FE TY: Conforms to European Union Directive 73/23/
EEC EN61010-1, CAT I.
CONTACT LIF E (ty p): >1 0
1
Minimum signal le vel 10mV, 10µA.
CONTACT RESISTANCE: <1W any path and additional 1W at
end of contact life.
CONTACT POTENTIAL: <3µV per contact pair.
OFFSET CURRENT: <100pA.
CONNECTOR TYPE: 50-pin female D-shell for rows and columns.
Supplied with male IDC ribbon cable connectors.
ISOLATION BETWEEN AN Y TWO TER MINA LS: >10
<20 0pF.
ISOLATION BETWEEN AN Y TERMINAL A ND EARTH: >10
<40 0pF.
CROSS TALK (1MH z, 50W Load): <–35dB.
INSERTION LOSS (50 W Source, 50W Load): <0.35dB below
1MHz. <3dB below 2MHz.
COMMON MODE VOLTAGE: 300VDC or 300Vrms (425V peak)
for AC waveforms between any terminal and chassis.
GENERAL
MATRIX CONFIGUR ATION: 6 rows × 8 columns.
CONTACT CONFIGUR ATION: 2 pole Form A.
FIR MWAR E: Specified for Model 2700 rev. B03, Model 2701 rev.
A01, and Model 2750 rev. A01 or higher.
RELAY TYPE: Latching electromechanical.
ACTUATION TIME: <3ms.
ENVIRONMENTAL
OPERATING ENVIRONMENT: Specified for 0°C to 50°C.
STORAGE ENVIRONMENT: –25°C to 65°C.
WEIGHT: <0.52kg (1.16 lb).
5
operations at max. signal level.
8
operations no load1.
>10
25-pin female D-shell for “daisy-chain” rows.
9
W,
9
W,
Specified to 50% R.H. at 35°C.
ACCESSORIES AVAILABLE
7789 50/25 Pin Male D-Shell Solder Cup Connectors
7790 50/50/25 Pin Female/Male D-Shell IDC Connectors
7705-MTC-2 50 Pin Male to Female D-sub Cable, 2m (6.6 ft).
7707-MTC-2 25 Pin Male to Female D-sub Cable, 2m (6.6 ft).
