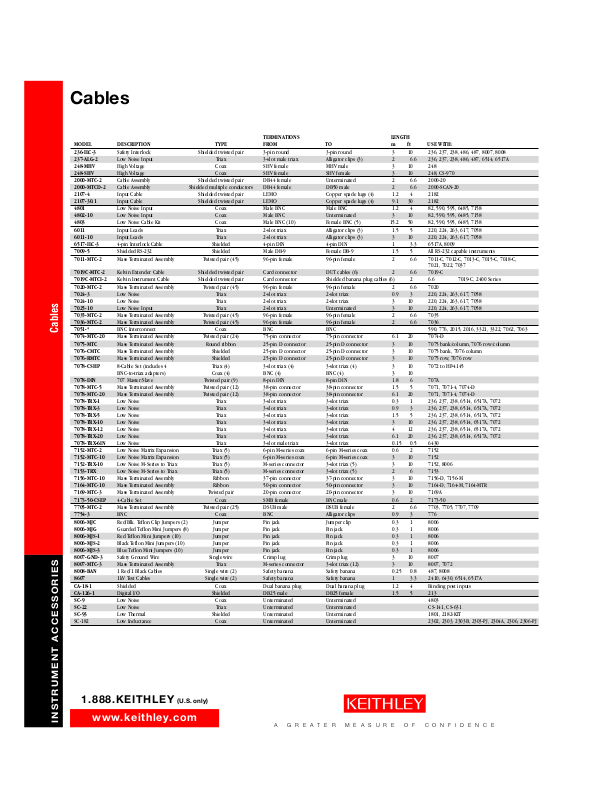

Page 1
Cables
MODEL DESCRIPTION TYPE FROM TO m ft USE WITH:
236-ILC-3 Safety Interlock Shielded twisted pair 3-pin round 3-pin round 3 10 236, 237, 238, 486, 487, 8007, 8008
237-ALG-2 Low Noise Input Triax 3-slot male triax Alligator clips (3) 2 6.6 236, 237, 238, 486, 487, 6514, 6517A
248-MHV High Voltage Coax SHV female MHV male 3 10 248
248-SHV High Voltage Coax SHV female SHV female 3 10 248, CS-970
2000-MTC-2 Cable Assembly Shielded twisted pair DB44 female Unterminated 2 6.6 2000-20
2000-MTCD-2 Cable Assembly Shielded multiple conductors DB44 female DB50 male 2 6.6 2000-SCAN-20
2107-4 Input Cable Shielded twisted pair LEMO Copper spade lugs (4) 1.2 4 2182
2107-30.1 Input Cable Shielded twisted pair LEMO Copper spade lugs (4) 9.1 30 2182
4801 Low Noise Input Coax Male BNC Male BNC 1.2 4 82, 590, 595, 6485, 7158
4802-10 Low Noise Input Coax Male BNC Unterminated 3 10 82, 590, 595, 6485, 7158
4803 Low Noise Cable Kit Coax Male BNC (10) Female BNC (5) 15.2 50 82, 590, 595, 6485, 7158
6011 Input Leads Triax 2-slot triax Alligator clips (3) 1.5 5 220, 224, 263, 617, 7058
6011-10 Input Leads Triax 2-slot triax Alligator clips (3) 3 10 220, 224, 263, 617, 7058
6517-ILC-3 4-pin Interlock Cable Shielded 4-pin DIN 4-pin DIN 1 3.3 6517A, 8009
7009-5 Shielded RS-232 Shielded Male DB-9 Female DB-9 1.5 5 All RS-232 capable instruments
7011-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7011-C, 7012-C, 7013-C, 7015-C, 7018-C,
7019C-MTC-2 Kelvin Extender Cable Shielded twisted pair Card connector DUT cables (6) 2 6.6 7019-C
7019C-MTCI-2 Kelvin Instrument Cable Shielded twisted pair Card connector Shielded banana plug cables (6) 2 6.6 7019-C, 2400 Series
7020-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7020
7024-3 Low Noise Triax 2-slot triax 2-slot triax 0.9 3 220, 224, 263, 617, 7058
7024-10 Low Noise Triax 2-slot triax 2-slot triax 3 10 220, 224, 263, 617, 7058
7025-10 Low Noise Input Triax 2-slot triax Unterminated 3 10 220, 224, 263, 617, 7058
7035-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7035
7036-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7036
7051-* BNC Interconnect Coax BNC BNC 590, 776, 2015, 2016, 3321, 3322, 7062, 7063
Cables
7074-MTC-20 Mass Terminated Assembly Twisted pair (24) 75-pin connector 75-pin connector 6.1 20 7074-D
7075-MTC Mass Terminated Assembly Round ribbon 25-pin D connector 25-pin D connector 3 10 7075 bank/column, 7076 row/column
7076-CMTC Mass Terminated Assembly Shielded 25-pin D connector 25-pin D connector 3 10 7075 bank, 7076 column
7076-RMTC Mass Terminated Assembly Shielded 25-pin D connector 25-pin D connector 3 10 7075 row, 7076 row
7078-CSHP 8-Cable Set (includes 4 Triax (4) 3-slot triax (4) 3-slot triax (4) 3 10 7072 to HP-4145
7078-DIN 707 Master/Slave Twisted pair (9) 8-pin DIN 8-pin DIN 1.8 6 707A
7078-MTC-5 Mass Terminated Assembly Twisted pair (12) 38-pin connector 38-pin connector 1.5 5 7071, 7071-4, 7074-D
7078-MTC-20 Mass Terminated Assembly Twisted pair (12) 38-pin connector 38-pin connector 6.1 20 7071, 7071-4, 7074-D
7078-TRX-1 Low Noise Triax 3-slot triax 3-slot triax 0.3 1 236, 237, 238, 6514, 6517A, 7072
7078-TRX-3 Low Noise Triax 3-slot triax 3-slot triax 0.9 3 236, 237, 238, 6514, 6517A, 7072
7078-TRX-5 Low Noise Triax 3-slot triax 3-slot triax 1.5 5 236, 237, 238, 6514, 6517A, 7072
7078-TRX-10 Low Noise Triax 3-slot triax 3-slot triax 3 10 236, 237, 238, 6514, 6517A, 7072
7078-TRX-12 Low Noise Triax 3-slot triax 3-slot triax 4 12 236, 237, 238, 6514, 6517A, 7072
7078-TRX-20 Low Noise Triax 3-slot triax 3-slot triax 6.1 20 236, 237, 238, 6514, 6517A, 7072
7078-TRX-6IN Low Noise Triax 3-slot male triax 3-slot triax 0.15 0.5 6430
7152-MTC-2 Low Noise Matrix Expansion Triax (5) 6-pin M-series coax 6-pin M-series coax 0.6 2 7152
7152-MTC-10 Low Noise Matrix Expansion Triax (5) 6-pin M-series coax 6-pin M-series coax 3 10 7152
7152-TRX-10 Low Noise M-Series to Triax Triax (5) M-series connector 3-slot triax (5) 3 10 7152, 8006
7153-TRX Low Noise M-Series to Triax Triax (5) M-series connector 3-slot triax (5) 2 6 7153
7156-MTC-10 Mass Terminated Assembly Ribbon 37-pin connector 37-pin connector 3 10 7156-D, 7156-M
7164-MTC-10 Mass Terminated Assembly Ribbon 50-pin connector 50-pin connector 3 10 7164-D, 7164-M, 7164-MTR
7169-MTC-3 Mass Terminated Assembly Twisted pair 20-pin connector 20-pin connector 3 10 7169A
7173-50-CSEP 4-Cable Set Coax SMB female BNC male 0.6 2 7173-50
7705-MTC-2 Mass Terminated Assembly Twisted pair (25) DSUB male DSUB female 2 6.6 7703, 7705, 7707, 7709
7754-3 BNC Coax BNC Alligator clips 0.9 3 776
8006-MJC Red/Blk. Teflon Clip Jumpers (2) Jumper Pin jack Jumper clip 0.3 1 8006
8006-MJG Guarded Teflon Mini Jumpers (8) Jumper Pin jack Pin jack 0.3 1 8006
8006-MJS-1 Red Teflon Mini Jumpers (10) Jumper Pin jack Pin jack 0.3 1 8006
8006-MJS-2 Black Teflon Mini Jumpers (10) Jumper Pin jack Pin jack 0.3 1 8006
8006-MJS-3 Blue Teflon Mini Jumpers (10) Jumper Pin jack Pin jack 0.3 1 8006
8007-GND-3 Safety Ground Wire Single wire Crimp lug Crimp lug 3 10 8007
8007-MTC-3 Mass Terminated Assembly Triax M-series connector 3-slot triax (12) 3 10 8007, 7072
8008-BAN 1 Red/1 Black Cables Single wire (2) Safety banana Safety banana 0.25 0.8 487, 8008
8607 1kV Test Cables Single wire (2) Safety banana Safety banana 1 3.3 2410, 6430, 6514, 6517A
CA-18-1 Shielded Coax Dual banana plug Dual banana plug 1.2 4 Binding post inputs
CA-126-1 Digital I/O Shielded DB25 male DB25 female 1.5 5 213
SC-9 Low Noise Coax Unterminated Unterminated 4803
SC-22 Low Noise Triax Unterminated Unterminated CS-141, CS-631
SC-93 Low Thermal Shielded Unterminated Unterminated 1801, 2182-KIT
SC-182 Low Inductance Coax Unterminated Unterminated 2302, 2303, 2303B, 2303-PJ, 2304A, 2306, 2306-PJ
BNC-to-triax adapters) Coax (4) BNC (4) BNC (4) 3 10
TERMINATIONS LENGTH
7021, 7022, 7037
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
Page 2
Cables

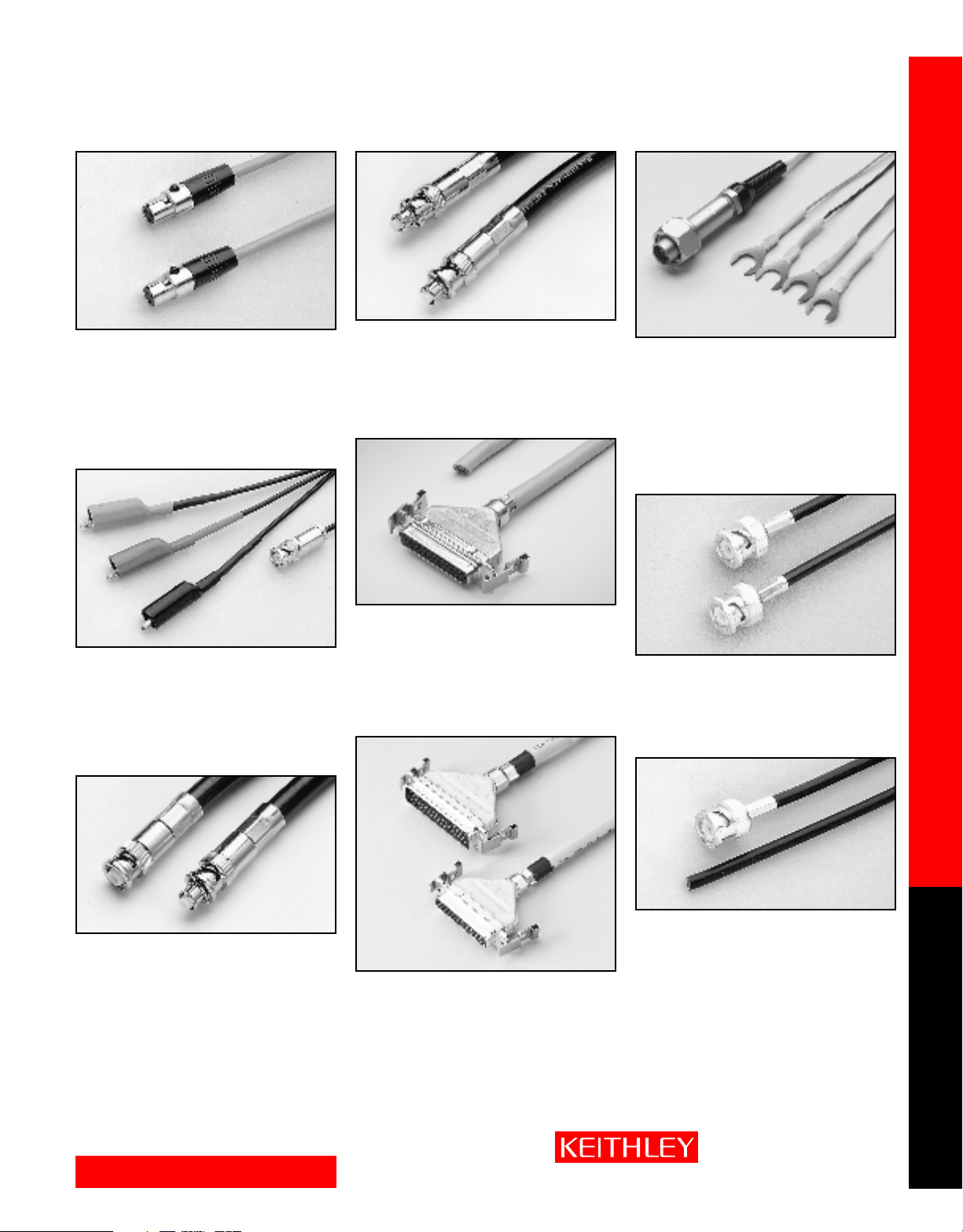

Model 236-ILC-3 Safety Interlock Cable:
Designed to connect the lid interlock circuit of the
Model 8007 and 8008 test fixtures to the interlock
circuit of the Models 236, 237, and 238 SMUs and
486 and 487 Picoammeters.
For use with: 236, 237, 238, 486, 487, 8007,
8008
Model 237-ALG-2: 2m (6.6 ft) of low noise triax
cable (SC-22) terminated with a 3-slot male triax
connector on one end and 3 alligator clips on the
other.
For use with: 236, 237, 238, 486, 487, 6514,
6517A
Model 248-SHV: 3m (10 ft) of RG-8A/U coax
cable terminated with a SHV female connector on
both ends. Maximum operating voltage (rms) is
5,000V.
For use with: 248 and CS-970
Model 2000-MTC-2 Cable Assembly: 2-meter
cable with a 44-pin connector on one end that is
designed to mate with the 2000-20 scanner card.
The other end is unterminated for direct connection to measurement fixtures or devices.
For use with: 2000-20
Model 2107-* Low-Thermal Input Cables with
Spade Lugs: An input cable for the Model 2182
Nanovoltmeter. Terminated with a LEMO connector on one end and four copper spade lugs on the
other.
2107-4 1.2m (4 ft) length
2107-30 9.1m (30 ft) length
For use with: 2182
Cables
Model 4801 Input Cable: Low noise coax cable,
1.2m (48 in) in length, with male BNC connectors
on each end.
For use with: 82, 590, 595, 6485, 7158
Model 248-MHV: 3m (10 ft) of RG-8A/U coax
cable terminated with a SHV female connector on
one end and a MHV male connector on the other.
Maximum operating voltage (rms) is 5,000V
For use with: 248
1.888.KEITHLEY (U.S. only)
www.keithley.com
Model 2000-MTCD-2 Cable Assembly: 2-meter
cable with a 44-pin connector on one end that is
designed to mate with the 2000-SCAN-20 scanner
card. The other end is equipped with a 50-pin D
subminiature connector, designed to mate with 50pin female D connectors.
For use with: 2000-SCAN-20
A GREATER MEASURE OF CONFIDENCE
Model 4802-10: 3m (10 ft) of low noise coax
cable with male BNC connector at one end and
unterminated at the other.
For use with: 82, 590, 595, 6485, 7158
INSTRUMENT ACCESSORIES
Page 3
Cables

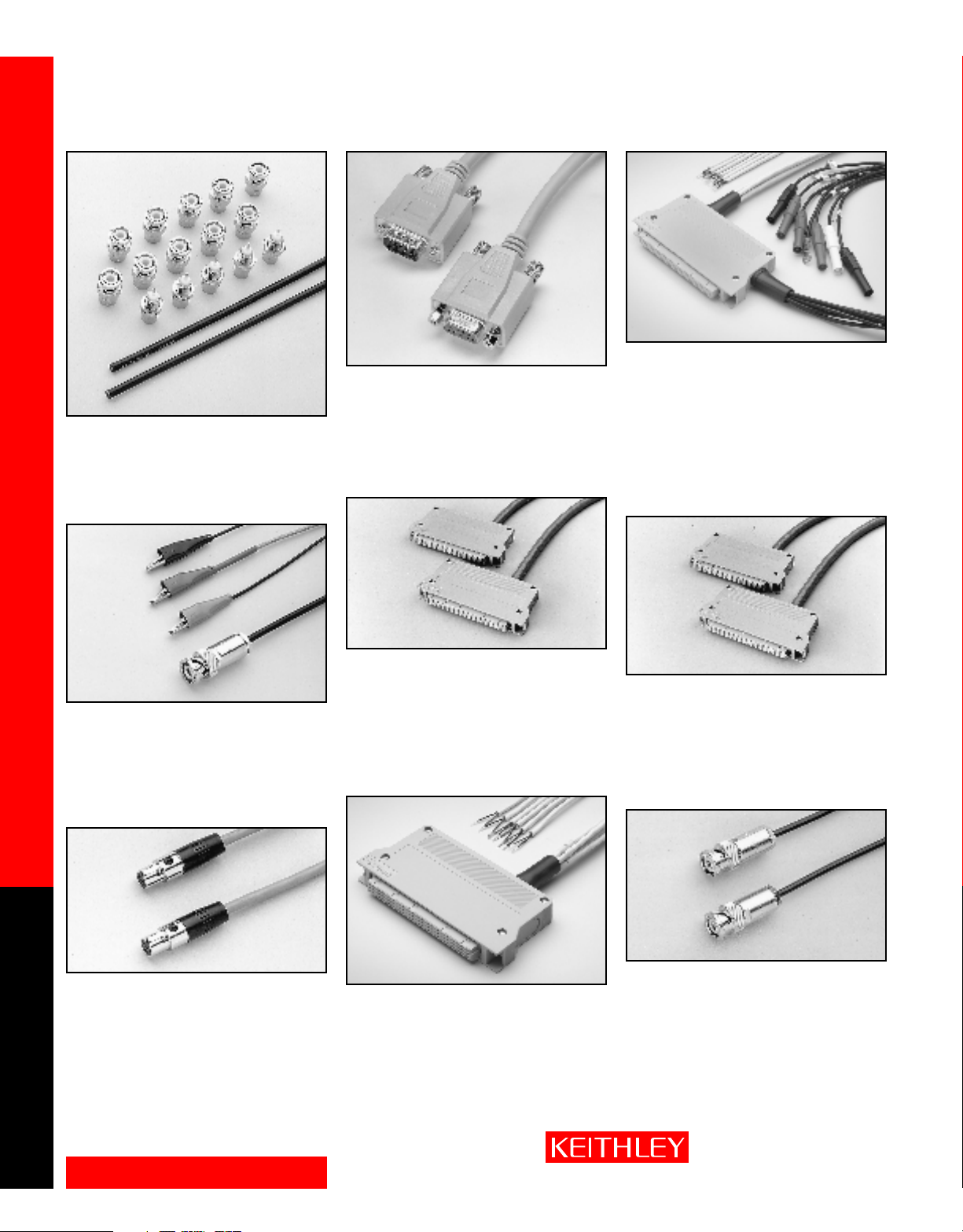

Model 4803 Low Noise Cable Kit: Includes
15m (50 ft) of low noise coax cable, 10 male BNC
connectors, and 5 female BNC chassis-mount connectors.
Cables
For use with: 82, 485, 595, 6485, 7158
Model 7009-5 Shielded RS-232 Cable: 1.5m (5
ft) RS-232 cable with a male DB-9 connector at one
end and a female DB-9 connector on the other
end. Wired as a straight through, not as a null
modem cable.
For use with: All RS-232 capable instruments
Model 7019C-MTCI-2 6-Wire Kelvin Extender
and Instrument Cable: Used with Model 7019-C
6-Wire Ohms Matrix Card and a SourceMeter
instrument. The SourceMeter cables are 0.6m (2
ft) long and the DUT cables are 2m (6.6 ft) long.
The cable set is used in a basic system to test a
resistor network.
For use with: 7019-C, 2400 Series SourceMeter
Instruments
Model 6011 2-Slot Triax Cable: 1.5m (5 ft) of
triax cable (SC-22) terminated with a 2-slot triax
plug on one end and three alligator clips on the
other. Also available in 3m (10 ft) length (Model
6011-10).
For use with: 220, 224, 263, 617, 7058
Model 6517-ILC-3 Interlock Cable: Designed
to connect the Interlock of the 6517A with the
8009 test fixture. Configuring the 6517A with the
8009 test fixture results in all the electrode constants already being programmed into the unit.
For use with: 6517A Electrometer, 8009
Model 7011-MTC-2: 2m (6.6 ft) mass terminated
cable assembly for connection to 7011-C and other
switching cards. The cable has 45 pairs with outer
shield. The cable is terminated at each end with
96-pin female DIN connectors with strain relief.
For use with: 7011-C, 7012-C, 7013-C, 7015-C,
7018-C, 7021, 7022, 7037
Model 7019C-MTC-2 Kelvin Extender Cable:
An extension cable set for the Model 7019-C 6-Wire
Ohms Matrix Card. Provides cabling to the DUT
and is used for matrix expansion.
For use with: 7019-C
Model 7020-MTC-2: 2m (6.6 ft) mass terminated
cable assembly for connection to 7020. The cable
has 45 pairs with outer shield. The cable is terminated at each end with 96-pin female DIN connectors with strain relief.
For use with: 7020
2 Slot Triax
Model 7024-* 2-Slot Triax Cable: 0.9m (3 ft)
low noise triax cable (SC-22) with 2-slot male triax
connectors on each end.
7024-3 0.9m (3 ft)
7024-10 3m (10 ft)
For use with: 220, 224, 263, 617, 7058
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
Page 4
Cables
2 Slot Triax

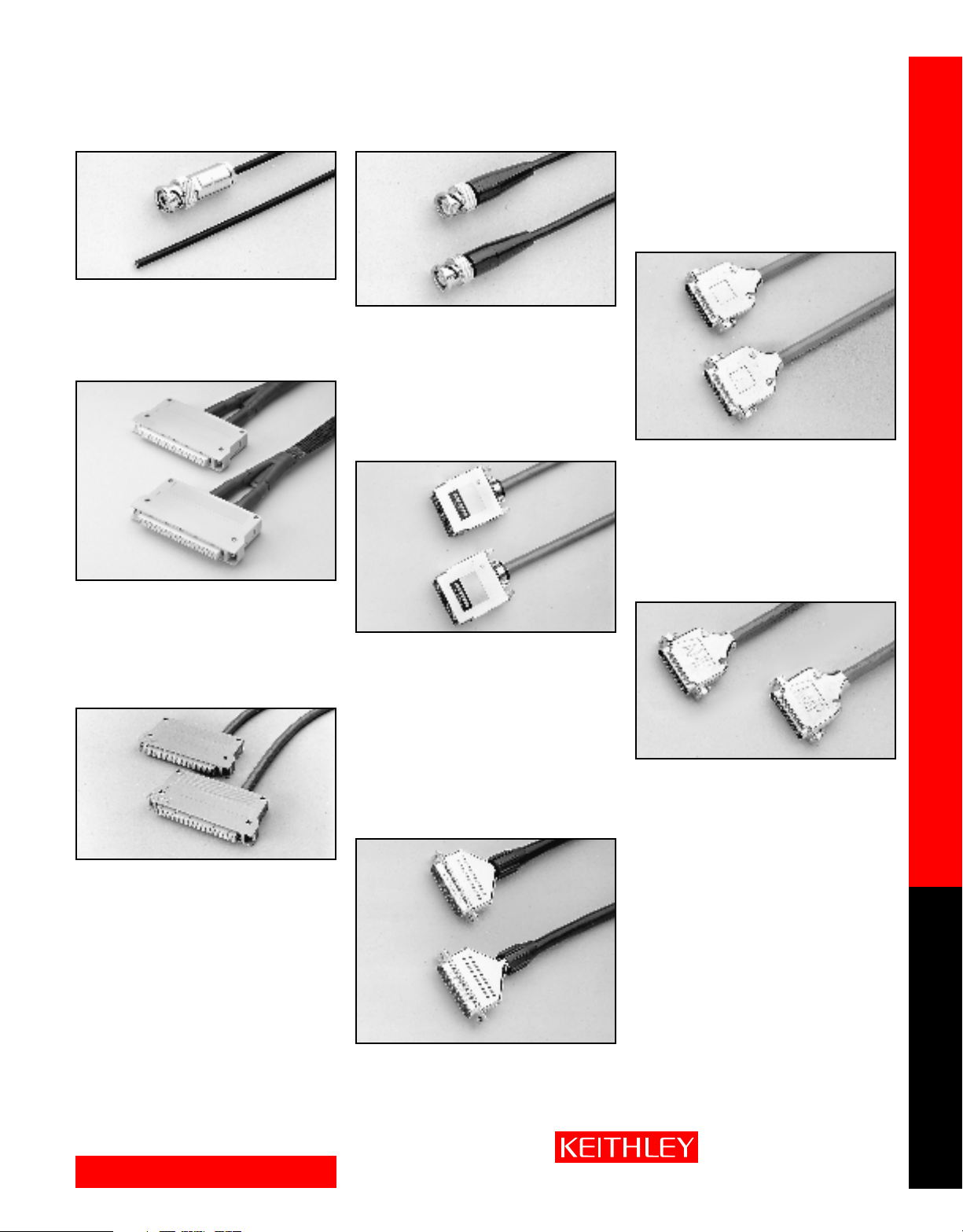

Model 7025-10 2-Slot Triax Cable: 3m (10 ft)
low noise triax input cable (SC-22) terminated on
one end with 2-slot male triax connector.
For use with: 220, 224, 263, 617, 7058
Model 7035-MTC-2: 2m (6.6 ft) mass terminated
cable assembly for connection to 7035. The cable
has 45 pairs with outer shield. The cable is terminated at each end with 96-pin female DIN connectors with strain relief.
For use with: 7035
Model 7036-MTC-2: 2m (6.6 ft) mass terminated
cable assembly for connection to 7036. The cable
has 45 pairs with outer shield. The cable is terminated at each end with 96-pin female DIN connectors with strain relief.
For use with: 7036
Model 7051-*: General purpose BNC to BNC cable
(G-58C).
7051-2 0.6m (2 ft)
7051-5 1.5 (5 ft)
7051-10 3m (10 ft)
For use with: 590, 776, 2015, 2016, 3321, 3322,
7062, 7063, some instrument external trigger
I/O lines
Model 7074-MTC-20: 6m (20 ft) mass terminated
cable assembly for connection to channel inputs
on the 7074-M multiplexer switching card. The
cable has 24 sets of shielded twisted pair wires for
isolation of critical circuits and noise rejection in
the system. The cable is terminated at each end in
a 75-pin connector block with strain relief. Model
7074-MTC-20 can be used as is or cut in half to
make two 10 ft cables for termination in unique
device-under-test fixtures and interfaces.
For use with: 7074-D
for bank or column connections on the 7075. The
number of cable assemblies required depends on
how the 7075 or 7076 is configured.
For use with: 7075 Bank/Column,
7076 Row/Column
Model 7076-CMTC: High isolation 3m (10 ft)
cable assembly with mass terminated connector on
each end. For bank connections on the 7075 or
column connections on the 7076. A separate guard
shields each HI signal path. The number of cables
required depends on how the 7075 or 7076 is configured.
For use with: 7075 Bank, 7076 Column
Model 7076-RMTC: High isolation 3m (10 ft)
cable assembly with mass terminated connector on
each end. For use as row connections on the 7075
and 7076. A separate guard shields each HI signal
path. The number of cable assemblies required
depends on how the 7075 or 7076 is configured.
For use with: 7075 Row, 7076 Row
Cables
1.888.KEITHLEY (U.S. only)
www.keithley.com
Model 7075-MTC: 3m (10 ft) cable assembly with
mass terminated connector on each end. For use
as row or column connections on the 7076, and
A GREATER MEASURE OF CONFIDENCE
INSTRUMENT ACCESSORIES
Page 5

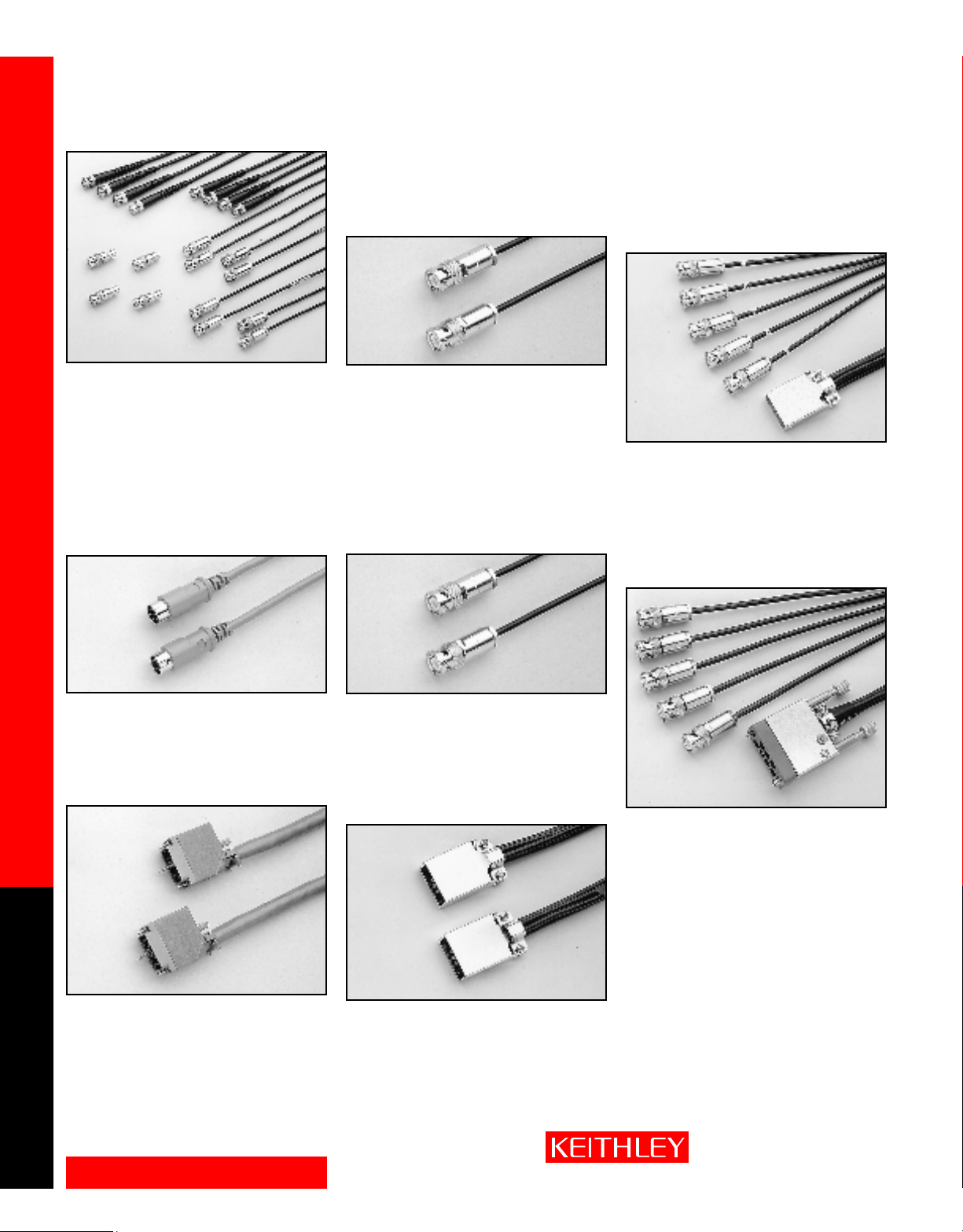

Cables
Model 7078-CSHP is a set of eight 3m (10 ft)
cables and four BNC-to-triax adapters for connecting between the Model 7072 8×12 Semiconductor
Matrix Card and an HP-4145 Semiconductor
Parameter Analyzer. Four 3-slot triax cables connect to Source/Measure Unit outputs. Four BNCto-BNC coax cables adapt the measurement and
source modules in the HP-4145 to the connectors
Cables
of 7072.
For use with: 7072 to HP-4145
minated at each end in a 38-pin connector block
with strain relief. Model 7078-MTC-20 can be
used as is or cut in half to make two 10 ft cables.
For use with: 7071, 7071-4, 7074-D
3 Slot Triax
Model 7078-TRX-* 3-Slot Triax Cables: Low
noise triax cables terminated at both ends in 3-slot
triax connectors.
7078-TRX-1 0.3m (1 ft)
7078-TRX-3 0.9m (3 ft)
7078-TRX-5 1.5m (5 ft)
7078-TRX-10 3.0m (10 ft)
7078-TRX-12 3.5m (12 ft)
7078-TRX-20 6.0m (20 ft)
For use with: 236, 237, 238, 6514, 6517A, 7072
for connection between the matrix and the device
under test.
7152-MTC-2 0.6m (2 ft)
7152-MTC-10 3.0m (10 ft)
For use with: 7152
Model 7152-TRX-10: Set of five 3m (10 ft) low
noise triax cables terminated at one end in a single
M-series connector block and at the other end in
3-slot triax connectors. This cable is most useful
for direct connection to electrometers and
Source/Measure Units.
For use with: 7152, 8006
Model 7078-DIN: This 1.8m (6 ft) cable accessory connects between Model 707A mainframes
when operated as one unit in Master/Slave mode.
One cable is required for each mainframe.
For use with: 707A
Model 7078-MTC-5: 1.5m (5 ft) mass terminated
cable for connection to column inputs (7071 and
7071-4). Also used for matrix expansion (7071,
7071-4, or 7074). The cable has 12 sets of shielded
twisted pair wires for isolation of critical circuits
and noise rejection in the system. The cable is ter-
3 Slot Triax
Model 7078-TRX-6IN 3-Slot Triax Cable: 0.15m
(6 inch), 3-slot, low-noise, guarded triax cable that
minimizes leakage current and input capacitance
when used with the Model 6430 Remote PreAmp
(lower noise than 1 foot or longer versions).
For use with: 6430
Model 7153-TRX: 2m (6.6 ft) low noise cable
assembly with M-series connector at one end for
row or column connections to the 7153, and five
3-slot male triax connectors at the other end. Two
7153-TRX cable assemblies are required to make all
connections to the 7153 card.
For use with: 7153
Model 7152-MTC-*: Five low noise triax cables
terminated in 6-position M-series coax connector
blocks. Provides quick connection between 7152
matrix cards, and are compatible with Model 7152MTR connector. Also available in 3m (10 ft) length
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
Page 6

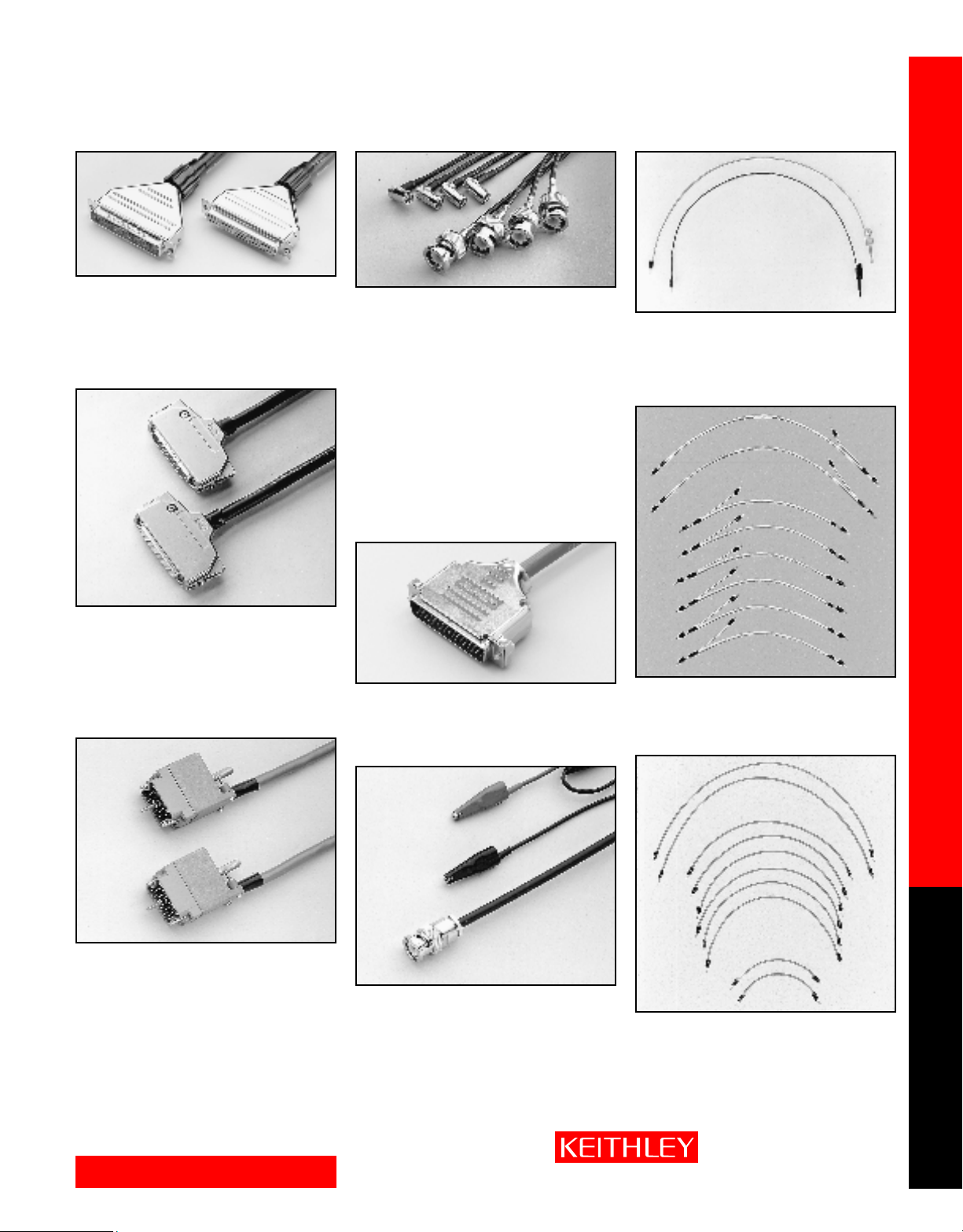

Cables
Model 7156-MTC-10: 3m (10 ft) 37-conductor
cable assembly terminated at both ends with a 37pin connector block. This cable is compatible with
7156 scanner cards.
For use with: 7156-D, 7156-M
Model 7164-MTC-10: 3m (10 ft) 50-conductor
cable assembly terminated at both ends in a 50-pin
connector block. This cable is compatible with
7164 scanner cards and 7164-MTR bulkhead mount
mating connector.
For use with: 7164-D, 7164-M, 7164-MTR
Model 7173-50-CSEP: The 7173-50-CSEP cable
set provides the capability to expand a switching
configuration to include more than one 7173-50.
Each set contains four 0.6m (25 in) cables. One
cable is required to expand each row or column
connection between adjacent cards. For example,
using two 7173-50 cards to create a 4×24 matrix
would require connecting the rows of two adjacent
cards together. One 7173-50-CSEP set has enough
cables to do this. Connecting the 12 columns
together on two adjacent cards creates an 8×12
matrix. This would require three 7173-50-CSEP
sets, 12 cables.
For use with: 7173-50
Model 7705-MTC-2: 2m (6.6 ft) 50-conductor
male to female DSUB cable assembly.
For use with: 7703, 7705, 7707, 7709
Model 8006-MJC: Red and black pair of Teflon
clip jumpers. For use with Model 8006 Component
Test Fixture.
For use with: 8006
Cables
Model 8006-MJG: Eight guarded Teflon mini
jumpers.
For use with: 8006
Model 7169-MTC-3: 3m (10 ft) twisted pair cable
assembly terminated at both ends in a 20-pin connector block. This cable is compatible with the
Model 7169A 20-Channel Form C Switching Card
and 7169-MTR bulkhead mount mating connector.
For use with: 7169A
1.888.KEITHLEY (U.S. only)
www.keithley.com
Model 7754-3 BNC to Alligator Cable: 0.9m (3
ft) terminated on one end with a BNC plug and on
the other with two alligator clips.
For use with: 776
A GREATER MEASURE OF CONFIDENCE
Model 8006-MJS-*: Set of 10 Teflon mini jumpers.
8006-MJS-1 Red 8006-MJS-2 Black
8006-MJS-3 Blue
For use with: 8006
INSTRUMENT ACCESSORIES
Page 7

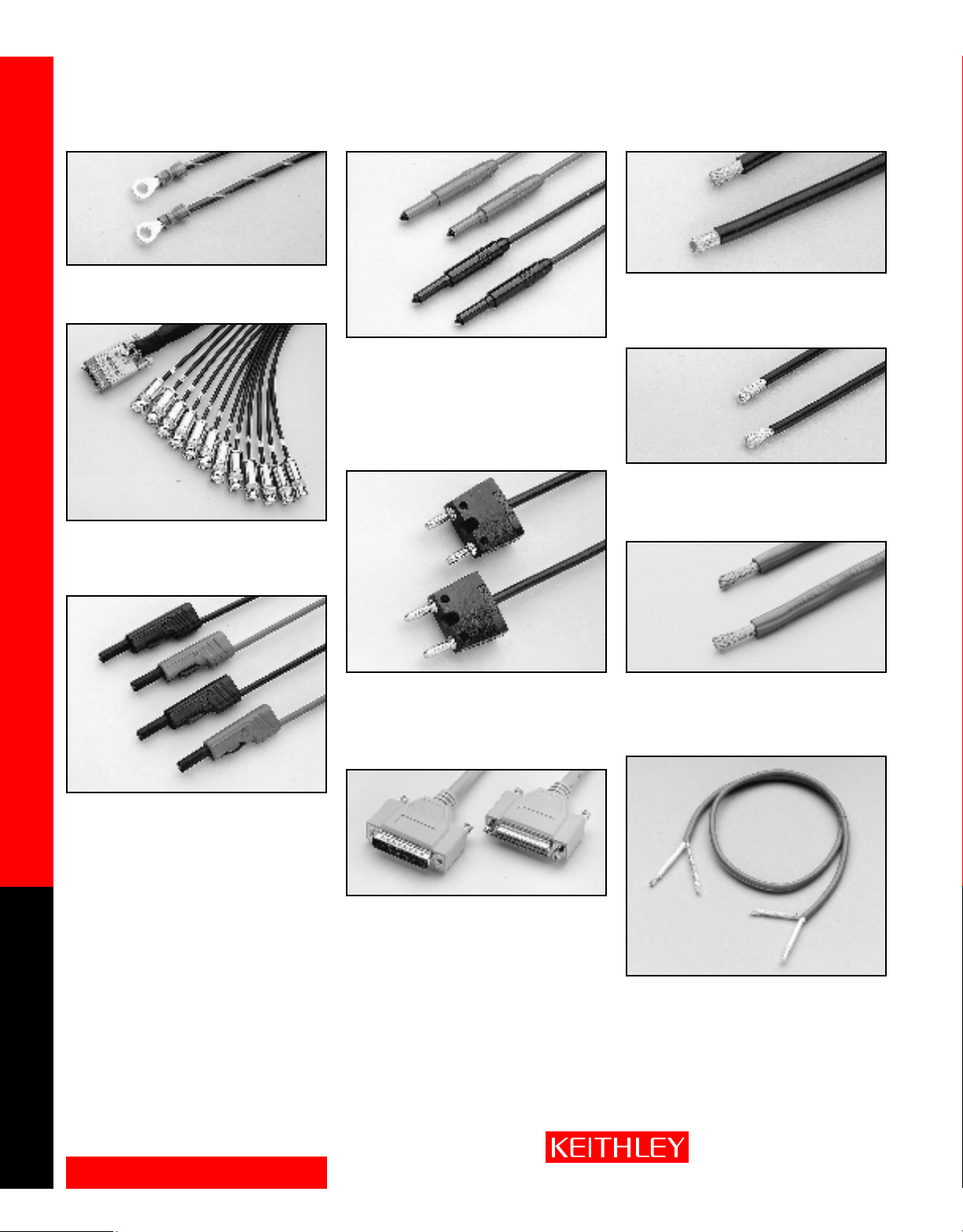

Cables
Item shipped may
vary from model
pictured here.
Model 8007-GND-3: Safety ground wire.
For use with: 8007
Cables
Model 8007-MTC-3: Mass terminated cable
assembly, 3m (10 ft).
For use with: 8007, 7072
Item shipped may
vary from model
pictured here.
Model 8607 1kV Source Banana Cable Set:
The 8607 cable set is made up of one red and one
black high voltage test leads with banana plug
ends. The cables are 1 meter long and have a voltage rating of 1000V DC or AC peak
For use with: 2410, 6430, 6514, 6517A
Item shipped may
vary from model
pictured here.
Model CA-18-1: 1.2m (4 ft) shielded cable terminated with a dual banana plug on each end. For
use with binding post inputs or dual banana jacks.
For use with: Binding post inputs
SC-9: Low noise coax cable without connectors
(sold by the foot).
For use with: 4803
SC-22: Low noise triax cable without connectors
(sold by the foot).
For use with: CS-141, CS-631
SC-93: Low thermal, 2-conductor shielded cable,
#22AWG solid copper (sold by the foot).
For use with: 1801, 2182-KIT
Model 8008-BAN: Consists of one red and one black
cable terminated with male safety banana plugs. Used
to interface the 8008 Test Fixture to the 487
Picoammeter/Source.
For use with: 487, 8008
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
Model CA-126-1 Digital I/O Cable: 1.5m (5 ft)
of cable, from DB25 male to DB25 female.
For use with: 213 Quad Voltage Source
SC-182: Low inductance (42nH/ft) coaxial cable
for minimizing test lead impedance in circuits
using fast transient response power supplies. The
cable is sold by the foot and comes without connectors.
For use with: 2302, 2303, 2303B, 2303-PJ,
2304A, 2306, 2306-PJ
A GREATER MEASURE OF CONFIDENCE
Loading...
