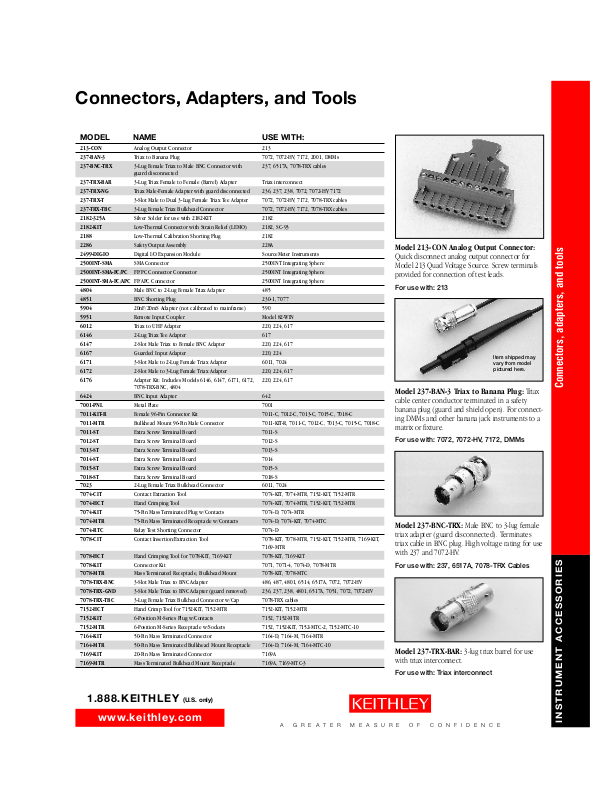

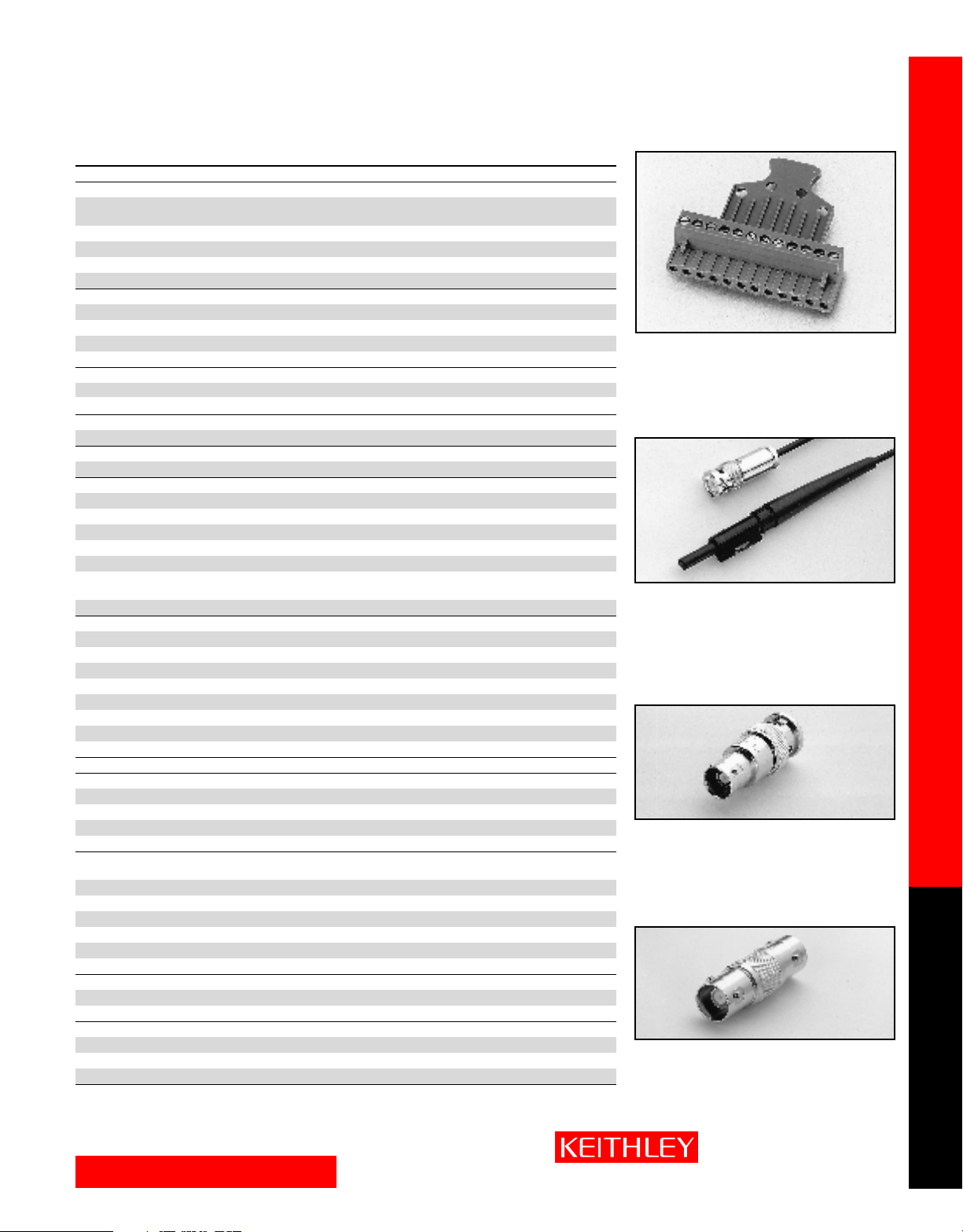

Page 1
Connectors, Adapters, and Tools
MODEL NAME USE WITH:
213-CON Analog Output Connector 213
237-BAN-3 Triax to Banana Plug 7072, 7072-HV, 7172, 2001, DMMs
237-BNC-TRX 3-Lug Female Triax to Male BNC Connector with 237, 6517A, 7078-TRX cables
237-TRX-BAR 3-Lug Triax Female to Female (Barrel) Adapter Triax interconnect
237-TRX-NG Triax Male-Female Adapter with guard disconnected 236, 237, 238, 7072, 7072-HV, 7172
237-TRX-T 3-Slot Male to Dual 3-Lug Female Triax Tee Adapter 7072, 7072-HV, 7172, 7078-TRX cables
237-TRX-TBC 3-Lug Female Triax Bulkhead Connector 7072, 7072-HV, 7172, 7078-TRX cables
2182-325A Silver Solder for use with 2182-KIT 2182
2182-KIT Low-Thermal Connector with Strain Relief (LEMO) 2182, SC-93
2188 Low-Thermal Calibration Shorting Plug 2182
2286 Safety Output Assembly 228A
2499-DIGIO Digital I/O Expansion Module SourceMeter Instruments
2500INT-SMA SMA Connector 2500INT Integrating Sphere
2500INT-SMA-FC/PC FP/PC Connector Connector 2500INT Integrating Sphere
2500INT-SMA-FC/APC FP/APC Connector 2500INT Integrating Sphere
4804 Male BNC to 2-Lug Female Triax Adapter 485
4851 BNC Shorting Plug 230-1, 7077
5904 20nF/20mS Adapter (not calibrated to mainframe) 590
5951 Remote Input Coupler Model 82-WIN
6012 Triax to UHF Adapter 220, 224, 617
6146 2-Lug Triax Tee Adapter 617
6147 2-Slot Male Triax to Female BNC Adapter 220, 224, 617
6167 Guarded Input Adapter 220, 224
6171 3-Slot Male to 2-Lug Female Triax Adapter 6011, 7024
6172 2-Slot Male to 3-Lug Female Triax Adapter 220, 224, 617
6176 Adapter Kit: Includes Models 6146, 6147, 6171, 6172, 220, 224, 617
6424 BNC Input Adapter 642
7001-PNL Metal Plate 7001
7011-KIT-R Female 96-Pin Connector Kit 7011-C, 7012-C, 7013-C, 7015-C, 7018-C
7011-MTR Bulkhead Mount 96-Pin Male Connector 7011-KIT-R, 7011-C, 7012-C, 7013-C, 7015-C, 7018-C
7011-ST Extra Screw Terminal Board 7011-S
7012-ST Extra Screw Terminal Board 7012-S
7013-ST Extra Screw Terminal Board 7013-S
7014-ST Extra Screw Terminal Board 7014
7015-ST Extra Screw Terminal Board 7015-S
7018-ST Extra Screw Terminal Board 7018-S
7023 2-Lug Female Triax Bulkhead Connector 6011, 7024
7074-CIT Contact Extraction Tool 7074-KIT, 7074-MTR, 7152-KIT, 7152-MTR
7074-HCT Hand Crimping Tool 7074-KIT, 7074-MTR, 7152-KIT, 7152-MTR
7074-KIT 75-Pin Mass Terminated Plug w/Contacts 7074-D, 7074-MTR
7074-MTR 75-Pin Mass Terminated Receptacle w/Contacts 7074-D, 7074-KIT, 7074-MTC
7074-RTC Relay Test Shorting Connector 7074-D
7078-CIT Contact Insertion/Extraction Tool 7078-KIT, 7078-MTR, 7152-KIT, 7152-MTR, 7169-KIT,
7078-HCT Hand Crimping Tool for 7078-KIT, 7169-KIT 7078-KIT, 7169-KIT
7078-KIT Connector Kit 7071, 7071-4, 7074-D, 7078-MTR
7078-MTR Mass Terminated Receptacle, Bulkhead Mount 7078-KIT, 7078-MTC
7078-TRX-BNC 3-Slot Male Triax to BNC Adapter 486, 487, 4801, 6514, 6517A, 7072, 7072-HV
7078-TRX-GND 3-Slot Male Triax to BNC Adapter (guard removed) 236, 237, 238, 4801, 6517A, 7051, 7072, 7072-HV
7078-TRX-TBC 3-Lug Female Triax Bulkhead Connector w/Cap 7078-TRX cables
7152-HCT Hand Crimp Tool for 7152-KIT, 7152-MTR 7152-KIT, 7152-MTR
7152-KIT 6-Position M-Series Plug w/Contacts 7152, 7152-MTR
7152-MTR 6-Position M-Series Receptacle w/Sockets 7152, 7152-KIT, 7152-MTC-2, 7152-MTC-10
7164-KIT 50-Pin Mass Terminated Connector 7164-D, 7164-M, 7164-MTR
7164-MTR 50-Pin Mass Terminated Bulkhead Mount Receptacle 7164-D, 7164-M, 7164-MTC-10
7169-KIT 20-Pin Mass Terminated Connector 7169A
7169-MTR Mass Terminated Bulkhead Mount Receptacle 7169A, 7169-MTC-3
guard disconnected
7078-TRX-BNC, 4804
7169-MTR
Model 213-CON Analog Output Connector:
Quick disconnect analog output connector for
Model 213 Quad Voltage Source. Screw terminals
provided for connection of test leads.
For use with: 213
Item shipped may
vary from model
pictured here.
Model 237-BAN-3 Triax to Banana Plug: Triax
cable center conductor terminated in a safety
banana plug (guard and shield open). For connecting DMMs and other banana jack instruments to a
matrix or fixture.
For use with: 7072, 7072-HV, 7172, DMMs
Model 237-BNC-TRX: Male BNC to 3-lug female
triax adapter (guard disconnected). Terminates
triax cable in BNC plug. High voltage rating for use
with 237 and 7072-HV.
For use with: 237, 6517A, 7078-TRX Cables
Model 237-TRX-BAR: 3-lug triax barrel for use
with triax interconnect.
For use with: Triax interconnect
Connectors, adapters, and tools
1.888.KEITHLEY (U.S. only)
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
INSTRUMENT ACCESSORIES

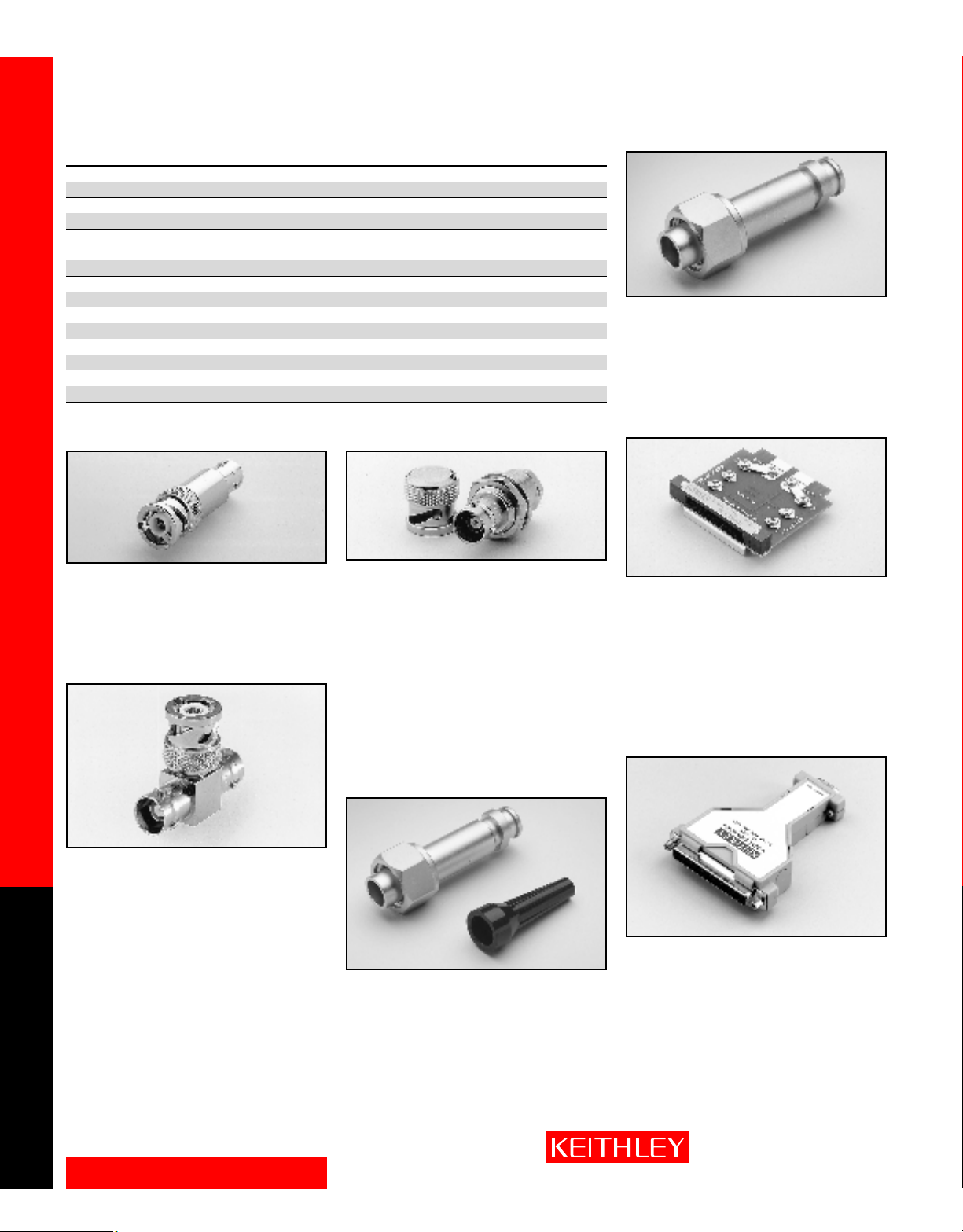

Page 2
Connectors, Adapters, and Tools
MODEL NAME USE WITH:
7755 50Ω Feed-Through Terminator RG 58 Cable, 776
7788 50-Pin D Subconnector Kit 7703, 7705, 77XX, modules with D sub connectors
8610 Low Thermal Shorting Plug 2000, 2001, 2002, 2010
8680 RTD Probe Adapter 2001, 2002, 2010
BG-18 Dual Banana to BNC Coaxial Adapter 230, 20XX Series, 24XX Series, 2700, 2750
CAP-18 Protective Shield/Cap BNC, 2-lug triax connectors
CAP-31 Protective Shield/Cap 3-lug triax connectors
CS-141 2-Lug Male Triax Cable Mount Connector SC-22 Cable
CS-400 DB25 Male Solder Cup CA-126-1 cable, 213
CS-440 Bulkhead Connector 220, 263, fixtures
CS-458 Interlock Connector Kit 6517-ILC-3
CS-565 BNC Barrel BNC interconnect
CS-631 3-Lug Male Triax Cable Mount Connector SC-22 Cable
CS-846 Screw Terminal Test Lead Connector 230X, 2510, 2510-AT
CS-970 High Voltage Bulkhead Connector 248, 248-SHV Cable
Model 2188 Low-Thermal Calibration
Shorting Plug: A low-resistance, low-thermal
shorting plug required to calibrate the Model 2182
Nanovoltmeter. Made of a LEMO connector with its
pin connectors shorted together using copper wire
and Sn/Ag4 silver solder.
For use with: 2182
Model 237-TRX-NG: 3-slot triax to 3-lug female
Connectors, adapters, and tools
triax (guard removed) for non-guarded measurements. High voltage rating for use with 237,
7072-HV, etc.
For use with: 236, 237, 238, 7072, 7072-HV,
7172
Model 237-TRX-T: 3-slot male to dual 3-lug
female triax tee adapter for use with 7078-TRX
cables and 7072/7072-HV Semiconductor Matrix
Cards. High voltage rating for use with Model 237
SMU.
For use with: 7072, 7072-HV, 7172, 7078-TRX
cables
Model 237-TRX-TBC: 3-lug female triax bulkhead
connector with cap for assembly of custom panels
and interface connections. High voltage rating for
use with 237, 7072-HV, etc. Uses miniature coax
cable, not triax cable, at soldered end. Bulkhead is
outer shield.
For use with: 7072, 7072-HV, 7172, 7078-TRX
cables
Model 2182-325A: Silver solder for making connections in experiments with the Model 2182. 20 ft
roll.
For use with: 2182
Model 2182-KIT Low-Thermal Connector
with Strain Relief: Connector kit for building a
custom input cable for the Model 2182
Nanovoltmeter. Includes a low-thermal (LEMO)
connector and a strain relief.
For use with: 2182, SC-93
Model 2286 Safety Output Connector: Slides
into Model 228 or 228A Current/ Voltage Source to
assure that the active outputs are not accessible.
Outputs are disconnected when the safety card is
removed from the instrument. The connector provides screw terminals for Force and Sense on both
High and Low outputs as well as separate Current
Monitor and Modulation Input connections.
For use with: 228A
Model 2499-DIGIO: Digital I/O expansion module that plugs onto the DB-9 connector of a
SourceMeter. Expands the three digital I/O lines of
the SourceMeter to 16 lines. The SOT, EOT/BUSY,
5V, GND, and Interlock signals are passed through.
For use with: SourceMeter Instruments
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
A GREATER MEASURE OF CONFIDENCE

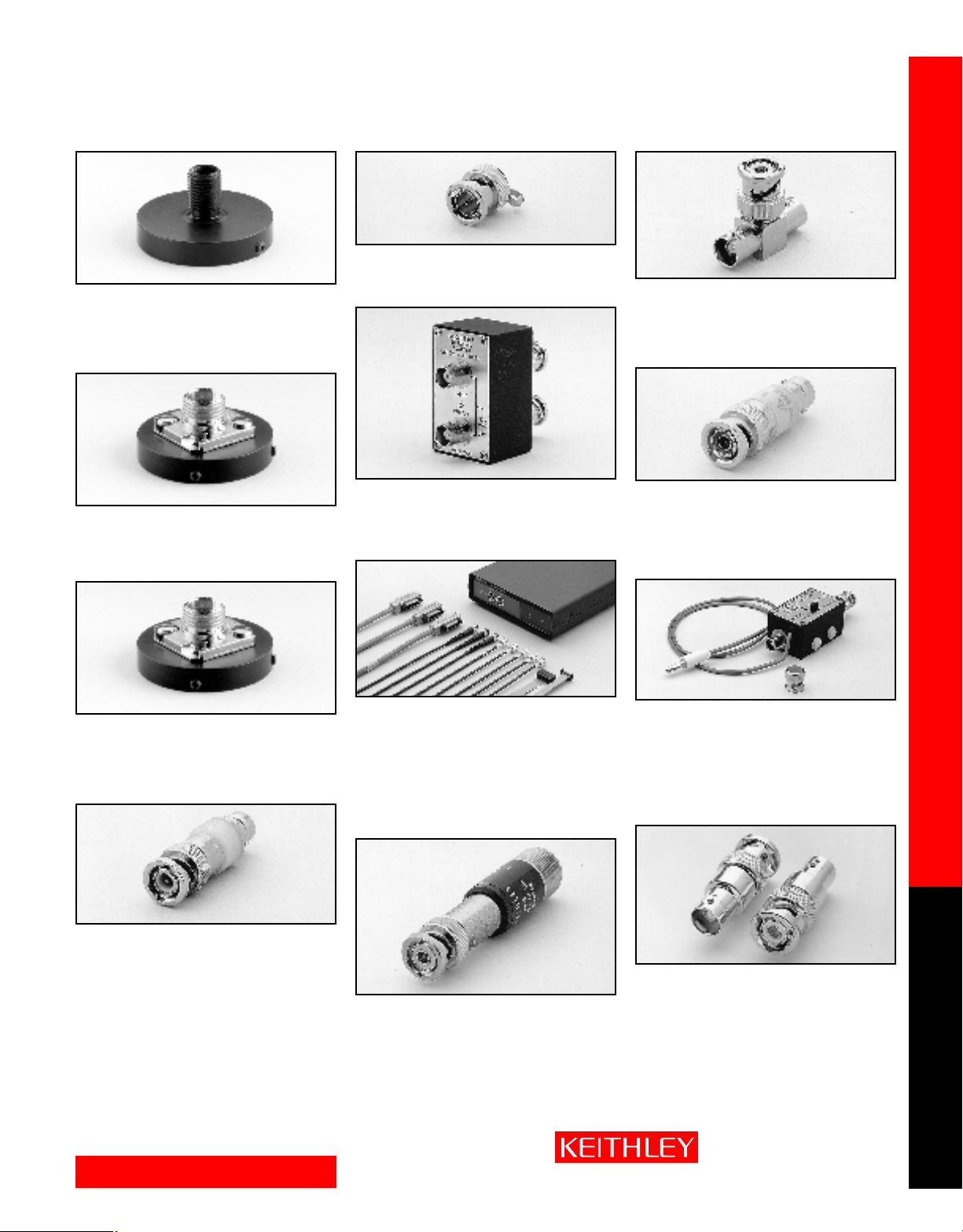

Page 3
Connectors, Adapters, and Tools
Model 4851: BNC shorting plug.
For use with: 230-1, 7077
Model 2500INT-SMA: SMA connector for 2500INT Integrating Sphere.
For use with: 2500-INT
Model 6146 2-Slot Triax Tee Adapter: To connect multiple inputs to Model 617; allows easy
connection of external feedback elements.
For use with: 617
Model 2500INT-FC/PC: FC/PC connector for
2500-INT Integrating Sphere.
For use with: 2500-INT
Model 2500INT-FC/APC: FC/APC connector for
2500-INT Integrating Sphere.
For use with: 2500-INT
Model 4804: 2-slot male BNC to 2-lug female triax
adapter. Used to adapt triax cables to 2-lug BNC
input connectors.
For use with: 485
Model 5904: 20nF/20mS adapter. Extends range
of Model 590/100k.
For use with: 590
Model 5951 Remote Input Coupler: Includes
the remote input coupler, five 1.2m low noise BNC
cables (Model 4801), two 1m IEEE-488 cables
(Model 7007-1), one 2m shielded IEEE-488 cable
(Model 7007-2), and three 0.6m RG-58C BNC-toBNC cables (Model 7051-2).
For use with: Model 82-WIN
Model 6012 2-Slot Triax to UHF Adapter: Permits using Models 220, 224 and 617 with all
Keithley electrometer accessories having UHF type
connectors.
For use with: 220, 224, 617
Model 6147 2-Slot Triax to BNC Adapter:
Permits using Models 220, 224, and 617 with accessories having BNC connectors.
For use with: 220, 224, 617
Connectors, adapters, and tools
Model 6167 Guarded Input Adapter: Reduces
effective cable capacity by driving the inner shield
of the triax cable at Guard potential. For use with
Models 220 and 224. 2-slot triax female to 2-slot
triax male.
For use with: 220, 224
Model 6171: 3-slot male to 2-lug female triax
adapter. Adapts 7024 and 6011 cables to 3-lug triax
input connectors.
For use with: 6011, 7024
1.888.KEITHLEY (U.S. only)
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
INSTRUMENT ACCESSORIES

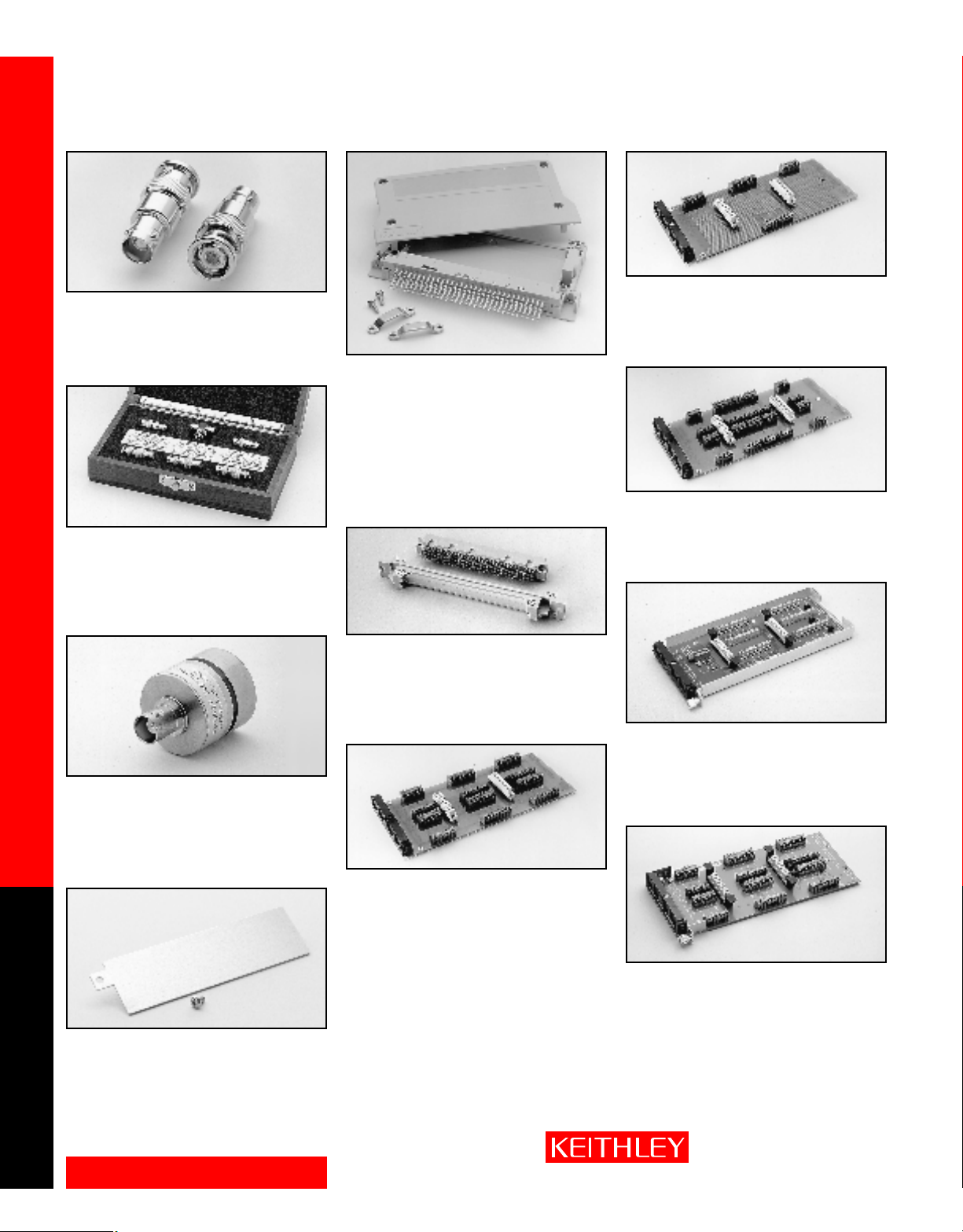

Page 4
Connectors, Adapters, and Tools
Model 6172: 2-slot male to 3-lug female triax
adapter. For use in adapting Models 220, 224, and
617 inputs to 3-slot triax plugs.
For use with: 220, 224, 617
Model 6176 Adapter Kit: Consists of 6146, 6147,
6171, 6172, 7078-TRX-BNC, and 4804 in a compartmentalized box. Use when interfacing BNC, 2-lug
triax, and/or 3-lug triax instrumentation.
Connectors, adapters, and tools
For use with: 220, 224, 617
Model 7011-KIT-R: 96-pin female DIN connector
with solder eyelets and strain relief. This kit can be
used for assembly of custom cables to connect
with the connectors on the 7011-C, 7012-C, 7013C, 7015-C, and 7018-C switch cards. Also connects
with the 7011-MTR bulkhead mount male
connector.
For use with: 7011-C, 7012-C, 7013-C, 7015-C,
7018-C
Model 7012-ST: Extra quick disconnect screw terminal board. One 7012-ST is included with each
7012-S.
For use with: 7012-S
Model 7013-ST: Extra quick disconnect screw terminal board. One 7013-ST is included with each
7013-S.
For use with: 7013-S
Model 6424: BNC adapter for use with Model
642. lt is the most convenient connection method,
limited by currents generated in the flexible
cabling.
For use with: 642
Model 7001-PNL: Metal plate used to cover an
empty card slot on the rear panel of a Model 7001.
For use with: 7001
Model 7011-MTR: 96-pin male DIN connector
with solder eyelets for bulkhead mount. Connects
with the 7011-KIT-R and the 7011-MTC-2.
For use with: 7011-KIT-R, 7011-C, 7012-C,
7013-C, 7015-C, 7018-C
Model 7014-ST: Extra quick disconnect isothermal screw terminal board with cold junction sensor. One 7014-ST is included with each 7014.
For use with: 7014
Model 7011-ST: Extra quick disconnect screw terminal board. One 7011-ST is included with each
7011-S.
For use with: 7011-S
Model 7015-ST: Extra quick disconnect screw terminal board. One 7015-ST is included with each
7015-S.
For use with: 7015-S
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
Page 5
Connectors, Adapters, and Tools
Model 7018-ST: Extra quick disconnect screw terminal board. One 7018-ST is included with each
7018-S.
For use with: 7018-S
Model 7074-KIT: 75-pin plug assembly with strain
relief and 80 contacts for assembly of custom cable
and harnesses compatible with 7074-D multiplexer
card and 7074-MTR mass terminated receptacle.
For use with: 7074-D, 7074-MTR
Model 7023 2-Lug Triax Bulkhead Mount
Connector: Chassis mount connector mates with
Keithley accessory cables 6011 and 7024 series.
For use with: 6011, 7024
Model 7078-CIT: Contact insertion and extraction tool for assembly and maintenance of 7078MTC cables and connectors.
For use with: 7078-KIT, 7078-MTR, 7152-KIT,
7152-MTR, 7169-KIT, 7169-MTR
Model 7074-CIT: Contact extraction tool for
removal of contacts from 7074-MTC cables and
connectors.
For use with: 7074-KIT, 7074-MTR, 7152-KIT,
7152-MTR

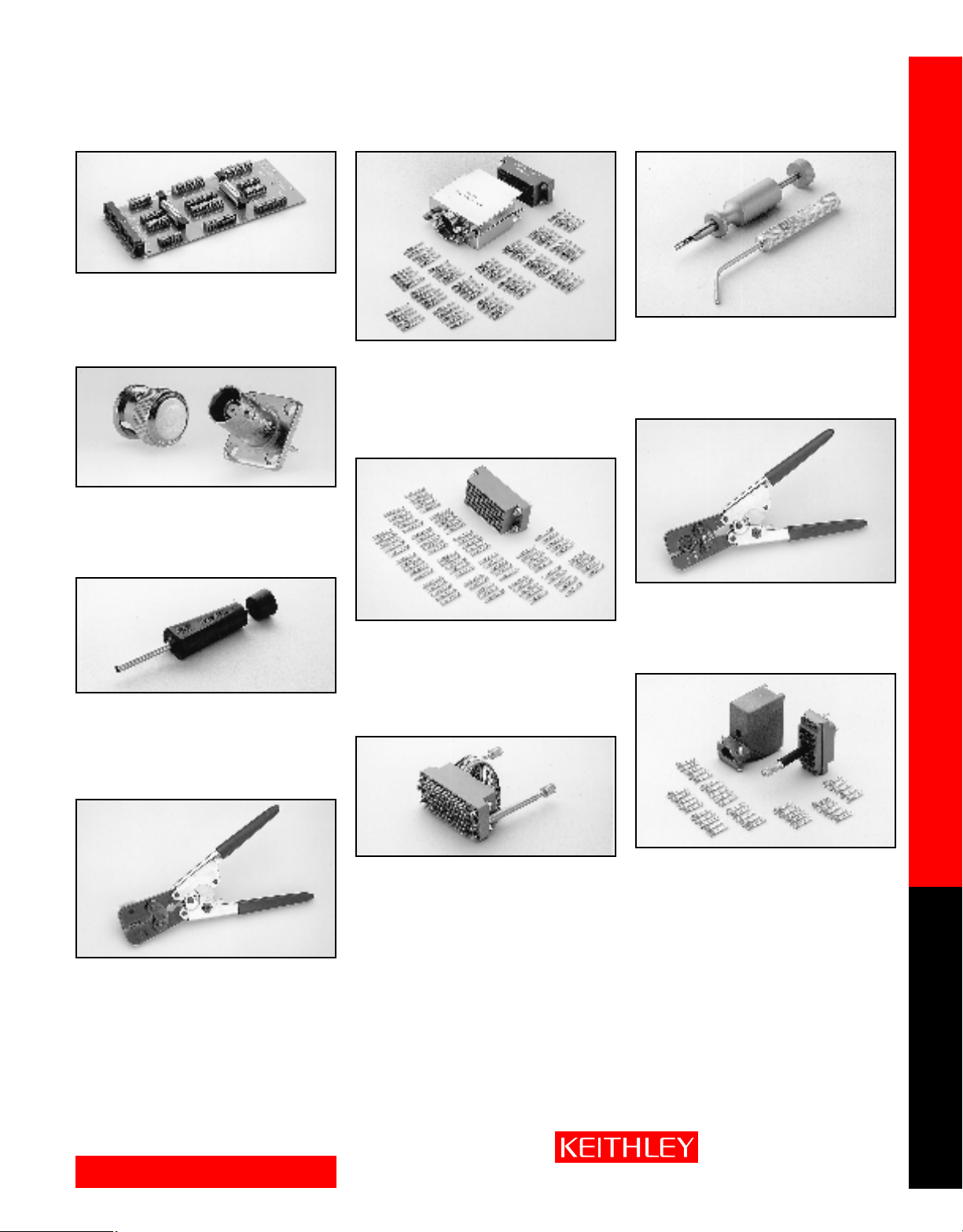

Model 7074-HCT: Contact crimping pliers
for assembly of cables and connectors using
7074-MTR or 7074-KIT.
For use with: 7074-KIT, 7074-MTR, 7152-KIT,
7152-MTR
Model 7074-MTR: 75-pin bulkhead mount receptacle with 80 contacts for custom interface and
patch panels compatible with 7074-MTC and
7074-KIT.
For use with: 7074-D, 7074-KIT, 7074-MTC
Model 7074-RTC: Relay test connector. The 7074RTC adapts column inputs with jumper interconnects necessary when running relay test software
supplied with the 707A mainframe.
For use with: 7074-D
Model 7078-HCT: Contact crimping pliers
for assembly of cables and connectors using
7078-MTR or 7078-KIT.
For use with: 7078-KIT, 7169-KIT
Model 7078-KIT: 38-pin plug assembly with strain
relief and 40 contacts for assembly of custom cable
and harnesses compatible with Model 7071 8×12
Matrix Card, Model 7071-4 Dual 4×12 Matrix Card,
Model 7074-D Eight 1×12 Multiplexer Card, and
7078-MTR Mass Terminated Receptacle. Requires
7078-HCT, recommend 7078-CIT.
For use with: 7071, 7071-4, 7074-D,
7078-MTR
Connectors, adapters, and tools
1.888.KEITHLEY (U.S. only)
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
INSTRUMENT ACCESSORIES
Page 6
Connectors, Adapters, and Tools

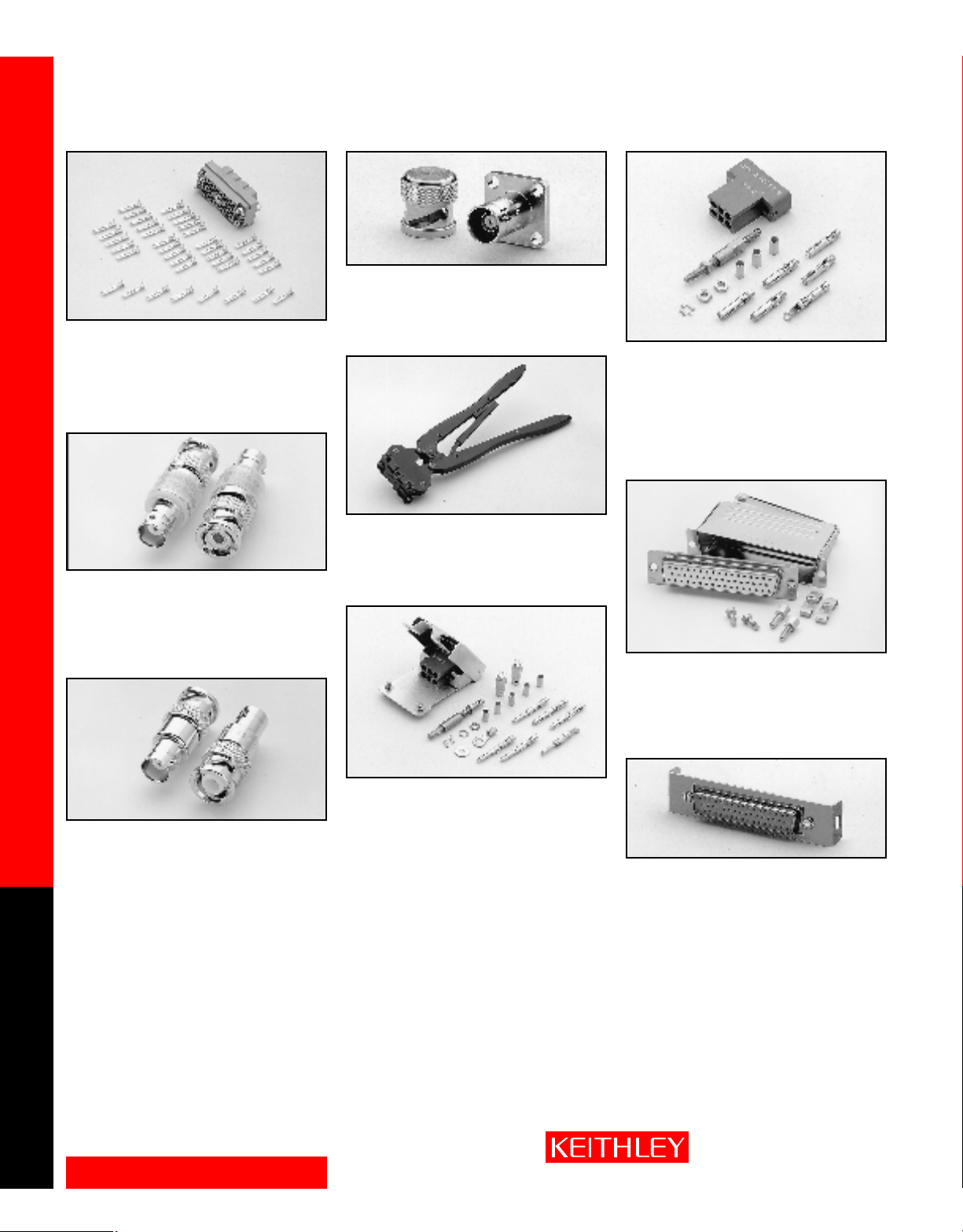

Model 7078-TRX-TBC: 3-lug female triax bulkhead connector with cap for assembly of custom
panels and interface connections.
Model 7078-MTR: 38-pin bulkhead mount receptacle with 40 contacts for custom interface and
patch panels compatible with 7078-MTC and 7078KIT. Requires 7078-HCT; recommend 7078-CIT.
For use with: 7078-KIT, 7078-MTC
Model 7078-TRX-BNC: 3-slot male triax to BNC
Connectors, adapters, and tools
adapter for use with 7072 Semiconductor Matrix
Card and 4801 cables.
For use with: 486, 487, 4801, 6514, 6517A,
7072, 7072-HV
For use with: 7078-TRX Cables
Model 7152-HCT: Contact crimping pliers for assembly of cables and connectors using
7152-MTR or 7152-KIT.
For use with: 7152-KIT, 7152-MTR
Model 7152-MTR: 6-pin bulkhead mount receptacle with contacts for custom interface and patch
panels compatible with 7152-MTC and 7152-KIT.
Requires 7152 HCT; recommend 7074-CIT and
7074-HCT.
For use with: 7152, 7152-KIT, 7152-MTC-2,
7152-MTC-10
Model 7164-KIT: 50-pin D-Sub connector for
assembly of custom cables and harnesses compatible with Models 7164-D and 7164-M 20-Channel
Scanner Cards.
For use with: 7164-D, 7164-M, 7164-MTR
Model 7078-TRX-GND: 3-slot male triax to BNC
adapter (guard removed) for adapting non-guarded measurements to 236, 237, or 238 SMUs, 7072
or 7072-HV Semiconductor Matrix Cards, or 8006
or 8008 Test Fixtures.
For use with: 236, 237, 238, 4801, 6517A, 7051,
7072, 7072-HV
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
Model 7152-KIT: 6-pin plug assembly with strain
relief and contacts for assembly of custom cable
and harnesses compatible with Model 7152 4×5
Low Current Matrix Card and 7152-MTR Mass Terminated Receptacle. Requires 7152-HCT; recommend 7074-CIT and 7074-HCT.
For use with: 7152, 7152-MTR
A GREATER MEASURE OF CONFIDENCE
Model 7164-MTR: 50-pin mass terminated receptacle for custom interface and patch panels compatible with 7164-MTC.
For use with: 7164-D, 7164-M, 7164-MTC-10
Page 7
Connectors, Adapters, and Tools

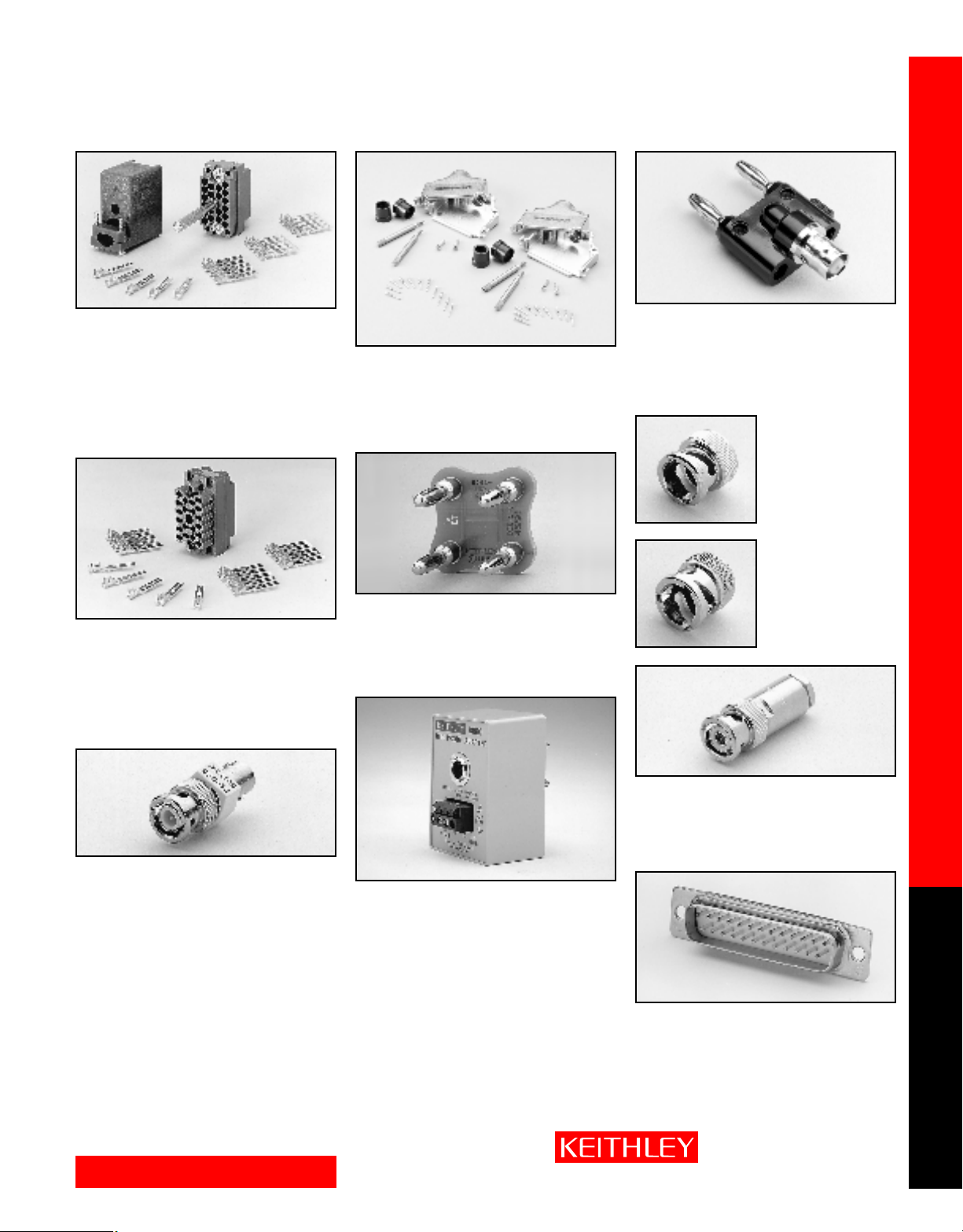

Model 7169-KIT: 20-pin connector body and contacts for assembly of custom cables and harnesses
compatible with Model 7169A 20-Channel Form C
Switch Card. Requires 7078-HCT; recommend
7078-CIT. Note: Three 7169-KITs are required for
complete connection to the 7169A card.
For use with: 7169A
Model 7169-MTR: 20-pin bulkhead connector
body and contacts for custom interface and patch
panels compatible with Model 7169 20-Channel
Form C Switch Card. Requires 7078-HCT; recommend 7078-CIT.
For use with: 7169A, 7169-MTC-3
Model 7788: 50-pin D subminiature connector
kit. To mate with 50-pin connector on Model 7703
and 7705.
For use with: 7703, 7705, 77XX modules with
D sub connectors
Model 8610 Low Thermal Shorting Plug: For
calibration lab use, this plug provides a very low
thermal offset short at front or rear inputs.
For use with: 2000, 2001, 2002, 2010
BG-18: Dual banana to BNC coaxial adapter for
adapting connection on instrument with dual
banana jack.
For use with: 230, 20XX Series, 24XX Series,
2700, 2750
CAP-18: Protective
shield/cap for BNC and
2-lug triax connectors.
For use with: BNC,
2-Lug Triax
Connectors
CAP-31: Protective
shield/cap for 3-lug
triax connectors.
For use with: 3-Lug
Triax Connectors
Connectors, adapters, and tools
Model 7755 50Ω Feed-Through Terminator:
BNC-to-BNC adapter for terminating RG58 cable in
its characteristic impedance. VSWR <1.1,
DC–250MHz.
For use with: RG58 Cable, 776
1.888.KEITHLEY (U.S. only)
www.keithley.com
Model 8680 RTD Probe Adapter: Provides a
means of connecting RTD probes terminated in
either a 4-wire instrumentation connector or bare
wires to safety input jacks on a 0.5 inch spacing.
Use with Model 8681, 8693, 8695, or 8696.
For use with: 2001, 2002, 2010
A GREATER MEASURE OF CONFIDENCE
CS-141: 2-slot male triax cable mount connector
for use with SC-22 cable. Mates to Models 220,
224, 263, 602, and 617.
For use with: SC-22 Cable
CS-400: DB25 male, solder cup.
For use with: C126-1 Cable, 213
INSTRUMENT ACCESSORIES
Page 8
Connectors, Adapters, and Tools

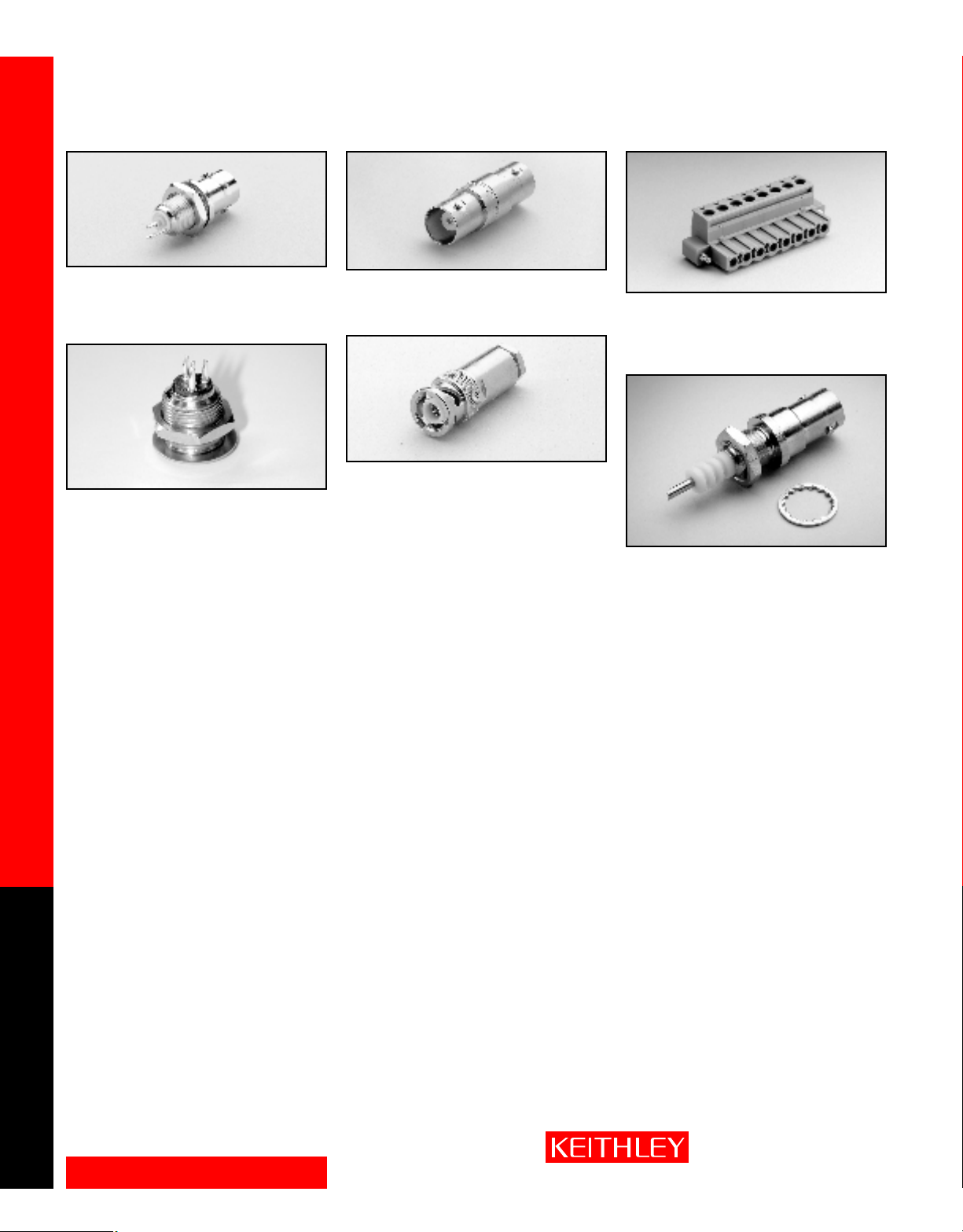

CS-440: 2-lug female triax bulkhead connector for
soldered connections.
For use with: 220, 263, fixtures
CS-458: Interlock connector kit to mate with
6517-ILC-3.
For use with: 6517-ILC-3
Connectors, adapters, and tools
CS-565: BNC barrel.
For use with: BNC interconnect
CS-631: 3-slot male triax cable mount connector
for use with SC-22 cable. Mates to Models 236,
237, 238, 486, 487, 7072, and 8006.
For use with: SC-22 Cable
CS-846: Eight position connector with screw terminals for connection to test leads.
For use with: 230X, 2510, 2510-AT
CS-970: High voltage bulkhead connector.
For use with: 248, 248-SHV Cable
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
Loading...
