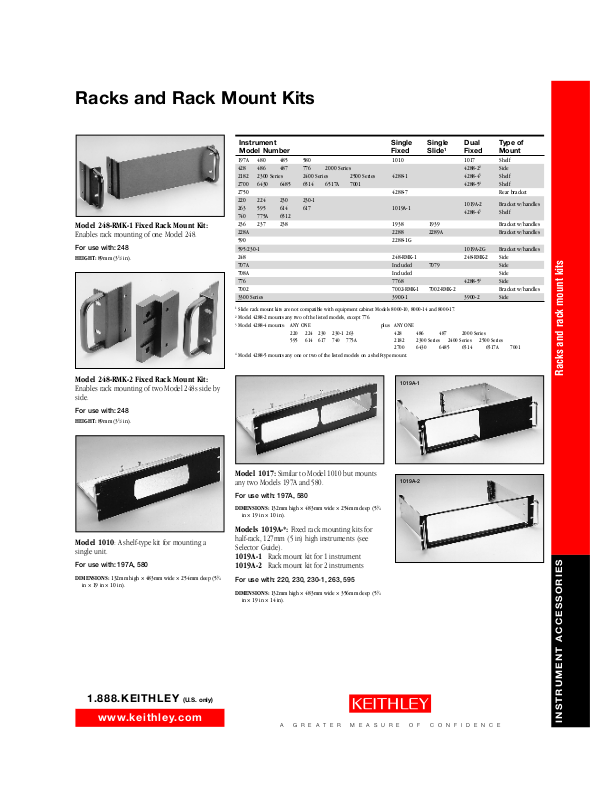

Page 1

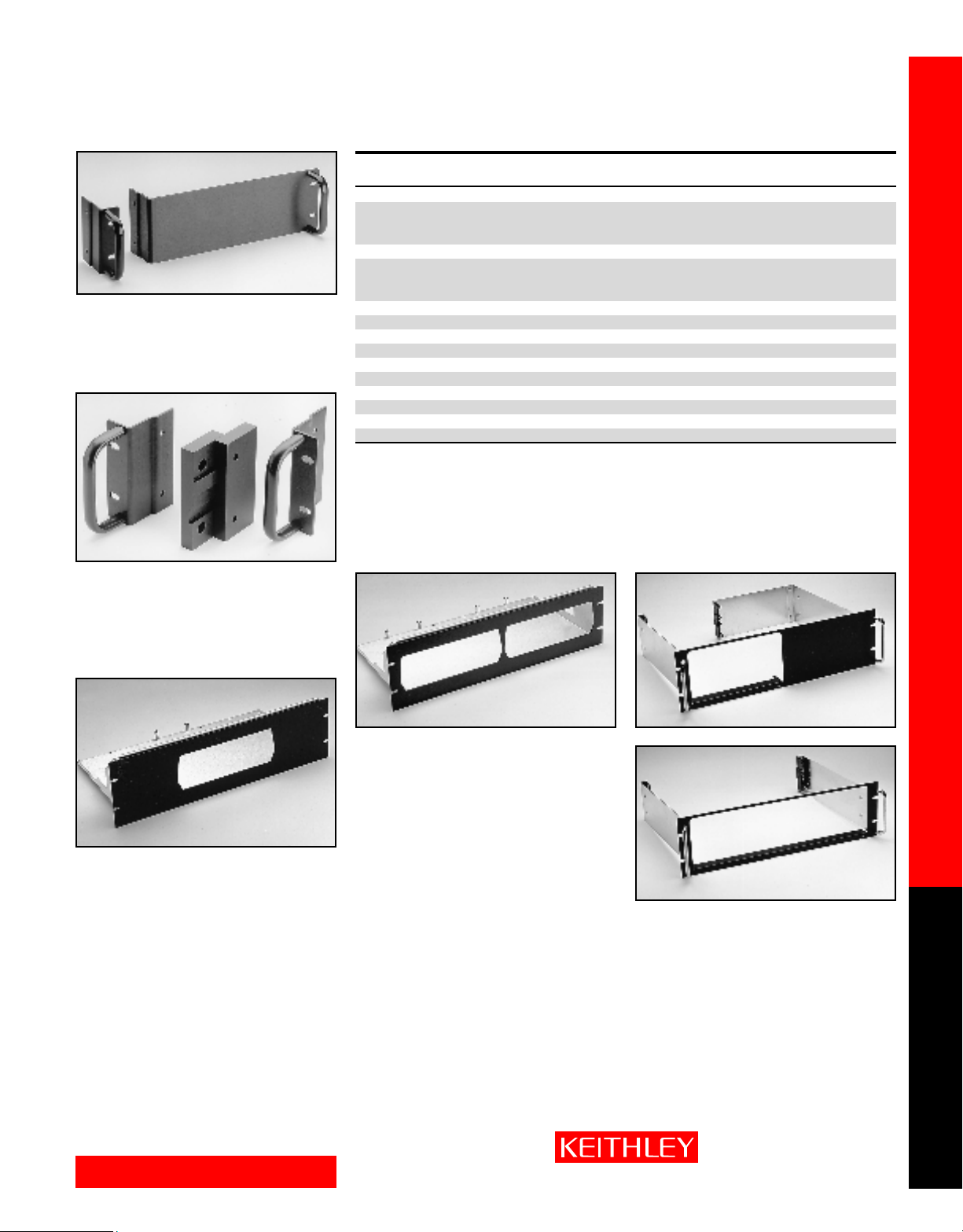

Racks and Rack Mount Kits
Model 248-RMK-1 Fixed Rack Mount Kit:
Enables rack mounting of one Model 248.
For use with: 248
HEIGHT: 89mm (31⁄2 in).
Model 248-RMK-2 Fixed Rack Mount Kit:
Enables rack mounting of two Model 248s side by
side.
For use with: 248
HEIGHT: 89mm (31⁄2 in).
Instrument Single Single Dual Type of
Model Number Fixed Slide
197A 480 485 580 1010 1017 Shelf
428 486 487 776 2000 Series 4288-2
2182 2300 Series 2400 Series 2500 Series 4288-1 4288-4
2700 6430 6485 6514 6517A 7001 4288-5
2750 4288-7 Rear bracket
220 224 230 230-1
263 595 614 617 1019A-1
740 775A 6512
236 237 238 1938 1939 Bracket w/handles
228A 2288 2289A Bracket w/handles
590 2288-1G
595/230-1 1019A-2G Bracket w/handles
248 248-RMK-1 248-RMK-2 Side
707A Included 7079 Side
708A Included Side
776 7768 4288-5
7002 7002-RMK-1 7002-RMK-2 Bracket w/handles
3300 Series 3900-1 3900-2 Side
1
Slide rack mount kits are not compatible with equipment cabinet Models 8000-10, 8000-14 and 8000-17.
2
Model 4288-2 mounts any two of the listed models, except 776.
3
Model 4288-4 mounts: ANY ONE plus ANY ONE
4
Model 4288-5 mounts any one or two of the listed models on a shelf-type mount.
220 224 230 230-1 263 428 486 487 2000 Series
595 614 617 740 775A 2182 2300 Series 2400 Series 2500 Series
2700 6430 6485 6514 6517A 7001
1019A-1
1
Fixed Mount
2
3
4
1019A-2 Bracket w/handles
3
4288-4
4
Side
Shelf
Shelf
Shelf
Side
Racks and rack mount kits
Model 1010: A shelf-type kit for mounting a
single unit.
For use with: 197A, 580
DIMENSIONS: 132mm high × 483mm wide × 254mm deep (51⁄4
in × 19 in × 10 in).
1.888.KEITHLEY (U.S. only)
www.keithley.com
Model 1017: Similar to Model 1010 but mounts
any two Models 197A and 580.
For use with: 197A, 580
DIMENSIONS: 132mm high × 483mm wide × 254mm deep (51⁄
in × 19 in × 10 in).
Models 1019A-*: Fixed rack mounting kits for
half-rack, 127mm (5 in) high instruments (see
Selector Guide).
1019A-1 Rack mount kit for 1 instrument
1019A-2 Rack mount kit for 2 instruments
For use with: 220, 230, 230-1, 263, 595
DIMENSIONS: 132mm high × 483mm wide × 356mm deep (51⁄4
in × 19 in × 14 in).
A GREATER MEASURE OF CONFIDENCE
1019A-2
4
INSTRUMENT ACCESSORIES
Page 2

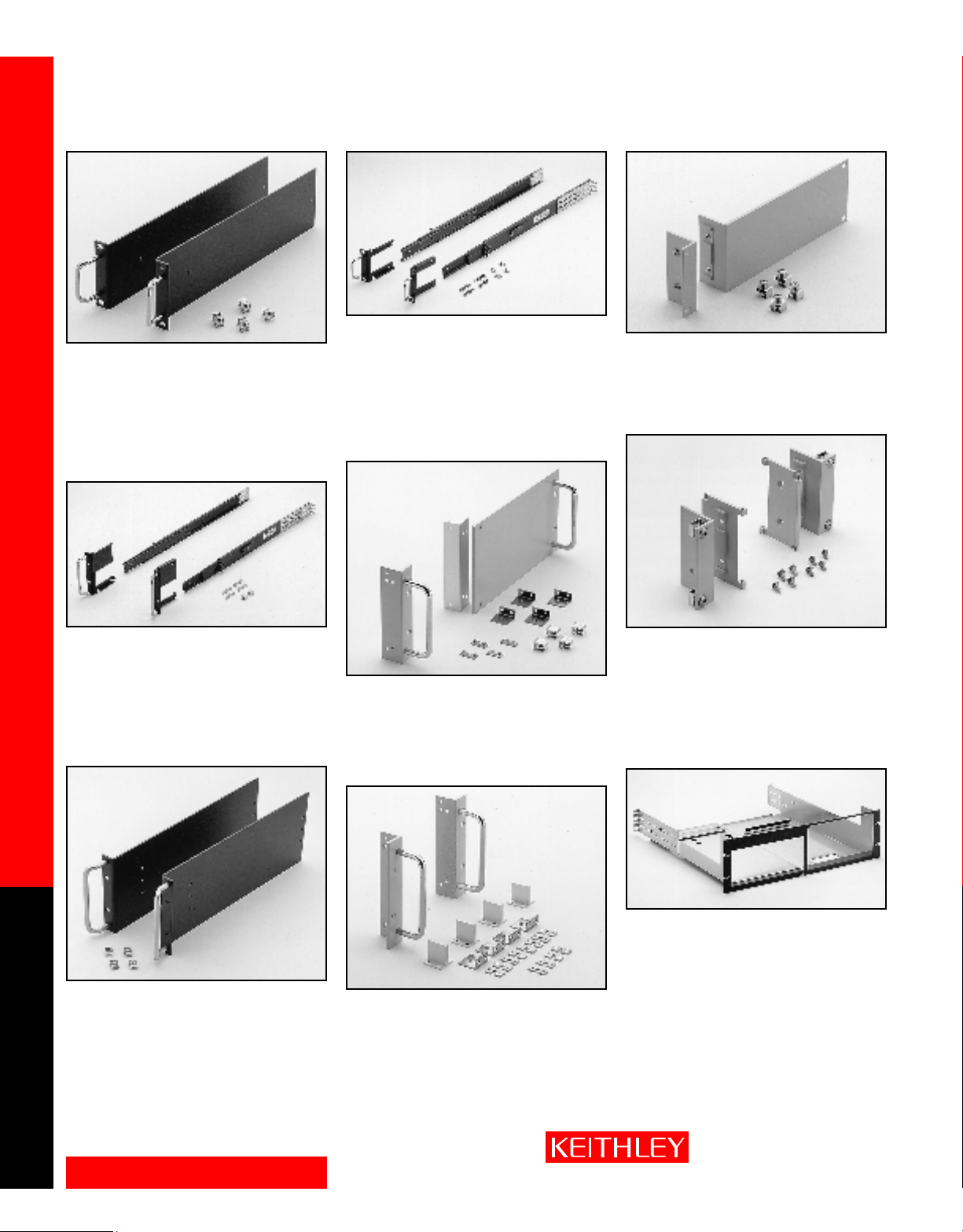

Racks and Rack Mount Kits
Model 2289A Slide Rack Mount Kit: Consists
Model 1938 Fixed Rack Mount Kit: Consists of
two flanged brackets and hardware for mounting
the Model 236, 237, or 238 in a standard 48.3cm
(19 in) equipment cabinet. Can be used with
Model 8000, 8000-10 or 8000-14. 89mm (3
1
⁄2 in)
height.
For use with: 236, 237, 238
of two sets of flanged brackets, equipment slides,
and hardware for mounting the Model 228A and
590 in a standard 48.3cm (19 in) equipment cabinet. Can be used with Model 8000. 132mm (5
height.
For use with: 228A, 590
1
⁄4 in)
Model 4288-1 Fixed Rack Mount Kit: Singleunit rack mount kit. Height: 88mm (3
For use with: 428, 486, 487, 776, 2000 Series,
2182, 2300 Series, 2400 Series, 2500 Series,
6514, 6517A, 2700, 6430, 6485, 7001
1
⁄2 in).
Racks and rack mount kits
Model 1939 Slide Rack Mount Kit: Consists of
two sets of flanged brackets, equipment slides, and
hardware for mounting the Model 236, 237, or 238
in a standard 48.3cm (19 in) equipment cabinet.
Can be used with Model 8000. 89mm (3
height.
For use with: 236, 237, 238
Model 2288 Fixed Rack Mount Kit: Consists of
two flanged brackets and hardware for mounting
the Model 228A and 590 in a standard 48.3cm (19
in) equipment cabinet. Can be used with Model
8000, 8000-10, or 8000-14. 132mm (5
For use with: 228A, 590
1
1
⁄4 in) height.
⁄4 in)
Model 3900-1: Single-unit rack mount kit.
Includes all necessary hardware to mount one unit
in a 132mm (5
For use with: 3321, 3322, 3330, 3910, 3930A,
3933A, 3940
1
⁄4 in) high rack space.
Model 3900-2: Dual rack mount kit. Includes all
necessary hardware to mount two units side by
side in a 132mm (5
For use with: 3321, 3322, 3330, 3910, 3930A,
3933A, 3940
1
⁄4 in) high rack space.
Model 4288-2 Fixed Rack Mount Kit: Enables
rack mounting of two Models 428, 486, 487, 2000
Series, 2182, 2300 Series, 2400 Series, 6514, 6517A,
or 7001. Height: 88mm (3
For use with: 428, 486, 487, 776, 2000 Series,
2182, 2300 Series, 2400 Series, 2500 Series,
6514, 6517A, 2700, 6430, 6485, 7001
1
⁄2 in).
Model 4288-4 Fixed Rack Mount Kit: Enables
rack mounting of one Model 195A, 196, 220, 224,
230, 263, 595, 614, 617, 705, 740, 775A, or 6514
plus one of the instruments listed below. Height:
132mm (5
For use with: 195A, 196, 220, 224, 230, 230-1,
263, 428, 486, 487, 595, 617, 740, 775A, 776,
2000 Series, 2182, 2300 Series, 2400 Series,
6512, 6514, 6517A, 7001
1
⁄
4 in).
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
Page 3

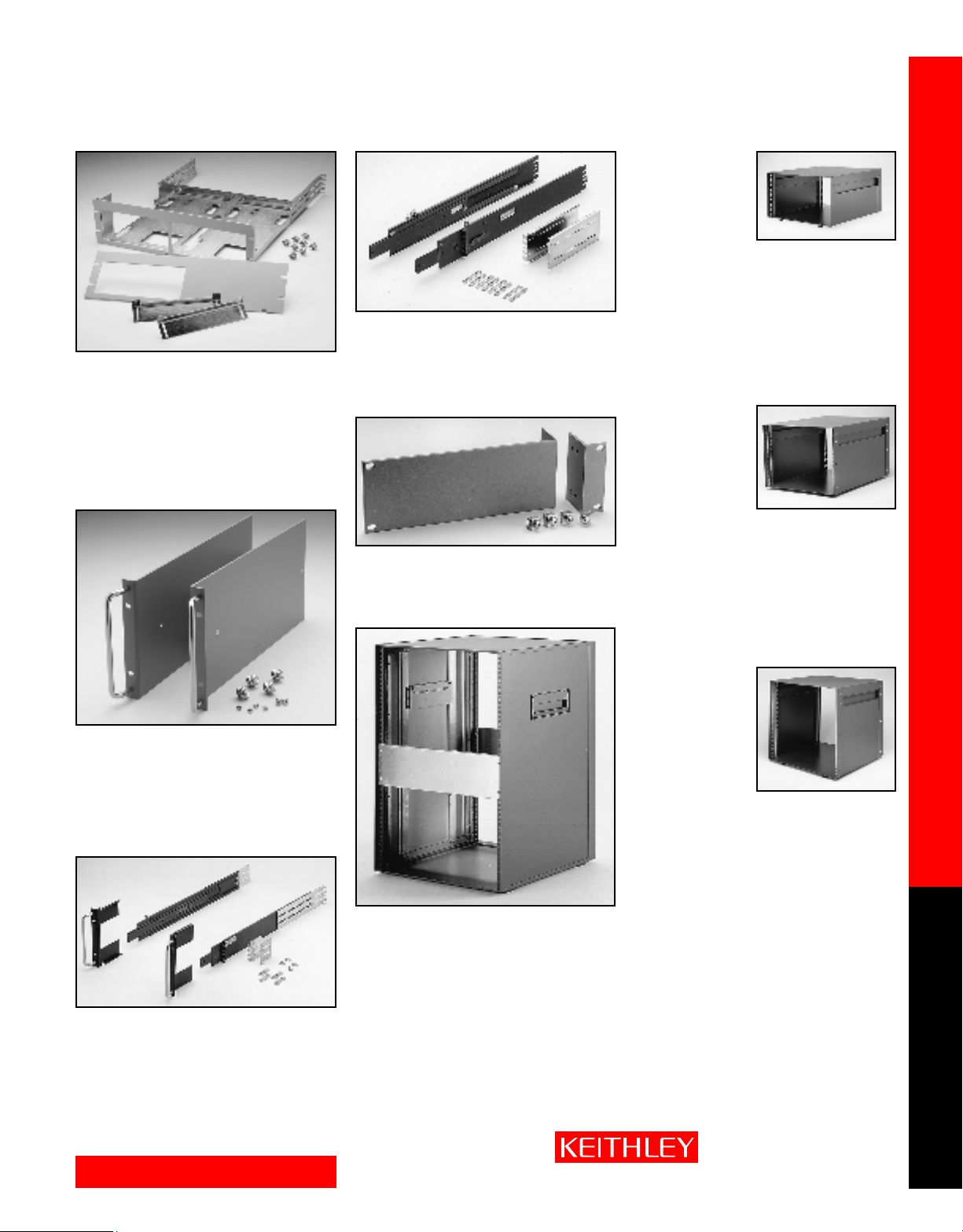

Racks and Rack Mount Kits
Model 7079 Slide Rack Mount Kit: Two sets of
flanged brackets, slides, and hardware to mount
Model 4288-5 Fixed Rack Mount Kit: The single- and dual-instrument front panels included
enable rack mounting of either one or two 3
inch instruments. Height: 132mm (5
1
⁄2-
1
⁄4 in). Depth:
457mm(18 in).
For use with: 428, 486, 487, 2000 Series, 2182,
2300 Series, 2400 Series, 2500 Series, 6514,
6517A, 2700, 6430, 6485, 7001
Model 7002-RMK-1 Fixed Rack Mount Kit:
Two 7 in. flanged brackets and hardware for
mounting Model 7002 in a standard 48.3cm (19 in)
equipment cabinet. Can be used with Model 8000,
8000-10, 8000-14 or 8000-17.
For use with: 7002
Model 7002-RMK-2 Slide Rack Mount Kit:
Two sets of flanged brackets, slides, and hardware
to mount Model 7002 in standard 48.3cm (19 in)
equipment cabinet. Can be used with Model 8000.
For use with: 7002
Model 707A in standard 48.3cm (19 in) equipment
cabinet. Can be used with Model 8000.
For use with: 707A
Model 7768: Single fixed rack kit for mounting
Model 776. Height: 88mm (3
For use with: 776
Model 8000: A 28-inch high equipment cabinet
that is open on both ends. It will accept all
Keithley rack mounting kits as well as most rack
kits provided with other instrumentation. The dark
brown 8000 comes fully assembled, with handles
permanently installed on each side. One hundred
chrome Phillips head screws with mylar washers
and clip nuts are provided for instrument mounting. Rack mounting kits are available separately.
DIMENSIONS: 711mm high × 483mm wide × 533mm deep (28
in × 19 in × 21 in).
1
⁄2 in).
Model 8000-10: A
standard 10-inch
high, 19-inch wide
equipment cabinet
for enclosing instrumentation for bench
or automated test
system application. The Model 8000-10 will accept
most Keithley mainframe models and fixed rack
mount kits. The cabinet is supplied with rubber
feet for benchtop applications, and the sturdy steel
construction will support additional instrumentation stacked on top.
DIMENSIONS: 254mm high × 483mm wide × 533mm deep (10
in × 19 in × 21 in).
Model 8000-14: A
standard 14-inch high,
19-inch wide equipment cabinet for enclosing instrumentation for bench or
automated test system application. The
Model 8000-14 will accept all Keithley mainframe
models and fixed rack mount kits. The cabinet is
supplied with rubber feet for benchtop applications
including enclosure of the 707A Switching Matrix,
and the sturdy steel construction will support additional instrumentation stacked on top.
DIMENSIONS: 356mm high × 483mm wide × 648mm deep (14
in × 19 in × 25.5 in).
Model 8000-17: A
standard 17-inch
high, 19-inch wide
equipment cabinet
for enclosing instrumentation for bench
or automated test
system application.
The Model 8000-17
will accept all Keithley mainframe models and
fixed rack mount kits. The cabinet is supplied with
rubber feet for benchtop applications including enclosure of the 707A Switching Matrix, and the sturdy steel con-struction will support additional instrumentation stacked on top.
DIMENSIONS: 444mm high × 483mm wide × 457mm deep (171⁄2
in × 19 in × 18 in).
Racks and rack mount kits
1.888.KEITHLEY (U.S. only)
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
INSTRUMENT ACCESSORIES
