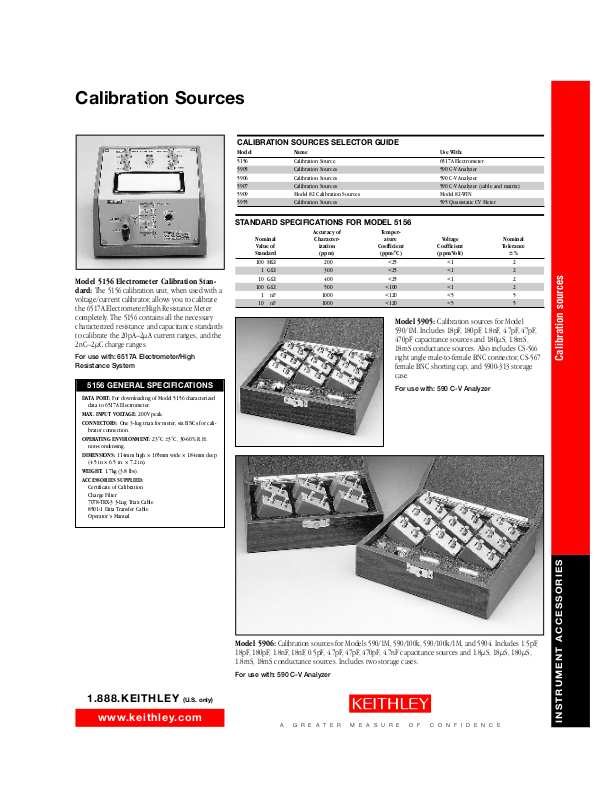

Calibration Sources
CALIBRATION SOURCES SELECTOR GUIDE
Model Name Use With:
5156 Calibration Source 6517A Electrometer
5905 Calibration Sources 590 C-V Analyzer
5906 Calibration Sources 590 C-V Analyzer
5907 Calibration Sources 590 C-V Analyzer (cable and matrix)
5909 Model 82 Calibration Sources Model 82-WIN
5955 Calibration Sources 595 Quasistatic CV Meter
STANDARD SPECIFICATIONS FOR MODEL 5156

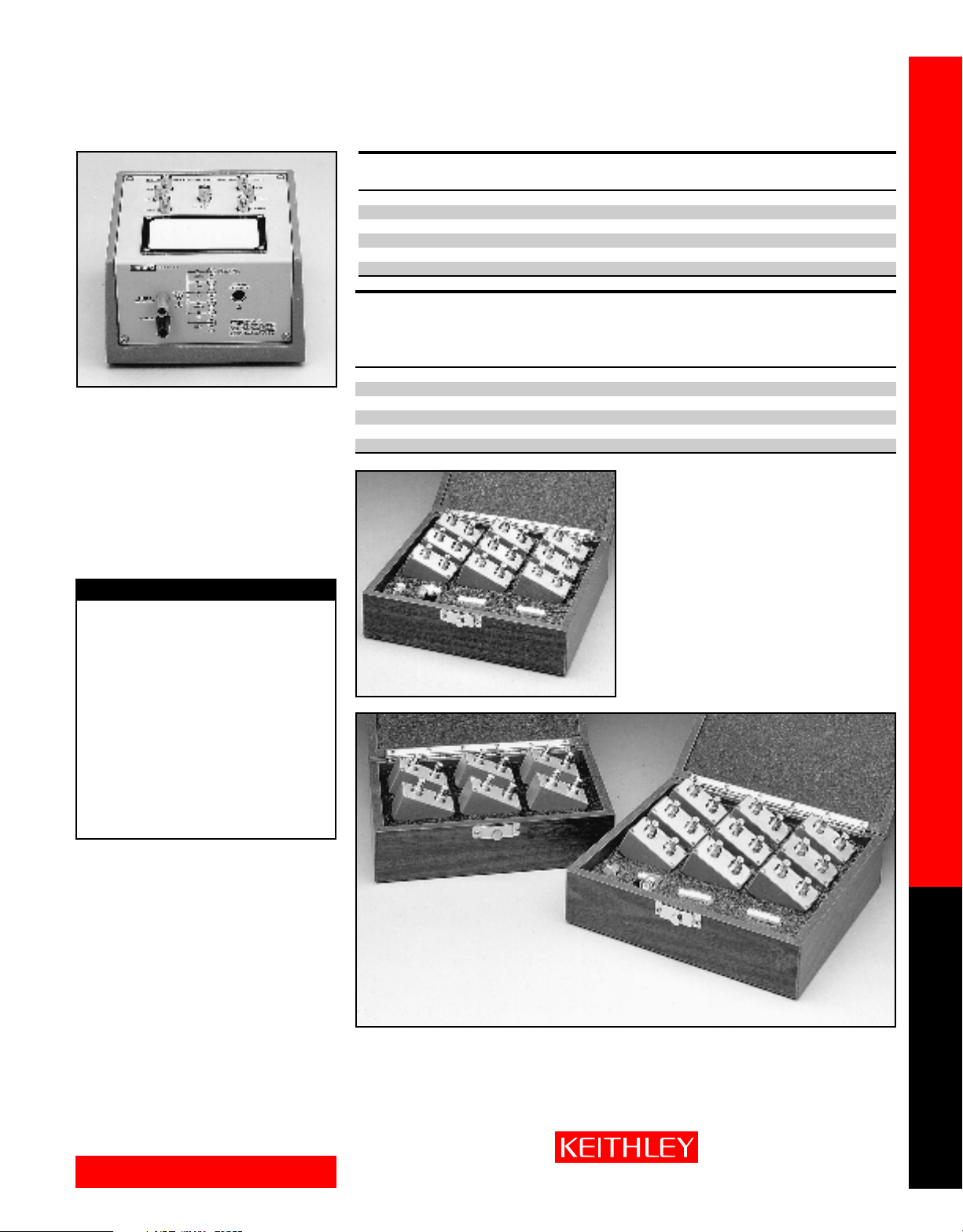

Model 5156 Electrometer Calibration Standard: The 5156 calibration unit, when used with a
voltage/current calibrator, allows you to calibrate
the 6517A Electrometer/High Resistance Meter
completely. The 5156 contains all the necessary
characterized resistance and capacitance standards
to calibrate the 20pA–2µA current ranges, and the
2nC–2µC charge ranges.
For use with: 6517A Electrometer/High
Resistance System
5156 GENERAL SPECIFICATIONS
DATA PORT: For downloading of Model 5156 characterized
data to 6517A Electrometer.
MAX. INPUT VOLTAGE: 200V peak.
CONNECTORS: One 3-lug triax for meter, six BNCs for cali-
brator connection.
OPERATING ENVIRONMENT: 23°C ±3°C, 30-60% R.H.
non-condensing.
DIMENSIONS: 114mm high × 165mm wide × 184mm deep
(4.5 in × 6.5 in. × 7.2 in).
WEIGHT: 1.7kg (3.8 lbs).
ACCESSORIES SUPPLIED:
Certificate of Calibration
Charge Filter
7078-TRX-3 3-Lug Triax Cable
8501-1 Data Transfer Cable
Operator’s Manual
Nominal Character- ature Voltage Nominal
Value of ization Coefficient Coefficient Tolerance
Standard (ppm) (ppm/°C) (ppm/Volt) ± %
100 MΩ 200 <25 <1 2
1GΩ 300 <25 <1 2
10 GΩ 400 <25 <1 2
100 GΩ 500 <100 <1 2
1 nF 1000 <120 <5 5
10 nF 1000 <120 <5 5
Accuracy of Temper-
Model 5905: Calibration sources for Model
590/1M. Includes 18pF, 180pF, 1.8nF, 4.7pF, 47pF,
470pF capacitance sources and 180µS, 1.8mS,
18mS conductance sources. Also includes CS-566
right angle male-to-female BNC connector, CS-567
female BNC shorting cap, and 5900-313 storage
case.
For use with: 590 C-V Analyzer
Calibration sources
1.888.KEITHLEY (U.S. only)
www.keithley.com
Model 5906: Calibration sources for Models 590/1M, 590/100k, 590/100k/1M, and 5904. Includes 1.5pF,
18pF, 180pF, 1.8nF, 18nF, 0.5pF, 4.7pF, 47pF, 470pF, 4.7nF capacitance sources and 1.8µS, 18µS, 180µS,
1.8mS, 18mS conductance sources. Includes two storage cases.
For use with: 590 C-V Analyzer
A GREATER MEASURE OF CONFIDENCE
INSTRUMENT ACCESSORIES
Page 2
Calibration Sources

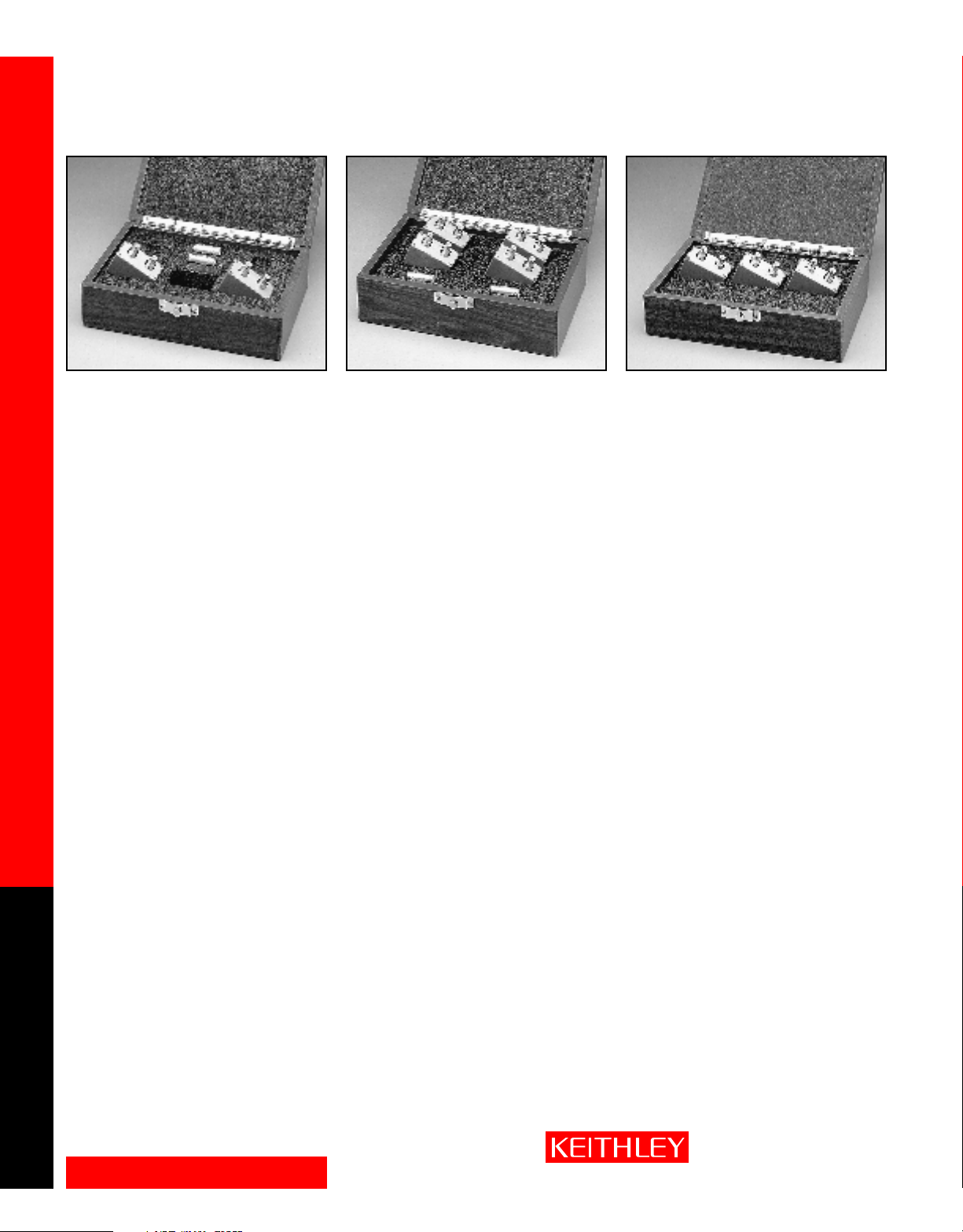

Model 5907: Calibration sources to calibrate
cable and matrix. Includes 1.8nF and 470pF capacitance sources, 2 BNC female-to-female barrels (CS-
565), and 5900-312 storage case.
For use with: 590 C-V Analyzer (cable and
matrix)
Calibration sources
Model 5909: Calibration sources for Model 82.
Includes 1.8nF, 470pF, 180pF, and 47pF capacitance
sources, two female-to-female barrels (CS-565),
and storage case.
For use with: Model 82-WIN
Model 5955: Calibration sources for Model 595.
Includes 18nF, 1.8nF, 180pF capacitance sources
and storage case.
For use with: 595 Quasistatic C-V Meter
1.888.KEITHLEY (U.S. only)
INSTRUMENT ACCESSORIES
www.keithley.com
A GREATER MEASURE OF CONFIDENCE
