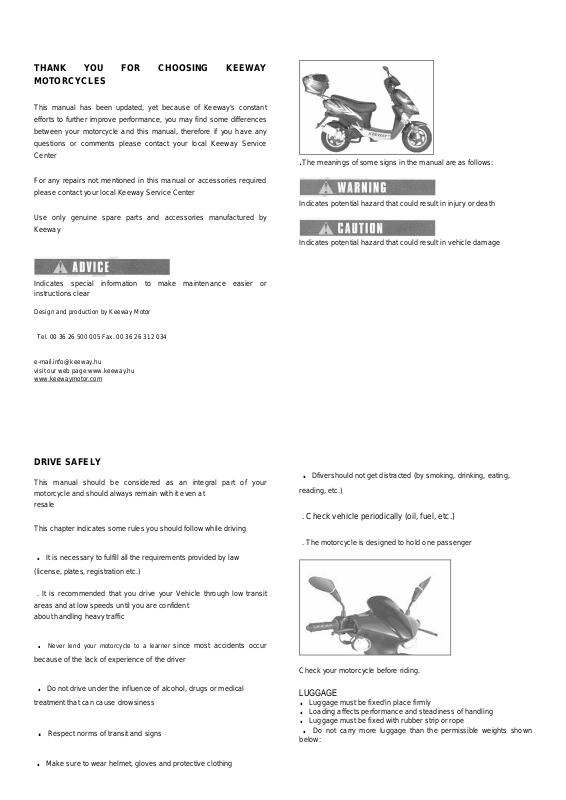

THANK YOU FOR CHOOSING KEEWAY
MOTORCYCLES

This manual has been updated, yet because of Keeway's constant
efforts to further improve performance, you may find some differences
between your motorcycle and this manual, therefore if you have any
questions or comments please contact your local Keeway Service
Center

For any repairs not mentioned in this manual or accessories required
please contact your local Keeway Service Center

Use only genuine spare parts and accessories manufactured by
Keeway

.

The meanings of some signs in the manual are as follows:

Indicates potential hazard that could result in injury or death

Indicates potential hazard that could result in vehicle damage

Indicates special information to make maintenance easier or
instructions clear

Design and production by Keeway Motor

Tel. [phone] Fax. [phone]

[e-mail]
visit our web page:www.keeway.hu
www.keewaymotor.com

DRIVE SAFELY

This manual should be considered as an integral part of your
motorcycle and should always remain with it even at
resale

This chapter indicates some rules you should follow while driving

.

It is necessary to fulfill all the requirements provided by law

(license, plates, registration etc.)

. It is recommended that you drive your Vehicle through low transit
areas and at low speeds until you are confident
about handling heavy traffic

.

Dfivershould not get distracted (by smoking, drinking, eating,

reading, etc.)

. Check vehicle periodically (oil, fuel, etc.)

. The motorcycle is designed to hold one passenger

.

Never lend your motorcycle to a learner

because of the lack of experience of the driver

.

Do not drive under the influence of alcohol, drugs or medical

treatment that can cause drowsiness

.

Respect norms of transit and signs

.

Make sure to wear helmet, gloves and protective clothing

since most accidents occur

Check your motorcycle before riding.

LUGGAGE

.

Luggage must be fixed'in place firmly

.

Loading affects performance and steadiness of handling

.

Luggage must be fixed with rubber strip or rope

.

Do not carry more luggage than the permissible weights shown

below:

KNOW YOUR MOTORCYCLE

1 )Rear Carrier

2)Rear Light

3)Engine Oil Tank

4)Seat

5)Speed Controller

6)Rear View Mirror

7)Brake Oil Tank

8)Front Box 9)Headlight

10)Exhaust Pipe
11 )Drum Brake

12)Magneto

13)Passenger Stirrup
14 )Side Stand
15 )Front Bag

16)Disc Brake

17)Front Mud Guard

TOOLS AND INDICATORS LOCATION

1) Horn Switch

2) Rear Hand Brake

3) Rear View Left Mirror

4) Instrument Panel

5) Rear View Right Mirror

6) Front Hand Brake

7) Speed Controller

8) Electrical Starter Switch

1) Oil Indicator

2) Turning Indicator

3) Odometer

4) Speedometer

5) Far Sight Indicator

6) Fuel Warning Indicator

7) Fuel Indicator

8) Digital Clock

INDICATORS DESCRIPTION

Oil level Warning Indicator

This warning light comes on when you use the starter switch and the
engine has not started. If the light comes on during normal operation
of the engine,.it indicates that the oil level in the tank case has
dropped below minimum. If this happens, switch the engine off
immediately and take your motorcycle to a local Keeway Service
Center

Left Turning Indicator

Flashes whe.n left turning signal is ON

Odorneter

Indicates distance covered inkms (total distance)

Speedometer

Indicates speed in kms/hr

RightTarning Indicator

Flashes when right turning signal is ON

Far Sight Indicator

position

Fuel Warning Indicator

Comes on when fuel in tank is below 1.0Lt (0,3 gallons)

Fuel Indicator

Shows fuel level in the tank

MAIN COMMANDS

LEFT HANDLE
1 )Horn Switch
Press the switch to sound the horn

2)Switgh for direction light
Slide switch left to turn left, slide switch right to turn right and push
inthe switch to shutthelight

3)Changing Light Switch
Distance Light beam of headlight goes upward
Near Light beam of headlight goes downward

RIGHT HANDLE

1) Electrical Starter Switch
Press electrical starter switch for a maximum of 5 seconds. If engine
does not start, try again after a gap of 30 seconds

2) Light Switch
Push to left is ON ( 1st position 5W , 2nd position 35W )

MAlN SWITCH

Rotating the key switches the electrical circuitry ON and OFF
WARNING:

Don't use the key when the engine is ON
ADVICE:

Always turn "OFF" Remote Ignition and Key Ignition when engine is
not running.

CAUTION:
If Ignition circuit (Key or Remote) is "ON" when engine is not running

will drain battery and shorten battery life.

1.0N (starting)
Engine can be started

Electrical switches for horn, lights, etc. Can be activated
Keys can't be removed

2.0FF (shutting down)
Engine is deactivated

Lights, horn, etc. are inoperable Engine can't be started
Keys can be removed

3.LOCK
Direction lock is locked Lights, horn; etc. can't be used
Keys can be removed
OPERATION
LOCK
Please activate the direction lock when leaving your vehicle unattended

1.First turn handle bar to the limit

2.lnsert key and turn from OFF to LOCK position

3.Draw the key out
ADVICE:
Please try turning the handle bar to ensure that the vehicle is locked
UNLOCKING
Insert the key and rotate it to the OFF position.

ACCESS TO COMPARTMENTS

SEAT LOCK

Opening and closingof seat lock:

1.lnsert key and turn to right to open seat lock

2.Lift the bottom of the seat and open it

3.Drop seat and press it lightly and then you can lock it once again

ADVICE:
Try lifting the seat gemtly to ensure that it is locked

.

LUGGAGE BOX

1. Before using luggage box, please open the seat

2. When the seat is open you will find the l}:Jggage box, which can
hold up to 22Lbs

Operating manual and other documents can be stored here

ATTENTION:

Food easily affected by temperature and combustible materials
shouldn't be stored in the luggage box

ADVICE:

Don't leave expensive goods in the luggage box when leaving the
vehicle

Water may enter the luggage box in rainy weather or when the vehicle
is being washed, so take care not to store goods that may be damaged
in such conditions

FRONT BAG

FRONT BAG
How to use the front bag:

The front bag can hold goods weighing up to about 3 kg.

1. Insert key and turn to right to open lock buckle

2. Open bag

3. Please make use of:then.rubber strip, rope or button to fasten
luggage

FUEL TANK

1. Insert key and turn to right to open outer cover of fuel tank

2. Turn fuel tank cap to left to remove it

3. Add unleaded fuel to the tank

4. Replace cap, screw it in place and lock the outer cover once again

TANK CAPACITY 5.2 Lts

WARNING:

Fuel is combustible and can cause fire under certain,conditions

When filling fuel, vehicle should be in an open, ventilated area with the
engine OFF

Avoid skin contact with, and inhalation or ingestion of fuel

HOW TO START ENGINE

BEFORE STARTING
Check whether fuel and oil are adequate
Set the kick lever (main support)

Driver must stand to the left of ttJe vehicle

Don't start the engine in an airless or airtight room since exhaust
fumes contain poisonous substances that can cause death

STARTING THE ENGINE

1. Turn the switch to the on position

2. Nip the rear brake lever

3. Hold steering handle and then press electric starter switch

4. Don't rush out on a cold engine. It is recommended to warm the
engine by driving .slowly during the first few miles of the ride

USING THE KICK-STARTER

1. Turn the main switch to the ON position

2. Step on the kick-starter lever and press down firrnly

ADVICE:

Turn the kick-starter lever back after starting the engine
