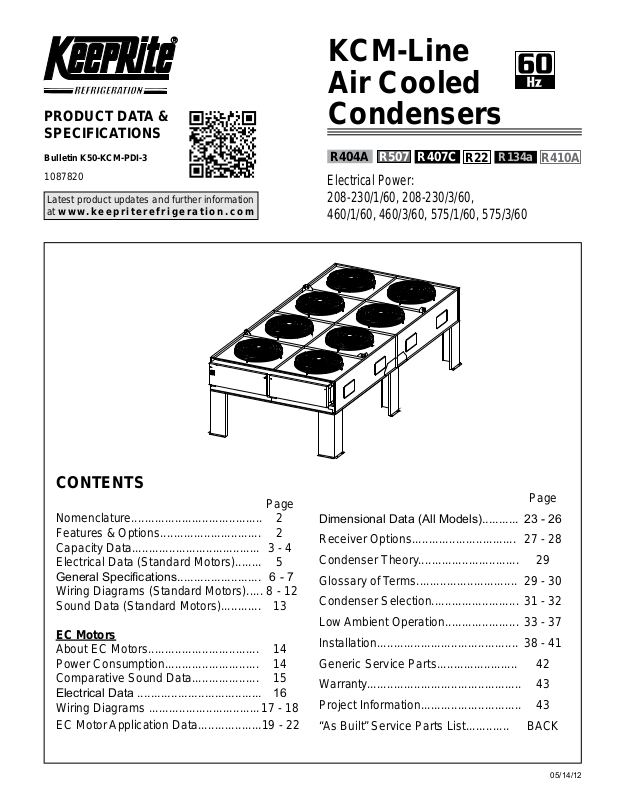

Keeprite KCM011 Installation Manual
KCM-Line
05/14/12
Air Cooled
PRODUCT DATA &
SPECIFICATIONS
Bulletin K50-KCM-PDI-3
1087820
Latest product updates and further information
at www.keepriterefrigeration.com
Condensers
R404A
Electrical Power:
208-230/1/60, 208-230/3/60,
460/1/60, 460/3/60, 575/1/60, 575/3/60
R507
R407C
R22
R134a
R410A
CONTENTS
Page
Nomenclature....................................... 2
Features & Options.............................. 2
Capacity Data...................................... 3 - 4
Electrical Data (Standard Motors)........ 5
General Specications......................... 6 - 7
Wiring Diagrams (Standard Motors)..... 8 - 12
Sound Data (Standard Motors)............ 13
EC Motors

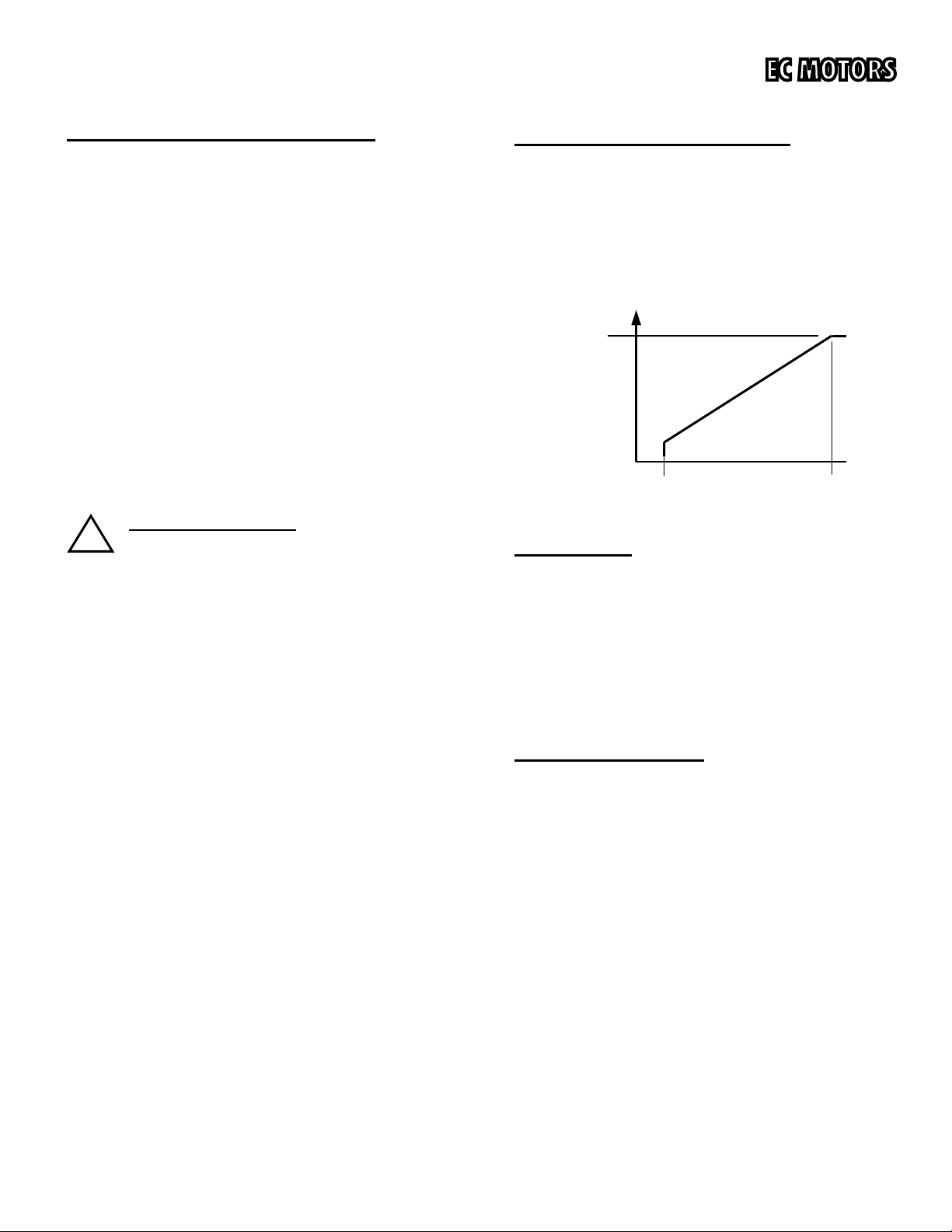

About EC Motors................................. 14

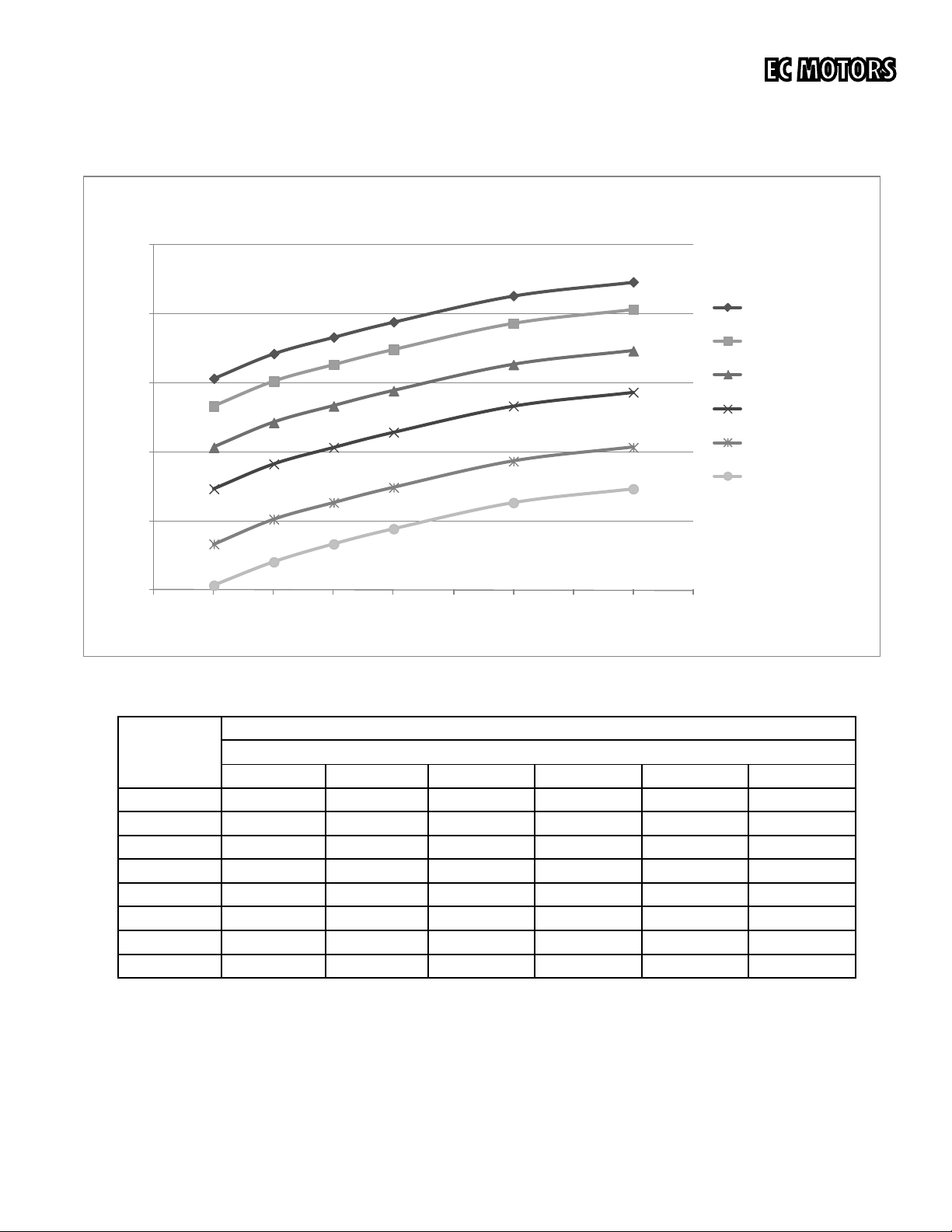

Power Consumption............................ 14
Comparative Sound Data.................... 15
Electrical Data ..................................... 16

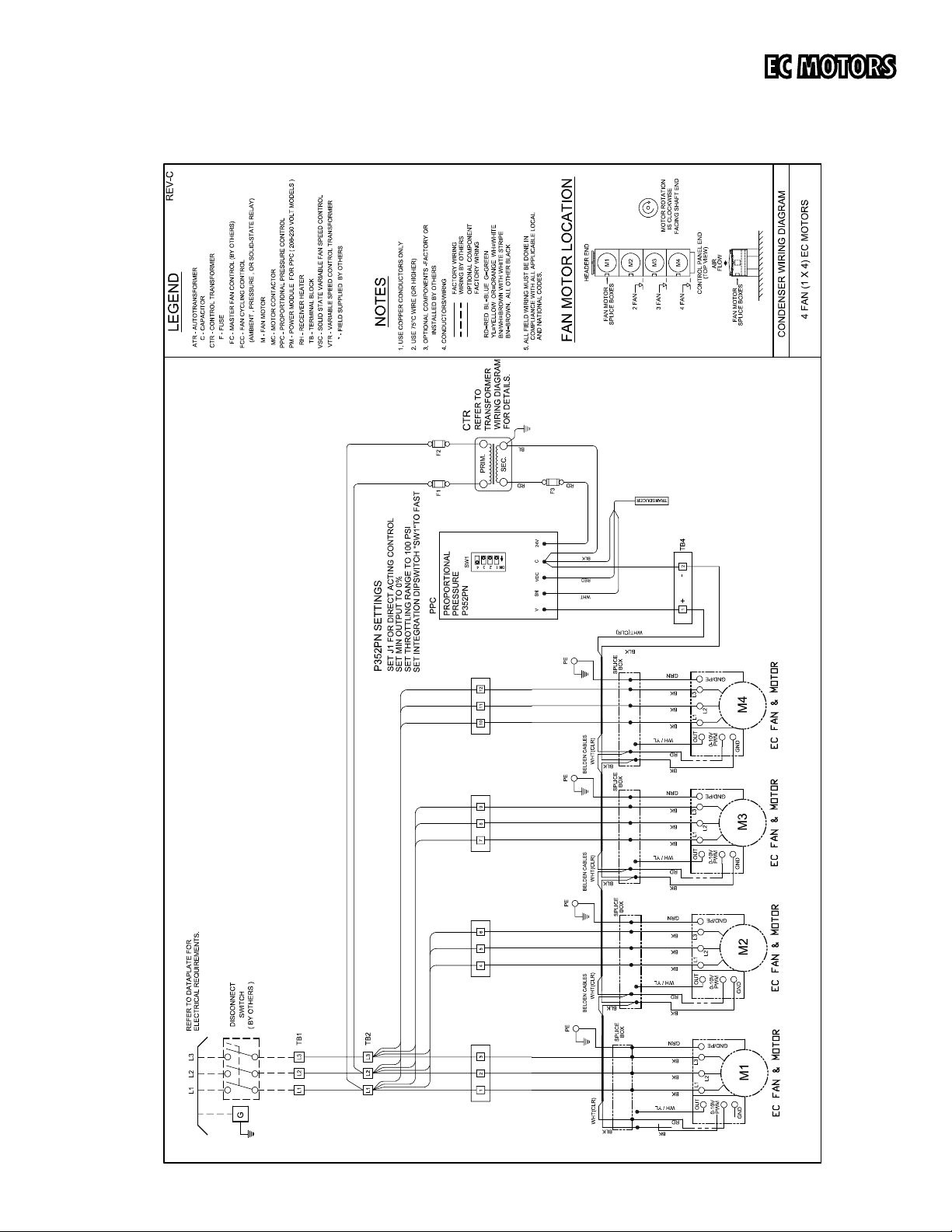

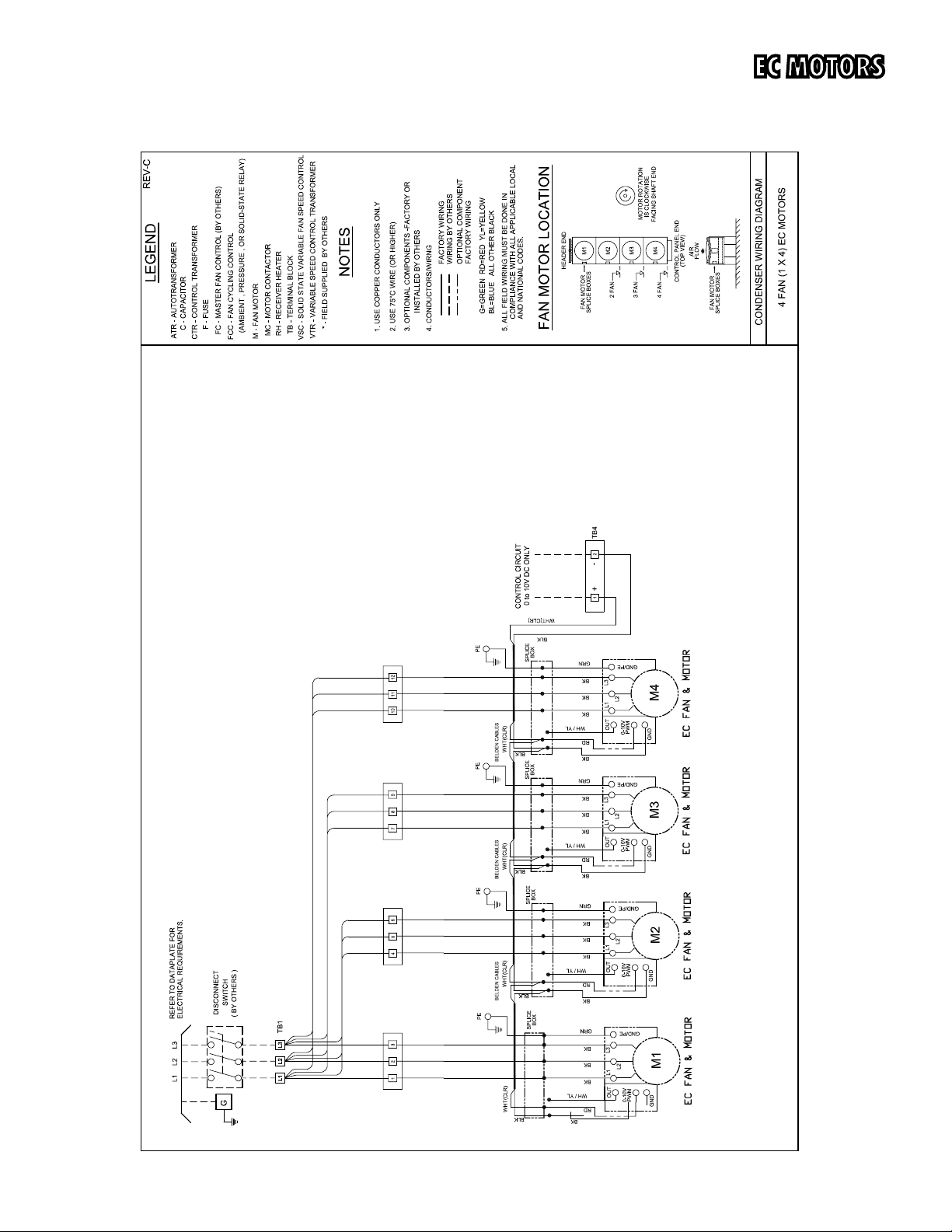

Wiring Diagrams ................................. 17 - 18

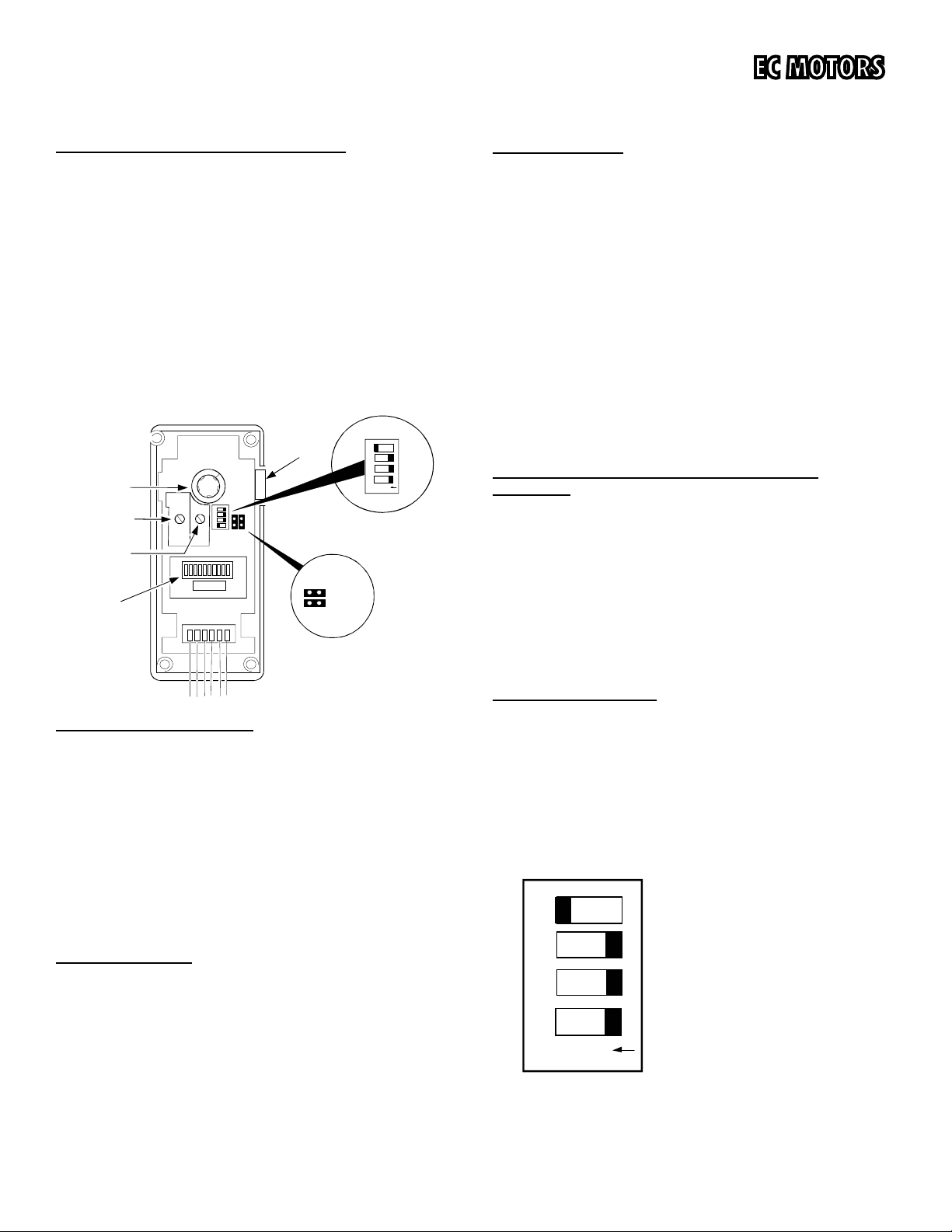

EC Motor Application Data................... 19 - 22
Page

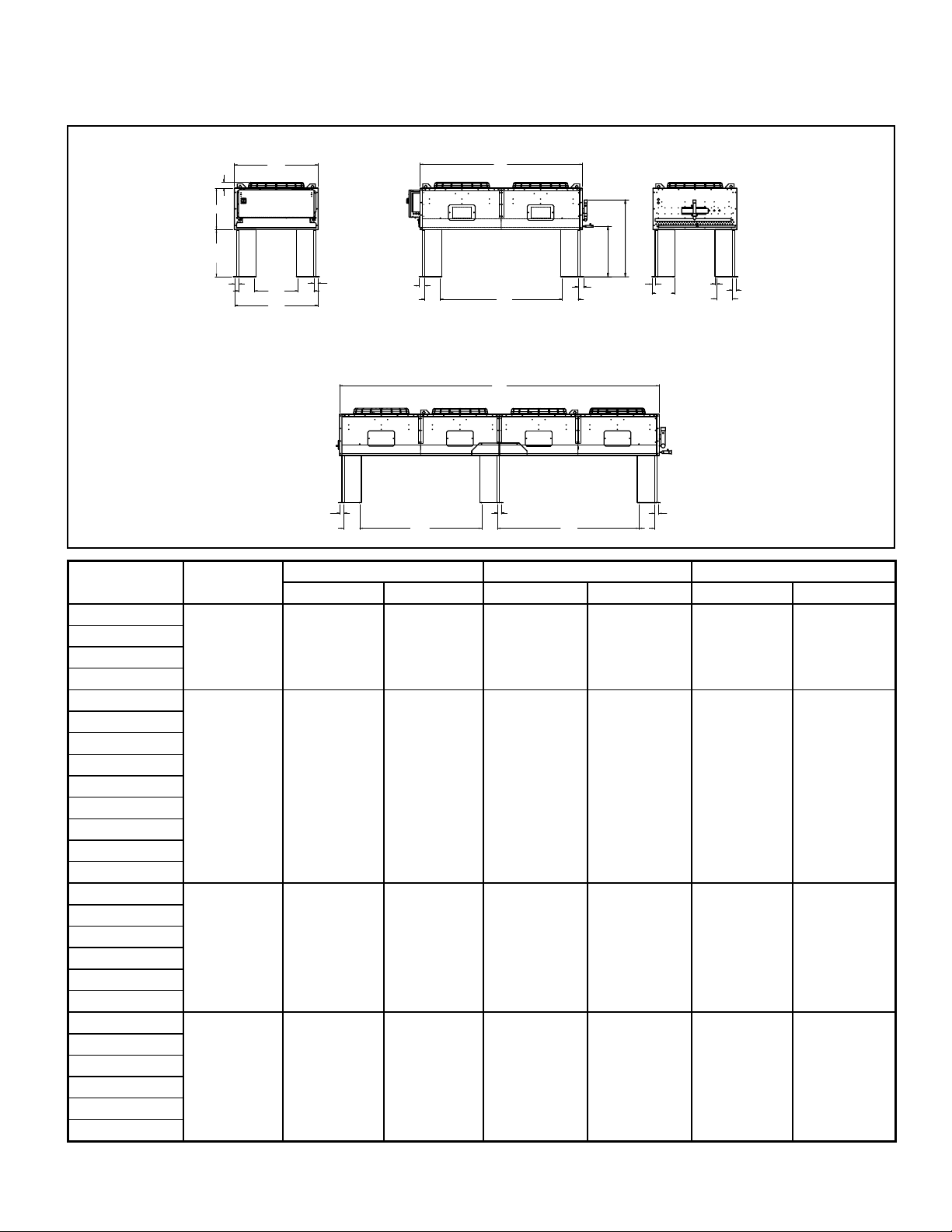

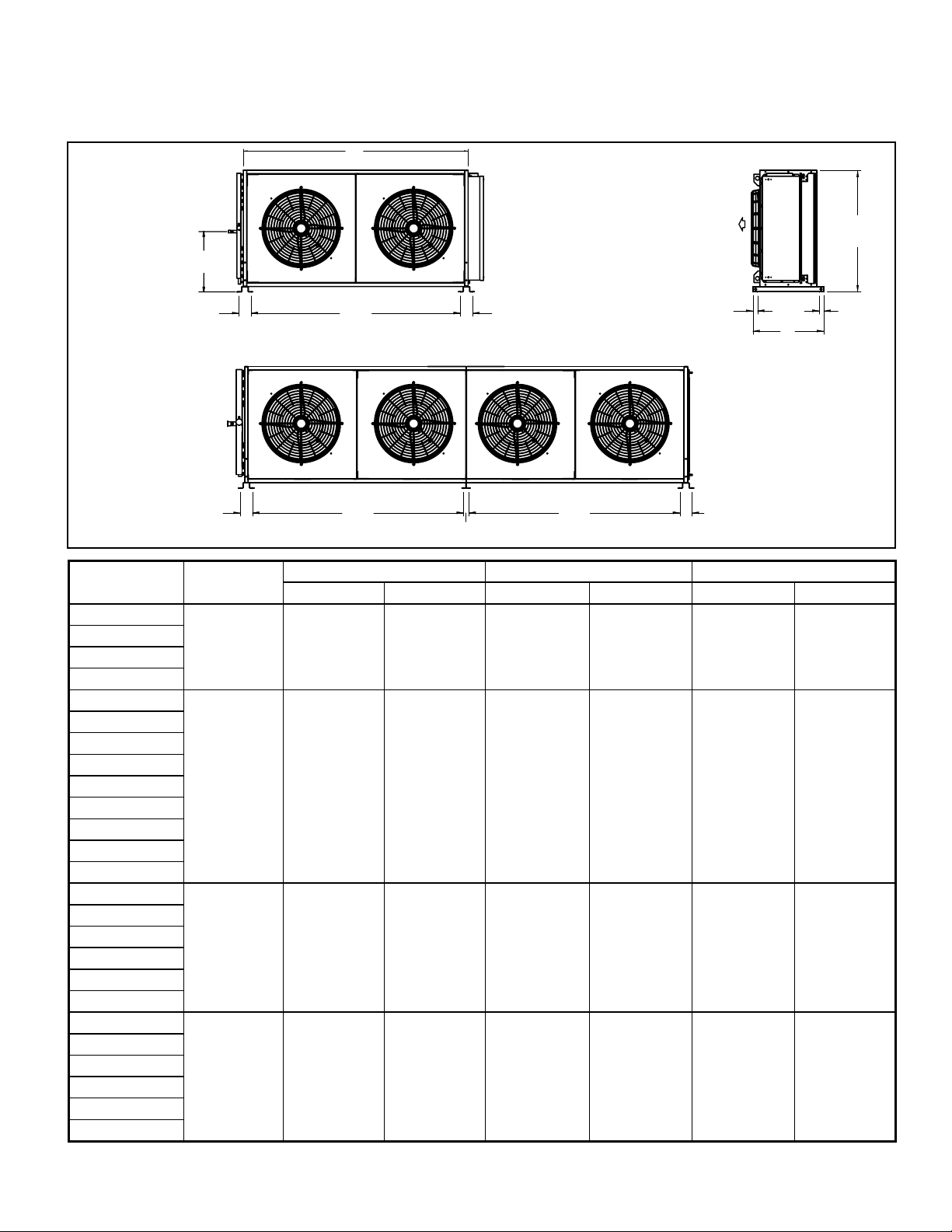

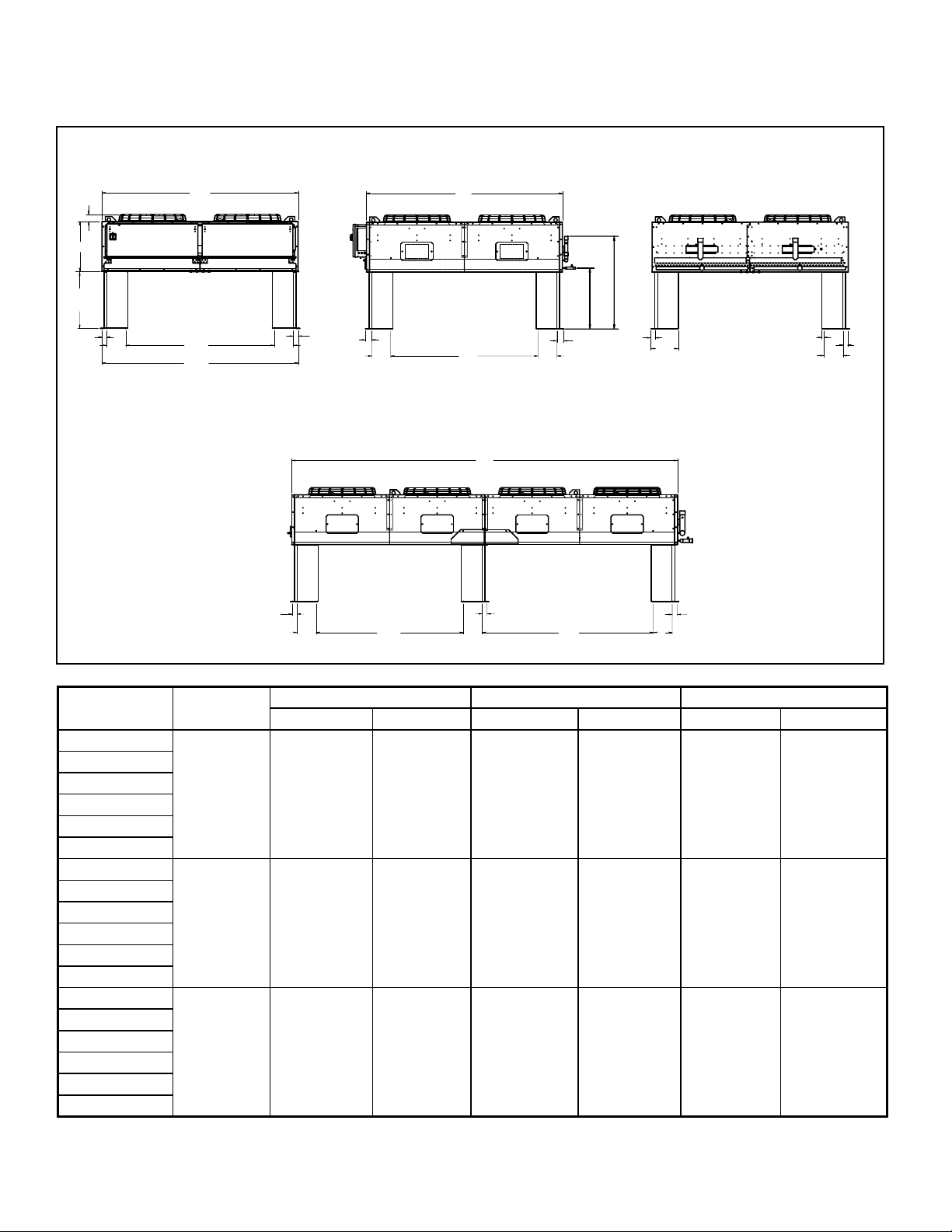

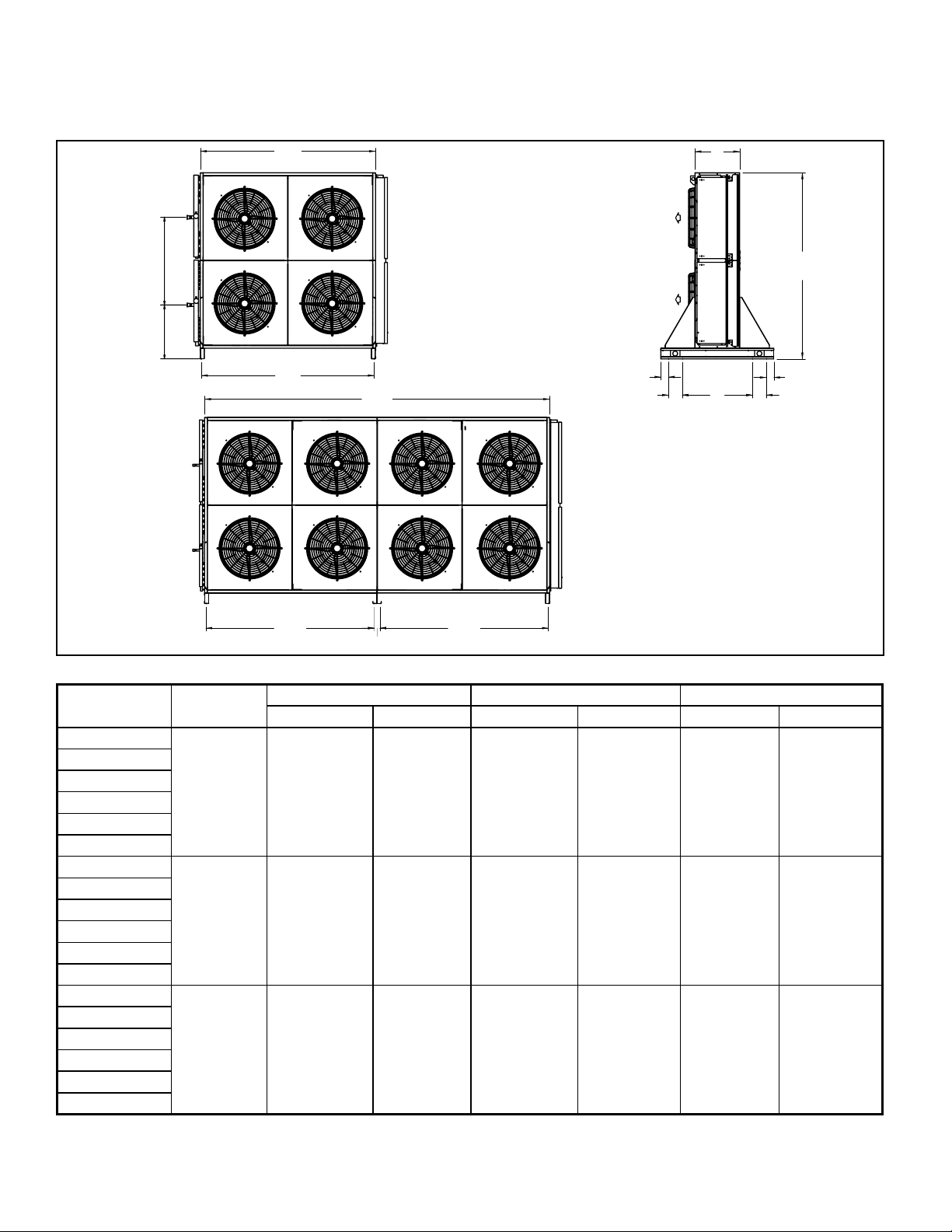

Dimensional Data (All Models)........... 23 - 26
Receiver Options............................... 27 - 28

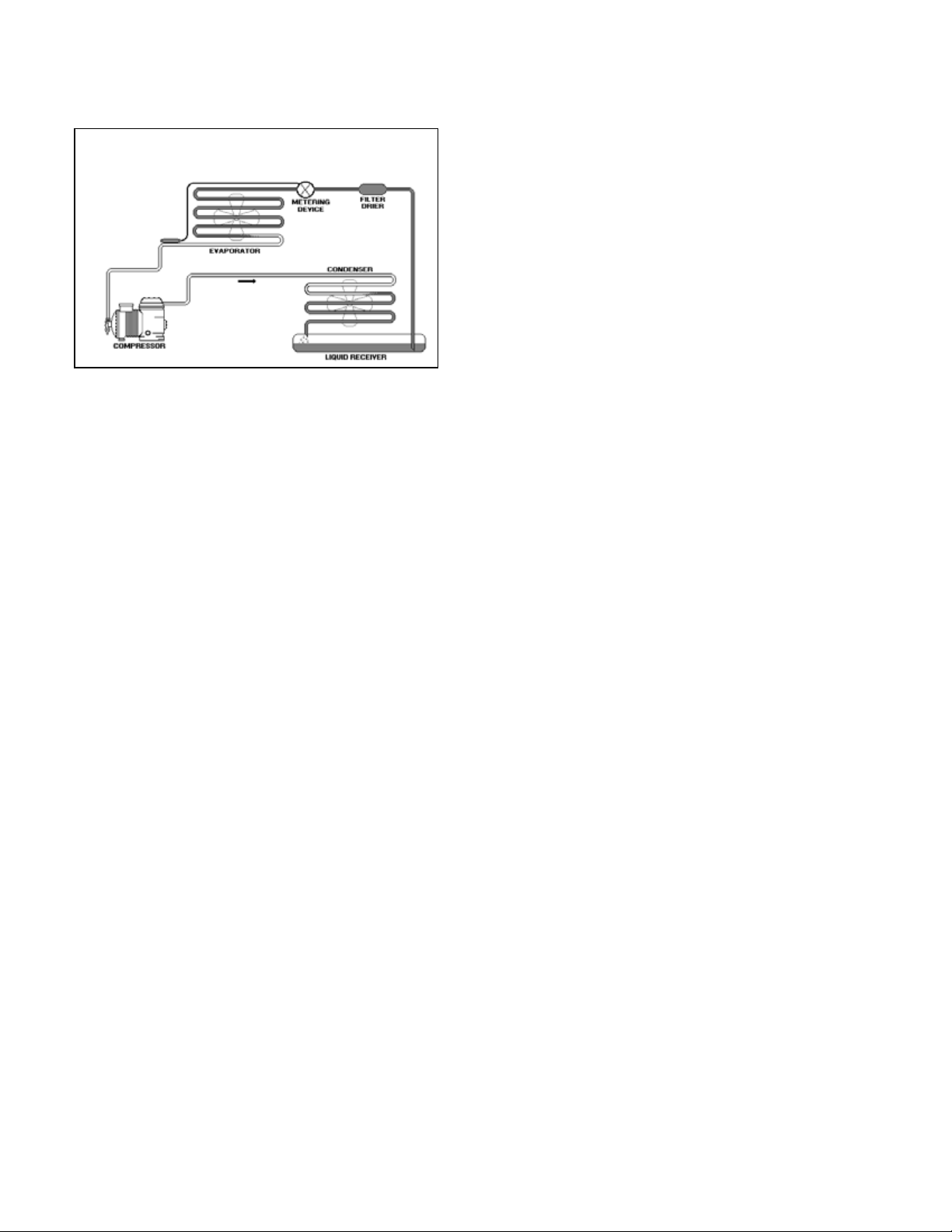

Condenser Theory .............................. 29
Glossary of Terms.............................. 29 - 30
Condenser Selection.......................... 31 - 32

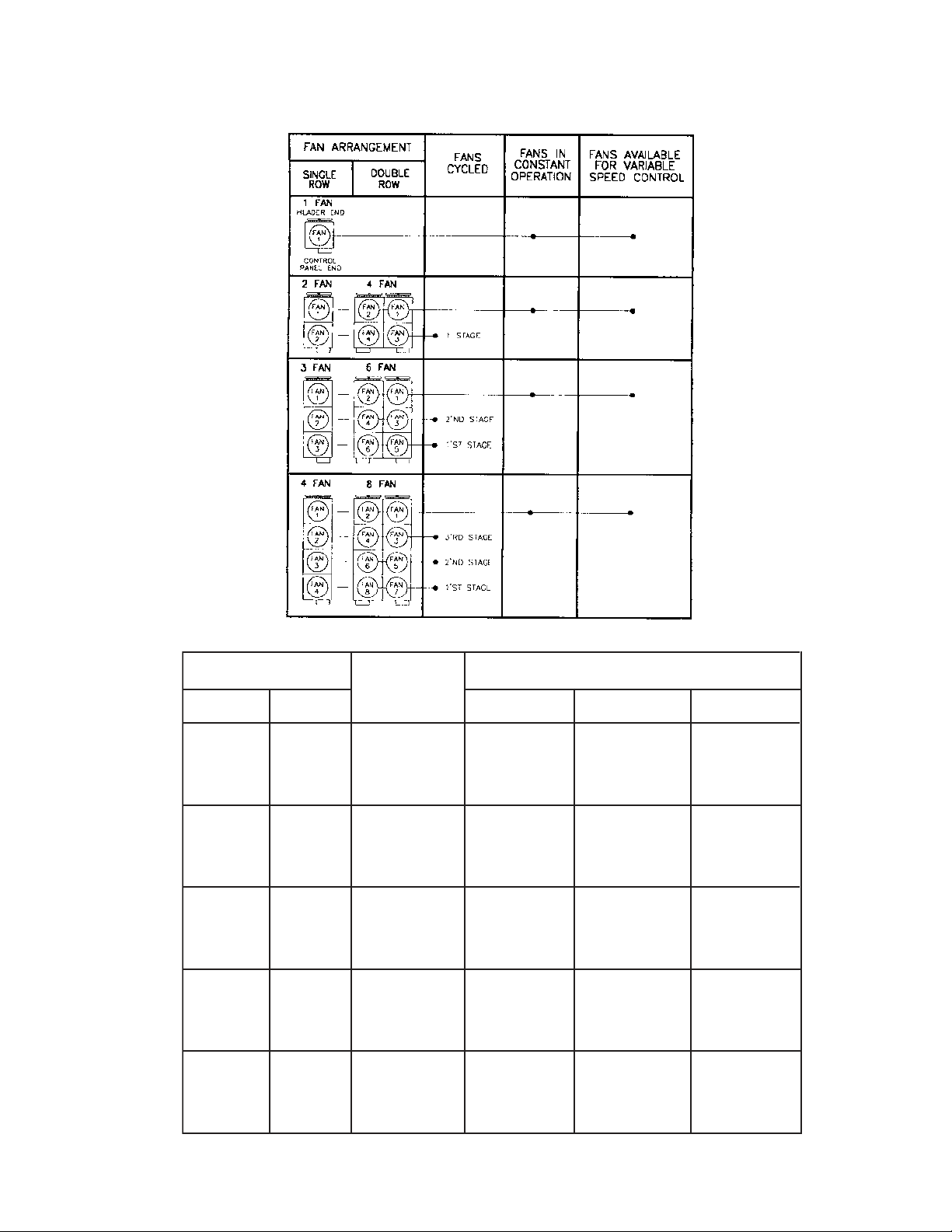

Low Ambient Operation...................... 33 - 37

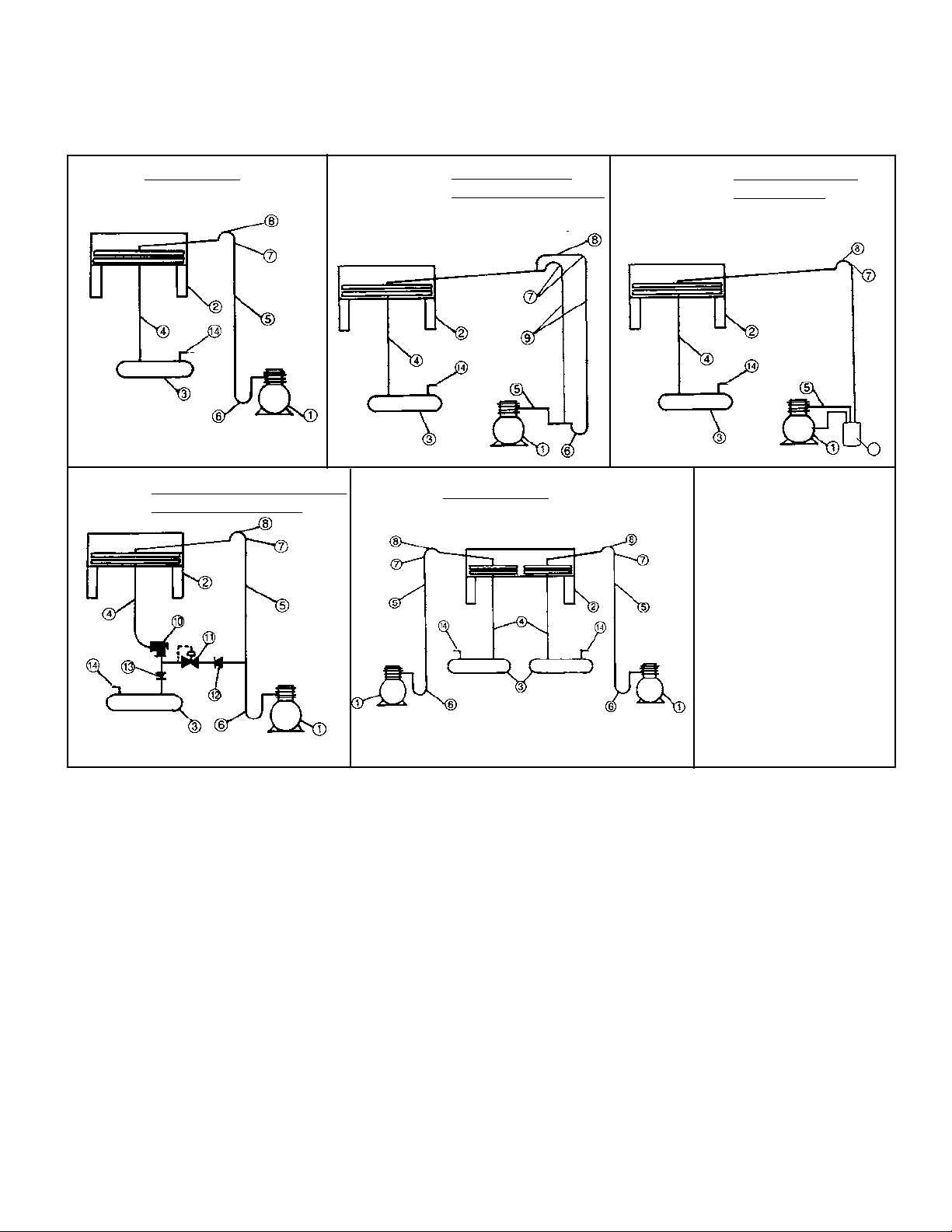

Installation.......................................... 38 - 41
Generic Service Parts........................ 42
Warranty.............................................. 43
Project Information.............................. 43
“As Built” Service Parts List............. BACK
Brand Name:
K50-KCM-PDI-3
- 2 -
05/14/12
K = KeepRite
Product name
CM = Medium Sized Condenser
NOMENCLATURE
K CM 095 - T3 A - A 2 4 V
Application
V = Vertical Air Discharge
H = Horizontal Air Discharge
Nominal Tons (R404A, 25°F TD, 60Hz)
Voltage
S2 = 208-230/1/60
T3 = 208-230/3/60
S4 = 460/1/60
T4 = 460/3/60
S5 = 575/1/60
T5 = 575/3/60
S6 = 200-220/1/50
T7 = 200-220/3/50
S7 = 380-400/1/50
T9 = 380-400/3/50
STANDARD FEATURES INCLUDE
• Horizontal or Vertical Air Discharge
• Heavy Gauge Galvanized Steel Cabinet
• ThermoSpan
failures on tube sheet
• Internally Enhanced Tubing with Enhanced Fin
optimizes coil performance
• Energy Efcient PSC and 3 Phase Fan Motors
with Internal Overload Protection
TM
Coil Design eliminates tube
Fans Deep
Fans Wide
1 = Inline; 2 = Double Wide
Motor
A = 1075 RPM, 3/4 HP Motor
E = ECM Motor
Design version
• Quiet ‘Swept Wing’ Fan Blade
• Fan Sections Individually Bafed with
Clean-out Panels
• Zinc Plated Huck Bolts
• Heavy Duty 24” Legs
• Double fan wide models have Two Equal
Circuits
• Control Circuit Voltage – 230 V
• Unit shipped with Nitrogen Holding Charge
• Multiple Refrigeration Circuits
• Ambient or Pressure Fan Cycling Control with
Contactor
• Johnson P66 Variable Fan Speed Control
• Efcient Variable Speed EC Motors
• Individual Fan Motor Fusing
• Non-Fused Disconnect
• Receiver with or without Heater and Insulation
OPTIONAL FEATURES
• Adjustable Flooded Head Pressure Control
(factory mounted if ordered with receiver option)
• Optional Fin Materials and Coatings
• Voltages Available for 60Hz or 50Hz

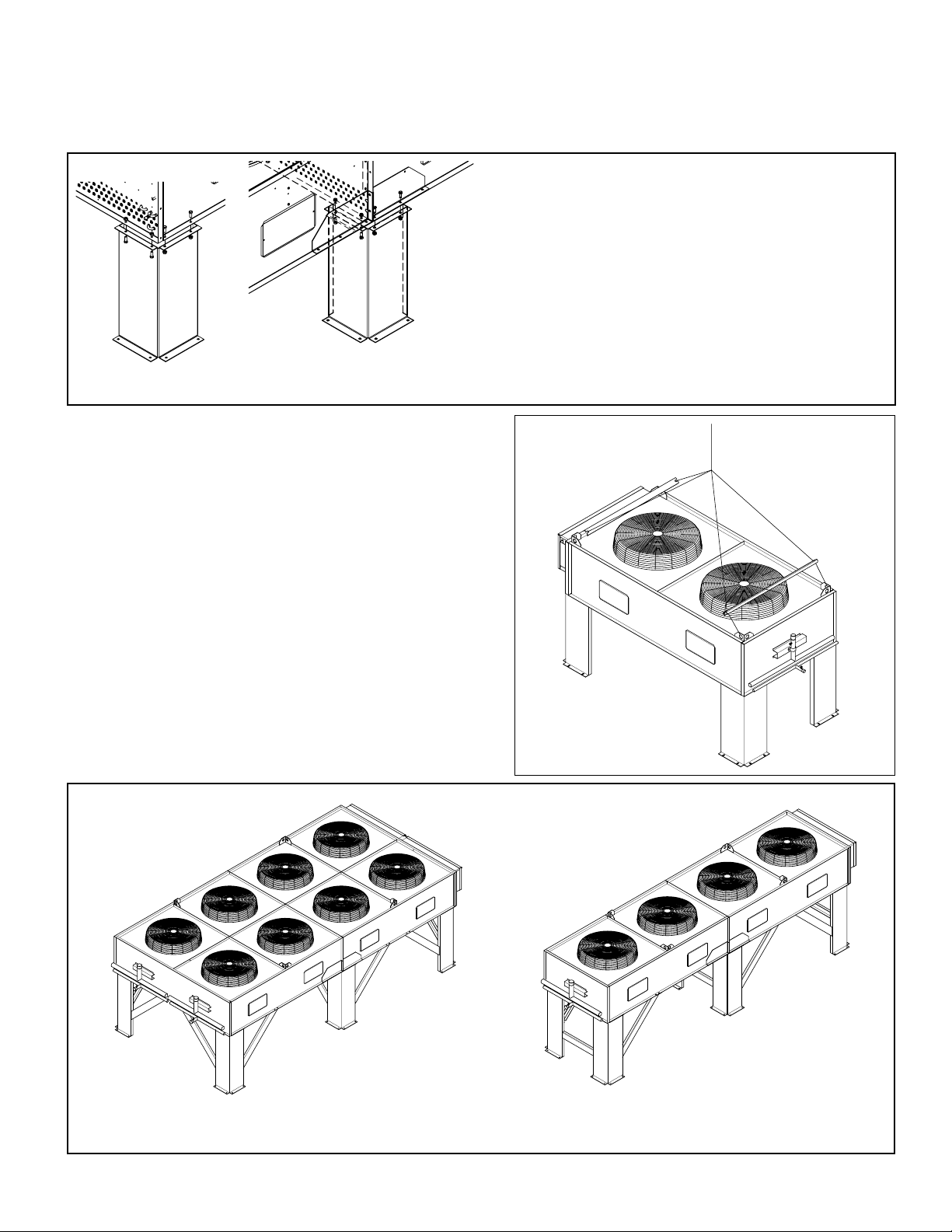

• Extended 48” Leg Kit with Cross Bracing
• Horizontal Conguration
• Optional Fin Materials
• Optional Coil Coatings
CAPACITY DATA -
K50-KCM-PDI-3
- 3 -
05/14/12
R404A
KCM 60Hz
SINGLE ROW MODELS
MODEL
NUMBER
KCM009 10 1 x 1
KCM010 12 1 x 1
KCM011 10 1 x 1
KCM012 12 1 x 1
KCM013 8 1 x 2
KCM014 10 1 x 2
KCM016 12 1 x 2
KCM017 8 1 x 2
KCM018 10 1 x 2
KCM020 12 1 x 2
KCM021 8 1 x 2
KCM022 10 1 x 2
KCM024 12 1 x 2
KCM025 8 1 x 3
KCM028 10 1 x 3
KCM030 12 1 x 3
KCM032 8 1 x 3
KCM033 10 1 x 3
KCM035 12 1 x 3
KCM037 8 1 x 4
KCM039 10 1 x 4
KCM041 12 1 x 4
KCM043 8 1 x 4
KCM045 10 1 x 4
KCM048 12 1 x 4
FPI FAN CONFIG.
TOTAL HEAT OF REJECTION MBH (KW)
TEMPERATURE DIFFERENCE (TD)
1 °F 10 °F 15 °F 20 °F 25 °F
(0.56 °C) (5.56 °C) (8.3 °C) (11.1 °C) (13.89 °C)
4.40 44.0 66.0 88.0 110.0
1.3 12.9 19.3 25.8 32.2
4.77 47.7 71.5 95.3 119.1
1.4 14.0 21.0 27.9 34.9
5.30 53.0 79.5 106.0 132.5
1.6 15.5 23.3 31.1 38.8
5.70 57.0 85.4 113.9 142.4
1.7 16.7 25.0 33.4 41.7
6.22 62.2 93.2 124.3 155.4
1.8 18.2 27.3 36.4 45.5
6.91 69.1 103.67 138.2 172.8
2.0 20.3 30.4 40.5 50.6
7.65 76.5 114.73 153.0 191.2
2.2 22.4 33.6 44.8 56.0
8.20 82.0 123.0 163.9 204.9
2.4 24.0 36.0 48.0 60.1
8.80 88.0 132.0 176.0 220.0
2.6 25.8 38.7 51.6 64.5
9.45 94.5 141.7 188.9 236.2
2.8 27.7 41.5 55.4 69.2
10.21 102.1 153.1 204.2 255.2
3.0 29.9 44.9 59.8 74.8
10.60 106.0 159.0 212.0 265.0
3.1 31.1 46.6 62.1 77.7
11.34 113.4 170.1 226.8 283.6
3.3 33.2 49.9 66.5 83.1
12.19 121.9 182.8 243.7 304.6
3.6 35.7 53.6 71.4 89.3
13.34 133.4 200.1 266.8 333.5
3.9 39.1 58.6 78.2 97.7
14.30 143.0 214.5 285.9 357.4
4.2 41.9 62.9 83.8 104.8
15.12 151.2 226.8 302.5 378.1
4.4 44.3 66.5 88.6 110.8
15.84 158.4 237.6 316.9 396.1
4.6 46.4 69.6 92.9 116.1
16.80 168.0 252.0 336.1 420.1
4.9 49.2 73.9 98.5 123.1
17.54 175.4 263.2 350.9 438.6
5.1 51.4 77.1 102.8 128.5
18.68 186.8 280.1 373.5 466.9
5.5 54.7 82.1 109.5 136.8
19.69 196.9 295.4 393.8 492.3
5.8 57.7 86.6 115.4 144.3
20.60 206.0 309.0 411.9 514.9
6.0 60.4 90.5 120.7 150.9
21.78 217.8 326.7 435.5 544.4
6.4 63.8 95.7 127.6 159.6
22.89 228.9 343.3 457.7 572.1
6.7 67.1 100.6 134.1 167.7
R404A
MAX.
NO. OF
FEEDS
8 0.5500
8 0.5957
8 0.6625
8 0.7120
10 0.6216
10 0.6911
10 0.7649
16 0.5123
16 0.5500
16 0.5904
16 0.6380
16 0.6625
16 0.7089
24 0.5077
24 0.5558
24 0.5957
21 0.7201
21 0.7544
21 0.8001
24 0.7310
24 0.7781
24 0.8204
32 0.6437
32 0.6805
32 0.7152
PER FEED
MBH @
1 °F TD
NOTES:
(1) Above capacity data based on 0oF subcooling and at sea level.
(2) TD = Condensing temperature - ambient temperature.
(3) For High Altitude applications apply the following correction factors: 0.94 for 2000 feet,
0.88 for 4000 feet and 0.81 for 6000 feet.
(4) For 50 HZ capacity multiply by 0.92. (No derate necessary when using EC motors)
R407C
R22
R507
R134a
R410A
Correction Factors for Other Refrigerants
Use
R404A
TD (Condensing dew point temperature - ambient temperature)
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
(4)
0.67 0.69 0.72 0.73 0.75 0.77 0.78 0.80 0.81 0.82 0.83 0.84 0.85 0.86 0.86 0.87
Values Multiplied By:
1.02
1.00
0.97
1.02
CAPACITY DATA -
K50-KCM-PDI-3
- 4 -
05/14/12
KCM 60Hz
MODEL
NUMBER
KCM 034 8 2 x 2
KCM 036 10 2 x 2
KCM 040 12 2 x 2
KCM 042 8 2 x 2
KCM 044 10 2 x 2
KCM 047 12 2 x 2
KCM 051 8 2 x 3
KCM 056 10 2 x 3
KCM 060 12 2 x 3
KCM 063 8 2 x 3
KCM 066 10 2 x 3
KCM 070 12 2 x 3
KCM 073 8 2 x 4
KCM 078 10 2 x 4
KCM 082 12 2 x 4
KCM 086 8 2 x 4
KCM 090 10 2 x 4
KCM 095 12 2 x 4
FPI FAN CONFIG.
DOUBLE ROW MODELS
TOTAL HEAT OF REJECTION MBH (KW)
TEMPERATURE DIFFERENCE (TD)
1 °F 10 °F 15 °F 20 °F 25 °F
(0.56 °C) (5.56 °C) (8.3 °C) (11.1 °C) (13.89 °C)
16.39 163.9 245.9 327.9 409.9
4.8 48.0 72.1 96.1 120.1
17.60 176.0 264.0 352.0 440.0
5.2 51.6 77.4 103.2 128.9
18.89 188.9 283.4 377.9 472.3
5.5 55.4 83.1 110.7 138.4
20.42 204.2 306.2 408.3 510.4
6.0 59.8 89.8 119.7 149.6
21.20 212.0 318.0 424.0 530.0
6.2 62.1 93.2 124.3 155.3
22.68 226.8 340.3 453.7 567.1
6.6 66.5 99.7 133.0 166.2
24.37 243.7 365.6 487.4 609.3
7.1 71.4 107.1 142.9 178.6
26.68 266.8 400.2 533.6 667.0
7.8 78.2 117.3 156.4 195.5
28.59 285.9 428.9 571.9 714.9
8.4 83.8 125.7 167.6 209.5
30.25 302.5 453.7 604.9 756.1
8.9 88.6 133.0 177.3 221.6
31.69 316.9 475.3 633.7 792.1
9.3 92.9 139.3 185.7 232.2
33.61 336.1 504.1 672.1 840.2
9.8 98.5 147.7 197.0 246.2
35.09 350.9 526.3 701.8 877.2
10.3 102.8 154.2 205.7 257.1
37.35 373.5 560.3 747.0 933.8
10.9 109.5 164.2 218.9 273.7
39.38 393.8 590.7 787.6 984.5
11.5 115.4 173.1 230.8 288.5
41.19 411.9 617.9 823.9 1029.8
12.1 120.7 181.1 241.5 301.8
43.55 435.5 653.3 871.1 1088.9
12.8 127.6 191.5 255.3 319.1
45.77 457.7 686.6 915.4 1144.3
13.4
134.1 201.2 268.3 335.4
R404A
R404A
MAX.
NO. OF
FEEDS
32 0.5123
32 0.5500
32 0.5904
32 0.6380
32 0.6625
32 0.7089
48 0.5077
48 0.5558
48 0.5957
42 0.7201
42 0.7544
42 0.8001
48 0.7310
48 0.7781
48 0.8204
64 0.6437
64 0.6805
64 0.7152
PER FEED
MBH @
1 °F TD
Correction Factors for Other Refrigerants
Use
R404A
TD (Condensing dew point temperature - ambient temperature)
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
(4)
R407C
R22
R507
R134a
R410A
NOTES:
(1) Above capacity data based on 0oF subcooling and at sea level.
(2) TD = Condensing temperature - ambient temperature.
(3) For High Altitude applications apply the following correction factors: 0.94 for 2000 feet,
0.88 for 4000 feet and 0.81 for 6000 feet.
(4) For 50 HZ capacity multiply by 0.92. (No derate necessary when using EC motors)
0.67 0.69 0.72 0.73 0.75 0.77 0.78 0.80 0.81 0.82 0.83 0.84 0.85 0.86 0.86 0.87
Values Multiplied By:
1.02
1.00
0.97
1.02
ELECTRICAL DATA
K50-KCM-PDI-3
- 5 -
05/14/12
KCM 60Hz
SINGLE ROW MODELS
208-230/3/60 460/3/60 575/3/60 208-230/1/60 460/1/60 575/1/60
MODEL
KCM 009 1 2.3 2.9 15 1.2 1.4 15 0.9 1.1 15 3.6 4.5 15 1.7 2.1 15 1.4 1.8 15
KCM 010 1 2.3 2.9 15 1.2 1.4 15 0.9 1.1 15 3.6 4.5 15 1.7 2.1 15 1.4 1.8 15
KCM 011 1 2.3 2.9 15 1.2 1.4 15 0.9 1.1 15 3.6 4.5 15 1.7 2.1 15 1.4 1.8 15
KCM 012 1 2.3 2.9 15 1.2 1.4 15 0.9 1.1 15 3.6 4.5 15 1.7 2.1 15 1.4 1.8 15
KCM 013 2 4.6 5.2 15 2.3 2.6 15 1.8 2.0 15 7.2 8.1 15 3.4 3.8 15 2.8 3.2 15
KCM 014 2 4.6 5.2 15 2.3 2.6 15 1.8 2.0 15 7.2 8.1 15 3.4 3.8 15 2.8 3.2 15
KCM 016 2 4.6 5.2 15 2.3 2.6 15 1.8 2.0 15 7.2 8.1 15 3.4 3.8 15 2.8 3.2 15
KCM 017 2 4.6 5.2 15 2.3 2.6 15 1.8 2.0 15 7.2 8.1 15 3.4 3.8 15 2.8 3.2 15
KCM 018 2 4.6 5.2 15 2.3 2.6 15 1.8 2.0 15 7.2 8.1 15 3.4 3.8 15 2.8 3.2 15
KCM 020 2 4.6 5.2 15 2.3 2.6 15 1.8 2.0 15 7.2 8.1 15 3.4 3.8 15 2.8 3.2 15
KCM 021 2 4.6 5.2 15 2.3 2.6 15 1.8 2.0 15 7.2 8.1 15 3.4 3.8 15 2.8 3.2 15
KCM 022 2 4.6 5.2 15 2.3 2.6 15 1.8 2.0 15 7.2 8.1 15 3.4 3.8 15 2.8 3.2 15
KCM 024 2 4.6 5.2 15 2.3 2.6 15 1.8 2.0 15 7.2 8.1 15 3.4 3.8 15 2.8 3.2 15
KCM 025 3 6.9 7.5 15 3.5 3.7 15 2.7 2.9 15 10.8 15.1 20 5.1 5.5 15 4.2 4.6 15
KCM 028 3 6.9 7.5 15 3.5 3.7 15 2.7 2.9 15 10.8 15.1 20 5.1 5.5 15 4.2 4.6 15
KCM 030 3 6.9 7.5 15 3.5 3.7 15 2.7 2.9 15 10.8 15.1 20 5.1 5.5 15 4.2 4.6 15
KCM 032 3 6.9 7.5 15 3.5 3.7 15 2.7 2.9 15 10.8 15.1 20 5.1 5.5 15 4.2 4.6 15
KCM 033 3 6.9 7.5 15 3.5 3.7 15 2.7 2.9 15 10.8 15.1 20 5.1 5.5 15 4.2 4.6 15
KCM 035 3 6.9 7.5 15 3.5 3.7 15 2.7 2.9 15 10.8 15.1 20 5.1 5.5 15 4.2 4.6 15
KCM 037 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 039 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 041 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 043 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 045 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 048 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
#
FANS
FLA MCA MOP FLA MCA MOP FLA MCA MOP FLA MCA MOP FLA MCA MOP FLA MCA MOP
DOUBLE ROW MODELS
208-230/3/60 460/3/60 575/3/60 208-230/1/60 460/1/60 575/1/60
MODEL
KCM 034 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 036 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 040 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 042 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 044 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 047 4 9.2 9.8 15 4.6 4.9 15 3.6 3.8 15 14.4 15.3 20 6.8 7.2 15 5.6 6.0 15
KCM 051 6 13.8 14.4 20 6.9 7.2 15 5.4 5.6 15 21.6 25.1 30 10.2 10.6 15 8.4 8.8 15
KCM 056 6 13.8 14.4 20 6.9 7.2 15 5.4 5.6 15 21.6 25.1 30 10.2 10.6 15 8.4 8.8 15
KCM 060 6 13.8 14.4 20 6.9 7.2 15 5.4 5.6 15 21.6 25.1 30 10.2 10.6 15 8.4 8.8 15
KCM 063 6 13.8 14.4 20 6.9 7.2 15 5.4 5.6 15 21.6 25.1 30 10.2 10.6 15 8.4 8.8 15
KCM 066 6 13.8 14.4 20 6.9 7.2 15 5.4 5.6 15 21.6 25.1 30 10.2 10.6 15 8.4 8.8 15
KCM 070 6 13.8 14.4 20 6.9 7.2 15 5.4 5.6 15 21.6 25.1 30 10.2 10.6 15 8.4 8.8 15
KCM 073 8 18.4 20.1 25 9.2 9.5 15 7.2 7.4 15 28.8 30.1 35 13.6 15.1 20 11.2 11.6 15
KCM 078 8 18.4 20.1 25 9.2 9.5 15 7.2 7.4 15 28.8 30.1 35 13.6 15.1 20 11.2 11.6 15
KCM 082 8 18.4 20.1 25 9.2 9.5 15 7.2 7.4 15 28.8 30.1 35 13.6 15.1 20 11.2 11.6 15
KCM 086 8 18.4 20.1 25 9.2 9.5 15 7.2 7.4 15 28.8 30.1 35 13.6 15.1 20 11.2 11.6 15
KCM 090 8 18.4 20.1 25 9.2 9.5 15 7.2 7.4 15 28.8 30.1 35 13.6 15.1 20 11.2 11.6 15
KCM 095 8 18.4 20.1 25 9.2 9.5 15 7.2 7.4 15 28.8 30.1 35 13.6 15.1 20 11.2 11.6 15
M.C.A. = Minimum Circuit Ampacity
M.O.P. = Maximum OverCurrent protection
#
FANS
FLA MCA MOP FLA MCA MOP FLA MCA MOP FLA MCA MOP FLA MCA MOP FLA MCA MOP
GENERAL SPECIFICATIONS -
K50-KCM-PDI-3
- 6 -
05/14/12
R404A
KCM 60Hz
SINGLE ROW MODELS
MODEL
NUMBER
KCM009 1
KCM010 1
KCM011 1
KCM012 1
KCM013 2
KCM014 2
KCM016 2
KCM017 2
KCM018 2
KCM020 2
KCM021 2
KCM022 2
KCM024 2
KCM025 3
KCM028 3
KCM030 3
KCM032 3
KCM033 3
KCM035 3
KCM037 4
KCM039 4
KCM041 4
KCM043 4
KCM045 4
KCM048 4
FANS
LONG
R404A
REFRIG. CHARGE
NORMAL
(2)
LBS
(Kg)
3.7
(1.66)
3.7
(1.66)
4.5
(2.06)
4.5
(2.06)
5.2
(2.35)
5.2
(2.35)
5.2
(2.35)
7.1
(3.22)
7.1
(3.22)
7.1
(3.22)
8.8
(4.02)
8.8
(4.02)
8.8
(4.02)
10.8
(4.90)
10.8
(4.90)
10.8
(4.90)
13.4
(6.09)
13.4
(6.09)
13.4
(6.09)
14.7
(6.70)
14.7
(6.70)
14.7
(6.70)
18.2
(8.28)
18.2
(8.28)
18.2
(8.28)
90% FULL
(3)
LBS
(Kg)
14
(6.40)
14
(6.40)
18
(8.20)
18
(8.20)
19
(8.72)
19
(8.72)
19
(8.72)
28
(12.69)
28
(12.69)
28
(12.69)
36
(16.30)
36
(16.30)
36
(16.30)
42
(19.30)
42
(19.30)
42
(19.30)
54
(24.71)
54
(24.71)
54
(24.71)
58
(26.21)
58
(26.21)
58
(26.21)
74
(33.43)
74
(33.43)
74
(33.43)
(1)
AIR FLOW
RATES
CFM
3
(m
/h)
6870
(11672)
6640
(11281)
6620
(11247)
6400
(10874)
14800
(25145)
14400
(24466)
13900
(23616)
14200
(24126)
13700
(23276)
13300
(22597)
13700
(23276)
13200
(22427)
12800
(21747)
21300
(36189)
20600
(35000)
19900
(33810)
20500
(34830)
19900
(33810)
19200
(32621)
28400
(48252)
27500
(46723)
26600
(45194)
27400
(46553)
26500
(45024)
25600
(43495)
SOUND
LEVEL
(5)
dBA
51
51
51
51
53
53
53
53
53
53
53
53
53
54
54
54
54
54
54
55
55
55
55
55
55
PIPING CONNECTIONS
16°F to 30°F DESIGN TD 10°F to 15°F DESIGN TD
INLET OUTLET
INCHES
(mm)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 5/8
(67)
2 5/8
(67)
2 5/8
(67)
2 5/8
(67)
2 5/8
(67)
2 5/8
(67)
INCHES
(mm)
7/8
(22)
7/8
(22)
7/8
(22)
7/8
(22)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
QTY
INLET OUTLET
INCHES
(mm)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
INCHES
(mm)
7/8
(22)
7/8
(22)
7/8
(22)
7/8
(22)
7/8
(22)
7/8
(22)
7/8
(22)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
APPROX.
SHIPPING
WEIGHTS
LBS
(Kg)
245
(111)
250
(114)
265
(120)
270
(123)
410
(186)
415
(189)
420
(191)
450
(205)
455
(207)
460
(209)
480
(218)
490
(223)
500
(227)
630
(286)
640
(291)
650
(295)
680
(309)
695
(316)
710
(323)
810
(368)
825
(375)
840
(382)
880
(400)
900
(409)
920
(418)
(1) Correction Factors for Other Refrigerants - Use
(2) Normal charge is the refrigerant charge for warm ambient or summer operation.
(3) 90% full is the liquid refrigerant weight at 90% of internal volume and is for reference only.
(4) For 50 Hz fan data use 60 Hz CFM (m3/h) X 0.83 (No derate necessary when using EC motors)
(5) Sound pressure level at 30 ft. (10 m) See page 13 for more data
R407C
R22
R134a R507
R410A
1.10 1.15 1.11 1.00 1.02
R404A
Values Multiplied By
GENERAL SPECIFICATIONS -
K50-KCM-PDI-3
- 7 -
05/14/12
R404A
KCM 60Hz
DOUBLE ROW MODELS
MODEL
NUMBER
KCM034 2
KCM036 2
KCM040 2
KCM042 2
KCM044 2
KCM047 2
KCM051 3
KCM056 3
KCM060 3
KCM063 3
KCM066 3
KCM070 3
KCM073 4
KCM078 4
KCM082 4
KCM086 4
KCM090 4
KCM095 4
FANS
LONG
R404A
REFRIG. CHARGE
NORMAL
(2)
LBS
(Kg)
14.2
(6.45)56(25.39)
14.2
(6.45)56(25.39)
14.2
(6.45)56(25.39)
17.7
(8.03)72(32.61)
17.7
(8.03)72(32.61)
17.7
(8.03)72(32.61)
21.6
(9.80)85(38.59)
21.6
(9.80)85(38.59)
21.6
(9.80)85(38.59)
26.8
(12.18)
26.8
(12.18)
26.8
(12.18)
29.5
(13.39)
29.5
(13.39)
29.5
(13.39)
36.4
(16.57)
36.4
(16.57)
36.4
(16.57)
90% FULL
(3)
LBS
(Kg)
109
(49.43)
109
(49.43)
109
(49.43)
115
(52.42)
115
(52.42)
115
(52.42)
147
(66.86)
147
(66.86)
147
(66.86)
(1)
AIR FLOW
RATES
CFM
(m
28400
(48252)
27500
(46723)
26600
(45194)
27400
(46553)
26500
(45024)
25600
(43495)
42600
(72378)
41200
(69999)
39800
(67621)
41100
(69829)
39700
(67451)
38400
(65242)
56800
(96504)
55000
(93446)
53100
(90217)
54800
(93106)
53000
(90048)
51200
(86989)
SOUND
LEVEL
(5)
3
/h)
dBA
55
55
55
55
55
55
57
57
57
57
57
57
58
58
58
58
58
58
16°F to 30°F DESIGN TD 10°F to 15°F DESIGN TD
INLET OUTLET
INCHES
(mm)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 5/8
(67)
2 5/8
(67)
2 5/8
(67)
2 5/8
(67)
2 5/8
(67)
2 5/8
(67)
PIPING CONNECTIONS
INCHES
(mm)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
QTY
INCHES
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
INLET OUTLET
(mm)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 5/8
(41)
1 5/8
(41)
1 5/8
(41)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
2 1/8
(54)
INCHES
(mm)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 1/8
(29)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
1 3/8
(35)
QTY
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
APPROX.
SHIPPING
WEIGHTS
LBS
(Kg)
830
(377)
845
(384)
860
(391)
900
(409)
920
(418)
940
(427)
1190
(541)
1210
(550)
1230
(559)
1290
(586)
1320
(600)
1350
(614)
1540
(700)
1570
(714)
1600
(727)
1670
(759)
1710
(777)
1750
(795)
(1) Correction Factors for Other Refrigerants - Use
(2) Normal charge is the refrigerant charge for warm ambient or summer operation.
(3) 90% full is the liquid refrigerant weight at 90% of internal volume and is for reference only.
(4) For 50 Hz fan data use 60 Hz CFM (m3/h) X 0.83 (No derate necessary when using EC motors)
(5) Sound pressure level at 30 ft. (10 m) See page 13 for more data
R407C
R22
R134a R507
R410A
1.10 1.15 1.11 1.00 1.02
R404A
Values Multiplied By
WIRING DIAGRAM
K50-KCM-PDI-3
- 8 -
05/14/12
KCM 60Hz
(SINGLE ROW MODELS - SINGLE PHASE UNITS)
WIRING DIAGRAM
K50-KCM-PDI-3
- 9 -
05/14/12
KCM 60Hz
(SINGLE ROW MODELS - THREE PHASE UNITS)
WIRING DIAGRAM
K50-KCM-PDI-3
- 10 -
05/14/12
KCM 60Hz
(DOUBLE ROW MODELS - THREE PHASE UNITS)
WIRING DIAGRAM
K50-KCM-PDI-3
- 11 -
05/14/12
KCM 60Hz
(DOUBLE ROW MODELS WITH SINGLE PHASE
FAN SPEED CONTROL - P66)
WIRING DIAGRAM
K50-KCM-PDI-3
- 12 -
05/14/12
KCM 60Hz
(DOUBLE ROW MODELS WITH THREE PHASE
HOFFMAN FAN SPEED CONTROL)
SOUND LEVEL (dBA) -
K50-KCM-PDI-3
- 13 -
05/14/12
KCM 60Hz
STANDARD MOTOR
# of Fans
1 60 51 46 40
2 62 53 48 42
3 63 54 49 43
4 64 55 50 44
6 66 57 52 46
8 67 58 53 47
10 (3) 30 (9) 50 (15) 100 (30)
Distance ft (m)
KCM
0
1
2
3
4
5
6
20% 30% 40% 50% 60% 70% 80% 90% 100%
Power Consumpt ion (kW)
Load Requirement
Power Consumption Comparison
8 Fan KCM Condenser with Elec tronically Commutated Motor vs . 8 Fan
Standard Motor 1075 RPM KCM Condenser (Capacity - 46 MBH/TD)
8 FAN 1075 RPM
8 FAN EC Motor
TYPICAL OPERATING
RANGE
K50-KCM-PDI-3
- 14 -
05/14/12
ABOUT EC MOTORS
EC MOTORS
60Hz
Air cooled condensers utilizing electrically commutat-
ed motor (EC motor) technology offer many benets;
Improved Efciency, Reduced Sound Levels, Speed
Control, Simplicity and Reliability
Efciency
The speed control function of an EC motor allows the
condenser to run at optimized energy levels at different operating conditions. Up to 75% in energy savings can be realized when comparing the EC motor
speed control method to a conventional fan cycling
method. See table below for power consumption and
energy savings comparisons.
Sound
As EC motor speeds vary for different operating
conditions they also offer reduced sound levels when
compared to conventional motor running full speed.
Sound levels are reduced on cooler days and in evenings. Refer to page 15 for sound ratings at different
speeds.
Head Pressure Control
EC motors make it easier to maintaining stable head
pressures when motor speeds are varied according to operating conditions. System optimization is
further enhanced compared to the system shock from
conventional cycling banks of fans off and on.
Simplicity and Reliability
The installation and control of EC motors is very
simple compared to other methods of speed control
used on conventional AC motors. Lower running operating temperatures and smooth transitional speed
changes make EC motors durable and reliable.
POWER CONSUMPTION COMPARISON
8 Fan KCM Condenser with Electronically Commutated Motor
vs.
8 Fan Standard Motor 1075 RPM KCM Condenser
(Capacity: 46 MBH/TD)
Loading...
