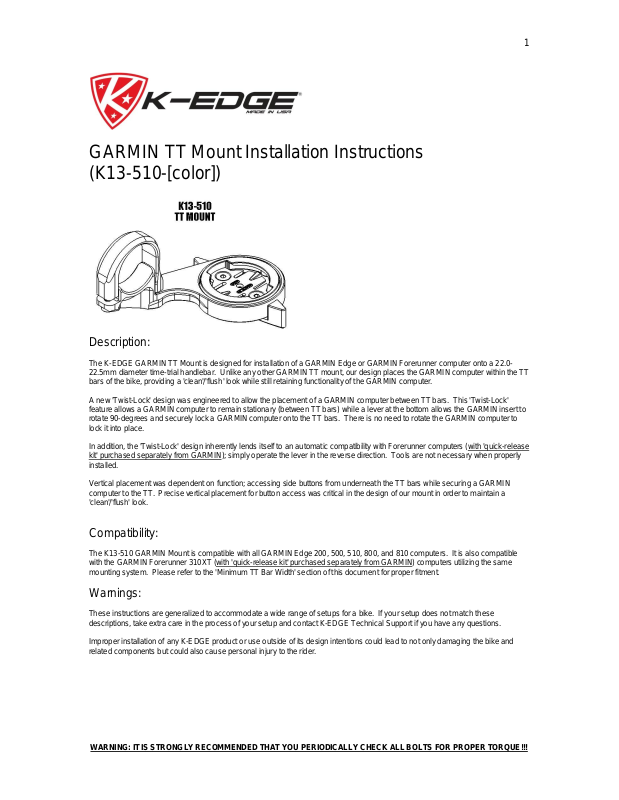

GARMIN TT Mount Installation Instructions
(K13-510-[color])
Description:
The K-EDGE GARMIN TT Mount is designed for installation of a GARMIN Edge or GARMIN Forerunner computer onto a 22.0-
22.5mm diameter time-trial handlebar. Unlike any other GARMIN TT mount, our design places the GARMIN computer within the TT
bars of the bike, providing a 'clean'/'flush' look while still retaining functionality of the GARMIN computer.
A new 'Twist-Lock' design was engineered to allow the placement of a GARMIN computer between TT bars. This 'Twist-Lock'
feature allows a GARMIN computer to remain stationary (between TT bars) while a lever at the bottom allows the GARMIN insert to
rotate 90-degrees and securely lock a GARMIN computer onto the TT bars. There is no need to rotate the GARMIN computer to
lock it into place.
In addition, the 'Twist-Lock' design inherently lends itself to an automatic compatibility with Forerunner computers (with 'quick-release
kit' purchased separately from GARMIN); simply operate the lever in the reverse direction. Tools are not necessary when properly
installed.
Vertical placement was dependent on function; accessing side buttons from underneath the TT bars while securing a GARMIN
computer to the TT. Precise vertical placement for button access was critical in the design of our mount in order to maintain a
'clean'/'flush' look.
Compatibility:
The K13-510 GARMIN Mount is compatible with all GARMIN Edge 200, 500, 510, 800, and 810 computers. It is also compatible
with the GARMIN Forerunner 310XT (with 'quick-release kit' purchased separately from GARMIN) computers utilizing the same
mounting system. Please refer to the 'Minimum TT Bar Width' section of this document for proper fitment.
Warnings:
These instructions are generalized to accommodate a wide range of setups for a bike. If your setup does not match these
descriptions, take extra care in the process of your setup and contact K-EDGE Technical Support if you have any questions.
Improper installation of any K-EDGE product or use outside of its design intentions could lead to not only damaging the bike and
related components but could also cause personal injury to the rider.
WARNING: IT IS STRONGLY RECOMMENDED THAT YOU PERIODICALLY CHECK ALL BOLTS FOR PROPER TORQUE!!!
Parts Included:
K13-510
1x K-EDGE GARMIN mount
2x M3 x 8 mm SHCS
2x M3 x 6 mm FHCS (Blue Thread Lock applied)
Tools/Items Required:
Metric Allen Set (2.5 mm for clamp bolts and 2 mm for the insert bolts)
Torque wrench
**GARMIN Forerunner Quick Release Kit (required for Forerunner 310XT owners)**
Minimum TT Bar Width:
58mm : GARMIN Edge 200, 500
62mm : GARMIN Edge 510, 800, and 810, Forerunner 310XT
Please refer to the diagram below regarding 'Minimum TT Bar Width':
2
WARNING: IT IS STRONGLY RECOMMENDED THAT YOU PERIODICALLY CHECK ALL BOLTS FOR PROPER TORQUE!!!
