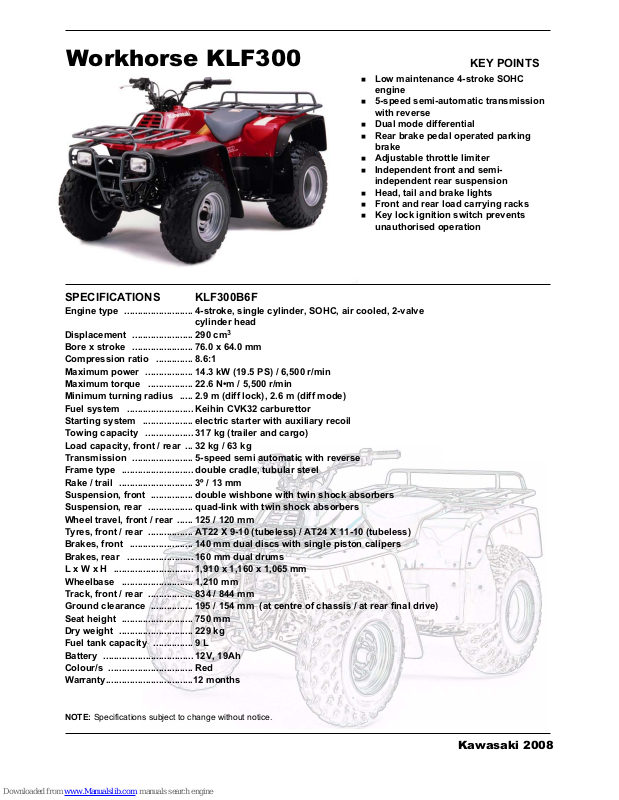

Kawasaki 2008
Workhorse KLF300
KEY POINTS
Low maintenance 4-stroke SOHC
engine
5-speed semi-automatic transmission
with reverse
Dual mode differential
Rear brake pedal operated parking
brake
Adjustable throttle limiter
Independent front and semi-
independent rear suspension
Head, tail and brake lights
Front and rear load carrying racks
Key lock ignition switch prevents
unauthorised operation
SPECIFICATIONS KLF300B6F
Engine type. .......................... 4-stroke, single cylinder, SOHC, air cooled, 2-valve
cylinder head
Displacement. ....................... 290 cm
3
Bore x stroke. ....................... 76.0 x 64.0 mm
Compression ratio. .............. 8.6:1
Maximum power. .................. 14.3 kW (19.5 PS) / 6,500 r/min
Maximum torque. ................. 22.6 N•m / 5,500 r/min
Minimum turning radius. ..... 2.9 m (diff lock), 2.6 m (diff mode)
Fuel system. ......................... Keihin CVK32 carburettor
Starting system. ................... electric starter with auxiliary recoil
Towing capacity. .................. 317 kg (trailer and cargo)
Load capacity, front / rear ... 32 kg / 63 kg
Transmission. ....................... 5-speed semi automatic with reverse
Frame type. ........................... double cradle, tubular steel
Rake / trail. ............................ 3º / 13 mm
Suspension, front. ................ double wishbone with twin shock absorbers
Suspension, rear. ................. quad-link with twin shock absorbers
Wheel travel, front / rear ...... 125 / 120 mm
Tyres, front / rear. ................. AT22 X 9-10 (tubeless) / AT24 X 11-10 (tubeless)
Brakes, front. ........................ 140 mm dual discs with single piston calipers
Brakes, rear. ......................... 160 mm dual drums
L x W x H. .............................. 1,910 x 1,160 x 1,065 mm
Wheelbase. ........................... 1,210 mm
Track, front / rear. ................. 834 / 844 mm
Ground clearance. ................ 195 / 154 mm (at centre of chassis / at rear final drive)
Seat height. ........................... 750 mm
Dry weight. ............................ 229 kg
Fuel tank capacity. ............... 9 L
Battery. .................................. 12V, 19Ah
Colour/s. ................................ Red
Warranty.................................12 months
NOTE: Specifications subject to change without notice.
Kawasaki 2008
Workhorse KLF300 (KLF300B6F)
FEATURES AND BENEFITS:
ENGINE
290 cm3 4-stroke SOHC engine
Low maintenance, air-cooled, SOHC engine.
An engine balancer reduces vibration, minimising
wear, noise and rider fatigue.
Electric starter with recoil backup allows you to start
the ATV even if the battery is low.
Fuel system
Keihin CVK 32 mm carburettor provides excellent
throttle response, power and torque across the rpm
range.
Adjustable throttle limiter allows new users to ride
at reduced speed and power levels.
Conveniently located handlebar mounted choke
makes starting and warm-up easier.
A two stage foam air filter helps to minimise wear.
TRANSMISSION
Semi-automatic 5-speed transmission with
reverse
User friendly semi-automatic transmission.
Just shift and go, no clutch lever to pull or cable to
adjust.
A gear for every type of load or terrain.
Indicator light shows when reverse is engaged.
Dual-mode differential
The only 2WD model in the industry with this
feature.
Locked mode for maximum traction, unlocked
mode to minimise ground disturbance.
Shaft drive
A reliable and quiet, low maintenance system.
CHASSIS
Tubular double cradle frame
Provides strength and reliability while adding extra
protection for vital engine parts.
Double wishbone independent front
suspension
Provides a comfortable ride with a minimum of
pitching and rolling.
Independent front suspension allows each wheel to
track over uneven ground for maximum traction
with light steering effort.
Twin dampers with coil springs and 5-way spring
preload adjustment.
Quad-link semi-independent rear suspension
Multi-link, semi-independent, built to easily handle
the rigours of heavy use while providing a smooth
ride.
Twin dampers with coil springs and 5-way spring
preload adjustment.
Dual front disc brakes, dual rear drum brakes
Dual front discs and rear drums assure quick, sure
stops.
Independently controlled front and rear brakes.
Handling while braking is improved because the
rider can react to the traction of the front and rear
wheels separately.
Parking brake operated by the rear brake pedal.
Detail features
Huge fenders and mud flaps provide excellent mud
and splash protection.
Twin headlights light the way at night.
Brake lights are triggered by the hand and foot
brakes.
Fuel gauge.
Manually operated compression release.
Moulded pin accessory connector.
Two accessory leads are built into the harness.
Front and rear racks can carry a combined load of
95 kgs.
Rear trailer hitch bracket is standard with a 317 kg
towing capacity.
