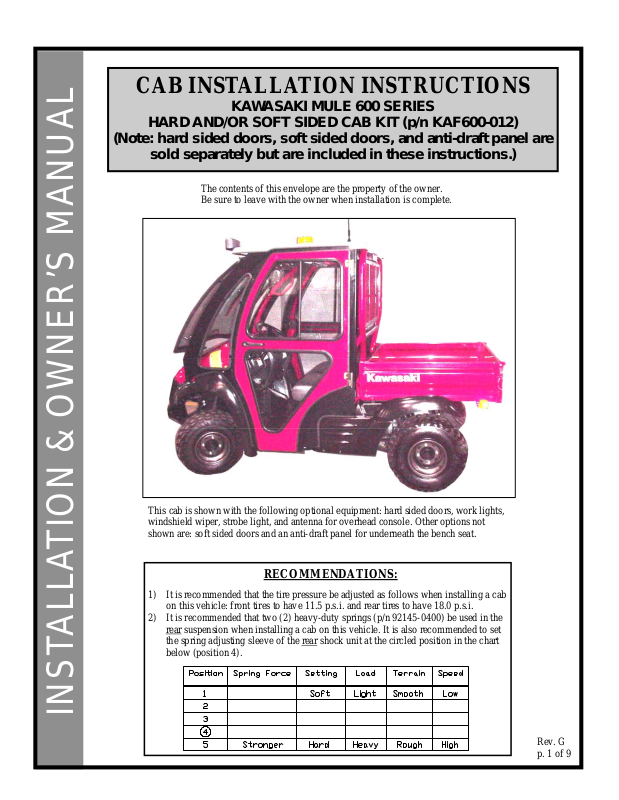

CAB INSTALLATION INSTRUCTIONS
KAWASAKI MULE 600 SERIES
HARD AND/OR SOFT SIDED CAB KIT (p/n KAF600-012)
(Note: hard sided doors, soft sided doors, and anti-draft panel are
sold separately but are included in these instructions.)
The contents of this envelope are the property of the owner.
Be sure to leave with the owner when installation is complete.
This cab is shown with the following optional equipment: hard sided doors, work lights,
windshield wiper, strobe light, and antenna for overhead console. Other options not
shown are: soft sided doors and an anti-draft panel for underneath the bench seat.
1) It is recommended that the tire pressure be adjusted as follows when installing a cab
on this vehicle: front tires to have 11.5 p.s.i. and rear tires to have 18.0 p.s.i.
2) It is recommended that two (2) heavy-duty springs (p/n 92145-0400) be used in the
rear
the spring adjusting sleeve of the rear
below (position 4).
suspension when installing a cab on this vehicle. It is also recommended to set
RECOMMENDATIONS:
shock unit at the circled position in the chart
Rev. G
p. 1 of 9
INSTALLATION & OWNER’S MANUAL
DESIGN CONCEPT
Curtis cabs feature an assembly of parts designed for your vehicle which require
adjustment and alignment of components to accommodate vehicle variations and
provide proper weather protection. For accurate installation, proper operation, and
years of satisfaction, please read and understand the installation instructions.
From all of us at Curtis, we thank you for choosing our product.
Curtis Cabs, blades and general accessories
add additional weight to the base vehicle. All
Curtis acce ssory weigh ts are listed in p roduct
brochures. Deduct the accessory's total weight
from the vehicle's rated capacity and never
exceed the vehicle's rated capacity including
driver and passenger.
ADDED
WEIGHT
CAB INSTALLATION
BEFORE YOU START
HELPFUL REMINDERS:
A. Refer to parts diagram toward the back of this manual to help identify
parts during the assembly process.
B. To assist with the cab installation, leave all bolts
loose for later adjustment unless otherwise specified.
C. Read and understand all instructions before beginning.
D. Plastic washers have been supplied to provide a weather seal around all
exterior fasteners. The plastic washer should be installed under each
bolt head directly against the outside cab surface. Care should be taken
not to over tighten the fasteners and damage the plastic washer. Also
use metal washers as required.
E. Apply a clear silicone sealant to seal any minor gaps that may occur due
to vehicle variations.
TOOLS REQUIRED:
Set of standard and metric sockets and open end wrenches
One 3/8” Drive Ratchet
One 3/16” Allen Wrench
One Phillips Head Screwdriver
Grease
Drill
11/32” Drill Bit
Scissors
Rev. G
p. 2 of 9
1. INSTALL ANTI-DRAFT PANEL
Note: this item is sold separately from the cab kit
and the door kits.
1.1 If a hard rear window will be installed, make sure
the sheetmetal filler underneath the expanded metal
screen is reversed so the small bent lip faces forward as
shown in Fig. 1.1 (this acts as a shelf for the hard rear
window to rest on). Remove and re-install three (3)
bolts holding this filler in place. Note: this filler can
also be reversed even for a soft rear curtain installation
(in case down the road a hard rear window is desired).
1.2 Remove the seat back and install the anti-draft
panel onto the back side of the seat back making sure
that the clear plastic window in the anti-draft panel is
oriented over the fuel gauge which is towards the lower
passenger’s side of the vehicle. Note: one edge of the
panel is notched to fit around the seat hinges. Re-install
the seat back through the original mounting holes and
secure with the original nuts.
1.3 Raise the lower seat 90 degrees as shown in Figure 1.3. Spread out the anti-draft panel as would appear
to be appropriate. Panel may pass under seat and velcro
to front of tube beneath front edge of seat. Pull back
one area or section at a time in order to assess where to
apply the hook (rough) velcro on the vehicle. Per Fig.
1.1, install four (4) pieces of hook (rough) velcro as
high up as possible underneath the forward facing
sheetmetal lip to the left and right sides of the bolt
heads. NOTE: adhesive backed velcro should be applied to a clean, dry surface at room temperature.
1.4 Install the anti-draft panel to the newly applied
hook velcro on the vehicle. Lower seat back down.
2.
INSTALL FRONT MOUNTS
2.1 Loosen the front cab bar bolts and slide the front
mount in place between the cab bar and the plastic
hood as shown in Fig. 2.1. Repeat for passenger’s side.
Leave the bolts loose so that the front mounts can be
adjusted when the side frames are installed in step 5.
bent sheetmetal lip
to be facing forward
towards the seat
ref.: hard rear
velcro to be placed snuggly up
under the lip and facing the seat
Fig. 1.1 (view from front of passenger’s side of vehicle)
lower seat rotated up 90 degrees
apply hook (rough) velcro here, etc.
Fig. 1.3 (view from side of driver’s side)
window shown
ref.: driver’s side
hip restraint
front mount
front cab bar bolts
Fig. 2.1 (view from front of driver’s side)
Rev. G
p. 3 of 9
