IMPORTANT SAFETY IN-
STRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
Inform your dealer immediately if there
is any shipping damage.
Completely remove the accessories
from the box.
The suction unit is not suitable for suck-
ing up hazardous dusts as asbestos. Please consult your Kärcher branch or your Kärcher dealer with regard to such applications.
Only operate the vacuum from a
grounded outlet. Refer to the Technical data for the necessary main fuse.
When using an electrical machine, basic precautions should always be followed, in­cluding the following: This vacuum is in­tended for commercial use. 1 DISCONNECT VACUUM CLEANER
FROM POWER CIRCUIT before re­moving the cover, performing mainte­nance work, and when not in use.
2 DO NOT LEAVE the machine unattend-
ed when plugged in.
3 ALWAYS CHECK THE POWER SUP-
PLY CORD for damage or signs of any aging before each use.
4 DO NOT PULL OR CARRY VACUUM
CLEANER BY CORD. Do not close door on cord or pull cord around sharp edges.
5 KEEP CORD AWAY FROM HEAT AND
OIL. Do not leave cord lying around af­ter job is complete. It can become a trip-
ping hazard. 6 DO NOT RUN VACUUM OVER CORD. 7 TURN SWITCH TO OFF before unplug-
ging power supply cord. 8 DO NOT UNPLUG BY PULLING
CORD. To unplug, grasp plug, not cord. 9 DO NOT GRASP PLUG WITH WET
HANDS.
10 A DAMAGED CORD OR PLUG should
only be replaced by an authorized serv­ice center representative. DO NOT AT­TEMPT TO REPAIR POWER CORD.
11 TO AVOID SHOCK, do not expose to
rain. Store indoors.
12 USE ONLY AS RECOMMENDED BY
THIS MANUAL. Use only with recom­mended attachments.
13 KEEP HAIR, CLOTHING, LOOSE
JEWELRY, FINGERS and all parts of the body away from openings and mov­ing parts.
14 DO NOT BLOCK OR OBSTRUCT
OPENINGS. Keep openings free of lint, hair, dust, and anything that restricts air flow.
15 DO NOT PICK UP ANYTHING THAT IS
BURNING, smoldering, or smoking such as matches, cigarettes, or hot ash­es.
16 DO NOT USE TO VACUUM COMBUS-
TIBLE EXPLOSIVE MATERIALS, such as coal, grain, and other finely divided combustible material.
17 DO NOT USE TO VACUUM COMBUS-
TIBLE, hazardous, toxic, or carcinogen­ic materials, including gasoline, diesel fuel, acetone, paint thinner, heating oils, undiluted acids and solvents, pesticide, and asbestos.
18 USE RECOMMENDED FILTERS when
vacuuming drywall materials.
19 DO NOT USE WITHOUT FILTER and/
or dust bag in proper place.
20 DO NOT ALLOW VACUUM CLEANER
TO BE USED AS A TOY. Keep children away from Vacuum Cleaner.
21 DO NOT LEAVE UNATTENDED while
Vacuum Cleaner is running.
22 DO NOT USE IF CORD, PLUG, FIL-
TER, OR VACUUM CLEANER IS IN POOR CONDITION. If the Vacuum Cleaner has been dropped, damaged, exposed to weather, or dropped into water; have it checked by an authorized service.
5EN
23 ALWAYS USE EYE PROTECTION
when operating Vacuum Cleaner. 24 USE EXTRA CAUTION when operating
on stairs. 25 STAY ALERT! Do not use Vacuum
Cleaner when you are tired or under the
influence of drugs, alcohol or medica-
tion.
SAVE THESE INSTRUCTIONS
This vacuum is intended for commercial use.
SAFETY INSTRUCTIONS
Servicing of double-insulated machines
In a double-insulated machine, two sys­tems of insulation are provided instead of grounding. No grounding means is provid­ed on a double-insulated machine, nor should a means for grounding be added to the machine. Servicing a double-insulated machine requires extreme care and knowl­edge of the system, and should be done only by qualified service personnel. Re­placement parts for a double-insulated ma­chine must be identical to the parts they replace.
6 EN
Please read and comply with
these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own­ers.
The non-compliance of the operating
and safety instructions may lead to damages of the appliance and to dan­gers for the operator and other persons.
In case of transport damage inform ven-
dor immediately

Contents

Environmental protection . . EN . . .1 Symbols in the operating in-
structions . . . . . . . . . . . . . . EN . . .1
Proper use . . . . . . . . . . . . . EN . . .1
Device elements. . . . . . . . . EN . . .2
Start up. . . . . . . . . . . . . . . . EN . . .2
Operation . . . . . . . . . . . . . . EN . . .3
Transport . . . . . . . . . . . . . . EN . . .3
Storage. . . . . . . . . . . . . . . . EN . . .3
Maintenance and care . . . . EN . . .3
Troubleshooting . . . . . . . . . EN . . .3
Warranty. . . . . . . . . . . . . . . EN . . .4
Accessories and Spare Parts EN . . .4 Technical specifications . . . EN . . .5

Environmental protection

Notes about the ingredients (REACH)
You will find current information about the ingredients at:
www.kaercher.com/REACH
Symbols in the operating in-
structions
Danger
Immediate danger that can cause severe injury or even death.
Warning
Possible hazardous situation that could lead to severe injury or even death.
Caution
Possible hazardous situation that could lead to mild injury to persons or damage to property.

Proper use

Warning
The appliance is not suitable for vacuuming dust which endangers health.
The machine is meant for dry and wet
cleaning of floors and walls.
This appliance is suited for the commer-
cial use, e.g. in hotels, schools, hospi­tals, factories, shops, offices, and rental companies.
The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.
Old appliances contain valua­ble materials that can be recy­cled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems.
– 1
7EN

Device elements

1 Electrodes 2 Suction hose 3 Cable hook 4 Air outlet, working air 5 Suction head lock 6 Wheel 7 Air inlet, motor cooling air 8 Suction head 9 Steering roller 10 Steering roller bow 11 Dirt receptacle 12 Suction support 13 Floor nozzle 14 Suction tube 15 Carrying handle 16 Filter cover 17 Bender 18 Automatic filter dedusting 19 Main switch 20 Flat fold filter 21 Filter dedusting 22 Floor nozzle holder 23 Holder for crevice nozzle 24 Holder for suction pipes 25 Power cord 26 Nameplate

Start up

Caution
The flat pleated filter must always be in place while vacuuming.

Dry vacuum cleaning

To vacuum fine dust, you can also use
an additional paper filter bag, a fleece filter bag (option) or a membrane filter (option).

Installing the paper filter bag/fleece filter bag

Illustration
Release and remove the suction head.Insert the paper filter bag, fleece filter
bag (option) or membrane filter (option).
Insert and lock the suction head.
8 EN

Wet vacuum cleaning

Inserting the rubber lips

Illustration
Remove the brush strips.Install the rubber lips.
Note: The structured side of the rubber lips must point outwards.

Remove the paper filter bag/fleece filter bag

If the appliance is used to vacuum wet
dirt, the paper filter bag, the fleece filter bag (option) or the membrane filter (op­tion) must always be removed.
It is recommended to use a special filter

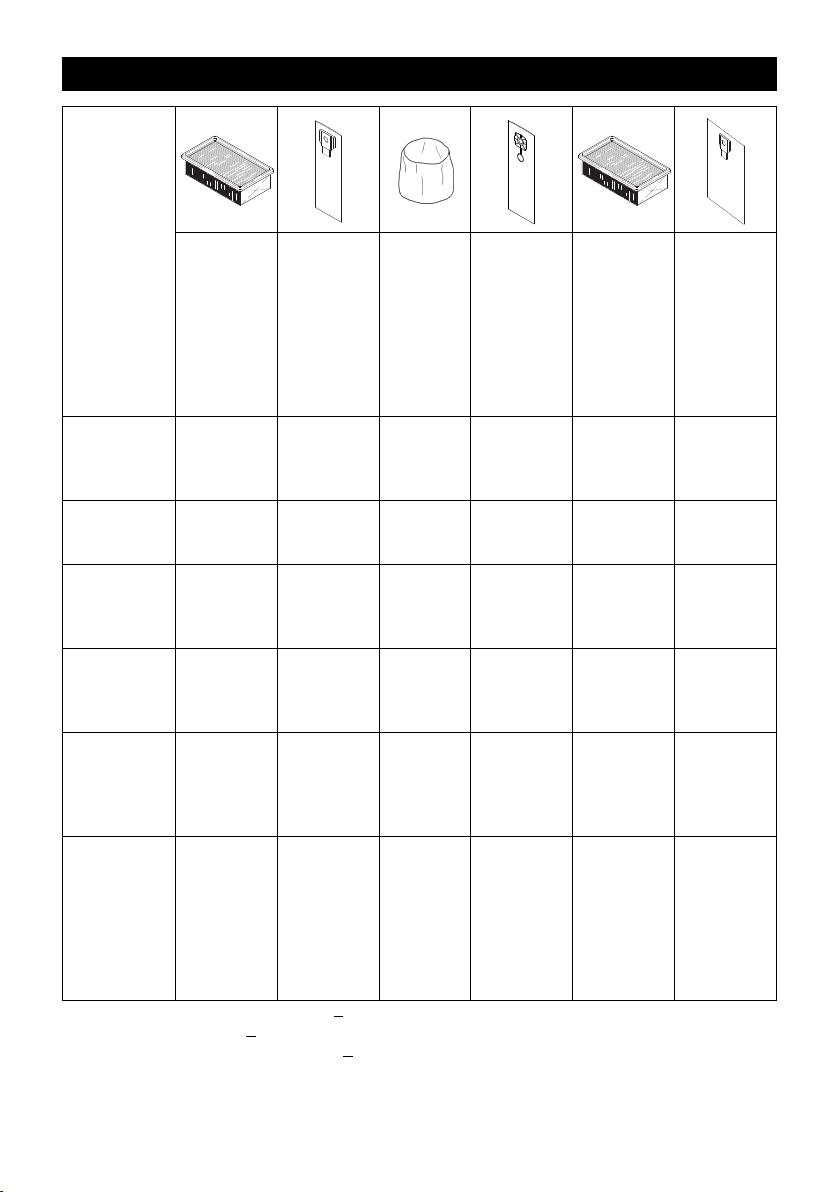

bag (wet) (see Filter systems).

General

If wet dirt is vacuumed with the uphol-
stery or crevice nozzle, or if water is sucked up from a container, it is recom­mended to deactivate the "automatic fil­ter cleaning" function.
If the maximum liquid level is reached
the appliance will turn off automatically.
In case of non-conductive liquids
(such as emulsion drilling fluids, oils, and greases) the appliance is not turned off when the container is full. The filling level must be continu­ously monitored and the container must be emptied in time.
After the wet vacuuming: Clean the flat
folded filter with the filter cleaning. Clean the electrodes with a brush. Clean the container with a damp rag and dry it.

Clip connection

Illustration The suction hose is equipped with a clip system. All C-35/C-DN-35 accessories can be connected.
– 2

Operation

Turning on the Appliance

Plug in the main plug.Switch on the appliance at the main
switch.

Automatic filter cleaning

The appliance has an innovative filter cleaning system that is particularly effective with fine dust. The flat pleated filter is auto­matically cleaned every 15 seconds through an air jet (pulsating sound). Note: Automatic filter dedusting is switched on at the factory. Note: The automatic filter dedusting func­tion can only be switched on/ off when the appliance is switched on.
To switch off automatic filter cleaning:
Activate the switch. Indicator lamp in
the switch goes off.
To switch on automatic filter cleaning:
Press the switch again. Indicator lamp
in the switch glows green.

Turn off the appliance

Switch off the appliance at the main
switch.
Pull out the mains plug.

After each operation

Empty the container.Vacuum and wipe the appliance inside
and outside with a damp cloth.

Storing the Appliance

Illustration Store the suction hose and the mains
cable as shown in the illustration.
Place the appliance in a dry room and
secure it from unauthorized use.

Transport

Caution
Risk of injury and damage! Observe the weight of the appliance when you transport it.
Remove the suction pipe with the floor
nozzle from the holder. Hold the appli­ance at the handle and at the suction pipe to transport it.
When transporting in vehicles, secure
the appliance according to the guide­lines from slipping and tipping over.

Storage

Caution
Risk of injury and damage! Note the weight of the appliance in case of storage.
This appliance must only be stored in inte­rior rooms.

Maintenance and care

Danger
First pull out the plug from the mains before carrying out any tasks on the machine.

Exchanging the flat pleated filter

Open filter door. Replace the flat pleated filter.Close the filter door, it must lock into
place.

Cleaning the electrodes

Release and remove the suction head.Clean the electrodes with a brush.Insert and lock the suction head.

Troubleshooting

Danger
First pull out the plug from the mains before carrying out any tasks on the machine.

Suction turbine does not run

Check the receptacle and the fuse of
the power supply.
Check the power cable, the power plug
and electrodes of the device.
Turn on the appliance.

Suction turbine turns off

Empty the container.
– 3
9EN
Suction turbine does not start again
after the container has been emp-
tied
Turn off the appliance and wait for 5
seconds, turn it on again after 5 sec­onds.
Clean the electrodes as well as the
space between the electrodes with a brush.

Suction capacity decreases

Remove blockages in the suction noz-
zle, suction tube, suction hose, or flat pleated filter.
Exchange the paper filter bag.Exchange the fleece filter bag (option).Ensure the filter cover properly locks
into place.
Clean or replace the membrane filter
(special accessory) under running wa­ter.
Replace the flat pleated filter.

Dust comes out while vacuuming

Illustration Check/correct the correct positioning of
the flat fold filter.
Replace the flat pleated filter.
Automatic shut-off (wet vacuum
cleaning) does not react
Clean the electrodes as well as the
space between the electrodes with a brush.
Continuously check the filling level in
case of non-conductive liquid.
Automatic filter cleaning is not
working
Suction hose is not connected.
Automatic filter cleaning cannot be
switched off
Inform Customer Service
Automatic filter cleaning cannot be
switched on
Inform Customer Service

Warranty

The warranty terms published by the rele­vant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in man­ufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase.

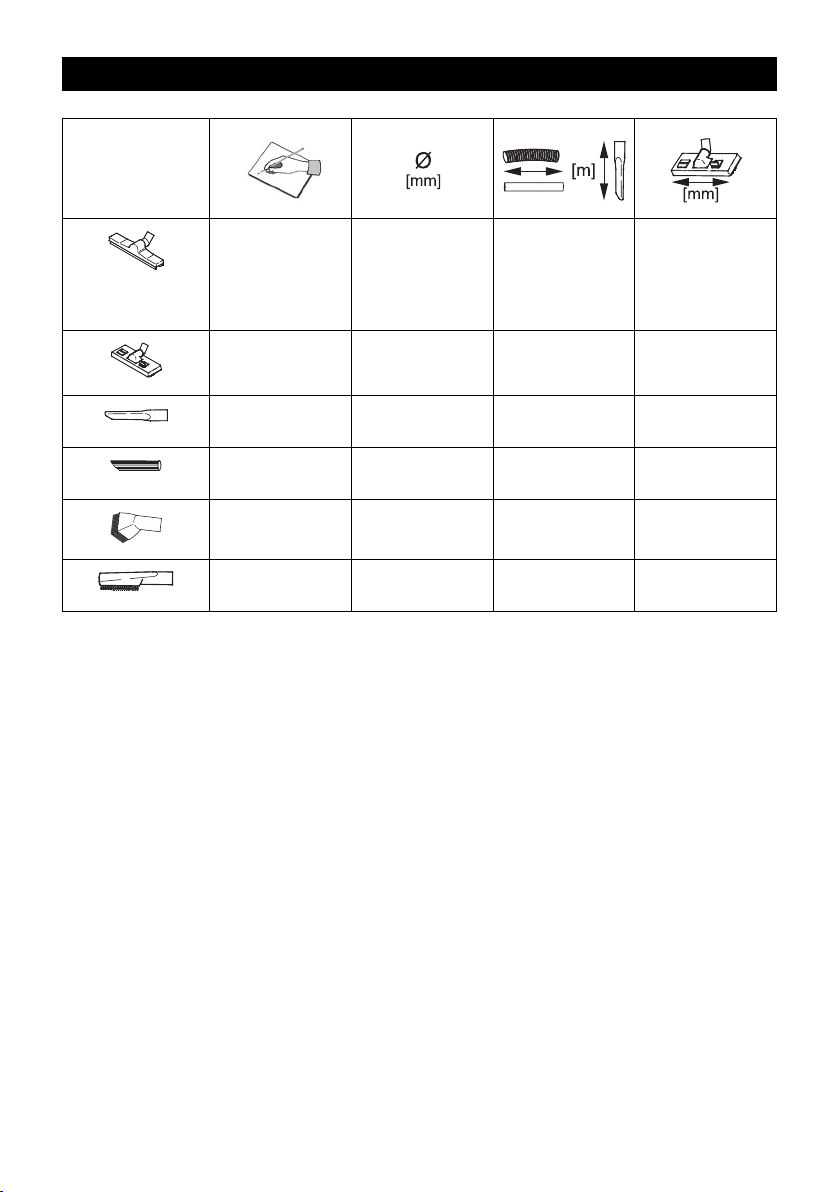

Accessories and Spare Parts

Only use accessories and spare parts
which have been approved by the man­ufacturer. The exclusive use of original accessories and original spare parts ensures that the appliance can be oper­ated safely and trouble free.

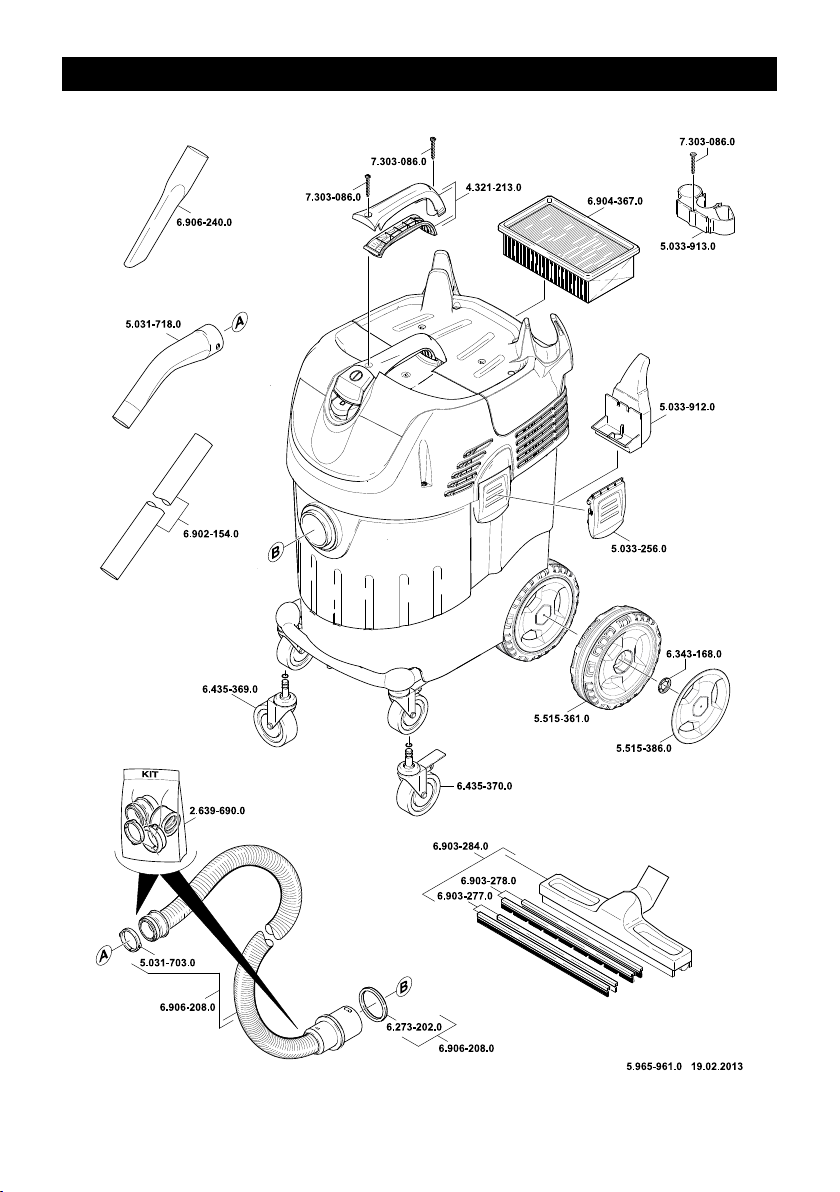

At the end of the operating instructions
you will find a selected list of spare parts that are often required.
For additional information about spare
parts, please go to the Service section at www.kaercher.com.
10 EN
– 4
