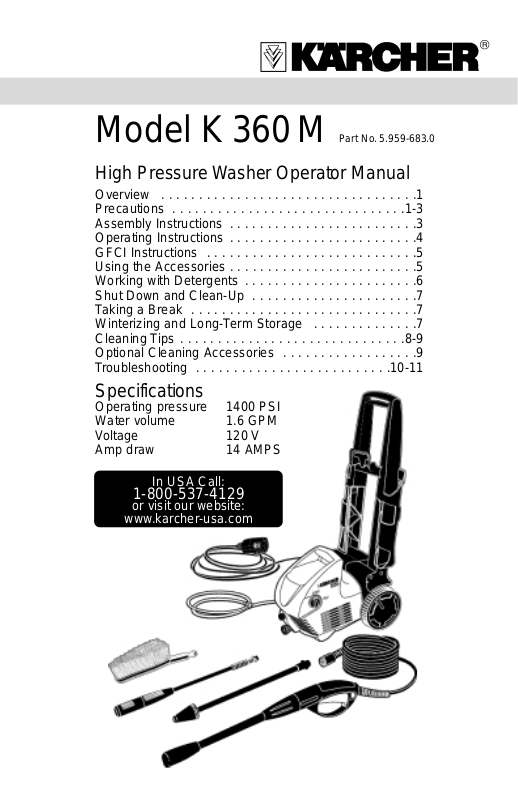

Model K360M Part No.5.959-683.0
High Pressure Washer Operator Manual
Specifications
Operating pressure 1400 PSI
Water volume 1.6 GPM
V oltage 120 V
Amp draw 14 AMPS
In USA Call:
1-800-537-4129
or visit our website:
www.karcher-usa.com
1
NEVER!
Model K 360 M OVERVIEW
Never point nozzle at people or animals.
Never drink alcohol or use drugs while operating this equipment.
Never operate while standing in water.
Never touch plug with wet hands.
Never let electrical connections rest in water.
Never operate pressure washer without the water turned on
Never use hot water
Item Description
1. Vario spray wand
2. Dirtblaster®wand
3. Spray wand extension
4. Package of 8 screws (not pictured)
5. Trigger gun
6. Trigger gun safety lock
7. High pressure hose
8. Mobile adapter bracket with wheel (qty. 2)
9. Handle
10. Hose Caddy
11. On/Off switch
12. Detergent suction tube
13. Detergent filter
14. Water inlet with filter
15. High pressure outlet
16. Wash brush
17. Power cord with Ground Fault
Circuit Interrupter (GFCI)
2
1
3
9
12
8
7
15
16
17
14
5
6
13
11
10
2
IMPORTANT PRECAUTIONS – Read First!
Safety Warnings
When using this product, basic precautions should always be followed:
• Read all the instr uctions before using
the product.
• High pressure jets can be dangerous
if subject to misuse.The jet must not
be directed at persons, animals,
electrical devices, or the machine itself.
• To reduce the risk of injury, do not
operate the machine near children.
• Lear n how to stop the machine and
release pressure quickly. Be thoroughly
familiar with the controls.
• Stay alert — watch what you are doing.
• Wear safety goggles.
• Do not use acids,
solvents, or any
flammable material in this product.
These products can cause physical
injuries to the operator and irreversible
damage to the machine.
• Do not operate the product when
fatigued or under the influence of
alcohol or drugs.
• Do not stand on unstable surfaces.
Stand with both feet balanced at all
times.
• To reduce the risk of electrocution, keep
all connections dry and off the ground.
Do not touch plug with wet hands.
• The Gun Safety Lock PREVENTS
the trigger from accidentally being
engaged.This safety feature DOES
NOT lock trigger in the on position.
Extension Cords
Use a sufficient gauge: Up to 25 ft = 12/2
AWG;25 to 50 ft = 10/2 AWG. Use only
extension cords that are intended for
outdoor use.These extension cords are
identified by the marking “Acceptable for
use with outdoor appliances; store indoors
while not in use.” Use only extension cords
having an electrical rating not less than the
rating of the product. Do not use damaged
extension cords.Examine extension cord
before using and replace if damaged.Do
not abuse extension cord and do not yank
on any cord to disconnect. Keep cord away
from heat and sharp edges. Always
disconnect the extension cord from the
receptacle before disconnecting the
product from the extension cord.If you are
using an extension cord, it should always
be completely unwound from the cable
drum.
Ground Fault Circuit Interrupter
(GFCI) Protection
This unit is supplied with a portable
Ground Fault Circuit Interrupter (GFCI).
UL indicates that the power cord has been
investigated for compliance with the
applicable provisions of UL 943, Third
Edition (Standard for Ground Fault Circuit
Interrupters) and other applicable
standards. If power is interrupted in the
line, the GFCI will automatically reclose
the circuit to the load after power is
restored. Depending on the GFCI model,
it may be necessary to manually operate
the reset button to restore power to the
GFCI load circuit.
This Product Is
Double Insulated
In a double-insulated product, two
systems of insulation are provided instead
of grounding. No grounding method is
provided on a double-insulated product,
nor should a method for grounding be
added to the product. Servicing a doubleinsulated product requires extreme care
and knowledge of the system, and should
be done only by qualified service
personnel. Replacement parts for a
double-insulated product must be identical
to the parts they replace.
A double-insulated product is marked with
the words, “DOUBLE INSULATED.”
Caution
• Follow the maintenance instructions
specified in the manual.
• This machine has been designed
for use with cleaning detergents
supplied or recommended by the
manufacturer. The use of other
cleaning detergents may affect the
operation of the machine and void
the warranty.
You will need a standard screw driver OR a Torx T-25 screw driver
Step4 Slide the spray wand exten-
sion into the gun.Turn the wand collar
clockwise onto the gun threads until
tight.
3
ASSEMBLY INSTRUCTIONS
Step3 Slide the hose caddy into the handle
slots and snap into place.
Step1
Slide each of the mobile adapter brackets to the pressure washer.Align the pegs and
holes on the brackets.Insert the 4 screws and
tighten as shown.
Water Supply
(Cold Water Only)
• Water hose must be at least 3/4 inch
in diameter.
• Flow rate of water supply must not fall
below 2.5 GPM (gallons per minute).
• Flow rate can be determined by running
the water for one minute into an empty
5-gallon container.
IMPORTANT PRECAUTIONS –
continued
• The water supply temperature must not
exceed 104°F/40°C.
• Never use the pressure washer to draw
in water contaminated with solvents,
e.g. paint thinners, gasoline, oil, etc.
• Always prevent debris from being drawn
into the unit by using a clean water
source.
Step2
Slide the handle onto the
mobile adapter brackets as shown,
insert screws and tighten.
OPERATING INSTRUCTIONS
4

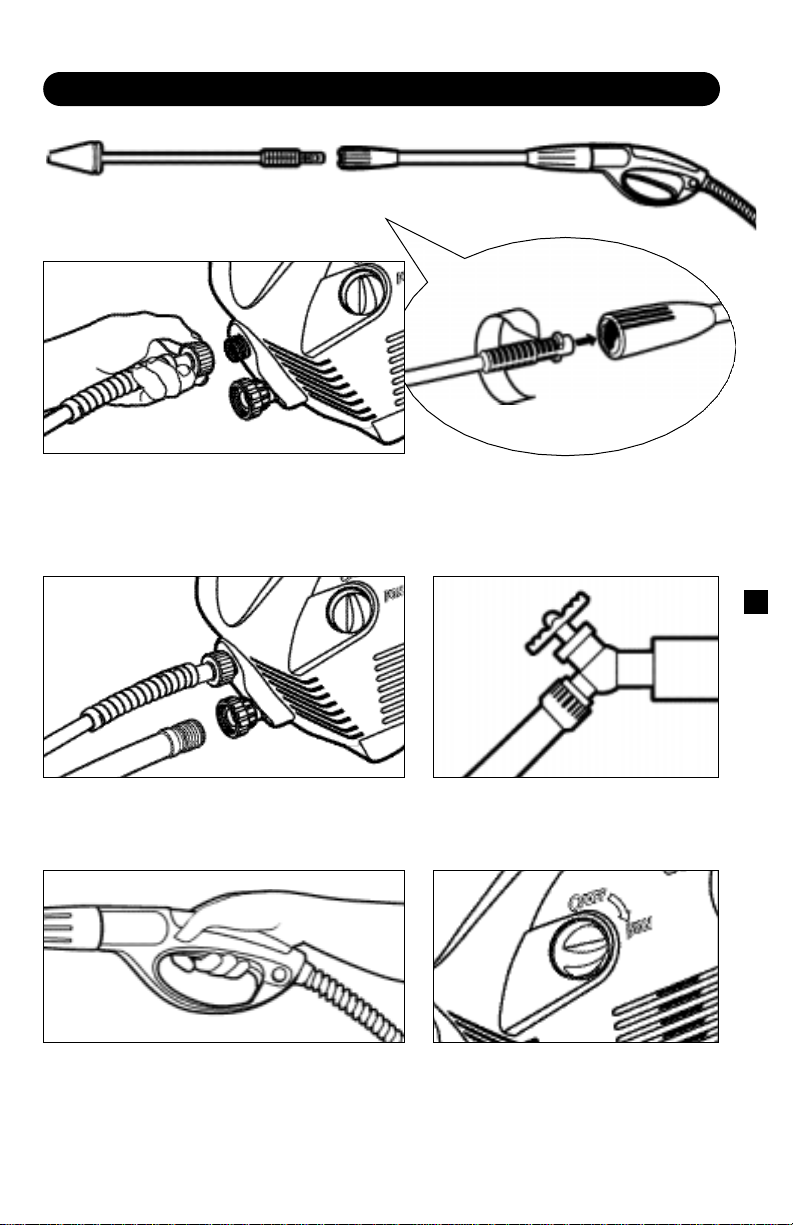

Step1 Connect the high pressure hose to the
unit’s high pressure outlet.
Step3 Connect garden hose
to unit’s water inlet.
Step4 Connect garden hose
to the cold water source and turn water
on completely.
Step5
Plug the power cord into the power outlet.Trigger the gun to eliminate trapped air, wait
for a steady flow of water to emerge from the
spray nozzle.
Step6
Turn on the pressure
washer (I).The motor starts only if
the trigger of the gun is pulled and
shuts off when the trigger is released.
Step2 Inser t the spray wand of your
choice into the spray wand
extension. Push in and turn clockwise
to lock spray wand in place.
5
This wand features a 0º pencil jet which rotates 360º
for maximum dirt cutting action, effectively increasing
cleaning performance up to 50%.This wand combines
the cleaning performance of a 0º pencil jet with the
surface coverage of a wide angle nozzle.
Not recommended for soft materials, siding, painted
surfaces, decks or autos.
Dirtblaster®wand
Vario spray wand
The Vario spray wand allows you to adjust the cleaning pressure.To clean at maximum
pressure, the Vario wand must be positioned to the high pressure setting (+).
To apply detergent, the wand must be positioned to the low pressure setting (-).
For lower
pressure turn
wand collar in the
minus (-) direction.
For higher
pressure turn
wand collar in the
plus (+) direction.
WARNING
TO AVOID SERIOUS INJURY,
NEVER POINT SPRAY NOZZLE AT
YOURSELF, OTHER PERSONS
OR ANIMALS.
USING THE ACCESSORIES

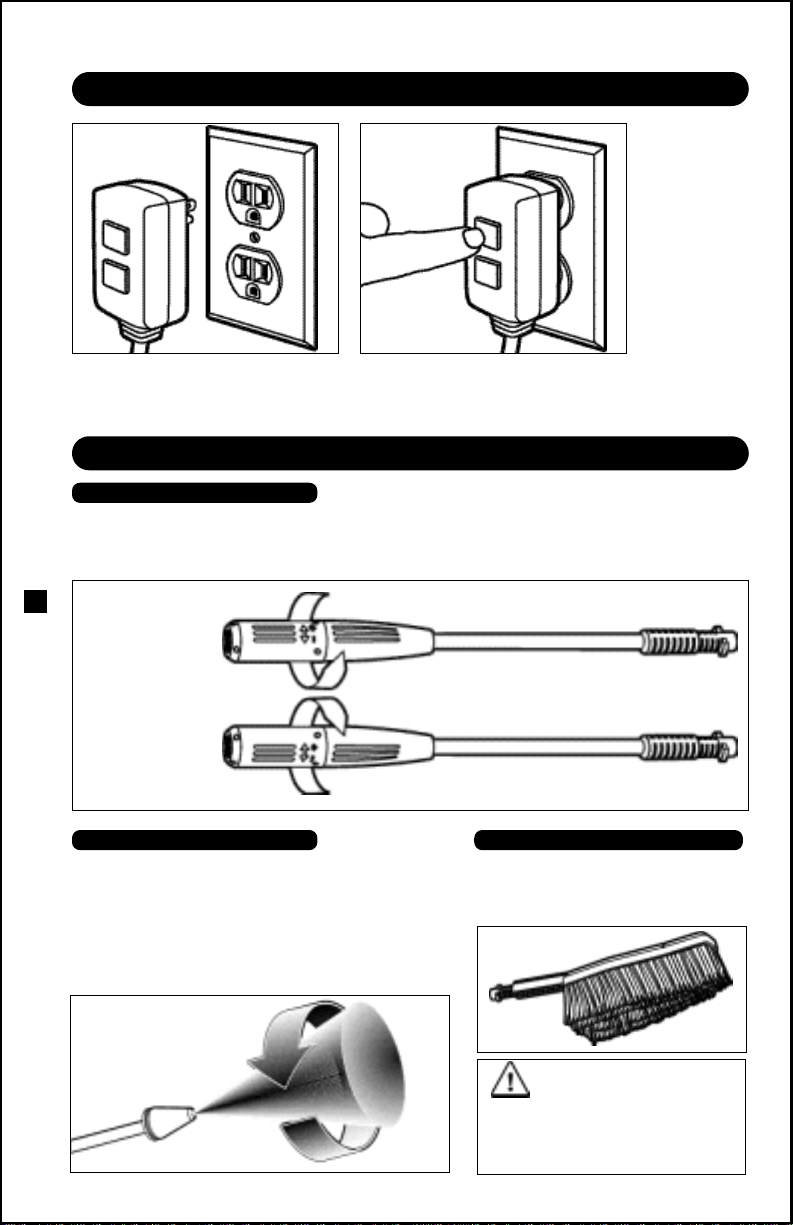

GFCI INSTRUCTIONS
Step1 Plug the Ground
Fault Circuit Interrupter (GFCI)
into a working outlet.
Step2 Press “TEST”, then
press “RESET” to assure proper
connection to power.
Note:
The actual
appearance
of the GFCI
may be
different from
this
illustration.
This brush is ideal for removing stubborn dirt and stains from finished surfaces.Use with detergents only.
Wash brush
6
WORKING WITH DETERGENT
Karcher Pressure washers operate at two pressures.The high pressure setting is used for
cleaning, you cannot apply detergents when working at high pressure.To apply detergents you
must be operating at low pressure.
Caution
Never use:
• Bleach, Chlor ine products and other
corrosive chemicals
• Liquids containing solvents
(i.e., paint thinners, gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the unit and
will damage the surface being cleaned.
Step2 Fill a container with Karcher
detergent. Place the filter end of detergent
suction tube into the container.
Step3
Turn on the pressure washer.
Pull trigger to operate unit: Liquid detergent
is drawn into the unit and mixed with water.
Apply detergent to work area. Do not allow
detergent to dry on surface.
For best results see Cleaning Tips
on pages 8 & 9 for specific information on how to clean
different surfaces.
Always Use Karcher
Detergents for Best Results.
Karcher biodegradable detergents are
specially formulated to protect the environment and your pressure washer. The special
formula won’t clog the suction tube filter
and will protect the internal parts of the pressure washer for a longer life.
For Karcher
Detergents, check your retailer
or call:
The following Karcher detergents are

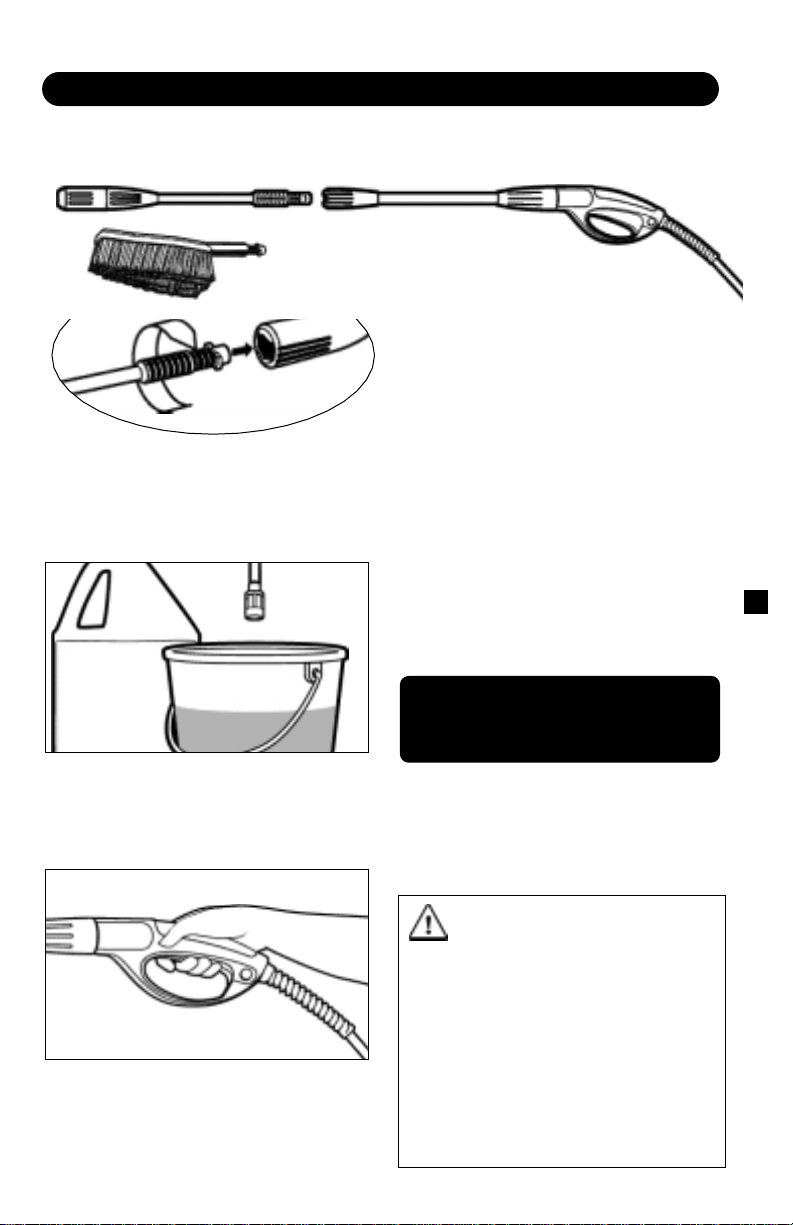

available:
• V ehicle Wash • House Wash
• Degreaser • Deck Wash
• All Purpose Cleaner
In USA Call:
1-800-537-4129
or visit our website:
www.karcher-usa.com
Step1 Install the Wash brush or the
Vario spray wand. Set the Vario spray wand
to the low pressure setting (-) by turning the
wand collar.The wand must be set in the low
pressure (-) position to apply detergents.
SHUTTING DOWN & CLEAN-UP
7
WINTERIZING AND LONG-TERM STORAGE
1. Disconnect all water connections.
2.Turn on the machine for a few seconds,
until the water which had remained in the
pump exits.Turn off immediately.
3. Do not allow high pressure hose to
become kinked.
4. Store the machine and accessories in
a room which does not reach freezing
temperatures.
Caution: Failure to follow the above
directions will result in damage to the
pump assembly and accessories.

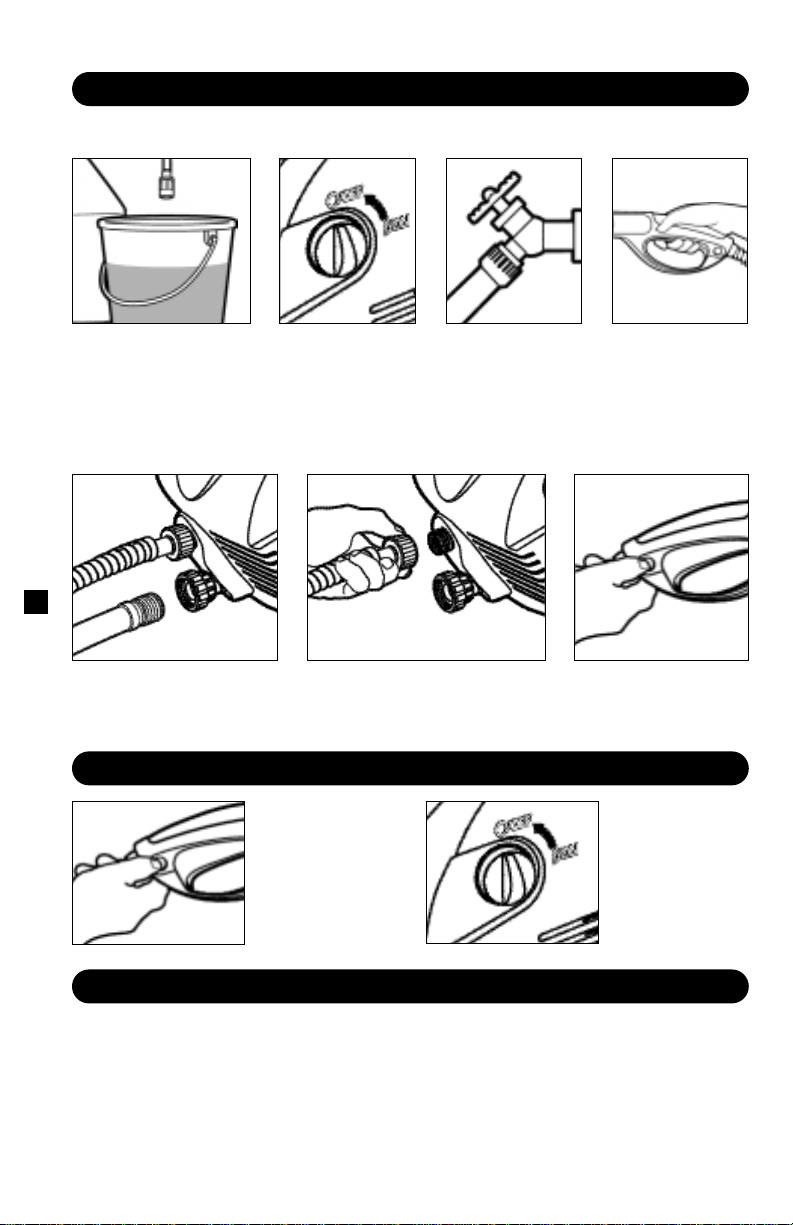

TAKING A BREAK... five minutes or more
Step1 Remove de-
tergent suction tube from
container and insert into
1 gallon of fresh water.
Siphon water at low pressure for one minute.
Step2
Turn the switch to
off position and
unplug cord from
outlet.
Step3
Turn off the water
source.
Step4
Press trigger to
release water
pressure.
Step5 Disconnect the
garden hose from the
water inlet on the unit.
Step2
Turn pressure
washer to off
position.
Step6 Disconnect the high pressure hose from the
high pressure outlet and engage the gun safety lock.
Step1
Engage gun
safety lock.
8
CLEANING TIPS
Deck Cleaning
(with or without detergent)
Pre-rinse deck and surrounding area with
fresh water.If using Kärcher Deck Wash,
place detergent suction tube directly into
cleaning solution and apply to surface at low
pressure. For best results, limit your work
area to smaller sections of approximately 25
square feet. Allow Kärcher Deck Wash to
remain on surface 1-3 minutes.Do not allow
detergent to dry on surface. Rinse at high
pressure in a long sweeping motion keeping
the spray nozzle approximately 3-6 inches
from the cleaning surface.Always clean
from top to bottom and from left to right.
When moving on to a new section of the
cleaning surface, be sure to overlap the
previous section to eliminate stop marks
and ensure a more even cleaning result.
Caution: Do not use Dirtblaster
®
wand on
wood surface as it may cause damage.
House Siding
(with or without detergent)
Pre-rinse cleaning surface with fresh water.
If using Kärcher House Wash, place
detergent suction tube directly into cleaning
solution and apply to surface at low
pressure (for best results, limit your work
area to sections of approximately 6 feet and
always apply detergent from bottom to top).
Allow Kärcher House Wash to remain on
surface 1-3 minutes.Do not allow detergent
to dry on surface, if surface appears to be
drying, simply wet down surface with fresh
water.
If needed, use special Wash Brush
Attachment to remove stubborn dirt.
Rinse at high pressure from top to bottom in
an even sweeping motion keeping the spray
nozzle approximately 6 inches from the
cleaning surface.
Caution: Do not use Dirtblaster
®
wand on
siding as it may cause damage.
Cement Patios,
Brick and Stone
(with or without detergent)
Pre-rinse cleaning surface with fresh water.
If using Kärcher All Purpose Cleaner, place
detergent suction tube directly into cleaning
solution and apply to surface at low
pressure. For best results, limit your work
area to smaller sections of approximately 25
square feet. Allow Kärcher All Pur pose
Cleaner to remain on surface 1-3 minutes.
Do not allow detergent to dry on surface.
Rinse at high pressure in a sweeping
motion keeping the spray nozzle
approximately 3-6 inches from the cleaning
surface.Always clean from top to bottom
and from left to right. For removing
extremely stubborn stains, use Kärcher
Dirtblaster
®
Wand.
Cars, Boats & Motorcycles
(with or without detergent)
Pre-rinse vehicle with fresh water.If using
Kärcher Vehicle Wash, place detergent
suction tube directly into cleaning solution
and apply to surface at low pressure.
For best results, clean one side of vehicle at
a time and always apply detergent from
bottom to top, do not allow detergent to dry
on surface.If needed, use special Wash
Brush Attachment to remove stubborn dirt.
Rinse at high pressure in a sweeping
motion keeping the spray nozzle approximately 6-8 inches from the cleaning surface
(distance should increase when rinsing pinstriping or other sensitive surfaces).Always
clean from top to bottom and from left to
right. For best results,
wipe surface dry with a chamois or
soft dry cloth.
Caution: Do not use Dirtblaster
®
wand on
vehicles as it may cause damage.
9
CLEANING TIPS
– continued
Barbecue Grills, Outdoor Power
Equipment &
Gardening Tools
(with or without detergent)
Pre-rinse cleaning surface with fresh water.If
using Kärcher All Purpose Cleaner or
Degreaser, place detergent suction tube
directly into cleaning solution and apply
detergent at low pressure. Allow Kärcher
detergent to remain on surface 1-3 minutes.
Do not allow detergent to dry on surface.
Rinse at high pressure keeping the spray
nozzle approximately 3-6 inches from the
cleaning surface.For removing extremely
stubborn dirt, it may be necessary to move
the spray nozzle even closer to the surface
for greater dirt cutting action.To remove
caked on mud from garbage cans, lawn
mower blades, wheel barrels or other
non-sensitive metal surfaces, you may
want to use the Kärcher Dirtblaster
®
Wand.
Caution: Do not use Dirtblaster®wand on
cloth, plastic or other sensitive surfaces as it
may cause damage.
Patio & Lawn Furniture
(with or without detergent)
Pre-rinse furniture and surrounding area with
fresh water.If using Kärcher All Purpose
Cleaner, place detergent suction tube directly into cleaning solution and apply to surface
at low pressure. Allow Kärcher All Pur pose
Cleaner to remain on surface 1-3 minutes.
Do not allow detergent to dry on surface. If
needed use special Wash Brush Attachment
to remove stubborn dirt. Rinse at high pressure in a sweeping motion keeping the spray
nozzle approximately 3-6 inches from the
cleaning surface.For best results, clean from
top to bottom and from left to right. Caution:
Do not use Dirtblaster
®
wand on patio or
lawn furniture as it may cause damage.
Recommendations
• Before cleaning any surface an inconspicuous area should be cleaned to test spray
pattern and distance for maximum cleaning
results.
• If painted surfaces are pealing or chipping,
use extreme caution as pressure washer
may remove the loose paint from the
surface.
OPTIONAL CLEANING ACCESSORIES
• Wash Brush
• House Washing Wand
• Extension Wand
• Dirtblaster®Wand
• Flexible Spray Wand
• Underbody Spray Wand
• Telescopic Spray Wand
• Pipe Drain Cleaner
• Detergent Foamer Attachment
• Water Suction Hose
• Extension Hose 25’
• Rotating wash brush
Optional cleaning accessories are available to further enhance your cleaning capabilities.
See accessories order form for product descriptions and ordering instructions.
In USA Call:
1-800-537-4129
or visit our website: www.karcher-usa.com
10
TROUBLESHOOTING
Disconnect the machine from the power source before making any repair.
Symptom Cause Solution
Motor will not start
Unit does not reach
high pressure.
Output pressure
varies high and
low.
Extension cord is too long.
Extension cord is not
proper gauge. Extension
cord is damaged.
Replace extension cord with either
a 25 ft. 12/2 gauge cord or a 50 ft.
10/2 gauge cord.
Electrical outlet does not
supply adequate power.
Try a different outlet.
Ground Fault Circuit
Interrupter (GFCI) tripped.
Reset breaker (power supply)
or GFCI.
Diameter of garden hose
is too small.
Replace with a 3/4 inch
garden hose.
Water supply is restricted.
Check garden hose for kinks,
leaks and blockage.
Not enough inlet water supply. Open water source full force.
Water inlet filter is
clogged.
Remove filter and rinse out
in war m wa te r.
Not enough inlet water
supply.
Turn water on full force.Check garden
hose for kinks, leaks or blockage.
Pump is sucking air. Check that hoses and fittings are air tight.
Turn off machine and purge pump by
squeezing trigger gun until a steady flow
of water emerges through the nozzle.
Water inlet filter is
clogged.
Remove filter and rinse out
in war m wa te r.
Discharge nozzle
is obstructed.
Blow out or remove debris
with a fine needle.
Calcified gun, hose
or spray wand.
Run distilled vinegar through
detergent suction tube.
On/Off switch is in the
“OFF” (O) position.
Turn switch to the “ON” (I) position
Power cord is not plugged in.
Plug in power cord.
Spray wand is in low
pressure position.
Turn spray wand to high
pressure position.
11
TROUBLESHOOTING
– continued
Symptom Cause Solution
No detergent.
Garden hose
connection leaks.
Pump is noisy.
Water leaks
from pump.
Oil Drip.
Detergent is too thick. Dilute detergent, for best results
use Kärcher detergent.
Filter on detergent suction
tube is clogged.
Run warm water through filter
to remove debris.
Damaged or clogged
detergent suction tube.
Remove obstruction or
replace detergent suction tube.
Spray wand is in
high pressure position.
Turn spray wand tip to
low pressure position.
Discharge nozzle
is obstructed.
Blow out or remove debris
with fine needle.
Loose fittings. Tighten fittings.
Missing/worn rubber washer. Insert new washer.
Spray wand extension
not properly attached.
Broken o-ring.
Check that hoses and fittings are
air tight.Turn off machine and
purge pump by squeezing trigger
gun until a steady flow of water
emerges through the nozzle.
Loose fittings. Check that all fittings are tight.
Call service center.
Water seals are
damaged or worn.
Call Kärcher customer service
hotline and order an o-ring.
Pump is sucking air.
Oil seals are damaged
or worn.
Call service center.
Spray wand
or Spray wand
extension leaks.
Spray wand not
properly attached.
Insert the spray wand of your choice into
the the wand extension.Push in and
turn clockwise to lock wand in place.
Insert the spray wand extension into
the trigger gun. Press in against the
spring tension and twist into the lock
position.Turn the spray wand extension collar clockwise until tight..
Detergent suction tube not
properly connected to the
machine.
Check connection.
If you encounter any additional
difficulties not listed, please call
our service center for help.
Kärcher Customer Support USA
Detergent container is empty . Add more detergent.
In USA Call:
1-800-537-4129
or visit our website: www.karcher-usa.com
Loading...
