K 2.01
English
Please keep the original box, packaging and receipt. Before operating this
unit, please read this manual thoroughly and retain it for future reference.
5.961-519.0 01/05
HIGH PRESSURE WASHER OPERATOR MANUAL
Overview 3
Important Safety Instructions 4-5
Assembly Instructions 6
Operating Instructions 7
Using the Accessories 8
Working with Detergents 9
Shut Down 10
Taking a Break 10
Winterizing and Long-Term Storage11
Care and Maintenance Instructions 11
Cleaning Tips 12-13
Optional Cleaning Accessories 13
Troubleshooting 14 -15
Specifications
Max. Pressure 1400 PSI
Water volume 1.3 GPM
Amp draw 13 AMPS
Voltage 120 V
Part No. 1.672-370.0
Serial no.
Kärcher Customer Service CDN
Call: 1-800-465-4980 for help or visit
our website: www.karcher.ca
KÄRCHER 2 YEAR WARRANTY
KÄRCHER CANADA INC. warrants to
the original owner that this product shall
be free from defects in material and
workmanship for two years from the
date of its original purchase. If such a
defect appears during the warranty period, upon presentation of proof of
purchase, KÄRCHER CANADA INC.
will repair or replace (at its option) your
product without charge.
This warranty does not cover accidental
damage, unreasonable use, normal
wear and tear, loss of use or other consequential damages, nor does it cover
repairs made or attempted by unauthorized persons.
Trigger gun, hose, spray wands and
other accessories are warranted for
3 months.
Please note that no returns will be accepted without prior authorization from
our customer service department.
It is the owner’s responsibility to file
claims for damage caused by public
transportation carriers directly with the
carrier concerned.
Safety Alert Symbols
DANGER
indifies ’’an imminently hazardous situation which, if not avoided, will result in
death or serious injury.’’
WARNING
indifies ’’a potentially hazardous situation which, if not avoided, could result in
death or injury.’’
CAUTION
indifies ’’a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury’’ or in property
damage incidents.
2 English
MODEL OVERVIEW
Item Description:
1 ON/OFF switch
2 Connector for detergent suction tube
3 High pressure outlet
4 Water inlet with
garden hose connector
5 Detergent suction tube with filter
6 Vario power spray wand
7 Trigger gun
8 Trigger gun safety lock
9 High pressure hose
10 Power cord
CAUTION
Follow the maintenance instructions
specified in the manual
This machine has been designed for
use with cleaning detergents by the manufacturer. The use of other cleaning
detergents may affect the operation of
the machine and void the warranty.
For household use only !
English 3
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this product basic
precautions should always be
followed, including the following:
! Read all the instructions before
using the product.
! To reduce the risk of injury, close su-
pervision is neccessary when a product is used near children.
! Know how to stop the product and
bleed pressures quickly. Be thoroughly familiar with the controls.
!
Stay alert — watch what you are doing.
! Do not operate the product when fa-
tigued or under the influence of alcohol or drugs.
! Keep operating area clear of all per-
sons.
! Do not overreach or stand on unsta-
ble support. Keep good footing and
balance at all times.
! Follow the maintenance instructions
specified in the manual.
! Risk of Injection or Injury to persons
- Do not direct discharge stream at
persons.
!
High pressure jets can be dangerous if
subject to misuse. The jet must not be
directed at persons, animals, electrical
devices, or the machine itself.
! Wear safety goggles.
! Do not use acids and solvents in this
product. These products can cause
physical injuries to the operator and
irreversible damage to the machine.
! To reduce the risk of electrocution,
keep all connections dry and off the
ground.
! Do not touch plug with wet hands.
! The Trigger Gun Safety Lock PRE-
VENTS the trigger from accidentally
being engaged. This safety feature
DOES NOT lock trigger in the ON
position.
WARNING
!
DO NOT SPRAY ELECTRICAL APPARATUS AND WIRING.
!
DO NOT USE WITH FLAMMABLE LIQUIDS AND TOXIC CHEMICALS.
!
INJECTION HAZARD: EQUIPMENT
CAN CAUSE SERIOUS INJURY IF
THE SPRAY PENETRATES THE
SKIN. DO NOT POINT THE GUN AT
ANYONE OR ANY PART OF THE BODY. IN CASE OF PENETRATION
SEEK MEDICAL AID IMMEDIATELY.
!
THIS SYSTEM IS CAPABLE OF
PRODUCING 1400 PSI TO AVOID
RUPTURE AND INJURY, DO NOT
OPERATE THIS PUMP WITH COMPONENTS RATED LESS THAN 1400
PSI WORKING PRESSURE (INCLUDING BUT NOT LIMITED TO SPRAY
GUNS, HOSE AND HOSE CONNECTIONS).
!
BEFORE SERVICING, CLEANING
OR REMOVING ANY PARTS, SHUT
OFF POWER AND RELIEVE PRESSURE.
SAVE THESE
INSTRUCTIONS !
4 English
Extension Cords WATER SUPPLY (Cold Water Only)
! Use only extension cords with a suf-
ficient gauge.
Up to 25 ft = 12/3 AWG;
25 to 50 ft = 10/3 AWG.
! Use only extension cords that are in-
tended for outdoor use. These ex-
tension cords are identified by the
marking “Acceptable for use with
outdoor appliances; store indoors
while not in use.”
! Use only extension cords having an
electrical rating not less than the ra-
ting of the product.
! Do not use damaged extension
cords.
! Examine extension cord before
using and replace if damaged.
! Do not abuse extension cord and do
not yank on any cord to disconnect.
! Keep cord away from heat and sharp
edges.
! Always disconnect the extension
cord from the receptacle before dis-
connecting the product from the ex-
tension cord.
! If you are using an extension cord, it
should always be completely un-
wound from the cable drum.
CAUTION
Dirt in the feed water will damage the
unit. To avoid this risk, we recommend
fitting a water filter.
! Water hose must be at least 1/2 inch
or 5/8 inch in diameter.
! Flow rate of water supply must not
fall below 2 GPM (gallons per minute).
! Flow rate can be determined by run-
ning the water for one minute into an
empty 5-gallon container.
! The water supply temperature must
not exceed 104°F/40°C.
! Never use the pressure washer to
draw in water contaminated with solvents, e.g. paint thinners, gasoline,
oil, etc.
! Always prevent debris from being
drawn into the unit by using a clean
water source.
WARNING
To reduce the risc of electrocution, keep
all connections dry and off the ground.
Do not touch plug with wet hands.
English 5
ASSEMBLY INSTRUCTIONS
Attach the high pressure hose to the
trigger gun:
" STEP 1: Pull out the locking slide
from the right side of the trigger gun
handle.
" STEP 2: Insert the small end of the
high pressure hose into place
" STEP 4: Connect the detergent suc-
tion tube to the pressure washer.
" STEP 3: Push the locking slide back
into the trigger gun (C) to lock the
hose in position.
6 English
OPERATING INSTRUCTIONS
" STEP 1: Connect the high pressure
hose to the unit’s high pressure out-
let.
" STEP 2: Insert the spray wand to the
trigger gun. Press in against the
spring tension and twist into locked
position.
" STEP 4: Connect garden hose to the
cold water source and turn water on
completely. Plug the power cord into
the power outlet.
" STEP 5: Unlock the Safety lock (A).
Trigger the gun (B) to eliminate trapped air, wait for a steady flow of water to emerge from the spray nozzle.
" STEP 3: Connect garden hose to
unit’s water inlet.
" STEP 6: Turn on the high pressure
washer (I/ON).
The motor starts only if the trigger
of the gun is pulled and shuts off
when the trigger is released.
English 7
USING THE ACCESSORIES
WARNING
To avoid serious injury never point
spray nozzle at yourself, other persons or animals.
Vario Power Spray Wand
! The vario power spray wand allows
you to adjust the cleaning pressure.
! To clean at maximum pressure, the
wand must be positioned to the high
pressure setting (Max).
! For lower pressure turn the wand
collar in the minus (Min) direction.
! To apply detergent, the wand must
be positioned to the low pressure
setting (Min).
8 English
WORKING WITH DETERGENTS
Detergents can only be applied at
low pressure (Min).
" STEP 1: Install the vario power
spray wand. Set the spray wand to
the low pressure setting (Min).
" STEP 2: Fill a container with Kärcher
detergent. Place the filter end of de-
tergent suction tube into the contai-
ner.
" STEP 3: Turn on the pressure was-
her (1). Pull trigger to operate unit:
Liquid detergent is drawn into the
unit and mixed with water. Apply de-
tergent to work area. Do not allow
detergent to dry on surface.
For best results see Cleaning Tips on
pages 12 & 13 for specific information on how to clean different surfaces.
Always Use Kärcher Detergent for
Best Results
Kärcher biodegradable detergents are
specially formulated to protect the environment and your pressure washer.
Special formula won’t clog the suction
tube filter and will protect the internal
parts of the pressure washer for a longer life. For Kärcher Detergents, check
your retailer or call our service center for
help.
The following Kärcher detergents are
available:
! Pressure wash
! Deck + Fence wash
! Degreaser
! Vehicle wash
CAUTION
Never use:
– Bleach, Chlorine products and other
corrosive chemicals
– Liquids containing solvents (i.e.,
paint thinners, gasoline, oils)
– Tri-sodium phosphate products
– Ammonia products
– Acid-based products
These chemicals will harm the unit and
will damage the surface being cleaned.
English 9

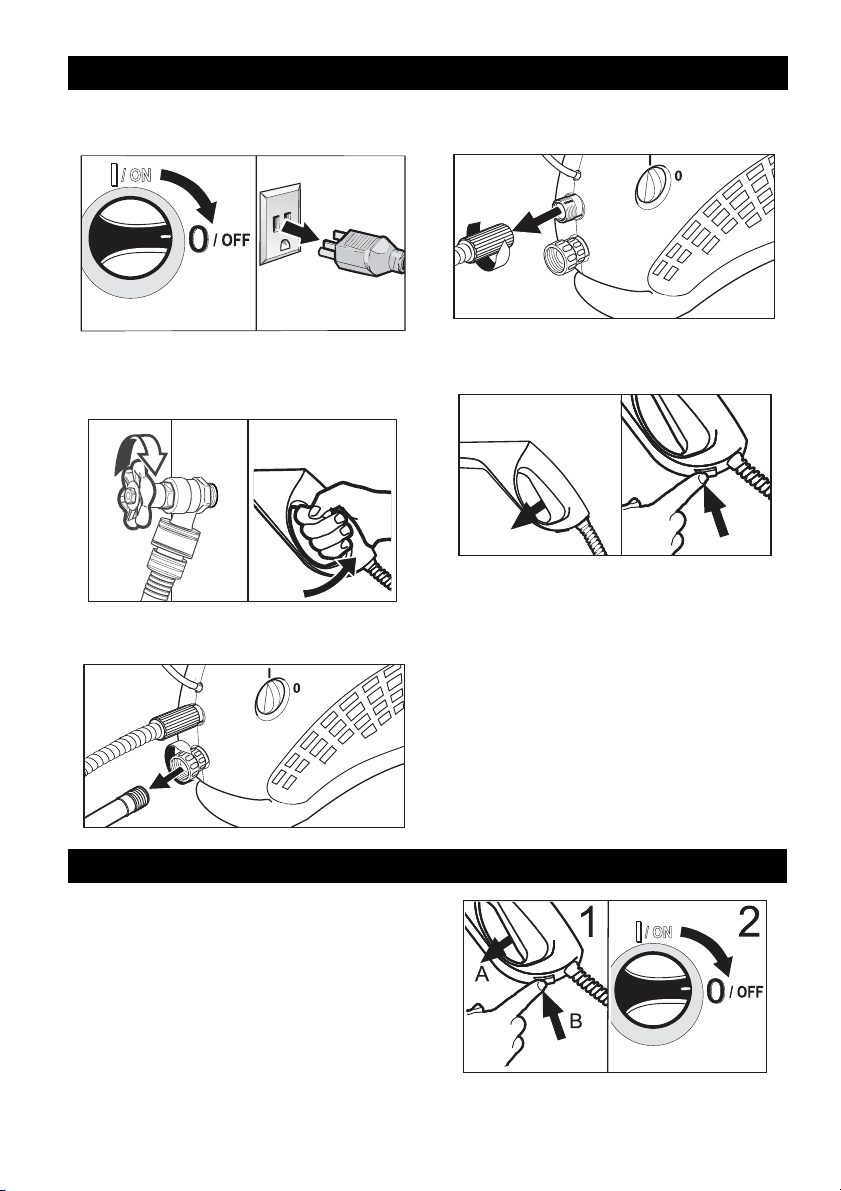

SHUTTING DOWN
STEP 1: Turn the switch to 0/OFF posi-
tion and unplug cord from outlet.
STEP 2: Turn off the water source.
STEP 3: Press trigger to release water
pressure.
3
2
STEP 4: Disconnect the garden hose
from the water inlet on the unit..
STEP 5: Disconnect the high pressure
hose from the high pressure outlet.
STEP 6: Release trigger (A) and engage gun safety lock (B).
B
A
TAKING A BREAK ..five minutes or more
STEP 1: Release trigger (A) and enga-
ge gun safety lock (B).
STEP 2: Turn pressure washer to
(0/OFF) position.
10 English
WINTERIZING AND LONG-TERM STORAGE
" 1: Disconnect all water connections.
" 2: Turn on the machine for a few se-
conds, until the water which had
remained in the pump exits, turn off
immediately.
" 3: Do not allow high pressure hose
to become kinked.
" 4: Store the machine and accesso-
ries in a room which does not reach
CARE AND MAINTENANCE INSTRUCTIONS
Cleaning the water inlet filter
Pull out the water inlet filter with flatnose pliers and rinse out in warm water.
Cleaning the detergent inlet filter
Pull it out and rinse out in warm water.
freezing temperatures. DO NOT
store near furnace or other sources
of heat as it may dry out the pump
seals.
CAUTION
Failure to follow the above directions
will result in damage to the pump assembly and accessories.
Maintenance
The appliance is maintenance-free.
English 11
CLEANING TIPS
Deck Cleaning
(with or without detergent). Pre-rinse
deck and surrounding area with fresh
water. If using Kärcher Deck Wash, apply to surface at low pressure. For best
results, limit your work area to smaller
sections of approximately 25 square
feet. Allow Deck Wash to remain on surface 1-3 minutes. Do not allow detergent to dry on surface. Rinse at high
pressure in a long sweeping motion
keeping the spray nozzle approximately
3-6 inches from the cleaning surface.
Always clean from top to bottom and
from left to right. When moving on to a
new section of the cleaning surface, be
sure to overlap the previous section to
eliminate stop marks and ensure a more
even cleaning result.
CAUTION
Do not use rotating jet on wood surfaces
as it may cause damage.
House Siding
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If
using Kärcher Pressure Wash, apply to
surface at low pressure (for best results,
limit your work area to sections of approximately 6 feet and always apply detergent from bottom to top). Allow
Pressure Wash to remain on surface 13 minutes. Do not allow detergent to dry
on surface, if surface appears to be
drying, simply wet down surface with
fresh water. If needed, use special wash
brush attachment to remove stubborn
dirt. Rinse at high pressure from top to
bottom in an even sweeping motion
keeping the spray nozzle approximately
6 inches from the cleaning surface.
CAUTION
Do not use rotating jet on siding as it
may cause damage.
Cement Patios, Brick and Stone
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If
using Kärcher Pressure Wash or Degreaser, apply to surface at low pressure. For best results, limit your work area
to smaller sections of approximately 25
square feet. Allow Pressure Wash or
Degreaser to remain on surface 1-3 minutes. Do not allow detergent to dry on
surface. Rinse at high pressure in a
sweeping motion keeping the spray
nozzle approximately 3-6 inches from
the cleaning surface. Always clean from
top to bottom and from left to right. For
removing extremely stubborn stains,
use the rotating jet.
Cars, Boats & Motorcycles
(with or without detergent). Pre-rinse
vehicle with fresh water. If using
Kärcher Vehicle Wash, apply to surface
at low pressure. For best results, clean
one side of vehicle at a time and always
apply detergent from bottom to top, do
not allow detergent to dry on surface. If
needed, use special wash brush attachment to remove stubborn dirt. Rinse at
high pressure in a sweeping motion
keeping the spray nozzle approximately
6-8 inches from the cleaning surface (distance should increase when rinsing
pin-striping or other sensitive surfaces).
Always clean from top to bottom and
12 English
from left to right. For best results, wipe
surface dry with a chamois or soft dry
cloth.
CAUTION
Do not use rotating jet on vehicles as it
may cause damage.
Barbecue Grills, Outdoor Power
Equipment & Gardening Tools
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If
using Kärcher Pressure Wash or Degreaser, apply detergent at low pressure. Allow Pressure Wash to remain on
surface 1-3 minutes.Do not allow detergent to dry on surface. Rinse at high
pressure keeping the spray nozzle approximately 3-6 inches from the cleaning surface. For removing extremely
stubborn dirt, it may be necessary to
move the spray nozzle even closer to
the surface for greater dirt cutting action.
CAUTION
Do not use rotating jet on cloth, plastic
or other sensitive surfaces as it may
cause damage.
Patio & Lawn Furniture
(with or without detergent). Pre-rinse
furniture and surrounding area with
fresh water. If using Pressure Wash, apply to surface at low pressure. Allow
Pressure Wash to remain on surface 13 minutes. Do not allow detergent to dry
on surface. If needed use special Wash
Brush Attachment to remove stubborn
dirt. Rinse at high pressure in a
sweeping motion keeping the spray
nozzle approximately 3-6 inches from
the cleaning surface. For best results,
clean from top to bottom and from left to
right.
CAUTION
Do not use rotating jet on patio or lawn
furniture as it may cause damage.
Recommendations
! Before cleaning any surface an in-
conspicuous area should be cleaned
to test spray pattern and distance for
maximum cleaning results.
! If painted surfaces are peeling or
chipping, use extreme caution as
pressure washer may remove the
loose paint from the surface.
! When using on surfaces which might
come in contact with food, flush sur-
faces with plenty of drinking water.
OPTIONAL CLEANING ACCESSORIES
Optional cleaning accessories are
available to further enhance your cleaning capabilities: For details call
1-800-465-4980 or visit
www.karcher.ca.
! Rotating Wash Brush
! Wash Brush
! Underbody Wand
! Pipe Drain Cleaner
! Sandblasting Attachment
! Extension Wand
! Water Siphon Kit
! 25 Ft. Extension Hose
! T-Racer
English 13
TROUBLESHOOTING
CAUTION
Disconnect the machine from the power
source before making any repair.
Symptom Cause Solution
Motor will not start On/Off switch is in the “OFF”
(O) position.
Power cord is not plugged in. Plug in power cord.
Extension cord is too long.
Extension cord is not proper
gauge.
Extension cord is damaged.
Electrical outlet does not supply
adequate power.
Unit does not reach
high pressure.
Output pressure varies high and low.
Diameter of garden hose is too
small.
Water supply is restricted. Check garden hose for kinks,
Not enough inlet water supply. Open water source full force.
Water inlet filter is clogged. Remove filter and rinse out in
Spray wand is in low pressure
position.
Not enough inlet water supply. Turn water on full force. Check
Pump is sucking air. Check that hoses and fittings
Water inlet filter is clogged. Remove filter and rinse out in
Discharge nozzle is obstructed. Blow out or remove debris with
Turn switch to the “ON” (I) position
Replace extension cord with
either a 25 ft. 12/3 gauge cord
or a 50 ft. 10/3 gauge cord.
Try a different outlet.
Replace with a 1/2 inch or 5/8
inch garden hose.
leaks and blockage.
warm water.
Turn spray wand to high pressure position.
garden hose for kinks, leaks or
blockage.
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow of
water emerges through the
nozzle.
warm water.
a fine needle.
14 English
Calcified gun, hose or spray
wand.
Run distilled vinegar through
detergent suction tube.
Symptom Cause Solution
No detergent. Detergent suction tube not pro-
perly connected to the machine.
Detergent is too thick. Dilute detergent, for best resul-
Filter on detergent suction tube
is clogged.
Check connection.
ts use Kärcher detergent.
Run warm water through filter
to remove debris.
Damaged or clogged detergent
suction tube.
Spray wand is in high pressure
position.
Discharge nozzle is obstructed. Blow out or remove debris with
Garden hose connection leaks.
Spray wand leaks. Spray wand not properly atta-
Pump is noisy. Pump is sucking air. Check that hoses and fittings
Water leaks from
pump (up to 10 drops
per minute is permissible).
Oil Drip. Oil seals are damaged or worn. Call service center.
Loose fittings. Tighten fittings.
Missing/worn rubber washer. Insert new washer.
ched.
Broken o-ring or plastic insert. Call service center.
Loose fittings. Check that all fittings are tight.
Water seals are damaged or
worn.
Remove obstruction or replace
detergent suction tube.
Turn spray wand tip to low pressure position.
fine needle.
Insert the spray wand into the
trigger gun. Carefully press in
against the spring tension and
twist into the locked position.
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow of
water emerges through the
nozzle.
Call service center.
Kärcher Customer Service CDN
Call: 1-800-465-4980 for help or visit
our website: www.karcher.ca
If you encounter any additional difficulties not listed, please call for help.
English 15
Loading...
