Kambrook KVC20 User Manual

Jaguar

GG

OO

OO

DD

NN

AA

MM

EE

GG

OO

OO

DD

VV

AA

LL

UU

EE

Vacuum Cleaners

KVC20/21/22

Issue 1/05

Welcome to Kambrook and
your new Jaguar Vacuum
Cleaner.

At Kambrook we believe that the safe
performance of our products is the first
priority in any consumer product so that
you, our valued customer, can confidently
use and trust our products.

We ask that any electrical appliance that
you use be operated in a sensible fashion
with due care and attention placed on the
following important operating instructions:

Read all instructions thoroughly
before activating the appliance and
retain them for future reference.

Ensure that the power source to be used
is the same as the voltage requirements of
the product.

Always switch appliance to off, then switch
off at the power outlet, then unplug the
appliance when not in use and prior to
cleaning or replacing dust bags or filters.

Never use the vacuum without a dust bag
or motor protection filter installed.

Never use the vacuum to vacuum hot
ashes, broken glass, sharp objects or liquids.

Never use in the presence of explosive
liquids or vapours.

Never vacuum up inflammable or
poisonous liquids such as petrol, copier
toner or other volatile substances. Never
vacuum up acids, asbestos or asbestos dust.

Do not leave the appliance unattended
when in use.Young children should be
supervised to ensure that they do not play
with the appliance.

Close supervision is required at all times
when operating the vacuum near children.

Do not store or leave the vacuum near
hot ovens or heating appliances.

This appliance is suitable for domestic use
only. Do not use this appliance for
anything other than its intended use.

Do not use or store outdoors.
Fully extend the cord (to the yellow or

red tape mark) whenever the vacuum
cleaner is in use.

The installation of a residual current
device (safety switch) is recommended to
provide additional safety protection when
using electrical appliances. It is advisable
that a safety switch with a rated residual
operating current not exceeding 30mA be
installed in the electrical circuit supplying
the appliance. See your electrician for
professional advice.

Regularly inspect the supply cord, plug and
actual appliance for any damage. If found
damaged in any way, immediately cease
use of the appliance and return the entire
appliance to the nearest authorised
Kambrook service centre for examination,
replacement or repair.

This vacuum is not intended for use by
young children or infirm persons without
supervision.

2

Features of your Kambrook Jaguar Vacuum (KVC22 shown)

15

14

13

16

20

1. Hose inlet connection point

2. Cord rewind foot pedal

3. On/off foot pedal

11

19

8

3

4

11. Motor protection filter (not shown)

12. 360 degree crush proof hose

13. Telescopic wand

12

9

7

1

5

6

17

2

18

10

4. Park tool

5. On board tool storage lid release lever

6. On board tool storage compartment

7. Dust bag compartment

8. Dust bag full indicator

9. Dust bag compartment opening

10. HEPA filter (KVC21/22)

4 stage filter (KVC20)

14. Turbo floor head (KVC22 only)

15. Hard floor brush (KVC21 only)

16. Crevice tool & brush attachments

17. Variable power control

18. Cord storage outlet

19. Car

20. Multi ter

3

ry handle

rain floor tool

Using Your Kambrook Jaguar
Vacuum Cleaner

Remove all packaging from the unit, hose
and other accessories; ensure that you
have removed all of the accessories before
discarding the packaging.

Ensure that the dust bag and filters are
correctly fitted.

Locate the crush proof hose and push the
connection point into the hose inlet
connection on the top of the unit, until a
“click” sound is heard.

To retract the cord push down on the
‘cord rewind’ pedal.

IMPORTANT: HOLD THE PLUG
END WHEN RETRACTING THE
CORD TO PREVENT IT FROM
STRIKING YOU OR THE VACUUM.

ALWAYS ENSURE THAT THE
DUST BAG AND THE MOTOR
PROTECTION FILTER ARE
CORRECTLY FITTED. NEVER
OPERATE WITHOUT THE DUST
BAG OR FILTERS IN PLACE.

Connect the wide end of the metal wand
to the hose end, and push together firmly.

Fit the floor tool to the narrow end of
the wand/s and push together firmly.

Fully extend the power cord by pulling
the power plug (situated at the rear of the
unit) out from the unit, until the
red/yellow tape on the cord is shown.

ENSURE THAT YOU DO NOT
OVER EXTEND THE POWER
CORD – DO NOT EXTEND PAST
THE RED/YELLOW WARNING

TAPE ON THE CORD

Plug into a 230/240v power point and
switch the power on.

To commence vacuuming push down on
the on/off foot pedal, at the top, rear of
the unit.

When vacuuming is complete, push down
on the ‘on/off’ pedal to switch off.Turn
the power off at the outlet and then
remove the power cord from the power
outlet (when removing plug fr
power outlet grasp the plug not the cor

om the

d).

Variable Power Control

The variable power control slide switch is
located on the top of the vacuum cleaner.
Slide the control to the right for
maximum power for vacuuming hard floor
and carpet surfaces. Slide the control to
the left at the minimum power level when
using the crevice and brush tools.

Crevice and brush tool
accessories

The crevice tool is ideal for vacuuming
hard to reach places such as the edges
along skirting boards.

The brush tools can be used to vacuum
delicate surfaces and areas such as shelves
and venetian blinds.

Set the variable temperature control
between minimum and medium power
when using the tool accessories.

Separate crevice and brush tools are
located inside the on-board tool storage

The opening f

compar
compartment is located directly below the
hose connection inlet.To open place a

tment.

or this

4

finger inside the thumb groove and pull
the compartment lid upwards.

Turn off the vacuum cleaner when
changing any attachments.

Dust bag indicator and
changing the dust bag

The dust bag should be changed when full.
The dust bag indicator window will
gradually turn red as the bag fills up and
when the dust bag indicator displays ‘red’
it is time to change the dust bag.

Always switch appliance off, then switch off
at the power outlet and unplug the appliance
prior to replacing dust bags or filters.

HINT: once the bag is inserted ‘puff-out’ the bag as
much as possible to ensure the full capacity of the
bag can be taken up.

When vacuuming fine dust particles, the
fine dust particles can clog the pores of
the dust bag and the dust bag indicator
will indicate full. If this happens the bag
could appear relatively empty, however
the bag will still need to be changed to
avoid strain on the motor.

NOTE:The bag compartment lid may not close if
the bag is not correctly fitted.

IMPORTANT: DO NOT USE THE
UNIT WITH OUT A DUST BAG
IN PLACE

To remove the dust bag, ensure the unit is
down on its wheels, remove the crush
proof hose and push the ‘Dust bag
compartment lid release lever’ underneath
the handle. Once the lid has released, pull
the top cover back.

To remove the bag, grasp the top of dust bag
and pull out, and dispose in a rubbish bin.

To place a new dust bag, take a fresh dust
bag and with the arrow (printed on the
material section of the dust bag) pointing
down slide the material down into the
dust bag holder, until it comes in contact
with the bottom of the holder.

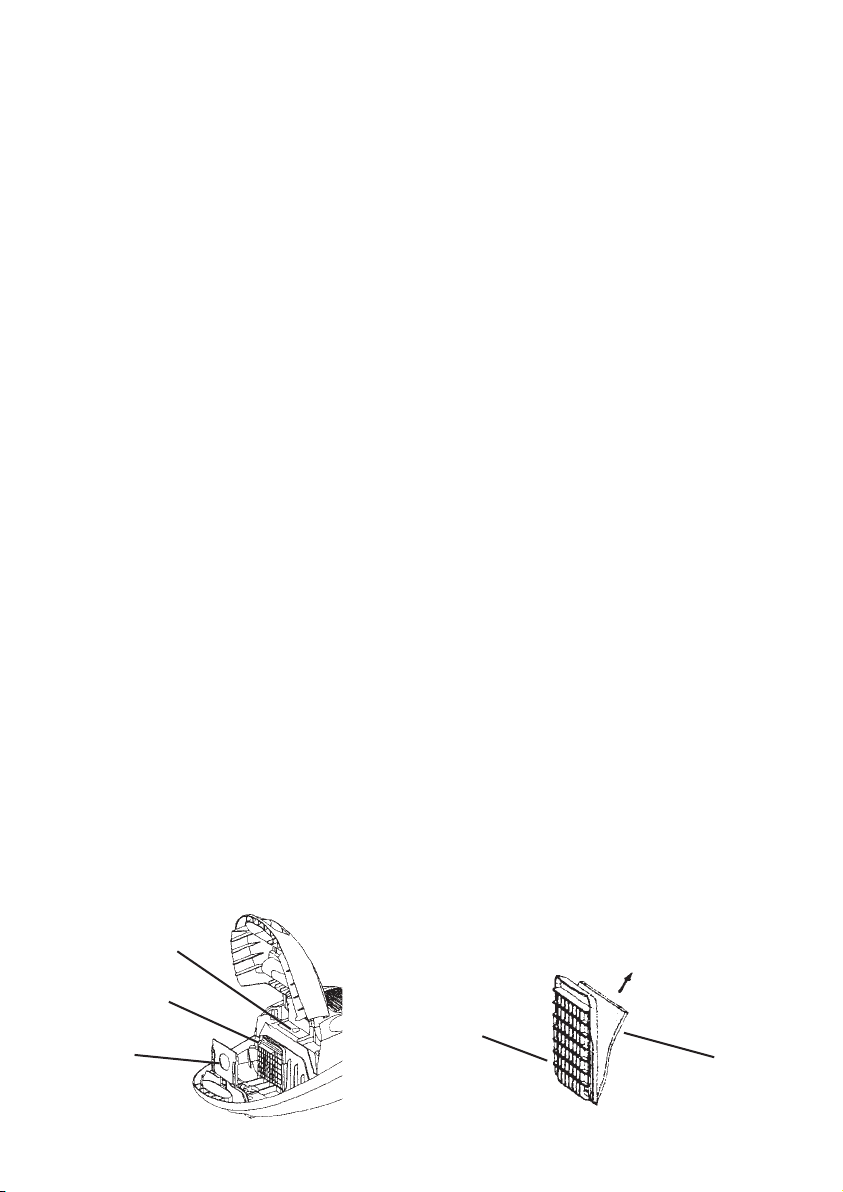

HEPA filter

Filter holder

Dust bag holder

Replacing filters

Filters must be cleaned from time to time
to remove the fine dust particles that have
been collected.This can be done by shaking
them; however after approximately 5 dustbag
changes the filters should be replaced.

Motor protection filter

The motor protection filter must always
be in place when operating the vacuum
otherwise damage to the motor may occur

To replace the motor protection filter –
Remove the dustbag or pull the bag
forward.The motor protection filter is
located at the rear, right hand side of this
inner chamber. Pull the plastic filter holder
upward to remove.

Filter holder

Removable filter

5

Care and Maintenance

Always switch appliance off, then switch
off at the power outlet and then unplug
the appliance prior cleaning or replacing
either filter.

To clean the outside of the unit, wipe the
exterior with a soft, damp cloth. Never
use an abrasive cleaner.

Check and replace both the motor
protection and HEPA dust filters on a
regular basis.

From time to time hair, cotton and other
items may get caught in the brushes of the
floor head.To remove such items, take a
pair of scissors and cut across the cotton,
hair, etc to loosen, then gently pull to
remove.

NOTE: Do not continue to pull if the item/s does
not easily come out as this may permanently
damage the floor tools.

The Turbo brush (KVC22 only) should be
cleaned regularly for optimum performance.
Without regular cleaning the turbo head
may block and restrict the rapid
movement of the bristles.To clean the
bristles, take a pair of scissors and cut
across the cotton, hair, etc to loosen, then
gently pull to remove.

6

KAMBROOK
2YEAR REPAIR
WARRANTY

KAMBROOK warrants the purchaser
against defects in workmanship and material,
for a period of 2 years from the date
of purchase (3 months commercial use).

Guarantee and purchase receipt for this
product are to be retained as proof
of purchase and must be presented
if making a claim under the terms of the
KAMBROOK guarantee.

KAMBROOK reserves the right to repair
the appliance within the warranty period.

Warranty does not apply to any defect,
deterioration, loss or injury or damage
occasioned by, or as a result of the misuse
or abuse, negligent handling or if the product
has not been used in accordance with the
instructions. Items subject to wear and
tear, such as filters, accessories and drive
belts, are not covered by this warranty.
The guarantee excludes breakages and
consumables.

This warranty is void if there is evidence
of the product being tampered with by
unauthorised persons.

If the product includes one or a number of
accessories only the defective accessory
or product will be replaced.

In the event of KAMBROOK choosing to
replace the appliance, the guarantee will
expire at the original date, ie. 12 months
from the original purchase date.

In Australia, this KAMBROOK Guarantee
is additional to the conditions and
guarantees which are mandatory as
implied by the Trade Practices Act 1974
and State Territory legislation.

For service, spare parts or product
information in Australia

KAMBROOK on the customer Service
Line (free call) 1800 800 634.

For service, spare parts or product
information in New Zealand,

please call KAMBROOK New Zealand,
Greenmount, Auckland Phone [phone]
Fax [phone]. For spare parts phone
09 271 3980.

If claiming under this guarantee the product
must be returned to freight prepaid.

, please call

YOUR PURCHASE RECORD (Please complete)

DATE OF PURCHASE______________________________________________________

MODEL NUMBER ________________________________________________________

SERIAL NUMBER (If applicable) ______________________________________________

PURCHASED FROM

______________________________________________________

Attach purchase receipt here.

Please don’t return purchase record

unless you are making a claim

Kambrook 461 Plummer Street, Port Melbourne 3207, Australia

GG

OO

OO

DD

NN

AA

MM

EE

GG

OO

OO

DD

VV

AA

LL

UU

EE

Customer Service Line (free call) 1800 800 634 Customer Service Fax [phone]
Kambrook New Zealand, Private Bag 94411, Greenmount,Auckland, New Zealand
Customer Service Line/Spare Parts 09 271 3980 Customer Service Fax [phone]

Due to continual improvement in design or otherwise

the product you purchase may differ slightly from the one illustrated in this book. Issue 1/05

,
