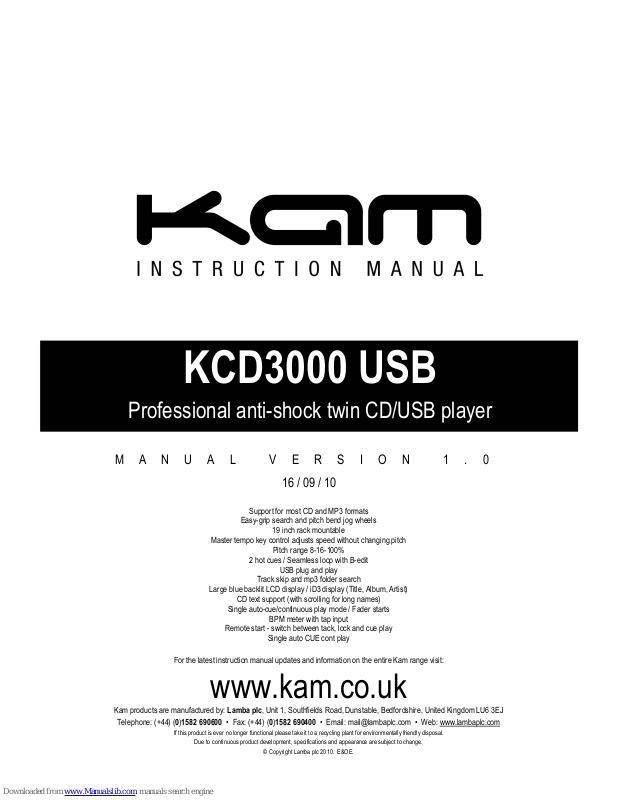

KAM KCD3000 USB Instruction Manual

KCD3000 USB

Professional anti-shock twin CD/USB player

Support for most CD and MP3 formats

Easy-grip search and pitch bend jog wheels

19 inch rack mountable

Master tempo key control adjusts speed without changing pitch

Pitch range 8-16-100%

2 hot cues / Seamless loop with B-edit

USB plug and play

Track skip and mp3 folder search

Large blue backlit LCD display / iD3 display (Title, Album, Artist)

CD text support (with scrolling for long names)

Single auto-cue/continuous play mode / Fader starts

BPM meter with tap input

Remote start - switch between tack, lock and cue play

Single auto CUE cont play

MANUAL VERSION 1.0

16 / 09 / 10

For the latest instruction manual updates and information on the entire Kam range visit:

www.kam.co.uk

Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ

Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: [e-mail] • Web: www.lambaplc.com

If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.

Due to continuous product development, specifications and appearance are subject to change.

© Copyright Lamba plc 2010. E&OE.

Thank you for purchasing this product, we are sure that it will serve you for many years to come.

To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the
basic operations of this unit. After you have read the instructions, please retain them for future reference.

This unit has been tested at the factory before being shipped to you.

To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. To prevent a fire hazard, do not
expose the unit to any naked flame sources. Unplug this apparatus during lightning storms or if it is unlikely to be used for long
periods of time.

When installing the unit, please ensure you leave enough space around the unit for ventilation. Slots and openings in the unit are
provided for ventilation to ensure reliable operation of the product and to protect it from overheating. To prevent fire hazard, the
openings should never be blocked or covered.

Always handle the power cable by the plug. Never pull out the plug by pulling on the cable. Never touch the power cable when
your hands are wet as this could cause an electric shock. Do not tie a knot in the cable. The power cable should be placed such
that it is not likely to be stepped on. A damaged power cable can cause a fire or give you an electrical shock. Check
the power cord periodicaly, if you ever find that it is damaged, replace it before using the unit again. Contact your retailer for a
replacement.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area
where this unit is to be used meets the required written on the unit.

The lightning flash symbol inside a triangle is intended to alert the user to the presence high voltage within the unit’s
enclosure that may be of sufficient power to constitute a risk of electrical shock to persons.

Caution: to prevent the risk of electric shock, do not attempt to open the unit. No user-serviceable parts inside. Refer all
servicing to qualified service personnel.

The exclamation mark inside a triangle is intended to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the appliance.

Any modification carried out on the unit may invalidate the unit’s warranty.

If applicable, only use the stand, tripod or bracket specified or sold with the apparatus.

Select the installation location of your unit carefully. Avoid placing it in direct sunlight or locations subject to vibration and
excessive dust. Do not use the unit where there are extremes in temperature (below 41ºF / 5ºC or exceeding 95ºF / 35ºC).

Unpacking and safety: Please unpack your new product carefully, your new product should reach you in perfect condition. Please
check that no damage has occurred during transit. If any damage is found, do not operate your unit. Please contact the retailer
you purchased it from immediately. If there is any damage to the mains cable do not use the device. Always disconnect the unit
from the mains supply when carrying out any servicing or cleaning of the unit.

The serial number for this equipment should be located on the rear or underside of the unit. Please make a note of this number as
you will need it for your warranty, it is a good idea to keep a copy of the serial number for your own records.

Description of functions
Control unit

1. OPEN/CLOSE: It opens and closes the CD tray.

2. JOG WHEEL: Use the jog wheel to adjust the speed to match with the other playing track. It is also used for the SEARCH and

SCRATCH functions.

3. CD/USB: Press to switch the play source between USB and CD.
* It only works only when the playback is paused. Press track skip button to switch the playing source between CD, USB 1 and

USB 2. Then press CD/USB button again to confirm your selection. When playing from only one USB source it is possible to load
track to deck A and deck B from the one USB source

4. SCRATCH: To activate Scratch function.

5. TIME: This button switches the display between remaining time, elapsed playing time, and total remaining time.

6. CONTINUE/SINGLE
CONTINUE: The unit continues to play the tracks until the end. When changing to the next track manually or automatically, the
main cue will also renew to the new track.
SINGLE: The unit plays a single track only. When the current track ends, it changes to the next track but stops and returns to the

main cue of the new track.

7. MEMO/AUTO: Press it for memorizing Hot Cue or activating Auto Loop.

8. Hot Cue: This unit will allow you to play from 2 cue points instantly. This can be set while playing the track or in pause mode

using the jog wheel.
To set CUE memory: Press MEMO first and then the desired CUE button. The CUE button will flash and when the CUE button
stays on the cue point is set. Pressing the cue button at any time will start the track for the set cue point, setting more cue points
will allow you to jump between the set cue points instantly.

9. DISPLAY: The display is used to see which functions are playing and selected.

10. FOLDER: Press this button to switch between MP3 folder and MP3 file. Select a folder by pressing this button again.
*In MP3 File mode, Total-Track shows the total MP3 files in the folder.
*In MP3 Folder mode, Total-Track shows the total folders in the CD or in the USB storage device.
*When you use a hard drive as your USB play source, holding this button down for 2 seconds will jump to partitions.
