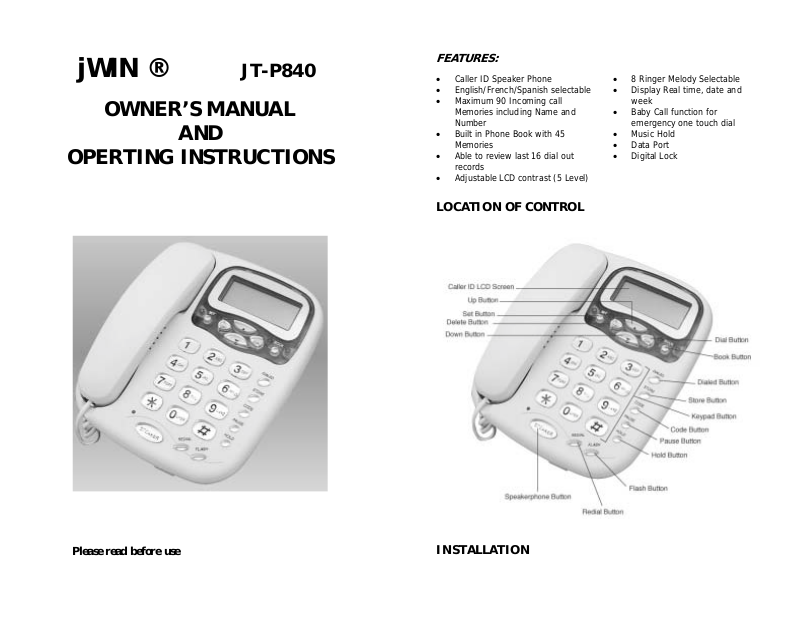

jWIN ®
OWNER’S MANUAL
OPERTING INSTRUCTIONS
AND
JT-P840
FEATURES:
• Caller ID Speaker Phone
• English/French/Spanish selectable
• Maximum 90 Incoming call
Memories including Name and
Number
• Built in Phone Book with 45
Memories
• Able to review last 16 dial out
records
• Adjustable LCD contrast (5 Level)
• 8 Ringer Melody Selectable
• Display Real time, date and
week
• Baby Call function for
emergency one touch dial
• Music Hold
• Data Port
• Digital Lock
LOCATION OF CONTROL
Please read before use
INSTALLATION
1. Insert 3 AAA Batteries (Not included)
2. Connect the phone with the telephone line
3. Press [SET] key to enter the setup mode, USE [UP], [DOWN] key to
select sub-menu, use [SET] key to enter sub-menu and [DEL] key to
exit.
SELECT LANGUAGE
Press [SET] to enter, use [UP], [DOWN] to select desired language then
press [SET] key to confirm.
SET AREA CODE
Press [SET] to enter, use [UP], [DOWN] to select number then press
[SET] key to confirm and enter the next digit.
LONG DISTANCE ACCESS
Press [SET] key to enter, use [UP], [DOWN] to select number then press
[SET] key to confirm and enter the next digit.
DATE/TIME
Press [SET] to enter, use [UP], [DOWN] to select the year, then press
[SET] key to confirm and enter time and date by using the same
method.
LCD CONTRAST ADJUST
Press [SET] to enter, use [UP], [DOWN] to select desired contrast level
and press [SET] key to confirm.
BABY CALL
Press [SET] key to enter, use [UP], [DOWN] to turn the baby function
on/off, when you turn the function on, enter the emergence call number
by dial keypad. Press [SET] key to confirm.
RINGING MELODY
Press [SET] to enter, use [UP], [DOWN] to select desired ringing melody
and press [SET] key to confirm. (Please make sure the telephone lines
are connected properly)
PHONE BOOK INPUT
Press [SET] to enter,
− First enter Number by using the dial keypad, press [SET] key to
confirm.
− Then enter Name by pressing the key which corresponds to the
desired letter several times until the wanted letter appears
− Wait 2 seconds then enter the next letter.
− Press [SET] key to complete.
PHONE BOOK EDIT
− Press [SET] to enter, enter the first letter of the record’s Name by
pressing the key which corresponds to the desired letter several
times until the wanted letter appears. Press [SET] key to confirm, or
use [UP], [DOWN] key to search the wanted record.
− After the wanted record appears, use [DEL] key to erase the old
phone number and re-enter the correct one.
− Press [SET] to confirm changes and the cursor will move to the
Name position.
− Use [UP], [DOWN] key to move the cursor, use [DEL] key to erase
the letter and enter new letter by pressing the key which
corresponds to the desired letter several times until the wanted
letter appears. Press [SET] key to confirm.
PLEASE NOTE THAT KEY [0] IS USED AS A BLANK SPACE
DURING THE NAME ENTERING.
OPERATION
1. MAKING A CALL
− You can lift the handset or press [SPEAKER] key to get the dial tone
and dial the desired number or
− You can enter the desired number first and use the [DEL] key to
correct the number then press [SPEAKER]/[REDIAL] or pick up
handset to dial the number.
2. REVIEW INCOMING CALLS AND DIAL BACK
Use [UP], [DOWN] key to review the incoming call records and press
[DIAL] key to dial back the number. Press [DIAL] key twice to dial out
the number with long distance access prefix.
3. SAVE A INCOMING CALL INTO PHONE BOOK
Use [UP], [DOWN] key to search the incoming call record. Press
[STORE], then press [BOOK] key to save the record into PHONE BOOK.
4. DELETE INCOMING CALLS
− Use [UP], [DOWN] key to search the incoming call record.
− Press [DEL] key to erase the single record
− By keep pressing [DEL] key more than 4 seconds in main menu, the
entire incoming calls record will be deleted.
5. REVIEW DIALED CALLS
Use [DIALED] key to review the last dial out record and press [DIALED]
continually for total 16 records review. Use [DEL] key to erase a dialed
call record.
Press [REDIAL] to dial out the displaying number.
6. PHONE BOOK REVIEW AND DIAL OUT
− Press [BOOK] key to enter the phone book, you can use [UP],
[DOWN] key to review the whole records or
− Enter the first letter of the record by pressing the numeric key,
which corresponds to the letter, and then press the same key
continually to until the records you want appeared.
− Press [DIAL] to dial out the number after the desired record is
located.
7. MUSIC ON HOLD
Press [HOLD] key to start the music hold and
- If lift the handset again music hold will stop and starts conversation
again or
-Press [HOLD] or [SPEAKER] key again to stop music hold and enter
“speaker phone” mode.
8. PAUSE BUTTON
In some cases, such as PABX or long distance service, pauses should be
inserted in the dialing sequence, the unit provides stackable pause
function (3.6 sec/pause) which facilitates flexible applications.
9. BABY CALL FUNCTION
When you activate the baby call function (Please view the installation
part on how to activate the function), by pressing any key on the phone
(except [SET] key), the preset number will dial out under speakerphone
mode.
10. DIGITAL LOCK
Activate Lock Function
1. Press [CODE] key to enter lock manual, “INPUT PIN CODE” will
appear on LCD.
2. Enter “8888” (preset pin code) and press [CODE] again, “UPDATE
LOCK CODE” will appear on the LCD.
3. Enter desired digits you would like to lock up and use “#” to separate,
for example “001” and “1”, enter “001#1”
4. Press [CODE] to confirm and complete
Deactivate Lock Function
1. Repeat Step one above
2. Repeat Step two above
3. Use [DEL] key to erase the locked digits
4. Press [CODE] to confirm
Modify Pin Code
1. Press [CODE] key, then enter factory preset pin code [8888] and
press [CODE] key again. “UPDATE LOCKCODE” will appear on the LCD.
2. Press [UP] key to enter the modify mode, “MODIFY PIN CODE” will
appear on the LCD.
3. Enter desired personal pin code (must be 4 digits) and press [CODE]
key to confirm.
* If you forget your pin code, please remove the batteries and
disconnect the unit form telephone line for three hours. The pin code
will reset back to factory mode “8888” and
all other information such as
phone book and incoming calls details will be erased.
IMPORTANT NOTES:
To operate this unit, you must have ‘CALLER ID SERVICE’ set-up with
your local telephone company. Some functions such as “CALLER NAME
INDICATION” and “MESSAGE WAITING INDICATION” will only operate if
such services are included in the user’s Caller I.D. program with the local
telephone company.
IMPORTANT SAFETY INSTRUCTIONS
When you use your telephone, follow these safety precautions to reduce
the risk of fire, electric shock, and injury:
• Read and understand all instructions. Follow all warnings and
instructions marked on the phone.
• Unplug the phone from the wall jack before cleaning with a damp
cloth.
• Do not use liquid or aerosol cleaners. Do not use this phone near
water. For example, near a bathtub, sink, or a pool.
• Do not let anything rest on the phone or power cord. Do not place
this phone where a person can walk on or abuse the cord.
• To reduce the risk of electric shock, do not push objects through the
phone’s slots or disassemble the phone. Pushing objects in the
phone or opening or removing covers might expose you to
dangerous voltages or other risk. Take it to a service person when
service or repair is required. Incorrect reassembly can cause electric
shock when you use the phone.
• Do not place the phone on a bed, rug, any similar surface, or near a
heater. The phone has slots and openings for ventilation that must
not be blocked or covered.
• Do not place this phone on an unstable cart, stand, or table. The
phone might fall, and be seriously damaged.
• Unplug this phone from the phone line jack and refer servicing to
service personnel under the following conditions:
a. If liquid spills into the phone.
b. If the phone is exposed to rain or water.
c. If the phone fails to operate normally.
d. If the phone is dropped or the cabinet is damaged.
e. If the phone exhibits a distinct change in performance.
• Adjust only controls covered by the operating instructions. Improper
adjustment of other controls can cause damage and often requires
extensive work by a technician to restore, the product to normal
operation.
• Avoid using the phone during electrical storms. There is a risk of
electric shock from lightning.
• Do not use the phone to report a gas leak in the vicinity of the leak.
• Follow alt safety rules and use caution when installing or modifying
telephone lines. For example:
a. Do not install telephone wiring during a lightning storm.
b. Only install telephone jacks in dry locations unless the jack is
specifically designed for wet locations.
c. Avoid touching un-insulated telephone wires or terminals unless
the telephone line is disconnected at the network interface.
SAVE THESE INSTRUCTIONS
AC ADAPTER FOR DC JACK
SPECIFICATION: OUTPUT DC9V 100MA
POLARITY OF PLUG:
