ENGLISH

Digital Camera >>

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation

Note: This equipment has been tested and found to comply with the limits for

Class B digital devices, pursuant to Part 15 of the FCC rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected

Consult the dealer or an experienced radio/TV technician for help

Use of shielded cable is required to comply with Class B limits in Subpart B of

Part 15 of the FCC rules. Do not make any changes or modifications to the

equipment unless otherwise specified in the manual. If such changes or

modifications should be made, you could be required to stop operation of the

equipment.

2-E

TRADEMARK INFORMATION

Microsoft® and Windows® are U.S. registered trademarks of Microsoft

Corporation.

Pentium® is a registered trademark of Intel Corporation.

Macintosh is a trademark of Apple Computer, Inc.

SDTM is a trademark.

Other names and products may be trademarks or registered trademarks of

their respective owners.

READ THIS FIRST

Notice:

1. Product design and specifications are subject to change without notice.

This includes primary product specifications, software, software drivers,

and user’s manual. This User Manual is a general reference guide for the

product.

2. The product and accessories that come with your camera may be different

from those described in this manual. This is due to the fact that different

retailers often specify slightly different product inclusions and accessories

to suit their market requirements, customer demographics, and geographical

preferences. Products very often vary between retailers especially with

accessories such as batteries, chargers, AC adapters, memory cards, cables,

carrying cases/pouches, and language support. Occasionally a retailer will

specify a unique product color, appearance, and internal memory capacity.

Contact your dealer for precise product definition and included accessories.

3. The manufacturer assumes no liability for any errors or discrepancies in

this user’s manual.

4. For driver updates and revisions to this manual, please refer to our website.

User’s Manual >>

E-3

Digital Camera >>

WARNINGS

Do not expose the camera to moisture and make sure no water gets into

the camera. Take particular care when using the camera under extreme

weather conditions, such as rain or snow, or when operating the camera at

the beach or near water. Avoid using this camera in places subject to extreme

moisture. Do not use the camera if water has entered the camera. Turn the

camera off and remove the batteries. Contact your dealer or authorized

service facility. Do not continue to use the camera as this may cause a fire

or an electrical shock.

Do not use the camera if any foreign objects have entered the camera.

Turn the camera off and remove the batteries. Contact your dealer or

authorized service facility. Do not continue to use the camera as this may

cause a fire or an electrical shock.

Do not place the camera in an unstable location such as on a wobbly table

or sloping surface where the camera may fall or tip over and cause injury. If

the camera has been dropped or damaged, turn the camera off and remove

the batteries. Contact your dealer or authorized service facility. Do not

continue to use the camera as this may cause a fire or an electrical shock.

Do not insert or drop metallic or other foreign objects into the camera through

access points such as the memory card slot. This may cause a fire or an

electrical shock.

Do not attempt to modify this camera. Do not remove the camera casing.

This may cause a fire or an electrical shock. Internal inspection and repairs

should only be carried out by an authorized service facility.

Never operate this camera in any way while driving a vehicle. This may

cause a traffic accident.

4-E

CAUTIONS

Do not place this camera in a location affected by oil fumes or steam, such

as near a cooking stove or humidifier. This may cause a fire or an electrical

shock.

Do not leave this camera in a location subject to extremely high temperatures,

such as in a sealed vehicle or in direct sunlight. Exposure to high

temperatures may adversely affect the camera case and internal

components and may cause a fire.

Do not cover or wrap the camera with a cloth or quilt. This may cause heat

to build up and distort the camera case and cause a fire. Always use the

camera and accessories in well-ventilated locations.

Handle the camera carefully and do not expose the camera to shock or

vibration. Handling the camera roughly may cause a malfunction.

Do not use batteries other than those specified for use with your camera.

Use of unsuitable batteries may result in the batteries splitting, or leaking

and may cause a fire, injury, or soiling of the battery compartment.

When placing the batteries into the camera, check the polarity markings on

the batteries ( - and + ) to ensure that the batteries are inserted correctly.

Incorrect battery polarity will result in camera inoperability and may result

in the batteries splitting or leaking and causing a fire, injury, or soiling of the

battery compartment.

Remove the batteries if the camera will not be used for an extended period

of time. The batteries may leak and cause a fire, injury or soiling of the

battery compartment. If the batteries leak, clean and wipe the battery

compartment carefully and install new batteries. Wash your hands carefully

if you touch the battery fluid.

User’s Manual >>

E-5

Digital Camera >>

CONTENTS

8 INTRODUCTION

8 Overview

9 Package Contents

10 GETTING TO KNOW YOUR CAMERA

10 Front View

11 Rear View

12 Mode Dial

13 LCD Monitor Icons

15 Button Functions

16 GETTING STARTED

16 Installing Batteries

17 Using an AC Power Adapter (optional accessory)

18 Inserting an SD Memory Card (optional accessory)

19 Attaching the Hand Strap

19 Turning the Power On/Off

20 Language Selection

20 Setting the Date and Time

21 Setting Image Resolution and Quality

22 RECORD MODE

22 Taking Images

23 Shooting with Scenery-Matching

24 Digital Zoom

25 Self-timer

26 Flash

6-E

28 PLAYBACK MODE

28 Viewing Images 29 Zoom Playback

29 Displaying Thumbnail Images 30 Slideshow Display 31 Viewing on a Television

32 Deleting Images 34 Formatting Media 35 Copying the Contents of Internal Memory to a Memory Card

36 Changing the Camera Startup Logo 37 Setting the DPOF

38 Protecting Images

39 MOVIE MODE

39 Recording Video Clips 40 Viewing Video Clips

41 TRANSFERRING RECORDED IMAGES AND VIDEOS TO YOUR

COMPUTER

42 Step 1: Installing the USB Driver 43 Step 2: Connecting the Camera to Your Computer 44 Step 3: Downloading Image and Video Files

45 INSTALLING PHOTOSUITE

User’s Manual >>

46 INSTALLING PHOTOVISTA

47 MENU OPTIONS

47 The Basis of the Menu Operation 48 OSD Menus

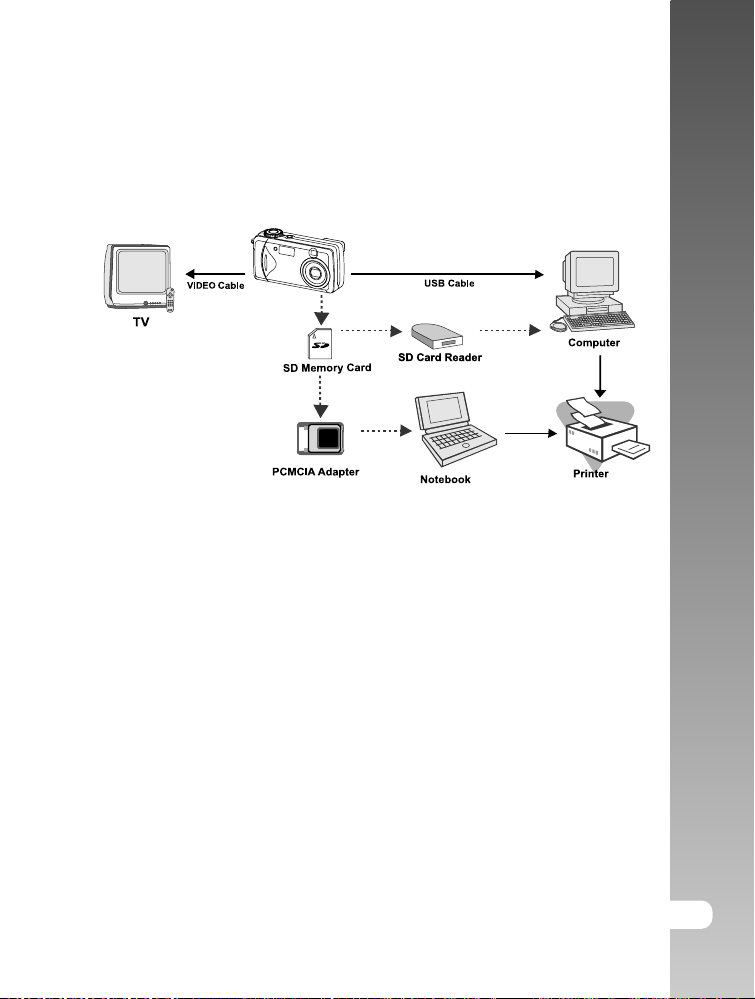

53 CONNECTING THE CAMERA TO OTHER DEVICES

54 CAMERA SPECIFICATIONS

E-7

Digital Camera >>

INTRODUCTION

Overview

Your new digital camera delivers high quality, 2032 x 1520 resolution images

using a 3.0 Mega pixel imager. Using the 1.5" TFT color image LCD monitor,

you can compose images and then examine them in detail. An auto-flash sensor

automatically detects the shooting (lighting) conditions and determines whether

the flash should be used. This feature helps ensure that your images turn out

right.

16MB internal (built-in) memory lets you capture and store images without the

need for an additional memory card. However, you may wish to expand the

memory capacity (up to 512MB capacity) by using an external memory card.

In addition to still images, you can record short videos using the movie function.

Images you have taken can be downloaded to your computer using the USB

cable (USB driver required for Win 98 and Mac OS 8.6). You can enhance and

retouch your images on your computer by using the provided editing software,

or image editing software you may already own. You may share your images

with your friends via e-mail, in a report, or on a website.

8-E

The illustrations in this manual are for the purpose of explanation and

may differ from the actual setting of your camera.

Package Contents

Carefully unpack your camera and ensure that you have the following items:

Common Product Components:

Digital Camera

USB cable

Video cable

Software CD-ROM

User’s manual

Camera strap

Common (Optional) Accessories:

Memory card

Camera pouch

Batteries

AC power adapter

Accessories and components vary by retailer.

User’s Manual >>

E-9

Digital Camera >>

GETTING TO KNOW YOUR CAMERA

Front View

321

VIDEO OUT

DC IN 3V

10-E

1. Shutter button

2. Mode dial

3. POWER Power button

4. Viewfinder

5. Lens cover/Lens

6. Flash

7. Self-timer LED

8. Battery cover

9. Terminal cover

10. Strap eyelet

- USB/VIDEO OUT terminal

- DC IN terminal

Rear View

User’s Manual >>

18 19

VIDEO OUT

DC IN 3V

11. Viewfinder

12. Viewfinder LED

13. LCD Monitor

14.

Flash button

Arrow button (left)

15. MENU Menu button

16. Wide-angle button

17.

18.

Telephoto button Thumbnail button

Macro button

Arrow button (up)

19.

Self-timer button Arrow button (right)

20. OK OK button

21. Delete button

Arrow button (down)

22. DISP Display button

23. Tripod mount

24. Memory card cover

E-11

Digital Camera >>

Mode Dial

The mode dial is on the top of the camera.

213

Mode Dial Symbols and Functions

Symbol Mode State Function

SET Setup mode You can make and confirm your camera’s settings.

Movie mode You can record video clips.

Playback mode You can play back your movies and still images

and view them on the LCD monitor. Slide show

or thumbnail display for recorded images is also

available in this mode.

Record mode You can shoot still images.

12-E

LCD Monitor Icons

Display icons - Still Image Record Mode:

1. Scene mode Auto Portrait Landscape Sports

Pan Night scene

Backlight

2. Image size 2032 x 1520 pixels 1600 x 1200 pixels 1280 x 960 pixels 640 x 480 pixels

3. Image quality Super fine Fine Normal

1 2 3 4 5 6

6. Macro mode

7. Possible number of shots (at

8. Zoom state

0007

the current size and quality settings)

User’s Manual >>

4. White balance

[no indication] Auto

Daylight Cloudy Sunset Tungsten Fluorescent

5. Flash mode Auto flash Red-eye reduction Fill flash (on) Flash off

9. Battery level

Full battery power Medium battery power Virtually no battery power

10. Memory card indicator

11. Self-timer mode

02 2-sec. delay

10 10-sec. delay

10+2 10+2-sec. delay

E-13

Digital Camera >>

Display icons - Movie Mode:

1. White balance

2. Recordable movie time

available

3. Zoom state

4. Battery level

5. Memory card indicator

Display icons -Playback Mode:

1. Frame number

2. Forward arrow

3. Battery level

4. Memory card indicator

5. Reverse arrow

0:00:20

01/04

14-E

Button Functions

The following table summaries the functions of the camera’s button.

Button Function POWER Power button Switch the camera power on/off.

Mode dial Set the camera mode. Shutter button In record mode: Capture the composed picture.

In movie mode: Start/Stop the movie recording.

Wide-angle button In shooting mode: Zoom out on the subject (wide-

(record & movie) angle shot). In playback mode: Zoom out on the ‘zoomed’ image.

Telephoto button In shooting mode: Zoom in on the subject

(record & movie) (telephoto shot). In playback mode: Zoom in on the selected image

(image enlarged).

MENU Menu button Display on/off the OSD menu. DISP Display button Switch the LCD monitor display.

Thumbnail button In playback mode: Display recorded image on

thumbnail screen. Pause/Resume movie playback.

Macro button In record mode: Switch the macro mode (close

up shot) on/off. Arrow button (up) In menu mode: Scroll up on the OSD menu. Flash button In record mode: Toggle the flash mode. Arrow button (left) In playback mode: Move back to the previous image.

In menu mode: Scroll left on the OSD menu.

Self-timer button In record mode: Switch the self-timer mode

on/off. Arrow button (right) In playback mode: Move forward to the next image.

In menu mode: Scroll right on the OSD menu.

Delete button In record mode: Quick delete of the last

recorded image/video clip. Arrow button (down) In menu mode: Scroll down on the OSD menu.

OK OK button In playback mode: Return to normal display on the

thumbnail display.

Start/Stop movie playback.

Stop the slideshow display.

In menu mode: Enter the field menu/Confirm

the setting.

User’s Manual >>

E-15

Digital Camera >>

GETTING STARTED

You can use either 2 AA size batteries (Alkaline or Ni-MH) or an AC power

adapter (optional accessory) to power the camera. Battery power is convenient

for capturing images or recording video clips while an AC power adapter is

useful when transferring images to your computer.

Installing Batteries

1. Make sure the camera is turned off.

2. Slide the battery cover in the direction of

the [OPEN] arrow.

3. Insert the batteries, noting correct polarity

(+ and -).

4. Close the battery cover firmly.

Different battery types and surrounding temperatures may affect the

battery performance.

Avoid using batteries in extremely cold environments as low temperatures

can shorten the battery life and reduce camera performance. This low

temperature will also influence Alkaline battery performance, therefore

Ni-MH rechargeable battery is highly recommended.

If you are using the new rechargeable batteries or rechargeable batteries

that have not been used for an extended period of time (batteries that

pass the expiry date are exceptions) might affect the number of pictures

that can be taken. Therefore, to maximize their performance and lifetime,

we recommend that you fully charge the batteries and discharge them

for at least one complete cycle before use.

If you will not be using the batteries for an extended period of time,

remove them from the camera to prevent leakage or corrosion.

Never use batteries of different types (together) or mix old and new

batteries.

Never use manganese batteries.

16-E

VIDEO OUT

Using an AC Power Adapter (optional accessory)

1. Make sure the camera is turned off.

2. Open the terminal cover and connect one

end of the AC power adapter to the jack

labeled "DC IN 3V".

3. Connect the other end to an electrical

outlet.

Make sure to use only the AC power adapter specified for the camera.

Damage caused by the use of an incorrect adapter is not covered under

the warranty.

User’s Manual >>

E-17

Digital Camera >>

Inserting an SD Memory Card (optional accessory)

The camera comes with 16MB of internal memory, allowing you to store images

and video clips in the camera. However, you can expand the memory capacity

by using an optional SD (Secure Digital) memory card so that you can store

additional images and video clips.

1. Make sure the camera is turned off.

2. Slide the memory card cover in the direction

of the [OPEN] arrow.

3. Insert an SD memory card:

The front side of the memory card

(printed arrow) should face towards the

rear side of the camera.

If the card cannot be inserted, check the orientation.

4. Close the memory card cover.

Be sure to format the memory card with this camera before its initial

usage. Refer to section in this manual titled “Formatting Media” for further

details.

To remove a memory card:

Make sure the camera is turned off. Open the memory card cover. Press lightly

on the edge of the memory card and it will eject.

18-E

To prevent valuable data from being accidentally

erased from an SD memory card you can slide

the write protect tab (on the side of the SD memory

card) to “LOCK”.

To save, edit, or erase data on an SD memory card, you must unlock

the card.

Attaching the Hand Strap

To prevent accidental dropping of the camera, always use the strap.

Attach the hand strap as follows:

1. Thread the small loop of the hand strap

through the hand strap eyelet on the

camera.

2. Pull the large loop through the small loop

until the strap is firmly secured.

VIDEO OUT

DC IN 3V

Turning the Power On/Off

The camera is switched between On and Off as follows.

To turn the camera On/Off

1. You can use the POWER button to power

on/off the camera.

When the power is turned on, the

camera will start in the mode that was

set with the mode dial.

User’s Manual >>

If the camera goes unused for a certain period of time while the camera

is powered on, the camera will switch to an idle mode, and eventually

turn itself off to conserve power.

E-19

Digital Camera >>

Language Selection

When you first turn the camera on, the language-setting screen appears,

prompting you to select a language for displayed information on the LCD monitor.

Follow the steps below to set the OSD (On-Screen Display) language:

1. Select the language that you prefer using

the / buttons.

2. Press the OK button to confirm.

The language setting will be retained when the camera is turned off.

The provided languages are [English], [Français], [Deutsch], [Español],

[Italiano], [

], [ ], [ ].

Setting the Date and Time

The Date time screen will be presented if/when:

Camera is turned on for the first time (after you select a language).

Camera is turned on after leaving the camera without batteries for an

extended period of time.

When the Date & Time screen appears, follow these steps to set the correct

date and time.

1. Select the setting item with the / buttons

and set the date and time with the /

buttons.

2. Check the setting contents and press the

20-E

OK button.

Setting Image Resolution and Quality

Resolution and quality settings determine the pixel size (dimension), image file

size, and compression ratio for your images. These settings affect the number

of images that can be stored in memory, or on a memory card. As you get to

know the camera, it is recommended that you try each quality and resolution

setting to get an appreciation for the effects that these settings will have on

your images.

Higher resolution and higher quality images offer the best photographic results

but produce large files sizes. Therefore, few images will take up a lot of memory

space.

High resolution and quality settings are recommended for printed output and

situations requiring the finest detail. Lower resolution/quality images take up

less memory space and may be quite suitable for sharing images via e-mail, in

a report, or on a web page.

To change image resolution or image quality, perform these steps below:

1. Set the mode dial to .

2. Press the MENU button.

3. Select [Image size]/[Quality] using the /

buttons and press the OK button.

4. Use the / buttons to select the setting

that you desire, and press the OK button.

5. Press the MENU button to exit from the

menu mode.

Image size

2032 x 1520

1600 x 1200 1280 x 960 640 x 480

Set: Ok

Quality

Super fine

Fine Normal

User’s Manual >>

Set: Ok

E-21

Digital Camera >>

0007

RECORD MODE

Taking Images

Your camera is equipped with both an optical viewfinder and a 1.5" LCD display

to compose images. Taking images using the optical viewfinder will conserve

battery power. If your batteries are low, it is recommended that you only compose

images by using the viewfinder. Using the LCD monitor you can compose images

more accurately, but at the cost of battery consumption.

1. Set the mode dial to .

2. Compose your shot either looking through

the viewfinder or on the display screen.

3. Place the subject of your photo at the center

and press the shutter button halfway.

Once the shot is in focus, the focus frame

on the LCD monitor turns green and the

camera releases one beep sound.

If it cannot focus, the focus frame turns

red.

4. Gently press the shutter button all the way.

22-E

You can use zoom features to zoom in/out on the subject using the /

buttons. The LCD display darkens in strong sunlight or bright light. This is not a

malfunction.

Shooting with Scenery-Matching

If you use the Scene Mode, you can select form among seven types of shooting

modes and shoot automatically with optimal settings for the scene.

You can select a mode from the following seven types, in Scene mode.

Scene Mode Icon Description

Auto The camera automatically adjust the focus and

exposure settings to take photographs.

Landscape Select this option to take photographs of distant

scenery or landscapes.

Sports Select this option to take photographs of fast-moving

subjects.

Portrait Select this option to make people stand out with the

background out-of-focus.

Pan With this Pan mode, the camera’s focus distance is

preset to 1 meter, and images are taken without the

AF mechanism, allowing you to instantly catch the

moment when you do not want to miss a shot.

Night scene Select this option to take photographs of people

against a dusk or night-time background.

Backlight Select this option to take photographs with background

is particularly bright, the subject will be dark (under-

exposure).

User’s Manual >>

In the / mode, the flash mode is automatically set to .

In the mode, the flash mode is automatically set to .

In the / mode, the flash mode is automatically set to .

E-23

Digital Camera >>

To use Scene mode, follow the steps below:

1. Set the mode dial to .

2. Press the MENU button.

3. Select [Scene] using the

/ buttons.

4. Press the OK button.

5. Select the desired scene mode using the / buttons and press the OK button to

Scene Auto

Landscape Sports Portrait

confirm the selection.

6. Press the MENU button to exit from the

menu mode.

7. Compose the image and press the shutter

button.

Scene Pan

Night scene Backlight

Digital Zoom

Using digital zoom, images appear closer. Digital processing lets you zoom in the image without deterioration. The digital zoom function is only available when the LCD monitor is on.

Set:Ok

1. Set the mode dial to

2. Compose your picture while viewing the

LCD monitor.

3. Press the button until the maximum

telephoto position. Press the

button again to activate the

digital zoom.

Toggle continuously the button. Digital zoom range is from 1.25x to 2x (1.25 ==> 1.50 ==> 1.67 ==> 1.75 ==> 2.00)

To exit the digital zoom, toggle continuously the button and return to

the optical zoom status.

4. Press the shutter button to capture a “zoomed” image.

24-E

Self-Timer

This feature allows you to get into the scene when taking group images.

User’s Manual >>

1. Secure the camera to a tripod or place it

on a stable surface.

2. Set the mode dial to .

3. Toggle the button to select the desired

self-timer mode.

OFF 02 10 10+2

[no indication]

4. Press the shutter button.

The self-timer function is activated.

To cancel the self-timer at any time,

press the button to disrupt the

sequence.

After an image is taken using self-timer, the self-timer mode is turned off.

If you wish to take another image using the self-timer, repeat these steps.

0007

E-25

Digital Camera >>

The table below will help you choose the appropriate self-timer mode:

Self-timer mode Icon Description

2-sec. 02 The picture is taken about 2 seconds after the

shutter button is pressed.

10-sec. 10 The picture is taken about 10 seconds after

the shutter button is pressed.

10+2-sec. 10+2 The picture is taken about 10 seconds after

the shutter button is pressed, then the camera

prepares for another shot (i.e. writing the

recorded picture into the memory/memory

card and charging the flash). The other shot

is taken 2 seconds after this preparation is

completed.

Flash

The flash is designed to function automatically when lighting conditions warrant

the use of flash. You can take an image using a flash mode suitable to your

circumstances.

1. Set the mode dial to .

2. Press the

desired flash mode appears.

3. Compose the image and press the shutter

button.

26-E

button repeatedly until the

If you will not be using the flash, turn it off. Turning the flash OFF will

result in faster camera startup and faster operation because the capacitor

will not be charged needlessly. Turning the flash OFF when not needed,

will also improve battery life.

0007

The camera has four flash modes: Automatic Flash, Red-Eye Reduction, Fill

Flash (On), and Flash Off. The table below will help you choose the appropriate

flash mode:

Flash mode Icon Description

Auto flash The flash fires automatically according to the

ambient lighting conditions. Select this mode

for general flash photography.

Red-eye reduction The flash emits a precursor-flash before the

main flash fires. This causes the pupil in the

human eye to constrict, reducing the red-eye

phenomenon. Select this mode when taking

images of people and animals in low-light

conditions.

Fill flash The flash will always fire regardless of the

surrounding brightness. Select this mode for

recording images with high contrast

(backlighting) and deep shadows. Also known

as forced flash.

Flash off The flash will not fire. Select this mode when

taking images in a place where flash

photography is prohibited, or when the

distance to the subject is beyond the effective

range of the flash.

User’s Manual >>

E-27

Digital Camera >>

PLAYBACK MODE

In the mode, you can view, magnify, delete images, play video clips, or run a

slide show. Playback mode also provides a thumbnail image display, allowing

you to quickly search for the image you want.

Viewing Images

When you take a still image or movie, it is immediately stored in internal memory

or on an SD memory card. Still images and movies in internal memory or on an

SD memory card can be displayed on the LCD monitor.

To view still images, follow the steps below:

1. Set the mode dial to .

The last still image taken is displayed.

For movies, the first frame is displayed

as a still image.

2. Move to the still image you want to view

using the / buttons.

If you press the button, you can view

the next still image or movie.

If you press the button, you can view

the previous still image or movie.

Images are played back from the following recording media:

- When no memory card is loaded, it plays back from internal memory.

- When an SD memory card is loaded, it plays back from SD memory card.

If there are no images stored in memory, the “No image !” message will

appear on the LCD monitor.

28-E

01/04

Zoom Playback

While reviewing your images, you may enlarge a selected portion of an image. This magnification allows you to view fine details.

1. Set the mode dial to .

2. Select the image that you want to view

using the

3. Enlarge the image using the

Toggle the button can magnify the image up to 6x (1.33 ==> 2.00 ==>2.20 ==> 2.40 ==> 2.60 ==> 2.80 ==> 3.00 ==> 3.20 ==> 3.40 ==> 3.60 ==> 3.80 ==> 4.00 ==> 6.00). Toggle the button to reduce the magnification level.

4. To view the different portion of the enlarged image, press the / / /

buttons.

5. To return to the regular display (cancel playback zoom) from enlarged status,

toggle the

/ buttons.

button.

button until the normal screen is display on the LCD monitor.

Displaying Thumbnail Images

This function allows you to view as many as nine thumbnail images on the LCD monitor simultaneously so you may search for a particular image.

User’s Manual >>

1. Set the mode dial to .

2. Press the

button.)

Nine thumbnail images appear on the LCD monitor (Assuming there are nine or more images in memory).

3. To view a full-size image, selecting it using

the the OK button and the selected image will

be displayed in the full LCD frame.

button. (Same as the /

/ / / buttons, and then press

E-29

Digital Camera >>

Slideshow Display

The slideshow function enables you to playback your images back automatically

in sequential order as a slide show. This is a very useful and entertaining

feature for reviewing recorded images and for presentations.

1. Set the mode dial to .

2. Press the MENU button and move to

[Slideshow] using the / buttons.

3. Press the OK button.

4. Set the playback interval using the /

buttons and press the OK button.

The slideshow starts, displaying your

images on the LCD monitor, one by

one, at the set interval.

To stop the slideshow display, press the

OK button. Until stopped, the slideshow

will repeat itself.

You can adjust the slideshow display interval from [1 sec], [3 sec], [6 sec]

or [10 sec].

If you wish to exit from the [Slideshow] menu and return to the playback

mode, select [Exit] on the menu setting options.

10 sec

Exit

Set:Ok

30-E

Viewing on a Television

You can also view the still images and movies you have taken on a TV screen.

The camera displays everything on the TV screen just as on its LCD Monitor.

To use your television for viewing, connect your camera to the television with

the Video cable that came with your camera.

1. Securely connect the Video cable to the

Video In terminal on the television.

2. Make sure the power is off.

3. Securely connect the Video cable to the

Video Out terminal.

4. Set the television to “Video” mode.

5. Set the mode dial to .

6. Turn your camera on by pressing the

POWER button.

You can set the TV format to [NTSC] or [PAL] in the Setup menu before

connecting.

User’s Manual >>

E-31

Digital Camera >>

Deleting Images

You can easily delete still images and video clips that have not come out right.

The following are the three ways to delete photos:

One shot at a time

- Using the button.

- Using the [Delete] menu.

All frames at once

To delete one image or movie (Quick Delete):

1. Set the mode dial to .

2. To delete the last recorded image/video clip,

press the

3. When the delete message appears, select

[Yes] using the / buttons and then

press the OK button.

If you wish to cancel the deletion, select

[No].

It returns to the preview screen.

To delete one image/movie:

1. Set the mode dial to .

2. Select the image/video clip you wish to

delete using the / buttons.

3. Press the MENU button.

4. Select [Delete] using the / buttons and

press the OK button.

5. Select [This image] using the / buttons

and press the OK button.

6. To confirm the deletion on the selected

image, select [Yes] using the / buttons

and press the OK button.

32-E

The next image/video clip appears.

button (same as the button).

Delete

This image

All images Format Exit

Set:Ok

To delete all images or movies (at once):

1. Set the mode dial to .

2. Press the MENU button.

3. Select [Delete] using the / buttons

and press the OK button.

4. Select [All images] using the / buttons

and press the OK button.

5. To confirm the deletion all images, select

[Yes] using the / buttons and press

the OK button.

The message “No image !” appears on

the LCD screen.

To delete images or videos stored in internal memory, do not insert a

memory card into the camera. Otherwise, you will delete the images or

video clips stored on the memory card.

Protected images or videos cannot be erased.

User’s Manual >>

E-33

Digital Camera >>

Formatting Media

This utility formats the internal memory (or memory card) and erases all stored

images and data.

1. Set the mode dial to .

2. Press the MENU button.

3. Select [Delete] using the / buttons and

press the OK button.

4. Select [Format] using the / buttons

and press the OK button.

5. To format the memory card/internal

memory, select [Yes] using the / buttons

and press the OK button.

Formatting is an irreversible action and data cannot be recovered at a

later time.

To format the internal memory, do not insert a memory card into the

camera. Otherwise, you will format the memory card.

Set:Ok

34-E

Copying the Contents of Internal Memory to a

Memory Card

This feature allows you to copy your images from the camera’s internal memory

to an SD memory card. Of course, you can only do this if you have an SD

memory card installed and some images in internal memory.

To copy still images and movies from internal memory to SD memory card,

follow the steps below:

1. Be sure the camera power is off and insert

the SD memory card.

2. Turn the camera on.

3. Set the mode dial to .

4. Press the MENU button.

5. Select [Copy to card] using the /

buttons and press the OK button.

6. To proceed with the copying process, select

[Yes] using the / buttons and press

the OK button.

The display indicates copying is in

progress; once finished, you return to the

playback screen.

Copy to card

Set:Ok

User’s Manual >>

It is not possible to copy from SD memory card to internal memory.

E-35

Digital Camera >>

Changing the Camera Startup Logo

This feature lets you specify one of your recorded images as your setup screen

image, which will be displayed on the LCD monitor whenever you turn on the

camera.

To activate the new startup logo, follow the steps below:

1. Set the mode dial to .

2. Display the still image you want to specify

using the / buttons.

3. Press the MENU button.

4. Select [Save as logo] using the /

buttons and press the OK button.

5. Select [Customize] using the / buttons

and press the OK button.

6. To set the new logo, select [Yes] using the

/ buttons and press the OK button.

This new logo will be activated on the

next time you turn on the camera.

7. Press the MENU button to exit from the

menu mode.

Set:Ok

36-E

Setting the DPOF

DPOF is a standard for recording printing information directly on the SD memory

cards and other media. Files saved in the DPOF format can be printed using

compatible printers or through a laboratory printing device.

1. Set the mode dial to .

2. Display the still image you want to specify

using the / buttons.

3. Press the MENU button.

4. Select [DPOF] using the / buttons and

press the OK button.

5. Select the [Quantity]/[Set image] using the

/ buttons and press the OK button.

[Quantity]: Allow you to select the

image quantity (1~9).

Use the / buttons to

select the image quantity

and press the OK button.

[Set image]: Allow you to confirm the

DPOF setting.

Use the / buttons to

select [Yes] and press the

OK button.

6. Press the MENU button to exit from menu

mode.

User’s Manual >>

This function can be used only on still image files that are saved on

memory cards.

E-37

Digital Camera >>

Protecting Images

This feature prevents images from being deleted accidentally.

1. Set the mode dial to .

2. Select the image that you want to protect

using the / buttons.

3. Press the MENU button.

4. Select [Protect] using the / buttons

and press the OK button.

5. Select [Single]/[All] using the / buttons

and press the OK button.

[Single]: Protect one image/movie.

[All]: Protect all images/movies (at

once).

6. Select [Set] using the / buttons and

press the OK button.

To cancel the protection, select [Cancel].

To exit from this menu, select [Exit].

Protect Single

All

Protect Single Set

Cancel Exit

38-E

MOVIE MODE

0:00:20

Recording Video Clips

The movie mode allows you to record video clips at a resolution of 320 x 240

pixels.

1. Set the mode dial to .

2. To start recording a video clip, press the

shutter button. Shooting continues until you

press the shutter button again.

3. Pressing the shutter button again stops

recording.

Flash/self-timer cannot be used.

Before start shooting movies, you can use zoom features to zoom in/out

on the subject. Digital zoom feature is disabled in this mode.

User’s Manual >>

E-39

Digital Camera >>

03:03

Viewing Video Clips

Play back movies that you have recorded.

To view a recorded video clip, follow these steps:

1. Set the mode dial to .

2. Move to the movie you want to see using

the / buttons.

3. Press the OK button.

Playback begins.

The elapsed playback indicator or the

elapsed time is displayed on the LCD

monitor.

Press the OK button again to stop the

playback. (To pause/resume: press the

button)

40-E

The zoom function cannot be activated during movie playback.

To play the video clip back on your computer, you may use either

Windows Media Player or Apple “QuickTime Player”.

QuickTime basic player is available free of charge, compatible with both

Mac- and Windows- computers and can be download from the Apple

web site at www.apple.com. For help using QuickTime Player usage,

please refer to the QuickTime on-line help for more information.

TRANSFERRING RECORDED IMAGES

AND VIDEOS TO YOUR COMPUTER

To transfer images/video clips from the camera to your computer, follow these

steps:

Step 1: Installing the USB driver (Windows 98 and Mac OS 8.6 users only)

Step 2: Connecting the camera to your computer

Step 3: Downloading image and video files

System Requirements (Windows)

Pentium 166 MHz or higher

Windows 98/98SE/Me/2000/XP

64MB RAM

128MB hard disk space

CD-ROM drive

Available USB port

System Requirements (Macintosh)

PowerPC G3/G4

OS 8.6 or later

64MB RAM

128MB hard disk space

CD-ROM drive

Available USB port

User’s Manual >>

E-41

Digital Camera >>

Step 1: Installing the USB Driver

Windows 98 computers

The USB driver on the CD-ROM is exclusively for Windows 98 computers.

Installing the USB driver on computers running Windows 2000/Me/XP is not

necessary.

1. Insert the CD-ROM that came with the

camera into your CD-ROM drive.

The welcome screen appears.

2. Click “INSTALL USB DRIVER”. Follow the

on-screen instructions to complete the

installation. After the USB driver has been

installed, restart your computer.

Macintosh OS 8.6 computers

Mac OS 8.6 users must install a USB driver. For Mac OS 9.0 or higher, the

computer will automatically recognize the camera and load its own USB drivers.

1. Insert the CD-ROM that came with the camera into the CD-ROM drive.

2. Select and double-click “Digital Camera Driver Installer”.

3. Select “Install Location” and click “Install”.

4. Follow the on-screen instructions to complete the installation and restart

your computer.

42-E

Step 2: Connecting the Camera to Your Computer

1. Connect one end of the USB cable to an

available USB port on your computer.

2. Connect the other end of the USB cable to

the USB connector on the camera.

3. Turn the camera on.

4. From the Windows desktop, double click

on “My Computer”.

5. Look for a new “removable disk” icon. This “removable disk” is actually the

memory (or memory card) in your camera. Typically, the camera will be

assigned drive letter “e” or higher.

6. Double click on the removable disk and locate the DCIM folder.

7. Double click on the DCIM folder to open it to find more folders.

Your recorded images and video clips will be inside these folders.

Copy & Paste or Drag-N-Drop image and video files to a folder on your

computer.

Mac users: Double-click the “untitled” disk drive icon on our desktop. iPhoto

may automatically launch. The volume label may vary depending

upon whether you use internal camera memory, or a memory

card.

User’s Manual >>

E-43

Digital Camera >>

Step 3: Downloading Image and Video Files

When the camera is turned on and connected to your computer, it is considered

to be a disk drive, just like a floppy disk or CD. You can download (transfer)

images by copying them from the “removable disk” (“untitled” disk on a

Macintosh) to your computer hard drive.

Windows -

Open the “removable disk” and subsequent folders by double clicking on them.

Your images are inside these folder(s). Select the images that you want, then

choose “Copy” from the “Edit” menu. Open the destination location (folder) and

choose “Paste” from the “Edit” menu. You may also drag and drop image files

from the camera to a desired location.

Macintosh -

Open the “untitled” disk icon, and the destination location on your hard disk.

Drag and drop from the camera to the desired destination.

Memory card users may prefer to use a memory card reader (highly

recommended).

44-E

INSTALLING PHOTOSUITE

PC users will find that PhotoSuite is a very user-friendly image-editing program.

With PhotoSuite, you can retouch, compose, and organize your images. It

includes a variety of templates, such as photo frames, birthday cards, calendars

and more. Get your images ready and explore this amazing program.

To install PhotoSuite:

1. Insert the CD-ROM that came with the

camera into your CD-ROM drive. The

welcome screen appears.

2. Click “INSTALL PHOTOSUITE”. Follow the

on-screen instructions to complete the

installation.

To use PhotoSuite to edit and retouch your recorded images, please

refer to the on-line help.

For Windows 2000/XP users, please make sure to install and use the

PhotoSuite in “Administrator” mode.

PhotoSuite is not supported on the Mac. iPhoto or iPhoto2 is

recommended.

User’s Manual >>

E-45

Digital Camera >>

INSTALLING PHOTOVISTA

PC users will find that PhotoVista is an easy-to-use program that lets you create

spectacular 3600 panoramic images in a snap. When you view these panoramas,

you get the experience of being totally immersed in a realistic environment.

PhotoVista’s powerful engine quickly and automatically stitches images together,

and its intuitive interface will let even a novice get great results in minutes.

To install PhotoVista:

1. Insert the CD-ROM that came with the

camera into your CD-ROM drive. The

welcome screen appears.

2. Click “INSTALL PHOTOVISTA”. Follow the

on-screen instructions to complete the

installation.

To use PhotoVista to create spectacular 3600 panoramic images, please

refer to the on-line help for this software.

For Windows 2000/XP users, please make sure to install and use the

PhotoVista in “Administrator” mode.

PhotoVista is not supported on the Mac.

Windows XP users who have not installed XP Service Pack 1, be sure

to link to http://www.java.com/en/download/windows_automatic.jsp first

and download the Java Virtual Machine installation. For more information

about Java, please refer to its on-line help at http://java.sun.com/getjava/

help.html.

After this Java installation, you can install iSee Media PhotoVista.

PhotoVista System Requirements are:

* Windows 98, Windows NT 4 (Service Pack 3 or higher)

* Windows 2000, Windows Me, Windows XP Service Pack 1 or higher

46-E

MENU OPTIONS

The Basic of the Menu Operation

To display the menu:

1. Set the mode dial to

If the mode dial is set to SET, the Setup menu appears. Skip Step 2.

2. Press the MENU button.

The menu appears.

To select an item:

1. Press the / buttons to select the desired item.

2. Press the OK button to enter the field menu.

To select a setting value:

1. Press the / buttons to select the setting.

2. Press the OK button to confirm the selection.

To implement a confirmation screen:

1. Press the / buttons to select [Yes].

2. Press the OK button.

/ / .

User’s Manual >>

E-47

Digital Camera >>

OSD Menus

To display the related menu options, press the MENU button.

Record Menu

48-E

Image size

Setting

Image size

Quality

2032 x 1520

+0.5 Auto Auto

Set:Ok

Date imprint On

Scene Auto

Set:Ok

Description

Sets the image resolution. Refer to section in

this manual titled “Setting Image Resolution

and Quality” for further details.

Sets the image quality. Refer to section in this

manual titled “Setting Image Resolution and

Quality” for further details.

Your camera adjusts the exposure of each

scene automatically. However, if the subject

is very dark, or very bright, you may override

the camera’s automatic exposure determination

to make the subject brighter or darker. This is

called EV compensation.

Examples of Exposure Compensation:

Positive (+) Compensation

- Imaging printed text (black characters on

white paper)

- Portraiture with back lighting

- Very bright scenes (such as snow) and highly

reflective subjects

- Shots made up predominantly of sky

Option

2032 x 1520

1600 x 1200

1280 x 960

640 x 480

Super fine

Fine

Normal

-2.0 ~ +2.0

White balance

ISO

Date imprint

Scene

Negative (-) Compensation

- Spot lighted subjects, particularly against

dark backgrounds

- Imaging of printed text (white characters on

black paper)

- Scenes with low reflectivity, such as shots of

green or dark foliage

Your camera adjusts the white balance of each

scene automatically. However, the images that

your camera captures will appear different

under different lighting conditions (sun, shade,

fluorescent, tungsten lights). Unlike your eyes,

which can easily adjust to different lighting

conditions (lighting temperatures), a digital

camera cannot always differentiate between

lighting types. Under some lighting conditions

the image may appear in strange shades. If

that occurs you may change the white balance

setting by specifying a lighting condition

(temperature) most appropriate for your scene.

The ISO speed defines light sensitivity. The

higher the ISO number is, the more sensitive

it is to light. When recording under dark

situations or recording a fast-moving subject,

use a high-number setting. When recording

high-quality images, use a low-number setting.

You can stamp the date on the bottom left of

your still images.

Refer to section in this manual titled “Shooting

with Scenery-Matching” for further details.

Auto

Daylight

Cloudy

Sunset

Tungsten

Fluorescent

Auto

100

200

Off Auto

Landscape Sports Portrait Pan Night scene Backlight

User’s Manual >>

E-49

Digital Camera >>

Movie Menu

White balance Auto

Set:Ok

Setting Description Option

White balance Refer to section in this manual titled Auto

“White balance” in the Record Menu for Daylight

further details. Cloudy

Sunset

Tungsten

Fluorescent

50-E

Playback Menu

User’s Manual >>

Delete

Copy to card Slideshow DPOF

Save as logo Customize

Set:Ok

Setting

Delete

Description
